Article

Excessive Substitution of Fish Meal with Fermented Soybean Meal Induces Oxidative Stress by Impairing Glutathione Metabolism in Largemouth Bass (Micropterus salmoides)

by
Qiang Chen
1,
Congcong Wang
1,
Yulong Sun
1,
Yan Chen
2,
Songming Chen
1,
Tao Han
1,* and
Jiteng Wang
1
1
Department of Aquaculture, Zhejiang Ocean University, Zhoushan 316022, China
2
Zhejiang Provincial Engineering Technology Research Center of Marine Biomedical Products, School of Food and Pharmacy, Zhejiang Ocean University, Zhoushan 316022, China
*
Author to whom correspondence should be addressed.
Antioxidants 2023, 12(12), 2096; https://doi.org/10.3390/antiox12122096
Submission received: 24 October 2023 / Revised: 5 December 2023 / Accepted: 7 December 2023 / Published: 11 December 2023
(This article belongs to the Special Issue Oxidative Stress and Nutrition in Aquatic Animals)
Browse Figures
Versions Notes

Abstract

:
The application of fermented soybean meal (FSBM) is an effective strategy to alleviate the shortage of fish meal (FM) in aquaculture. However, an excessive substitution ratio often reduces fish growth and induces liver oxidative stress, while the mechanism remains poorly understood. Here, an 8-week feeding trial was conducted in largemouth bass (initial weight: 6.82 ± 0.09 g) to establish an oxidative stress model by replacing 50% of FM with FSBM (fermented by Bacillus subtilis). The results showed that FSBM substitution significantly reduced the growth performance of largemouth bass, including the weight gain rate and specific growth rate. Moreover, FSBM significantly reduced the contents of essential amino acids and total free amino acids in muscle, along with the mRNA expression of amino acids and small peptide transporters. Enzyme activity detection and liver sections showed that FSBM substitution caused liver oxidative stress, indicating the successful construction of an oxidative stress model. An integrated analysis of transcriptomic and metabolomic data revealed that FSBM substitution impaired glycine, serine and threonine metabolism, as well as glutathione metabolism. In addition, the ratio of reduced glutathione (GSH) to oxidized glutathione (GSSG) was decreased in the FSBM group, which may explain the mechanism of oxidative stress caused by FSBM substitution. Considering that glycine is an important component of glutathione synthesis, key genes involved in glycine metabolism (glya, gnmt and agxt) and dietary glycine supplementation should be valued to improve the availability of FSBM. This study reveals for the first time the importance of non-essential amino acids in improving the utilization of plant-based protein sources and provides original insight for the optimization of aquatic feeds.

Graphical Abstract

1. Introduction

Finding a suitable protein source to replace fish meal (FM) is a crucial method to ensure the healthy and sustainable growth of aquaculture, particularly given the scarcity of FM supplies and the increase their price. Vegetable protein source soybean meal (SBM) is a viable alternative to FM because of its inexpensive cost and plentiful availability [1]. Moreover, SBM is improved via fermentation technology to decrease anti-nutritional factor (ANF) levels and increase crude protein contents [2,3]. Fermented soybean meal (FSBM) is widely applied in aquaculture [4,5]. However, the ability of FSBM to completely replace FM in aquatic feed is currently restricted, and excessive FSBM substitution reduces the growth performance of fish and induces liver damage [6].
The growth-promoting function of protein sources in feed depends on the amino acid profile. Hence, in addition to the inevitable ANFs, the restriction of FSBM substitution is largely due to its unbalanced amino acid composition [7,8]. In the past, more attention has been placed on the differences in essential amino acid contents between FSBM and FM, including methionine (Met), lysine (Lys) and threonine (Thr). Correspondingly, crystalline amino acids were also added to feed to improve the utilization of FSBM by aquatic animals [9,10]. In contrast, non-essential amino acids are less recognized. Recently, the concept of “functional amino acids” has strengthened the understanding of non-essential amino acid functions [11]. In addition to being protein substrates, they also have vital biological functions such as regulating metabolism and improving immunity [12]. Among them, the content of glycine (Gly) in FSBM is lower than that in FM as shown in previous findings in our lab and a published study [13]. Gly promotes muscle development and relieves inflammatory responses [14,15]. Moreover, as a synthetic substance of glutathione [16], Gly enhances the antioxidant capacity both in mammals and aquatic animals [17,18]. Hence, excessive FSBM may cause oxidative stress by disrupting Gly-glutathione metabolism, thereby reducing the growth of fish. However, the specific mechanism still requires further exploration.
Largemouth bass (Micropterus salmoides) is one of the most important freshwater cultured species in China, with a total production of about 700,000 tons (China Fishery Statistical Yearbook, 2022). However, as a carnivorous fish, largemouth bass has a high requirement for dietary protein, which mainly comes from FM [19]. It is of great economic value to investigate the parameters that restrict the substitution of FM with FSBM. The data from our lab and previous studies indicated that FSBM could replace 30–40% of FM in feed without negative effects on the growth performance and liver health of largemouth bass [20,21]. In the present study, soybean meal was fermented using Bacillus subtilis to improve its nutritional value. An 8-week feeding trial was conducted to explore the mechanism of growth inhibition and oxidative stress caused by excessive substitution of FM with FSBM (replacing 50% of FM with FSBM). Through amino acid analysis, histology and qRT-PCR, combined with transcriptomics and metabolomics analyses, we found that excessive FSBM contributes to oxidative stress and liver injury by disrupting glycine-serine-threonine metabolism and glutathione metabolism in largemouth bass, which is an important reason to limit the proportion of FSBM replacement. Due to the relationship between Gly and glutathione, these findings highlight the importance of non-essential amino acids and may provide theoretical guidance for the improvement of aquatic feed formula.

2. Materials and Methods

2.1. Ethics Statement

In the current study, experimental fish were handled and utilized in compliance with the animal welfare protocols authorized by Zhejiang Ocean University, as well as local and international guidelines.

2.2. Experimental Diets

Soybean meal was fermented using Bacillus subtilis according to a previously described method [22]. The amino acid profile of FSBM is shown in Supplementary Table S1. Two isonitrogenous (approximately 46% crude protein) and isolipidic (approximately 12% crude lipid) diets were formulated. The control diet (CON) contained 62% FM, while in the FSBM diet, 50% of FM was substituted with FSBM. Based on the protein requirement [23] and the characteristic of high dietary protein demand [19], the crude protein was set to about 48%. Crystalline Met and Lys were supplemented in the FSBM diet to satisfy the growth needs of largemouth bass [24,25]. Correspondingly, alanine was used to maintain a nitrogen balance in the CON diet. Details on feed formulations are provided in Table 1. After smashing, mixing and extruded pelletizing, all the pellets were stored at −20 °C until use. The amino acid composition of the experimental diets is shown in Table 2.

2.3. Animal Feeding Procedure and Sampling

Juvenile largemouth bass were purchased from Chia Tai Aquatic Products Co., Ltd. (Huzhou, Zhejiang, China). After acclimating to the experimental conditions for two weeks, 120 healthy fish with similar sizes (mean weight 6.82 ± 0.09 g) were randomly divided into 6 tanks (water volume, 150 L), with triplicate groups for each diet. Fish were fed to apparent satiation twice daily at 8:00 and 17:00 for 8 weeks. The water conditions (temperature: 26 ± 2 °C; dissolved oxygen: 6–7 mg/L) were optimal for largemouth bass growth during the experimental period.
At the end of the experiment, fish were starved for 24 h and anesthetized with MS-222 (1:10,000; Sigma, St. Louis, MO, USA). All the fish were weighed to determine the weight gain rate (WG), specific growth rate (SGR) and feed efficiency ratio (FER). The weights of liver and the visceral mass were recorded to calculate the hepato-somatic index (HSI) and the viscera-somatic index (VSI). Six fish from each tank were utilized to collect serum, liver and muscle samples, which were then stored at −80 °C until analyzed.

2.4. Biochemical and Histological Analysis

The moisture of feed was assessed in a lyophilizer (Freeze Dryer LL1500, Thermo Fisher Scientific, Waltham, MA, USA) by drying to a consistent weight. The crude lipids in the feed were measured with the ether extraction method using Soxhlet apparatus (E816, Buchi, Flawil, Switzerland). The crude protein concentration was analyzed via the Kjeldahl method (N × 6.25) (K355/K437, Buchi, Flawil, Switzerland). Ash was measured with a muffle furnace at 550 °C for 12 h. All the above methods complied with the details described by the Association of Official Analytical Chemists (AOAC) [27].
The antioxidant indexes in the serum and liver were determined with commercially available kits (Nanjing Jiancheng Bioengineering Inc., Nanjing, China). The available kit information is listed as follows: alanine transaminase (ALT) assay kit (cat. no. C009-2-1), aspartate aminotransferase (AST) assay kit (cat. no. C010-2-1), superoxide dismutase (SOD) assay kit (WST-1 method) (cat. no. A001-3-2), catalase (CAT) assay kit (Visible light) (cat. no. A007-1-1), total antioxidant capacity (T-AOC) assay kit (ABTS method) (cat. no. A015-2-1) and reduced glutathione (GSH) assay kit (cat. no. A006-2-1).
Pieces of livers were fixed in 4% paraformaldehyde for histochemical and histological examination. For morphological investigations, paraffin-embedded liver slices were stained with hematoxylin and eosin (H&E).

2.5. Free Amino Acid Analyses in Serum and Muscle

The free amino acid profiles in serum and muscle were measured with a lipid chromatograph (Agilent, 1260 Infinity Ⅱ, Santa Clara, CA, USA) according to the manufacturer’s instructions. Briefly, salicylic acid was used to hydrolyze muscle homogenate or serum. Acetonitrile and sodium bicarbonate were then added and mixed at a ratio of 1:1. After centrifuging the mixture for 10 min at 15,000 rpm, the supernatant was measured using a lipid chromatograph.

2.6. RNA Extraction, Reverse Transcription, and Real-Time Polymerase Chain Reaction (qPCR)

The total RNA of liver and muscle was extracted with TRIzol Reagent (R401-01, Vazyme, Nanjing, China) according to a previously described method [28]. After quantification by a NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA), the RNA was reverse transcribed into first-strand cDNA using a PrimeScript RT Reagent Kit (RR047Q, Takara, Japan). qPCR was performed using SYBR qPCR Master Mix (Q711-02, Vazyme) following approved methods. Primers were developed in line with published NCBI sequences and are reported in Supplementary Table S2. In the trial, the mRNA expression of glyceraldehyde 3-phosphate dehydrogenase (gapdh) was not affected by different diets. Hence, gapdh was used as the housekeeping gene. The comparative cycle threshold (CT) approach (2−ΔΔCT method) was used to quantify gene mRNA levels [29].

2.7. Transcriptomic Analysis in the Liver

A transcriptomic analysis was conducted according to a previously described method [30]. In brief, three liver samples from each diet were sent to Biomarker Technologies Co. (Beijing, China). After obtaining high-quality RNA, sequencing was performed on an Illumina NovaSeq6000. The bioinformatics analyses, which included a Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis and a Gene Ontology (GO) analysis of differentially expressed genes (DEGs), were implemented using OmicShare tools (https://www.omicshare.com/) (accessed on 14 August 2022).

2.8. Untargeted Metabolomics in the Liver

Six liver samples were prepared and sent to Biomarker Technologies Co. (Beijing, China). Data quality evaluation, annotation analysis, and metabolite functional enrichment were all carried out. Furthermore, annotated metabolites were uploaded to BMKCloud (www.biocloud.net) (accessed on 14 August 2022) for further investigation of different metabolites (DMs). A bioinformatics analysis of DMs was performed on the OmicShare platform (https://www.omicshare.com/) (accessed on 14 August 2022).

2.9. Integrated Analysis of Transcriptomics and Metabolomics in the Liver

The DGs screened by transcriptomes and DMs screened by metabolomes were analyzed together on the OmicShare platform, including gene-metabolite association heatmap and KEGG mapping results. KEGG co-enrichment pathways and biological processes were screened out and the key metabolites and genes affected by diets were also identified.

2.10. Statistical Analysis

Except for the data from RNA-seq and the untargeted metabolomics, all the data are provided as the means ± standard deviation (SD). After analyzing for normality and homoscedasticity, comparisons between two groups were carried out using independent t tests in SPSS 23.0 software. Statistical significance was determined as p < 0.05. The number of replicates for each experiment is indicated in the figure legends.

3. Results

3.1. FSBM Substitution Reduced the Growth Performance of Juvenile Largemouth Bass

After the 8-week feeding trial, the growth performance of juvenile largemouth bass was analyzed, as presented in Figure 1. Compared with the control diet, FSBM substitution did not affect the survival rate (Figure 1H). However, FSBM substitution significantly decreased the final body weight, weight gain rate, specific growth rate and feed efficiency ratio (Figure 1B–E; p < 0.05), indicating that FSBM substitution significantly inhibited the growth of largemouth bass. Moreover, FSBM substitution decreased the viscera-somatic and hepato-somatic indices (Figure 1F,G; p < 0.05), which demonstrated that FSBM substitution might cause liver damage.

3.2. FSBM Substitution Inhibited Amino Acid Transporter Expression and Decreased Total Essential Amino Acid Contents in Muscle

The growth suppression may be due to the differences in amino acid composition between FSBM and FM, which also affects the free amino acid profile in fish. Hence, the free amino acid concentrations in serum and muscle were measured via a lipid chromatograph. Unexpectedly, FSBM substitution had little effect on free amino acids in serum. FSBM substitution significantly increased histidine (His; Figure 2A), asparagine (Asn) and ornithine (Orn) levels while decreasing phenylalanine (Phe) and glycine (Gly) levels (p < 0.05; Figure 2B). However, FSBM substitution had no significant influence on total essential amino acids (EAAs), total non-essential amino acids (NEAAs) and total free amino acid levels (Figure 2C–E). In contrast, FSBM substitution significantly decreased the contents of total EAAs, total NEAAs and total free amino acids in muscle (p < 0.05; Figure 2H–J). Further analysis revealed that FSBM substitution significantly increased His, threonine (Thr), arginine (Arg) and proline (Pro) levels, but decreased Phe, leucine (Leu), lysine (Lys), glutamate (Glu), serine (Ser), Gly, alanine (Ala) and tyrosine (Tyr) levels (p < 0.05; Figure 2F,G). The qRCR results showed that FSBM substitution significantly decreased the mRNA expression of amino acids, small peptide transporters (lat1, y + lat2, y + lat1 and pept2) and bcat2 in muscle (Figure 2K).

3.3. FSBM Substitution Caused Liver Damage by Inducing Oxidative Stress

Anti-nutritional factors (ANFs) in vegetable materials not only affect aquatic animal digestion and absorption, but also induce oxidative stress and thus cause liver damage [31]. In the present study, the antioxidant indices in liver were determined. FSBM substitution significantly enhanced the activities of AST and ALT in serum (p < 0.05; Figure 3A), which indicates that FSBM substitution induced liver damage. Concomitantly, the activities of CAT, SOD and T-AOC in serum were also decreased by FSBM substitution (p < 0.05; Figure 3A). Correspondingly, FSBM substitution decreased the activities of CAT and SOD and the contents of GSH in the liver (p < 0.05; Figure 3B). The qRT-PCR results showed that FSBM substitution decreased the mRNA expression of antioxidant enzymes (sod1, sod2 and cat) (p < 0.05; Figure 3C). Moreover, FSBM substitution disturbed the balance in the Keap1-Nrf2 system by activating Keap1 and inhibiting Nrf2 (p < 0.05; Figure 3C). Oxidative stress is often accompanied by the occurrence of inflammation. The results showed that FSBM substitution significantly enhanced the mRNA expression of proinflammatory cytokine (tnf-α, il-6 and il-1β) (p < 0.05; Supplementary Figure S1). H&E sections showed that FSBM substitution increased the nucleus of hepatocytes (Figure 3D,E), indicating structural damage to the liver.

3.4. Transcriptome Analysis in the Liver Indicated That FSBM Substitution Affected Glycine, Serine and Threonine Metabolism and Glutathione Metabolism

To further analyze the mechanism by which FSBM substitution inhibited growth performance and induced liver oxidative stress, a transcriptome analysis in the liver was conducted. A total of 4230 differentially expressed genes (DEGs) were annotated, with 2538 downregulated and 1692 upregulated genes (Figure 4A). Gene Ontology (GO) function annotations indicated that most DEGs were enriched in a single-organism process, a cellular process and a metabolic process (biological process), cells, cell parts and membranes (cellular component), binding, catalytic activity and transporter activity (molecular function) (Supplementary Figure S2). To identify the active biological pathways in largemouth bass, DEGs were annotated using the Kyoto Encyclopedia of Genes and Genomes (KEGG). A total of 528 DEGs were enriched in the immune system and 667 DEGs were enriched in signal transduction (Figure 4B), which further indicates that FSBM substitution caused immune disorders. These immune disorders induced by external nutrients are often related to metabolic disorders in the liver. Hence, DEGs associated with metabolism attracted more attention. KEGG pathway annotation showed that 185 DEGs were enriched in lipid metabolism, 150 DEGs were enriched in carbohydrate metabolism and 146 DEGs were enriched in amino acid metabolism (Figure 4B). Specific pathway enrichments included glycine, serine and threonine metabolism, glycolysis/gluconeogenesis and fatty acid degradation (Figure 4C–E). To further demonstrate the relevance of the three major nutrient metabolisms in FSBM substitution, a KEGG advanced grid map was developed. aldh9a1, aldh and frma genes connected fatty acid degradation and glycolysis/gluconeogenesis. pgam and dld genes connected glycolysis/gluconeogenesis and glycine and serine and threonine metabolism (Figure 4F).
Further analysis of the changes in specific gene abundance revealed that FSBM substitution reduced the gene expression of antioxidant enzymes (Table 3; Figure 4G), which was validated by qPCR in some cases (Figure 3C). Considering that FSBM substitution affected glycine, serine and threonine metabolism and that glycine is a precursor to the synthesis of glutathione, an important antioxidant mediator, 14 DEGs associated with glutathione metabolism were also annotated (Table 4; Figure 4H), some of which (odc1, gsto1, gpx1b, idh2 and rrm1) were validated via qPCR (Figure 4I). Taken together, these results indicated that a fluctuating glutathione metabolism might contribute to oxidative stress in the liver.

3.5. FSBM Substitution Changed the Metabolome Profile in the Liver

Through a transcriptome analysis, it was elucidated that FSBM substitution affected glycine, serine and threonine metabolism, as well as glutathione metabolism. A metabolomics analysis was performed to more directly analyze the trends of changes in metabolite profiles. A total of 1994 different metabolites (DMs) were annotated, including 811 downregulated and 1183 upregulated different metabolites (Figure 5A). KEGG pathway annotation showed most DMs were enriched in metabolism, including biosynthesis of other secondary metabolites and lipid metabolism, especially amino acid metabolism (Figure 5B). Specific pathways were mainly histidine metabolism, glycine, serine and threonine metabolism, glycolysis/gluconeogenesis, glycerolipid metabolism and the phospholipase D signaling pathway (Figure 5C–E). Similar to the transcriptome analysis, KEGG advanced grid maps were created to connect the metabolism of three major nutrients. D-glycerate 2-phosphate and 3-phospho-D-glycerate connected glycine, serine and threonine metabolism, glycerolipid metabolism and glycolysis/gluconeogenesis. Dihydroxyacetone phosphate connected glycerolipid metabolism and glycolysis/gluconeogenesis (Figure 5F).
The DMs associated with glutathione metabolism were also annotated. Moreover, glutathione metabolism and glycine, serine and threonine metabolism were connected by other amino acid metabolisms, including cysteine and methionine metabolisms, arginine and proline metabolisms and alanine, aspartate and glutamate metabolisms (Figure 5G). Compared with the CON diet, FSBM substitution decreased ascorbic acid, L-glutamate and glutathione levels while increasing trypanothione, trypanothione disulfide and glutathionylspermine levels (Table 5). The trend in GSH was confirmed by the commercial kits (Figure 3B). Correspondingly, a metabolome analysis also found that FSBM substitution increased the contents of oxidized glutathione (Table 6). Overall, the metabolomics data indicate that FSBM substitution impaired glutathione metabolism, which is consistent with the transcriptome data.

3.6. Integrated Analysis of Transcriptomics and Metabolomics Data

Both the transcriptomics and metabolomics data indicated that FSBM substitution affected glycine, serine and threonine metabolism, as well as glutathione metabolism. To better characterize DMs and explore the relationship between DMs and DEGs, an integrated analysis of transcriptomics and metabolomics data was conducted. A correlation analysis of DMs and DEGs related to three major nutrient metabolisms was performed (Figure 6A). Under FSBM substitution, histidine metabolism, glycine, serine and threonine metabolism, glycolysis/gluconeogenesis, arachidonic acid metabolism and glutathione metabolism were annotated in the common enrichment pathway of DEGs and DMs (Figure 6B). A Sankey plot associated DMs with DEGs mapped them to the relevant signaling pathways (Figure 6C). Further investigation revealed an association network consisting of 18 major genes and 6 DMs, with two different positive and negative correlation co-expression modules (Figure 6D). A directed grid graph analysis identified that there was a network of eight core genes (gnmt, cbs, gck, agxt, grhpr, aoc3, pgam and glya) and four metabolites (d-glycerate 2-phosphate, creatine, methylglyoxal and choline) in glycine, serine and threonine metabolism (Figure 6F). KEGG mapping of DEGs and DMs showed that FSBM substitution significantly affected glycine, serine and threonine metabolism (Figure 6H). Correspondingly, there was also an association network consisting of nine core genes and six DMs in glutathione metabolism (Figure 6E). ggt1_5, gst and E4.1.1.17 (odc1) genes connected trypanothione, glutathione, trypanothione disulfide, ascorbic acid and L-glutamate metabolites (Figure 6G). KEGG mapping of DEGs and DMs showed that glutathione metabolism was also significantly affected under FSBM substitution (Figure 6I).

4. Discussion

Aquaculture provides humans with many high-quality proteins and is an important guarantee of food security. However, the shortage of FM resources seriously limits the sustainable development of aquaculture. SBM is a crucial protein source in aquatic animal feed. Various biological technologies (enzymatic hydrolysis and fermentation) are used to improve its biological characteristics, making SBM more suitable for digestion and absorption by aquatic animals [32,33,34]. There are still many challenges in replacing FM with FSBM. The present study used a largemouth bass model to explore the mechanism of oxidative stress in the liver under a 50% substitution of FM by FSBM through a combined transcriptomics and metabolomics analysis system. The results indicated that a damaged glycine, serine and threonine metabolism, as well as glutathione metabolism, promoted the occurrence of oxidative stress, revealing the importance of non-essential amino acids in fish feed.
The development of FSBM focuses largely on the selection of bacteria. The FSBM used in the current study was fermented using Bacillus subtilis, which has been widely used in feed for aquatic animals, including Scophthalmus maximus [35], Litopenaeus vannamei [36], Rana catesbiana [37] and largemouth bass [21]. However, the ratio of FM substitution should be limited, as excessive substitution not only reduces animal growth but also induces oxidative stress, even after artificial essential amino acid supplementation, which was corroborated in the present study. Fermentation efficiently scavenges ANFs in FSBM; thus, the limiting factor may be the amino acid composition of the protein itself. The amino acid composition of feed often affects amino acid profiles in fish. In the present study, FSBM substitution had little effect on the free amino acid composition in the serum of largemouth bass, only affecting the contents of His, Phe, Asn and Orn. However, FSBM substitution significantly reduced the levels of free amino acids in muscle, including total EAAs, total NEAAs and total free amino acids, which is a little contradictory to previous studies. Results from largemouth bass and crabs indicated that FSBM substitution had a weak effect on the content of stable amino acids in muscle [38,39]. However, the above studies indicated that FSBM substitution reduced both the content of free and stable glycine in muscles. Further analysis revealed that FSBM reduced the expression of amino acid transporters (lat1, y + lat2 and y + lat1) and a small peptide transporter (pept2). Lat1 mediates the uptake of large neutral amino acids such as Phe, Tyr, His, Met, Trp, Val, Ile and Ala [40]. Y + lat2 is responsible for the transport of cationic amino acids (such as Arg) and neutral amino acids (such as Leu, Glu and Ile) [41]. Previous research in animals found that a higher availability of EAAs boosted muscle lat1 and y + lat2 expression [42]. In the present study, excessive dietary FSBM decreased the availability of EAAs and inhibited lat1 and y + lat2 expression in muscle, which has been confirmed by Wang et al. [43] and Sheng et al. [44]. Pept2 transports oligopeptides of two to four amino acids, with a preference for dipeptides, which can be activated by protein sources rich in small peptides [45]. However, high levels of FSBM inhibited the expression of pept2, which is consistent with previous results [46]. Overall, the decline in the expression of amino acid and small peptide transporters partly explains why FSBM substitution affected specific amino acid contents.
Another factor restricting FSBM replacement is that an excessive substitution ratio reduces the immunity of aquatic animals and induces oxidative stress. In the present study, FSBM substitution significantly enhanced the activities of ALT and AST. Correspondingly, FSBM substitution inhibited the activities of antioxidant enzymes in the serum and liver, together with the mRNA expression of antioxidant enzymes. Similar results were also shown in Macrobrachium nipponense [47] and Lateolabrax japonicus [48]. Intracellular oxidative and antioxidant systems are in dynamic balance. Among them, Keap1-Nrf2 is a critical antioxidant signaling pathway. Keap1 mediates the degradation of Nrf2 by proteasomes with a physiological status. Hence, Nrf2 is kept in a low expression state. Under stress, Nrf2 dissociates from Keap1 and enters the nucleus to initiate transcription of antioxidant enzymes [49]. In the present study, FSBM substitution activated Keap1 and inhibited Nrf2. Hence, the antioxidant systems were disrupted, resulting in damage to the liver structure. In order to gain a more comprehensive understanding of the transcriptional changes caused by FSBM substitution, a transcriptome analysis was conducted. In addition, DEGs related to antioxidant activity were annotated, demonstrating the accuracy of transcriptome sequencing. Due to the fact that diseases caused by nutrient availability are mainly attributed to metabolic disorders in the body, we have focused on DEGs related to the metabolism of three major nutrients, namely glycine, serine and threonine metabolism. Glycine is one of the most important components of intracellular antioxidant GSH. GSH mediates glutathione peroxidase (GPX) to exert antioxidant enzyme activity, catalyzing the conversion of H2O2 into H2O and aiding the transition from reducing GSH to oxidizing glutathione (GSSG) during this process [50]. gnmt, dmgdh and gcvh genes were all upregulated by FSBM substitution, which mediates glycine degradation [51]. Hence, intracellular GSH levels decreased in the FSBM group. In addition, DEGs associated with GSH metabolism were also annotated. ggt5b and gsto1 genes are responsible for GSH synthesis [52] and were both inhibited by FSBM substitution. Correspondingly, gpx1b decreased in the FSBM group. Overall, these data on the transcriptional level determined that disorders of glycine, serine and threonine metabolism and glutathione metabolism reduced the cellular antioxidant capacity.
The results of simple transcriptomics are partial, since there is a long biochemical process from genes to glutathione compounds that exert antioxidant functions. Therefore, we conducted a metabolomics analysis to further determine the role of glutathione metabolism in oxidative stress induced by FSBM. The KEGG enrichment results indicated that most DMs were enriched in metabolic processes. Similar to the transcriptomics analysis, glycine, serine and threonine metabolism and glutathione metabolic pathways were enriched. Betaine, chemically known as N, N, N-trimethylglycine, is often used as an attractant in aquatic feeds and has been shown to have strong antioxidant effects [53]. In the present study, the content of betaine was reduced by FSBM substitution. Creatine, which is synthesized from arginine, glycine and methionine, provides energy for biological activities and exhibits some antioxidant activities [54], and its content was decreased in the FSBM group. The KEGG advanced grid graph showed that glycine, serine and threonine metabolism is linked to glutathione metabolism by other metabolic pathways. Hence, metabolic disorders of glycine, serine and threonine are bound to affect glutathione metabolism. A metabolome analysis demonstrated that glutathione contents were reduced, while the GSSG contents were increased. The decrease in the ratio of GSH/GSSG also indicated the impairment of liver antioxidant capacity [55]. In addition, FSBM substitution also decreased the contents of L-glutamate, another amino acid that makes up glutathione. Taken together, these results indicated that FSBM substitution impaired glutathione metabolism, partially by reducing the contents of glycine and glutamate. Both transcriptomics and metabolomics data have demonstrated that FSBM substitution may cause oxidative stress by affecting glycine, serine and threonine metabolism, as well as glutathione metabolism. In order to find more accurate targets, DEGs and DMs involved in the two pathways were jointly analyzed. For glycine, serine and threonine metabolism, there are four key metabolites, including creatine, choline, D-glycate 2-phosphate and methylglyoxal. The intracellular metabolism of creatine and choline is closely related to glycine. Emerging evidence has shown that dietary creatine and choline supplementation alleviate oxidative stress in aquaculture [54,56]. Along with the results in the present study, the necessity of creatine and choline supplementation was highlighted in improving plant-based protein utilization. In addition, genes involved in glycine metabolism, including gnmt, glya and agxt, were core targets to relieve oxidative stress [51]. For glutathione metabolism, three key genes (odc1, ggt and gst) connected trypanothione, glutathione, trypanothione disulfide, ascorbic acid and L-glutamate. Among them, glutathione and ascorbic acid are both efficient antioxidants. The KEGG mapping results of DEGs and DMs further intuitively demonstrated the regulatory effect of FSBM on glycine, serine and threonine metabolism as well as glutathione metabolism.
In conclusion, the present study established a liver oxidative stress model in largemouth bass using 50% FSBM substitution and utilized transcriptome and metabolomic analyses to elucidate that impaired glycine, serine and threonine metabolism, as well as glutathione metabolism, exacerbated liver oxidative stress. Key genes (odc1, gnmt, agxt, ggt and gst) and core metabolites (glutathione, glutamate and glycine) should be evaluated to improve the availability of FSBM. The importance of non-essential amino acids in the adaptation process of plant-based protein sources is thus emphasized. Considering that glycine not only acts as an antioxidant, but also promotes muscle development and exerts anti-inflammatory effects, it is clear that dietary glycine supplementation has a significant effect on improving the utilization of plant-based protein sources.

5. Study Limitations

Our in vivo experiment demonstrated that 50% substitution of FM with FSBM induces oxidative stress by disturbing glycine and glutathione metabolism in largemouth bass, mainly according to the decreased activities and expressions of antioxidant enzymes. The transcriptomics and metabolomics data also validated the regulatory network during FSBM substitution. However, we did not clarify the temporal dynamics of gene expression and the potential for compensatory mechanisms. Hence, this manuscript is a preliminary work. Long-term studies, including in vitro experiments involving RNA knock down and gene expression kinetic analyses, are necessary.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antiox12122096/s1, Figure S1: Effects of FSBM substitution on inflammatory response in liver of largemouth bass (n = 4); Figure S2: GO functional classification of the differentially expressed proteins after treatment with different diets (n = 3); Table S1: Amino acid composition of the fermented soybean meal (% dry weight); Table S2: Primer sequences of genes used for qRT-PCR. Table S3: The normality and homoscedasticity analysis of Figure 1; Table S4: The normality and homoscedasticity analysis of Figure 2; Table S5: The normality and homoscedasticity analysis of Figure 3; Table S6: The normality and homoscedasticity analysis of Figure 4.

Author Contributions

Q.C., T.H. and J.W. designed the experiments. Q.C., C.W. and S.C. performed the experiments. Y.C. provided the fermented soybean meal. Y.S. analyzed the transcriptome and metabolome data. Q.C. and T.H. wrote the paper. J.W. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Key R&D Program of Zhejiang (No: 2021C04016), National Natural Science Foundation of China (No: 32273151) and “Pioneer” and “Leading Goose” R&D Program of Zhejiang (No: 2022C04020).

Institutional Review Board Statement

All animal care and handling procedures performed in the present study were approved by Animal Experimental Ethical Inspection, Institutional Animals Care and Use Committee of Zhejiang Ocean University (Approval number 2023086).

Data Availability Statement

All relevant data are within the manuscript and the Supplementary Materials. Any additional information required to re-analyze the data reported in this paper is available from the lead author upon request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, J.; Mai, K.; Ai, Q. Conventional Soybean Meal as Fishmeal Alternative in Diets of Japanese Seabass (Lateolabrax japonicus): Effects of Functional Additives on Growth, Immunity, Antioxidant Capacity and Disease Resistance. Antioxidants 2022, 11, 951. [Google Scholar] [CrossRef] [PubMed]
  2. Egounlety, M.; Aworh, O. Effect of soaking, dehulling, cooking and fermentation with Rhizopus oligosporus on the oligosaccharides, trypsin inhibitor, phytic acid and tannins of soybean (Glycine max Merr.), cowpea (Vigna unguiculata L. Walp) and groundbean (Macrotyloma geocarpa Harms). J. Food Eng. 2003, 56, 249–254. [Google Scholar]
  3. Muniyappan, M.; Shanmugam, S.; Park, J.H.; Han, K.; Kim, I.H. Effects of fermented soybean meal supplementation on the growth performance and apparent total tract digestibility by modulating the gut microbiome of weaned piglets. Sci. Rep. 2023, 13, 3691. [Google Scholar] [CrossRef] [PubMed]
  4. Lin, Y.-H.; Chen, Y.-T. Lactobacillus spp. fermented soybean meal partially substitution to fish meal enhances innate immune responses and nutrient digestibility of white shrimp (Litopenaeus vannamei) fed diet with low fish meal. Aquaculture 2022, 548, 737634. [Google Scholar] [CrossRef]
  5. Zhang, Q.; Guo, M.; Li, F.; Qin, M.; Yang, Q.; Yu, H.; Xu, J.; Liu, Y.; Tong, T. Evaluation of Fermented Soybean Meal to Replace a Portion Fish Meal on Growth Performance, Antioxidant Capacity, Immunity, and mTOR Signaling Pathway of Coho Salmon (Oncorhynchus kisutch). Aquacult. Nutr. 2023, 2023, 2558173. [Google Scholar] [CrossRef] [PubMed]
  6. Novriadi, R.; Rhodes, M.; Powell, M.; Hanson, T.; Davis, D. Effects of soybean meal replacement with fermented soybean meal on growth, serum biochemistry and morphological condition of liver and distal intestine of Florida pompano Trachinotus carolinus. Aquacult. Nutr. 2018, 24, 1066–1075. [Google Scholar] [CrossRef]
  7. Weng, L.; Wang, Z.; Zhuang, W.; Yang, T.; Xu, X.; Liu, J.; Liu, J.; Xu, Z.; Chen, R.; Wang, Q. Effect of Replacing Fish Meal Using Fermented Soybean Meal on Growth Performance, Intestine Bacterial Diversity, and Key Gene Expression of Largemouth Bass (Micropterus salmoides). Fermentation 2023, 9, 520. [Google Scholar] [CrossRef]
  8. Zhang, W.; Tan, B.; Deng, J.; Dong, X.; Yang, Q.; Chi, S.; Liu, H.; Zhang, S.; Xie, S.; Zhang, H. Effects of high level of fermented soybean meal substitution for fish meal on the growth, enzyme activity, intestinal structure protein and immune-related gene expression and intestinal flora in juvenile pearl gentian grouper. Aquacult. Nutr. 2021, 27, 1433–1447. [Google Scholar] [CrossRef]
  9. Yamamoto, T.; Matsunari, H.; Sugita, T.; Furuita, H.; Masumoto, T.; Iwashita, Y.; Amano, S.; Suzuki, N. Optimization of the supplemental essential amino acids to a fish meal-free diet based on fermented soybean meal for rainbow trout Oncorhynchus mykiss. Fish. Sci. 2012, 78, 359–366. [Google Scholar] [CrossRef]
  10. Yuan, Y.-c.; Gong, S.-y.; Yang, H.-j.; Lin, Y.-c.; Yu, D.-h.; Luo, Z. Effects of supplementation of crystalline or coated lysine and/or methionine on growth performance and feed utilization of the Chinese sucker, Myxocyprinus asiaticus. Aquaculture 2011, 316, 31–36. [Google Scholar] [CrossRef]
  11. Wu, G. Functional Amino Acids in Nutrition and Health; Springer: Berlin/Heidelberg, Germany, 2013; Volume 45, pp. 407–411. [Google Scholar]
  12. Kelly, B.; Pearce, E.L. Amino assets: How amino acids support immunity. Cell Metab. 2020, 32, 154–175. [Google Scholar] [CrossRef] [PubMed]
  13. Mo, A.J.; Sun, J.X.; Wang, Y.H.; Yang, K.; Yang, H.S.; Yuan, Y.C. Apparent digestibility of protein, energy and amino acids in nine protein sources at two content levels for mandarin fish, Siniperca chuatsi. Aquaculture 2019, 499, 42–50. [Google Scholar] [CrossRef]
  14. Lin, C.; Han, G.; Ning, H.; Song, J.; Ran, N.; Yi, X.; Seow, Y.; Yin, H. Glycine enhances satellite cell proliferation, cell transplantation, and oligonucleotide efficacy in dystrophic muscle. Mol. Ther. 2020, 28, 1339–1358. [Google Scholar] [CrossRef] [PubMed]
  15. Rom, O.; Liu, Y.; Liu, Z.; Zhao, Y.; Wu, J.; Ghrayeb, A.; Villacorta, L.; Fan, Y.; Chang, L.; Wang, L. Glycine-based treatment ameliorates NAFLD by modulating fatty acid oxidation, glutathione synthesis, and the gut microbiome. Sci. Transl. Med. 2020, 12, eaaz2841. [Google Scholar] [CrossRef]
  16. Asantewaa, G.; Harris, I.S. Glutathione and its precursors in cancer. Curr. Opin. Biotechnol. 2021, 68, 292–299. [Google Scholar] [CrossRef]
  17. Kumar, P.; Liu, C.; Hsu, J.W.; Chacko, S.; Minard, C.; Jahoor, F.; Sekhar, R.V. Glycine and N-acetylcysteine (GlyNAC) supplementation in older adults improves glutathione deficiency, oxidative stress, mitochondrial dysfunction, inflammation, insulin resistance, endothelial dysfunction, genotoxicity, muscle strength, and cognition: Results of a pilot clinical trial. Clin. Transl. Med. 2021, 11, e372. [Google Scholar]
  18. Hoseini, S.M.; Majidiyan, N.; Mirghaed, A.T.; Hoseinifar, S.H.; Van Doan, H. Dietary glycine supplementation alleviates transportation-induced stress in common carp, Cyprinus carpio. Aquaculture 2022, 551, 737959. [Google Scholar] [CrossRef]
  19. Liu, Y.; Fan, J.; Zhou, H.; Zhang, Y.; Huang, H.; Cao, Y.; Zhang, W.; Deng, J.; Tan, B. Feeding juvenile largemouth bass (Micropterus salmoides) with carboxymethyl cellulose with different viscous: Impacts on nutrient digestibility, growth, and hepatic and gut morphology. Front. Mar. 2022, 9, 1023872. [Google Scholar] [CrossRef]
  20. Yang, H.; Bian, Y.; Huang, L.; Lan, Q.; Ma, L.; Li, X.; Leng, X. Effects of replacing fish meal with fermented soybean meal on the growth performance, intestinal microbiota, morphology and disease resistance of largemouth bass (Micropterus salmoides). Aquacult. Rep. 2022, 22, 100954. [Google Scholar] [CrossRef]
  21. He, M.; Li, X.; Poolsawat, L.; Guo, Z.; Yao, W.; Zhang, C.; Leng, X. Effects of fish meal replaced by fermented soybean meal on growth performance, intestinal histology and microbiota of largemouth bass (Micropterus salmoides). Aquacult. Nutr. 2020, 26, 1058–1071. [Google Scholar] [CrossRef]
  22. Dai, C.; Ma, H.; He, R.; Huang, L.; Zhu, S.; Ding, Q.; Luo, L. Improvement of nutritional value and bioactivity of soybean meal by solid-state fermentation with Bacillus subtilis. LWT 2017, 86, 1–7. [Google Scholar] [CrossRef]
  23. Huang, D.; Wu, Y.; Lin, Y.; Chen, J.; Karrow, N.; Ren, X.; Wang, Y. Dietary protein and lipid requirements for juvenile largemouth bass, Micropterus salmoides. J. World Aquac. Soc. 2017, 48, 782–790. [Google Scholar] [CrossRef]
  24. Dairiki, J.K.; Dias, C.T.d.S.; Cyrino, J.E.P. Lysine requirements of largemouth bass, Micropterus salmoides: A comparison of methods of analysis of dose-response trials data. J. Appl. Aquacult. 2007, 19, 1–27. [Google Scholar] [CrossRef]
  25. Chen, N.; Ma, J.; Zhou, H.; Zhou, J.; Qiu, X.; Jin, L.; Lin, L. Assessment of dietary methionine requirement in largemouth bass, Micropterus salmoides. J. Fish. China 2010, 34, 1244–1253. [Google Scholar] [CrossRef]
  26. Li, X.; Zheng, S.; Ma, X.; Cheng, K.; Wu, G. Effects of dietary protein and lipid levels on the growth performance, feed utilization, and liver histology of largemouth bass (Micropterus salmoides). Amino Acids 2020, 52, 1043–1061. [Google Scholar] [CrossRef] [PubMed]
  27. AOAC. Official Methods of Analysis of the Association of Analytical Chemist, 15th ed.; AOAC International: Washington, DC, USA, 1995. [Google Scholar]
  28. Chen, Q.; Cui, K.; Zhao, Z.; Xu, X.; Liu, Y.; Shen, Y.; Chen, F.; Mai, K.; Ai, Q. LPS stimulation stabilizes HIF-1α by enhancing HIF-1α acetylation via the PARP1-SIRT1 and ACLY-Tip60 pathways in macrophages. FASEB J. 2022, 36, e22418. [Google Scholar] [CrossRef] [PubMed]
  29. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  30. Sun, Y.; Yao, C.; Zhu, Y.; Wang, Y.; Zhang, Z. Metabolism response of fasting in Octopus sinensis paralarvae revealed by RNA-seq. Aquaculture 2022, 550, 737859. [Google Scholar] [CrossRef]
  31. Li, D.-L.; Zhu, R.; Yang, Z.-Y.; Li, L.; Qu, Z.-H.; Quan, Y.-N.; Wei, X.-F.; Shang, G.-J.; Wang, H.-T.; Wu, L.-F. Potential protective effects of sodium butyrate on glycinin-induced oxidative stress, inflammatory response and growth inhibition in Cyprinus carpio. Fish Physiol. Biochem. 2023. [Google Scholar] [CrossRef]
  32. Yang, H.; Qu, Y.; Li, J.; Liu, X.; Wu, R.; Wu, J. Improvement of the protein quality and degradation of allergens in soybean meal by combination fermentation and enzymatic hyd1rolysis. LWT 2020, 128, 109442. [Google Scholar] [CrossRef]
  33. da Silva Crozatti, T.T.; Miyoshi, J.H.; Tonin, A.P.P.; Tomazini, L.F.; Oliveira, M.A.S.; Maluf, J.U.; Meurer, E.C.; Matioli, G. Obtaining of bioactive di-and tripeptides from enzymatic hydrolysis of soybean meal and its protein isolate using Alcalase® and Neutrase®. Int. J. Food Sci. Technol. 2023, 58, 1586–1596. [Google Scholar] [CrossRef]
  34. Tibaldi, E.; Hakim, Y.; Uni, Z.; Tulli, F.; de Francesco, M.; Luzzana, U.; Harpaz, S. Effects of the partial substitution of dietary fish meal by differently processed soybean meals on growth performance, nutrient digestibility and activity of intestinal brush border enzymes in the European sea bass (Dicentrarchus labrax). Aquaculture 2006, 261, 182–193. [Google Scholar] [CrossRef]
  35. Dan, Z.; Zhang, W.; Zheng, J.; Gong, Y.; Cui, K.; Mai, K.; Ai, Q. Effects of fishmeal substitution by four fermented soybean meals on growth, antioxidant capacity and inflammation responses of turbot juveniles (Scophthalmus maximus L.). Aquaculture 2022, 560, 738414. [Google Scholar] [CrossRef]
  36. Cheng, A.C.; Yeh, S.P.; Hu, S.Y.; Lin, H.L.; Liu, C.H. Intestinal microbiota of white shrimp, Litopenaeus vannamei, fed diets containing Bacillus subtilis E20-fermented soybean meal (FSBM) or an antimicrobial peptide derived from B. subtilis E20-FSBM. Aquacult. Res. 2020, 51, 41–50. [Google Scholar] [CrossRef]
  37. Wang, Z.; Yang, M.; Wang, L.; Lu, K.; Song, K.; Zhang, C. Bacillus subtilis LCBS1 supplementation and replacement of fish meal with fermented soybean meal in bullfrog (Lithobates catesbeianus) diets: Effects on growth performance, feed digestibility and gut health. Aquaculture 2021, 545, 737217. [Google Scholar] [CrossRef]
  38. Xu, C.; Liu, W.; Zhang, D.; Liu, J.; Zheng, X.; Zhang, C.; Yao, J.; Zhu, C.; Chi, C. Effects of partial fish meal replacement with two fermented soybean meals on the growth of and protein metabolism in the Chinese mitten crab (Eriocheir sinensis). Aquacult. Rep. 2020, 17, 100328. [Google Scholar] [CrossRef]
  39. He, M.; Yu, Y.; Li, X.; Poolsawat, L.; Yang, P.; Bian, Y.; Guo, Z.; Leng, X. An evaluation of replacing fish meal with fermented soybean meal in the diets of largemouth bass (Micropterus salmoides): Growth, nutrition utilization and intestinal histology. Aquacult. Res. 2020, 51, 4302–4314. [Google Scholar] [CrossRef]
  40. Prasad, P.D.; Wang, H.; Huang, W.; Kekuda, R.; Rajan, D.P.; Leibach, F.H.; Ganapathy, V. Human LAT1, a subunit of system L amino acid transporter: Molecular cloning and transport function. Biochem. Biophys. Res. Commun. 1999, 255, 283–288. [Google Scholar] [CrossRef]
  41. Torrents, D.; Estévez, R.; Pineda, M.; Fernández, E.; Lloberas, J.; Shi, Y.B.; Zorzano, A.; Palacín, M. Identification and characterization of a membrane protein (y+L amino acid transporter-1) that associates with 4F2hc to encode the amino acid transport activity y+L. A candidate gene for lysinuric protein intolerance. J. Biol. Chem. 1998, 273, 32437–32445. [Google Scholar] [CrossRef]
  42. Drummond, M.J.; Glynn, E.L.; Fry, C.S.; Timmerman, K.L.; Volpi, E.; Rasmussen, B.B. An increase in essential amino acid availability upregulates amino acid transporter expression in human skeletal muscle. Am. J. Physiol. Endocrinol. Metab. 2010, 298, E1011–E1018. [Google Scholar] [CrossRef]
  43. Wang, Z.; Tao, J.; Xie, R.; Zhang, Y.; Zhang, H.; Chen, N.; Li, S. Effects of Fish Meal Replacement with Composite Mixture of Soybean Protein Hydrolysates and Other Plant Proteins on Growth Performance, Antioxidant Capacity, and Target of Rapamycin Pathway in Largemouth Bass. N. Am. J. Aquacult. 2023, 85, 178–187. [Google Scholar] [CrossRef]
  44. Sheng, Z.; Xu, J.; Zhang, Y.; Wang, Z.; Chen, N.; Li, S. Dietary protein hydrolysate effects on growth, digestive enzymes activity, and expression of genes related to amino acid transport and metabolism of larval snakehead (Channa argus). Aquaculture 2023, 563, 738896. [Google Scholar] [CrossRef]
  45. Rubio-Aliaga, I.; Boll, M.; Daniel, H. Cloning and characterization of the gene encoding the mouse peptide transporter PEPT2. Biochem. Biophys. Res. Commun. 2000, 276, 734–741. [Google Scholar] [CrossRef]
  46. Ahmed, M.; Liang, H.; Chisomo Kasiya, H.; Ji, K.; Ge, X.; Ren, M.; Liu, B.; Zhu, X.; Sun, A. Complete replacement of fish meal by plant protein ingredients with dietary essential amino acids supplementation for juvenile blunt snout bream (Megalobrama amblycephala). Aquacult. Nutr. 2019, 25, 205–214. [Google Scholar] [CrossRef]
  47. Ding, Z.; Zhang, Y.; Ye, J.; Du, Z.; Kong, Y. An evaluation of replacing fish meal with fermented soybean meal in the diet of Macrobrachium nipponense: Growth, nonspecific immunity, and resistance to Aeromonas hydrophila. Fish Shellfish Immunol. 2015, 44, 295–301. [Google Scholar] [CrossRef] [PubMed]
  48. Liang, X.; Hu, L.; Dong, Y.; Wu, X.; Qin, Y.; Zheng, Y.; Shi, D.; Xue, M. Substitution of fish meal by fermented soybean meal affects the growth performance and flesh quality of Japanese seabass (Lateolabrax japonicus). Anim. Feed Sci. Technol. 2017, 229, 1–12. [Google Scholar] [CrossRef]
  49. Kaspar, J.W.; Niture, S.K.; Jaiswal, A.K. Nrf2: INrf2 (Keap1) signaling in oxidative stress. Free Radical Biol. Med. 2009, 47, 1304–1309. [Google Scholar] [CrossRef]
  50. Bell, E.L.; Guarente, L. The SirT3 divining rod points to oxidative stress. Mol. Cell 2011, 42, 561–568. [Google Scholar] [CrossRef]
  51. Wang, W.; Wu, Z.; Dai, Z.; Yang, Y.; Wang, J.; Wu, G. Glycine metabolism in animals and humans: Implications for nutrition and health. Amino Acids 2013, 45, 463–477. [Google Scholar] [CrossRef]
  52. Lu, S.C. Glutathione synthesis. Biochim. Biophys. Acta BBA-Gen. Subj. 2013, 1830, 3143–3153. [Google Scholar] [CrossRef]
  53. Adjoumani, J.-J.Y.; Wang, K.; Zhou, M.; Liu, W.; Zhang, D. Effect of dietary betaine on growth performance, antioxidant capacity and lipid metabolism in blunt snout bream fed a high-fat diet. Fish Physiol. Biochem. 2017, 43, 1733–1745. [Google Scholar] [CrossRef]
  54. Aljobaily, N.; Viereckl, M.J.; Hydock, D.S.; Aljobaily, H.; Wu, T.-Y.; Busekrus, R.; Jones, B.; Alberson, J.; Han, Y. Creatine alleviates doxorubicin-induced liver damage by inhibiting liver fibrosis, inflammation, oxidative stress, and cellular senescence. Nutrients 2020, 13, 41. [Google Scholar] [CrossRef] [PubMed]
  55. Zitka, O.; Skalickova, S.; Gumulec, J.; Masarik, M.; Adam, V.; Hubalek, J.; Trnkova, L.; Kruseova, J.; Eckschlager, T.; Kizek, R. Redox status expressed as GSH: GSSG ratio as a marker for oxidative stress in paediatric tumour patients. Oncol. Lett. 2012, 4, 1247–1253. [Google Scholar] [CrossRef] [PubMed]
  56. Kumar, N.; Jadhao, S.; Chandan, N.; Kumar, K.; Jha, A.; Bhushan, S.; Kumar, S.; Rana, R. Dietary choline, betaine and lecithin mitigates endosulfan-induced stress in Labeo rohita fingerlings. Fish Physiol. Biochem. 2012, 38, 989–1000. [Google Scholar] [CrossRef] [PubMed]
Antioxidants 12 02096 g001

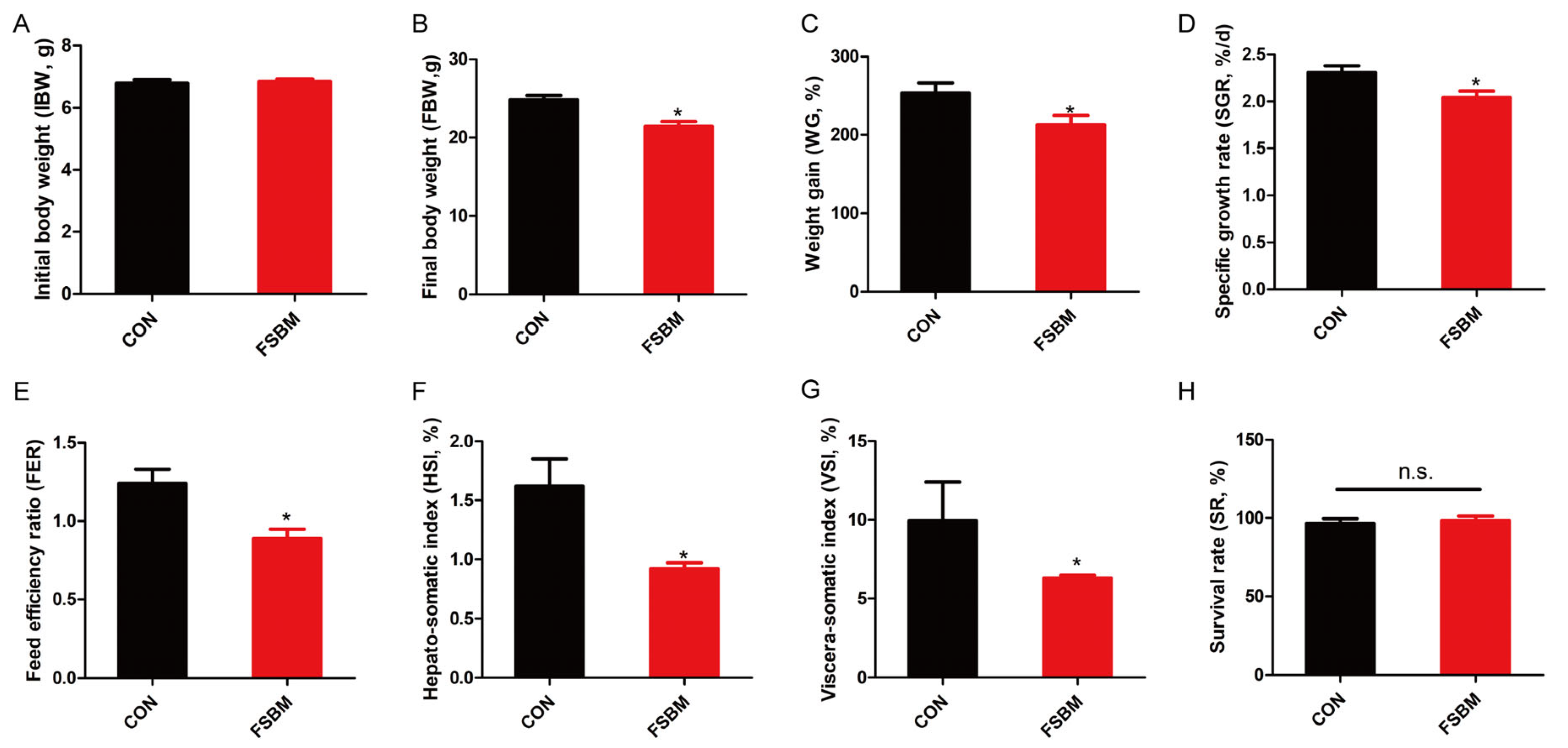

Figure 1. Growth parameters of largemouth bass fed the experimental diets (n = 3). (A) Initial body weight of largemouth bass. (B) Final body weight of largemouth bass after 8-week experiment. (C) Weight gain of largemouth bass after 8-week experiment. (D) Specific growth rate of largemouth bass after 8-week experiment. (E) Feed efficiency ratio of largemouth bass after 8-week experiment. (F) Hepato-somatic index of largemouth bass after 8-week experiment. (G) Viscera-somatic index of largemouth bass after 8-week experiment. (H) Survival rate of largemouth bass after 8-week experiment. The results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05). Weight gain rate (WG, %) = 100 × (final body wet weight-initial body wet weight)/initial body wet weight. Survival rate (SR, %) = 100 × final alive fish number/initial fish number. Specific growth rate (SGR, %/day) = (Ln (final body wet weight)—Ln (initial body wet weight)) × 100/duration of experiment (in days). Feed efficiency ratio (FER) = wet weight gain in g/dry feed fed in g. Hepato-somatic index (HIS, %) = 100 × liver wet weight/final body wet weight. Viscera-somatic index (VSI, %) = 100 × visceral wet weight/final body wet weight. N.s. means no significance.
Figure 1. Growth parameters of largemouth bass fed the experimental diets (n = 3). (A) Initial body weight of largemouth bass. (B) Final body weight of largemouth bass after 8-week experiment. (C) Weight gain of largemouth bass after 8-week experiment. (D) Specific growth rate of largemouth bass after 8-week experiment. (E) Feed efficiency ratio of largemouth bass after 8-week experiment. (F) Hepato-somatic index of largemouth bass after 8-week experiment. (G) Viscera-somatic index of largemouth bass after 8-week experiment. (H) Survival rate of largemouth bass after 8-week experiment. The results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05). Weight gain rate (WG, %) = 100 × (final body wet weight-initial body wet weight)/initial body wet weight. Survival rate (SR, %) = 100 × final alive fish number/initial fish number. Specific growth rate (SGR, %/day) = (Ln (final body wet weight)—Ln (initial body wet weight)) × 100/duration of experiment (in days). Feed efficiency ratio (FER) = wet weight gain in g/dry feed fed in g. Hepato-somatic index (HIS, %) = 100 × liver wet weight/final body wet weight. Viscera-somatic index (VSI, %) = 100 × visceral wet weight/final body wet weight. N.s. means no significance.
Antioxidants 12 02096 g001
Antioxidants 12 02096 g002

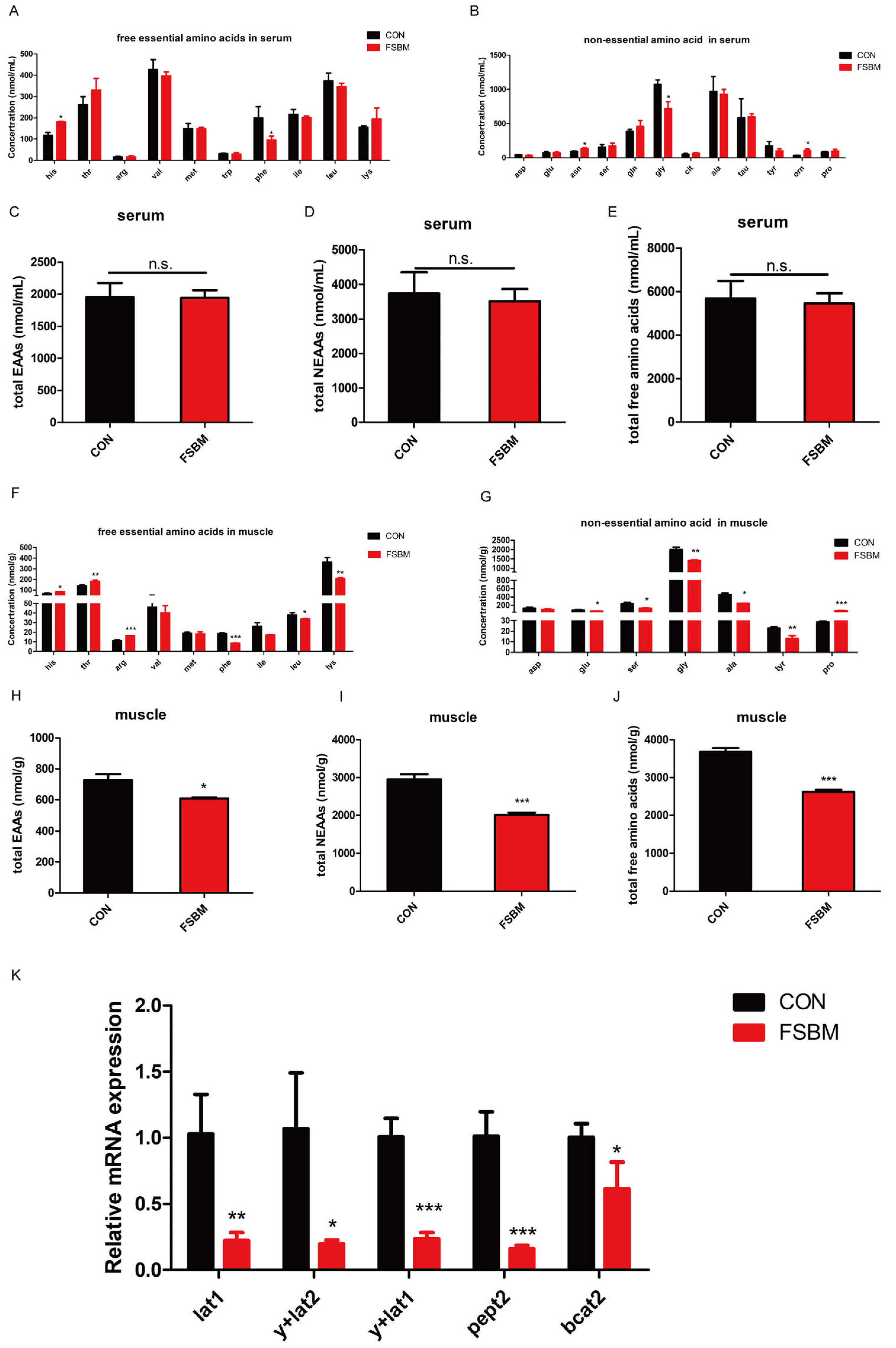

Figure 2. Effects of FSBM substitution on the free amino acid contents in serum (A–E) and muscle (F–J) and mRNA expression of genes associated with amino acid and small peptide transporters (K) in the muscle of largemouth bass (n = 4). The results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05, ** p < 0.01, *** p < 0.001). Arg, arginine; His, histidine; Ile, isoleucine; Leu, leucine; Lys, lysine; Met, methionine; Phe, phenylalanine; Val, valine; Thr, threonine; Trp, tryptophan; Ala, alanine; Asn, asparagine; Asp, aspartate; Cit, citrulline; Gln, glutamine; Glu, glutamate; Gly, glycine; Orn, ornithine; Pro, proline; Ser, serine; Tau, taurine; Tyr, tyrosine. EAA, essential amino acids; NEAAs, non-essential amino acids. n.s. means no significance.
Figure 2. Effects of FSBM substitution on the free amino acid contents in serum (A–E) and muscle (F–J) and mRNA expression of genes associated with amino acid and small peptide transporters (K) in the muscle of largemouth bass (n = 4). The results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05, ** p < 0.01, *** p < 0.001). Arg, arginine; His, histidine; Ile, isoleucine; Leu, leucine; Lys, lysine; Met, methionine; Phe, phenylalanine; Val, valine; Thr, threonine; Trp, tryptophan; Ala, alanine; Asn, asparagine; Asp, aspartate; Cit, citrulline; Gln, glutamine; Glu, glutamate; Gly, glycine; Orn, ornithine; Pro, proline; Ser, serine; Tau, taurine; Tyr, tyrosine. EAA, essential amino acids; NEAAs, non-essential amino acids. n.s. means no significance.
Antioxidants 12 02096 g002
Antioxidants 12 02096 g003

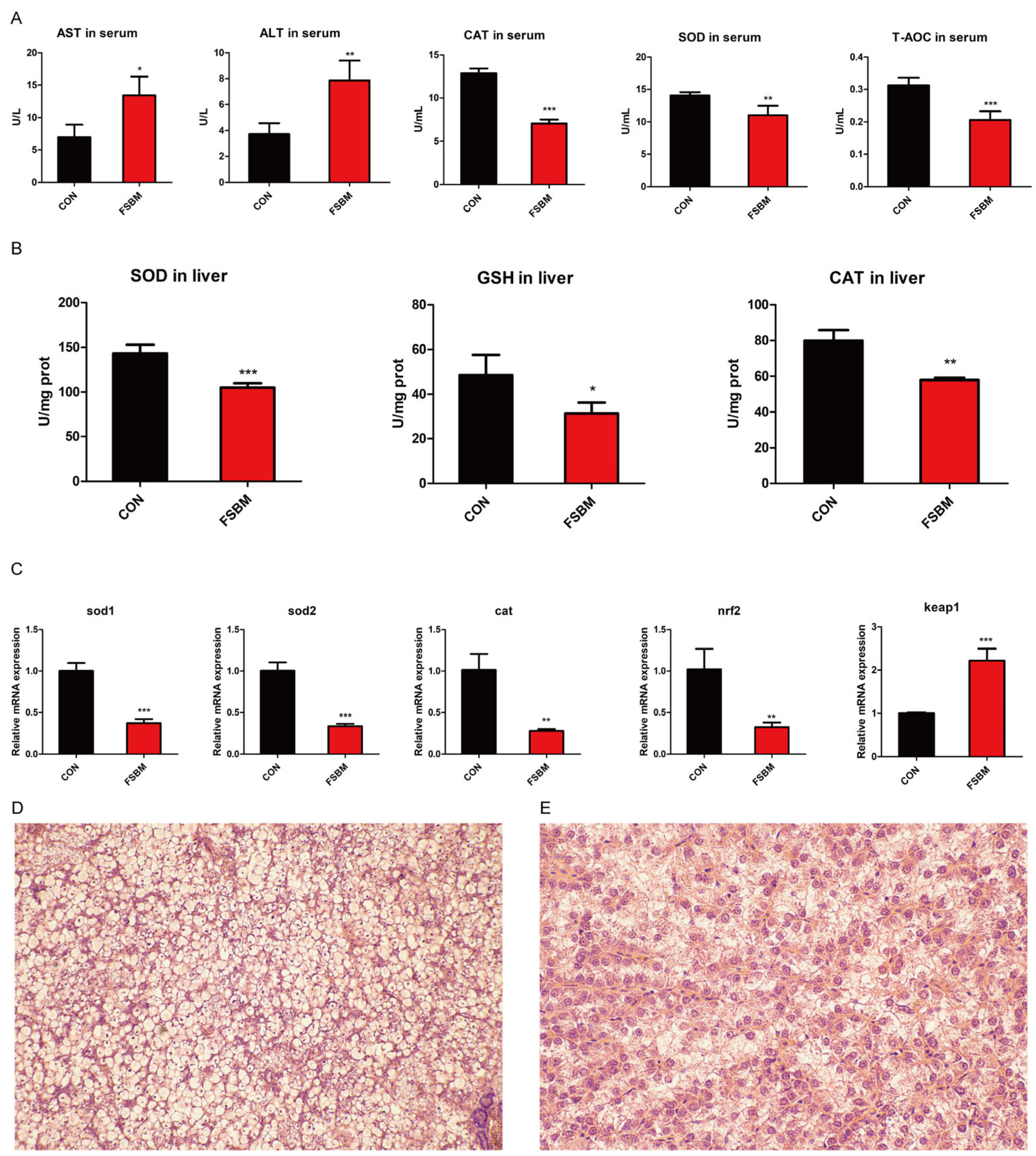

Figure 3. The effects of FSBM substitution on the hepatic antioxidant capacity of largemouth bass were examined (n = 4). (A) The effects of FSBM substitution on the activities of AST, ALT, CAT, SOD and T-AOC in serum were analyzed. (B) The effects of FSBM substitution on CAT and SOD activities and GSH contents in the liver were detected. (C) The effects of FSBM substitution on the mRNA expression of antioxidant enzymes and the Keap1-nrf2 system in the liver were analyzed. (D,E) H&E staining of liver sections from different diet groups ((D) control; (E): FSBM. Scale bar, 25 μm). The results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05, ** p < 0.01, *** p < 0.001).
Figure 3. The effects of FSBM substitution on the hepatic antioxidant capacity of largemouth bass were examined (n = 4). (A) The effects of FSBM substitution on the activities of AST, ALT, CAT, SOD and T-AOC in serum were analyzed. (B) The effects of FSBM substitution on CAT and SOD activities and GSH contents in the liver were detected. (C) The effects of FSBM substitution on the mRNA expression of antioxidant enzymes and the Keap1-nrf2 system in the liver were analyzed. (D,E) H&E staining of liver sections from different diet groups ((D) control; (E): FSBM. Scale bar, 25 μm). The results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05, ** p < 0.01, *** p < 0.001).
Antioxidants 12 02096 g003
Antioxidants 12 02096 g004
Figure 4. The transcriptomics data of hepatic DEGs in largemouth bass fed with different diets (n = 3). (A) Heat map. (B–E) KEGG pathway annotation. (F) Interaction network between metabolism-related genes and pathways. (G,H) Heat map of DEGs associated with antioxidant capacity and glutathione metabolism. (I) qPCR of genes involved in glutathione metabolism. For qPCR, the results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05, ** p < 0.01). DEGs, differentially expressed genes. See also Supplementary Figure S1.
Figure 4. The transcriptomics data of hepatic DEGs in largemouth bass fed with different diets (n = 3). (A) Heat map. (B–E) KEGG pathway annotation. (F) Interaction network between metabolism-related genes and pathways. (G,H) Heat map of DEGs associated with antioxidant capacity and glutathione metabolism. (I) qPCR of genes involved in glutathione metabolism. For qPCR, the results are reported as means ± SD and were evaluated using independent t-tests (* p < 0.05, ** p < 0.01). DEGs, differentially expressed genes. See also Supplementary Figure S1.
Antioxidants 12 02096 g004
Antioxidants 12 02096 g005

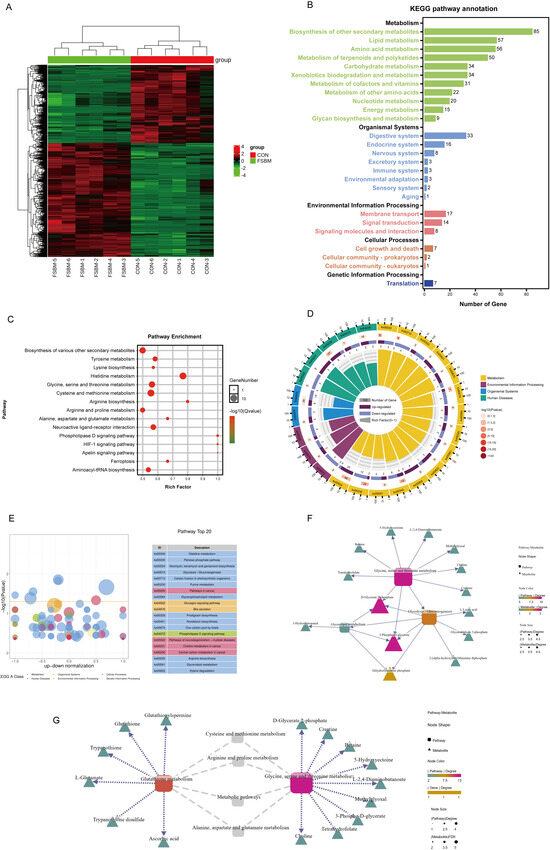

Figure 5. The DMs screened by metabolomic analysis in the liver of largemouth bass fed different diets (n = 6). (A) Heat map. (B–E) KEGG pathway annotation. (F) Interaction network between metabolism-related metabolites and pathways. (G) Interaction network between glutathione metabolism and glycine, serine and threonine metabolism. DMs, different metabolites.
Figure 5. The DMs screened by metabolomic analysis in the liver of largemouth bass fed different diets (n = 6). (A) Heat map. (B–E) KEGG pathway annotation. (F) Interaction network between metabolism-related metabolites and pathways. (G) Interaction network between glutathione metabolism and glycine, serine and threonine metabolism. DMs, different metabolites.
Antioxidants 12 02096 g005
Antioxidants 12 02096 g006

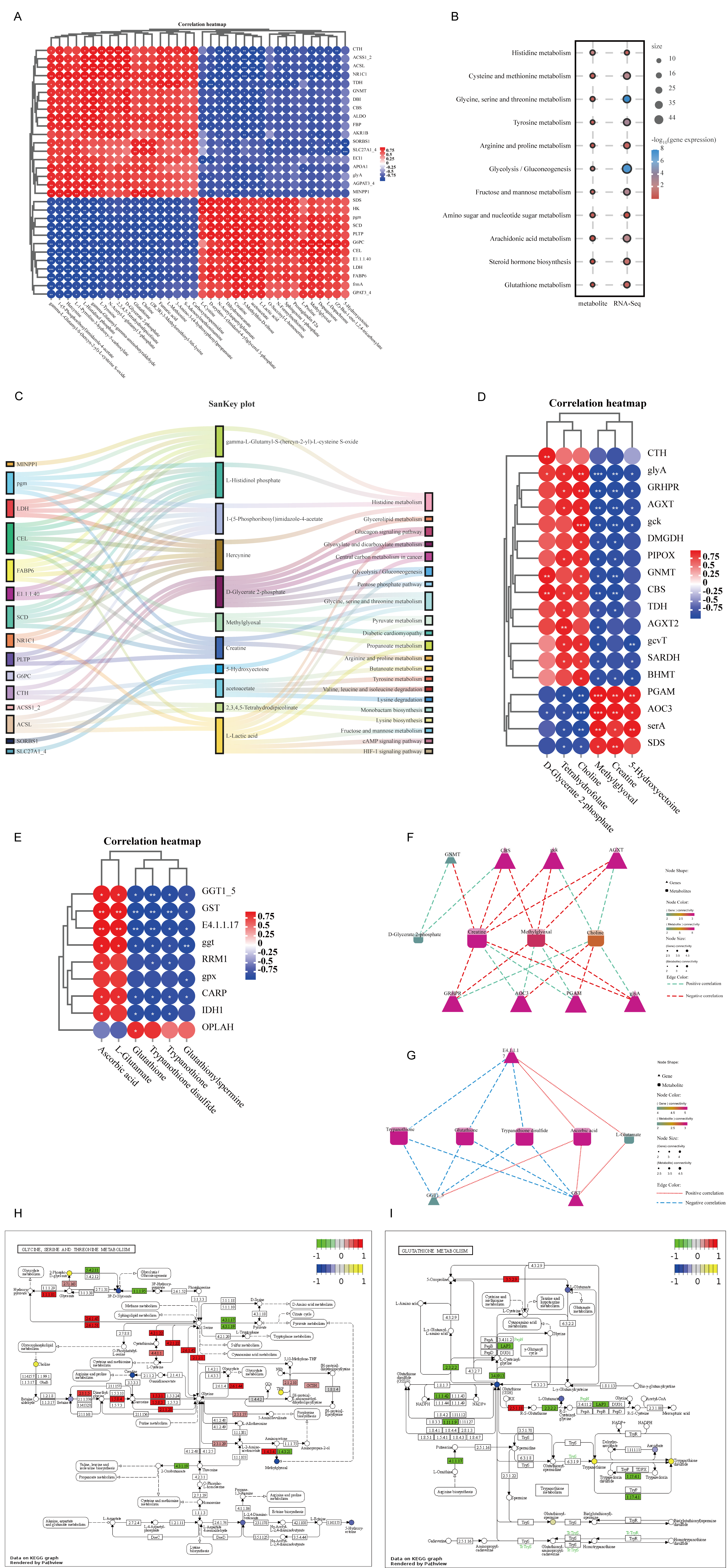

Figure 6. DEG–DM integrated analysis in the liver of largemouth bass fed different diets. (A) A correlation analysis between DEGs and DMs. (B) In KEGG pathways, transcriptome and metabolome pathways are annotated simultaneously. The metabolome is shown on the left, while the transcriptome is shown on the right. (C) Sankey plot of DEG–DM pathway correlation in the liver of largemouth bass. (D) Gene metabolite association heat map in glycine, serine and threonine metabolism. (E) Gene metabolite association heat map in glutathione metabolism. (F,G) The most significantly enriched DEGs and DMs interaction network diagram in glycine, serine and threonine metabolism as well as glutathione metabolism. (H,I) DEG and DM KEGG mapping results were enriched in glycine, serine and threonine metabolism as well as glutathione metabolism. The number of “*” in the circle represents the degree of correlation.
Figure 6. DEG–DM integrated analysis in the liver of largemouth bass fed different diets. (A) A correlation analysis between DEGs and DMs. (B) In KEGG pathways, transcriptome and metabolome pathways are annotated simultaneously. The metabolome is shown on the left, while the transcriptome is shown on the right. (C) Sankey plot of DEG–DM pathway correlation in the liver of largemouth bass. (D) Gene metabolite association heat map in glycine, serine and threonine metabolism. (E) Gene metabolite association heat map in glutathione metabolism. (F,G) The most significantly enriched DEGs and DMs interaction network diagram in glycine, serine and threonine metabolism as well as glutathione metabolism. (H,I) DEG and DM KEGG mapping results were enriched in glycine, serine and threonine metabolism as well as glutathione metabolism. The number of “*” in the circle represents the degree of correlation.
Antioxidants 12 02096 g006
Table 1. Formulation and chemical proximate composition of the experimental diets (% dry matter).
Table 1. Formulation and chemical proximate composition of the experimental diets (% dry matter).
IngredientsDiets a
CONFSBM
Fish meal6231
Fermented soybean meal b040.25
Alpha-starch1010
Microcrystalline cellulose12.513.03
Fish oil34
Soybean oil43.23
Soybean lecithin11
Choline0.20.2
Monocalcium phosphate11
Sodium alginate11
Vitamin C11
Mineral mix c33
Vitamin premix d0.050.05
Mold inhibitor e0.20.2
Ethoxyquin0.010.01
L-lysine00.58
L-methionine00.45
Alanine1.030
Total100100
Proximate analysis
Crude protein46.7448.29
Crude lipid11.911.67
a CON, control group; FSBM, group in which 50% FM was substituted with fermented soybean meal. b FSBM was fermented using Bacillus subtilis. The amino acid composition is presented in Supplementary Table S1. c Mineral premix (g/kg): the mineral premix formula was taken from the article published by Li et al. [26]. The details are as follows: CoCl·6H2O, 0.86; MgSO4·7H2O, 586.67; ZnSO4·7H2O, 18.09; NaCl, 363.88; FeSO4·7H2O, 22.22; KI, 0.67; AlCl3·6H2O, 0.67; Na2SeO3, 0.06; CuSO4·5H2O, 2.22; MnSO4, 4.67. d Vitamin premix (g/kg): the vitamin premix formula was taken from a previously published article [26]. The details are as follows: Inositol, 15.00; vitamin A, 2.31; vitamin B1, 3.26; vitamin B2, 3.00; vitamin B5, 10.87; vitamin B6, 3.04; niacin, 14.00; biotin, 0.15; folic acid, 0.60; vitamin B12, 0.02; vitamin D3, 2.02; vitamin E, 20.00; vitamin K3, 1.20; cellulose, 924.53. e Mold inhibitor contained 50% calcium propionic acid and 50% fumaric acid.
Table 2. Amino acid composition of experimental diets (% dry weight).
Table 2. Amino acid composition of experimental diets (% dry weight).
Amino AcidDiets
CONFSBM
Essential amino acids (EAAs)
Arginine2.982.89
Histidine0.981.03
Isoleucine2.041.92
Lysine3.392.95
Methionine1.261.1
Phenylalanine1.902.03
Threonine2.101.76
Valine2.171.95
Leucine3.583.23
Non-essential amino acids (EAAs)
Alanine2.983.12
Aspartate4.504.66
Cysteine0.170.26
Glycine3.062.37
Glutamate6.527.76
Proline2.382.38
Serine2.222.09
Tyrosine1.291.39
Total43.5342.88
Tryptophan was unable to be identified due to destruction during acid hydrolysis.
Table 3. Antioxidant-related genes in response to FSBM.
Table 3. Antioxidant-related genes in response to FSBM.
Gene NameKEGG AnnotationLog2FCRegulatedKEGG Pathway
catK03781−1.38downPeroxisome
nqo1K003551.36upUbiquinone and other terpenoid quinones Biosynthesis
mpoK10789−2.00downPhagosome
gpx1bK00432−1.68downGlutathione metabolism
ptgs2bK11987−2.15downArachidonic acid metabolism
trxK03671−1.58downNOD-like receptor signaling pathway
ptgs1K005091.67upArachidonic acid metabolism
keap1aK104561.31upUbiquitin-mediated proteolysis
sod1K04565−1.49downPeroxisome
gstt2K007991.32upGlutathione metabolism
Table 4. Glutathione-metabolism-related genes in response to FSBM.
Table 4. Glutathione-metabolism-related genes in response to FSBM.
KEGG AnnotationGene NameLog2FCRegulated
Glutathione metabolismggt5b−1.59down
tm4sf4−1.53down
gsta.11.41up
gstt31.84up
oplah2.01up
gsto1−1.40down
gpx32.01up
odc1−2.23down
idh2-like−2.26down
rrm1−1.08down
gstt3-like1.95up
gpx1b−1.68down
idh2−1.54down
gstt21.32up
ggt5b, glutathione hydrolase; tm4sf4, transmembrane 4 L6 family member 4; gsta.1, glutathione S-transferase A1; gstt3, glutathione S-transferase theta-3; oplah, 5-oxoprolinase; gsto1, glutathione S-transferase omega-1; gpx3, glutathione peroxidase 3; odc1, ornithine decarboxylase 1; idh2-like, isocitrate dehydrogenase (NADP), mitochondrial; rrm1, ribonucleoside-diphosphate reductase large subunit 1; gstt3-like; glutathione S-transferase theta-3-like; gpx1b, glutathione peroxidase 1b; idh2, isocitrate dehydrogenase (NADP), mitochondrial; gstt2, glutathione S-transferase theta-2.
Table 5. Glycine, serine and threonine metabolism-related metabolites in response to FSBM.
Table 5. Glycine, serine and threonine metabolism-related metabolites in response to FSBM.
KEGG AnnotationMetabolite NameLog2FCRegulated
Glycine, serine and threonine metabolismD-Glycerate 2-phosphate4.24Up
Methylglyoxal−3.11Down
Creatine−0.89Down
Betaine−0.36Down
3-Phospho-D-glycerate−0.61Down
5-Hydroxyectoine−0.60Down
L-2,4-Diaminobutanoate−0.57Down
Tetrahydrofolate
Choline		0.94
0.65		Up
Up
Table 6. Glutathione-metabolism-related metabolites in response to FSBM.
Table 6. Glutathione-metabolism-related metabolites in response to FSBM.
KEGG AnnotationMetabolite NameLog2FCRegulated
Glutathione metabolismAscorbic acid−0.31Down
L-glutamate−0.50Down
Glutathione−2.61Down
Trypanothione1.23Up
Glutathione, oxidized1.04Up
Trypanothione disulfide4.26Up
Glutathionylspermine0.36Up
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chen, Q.; Wang, C.; Sun, Y.; Chen, Y.; Chen, S.; Han, T.; Wang, J. Excessive Substitution of Fish Meal with Fermented Soybean Meal Induces Oxidative Stress by Impairing Glutathione Metabolism in Largemouth Bass (Micropterus salmoides). Antioxidants 2023, 12, 2096. https://doi.org/10.3390/antiox12122096

AMA Style

Chen Q, Wang C, Sun Y, Chen Y, Chen S, Han T, Wang J. Excessive Substitution of Fish Meal with Fermented Soybean Meal Induces Oxidative Stress by Impairing Glutathione Metabolism in Largemouth Bass (Micropterus salmoides). Antioxidants. 2023; 12(12):2096. https://doi.org/10.3390/antiox12122096

Chicago/Turabian Style

Chen, Qiang, Congcong Wang, Yulong Sun, Yan Chen, Songming Chen, Tao Han, and Jiteng Wang. 2023. "Excessive Substitution of Fish Meal with Fermented Soybean Meal Induces Oxidative Stress by Impairing Glutathione Metabolism in Largemouth Bass (Micropterus salmoides)" Antioxidants 12, no. 12: 2096. https://doi.org/10.3390/antiox12122096

APA Style

Chen, Q., Wang, C., Sun, Y., Chen, Y., Chen, S., Han, T., & Wang, J. (2023). Excessive Substitution of Fish Meal with Fermented Soybean Meal Induces Oxidative Stress by Impairing Glutathione Metabolism in Largemouth Bass (Micropterus salmoides). Antioxidants, 12(12), 2096. https://doi.org/10.3390/antiox12122096

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
