Triplet-Energy Quenching Functions of Antioxidant Molecules

by
Carlos Angelé-Martínez
1,
Leticia Christina Pires Goncalves
1,†,
Sanjay Premi
1,‡,
Felipe A. Augusto
1,2,§,
Meg A. Palmatier
1,
Saroj K. Amar
1,‖ and
Douglas E. Brash
1,3,4,*
1
Department of Therapeutic Radiology, Yale School of Medicine, New Haven, CT 06520-8040, USA
2
Departamento de Química Fundamental, Instituto de Química, Universidade de São Paulo, São Paulo 05508-900, SP, Brazil
3
Department of Dermatology, Yale School of Medicine, New Haven, CT 06520-8059, USA
4
Yale Cancer Center, Yale School of Medicine, New Haven, CT 06520-8028, USA
*
Author to whom correspondence should be addressed.
†
Current address: Institut de Chimie de Nice CRNS UMR7272, Université Côte d’Azur, 28 Avenue Valrose, 06108 Nice, France.
‡
Current address: Department of Tumor Biology, Moffitt Cancer Center, 12902 Magnolia Drive, Tampa, FL 33612, USA.
§
Current address: Anton Paar Brasil Ltd.a, Vila Clementino, São Paulo 04026-090, SP, Brazil.
‖
Current address: US Army Engineer Research and Development Center, Environmental Laboratory, 3909 Halls Ferry Rd., Vicksburg, MS 39180, USA.
Antioxidants 2022, 11(2), 357; https://doi.org/10.3390/antiox11020357
Submission received: 7 December 2021 / Revised: 1 February 2022 / Accepted: 8 February 2022 / Published: 11 February 2022
(This article belongs to the Special Issue Free Radicals, Antioxidants and Melanoma: Where Do We Stand?)
Browse Figures
Versions Notes

Abstract

:
UV-like DNA damage is created in the dark by chemiexcitation, in which UV-activated enzymes generate reactive oxygen and nitrogen species that create a dioxetane on melanin. Thermal cleavage creates an electronically excited triplet-state carbonyl whose high energy transfers to DNA. Screening natural compounds for the ability to quench this energy identified polyenes, polyphenols, mycosporine-like amino acids, and related compounds better known as antioxidants. To eliminate false positives such as ROS and RNS scavengers, we then used the generator of triplet-state acetone, tetramethyl-1,2-dioxetane (TMD), to excite the triplet-energy reporter 9,10-dibromoanthracene-2-sulfonate (DBAS). Quenching measured as reduction in DBAS luminescence revealed three clusters of 50% inhibitory concentration, ~50 μM, 200–500 μM, and >600 μM, with the former including sorbate, ferulic acid, and resveratrol. Representative triplet-state quenchers prevented chemiexcitation-induced “dark” cyclobutane pyrimidine dimers (dCPD) in DNA and in UVA-irradiated melanocytes. We conclude that (i) the delocalized pi electron cloud that stabilizes the electron-donating activity of many common antioxidants allows the same molecule to prevent an electronically excited species from transferring its triplet-state energy to targets such as DNA and (ii) the most effective class of triplet-state quenchers appear to operate by energy diversion instead of electron donation and dissipate that energy by isomerization.

Graphical Abstract

1. Introduction

1.1. Triplet Energy and Triplet-Energy Quenching

The prevalence of melanoma and other skin cancers induced by ultraviolet radiation (UV) [1,2,3,4] has prompted the scientific community to search for new and more effective strategies for preventing photochemically induced diseases. Sunscreens and UV-filter clothing act by blocking UV from being absorbed by the DNA bases, thereby preventing an electron from being excited to the high energy that creates the mutagenic and carcinogenic cyclobutane pyrimidine dimer (CPD) [5,6,7].
Recently, we reported that CPDs are also generated long after UV exposure, by a physicochemical process termed “chemiexcitation” [8,9,10]. This mode of exciting an electron in DNA involves energy transfer from an excited reaction product of the oxidation of the skin pigment melanin. That prior excitation occurs in three steps. A brief UV exposure triggers sustained activity of the enzymes’ inducible nitric oxide synthase (iNOS) and NADPH oxidase (NOX), generating nitric oxide (NO•) and superoxide (O2•−) which react to create the strong oxidant peroxynitrite (ONOO−). Peroxynitrite oxidizes melanin, allowing O2 to add to the melanin and form a high energy 4-membered ring containing two adjacent O atoms, termed a dioxetane. The energy for this strained ring ultimately derives from the energy stored in O2 and the NO• and O2•− radicals [11,12]. Dioxetanes are unstable and thermally cleave to create two carbonyls, with one receiving nearly all the energy stored in the strained ring. Crucially, this energy is so high that one electron of a pair in the carbonyl double bond is excited to a new orbital; the energy also flips the spin of that electron, creating what is termed a “triplet state”. Because of the spin flip, decay to the ground state is “forbidden” by quantum mechanics and so takes seconds to minutes. In the interim, the long-lived triplet carbonyl can transfer its energy to a nearby acceptor molecule by exchanging its high energy electron for a ground state electron of the acceptor, a process termed “Dexter exchange” [13,14]. When the acceptor is DNA, the result can again be the cyclobutane pyrimidine dimer. The enzymatic activity generating O2•− and NO• persists for hours after activation by UV, continually generating new dioxetanes and forming new CPDs long after the UV exposure has ended, prompting the term “dark CPD” (dCPD) [8].
A new route to preventing dCPDs would then be to scavenge O2•− and NO•. However, clinical trials of radical scavengers as cancer chemoprevention agents have encountered adverse effects [15,16], likely because radicals and ONOO− are also elements of normal signaling pathways [17,18,19]. An alternative would be to dissipate the energy, using a triplet-energy quencher—a molecule that readily accepts triplet energy from a donor and then dissipates it as heat or light [20]. A ubiquitous example is the family of carotenoids, whose chain of conjugated double bonds provides delocalized electrons amenable to Dexter exchange; this strategy allows chloroplasts to dissipate excess triplet energy as heat [21].
In an initial survey for triplet quenching activity, we tested a variety of chemical structures derived from natural compounds and mixtures. The low risk/benefit profile of natural products makes them acceptable for use as preventive agents, where risk must be low for individuals who do not have a disease. In that survey (Table S1), we tested the ability of single or dual concentrations of compound to quench dCPDs or triplet-reporter luminescence resulting from chemiexcitation. It became apparent that: natural compounds often had substantial chemiexcitation-quenching activity; this activity was difficult to distinguish from ONOO−-scavenging activity; and for some natural compounds ONOO− was able to generate dCPDs or reporter luminescence even using the compound itself as oxidizable substrate instead of melanin, although when combined with melanin the net effect was quenching of melanin chemiexcitation. We therefore focused on careful measurements of a small number of compounds using a synthetic triplet-state molecule not requiring ONOO−; we also broadened the range of structures similar to those that did have activity.

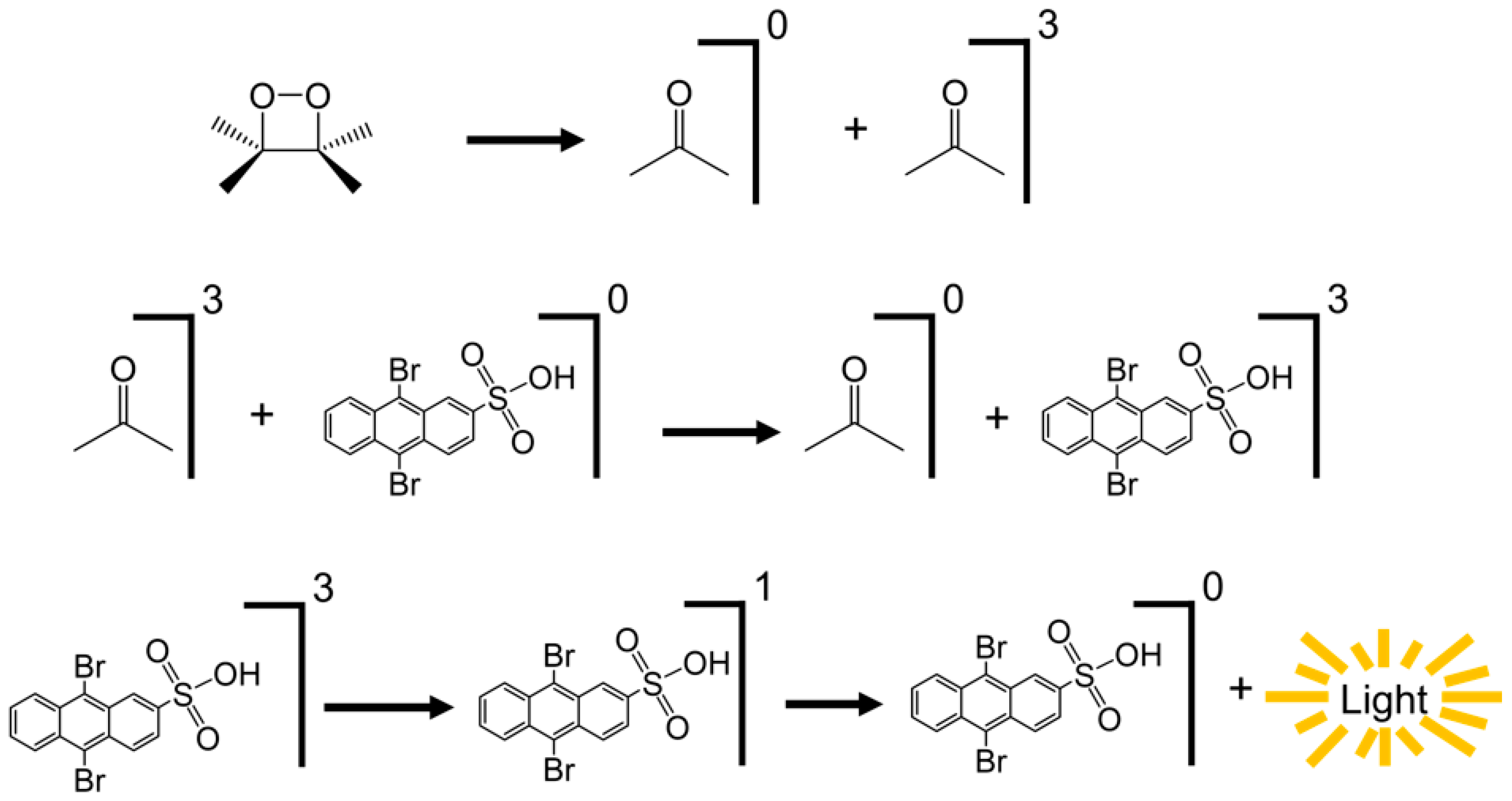

To test biomolecules for triplet-quenching activity, we used triplet acetone (3A) as a model triplet-energy donor. The 3A was produced by the thermolysis of a synthetic dioxetane, tetramethyl dioxetane (TMD): TMD cleavage produces two molecules of acetone, with one being in the excited triplet state (Scheme 1) [22]. Triplet states are inefficient producers of luminescence, so to detect the triplet state we used the triplet-state reporter 9,10-dibromoanthracene-2-sulfonate (DBAS) [23]. Triplet acetone excites DBAS to a high-level triplet state which then converts to the excited S1 singlet state by intersystem crossing; the S1 state of DBAS is an efficient generator of fluorescence.

1.2. Polyphenols and Other Antioxidants

As candidate triplet-quenchers we sought natural compounds that, like carotenoids, have delocalized pi electrons. These arise from a conjugated double bond chain, an aromatic ring, or both. Candidate compounds also had absorbances in the UVB-UVA-visible range or shorter, indicating that they could accept energies from these levels or higher. Soluble compounds of this type were often already known for having antioxidant activity.
The radical scavenging activity of polyphenols results from their capacity to stabilize the radical formed after they donate an electron or H• to free radicals. This stabilization occurs due to the multiple resonance structures across which the unpaired electron is distributed (delocalized) [24,25]. Another family of compounds, which protect cyanobacterial and aquatic plants (algae) from UV irradiation, are mycosporine-like amino acids (MAA) [26,27,28]. It has been proposed that, similarly to the polyphenols, MAA are synthesized from the shikimate pathway and protect against UV via their UV absorbance [29,30,31,32]. Some MAA exhibit radical scavenging activity and inhibit lipid peroxidation [33,34,35]. In addition, some MAA are triplet-state energy acceptors [36,37,38,39].

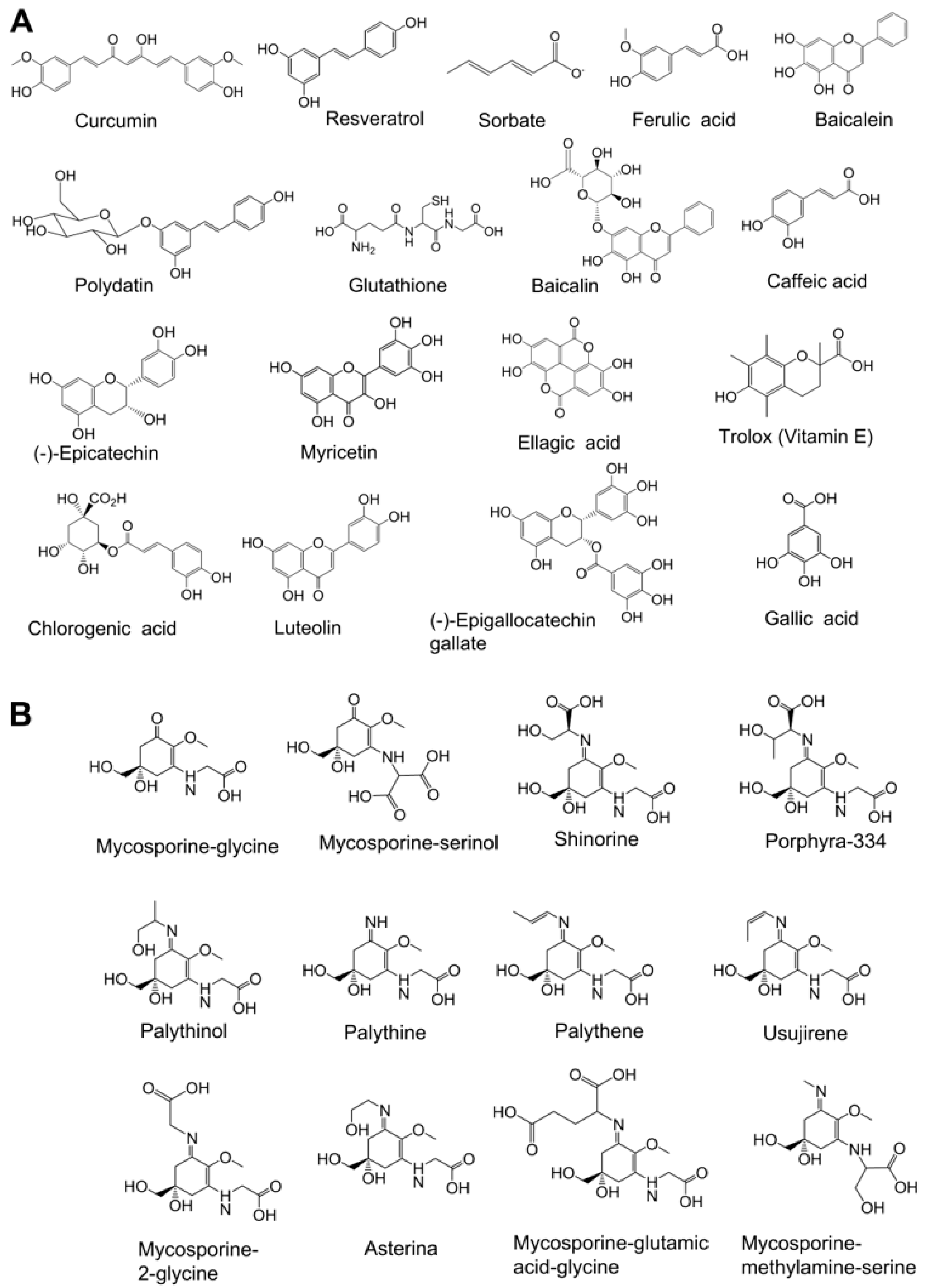

We therefore selected more than 15 polyphenols, related compounds, and mixtures of these (Figure 1A), as well as 45 algae extracts from species known to synthesize MAA, Figure 1B). From the results of this analysis, we chose representative compounds for analyzing the capacity to prevent dCPD formation.

2. Materials and Methods

2.1. Assay Design and Specificity

In a cell, using dCPDs as a screening endpoint would be blocked not only by true triplet-state quenchers but also by false positives that do one of the following:
  • Absorb UV.
  • Block UV-activation of the NADPH oxidase or nitric oxide synthase that make O2•− and NO•.
  • Scavenge O2•−, NO•, or ONOO−.
  • Prevent the dioxetane substrate from reaching the nucleus (by blocking melanin fragmentation or migration).
  • Shield the dioxetane substrate (by altering the melanin reactive site, perhaps by altering fragmentation by generating 1O2).
  • Block dioxetane creation at a post-ONOO− step.
  • Are decoy substrates for a dioxetane (yet are poor at making dCPDs).
  • Cleave CPDs by electron donation or withdrawal [40,41,42].
These false positives are avoided by using TMD and the DBAS assay. Molecules that prevent or absorb acetone phosphorescence or DBAS fluorescence would be a false positive in the DBAS assay, but are avoided in the CPD assay because their 440 nm luminescence [23,43] will not make CPDs.
Using both assays, hits are molecules that do one of the following:
  • Cleave a dioxetane unproductively, by electron donation [44,45,46].
  • React covalently with the triplet carbonyl [47].
  • Accelerate the triplet state’s intersystem crossing to the singlet, via partial charge transfer [48].
  • Block Dexter electron exchange, by electron donation that occupies the ground-state exchange site (see Section 4.6.2).
Evidence for energy transfer would be evidence against those four mechanisms. One possibility remains, that hits are molecules that:
  • Act as decoy triplet-energy transfer targets (absorbing triplet energy better than DBAS or DNA while not generating luminescence or dCPDs, although luminescence would be a safe mode of energy dissipation). These are physical triplet-state quenchers.
Complete methods for the screens are given in Supplemental Methods.

2.2. Quenching of Triplet-Reporter Luminescence by Polyphenols and Related Compounds

TMD-DBAS-polyphenol chemiluminescence assays were performed in 300 μL total reaction volume. Samples were prepared by mixing the phosphate buffer (pH 7, 25 mM), DTPA (0.2 mM), the natural compounds solution at various concentrations (0.05–15,000 μM), TMD (1 mM), and the DBAS (1 mM). DTPA was used as the metal chelator because metal ions catalyze the decomposition of TMD [45]. Samples were aliquoted (100 μL) in duplicate into white 96-well plates Greiner Lumitrac 200 (Fisher Scientific, Pittsburgh, PA, USA) and the chemiluminescence was measured in a FluoDia T70 Microplate Photon Counting Fluorometer (Photal Otsuka Electronics, Osaka, Japan), using 300 ms as the integration time, and 73 °C as the nominal temperature.

2.3. Quenching of Dark Cyclobutane Pyrimidine Dimer Formation

In a microcentrifuge tube, 1 μg of dT150 or calf thymus DNA (CTDNA) in phosphate buffer (pH 7, 50 mM) and DTPA (0.5 mM) was treated with TMD (5 mM) and freshly prepared solutions of epicatechin, potassium sorbate, or luteolin (10 μM) in a total volume of 200 μL. The solution with all reagents was vortexed briefly and incubated at 70 °C for 10 min. The samples were purified by column elution. To assess triplet-quenching in cells, C57BL/6 murine melanocytes were exposed to 75 kJ/m2 UVA as previously reported [8], 100 μM quencher added, and the cells harvested at 2 h.

2.4. Detection of Cyclobutane Pyrimidine Dimers by Enzyme Linked Immunosorbent Assay (ELISA)

2.4.1. Denaturation and Plating of dT150 and CTDNA

From samples treated with TMD and column purified, or UVC irradiated, a 3 ng/μL solution (160 μL) was prepared. The samples were denatured at 95 °C for 15 min and then transferred to an ice-water bath for 15 min. The samples were aliquoted in triplicate (50 μL) into wells of a 96-well non-binding Greiner plate (E19033A5) that had been pre-washed six times with TBS (1X), Tween (0.05%, see above) and then three times with deionized H2O. The plate was incubated at 37 °C overnight.

2.4.2. Antibody Incubation and Visualization

The plate was washed five times with Tris buffered saline-Tween solution (TBST 1X), discarding the buffer and wiping the plate onto an absorbing pad after each wash. The plate and the oligo were blocked with 300 μL of 2% NGS in Tris buffered 1X TBS by incubating the solution at 37 °C for 30 min. The NGS solution was discarded and the plate wiped.
Primary antibody, TDM-2, in TBS (1X) was added (100 μL) to each plated sample well and incubated at 37 °C for 30 min. The plate was washed five times with TBST (1X), discarding the buffer and wiping the plate onto an absorbing pad after each wash. Secondary antibody in TBS (1X) was added (100 μL) to the plated samples and incubated at 37 °C for 30 min. The plate was washed five times with TBST (1X) and once more with carbonate buffer, with the buffer discarded, and the plate wiped onto an absorbing pad after each wash.
One hundred microliters of Dynalight solution (Thermo Fisher Scientific, Dynalight Substrate with RapidGlow Enhancer, 4475406) were added to the plated samples and incubated at room temperature for 30 min. Fluorescence of the samples was measured in a FluoDia T70 Microplate Photon Counting Fluorometer (Photal Otsuka Electronics), using 300 ms as integration time at room temperature.

2.5. Calibration Curve for Quantifying CPD Generated by Chemiexcitation

The CPD ELISA gives a nonlinear dose response, so ELISA values were converted to physical values related to CPD density. We used UVC to create DNA samples with a known and well-characterized series of CPD densities and having a minimum of other DNA lesions. A solution of dT150 (10 ng/μL, 2.5 mL) was prepared from the solid stock. The solution was split into 10 μL drops on Parafilm on a cold block. The drops were irradiated with a UVC lamp calibrated with a UVX Radiometer (Analytik Jena, Jena, Germany, UVP 97001502) and a UVC probe (Analytik Jena, UVX-25) for a time providing a dose of 100 J/m2. After irradiation, the sample was column purified as in Section 2.5. Similarly, a non-irradiated solution of dT150 (10 ng/μL, 8 mL) was column purified. The concentration of purified solutions was measured in duplicate (1.5 μL) by Nanodrop as above. Both solutions were diluted to 3 ng/μL and the irradiated solution was mixed with the non-irradiated solution at different ratios to provide dT150 equivalent to irradiation at different irradiation doses. These calibration standards were used within each experiment to generate ELISA calibration curves. The curves were used to convert ELISA values to their UVC Equivalent dose (in J/m2). A UVC dose of 5 J/m2, the approximate value seen in the 0 hr controls, generates ~1 CPD per 10 kbp [49].

2.6. Quantification of Quenching

2.6.1. Biochemical Studies

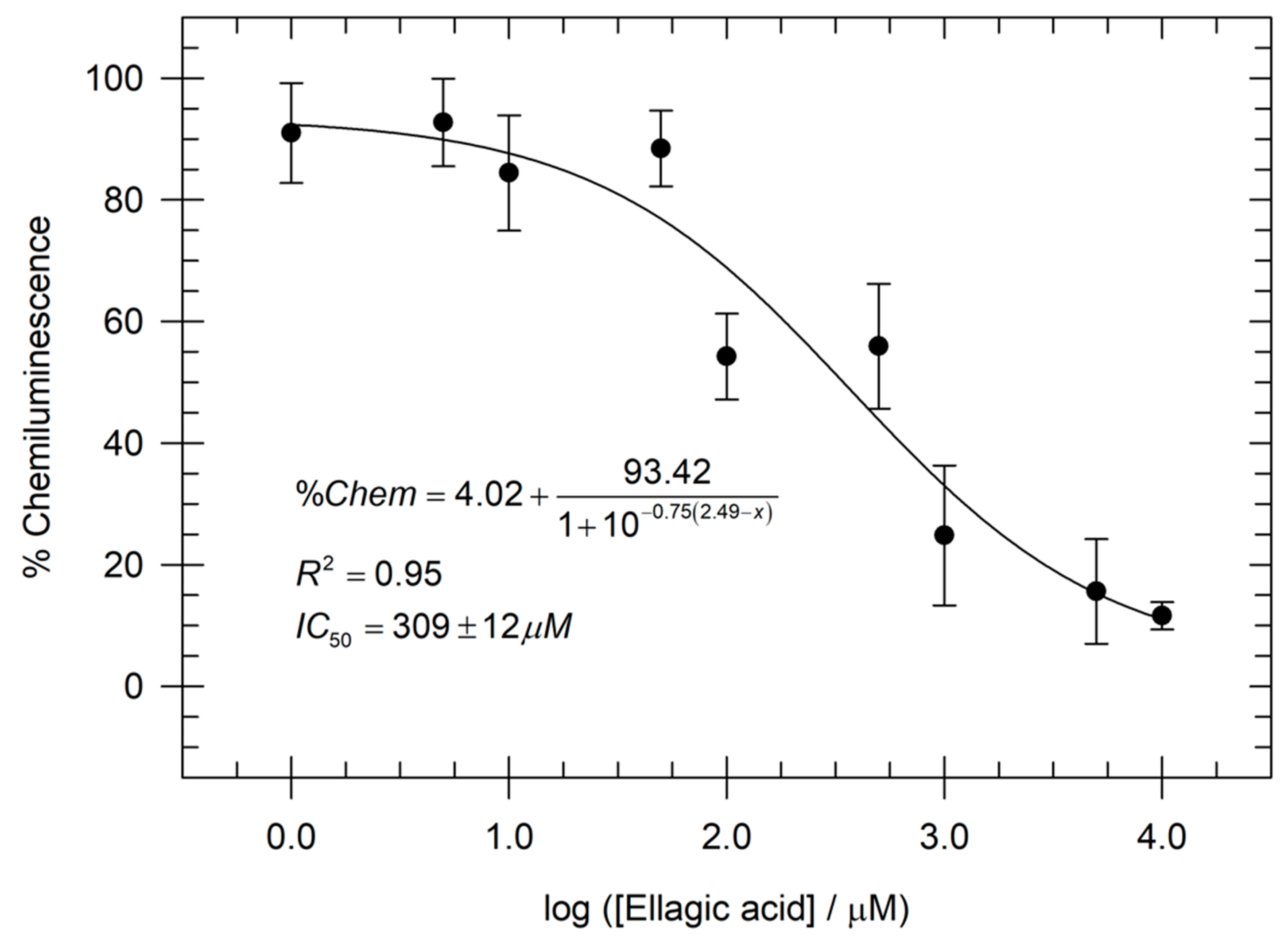

To calculate IC50 values for inhibiting TMD-DBAS luminescence, the average luminescence signal of the non-chemiluminescent wells containing no TMD or DBAS was subtracted from the chemiluminescence signal of each experimental well containing TMD, DBAS, and the putative quencher, with the result denoted STDQ. The luminescence from TMD or DBAS alone was not significant. The Percent Chemiluminescence was defined as the ratio of luminescence in the presence of quencher to that in the absence of quencher, 100 * (STDQ/STD). Luminescence inhibition is then 100—STDQ/STD. The IC50 value was calculated by plotting % Chemiluminescence versus the logarithm of the concentration of the triplet quencher concentration (in μM) and fitting to a variable slope sigmoidal dose-response curve using SigmaPlot version 11.0 (Systat Software, Inc., San Jose, CA, USA). Average IC50 values and IC50 experimental errors reported in Table 1 are calculated from at least three independent experiments. The percent CPD inhibition was calculated as 100% CPD increase. Because the DNA-alone ELISA signal was not negligible, % CPD increase was calculated as 100 * (STDQ − SD)/(STD − SD) and D now stands for DNA alone rather than DBAS. The standard deviation of the quenching was calculated from two independent experiments.

2.6.2. Cell-Based Studies

The scale of CPD production at 0 h and of dCPD production at 2 h both varied between experiments. Cell-based UVC Equivalent dose was therefore normalized to the value at 0 h. The pre-normalized data are presented in Figure S20.

3. Results

3.1. Quantification of Triplet-State Quenching Using Triplet-State Reporter Luminescence

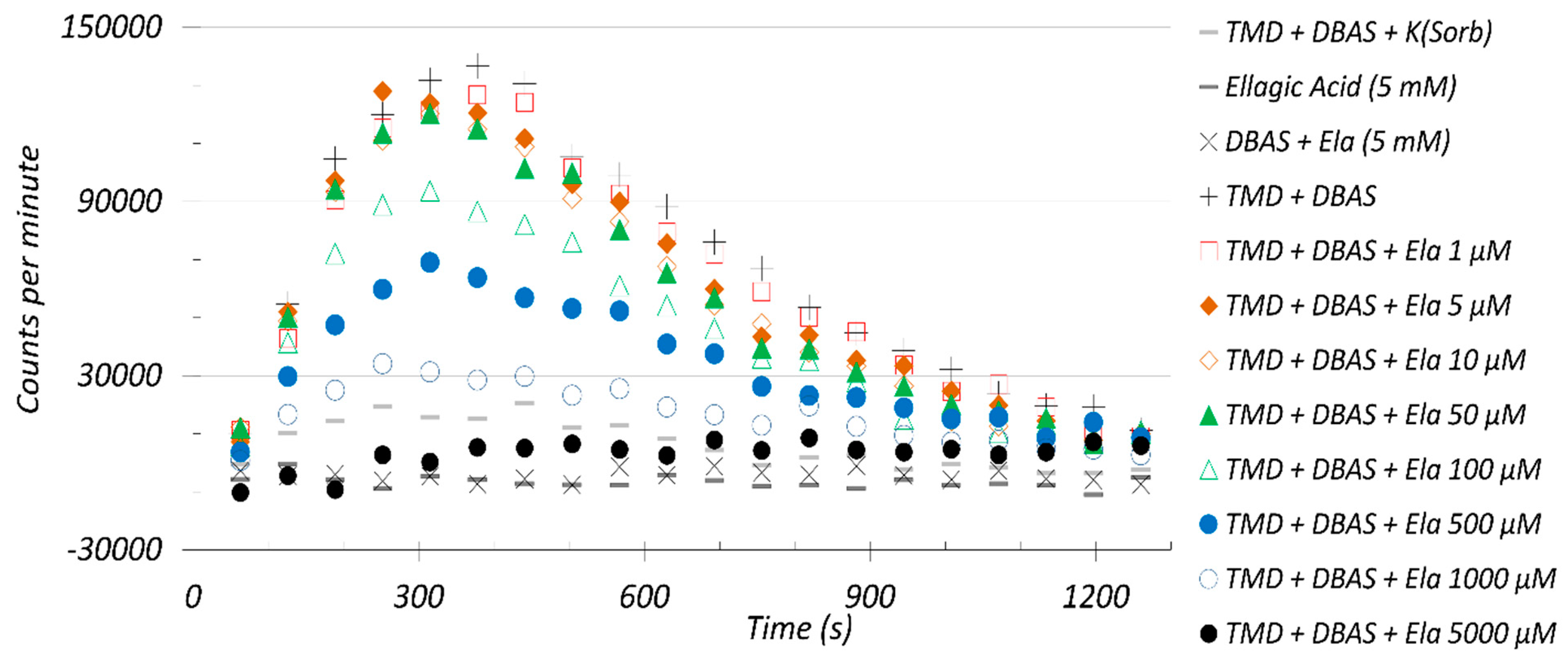

Triplet-quenching capacity was measured for seventeen polyenes, polyphenols, and related compounds, as well a mixture of these. Potassium sorbate (a known triplet-state quencher) [23] was used as control, to demonstrate the adequacy of the experimental conditions and as a reference standard. The triplet-state carbonyl was formed by heating the samples containing TMD, DBAS, and the triplet quencher to 73 °C in the same instrument in which the chemiluminescence was measured. Figure 2 shows the TMD-DBAS chemiluminescence in the presence of ellagic acid at different concentrations and at different times after initiating the reaction. The chemiluminescence signal decreased as the concentration of ellagic acid increased. Based on this result, the concentration of ellagic acid required to quench 50% of the TMD-DBAS chemiluminescence (IC50) was calculated: the signal from each ellagic concentration at 400 s (maximum signal) was divided by the TMD-DBAS-only signal; this ratio was plotted (as a percentage) with respect to the logarithm of test compound concentration (Figure 3). The curve provides a quantifiable measure of how effective the polyphenol is at preventing triplet-energy state generation from the TMD-DBAS excitation. The IC50 value was calculated for each of the polyphenols and other compounds of interest (Figures S1–S17).

3.2. Three Categories of Triplet-State Quenching Activity

We found that the compounds fell into three groups based on the IC50 values (Table 1). The first group were the compounds with excellent triplet-quenching activity (29–150 μM): curcumin (29 μM), resveratrol (52 μM), potassium sorbate (58 μM), and ferulic acid (129 μM). The second group had moderate triplet quencher activity: baicalein (195 μM), polydatin (resveratrol with a sugar, 234 μM), glutathione (234 μM), baicalin (baicalein with a sugar, 251 μM), caffeic acid (251 μM), epicatechin (288 μM), myricetin (309 μM), and ellagic acid (309 μM). The third group had triplet quencher activity but only at higher concentrations: trolox (427 μM), chlorogenic acid (caffeic acid with a sugar, 550 μM), luteolin (~600 μM), epigallocatechin gallate (698 μM), and gallic acid, 708 μM).
Table
Table 1. Concentration range and IC50 value of natural compounds that quench triplet-state energy, assessed by the luminescence of TMD-DBAS energy transfer.
Table 1. Concentration range and IC50 value of natural compounds that quench triplet-state energy, assessed by the luminescence of TMD-DBAS energy transfer.
GroupPolyphenolLuminescence Quenching Range (μM)IC50 Value (μM)
ICurcumin0.05–15,000 29 ± 1
Resveratrol0.05–15,000 52 ± 2
Potassium Sorbate0.1–500058 ± 5
Ferulic Acid1–15,000129 ± 11
IIBaicalein0.05–15,000195 ± 14
Polydatin1–15,000234 ± 18
Glutathione1–10,000234 ± 11
Baicalin0.1–5000251 ± 20
Caffeic Acid0.05–15,000251 ± 16
Epicatechin0.1–10,000288 ± 21
Myricetin1–5000300 ± 23
Ellagic Acid1–10,000309 ± 12
IIITrolox (Vitamin E)0.05–15,000427 ± 20
Chlorogenic acid0.05–15,000550 ± 15
Luteolin a500–5000~600
Epigallocatechin Gallate0.1–10,000698 ± 21
Gallic Acid0.05–15,000708 ± 47
a Luteolin enhances the chemiluminescence of the samples in the concentration range of 1–50 μM.
Table 2 shows the IC50 values of a natural product mixture, given in μg/mL. It is imprecise to calculate the molar concentration of mixtures because they are multicomponent and the percentage of each compound is not known. Thus, for comparison, we included the IC50 value in these units for potassium sorbate, chlorogenic acid, and epigallocatechin gallate. The similarity of the components of Honeysuckle extract (IC50 = 245 μg/mL, Figure S18) to epigallocatechin gallate (Table 2 and Figure 1) is reflected in their IC50 values (IC50 = 320 μg/mL for epigallocatechin gallate). The presence of multiple compounds in a mixture makes it difficult to relate the activity directly to only one compound. The activity of honeysuckle extract was ~25% lower than chlorogenic acid (that is, had a larger IC50), suggesting that the presence of more than one component in the test sample results in a higher IC50 value than with single compounds. The same may have occurred with luteolin and epigallocatechin gallate, which were only ≥95% pure. Honeysuckle extract also has the particularity that its polyphenolic compounds (Table 2) are bound to a sugar moiety (Figure 1), which evidently depresses the triplet quenching activity as observed in Table 1 for polydatin, baicalin, and chlorogenic acid compared to resveratrol, baicalein, and caffeic acid, respectively.

3.3. Algal Extracts

Forty-five algae extracts were also analyzed to evaluate their capacity to quench triplet acetone. Species were chosen based on their reported propensity to contain mycosporine-like amino acids, commonly studied for their UV-absorbing properties [26,28,30,31,50,51]. Due to the large number, only two concentrations of each algae extract were tested. Table 3 and Figure S18 show the results for the six most effective extracts (see Supplemental Table S2 for results of all 45 extracts). Despite the impossibility of calculating an IC50, it is clear that the extracts contain triplet quenching activity.

3.4. Quenching of CPD Formation

After observing that most of the tested compounds quenched TMD-generated triplet-state acetone, as judged by preventing luminescence from the triplet-state reporter DBAS, we chose one triplet quencher from each group of Table 1 to evaluate their capacity to prevent the formation of dark CPDs. First, we found that TMD does induce dCPDs in DNA, as reported for trimethyl dioxetane [52]. Samples of a 150-mer of thymine (dT150) or calf thymus DNA (CTDNA) were mixed with 5 mM TMD and incubated at 70°C to induce dioxetane cleavage and triplet-state carbonyls. The dCPDs were measured by ELISA and a standard curve was used to express the CPD level as an equivalent UVC dose, which, unlike ELISA, is a linear measurement (see Methods). TMD treatment increased the CPD signal of dT150 and CTDNA 1.3- and 1.6-fold, respectively, relative to the signal without TMD. This increase is in the range previously seen in cells, where in the absence of nucleotide excision repair the dCPDs constitute approximately half the CPDs received after UV exposure [8]. The absolute magnitude was equivalent to ~1 J/m2 UVC; this dose is slightly toxic in mammalian cells after a single exposure, but a continuing chemical source of such levels would produce a cumulative effect. When potassium sorbate, epicatechin, or luteolin were added to the dT150 or CTDNA samples treated with TMD, dCPDs were inhibited up to 90% even at quencher concentrations (10 μM) well below their IC50 in the DBAS reporter assay (Table 4). The trend in effectiveness of the compounds in calf thymus DNA reflects their IC50; however, dT150 had the opposite behavior, perhaps reflecting a property of single-strand DNA or thymine.

3.5. CPD Quenching in UVA-Irradiated Melanocytes

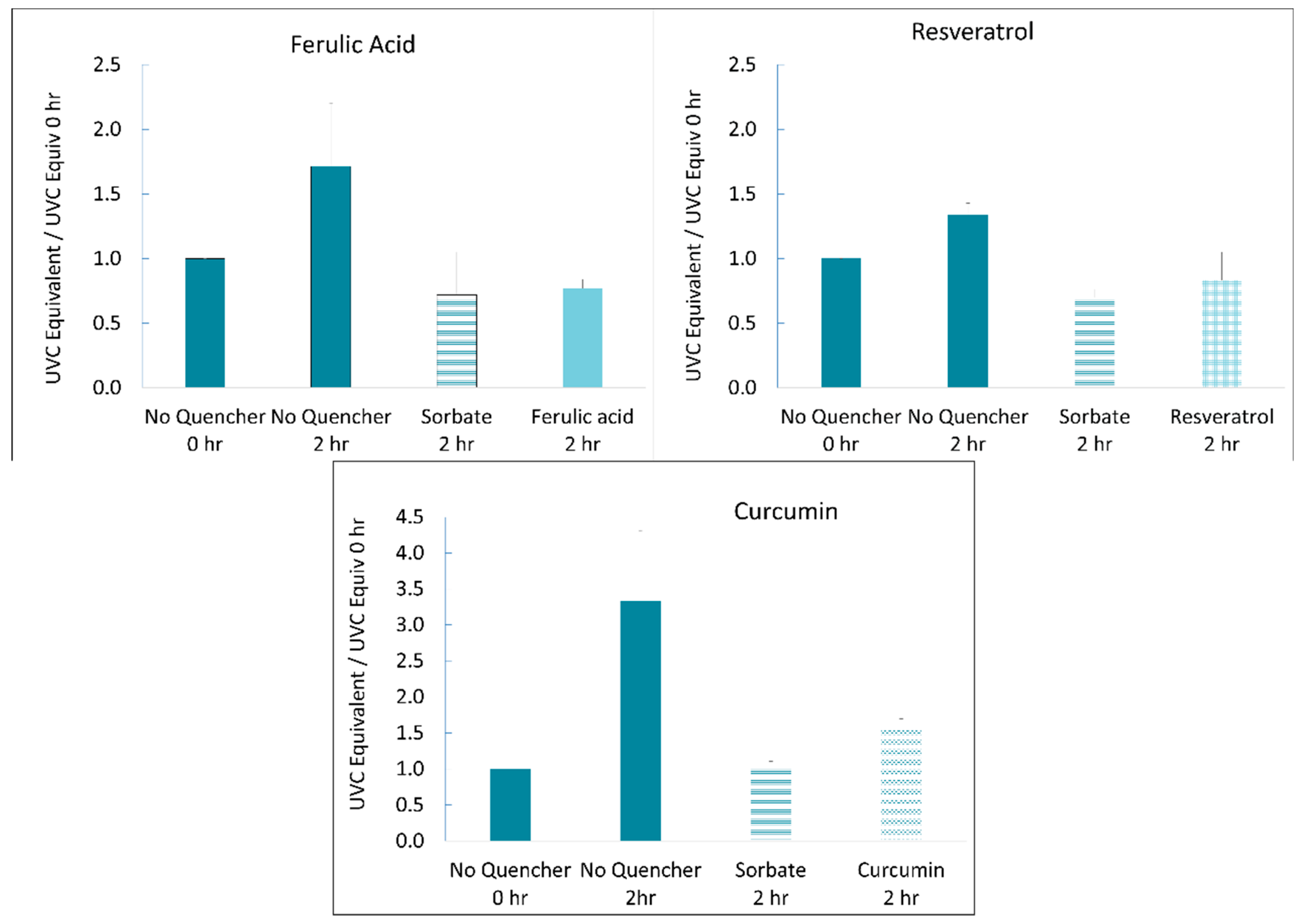

Four compounds highly effective in quenching TMD-DBAS luminescence were tested for their ability to prevent dCPD formation in murine melanocytes when added after UVA exposure, a wavelength that makes fewer direct CPDs than UVC or UVB but was effective in inducing dCPDs [8]. Potassium sorbate, a more soluble analog of the ethyl sorbate used in the previous study, was used as positive control. Despite cell uptake being an additional factor in the in vivo assay, sorbate, ferulic acid, resveratrol, and curcumin were each effective at 100 μM in limiting dCPD formation observed 2 h after 75 kJ/m2 UVA (Figure 4). The CPD levels with quencher resembled the level of directly induced CPDs at 0 h. The cell-based results alone would not distinguish between quenching dCPDs and accelerating repair of all CPDs, although the typical half-time for CPD repair in human cells is 24 h. The DNA-based data in Table 4 are consistent only with quenching.

4. Discussion

4.1. Triplet-State Quenching by Antioxidant Biomolecules

Structural properties of these quenchers suggest distinct mechanisms of quenching. Exclusion of false positive mechanisms not of interest was described in Section 2.1 of Methods. For the true positives, we first consider physical quenching—in which the number of electrons, bonds, or atoms of the triplet quencher does not change—and we then consider chemical modes of triplet quenching in Section 4.6.
Physical energy quenching entails two steps: energy transfer then energy dissipation. The Introduction mentioned that the delocalized electrons in these compounds support energy transfer by Dexter electron exchange and that the same property supports radical scavenging activity. We now point out several known mechanisms of energy dissipation, based on published experiments using UV light as the source of the excitation energy.

4.2. Triplet-Energy Dissipation by Trans-cis Isomerization

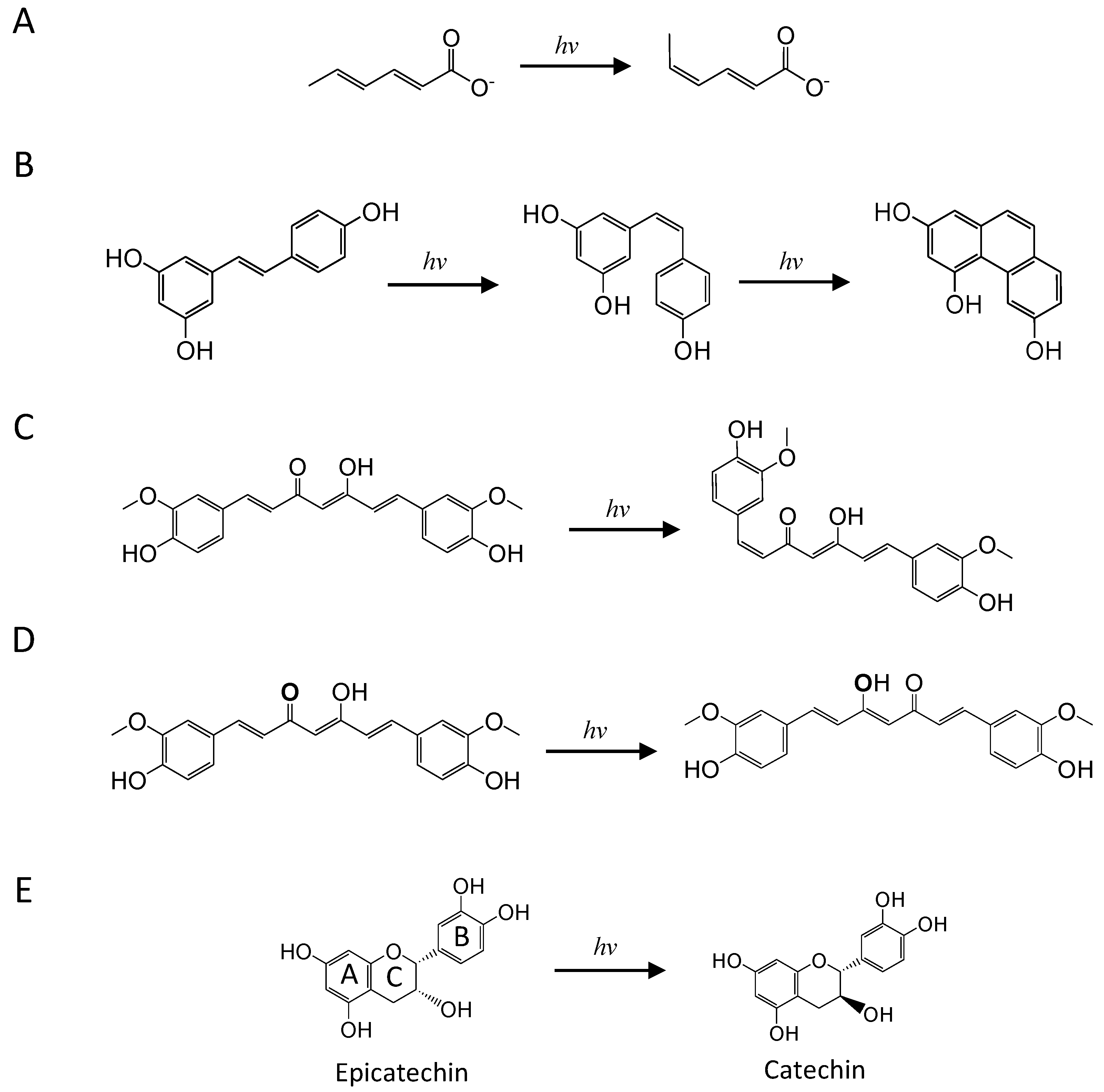

All the compounds of Group I (curcumin, resveratrol, sorbate, ferulic acid) have at least one trans double bond that can undergo isomerization to cis. In this structure, absorption of a photon or transfer of energy from a triplet state is known to excite an electron of the triplet quencher, twisting the double bond and converting it to a diradical having a single bond around which the molecule can now isomerize [54,55,56]. Isomerization dissipates the triplet energy as heat due to collisions with the solvent or, if the final isomer has higher energy, as ground-state bond energy.
For conjugated double bonds in dienes such as sorbate, isomerization is a well-studied mode of triplet-energy dissipation [47,57] (Figure 5A) and trans to cis is the direction toward lower energy. The greater the number of double bonds, the greater the quenching rate constant [55]. Carotenoids, for example, are essentially sorbate with a longer conjugated double bond system and therefore accept and dissipate energy at lower energies [21].
Isomerization is also the mode of triplet-energy dissipation by the stilbenes, ring-containing conjugated systems including resveratrol [54]. There is evidence for photoinduced trans-cis isomerization of resveratrol. Moreover, once the cis-isomer is formed it is possible to form the phenanthrene-derivative by energy-consuming ring closure, a chemical-quenching mechanism (Figure 5B) [58,59,60]. The cis-isomers of a series of chlorine substituted stilbenes have been prepared by irradiating solutions of the trans-isomers [61]. Ferulic acid and curcumin similarly have a conjugated double bond exterior to a UV-absorbing aromatic ring, as does the less potent compound caffeic acid. Curcumin was the most efficient quencher of the triplet acetone formed by TMD cleavage. It has three trans-double bonds in its structure, suggesting than one or more can isomerize (in successive steps) (Figure 5C). Substantial amounts of the curcumin cis-isomer (named trans-enol) have been reported in polar protic solvents after UV irradiation [62]. To observe the cis-isomer, curcumin must be in the enol tautomer (wherein the trans-double bond lies between the two exocyclic oxygens) [62]. UVB irradiation of substituted α-arylcinnamates also causes isomerization. Because the double bonds involve substituents rather than H, the description is in terms of E- to Z- compounds rather than trans to cis, as well as the reverse direction [63]. This E-Z isomerization upon irradiation has also been observed on chloro- substituted α-arylcinnamates [64].

4.3. Triplet-Energy Dissipation by Tautomerization and Epimerization

Additional radiation-less processes have been reported for the decay of the curcumin-excited state [62], including hydrogen bond vibration and both intramolecular and intermolecular proton exchange that interchanges keto and enol groups—a tautomerization reaction (Figure 5D). The intramolecular proton exchange, termed excited-state intramolecular proton transfer (ESIPT), requires electronic excitation and is favored in non-polar solvents where it is unperturbed by solvent-molecule interactions (hydrogen bonding or charge attraction), but is also possible in polar solvents such as water [62].
Epimerization requires breaking and re-forming a single bond and so dissipates energy. After exposure to UVC, epicatechin in Group II epimerizes to catechin due to a reorientation of the groups bound to the C ring of this flavonoid (Figure 5E) [65]. Conversion of epicatechin to catechin also occurs at pH > 6 at 40, 80, and 100 °C [66]. The epi → non-epi direction is observed due to the epi-isomer predominating in tea extract (~90%), as was used here, but the non-epi → epi conversion also occurs [66] and both have been reported for several catechins. The flavan structure of catechin is also present in epigallocatechin gallate (group III of Table 1), making it possible that the epimerization type of relaxation process also operates in that molecule.

4.4. Inhibitory Role of Glycosidic Sugars

In plants, glycosidic sugars are important for solubility and molecular transport. In the present biomolecules, we found that the glycosides polydatin, baicalin, and chlorogenic acid had a higher IC50 than their sugar-free analog. For polydatin and chlorogenic acid, the difference in triplet-quenching activity moved them into the next less-effective group. We had expected that polydatin would have an IC50 value similar to resveratrol because polydatin is a resveratrol molecule bound to a hexose; however, the IC50 value was six times greater. A similar phenomenon has been observed in the kinetics of quenching of triplet riboflavin by luteolin or quercetin versus rutin [67]; rutin contains a disaccharide moiety. Luteolin and quercetin quenched triplet riboflavin at 40–70% faster rates than rutin. It was hypothesized that the bulky sugar component of the molecule reduces the diffusion rate and increases the steric hinderance of rutin contacting triplet riboflavin [67].

4.5. Algal Compounds

Evaluating the trend of the algal extracts to quench triplet acetone using only three concentrations is just the starting point for a deeper study in which a few are subjected to purification, isolation, and identification of the active compounds, perhaps MAAs, for further analysis. Regarding the quenching effect of the MAA, exciting the MAA at the maximum absorption wavelength shows minimal fluorescence [36,39]. There is evidence of cis-trans isomerization (at low yield) from usujirene to palythine (see Figure 1) upon UVB exposure of the former [37]. The reverse reaction (palythine → usujirene) is 10 times less efficient [37]. In the case of palythine excitation and return to the ground state, the process occurs by a non-radiative mechanism. The excitation of palythine by triplet acetone causes the C=N bond of the molecule to rotate and releases the energy as heat [39].

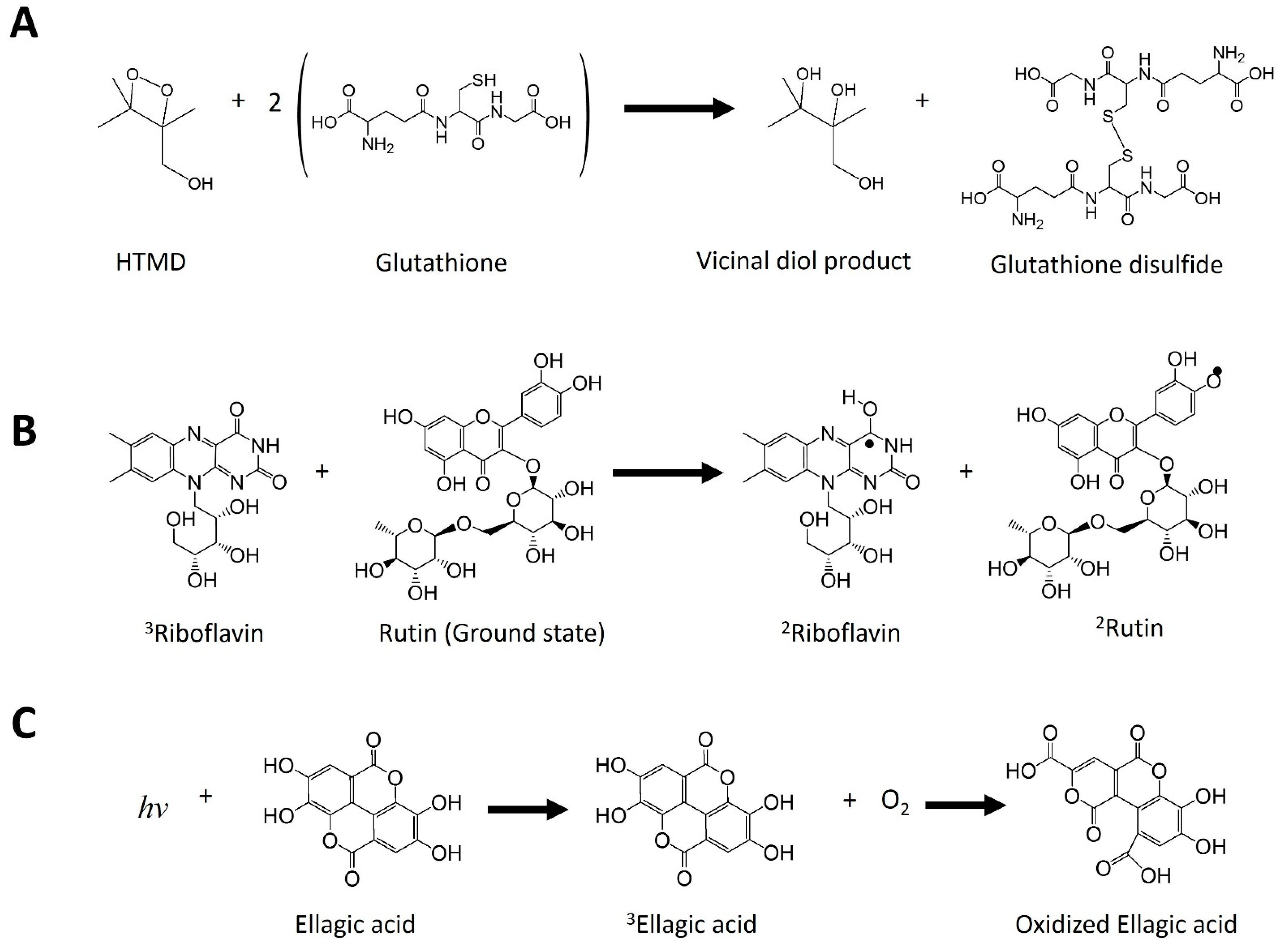

4.6. Chemical Modes of Triplet-State Quenching

4.6.1. Dioxetane Cleavage

Thiols, as in glutathione, have been observed to “quench” triplet-state carbonyls by preventing them: cleaving the dioxetane O–O bond to diols, which are not excited to a triplet state by this level of energy (Figure 6A) [46,68]. Glutathione can also intercept a superoxide (or peroxyl) radical before a dioxetane can form [68]. The latter reaction with glutathione unfortunately creates 1O2 [68].

4.6.2. Ground-State Electron Transfer

Energy transfer from triplet states via Dexter electron exchange can, in principle, be blocked by the typical activity of antioxidants—ground-state electron transfer. This activity is the transfer of one electron from the quencher to the excited molecule, resembling half of a Dexter exchange (Figure 6B). A model for the flavonoids is provided by the observation that triplet riboflavin (3Rbf) can be deactivated by the polyphenols rutin, catechin, and epigallocatechin gallate in a concentration-dependent manner [69]. The triplet deactivation was by transfer from the polyphenol to 3Rbf of either a hydrogen atom (H•, i.e., an electron accompanied by a proton) or just the electron. This ground-state transfer produces a polyphenol radical and a (doublet) riboflavin radical (2Rbf, i.e., the radical 2Rbf•) [67,69]. Filling the ground-state vacancy left by the riboflavin’s excited electron may prevent Dexter exchange, blocking that mode of energy transfer to DNA and thereby preventing dCPD formation. The high energy electron remains on the riboflavin, which can still be considered excited. Doublet riboflavin (or in our case DBAS•) can then donate the extra electron (and proton) to an electron acceptor, which in the case of ambient O2 would result in the reactive oxygen species superoxide, O2•− [69]. These ground-state transfer reactions are also not a desirable property for a triplet-state.

4.6.3. Triplet-Energy Dissipation to Ambient Oxygen

The distinction between physical and chemical triplet quenchers is not always tidy. Ellagic acid in Group II differs from the other triplet quenchers here analyzed. Because of the absence of trans-double bonds, an isomerization reaction does not occur. Its planarity [70] prevents an epimerization reaction. However, when an aerated solution of ellagic acid is UV irradiated, it is excited to a singlet state. It then intersystem crosses to a triplet state and transfers this energy to ambient 3O2 to generate singlet oxygen, 1O2, an excited state of 3O2. We presume that TMD excites ellagic acid to the triplet state directly. Thus far, we have two physical triplet energy transfers. However, the 1O2 then adds to another molecule of ellagic acid, creating a dioxetane that is unstable; its cleavage opens an aromatic ring and leads to subsequent rearrangements (Figure 6C). The resulting oxidized ellagic acid was confirmed by spectroscopic techniques and by density functional theory (DFT) [71]. Triplet-energy dissipation to O2, making deleterious 1O2, is clearly not a desirable property for a triplet-state quencher. It is clearly important to understand the mechanism of a quencher’s action before using it in an application.

4.7. Roles of Physical and Chemical Quenching

The striking ‘isomerizability’ of the Group I ‘hits’ suggests that this energy-intensive process is dissipating transferred energy. Therefore, these compounds appear to quench triplet states by diverting Dexter energy transfer, rather than by the usual antioxidant activity of donating ground-state electrons that cause nonproductive cleavage of dioxetanes, enhance intersystem crossing, or block Dexter electron exchange. For Groups II and III, however, chemical quenching of triplet states by electron donation is more likely. Direct confirmation of specific mechanisms of triplet-quenching and energy dissipation by these antioxidants will require HPLC, NMR, and EPR characterization to detect isomerization products and radical intermediates.

4.8. Skin Delivery

Topical delivery of molecules into skin requires that they be nonpolar to penetrate the stratum corneum and polar to reach the living keratinocytes and melanocytes [72]. Delivery strategies are therefore largely empirical and non-optimal. Ferulic acid delivered topically reaches a concentration of only 25 pM in 48 h [73], whereas topical ascorbic acid reaches 1 mM after a single application [74]. It is therefore fortunate that quenching of dCPDs occurred well below the IC50 for quenching of DBAS luminescence (Table 4). Delivering triplet quenchers topically may require optimizing analogs or using biocompatible lipophilic nanoparticles as carriers to traverse the stratum corneum. Higher concentrations of triplet quenchers are reached with dietary supplementation. Single doses of curcumin, resveratrol, or epigallocatechin gallate reach 0.3–7 μM [75,76,77], so repeated dietary supplementation would be more likely to attain their DBAS IC50. Vitamin E supplementation for one month reaches 27 mM [78], well above its 427 μM IC50. Cytosolic glutathione is 11 mM even without supplementation [79]. The latter two molecules decline precipitously after UV exposure, however, so it has been proposed that augmentation will be beneficial [80].

5. Conclusions

These experiments yielded four results: (i) Chemiexcitation of the triplet-state reporter DBAS can be impeded or prevented by using natural products. Many of the effective compounds were already known as antioxidants; (ii) Biomolecules selected on the basis of having conjugated double bonds providing delocalized electrons were particularly effective at diverting energy from triplet-state excited molecules and not allowing the DBAS reporter to emit the energy as light; (iii) Compounds fell into three groups according to their effectiveness in quenching the triplet state, with the most effective being active in the 50 μM range. Comparison to the literature suggests different chemical mechanisms operative in each group and (iv) This excited-state quenching activity also prevented the formation of the mutagenic and lethal CPD in DNA in vitro and in cells. This understanding may provide the basis for new approaches to protecting skin, as the most effective quenchers appear to act by energy transfer rather than the electron-donation mechanism for which common antioxidants are best known.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/antiox11020357/s1, Supplementary Methods. Supplementary Data Figure S1: Chemiluminescence of TMD-DBAS excitation in presence of curcumin, Figure S2: resveratrol, Figure S3: potassium sorbate, Figure S4: ferulic acid, Figure S5: baicalein, Figure S6: polydatin, Figure S7: glutathione, Figure S8: baicalin, Figure S9: caffeic acid, Figure S10: epicatechin, Figure S11: myricetin, Figure S12: ellagic acid, Figure S13: Trolox, Figure S14: chlorogenic acid, Figure S15: luteolin, Figure S16: epigallocatechin gallate, Figure S17: gallic acid, Figure S18: honeysuckle extract, Figure S19: algae extracts, Figure S20: dCPD quenching activity before and after correcting for ELISA assay nonlinearity by using the UVC calibration curve. Table S1: Triplet-state quenching survey, Table S2: TMD-DBAS quenching activity of algal extracts. References [81,82,83,84] are cited in the supplementary materials.

Author Contributions

Conceptualization, D.E.B., C.A.-M., L.C.P.G., S.P.; methodology, C.A.-M., L.C.P.G., S.P., F.A.A., M.A.P.; investigation screen, L.C.P.G., S.P., F.A.A.; TMD synthesis and IC50, C.A.-M.; algal screen, S.K.A., C.A.-M.; cell-based studies, S.K.A.; formal analysis and chemical mechanisms, C.A.-M., D.E.B.; writing—original draft, C.A.-M., D.E.B.; writing—review and editing, all authors; project administration and funding acquisition, D.E.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by grant A150244Avt3 C131121 from L’Oreal, Inc., Clark, NJ; the Yale Skin Cancer SPORE, grant P50 CA121974-12A1 from the National Cancer Institute; and grant 5R01AR070851 from the National Institute of Arthritis and Musculoskeletal and Skin Diseases.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are presented in the text or Supplemental Material.

Acknowledgments

We thank the Yale Office of Environmental Health and Safety for use of their photon-counting liquid scintillation counter; the W. M. Keck Biotechnology Resource Laboratory at Yale University for oligonucleotide synthesis and modifications; and the David Spiegel laboratory (Dept. Chemistry, Yale Univ.) for facilities for TMD synthesis. Algal materials were collected in various countries under contract to the Natural Products Branch, National Cancer Institute. The algal extracts used for these studies were produced by the Natural Products Support Group also under contract to the Natural Products Branch of the National Cancer Institute.

Conflicts of Interest

These studies were supported in part by L’Oreal, Inc., under conditions not restricting the ability to analyze and interpret the data or prepare and publish manuscripts independently.

References

  1. Armstrong, B.K.; Kricker, A. The epidemiology of UV induced skin cancer. J. Photochem. Photobiol. B 2001, 63, 8–18. [Google Scholar] [CrossRef]
  2. Madan, V.; Lear, J.T.; Szeimies, R.M. Non-melanoma skin cancer. Lancet 2010, 375, 673–685. [Google Scholar] [CrossRef] [Green Version]
  3. Narayanan, D.L.; Saladi, R.N.; Fox, J.L. Ultraviolet radiation and skin cancer. Int. J. Dermatol. 2010, 49, 978–986. [Google Scholar] [CrossRef] [PubMed]
  4. Leiter, U.; Keim, U.; Eigentler, T.; Katalinic, A.; Holleczek, B.; Martus, P.; Garbe, C. Incidence, mortality, and trends of nonmelanoma skin cancer in Germany. J. Investig. Dermatol. 2017, 137, 1860–1867. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Brash, D.E.; Seetharam, S.; Kraemer, K.H.; Seidman, M.M.; Bredberg, A. Photoproduct frequency is not the major determinant of UV base substitution hot spots or cold spots in human cells. Proc. Natl. Acad. Sci. USA 1987, 84, 3782–3786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Jans, J.; Schul, W.; Sert, Y.G.; Rijksen, Y.; Rebel, H.; Eker, A.P.; Nakajima, S.; van Steeg, H.; de Gruijl, F.R.; Yasui, A.; et al. Powerful skin cancer protection by a CPD-photolyase transgene. Curr. Biol. 2005, 15, 105–115. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Premi, S.; Brash, D.E. Chemical excitation of electrons: A dark path to melanoma. DNA Repair 2016, 44, 169–177. [Google Scholar] [CrossRef] [Green Version]
  8. Premi, S.; Wallisch, S.; Mano, C.M.; Weiner, A.B.; Bacchiocchi, A.; Wakamatsu, K.; Bechara, E.J.; Halaban, R.; Douki, T.; Brash, D.E. Photochemistry. Chemiexcitation of melanin derivatives induces DNA photoproducts long after UV exposure. Science 2015, 347, 842–847. [Google Scholar] [CrossRef]
  9. Lawrence, K.P.; Douki, T.; Sarkany, R.P.E.; Acker, S.; Herzog, B.; Young, A.R. The UV/visible radiation boundary region (385–405 nm) damages skin cells and induces “dark” cyclobutane pyrimidine dimers in human skin in vivo. Sci. Rep. 2018, 8, 12722. [Google Scholar] [CrossRef]
  10. Delinasios, G.J.; Karbaschi, M.; Cooke, M.S.; Young, A.R. Vitamin E inhibits the UVA1 induction of “light” and “dark” cyclobutane pyrimidine dimers, and oxidatively generated DNA damage, in keratinocytes. Sci. Rep. 2018, 8, 423. [Google Scholar] [CrossRef] [Green Version]
  11. Adam, W. Thermal generation of electronic excitation with hyperenergetic molecules. Pure Appl. Chem. 1980, 52, 2591–2608. [Google Scholar] [CrossRef] [Green Version]
  12. Bastos, E.L.; Farahani, P.; Bechara, E.J.H.; Baader, W.J. Four-membered cyclic peroxides: Carriers of chemical energy. J. Phys. Org. Chem. 2017, 30, e3725. [Google Scholar] [CrossRef]
  13. Kalinowski, J.; Stampor, W.; Cocchi, M.; Virgili, D.; Fattori, V.; Di Marco, P. Triplet energy exchange between fluorescent and phosphorescent organic molecules in a solid state matrix. Chem. Phys. 2004, 297, 39–48. [Google Scholar] [CrossRef]
  14. Skourtis, S.S.; Liu, C.; Antoniou, P.; Virshup, A.M.; Beratan, D.N. Dexter energy transfer pathways. Proc. Natl. Acad. Sci. USA 2016, 113, 8115–8120. [Google Scholar] [CrossRef] [Green Version]
  15. Omenn, G.S. Chemoprevention of lung cancers: Lessons from caret, the beta-carotene and retinol efficacy trial, and prospects for the future. Eur. J. Cancer Prev. 2007, 16, 184–191. [Google Scholar] [CrossRef]
  16. Mayne, S.T.; Ferrucci, L.M.; Cartmel, B. Lessons learned from randomized clinical trials of micronutrient supplementation for cancer prevention. Annu. Rev. Nutr. 2012, 32, 369–390. [Google Scholar] [CrossRef]
  17. D’Autreaux, B.; Toledano, M.B. ROS as signalling molecules: Mechanisms that generate specificity in ROS homeostasis. Nat. Rev. Mol. Cell Biol. 2007, 8, 813–824. [Google Scholar] [CrossRef]
  18. Liaudet, L.; Vassalli, G.; Pacher, P. Role of peroxynitrite in the redox regulation of cell signal transduction pathways. Front. Biosci. 2009, 14, 4809–4814. [Google Scholar] [CrossRef] [Green Version]
  19. Sies, H. Hydrogen peroxide as a central redox signaling molecule in physiological oxidative stress: Oxidative eustress. Redox Biol. 2017, 11, 613–619. [Google Scholar] [CrossRef]
  20. Wondrak, G.T.; Jacobson, M.K.; Jacobson, E.L. Identification of quenchers of photoexcited states as novel agents for skin photoprotection. J. Pharmacol. Exp. Ther. 2005, 312, 482–491. [Google Scholar] [CrossRef] [Green Version]
  21. Koyama, Y. Structures and functions of carotenoids in photosynthetic systems. J. Photochem. Photobiol. B 1991, 9, 265–280. [Google Scholar]
  22. Turro, N.; Lechten, P.; Schore, N.E.; Schuster, G.; Steinmetzer, H.C.; Yekta, A. Tetramethyl-1,2-dioxetane. Experiments in chemiexcitation, chemiluminescence, photochemistry, chemical dynamics and spectroscopy. Acc. Chem. Res. 1974, 7, 97–105. [Google Scholar] [CrossRef]
  23. Catalani, L.H.; Wilson, T.; Bechara, E.J.H. Two-water soluble fluorescence probes for chemiexcitation studies: Sodium 9,10-dibromo- and 9,10-diphenylanthracene-2-sulfonate. Synthesis, properties and application to triplet acetone and tetramethyldioxetae. Photochem. Photobiol. 1987, 45, 273–281. [Google Scholar] [CrossRef]
  24. Pirker, K.F.; Severino, J.F.; Reichenauer, T.G.; Goodman, B.A. Free radical processes in green tea polyphenols (GTP) investigated by electron paramagnetic resonance (EPR) spectroscopy. Biotechnol. Annu. Rev. 2008, 14, 349–401. [Google Scholar] [PubMed]
  25. Severino, J.F.; Goodman, B.A.; Kay, C.W.; Stolze, K.; Tunega, D.; Reichenauer, T.G.; Pirker, K.F. Free radicals generated during oxidation of green tea polyphenols: Electron paramagnetic resonance spectroscopy combined with density functional theory calculations. Free Radic. Biol. Med. 2009, 46, 1076–1088. [Google Scholar] [CrossRef]
  26. Shick, J.M.; Dunlap, W.C. Mycosporine-like amino acids and related gadusols: Biosynthesis, accumulation, and UV-protectivefunctions in aquatic organisms. Annu. Rev. Physiol. 2002, 64, 223–262. [Google Scholar] [CrossRef] [Green Version]
  27. Gao, Q.; Garcia-Pichel, F. Microbial ultraviolet sunscreens. Nat. Rev. Microbiol. 2011, 9, 791–802. [Google Scholar] [CrossRef]
  28. Lawrence, K.P.; Long, P.F.; Young, A.R. Mycosporine-like amino acids for skin photoprotection. Curr. Med. Chem. 2018, 25, 5512–5527. [Google Scholar] [CrossRef]
  29. Shick, J.M. Ultraviolet-B radiation stimulates shikimate pathway-dependent accumulation of mycosporine-like amino acids in the coral Stylophora psitillata despite decreases in its population of symbiotic dinoflagellates. Limnol. Oceanogr. 1999, 44, 1667–1682. [Google Scholar] [CrossRef] [Green Version]
  30. Rozema, J.; Bjorn, L.O.; Bornman, J.F.; Gaberscik, A.; Hader, D.P.; Trost, T.; Germ, M.; Klisch, M.; Groniger, A.; Sinha, R.P.; et al. The role of UV-B radiation in aquatic and terrestrial ecosystems--an experimental and functional analysis of the evolution of UV-absorbing compounds. J. Photochem. Photobiol. B 2002, 66, 2–12. [Google Scholar] [CrossRef]
  31. Ferroni, L.; Klisch, M.; Pancaldi, S.; Hader, D.P. Complementary UV-absorption of mycosporine-like amino acids and scytonemin is responsible for the UV-insensitivity of photosynthesis in Nostoc flagelliforme. Mar. Drugs 2010, 8, 106–121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Lawrence, K.P.; Gacesa, R.; Long, P.F.; Young, A.R. Molecular photoprotection of human keratinocytes in vitro by the naturally occurring mycosporine-like amino acid palythine. Br. J. Dermatol. 2018, 178, 1353–1363. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. de la Coba, F.; Aguilera, J.; Figueroa, F.L.; de Gálvez, M.V.; Herrera, E. Antioxidant activity of mycosporine-like amino acids isolated from three red macroalgae and one marine lichen. J. Appl. Physiol. 2009, 21, 161–169. [Google Scholar] [CrossRef]
  34. Wada, N.; Sakamoto, T.; Matsugo, S. Mycosporine-like amino acids and their derivatives as natural antioxidants. Antioxidants 2015, 4, 603–646. [Google Scholar] [CrossRef]
  35. Gacesa, R.; Lawrence, K.P.; Georgakopoulos, N.D.; Yabe, K.; Dunlap, W.C.; Barlow, D.J.; Wells, G.; Young, A.R.; Long, P.F. The mycosporine-like amino acids porphyra-334 and shinorine are antioxidants and direct antagonists of Keap1-Nrf2 binding. Biochimie 2018, 154, 35–44. [Google Scholar] [CrossRef]
  36. Conde, F.R.; Churio, M.S.; Previtali, C.M. The photoprotector mechanism of mycosporine-like amino acids. Excited-state properties and photostability of porphyra-334 in aqueous solution. J. Photochem. Photobiol. B 2000, 56, 139–144. [Google Scholar] [CrossRef]
  37. Conde, F.R.; Carignan, M.O.; Churio, M.S.; Carreto, J.I. In vitro cis-trans photoisomerization of palythene and usujirene. Implications on the in vivo transformation of mycosporine-like amino acids. Photochem. Photobiol. 2003, 77, 146–150. [Google Scholar] [CrossRef]
  38. Conde, F.R.; Churio, M.S.; Previtali, C.M. The deactivation pathways of the excited-states of the mycosporine-like amino acids shinorine and porphyra-334 in aqueous solution. Photochem. Photobiol. Sci. 2004, 3, 960–967. [Google Scholar] [CrossRef]
  39. Conde, F.R.; Churio, M.S.; Previtali, C.M. Experimental study of the excited-state properties and photostability of the mycosporine-like amino acid palythine in aqueous solution. Photochem. Photobiol. Sci. 2007, 6, 669–674. [Google Scholar] [CrossRef]
  40. Roth, H.D.; Lamola, A.A. Cleavage of thymine dimers sensitized by quinones. Chemically induced dynamic nuclear polarization in radical ions. J. Am. Chem. Soc. 1972, 94, 1013–1014. [Google Scholar] [CrossRef]
  41. Fenick, D.J.; Carr, H.S.; Falvey, D.E. Synthesis and photochemical cleavage of cis-syn pyrimidine cyclobutane dimer analogs. J. Org. Chem. 1995, 60, 624–631. [Google Scholar] [CrossRef]
  42. Kruger, O.; Wille, U. Oxidative cleavage of a cyclobutane pyrimidine dimer by photochemically generated nitrate radicals (NO3•). Org. Lett. 2001, 3, 1455–1458. [Google Scholar] [CrossRef] [PubMed]
  43. Bechara, E.J.H.; Faria-Oliveira, M.M.; Duran, N.; De Baptista, R.C.; Cilento, G. Peroxidase catalyzed generation of triplet acetone. Photochem. Photobiol. 1979, 30, 101–110. [Google Scholar] [CrossRef]
  44. Lee, D.C.; Wilson, T. Oxygen in chemiluminescence. A competitive pathway of dioxetane decomposition catalyzed by electron donors. In Chemiluminescence and Bioluminescence; Cornier, M.J., Ed.; Springer: New York, NY, USA, 1973; pp. 265–283. [Google Scholar]
  45. Bartlett, P.D.; Baumstark, A.L.; Landis, M.E. Metal ion catalyzed decomposition of tetramethyl-1,2-dioxetane in methanol. J. Am. Chem. Soc. 1974, 96, 5557–5558. [Google Scholar] [CrossRef]
  46. Adam, W.; Epe, B.; Schiffmann, D.; Vargas, F.; Wild, D. Facile reduction of 1,2-dioxetanes by thiols as potential protective measure against photochemical damage of cellular DNA. Angew. Chem. Int. Ed. 1988, 27, 429–431. [Google Scholar] [CrossRef]
  47. Velosa, A.C.; Baader, W.J.; Stevani, C.V.; Mano, C.M.; Bechara, E.J. 1,3-diene probes for detection of triplet carbonyls in biological systems. Chem. Res. Toxicol. 2007, 20, 1162–1169. [Google Scholar] [CrossRef]
  48. Guttenplan, J.B.; Cohen, S.G. Triplet energies, reduction potentials, and ionization potentials in carbonyl-donor partial charge-transfer interactions. I. J. Am. Chem. Soc. 1972, 94, 4040–4042. [Google Scholar] [CrossRef]
  49. Premi, S.; Han, L.; Mehta, S.; Knight, J.; Zhao, D.; Palmatier, M.A.; Kornacker, K.; Brash, D.E. Genomic sites hypersensitive to ultraviolet radiation. Proc. Natl. Acad. Sci. USA 2019, 116, 24196–24205. [Google Scholar] [CrossRef]
  50. Karentz, D.; Euen, F.S.; Land, M.C.; Dunlap, W.C. Survey of mycosporine-like amino acid compounds in Antarctic marine organisms: Potential protection from ultraviolet exposure. Mar. Biol. 1991, 108, 157–166. [Google Scholar] [CrossRef]
  51. Sinha, R.P.; Singh, S.P.; Hader, D.P. Database on mycosporines and mycosporine-like amino acids (MAAs) in fungi, cyanobacteria, macroalgae, phytoplankton and animals. J. Photochem. Photobiol. B 2007, 89, 29–35. [Google Scholar] [CrossRef]
  52. Lamola, A.A. Production of pyrimidine dimers in DNA in the dark. Biochem. Biophys. Res. Commun. 1971, 43, 893–898. [Google Scholar] [CrossRef]
  53. Kraemer, K.H.; Andrews, A.D.; Barrett, S.F.; Robbins, J.H. Colony-forming ability of ultraviolet-irradiated xeroderma pigmentosum fibroblasts from different DNA repair complementation groups. Biochim. Biophys. Acta 1976, 442, 147–153. [Google Scholar] [CrossRef]
  54. Hammond, G.S.; Saltiel, J.; Lamola, A.A.; Turro, N.J.; Bradshaw, J.S.; Cowan, D.O.; Counsell, R.C.; Vogt, V.; Dalton, C. Mechanisms of photochemical reactions in solution. XXII. Photochemical cis–trans isomerization. J. Am. Chem. Soc. 1964, 86, 3197–3217. [Google Scholar] [CrossRef]
  55. Kochevar, I.; Wagner, P.J. Quenching of triplet phenyl ketones by olefins. J. Am. Chem. Soc. 1972, 94, 3859–3865. [Google Scholar] [CrossRef]
  56. Turro, N.J. Modern Molecular Photochemistry; Benjamin/Cummings, Inc.: Menlo Park, CA, USA, 1978. [Google Scholar]
  57. Hammond, G.S.; Leermakers, P.A.; Turro, N.J. Photosensitized cis-trans isomerization of the piperylenes. J. Am. Chem. Soc. 1961, 83, 2396–2397. [Google Scholar] [CrossRef]
  58. Rodriguez, R.A.; Lahoz, I.R.; Faza, O.N.; Cid, M.M.; Lopez, C.S. Theoretical and experimental exploration of the photochemistry of resveratrol: Beyond the simple double bond isomerization. Org. Biomol. Chem. 2012, 10, 9175–9182. [Google Scholar] [CrossRef]
  59. Roggero, J.P. Study of the ultraviolet irradiation of resveratrol and wine. J. Food Compos. Anal. 2000, 13, 93–97. [Google Scholar] [CrossRef]
  60. Triska, J.; Vrchotova, N.; Olejnickova, J.; Jilek, R.; Sotolar, R. Separation and identification of highly fluorescent compounds derived from trans-resveratrol in the leaves of Vitis vinifera infected by Plasmopara viticola. Molecules 2012, 17, 2773–2783. [Google Scholar] [CrossRef] [Green Version]
  61. Kvaran, A.; Konrádsson, A.E.; Evans, C.; Geirsson, J.K.F. 1H NMR and UV-Vis spectroscopy of chlorine substituted stilbene: Conformational studies. J. Mol. Struct. 2000, 553, 79–90. [Google Scholar] [CrossRef]
  62. Nardo, L.; Paderno, R.; Andreoni, A.; Másson, M.; Haukvik, T.; Tonnesen, H.H. Role of H-bond formation in the photoreactivity of curcumin. Spectroscopy 2008, 22, 187–198. [Google Scholar] [CrossRef]
  63. Evans, C.H.; Reynisson, J.; Geirsson, J.K.F.; Kvaran, A.; McGimpsey, W.G. Photochemistry of substituted methyl-α-arylcinnamates: Ortho- and para-substitution. J. Photochem. Photobiol. A 1998, 115, 57–61. [Google Scholar] [CrossRef]
  64. Evans, C.H.; Siguroardóttir, R.; Geirsson, J.K.F.; Kvaran, A. Laser photoisomerization o methyl α-arylcinnamates; effect of chloro substitution. J. Photochem. Photobiol. A 1993, 73, 179–185. [Google Scholar] [CrossRef]
  65. Islam, M.S.; Patras, A.; Pokharel, B.; Wu, Y.; Vergne, M.J.; Shade, L.; Xiao, H.; Sasges, M. UV-C irradiation as an alternative disinfection technique: Study of its effect on polyphenols and antioxidant activity of apple juice. Innov. Food Sci. Emerg. Technol. 2016, 34, 344–351. [Google Scholar] [CrossRef] [Green Version]
  66. Wang, H.; Helliwell, K. Epimerisation of catechin in green tea infusions. Food Chem. 2000, 70, 337–344. [Google Scholar] [CrossRef]
  67. Huvaere, K.; Olsen, K.; Skibsted, L.H. Quenching of triplet-excited flavins by flavonoids. Structural assessment of antioxidative activity. J. Org. Chem. 2009, 74, 7283–7293. [Google Scholar] [CrossRef]
  68. Schulte-Herbruggen, T.; Sies, H. The peroxidase/oxidase activity of soybean lipoxygenase—II. Triplet carbonyls and red photoemission during polyunsaturated fatty acid and glutathione oxidation. Photochem. Photobiol. 1989, 49, 705–710. [Google Scholar] [CrossRef]
  69. Becker, E.M.; Cardoso, D.R.; Skibsted, L.H. Deactivation of riboflavin triplet-excited state by phenolic antioxidants: Mechanism behind protective effects in photooxidation. Eur. Food Sci. Technol. 2005, 221, 382–386. [Google Scholar] [CrossRef]
  70. Mathieson, A.M.; Poppleton, B.J. The crystal structure of ellagic acid. Acta Crystallogr. Sect. B 1968, 24, 1456–1461. [Google Scholar] [CrossRef]
  71. Tokutomi, H.; Takeda, T.; Hoshino, N.; Akutagawa, T. Molecular structure of the photo-oxidation product of ellagic acid in solution. ACS Omega 2018, 3, 11179–11183. [Google Scholar] [CrossRef]
  72. Hadgraft, J.; Pugh, W.J. The selection and design of topical and transdermal agents: A review. J. Investig. Dermatol. Symp. Proc. 1998, 3, 131–135. [Google Scholar] [CrossRef] [Green Version]
  73. Zhang, L.W.; Al-Suwayeh, S.A.; Hsieh, P.W.; Fang, J.Y. A comparison of skin delivery of ferulic acid and its derivatives: Evaluation of their efficacy and safety. Int. J. Pharm. 2010, 399, 44–51. [Google Scholar] [CrossRef] [PubMed]
  74. Pinnell, S.R.; Yang, H.; Omar, M.; Monteiro-Riviere, N.; DeBuys, H.V.; Walker, L.C.; Wang, Y.; Levine, M. Topical L-ascorbic acid: Percutaneous absorption studies. Dermatol. Surg. 2001, 27, 137–142. [Google Scholar] [CrossRef] [PubMed]
  75. Nagle, D.G.; Ferreira, D.; Zhou, Y.D. Epigallocatechin-3-gallate (EGCG): Chemical and biomedical perspectives. Phytochemistry 2006, 67, 1849–1855. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Wong, R.H.; Howe, P.R.; Buckley, J.D.; Coates, A.M.; Kunz, I.; Berry, N.M. Acute resveratrol supplementation improves flow-mediated dilatation in overweight/obese individuals with mildly elevated blood pressure. Nutr. Metab. Cardiovasc. Dis. 2011, 21, 851–856. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Takahashi, M.; Suzuki, K.; Kim, H.K.; Otsuka, Y.; Imaizumi, A.; Miyashita, M.; Sakamoto, S. Effects of curcumin supplementation on exercise-induced oxidative stress in humans. Int. J. Sports Med. 2014, 35, 469–475. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Lee, C.Y.; Man-Fan Wan, J. Vitamin E supplementation improves cell-mediated immunity and oxidative stress of Asian men and women. J. Nutr. 2000, 130, 2932–2937. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  79. Garcia-Gimenez, J.L.; Markovic, J.; Dasi, F.; Queval, G.; Schnaubelt, D.; Foyer, C.H.; Pallardo, F.V. Nuclear glutathione. Biochim. Biophys. Acta 2013, 1830, 3304–3316. [Google Scholar] [CrossRef]
  80. Darr, D.; Combs, S.; Dunston, S.; Manning, T.; Pinnell, S. Topical vitamin C protects porcine skin from ultraviolet radiation-induced damage. Br. J. Dermatol. 1992, 127, 247–253. [Google Scholar] [CrossRef]
  81. atdBio. Solid-Phase Oligonucleotide Synthesis. Available online: https://atdbio.com/nucleic-acids-book/Solid-phaseoligonucleotide-synthesis (accessed on 11 December 2021).
  82. Kopecky, K.R.; Filby, J.E.; Mumford, C.; Lockwood, P.A.; Ding, J.Y. Preparation and thermolysis of some 1,2-dioxetanes. Can. J. Chem. 1975, 53, 1103–1122. [Google Scholar] [CrossRef]
  83. Baader, W.J.; Bastos, E.L. Four-membered cyclic peroxides (1,2-dioxetanes and 1,2-dioxetanones). Sci. Synth. 2009, 38, 323–344. [Google Scholar]
  84. Hardeland, R.; Tan, D.X.; Reiter, R.J. Kynuramines, metabolites of melatonin and other indoles: The resurrection of an almost forgotten class of biogenic amines. J. Pineal Res. 2009, 47, 109–126. [Google Scholar] [CrossRef] [PubMed]
Antioxidants 11 00357 sch001 550
Scheme 1. Sequence of reactions to produce luminescence as indicator of the formation of an excited triplet state. Triplet-state acetone derived from the decomposition of tetramethyl dioxetane (TMD) transfers energy to 9,10-dibromoanthracene-2-sulfonate (DBAS), which then emits light. 0, ground state; 1, singlet state; 3 triplet state.
Scheme 1. Sequence of reactions to produce luminescence as indicator of the formation of an excited triplet state. Triplet-state acetone derived from the decomposition of tetramethyl dioxetane (TMD) transfers energy to 9,10-dibromoanthracene-2-sulfonate (DBAS), which then emits light. 0, ground state; 1, singlet state; 3 triplet state.
Antioxidants 11 00357 sch001
Antioxidants 11 00357 g001 550
Figure 1. Molecular structure of compounds used to evaluate triplet-state quenching. (A) Polyphenols and related compounds featuring delocalized electrons; (B) Mycosporine-like-amino acids present in algae extracts.
Figure 1. Molecular structure of compounds used to evaluate triplet-state quenching. (A) Polyphenols and related compounds featuring delocalized electrons; (B) Mycosporine-like-amino acids present in algae extracts.
Antioxidants 11 00357 g001
Antioxidants 11 00357 g002 550
Figure 2. Quenching of tetramethyl dioxetane induced luminescence of 9,10-dibromoanthracene-2-sulfonate (DBAS) by various concentrations of ellagic acid (Ela, 0–5000 μM).
Figure 2. Quenching of tetramethyl dioxetane induced luminescence of 9,10-dibromoanthracene-2-sulfonate (DBAS) by various concentrations of ellagic acid (Ela, 0–5000 μM).
Antioxidants 11 00357 g002
Antioxidants 11 00357 g003 550
Figure 3. IC50 curve of ellagic acid calculated from the percentage TMD-DBAS luminescence reduction versus logarithm of ellagic acid concentration.
Figure 3. IC50 curve of ellagic acid calculated from the percentage TMD-DBAS luminescence reduction versus logarithm of ellagic acid concentration.
Antioxidants 11 00357 g003
Antioxidants 11 00357 g004 550
Figure 4. Quenching of chemiexcitation-induced dark cyclobutane pyrimidine dimers (dCPD) in C57BL/6 melanocytes by triplet-state quenchers. Chemiexcitation was induced by 75 kJ/m2 UVA, which directly induces the level of CPDs observed at 0 h. At the end of UVA exposure, 0 or 100 μM test compound was added. “Dark CPDs” are generated during the 2 h after exposure (and some may be generated during the period of UVA exposure). The presence of a quencher reduced the CPD level to that of 0 h direct CPDs. Due to the non-linearity of the ELISA assay, ELISA OD490 signals are calibrated against UVC-irradiated DNA to give UVC Equivalent doses that are proportional to CPD per kb (see Methods and Figure S20). Values are normalized to the 0 h UVC Equivalent dose to compensate for baseline variations between experiments. A ratio of 1.0 typically corresponded to a UVC dose of 5 J/m2 to purified DNA, which generates ~1 CPD per 20 kbp and is lethal to ~30% of a population of human cells [49,53]. A value of 1.5, corresponding to ~7.5 J/m2 UVC, is ~70% lethal. Combining results from all experiments gives p = 0.03 for the difference between 0 h and 2 h without quencher; p = 0.02 for the difference between ±sorbate; and p = 0.01 for the effect of the other quenchers pooled.
Figure 4. Quenching of chemiexcitation-induced dark cyclobutane pyrimidine dimers (dCPD) in C57BL/6 melanocytes by triplet-state quenchers. Chemiexcitation was induced by 75 kJ/m2 UVA, which directly induces the level of CPDs observed at 0 h. At the end of UVA exposure, 0 or 100 μM test compound was added. “Dark CPDs” are generated during the 2 h after exposure (and some may be generated during the period of UVA exposure). The presence of a quencher reduced the CPD level to that of 0 h direct CPDs. Due to the non-linearity of the ELISA assay, ELISA OD490 signals are calibrated against UVC-irradiated DNA to give UVC Equivalent doses that are proportional to CPD per kb (see Methods and Figure S20). Values are normalized to the 0 h UVC Equivalent dose to compensate for baseline variations between experiments. A ratio of 1.0 typically corresponded to a UVC dose of 5 J/m2 to purified DNA, which generates ~1 CPD per 20 kbp and is lethal to ~30% of a population of human cells [49,53]. A value of 1.5, corresponding to ~7.5 J/m2 UVC, is ~70% lethal. Combining results from all experiments gives p = 0.03 for the difference between 0 h and 2 h without quencher; p = 0.02 for the difference between ±sorbate; and p = 0.01 for the effect of the other quenchers pooled.
Antioxidants 11 00357 g004
Antioxidants 11 00357 g005 550
Figure 5. Isomerization, tautomerization, epimerization, and formation of new bonds to dissipate excitation energy in physical quenchers, from studies reported with UV-excited molecules. (A) Isomerization of trans- to cis- sorbate. (B) Isomerization of trans- to cis- resveratrol, and ring closure of cis- resveratrol to form the phenanthrene derivative. (C) Isomerization of trans- to cis- curcumin. The other two conjugated double bonds may also isomerize. (D) Tautomerization in the excited-state intramolecular proton transfer (ESIPT) reaction of curcumin. (E) Epimerization that converts epicatechin to catechin.
Figure 5. Isomerization, tautomerization, epimerization, and formation of new bonds to dissipate excitation energy in physical quenchers, from studies reported with UV-excited molecules. (A) Isomerization of trans- to cis- sorbate. (B) Isomerization of trans- to cis- resveratrol, and ring closure of cis- resveratrol to form the phenanthrene derivative. (C) Isomerization of trans- to cis- curcumin. The other two conjugated double bonds may also isomerize. (D) Tautomerization in the excited-state intramolecular proton transfer (ESIPT) reaction of curcumin. (E) Epimerization that converts epicatechin to catechin.
Antioxidants 11 00357 g005
Antioxidants 11 00357 g006 550
Figure 6. Chemically quenching of triplet-state energy by oxidation reactions of the second and third group compounds of Table 1. (A) Inactivation of 3-hydroxyethyl-3,4,4-trimethyl-1,2-dioextane (HTMD) by glutathione to form a ground-state vicinal diol molecule; (B) Electron transfer from a polyphenol to an excited triplet-state riboflavin, forming riboflavin and rutin radicals; (C) Ellagic acid that has physically quenched a triplet-state molecule by energy transfer is then physically quenched by O2 to create excited singlet oxygen, which is in turn chemically quenched by oxidizing another molecule of ellagic acid.
Figure 6. Chemically quenching of triplet-state energy by oxidation reactions of the second and third group compounds of Table 1. (A) Inactivation of 3-hydroxyethyl-3,4,4-trimethyl-1,2-dioextane (HTMD) by glutathione to form a ground-state vicinal diol molecule; (B) Electron transfer from a polyphenol to an excited triplet-state riboflavin, forming riboflavin and rutin radicals; (C) Ellagic acid that has physically quenched a triplet-state molecule by energy transfer is then physically quenched by O2 to create excited singlet oxygen, which is in turn chemically quenched by oxidizing another molecule of ellagic acid.
Antioxidants 11 00357 g006
Table
Table 2. Concentration range and IC50 value of a natural product mixture that quenches triplet-state energy, assessed as TMD-DBAS luminescence.
Table 2. Concentration range and IC50 value of a natural product mixture that quenches triplet-state energy, assessed as TMD-DBAS luminescence.
MixtureLuminescence Quenching Range (μg/mL)IC50 Value (μg/mL)
Potassium Sorbate 8.7
Chlorogenic acid0.018–5315195
Honeysuckle Extract (neochlorogenic acid, chlorogenic acid, isochlorogenic acid A, rutin, quercetin, and cyanidin-3-glucoside)0.03–9000245 ± 25
Epigallocatechin Gallate 320
Table
Table 3. Percentage inhibition of TMD-DBAS luminescence by the most effective algae extracts.
Table 3. Percentage inhibition of TMD-DBAS luminescence by the most effective algae extracts.
Natural Products IDHarvest SiteGenusSpeciesExtract Type% Inhibition at 50 μg/mL% Inhibition at 500 μg/mL
J003678MauritiusAcanthophoramuscoidesAqueous3590
J004770FloridaGracilariavermiculophyllaAqueous7358
J001263Southern New ZealandPorphyra Organic874
J002656 AcanthophoramuscoidesAqueous2472
J003392Tanzania (Tanganyika, Zanzibar)Gracilaria Aqueous2444
J004034FloridaGracilariafoliiferaAqueous5664
Table
Table 4. Percentage of dCPD inhibition upon addition of 10 μM of triplet-state quencher to dT150 or CTDNA samples treated with TMD. For comparison, the middle column shows the ratio of the quencher concentration to its IC50 in the reporter assay.
Table 4. Percentage of dCPD inhibition upon addition of 10 μM of triplet-state quencher to dT150 or CTDNA samples treated with TMD. For comparison, the middle column shows the ratio of the quencher concentration to its IC50 in the reporter assay.
GroupCompoundConc/IC50% dCPD Inhibition
dT150CTDNA
IPotassium Sorbate0.258 ± 10%74 ± 7%
IIEpicatechin0.0471 ± 20%41 ± 6%
IIILuteolin0.0290 ± 12%40 ± 1%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Angelé-Martínez, C.; Goncalves, L.C.P.; Premi, S.; Augusto, F.A.; Palmatier, M.A.; Amar, S.K.; Brash, D.E. Triplet-Energy Quenching Functions of Antioxidant Molecules. Antioxidants 2022, 11, 357. https://doi.org/10.3390/antiox11020357

AMA Style

Angelé-Martínez C, Goncalves LCP, Premi S, Augusto FA, Palmatier MA, Amar SK, Brash DE. Triplet-Energy Quenching Functions of Antioxidant Molecules. Antioxidants. 2022; 11(2):357. https://doi.org/10.3390/antiox11020357

Chicago/Turabian Style

Angelé-Martínez, Carlos, Leticia Christina Pires Goncalves, Sanjay Premi, Felipe A. Augusto, Meg A. Palmatier, Saroj K. Amar, and Douglas E. Brash. 2022. "Triplet-Energy Quenching Functions of Antioxidant Molecules" Antioxidants 11, no. 2: 357. https://doi.org/10.3390/antiox11020357

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
