Bonding Evaluation of Asphalt Emulsions used as Tack Coats through Shear Testing
Abstract
:Featured Application
Abstract
1. Introduction
2. Background

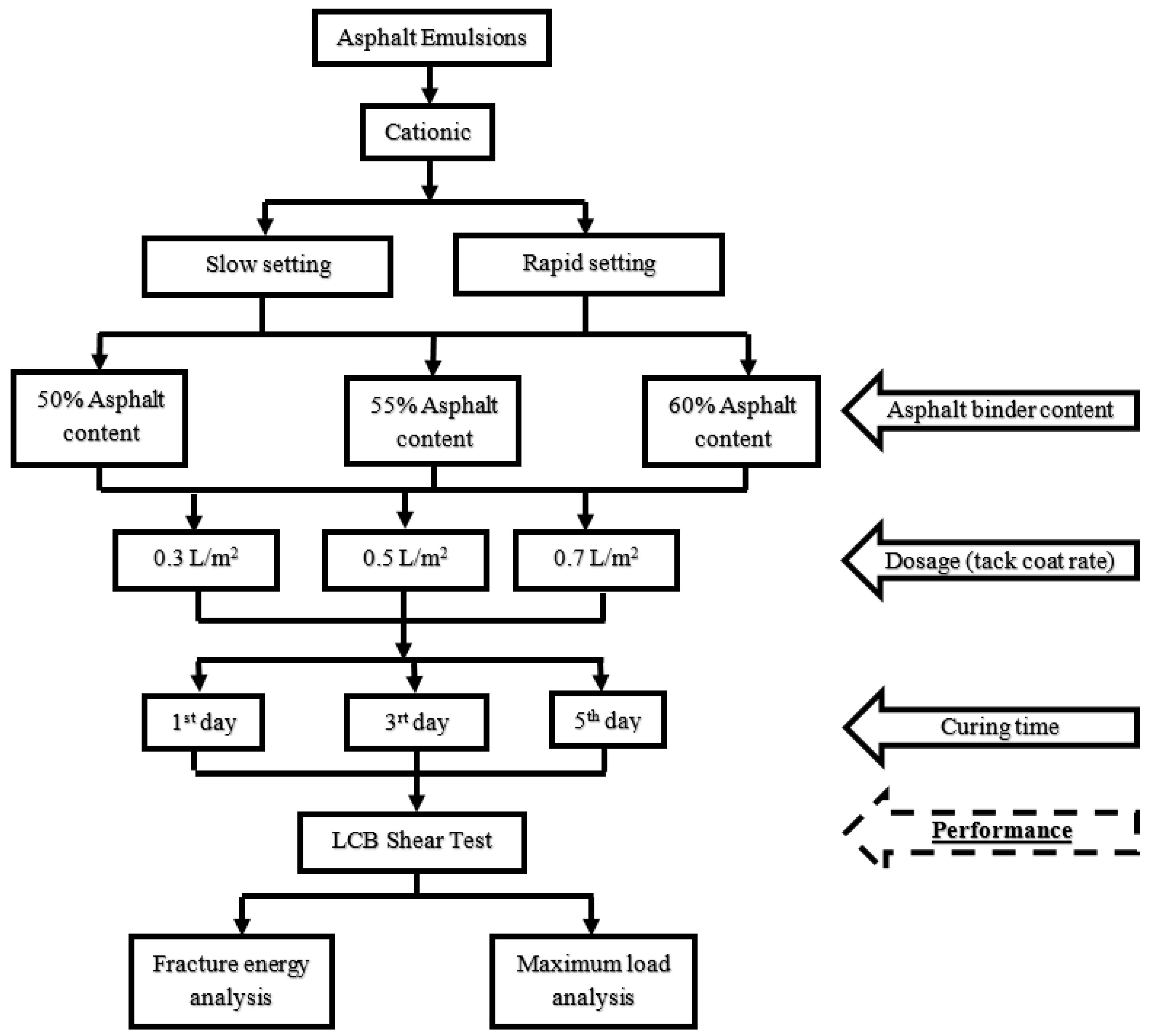

3. Methodology
3.1. Asphalt Binder Content
3.2. Emulsion Dosage as A Function of The Tack Coat Rate and Curing Time
3.3. Performance

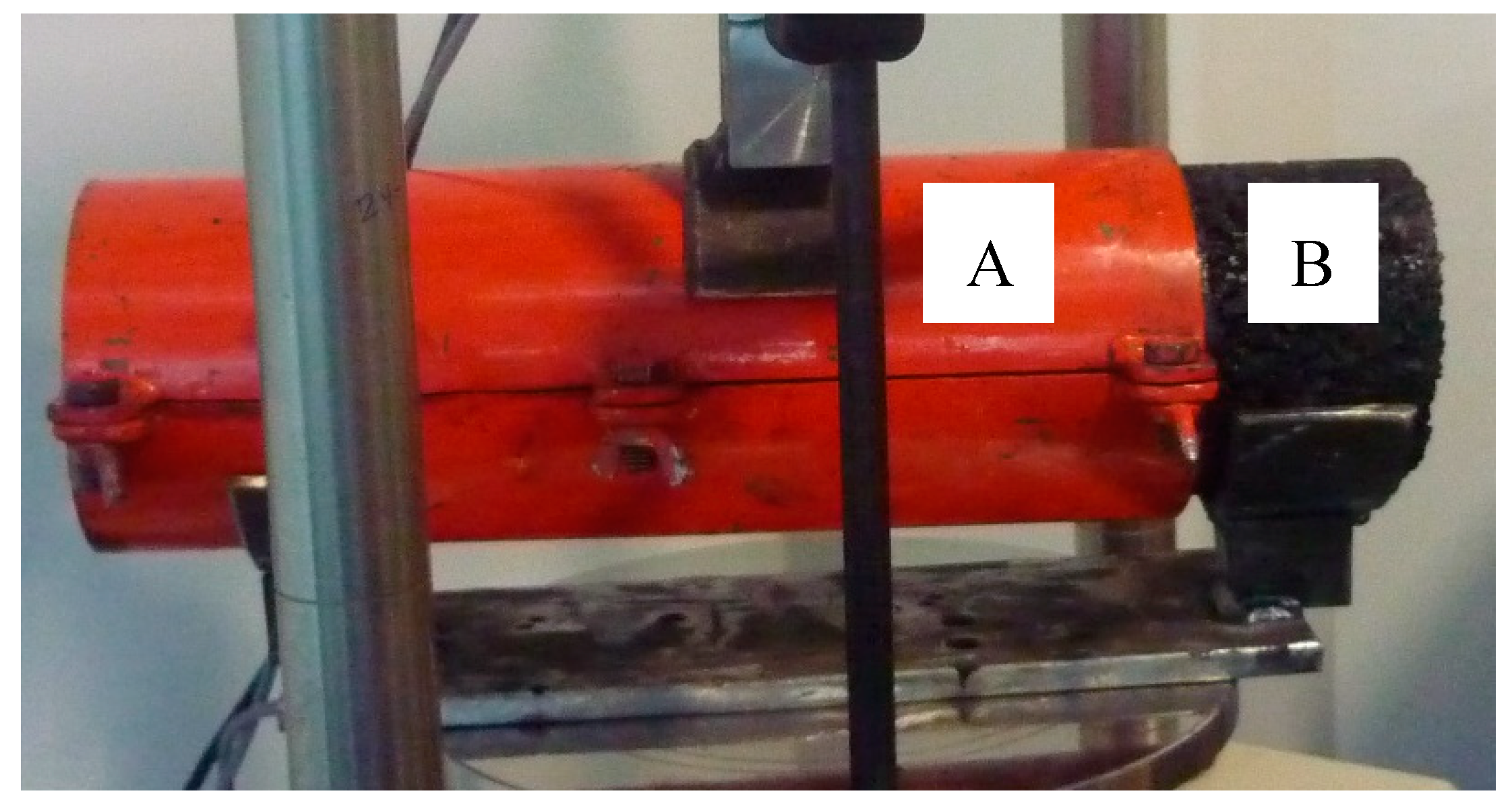

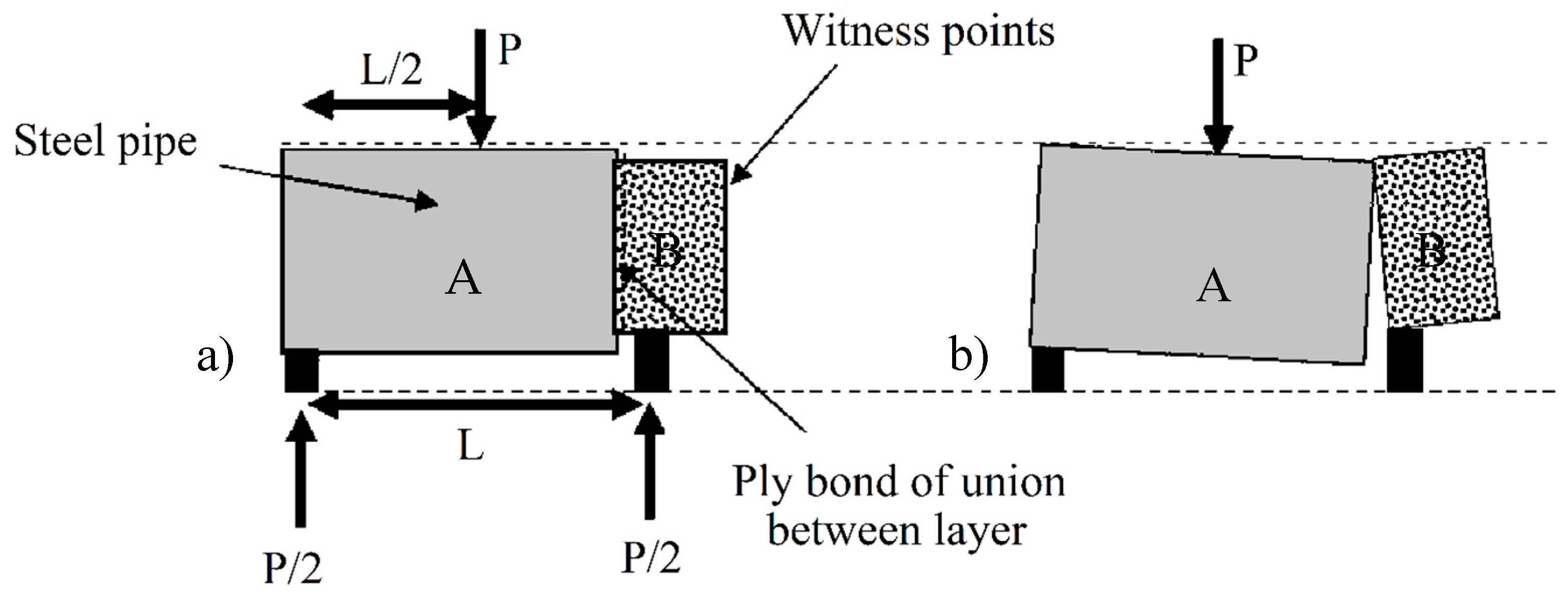

3.4. Laboratorio de Caminos de Barcelona Shear Test
4. Results and Discussion
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Jahanbakhsh, H.; Karimi, M.M.; Jahangiri, B.; Nejad, F.M. Induction heating and healing of carbon black modified asphalt concrete under microwave radiation. Constr. Build. Mater. 2018, 174, 656–666. [Google Scholar] [CrossRef]
- Querol, N.; Barreneche, C.; Cabeza, L.F. Asphalt emulsion formulation: State of the art of formulation, properties and results of HIPR emulsions. Constr. Build. Mater. 2019, 212, 19–26. [Google Scholar] [CrossRef]
- González Escobar, W.; Jiménez Angulo, M.E.; López Cornejo, R.J. Guía Básica Para el Uso de Emulsiones Asfálticas en la Estabilización de Bases en Caminos de Baja Intensidad en El Salvador. Ph.D. Thesis, Universidad de El Salvador, San Salvador, El Salvador, 2007. [Google Scholar]
- Salazar Delgado, J. Guía para la realización de ensayos y clasificación de asfaltos, emulsiones asfálticas y asfaltos rebajados según el Reglamento Técnico Centroamericano (RTCA 75.01. 22: 047). Métodos Mat. 2011, 1, 25–38. [Google Scholar]
- Rodríguez Talavera, R.; Castaño Meneses, V.; Martinez Madrid, M. Emulsiones Asfálticas; 0188–7114; Instituto Mexicano del Transporte: Mexico City, Mexico, 2001. [Google Scholar]
- Ronald, M.; Luis, F.P. Asphalt emulsions formulation: State-of-the-art and dependency of formulation on emulsions properties. Constr. Build. Mater. 2016, 123, 162–173. [Google Scholar] [CrossRef]
- Schuster, D. Encyclopedia of Emulsion Technology; CRC Press: Boca Raton, FL, USA, 1996; Volume 4. [Google Scholar]
- Raab, C.; Partl, M. Influence of the gap width between the shearing rings on interlayer shear bond testing. In Proceedings of the Second International Conference environmentally friendly Roads, ENVIROAD, Warsaw, Poland, 15–16 October 2009. [Google Scholar]
- Delbono, H.L.; Fensel, E.; Cepeda, L. Estudio de la adherencia entre capa de pavimentos, interponiendo geosintéticos. Métodos Mater. 2016, 6, 1–8. [Google Scholar]
- Bazzaz, M.; Darabi, M.K.; Little, D.N.; Garg, N. A Straightforward Procedure to Characterize Nonlinear Viscoelastic Response of Asphalt Concrete at High Temperatures. Transp. Res. Rec. 2018, 2672, 481–492. [Google Scholar] [CrossRef]
- Tajdini, M.; Rostami, A.; Karimi, M.M.; Taherkhani, H. Evaluation of the Geo-Mechanical Parameters of the Interface between Asphalt Concrete and Sand with Applying Direct Shear Test and Numerical Modeling. Adv. Mater. Res. 2012, 587, 116–121. [Google Scholar] [CrossRef]
- Jahanbakhsh, H.; Karimi, M.M.; Tabatabaee, N. Experimental and numerical investigation of low-temperature performance of modified asphalt binders and mixtures. Road Mater. Pavement Des. 2017, 18, 1353–1374. [Google Scholar] [CrossRef]
- Karimi, M.M.; Jahanbakhsh, H.; Jahangiri, B.; Moghadas Nejad, F. Induced heating-healing characterization of activated carbon modified asphalt concrete under microwave radiation. Constr. Build. Mater. 2018, 178, 254–271. [Google Scholar] [CrossRef]
- De Cruz Romero, J.M.l. Caracterización de la Adherencia en Refuerzos de Ultra-Thin Whitetopping (UTW). Master’s Thesis, Universitat Politècnica de Catalunya, Barcelona, Spain, 2016. [Google Scholar]
- Delbono, H.L. Interfase Hormigón Asfalto con Interposición de Geosintético, en la Restauración de Pavimentos. Frlp-I+D+I-Cent.-Lemac-Publ. En Reun. Científicas y Técnicas. 2016. Available online: http://ria.utn.edu.ar/handle/123456789/2494 (accessed on 5 December 2018).
- Raposeiras, A.C.; Vega-Zamanillo, A.; Calzada-Pérez, M.; Castro-Fresno, D. New procedure to control the tack coat applied between bituminous pavement layers. Constr. Build. Mater. 2013, 44, 228–235. [Google Scholar] [CrossRef]
- Raposeiras, A.; Castro-Fresno, D.; Vega-Zamanillo, A.; Rodriguez-Hernandez, J. Test methods and influential factors for analysis of bonding between bituminous pavement layers. Constr. Build. Mater. 2013, 43, 372–381. [Google Scholar] [CrossRef] [Green Version]
- Ghaly, N.; Ibrahim, I.; Noamy, E. Tack coats for asphalt paving. Egypt. J. Pet. 2014, 23, 61–65. [Google Scholar] [CrossRef] [Green Version]
- Tschegg, E.; Macht, J.; Jamek, M.; Steigenberger, J. Mechanical and fracture-mechanical properties of asphalt-concrete interfaces. ACI Mater. J. 2007, 104, 474. [Google Scholar]
- Raposeiras, A.C.; Vega-Zamanillo, Á.; Calzada-Pérez, M.Á.; Castro-Fresno, D. Influence of surface macro-texture and binder dosage on the adhesion between bituminous pavement layers. Constr. Build. Mater. 2012, 28, 187–192. [Google Scholar] [CrossRef]
- Sholar, G.A.; Page, G.C.; Musselman, J.A.; Upshaw, P.B.; Moseley, H.L. Preliminary investigation of a test method to evaluate bond strength of bituminous tack coats (with discussion). J. Assoc. Asph. Paving Technol. 2004, 73, 771–806. [Google Scholar]
- Canestrari, F.; Ferrotti, G.; Partl, M.; Santagata, E. Advanced testing and characterization of interlayer shear resistance. Transp. Res. Rec. J. Transp. Res. Board 2005, 1926, 69–78. [Google Scholar] [CrossRef]
- Deysarkar, I. Test Set-Up to Determine Quality of Tack Coat. Master’s Thesis, Univeristy of Texas, El Paso, TX, USA, 2004. [Google Scholar]
- Dar Hao, C. Texas Experience with Micro-Deval Test; Texas Department of Transportation Presentation: Austin, TX, USA, 2010. [Google Scholar]
- Johnson, E.N.; Cole, M.K.; Pantelis, J. Tack Coat Testing-Measuring Field Bond Strength; Minnesota Department of Transportation, Research Services and Library: St. Paul, MN, USA, 2015. [Google Scholar]
- Muslich, S. Assessment of Bond between Asphalt Layers. Ph.D. Thesis, University of Nottingham, Nottingham, UK, 2010. [Google Scholar]
- SCT. Materiales para Pavimentos. Materiales Asfálticos, Aditivos y Mezclas. Calidad de los Materiales Asfalticos. In Características de los Materiales; Secretariat of Communications y Transportation: Mexico City, Mexico, 2005; Volume N-CMT-4-05-001/05. [Google Scholar]
- Ontiveros, R.L. Evaluación de la Adherencia Entre Capas de Pavimento Empleando Diferentes Emulsiones Asfálticas. Master’s Thesis, National Autonomous University of Mexico, Mexico City, Mexico, 2013. [Google Scholar]
- Raab, C.; Partl, M.N. Interlayer bonding of binder, base and subbase layers of asphalt pavements: Long-term performance. Constr. Build. Mater. 2009, 23, 2926–2931. [Google Scholar] [CrossRef]
- Recasens, R.M.; Martínez, A.; Jiménez, F.P. Evaluation of effect of heat-adhesive emulsions for Tack coats with shear test: From the Road Research Laboratory of Barcelona. Transp. Res. Rec. 2006, 1970, 64–70. [Google Scholar] [CrossRef]
- Miró Recasens, R.; Pérez Jiménez, F.; Borrás González, J.M. Evaluation of the effect of tack coats. LCB shear test. In Proceedings of the 6th RILEM Symposium PTEBM, Zurich, Switzerland, 14–16 April 2003. [Google Scholar]
- SCT. Materiales para Pavimentos. Materiales Asfálticos, Aditivos y Mezclas. Calidad de los Materiales Asfalticos. In Características de los Materiales; Secretariat of Communications y Transportation: Mexico City, Mexico, 2008; Volume N-CMT-4-05-004/08. [Google Scholar]
- SCT. Materiales para Pavimentos. Materiales Asfálticos, Aditivos y Mezclas. Calidad de los Materiales Asfalticos. Calidad de Mezclas asfalticas para carreteras. In Características de los Materiales; Secretariat of Communications y Transportation: Mexico City, Mexico, 2008; Volume N-CMT-4-05-003/08. [Google Scholar]
- SCT. Pavimentos. Materiales asfálticos, aditivos y mezclas. Método Marshall para mezclas asfáltica de granulometría densa. In Métodos de Muestreo y Prueba de Materiales; Secretariat of Communications y Transportation: Mexico City, Mexico, 2005; Volume M-MMP-4-05-034. [Google Scholar]
Emulsion Type | Proportion of Emulsifier (kg/Ton) | % Asphalt Residue | Emulsifier Per 2 Liters of Asphalt Emulsion (g) |
---|---|---|---|
Slow Setting | 10.00 | 50% | 40.00 |
55% | 44.40 | ||
60% | 50.00 | ||
Rapid Setting | 3.00 | 50% | 12.00 |
55% | 13.33 | ||
60% | 15.00 |
Emulsion Type | Sample Area (m2) | Application Temperature (°C) | Tack Coat Rate (L/m2) | Dosage for Each Sample (g) |
---|---|---|---|---|
Slow Setting | 0.008136 | 60.00 | 0.30 | 2.44 |
0.50 | 4.02 | |||
0.70 | 5.63 | |||
Rapid Setting | 0.008136 | 60.00 | 0.30 | 2.44 |
0.50 | 4.02 | |||
0.7 | 5.63 |
Emulsion Dosage | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.3 | 0.5 | 0.7 | ||||||||||||||||
Asphalt Content | 50 | 55 | 60 | 50 | 55 | 60 | 50 | 55 | 60 | |||||||||
Cure Time (Day) | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. |
1 | 3.97 | 0.29 | 5.26 | 1.50 | 4.01 | 0.11 | 2.18 | 1.12 | 4.51 | 0.53 | 4.86 | 0.78 | 2.94 | 0.08 | 2.83 | 1.24 | 5.21 | 0.48 |
3 | 3.13 | 0.13 | 6.49 | 1.14 | 9.48 | 2.39 | 3.87 | 1.27 | 2.38 | 0.42 | 5.12 | 0.67 | 3.07 | 0.66 | 4.36 | 0.72 | 5.91 | 0.57 |
5 | 6.71 | 0.32 | 6.66 | 0.18 | 6.52 | 0.20 | 6.91 | 0.81 | 6.04 | 0.86 | 4.47 | 1.22 | 4.79 | 1.39 | 4.53 | 0.64 | 5.64 | 1.73 |
Emulsion Dosage | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.3 | 0.5 | 0.7 | ||||||||||||||||
Asphalt Content | 50 | 55 | 60 | 50 | 55 | 60 | 50 | 55 | 60 | |||||||||
Cure Time (Day) | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. | Mean | Std. Dev. |
1 | 5.42 | 5.42 | 5.46 | 1.05 | 5.93 | 1.83 | 5.17 | 0.15 | 7.28 | 2.12 | 7.67 | 0.96 | 5.65 | 0.32 | 9.99 | 2.25 | 16.74 | 1.54 |
3 | 7.98 | 1.75 | 15.05 | 0.16 | 9.68 | 2.50 | 9.53 | 0.13 | 9.37 | 0.47 | 9.57 | 3.23 | 5.26 | 0.61 | 7.95 | 0.91 | 8.28 | 0.37 |
5.00 | 7.30 | 0.16 | 12.30 | 0.16 | 14.31 | 1.48 | 13.40 | 1.10 | 11.28 | 0.90 | 17.09 | 0.25 | 10.04 | 2.11 | 13.83 | 0.42 | 8.30 | 0.16 |
