Compound Faults Feature Extraction for Rolling Bearings Based on Parallel Dual-Q-Factors and the Improved Maximum Correlated Kurtosis Deconvolution

Abstract

Vibration analysis is one of the main effective ways for rolling bearing fault diagnosis, and a challenge is how to accurately separate the inner and outer race fault features from noisy compound faults signals. Therefore, a novel compound fault separation algorithm based on parallel dual-Q-factors and improved maximum correlation kurtosis deconvolution (IMCKD) is proposed. First, the compound fault signal is sparse-decomposed by the parallel dual-Q-factor, and the low-resonance components of the signal (compound fault impact component and small amount of noise) are obtained, but it can only highlight the impact of compound faults, and failed to separate the inner and outer race compound fault signal. Then, the MCKD is improved (IMCKD) by optimizing the selection of parameters (the shift order M and the filter length L) based on the iterative calculation method with the Teager envelope spectral kurtosis (TEK) index. Finally, after the composite fault signal is filtered and de-noised by the proposed method, the inner and outer race fault signals are obtained respectively. The fault characteristic frequency is consistent with the theoretical calculation value. The results show that the proposed method can efficiently separate the mixed fault information and avoid the mutual interference between the components of the compound fault.

1. Introduction

Rolling bearing is one of the most widely used parts in rotating machinery. The operational status of the rolling element bearing often directly affects the performance of the whole machine. Consequently, the fault identification and diagnosis of rolling bearings are of great significance to ensure the safe and reliable operation of mechanical equipment [1,2,3]. Vibration signals caused by rolling bearing faults have been extensively studied and powerful diagnostic methods have been proposed. In recent years, the emerging artificial intelligence diagnosis technologies have been widely concerned by many scholars. A large number of artificial intelligent methods such as support vector machine [4], fuzzy diagnosis method [5], convolutional neutral network [6], and recurrent neutral network [7] were proposed to diagnose the mechanical faults. Furthermore, the sparse representation methods have also been widely used because of the signals sparsity. Adaptive impulse dictionary [8], combined time-frequency dictionary [9], matching pursuit [10], and dictionary learning method [11] were presented to diagnose faults of rotating machinery. In addition to the above mentioned two popular methods, many other research methods such as fault quantitative diagnosis [12], fault mechanism research [13,14], fault diagnosis of low speed machinery [15] and fault location diagnosis [16] also gained attention. Some traditional methods such as Fourier transform, envelope analysis method, empirical mode decomposition, wavelet transform, spectral kurtosis, and morphological filtering have shown their advantages on single fault detection [17,18,19]. However, these diagnosis methods all take the rolling bearing with single point of failure as the research object. In the actual conditions, the failure of rolling bearing usually manifests itself as a compound fault including the outer race defect, the inner race defect or the rollers defect. In general, due to the influence of operating environment, the interaction between multiple noise source and compound fault, the compound fault features are mutually coupled and interfere with each other, which causes major difficulty in compound faults detection [20]. Therefore, the separation of the compound fault components from strong background noise is a difficult problem in the field of mechanical fault diagnosis [21,22].

In order to solve the problem issued above and improve the monitoring level of rolling bearings’ running state, some methods have been proposed for compound faults diagnosis, such as demodulation algorithm, variational mode decomposition, clustering algorithm, and blind source separation technique [23,24,25,26]. Reference [27] proposed a method of combining wavelet analysis with blind source separation for roller bearing compound faults separation that needs multiple signal channels to analyze. However, composite signals analyzed by blind source separation are usually exported from different channels by multiple sensors. Therefore, multiple sensors need to be installed in the diagnosis process, which may bring a lot of inconvenience to engineering applications. McDonald et al. [28] proposed a novel method named maximum correlated kurtosis deconvolution (MCKD), which is an effective tool for separating out the periodic impulse fault components from the vibration signal in circumstances of intense background noise. In recent years, MCKD has been widely used to extract periodic pulses for fault diagnosis [29,30,31]. However, some shortcomings in practical application of MCKD limit its performance to extract the transient process in noisy vibration signal. One problem is that, like most of the existing technologies, the main concern of MCKD is the detection of a single fault located in the outer race, inner race or rolling element, i.e., MCKD is not suitable for extracting multiple fault-impact components simultaneously in compound fault diagnosis. However, the complex vibration signal is often mixed with a lot of background noise, which makes the diagnosis very difficult. Only by effectively extracting multiple fault shock signals from noise signals and enhancing fault characteristics [32,33], fault characteristic signals can be further separated accurately. For example, Reference [34] proposed an improved matching pursuit algorithm, which successfully extracted the quantitative characteristics of bearing faults. Selesnick [35] proposed a sparsity-enabled signal decomposition method based on resonance-based sparse signal decomposition (RSSD). According to the oscillatory behavior of the signal components, the analyzed signal can be decomposed into high and low resonance components by using the RSSD. Thus, high Q factor basis and low Q factor basis are constructed, and non-stationary signals are sparse decomposed. In the References [36,37], the RSSD method was introduced into the fault diagnosis of gearboxes. The results showed that the sparse decomposition effect was better. Therefore, the proposed RSSD method can be applied to extract multiple impact components in compound fault diagnosis. Another important problem is how to set the input parameters appropriately for the best performance, which contains the filter length L, shift order M and the deconvolution period T. Among those parameters, which will affect the validation of MCKD, L and M should be set reasonably to highlight the superiority of MCKD on the base of satisfying the prime requirement of T. If L and M are too large, the deconvoluted signal will be distorted. Therefore, the rigorous requirements for the parameters limit the application of MCKD. To solve this problem, the improved maximum correlation kurtosis deconvolution (IMCKD) is proposed in this paper. It can optimize the input parameters: The shift order M and the filter length L. In the case of different M values, calculating the mean of Teager envelope spectrum kurtosis (MTEK) to select the optimal shift order M; then, the Teager envelope spectral kurtosis (TEK) is used as the objective function to optimize the filter length L by the iterative algorithm.

Based on the above discussion, a compound fault diagnosis method based on parallel dual-Q-factor and the improved MCKD is proposed in this paper. The method combines the compound fault characteristics of rolling bearings based on frequency characteristic analysis of composite signals. The parallel dual-Q-factor sparse decomposition algorithm is proposed for the compound faults of the inner and outer race of the bearing. The non-stationary signal is decomposed into the high resonance components and low resonance components (compound fault impact component and small amount of noise). Then, the multiple periodic failures of the compound fault signal can be extracted simultaneously. In order to further isolate and extract the compound faults, the low resonance component is processed by IMCKD, which is separated and extracted according to the different fault characteristics periods.

The remainder of this paper is organized as follows. Section 2 briefly describes the theory of the parallel dual-Q-factors base sparse decomposition. Section 3 introduces the improved maximum correlation kurtosis deconvolution (IMCKD) for selecting the input parameters appropriately. Section 4 is devoted to descriptions of the proposed method. Section 5 is dedicated to description of application of the proposed method with the simulation and experiment signals. The results show the effectiveness and reliability on the compound faults decoupling diagnosis for rolling bearings.

2. The Parallel Dual-Q-Factors Bases Sparse Decomposition

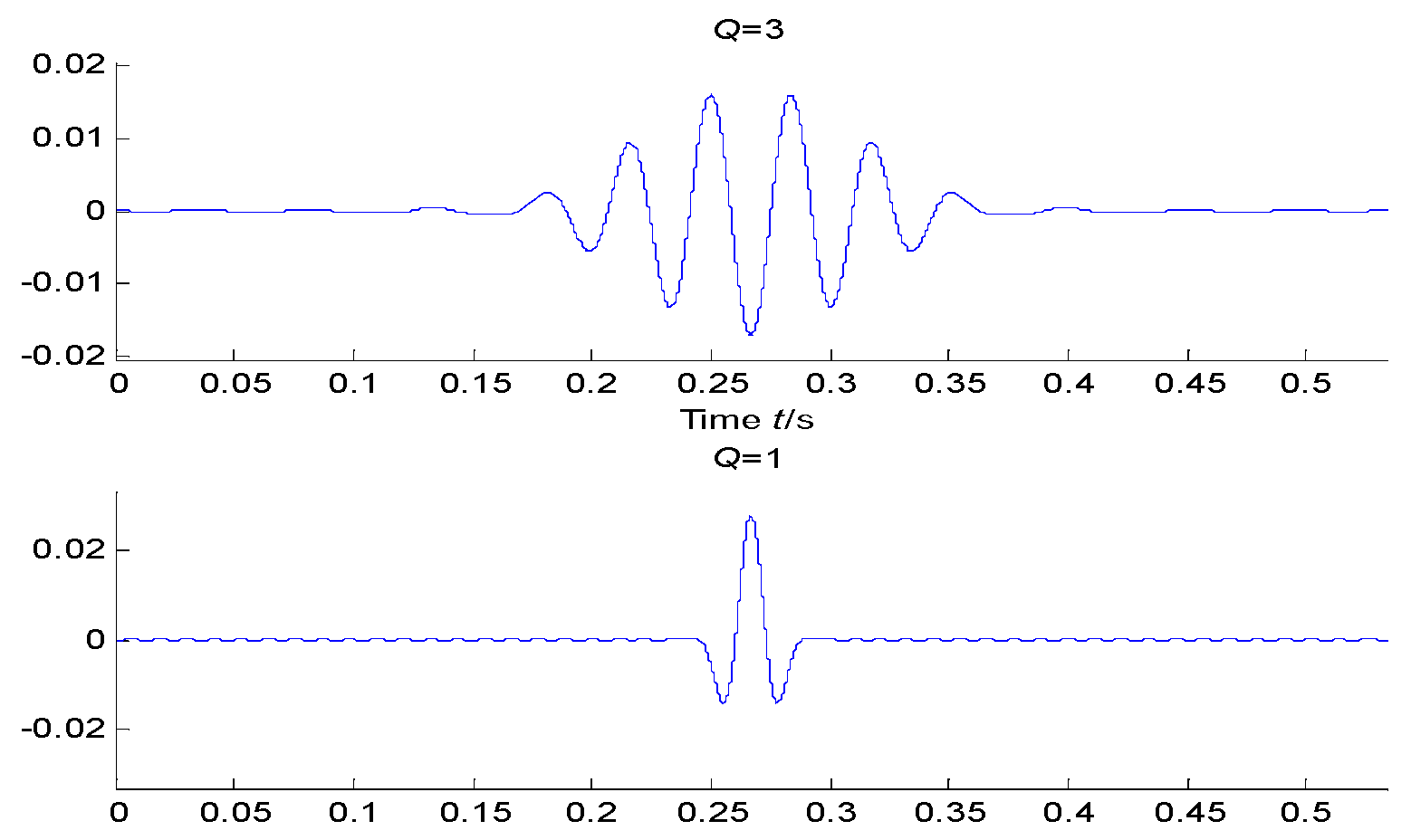

The resonance property of a signal is defined by the quality factor Q, the high Q-factor base represents the continuous oscillation component, and the low Q-factor base represents the transient oscillation component. Figure 1 shows the concept of resonance properties of signals and the time-domain waveform of the signal. In Figure 1, when Q = 1, it shows the single-period pulse signal, and they are defined as the low resonance signals because of the small quality factor Q. When Q = 3 it shows the multi-period pulse signals, and they are defined as the high resonance signals because of the large quality factor Q.

The RSSD method is actually a sparse representation using the high and the low tunable Q-factor wavelet transform (TQWT) [35,38]. The TQWT is fully discrete, has the perfect reconstruction property, is modestly overcomplete, and is based on the two-channel filter bank illustrated in Figure 2 [39].

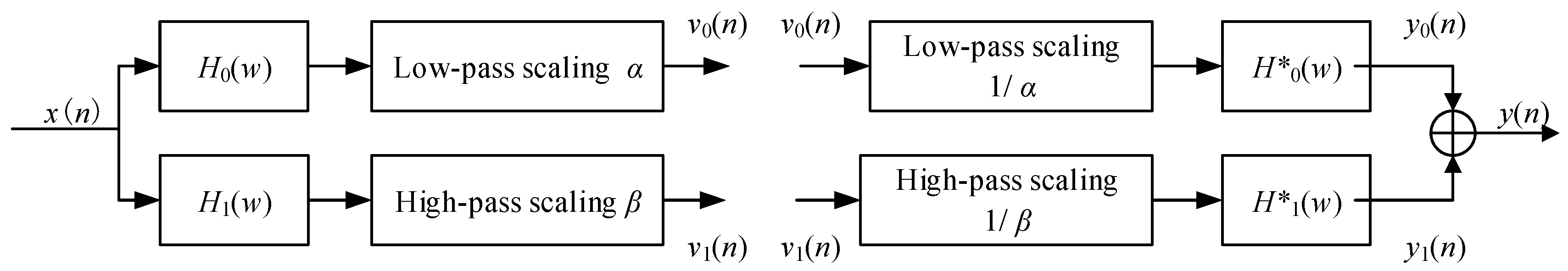

In Figure 2, x(n) is the original signal, H₀(w), H₁(w) and H*₀(w), H*₁(w) are the frequency response functions of the analysis and synthesis filters respectively; v₀(n), v₁(n) are the sub-band signals obtained after decomposition. y₀(n), y₁(n) are the synthetic signals. The scaling parameters are given by:

$$\beta =\frac{2}{Q+1}\hspace{1em}\hspace{1em}\hspace{1em}\alpha =1-\frac{\beta }{r}$$

(1)

where, β is the high-pass factor, α is the low-pass factor, and r represents the redundancy.

Suppose that the observed signal x can be represented as:

$$x=x_1+x_2\hspace{1em}\hspace{1em}x,x_{1,}{x}_2\in R^N$$

(2)

where x₁ and x₂ are components with different oscillation behavior.

The signal sparse decomposition method based on the compound Q-factor basis uses the morphological component analysis (MCA) method to separate the components nonlinearly in the signal according to the oscillation characteristics [40,41] and establishes the optimal sparse representation of the high resonance component and the low resonance component. The goal of MCA is to estimate x₁ and x₂ individually. Assuming that the signals x₁ and x₂ can be sparsely represented in base functions (or frames) S₁ and S₂ respectively, (obtained by TQWT), they can be estimated by minimizing the objective function [42]:

$$J(w_1,w_2)={\Vert x-S_1{W}_1-S_2{W}_2\Vert }_2^2+{\lambda }_1{\Vert W_1\Vert }_1+{\lambda }_2{\Vert W_2\Vert }_1$$

(3)

where

• W₁—the transform coefficient of signal x₁ under frame S₁;
• W₂—the transform coefficient of signal x₂ under frame S₂;
• S₁—the filter banks of tunable-Q wavelet with the high quality factor;
• S₂—the filter banks of tunable-Q wavelet with the low quality factor;
• λ₁—weight parameter;
• λ₂—weight parameter.

In the sparse signal decomposition method based on the compound Q-factor bases, the objective function J is minimized through iterating and updating the coefficient W₁ and W₂ by using the split augmented Lagrangian searching algorithm (SALSA).

Eventually, it effectively separates the high resonance component and low resonance component, and extracts the transient impulse component. After W₁ and W₂ are obtained, the estimated high and low resonance components (solved by matching) are shown as follows:

$$\widehat{x_1}=S_1{W}_1^{*},\widehat{x_2}=S_2{W}_2^{*}.$$

(4)

3. Proposed IMCKD

3.1. MCKD

The MCKD technique is based on selecting a Finite Impulse Response filter (FIR filter) to maximize the correlated kurtosis (CK), which takes advantage of the periodicity of the faults and is used to highlight the continuous pulse covered by the strong noise in the signal. Consider a discrete signal x(n) that is the response of the bearing excited by the fault impulses signal y(n). MCKD searches for a FIR filter f(l) (l is a filter length) to maximize the correlation kurtosis of the signal $y(n)$ and the general expression for the inverse is given by [43]:

$$y(n)={\displaystyle \sum _{l=1}^{L}f(l)x(n-l+1}).$$

(5)

Correlation kurtosis is defined as an indicator in the MCKD algorithm to evaluate the impact characteristics of the resulting signal y(n) (the fault impulses signal), which can reflect the proportion of periodic influence in the signal. The correlation kurtosis is defined as [28]:

$$C{K}_M(T_{*})=\frac{{{\displaystyle \sum _{n=1}^N({\displaystyle \prod _{m=0}^M{y}_{n-m{T}_{*}}})}}^2}{{({\displaystyle \sum _{n=1}^N{y}_n{}^2})}^{M+1}}$$

(6)

where M is the order of shift, L and N denote the length of filter and the sampling number of the signal respectively, f is the filter vector $f={[f_1,f_2\cdots ,f_L]}^T$, $T_{*}$ is the deconvolution period and can be calculate by the following equation:

$$T_{*}=f_s/f_{{}_{*}}$$

(7)

where $f_s$ and $f_{{}_{*}}$ denote sampling frequency and fault characteristic frequency respectively.

The optimization function is equivalent to solving the equation:

$$\frac{d}{d{f}_k}C{K}_M(T)=0\hspace{1em}(k=1,2,\cdots ,L).$$

(8)

The final iterative expression of the filter coefficients is represented:

$$f=\frac{\Vert \mathrm{y}{\Vert }^2}{2\Vert \beta {\Vert }^2}{({\mathrm{X}}_0{\mathrm{X}}^T{}_0)}^{-1}{\displaystyle \sum _{m=0}^M{X}_{mT}{\alpha }_{\mathrm{m}}}$$

(9)

where ${\mathrm{X}}_0{\mathrm{X}}^T{}_0$ is the Toeplitz autocorrelation matrix of the original signal x and the inverse ${({\mathrm{X}}_0{\mathrm{X}}^T{}_0)}^{-1}$ is assumed to exist.

$$X_r=\left[\begin{array}{ccccc}{x}_{1-r}& x_{2-r}& x_{3-r}& \cdots & x_{N-r}\\ 0& x_{2-r}& x_{3-r}& \cdots & x_{N-1-r}\\ 0& 0& x_{3-r}& \cdots & x_{N-2-r}\\ ⋮& ⋮& ⋮& & ⋮\\ 0& 0& 0& \cdots & x_{N-L-r+1}\end{array}\right]r=[0T2T\cdots mT]$$

(10)

where

$${\alpha }_m=\left[\begin{array}{c}{y}^{-1}{}_{1-mT}(y^2{}_1{y}^2{}_{1-T}\cdots y^2{}_{1-MT})\\ y^{-1}{}_{2-mT}(y^2{}_2{y}^2{}_{2-T}\cdots y^2{}_{2-MT})\\ ⋮\\ y^{-1}{}_{N-mT}(y^2{}_N{y}^2{}_{N-T}\cdots y^2{}_{N-MT})\end{array}\right]\hspace{1em}\beta =\left[\begin{array}{c}{y}_1{y}_{1-T}\cdots y_{1-MT}\\ y_2{y}_{2-T}\cdots y_{2-MT}\\ ⋮\\ y_N{y}_{N-T}\cdots y_{N-MT}\end{array}\right].$$

(11)

The performance of MCKD must be guaranteed by the accurate and appropriate parameters, the input parameters, including the length of filter L, the order of shift M, the maximum count of iteration N and the deconvolution period $T_{*}$.

(1) Generally, the maximum count of iteration N is empirically set. The larger count of iteration may bring a better result when the algorithm is executed to convergence but needs more calculation time. Therefore, to ensure the algorithms converge in this paper, N = 30 is set as the maximum count of iteration in MCKD [37].

(2) The deconvolution period $T_{*}$ is obtained from the theoretical fault characteristic frequency mentioned above.

(3) The optimal M and L are different when MCKD is applied in different signal. Obviously, the main problem in the practical application of MCKD is how to select the optimal parameters including the order of shift M and the filter length L.

3.2. IMCKD

When the four parameters are determined appropriately, which contains the length of filter L, the order of shift M, the maximum count of iteration N and the deconvolution period $T_{*}$, the MCKD technique can select a FIR filter to maximize the correlated kurtosis (CK). Then, the fault impulse signal $y(n)$ is obtained by deconvolution of the original input signal $x(n)$ with this filter. Finally, the periodic impulse faults component is separated out from the vibration signal.

In order to select the best shift order M and the filter length L for MCKD in all cases, and ensure the effectiveness of MCKD for extracting the fault features from the vibration signal, the improved maximum correlation kurtosis deconvolution (IMCKD) is proposed. When the signal is deconvoluted and filtered with the optimal parameters by MCKD, the signal noise reduction effect is very good. The Teager envelope spectral kurtosis (TEK) value can measure the noise reduction effect, and reflect the degree of signal to noise ratio, so the TEK value of the impulse signal $y(n)$ is used as the evaluation criterions to benefit for selecting the MCKD parameters.

3.2.1. The Index Teager Envelope Spectral Kurtosis (TEK)

The Teager energy operator (TEO) is a nonlinear operator proposed by Kaiser that can effectively extract the energy of the signal, which can effectively highlight the transient characteristics of the impact component [44]. The Teager energy operator is used to track the instantaneous energy of signal $y(t)$, which is defined as follows [45]:

$$\overline{y_n}(t)=\psi \left[y_n(t)\right]={\dot{y}}_n{}^2(t)-y_n(t){\ddot{y}}_n(t)$$

(12)

where, $\dot{y}(t)$ and $\ddot{y}(t)$ are the first and second derivatives of the signal $y(t)$.

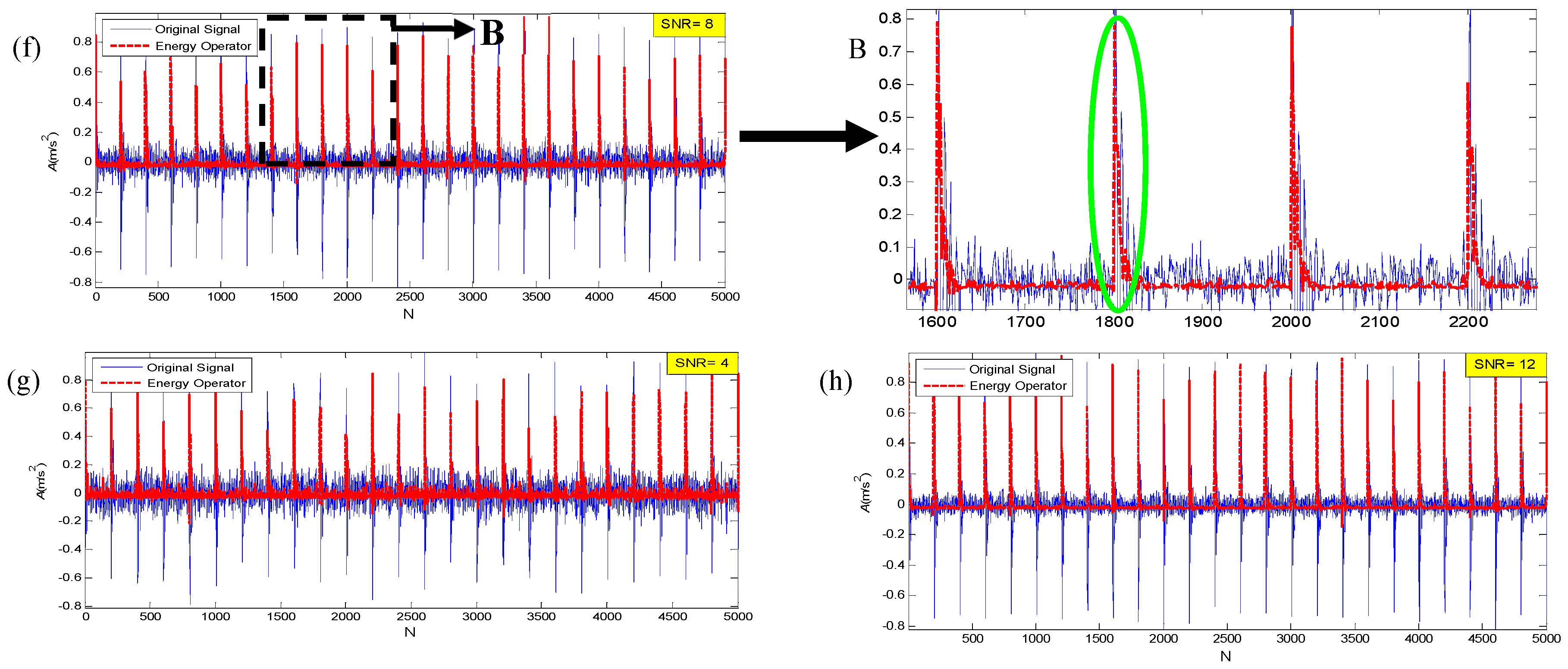

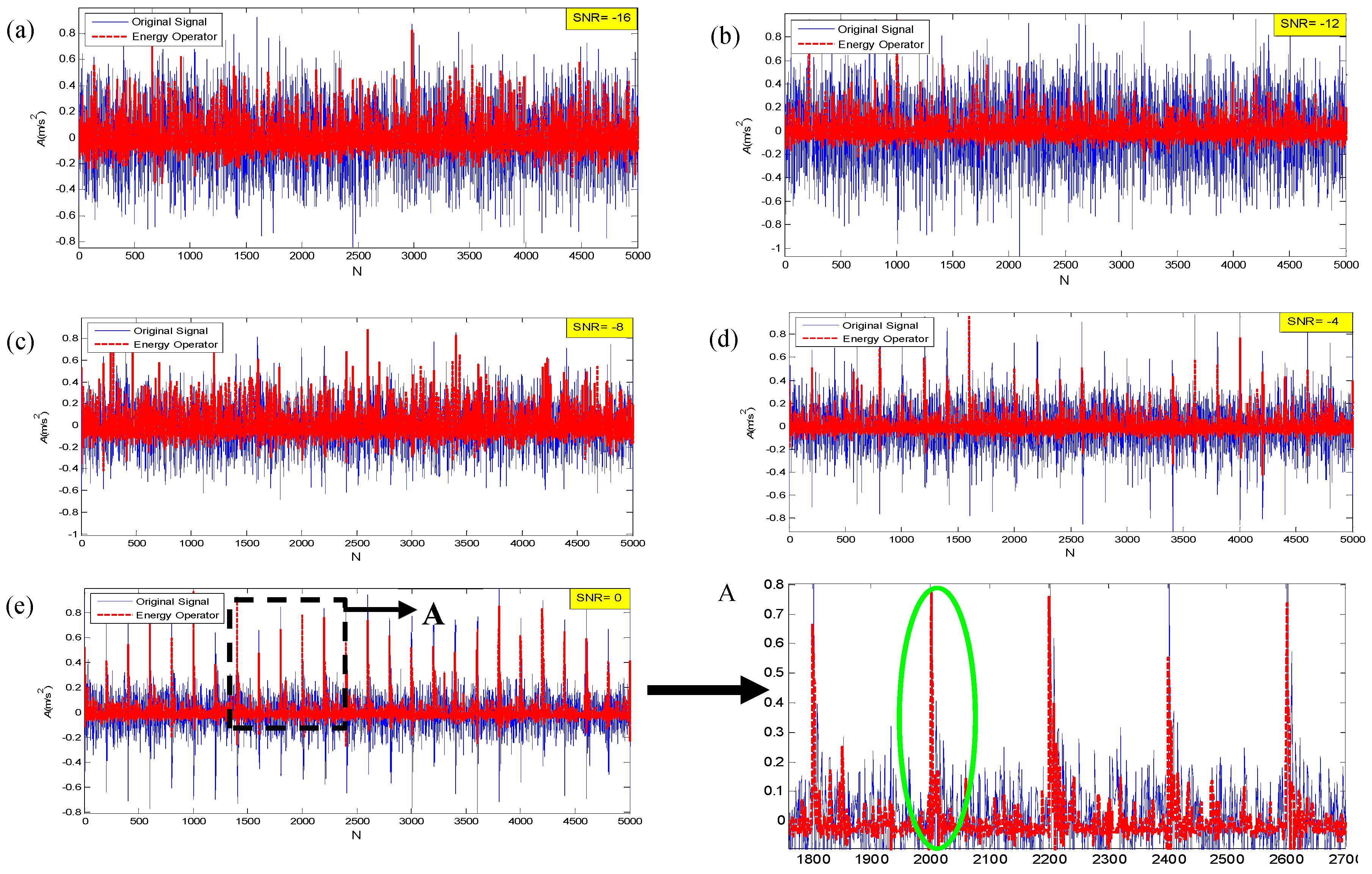

We simulated the bearing single point fault signal and added random noise with Signal to Noise Ratio (SNR) of −16, −12, −8, −4, 0, 4, 8, 12 (dB) respectively. Then we calculated the Teager energy operator signal using Equation (11), and the results are shown in Figure 3.

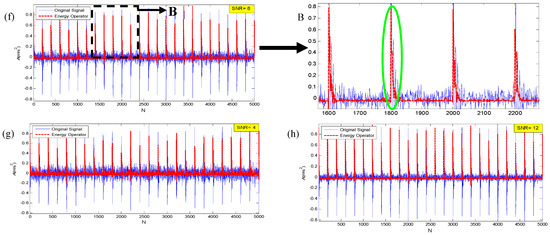

The blue line represents the original signal and the red line represents the Teager energy operator signal, and A, B represent the partial enlargements of SNR = 0 and SNR = 8 dB, respectively. It can be seen from Figure 3 that TEO can track the instantaneous energy of the signal and better reflect the impact characteristics from the time-domain partial map.

Then, we calculated their envelope spectrum by Hilbert transform by the following equation:

$$E(t)=\sqrt{{\overline{y}}_n{}^2(t)+{\left(\frac{1}{\pi }{\displaystyle \underset{-\infty }{\overset{\infty }{\int }}\frac{{\overline{y}}_n(\tau )}{t-\tau }}d\tau \right)}^2}$$

(13)

and calculated their envelope spectral kurtosis (TEK):

$$TEK=\frac{1/N{{\displaystyle \sum _{i=1}^N\left(E_i(t)-u_E\right)}}^4}{{\left[1/N{{\displaystyle \sum _{i=1}^N\left(E_i(t)-u_E\right)}}^2\right]}^2}$$

(14)

where $u_E$ is the mean of the signal and N is the signal length. The corresponding TEK values for different SNRs are shown in the Figure 4.

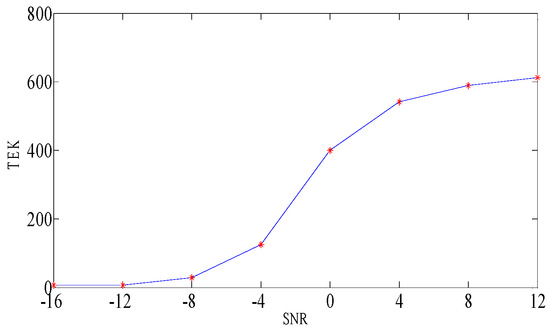

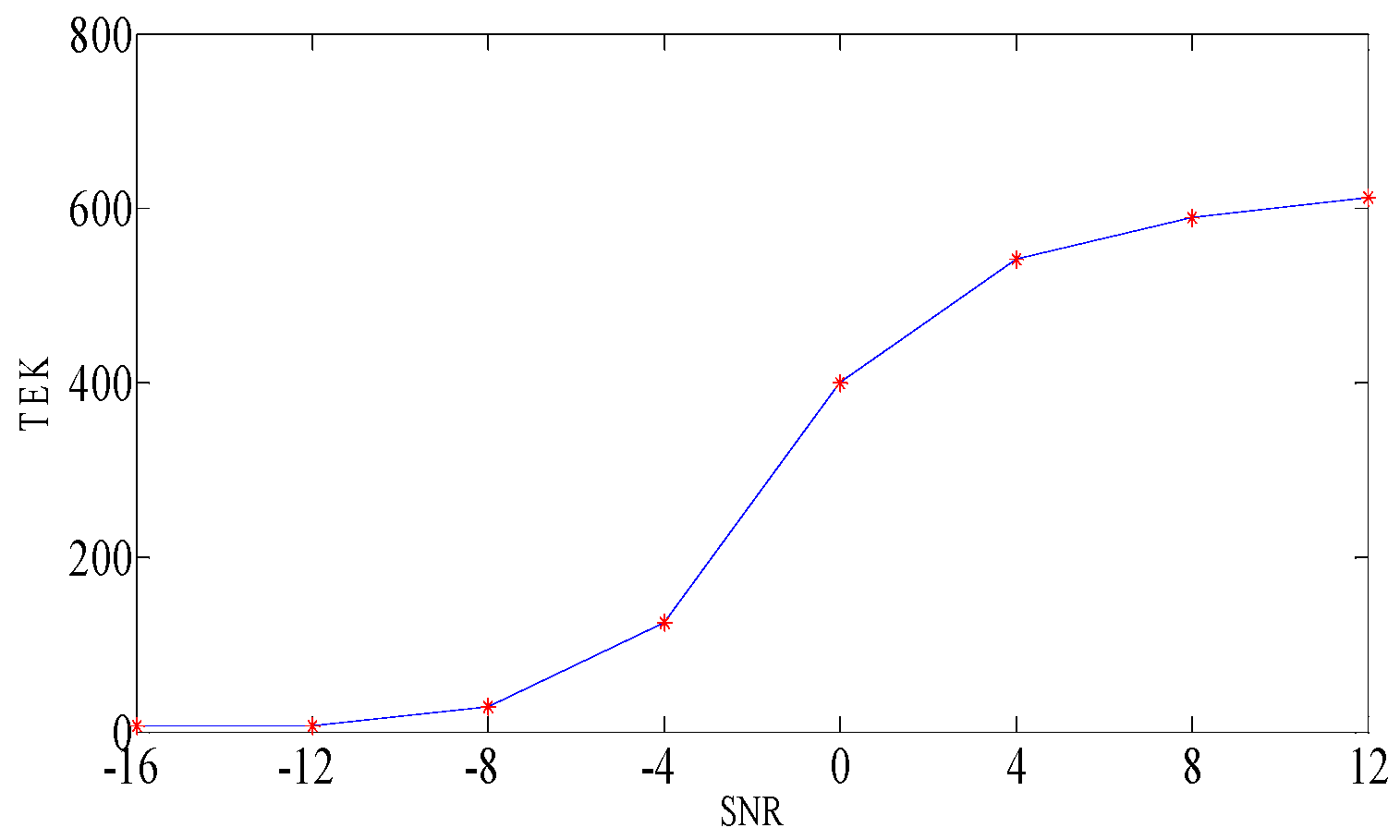

It can be seen from the trend graph that as the SNR of the signal increases, the TEK value tends to increase. Therefore, the index TEK can be used to measure the noise reduction effect of the signal.

3.2.2. The Optimal Selection of M and L

The general procedure of the optimization selection for M and L is as follows:

Step 1: M_j = j, set the scope [1,7] for j, when M > 7. This iterative method will reduce the accuracy of the calculation because it exceeds the range of the floating-point index. L_i = i, set the scope [5,350] for i;

Step 2: Calculate $T_{*}=T_O=f_s/f_o$ from Equation (7), when $f_{{}_{*}}$ is $f_o$;

Step 3: When j = 1, $M_1=1$, L_i = i = [5, 6, …, 350] substitute into the MCKD algorithm respectively; then, the corresponding 346 fault impulse signals $y_{i(n)-outer}(i=[5,\dots ,350])$ are obtained; next, calculate the TEK of each fault impulse signal; finally, calculate the mean of TEK values (MTEK), i.e., $MTE{K}_{1-\mathrm{outer}}$. Similarly, for each of $M_j(j=[1,2,\dots ,7])$, calculate $MTE{K}_{2-\mathrm{outer}}$, $MTE{K}_{3-\mathrm{outer}}$, …, $MTE{K}_{7-\mathrm{outer}}$;

Step 4: Select M_j for the best shift order M_best-o when MTEK_j-outer is the largest;

Step 5: When $T_{*}=T_O$, $M=M_{best-o}$, L_i = i = [5, 6, …, 350] substitute into the MCKD algorithm respectively, corresponding 346 fault impulse signals $y_{{}_{i(n)-outer}}^{\prime }(i=[5,\dots ,350])$ are obtained, then calculate the TEK of each fault impulse signal, i.e., $TE{K}_{\mathrm{i}-\mathrm{outer}}(i=[5,6,\dots ,350])$;

Step 6: Select L_i for the best shift order L_best-o when TEK_i-outer is the largest;

Step 7: Calculate $T_{*}=T_i=f_s/f_i$ from Equation (7), when $f_{{}_{*}}$ is $f_i$;

Step 8: Obtain $M_{best-i}$ and L_best-I by repeating step 3–6.

4. Procedure of Compound Faults Diagnosis

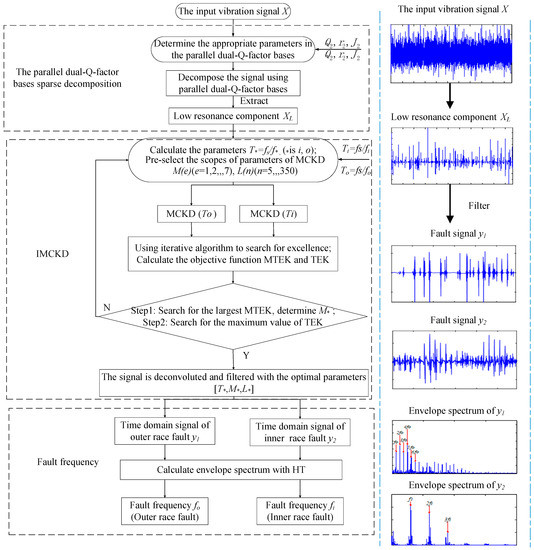

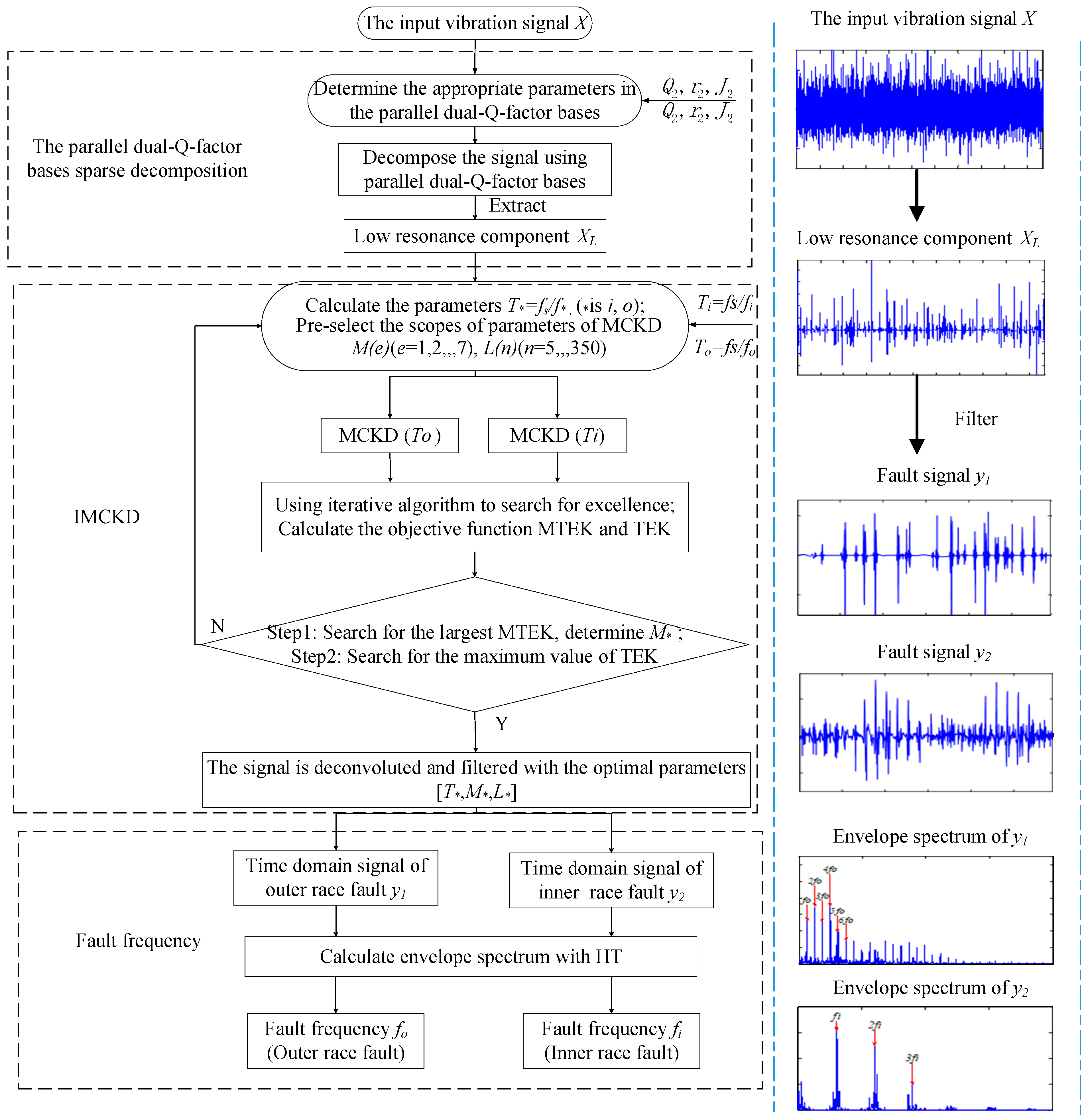

This method is applied to separate and extract the compound fault of the inner and outer race of the bearing. Firstly, the input measured signal is preprocessed by the parallel dual-Q-factor base sparse decomposition to obtain a low resonance component, and the compound failure impacts of the inner and outer rings are clearly extracted. Then the IMCKD is used to separate and extract the compound fault feature according to different fault periods. The specific process of the proposed method is illustrated in the flow chart shown in Figure 5, and the method is described as follows:

(1)

Input the vibration signal x(t), including noise, random vibration generated by normal parts of the rolling bearing and shock vibration generated by composite faults.

(2)

Use the parallel dual-Q-factor bases sparse decomposition to obtain the high resonance components (random vibration generated by the normal part and strong noise) and the low resonance components (composite fault impact component and a small amount of noise):

• Set the appropriate decomposition parameters: The quality factor Q₁, Q₂, the redundancy r₁, r₂, and the number of layers J₁, J₂;
• Decompose the input signal x(t) using the parallel dual-Q-factor;
• Extract the low resonance component x_L;

(3)

The low resonance components of the signal are deconvoluted and filtered with the optimal parameters by IMCKD:

• Calculate the $T_{*}$ (_* is i, o; i represents inner, o represents outer), and pre-select the scope of MCKD parameters (M, L);
• Calculate $M_{best-i}$, L_best-i and $M_{best-o}$, L_best-o based on Section 3.2.2;
• The low resonance component x_L is deconvoluted and filtered with the optimized parameters [T_o, $M_{best-o}$, L_best-o] and [T_i, $M_{best-i}$, L_best-i] respectively to obtain the time domain signals y₁ and y₂;

(4)

Extract the fault feature frequency from the envelope spectrum calculated by Hilbert Transform (HT).

5. Application of the Proposed Method

To verify the effectiveness of the proposed method for extracting the fault characteristic components in the noise, this method has been applied to simulation analysis and experimental cases.

5.1. Simulation Analysis

5.1.1. The Construction of Compound Fault Simulation Signal

The compound fault signal was simulated by the simulation signal of the inner race and outer race. The outer race fault signal simulation model was defined as in the following equation [46]:

$$x_0(t)=y_{0}e(-2\zeta \pi f_n{t}_0)\cdot \sin (2\pi f_n\sqrt{1-{\zeta }^2}\cdot t_0)$$

(15)

where $y_0$ is the possible amplitude modulator; $f_n$ is the natural frequency; $t_0$ is a single cycle sampling time; $\zeta$ is the damping factor. The parameters of the outer race simulation signal are shown in

Table 1. The parameters of outer fault simulation signal.

Rotating Frequency fr /Hz	Natural Frequency fn /Hz	Sampling Frequency fs /Hz	Sampling Point N	Fault Frequency fo /Hz
24	2000	15360	8192	62

.

The inner race fault simulation signal is defined as:

$$x_i(t)=s(t)+n(t)={\displaystyle \sum {}_i{A}_{i}h(t-iT-{\tau }_i)+n(t)}$$

(16)

where

$$\begin{array}{l}{A}_i=A_0\cos 2(2\pi f_{r}t+{\varphi }_A)+{\mathsf{C}}_A\\ h(t)=e^{-Bt}\cos (2\pi f_{n}t+{\varphi }_{\omega })\\ 1/f_r\end{array}$$

(17)

where ${\tau }_i$ represents the minor fluctuation of the $i$ shock relative to the period T; $A_i$ is the amplitude modulation with $1/f_r$ as a cycle; ℎ(t) is an exponential decay pulse; B is the attenuation coefficient of the system; ${\varphi }_A$, ${\varphi }_{\omega }$ are the initial phase. The parameters of the inner race simulation signal are shown in

Table 2. The parameters of inner fault simulation signal.

Rotating Frequency fr /Hz	Natural Frequency fn /Hz	Sampling Frequency fs /Hz	Sampling Point N	Fault Frequency fi /Hz
24	2000	15360	8192	300

.

The mathematical model of the compound inner race and outer race spalling is shown in Equation (18):

$$x(t)=x_i(t)+x_0(t).$$

(18)

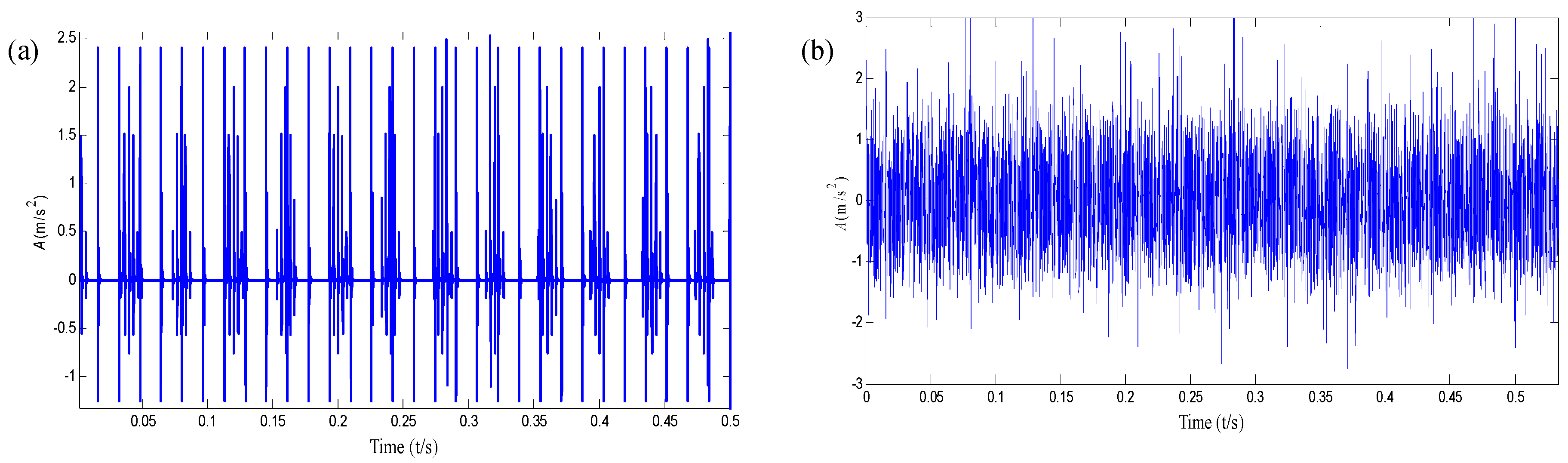

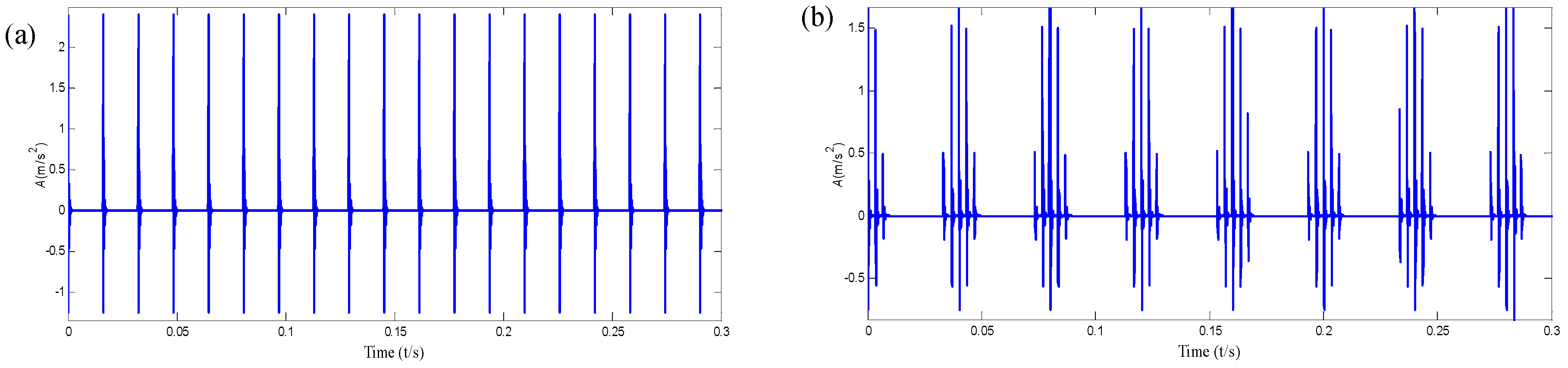

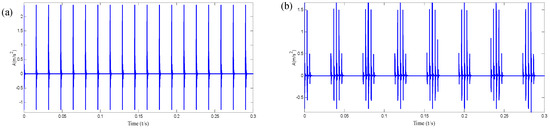

The time domain waveform of the outer race and inner race fault simulation signals are shown in Figure 6a,b. Figure 7a is the compound signal; Figure 7b is the compound fault simulation signal with gauss noise. It can be seen from Figure 7b that the inner and outer periodic shock characteristics are overwhelmed by noise and it cannot accurately reflect the characteristics of fault impact. Therefore, it is necessary to further extract fault features.

5.1.2. Compound Faults Feature Extraction for Simulation Signal

Firstly, the sparse decomposition of the parallel dual-Q-factor bases is applied to extract and sparsely represent the compound fault components according to the proposed method. The decomposition parameters are shown in

Table 3. The sparse decomposition parameters of case 1.

Attribute	Q1, Q2	Redundancy (r1, r2)	Number of Layers (J1, J2)
Low resonance component	1	4	27
High resonance component	6	4	12

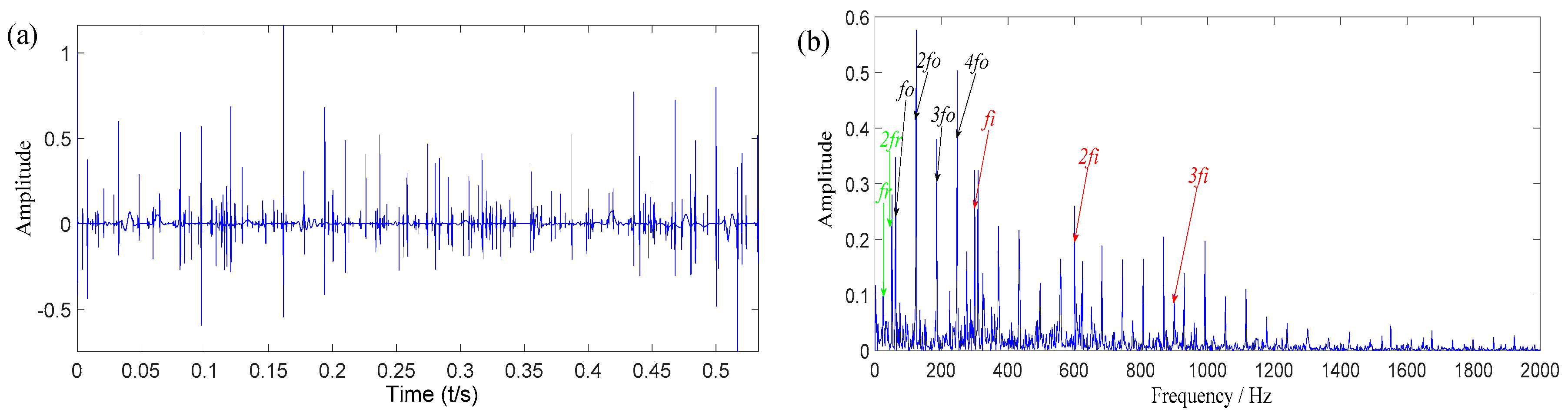

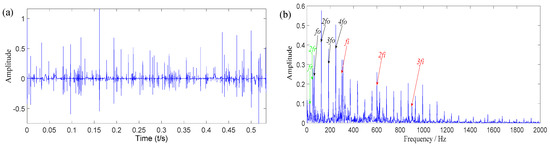

, and the analysis results are shown in Figure 8. Figure 8a,b are the low resonance components which is obtained by using the sparse decomposition method and the Hilbert envelope spectra of decomposed components respectively. It can be seen from Figure 8b that peaks are obvious at f_r (24.38 Hz), f_o (61.88 Hz), f_i (300 Hz) and their harmonics. Hence, the results indicate that the method can successfully identify and extract features of the simulated signal composed of impact components of the inner race and outer race simultaneously. However, the two fault impact signals are overlapped with each other, and the two fault characteristic frequencies and their harmonics are interlaced with each other. Therefore, it is difficult to accurately extract the two-fault characteristic information from the envelope spectrum.

To further separate the inner and outer race fault features from the composite fault signals, according to the different fault periods of the inner and outer race of the rolling bearing, the adaptable deconvolution techniques was applied to extract the periodic features from the low resonance component. The deconvolution period $T_{*}$ (* is i, o) of the signal is shown in

Table 4. The parameters T_* (* is i, o).

Fault Type	Fault Frequency	Period of Interest T* (* is i, o)
Outer race	fo (62 Hz)	To = 248
Inner race	fi (300 Hz)	Ti = 51

.

Then, we selected the optimal parameter (M, L) as mentioned in Section 3.2.2

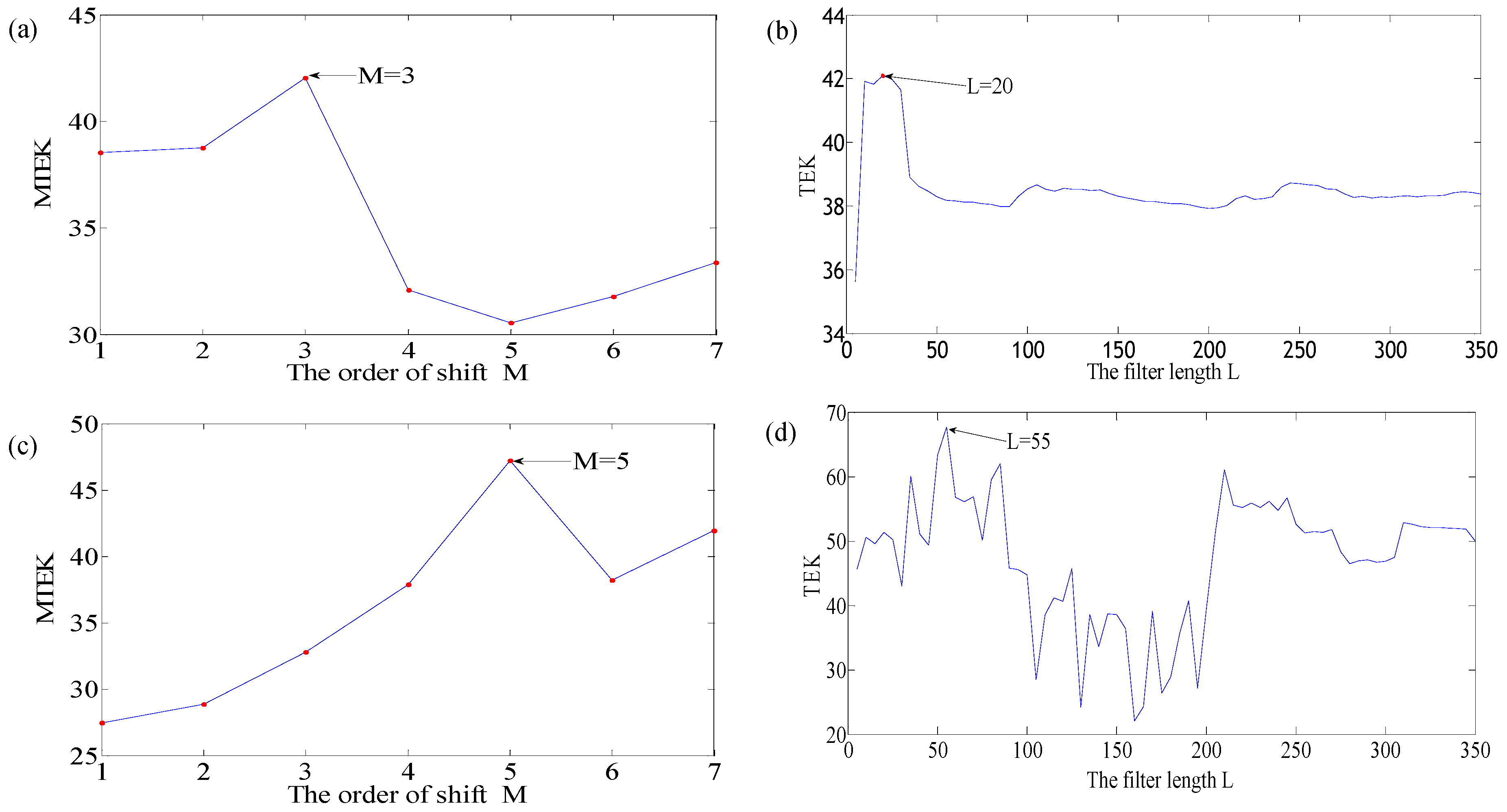

(1) When T_o = 248, Figure 9a,b show the relationship between M and MTEK, and the relationship between the filter length L and the TEK by iterative calculation respectively. It was found that when M = 3, the MTEK value was the largest from Figure 9a, and when L = 20, the TEK value was the largest from Figure 9b, so the optimal parameters T_o, M_o, and L_o were determined [248, 3, 20].

(2) When T_i = 51, Figure 9c,d show the relationship between M and MTEK, and the relationship between the filter length L and the TEK by iterative calculation respectively. It was found that when M = 5, the MTEK value was the largest from Figure 9c, and when L = 55, the TEK value was the largest from Figure 9d, so the optimal parameters T_i, M_i, and L_i were determined [51, 5, 55].

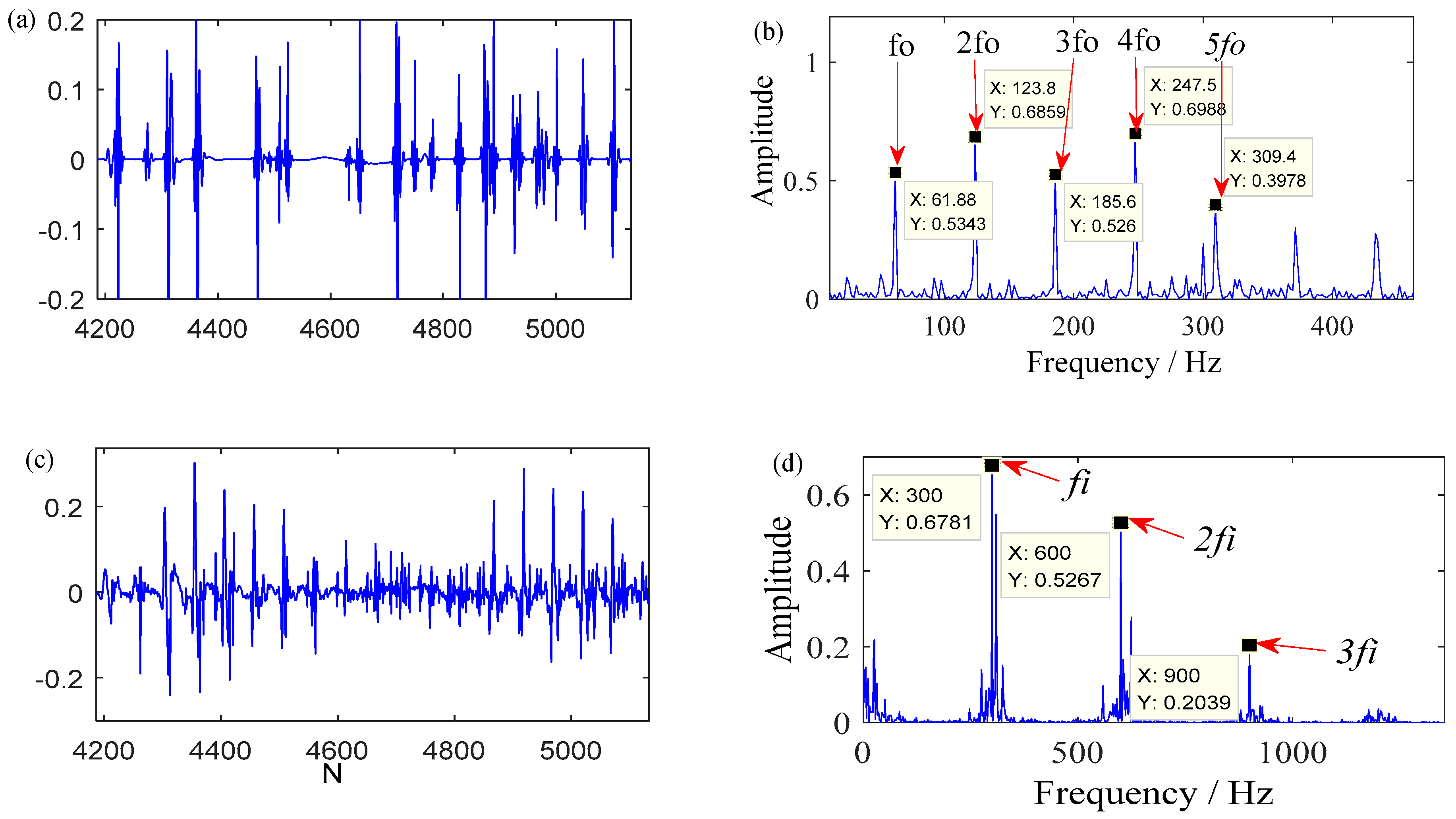

The low resonance component was deconvoluted and filtered with the obtained optimal parameters [T_*, M_*, L_*] (* is i, o) using MCKD. Finally, the analysis result is presented in Figure 10. It is noticeable that the impulse components in the time-domain of the outer race fault and the inner race fault can be found clearly in Figure 10a,c, respectively. From Figure 10b,d, the harmonic components of the characteristic frequencies of 61.88 Hz and 300 Hz are revealed noticeably. It is consistent with the theoretical fault characteristic frequency (f_o (62 Hz), f_i (300 Hz)). The results indicate that the proposed method can successfully separate the features of the simulated signal composed of the outer race fault and the inner race fault.

5.2. Experimental Verification

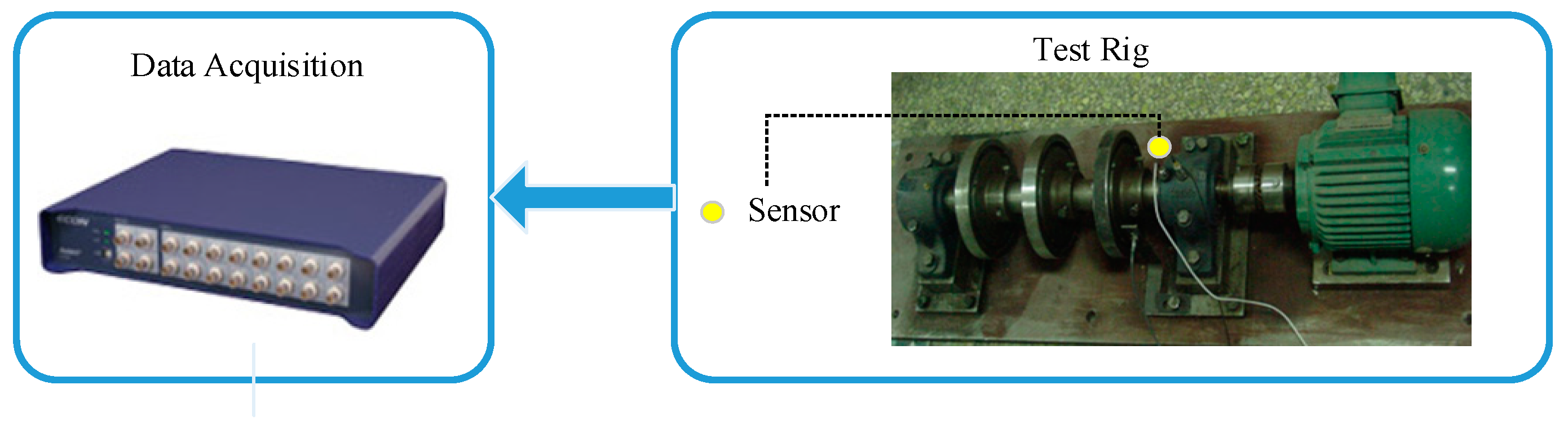

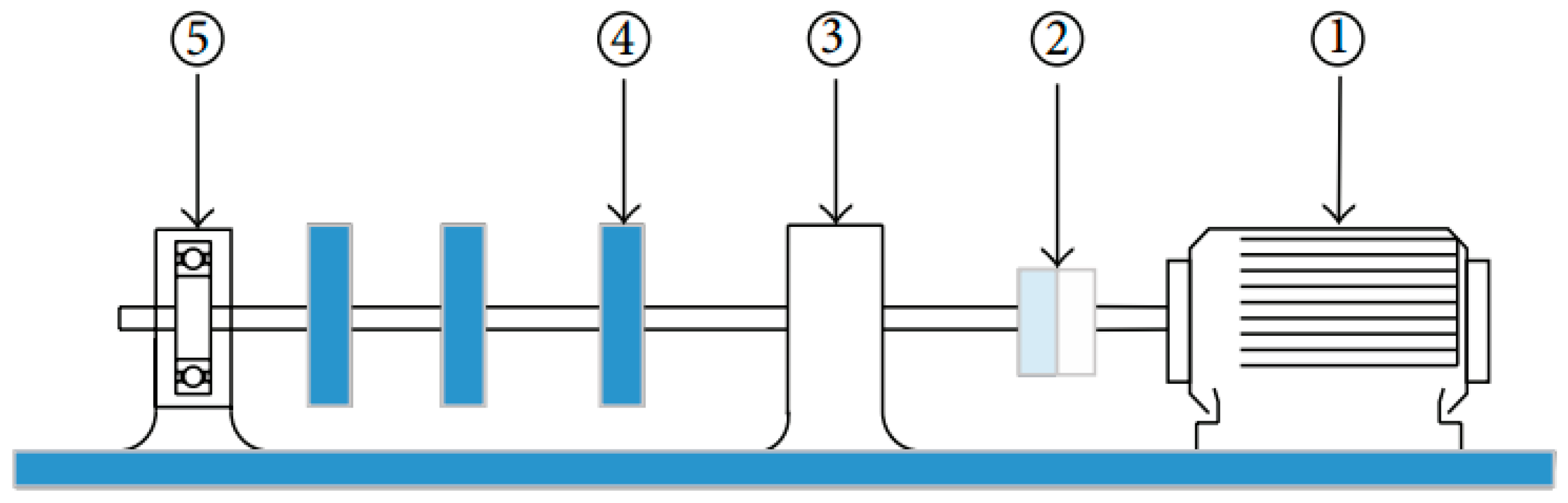

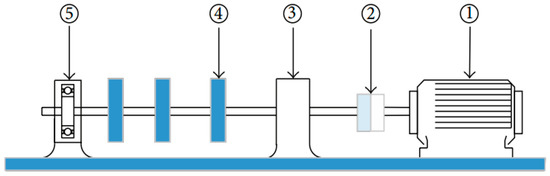

Figure 11 and Figure 12 shows the test rig to collect the vibration data of the bearing. The test rig consisted of a motor driving the shaft through a flexible coupling, HG3528A data collection instrument and laptop. The vibration acceleration of the damaged bearing in the vertical planes were measured using an accelerometer, the bearing model was SKF6307. The output from the accelerometer was sampled at 15360 Hz. The motor was run at 1496 rpm, and the collected data was uploaded to the laptop for data processing and analysis.

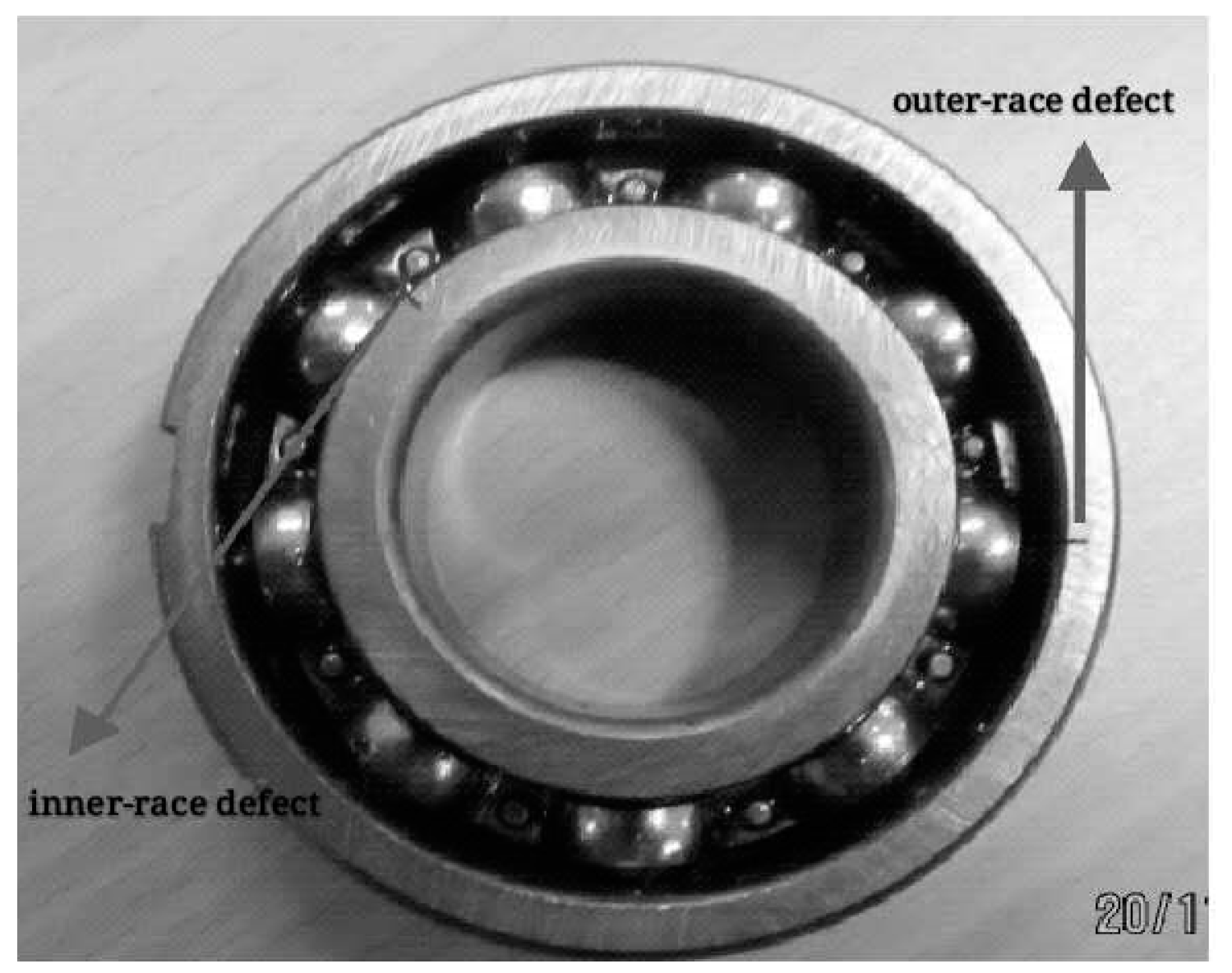

The bearing with compound fault (Figure 13) was machined as a pitting defect on the outer race and inner race of the bearing with the size of 1 mm in diameter and 0.2 mm in depth. The fault characteristic frequencies of the outer race and inner race were f_o = 76.7 Hz and f_i = 122.7 Hz respectively.

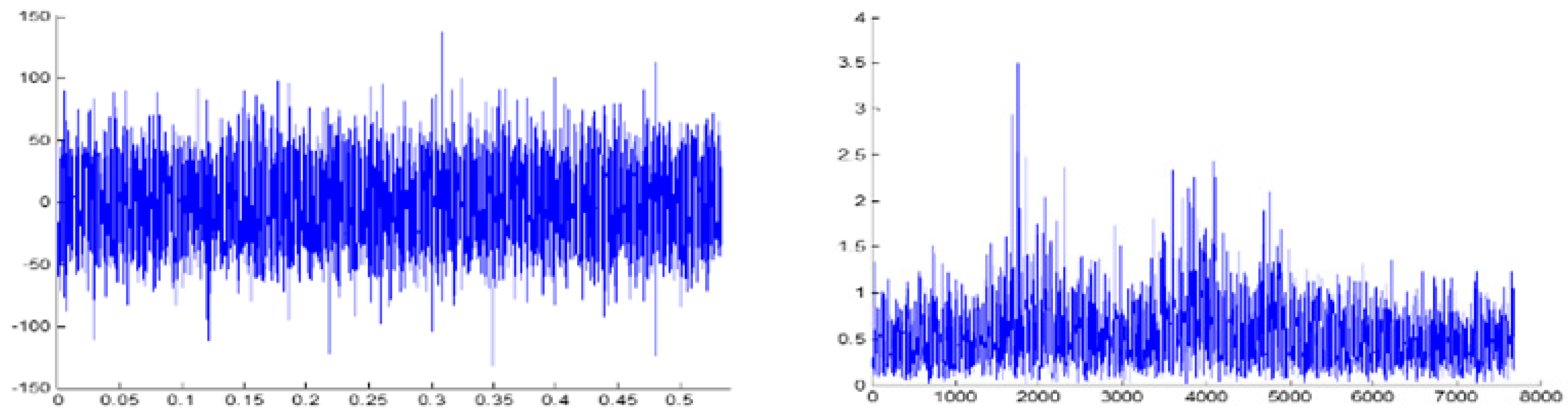

The experimental data of the compound fault was selected for analysis. The time-domain signal and the frequency spectrum are shown in Figure 14. The impact components in the graph were not obvious, so the fault features needed to be further extracted.

The sparse decomposition of the parallel dual-Q-factor bases was applied to extract and sparsely represent the compound fault components. The decomposition parameters are shown in

Table 5. The sparse decomposition parameters of case 2.

Attribute	Q1, Q2	Redundancy (r1, r2)	Number of Layers (J1, J2)
Low resonance component	1	4	25
High resonance component	6	6	11

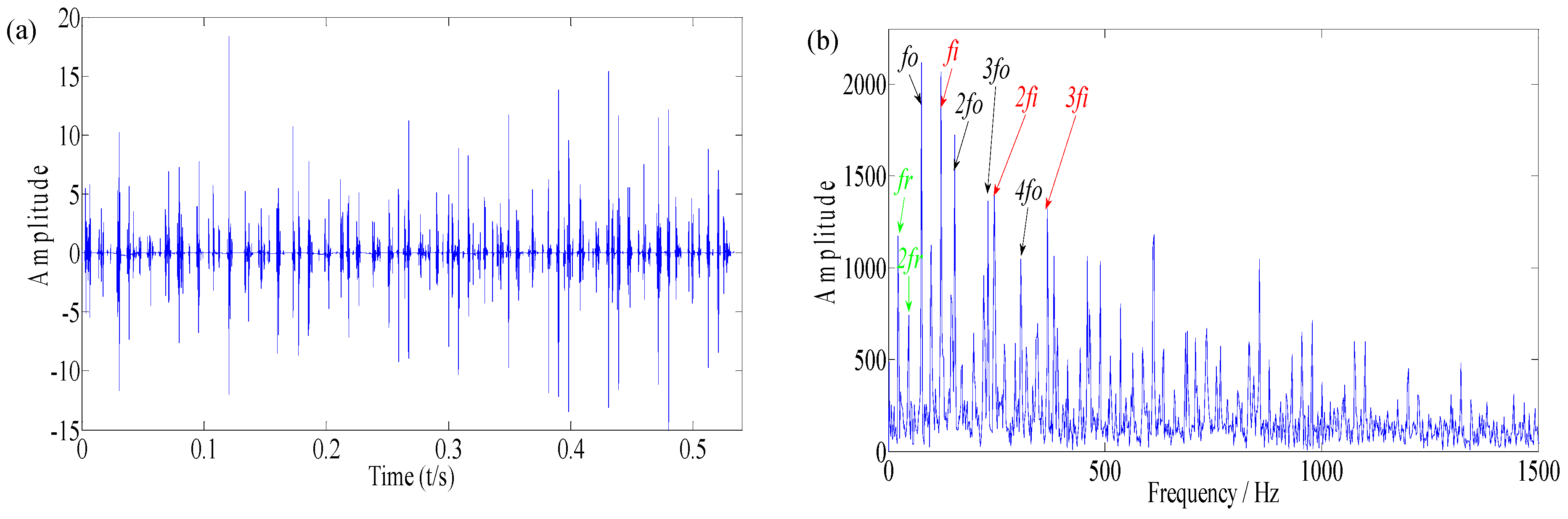

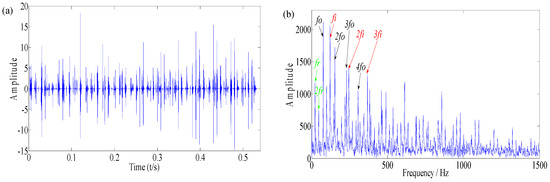

, and the analysis results are shown in Figure 15. Figure 15a,b are the low resonance components which were obtained by using the sparse decomposition method and the Hilbert envelope spectra of decomposed components respectively. It can be seen from Figure 15b that peaks were obvious at f_o (76.88 Hz), f_i (121.9 Hz) and their harmonics. Hence, the results indicate that the proposed method can identify and extract features of the compound impact components of the inner race and outer race simultaneously. However, the two fault impact signals are overlapped with each other, and the two fault characteristic frequencies and their harmonics are interlaced with each other. Therefore, it is difficult to accurately extract the two-fault characteristic information from the envelope spectrum.

To further separate the inner and outer race fault features from the composite fault signals, the improved deconvolution techniques were applied to extract the periodic features from the low resonance component. The deconvolution period $T_{*}$ (_* is i, o) of the signal is shown in the

Table 6. The parameters T_* (* is i, o).

Fault Type	Fault Frequency	Period of Interest T* (* is i, o)
Outer race	fo (76.7 Hz)	To = 200
Inner race	fi (122.7 Hz)	Ti = 125

.

Then, we selected the optimal parameter (M, L) as mentioned in Section 3.2.2

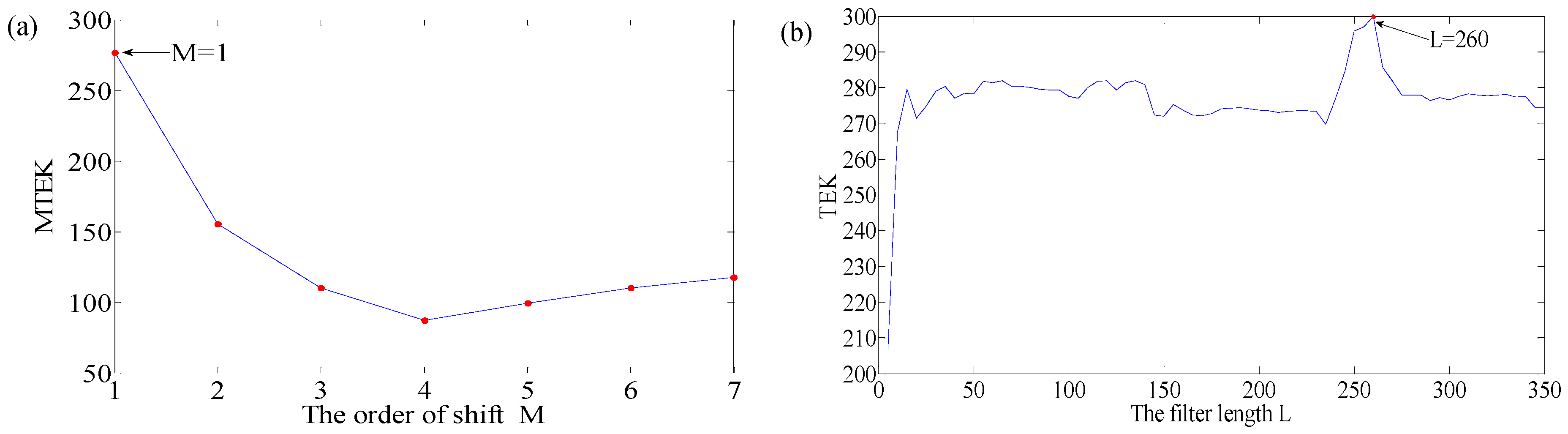

(1) When T_o=200, Figure 16a,b show the relationship between M and MTEK, and the relationship between the filter length L and the TEK by iterative calculation respectively. It was found that when M = 1, the MTEK value was the largest from Figure 16a, and when L = 260, the TEK value was the largest from Figure 16b, so the optimal parameters T_o, M_o, and L_o were determined [200, 1, 260].

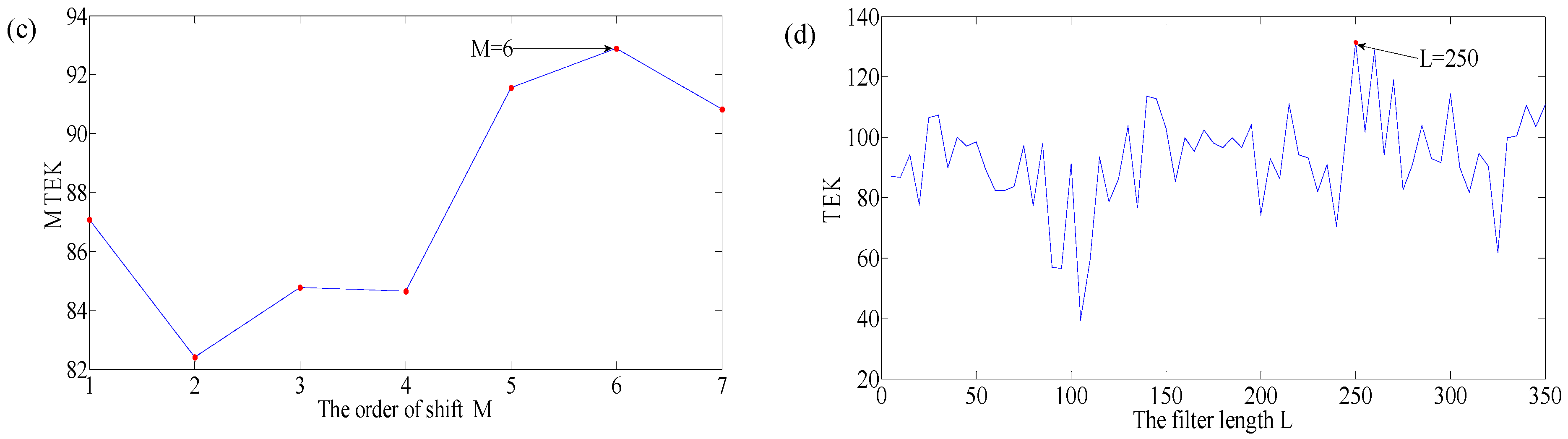

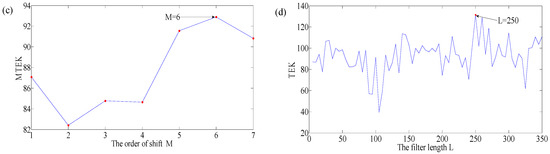

(2) When T_i = 125, Figure 16c,d show the relationship between M and MTEK, and the relationship between the filter length L and the TEK by iterative calculation respectively. It was found that when M = 6, the MTEK value was the largest from Figure 16c, and when L = 250, the TEK value was the largest from Figure 16d, so the optimal parameters T_i, M_i, and L_i were determined [125, 6, 250].

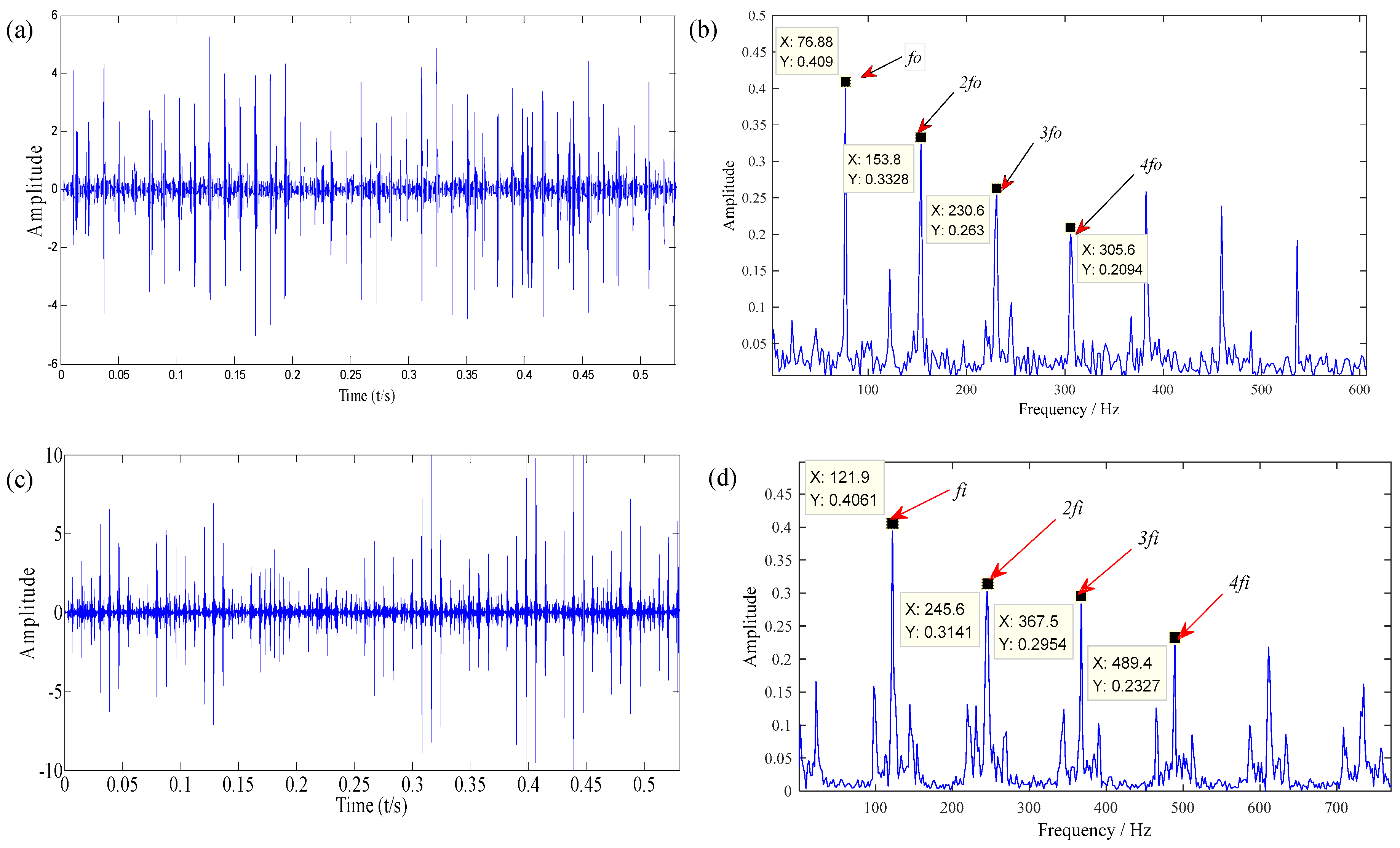

The low resonance component was deconvoluted and filtered with the obtained optimal parameters [T_*, M_*, L_*] (* is i, o) using MCKD. Finally, the analysis result is presented in Figure 17. It was noticeable that the impulse components in the time-domain of outer race fault and inner race faults were found clearly in Figure 17a,c respectively. From Figure 17b,d, the harmonic components of the characteristic frequencies 76.88 Hz and 121.9 Hz were revealed noticeably. It is consistent with the theoretical fault characteristic frequency (f_o (76.7 Hz), f_i (122.7 Hz)). The results show that the proposed method successfully separated the fault information of the outer race and inner race of the bearing from the composite fault signal.

6. Conclusions

The failure of a rolling bearing usually manifests itself as compound failure, which are coupled with each other. The fault characteristic frequencies in the envelope spectrum are staggered with each other, so it is difficult to accurately separate them. This study presents a compound fault diagnosis method for rolling bearings based on a parallel dual-Q-factor and the improved maximum correlated kurtosis deconvolution (IMCKD). The parallel dual-Q-factor bases sparse decomposition is used as noise reduction processing. Improving the MCKD according to the index TEK can reflect the noise reduction effect, which can select the appropriate parameters of MCKD, and accurately realize the separation and extraction of composite fault features. After the composite fault signal is filtered and de-noised by this method, the spectrum peak of the fault feature frequency and its harmonics are clearly presented in the spectrum diagram, which is basically consistent with the theoretical calculation value. Therefore, it is possible to recognize the inner and outer race faults. The effectiveness of the proposed method is verified by analyzing the compound fault mathematical simulation signal and the measured signal. The characters of compound faults are the multiplicity of faults, which brings great difficulties for fault diagnosis, so more study should be conducted on compound fault detection in the future.
