Appl. Sci. 2019, 9(8), 1546; https://doi.org/10.3390/app9081546

An Inductive Debris Sensor for a Large-Diameter Lubricating Oil Circuit Based on a High-Gradient Magnetic Field

School of Advanced Manufacturing Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
*
Author to whom correspondence should be addressed.
Received: 18 February 2019 / Revised: 4 April 2019 / Accepted: 9 April 2019 / Published: 14 April 2019
  |
PDF [5044 KB, uploaded 14 April 2019]
  |

Abstract

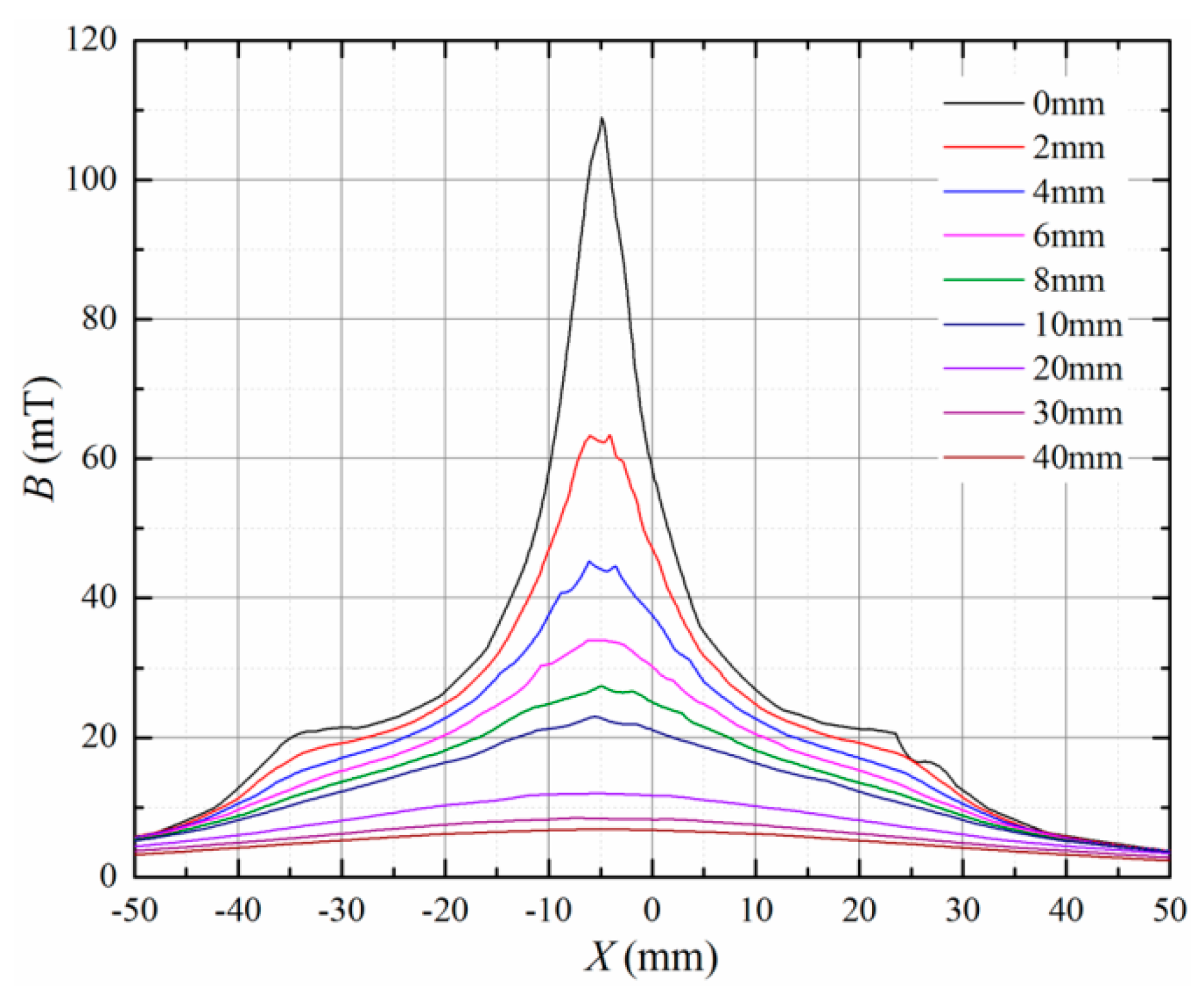

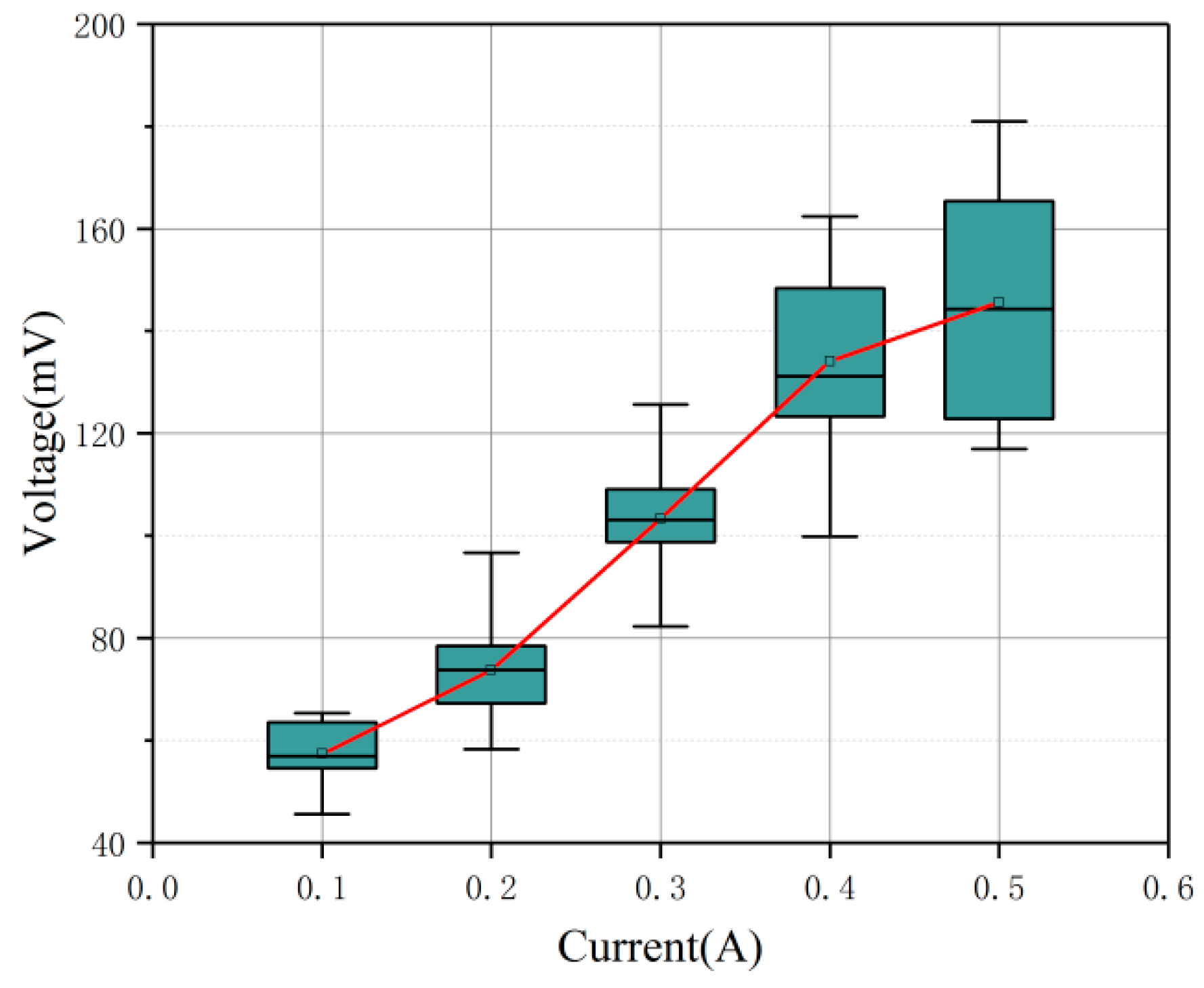

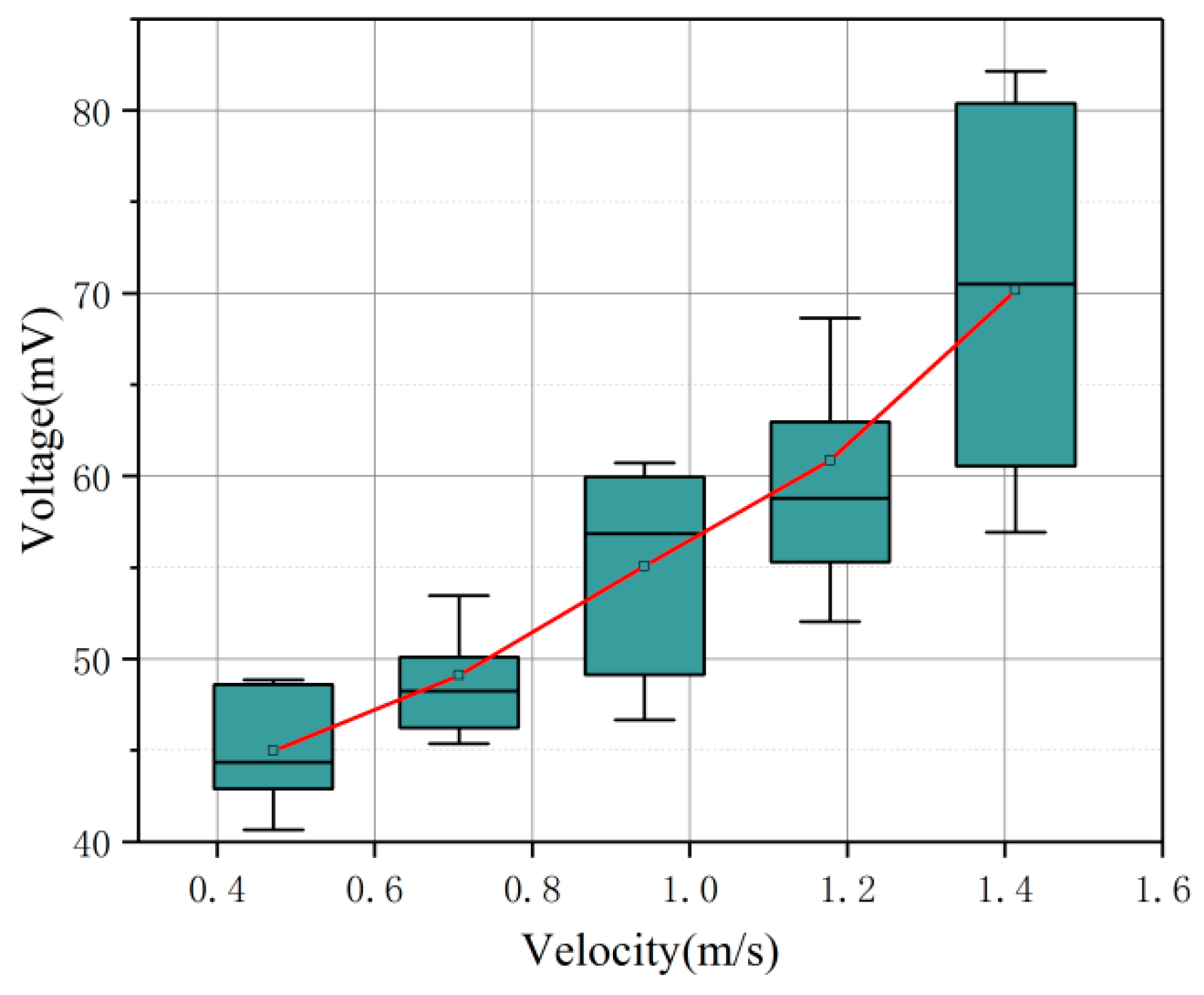

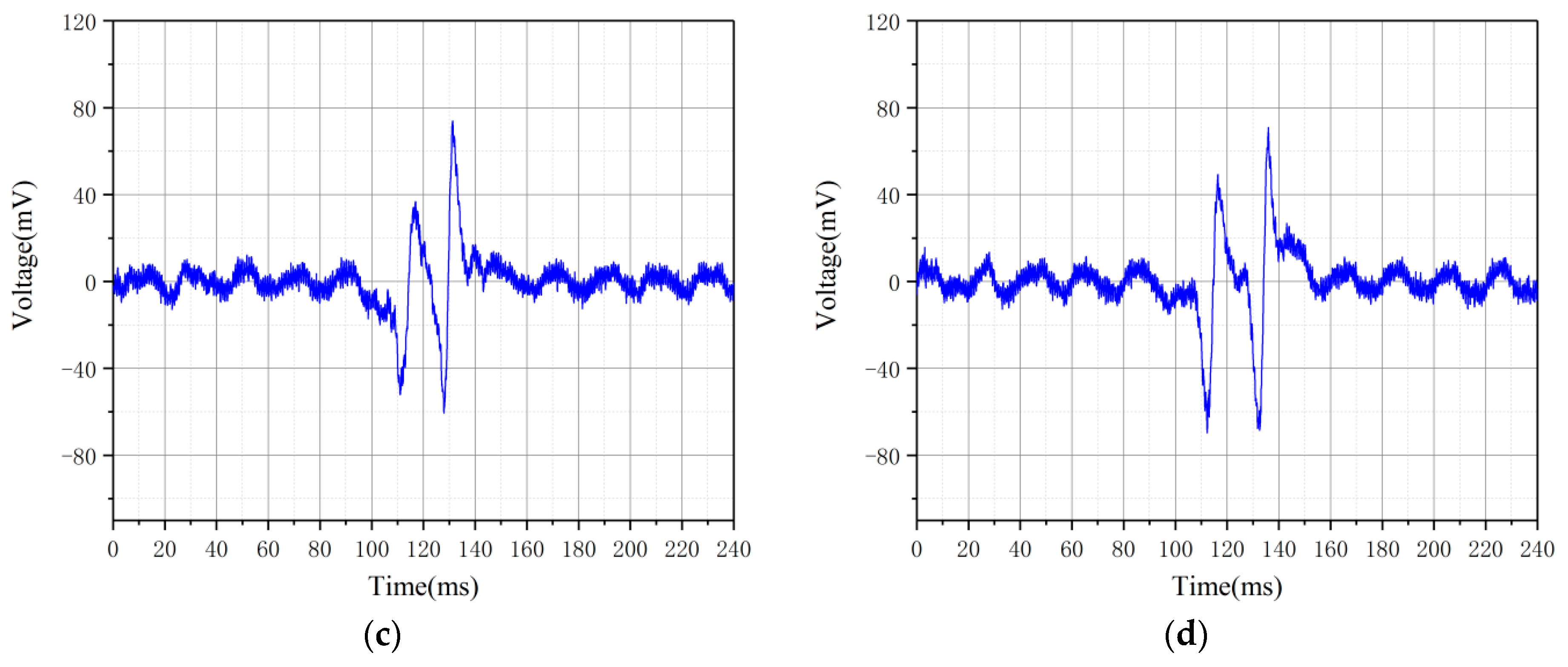

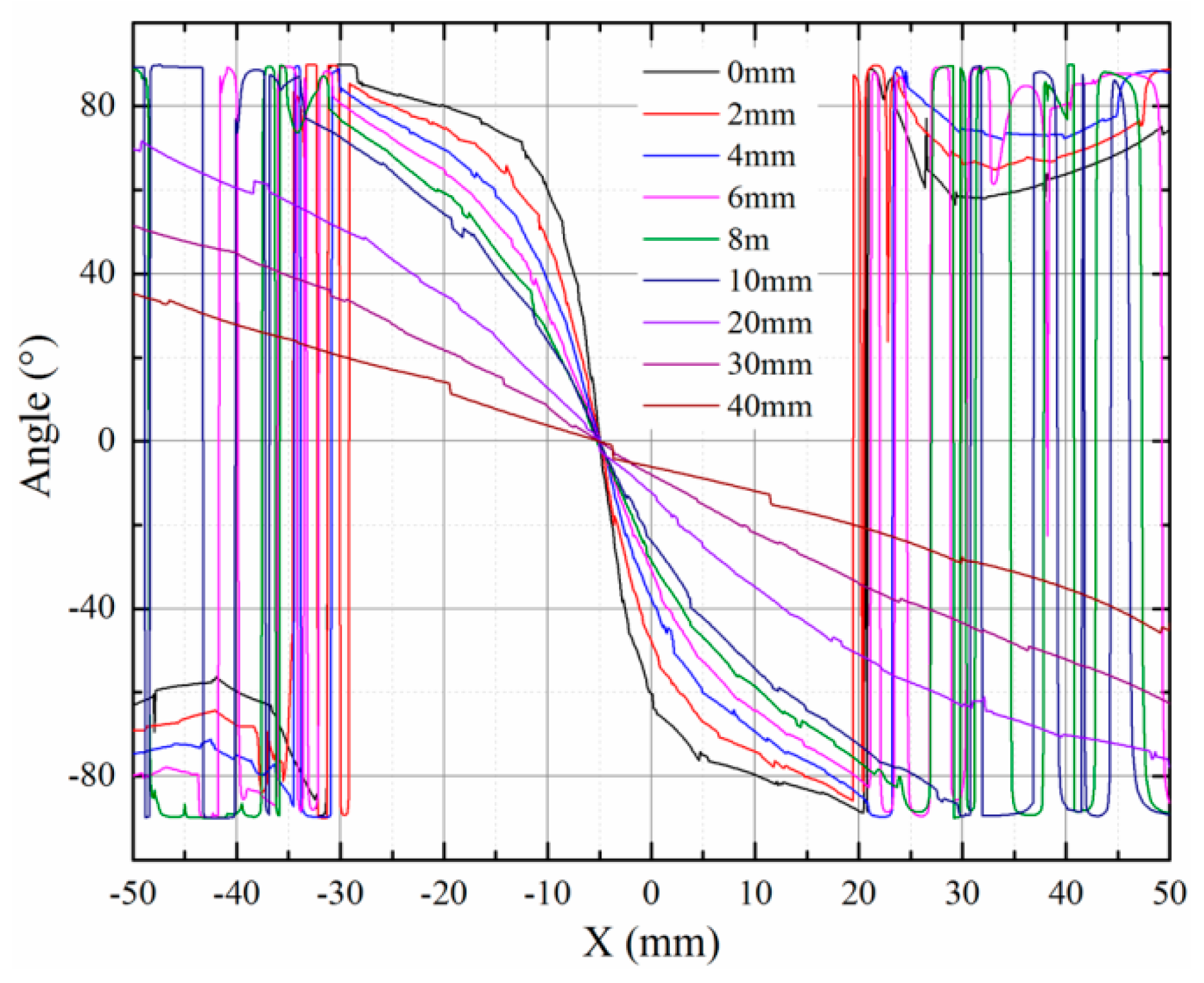

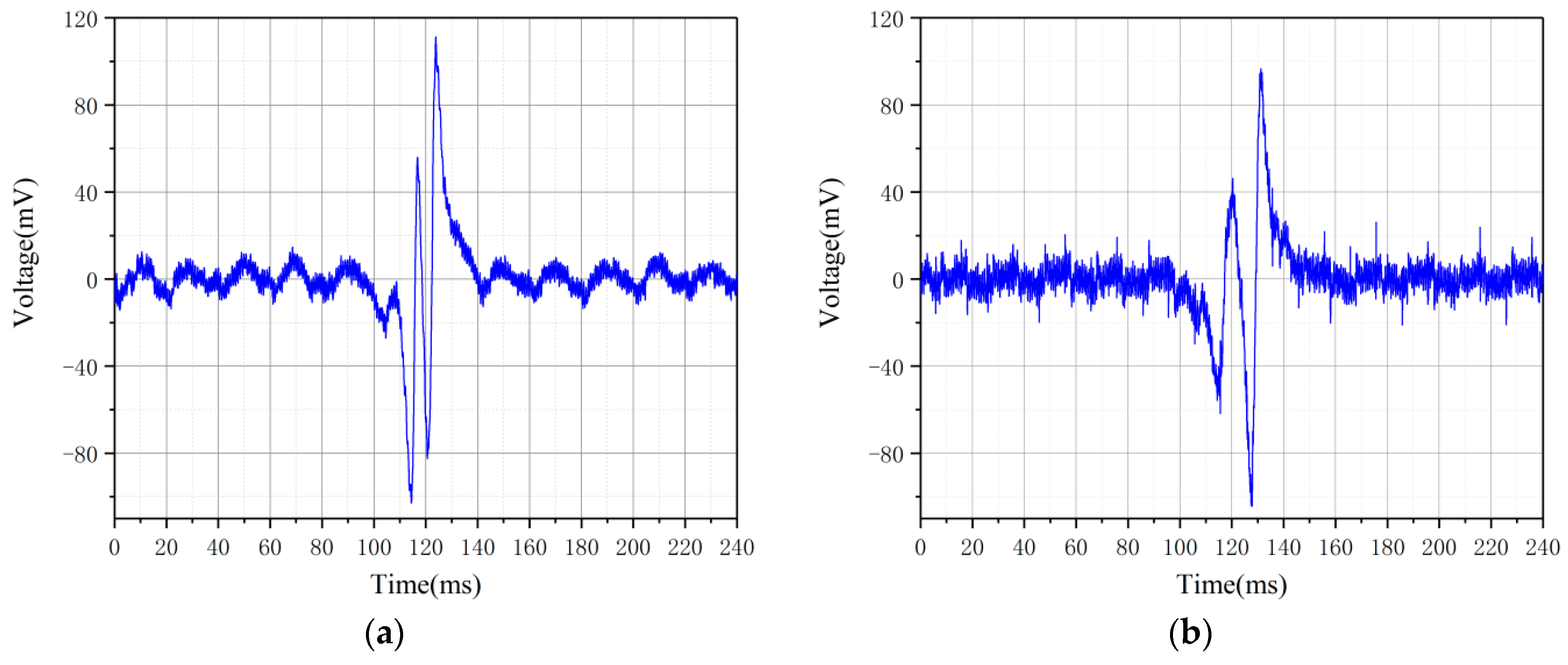

Wear is one of the main factors of machine failure. If abnormal wear was not detected in time during the operation of a mechanical system, it probably leads to catastrophic consequences. The wear debris in the lubricating oil circuit contains much information about equipment wear. Consequently, debris detection is regarded as an effective way to detect mechanical faults. In this paper, an inductive debris sensor based on a high-gradient magnetic field is presented for high-throughput lubricating oil circuits. The excitation coil of the sensor is driven by a constant current to generate a high-gradient magnetic field, and the induction coil is wound around the flow path. When wear debris cuts the magnetic line through the flow path, a corresponding induced voltage is generated. The experimental results show that the sensor output signal is linear with the drive current and the wear debris velocity. In addition, the shortest distance between the particles that the sensor output signals can be completely separated is 25 mm. When the distance is smaller, the induced signals are superimposed. View Full-Text
Keywords: on-line debris monitoring; large-diameter lubricating oil circuit; inductive sensor; high-gradient magnetic field on-line debris monitoring; large-diameter lubricating oil circuit; inductive sensor; high-gradient magnetic field
