Numerical Study on Dynamic-Stall Characteristics of Finite Wing and Rotor

1
and
2,*
1
College of Energy and Power Engineering, Lanzhou University of Technology, Lanzhou 730050, China
2
National key Laboratory of Science and Technology on Rotorcraft Aeromechanics, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
*
Author to whom correspondence should be addressed.
Received: 19 December 2018 / Revised: 4 February 2019 / Accepted: 5 February 2019 / Published: 12 February 2019
Full-Text   |   PDF [10215 KB, uploaded 12 February 2019]   |

Abstract

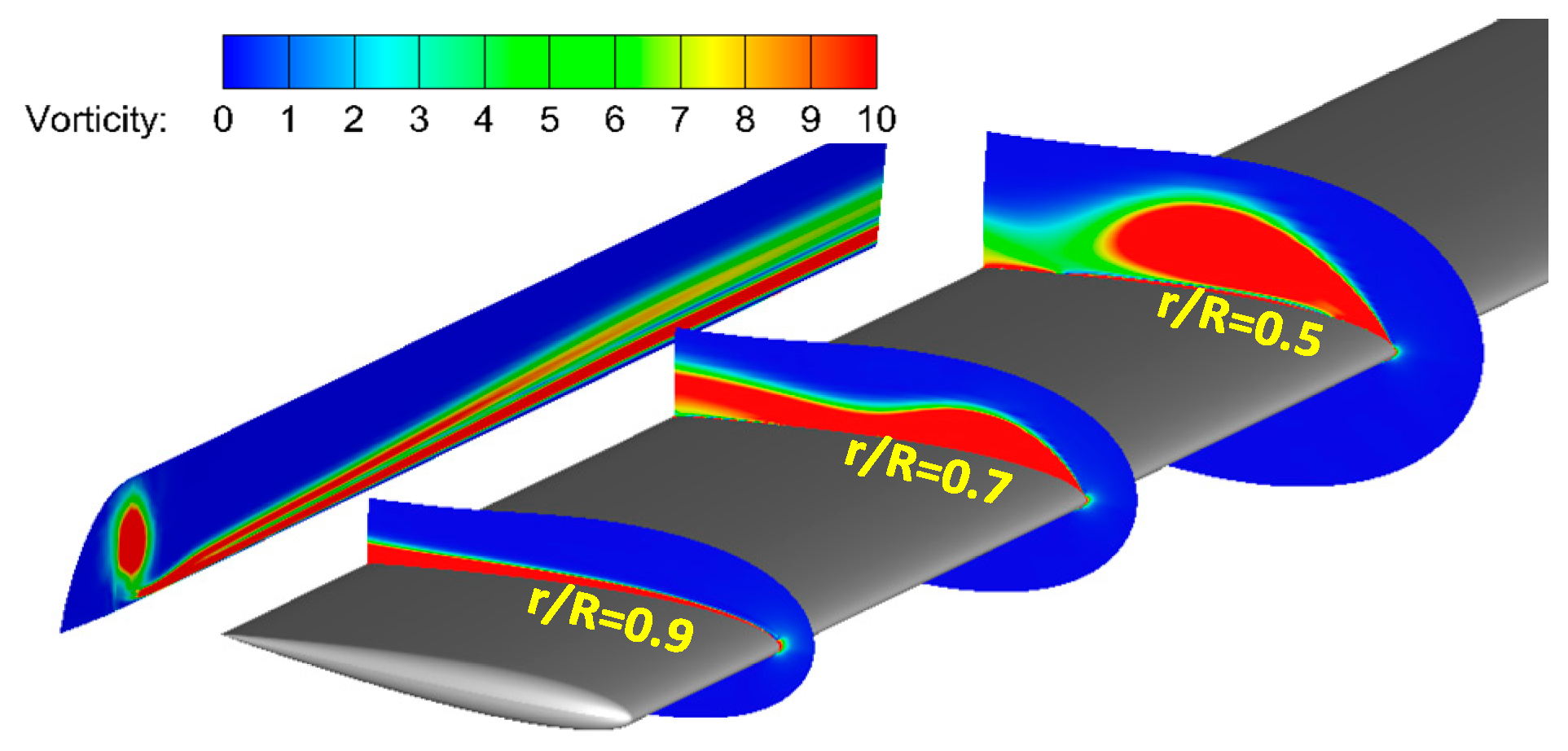

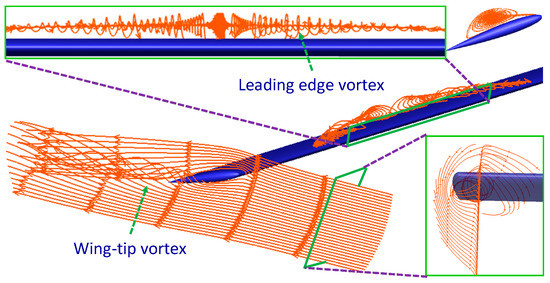

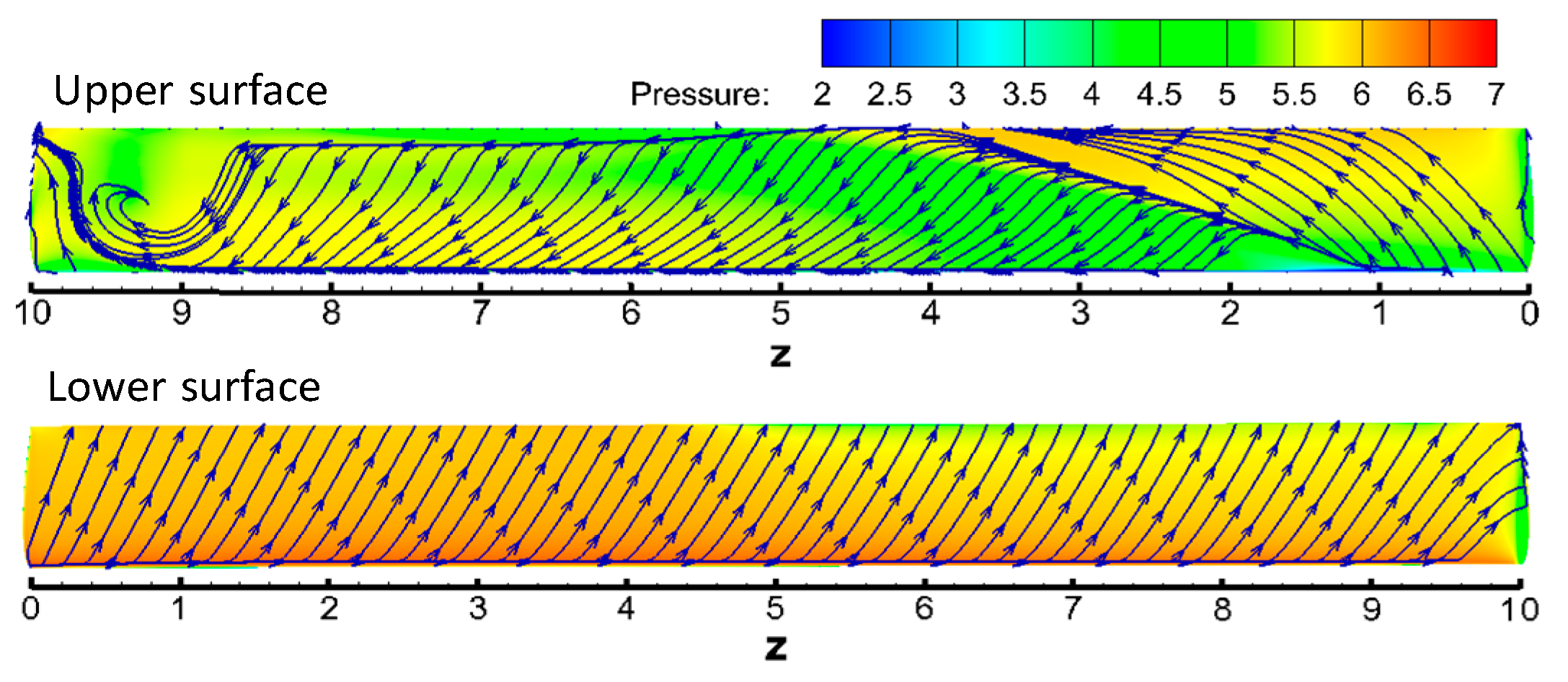

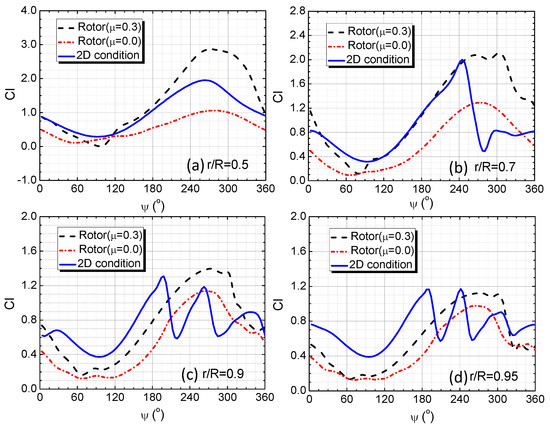

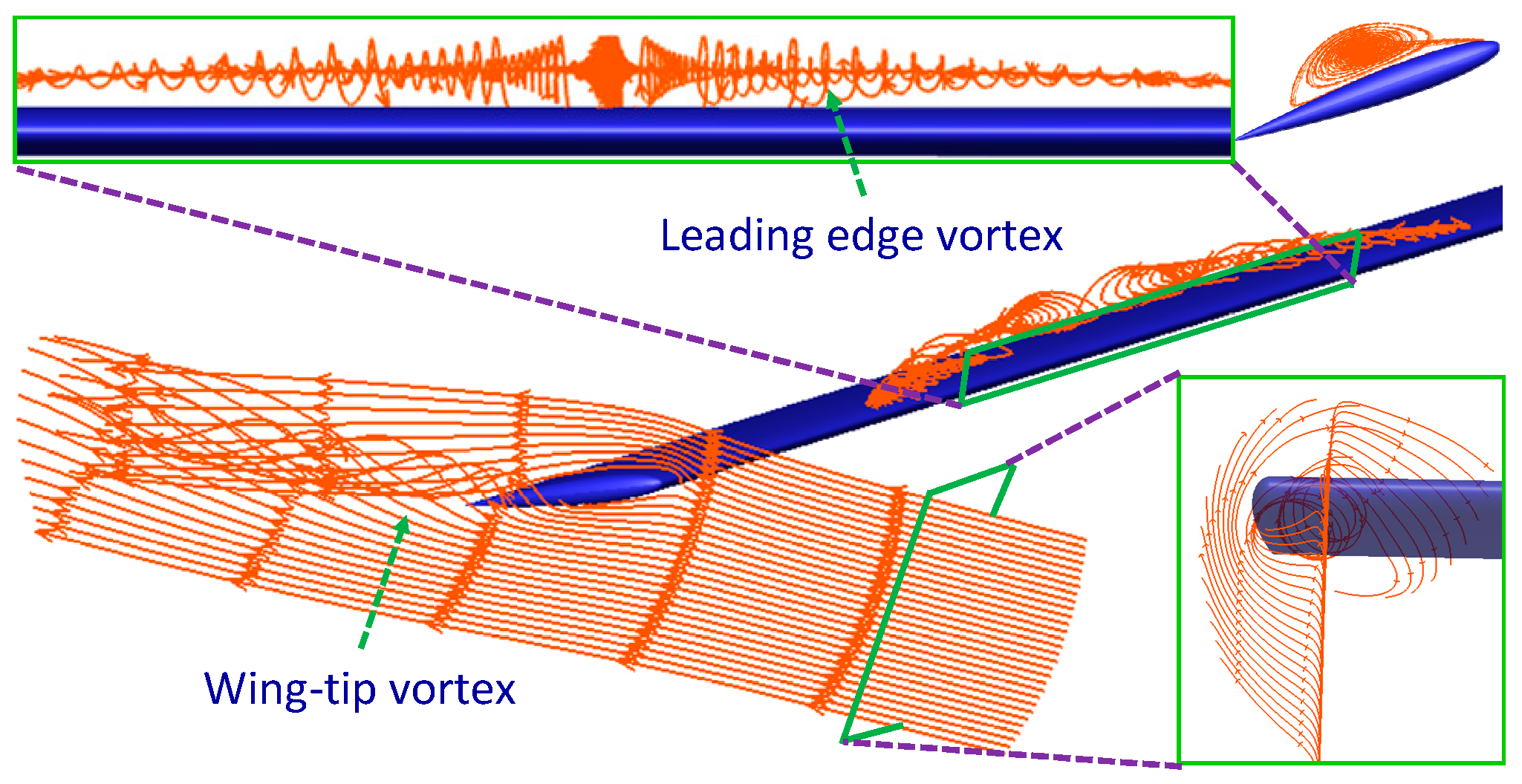

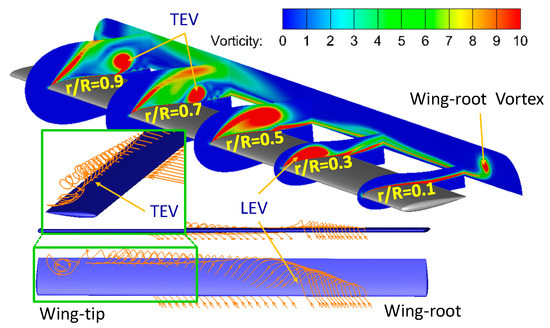

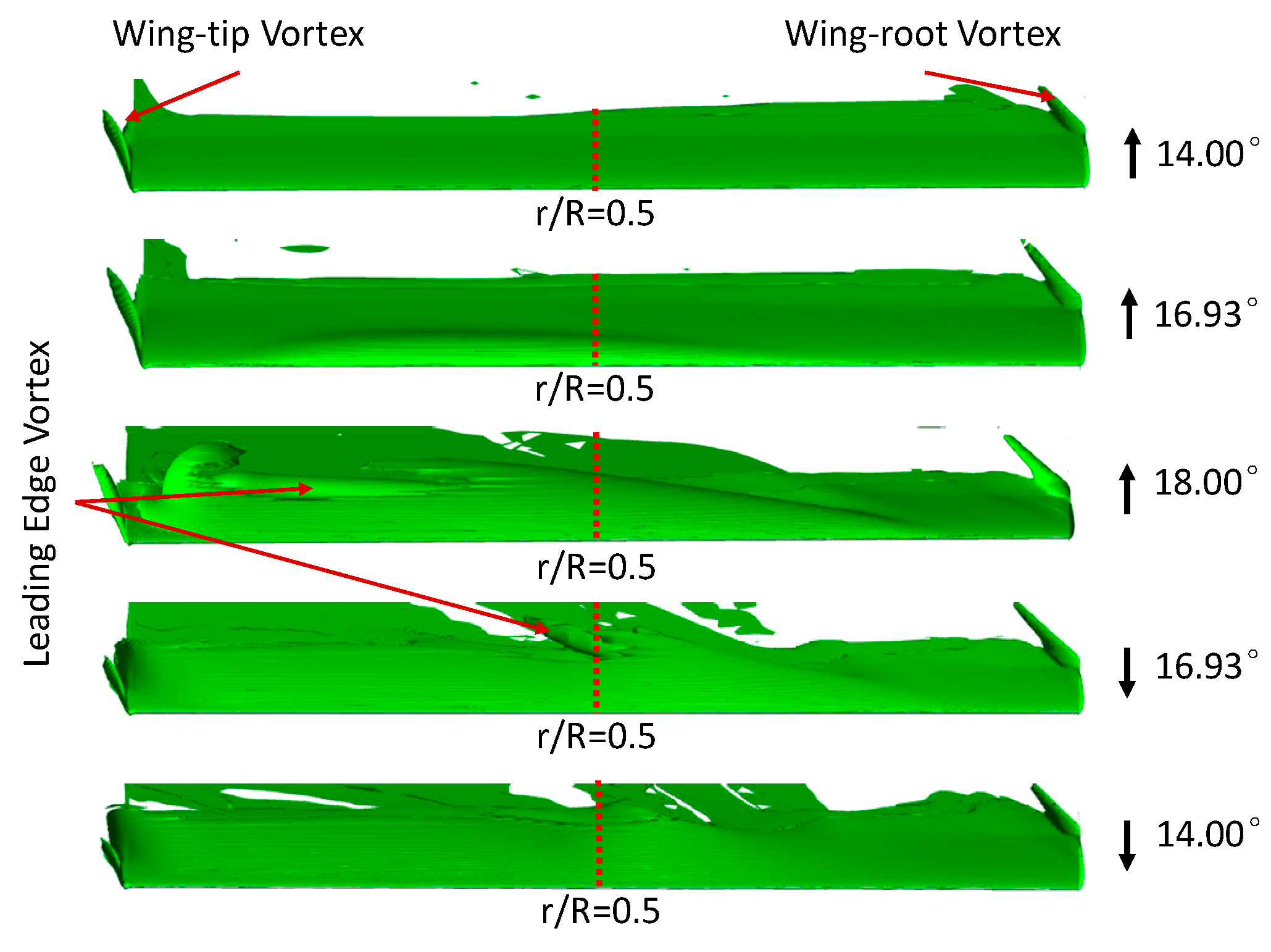

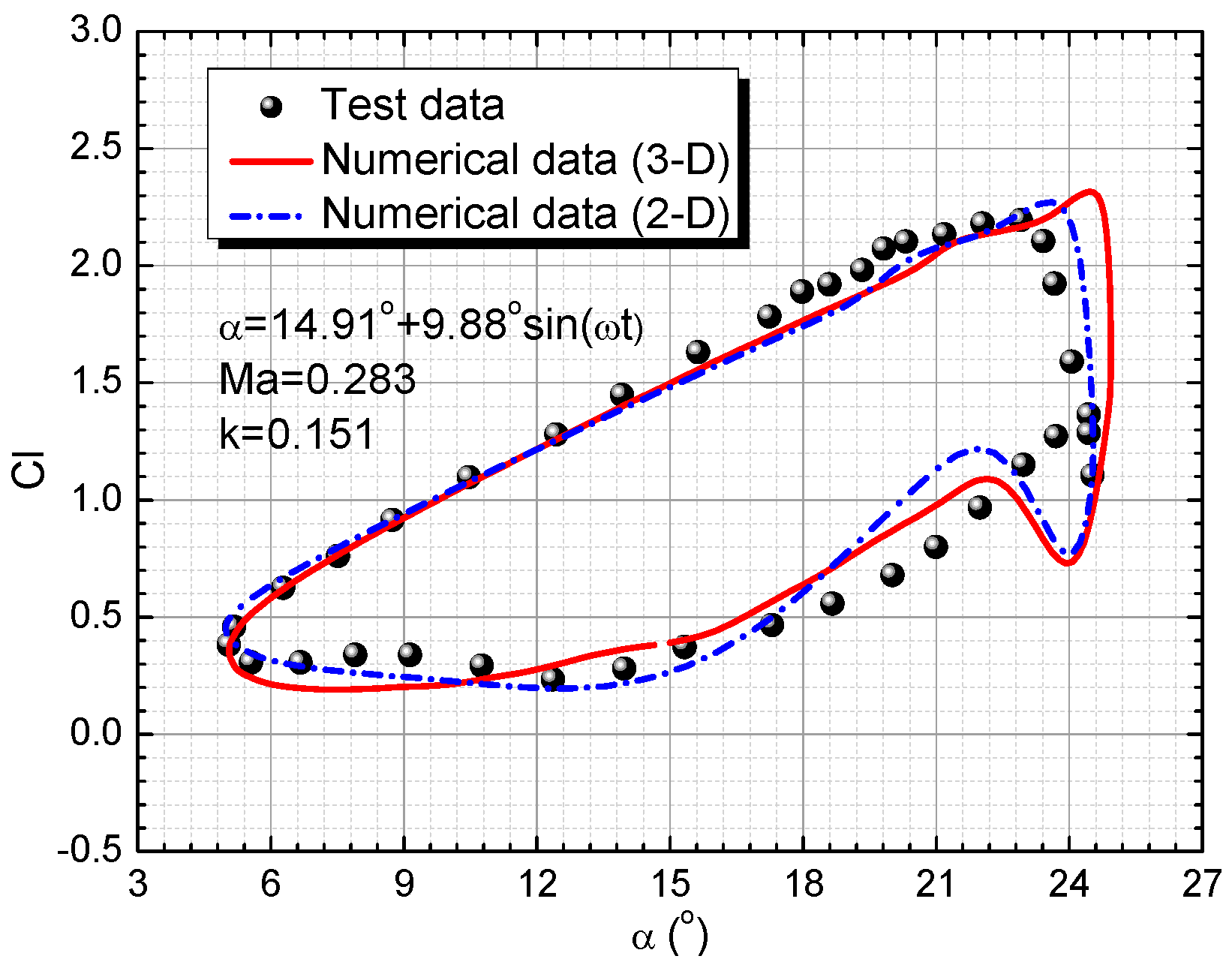

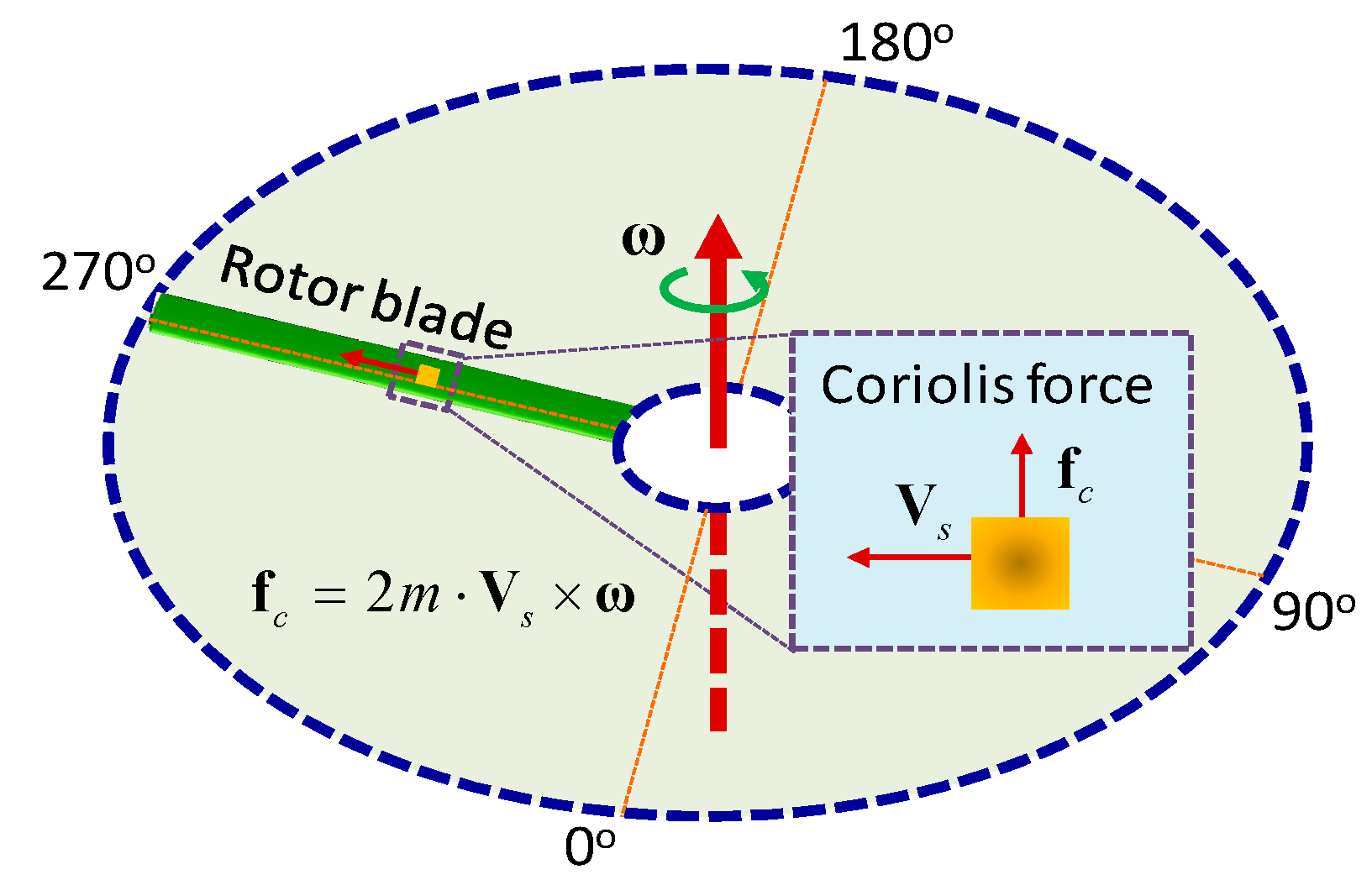

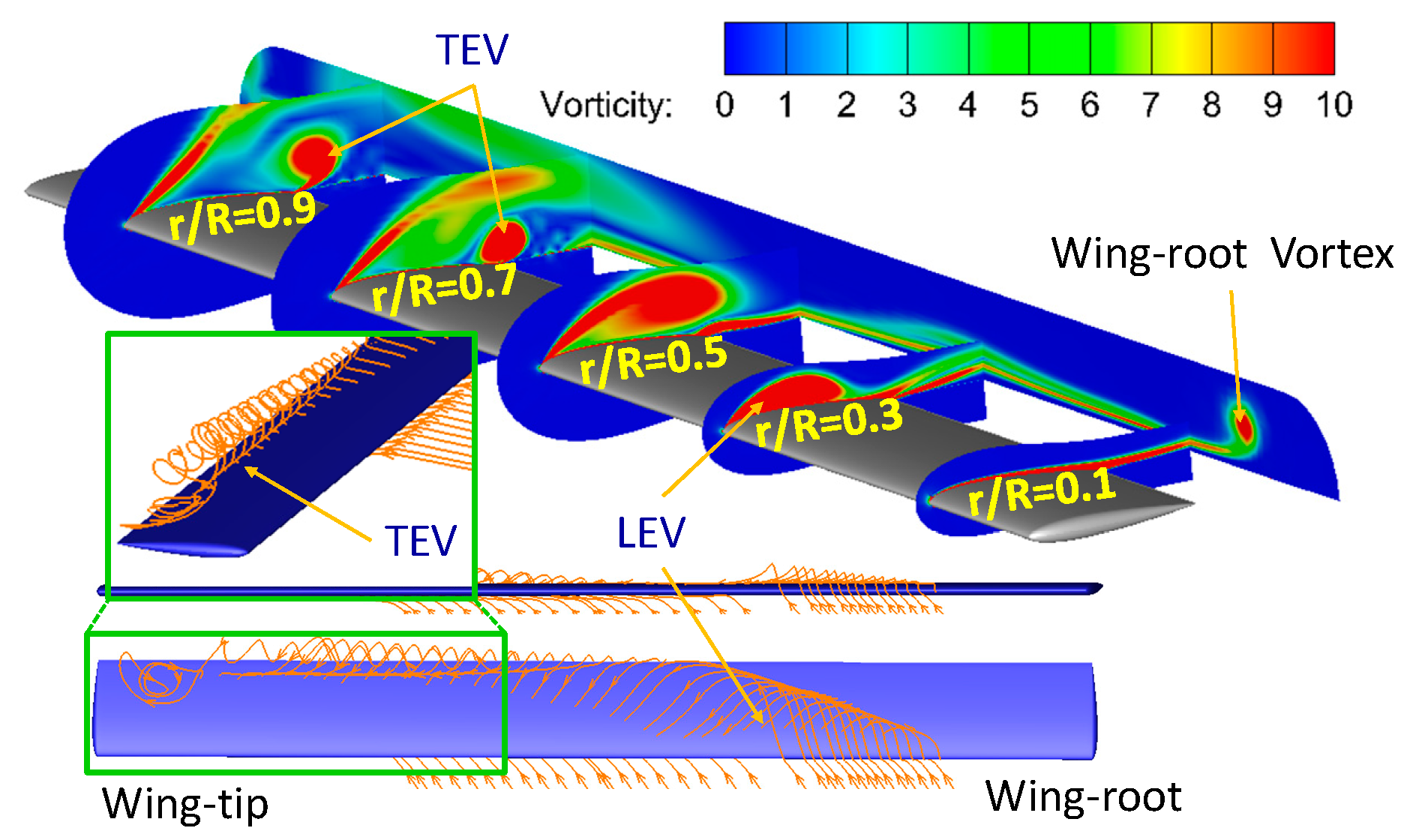

To study the three-dimensional effects on the dynamic-stall characteristics of a rotor blade, the unsteady flowfields of the finite wing and rotor were simulated under dynamic-stall conditions, respectively. Unsteady Reynolds-averaged Navier–Stokes (URANS) equations coupled with a third-order Roe–MUSCL spatial discretization scheme were chosen as the governing equations to predict the three-dimensional flowfields. It is indicated from the simulated results of a finite wing that dynamic stall would be restricted near the wing tip due to the influence of the wing-tip vortex. By comparing the simulated results of the finite wing with the spanwise flow, it is indicated that the spanwise flow would arouse vortex accumulation. Consequently, the dynamic stall is restricted near the wing root and aggravated near the wing tip. By comparing the simulated results of a rotor in forward flight, it is indicated that the dynamic stall of the rotor would be inhibited due to the effects of the spanwise flow and Coriolis force. This work fills the gap regarding the insufficient three-dimensional dynamic stall of a helicopter rotor, and could be used to guide rotor airfoil shape design in the future. View Full-Text
Keywords: helicopter; rotor; unsteady aerodynamics; dynamic stall; RANS equations helicopter; rotor; unsteady aerodynamics; dynamic stall; RANS equations
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
