Open AccessArticle
Appl. Sci. 2019, 9(3), 574; https://doi.org/10.3390/app9030574

A Geometric Error Measurement System for Linear Guideway Assembly and Calibration

1
Smart Machine and Intelligent Manufacturing Research Center, National Formosa University, Yunlin 632, Taiwan
2
Department of Engineering Science, National Cheng Kung University, Tainan 701, Taiwan
*
Author to whom correspondence should be addressed.
Received: 13 December 2018 / Revised: 31 January 2019 / Accepted: 1 February 2019 / Published: 10 February 2019
(This article belongs to the Special Issue Precision Dimensional Measurements)
Full-Text   |   PDF [12514 KB, uploaded 10 February 2019]   |

Abstract

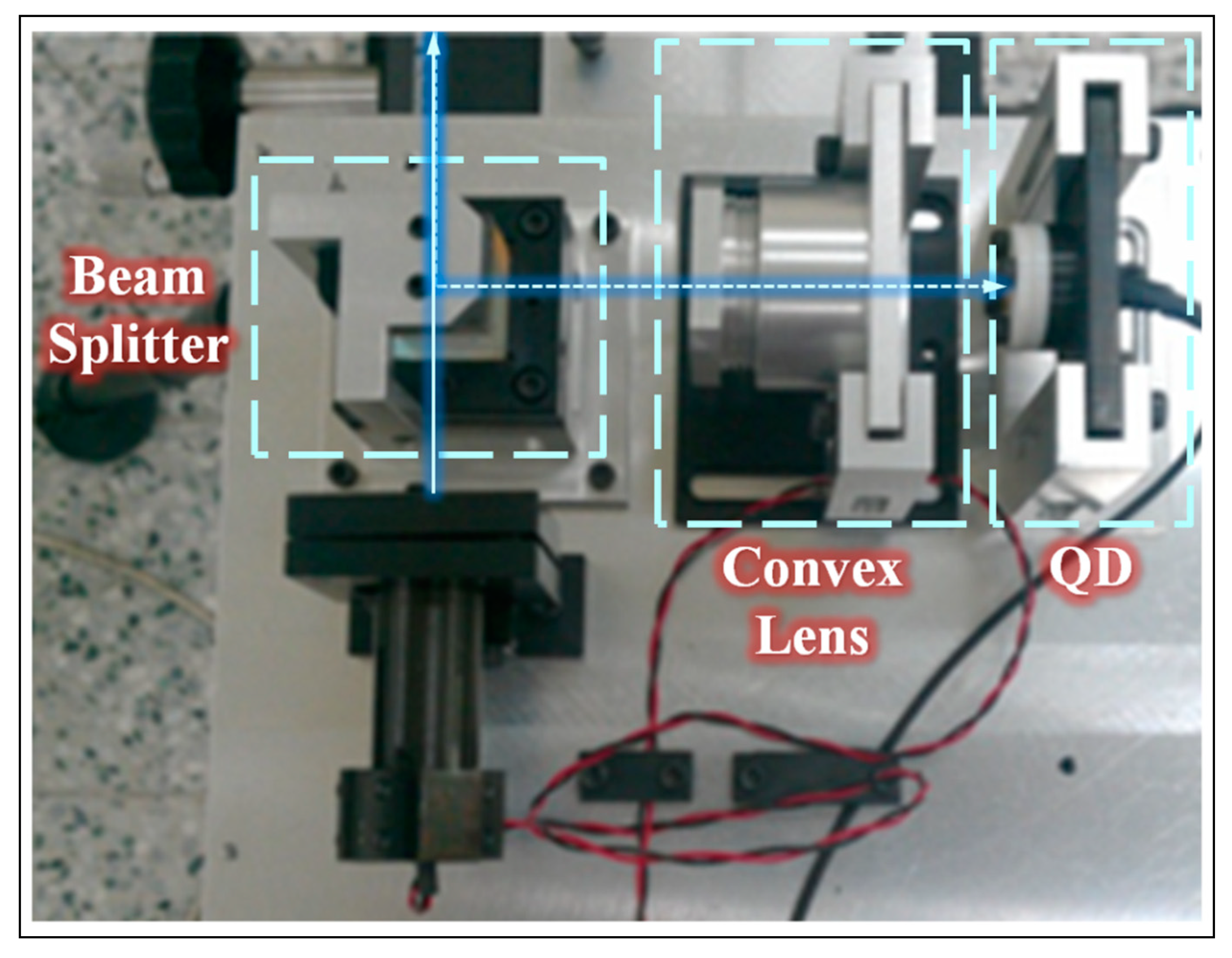

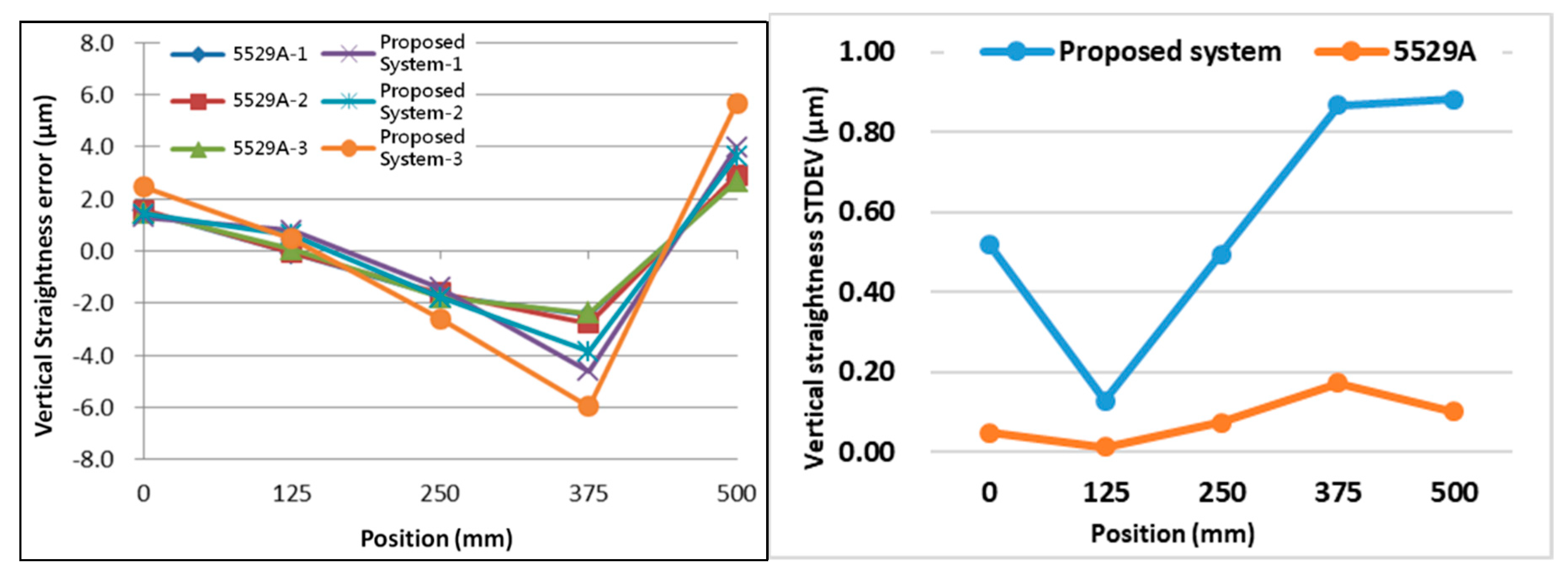

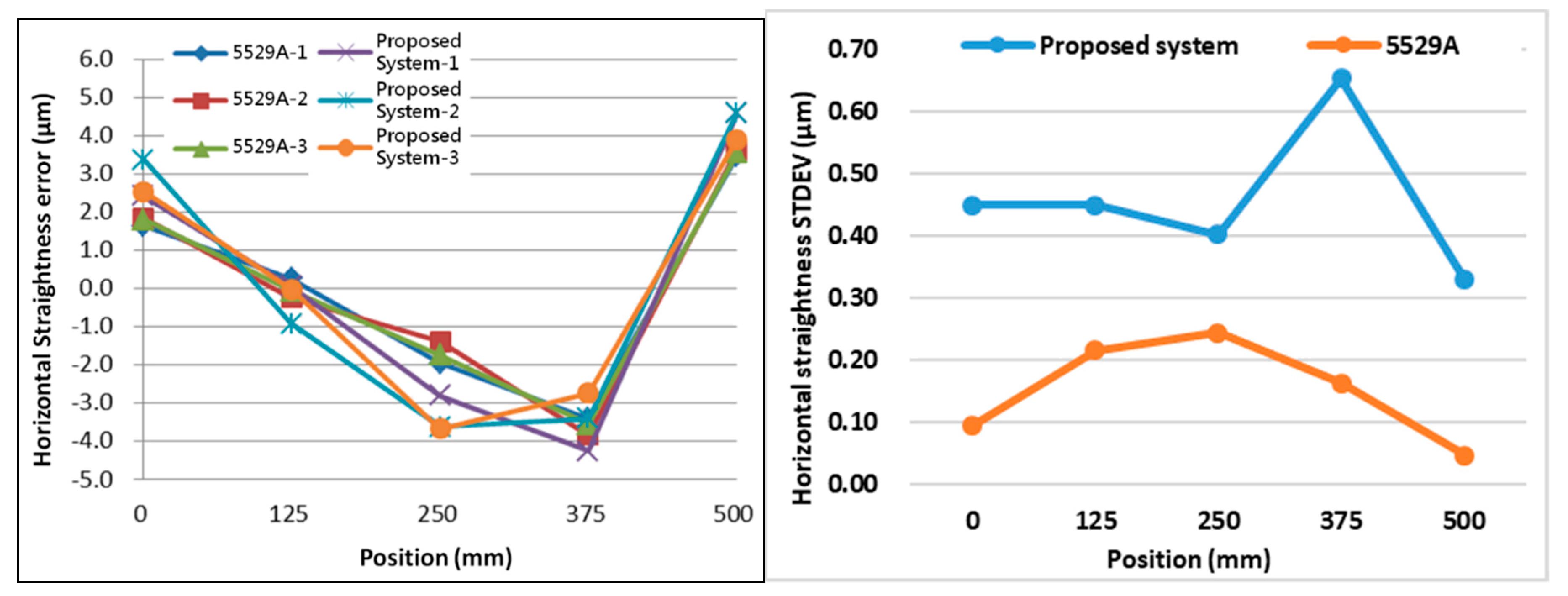

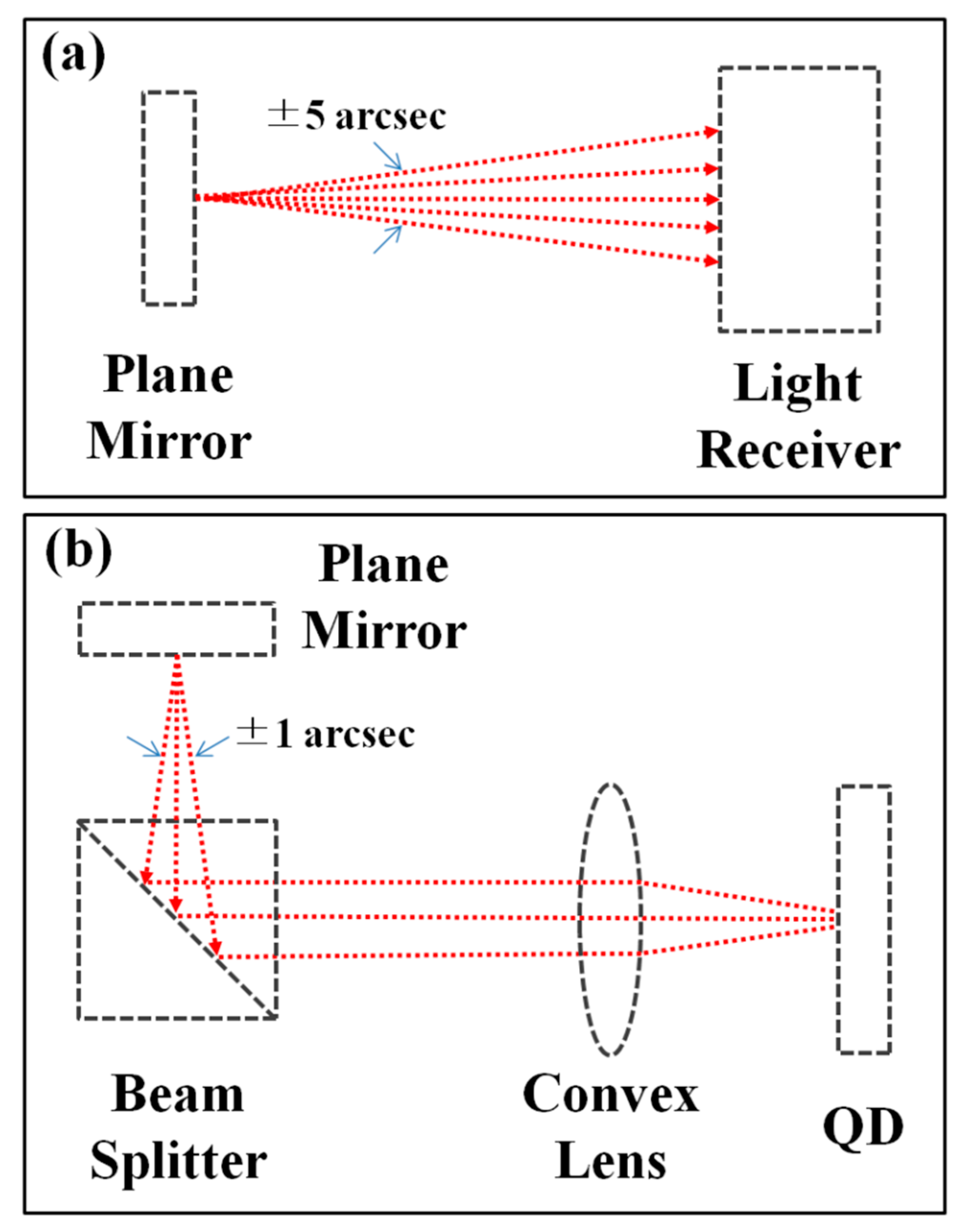

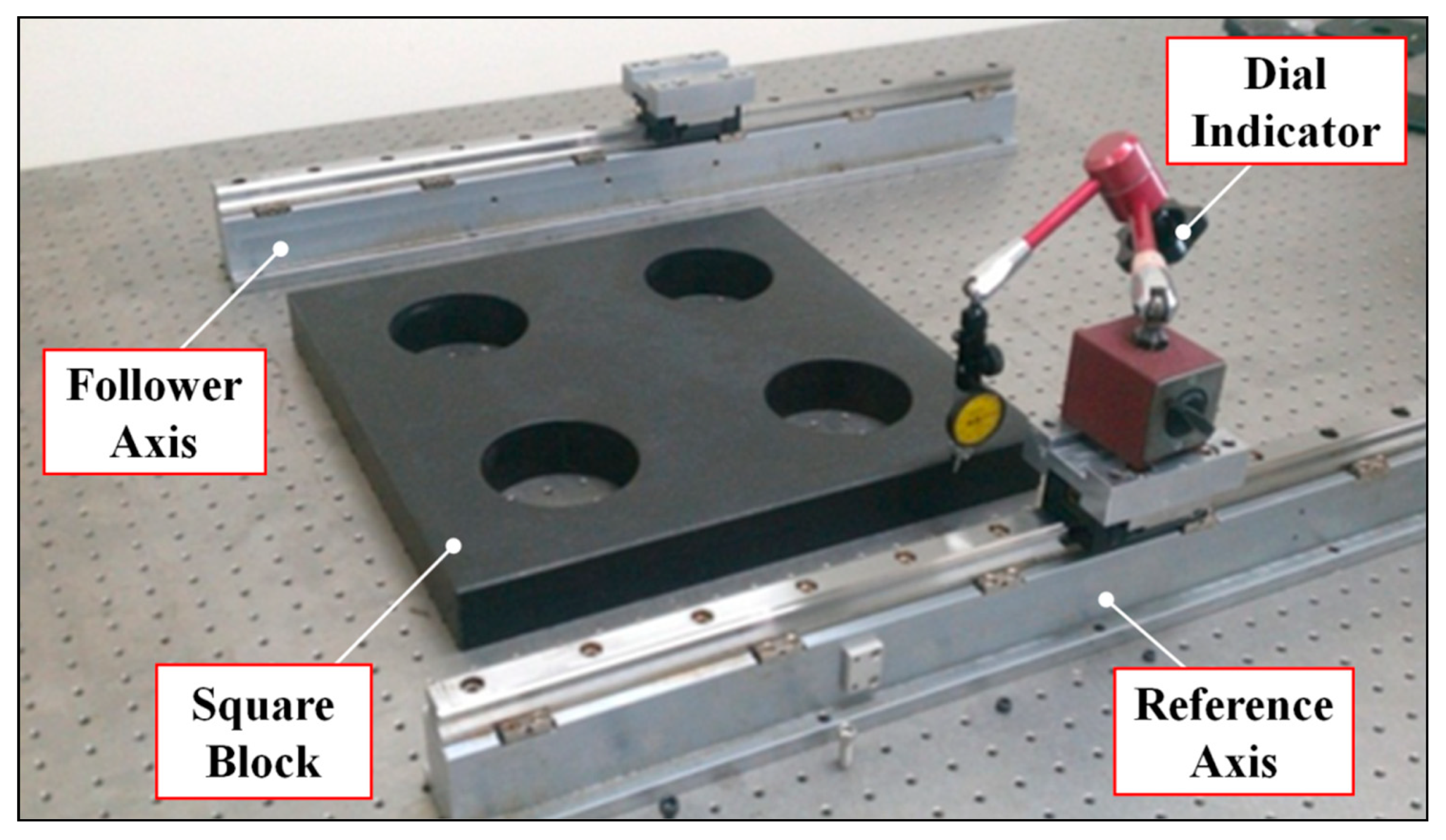

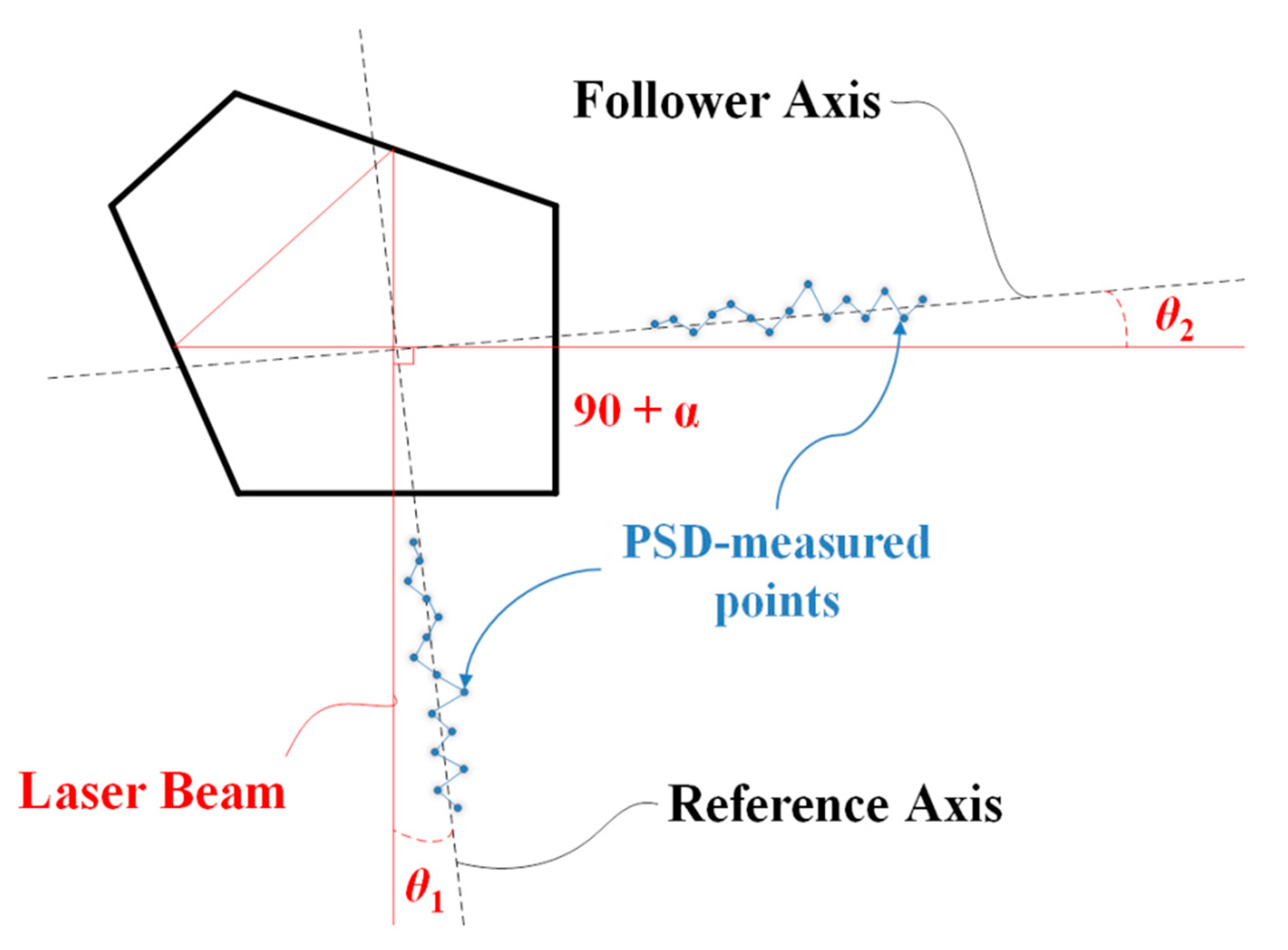

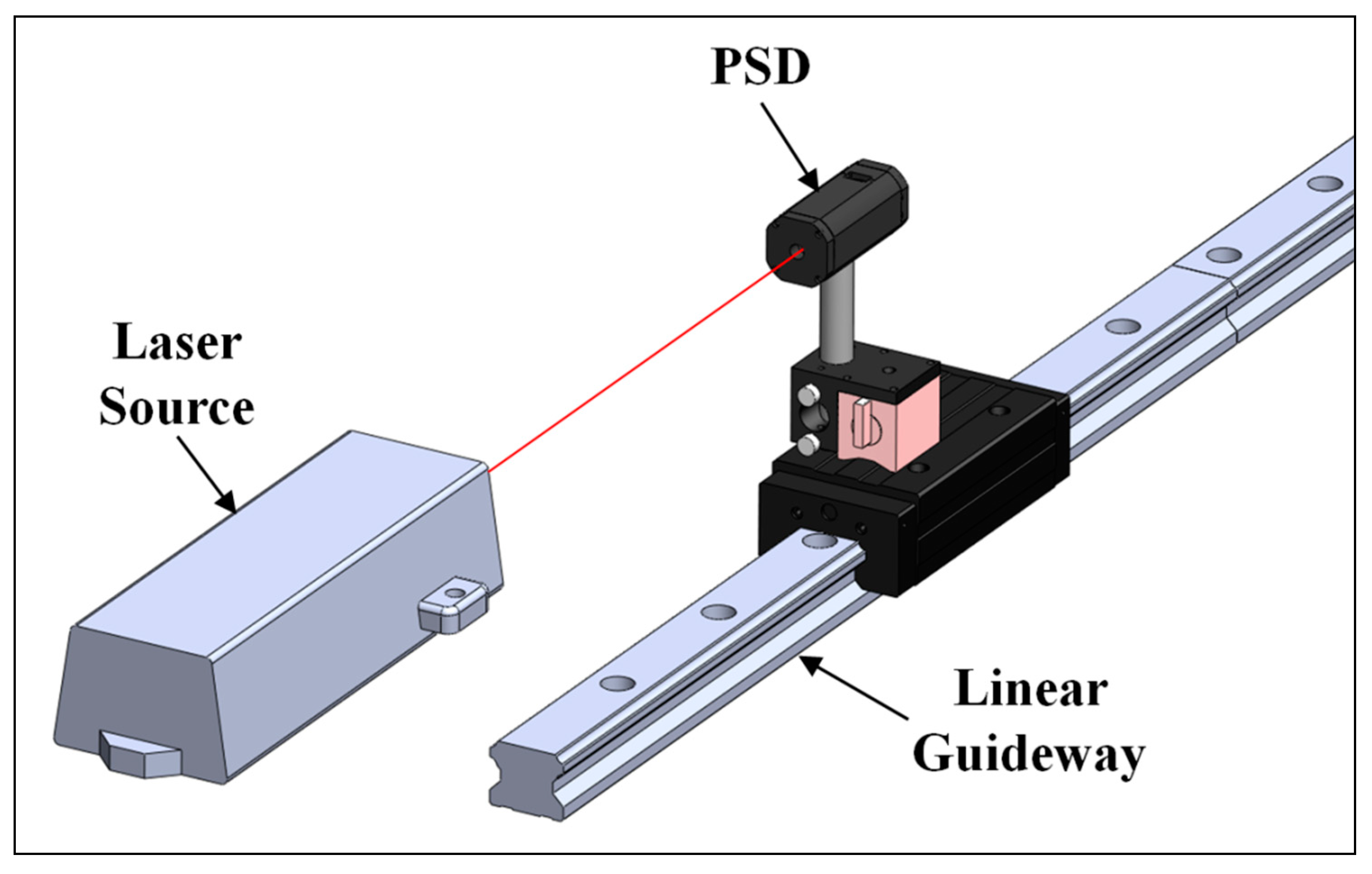

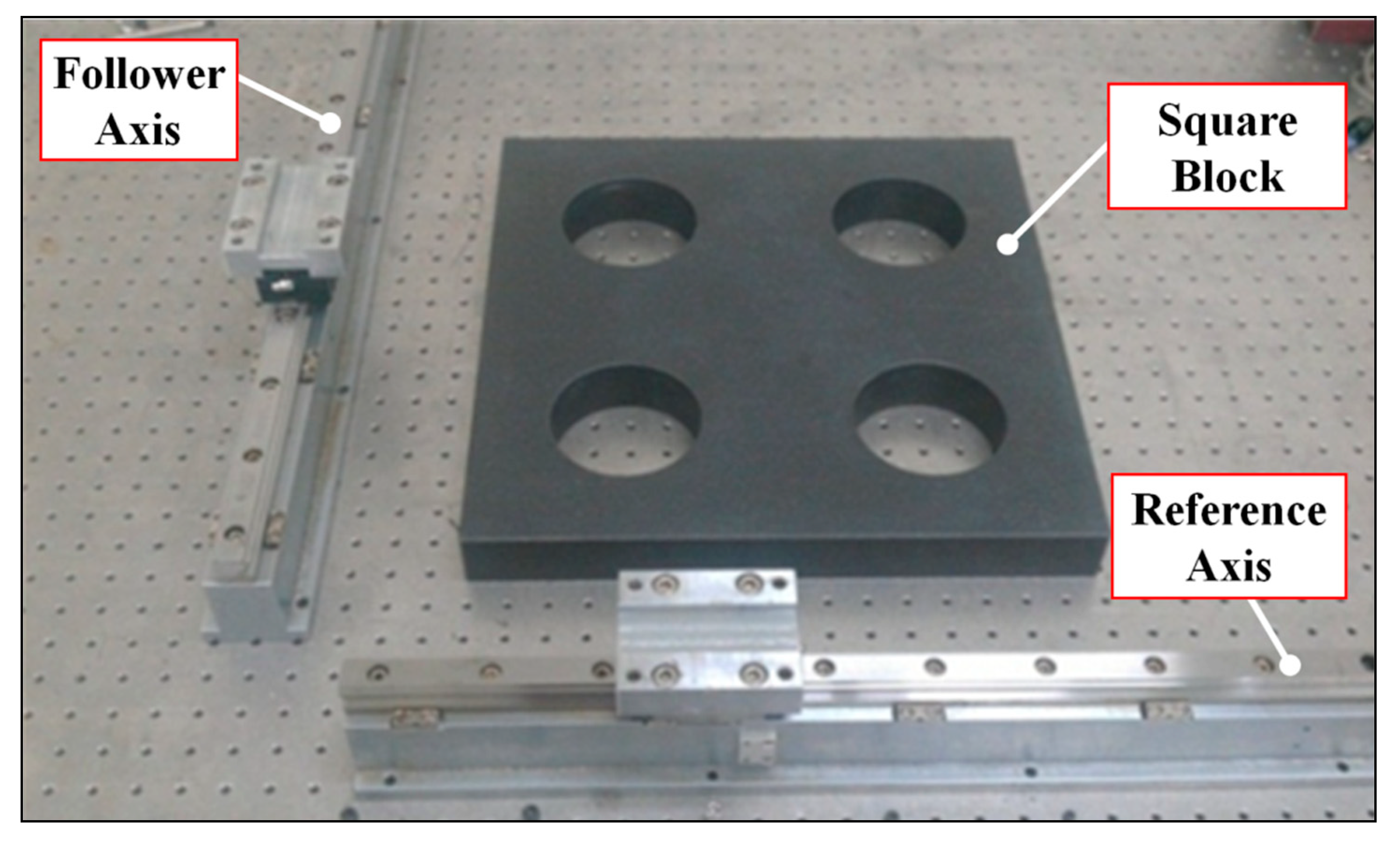

Geometric errors, such as straightness, perpendicularity, and parallelism errors are determinant factors of both the accuracy and service life of a linear guideway. In this study, a multipurpose geometric error measurement system was mainly composed of a laser source and an in-lab-developed optical module is proposed. Two adjustment methods were used for the in-lab-developed optical module to calibrate the altitude angle of the pentaprism: The first one is designed for ease of operation based on Michelson principle using a laser interferometer as the light receiver, and the second is aimed at high calibration repeatability based on the autocollimator principle using the quadrant detector (QD) to replace the light receiver. The result shows that the residual errors of the horizontal straightness and the vertical straightness are within ±1.3 µm and ±5.3 µm, respectively, when referred to as the commercial laser interferometer. Additionally, the residual errors of perpendicularity and parallelism are within ±1.2 µm and ±0.1 µm, respectively, when referred to as the granite reference blocks View Full-Text
Keywords: linear guideway; geometric errors; pentaprism; machine tool linear guideway; geometric errors; pentaprism; machine tool
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Hsieh, T.-H.; Chen, P.-Y.; Jywe, W.-Y.; Chen, G.-W.; Wang, M.-S. A Geometric Error Measurement System for Linear Guideway Assembly and Calibration. Appl. Sci. 2019, 9, 574.
