Article

Fabrication of Self-Healable Magnetic Nanocomposites via Diels−Alder Click Chemistry

by
Yi-Huan Lee
1,2,*,
Yan-Nian Zhuang
1,
Hsin-Ta Wang
1,
Ming-Feng Wei
3,4,
Wen-Chi Ko
1,
Wei-Jen Chang
5,6,*,
Tun-Fun Way
2 and
Syang-Peng Rwei
1,2
1
Department of Molecular Science and Engineering, National Taipei University of Technology, Taipei 10608, Taiwan
2
Research and Development Center for Smart Textile Technology, National Taipei University of Technology, Taipei 10608, Taiwan
3
Graduate Institute of Oncology, College of Medicine, National Taiwan University, Taipei 10048, Taiwan
4
National Taiwan University Cancer Center, College of Medicine, National Taiwan University, Taipei 10048, Taiwan
5
School of Dentistry, College of Oral Medicine, Taipei Medical University, Taipei 11031, Taiwan
6
Dental Department, Taipei Medical University Shuang-Ho Hospital, New Taipei City 23561, Taiwan
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2019, 9(3), 506; https://doi.org/10.3390/app9030506
Submission received: 11 December 2018 / Revised: 24 January 2019 / Accepted: 27 January 2019 / Published: 1 February 2019
(This article belongs to the Section Nanotechnology and Applied Nanosciences)
Browse Figures
Versions Notes

Abstract

:
In this study, we report a novel approach to fabricate an organic/inorganic magnetic hybrid system capable of self-healing, wherein a polycaprolactone-poly(furfuryl glycidyl ether) copolymer (PCLF) serving as the structure template was first synthesized, followed by the incorporation of iron oxide nanoparticles-decorated multiwalled carbon nanotubes (IONPs-MWCNTs) and 1,1′-(methylenedi-4,1-phenylene)bismaleimide (BMI) into the polymer matrix to form a covalently crosslinked hybrid network via a Diels−Alder (DA) reaction. For this system, the reactive combination of diene and dienophile from furan/maleimide, MWCNT/furan, and MWCNT/maleimide could facilely induce multiple DA reactions that imparted a versatile route to efficiently introduce IONPs-MWCNTs into the organic polymer hosts, resulting in a uniform distribution of IONPs-MWCNTs that led to a hybrid system with superparamagnetic properties. Beside the magnetic behavior, such material synergistically exhibited a superior ability for healing scratch defects via a retro-DA reaction. Therefore, this crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system which exhibits multifunctional properties including superparamagnetic behavior and self-repairability can serve as an intelligent material for developing advanced electromagnetic applications.

Graphical Abstract

1. Introduction

The concept of smart materials, such as substances which self-heal without foreign mediation, is a promising substitute to material design that is insensitive to defects to sustain safety and/or performance. Such systems have the capability to heal themselves without outside mediation and restore their performance by using the properties intrinsically installed within them. So far, several approaches for the fabrication of autonomous self-healing materials, such as microscale vascular [1,2], capsule [3,4], and reservoir [5,6] systems, have been established. For these materials, the effective self-healing process often resorts to the release of an active ingredient which could be catalyst, monomer or crosslinking agent at the crack tip to efficiently block the crack advancement [7]. However, the irreversible autonomous systems often provide the self-repair function only once because of the consumption of the limited healing agents, leading to a potential disadvantage for their long-term use [8,9]. Therefore, the development of an efficient and versatile strategy for self-repairing materials capable of healing repeated damage events is greatly required to overcome this drawback from the irreversible systems.
Recently, there is a growing attention on reversible self-healing systems. These self-healing polymers with inherently reversible interactions are capable of undergoing infinite break and healing cycles upon outside stimulations, and thus can sufficiently provide high self-healing proficiency to rebuild the damaged area at the same location. A number of strategies have been built up to develop reversible self-healing systems by utilizing chemical reactions including cycloaddition [10], metathesis reaction [11,12], metal–ligand complexation [13], ring-opening [14], as well as complexation/decomplexation reactions [15,16]. Among them, the Diels−Alder (DA) reaction was often recognized as one of the most favorable reaction types applied for reversible self-repair systems since this click reaction can be easily triggered by a thermal treatment. For example, furan and maleimide serving respectively as electron-rich and electron-deficient moiety undergo a thermally reversible cycloaddition reaction in the temperatures range from 100 to 150 °C, which is suitable for daily applications [17,18,19,20,21,22,23,24,25]. Despite the continuous progress of the DA systems, it should be noted that most studies focused on their synthetic routes and self-healing abilities. However, specific efforts with the DA based organic/inorganic hybrid systems are less common. In principle, heat activated self-repair polymers are superior matrix materials used in hybrid systems. The incorporation of inorganic nanomaterials for the fabrication of hybrid materials would further offer multifunctional properties that create expanded opportunities for developing advanced applications. For example, self-healing nanohybrids based on DA reactions with the incorporation of MWCNTs (multiwalled carbon nanotubes), GOs (graphene oxide), or inorganic nanoparticles showed potential for practical use [26,27,28,29,30,31,32]. In particular, carbon nanotubes have received a great interest due to their superior electrical, thermal, and mechanical properties compared to those of traditional fiber materials [33,34]. The decoration of carbon nanotubes with magnetic nanoparticles, such as iron oxides, can further enhance or diversify the optical, electromagnetic, and electrochemical properties of the carbon nanotubes [35,36]. The magnetic nanotubes-based hybrid systems can be used in various applications, e.g., electrochemical sensing, rechargeable batteries, and electromagnetic interference shielding [37,38,39,40]. Developing novel carbon nanotubes/iron oxides materials with self-repairability is highly desirable to improve the long-term durability of these application fields.
In this study, a novel self-healing hybrid material system was successfully developed by incorporating iron oxide nanoparticles-multiwalled carbon nanotubes (IONPs-MWCNTs) into a crosslinked PCL-based network. The IONPs-MWCNTs were first synthesized by an “outside-decorating” method to connect IONPs to the surfaces of the MWCNTs, followed by a mixing process to combine the IONPs/MWCNTs with 1,1′-(methylenedi-4,1-phenylene)bismaleimide (BMI) and polycaprolactone-poly(furfuryl glycidyl ether) copolymer (PCLF) which served as a polymeric matrix for the hybrid system. This material could be reversibly crosslinked via DA/retro DA chemistry and exhibit multiple self-healing cycles. Therefore, even complex damages and serious cracks could be efficiently recovered. More importantly, these nanocomposites also exhibited superparamagnetic properties. Thus, the organic/inorganic hybrid material system developed in the current study can be used as a novel material for future electromagnetic applications.

2. Materials and Methods

2.1. Materials

ɛ-Caprolactone (CL) purchased from Sigma-Aldrich (St. Louis, MO, USA) was dried over calcium hydride (CaH2), followed by freeze-pump-thaw cycles and a distillation under a reduced pressure. Furfuryl glycidyl ether (FGE) purchased from Sigma-Aldrich were used as received. Poly(caprolactone)diol (PCL diol) was purchased from Sigma-Aldrich and purified by recrystallization in methanol. MWCNTs with diameters in the range of 10–20 nm and with lengths about 5–15 μm were purchased from Conjutek Co., Ltd. (Taipei, Taiwan). 1,5,7-Triazabicyclo[4.4.0]dec-5-ene (TBD, 98%, Fluka, Morristown, NJ, USA), iron (II) chloride tetrahydrate (FeCl2·4H2O, 98%, Sigma-Aldrich), iron (III) chloride hexahydrate (FeCl3·6H2O, 98%, Sigma-Aldrich) and 1,1′-(methylenedi-4,1-phenylene)bismaleimide (95%, Sigma-Aldrich) were used without further purification. Additionally, all other reagents and solvents were used as received without any purification.

2.2. Methods

2.2.1. Synthesis of Polycaprolactone-poly(furfuryl glycidyl ether) Copolymers (PCLF)

The synthesis procedure of the PCLF copolymer sample is shown in Figure 1. First, PCL diol was added into a flask (flask A) charged with dried nitrogen. TBD was then added into the flask, and the mixture was subsequently stirred at room temperature for 2 h. Meanwhile, CL and FGE monomers were added into another flask (flask B) and stirred in dried nitrogen at room temperature. After 30 min of mixing, the monomers in flask B were then transferred into flask A. The resulting mixture was then stirred at 110 °C to carry out the ring-opening polymerization to form PCLF copolymer. The copolymerization was allowed to progress at 110 °C. After 6 h of reaction, methanol was added into the reaction system to terminate the polymerization. The mixture solution was further concentrated and precipitated into ethanol medium. Finally, the purified PCLF powders were obtained by removing the solvent and then stored in a vacuum oven.

2.2.2. Synthesis of IONPs-MWCNTs Hybrid

The synthesis of IONPs-MWCNTs was carried out by using the co-precipitation method [41,42,43]. MWCNTs were first treated by using a binary acid mixture of concentrated H2SO4 and HNO3 (volume ratio = 3:1) at 90 °C for 1.5 h, followed by washing them with distilled water. Until the pH value of the MWCNTs solution reached 7, the MWCNTs were dried by removing residual solvent in a vacuum oven. In the next stage, the dried MWCNTs were dispersed in distilled water by using ultra-sonication. Subsequently, FeCl2·4H2O and FeCl3·6H2O precursors were added into the MWCNTs solution system and then stirred in dry nitrogen at room temperature. After complete mixing, an ammonia solution (30 vol/vol%) was slowly added into the MWCNTs-based mixture until the pH value of the solution reached the range of about 10–11. The reaction system was then heated at 80 °C for 2 h to in-situ synthesize the IONPs-MWCNT hybrid. Finally, the obtained products were further purified by washing them with distilled water, followed by drying in a vacuum oven at 50 °C for 24 h.

2.2.3. Preparation of Crosslinked PCLF/BMI/IONPs-MWCNTs Hybrid Material

After the successful synthesis of IONPs-MWCNTs, the inorganic hybrid material was further added to PCLF/THF solutions in three different weight fractions of IONPs-MWCNTs to PCLF of 2 wt%, 5 wt%, and 10 wt%. These mixtures were subjected to ultrasonic disruption for at least 12 h. After drying, 1,1′-(methylenedi-4,1-phenylene)bismaleimide with molar ratio of furan to maleimide of 1:1 was added into the PCLF/IONPs-MWCNT mixtures and stirred in bulk at 140 °C for 2 h. The final hybrid samples were placed in a vacuum oven at 140 °C, followed by a slow decrease in temperature from 140 °C to 80 °C. The temperature of the oven was then maintained at 80 °C for 24 h.

2.2.4. Characterization Methods

1H NMR analysis of the PCLF copolymer was conducted by using a 400 MHz Bruker Avance spectrometer at room temperature. CDCl3 was used as solvent for this measurement. The measurements of the molecular weight and molecular weight distribution of the synthesized PCLF were carried out by using a Viscotek TDA 305 system equipped with a refractive-index detector. THF was used as a mobile phase at an operating temperature of 35 °C. For the hybrid material system, the investigations of nanomorphologies were performed using a Hitachi H-7650 transmission electron microscopy operating at 75 kV with a Gaten model 782 CCD camera. Elemental analyses were performed by using an energy-dispersive X-ray spectroscopy detector (Oxford x-act) attached to a Hitachi TM4000PLUS scanning electron microscopy. ATR–FTIR measurements were carried out on a Perkin Elmer Spectrum One spectrometer. Wide-angle X-ray scattering (WAXS) experiments of the hybrid samples were conducted at beamline 13A1 of the National Synchrotron Radiation Research Center (NSRRC) in Taiwan. The wavelength of the incident beam was set as 1.033 Å for the WAXS analyses. Additionally, rectangular shape samples (5 mm × 5 mm × 1 mm) were used for the X-ray measurements, and the detection time was set as 30 min for each sample. Thermogravimetric analyses (TGA) of these hybrid samples were performed by using a Hitachi STA7200 instrument. These measurements were carried out by heating the samples from 50 °C to 600 °C at a heating rate of 10 °C/min under N2 atmosphere. A Hitachi DSC7000X differential scanning calorimetry was used to analyze the thermal properties of the hybrid materials. These samples were measured through a heating process from −30 °C to 200 °C at a rate of 5 °C/min. The magnetic properties of the hybrid samples were studied using a Microsense 1660 Torque Vibratory Sample Magnetometer (VSM) system. These measurements were performed at room temperature under applied field in the range from −10,000 to 10,000 Oe, and started from −10,000 Oe with different step sizes (−10,000 ~ −2000 Oe: scan step = 1000 Oe; −2000 ~ −200 Oe: scan step = 200 Oe; −200 ~ 0 Oe: scan step = 20 Oe). The self-healing ability of the hybrid system was studied by investigating the evolution of a crack healing under a Nikon ECLIPSE LV100N POL polarizing optical microscope equipped with a CCD camera. Rectangular shape samples of crosslinked PCLF/BMI/IONPs-MWCNTs hybrid (5 mm × 5 mm × 1 mm) were cut by using a razor blade to form a crack on the surface of the samples. The cracked samples were heated in-line using a Linkam THMS600 hot stage to a specified temperature. As the setting temperature was achieved, the measured samples were isothermally heated for 5min before investigation. Additionally, the crack evolution before and after the self-healing process was also investigated by using a Hitachi FlexSEM 1000 scanning electron microscopy.

3. Results and Discussion

The ring opening polymerization (ROP) strategy has been widely used to facilely synthesize cyclic esters based polymers. In the current study, PCL diol which served as a macroinitiator was first mixed with TBD catalyst, followed by the addition of a mixture of CL and FGE monomers to synthesize PCLF copolymer with high yield. To monitor the polymerization progress of the reaction system, the molecular weight characterizations of the macroinitiator and polymer product were both analyzed by using GPC. On the basis of the GPC profiles, we could observe that the PCL diol macroinitiator exhibited a number-average molecular weight of 2600 g mol−1 and a polydispersity value of 2.04. After the addition of CL/FGE mixing monomers, we could further observe that there was a molecular weight increase in the GPC trace from the original 2600 g mol−1 toward a higher molecular weight of 5700 g mol−1. This result clearly demonstrated the successful synthesis of the PCLF copolymer. All the molecular parameters of the polymerization system in the current study are listed in Table 1. The molecular structure of the synthesized PCLF copolymer was further characterized by using 1H-NMR measurement. From the obtained spectrum shown in Figure 2, we could clearly identify the structural features of the sample. The characteristic peaks at 7.4 and 6.3 ppm could be assigned to the protons of furan rings and the peak at 3.7–3.3 ppm could be assigned to the protons of opened moiety of FGE. Additionally, the proton signals associated with methylene groups of CL were also assigned. According to the integrated area ratio between the protons of furan groups (6.3 ppm) and the protons of methylene groups adjacent to carbonyl groups of CL (2.3 ppm), the molar fraction of FGE in the PCLF copolymer was calculated to be ~ 15%. Additionally, the complete disappearance of the hydrogen signals from methylene of ɛ-caprolactone monomers (2.6 ppm) and the epoxy methylene of FGE monomers confirmed the high conversion from the ROP reaction.
In the current study, the combination of MWCNTs and monodispersed IONPs was prepared by using co-precipitation method [41,42,43], in which the acid-treated MWCNTs were used as structure-directing templates and the IONPs were subsequently in situ grown on the surfaces of the MWCNTs via a co-precipitation process. Figure 3a shows the TEM image of the acid-treated pristine MWCNTs prepared by drop coating MWCNTs/THF solution onto a carbon-coated copper grid. Figure 3b shows the TEM image of IONPs-MWCNTs hybrid sample. It could be observed that IONPs preferentially located along the MWCNTs templates to form a one-dimensional nanofibril structured hybrid system rather than located in the empty space without the presence of MWCNTs, indicating an intimate contact between IONPs and MWCNTs that resulted from the in situ synthesis process. A higher-magnification image of the IONPs-MWCNTs hybrid sample is also shown in Figure 3c. Based on the atomic ratio between the iron and carbon signals in the EDX spectrum (Figure 3e), the loading fraction of IONPs in the IONPs-MWCNTs hybrid is found to be ~56%. Figure 3d further shows the morphology of the PCLF/ IONPs-MWCNTs hybrid with 10 wt% IONPs-MWCNTs. From the TEM image, we could observe an uniform distribution of IONPs-MWCNTs in the PCLF copolymer matrix, and no serious aggregations were found. These results clearly provided the evidence that MWCNTs could interact with the furan groups of PCLF via a DA reaction, resulting in a homogeneous dispersion of IONPs-MWCNTs within the copolymer matrix. This outcome demonstrated that DA reaction could be efficiently applied to modify the surfaces of MWCNTs by using furan group as a diene. Our result also bears resemblance to that of a previous report wherein poly(furfuryl methacrylate) (PFMA) containing furfuryl functional group was covalently bonded onto the surfaces of MWCNTs via a DA reaction, thus strongly enhancing the miscibility between the MWCNTs and the polymer matrix [44]. The formation of these DA structures attached to the surfaces of MWCNTs could be confirmed by monitoring the solubility of the hybrids in solvent medium. Figure 4a shows the image of dispersion condition in DMSO for the PCLF/IONPs-MWCNTs DA adducts. We observed that the hybrids could be uniformly dispersed in DMSO solvent after a brief sonication process and the dispersity of the mixture exhibited superior dispersion stability. As the well-dispersed suspension system was heated at 160 °C for over 5 h, the inorganic IONPs-MWCNTs gradually precipitated from the dispersion due to the occurrence of detachment of PCLF from MWCNTs surfaces via a retro-DA reaction, as shown in Figure 4b. In addition to the MWCNT/furan DA reaction, it has been also reported that MWCNT could serve as a ‘‘diene’’ and react with maleimide (dienophile) through the DA mechanism [45]. Therefore, the addition of BMI into the hybrid system to fabricate crosslinked PCLF/BMI/IONPs-MWCNTs hybrid material could provide additional support for the inorganic IONPs-MWCNTs and maintain their uniform distribution in the polymer matrix. For the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system developed in this study, a schematic illustration showing its thermo-reversible DA network formed from furan/maleimide, MWCNT/furan, and MWCNT/maleimide combinations is shown in Figure 5. Additionally, the designations and compositional characteristics of the prepared hybrid samples were tabulated in Table 2. The DA and retro-DA reactions of the PCLF/BMI/IONPs-MWCNTs hybrid system could also analyzed by using FTIR measurements (shown in Figure 6). In comparison with the characteristic profile of pristine PCLF, the spectrum of the crosslinked PCLF/BMI/IONPs-MWCNTs sample (PCLF-DA-5) exhibited additional 1773 and 1708 cm−1 peaks associated with the C=C stretching of DA adducts and C=C stretching vibration of BMI, respectively. This signal change clearly indicated the formation of DA adducts via a DA reaction. For the PCLF-DA-5 sample, the peak at 756 cm−1 corresponding to furfuryl moiety also disappeared, which again confirmed the occurrence of DA reaction that change the original furan rings in pristine PCLF [30].
We subsequently examined the crystallography features of the hybrid system by using WAXS measurements. As shown in Figure 7, it could be observed that the WAXS profile of the PCLF-DA-0 sample revealed broad halos at 2θ = 13.0° which corresponded to the amorphous halo of PCL, indicating that the crystallization of the PCL segments was strongly suppressed by the DA crosslinked structures. In contrast to the WAXS result for crosslinked PCLF that only showed an amorphous PCL signal, the WAXS patterns of the hybrid samples consisted of a combination of the scattering characteristics of organic and inorganic parts. It could be observed that the WAXS result of the PCLF-DA-2 sample exhibited a scattering peak at 2θ = 17.1°, which correspond to the crystalline plane of (002) associated with MWCNTs. Additionally, we could observe scattering peaks located at 2θ = 20.1°, 23.5°, 28.4°, 35.0°, 37.2°, and 40.7°, which corresponded to the crystallographic reflections from (220), (311), (400), (422), (511), and (440) crystalline planes of IONPs, respectively. Upon increasing the fraction of IONPs-MWCNTs, the WAXS results of the hybrid samples exhibited a progressively increasing intensity of the IONPs-MWCNTs peaks, indicating the sufficient incorporation of the inorganic nanomaterials into the polymer matrix.
On the basis of the combined results of the TEM and WAXS analyses, a detailed investigation for the incorporation of IONPs-MWCNTs into the PCLF based polymeric matrix can now be constructed. In order to systematically study this novel crosslinked hybrid system, the thermal properties were further characterized. Figure 8 shows the TGA thermograms of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrids with different compositions of IONPs-MWCNTs. The 5% weight loss temperature of PCLF-DA-0 showed a higher value than those of the other three samples since the presence of carboxylic acid functional groups on the IONPs-MWCNTs decreased the thermal stability of the hybrid samples [46]. Additionally, the char residue at 600 °C slightly increased with the addition of IONPs-MWCNTs, demonstrating the successful incorporation of the inorganic nanomaterials. Additionally, PCLF-DA-2, PCLF-DA-5, and PCLF-DA-10 hybrids all showed a 5% weight loss temperature higher than 325 °C. The weight loss temperatures and char yields of these samples are listed in Table 3. The retro-DA reaction temperatures of the hybrid samples were further analyzed by DSC measurements. As shown in Figure 9, the DSC curve of the PCLF-DA-0 sample showed a broad endothermic signal at around 140 °C because of the cleavage of covalent bonds composed of furan groups of PCLF and maleimide groups of BMI via a retro-DA reaction. For the PCLF-DA-2, PCLF-DA-5, and PCLF-DA-10 hybrids, their DSC thermograms all exhibited a broad endothermic peak, which could be attributed to the combined signal from furan/maleimide, MWCNT/furan, and MWCNT/maleimide retro-DA reactions. From the significant retro-DA signals, it could be expected that these crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system exhibited effective self-repairing ability imparted from the intrinsic thermal reversibility of the DA click chemistry. The retro-DA onset temperatures and heat flows of these hybrid samples were further calculated and tabulated in Table 3. Comparisons between the DSC thermograms of these measured samples showed no significant changes in the onset temperature. It could be further observed that the retro-DA heat flow of the hybrid system was progressively increased with increasing the IONPs-MWCNTs fraction, indicating that the introduction of inorganic IONPs-MWCNTs into the composites significantly increased the reactive diene and dienophile sites for DA reaction, and thus enhanced the crosslink density of the DA network. Therefore, the increased heat flow to debond the DA linkages was required. Additionally, no visible endothermic signal related to the melting point of PCL could be observed for the crosslinked PCLF based samples, indicating that the DA crosslinked structure could strongly reduce the mobility of the PCL segments and restrict the molecular chains to further crystallize, consistent with the scattering features of the WAXS results.
The magnetic properties of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system at room temperature were analyzed by using a vibrating sample magnetometer with an applied field of −10,000 Oe ~ 10,000 Oe. Shown in Figure 10 are the magnetization curves of the hybrid samples plotted as magnetic moment verses magnetic field. The insert in Figure 10 further shows the detail profiles within the field range of ±50 Oe. For the PCLF-DA-2 sample, its magnetization hysteresis loop revealed an S-like curve and exhibited low magnetic coercivity and remanence. Upon increasing the IONPs-MWCNTs loading, both the PCLF-DA-5 and PCLF-DA-10 samples exhibited similar hysteresis loops as that of PCLF-DA-2. Therefore, these magnetic trends clearly indicated that this crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system exhibited a superparamagnetic behavior and there was almost no remanent magnetization while removing the applied magnetic field. Additionally, the magnetization of the PCLF-DA-2, PCLF-DA-5 and PCLF-DA-10 samples estimated from the extreme points (−10,000 Oe and 10,000 Oe) were 700 memu/g, 1500 memu/g, and 2800 memu/g, respectively. In comparison with the pristine IONPs, the crosslinked PCLF/BMI/IONPs-MWCNTs samples revealed much lower magnetization values because of the low content of IONPs-MWCNTs in the hybrid system and the surface coverage of IONPs-MWCNTs by the non-electromagnetic PCLF polymeric layer.
For the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system, its thermal reversibility related to the DA network was also investigated in solution medium (60 wt % in DMSO). Figure 11 shows the phase transformations observed from the investigations. At low temperature, the crosslinked hybrid only displayed slight swelling even after 24 h, indicating the robust structure supported by the crosslinked DA network. As the hybrid sample was heated to a temperature higher than 140 °C, it could dissolve in the solvent medium, and a solution with good liquidity could be observed. This result clearly demonstrated the occurrence of a retro-DA reaction that disconnected the DA linkages and liberated the molecular chains and inorganic substances from the original network to a plastic state. As the sample was cooled down to a low temperature, a sol-gel transformation could be observed, indicating sufficient recovery of the crosslinked network via a DA reaction.
To further examine the self-healable performance of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system, the structural evolution of a cracked sample with a cut of 5 mm was monitored under different temperatures using an optical microscopy equipped with a heating stage. From the micrographs shown in Figure 12a–d, it could be observed that the crack was still presented without any change as the hybrid sample was thermally treated at a temperature below 120 °C. Upon increasing the heating temperature to 130 °C, the crack became more flatter, indicating the occurrence of a retro-DA reaction that converted the original DA crosslinked structure to a plastic state. This thermal reversible process strongly increased the chain mobility of the polymeric materials and thus led to the diffusion of polymer chains toward the crack site to heal the structural defect. When the self-healing temperature was further increased to 140 °C, the crack was completely closed within only a few minutes, showing that the PCLF/BMI/IONPs-MWCNTs hybrid system possessed superior self-healing properties. Furthermore, SEM was used to investigate the crack closure at a higher magnification. Figure 13a,b shows the crack evolution before and after the self-healing process, respectively. These micrographs clearly revealed efficient crack closure, consistent with the results obtained from optical microscopy measurements.

4. Conclusions

In the current study, we have synthesized a PCLF copolymer and further used this functional polymer to develop a novel crosslinked PCLF/BMI/IONPs-MWCNTs hybrid system. The furfuryl-functionalized PCLF copolymer and BMI reagent with maleimide group offered reactive diene and dienophile sites for incorporating IONPs-MWCNTs into the polymeric matrix, therefore inducing a DA crosslinked hybrid network with well-dispersed IONPs-MWCNTs. For the hybrid samples, their hysteresis loops showed S-like curves and revealed no significant remanent magnetization or coercivity, indicating a significant superparamagnetic feature. The self-repairing ability of the magnetic hybrid system was further proven by the scratch healing test. From optical microscopy and SEM observations, we show that the defects gradually healed at a heating temperature above 130 °C, providing evidence that the hybrid system had superior self-healing properties. Thus, we believe that this novel self-healing hybrid system has strong potential for use in future electromagnetic applications.

Author Contributions

Y.-H.L. and W.-J.C. conceived and designed the experiments; Y.-N.Z., M.-F.W. and W.-C.K. performed the experiments; Y.-H.L. analyzed the data and wrote the paper; H.-T.W., T.-F.W. and S.-P.R. contributed reagents, materials, and analysis tools.

Funding

This research received no external funding.

Acknowledgments

The authors gratefully acknowledge the funding from University System of Taipei Joint Research Program (Project No. USTP-NTUT-TMU-107-06).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Toohey, K.S.; Sottos, N.R.; Lewis, J.A.; Moore, J.S.; White, S.R. Self-healing materials with microvascular networks. Nat. Mater. 2007, 6, 581. [Google Scholar] [CrossRef] [PubMed]
  2. Toohey, K.S.; Hansen, C.J.; Lewis, J.A.; White, S.R.; Sottos, N.R. Delivery of two-part self-healing chemistry via microvascular networks. Adv. Funct. Mater. 2009, 19, 1399–1405. [Google Scholar] [CrossRef]
  3. White, S.R.; Sottos, N.R.; Geubelle, P.H.; Moore, J.S.; Kessler, M.R.; Sriram, S.R.; Brown, E.N.; Viswanatha, S. Autonomic healing of polymer composites. Nature 2001, 409, 794–797. [Google Scholar] [CrossRef] [PubMed]
  4. Rule, J.D.; Brown, E.N.; Sottos, N.R.; White, S.R.; Moore, J.S. Wax-protected catalyst microspheres for efficient self-healing materials. Adv. Mater. 2005, 17, 205–208. [Google Scholar] [CrossRef]
  5. Lanzara, G.; Yoon, Y.; Liu, H.; Peng, S.; Lee, W.I. Carbon nanotube reservoirs for self-healing materials. Nanotechnology 2009, 20, 335704. [Google Scholar] [CrossRef] [PubMed]
  6. Shchukin, D.G.; Möhwald, H. Self-repairing coatings containing active nanoreservoirs. Small 2007, 3, 926–943. [Google Scholar] [CrossRef] [PubMed]
  7. Wu, D.Y.; Meure, S.; Solomon, D. Self-healing polymeric materials: A review of recent developments. Prog. Polym. Sci. 2008, 33, 479–522. [Google Scholar] [CrossRef] [Green Version]
  8. Syrett, J.A.; Becer, C.R.; Haddleton, D.M. Self-healing and self-mendable polymers. Polym. Chem. 2010, 1, 978–987. [Google Scholar] [CrossRef]
  9. Bekas, D.G.; Tsirka, K.; Baltzis, D.; Paipetis, A.S. Self-healing materials: A review of advances in materials, evaluation, characterization and monitoring techniques. Compos. Part B 2016, 87, 92–119. [Google Scholar] [CrossRef]
  10. Chung, C.-M.; Roh, Y.-S.; Cho, S.-Y.; Kim, J.-G. Crack healing in polymeric materials via photochemical [2+2] cycloaddition. Chem. Mater. 2004, 16, 3982–3984. [Google Scholar] [CrossRef]
  11. Scott, T.F.; Schneider, A.D.; Cook, W.D.; Bowman, C.N. Photoinduced plasticity in cross-linked polymers. Science 2005, 308, 1615–1617. [Google Scholar] [CrossRef] [PubMed]
  12. Gruendling, T.; Kaupp, M.; Blinco, J.P.; Barner-Kowollik, C. Photoinduced conjugation of dithioester- and trithiocarbonate-functional RAFT polymers with Alkenes. Macromolecules 2010, 44, 166–174. [Google Scholar] [CrossRef]
  13. Holten-Andersen, N.; Harrington, M.J.; Birkedal, H.; Lee, B.P.; Messersmith, P.B.; Lee, K.Y.C.; Waite, J.H. pH-induced metal-ligand cross-links inspired by mussel yield self-healing polymer networks with near-covalent elastic moduli. Proc. Natl. Acad. Sci. USA 2011, 108, 2651–2655. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Ghosh, B.; Urban, M.W. Self-Repairing Oxetane-substituted chitosan polyurethane Networks. Science 2009, 323, 1458–1460. [Google Scholar] [CrossRef]
  15. Kakuta, T.; Takashima, Y.; Nakahata, M.; Otsubo, M.; Yamaguchi, H.; Harada, A. Preorganized hydrogel: Self-healing properties of supramolecular hydrogels formed by polymerization of host-guest monomers that contain cyclodextrins and hydrophobic guest groups. Adv. Mater. 2013, 25, 2849–2853. [Google Scholar] [CrossRef] [PubMed]
  16. Nakahata, M.; Takashima, Y.; Yamaguchi, H.; Harada, A. Redox-responsive self-healing materials formed from host-guest polymers. Nat. Commun. 2011, 2, 511. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Y.-L.; Chuo, T.-W. Self-healing polymers based on thermally reversible Diels–Alder chemistry. Polym. Chem. 2013, 4, 2194–2205. [Google Scholar] [CrossRef]
  18. Diels, O.; Alder, K. Synthesen in der hydroaromatischen Reihe. Justus Liebigs Annalender Chemie 1928, 460, 98–122. [Google Scholar] [CrossRef]
  19. Ripoll, J.L.; Rouessac, A.; Rouessac, F. Applications recentes de la reaction de retro-diels-alder en synthese organique. Tetrahedron 1978, 34, 19–40. [Google Scholar] [CrossRef]
  20. Szalai, M.L.; McGrath, D.V.; Wheeler, D.R.; Zifer, T.; McElhanon, J.R. Dendrimers Based on Thermally Reversible Furan-Maleimide Diels-Alder Adducts. Macromolecules 2007, 40, 818–823. [Google Scholar] [CrossRef]
  21. Robertson, A.; Philp, D.; Spencer, N. Recognition-induced control of Diels-Alder cycloaddition. Tetrahedron 1999, 55, 11365–11384. [Google Scholar] [CrossRef]
  22. McElhanon, J.R.; Wheeler, D.R. Thermally responsive dendrons and dendrimers based on reversible furan-maleimide Diels-Alder adducts. Org. Lett. 2001, 3, 2681–2683. [Google Scholar] [CrossRef] [PubMed]
  23. Chujo, Y.; Sada, K.; Saegusa, T. Reversible gelation of polyoxazoline by means of Diels-Alder reaction. Macromolecules 1990, 23, 2636–2641. [Google Scholar] [CrossRef]
  24. Mallek, H.; Jegat, C.; Mignard, N.; Abid, M.; Abid, S.; Taha, M. Reversibly crosslinked self-healing PCL-based networks. J. Appl. Polym. Sci. 2013, 129, 954–964. [Google Scholar] [CrossRef]
  25. Defize, T.; Thomassin, J.-M.; Alexandre, M.; Gilbert, B.; Riva, R.; Jérôme, C. Comprehensive study of the thermo-reversibility of Diels-Alder based PCL polymer networks. Polymer 2016, 84, 234–242. [Google Scholar] [CrossRef]
  26. Thakur, V.K.; Kessler, M.R. Self-healing polymer nanocomposite materials: A review. Polymer 2015, 69, 369–383. [Google Scholar] [CrossRef] [Green Version]
  27. Arslan, M.; Tasdelen, M.A. Polymer nanocomposites via click chemistry reactions. Polymers 2017, 9, 499–522. [Google Scholar] [CrossRef]
  28. Behera, P.K.; Mondal, P.; Singha, N.K. Self-healable and ultrahydrophobic polyurethane-POSS hybrids by Diels-Alder “click” reaction: A new class of coating material. Macromolecules 2018, 51, 4770–4781. [Google Scholar] [CrossRef]
  29. Wu, S.; Li, J.; Zhang, G.; Yao, Y.; Li, G.; Sun, R.; Wong, C.-P. Ultrafastly self-healing nanocomposites via infrared laser and its application in flexible electronics. ACS Appl. Mater. Interfaces 2017, 9, 3040–3049. [Google Scholar] [CrossRef]
  30. Menon, A.V.; Madras, G.; Bose, S. Ultrafast self-healable interfaces in polyurethane nanocomposites designed using Diels-Alder “Click” as an efficient microwave absorber. ACS Omega 2018, 3, 1137–1146. [Google Scholar] [CrossRef]
  31. Schäfer, S.; Kickelbick, G. Diels-Alder reactions on surface-modified magnetite/maghemite nanoparticles: Application in self-healing nanocomposites. ACS Appl. Nano Mater. 2018, 1, 2640–2652. [Google Scholar] [CrossRef]
  32. Schäfer, S.; Kickelbick, G. Double reversible networks: Improvement of self-healing in hybrid materials via combination of Diels-Alder cross-linking and hydrogen bonds. Macromolecules 2018, 51, 6099–6110. [Google Scholar] [CrossRef]
  33. Baughman, R.H.; Zakhidov, A.A.; Heer, W.A. Carbon nanotubes—The route toward applications. Science 2002, 297, 787–792. [Google Scholar] [CrossRef] [PubMed]
  34. De Volder, M.F.L.; Tawfick, S.H.; Baughman, R.H.; Hart, A.J. Carbon nanotubes: Present and futurecommercial applications. Science 2013, 339, 535–539. [Google Scholar] [CrossRef] [PubMed]
  35. Utsumi, S.; Urita, K.; Kanoh, H.; Yudasaka, M.; Suenaga, K.; Iijima, S.; Kaneko, K. Preparing a magnetically responsive single-wall carbon nanohorn colloid by anchoring magnetite nanoparticles. J. Phys. Chem. B 2006, 110, 7165–7170. [Google Scholar] [CrossRef] [PubMed]
  36. Eder, D. Carbon nanotube-inorganic hybrids. Chem. Rev. 2010, 110, 1348–1385. [Google Scholar] [CrossRef] [PubMed]
  37. Qu, S.; Wang, J.; Kong, J.; Yang, P.; Chen, G. Magnetic loading of carbon nanotube/nano-Fe3O4 composite for electrochemical sensing. Talanta 2007, 71, 1096–1102. [Google Scholar] [CrossRef]
  38. He, Y.; Huang, L.; Cai, J.-S.; Zheng, X.-M.; Sun, S.-G. Structure and electrochemical performance of nanostructured Fe3O4/carbon nanotube composites as anodes for lithium ion batteries. Electrochimica Acta 2010, 55, 1140–1144. [Google Scholar] [CrossRef]
  39. Pawar, S.P.; Marathe, D.A.; Pattabhi, K.; Bose, S. Electromagnetic interference shielding through MWNT grafted Fe3O4 nanoparticles in PC/SAN blends. J. Mater. Chem. A 2015, 3, 656–669. [Google Scholar] [CrossRef]
  40. Chen, Y.-H.; Huang, Z.-H.; Lu, M.-M.; Cao, W.-Q.; Yuan, J.; Zhang, D.-Q.; Cao, M.-S. 3D Fe3O4 nanocrystals decorating carbon nanotubes to tune electromagnetic properties and enhance microwave absorption capacity. J. Mater. Chem. A 2015, 3, 12621–12625. [Google Scholar] [CrossRef]
  41. Zhong, W.; Liu, P.; Tang, Z.; Wu, X.; Qiu, J. Facile approach for superparamagnetic CNT-Fe3O4/polystyrene tricomponent nanocomposite via synergetic dispersion. Ind. Eng. Chem. Res. 2012, 51, 12017–12024. [Google Scholar] [CrossRef]
  42. Yu, L.; Yang, X.; Ye, Y.; Wang, D. Efficient removal of atrazine in water with a Fe3O4/ MWCNTs nanocomposite as a heterogeneous Fenton-like catalyst. RSC Adv. 2015, 5, 46059–46066. [Google Scholar] [CrossRef]
  43. Hekmatara, H.; Seifi, M.; Forooraghi, K. Microwave absorption property of aligned MWCNT/Fe3O4. J. Magn. Magn. Mater. 2013, 346, 186–191. [Google Scholar] [CrossRef]
  44. Pramanik, N.B.; Singha, N.K. Direct functionalization of multi-walled carbon nanotubes (MWCNTs) via grafting of poly(furfuryl methacrylate) using Diels–Alder “click chemistry” and its thermoreversibility. RSC Adv. 2015, 5, 94321–94327. [Google Scholar] [CrossRef]
  45. Chang, C.-M.; Liu, Y.-L. Functionalization of multi-walled carbon nanotubes with furan and maleimide compounds through Diels–Alder cycloaddition. Carbon 2009, 47, 3041–3049. [Google Scholar] [CrossRef]
  46. Fan, W.; Zuo, L.; Zhang, Y.; Chen, Y.; Liu, T. Mechanically strong polyimide/carbon nanotube composite aerogels with controllable porous structure. Compos. Sci. Technol. 2018, 156, 186–191. [Google Scholar] [CrossRef]
Applsci 09 00506 g001 550

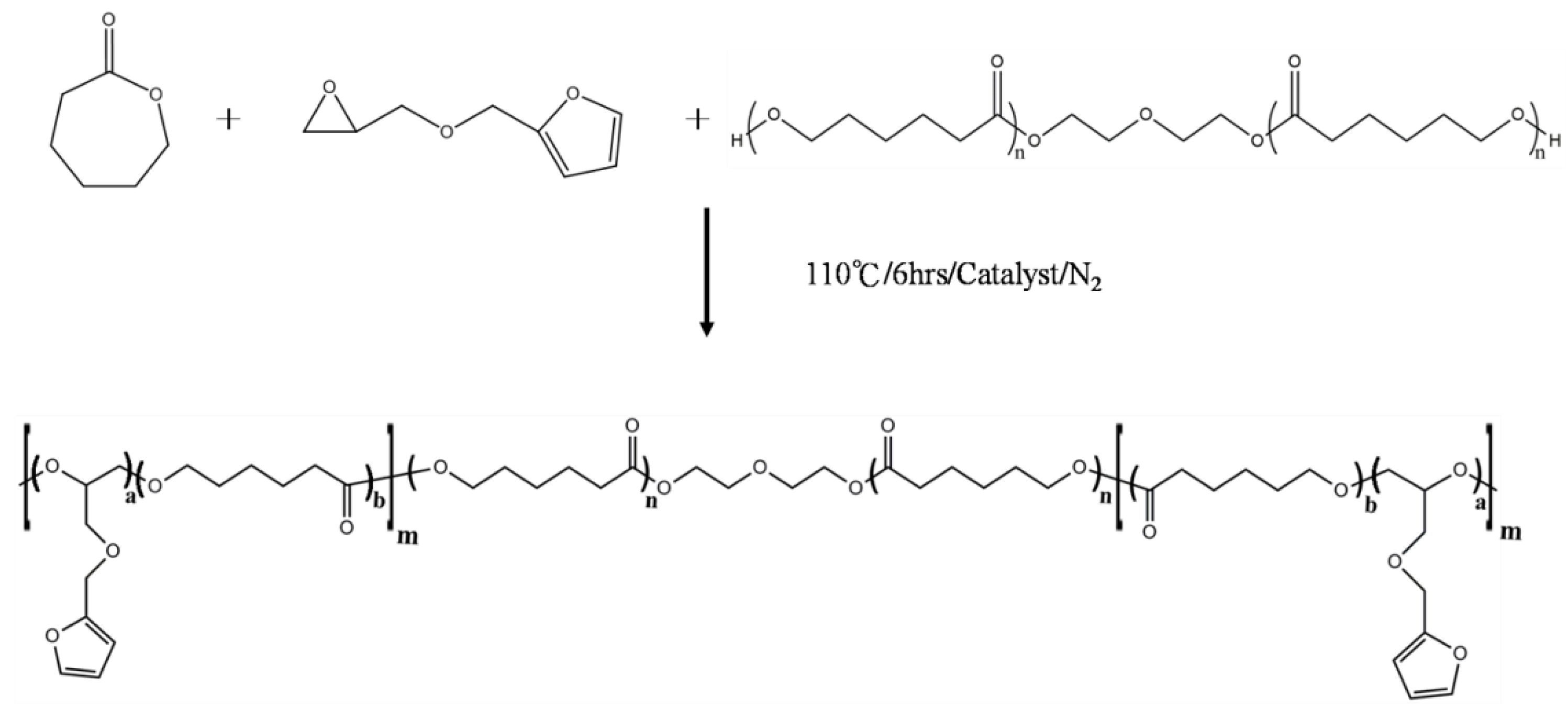

Figure 1. Synthetic route of the polycaprolactone-poly(furfuryl glycidyl ether) copolymer (PCLF) copolymer system.
Figure 1. Synthetic route of the polycaprolactone-poly(furfuryl glycidyl ether) copolymer (PCLF) copolymer system.
Applsci 09 00506 g001
Applsci 09 00506 g002 550
Figure 2. 1H NMR spectrum of the PCLF copolymer sample in CDCl3.
Figure 2. 1H NMR spectrum of the PCLF copolymer sample in CDCl3.
Applsci 09 00506 g002
Applsci 09 00506 g003 550

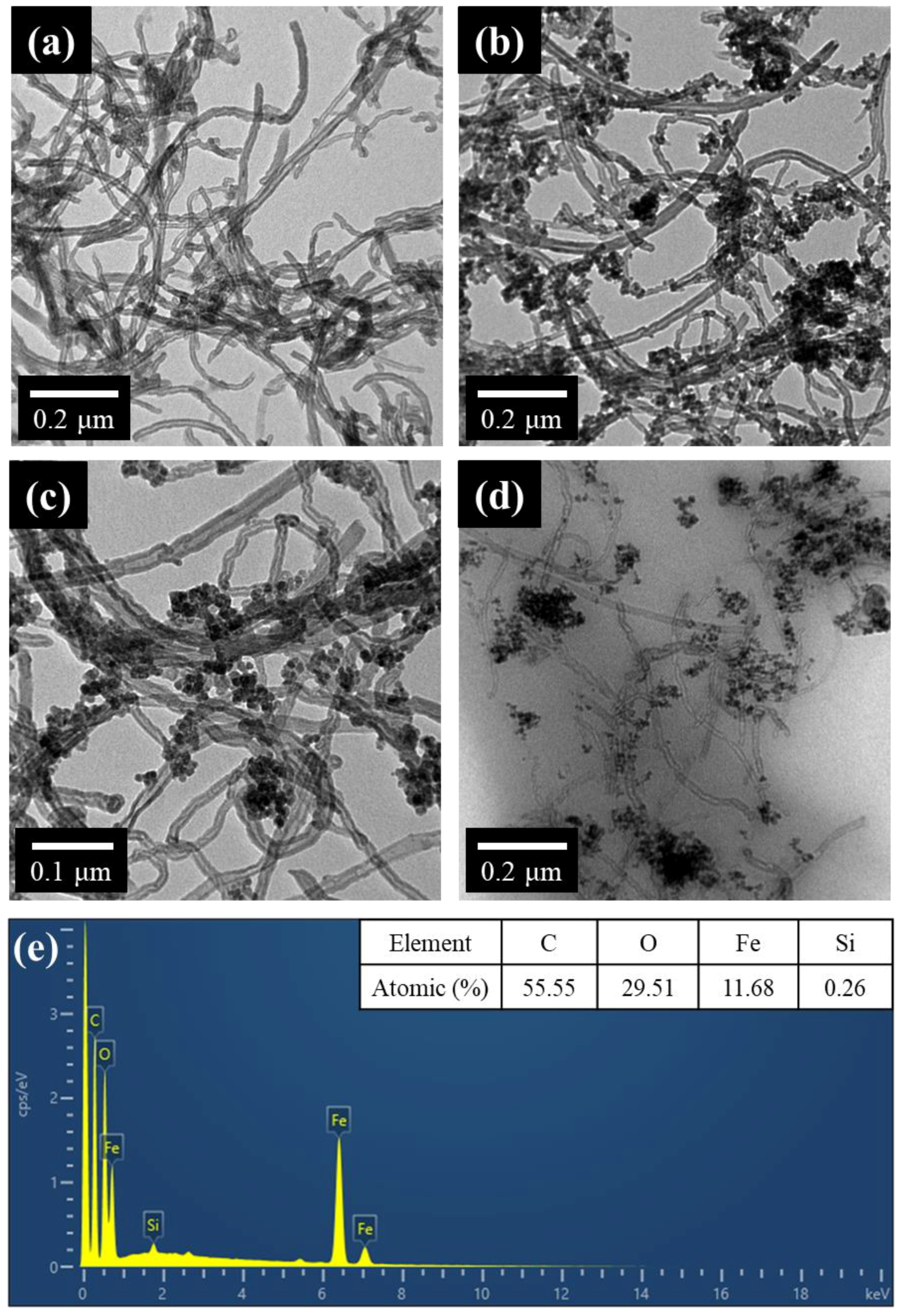

Figure 3. (a) TEM micrograph of acid-treated multiwalled carbon nanotubes (MWCNTs). (b) TEM micrograph of the iron oxide nanoparticles-multiwalled carbon nanotubes (IONPs-MWCNTs) hybrid. For this sample, its corresponding high magnification TEM image is further shown in (c). The TEM image in (d) shows the morphology of PCLF/IONPs-MWCNTs sample containing 10 wt% IONPs-MWCNTs, indicating a good dispersion of IONPs-MWCNTs in the polymer matrix. (e) EDX spectrum of IONPs-MWCNTs hybrid deposited on a silicon wafer.
Figure 3. (a) TEM micrograph of acid-treated multiwalled carbon nanotubes (MWCNTs). (b) TEM micrograph of the iron oxide nanoparticles-multiwalled carbon nanotubes (IONPs-MWCNTs) hybrid. For this sample, its corresponding high magnification TEM image is further shown in (c). The TEM image in (d) shows the morphology of PCLF/IONPs-MWCNTs sample containing 10 wt% IONPs-MWCNTs, indicating a good dispersion of IONPs-MWCNTs in the polymer matrix. (e) EDX spectrum of IONPs-MWCNTs hybrid deposited on a silicon wafer.
Applsci 09 00506 g003
Applsci 09 00506 g004 550

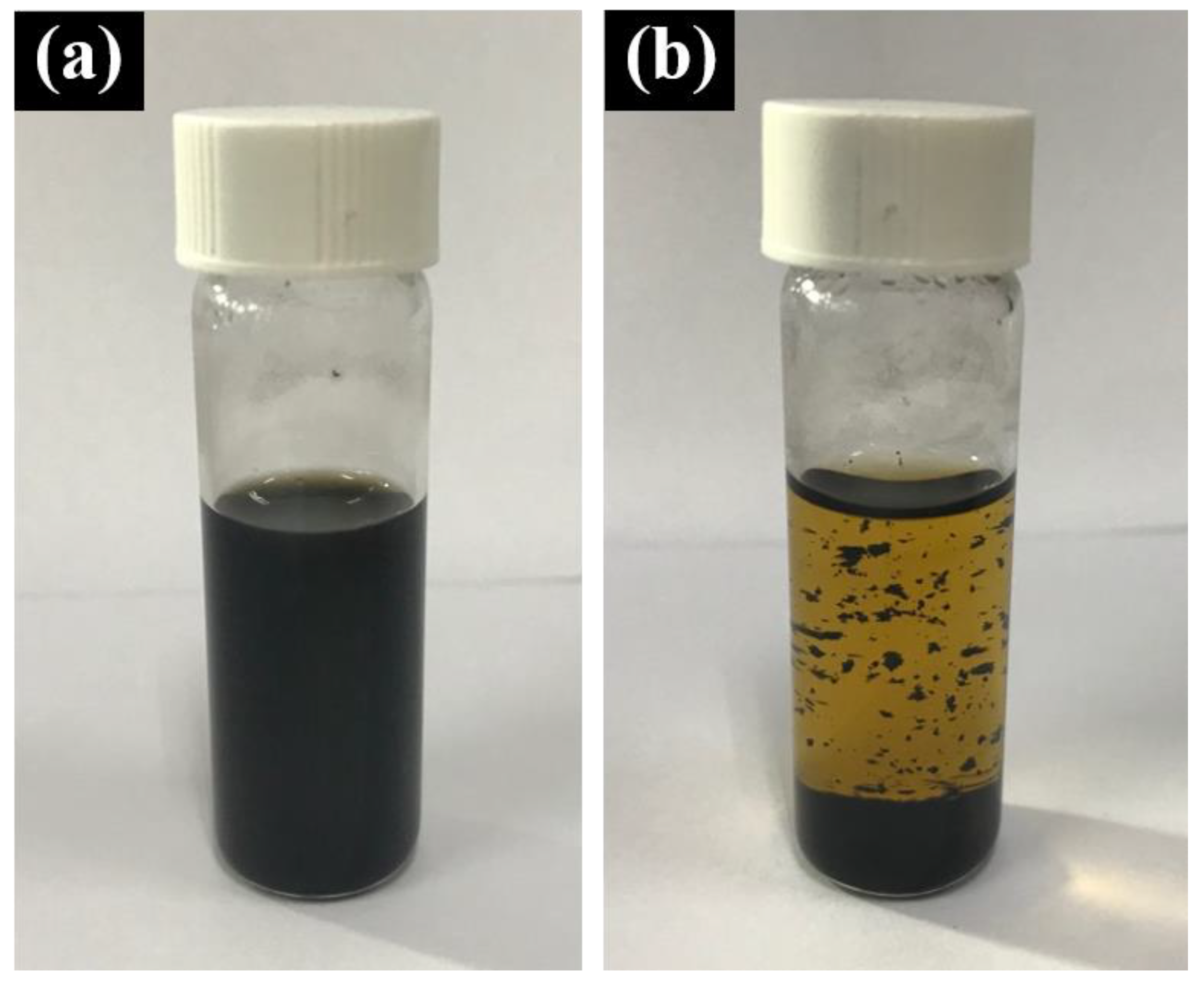

Figure 4. (a) Dispersion condition of the PCLF/IONPs-MWCNTs Diels–Alder (DA) adducts in DMSO. (b) Dispersion condition of the PCLF/IONPs-MWCNTs DA adducts in DMSO after heating at 160 °C for 5 h.
Figure 4. (a) Dispersion condition of the PCLF/IONPs-MWCNTs Diels–Alder (DA) adducts in DMSO. (b) Dispersion condition of the PCLF/IONPs-MWCNTs DA adducts in DMSO after heating at 160 °C for 5 h.
Applsci 09 00506 g004
Applsci 09 00506 g005 550

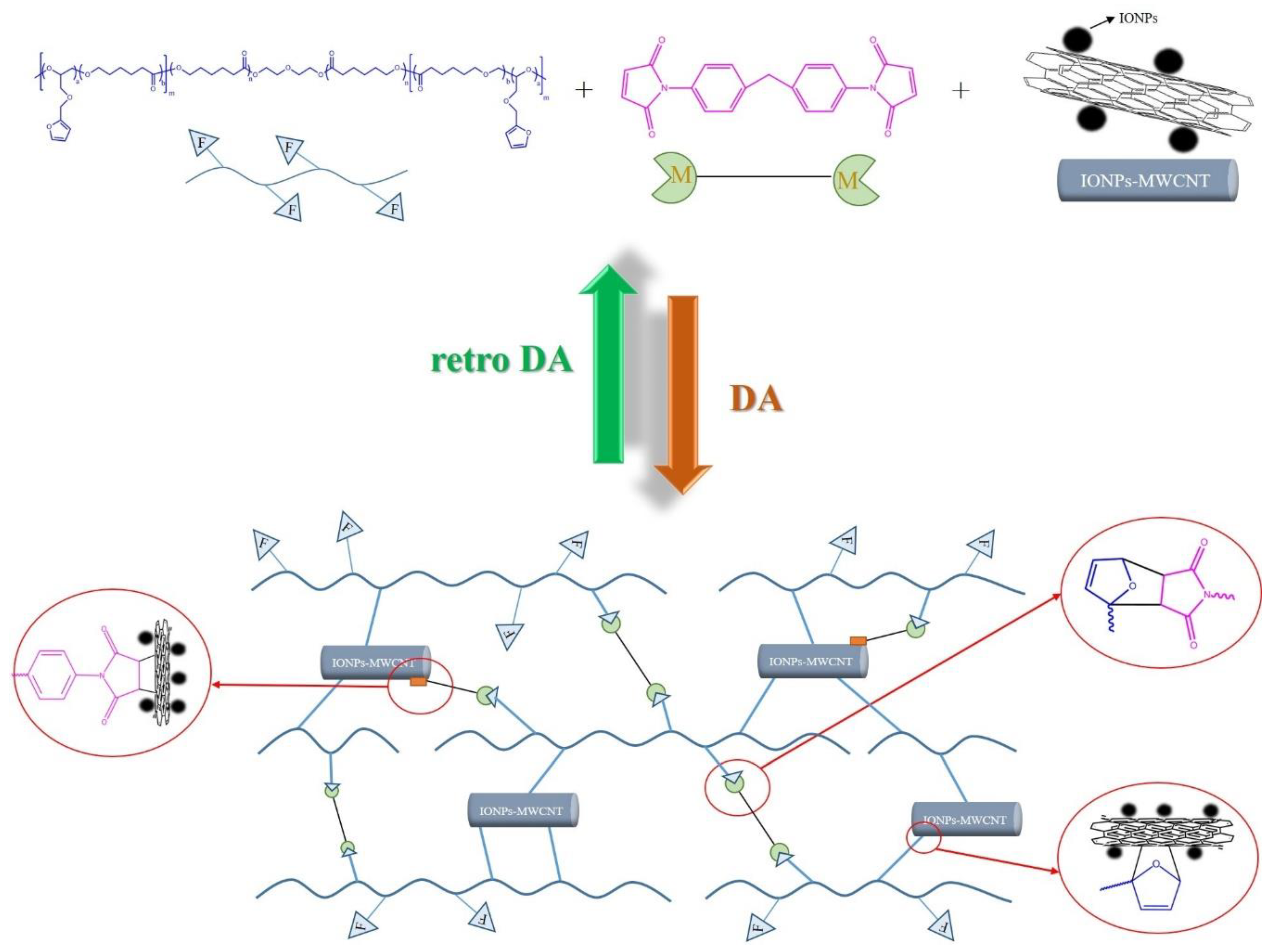

Figure 5. Schematic representation of the thermo-reversible DA network formed from furan/maleimide, MWCNT/furan, and MWCNT/maleimide combinations.
Figure 5. Schematic representation of the thermo-reversible DA network formed from furan/maleimide, MWCNT/furan, and MWCNT/maleimide combinations.
Applsci 09 00506 g005
Applsci 09 00506 g006 550

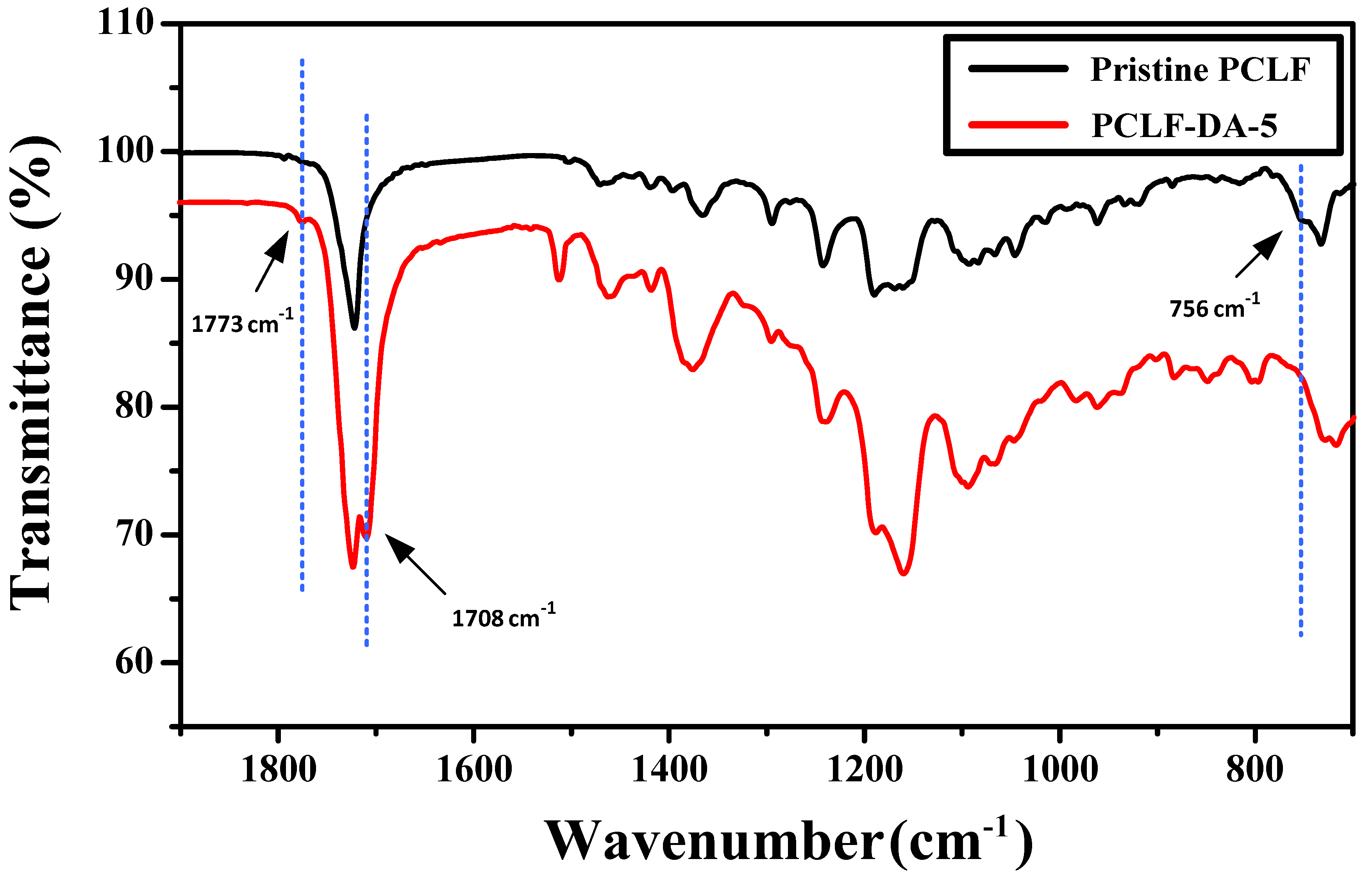

Figure 6. FTIR spectra of pristine PCLF and PCLF-DA-5 samples.
Figure 6. FTIR spectra of pristine PCLF and PCLF-DA-5 samples.
Applsci 09 00506 g006
Applsci 09 00506 g007 550

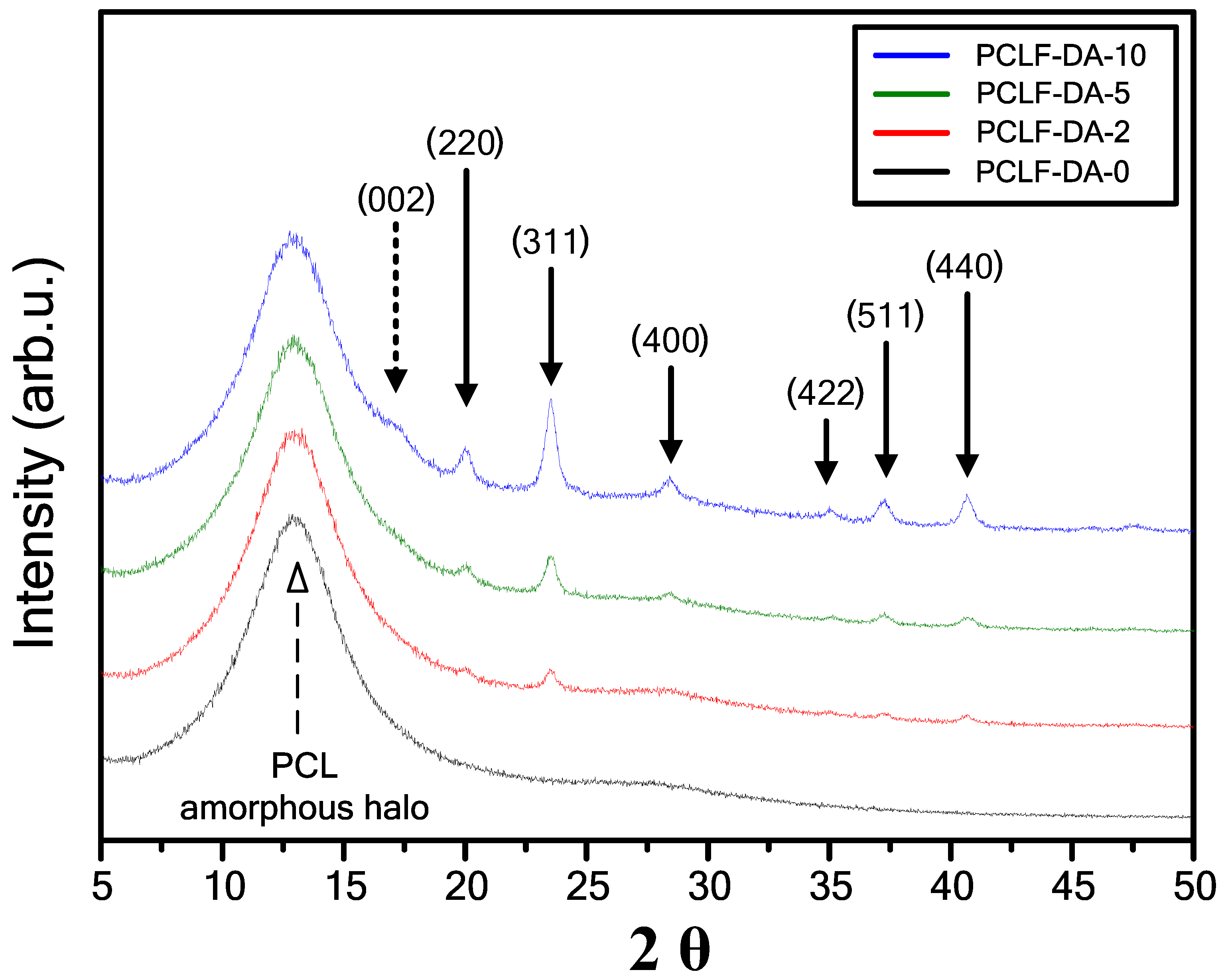

Figure 7. Wide-angle X-ray scattering (WAXS) spectra of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples. The solid arrows indicate the (220), (311), (400), (422), (511), and (440) crystalline reflections of the IONPs. Additionally, the dotted arrow and dashed hollow arrow indicate the (002) crystallographic plane of MWCNTs and amorphous halo of PCL, respectively.
Figure 7. Wide-angle X-ray scattering (WAXS) spectra of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples. The solid arrows indicate the (220), (311), (400), (422), (511), and (440) crystalline reflections of the IONPs. Additionally, the dotted arrow and dashed hollow arrow indicate the (002) crystallographic plane of MWCNTs and amorphous halo of PCL, respectively.
Applsci 09 00506 g007
Applsci 09 00506 g008 550

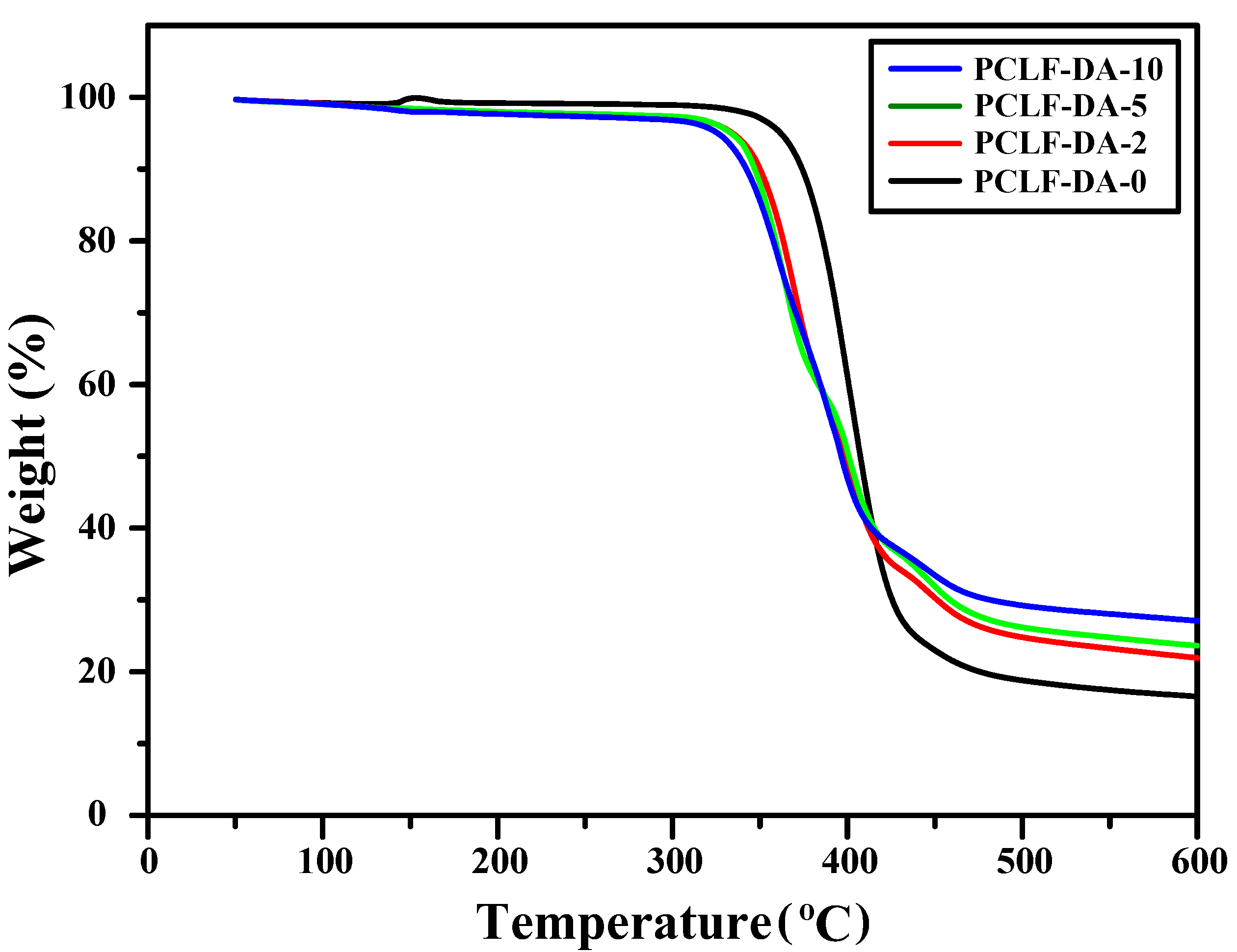

Figure 8. Thermogravimetric analysis (TGA) curves of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples with different loadings of IONPs-MWCNTs.
Figure 8. Thermogravimetric analysis (TGA) curves of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples with different loadings of IONPs-MWCNTs.
Applsci 09 00506 g008
Applsci 09 00506 g009 550

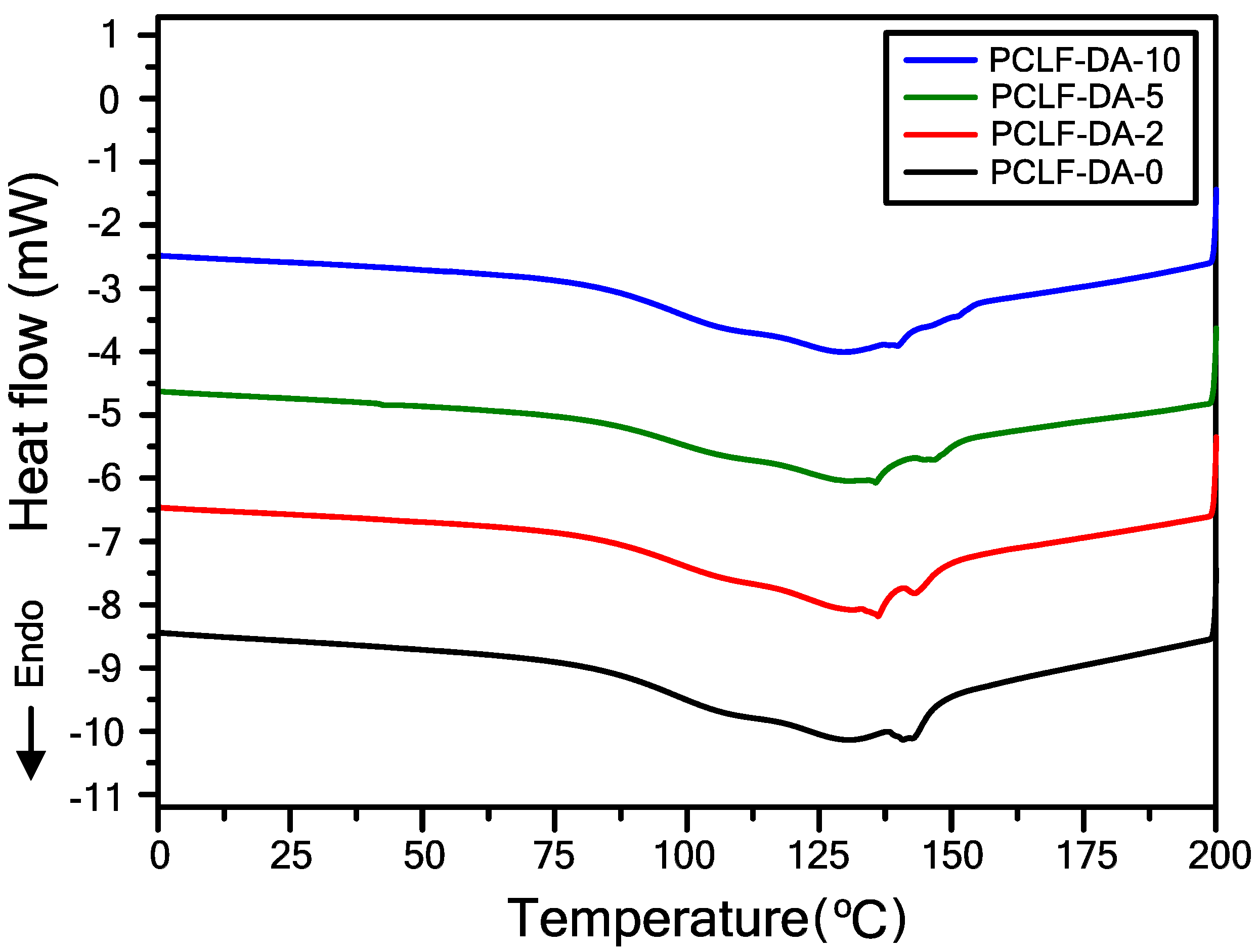

Figure 9. Differential scanning calorimetry (DSC) heating traces of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples with different amounts of IONPs-MWCNTs incorporated. The endothermic enthalpy signals indicate the occurrence of retro-DA reactions of the DA crosslinked system with increasing temperature.
Figure 9. Differential scanning calorimetry (DSC) heating traces of the crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples with different amounts of IONPs-MWCNTs incorporated. The endothermic enthalpy signals indicate the occurrence of retro-DA reactions of the DA crosslinked system with increasing temperature.
Applsci 09 00506 g009
Applsci 09 00506 g010 550

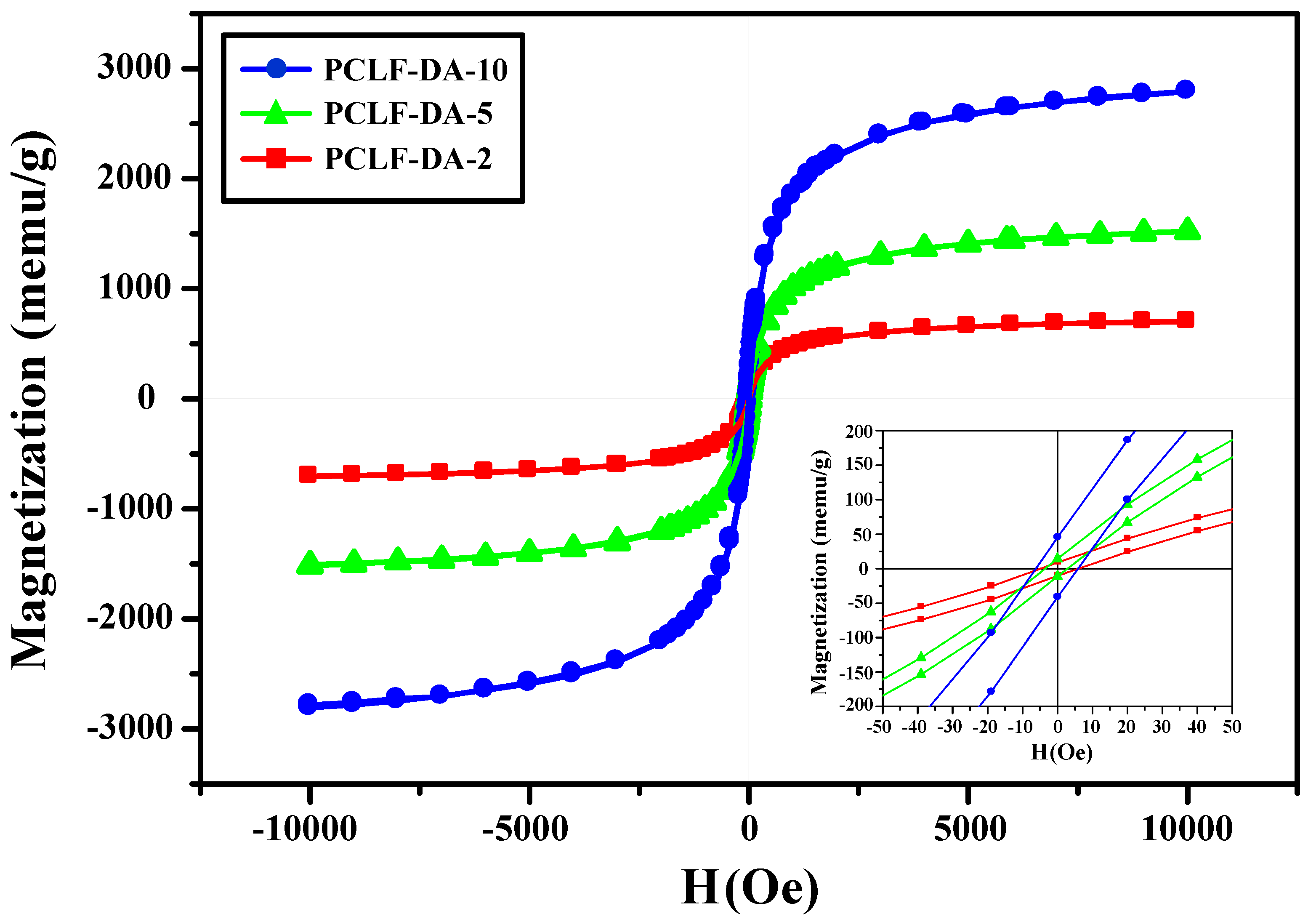

Figure 10. Hysteresis plots of magnetization vs magnetic field for PCLF-DA-2, PCLF-DA-5, and PCLF-DA-10 crosslinked hybrid samples. The insert figure shows the detail profiles within the field range of ±50 Oe.
Figure 10. Hysteresis plots of magnetization vs magnetic field for PCLF-DA-2, PCLF-DA-5, and PCLF-DA-10 crosslinked hybrid samples. The insert figure shows the detail profiles within the field range of ±50 Oe.
Applsci 09 00506 g010
Applsci 09 00506 g011 550

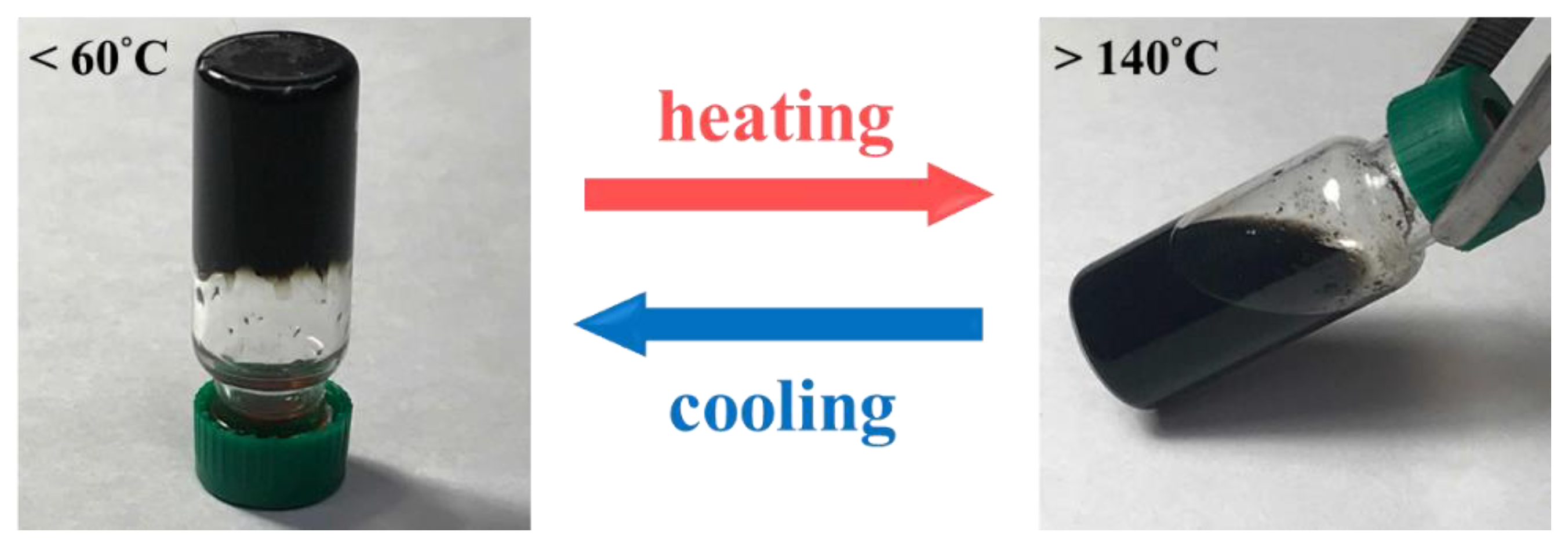

Figure 11. The thermal reversible sol-gel transition of PCLF-DA-5 in DMSO via DA and retro-DA reactions.
Figure 11. The thermal reversible sol-gel transition of PCLF-DA-5 in DMSO via DA and retro-DA reactions.
Applsci 09 00506 g011
Applsci 09 00506 g012 550

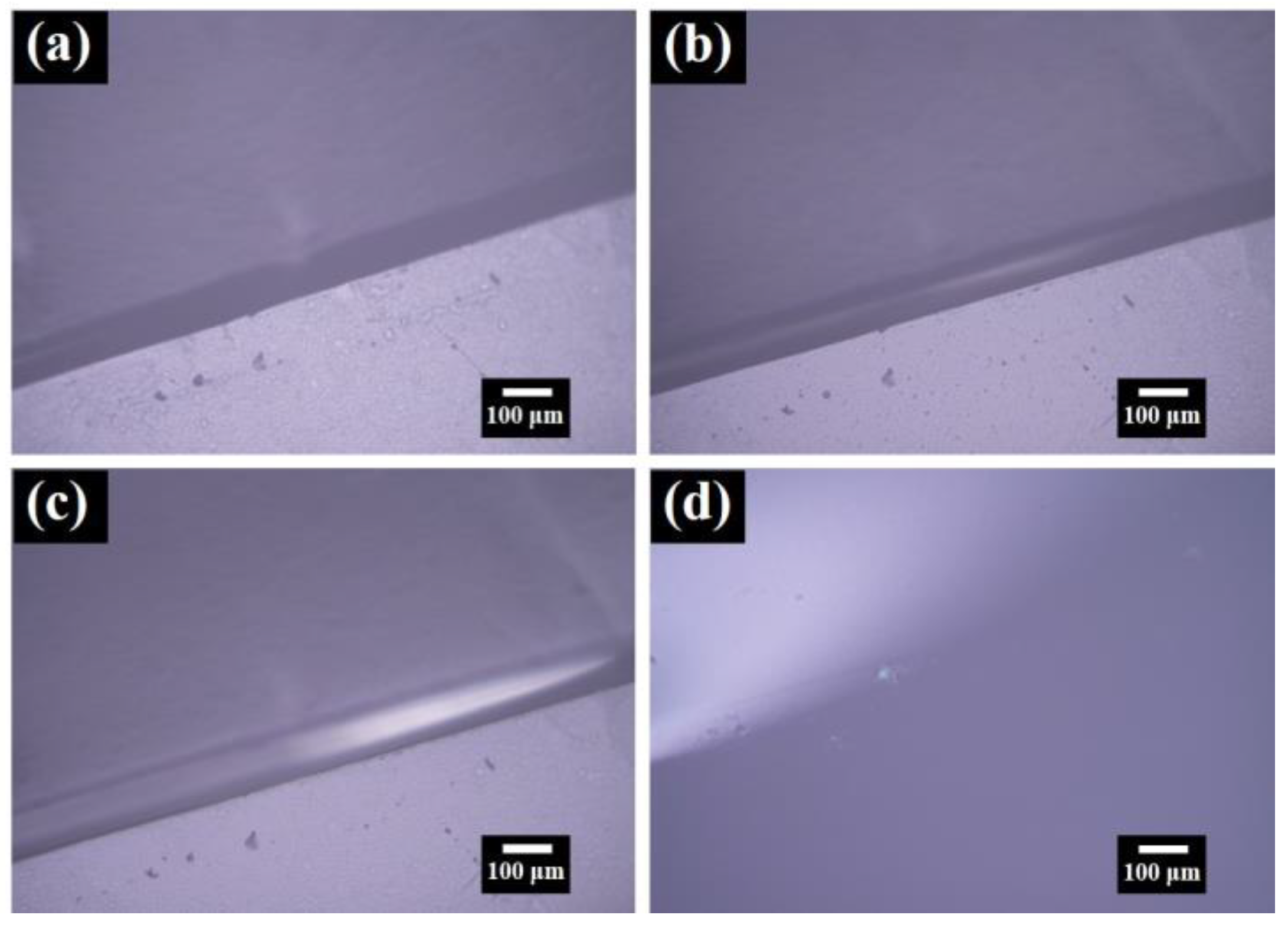

Figure 12. The optical microscope images of PCLF-DA-10 hybrid sample with a crack at (a) room temperature, (b) 120 °C, (c) 130 °C, and (d) 140 °C, respectively.
Figure 12. The optical microscope images of PCLF-DA-10 hybrid sample with a crack at (a) room temperature, (b) 120 °C, (c) 130 °C, and (d) 140 °C, respectively.
Applsci 09 00506 g012
Applsci 09 00506 g013 550

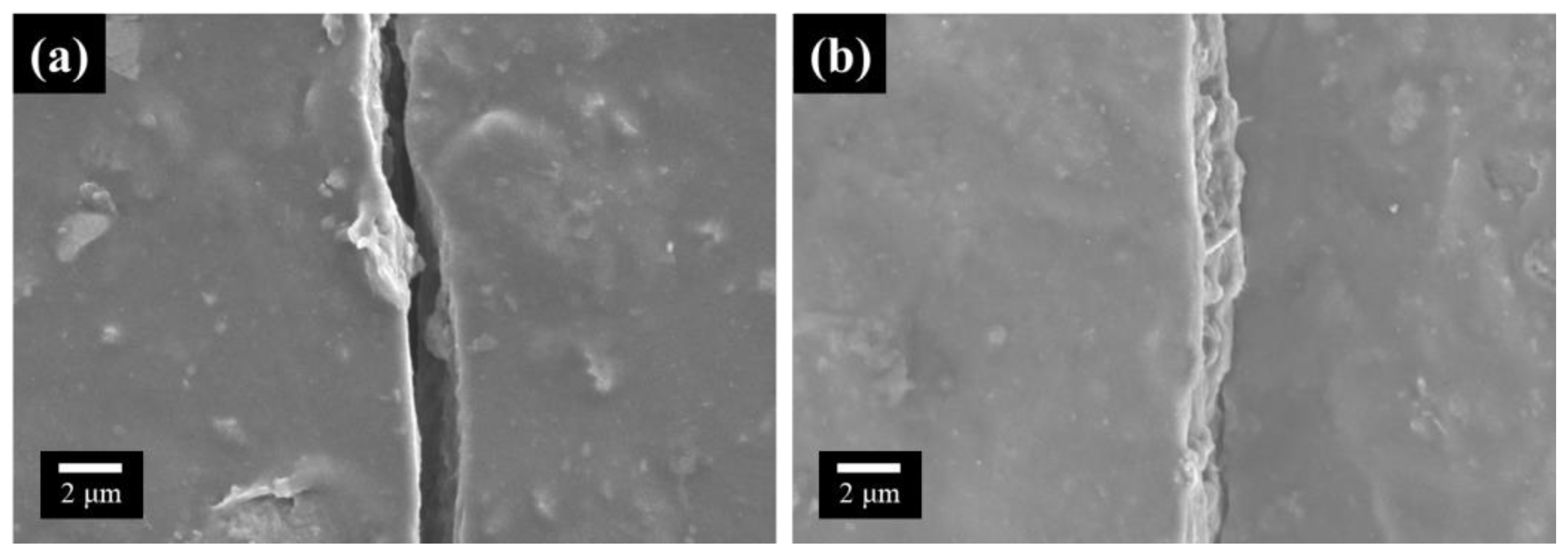

Figure 13. The SEM micrographs of PCLF-DA-10 hybrid sample with a crack (a) before and (b) after the self-healing process at 140 °C.
Figure 13. The SEM micrographs of PCLF-DA-10 hybrid sample with a crack (a) before and (b) after the self-healing process at 140 °C.
Applsci 09 00506 g013
Table
Table 1. Molecular characteristics of PCL diol and PCLF copolymer samples.
Table 1. Molecular characteristics of PCL diol and PCLF copolymer samples.
SampleMn (g/mol)Mw (g/mol)PDIFGE/CL Ratio 1
PCL diol260053002.04--
PCLF570010,9001.910.15
1 Based on the 1H-NMR results shown in Figure 2.
Table
Table 2. Composition characteristics of crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples.
Table 2. Composition characteristics of crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples.
Sample 1FGE/BMI RatioIONPs-MWCNTs Amount 2
PCLF-DA-01:10 wt%
PCLF-DA-21:12 wt%
PCLF-DA-51:15 wt%
PCLF-DA-101:110 wt%
1 Designation of crosslinked PCLF/BMI/IONPs-MWCNTs hybrid materials. 2 Added ratios of IONPs-MWCNTs to PCLF copolymer.
Table
Table 3. Thermal properties of crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples.
Table 3. Thermal properties of crosslinked PCLF/BMI/IONPs-MWCNTs hybrid samples.
Sample 15 wt% Loss Temperature (°C) 2Char Yield at 600 °C (%) 3Retro-DA Onset Temperature (°C) 4Retro-DA Heat Flow (J/g) 5
PCLF-DA-036216.68220.5
PCLF-DA-233421.98126.5
PCLF-DA-533323.68328.3
PCLF-DA-1032627.18232.5
1 Designation of crosslinked PCLF/BMI/IONPs-MWCNTs hybrid materials. 2,3 5 wt% loss temperature and char yield at 600 °C were measured from TGA analyses. 4,5 Retro-DA onset temperature and heat flow were measured from DSC analyses.
