Article

Synthesis and Processing of Melt Spun Materials from Esterified Lignin with Lactic Acid

by
Panagiotis Goulis
,
Ioannis A. Kartsonakis
,
George Konstantopoulos
and
Costas A. Charitidis
*
Research Unit of Advanced, Composite, Nano-Materials and Nanotechnology, School of Chemical Engineering, National Technical University of Athens, 9 Heroon Polytechniou St., Zographos, GR-15773 Athens, Greece
*
Author to whom correspondence should be addressed.
Appl. Sci. 2019, 9(24), 5361; https://doi.org/10.3390/app9245361
Submission received: 14 October 2019 / Revised: 4 December 2019 / Accepted: 5 December 2019 / Published: 8 December 2019
(This article belongs to the Special Issue Progress of Fiber-Reinforced Composites: Design and Applications)
Browse Figures
Versions Notes

Abstract

:
In this study, the carbon fiber manufacturing process is investigated, using high-density polyethylene (HDPE) and esterified lignin either with lactic acid (LA) or with poly(lactic acid) (PLA) as precursors. More specifically, lignin was modified using either LA or PLA in order to increase its chemical affinity with HDPE. The modified compounds were continuously melt spun to fibrous materials by blending with HDPE in order to fabricate a carbon fiber precursor. The obtained products were characterized with respect to their morphology, as well as their structure and chemical composition. Moreover, an assessment of both physical and structural transformations after modification of lignin with LA and PLA was performed in order to evaluate the spinning ability of the composite fibers, as well as the thermal processing to carbon fibers. This bottom–up approach seems to be able to provide a viable route considering large scale production in order to transform lignin in value-added product. Tensile tests revealed that the chemical lignin modification allowed an enhancement in its spinning ability due to its compatibility improvement with the commercial low-cost and thermoplastic HDPE polymer. Finally, stabilization and carbonization thermal processing was performed in order to obtain carbon fibers.

Graphical Abstract

1. Introduction

Carbon fibers are constantly being investigated considering their potential of high prospect technological application such as in the airspace or car industry, which require high performance and long-serving advanced materials for construction. Carbon fibers of exceptional mechanical properties have already been produced; however, new low-cost precursors are under investigation. At present, the need to reduce the cost of the carbon fibers for technological applications is of paramount importance and provides the opportunity to broaden their market. As a consequence, eco-friendly, renewable, and low-cost precursors of lignin have attracted major interest in order to be incorporated in the synthesis of the carbon fibers, considering both high carbon content and dense aromatic structure [1,2,3].
Synthesis of carbon fibers consists of several processing paths, such as chemical synthesis of the precursor polymer, fiber spinning (dry, wet, melt), stabilization in oxidative atmosphere to induce crosslinking and thermal resistance, and carbonization in inert atmosphere to induce graphitic planes in fiber structure. Regarding the chemical synthesis step, it should be mentioned that it requires careful selection and design of the reaction mechanism of the reagents in order to improve the linearity of molecular chains and reduce the polar character induced by lignin hydroxyls [4].
A potential low-cost precursor that could be used for carbon fiber production is Softwood Kraft Lignin (SKL). However, this precursor has several particularities due to the fact that it consists of a complex three-dimensional network, while it becomes brittle upon thermal processing. Therefore, in order for lignin to be used for structural carbon–fiber production, it has to be modified so that the high-extent reactive C–O bonds in interunit lignin linkages, such as b-O-aryl ether, can be reduced [4]. On the other hand, lignin provides a low-cost and widely available alternative that could be utilized in industries, assuming that a viable modification route is established to enhance process ability and compounding to form fibers with enhanced mechanical properties and behavior overall. In general, lignin composites with epoxy resins, derivatives, and blends have already been investigated [5,6,7,8], but there is no sufficient reference to their spinning ability, while Zhou et al. overviewed the research done on plant fiber composites [9]. Moreover, Megiatto et al. investigated chemical modification of Sisal (a Mexican agave) with lignin and the effect of phenolic composite properties on fibers. It was concluded that phenolic functional groups enhance fiber properties.
In other works considering biopolymers similar to lignin, cellulose was studied as a binder in green composites [10,11], whereas application of plant fibers, composites, and their life cycle assessment was also reported [12,13,14,15,16,17,18]. Additionally, the properties of elastomeric composites coming from widely used commercial polymers are already known, as well as the effect of lignin enrichment in foams, composites, and fibers [19,20,21]. Furthermore, high-tech grafting of carbon nanotubes on lignin structures to manufacture fibers with advanced electrical or mechanical properties has been performed [22,23,24].
The motivation of the present work is the synthesis of carbon fibers using low-cost and eco-friendly precursors. Therefore, the aim in the present research is to follow a relatively simple and low-cost procedure to reach a carbon fiber production. Lignin was esterified with lactic acid (LA) and poly(lactic acid) (PLA) in order to improve its chemical affinity with high-density polyethylene (HDPE) and pave the way for the preparation of a blend that could be melt spun and then produce carbon fibers. The aforementioned organic acids were implemented in the precursor lignin-enriched fiber production via chlorination with thionyl chloride (SOCl2) and esterification with lignin. Evaluations of esterification reaction, spinning process, as well as stabilization and carbonization procedures were conducted. The originality and novelty of the present study lies in the fact that a melt-spun lignin conjugation with high molecular weight commercial spinnable polymers was accomplished, using esterification after a chlorination reaction, so as to enhance the intermolecular bonds between the compounds. Finally, it could be mentioned that the added value of our work resides in the fact that the chemical synthesis that was conducted in this study provided thermal process ability to the precursor fiber without the use of plasticization.

2. Materials and Methods

2.1. Materials

Analytical reagent grade chemicals were used. Lactic acid (LA, Fisher Chemicals, Waltham, MA, USA), high-density polyethylene (HDPE, Sigma Aldrich, St. Louis, MO, USA, Mw~125,000), poly(lactic acid) (PLA, Sigma Aldrich, St. Louis, MO, USA, Mw~125,000), hydrochloric acid (HCl 37%, Fisher Chemicals, Waltham, MA, USA), thionyl chloride (SOCl2, Acros Organics, Geel, Belgium), chloroform (CHCl3, Fisher Chemicals, Waltham, MA, USA), and pyridine (Fisher Chemicals, Waltham, MA, USA) were used as received without further purification. Softwood kraft lignin (SKL, Westvaco Corp., Indulin AT, MWV, Norcross, GA, USA) was washed with HCl 0.1 M before being used in the blends. All blends intended for melt spinning were placed in a vacuum oven before the extrusion took place and were left there overnight.

2.2. Synthesis of Fibers

In a 1000 mL three-neck round bottom flask, 100 mL of LA was dissolved in 230 mL of CHCl3, under vigorous stirring at room temperature for 1 h. Then, 100 mL of SOCl2 was added to the mixture, dripping slowly and in small amounts in order to perform the chlorination reaction. As the SOCl2 was added to the flask, vapors of SO2 were released from the chemical system according to the reaction in Figure 1 [25]. According to this reaction, a nucleophilic substitution pathway occurs, in which the carboxylic acid is first converted into a chlorosulfite intermediate. Then, the chlorosulfite reacts with a nucleophilic chloride ion in order lactic acid chloride (LCl) to be synthesized.
The released vapors indicate that the chlorination reaction has progressed. After partial evaporation of the solvent (CHCl3), the solution was added to 250 mL of pyridine. Then, 100 g of washed SKL was added to the mixture, and the blend was left under vigorous stirring at room temperature for 1 h. The temperature was then elevated at 120 °C, and a reflux condenser was adapted onto the flask. The esterification reaction duration was 5 h at the aforementioned conditions; the mechanism of the corresponding esterification reaction (alcoholysis) between the hydroxyl groups of SKL and lactic chloride is depicted in Figure 2 [26]. According to the esterification process, an addition of oxygen (nucleophile) to the carbonyl group occurs, yielding a tetrahedral intermediate. Then, an electron pair from oxygen displaces the chloride (leaving group), generating a new carbonyl compound as a product. After the completion of the reaction, the solvent (pyridine) was evaporated. The solid product (SKL esterified with lactic chloride, SKL–LA) was oven-dried overnight at 70 °C.
In a 1000 mL glass beaker, 45 g of poly(lactic acid) (PLA) was dissolved in 600 mL of chloroform under vigorous mechanical stirring. The blend was left under stirring overnight in order to ensure complete dissolution. Afterwards, 100 mL of SOCl2 was added dripping in the solution under mechanical stirring. The SOCl2 reacted with the hydroxyl groups of PLA and produced poly(lactic acid) chloride (PLCl) according to the reaction in Figure 3 [25]. During the SOCl2 addition, there was a release of SO2 vapors that indicated the reaction progress. After completion of the reaction, the obtained product (PLCl) was dried and pulverized. Then, 25 g of the synthesized PLCl was dissolved in 270 mL of pyridine in a 500 mL three-neck round bottom spherical flask and was left under vigorous stirring overnight at room temperature. In the next step, 40 g of SKL was added, and the mixture was left to react at 120 °C for 5 h under vigorous stirring. After that, the solvent was evaporated, and the solid collected product of SKL–PLA (SKL esterified with PLA) was dried at 80 °C. The chemical reaction of the esterification process (alcoholysis) is illustrated in Figure 4 [26].
The abovementioned materials were mixed with HDPE, and the resulting blends were loaded in an extruder line, optimizing spinning parameters of extruder temperature, roller distance from the extruder, and extrusion speed for each precursor blend. The parameters and conditions for the optimization process for the HDPE spinning for the production of HDPE/SKL–LA (80:20) and HDPE/SKL–PLA (80:20) fibers are tabulated in Table A1 and Table A2. The best results concerning the spinning ability of the blends were obtained for the conditions that are presented in Table 1. The blend mass ratio of the HDPE/esterified lignin was 80/20 by weight (HDPE/SKL–LA (80:20), HDPE/SKL–PLA (80:20)).
The extruded precursor HDPE/SKL–PLA fibers were fixed in bundles and were thermally treated following four different thermal stages. Firstly, they were subjected to a 1 h long pre-stabilization step at 150 °C, followed by a second stage at 220 °C for 3 h and finally at 300 °C for 10 min to maximize crosslinking. This thermal procedure enhanced crosslinking through oxidation and prepared the structure to withstand carbonization. Carbonization was performed at 800 °C, under nitrogen atmosphere with a residence time of 5 min. The thermal treatment effect is presented in Table 2.
The carbonization of the fibers was conducted via a high-temperature furnace (Protherm—PTF Series, Single-Zone tube furnace, Maximum Temperature: 1200 °C) under nitrogen atmosphere at 800 °C for 5 min.
The melt spinning experiments were carried out on a Dynisco extruder. The Dynisco LME (Laboratory Mixing Extruder) is a laboratory tool developed to produce fibers continuously derived from thermoplastic polymers. The specimen is conveyed in a cooled hopper right after exiting the hot surface of the cylindrical rotor, against the inclined surface of the stationary scroll, and moves toward the outlet die.

2.3. Characterization

The fibers composition and their morphology were determined with a Hitachi Electron Microscope TM3030 coupled with an Ultra-High Resolution Scanning Electron Microscope (UHR-SEM) using NOVA NANOSEM 230 (FEI Company, Hillsboro, United States, 2009) and with an Energy Dispersive X-ray Spectrophotometer (EDS) (QUANTAX 70, BRUKER, Billerica, Massachusettes, United States, 2016). The Attenuated Total Reflectance Fourier Transform Infrared Spectroscopy (FTIR) instrument Cary 630 spectrometer (Agilent, Santa Clara, California, United States, 2016) was used to analyze the FTIR spectra of the fibers. This instrument has a resolution of 4 cm−1 and an operating wavelength range of 4000–400 cm−1.
The Thermogravimetric/Differential Scanning Calorimetry (TGA/DSC) instrument STA 449 F5 Jupiter (NETZSCH-Gerätebau GmbH, Selb, Germany, 2017) was used for the thermal analysis of the fibers. The system consists of a SiC furnace with an operation temperature varying between 25 and 1550 °C. The maximum heating rate is 50 K/min. The gas used was nitrogen at a volumetric rate of 50 mL/min and at a heating rate of 20 °C/min.
A Renishaw inVia spectrometer was used to perform micro-Raman measurements coupled with a green diode laser with emission at 532 nm (Renishaw plc, Gloucestershire, United Kingdom, 2013). The backscattering configuration was used. A beam spot size of 1 micrometer for a 1 mW beam at 1% intensity was used. The MATLAB 8.0 and Statistics Toolbox 8.1 (The MathWorks, Inc., Natick, Massachusetts, United States, 2012) was used for fitting the Raman signal to calculate the integrals of D and G peaks and quantify ID/IG ratio.
The structure of the fibers was observed and collected by the instrument SkyScan 1272, a 3D X-ray scan system (BRUKER, Billerica, Massachusettes, United States, 2017). The system disposes an X-ray source which operates at 20–100 kV and 10 W (<5 μm spot size @ 4W), an X-ray detector with a maximum resolution of 11 Mp (4032 × 2688 pixels), and a CCD fiber of 14 bits, cooled and optically joined to a scintillator. During the observation, the specimens were fixed on a rotational stage, the distance between the rotation axis and the radiation source is set from 6 to 12 mm, and the pixel resolution is set to 2016 × 1344 in order to obtain reliable images. Several stacked images were used for rendering, calculations, and image analysis for each sample.
The tensile strength at the breaking point of the fiber was determined according to the scale of the dynamometer of the MPM-10 tensile test machine, based on the standards ISO 11566:1996 and ASTM D 3379-89.

3. Results and Discussion

3.1. Scanning Electron Microscopy and Energy Dispersive X-ray Spectroscopy

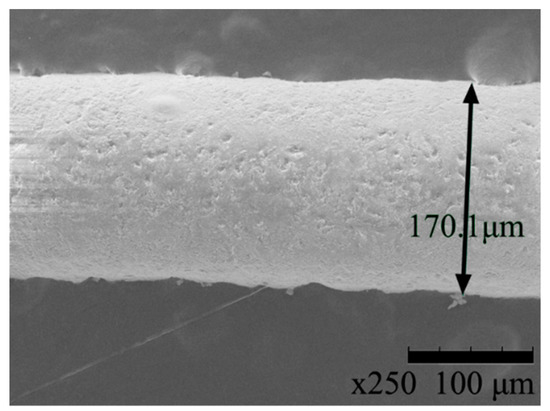

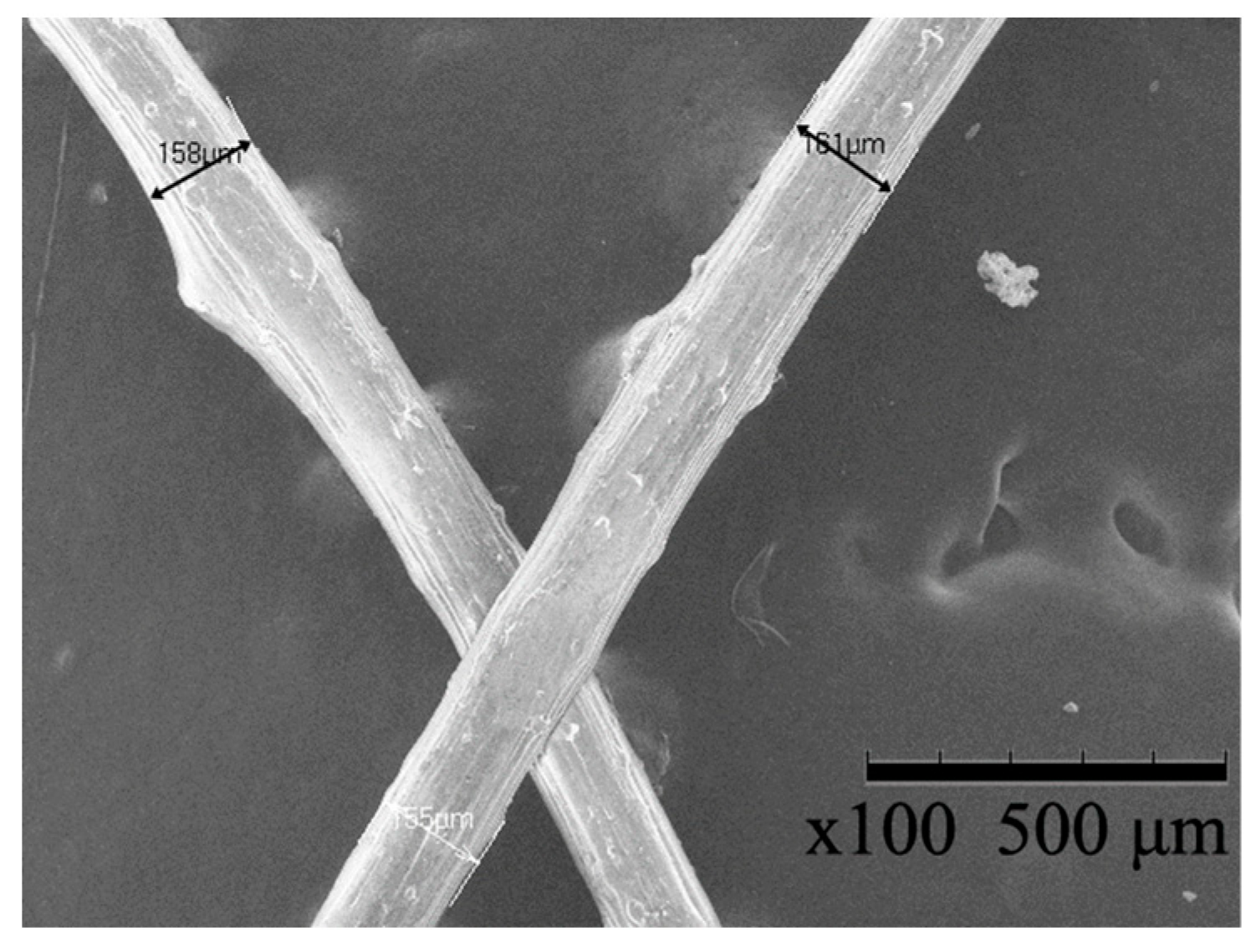

Taking into account the SEM images of the fibers HDPE/SKL–LA, HDPE/SKL–PLA (precursor) and HDPE/SKL–PLA (carbonized) (Figure 5, Figure 6 and Figure 7, respectively), it can be observed that the diameter of the fibrous materials ranges from 158 to 170 μm (Table 3). It should be stated that the SEM characterization of the fibers in respect of their diameter (Table 3) includes the measurement of 10 fibers of each sample. Moreover, two measurements were conducted in each fiber.
Although the typical diameter of a PAN-based precursor fiber is only 15 μm, materials with a bigger diameter than that were produced because of the low elasticity of the HDPE and the use of a 1.8 mm spinneret. Additionally, the addition of lignin reduces the tension capacity of the material [27]. The thermal behavior of HDPE/SKL–LA fibers was not proper to withstand carbonization, due to the formation of agglomerates and heterogeneity on the extruded fiber. On the other hand, HDPE/SKL–PLA fibers were carbonized due to the fact that SKL–PLA presents enhanced mixing ability with HDPE blends. Furthermore, it should be mentioned that HDPE/SKL–PLA carbon fiber shrunk in length about 6% compared to the precursor, owing to densification and the increase of sturdiness after carbonization treatment [28]. Due to the same fact, the diameter of the fiber is increased. Furthermore, combined SEM-EDS analysis was conducted on the produced samples in order to provide information of the chemical composition, with the percentage of each chemical element in the fibers, as well as to support the chlorination mechanism of LA and PLA reaction and to confirm the successful synthesis of modified lignin by the corroboration of the absence of Cl element in the observed specimens. Table 4 presents the tabulated values of wt.% elemental composition of the produced HDPE/SKL–PLA fibers prior to and after carbonization process. Regarding the obtained results, it should be remarked that the percentage of chlorine in the samples was practically zero for both the HDPE/SKL–PLA precursor and carbon fiber specimens.

3.2. Thermogravimetric Analysis and Differential Scanning Calorimetry

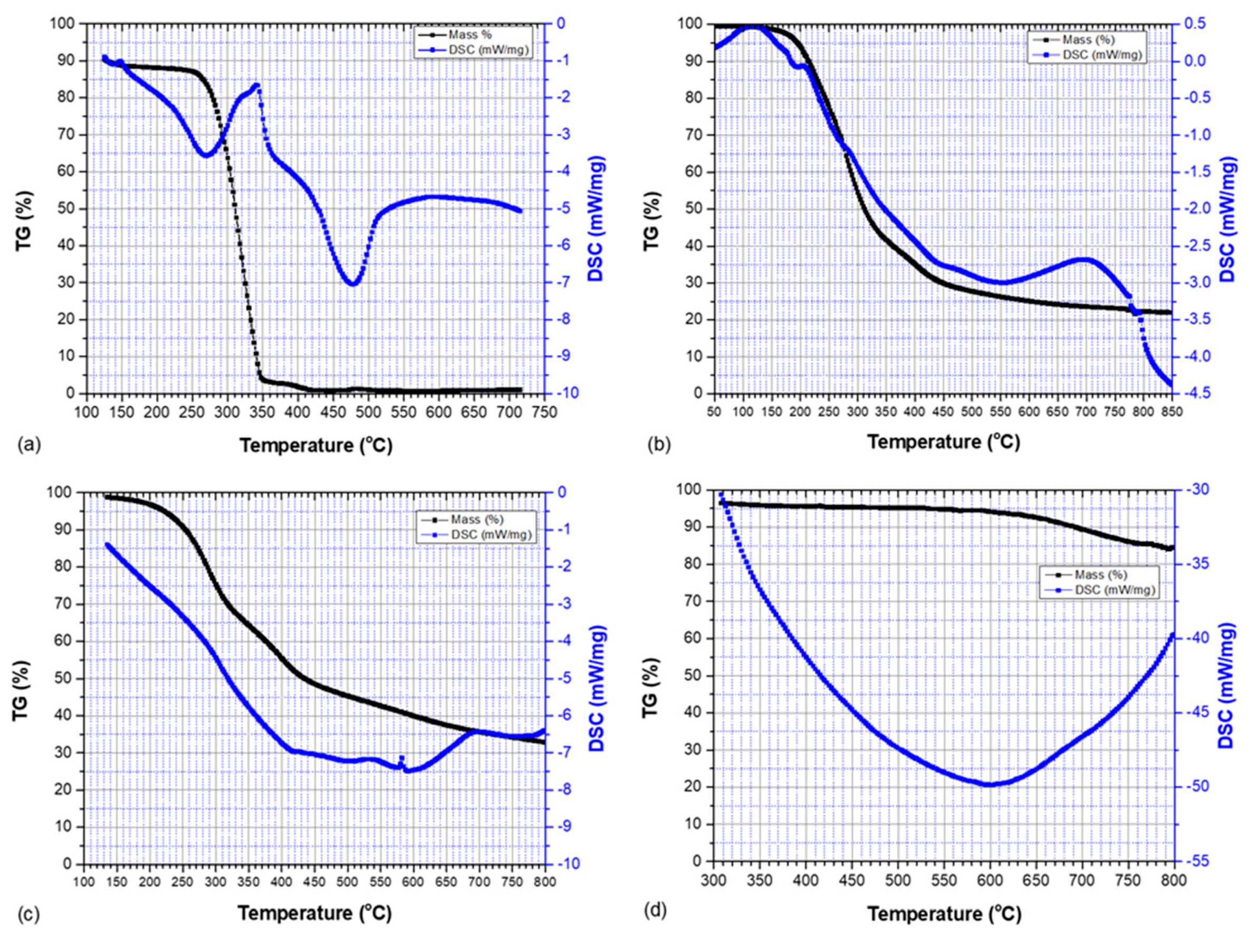

The TGA and DSC diagrams of lignin compounds are illustrated in Figure 8. The gas used was nitrogen and the temperature ramp was 10 °C/min. Taking into consideration the TGA and DSC diagrams of the compounds SKL–LA (Figure 8b) and SKL–PLA (Figure 8c), it may be remarked that both compounds present an initial peak of thermal degradation at 280 °C, whereas their thermal degradation end temperature is located at 800 °C leaving a residue of approximately 22% and 35% mass, respectively (Table 5). The residual mass is attributed to the autocatalytic stabilization effect of lignin derived by high elemental composition in oxygen [29,30,31,32]. The PLCl is degraded almost quantitatively at 400 °C (Figure 8a). The DSC curve of PLCl presents two characteristic peaks, an endothermic at 340 °C and an exothermic at 480 °C, which correspond to its thermal degradation peak and crosslinking, respectively [33] (Figure 8a). As far as SKL–LA is concerned, the DSC graph presents a wide exothermic curve, which implies a steady rate and slow evolution of gases as crosslinking byproducts of the material, considering the mass loss as provided by TGA (Figure 8b). Finally the DSC graph for the SKL–PLA sample demonstrates a more intense exothermic peak ascribed to oxygen-derived autocatalytic crosslinking, generated at multiple starting points due to its size, but there is only a small endothermic peak at 700 °C, relating to its degradation and state transition from crystal-like to amorphous [34,35] (Figure 8c). Concerning the TGA/DSC graphs of the HDPE/SKL–PLA carbon fiber, it can be easily observed that the carbon residue after thermal treatment is about 85%, meaning that the whole procedure successfully produced a carbon fiber with desired thermal behavior, resistance, and adequate carbon yield. The wide exothermic DSC curve is ascribed to intramolecular bond forming reactions as well as to polycondensation and denitrification reactions (Figure 8d) [36].

3.3. Attenuated Total Reflectance Fourier Transform Infrared Spectroscopy

As evidenced in the aforementioned SEM/EDS micrographs as well as in the FTIR spectrogram in Figure 9, the chlorination reaction of PLA to PLCl was successful. The major differences in FTIR spectra after chlorination of PLA and LA are pointed out in the peaks at 1558 and 1640 cm−1 [37] that are attributed to asymmetric CO2− stretching vibration, which is mainly reacted with SOCl2 [38,39,40,41]. Further peaks are similar between PLA and PLCl, slightly more intense in case of PLCl. This is due to the –Cl group electronegativity and the use of SOCl2 in the chlorination reaction [25,42]. The FTIR analysis results are presented in Table 6.
The FTIR spectra of SKL–LA and SKL–PLA in Figure 10 demonstrate similar peaks. The small band at about 3500 cm−1 is attributed to the hydroxyl group of phenolic and aliphatic structures of lignin. This peak is more intense for SKL–LA due to the fact that the LA monomers which are esterified to the lignin hydroxyl groups have one hydroxyl group at a single end. The PLCl chains esterified to lignin (SKL–PLA) own only one hydroxyl group at the end of each chain. Therefore, the only signal that SKL–PLA presents at 3500 cm−1 is ascribed almost completely on the lignin hydroxyls, because the contribution from the PLCl hydroxyls to this signal is negligible. Moreover, SKL–LA demonstrates a peak of medium intensity at 2900 cm−1, which is attributed to C–H stretches. The peaks at 2900 cm−1 result from various C–H bonds due to the aromatic methoxy groups and the methyl/methylene side groups. The characteristic absorption bands for aromatic rings of lignin are at 1600, 1500, and 1410 cm−1. The peak at 1600 cm−1 also implies the presence of a conjugated structure. There is also a shoulder at 1750 cm−1, corresponding to lignin’s carbonyl groups [43,44,45]. The FTIR most important peaks are tabulated in Table 7.

3.4. Thermal Processing (Stabilization—Carbonization)

Taking into consideration Table 5, it may be remarked that the HDPE/SKL–PLA fibers present an enhanced thermal behavior compared to those of HDPE/SKL–LA, because they present a higher onset, peak, and end temperature of thermal degradation and considering the fact that HDPE has the same thermal behavior in both samples. Moreover, taking into consideration the two fibers, the HDPE/SKL–PLA precursor is expected to exhibit an extended linear-like polymeric chain and bigger molecular weight, in comparison with the much smaller HDPE/SKL–LA fibers, which were not successfully carbonized, due to the aforementioned reasons. The yield of the carbon fiber after carbonization of the HDPE/SKL–PLA fibers was 85%. Based on the higher end temperature and lower weight loss as given in Table 5, HDPE/SKL–PLA is more thermally stable compared to HDPE/SKL–LA. According to the literature, although the carbonization of PAN precursor fibers is carried out between 1000 and 1800 °C, in our study, the fibrous materials were carbonized at 800 °C for 5 min (in a horizontal furnace used for CVD), due to the different texture and thermal behavior of the materials.

3.5. Tensile Testing of Precursor Fibers

A tensile test was performed on the precursor fibers. Regarding the obtained results, the measured average tensile strength at the breaking point varied between the fibers. The fibers which presented the optimum properties were HDPE/SKL–PLA fibers, at 32.33 MPa demonstrating an average diameter of 159.5 μm, while the HDPE/SKL–LA demonstrated 25.12 MPa of tensile strength. The pure HDPE fibers showed a tensile strength of 19.87 MPa. All tests were conducted three times, and then the average value was calculated (3 fibers of each different type were used, 9 fibers in total, 27 measurements in total). The crosshead speed used for testing was 0.2 mm/min. According to the literature [46,47], as far as the orientation is concerned, it was not substantially modified after the tensile test, which was a promising indication for potential thermal treatment (stabilization, carbonization), because during these processes, the fibers tend to shrink and become thicker. Furthermore, these values are related and comply with the tensile properties of natural fiber composites [48], while the difference between the precursor fiber in tensile strength is ascribed to their slightly different microstructure, which is affected by extrusion speed, temperature, and residence time of the materials in the extrusion line and the size of the spinneret [49]. Further, the tensile deformation and damage of fibers are strongly affected by both defects and orientation [50], while the chemical bonding has a severe impact on stiffness and tensile strength of fiber network [51].

3.6. Micro-CT Analysis

The micro-CT analysis results are depicted in Table 8, and the volume rendering images of carbon fibers are presented in Figure 11. Concerning the X-ray tomography obtained results, micro-CT studies on inner geometry and morphology of carbon fiber tapes [52] demonstrated a similar morphology as the one obtained in the present work. Additionally, tomography performed on low-density carbon fiber materials and composites exhibits similar physical properties with home-grown carbon fibers [53,54]. Furthermore, investigation of carbon fiber failure and breakage via micro-CT modeling showed similar values [55,56,57] and supports effective carbonization in the present study. The surface density is the mass per unit area (mm2). Linear density is the density that the material demonstrates in relation to its length [58]. In the presented work, it is the amount of mass per millimeter. The degree of anisotropy (DA) is an index that shows the alignment of the materials (fibers) into the total scanned volume [59], and in our study, it is a measure of the orientation of the fibers within the rectangles of the Figure 8.Fractal dimension is a measure showing the change in the detail of a specific object (fibers in this case) as the measuring scale changes [60]. The micro-CT is useful for the scope of the current research as it gives information about the porosity and the morphology of the final material. The innovation of the presented technique applied to the samples produced in this study is the demonstration of a porosity below 2%. This fact underlines the durability and the sturdiness of the synthesized materials.

3.7. Raman Spectroscopy

Raman spectroscopy measurements provided insight into the carbonization procedure (Figure 12). More specifically, taking into consideration that the presence of G-bands around 1650 cm−1 is a straightforward indication of graphite planes formation, it should be mentioned that the ID/IG ratio of HDPE/SKL–PLA carbon fibers was 0.847, denoting a lower intensity of D-band at 1300 cm−1 compared to G-band, denoting that the sp3 bonds are more than the sp2 bonds.
Raman investigation of the produced carbon fibers was performed in order to characterize the structural transformation of the precursor fiber to carbon fiber; the formation of a graphite-like sp2 plane is expected to be formed as a result of carbonization. Lignin-based carbon fibers presented a promising response to electromagnetic radiation in Raman characterization, with all D, G, and 2D peaks to appear. A trend of forming a sharper and of higher intensity G to D peak was recorded in Raman spectra, which seems to provoke a proper structure reorientation [61].

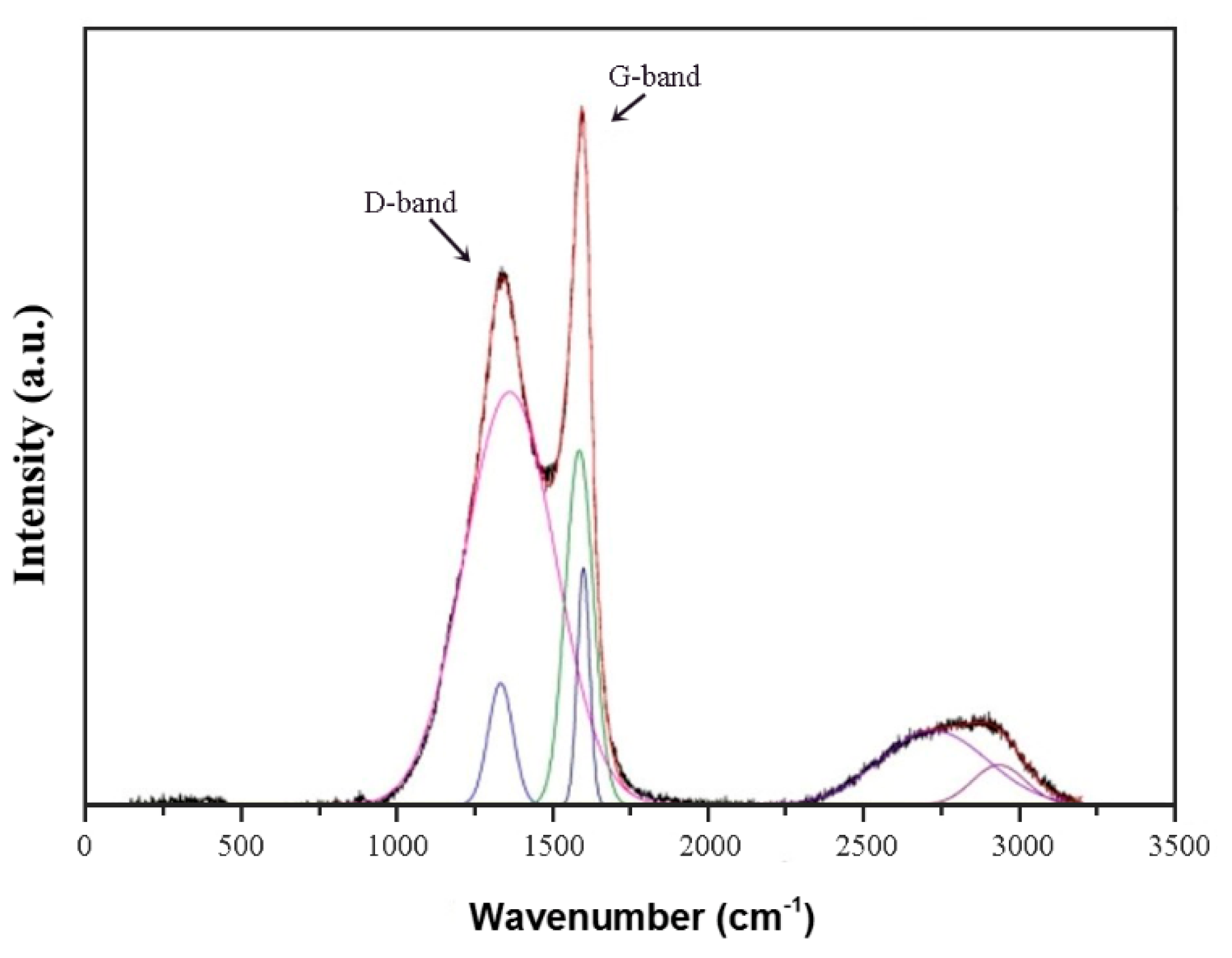

Looking at the envelope of fit reported in Figure 12, it can be clearly stated that D and G regions encompass four different Gaussian components. Two of them were used to fit the D peak and two of them were used for the G peak. The D peak is described by two components centered at 1330 and 1360 cm−1 which present low-intensity variation changing from LA to PLA. The G peak demonstrates a more stable component around 1590–1600 cm−1 [62]. To obtain quantitative information by Raman spectroscopy, the ratio of the intensity of D to G peak (ID/IG) is measured, and ID/IG obtained a value of 0.847, indicating the strong presence of graphitic-like planes present in carbon fiber structure [63,64,65].

3.8. Outcome Analysis

In the present research, a relatively low-cost procedure was followed to reach a carbon fiber production, including a comprehensive stage of organic synthesis, three stabilization stages, and one carbonization stage, with the precursor fiber containing 20 wt.% content of lignin. Moreover, the aim of this study is the industrial upscalability along with simplicity (high profit, high spinning speed and production rate, low cost, one pot reactions), a fact which seems feasible according to this study. According to the literature, despite the fact that chemical modifications of lignin have been investigated [24], there are no references of successful melt-spun lignin conjugation with high molecular weight commercial spinnable polymers, using esterification after a chlorination reaction, so as to enhance the intermolecular bonds between the compounds. The successful chemical synthesis, which was conducted in this study without the use of plasticization [66] and confirmed by characterization, provided thermal process ability to the precursor fiber. Anthracene-oil-derived pitches as precursors have led to green carbon fibers [67], but the diameter of the fibers varied depending on the winding speed, and overall, that method was more expensive than using lignin in the blends. Additionally, carbon fibers from low molecular weight polymers by solvent extraction [68] and from polyacrylonitrile combined with CNTs [69] showed good strength but lacked the low-cost synthesis. While cellulose has been used in the fabrication of carbon fibers [70], the potential of lignin has been acknowledged already [2], but its handling and treatment remained an issue. Finally, lignin, compared to cellulose, is more suitable as a precursor for carbon fiber due to its aromatic groups, which strengthen the material structure after carbonization (higher carbon yield) [71].

4. Conclusions

In the present study, lactic acid and poly(lactic acid) were modified by chlorination, in order to produce the corresponding organic chlorides. Then, these compounds were esterified with SKL. Subsequently, the obtained product was compounded and spun with HDPE thermoplastic polymer to form composite precursors suitable for carbon fiber production. Stabilization and carbonization were conducted, and the obtained HDPE/SKL–PLA fibers demonstrated lower ID/IG, by Raman characterization for carbonization at 800 °C, which was adopted as optimal thermal processing. The relative low ID/IG ratio, compared to carbon fibers reported in literature, indicates that graphitic sp2 planes are substantially formed and oriented, and thus, it can be feasible to enhance the electrical properties of composites. The results from this work can constitute a solid basis for scaling up similar procedures.

Author Contributions

P.G., I.A.K., and C.A.C. conceived and designed the experiments. P.G. conducted the experiments. P.G., G.K., and I.A.K. performed the characterization and evaluation of the data. P.G., I.A.K., and C.A.C. discussed the data and wrote the paper.

Funding

This research was funded by the HORIZON 2020 Collaborative project “LORCENIS” (Long Lasting Reinforced Concrete for Energy Infrastructure under Severe Operating Conditions, Grant agreement no.: 685445).

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Tabulated parameters and conditions for the optimization process for the HDPE spinning (HDPE/SKL–LA (80:20)).
Table A1. Tabulated parameters and conditions for the optimization process for the HDPE spinning (HDPE/SKL–LA (80:20)).
BlendStage 1 Temperature (°C)Stage 2 Temperature (°C)Extrusion Speed (% rpm)Roller Distance (cm)
HDPE/SKL–LA22023010023
226
22023010023
235
2202308023
100
22023010023
28
22623010023
235
2262308023
100
22623010023
28
Table
Table A2. Tabulated parameters and conditions for the optimization process for the HDPE spinning (HDPE/SKL–PLA (80:20)).
Table A2. Tabulated parameters and conditions for the optimization process for the HDPE spinning (HDPE/SKL–PLA (80:20)).
BlendStage 1 Temperature (°C)Stage 2 Temperature (°C)Extrusion Speed (% rpm)Roller Distance (cm)
HDPE/SKL–PLA2152258525
222
2152258525
230
2152256525
85
2152258525
30
2222258525
230
2222256525
85
2222258525
30

References

  1. Thunga, M.; Chen, K.; Grewell, D.; Kessler, M.R. Bio-renewable precursor fibers from lignin/polylactide blends for conversion to carbon fibers. Carbon 2014, 68, 159–166. [Google Scholar] [CrossRef] [Green Version]
  2. Mainka, H.; Täger, O.; Körner, E.; Hilfert, L.; Busse, S.; Edelmann, F.T.; Herrmann, A.S. Lignin—An alternative precursor for sustainable and cost-effective automotive carbon fiber. J. Mater. Res. Technol. 2015, 4, 283–296. [Google Scholar] [CrossRef] [Green Version]
  3. Maradur, S.P.; Kim, C.H.; Kim, S.Y.; Kim, B.H.; Kim, W.C.; Yang, K.S. Preparation of carbon fibers from a lignin copolymer with polyacrylonitrile. Synth. Met. 2012, 162, 453–459. [Google Scholar] [CrossRef]
  4. Ragauskas, A.J.; Beckham, G.T.; Biddy, M.J.; Chandra, R.; Chen, F.; Davis, M.F.; Davison, B.H.; Dixon, R.A.; Gilna, P.; Keller, M.; et al. Lignin valorization: Improving lignin processing in the biorefinery. Science 2014, 344, 1246843. [Google Scholar] [CrossRef]
  5. Naseem, A.; Tabasum, S.; Zia, K.M.; Zuber, M.; Ali, M.; Noreen, A. Lignin-derivatives based polymers, blends and composites: A review. Int. J. Biol. Macromol. 2016, 93 Pt A, 296–313. [Google Scholar] [CrossRef]
  6. Datta, J.; Parcheta, P.; Surówka, J. Softwood-lignin/natural rubber composites containing novel plasticizing agent: Preparation and characterization. Ind. Crop. Prod. 2017, 95, 675–685. [Google Scholar] [CrossRef]
  7. Ferdosian, F.; Yuan, Z.; Anderson, M.; Xu, C.C. Synthesis and characterization of hydrolysis lignin-based epoxy resins. Ind. Crop. Prod. 2016, 91, 295–301. [Google Scholar] [CrossRef]
  8. Simionescu, C.I.; Rusan, V.; Macoveanu, M.M.; Cazacu, G.; Lipsa, R.; Vasile, C.; Stoleriu, A.; Ioanid, A. Lignin/epoxy composites. Compos. Sci. Technol. 1993, 48, 317–323. [Google Scholar] [CrossRef]
  9. Zhou, Y.; Fan, M.; Chen, L. Interface and bonding mechanisms of plant fibre composites: An overview. Compos. B Eng. 2016, 101, 31–45. [Google Scholar] [CrossRef] [Green Version]
  10. Megiatto, J.D.; Silva, C.G.; Rosa, D.S.; Frollini, E. Sisal chemically modified with lignins: Correlation between fibers and phenolic composites properties. Polym. Degrad. Stab. 2008, 93, 1109–1121. [Google Scholar] [CrossRef]
  11. Lee, K.-Y.; Ho, K.K.C.; Schlufter, K.; Bismarck, A. Hierarchical composites reinforced with robust short sisal fibre preforms utilising bacterial cellulose as binder. Compos. Sci. Technol. 2012, 72, 1479–1486. [Google Scholar] [CrossRef] [Green Version]
  12. Migneault, S.; Koubaa, A.; Perré, P.; Riedl, B. Effects of wood fiber surface chemistry on strength of wood–plastic composites. Appl. Surf. Sci. 2015, 343, 11–18. [Google Scholar] [CrossRef]
  13. Alshaaer, M.; Mallouh, S.A.; Al-Kafawein, J.A.; Al-Faiyz, Y.; Fahmy, T.; Kallel, A.; Rocha, F. Fabrication, microstructural and mechanical characterization of Luffa Cylindrical Fibre—Reinforced geopolymer composite. Appl. Clay Sci. 2017, 143, 125–133. [Google Scholar] [CrossRef]
  14. Hervy, M.; Evangelisti, S.; Lettieri, P.; Lee, K.-Y. Life cycle assessment of nanocellulose-reinforced advanced fibre composites. Compos. Sci. Technol. 2015, 118, 154–162. [Google Scholar] [CrossRef] [Green Version]
  15. Ye, X.; Wang, H.; Zheng, K.; Wu, Z.; Zhou, H.; Tian, K.; Su, Z.; Tian, X. The interface designing and reinforced features of wood fiber/polypropylene composites: Wood fiber adopting nano-zinc-oxide-coating via ion assembly. Compos. Sci. Technol. 2016, 124, 1–9. [Google Scholar] [CrossRef]
  16. Soman, S.; Chacko, A.S.; Prasad, V.S. Semi-interpenetrating network composites of poly(lactic acid) with cis-9-octadecenylamine modified cellulose-nanofibers from Areca catechu husk. Compos. Sci. Technol. 2017, 141, 65–73. [Google Scholar] [CrossRef]
  17. Zhang, Y.; Gan, T.; Luo, Y.; Zhao, X.; Hu, H.; Huang, Z.; Huang, A.; Qin, X. A green and efficient method for preparing acetylated cassava stillage residue and the production of all-plant fibre composites. Compos. Sci. Technol. 2014, 102, 139–144. [Google Scholar] [CrossRef]
  18. Vaikhanski, L.; Lesko, J.J.; Nutt, S.R. Cellular polymer composites based on bi-component fibers. Compos. Sci. Technol. 2003, 63, 1403–1410. [Google Scholar] [CrossRef]
  19. Del Saz-Orozco, B.; Oliet, M.; Alonso, M.V.; Rojo, E.; Rodríguez, F. Formulation optimization of unreinforced and lignin nanoparticle-reinforced phenolic foams using an analysis of variance approach. Compos. Sci. Technol. 2012, 72, 667–674. [Google Scholar] [CrossRef]
  20. Wang, R.; Zhang, J.; Kang, H.; Zhang, L. Design, preparation and properties of bio-based elastomer composites aiming at engineering applications. Compos. Sci. Technol. 2016, 133, 136–156. [Google Scholar] [CrossRef]
  21. Meek, N.; Penumadu, D.; Hosseinaei, O.; Harper, D.; Young, S.; Rials, T. Synthesis and characterization of lignin carbon fiber and composites. Compos. Sci. Technol. 2016, 137, 60–68. [Google Scholar] [CrossRef]
  22. Wang, S.; Zhou, Z.; Xiang, H.; Chen, W.; Yin, E.; Chang, T.; Zhu, M. Reinforcement of lignin-based carbon fibers with functionalized carbon nanotubes. Compos. Sci. Technol. 2016, 128, 116–122. [Google Scholar] [CrossRef]
  23. Asp, L.E.; Greenhalgh, E.S. Structural power composites. Compos. Sci. Technol. 2014, 101, 41–61. [Google Scholar] [CrossRef]
  24. Laurichesse, S.; Avérous, L. Chemical modification of lignins: Towards biobased polymers. Prog. Polym. Sci. 2014, 39, 1266–1290. [Google Scholar] [CrossRef]
  25. McMurry, J. Carboxylic Acid Derivatives: Nucleophilic Acyl Substitution Reactions of Carboxylic Acids. In Organic Chemistry, 7th ed.; Brooks/Cole: Belmont, CA, USA, 2008; 21.3; pp. 794–800. [Google Scholar]
  26. McMurry, J. Carboxylic Acid Derivatives: Chemistry of Halide Acids. In Organic Chemistry, 7th ed.; Brooks/Cole: Belmont, CA, USA, 2008; 21.4; pp. 800–806. [Google Scholar]
  27. Goliszek, M.; Wiącek, A.E.; Wawrzkiewicz, M.; Sevastyanova, O.; Podkościelna, B. The impact of lignin addition on the properties of hybrid microspheres based on trimethoxyvinylsilane and divinylbenzene. Eur. Polym. J. 2019, 120, 109200. [Google Scholar] [CrossRef]
  28. Wang, X.; Zhai, M.; Wang, Z.; Dong, P.; Lv, W.; Liu, R. Carbonization and combustion characteristics of palm fiber. Fuel 2018, 227, 21–26. [Google Scholar] [CrossRef]
  29. Szycher, M. Szycher’s Handbook of Polyurethanes, 2nd ed.; CRC Press, Taylor & Francis Group: Boca Raton, FL, USA, 2013; pp. 87–134. [Google Scholar]
  30. Chauhan, M.; Gupta, M.; Singh, B.; Singh, A.K.; Gupta, V.K. Effect of functionalized lignin on the properties of lignin–isocyanate prepolymer blends and composites. Eur. Polym. J. 2014, 52, 32–43. [Google Scholar] [CrossRef]
  31. Dodda, J.M.; Bělský, P. Progress in designing poly(amide imide)s (PAI) in terms of chemical structure, preparation methods and processability. Eur. Polym. J. 2016, 84, 514–537. [Google Scholar] [CrossRef]
  32. Puszka, A.; Kultys, A. New thermoplastic polyurethane elastomers based on aliphatic diisocyanate. J. Therm. Anal. Calorim. 2016, 128, 407–416. [Google Scholar] [CrossRef] [Green Version]
  33. Ouyang, Q.; Wang, X.; Wang, X.; Huang, J.; Huang, X.; Chen, Y. Simultaneous DSC/TG analysis on the thermal behavior of PAN polymers prepared by aqueous free-radical polymerization. Polym. Degrad. Stab. 2016, 130, 320–327. [Google Scholar] [CrossRef]
  34. Tripathi, A.K.; Tsavalas, J.G.; Sundberg, D.C. Quantitative measurements of the extent of phase separation during and after polymerization in polymer composites using DSC. Thermochim. Acta 2013, 568, 20–30. [Google Scholar] [CrossRef]
  35. Schawe, J.E.K. Remarks regarding the determination of the initial crystallinity by temperature modulated DSC. Thermochim. Acta 2017, 657, 151–155. [Google Scholar] [CrossRef]
  36. Dumas, J.P.; Gibout, S.; Cézac, P.; Franquet, E. New theoretical determination of latent heats from DSC curves. Thermochim. Acta 2018, 670, 92–106. [Google Scholar] [CrossRef]
  37. Klásek, A.; Rege, D.V. Reaction of 4-hydroxy-2-quinolones with thionyl chloride—Preparation of new spiro-benzo[1,3]oxathioles and their transformations. Tetrahedron 2013, 69, 492–499. [Google Scholar] [CrossRef]
  38. Merchant, J.R.; Rege, D.V. Reaction of thionyl chloride with flavone. Tetrahedron Lett. 1969, 10, 3589–3591. [Google Scholar] [CrossRef]
  39. Chern, Y.-T.; Huang, C.-M. Synthesis and characterization of new polyesters derived from 1,6- or 4,9-diamantanedicarboxylic acyl chlorides with aryl ether diols. Polymer 1998, 39, 2325–2329. [Google Scholar] [CrossRef]
  40. Sutter, P.; Weis, C.D. The chlorination of 1,4-dihydroxyanthraquinone with thionyl chloride. Dye. Pigment. 1985, 6, 435–443. [Google Scholar] [CrossRef]
  41. Freeman, J.H.; Smith, M.L. The preparation of anhydrous inorganic chlorides by dehydration with thionyl chloride. J. Inorg. Nucl. Chem. 1958, 7, 224–227. [Google Scholar] [CrossRef]
  42. Zhao, J.; Xiuwen, W.; Hu, J.; Liu, Q.; Shen, D.; Xiao, R. Thermal degradation of softwood lignin and hardwood lignin by TG-FTIR and Py-GC/MS. Polym. Degrad. Stab. 2014, 108, 133–138. [Google Scholar] [CrossRef]
  43. Jin, W.; Shen, D.; Liu, Q.; Xiao, R. Evaluation of the co-pyrolysis of lignin with plastic polymers by TG-FTIR and Py-GC/MS. Polym. Degrad. Stab. 2016, 133, 65–74. [Google Scholar] [CrossRef]
  44. Ravindar Reddy, M.; Subrahmanyam, A.R.; Maheshwar Reddy, M.; Siva Kumar, J.; Kamalaker, V.; Jaipal Reddy, M. X-RD, SEM, FT-IR, DSC Studies of Polymer Blend Films of PMMA and PEO. Mater. Today Proc. 2016, 3, 3713–3718. [Google Scholar] [CrossRef]
  45. Soulis, S.; Anagnou, S.; Milioni, E.; Mpalias, C.; Kartsonakis, I.A.; Kanellopoulou, I.; Markakis, V.; Koumoulos, E.P.; Kontou, E.; Charitidis, C.A. Strategies towards Novel Carbon Fiber Precursors: The Research Results on the Synthesis of PAN Copolymers via AGET ATRP and on Lignin as a Precursor. NanoWorld J. 2015, 1, 88–94. [Google Scholar] [CrossRef] [Green Version]
  46. Abrishambaf, A.; Pimentel, M.; Nunes, S. Influence of fibre orientation on the tensile behaviour of ultra-high performance fibre reinforced cementitious composites. Cem. Concr. Res. 2017, 97, 28–40. [Google Scholar] [CrossRef]
  47. Jang, S.Y.; Ko, S.; Jeon, Y.P.; Choi, J.; Kang, N.; Kim, H.C.; Joh, H.-I.; Lee, S. Evaluating the stabilization of isotropic pitch fibers for optimal tensile properties of carbon fibers. J. Ind. Eng. Chem. 2017, 45, 316–322. [Google Scholar] [CrossRef]
  48. Torres, J.P.; Vandi, L.J.; Veidt, M.; Heiztmann, M.T. Statistical data for the tensile properties of natural fibre composites. Data Brief 2017, 12, 222–226. [Google Scholar] [CrossRef]
  49. Zhong, Y.; Bian, W. Analysis of the tensile moduli affected by microstructures among seven types of carbon fibers. Compos. B Eng. 2017, 110, 178–184. [Google Scholar] [CrossRef]
  50. Bie, B.X.; Huang, J.Y.; Fan, D.; Sun, T.; Fezzaa, K.; Xiao, X.H.; Qi, M.L.; Luo, S.N. Orientation-dependent tensile deformation and damage of a T700 carbon fiber/epoxy composite: A synchrotron-based study. Carbon 2017, 121, 127–133. [Google Scholar] [CrossRef]
  51. Borodulina, S.; Motamedian, H.R.; Kulachenko, A. Effect of fiber and bond strength variations on the tensile stiffness and strength of fiber networks. Int. J. Solids Struct. 2016, 154, 19–32. [Google Scholar] [CrossRef]
  52. Wan, Y.; Straumit, I.; Takahashi, J.; Lomov, S.V. Micro-CT analysis of internal geometry of chopped carbon fiber tapes reinforced thermoplastics. Compos. A Appl. Sci. Manuf. 2016, 91, 211–221. [Google Scholar] [CrossRef]
  53. Ferguson, J.C.; Panerai, F.; Lachaud, J.; Martin, A.; Bailey, S.C.C.; Mansour, N.N. Modeling the oxidation of low-density carbon fiber material based on micro-tomography. Carbon 2016, 96, 57–65. [Google Scholar] [CrossRef] [Green Version]
  54. Liu, J.; Li, C.; Liu, J.; Cui, G.; Yang, Z. Study on 3D spatial distribution of steel fibers in fiber reinforced cementitious composites through micro-CT technique. Constr. Build. Mater. 2013, 48, 656–661. [Google Scholar] [CrossRef]
  55. Sencu, R.M.; Yang, Z.; Wang, Y.C.; Withers, P.J.; Rau, C.; Parson, A.; Soutis, C. Generation of micro-scale finite element models from synchrotron X-ray CT images for multidirectional carbon fibre reinforced composites. Compos. A Appl. Sci. Manuf. 2016, 91, 85–95. [Google Scholar] [CrossRef] [Green Version]
  56. Cosmi, F.; Bernasconi, A. Micro-CT investigation on fatigue damage evolution in short fibre reinforced polymers. Compos. Sci. Technol. 2013, 79, 70–76. [Google Scholar] [CrossRef]
  57. Ning, Z.; Liu, R.; Elhajjar, R.F.; Wang, F. Micro-modeling of thermal properties in carbon fibers reinforced polymer composites with fiber breaks or delamination. Compos. B Eng. 2017, 114, 247–255. [Google Scholar] [CrossRef]
  58. Headrick, R.J.; Trafford, M.A.; Taylor, L.W.; Dewey, O.S.; Wincheski, R.A.; Pasquali, M. Electrical and acoustic vibroscopic measurements for determining carbon nanotube fiber linear density. Carbon 2019, 144, 417–422. [Google Scholar] [CrossRef]
  59. Putignano, C.; Menga, N.; Afferrante, L.; Carbone, G. Viscoelasticity induces anisotropy in contacts of rough solids. J. Mech. Phys. Solids 2019, 129, 147–159. [Google Scholar] [CrossRef]
  60. Xia, Y.; Cai, J.; Perfect, E.; Wei, W.; Zhang, Q.; Meng, Q. Fractal dimension, lacunarity and succolarity analyses on CT images of reservoir rocks for permeability prediction. J. Hydrol. 2019, 579, 124198. [Google Scholar] [CrossRef]
  61. Liu, X.; Zhu, C.; Guo, J.; Liu, Q.; Dong, H.; Gu, Y.; Liu, R.; Zhao, N.; Zhang, Z.; Xu, J. Nanoscale dynamic mechanical imaging of the skin–core difference: From PAN precursors to carbon fibers. Mater. Lett. 2014, 128, 417–420. [Google Scholar] [CrossRef]
  62. Long, D.A. Infrared and Raman characteristic group frequencies. Tables and chartsGeorge Socrates John Wiley and Sons, Ltd, Chichester, Third Edition, 2001, Price £135. J. Raman Spectrosc. 2004, 35, 905. [Google Scholar] [CrossRef]
  63. Musiol, P.; Szatkowski, P.; Gubernat, M.; Weselucha-Birczynska, A.; Blazewicz, S. Comparative study of the structure and microstructure of PAN-based nano- and micro-carbon fibers. Ceram. Int. 2016, 42, 11603–11610. [Google Scholar] [CrossRef]
  64. Jin, S.; Guo, C.; Lu, Y.; Zhang, R.; Wang, Z.; Jin, M. Comparison of microwave and conventional heating methods in carbonization of polyacrylonitrile-based stabilized fibers at different temperature measured by an in-situ process temperature control ring. Polym. Degrad. Stab. 2017, 140, 32–41. [Google Scholar] [CrossRef]
  65. Park, O.-K.; Lee, S.; Joh, H.-I.; Kim, J.K.; Kang, P.-H.; Lee, J.H.; Ku, B.-C. Effect of functional groups of carbon nanotubes on the cyclization mechanism of polyacrylonitrile (PAN). Polymer 2012, 53, 2168–2174. [Google Scholar] [CrossRef]
  66. Batchelor, B.L.; Mahmood, S.F.; Jung, M.; Shin, H.; Kulikov, O.V.; Voit, W.; Novak, B.M.; Yang, D.J. Plasticization for melt viscosity reduction of melt processable carbon fiber precursor. Carbon 2016, 98, 681–688. [Google Scholar] [CrossRef] [Green Version]
  67. Berrueco, C.; Álvarez, P.; Díez, N.; Granda, M.; Menéndez, R.; Blanco, C.; Santamaria, R.; Millan, M. Characterisation and feasibility as carbon fibre precursors of isotropic pitches derived from anthracene oil. Fuel 2012, 101, 9–15. [Google Scholar] [CrossRef]
  68. Li, X.; Zhu, X.-Q.; Okuda, K.; Zhang, Z.; Ashida, R.; Yao, H.; Miura, K. Preparation of carbon fibers from low-molecular-weight compounds obtained from low-rank coal and biomass by solvent extraction. New Carbon Mater. 2017, 32, 41–47. [Google Scholar] [CrossRef]
  69. Şahin, K.; Fasanella, N.A.; Chasiotis, I.; Lyons, K.M.; Newcomb, B.A.; Kamath, M.G.; Chae, H.G.; Kumar, S. High strength micron size carbon fibers from polyacrylonitrile–carbon nanotube precursors. Carbon 2014, 77, 442–453. [Google Scholar] [CrossRef]
  70. Spörl, J.M.; Ota, A.; Son, S.; Massonne, K.; Hermanutz, F.; Buchmeiser, M.R. Carbon fibers prepared from ionic liquid-derived cellulose precursors. Mater. Today Commun. 2016, 7, 1–10. [Google Scholar] [CrossRef]
  71. Guo, T.; Xia, Q.; Shao, Y.; Liu, X.; Wang, Y. Direct deoxygenation of lignin model compounds into aromatic hydrocarbons through hydrogen transfer reaction. Appl. Catal. A Gen. 2017, 547, 30–36. [Google Scholar] [CrossRef]
Applsci 09 05361 g001 550

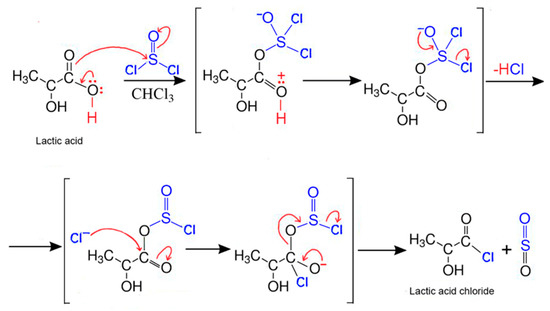

Figure 1. Chemical reaction of the chlorination process.
Figure 1. Chemical reaction of the chlorination process.
Applsci 09 05361 g001
Applsci 09 05361 g002 550

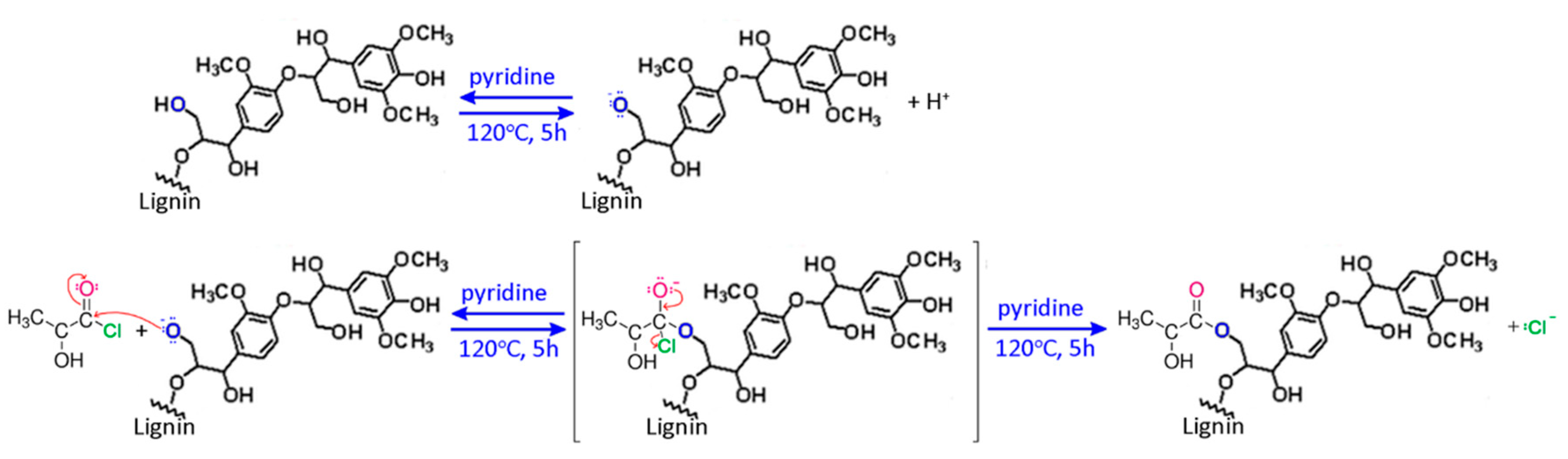

Figure 2. Esterification reaction between Softwood Kraft Lignin (SKL) and lactic acid chloride (LCl).
Figure 2. Esterification reaction between Softwood Kraft Lignin (SKL) and lactic acid chloride (LCl).
Applsci 09 05361 g002
Applsci 09 05361 g003 550

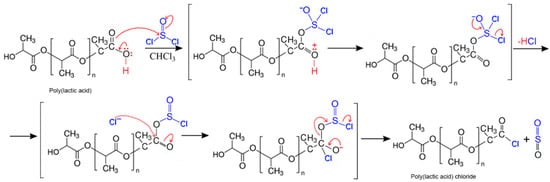

Figure 3. Chemical reaction of the poly(lactic acid) (PLA) chlorination process.
Figure 3. Chemical reaction of the poly(lactic acid) (PLA) chlorination process.
Applsci 09 05361 g003
Applsci 09 05361 g004 550

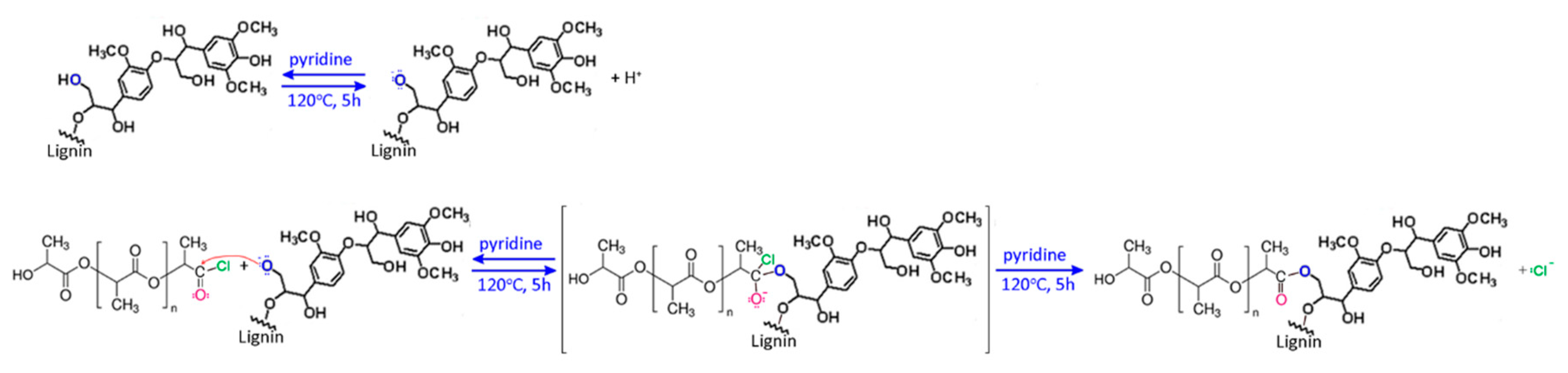

Figure 4. Esterification reaction between SKL and PLCl.
Figure 4. Esterification reaction between SKL and PLCl.
Applsci 09 05361 g004
Applsci 09 05361 g005 550

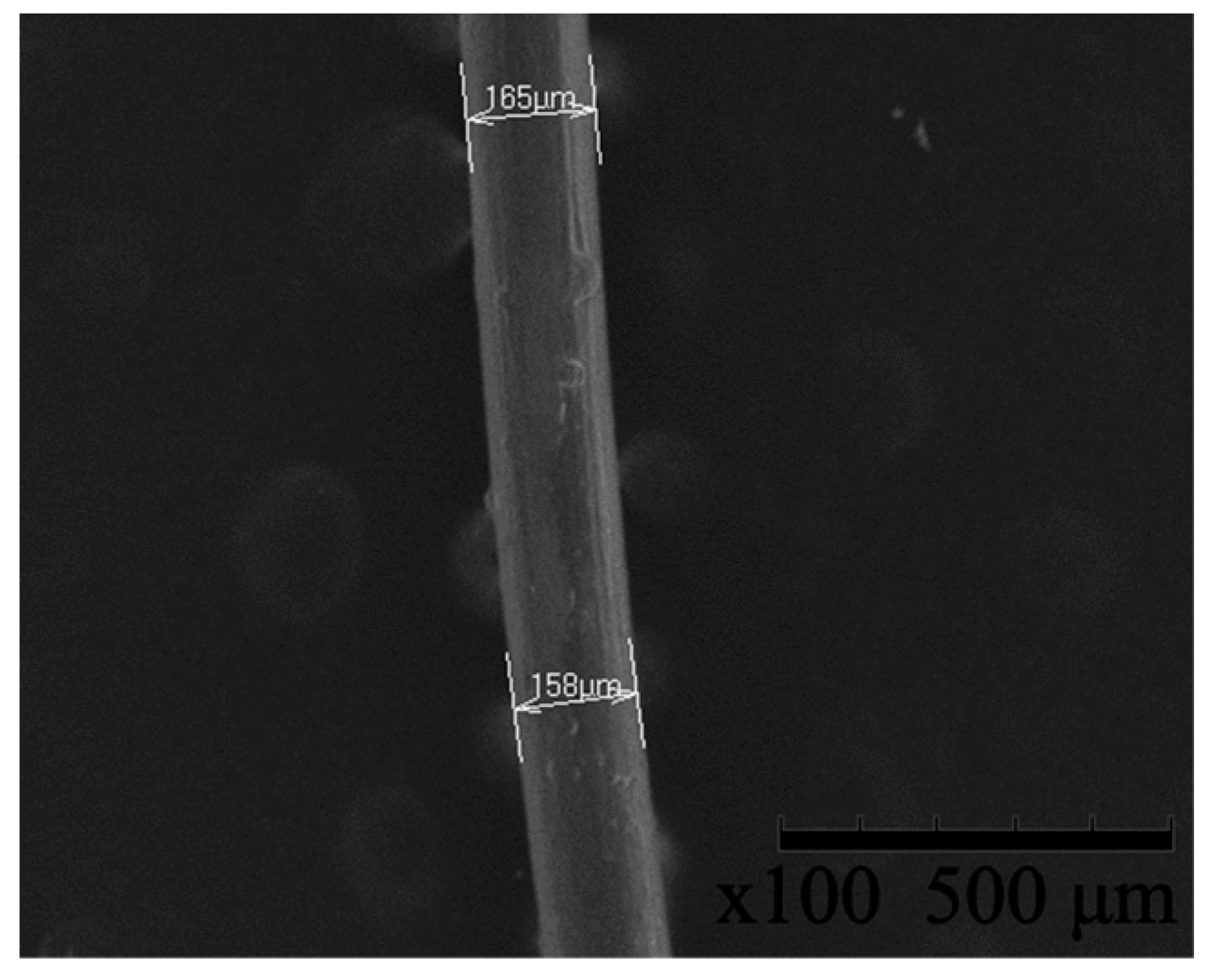

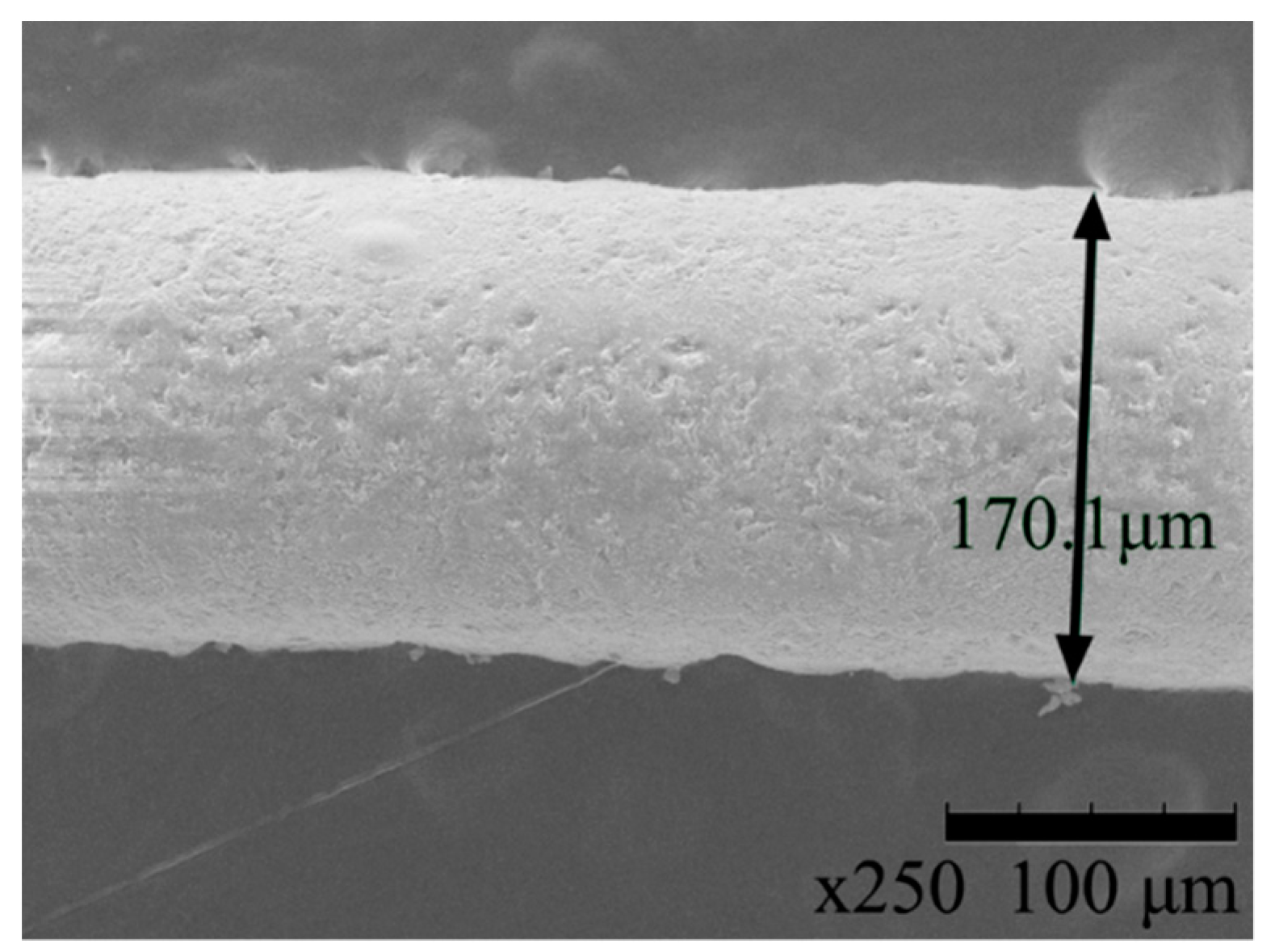

Figure 5. SEM image of high-density polyethylene (HDPE)/SKL–LA fiber.
Figure 5. SEM image of high-density polyethylene (HDPE)/SKL–LA fiber.
Applsci 09 05361 g005
Applsci 09 05361 g006 550
Figure 6. SEM image of HDPE/SKL–PLA (precursor) fiber.
Figure 6. SEM image of HDPE/SKL–PLA (precursor) fiber.
Applsci 09 05361 g006
Applsci 09 05361 g007 550
Figure 7. SEM image of HDPE/SKL–PLA carbonized fiber.
Figure 7. SEM image of HDPE/SKL–PLA carbonized fiber.
Applsci 09 05361 g007
Applsci 09 05361 g008 550
Figure 8. TGA/DSC graphs of: (a) PLCl compound, (b) SKL–LA compound, (c) SKL–PLA compound, and (d) HDPE/SKL–PLA carbon fiber.
Figure 8. TGA/DSC graphs of: (a) PLCl compound, (b) SKL–LA compound, (c) SKL–PLA compound, and (d) HDPE/SKL–PLA carbon fiber.
Applsci 09 05361 g008
Applsci 09 05361 g009 550
Figure 9. FTIR spectra of PLA and PLCl.
Figure 9. FTIR spectra of PLA and PLCl.
Applsci 09 05361 g009
Applsci 09 05361 g010 550

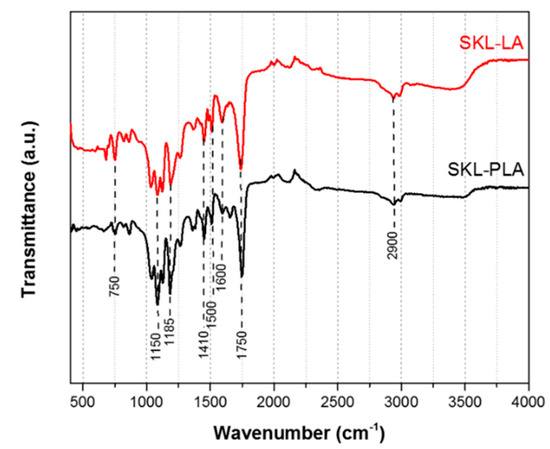

Figure 10. FTIR spectra of SKL–LA and SKL–PLA materials.
Figure 10. FTIR spectra of SKL–LA and SKL–PLA materials.
Applsci 09 05361 g010
Applsci 09 05361 g011 550

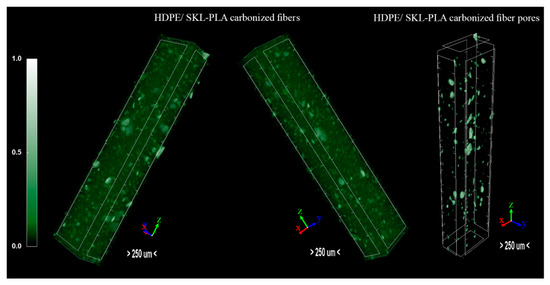

Figure 11. Micro-CT volume rendering images of the HDPE/SKL–PLA carbonized fiber.
Figure 11. Micro-CT volume rendering images of the HDPE/SKL–PLA carbonized fiber.
Applsci 09 05361 g011
Applsci 09 05361 g012 550

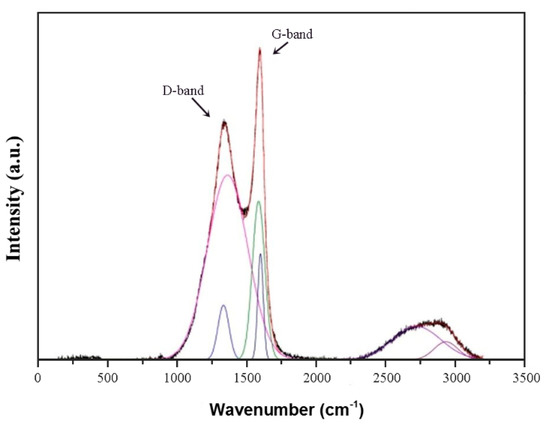

Figure 12. Raman spectroscopy of HDPE/SKL–PLA carbon fiber. The different colored lines correspond to the Gaussian curves used for fitting the density plot of Raman signal via a MATLAB script. The integrals were used to determine ID/IG ratio.
Figure 12. Raman spectroscopy of HDPE/SKL–PLA carbon fiber. The different colored lines correspond to the Gaussian curves used for fitting the density plot of Raman signal via a MATLAB script. The integrals were used to determine ID/IG ratio.
Applsci 09 05361 g012
Table
Table 1. Tabulated parameters and conditions of melt spinning process.
Table 1. Tabulated parameters and conditions of melt spinning process.
BlendStage 1 Temperature (°C)Stage 2 Temperature (°C)Extrusion Speed (% rpm)Roller Distance (cm)
HDPE/SKL–LA22623010023
HDPE/SKL–PLA2222258525
Table
Table 2. Tabulated thermal treatment results.
Table 2. Tabulated thermal treatment results.
Sample150 °C, 1 h220 °C, 3 h300 °C, 10 minProceeded to CarbonizationSuccessful Carbonization
HDPE/SKL–LAsustainedsustainedsustainedYesneed for optimization
HDPE/SKL–PLAsustained (fiber shrinkage)sustainedsustainedYesYes
Table
Table 3. Tabulated SEM analysis results of the produced fibers.
Table 3. Tabulated SEM analysis results of the produced fibers.
SampleMin. Diameter (μm)Max. Diameter (μm)Average Diameter (μm)
HDPE/SKL–LA158165161.5
HDPE/SKL–PLA (precursor)155164159.5
HDPE/SKL–PLA (carbon fiber)168.5170.1169.3
Table
Table 4. Tabulated values of wt.% elemental composition of the produced HDPE/SKL–PLA fibers.
Table 4. Tabulated values of wt.% elemental composition of the produced HDPE/SKL–PLA fibers.
SampleElementwt.%
C57.60
HDPE/SKL–PLA (precursor)O41.53
Cl0.87
C87.89
HDPE/SKL–PLA (carbon fiber)O11.60
Cl0.51
Table
Table 5. Thermal analysis of the samples.
Table 5. Thermal analysis of the samples.
SampleOnset Temperature of Thermal Degradation (°C)Peak Temperature of Thermal Degradation (°C)End Temperature of Thermal Degradation (°C)Mass Change (wt.%)
PLCl284.9320.8399.395
SKL–LA205.1277.9740.075
SKL–PLA236.1285.7781.869
HDPE/SKL–PLA (carbon fiber)625.0725800.015
Table
Table 6. Identified FTIR peaks ascribed to the peaks of PLA and PLCl materials.
Table 6. Identified FTIR peaks ascribed to the peaks of PLA and PLCl materials.
Wavenumber (cm−1)Type of Bond Vibration
3294–COOH (PLA)
2847–COOH (PLA)
1750C=O (both PLA and PLCl)
1640asymmetric CO2− stretching vibration (PLA)
1558asymmetric CO2− stretching vibration (PLA)
1453C–H (both PLA and PLCl)
1185C–O (both PLA and PLCl)
1080C–O (both PLA and PLCl)
750C–H (both PLA and PLCl)
Table
Table 7. Identified FTIR peaks ascribed to the SKL–LA and SKL–PLA materials.
Table 7. Identified FTIR peaks ascribed to the SKL–LA and SKL–PLA materials.
Wavenumber (cm−1)Type of Bond
3500O–H (both SKL–LA and SKL–PLA)
2900C–H stretch
1750C=O (both SKL–LA and SKL–PLA)
1600aromatic lignin rings (conjugated structure)
1500aromatic lignin rings
1410aromatic lignin rings
1150–1185C–O (both SKL–LA and SKL–PLA)
750C–H bend (both SKL–LA and SKL–PLA)
Table
Table 8. Micro-CT arithmetical values.
Table 8. Micro-CT arithmetical values.
ParametersHDPE/SKL–PLA Carbonized
Object Surface Density (mm−1)17.19
Structure Linear Density (mm−1)12.68
Degree of Anisotropy1.599
Fractal Dimension2.600
Total Porosity (%)1.995

Share and Cite

MDPI and ACS Style

Goulis, P.; Kartsonakis, I.A.; Konstantopoulos, G.; Charitidis, C.A. Synthesis and Processing of Melt Spun Materials from Esterified Lignin with Lactic Acid. Appl. Sci. 2019, 9, 5361. https://doi.org/10.3390/app9245361

AMA Style

Goulis P, Kartsonakis IA, Konstantopoulos G, Charitidis CA. Synthesis and Processing of Melt Spun Materials from Esterified Lignin with Lactic Acid. Applied Sciences. 2019; 9(24):5361. https://doi.org/10.3390/app9245361

Chicago/Turabian Style

Goulis, Panagiotis, Ioannis A. Kartsonakis, George Konstantopoulos, and Costas A. Charitidis. 2019. "Synthesis and Processing of Melt Spun Materials from Esterified Lignin with Lactic Acid" Applied Sciences 9, no. 24: 5361. https://doi.org/10.3390/app9245361

APA Style

Goulis, P., Kartsonakis, I. A., Konstantopoulos, G., & Charitidis, C. A. (2019). Synthesis and Processing of Melt Spun Materials from Esterified Lignin with Lactic Acid. Applied Sciences, 9(24), 5361. https://doi.org/10.3390/app9245361

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
