Categorization of the Condition of Railway Embankments Using a Multi-Attribute Utility Theory
Abstract
:1. Introduction
2. Methodology
2.1. The Multi-Attribute Utility Theory (MAUT)
2.2. Selection of Attributes
2.2.1. Attribute 1: Maintenance History
2.2.2. Attribute 2: Visual Assessment of External Irregularities
- Observable embankment slope slips (material failure in the side slope);
- Observable embankment bulging (evidence of the slide slopes expanding laterally);
- Observable crest settlement (suggesting settlement of the material beneath the embankment);
- Broken sleepers.
2.2.3. Attributes 3–5: A GPR Investigation Data

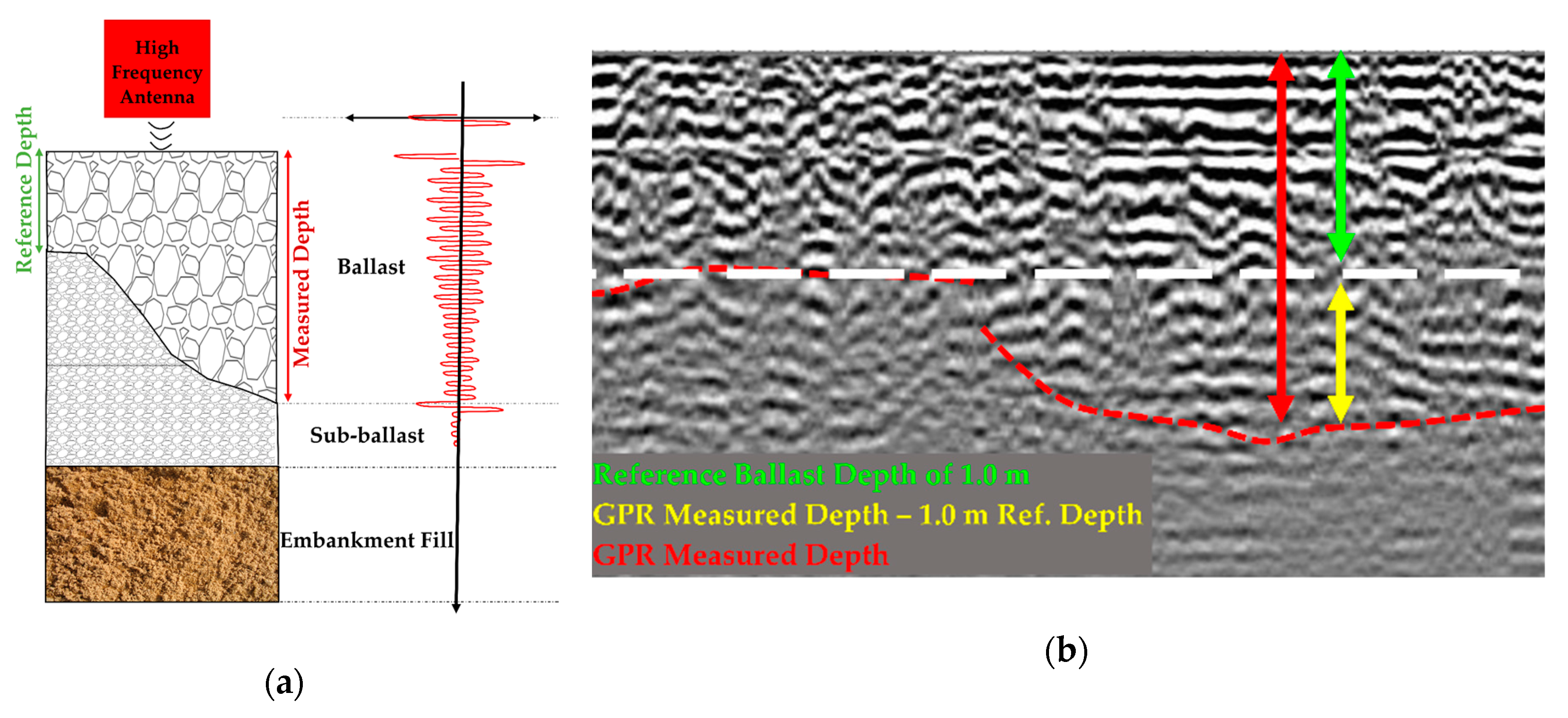

Attribute 3: The Depth of Ballast Layer (Ballast Pockets)

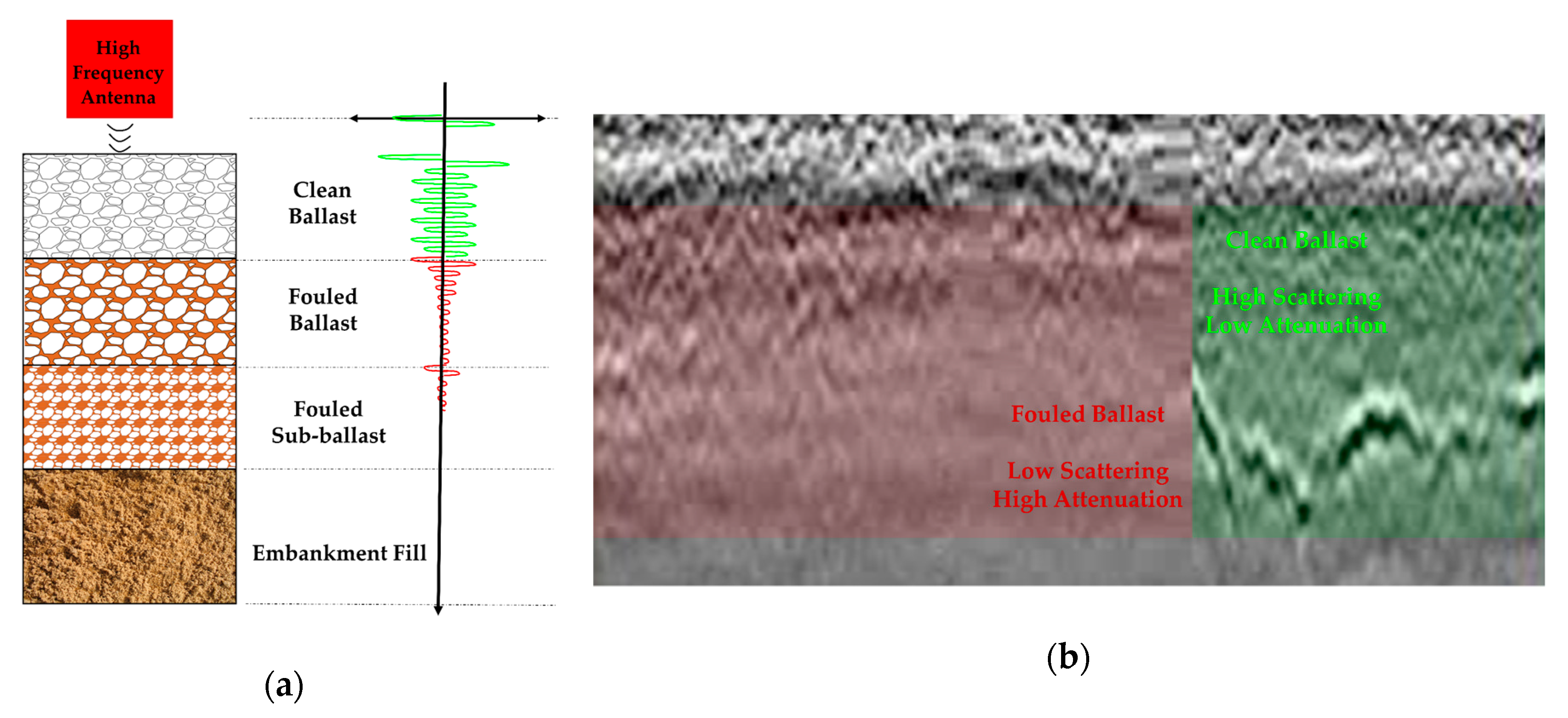

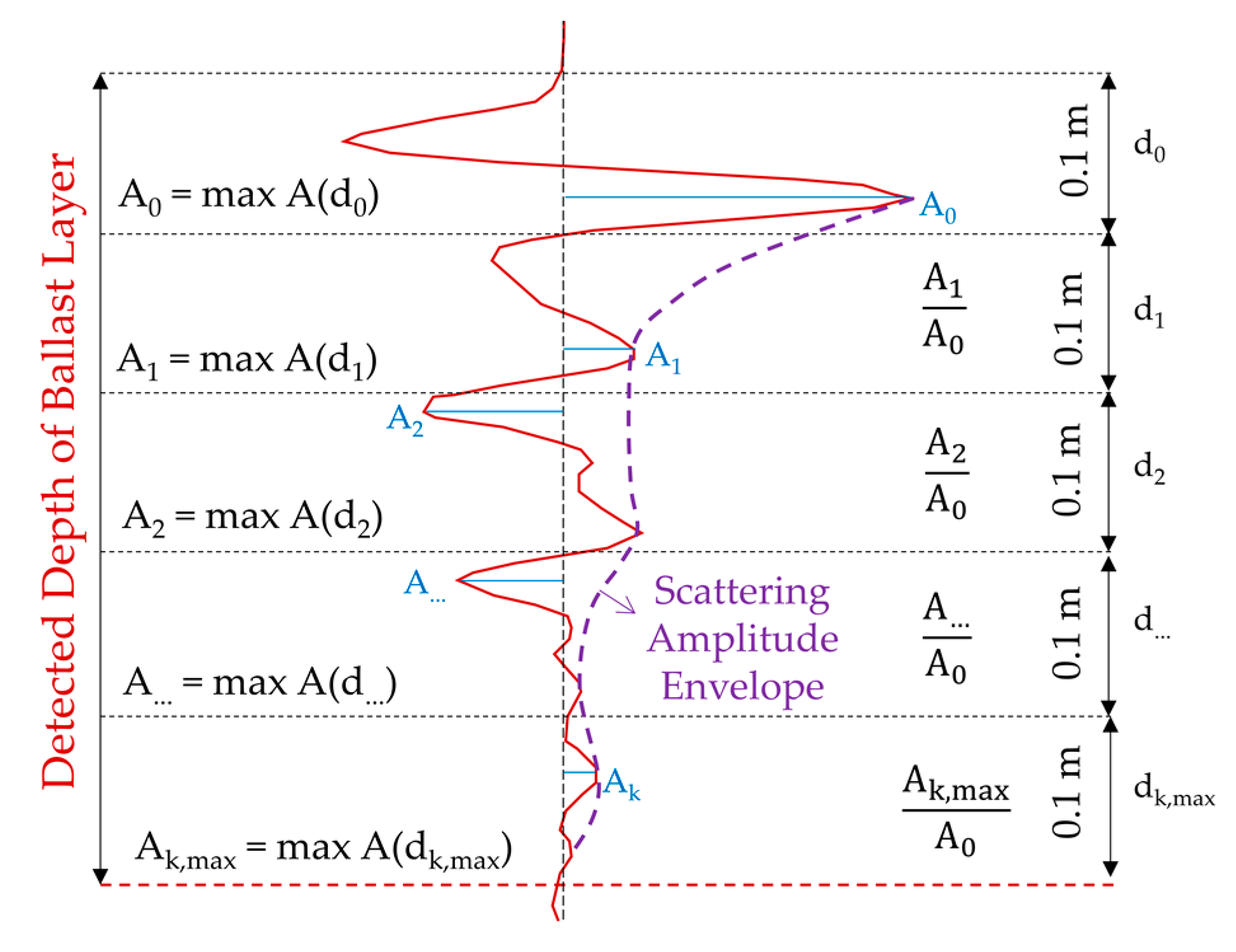

Attribute 4: Ballast Fouling (Quality of Ballast Layer)

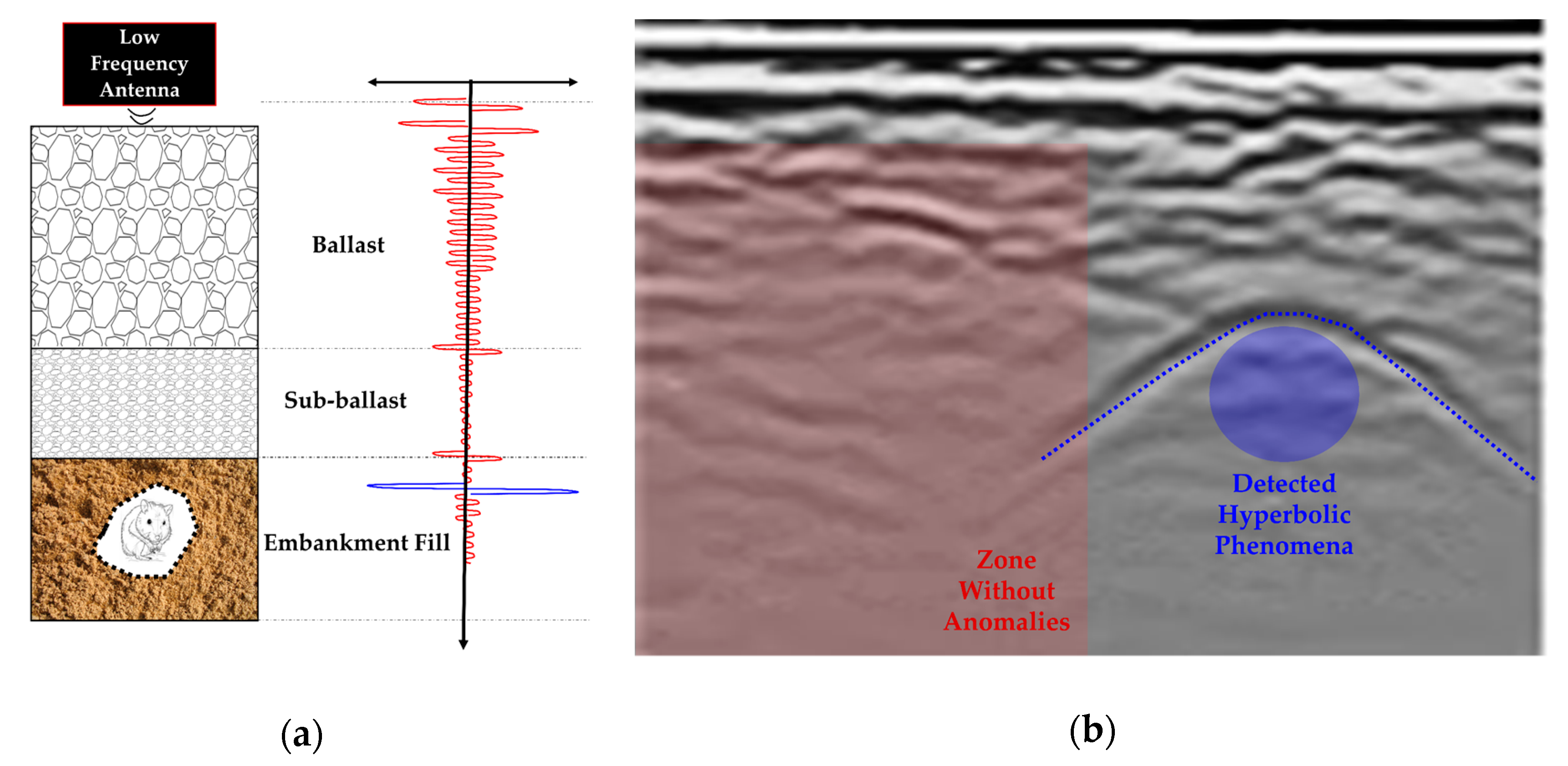

Attribute 5: Irregularities in Sub-Ballast and Embankment Fill
2.3. Implementation of Multi-Attribute Utility Theory
- —normalized utility function value for Attribute i and Alternative j
- Sj—Alternative j, subsection of 100 m in length; j = 1, 2, …, m
- m—number of alternatives
- QVC,i—quantification value of Attribute i; i = 1, 2, …, n
- n—number of attributes
- wi—weight of importance for Attribute i
- —the overall utility function value for Alternative j
3. Case Study Example
3.1. Description of the Case Study Area

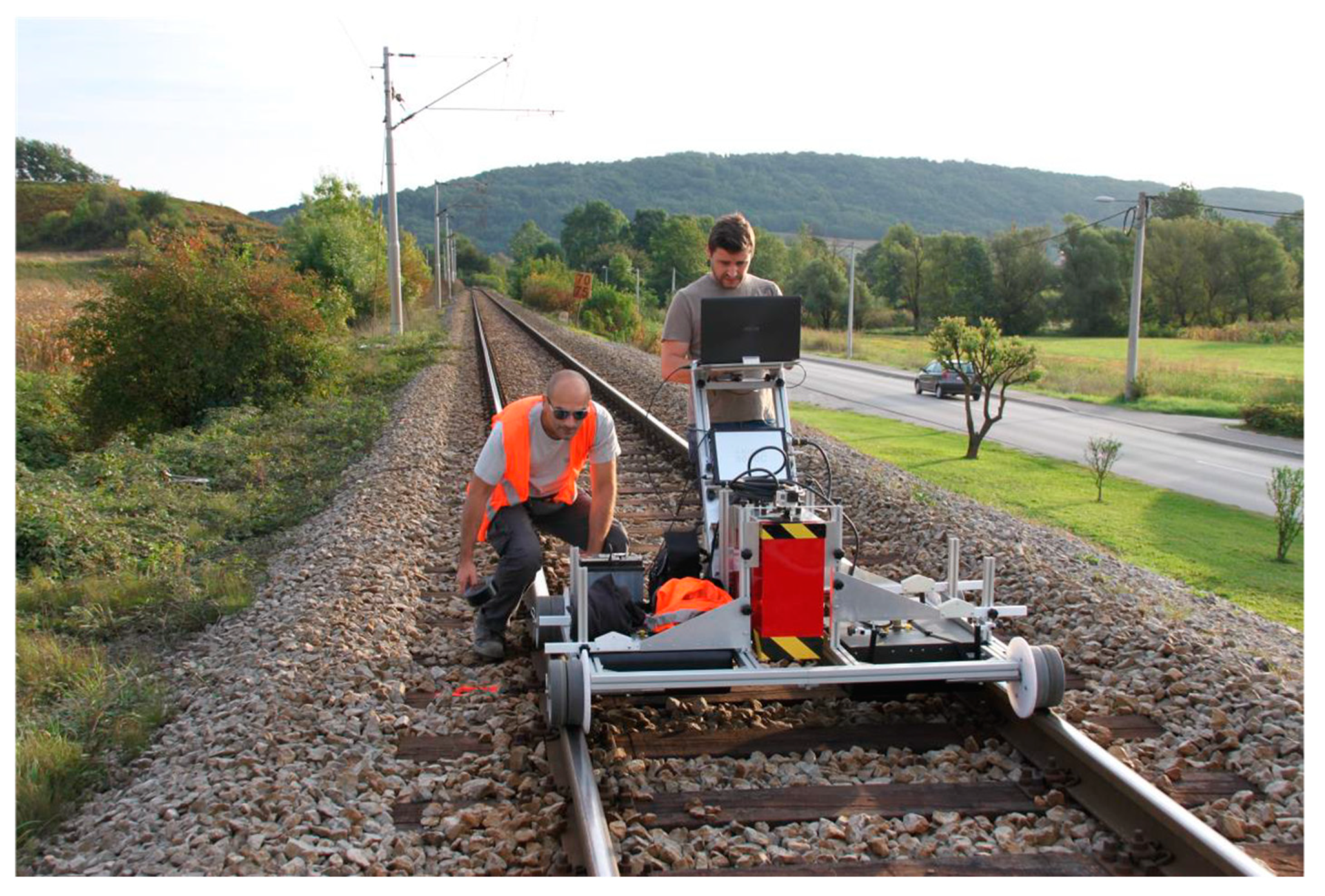

3.2. Data Acquisition Procedure

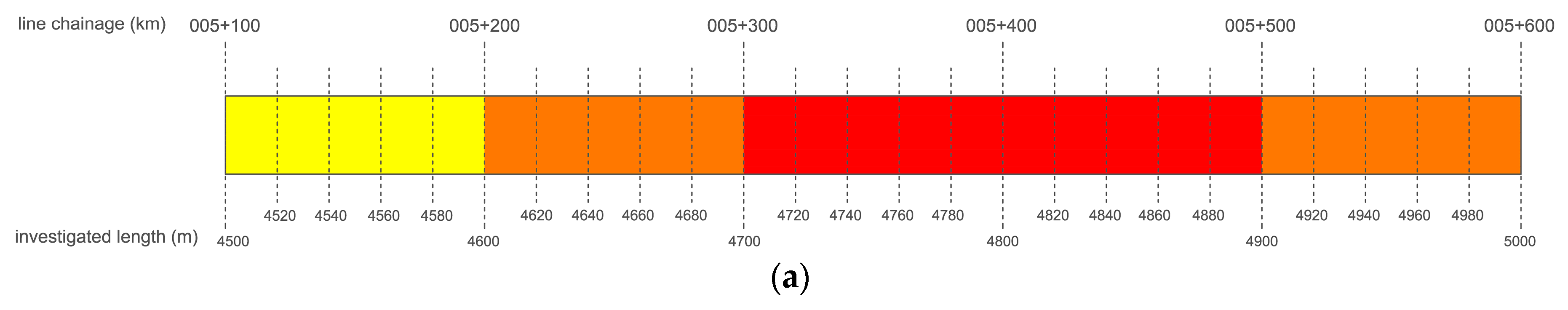

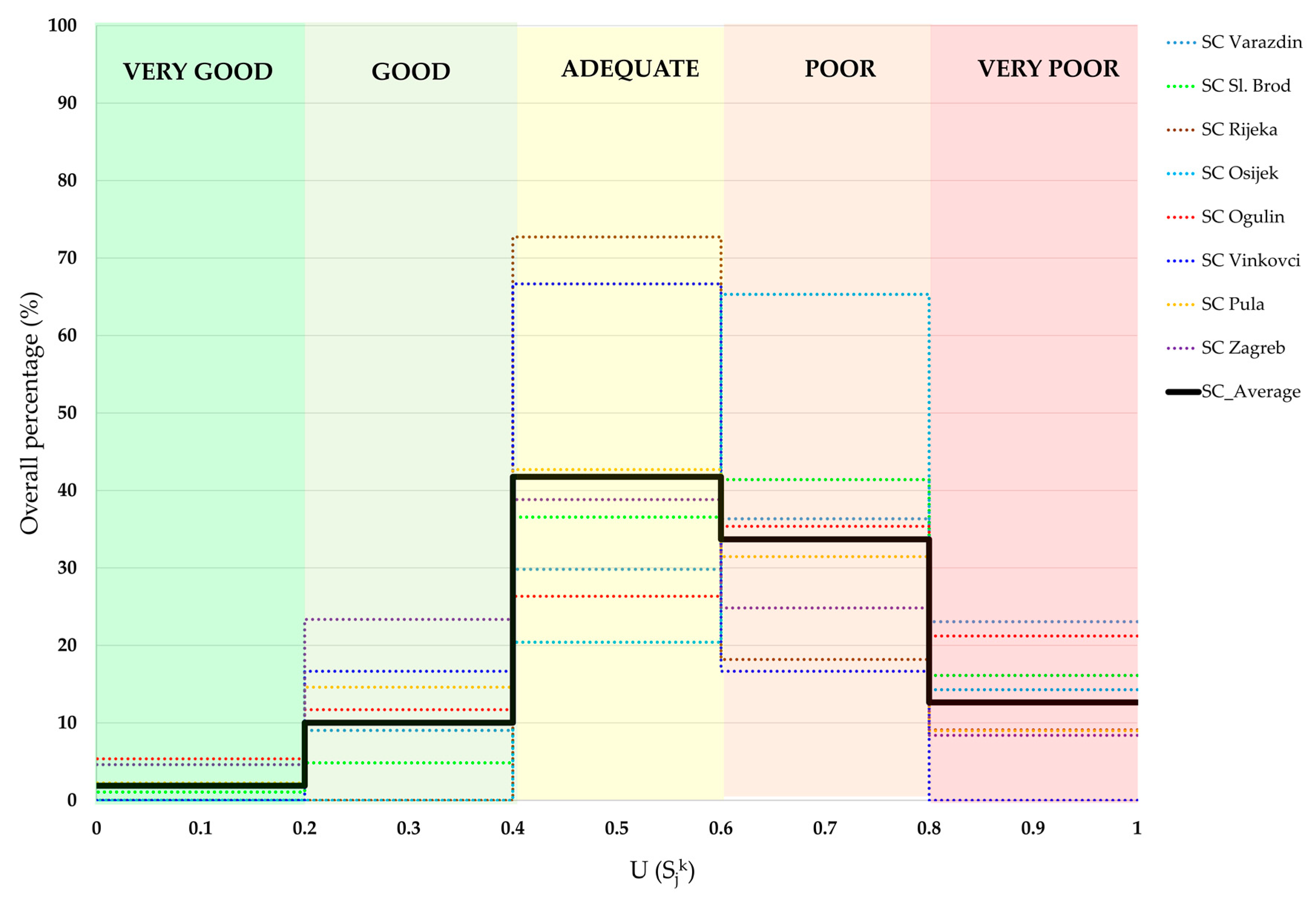

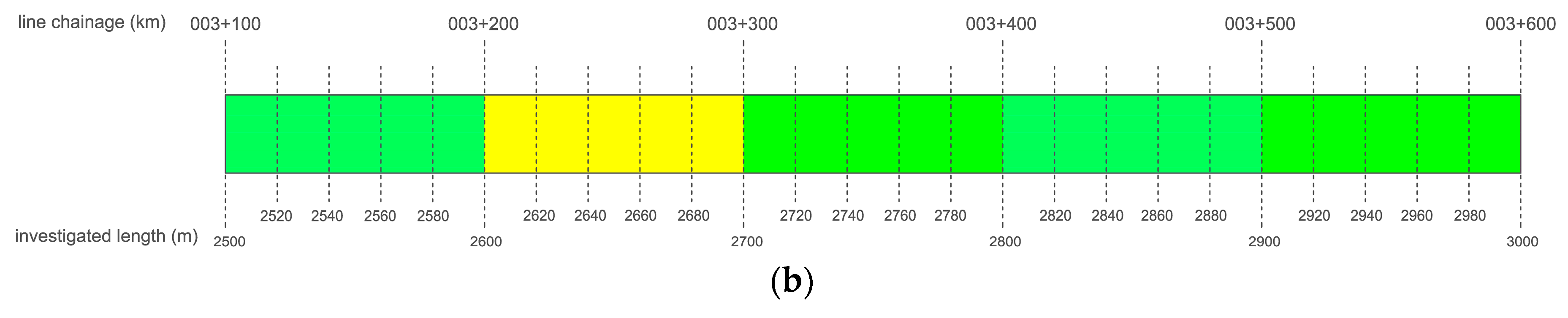

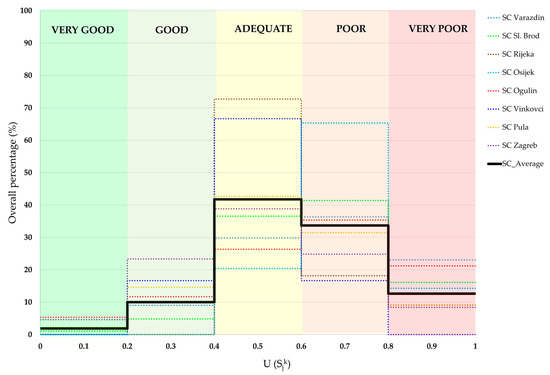

3.3. Results and Discussion
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
