# Piezoelectric Composite Vibrator with a Bilaminated Structure for Bending Vibration

^{1}

^{2}

^{*}

## Abstract

**:**

## Featured Application

**The 2-2 piezoelectric composite bilaminated vibrator with lower resonance frequency and larger vibration displacement used for making low frequency acoustic transducer.**

## Abstract

## 1. Introduction

_{h}and g

_{h}of high hydrostatic pressure. In underwater acoustic applications, the hydrostatic piezoelectric constant d

_{h}= d

_{33}+ 2d

_{31}of ordinary PZT. Because d

_{33}is approximately equal to −2d

_{31}, d

_{h}is very small. In piezoelectric composites, d

_{31}is reduced by controlling the volume fraction of PZT phase, thus d

_{h}is increased. The dielectric constant of piezoelectric composites is very small, which makes g

_{h}= d

_{h}/ε much larger than that of ordinary PZT. Therefore, piezoelectric composite materials are ideal materials for hydrophones. (5) Smaller plane electromechanical coupling coefficient. In piezoelectric composites, PZT columns are coupled by polymers, and the plane electromechanical coupling coefficient of PZT columns is smaller than that of ordinary PZT columns. Therefore, the radial mode in piezoelectric composites is weaker than that in ordinary PZT, which makes the energy more concentrated on the thickness mode, which improves the time response of the pulse to a certain extent. (6) Flexible polymers, such as epoxy resins, are more flexible at high temperatures, which can make piezoelectric composites into some specific shapes to meet the special requirements of practical applications. In the past, in the fabrication of focusing transducers, acoustic lenses were added to the surface of PZT or piezoelectric single crystal to narrow or focus the sound beam at a certain point in space. Using piezoelectric composites, spherical or cylindrical concave surfaces with certain curvature can be pressed at high temperatures, so that sound waves can be directly focused at the center of curvature, generating point or line focused beams, thus avoiding the trouble of making sound lenses and calculating the location of focus. At the same time, it can reduce the loss caused by the acoustic lens and improve the sensitivity of the transducer. In the present work, piezoelectric composite materials were used to replace piezoelectric ceramics to fabricate a bilaminated vibrator, improve the vibration displacement, and reduce the resonance frequency.

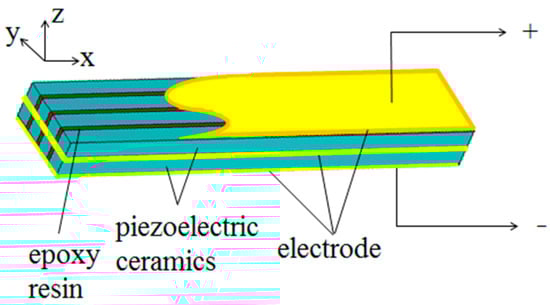

## 2. Structure of the Bilaminated Piezoelectric Composite Vibrator

## 3. Finite Element Simulation of the Piezoelectric Composite Bilaminated Vibrator

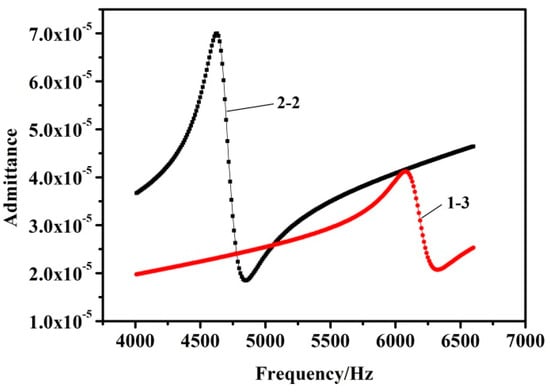

_{s}and f

_{p}refer to the series resonance frequency and the parallel resonance frequency, respectively. The results are listed in Table 2.

^{−11}m, and that of the 1-3 vibrator was 3.72 × 10

^{−11}m, where the driving voltage was 1 V. Moreover, the maximum vibration displacement of the 2-2 vibrator was twice greater than that of the 1-3 vibrator, suggesting that the 2-2 composite is superior to the 1-3 composite in the preparation of the piezoelectric composite bilaminated vibrator.

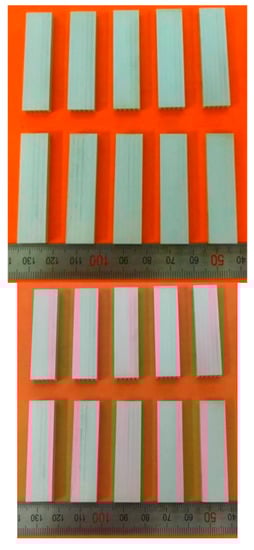

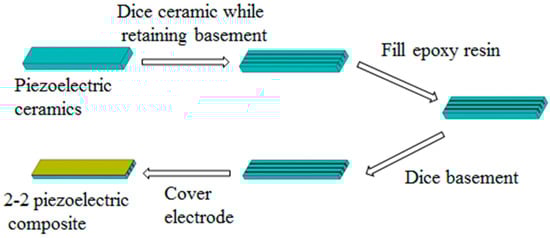

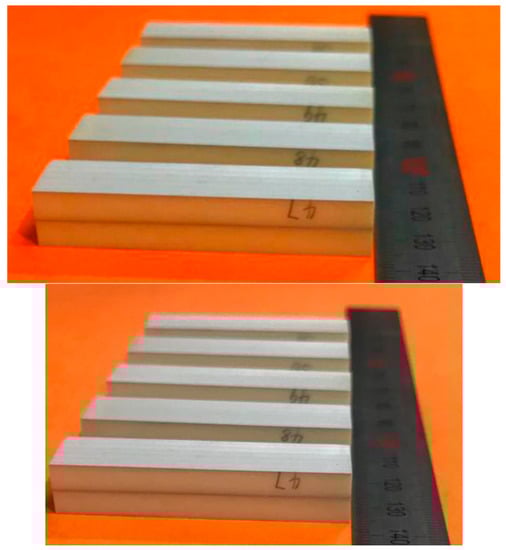

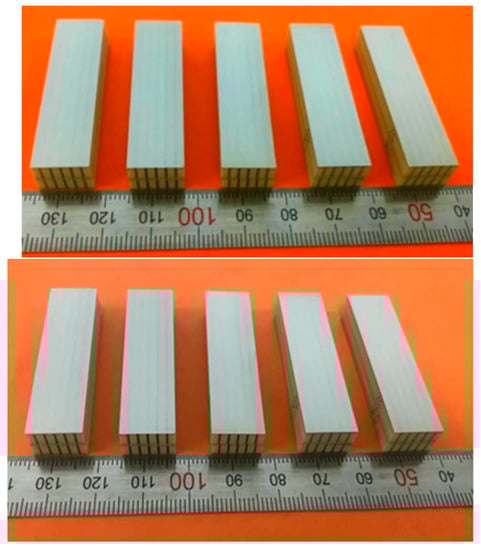

## 4. Fabrication and Performance Test of the Bilaminated Vibrator

_{s}(the frequency corresponding to the maximum admittance mode) and the parallel resonance frequency f

_{p}(the frequency corresponding to the maximum impedance mode). The bandwidth was also read. The parameters of the five groups of 2-2 piezoelectric composite bilaminated vibrator samples were measured via the above test method. The results are shown in Table 3. The electromechanical coupling coefficients of the 2-2 piezoelectric composite bilaminated vibrator listed in Table 3 were calculated using Equation (1).

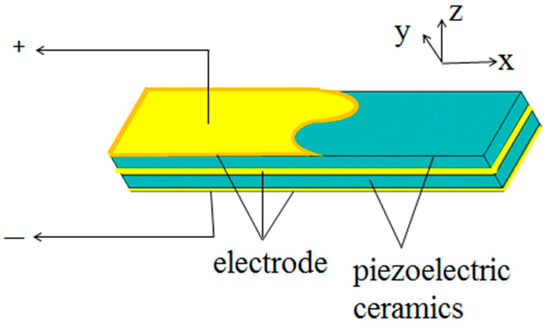

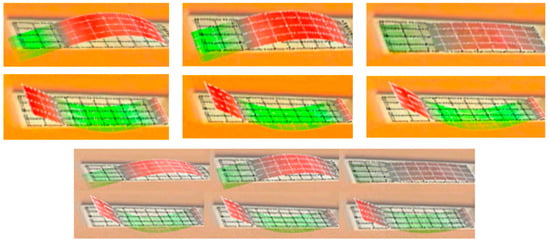

_{s}, parallel resonance frequency f

_{p}, bandwidth B, electromechanical coupling coefficient, and maximum vibration displacement are listed in Table 4.

_{33}of the material. However, the theoretical parameters used in ANSYS simulation calculation in this paper have errors with the actual material parameters, which need to be further studied. However, the ANSYS calculation results of vibration displacement of 2-2 type piezoelectric composite bi-laminate vibrator basically coincide with the actual test results. The reason is that the piezoelectric strain constant of bi-laminate oscillator increases rapidly with the addition of polymer phase. The strain of composite bi-laminate vibrator is mainly determined by Young’s modulus and volume percentage of polymer phase. Therefore, the piezoelectric strain constant d

_{33}has little effect on the corresponding variables of the PZT ceramic column under the same electric field strength.

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Woollett, R.S. Theory of the Piezoelectric Flexural DISK Transducer with Applications to Underwater Sound; Research Report #490; U.S. Navy Underwater Sound Laboratory: New London, CT, USA, 5 December 1960. [Google Scholar]
- Aronov, B.S. The energy method for analyzing the piezoelectric electroacoustic transducers II. Acoust. Soc. Am.
**2005**, 118, 627–637. [Google Scholar] [CrossRef] - Aronov, B.S. Nonuniform piezoelectric circular plate flexural transducers with underwater applications. Acoust. Soc. Am.
**2015**, 138, 1570. [Google Scholar] [CrossRef] [PubMed] - Jinduo, Z.; Guidong, L.; Fuhu, L. Analysis and calculation on receiving characteristics of the bimorph flexural transducers. Tech. Acoust.
**1999**, 18, 107–110. [Google Scholar] - Xiping, H.; Qiang, L. Piezoelectric ceramic bimorph in bending vibration. J. Jishou Univ.
**2017**, 38, 13–18. [Google Scholar] [CrossRef] - Shaohu, D.; Ting, Z. Bending vibration analysis of the circular composite piezoelectric vibrator. Basic Sci. J. Text. Univ.
**2007**, 20, 172–175. [Google Scholar] [CrossRef] - Ningning, Z. Research on flexural vibration characteristics of three laminated piezoelectric transducers. Tech. Acoust.
**2017**, 36, 383–389. [Google Scholar] [CrossRef] - Pin, Z.; Xiping, H.; Yanjun, W. Radiation impedance of thin circular flat plate in flexural vibration with free boundary. J. Shanxi Norm. Univ.
**2007**, 35, 31–34. [Google Scholar] [CrossRef] - Shuyu, L. Study on natural vibration and resonance frequency of rectangular radiators in flexural vibration. J. Shanxi Norm. Univ.
**2000**, 28, 40–46. [Google Scholar] [CrossRef] - Wenxiao, Q.; Xiaohua, C.; Fei, Z. Effect of boundary conditions on vibration modes of bending vibrator in acoustic logging. Sci. China Ser. D Earth Sci.
**2008**, 38, 174–179. [Google Scholar] [CrossRef] - Lin, Z.; Weijun, L.; Dong, W. The design of sandwich dipole transducer based on finite element method. Well Logging Technol.
**2009**, 33, 106–109. [Google Scholar] [CrossRef] - Mansoor, M.B.; KÖble, S.; Wangwong, T.; Woias, P.; Goldschmidtböing, F. Design, characterization and sensitivity analysis of a piezoelectric ceramic/metal composite transducer. Micromachines
**2017**, 8, 271. [Google Scholar] [CrossRef] - Uchino, K. Advanced Piezoelectric Material: Science and Technology, 2nd ed.; Woodhead Publishing: Duxford, UK, 2017. [Google Scholar]
- Newnham, R.E.; Skinner, D.P.; Cross, L.E. Connectivity and piezoelectric-pyroelectric composites. Mater. Res. Bull.
**1978**, 13, 525–536. [Google Scholar] [CrossRef] - Klicker, K.A.; Biggers, J.V.; Newnham, R.E. Composites of PZT and Epoxy for Hydrostatic Transducer Applications. J. Am. Ceram. Soc.
**1981**, 64, 5–9. [Google Scholar] [CrossRef] - Gururaja, T.R.; Schulze, W.A.; Shrout, T.R.; Safari, A.; Cross, L.W.E. High frequency applications of PZT/polymer composite materials. Ferroelectrics
**1981**, 39, 1245–1248. [Google Scholar] [CrossRef] - Savakus, H.P.; Klicker, K.A.; Newnham, R.E. PZT-epoxy piezoelectric transducers: A simplified fabrication procedure. Mater. Res. Bull.
**1981**, 16, 677–680. [Google Scholar] [CrossRef] - Auld, B.A.; Kunkel, H.A.; Shui, Y.A.; Wang, Y. Dynamic Behavior of Periodic Piezoelectric Composites. In Proceedings of the 1983 Ultrasonics Symposium, Atlanta, GA, USA, 31 October–2 November 1983; pp. 554–558. [Google Scholar] [CrossRef]
- Smith, W.A.; Shaulov, A.; Auld, B.A. Tailoring the properties of composite piezoelectric materials for medical ultrasonic transducers. IEEE Ultrason. Symp.
**1985**, 642–647. [Google Scholar] [CrossRef] - Chan, H.L.W.; Unsworth, J. Effect of thinning and ceramic width on properties of 1−3 PZT/EPOXY composites. Ferroelectr. Lett. Sect.
**1986**, 6, 133–137. [Google Scholar] [CrossRef] - Takeuchi, H.; Nakaya, C.; Katakura, K. Medical Ultrasonic Probe Using PZT/Polymer Composite. In Proceedings of the IEEE 1984 Ultrasonics Symposium, Dallas, TX, USA, 14–16 November 1984; pp. 507–510. [Google Scholar] [CrossRef]
- Yongqiu, Z.; Yuanguang, H.; Qichang, X. Sandwich PZT/polymer composite transducer. Ferroelectrics
**1983**, 49, 241–249. [Google Scholar] [CrossRef] - Jialing, Z.L.; Likun, W.; Fuxue, Z. Preparation of large area 0-3 piezoelectric composites for hydrophone. Piezoelectr. Acoustoopt.
**1999**, 21. [Google Scholar] [CrossRef] - Xuecang, G.; Mingxuan, L. Study on 1-3 piezoelectric PZT/epoxy composite material and transducer for ultrasonic transducer. Appl. Acoust.
**1991**, 10, 10–14. [Google Scholar] - Hwang, Y.; Ahn, H.; Nguyen, D.-N.; Kim, W.; Moon, W. An underwater parametric array source transducer composed of PZT/thin-polymer composite. Sens. Actuators A Phys.
**2018**, 279, 601–616. [Google Scholar] [CrossRef] - Kuznetsova, I.E.; Zaitsev, B.D.; Borodina, I.A.; Shikhabudinov, A.M.; Teplykh, A.A.; Etoungh, D.M.; Feuillard, G. The effect of nanocomposite polymeric layer on the radiation of antisymmetric zero-order Lamb wave in a piezoelectric plate contacting with liquid. J. Appl. Phys.
**2013**, 113, 224507. [Google Scholar] [CrossRef] - Changjiu, D.; Mingxuan, L. 1-3 Piezo-Composite materials. Appl. Acoust.
**1995**, 14, 2–7. [Google Scholar] [CrossRef] - Abdollahi, A.; Arias, I. Constructive and destructive interplay between piezoelectricity and flexoelectricity in flexural sensors and actuators. J. Appl. Mech.
**2015**, 82, 121003-1–121003-4. [Google Scholar] [CrossRef] - Koyama, D.; Kashihara, Y.; Hatanaka, M.; Nakamura, K.; Matsukawa, M. Movable optical lens array using ultrasonic vibration. Sens. Actuators A
**2016**, 237, 35–40. [Google Scholar] [CrossRef] - Guidong, L.; Jinduo, Z.; Renqian, W. Piezoelectric Transducers and Arrays; Peking University Press: Beijing, China, 2005; pp. 172–173. [Google Scholar]
- Newnhan, R.E. Composite piezoelectric transducers. Mater. Eng.
**1980**, 2, 93–106. [Google Scholar] - Mendiola, J.; Jimenez, B. Review of recent work on ferroelectric composite systems. Ferroelectrics
**1984**, 53, 159–166. [Google Scholar] [CrossRef] - Gururaja, T.R. Piezoelectric Composite Materials for Ultrasonic Transducer Applications. IEEE Trans. Sonics Ultrason.
**1985**, 32, 481–498. [Google Scholar] [CrossRef] - Ting, R.Y. Evaluation of new piezoelectric composite materials for hydrophone applications. Ferroelectrics
**1986**, 67, 143. [Google Scholar] [CrossRef] - Chao, Z. Research on Three-Phase Piezocomposite and Curved Surface Transducer. Ph.D. Thesis, Beijing University of Posts and Telecommunications, Beijing, China, 2019. [Google Scholar]
- Lei, Q. Research on Transducer with Broad Beamwidth. Ph.D. Thesis, Beijing University of Posts and Telecommunications, Beijing, China, 2010. [Google Scholar]
- Li, L. Research on 1-3 Series Piezoelectric Composite and Underwater Transducer 1-3. Ph.D. Thesis, Beijing University of Posts and Telecommunications, Beijing, China, 2008. [Google Scholar]
- Hongwei, W.; Likun, W.; Yonghong, Z. 2-2 type piezoelectric composite pipe frequency simulation and fabrication and performance test. Electron. Compon. Mater.
**2015**, 34, 1–4. [Google Scholar] [CrossRef] - Jikang, Y.; Guoyou, G.; Jialin, S.; Jingchao, C.; Jiatao, Z. Preparation of piezoelectric composites. J. Kunming Univ. Sci. Technol.
**2000**, 6. [Google Scholar] [CrossRef] - Xiao, F. Study on Fabrication and Properties of 2-2 Piezoelectric Composites. Master’s Thesis, Wuhan University of Technology, Wuhan, China, 2012. [Google Scholar]
- Yanjun, Z.; Likun, W.; Lei, Q. Finite element analysis and experimental study on 1-3 piezoelectric composites with modified polymer phase. Ferroelectrics
**2019**, 537, 223–236. [Google Scholar] [CrossRef] - Xing, L.; Likun, W.; Chao, Z.; Yanjun, Z. The effect of piezoelectric ceramic volume fraction on the thickness vibration characteristics of 1-3 piezocomposites. Ferroelectrics
**2018**, 531, 84–91. [Google Scholar] [CrossRef] - Xing, L.; Likun, W.; Chao, Z.; Yanjun, Z. Effect of ceramic volume fraction on the performance of the 1-3 composite transducers. Piezoelectr. Acoustoopt.
**2019**, 41, 396–400. [Google Scholar] [CrossRef]

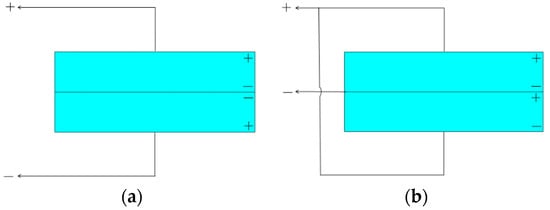

**Figure 2.**Schematic of the series and parallel arrangements of the piezoelectric layers. (

**a**) Parallel arrangement. (

**b**) Series arrangement.

**Figure 4.**Finite element models of the 2-2 and 1-3 piezoelectric composite bilaminated vibrators. (

**a**) 2-2. (

**b**) 1-3.

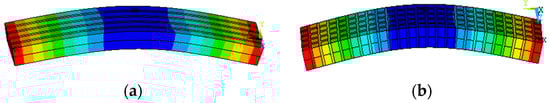

**Figure 6.**Displacement deformation graph of the 2-2 and 1-3 piezoelectric composite bilaminated vibrators. (

**a**) 2-2. (

**b**) 1-3.

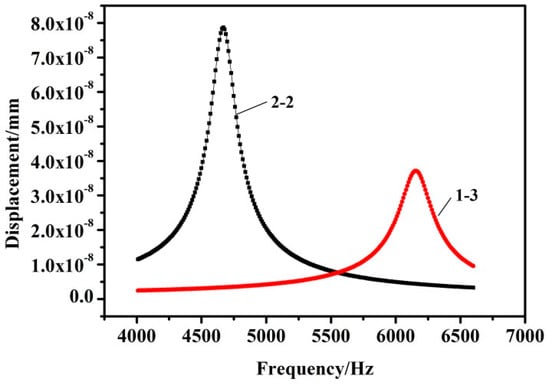

**Figure 7.**Vibration displacement curves of the 2-2 and 1-3 type piezoelectric composite bilaminated vibrators.

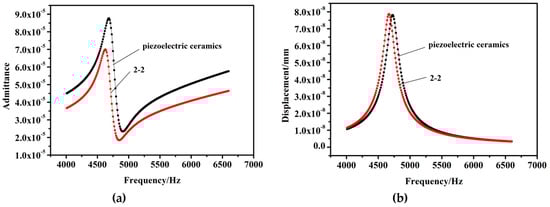

**Figure 10.**(

**a**) Admittance curves of the 2-2 piezoelectric composite bilaminated vibrator and the ceramic vibrator. (

**b**) Vibration displacement curves of the 2-2 piezoelectric composite bilaminated vibrator and the ceramic vibrator.

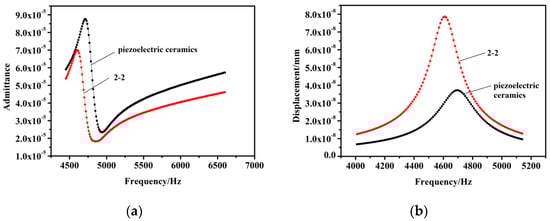

**Figure 17.**(
