Unidirectional Invisibility Induced by Complex Anti-Parity–Time Symmetric Periodic Lattices
by 1,†, 2,†, 2,†, 2, 3,*, 2,*, 2 and 3,†
1
School of Mathematics and Statistics, Hubei University of Science and Technology, Xianning 437100, China
2
School of Electronics and Information Engineering, Hubei University of Science and Technology, Xianning 437100, China
3
School of Nuclear Technology and Chemical Biology, Hubei University of Science and Technology, Xianning 437100, China
*
Correspondence: [email protected] (Y.H.); [email protected] (F.L.)
These authors contributed equally to this work.
Received: 3 August 2019 / Accepted: 28 August 2019 / Published: 11 September 2019

Abstract

:

Featured Application

unidirectional invisibility, laser, highly sensitive sensor.

Abstract

Complex anti-parity-time symmetric periodic lattices, in a wide frequency band, can act as unidirectional invisible media. The reflection from one end is suppressed while it is enhanced from the other. Furthermore, unidirectional laser points (ULPs) which correspond to the poles of reflection from one end, arise in the parameter space composed of the permittivity and angular frequency. The phase of the reflection coefficient changes sharply near the ULPs. Subsequently, large lateral shift which is proportional to the slope of phase could be induced for the reflected beam. The study may find great applications in unidirectional invisibility, unidirectional lasers and highly sensitive sensors.
Keywords:
anti-parity-time symmetry; unidirectional invisibility; unidirectional laser; lateral shift; periodic lattice

1. Introduction

According to the theory of quantum mechanics, the observed physical parameters in experiments are real, and the corresponding Hamiltonian operator is Hermitian. When a light field interacts with the multi-level atomic systems, under-considering the spontaneous emission and ionization of atoms, dissipative terms are introduced, then the Hamiltonian operator to describe the system is non-Hermitian [1,2,3].
The eigenvalues of non-Hermitian Hamiltonian are usually complex containing imaginary parts. However, the non-Hamiltonian that satisfies the parity–time (PT) symmetry has a real spectrum, which extends quantum mechanics into a new research field [4,5,6,7,8,9,10]. PT-symmetry and non-Hermitian optics are new concepts and have become a research hotspot in recent years [11,12,13,14,15,16,17,18,19]. It is worth noting that the study of Hermitian and non-Hermitian properties are not limited to electronic systems, but also can be extended to the field of optics [20,21]. Although the Schrödinger equation describing a single particle is different from the Maxwell equation describing electromagnetic field in physical origin, the electromagnetic field propagation equation is similar to the Schrödinger equation in mathematical form under the slowly varying envelope approximation [22,23]. This similarity provides the possibility of studying PT symmetry and non-Hermiticity in optical systems. Therefore optics has the natural advantage of being used to explore all sorts of non-Hermitian predictions that used to be considered difficult in quantum systems [24,25,26]. The introduction of gain and loss in photonic crystals, as well as the clever design of various structures, can improve the luminous efficiency of materials and obtain fascinating nonlinear and topological properties [27,28,29,30].
The propagation constant in PT symmetric phase is a real number. Although there is gain and loss, the energy of the system is conserved. When the gain/loss ratio g is much smaller than the coupling coefficient, it corresponds to the PT symmetric phase, and the PT symmetric supermodel appears in the system [21]. For the larger g, the PT phase will be broken. At this time, severe mode mismatch will occur in the two waveguides, and the energy coupling of the mode field is suppressed, resulting in the occurrence of asymmetric light intensity distribution [31]. In the vicinity of spontaneous PT-symmetry breaking point, the PT symmetric periodic structure medium shows unidirectional invisibility [32]. In a wide frequency range near the Bragg point, when light enters from one end, the outgoing light passes through unaffected. But when light comes in from the other end, the reflected light is enhanced. The anti-PT symmetry which arises from the charge-conjugation symmetry has also induced many fascinating phenomena, such as flat broadband light transport [33], topological bound modes [34] and chiral mode conversion [35]. The refractive index of material obeys n(z) = n*(−z) and n(z) = −n*( −z) in PT and anti-PT symmetric systems [16,17,36], respectively. If expressed in terms of dielectric constant, PT and anti-PT symmetric systems both satisfy the condition ε(z) = ε*(−z). Further, we hypothesized whether new optical properties would be obtained when ε(z) = −ε*(−z). At this point, the refractive index satisfies n(z) = −in*(−z), which is called complex anti-PT symmetry here. This new symmetry can be seen as a combination of anti-PT symmetry and rotation of π/2. It further extends the scope of symmetry and may lead to more novel optical properties.
In this work, we investigated the unidirectional invisibility in the complex anti-PT-symmetric periodic lattices. We showed that the reflection was anisotropic as light impinged upon the lattices from the left and right end. Unidirectional laser points (ULPs) which were confirmed to be substantial boundary modes arose in the parameter space composed of the permittivity and angular frequency. We further explored the phase of reflection coefficient and demonstrated the singularity of phase and large lateral shift of reflected beam around the ULPs. The study can be utilized for highly sensitive sensing.

2. Complex Anti-Parity–Time Symmetric Lattices

We considered a one-dimensional complex anti-PT symmetric lattice consisting of 10 periodic unit cells, embedded in a homogeneous background, such as in air, shown in Figure 1. The dielectrics A and B were arranged alternately, forming a periodic structure. The structure can also be noted by (AB) N, where the periodic number is N = 10. The thickness of dielectrics A and B were L = 125 μm. The permittivities of the dielectrics were εa = 0.1 + 0.01i and εb = −0.1 + 0.01i, respectively. Based on the relation n = ε1/2, the corresponding refractive indices were na = 0.3166 + 0.0158i and nb = 0.0158 + 0.3166i, respectively.
Here we assumed that the input intensity of light was low enough and ignored the nonlinear effect. The materials were treated to be uniform and isotropic. As a light beam impinged upon the system, the reflection and transmission coefficients were denoted by r and t, respectively. The two coefficients could be obtained by the transfer matrix method (TMM) [37,38]. The transmittance T was identified as T = tt* = It/Ii, where It and Ii are the transmitted and incident intensities, respectively. The reflectance R was identified as R = rr*.

3. Unidirectional Invisibility and Laser Points

We calculated the transmission and reflection spectra as the transverse magnetic (TM) wave obliquely impinged upon the complex anti-PT symmetric lattices. The incident angle was θ = 5°. Figure 2a shows the transmittance and reflectance spectra for light incident from the left. The transmittance T1 decayed rapidly and tended to a constant as the angular frequency ω increased. However, there were two peaks in the curve of reflectance R1. The two maxima were R1 = 10.5 and 7.97 × 104 in the curve marked by black asterisks, respectively locating at ω = 1.83 × 1013, and 4.29 × 1013 rad/s.
When light was incident from the right side, Figure 2b shows the reflection spectrum and transmission spectrum. Initially, the transmittance T2 and reflectance R2 decreased rapidly with the increase of the angular frequency. Then, as the frequency increased, the reflectance and transmittance tended to be constant. For incident light at higher frequencies, the transmittance was close to zero. This phenomenon indicated that the media had anisotropy of the reflection as light was incident from the left and right. Therefore, for incident light with a certain frequency, the reflected light on the left could be enhanced greatly, but the reflected light on the right may be suppressed. These properties could be used to enhance the reflected light intensity from unidirection, as well as unidirectional invisibility.
The transmission and reflection coefficients were represented by t = |t|exp(t) and r = |r|exp(r), where φt and φr were the phase shifts of the transmitted and reflected beams referred to the incident beam, respectively. Figure 2c shows the phases of the transmission coefficients of light from the left and right, respectively. One can see that the reflection coefficients in the left and right were isotropic. There were many step points in the curve, and the jump value was 2π, which was meaningless and could be eliminated. However, near the poles of the transmittance, the phase of the transmission coefficient changed dramatically, which indicated that large lateral shift could have existed in the transmitted beam.
Figure 2d shows the phase of the reflection coefficient. When light was incident from the left, the phase change of the reflection coefficient near the two maxima of reflectance was 2π and π, respectively, and the phase varied dramatically with the angular frequency around those asterisks. The 2π phase jump point was stepwise and the step was meaningless. But the phase changed continuously around the π change point. When light was incident from the right, the phase curve had a maximum point. With the increase of angular frequency, the phase of reflection coefficient first increased, then decreased, and finally tended to a constant value. For the reflected beam, the change in phase was extremely sensitive to the angular frequency of incident light around the maxima of the reflectance, so this effect could be used for high-sensitivity sensors.
To find the properties in the complex anti-PT symmetric lattices, we defined the permittivities of dielectrics A and B as εa = 0.1 + 0.01εii and εb = −0.1 + 0.01εii, respectively. The gain in the lattices could be obtained by nonlinear two-wave mixing or a Ge/Cr doped fiber [39,40], while the loss could be achieved by an acoustic modulator [41]. Figure 3a gives the reflectance R1 as light was incident from the left. The parameter space was composed of the permittivity εi and angular frequency ω. One could find that there were two poles in the parameter space, denoted by the unidirectional laser point (ULP)1 (εi1 = 2, ω1 = 1.8 × 1013 rad/s) and ULP2 (εi2 = 1, ω2 = 4.29 × 1013 rad/s), respectively. The corresponding maxima of the reflectance were RUPL1 = 2.28 × 104 and RUPL2 = 4.44 × 104.
On the contrary, we plotted the reflectance as light impinged into the lattices from the right. The intensity of reflection beam was extremely faint as shown in Figure 3b. The reflectance sharply decreased with the increase of the angular frequency in area I and the value of reflection in area II approached to zero in our calculating accuracy. The properties demonstrated that there was strong dependence of reflection on the two incident directions from the left and right. Especially, the poles of reflectance arose in the parameter space for the light incident from the left, but the reflectionless phenomenon could have resulted for light incident from the right. The characteristics could be therefore utilized for the unidirectional laser. Figure 3c provides the distribution of the electric field intensity for the ULP1. It shows that the power of the mode field was mainly localized at the first layer of the input port, so the ULP1 could be viewed as a boundary mode.
We studied the phase properties of reflected and transmitted coefficients as the permittivity of the dielectrics and the angular frequency changed. Figure 4a plots the reflection phase in the parameter space. It shows the phase dislocated at the ULP1 and ULP2, which were the singular points in phase of reflected coefficient. To demonstrate the characteristics of the phase varying with the permittivity and angular frequency, Figure 4b plots the phase curves for three specific permittivities εi = 0.01, 0.015 and 0.02. One can see that the phase varied with the angular frequency. There was 2π phase jump at the frequency ω1 for the curve corresponding to εi = 0.02 and π phase jump at the frequency ω1. Actually, the curve was continuous at ω1 since the 2π phase jump was meaningless. For εi = 0.015, the phase changed dramatically around the ULP1 and ULP2. This behavior indicated that large lateral shift of the reflected beam may have been induced, since the lateral shift was proportional to the curvature of the phase curve. For εi = 0.01, the phase changed abruptly with π at ω2. The π change in phase justly approved the characteristics of the ULP1 and ULP2. The maximum property of transmittance resulted in the uncertainty in phase. We also gave the phase of transmitted coefficient in the parameter space as shown in Figure 4c. It manifested that the phase of transmitted beam also dislocated at the ULP1 and ULP2. Figure 4d demonstrates the phase changed with the angular frequency. For the above three specific permittivities, the phase abruptly stepped with π around the ULP1 and ULP2, and at the other step points, the phase change was the no meaning value of 2π.
For light incident from the right, Figure 5a shows the reflectance in the parameter space. One can see the focusing area in the parameter space was divided into two parts, viz part I and part II, which corresponded to the descent zone and saturation zone, respectively. The reflectance decreased with the increase of the angular frequency in the descent zone. However, the reflectance was saturated as the angular frequency further increased. To illustrate this further, we plotted three curves of reflectance for εi = 0.01, 0.015 and 0.02 as shown in Figure 5b. In part I, the reflectance rapidly dropped as the frequency increased. In part II, the reflectance remained constant. The corresponding saturation value of reflectance was smaller for a larger permittivity. In general, the reflected beam was weak as light was incident from the right. This flaw will limit the application in practice though large lateral shift of the reflected beam may be achieved [42,43,44].
Figure 5c gives the phase of reflection coefficient in parameter space. We could see the phase varied with the permittivity and angular frequency continuously. For each permittivity, there was a maximum in the phase curve as the angular frequency changed. The maxima of phase located at the position along with the white dotted line in the parameter space. Figure 6d illuminates the phase of reflection coefficient varied with the angular frequency for the three fixed permittivities. There is a maximum marked by an asterisk in each curve of phase and the corresponding maximum phase was larger for a smaller permittivity. With the increase of angular frequency, the phase tended to be a constant.

4. Lateral Shift of Reflected Beam

As an incident beam impinged upon the structure, the lateral shift of the reflected beam relative to the position predicted by geometry optics could be derived by Δ = −/dk [45]. For several different permittivities εi < εi1 = 0.02, Figure 6a plots the lateral shift versus the angular frequency. The shift was positive and there was a peak in each curve around ω1. The maximum shift was larger as the permittivity approached to εi1 more. On the other hand, the shift was negative and there was a valley in each curve around ω1 for the permittivities εiεi1 as shown in Figure 6b. Analogously, the maximum negative shift was larger as the permittivity was more near εi1. In the parameter space, Figure 6c demonstrates the distribution of lateral shift of reflected beam around the ULP1. For better contrast, we took the logarithm of the absolute lateral shift (i.e., log10|Δ/λ|). The focusing region was separated into two parts labeled by I and II, respectively. The lateral shift was positive in part I, while it was negative in part II. Except for the ULP1, the lateral shift approximated to zero along the dotted line. The negative and positive polarities of lateral shift converted at the ULP1, approving the singularity of ULP1 for the lateral shift of reflected beam.
As light was incident on the lattices from the left, Figure 6d gives all of the maxima and minima of lateral shift in each curve. It shows that the positive and negative lateral shift were divided by εi1 as the angular frequency changed. In the vicinity of the ULP1, maximum lateral shift dramatically climbed when the permittivity increased. The shift tended to infinity as εi reached to εi1. At the ULP1, the maxima experienced a step change from positive to negative. And then, the negative shift began to increase sharply with the increase of the permittivity. In our calculating accuracy, the positive and negative lateral shifts reached highly to 4.39 × 102 and −6.3 × 102 times of the incident wavelength near the ULP1, respectively. Subsequently, the shifts returned to an ordinary magnitude from the negative maximum as the permittivity moved away from the ULP1. On the whole, one can see that the ULP1 was a singular point of lateral shift and the polarities of lateral shift transformed at this point. Otherwise, around the permittivity εi2, the curve of maxima was not smooth enough, indicated by the dashed box. Such an abnormal phenomenon resulted from the parameters close to the ULP2. Distribution of electric field for the boundary mode induced great variation in the phase of reflection coefficient.

5. Conclusions

We studied the reflectance and the phase of the reflection coefficient in complex anti-PT symmetric periodic lattices. The reflection was anisotropic for light incident from the left and right. Two ULPs arose in the parameter space composed of the permittivity and angular frequency. The reflection from the left was greatly enhanced at the ULPs, while the right reflection was suppressed tremendously. Moreover, the phase of the reflected coefficient dislocated around the ULPs. Large lateral shift of reflected beam could be achieved. The maxima of positive and negative lateral shift approached the magnitude of 102λ around the ULPs. This study paves the way for the development of unidirectional invisibility, unidirectional lasers and highly sensitive sensors.

Author Contributions

Software, Y.H., F.L., D.Z. (Dong Zhong) and H.X.; formal analysis, D.Z. (Dong Zhao); investigation, H.C. and D.Z. (Dong Zhao); writing—original draft preparation, H.C.; writing—review and editing, H.C., M.F., Y.H, F.L., D.Z. (Dong Zhong) and H.X.; funding acquisition, M.F., H.G., Y.H., F.L. and D.Z. (Dong Zhong).

Funding

National Natural Science Foundation of China (NSFC) (61575148); Natural Science Foundation of Hubei Province (2015CFA040, 2016CFB515); Educational Commission of Hubei Province (D20172803); Scientific Research Project of Hubei University of Science and Technology (BK201820, HKCXTD-001, 2016-18X052, KY14048); Colleges and Universities of the National Innovation and Entrepreneurship Training Plan (S201910927024).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Mostafazadeh, A. Non-Hermitian Hamiltonians with a real spectrum and their physical applications. Pramana 2009, 73, 269–277. [Google Scholar] [CrossRef]
  2. Xu, S.L.; Petrovi, N.; Belić, M.R.; Deng, W. Exact solutions for the quintic nonlinear Schrödinger equation with time and space. Nonlinear Dyn. 2017, 84, 251–259. [Google Scholar] [CrossRef]
  3. Xu, S.L.; Petrović, N.; Belić, M.R. Exact solutions of the (2+1)-dimensional quintic nonlinear Schrödinger equation with variable coefficients. Nonlinear Dyn. 2015, 80, 583–589. [Google Scholar] [CrossRef]
  4. Li, Z.P.; Xu, Z.M.; Qu, X.P.; Wang, S.B.; Peng, J.; Mei, L.H. Fabrication of nanopore and nanoparticle arrays with high aspect ratio AAO masks. Nanotechnology 2017, 28, 095301. [Google Scholar] [CrossRef] [PubMed]
  5. Bender, C.M.; Boettcher, S. Real spectra in non-Hermitian Hamiltonians having PT symmetry. Phys. Rev. Lett. 1998, 80, 5243–5246. [Google Scholar] [CrossRef]
  6. Bender, C.M.; Brody, D.C.; Jones, H.F. Complex extension of quantum mechanics. Phys. Rev. Lett. 2002, 89, 270401. [Google Scholar] [CrossRef]
  7. Hatano, N.; Nelson, D.R. Localization transitions in non-Hermitian quantum mechanics. Phys. Rev. Lett. 1996, 77, 570–573. [Google Scholar] [CrossRef]
  8. Ni, H.; Li, M.; Hu, Y.; Mao, C.; Xue, L.; Zeng, H.; Yan, Z.; Wu, Y.; Zheng, C. Two-dimensional SnSe/GeSe van der Waals heterostructure with strain-tunable electronic and optical properties. J. Phys. Chem. Solids 2019, 131, 223–229. [Google Scholar] [CrossRef]
  9. Hu, Y.; Zhang, S.; Xie, M.; Zeng, H. GeSe monolayer semiconductor with tunable direct band gap and small carrier. Appl. Phys. Lett. 2015, 107, 122107. [Google Scholar] [CrossRef]
  10. Xu, S.L.; Xue, L.; Belić, M.R.; He, J.R. Spatiotemporal soliton clusters in strongly nonlocal media with variable potential coefficients. Nonlinear Dyn. 2017, 87, 827–834. [Google Scholar] [CrossRef]
  11. Ke, S.; Liu, Q.; Zhao, D.; Liu, W. Spectral discrete diffraction with non-Hermitian coupling. J. Opt. Soc. Am. B 2018, 35, 2387–2393. [Google Scholar] [CrossRef]
  12. Ke, S.; Liu, J.; Liu, Q.; Zhao, D.; Liu, W. Strong absorption near exceptional points in plasmonic wave guide arrays. Opt. Quantum Electron. 2018, 50, 318. [Google Scholar] [CrossRef]
  13. Li, Z.; Xu, Z.; Qu, X.; Wang, S.; Peng, J. Pattern transfer of hexagonal packed structure via ultrathin metal nanomesh masks for formation of Si nanopore arrays. J. Alloys Compd. 2017, 695, 458–461. [Google Scholar] [CrossRef]
  14. Li, Z.; Wang, G.; Li, Z.; Cheng, Z.; Zhou, G.; Li, S. Flexible transparent electrodes based on gold nanomeshes. Nanoscale Res. Lett. 2019, 14, 132. [Google Scholar] [CrossRef] [PubMed]
  15. Zhao, D.; Zhong, D.; Hu, Y.; Ke, S.; Liu, W. Imaginary modulation inducing giant spatial Goos-Hänchen shifts in one-dimensional defective photonic lattices. Opt. Quantum Electron. 2019, 51, 113. [Google Scholar] [CrossRef]
  16. Zhao, D.; Ke, S.; Liu, Q.; Wang, B.; Lu, P. Giant Goos-Hänchen shifts in non-Hermitian dielectric multilayers incorporated with graphene. Opt. Express 2018, 26, 2817–2828. [Google Scholar] [CrossRef] [PubMed]
  17. Xu, S.L.; Zhao, Y.; Petrović, N.Z.; Belić, M.R. Spatiotemporal soliton supported by parity-time symmetric potential with competing nonlinearities. EPL 2016, 115, 14006. [Google Scholar] [CrossRef]
  18. Xu, S.L.; Petrović, N.; Belić, M.R.; Hu, Z.L. Light bullet supported by parity-time symmetric potential with power-law nonlinearity. Nonlinear Dyn. 2016, 84, 1877–1882. [Google Scholar] [CrossRef]
  19. Wang, H.; Kong, W.; Zhang, P.; Li, Z.; Zhong, D. Coherent perfect absorption laser points in one-dimensional anti-parity–time-symmetric photonic crystals. Appl. Sci. 2019, 9, 2738. [Google Scholar] [CrossRef]
  20. Makris, K.G.; El-Ganainy, R.; Christodoulides, D.N. Beam dynamics in PT symmetric optical lattices. Phys. Rev. Lett. 2008, 100, 103904. [Google Scholar] [CrossRef]
  21. Ke, S.; Zhao, D.; Liu, Q.; Liu, W. Adiabatic transfer of surface plasmons in non-Hermitian graphene waveguides. Opt. Quantum Electron. 2018, 50, 393. [Google Scholar] [CrossRef]
  22. Longhi, S. Quantum-optical analogies using photonic structures. Laser Photonics Rev. 2009, 3, 243–261. [Google Scholar] [CrossRef]
  23. Chen, S.; Guo, Q.; Xu, S.; Belic, M.R.; Zhao, Y.; Zhao, D.; He, J. Vortex Solitons in Bose-Einstein Condensates with Spin-Orbit Coupling and Gaussian Optical Lattices. Appl. Math. Lett. 2019, 92, 15–21. [Google Scholar] [CrossRef]
  24. Ke, S.; Zhao, D.; Liu, Q.; Wu, S.; Wang, B.; Lu, P. Optical imaginary directional couplers. J. Lightwave Technol. 2018, 36, 2510–2515. [Google Scholar] [CrossRef]
  25. Feng, L.; Zhu, X.; Yang, S.; Zhu, H.; Zhang, P.; Yin, X.; Wang, Y.; Zhang, X. Demonstration of a large-scale optical exceptional point structure. Opt. Express 2014, 22, 1760–1767. [Google Scholar] [CrossRef] [PubMed]
  26. Zhu, X.F. Defect states and exceptional point splitting in the band gaps of one-dimensional parity-time lattices. Opt. Express 2015, 23, 22274–22284. [Google Scholar] [CrossRef] [PubMed]
  27. Zhao, D.; Wang, Z.Q.; Long, H.; Wang, K.; Wang, B.; Lu, P.X. Optical bistability in defective photonic multilayers doped by graphene. Opt. Quantum Electron. 2017, 49, 163. [Google Scholar] [CrossRef]
  28. Meng, P.; Zhao, D.; Zhong, D.; Liu, W. Topological plasmonic modes in graphene-coated nanowire arrays. Opt. Quantum Electron. 2019, 51, 156. [Google Scholar] [CrossRef]
  29. Li, Z.; Xu, Z.; Li, D.; Wu, A.; Ruan, R. A nanoporous GaN photoelectrode on patterned sapphire substrates for high-efficiency photoelectrochemical water splitting. J. Alloys Compd. 2019, 803, 748–756. [Google Scholar] [CrossRef]
  30. Li, Z.; Li, D.; Wu, A.; Ruan, R.; Xu, Z. Fabrication of GaN truncated nanocone array using a pre-deposited metallic nano-hemispheres template for efficient solar water splitting. Nanotechnology 2019, 30, 405302. [Google Scholar] [CrossRef]
  31. Ke, S.; Wang, B.; Qin, C.; Long, H.; Wang, K.; Lu, P. Exceptional points and asymmetric mode switching in plasmonic waveguides. J. Lightwave Technol. 2016, 34, 5258–5262. [Google Scholar] [CrossRef]
  32. Lin, Z.; Ramezani, H.; Eichelkraut, T.; Kottos, T.; Cao, H.; Christodoulides, D. Unidirectional invisibility induced by PT-symmetric periodic structures. Phys. Rev. Lett. 2011, 106, 213901. [Google Scholar] [CrossRef] [PubMed]
  33. Yang, F.; Liu, Y.; You, L. Anti-PT symmetry in dissipatively coupled optical systems. Phys. Rev. A 2017, 96, 053845. [Google Scholar] [CrossRef]
  34. Ke, S.; Zhao, D.; Liu, J.; Liu, Q.; Liao, Q.; Wang, B.; Lu, P. Topological bound modes in anti-PT-symmetric optical waveguide arrays. Opt. Express 2019, 27, 13858–13870. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, X.; Jiang, T.; Sun, H.; Chan, C.T. Dynamically encircling an exceptional point in anti-PT-symmetric systems: Asymmetric mode switching for symmetry-broken states. arXiv, 2018; arXiv:1806.07649. [Google Scholar]
  36. Zhao, D.; Liu, W.W.; Ke, S.L.; Liu, Q.J. Large lateral shift in complex dielectric multilayers with nearly parity–time symmetry. Opt. Quantum Electron. 2018, 50, 323. [Google Scholar] [CrossRef]
  37. Fang, Y.; Ouyang, Z. An approximately omnidirectional defect mode of the TE wave from one-dimensional photonic crystals doped by negative-index materials. J. Opt. A Pure Appl. Opt. 2009, 11, 045103. [Google Scholar] [CrossRef]
  38. Zhao, D.; Ke, S.; Hu, Y.; Wang, B.; Lu, P. Optical bistability in parity-time-symmetric dielectric multilayers incorporated with graphene. J. Opt. Soc. Am. B 2019, 36, 1731–1737. [Google Scholar] [CrossRef]
  39. Rüter, C.E.; Makris, K.G.; El-Ganainy, R.; Christodoulides, D.N.; Segev, M.; Kip, D. Observation of parity–time symmetry in optics. Nat. Phys. 2010, 6, 192–195. [Google Scholar] [CrossRef]
  40. Feng, L.; Xu, Y.L.; Fegadolli, W.S.; Lu, M.; Oliveira, J.E.B.; Almeida, V.R.; Chen, Y.; Scherer, A. Experimental demonstration of a unidirectional refectionless parity-time metamaterial at optical frequencies. Nat. Mater. 2013, 12, 108–113. [Google Scholar] [CrossRef] [PubMed]
  41. Regensburger, A.; Bersch, C.; Miri, M.A.; Onishchukov, G.; Christodoulides, D.N.; Peschel, U. Parity-time synthetic photonic lattices. Nature 2012, 488, 167–171. [Google Scholar] [CrossRef] [PubMed]
  42. Merano, M. Optical beam shifts in graphene and single-layer boron-nitride. Opt. Lett. 2016, 41, 5780–5783. [Google Scholar] [CrossRef] [PubMed]
  43. Zhao, D.; Liu, F.; Meng, P.; Wen, J.; Xu, S.; Li, Z.; Zhong, D. Reflection enhancement and giant lateral shift in defective photonic crystals with graphene. Appl. Sci. 2019, 9, 2141. [Google Scholar] [CrossRef]
  44. Longhi, S.; Della Valle, G.; Staliunas, K. Goos-Hänchen shift in complex crystals. Phys. Rev. A 2011, 84, 042119. [Google Scholar] [CrossRef]
  45. Ma, P.; Gao, L. Large and tunable lateral shifts in one-dimensional PT-symmetric layered structures. Opt. Express 2017, 25, 9676–9688. [Google Scholar] [CrossRef] [PubMed]

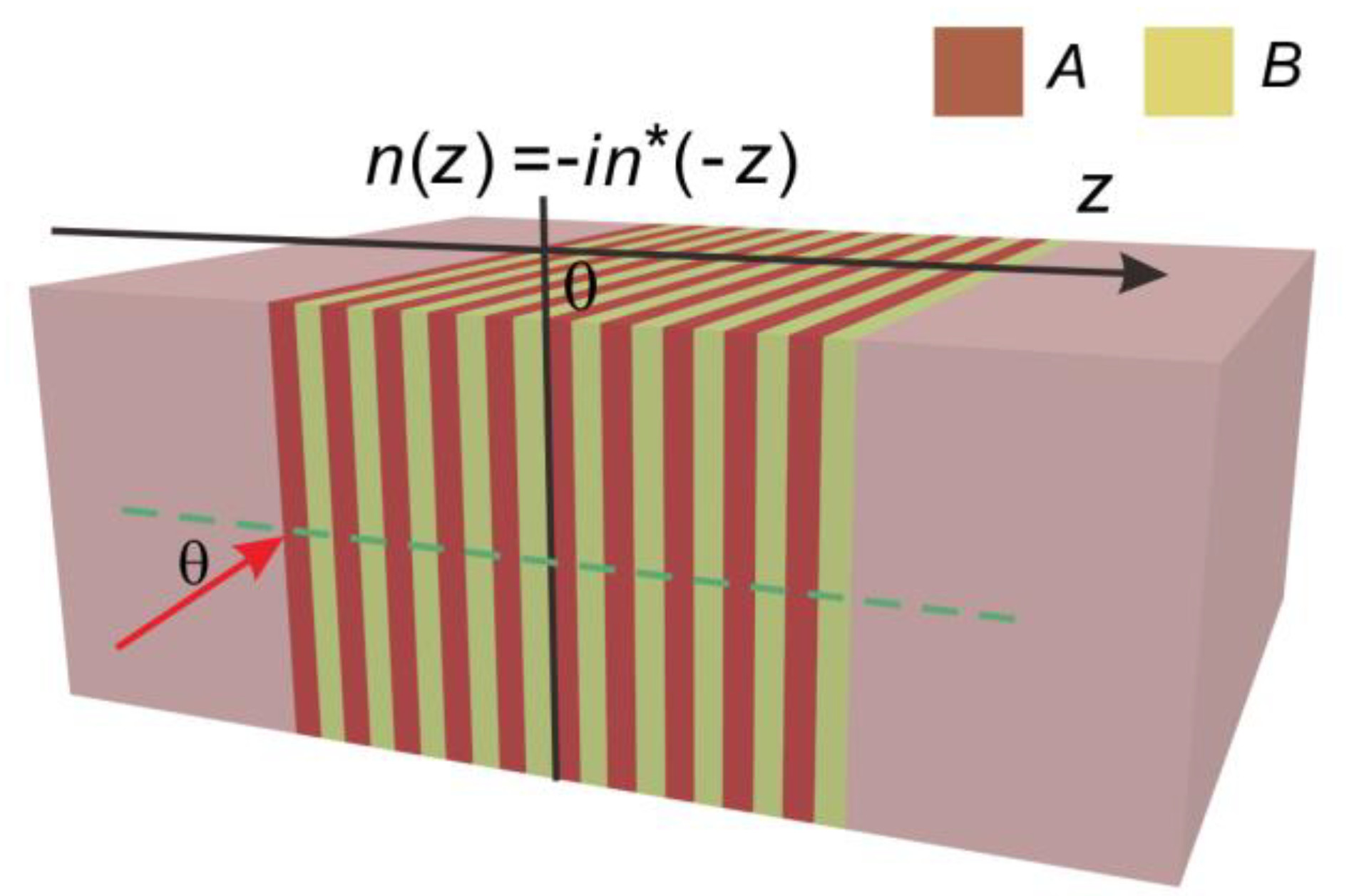

Figure 1. Schematic of the one-dimension complex anti-parity–time (PT) symmetric photonic crystals (PCs), where the complex refractive indices were distributed in n(z) = −in*(−z). For the primitive unit-cell layers A and B, the thickness was L = 125 μm and the complex refractive indices were na = 0.3166 + 0.0158i and nb = 0.0158 + 0.3166i, respectively. The imaginary part was positive for gain material and negative for loss material.
Figure 1. Schematic of the one-dimension complex anti-parity–time (PT) symmetric photonic crystals (PCs), where the complex refractive indices were distributed in n(z) = −in*(−z). For the primitive unit-cell layers A and B, the thickness was L = 125 μm and the complex refractive indices were na = 0.3166 + 0.0158i and nb = 0.0158 + 0.3166i, respectively. The imaginary part was positive for gain material and negative for loss material.
Applsci 09 03808 g001

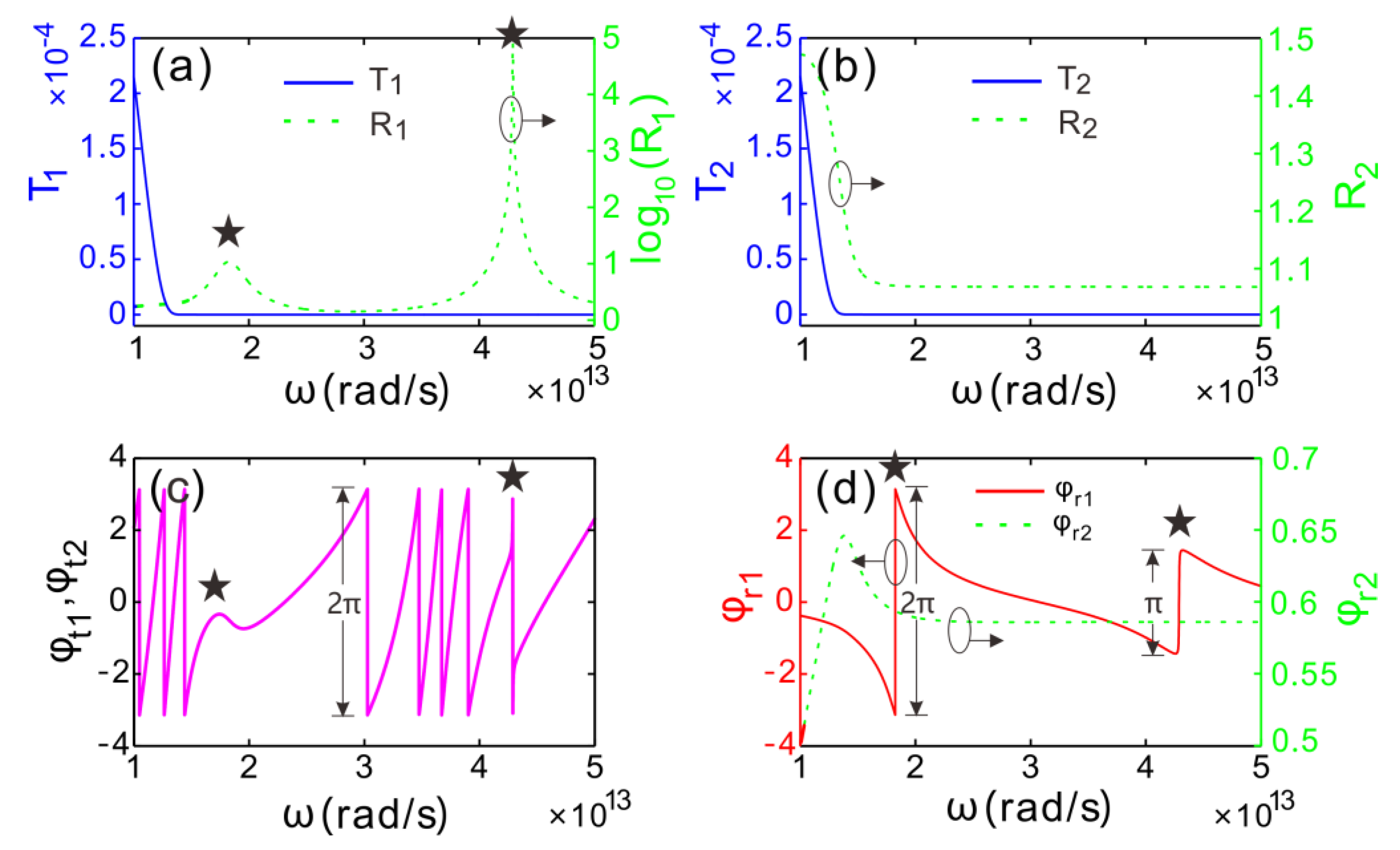

Figure 2. (a,b) The transmission and reflection spectra for light incident from the left and right, respectively. (c,d) The phases of transmission coefficient and reflection coefficient for the complex anti-PT symmetric PCs, respectively.
Figure 2. (a,b) The transmission and reflection spectra for light incident from the left and right, respectively. (c,d) The phases of transmission coefficient and reflection coefficient for the complex anti-PT symmetric PCs, respectively.
Applsci 09 03808 g002

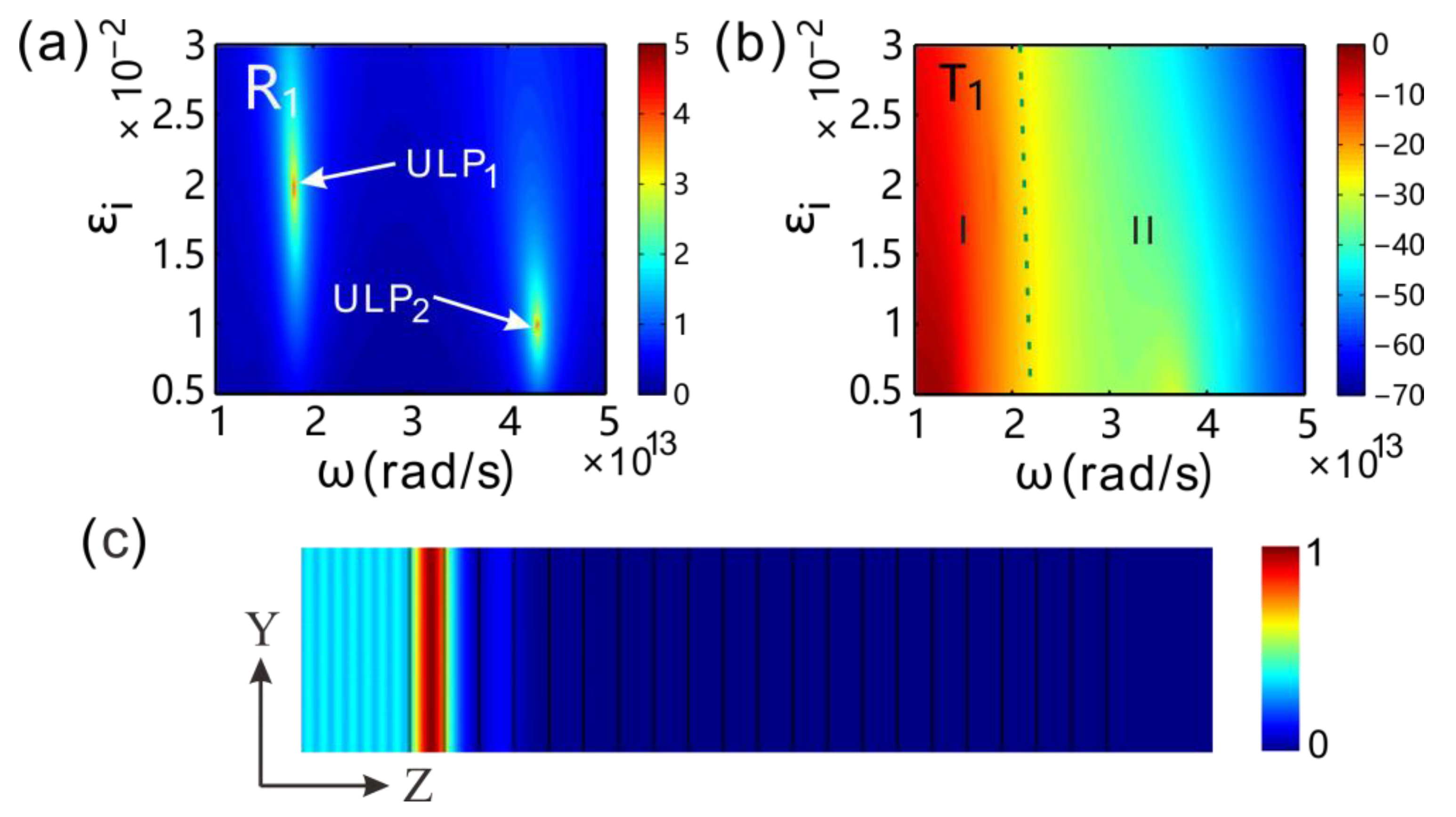

Figure 3. (a,b) The transmittance and reflectance varying with the permittivity and angular frequency for light incident from the left, respectively. (c) The electric field intensity (|Ez|2) distribution at the unidirectional laser point (ULP1).
Figure 3. (a,b) The transmittance and reflectance varying with the permittivity and angular frequency for light incident from the left, respectively. (c) The electric field intensity (|Ez|2) distribution at the unidirectional laser point (ULP1).
Applsci 09 03808 g003

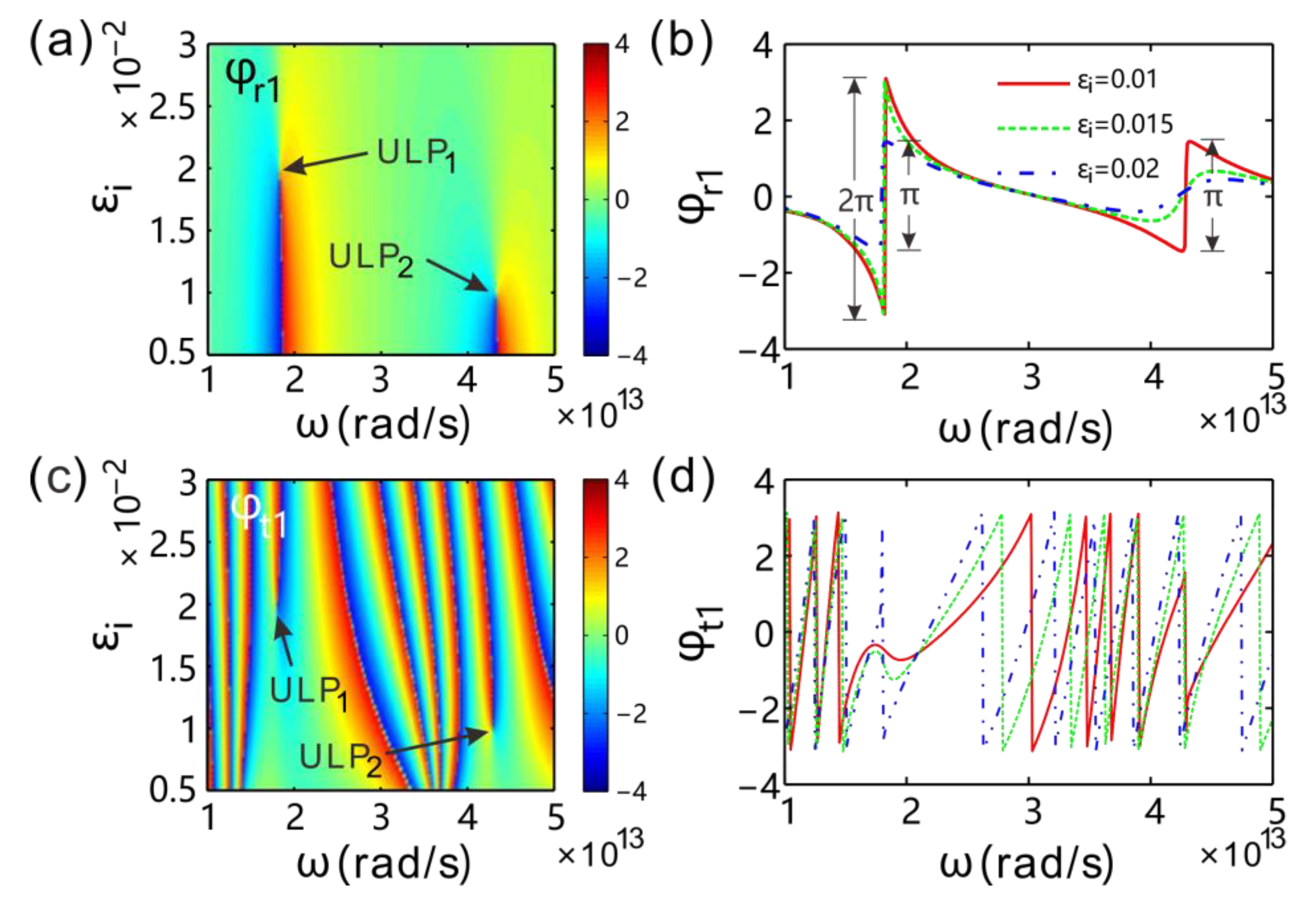

Figure 4. (a,c) The phases of reflection and transmission coefficient varying with the permittivity and angular frequency, respectively. (b,d) The phases of reflection coefficient and transmission coefficient varying with the angular frequency for three different permittivities εi = 0.01, 0.015 and 0.02, respectively. The light was incident from the left for (ad).
Figure 4. (a,c) The phases of reflection and transmission coefficient varying with the permittivity and angular frequency, respectively. (b,d) The phases of reflection coefficient and transmission coefficient varying with the angular frequency for three different permittivities εi = 0.01, 0.015 and 0.02, respectively. The light was incident from the left for (ad).
Applsci 09 03808 g004

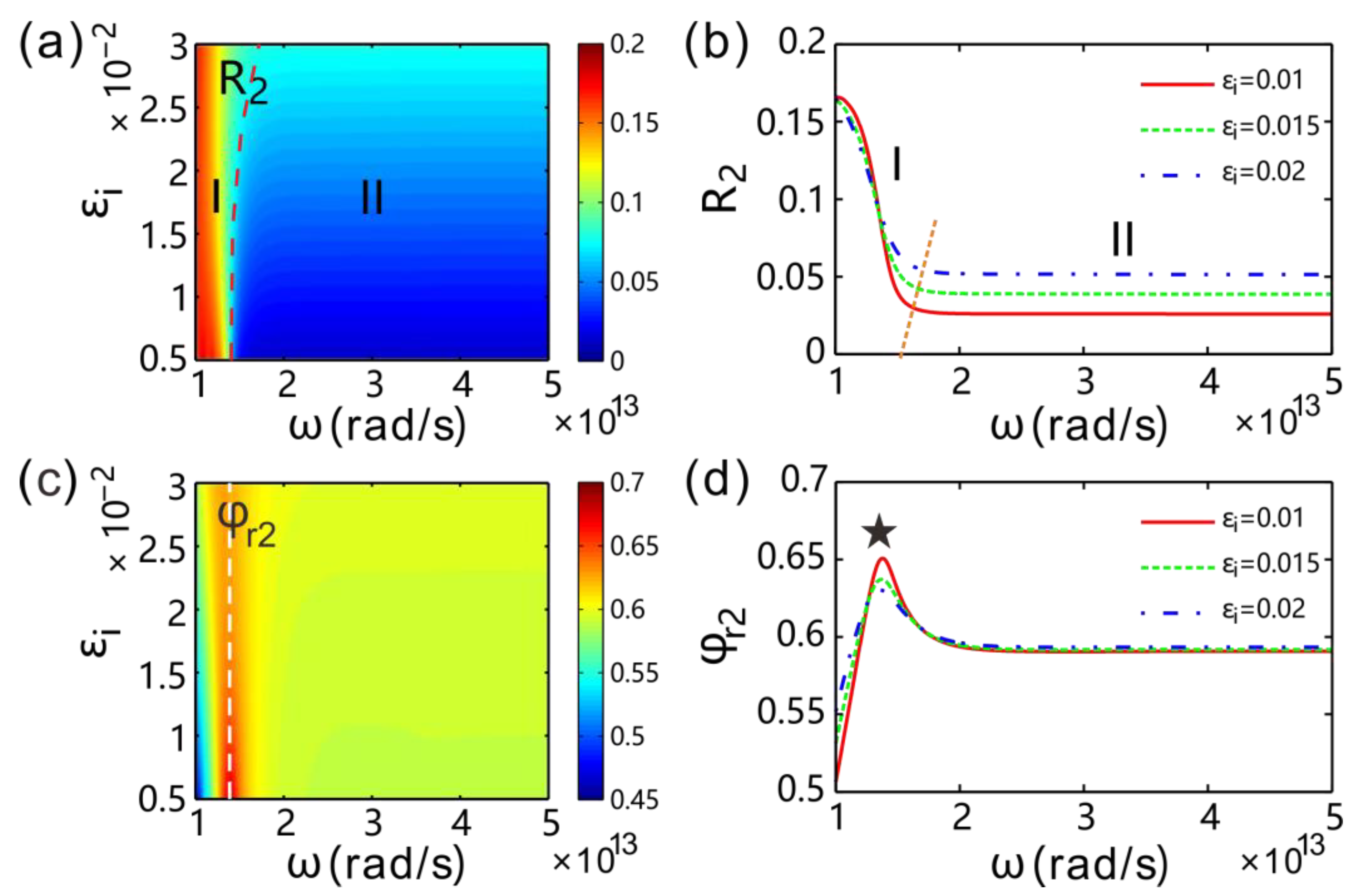

Figure 5. (a,c) The reflectance and phase of reflection coefficient varying with the permittivity and angular frequency for light incident from the right, respectively. (b,d) The reflectance and phase of reflection coefficient varying with the angular frequency for three different permittivities εi = 0.01, 0.015 and 0.02, respectively.
Figure 5. (a,c) The reflectance and phase of reflection coefficient varying with the permittivity and angular frequency for light incident from the right, respectively. (b,d) The reflectance and phase of reflection coefficient varying with the angular frequency for three different permittivities εi = 0.01, 0.015 and 0.02, respectively.
Applsci 09 03808 g005

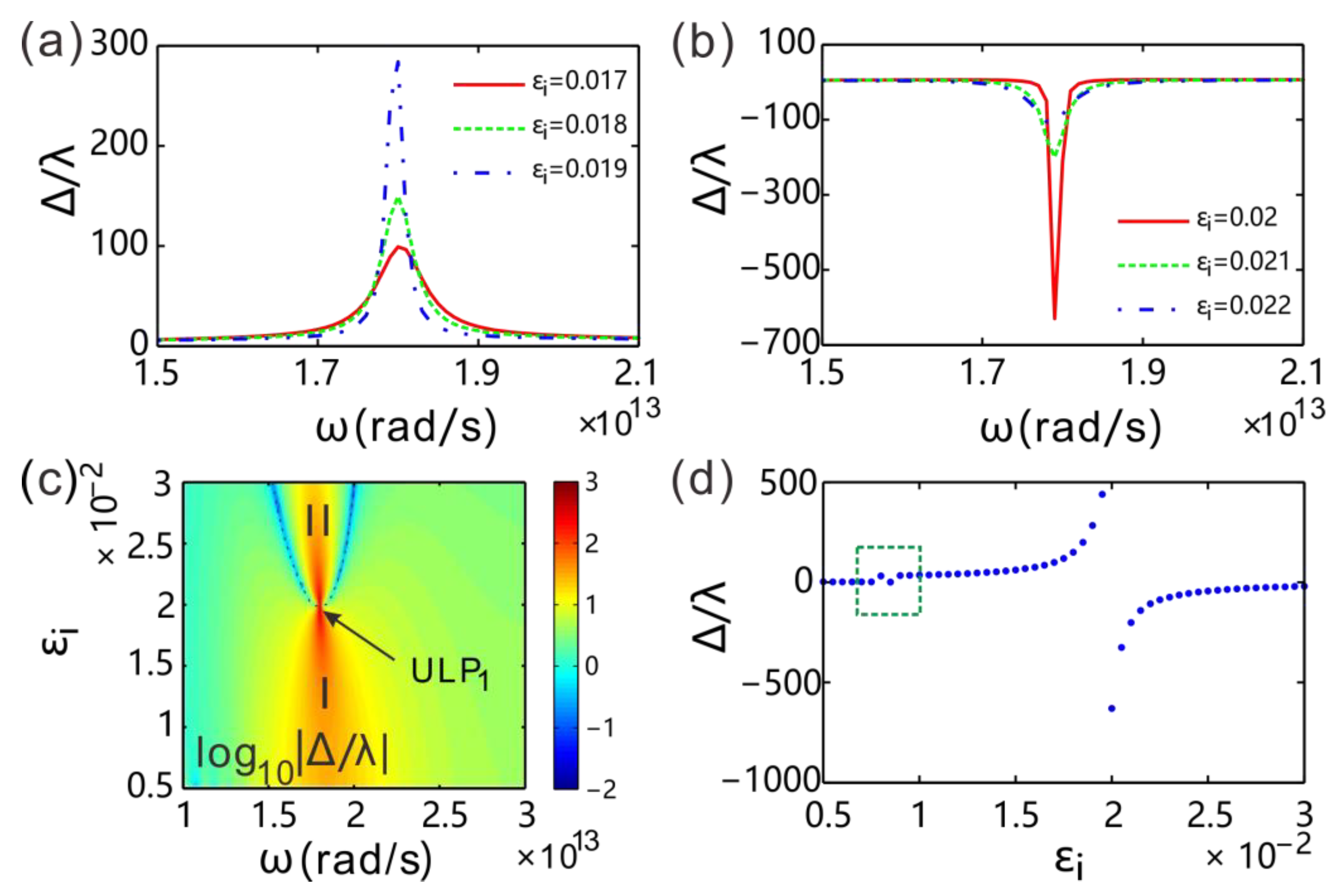

Figure 6. (a,b) The lateral shift of reflected light versus the angular frequency for several permittivities around ULP1. The permittivity εi < εi1 for (a) and εi > ɛi1 for (b). (c) The lateral shift of reflected light in the vicinity of ULP1. The lateral shift was positive in part I, while it was negative in part II. The results were rescaled by taking logarithm log10|/λ| for clarity. (d) The maximum lateral shift of reflected light varying with the permittivity around ULP1.
