Water-in-Water Emulsion as a New Approach to Produce Mesalamine-Loaded Xylan-Based Microparticles

Featured Application

Controlled Release of Drugs.

Abstract

The water-in-water emulsion method has been reported as a technique able to prepare microparticles without using harmful solvents. However, there are few reports showing the encapsulation of small molecules into microparticles produced within this technique. The probable reason relays on the rapid diffusion of these molecules from the discontinuous phase to the continuous phase. In the present study, xylan microparticles containing mesalamine were produced and the doubled crosslinking approach, used to promote higher encapsulation rates, was disclosed. To achieve this goal, a 2³ full factorial design was carried out. The results revealed that all formulations presented spherical-shaped microparticles. However, at specific conditions, only few formulations reached up to 50% of drug loading. In addition, the new xylan-based microparticles formulation retained almost 40% of its drug content after 12 h of a dissolution assay likely due to the degree of crosslinking. Thus, the doubled crosslinking approach used was effective on the encapsulation of mesalamine and may pave the way to successfully produce other polysaccharide-based carriers for clinical use.

1. Introduction

The preparation of microparticles based on hydrophilic polymers, such as polysaccharides derivatives, using techniques based on emulsion templates, majorly requires the use of organic solvents in order to form the hydrophilic and hydrophobic phases in which the internal hydrophilic phase contains the polymer [1,2,3]. In addition, together with the use of crosslinkers such as glutaraldehyde and terephthaloyl chloride, the microparticles produced by this way may present an important degree of toxicity [1,4].

Xylan, which is the second most abundant polysaccharide of the biosphere, is mainly presented in hardwood and perennial plants such as grasses, cereals, and herbs [5]. The use of xylan for biomedical applications is based on its important biocompatibility and selective degradation in the gastrointestinal tract, which occurs in the colon through enzymatic hydrolysis by the microbiota. Our group has lately exploited this feature in order to develop colon-specific drug delivery systems [6,7,8].

As previously mentioned, the preparation of polysaccharide-based microparticles, including xylan-based microparticles (XBM), mostly requires the use of organic/harmful solvents such as cyclohexane, and crosslinkers, such as terephthaloyl chloride, during their preparation [1,9,10]. On this behalf, the water-in-water emulsion approach can produce microparticles by the mixture of two immiscible aqueous polymeric solutions. Once these solutions are mixed, there is a formation of a system with a positive Gibbs free energy (∆G) (Equation (1)).

∆G = ∆H_mix − T ∆S_mix

(1)

This phenomenon happens due to the high molecular weight of the polyethylene glycol (PEG), which limited the translational motion of the polymeric chains. This results in a smaller value of ∆S_mix than ∆H_mix. Hence, it results in a positive ∆G, and, therefore, leads to phase separation [11]. Similarly to the traditional oil-in-water and water-in-oil emulsions, these two polymeric phases, once homogenized, may form two different phases, which include a continuous and a discontinuous one. Thus, once the two phases are obtained and a crosslinker is added to the dispersion, particles can be obtained [12,13].

The reports about microparticles prepared by the water-in-water emulsion technique hardly ever describe the encapsulation of active molecules [14,15,16]. Nonetheless, when tried, the encapsulated molecules are mostly biomolecules, such as proteins and peptides [17]. A probable explanation for such a phenomenon would be related to the free mobility of the small hydrophilic molecules into the dispersion. Once both phases are aqueous, the encapsulation efficiency is hindered [14].

The preparation of microparticles loaded with small active molecules through the water-in-water emulsion technique has been a pharmaceutical technology-based challenge. In this sense, in the present work, xylan microparticles loaded with mesalamine (5-ASA), which is a low molecular weight molecule, were prepared through a water-in-water emulsification process using different crosslinking approaches, designed through a 2³ full factorial design with a central point.

2. Materials and Methods

2.1. Materials

Xylan from beech wood, 5-ASA, and trisodium trimetaphosphate (STMP) were purchased from Sigma-Aldrich^® (São Paulo, Brazil). Polyethylene glycol (PEG, MW = 20,000 Da) came from Merck^® (São Paulo, Brazil). Potassium chloride was purchased from QEEL^® (São Paulo, Brazil). Sodium chloride, sodium hydroxide, calcium chloride, and sodium phosphate dibasic anhydrous were purchased from Vetec^® Chemical (Rio de Janeiro, Brazil). Anhydrous monobasic potassium phosphate was from ISOFAR^® (Rio de Janeiro, Brazil) and ethanol 98%_(v/v) from Atriom^® (São Paulo, Brazil). Water (conductivity ≤ 3.5 μS/cm), obtained from deionization and followed by a reverse osmosis process, was used to produce the microparticles and prepare the dissolution medium. All chemicals were of an analytical grade and used as received.

2.2. Phase Diagram of Xylan and PEG

To evaluate the concentrations of xylan and PEG required to achieve the formation of water-in-water emulsions, a phase diagram was obtained from acquired data in different experiments. First, a stock solution containing 35%_(w/v) of xylan and another with 32%_(w/v) of PEG were prepared. Afterward, successive dilutions were made using 1N NaOH and water, to reach a concentration range from 0.1%_(w/v) to 32%_(w/v) for xylan and from 0.5%_(w/v) to 29%_(w/v) for PEG, respectively. These solutions were brought together in a 1:4_(v/v) ratio and the phase separation was evaluated by the naked eye [16].

2.3. Production of the 5-ASA-Loaded XBM

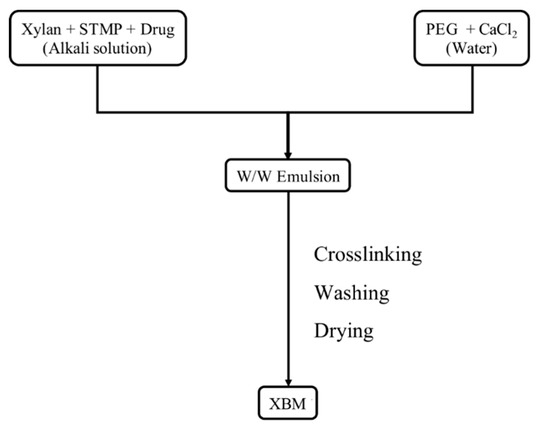

The 5-ASA-loaded XBM was prepared from an emulsion obtained by the previously mentioned phase diagram. The microparticles were produced following the flow chart presented in Figure 1. First, a solution containing 4%_(w/v) of xylan, 1%_(w/v) of STMP, and 0.05%_(w/v) of 5-ASA was prepared. Simultaneously, a PEG solution containing 32%_(w/v), with or without CaCl₂, was also prepared. In the sequence, the xylan solution was slowly poured into the PEG solution to reach a proportion of 1:4_(v/v), respectively. The dispersion was kept under constant magnetic stirring for 5 min and, then, incubated at 45 °C for 6 h [10]. Afterward, to cease the reaction and lead to microparticles precipitation, ethanol 98%_(v/v) was added to the mixture. Then, washing steps were carried out by centrifugation (2136 g for 5 min) with ethanol 98%_(v/v) and deionized water. Lastly, the 5-ASA-loaded XBM were dried at room temperature and stored at 25 °C.

2.4. Full Factorial Design

In order to improve the drug encapsulation into the XBM, a 2³ full factorial design with a center point was built (

Table 1. Experimental results of average diameter size and EE% of XBM and all XBM-Ca prepared based on the 2³ experimental design.

Samples	Xylan (%)	STMP (%)	CaCl2 (%)	Average Size µm ± (SD *)	EE (%) ± (SD)
XBM	4.0	0.5	-	10.7 ± 2.0	3.6 ± 2.5
XBM-Ca-F1	5.0	0.5	0.5	4.6 ± 0.1	29.1 ± 2.3
XBM-Ca-F2	5.0	1.0	0.5	4.6 ± 0.1	16.4 ± 6.2
XBM-Ca-F3	2.0	0.5	0.5	6.1 ± 0.4	20.9 ± 3.6
XBM-Ca-F4	5.0	1.0	2.0	5.1 ± 1.1	35.3 ± 9.3
XBM-Ca-F5	2.0	1.0	0.5	6.1 ± 0.4	32.6 ± 5.5
XBM-Ca-F6	3.5	0.75	1.25	6.3 ± 0.2	32.6 ± 0.8
XBM-Ca-F7	5.0	0.5	2.0	5.6 ± 0.2	35.4 ± 12.3
XBM-Ca-F8	2.0	0.5	2.0	4.5 ± 0.1	29.8 ± 8.8
XBM-Ca-F9	2.0	1.0	2.0	4.8 ± 0.1	49.6 ± 0.5

STMP = trisodium trimetaphosphate. CaCl₂ = calcium chloride. XBM = xylan-based microparticles. XBM-Ca = XBM also crosslinked with calcium chloride. EE% = encapsulation efficiency. F = Formulation. The PEG (polyethylene glycol) concentration remained constant in all formulations (32%_(w/v)). * This standard deviation is from the average size obtained during the analysis of 1500 particles (3 times 500), and not from the particle size distribution.

). The concentrations of xylan, CaCl₂, and STMP were tested according to Table 1, while 5.0 mg of 5-ASA was added in all formulations (XBM-Ca-F1–XBM-Ca-F9). Afterward, a mathematical modeling of the data was carried out in order to determine the parameters that had higher influence over the encapsulation efficiency.

2.5. Morphologic Analyses and Particle Size Distribution

The morphology and particle size distribution were evaluated by optical microscopy, using two optical microscopes, Model TM 800 (Taimin^®, João Pessoa, Brazil) and Model 020507.010 (Leica^®, Bellevue, WA USA) at a magnification of 10χ. In order to enhance the contrast of the particles during the analyses, several droplets of methylene blue solution 0.01%_(w/v) were used to re-suspend the microparticles. For the measurement of the particle size distribution, the powder of the microparticles was placed onto glass slides followed by the counting of 1500 particles (3 × 500). The particle size of each formulation was assessed, according to the Feret’s diameter [8]. Then, the acquired data were plotted using the Prism^® (Version 5.03, GraphPad^®, San Diego, CA, USA).

2.6. Drug Loading Efficiency (%)

The amount of 5-ASA encapsulated into the microparticles was evaluated through an UV/Vis Spectrophotometry technique (Biochrom^® Libra^® S32 UV/Vis, Cambridge, UK), at λ = 322 nm, with the following parameters: y = 27.87x − 0.0303, R² = 0.999, and relative standard deviation below 0.05% for all data points, in which it was demonstrated that the microparticles shell did not interfere. The microparticles content was released, using 1N NaOH and an ultrasound probe (13 mm probe, Vibra-cell^® 75041, Fischer Bioblock Scientific, Aalst, Belgium). In addition, 3 mg of the microparticles powder was immersed into 3 mL of 1N NaOH solution. Then, the mixture was kept at 37 °C under orbital stirring at 100 rpm, overnight. Afterward, the suspension was sonicated with an amplitude of 40% and 20 KHz for 1 min and centrifuged at 2136 g for 5 min. The amount of 5-ASA loaded was determined in the supernatant, and measured at λ = 322 nm, which followed the previously validated spectrophotometric method. The drug loading efficiency (EE%) was calculated by the following equation.

Encapsulation efficiency (%) = (quantified drug content/theoretical drug content) × 100

(2)

2.7. Attenuated Total Reflectance Infrared (ATR-IR) Spectroscopy Analysis

The interaction between the xylan, the 5-ASA, and the STMP during the crosslinking process was evaluated by ATR-IR spectroscopy (Spectrum 65, Waltham, MA, USA). The ATR-IR spectroscopy measurements were performed using the samples on the solid state. The samples were placed on the crystal area and the pressure arm was positioned over the crystal/sample area. Each sample was subjected to four scans at 1 cm⁻¹ resolution at room temperature using acetone to clean the crystal between the samples. The runs were carried out from the range of 4000 to 500 cm⁻¹. Once the analyses were performed, the graphs were plotted using OriginPro^® (Version 2015, Northampton, MA, USA).

2.8. X-ray Diffraction (XRD)

XRD analysis was performed for the 5-ASA and xylan alone, and the formulation XBM-Ca-F9 with and without the 5-ASA. X-ray scattering angle measurements were performed with a copper anode radiation Kα (λ = 0.15418 nm, 40 kV, 20 mA) attached to the diffractometer (Bruker, model D8 Advance, Karlsruhe, Germany). A scan rate of 2°/minute across the range of 20° to 80° 2θ was used to determine each spectrum.

2.9. In Vitro Drug Release

Initially, 10 mg of XBM-Ca-F9 was added in 30 mL of phosphate buffered saline pH = 7.4 at 37 °C. Subsequently, the recipients were sealed and maintained under orbital stirring of 100 rpm, and at specific times (0.5, 1, 2, 3, 4, 5, 6, and 12 h), aliquots of 5 mL were withdrawn from the recipients and centrifuged at 2136 g for 5 min. Five mL of fresh media were added in order to maintain the sink condition. Thereafter, the amount of 5-ASA in the supernatant was determined through UV/Vis Spectrophotometry (Biochrom^® Libra^® S32 UV/Vis, Cambridge, UK). The amount of 5-ASA released was calculated and expressed as the accumulative percentage of the drug released versus time through the Prism^® (Version 5.03, GraphPad^®, San Diego, CA, USA). After 12 h, the amount of 5-ASA remaining into the microparticles was analyzed following the procedure described in Section 2.6, after incubation at 37 °C for 2 h.

2.10. Mathematical Modeling of the In Vitro 5-ASA Release

The mathematical modeling of the data from the drug release assay was performed using the Add-in DDsolver for Microsoft^® Excel [18] in order to describe the mechanism by which the 5-ASA was released from the microparticles. The choice of the model that best fitted the experimental data was based on the adjusted coefficient of determination (adjusted-R²), which corresponds to the adjustment of the theoretical models to the experimentally obtained data. Additionally, the Root Average Square Error (RMSE) was used to evaluate the difference between the values obtained experimentally and those predicted by the model. Therefore, the model that best describes the experimental data was the one showing the largest adjusted-R² and the lower RMSE [18].

2.11. Statistical Analysis

The experimental design was performed in duplicate. Results were presented as average ± standard deviation (SD) of two independent analyses. The analysis of variance (ANOVA) was performed using the STATISTICA^® (Version 10, StatSoft, Palo Alto, CA, USA). P-values lower than 0.05 were assumed to be statistically significant.

3. Results and Discussion

3.1. Phase Diagram of Xylan and PEG

Water-in-water emulsions can be obtained by mixing two aqueous solutions of hydrophilic polymers. A biphasic system only is obtained when a certain polymer concentration is reached. These emulsions recently have been granted important attention due to the great potential applications in food and cosmetics preparations. In this sense, the achievement of a monophasic dispersion is mandatory [19]. The water-in-water emulsification process allows obtaining microparticles with narrow size distribution loaded with an active compound by avoiding the use of organic solvents and surfactant agents [11]. Stenekes and Hennink, still in the 1990s, showed that the average size of the particles prepared using the water-in-water emulsion method depends on the volume ratio of the discontinuous/continuous phase, the viscosity of the solutions, and the molecular weight of the polymers [20].

On the other hand, the microencapsulation into xylan-based microparticles of low molecular weight molecules, such as 5-ASA, has been a pharmaceutical technology challenge due to the restricted microparticles’ physicochemical stability and the use of harmful solvents to produce them [10]. In this regard, water-in-water emulsion systems can solve all drawbacks to produce such xylan-based microparticles. The phase diagram is the more common approach used to develop water-in-water emulsions [11]. Using such an approach, it is not only possible to define the region of the phase separation, but also to control the size of the internal phase domains, which will be further used as a template to produce the microparticles.

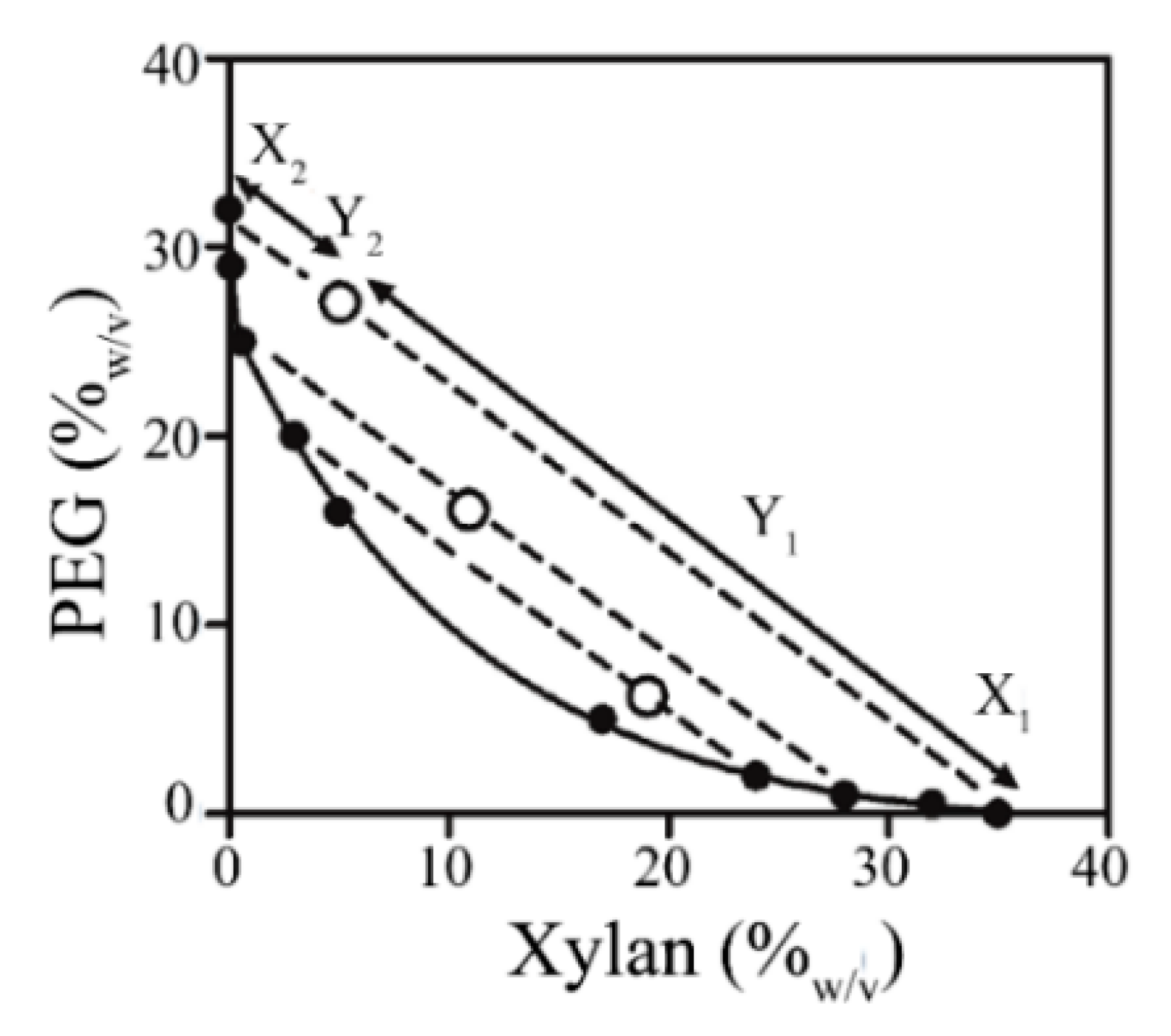

In this regard, the phase diagram prepared with PEG and xylan solutions was obtained and the results are available in Figure 2. The obtained data revealed the potential templates for the preparation of XBM. The region that shows the different and stable combinations between PEG and xylan are identified by the points above the tie-line (solid line, Figure 2). Located at this region, the emulsion constituted by PEG and xylan, at the concentration of 32%_(w/v) and 4%_(w/v), respectively, was further used due to the clear formation of droplets at the micro-scale range (data not shown).

3.2. Production and Characterization of XBM

The production of the XBM using the template chosen through the phase diagram was successfully achieved by the addition of STMP, as a cross-linker, and the incubation of the mixture at 45 °C for 6 h. From the macroscopic point of view, after stirring the two solutions, the emulsion presented a yellowish color and a homogeneous appearance. Once 5-ASA was added, samples also remained homogeneous, but reddish in tone. It is noteworthy that all formulations did not show phase separation after the incubation period. In addition, the XBM formulations had about a 35% yield, while the formulations containing CaCl₂ showed about a 60% yield. Thus, this parameter was the first evidence of the rapid formation of the microparticles pulling together xylan chains and hindering their diffusion to the continuous phase. Microscopically, the XBM formulation exhibited non-aggregated spherical microparticles (Figure 3A), with a homogeneous particle population distribution, and an average diameter of 10.7 ± 2.0 µm (Figure 3C).

The encapsulation efficiency of the 5-ASA was below 4% for the XBM formulation (Table 1). The probable reason for such a low encapsulation rate might be due to the diffusion of the 5-ASA to the continuous phase. This phenomenon might be the consequence of the use of the 1N NaOH on the production of the xylan solution and a long time to achieve the crosslinking process. The alkaline solution increases the pH of the emulsion to approximately 12 and allows the 5-ASA to be soluble on both phases of the emulsion and the crosslinking process lasts for around 6 h. In fact, the 5-ASA is largely soluble into alkaline solutions while its solubility in water is 1.41 mg/mL at 37 °C [21,22].

3.3. Influence of the CaCl₂ in the 5-ASA Loading

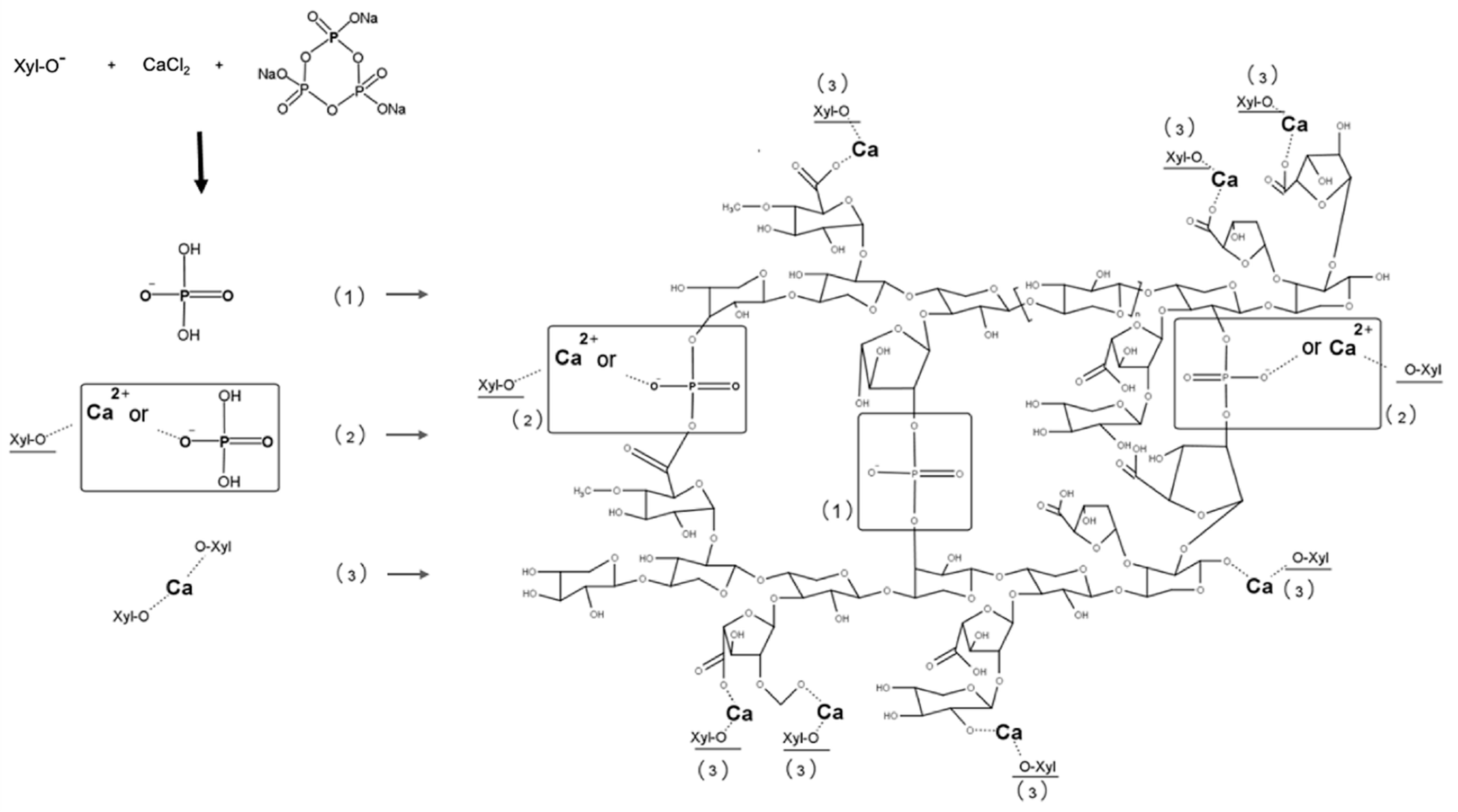

In order to increase the drug encapsulation into the XBM and improve its hardness, the addition of CaCl₂ during the microparticles production was used as a strategy to promote a faster crosslinking within the xylan chains. This approach could prevent the diffusion of the 5-ASA within the continuous phase, while hardening the xylan droplet. Simultaneously, the covalent chemical crosslinking between STMP and xylan would happen during the incubation period. In addition, the CaCl₂ might perform a role as a crosslinker, on the sites that would not be occupied by the STMP, which may increase the number of interaction points along the polymeric chains (Figure 4). Consequently, the crosslinking and compactness of the produced microparticles would also increase, which can be observed by a reduction on the average size on the formulations containing CaCl₂ (XBM-Ca-F1 to XBM-Ca-F9) compared to the ones without CaCl₂ (XBM) (Table 1) [23].

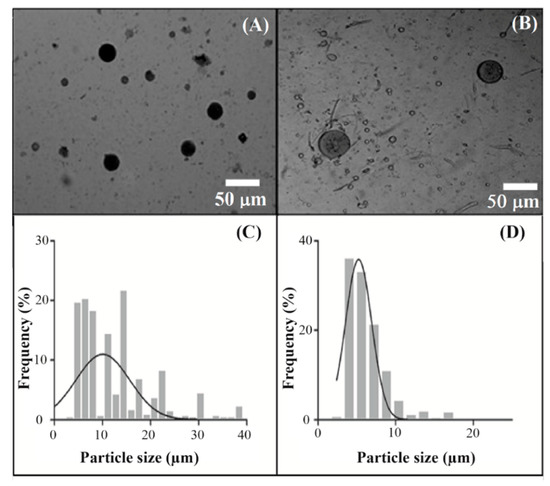

Similarly, based on XBM, the optical microscopy of the formulation XBM-Ca-F9 (Figure 3B) shows not only a spherical shape and absence of aggregates, but also a uniform distribution particle size (Figure 3D). In addition, the CaCl₂ promoted a reduction of approximately 50% on the average diameter of the formulation, from 10.70 (for XBM) to 4.77 µm (for XBM-Ca-F9). As can be seen in the formulations XBM-Ca-F4 and XBM-Ca-F6 (Table 1), the increase of CaCl₂ to 2%_(w/v) promoted a decrease in the average particle size.

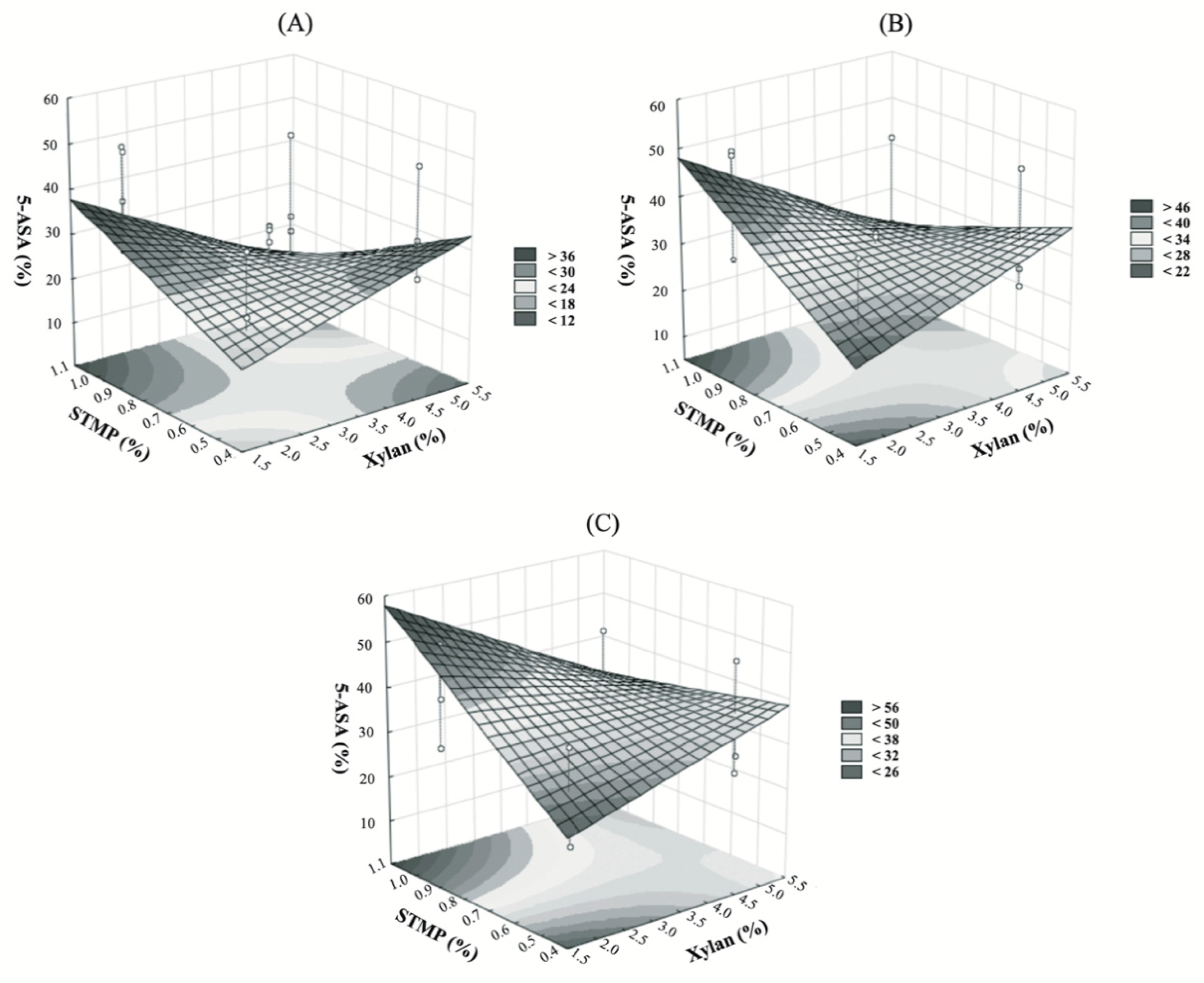

The factorial design analysis showed that only the main effect of CaCl₂ and the xylan-STMP interaction were statistically significant to increase the 5-ASA encapsulation into XBM (p-value < 0.05). As shown in Figure 5, the increment of the CaCl₂ improved the encapsulation of 5-ASA into the microparticles. This phenomenon was related to the faster crosslinking process of the Ca²⁺, mainly on the surface of the droplet, when compared to the STMP alone. The Ca²⁺ could be able to keep the drug entrapped while the network between xylan an STMP was formed [24]. On the other hand, the interaction between xylan and STMP has a negative impact on the 5-ASA encapsulation. It is likely that the amount of STMP used for the crosslinking reactions was insufficient to tightly link the xylan chains. Previous experiments showed that the ideal condition to produce XBM was the use of 1%_(w/v) of STMP. At high polymer concentrations, the formation of microparticles was hindered (data not shown).

Additionally, the encapsulation of 5-ASA was enhanced at the lower level of xylan and at the higher level of STMP (Figure 5A–C). The particles formed within these concentrations likely have a smaller pore size due to the high crosslinking degree, which, consequently, improves the encapsulation of 5-ASA [25].

From the mathematical modeling of the factorial design experimental data, it was possible to retrieve a predictive model with an adjusted-R² = 0.4661 and a predictive-R² = 0.1253. This large difference might be justified by the standard deviation obtained from some formulations, such as XBM-Ca-F4, XBM-Ca-F7, and XBM-Ca-F8. However, all these formulations showed a high xylan-STMP mass ratio, 5:1, 10:1, and 4:1, respectively, while the optimal formulation (XBM-Ca-F9) had a xylan-STMP mass ratio of 2:1 (Table 1, Figure 5). This data also corroborates to the ones from the literature, in which it could be observed that the crosslinking reaction was important not only to the encapsulation of the drug into the microparticles, but also to the control of their release to the media (buffers and physiological fluids) [23,24]. Recently, xylan-based microspheres were prepared by an emulsion-template technique, and the crosslinking concentration was also an important parameter not only for the formation of the microspheres, but also for their swelling capacity [10].

3.4. Chemical Characterization of XBM and XBM-Ca by ATR-FTIR

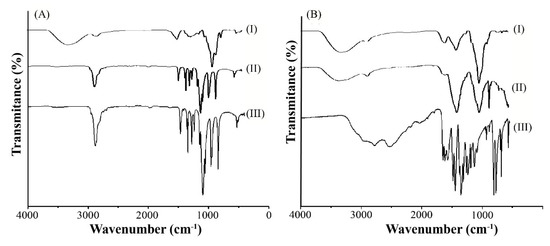

To better understand the chemical interactions between the polymeric matrix and the 5-ASA, the ATR-IR was performed. Figure 6A shows the ATR-IR spectra of xylan (I), XBM (II), and PEG (III), while Figure 6B depicted the ATR-IR spectra of XBM-Ca-F9 without 5-ASA (I), XBM-Ca-F9-loaded with 5-ASA (II), and pure 5-ASA (III).

The xylan infrared spectrum was like other spectra observed elsewhere (Figure 6A (I)) [26,27]. Furthermore, it was observed that the spectrum of XBM and PEG (Figure 6A (II and III, respectively)) had similar peaks, likely due to the shielding effect presented by the PEG in the formulation. In fact, after the drying process, it could be possible that the PEG shielding effect form a film and prevent ATR-IR from analyzing XBM. On the other hand, in formulations containing CaCl₂ (Figure 6B (I and II)), this phenomenon was not observed. It could be speculated that, likely, the CaCl₂ play an important role at the interface of the microparticles, which hinders the shielding effect of PEG.

The ATR-IR results also revealed that the bond P=O formed during the crosslinking process between the STMP and the polysaccharides was not observed. This phenomenon was equally observed for the empty and loaded XBM-Ca-F9 and might reveal a low degree of crosslinking, which was suggested by Li and co-workers (2012) [15]. The presence of a sharp peak at the 848 cm⁻¹ region was observed for the XBM-Ca-F9 loaded with 5-ASA (Figure 6B (II)), while it was not seen on the empty XBM-Ca-F9 (Figure 6B (I)). This peak is commonly attributed to the C-H bonds of aromatic groups, such as the aromatic ring presented at the 5-ASA structure and was also observed on its spectrum in Figure 6B (III) [22]. In addition, the increase on the intensity of the peak near 1500 cm⁻¹ may be associated with the enhancement of drug 5-ASA loading, once these peaks are associated to the C-C and C=C stretching mode, and also to the N-H bond [22].

3.5. XRD Analysis

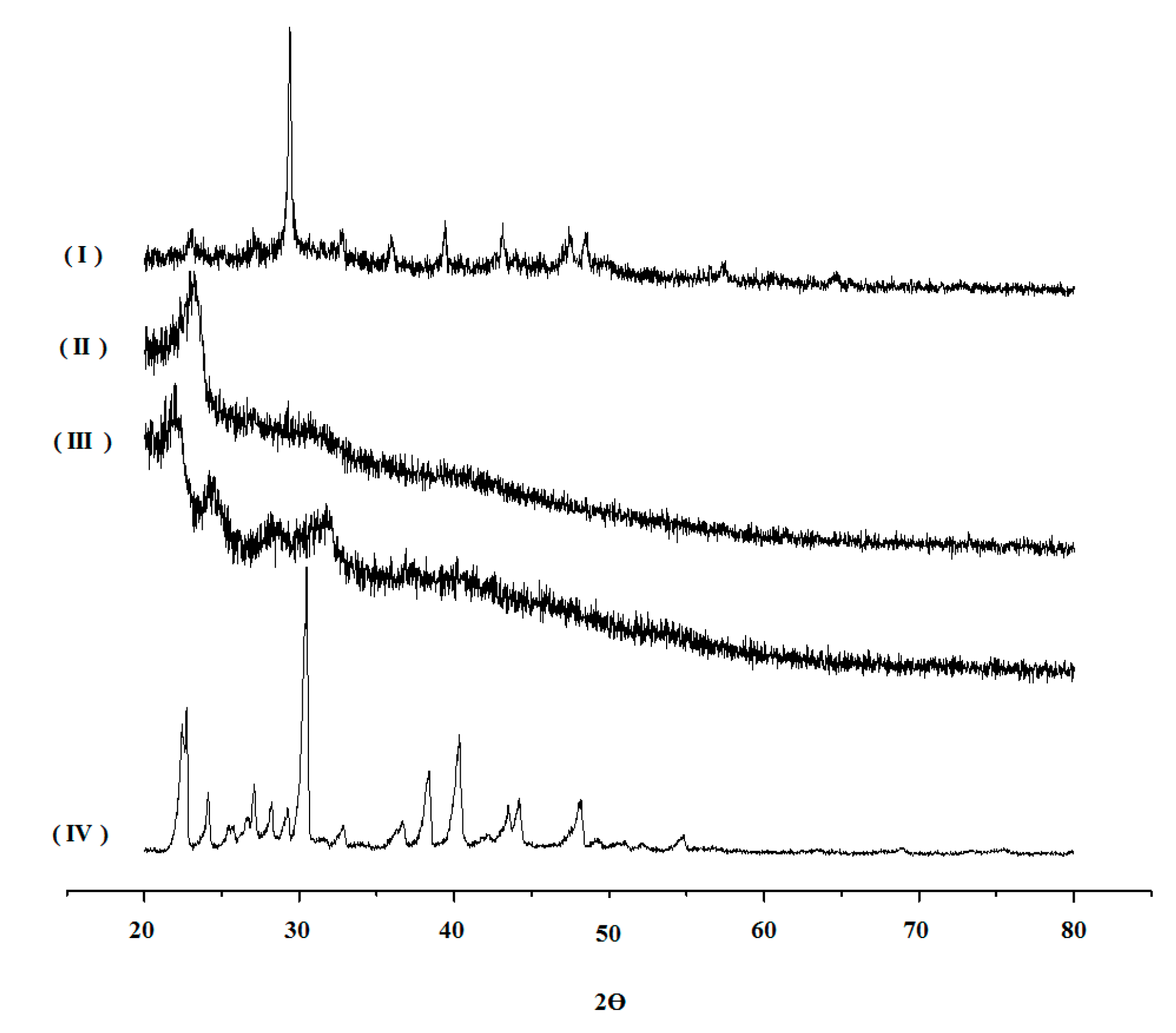

As reported in the literature, xylan XRD analysis (Figure 7 (II)) revealed the profile of an amorphous polymer [26]. Likewise, the diffractogram of the unloaded XBM-Ca-F9 (Figure 7 (III)) also revealed an amorphous structure. This result is very different from the previous reports of crosslinked xylan microparticles prepared with terephthaloyl chloride. However, this is commonly seen in STMP crosslinking products [28]. On the other hand, the diffractogram of 5-ASA alone (Figure 7 (IV)) showed very pronounced peaks at 22.5°, 30.6°, and 40.6°, which was also identified in XBM-Ca-F9 loaded with 5-ASA (Figure 7 (I)) XRD analysis. The presence of the peaks from 5-ASA on the XBM-Ca-F9 diffractogram reveals the association of the 5-ASA with the xylan through physical interactions. Once no new bound was identified in the ATR-IR analysis, there was only an enhancement of the peaks at the region between 1400 to 1600 cm⁻¹, as previously discussed.

3.6. In Vitro Drug Release and Mathematical Modeling

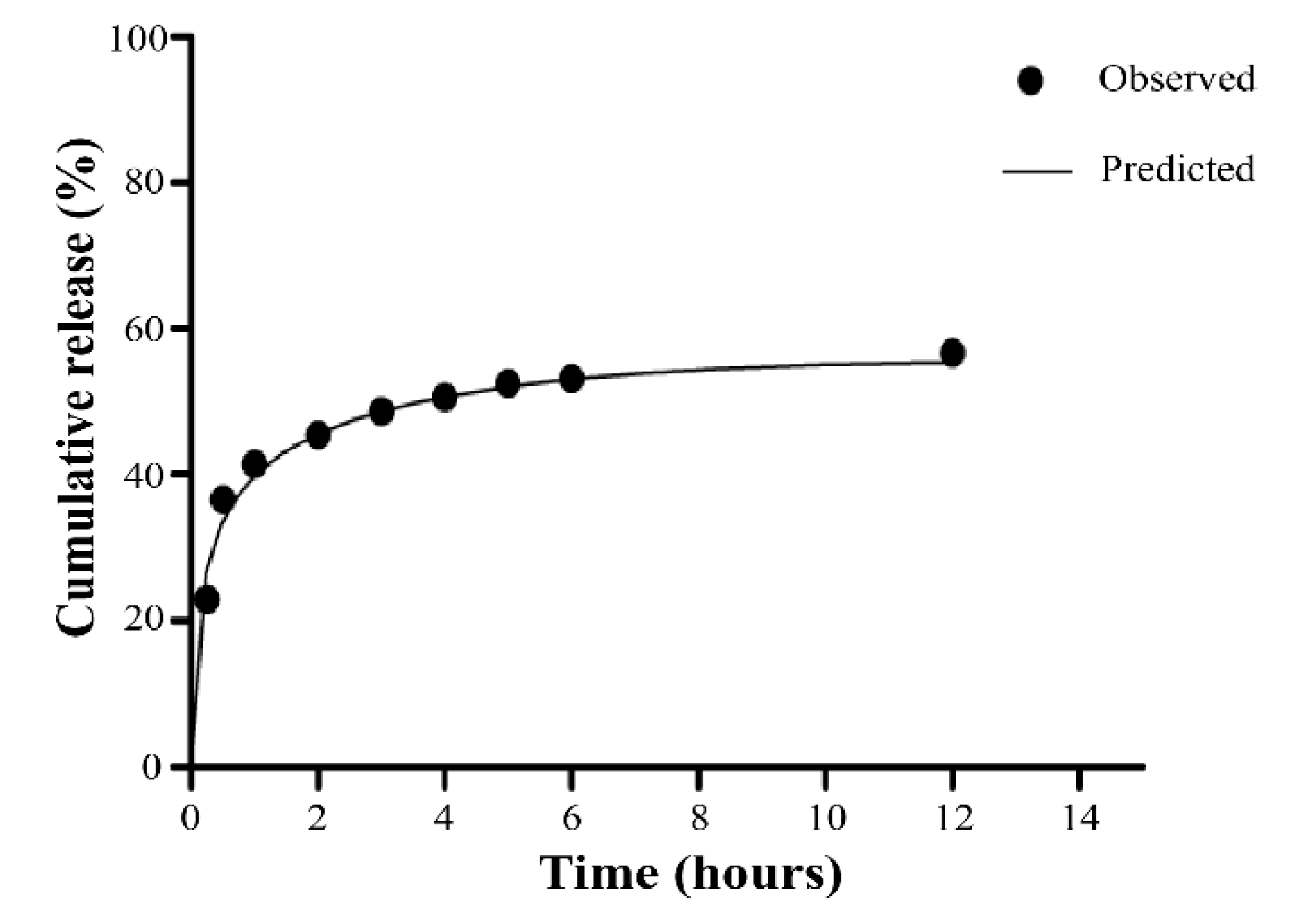

From the developed formulations shown in Table 1, the formulation XBM-Ca-F9 presented the highest EE% and, therefore, was used as a model in the study of drug release. According to Figure 8, approximately half of the initial loading of 5-ASA was released into the dissolution medium in approximately 4 h. In fact, despite the initial release, the amount released after 12 h of the experiment reached 60%. This result indicates that the formulation XBM-Ca-F9 might be able to reach the large intestine with approximately 40% of its initial loading in 5-ASA, which was later confirmed (36.4% ± 1.1%) by the extraction of the 5-ASA from the matrix after 12 h.

This initial release observed in the beginning of the experiment may happen due to the hydration and relaxation of the xylan chains that allow the drug diffusion [29]. However, the ability to hold 40% of its initial load after 4 h might be enough for the local treatment of the inflammation. In fact, previous studies with successful pharmacological response carried out with microgranules containing 5-ASA (Pentasa^®) showed that the delivery systems reached the colon region in approximately 4 to 6 h [30]. The retention of the 5-ASA for such a long period into the XBM-Ca-F9 matrix leads to the hypothesis of the ability to deliver the 5-ASA in the colon region by the XBM-Ca-F9 formulation, since it was for xylan conjugates with 5-fluoracil (Sauraj and co-workers (2017)). In this work, the authors performed a dissolution assay using the materials and fluids from rats’ gastrointestinal tract [31].

In order to understand the mechanism on the initial release of 5-ASA from XBM-Ca-F9, some mathematical models were applied to the data. Initially, a first attempt was made to fit the data to a concentration independent model (e.g., linear model). However, the drug was not released in a constant rate. Thus, models that considered a non-linear release were tested. The Higuchi, Korsmeyer-Peppas, and Peppas-Shalin models were, then, tried. The Higuchi model showed a poor adjustment to the data, likely due to the non Fickian diffusion of the drug through the polymeric matrix, which will be later discussed. On the other hand, the Korsmeyer-Peppas and the Peppas-Shalin model, which consider the Fickian diffusion and the relaxation of the polymeric chains, were able to best fit the data. Therefore, the Peppas-Sahlin model with t-lag was the one with best fitting parameters, once it considers a lag time for the beginning of the drug release (See Table S1) [29,32]. Thus, according to the predictive model, the main mechanism of the 5-ASA release from the Formulation XBM-Ca-F9 was the relaxation of the xylan chains. In addition, it was seen that the contribution of the Fickian diffusion decreased, while the contribution of the relaxation increased over the time.

The release profile observed for the XBM-Ca-F9 was quite different from the xylan-based particles previously produced by our group. The crosslinked microcapsules prepared by Silva et al. (2013) kept constantly the release of the drug into the buffer media, while the spray-dried formulations completely release the drug once in contact to the medium [9]. Thus, to the best of our knowledge, the xylan-based particles developed had the highest encapsulation efficiency and the best drug release profile for physical encapsulation of 5-ASA.

4. Conclusions

The encapsulation of low molecular weight drug using the water-in-water emulsions technique can be achieved using the ionic gelation technique, which is a method to quickly harden the polymeric matrix. Additionally, the addition of CaCl₂ did not hinder the assembling of the xylan polymeric chains. Furthermore, the CaCl₂ apparently sharpens the particles’ size distribution, and all the microparticles produced were spherical and non-aggregated, which reveals the feasibility of the methodology. The kinetic release of the 5-ASA was linked to the relaxation of the xylan chains. Even though there was a 50% release, seen in the first 4 h, there was a high amount of the 5-ASA that moved into the microparticles after 12 h (36.4% ± 1.1%). To the best of our knowledge, this was the first time that a low molecular weight drug was successfully encapsulated into microparticles produced by this technique, which broadens the application of this technology. This approach can also be used to enhance the therapeutic efficiency of other small molecules, such as budesonide, metronidazole, and dicyclomine.
