A Comparative Study on Interactions of Antimicrobial Peptides L- and D-phenylseptin with 1,2-dimyristoyl-sn-glycero-3-phosphocholine

Abstract

L-phenylseptin (L-Phes) and D-phenylseptin (D-Phes) are amphibian antimicrobial peptides isolated from the skin secretion of Hypsiboas punctatus. In the N-termini, L-Phes and D-Phes contain three consecutive phenylalanine residues, l-Phe-l-Phe-l-Phe and l-Phe-d-Phe-l-Phe, respectively. They are known to exhibit antimicrobial activity against Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa, and Xanthomonas axonopodis pv. Glycines. However, their mechanism of action and the role of the D-amino acid residue have not been elucidated yet. In this study, the interactions of both peptides with 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC) were investigated by means of quartz crystal microbalance, circular dichroism, vibrational circular dichroism, ³¹P solid-state NMR, and molecular dynamics simulation. Both peptides have similar binding constants to the DMPC lipid bilayers, in the order of 10⁶ M⁻¹, and form an α-helix structure in the DMPC lipid bilayers. Both the peptides induce similar changes in the dynamics of DMPC lipids. Thus, in spite of the difference in the conformations caused by the chirality at the N-terminus, the peptides showed similar behavior in the membrane-bound state, experimentally and computationally.

1. Introduction

Antimicrobial peptides are promising candidates for new antibiotics and have broad-spectrum activity against gram-negative and gram-positive bacteria, fungi, and parasites [1,2]. Generally, these peptides are amphipathic in nature and tend to adopt α-helices in the membrane. They act on and destroy the microbial cell wall through several mechanisms, such as forming pores and channels and exerting detergent-like activity [3,4]. The membrane interactions play a major role in the peptide functions. However, even before their antimicrobial activity, the peptides may get degraded by the target organisms [5]. Therefore, incorporation of one or more d-amino acids into these peptides has received significant attention in recent decades [6].

Since the first d-amino acid was found in a protein about 100 years ago, many peptides have been discovered to have d-amino acids, which fall beyond the realm of the central dogma [7,8]. Frog skin is a precious source of d-amino acid containing antimicrobial peptides. This includes dermorphin [9], several deltorphin analogous [10,11,12,13,14], bombinins [15,16,17], and phenylseptins [18]. Interestingly, they coexist with their all l-forms and possess a d-amino acid at the second position in their sequences. The presence of d-amino acids in these peptides dramatically increases their activity [17,19].

Dermorphin contains d-alanine at position 2 and is the first example of d-amino acid containing peptides isolated from vertebrates [9,19]. Dermorphin not only exhibits higher efficiency and potency, but also elicits lesser side effects than morphine does [19]. Another example is bombinin H4, which exhibits greater binding affinity and hydrophobicity compared to its all l-isomer, bombinin H2 [15,17,20]. Bombinin H4 binds to the Leishmania-mimetic membrane 5-fold stronger than bombinin H2 does [17]. Recently, MD simulations revealed the side chain cooperation between the residues, l- Ile and d-allo-Ile in bombinin H4, which helps to insert into the model membrane. N-terminal of bombinin H4 displayed higher stability in the membrane than bombinin H2 did [21]. Electrophysiological experiments confirmed that bombinin H4 quickly forms small channels in the membrane, which enabled it to act on the model membrane rapidly [22].

Like the above-mentioned instances, l- and d-phenylseptin (l-Phes and d-Phes) peptides, isolated from the skin secretion of Hypsiboas punctatus, displayed antimicrobial activity against Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa, and Xanthomonas axonopodis pv. Glycines [18]. D-Phes exhibited 2- and 8-fold potency than L-Phes did against Staphylococcus aureus and Xanthomonas axonopodis pv. glycines, respectively [18]. Both peptides consist of 18 amino acids with the following sequences. In contrast to L-Phes, which has three L-Phe residues at positions 1-3, D-Phes contains a d-phenylalanine at the second position.

• L-Phenylseptin (L-Phes):

Phe-l-Phe-Phe-Asp-Thr-Leu-Lys-Asn-Leu-Ala-Gly-Lys-Val-Ile-Gly-Ala-Leu-Thr-NH₂

• D-Phenylseptin (D-Phes):

Phe-d-Phe-Phe-Asp-Thr-Leu-Lys-Asn-Leu-Ala-Gly-Lys-Val-Ile-Gly-Ala-Leu-Thr-NH₂

These peptides contain positively charged N-termini and two lysine residues, and the hydrophobic residues occur near the C-termini. Three consecutive Phe residues in D-Phes were conformationally more stable than that of L-Phes [18]. Ion mobility mass spectrometry revealed that L-Phes displayed two major conformations while D-Phes showed a major and a minor one [18]. The membrane interactions and mechanism of action of the peptides have not been well documented. Moreover, the role of d-amino acid in the function is unclear.

In this work, we performed a comparative analysis of the membrane interactions of the L-Phes and D-Phes peptides with the 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC) membrane using quartz crystal microbalance (QCM), circular dichroism (CD), vibrational circular dichroism (VCD), solid-state nuclear magnetic resonance (NMR), and molecular dynamics (MD) simulations. The combination of these techniques are widely applied to monitor and study the membrane interactions, secondary structures, and the structural dynamics of the antimicrobial peptides [21,23,24].

2. Materials and Methods

2.1. Synthesis of Peptides

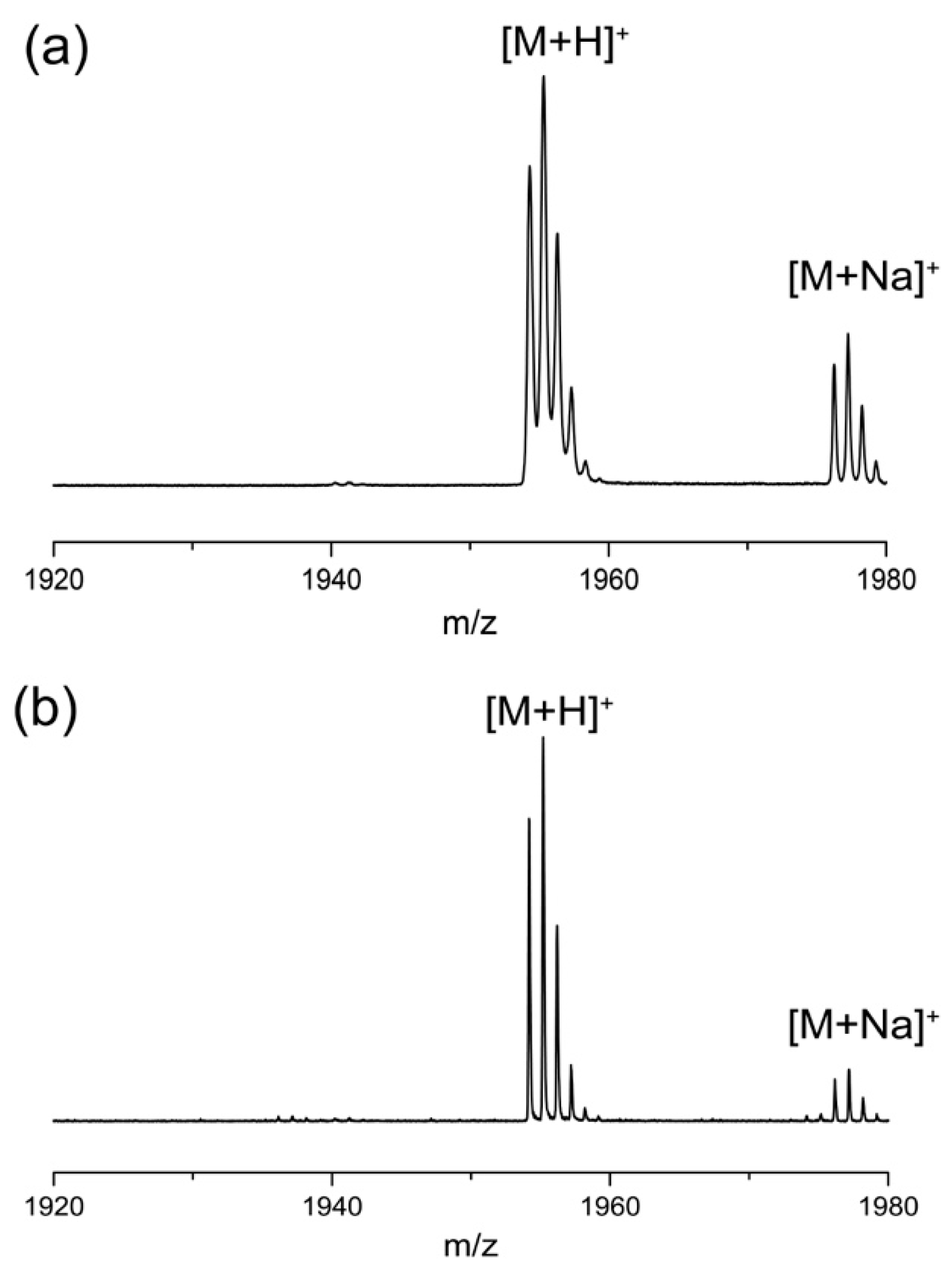

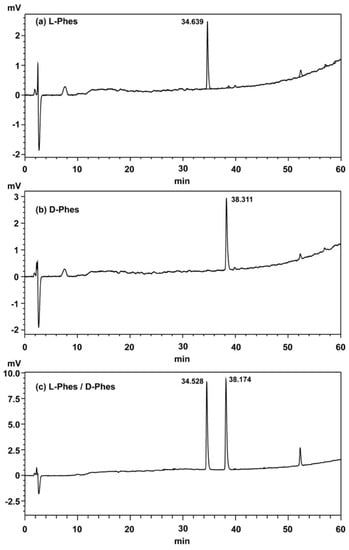

L-Phes and D-Phes peptides were chemically synthesized by microwave-assisted solid-phase peptide chemistry, using an automatic Initiator+ Alstra peptide synthesizer (Biotage, Japan), respectively. These peptides were purified by reverse phase HPLC (Shimazu Prominence) equipped with an ODS C18 column (Kinetex Axia) (Figure A1). The purity of each peptide was >98% without production of any diastereomers. The peptide was confirmed by MALDI-TOF-MS (Bruker Daltonics) (found [M+H]⁺ = 1954.2 and [M+Na]⁺ = 1976.2 in Figure A2). L-Phes and D-Phes peptides were dissolved in 20 mM Tris 100 mM NaCl buffer at pH 7.4.

2.2. Phospholipids

DMPC (1,2-dimyristoyl-sn-glycero-3-phosphocholine) and DHPC (1,2-dihexanoic-sn-glycero-3-phosphocholine) were purchased form Avanti Polar Lipids.

2.3. Quartz Crystal Microbalance

The binding constants (Ka) of phenylseptin peptides to DMPC membrane were estimated by changes in the frequency ($\Delta$F, Hz) of QCM using an Affinix QNμ (INITIUM, Japan) with a 27-MHz resonator. The relationship between the changes in mass ($\Delta$m, g) and $\Delta$F is based on Sauerbrey’s Equation (1), [25] as follows:

$$\Delta F=-\frac{2F_0^2}{A\sqrt{{\rho }_q{\mu }_q}}\Delta m$$

(1)

where F₀ is the reference frequency of the QCM (27 MHz, A is the area of the gold electrode (4.9 × 10⁻² cm²), ρ_q is the density of the quartz (2.65 g cm⁻³), and the shear modulus of quartz μ_q (2.95 x 10⁶ N cm⁻²). DMPC lipid bilayers were immobilized on the Au electrode of the QCM sensor. QCM measurements were conducted at 30 °C in 500 μL of Tris buffer pH 7.4. One microliter of peptide solution at 100 μM was injected into the QCM electrode.

2.4. Far-Ultraviolet Circular Dichroism (Far-UV CD)

Bicelle solution (20 mM Tris buffer at pH 7.4) was prepared by hydration of a mixture of DMPC and 1,2-dihexanoic-sn-glycero-3-phosphocholine (DHPC) (Avanti polar lipids) at the molar ratio of 1:1. The peptide was dissolved in the suspension, the peptide-lipid (P/L) molar ratio was adjusted to 1:20. Far-ultraviolet circular dichroism (Far-UV CD) spectra of the peptides in the bicelle dispersion were acquired on a J-725 spectrometer (JASCO, Japan) at 30 °C.

2.5. Vibrational Circular Dichroism (VCD)

Peptide samples for vibrational circular dichroism (VCD) experiments were prepared by mixing a peptide and KBr at a ratio of 1:100 and turning the mixture into a transparent 10mm diameter pellet. VCD and infrared (IR) spectroscopic properties were analyzed using a JASCO PRESTO-S-2016 VCD/LD spectrometer. The IR intensity was adjusted to approximately 1.0. The sample cell was rotated along the direction of monitoring at 0° and 45° to confirm the reliability. The signals were accumulated for 10,000 scans for each sample.

2.6. P Solid-State NMR

The mixture of peptide and DMPC was dissolved in chloroform and subsequently evaporated to make a thin film. The peptide/lipid molar ratio was adjusted to 1:20. This film was carefully hydrated with Tris-NaCl buffer (pH 7.4), and then the lipids were incubated overnight at 40 °C for 1 day. Solid-state NMR experiments were performed on Bruker AVANCE III 600MHz spectrometer equipped with a double resonance standard-bore probe at ³¹P resonance frequencies of 242.95MHz. High-power proton dipolar decoupling (DD) under static conditions (³¹P DD-static MAS) were applied to measure ³¹P NMR signals at 40 °C for fully hydrated samples. ³¹P chemical shift values were determined in reference to 85% H₃PO₄ at 0.00ppm. The NMR data were processed and analyzed using the Bruker TOPSPIN program.

2.7. Molecular Dynamics Simulations

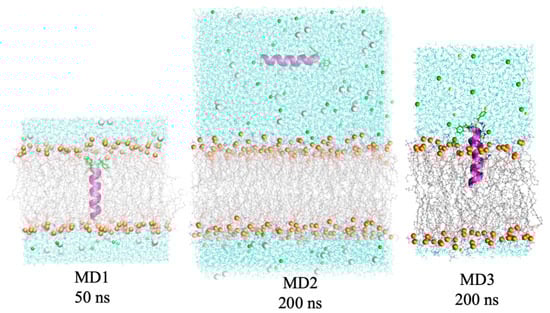

We performed two different types of simulations of the peptides with the membrane using GROMACS 5.1.4 [26] with CHARMM36 force field [27]. We initially modelled the α-helical conformations of the peptides using Swiss PDB Viewer program [28]. The structures with protonated N-termini (NH₃⁺) and amidated C-termini (NH₂) were considered in this work at the neutral pH condition. The initial structures of the simulations and the system contents were included in Figure A3 and

Table A1. Information of simulation systems.

Simulation ID	Peptide	Time, ns	Number of contents
			DMPC	Water	Na+	Cl−
MD1	L-Phes	50	128	3691	9	11
	D-Phes	50	128	3697	9	11
MD2	L-Phes	200	240	17865	48	50
	D-Phes	200	240	17698	47	49
MD3	L-Phes	200 (x3) 1	66	2959	7	9
	D-Phes	200 (x3) 1	66	3119	8	10

¹ The number of replicas were written in parenthesis.

.

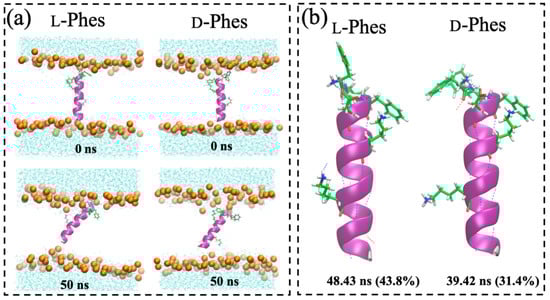

First, we performed 50 ns simulations of L-Phes and D-Phes, which were started from the fully inserted conformations in DMPC membrane. We chose the most populated clusters of the peptides in the last 25 ns of the simulations as the main conformations of the peptides in the membrane. The conformations were applied as the initial structures of the peptides for the next two types of simulations. Second, we placed the peptides in the water region around 3 nm away from the membrane surface to observe the initial interaction difference between L-Phes and D-Phes with the model membrane. Third, C-terminal regions of the peptides were inserted into the membrane to elucidate the interface actions of the peptides.

Initial structures were constructed with CHARMM-GUI membrane builder [29]. We used the standard minimization, equilibrations, and production settings of the membrane builder [30]. Periodic boundary condition was applied in all directions. The time step was 2 fs and the data were saved in every 2 ps. Verlet cut-off scheme was employed for neighbor searching using grid cells and updated every 20 steps [31]. The linear constraint solver (LINCS) algorithm constrained all bonds [32]. Lennard–Jones interactions were switched off at 10–12Å with a force-based switching function [33]. The particle mesh Ewald method controlled the long-range electrostatics [34,35]. Nose–Hoover thermostat maintained the temperature using a time constant of 0.1 ps at 313 K [36,37]. Semi-isotropic Parrinello–Rahman barostat maintained the pressure at 1 bar with a time constant of 5.0 ps and compressibility of 4.5 × 10⁻⁵ bar⁻¹ [38]. The analyses were performed using standard tools of the GROMACS package. The secondary structures of the peptides assigned by DSSP program [39]. The structures were displayed using visual molecular dynamics (VMD) [40]. Plots were displayed using Grace software [41].

3. Results and Discussions

3.1. QCM

QCM can estimate the affinity of membrane-bound peptide with immobilized membrane [41,42]. To investigate the affinity of phenylseptin peptides with DMPC bilayers, we performed QCM measurements.

Table 1. The binding constants Ka of peptides to 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC) using quartz crystal microbalance (QCM).

Peptides	Ka/M−1
L-Phes	4.7 × 106
D-Phes	7.3 × 106

summarizes the values of binding constants Ka of L-Phes and D-Phes. The order (10⁶ M⁻¹) suggested that the peptides have a certain affinity for the DMPC membrane. The binding constant values also showed that D-Phes has a slightly stronger affinity to DMPC membrane. These results indicated that the differences in the N-terminal structure might be manifest as differences in the affinity and antimicrobial activity. Additionally, L-Phes and D-Phes differed in their hydrophobicity, as evident from the different HPLC retention times of L-Phes and D-Phes (Figure A1). This is consistent with the result of de Magalhães and colleagues [18]. The higher hydrophobicity of D-Phes could be also related to the conformations adopted by the N-terminal region, which in turn, could affect the interactions of the phenylalanine residues with the model membrane.

3.2. Far-UV CD Spectroscopy

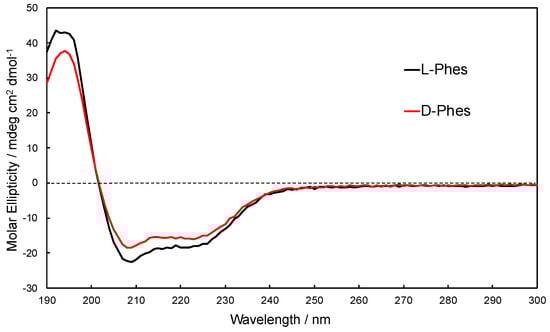

Far-UV CD spectra are strongly dependent on the secondary structure of peptides [43,44]. CD spectra of L-Phes and D-Phes in DMPC/DHPC bicelle (DMPC:DHPC=1:1) are shown in Figure 1. Bicelle is used as a model systems of lipid bilayers to investigate the interaction peptide and the membranes [42,45]. The DMPC/DHPC=1:1 forms a small discoidal membrane that is able to avoid a light scattering of lipid systems. The spectral patterns show that both peptides mainly formed α-helices in DMPC/DHPC bicelles [43]. However, the magnitude of molar ellipticity of the positive band at 195 nm and the negative bands at 210 nm and 225 nm of D-Phes was lesser than those of L-Phes. This indicated that the helical content of D-Phes is slightly lesser than that of L-Phes, which could be due to the presence of D-Phe2 residue in D-Phes.

3.3. VCD and IR Spectroscopy

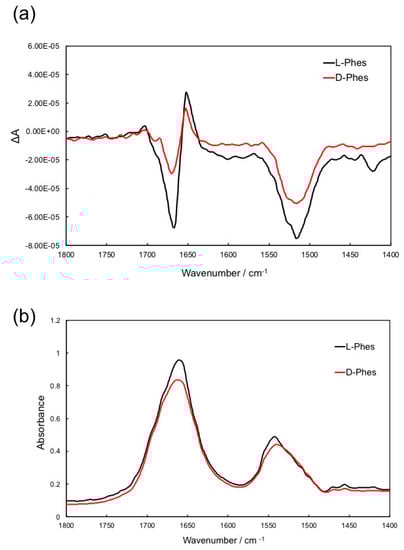

VCD is sensitive a technique used to detect and characterize chiral molecules [46,47,48]. To investigate chiral effects of the Phe2 residue on the peptide structure, a comparison of VCD/IR spectra between L-Phes and D-Phes in the KBr pellets was performed as shown in Figure 2a,b. The bands of amide I and amide II vibrations appeared mainly at around 1650 and 1525 cm⁻¹, respectively. It has been shown that typical VCD signal of α-helix exhibits a couplet at 1660 (negative)/1640 (positive) cm⁻¹ [46]. In the VCD spectra of L-Phes and D-Phes (Figure 2a), the couplet of amide I bands was observed at 1667 (negative sign) and 1648 (positive sign) cm⁻¹. Amide II band was observed at 1514 cm⁻¹ (negative sign). This showed that both Phes peptides take helical structure. However, the intensity of the amide I couplet and amide II of D-Phes was significantly decreased, indicating that the conformation of N-terminal part is different between the two peptides; while the N-terminus of L-Phes adopts a helical conformation, the same region in D-Phes is disordered. Previously, we have reported the differences in the VCD spectra of bombinin H4, containing D-allo-isoleucine at the second residue, and its diastereomer H2, and showed differences in the structure of the N-terminal region [21]. Thus, our CD and VCD experiments of the phenylseptin showed that both peptides form similar α-helical structures, however in the N-terminal region, the conformation is quite different for the two peptides.

3.4. ³¹P Solid-State NMR

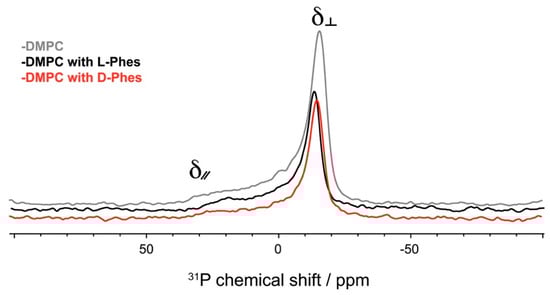

³¹P solid-state NMR spectroscopy is a useful technique for detection of dynamics of lipid molecules and phase behaviors [41,42,49]. Figure 3 shows ³¹P static NMR spectra of the DMPC lipid bilayers at 40 °C. First, an axial symmetric powder pattern of liquid-crystalline phase of the membrane was obtained because gel-to-liquid crystalline phase transition temperature of DMPC was around 23 °C (Figure 3, grey line). The values of ³¹P chemical shift anisotropy ∆δ (δ_∕∕ - δ_⊥) of the DMPC with L-Phes and D-Phes were lesser as compared with that obtained with only DMPC membrane. The spectral patterns of both peptides are very similar. This indicated that both peptides interact with DMPC bilayers similarly, corresponding with the interaction affinity as estimated by QCM.

3.5. Molecular Dynamics Simulations

Previously, it has been reported that the peptides L-Phes and D-Phes adopt α-helical conformations in a mixture of acetonitrile and water, using solution NMR technique [18]. Here, we evaluated the structural stability and interactions of the peptides with DMPC membrane with three different types of simulations. The initial structures were shown in Figure A3, and Table A1 displays the contents of systems. First, we simulated the helical structures inside the model membrane. Both peptides exhibited the stable helical conformation during these simulations, and the first and last snapshots of the simulations are shown in Figure A4a. We identified the most populated structures during the last 25 ns of the simulations, which are shown in Figure A4b. We applied the structures as the initial conformations for the next simulations.

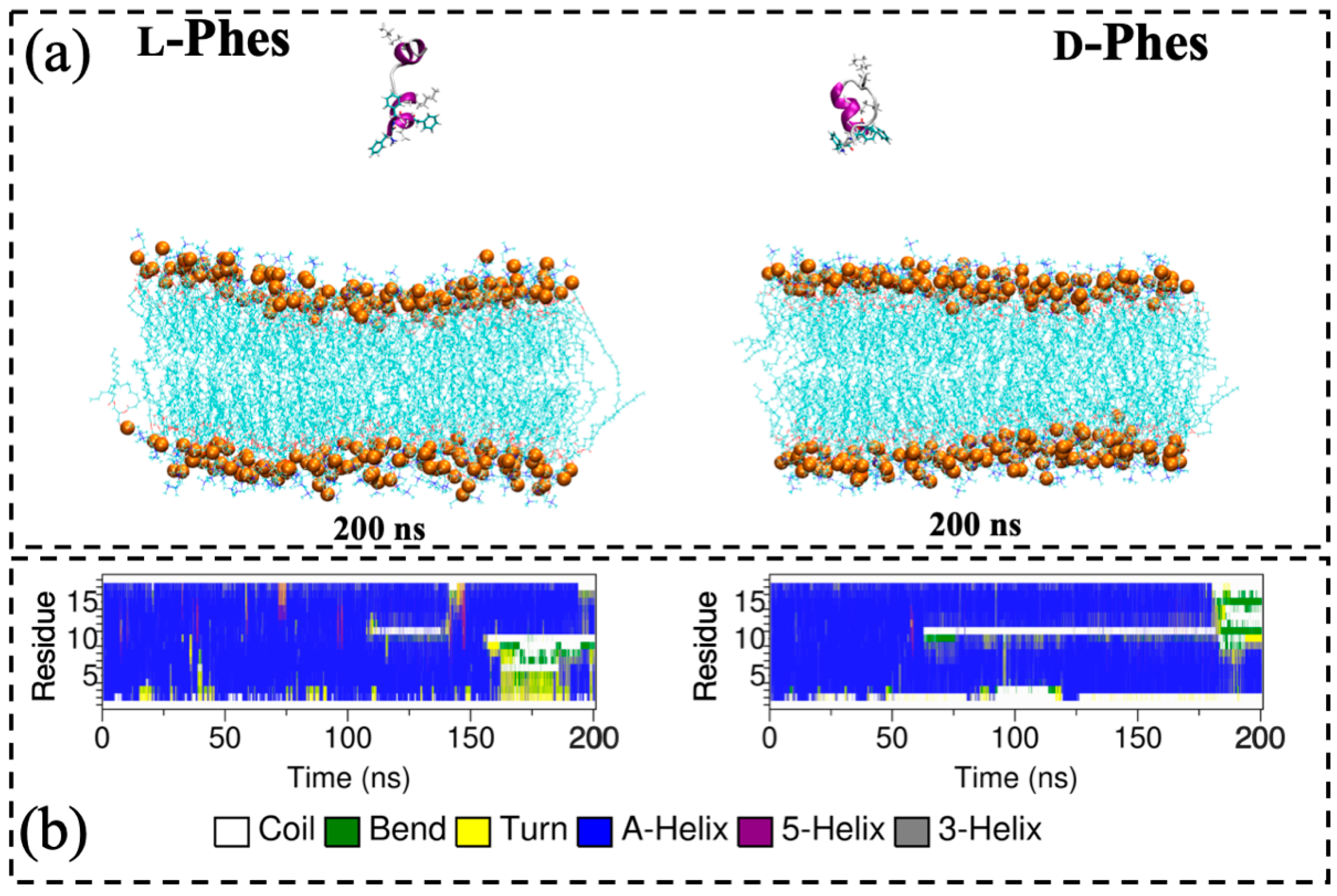

Second, we placed the peptides in the water region of the membrane system to examine differences between L-Phes and D-Phes in their initial interactions with DMPC membrane. During these simulations, we did not observe stable interactions between the membrane and the peptides. This indicated that the peptides need longer simulation time to show initial insertions into DMPC membrane. Perhaps, the peptides need to establish an initial electrostatic interaction with negatively charged phospholipids, or alternatively, the concentrations of the peptides may need to be increased in the membrane system to stimulate the process. The last snapshots and secondary structure profiles are shown in the Figure 4. The relative positions of the peptides were almost similar with their initial position along the z-axis. Although both peptides partially lost their helical conformations during the last-half of the simulations, L-Phes exhibited the higher helicity than D-Phes. Especially, the second position of L-Phes mostly formed α-helical secondary structures compared to the random coil structure of D-Phes. These observations were consistent with our CD experiments, which found the slightly higher helicity for L-Phes.

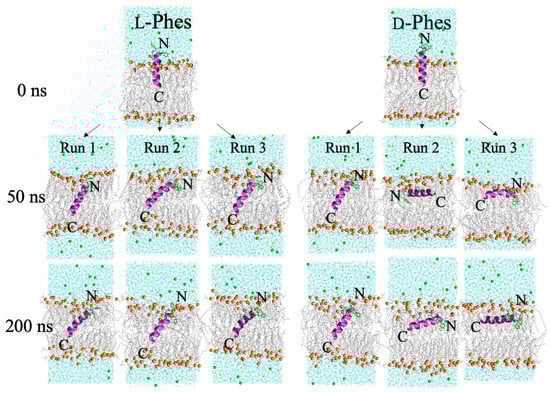

Third, we performed the pseudo-transmembrane simulations with three different replicas. We inserted C-terminus of the peptides into DMPC membrane, because the charged residues of the peptides are near to N-terminus. We extensively analyzed these simulations to understand the mechanism of action and membrane interactions of the peptides at the membrane interface. The series of snapshots are displayed in Figure 5. Both peptides took their positions within 50 ns of simulations, which were the same as their last snapshots.

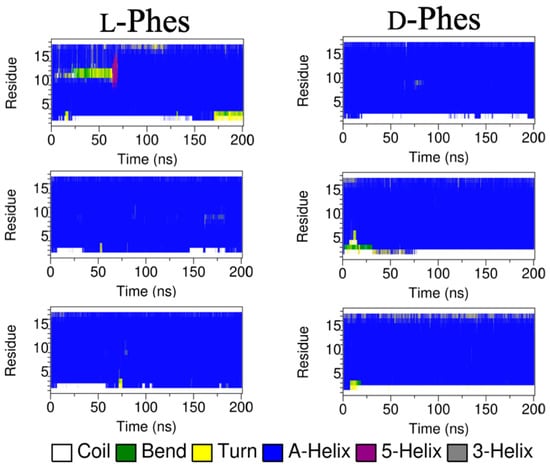

Figure 6 displays the secondary structure profiles during the simulations of L-Phes and D-Phes. The second residue of L-Phes mostly formed α-helical secondary structure during all three runs. In contrast, the second residue of D-Phes presented the random coil conformations in all three runs. These results agreed with the secondary structure results of CD and VCD experiments. This suggested that the membrane interactions of N-terminal side could be different between L-Phes and D-Phes. The pseudo-transmembrane position of L-Phes transferred into transmembrane state in the three different runs. In contrast, only one simulation showed the fully inserted D-Phes. During the simulations, L-Phes peptide tilted around 39° in all three simulations. When D-Phes transferred to transmembrane state (Run 1), the average tilt angle was equal to around 39°. This indicated that when the peptides get inserted, they would tilt similarly in the model membrane. Second and third runs of D-Phes displayed around 82° of the tilt angles. The average values of the tilt angles in the last 100 ns simulations are summarized in

Table A2. Average tilt angle in the last 100 ns simulations (MD3).

MDs	L-Phes	D-Phes
Run 1	39.1 ± 6.0	38.8 ± 7.0
Run 2	38.8 ± 7.0	83.1 ± 4.4
Run 3	38.5 ± 6.2	83.3 ± 4.5
Average	38.8 ± 6.4	68.4 ± 21.6

. These data possibly indicate the heterogeneity of membrane-bound states of D-Phes at the interface of DMPC membrane. Otherwise, the difference could stem from the higher hydrophobicity of L-D-L phenylalanine residues of D-Phes.

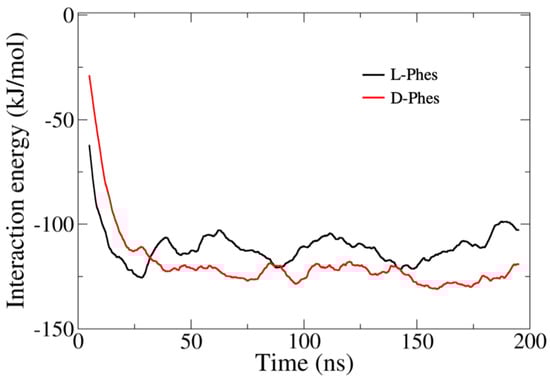

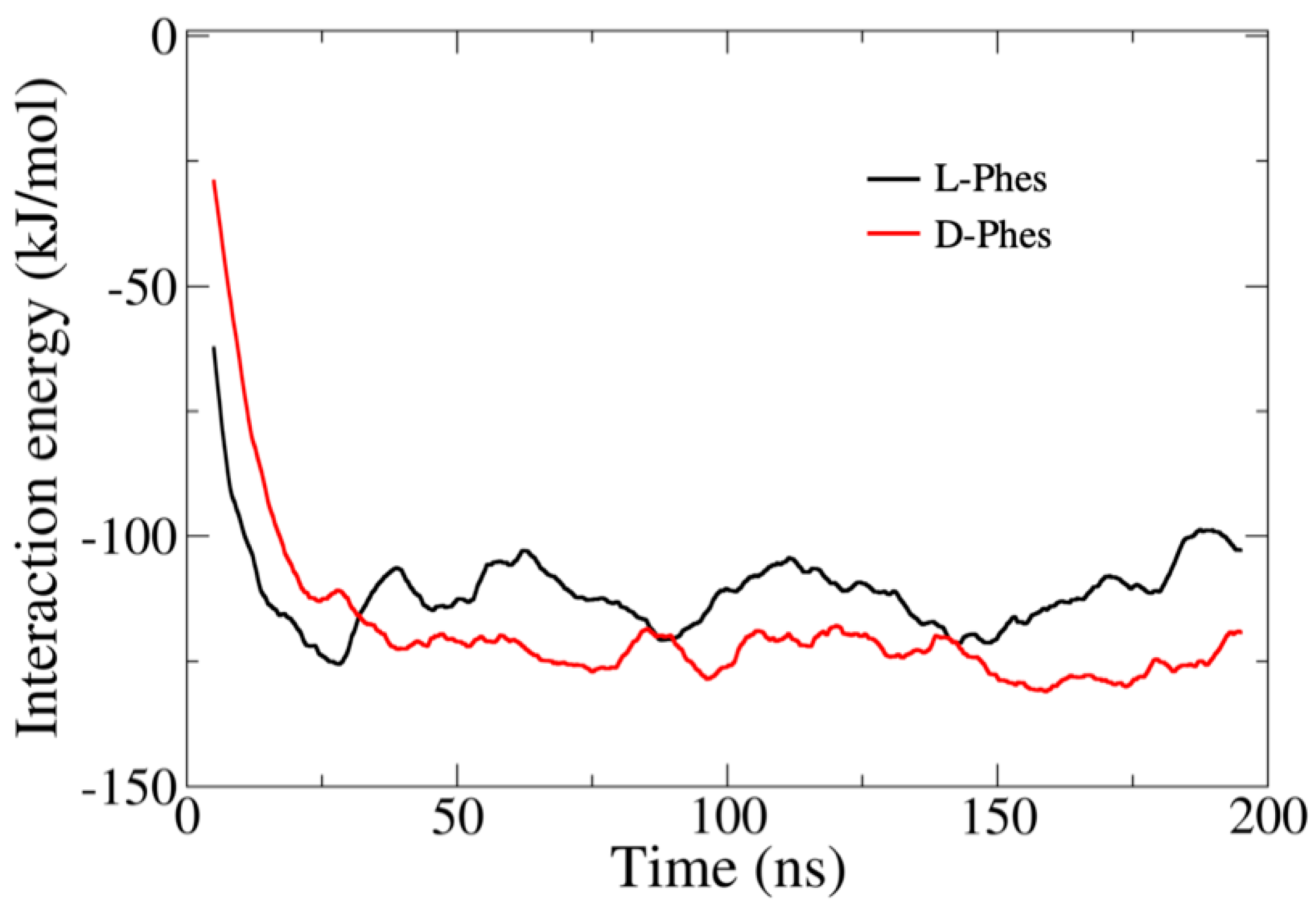

We surveyed the Lennard–Jones interaction term of the three phenylalanine residues with the hydrophobic tail of DMPC membrane to estimate hydrophobicity of N-terminal parts of the peptides. Figure 7 shows the average interaction energies between the three phenylalanine residues and the hydrophobic tails of DMPC membrane. The three Phe residues of L-Phes exhibited slightly more rapid and favorable interaction with the membrane than those of D-Phes did in the first 30 ns. Then, the residues of D-Phes showed slightly more interaction compared to the residues of L-Phes during the period from 30 ns to 200 ns. These data suggest that the higher hydrophobicity of D-Phes, which was also observed in our HPLC results, facilitated interactions with the membrane.

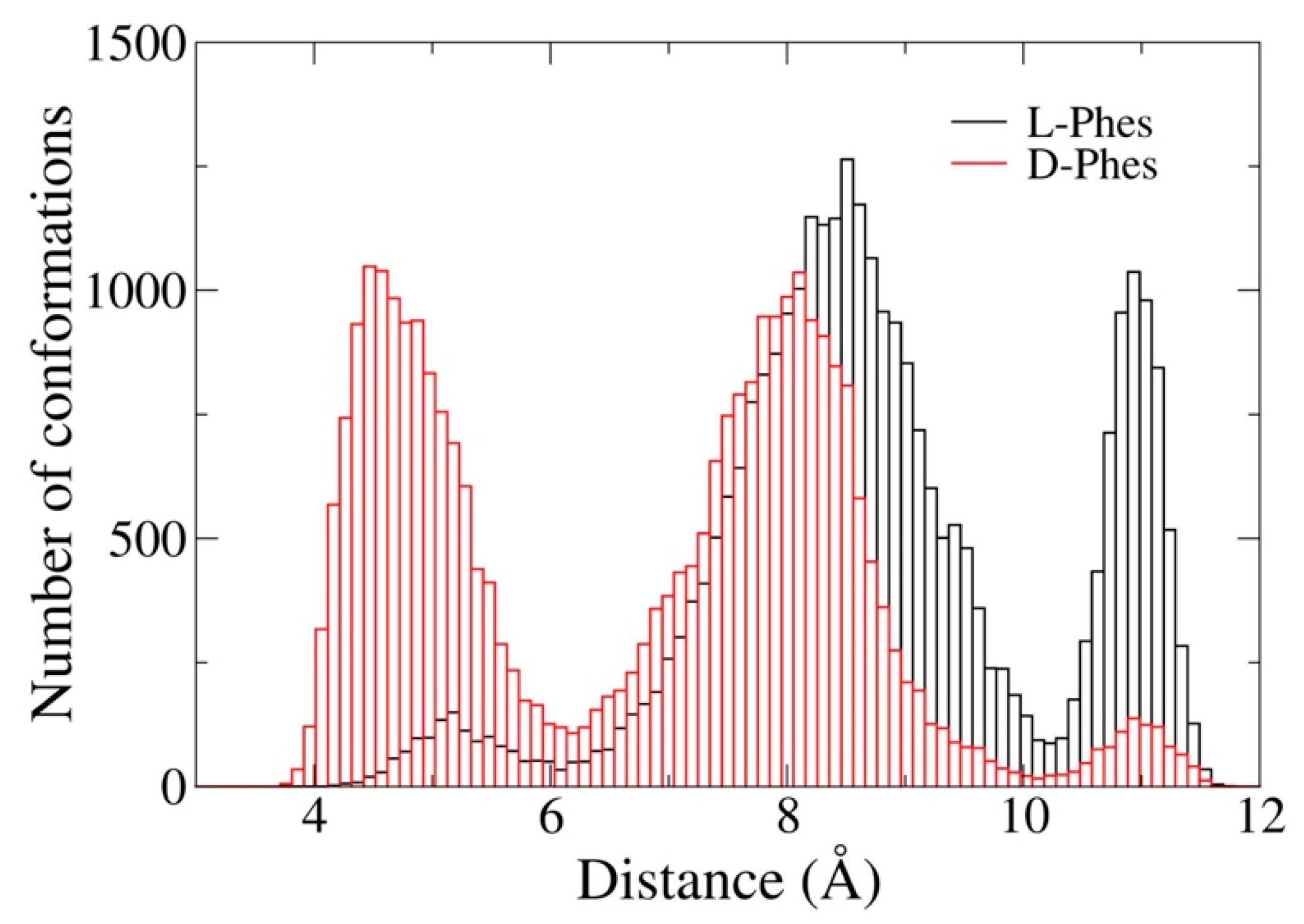

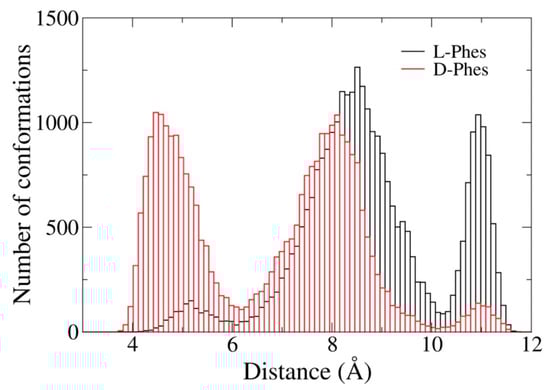

Furthermore, we analyzed the center of mass distances between the phenyl rings during the last 100 ns simulations. There was a lack of difference between the distributions of the first two rings. Figure 8 shows the distribution of the center of mass distances between the second and third phenyl rings. The distribution of D-Phes was smaller than that of L-Phes. The distances in L-Phes showed broader distribution than 6 Å. When the distance between two phenyl rings was less than 6 Å, π-π stacking could occur between them [50]. In Figure 8, we observed a population of D-Phes smaller than 6 Å. When the peptides form oligomeric state in solution [3], the second and the third rings of d-Phes could with stack each other. Stacking of the phenyl rings are important for the self-assembly of short peptides, and phenylalanine tripeptides consisting of l- and d- amino acids have been shown to self-assemble into nanostructures [51]. Although we did not consider peptide–peptide interactions in this work, the higher probability of the packing in D-Phes could affect the association of the peptides and thus affect its interactions with membrane.

4. Conclusions

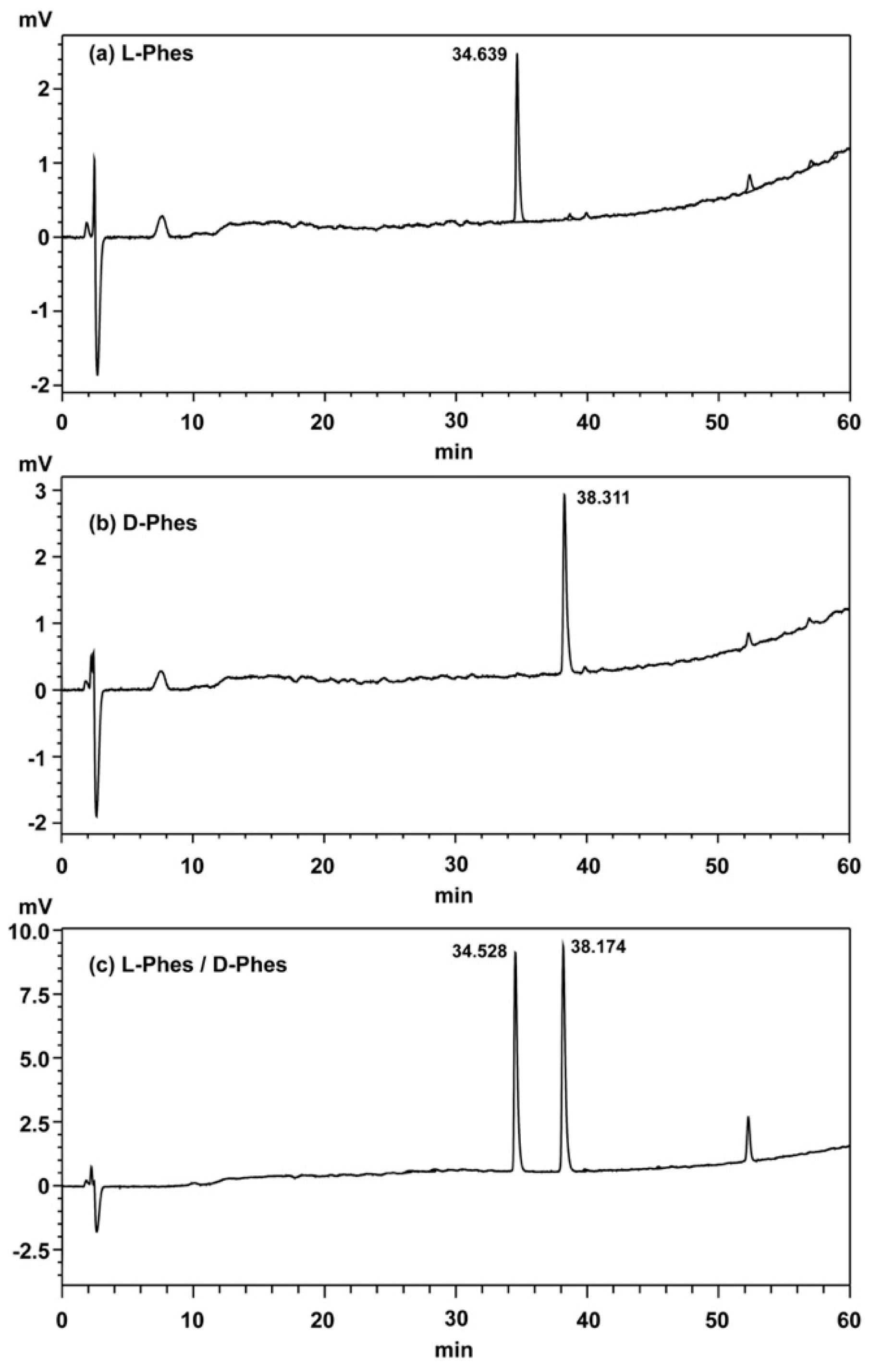

In this work, we comparatively analyzed the membrane interactions of L-Phes and D-Phes antimicrobial peptides with DMPC model membrane, experimentally and computationally. From the different HPLC retention times, we found D-Phes to have slightly higher hydrophobicity than L-Phes. Our experiments and calculations agreed that the two peptide isomers adopted α-helical secondary structures. MD simulations showed that the second position of L-Phes and D-Phes mostly formed α-helical and random coil secondary structures, respectively. The MD simulations found a mutually stable contact between d-Phe2 and l-Phe3 in D-Phes peptide in the DMPC bilayer. The contacts could influence the membrane interactions and explain its stronger antimicrobial activity compared to L-Phes.
