Appl. Sci. 2018, 8(7), 1087;

Cavity Design in Woodpile Based 3D Photonic Crystals

Department of Electrical and Electronic Engineering, University of Bristol, Bristol, BS8 1US, UK
Authors to whom correspondence should be addressed.
Received: 25 May 2018 / Revised: 25 June 2018 / Accepted: 3 July 2018 / Published: 5 July 2018
(This article belongs to the Special Issue Novel Advances in Optical Micro- and Nano-Cavities)
Full-Text   |   PDF [4898 KB, uploaded 5 July 2018]   |

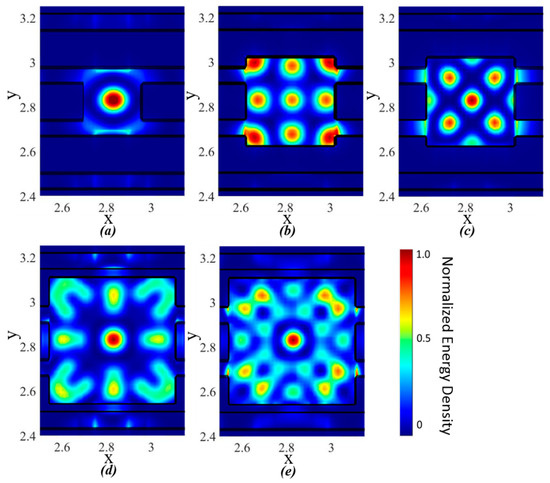

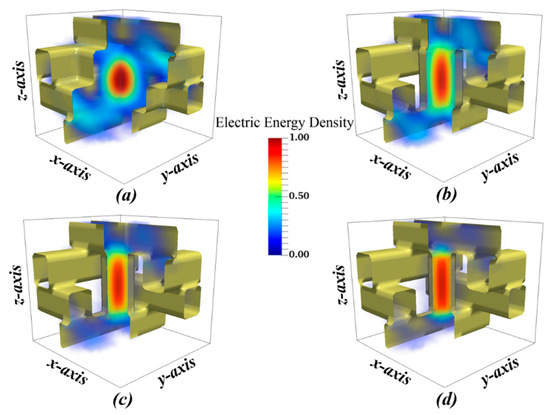

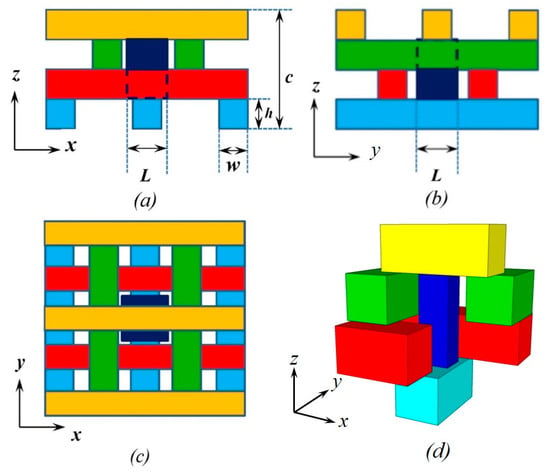

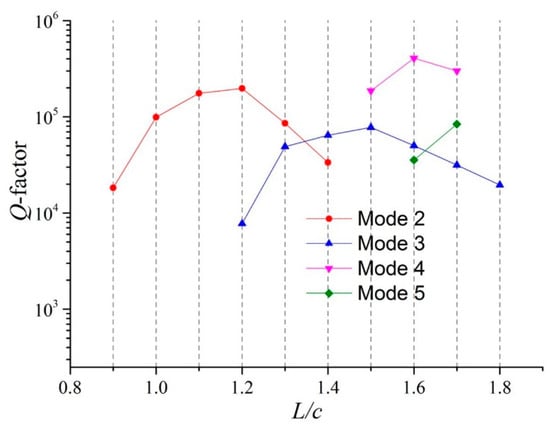

In this paper, we present a design of a three-dimensional (3D) photonic crystal (PhC) nanocavity based on an optimized woodpile structure. By carefully choosing the position of the defect at the lattice center, we can create a cavity with high symmetry which supports well confined Gaussian-like cavity modes similar to those seen in a Fabry Perot laser resonator. We could also tune the resonant frequency of the cavity and manually choose the cavity mode order by adjusting the size of the defect at a chosen position. View Full-Text
Keywords: 3D photonic crystal; woodpile; photonic band gap; microcavity; cavity mode 3D photonic crystal; woodpile; photonic band gap; microcavity; cavity mode
