Open AccessArticle
Appl. Sci. 2018, 8(5), 726; https://doi.org/10.3390/app8050726

Contact Pressure Algorithm of Multi-Layer Interference Fit Considering Centrifugal Force and Temperature Gradient

Engineering Research Center Heavy Machinery Ministry of Education, Taiyuan University of Science and Technology, Taiyuan 030024, China
*
Author to whom correspondence should be addressed.
Received: 29 March 2018 / Revised: 23 April 2018 / Accepted: 23 April 2018 / Published: 5 May 2018
Full-Text   |   PDF [6788 KB, uploaded 5 May 2018]   |

Abstract

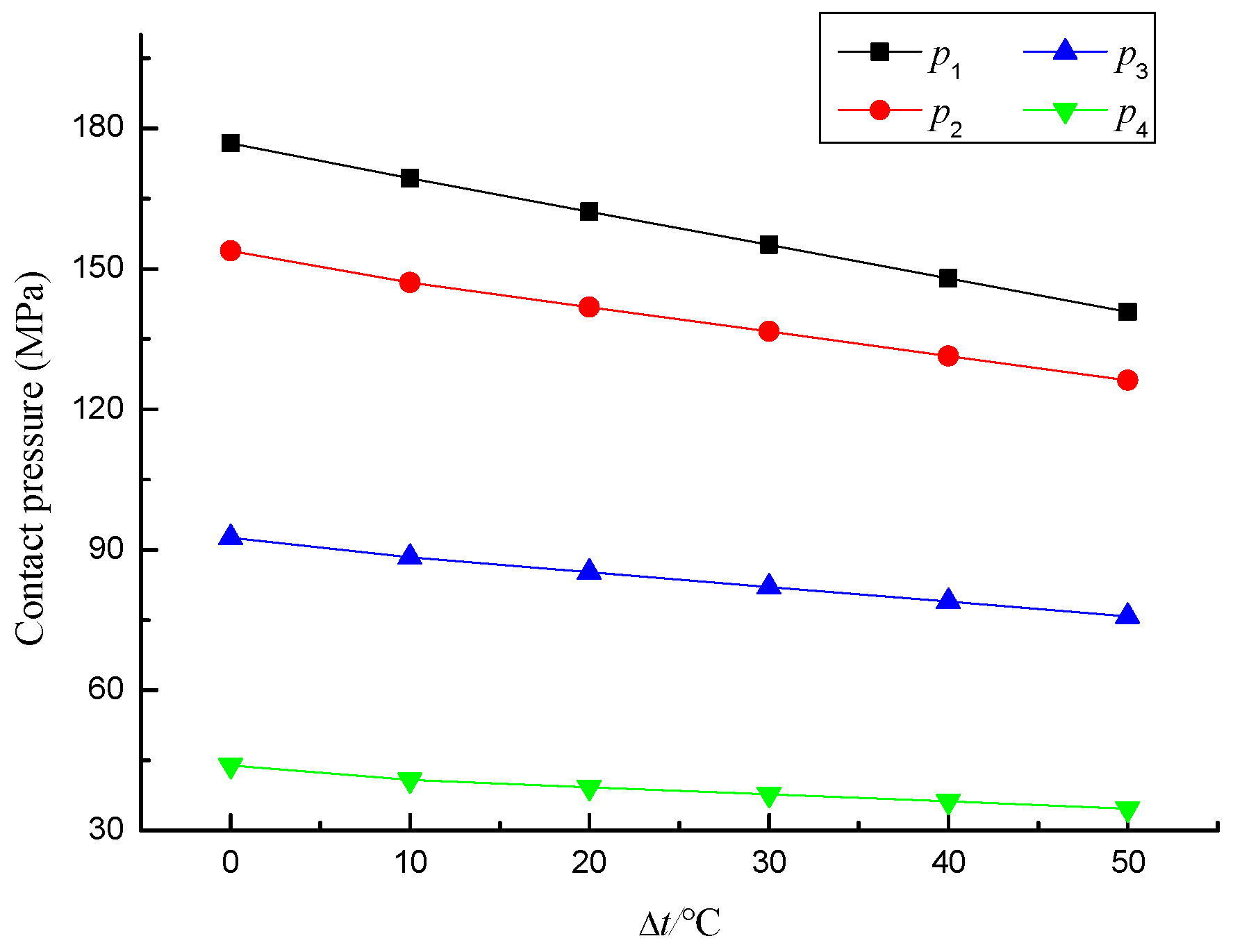

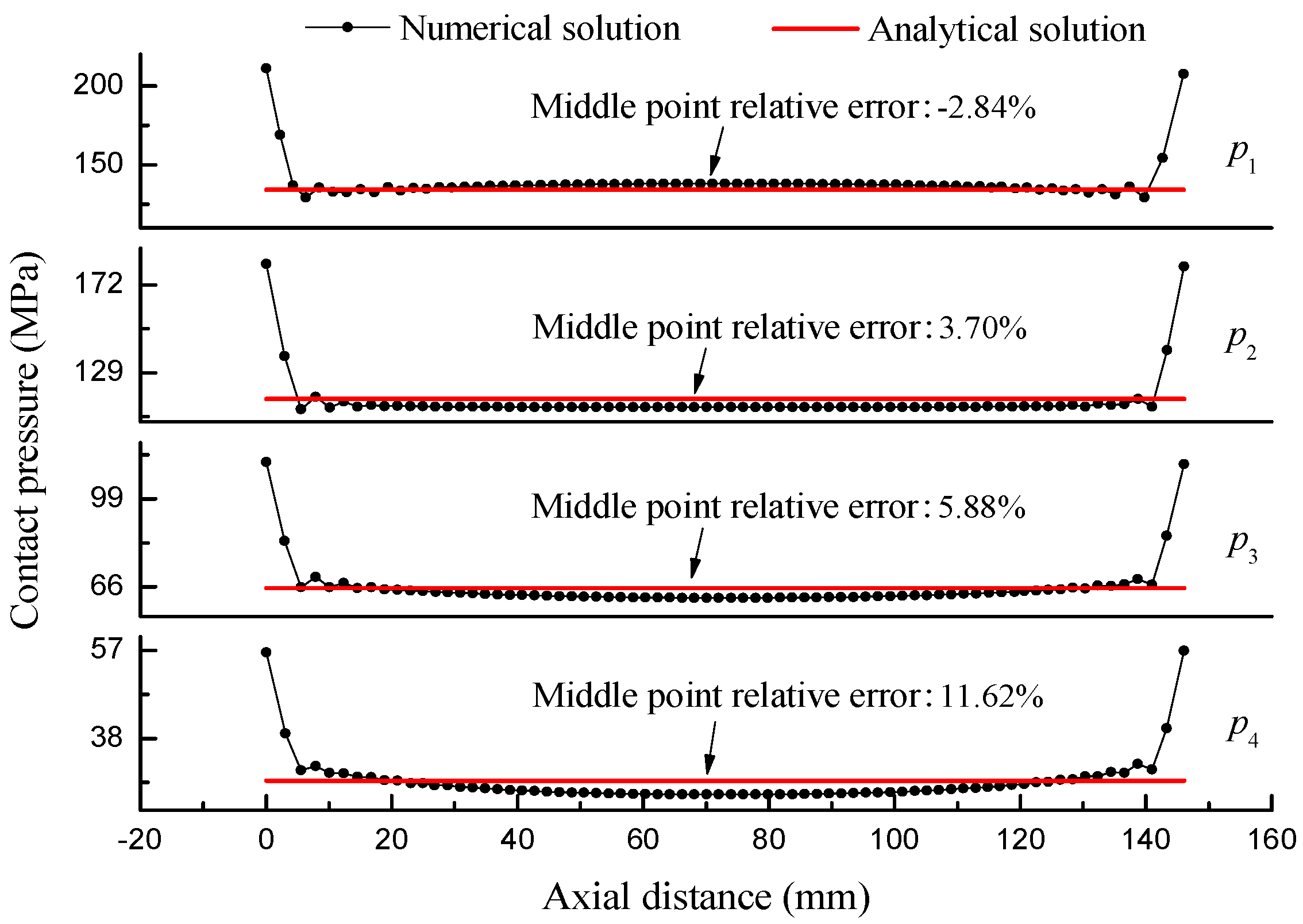

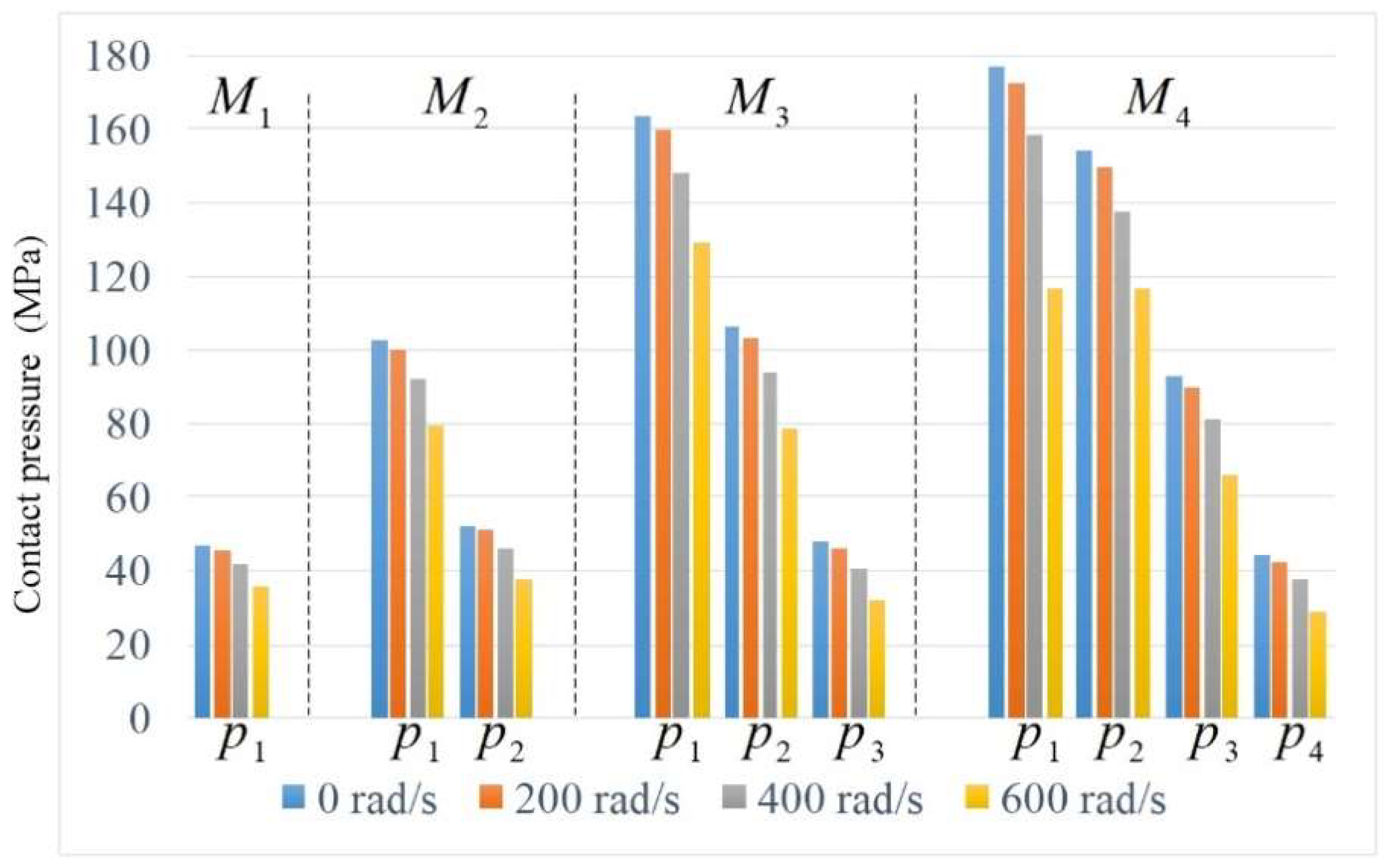

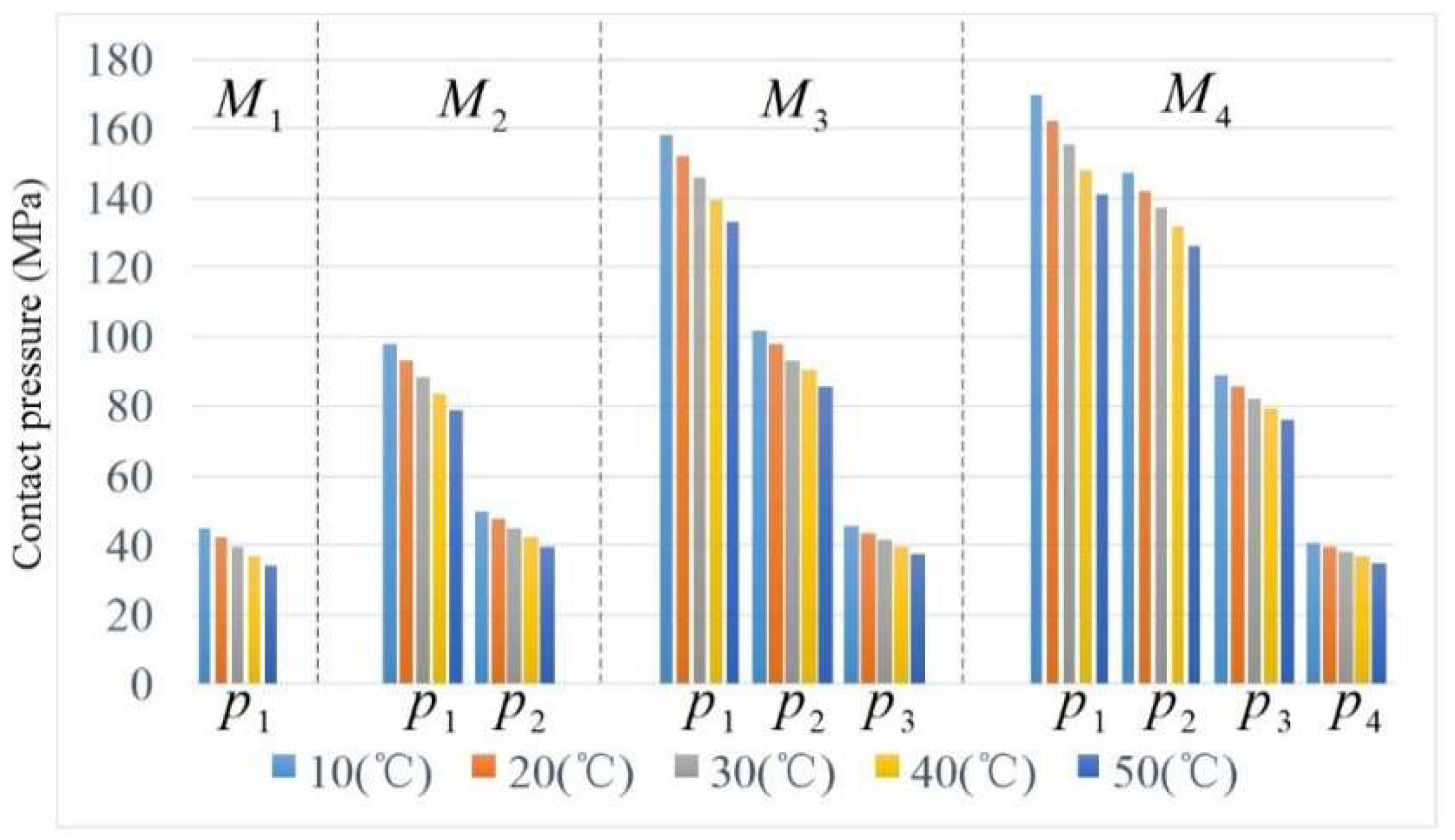

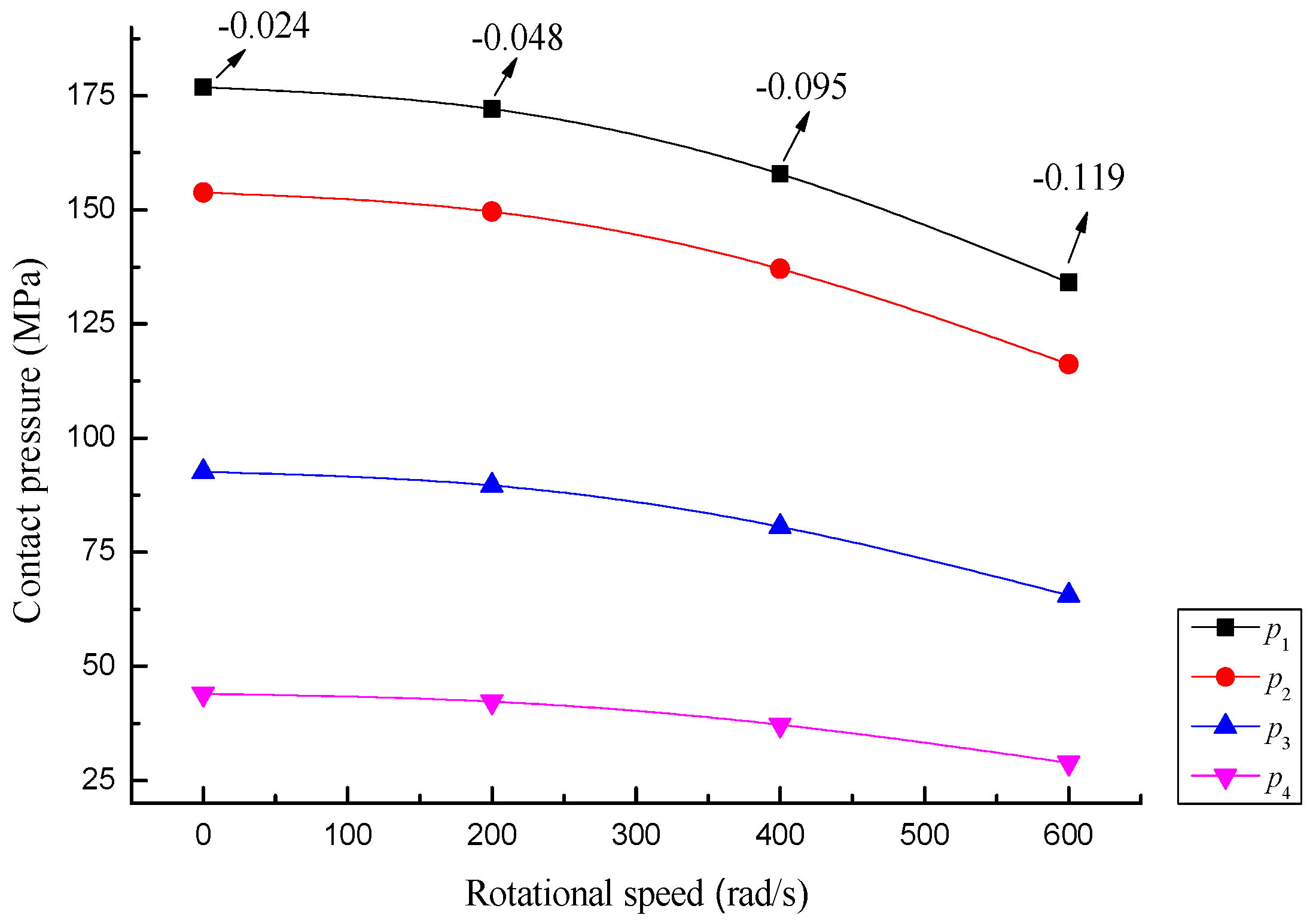

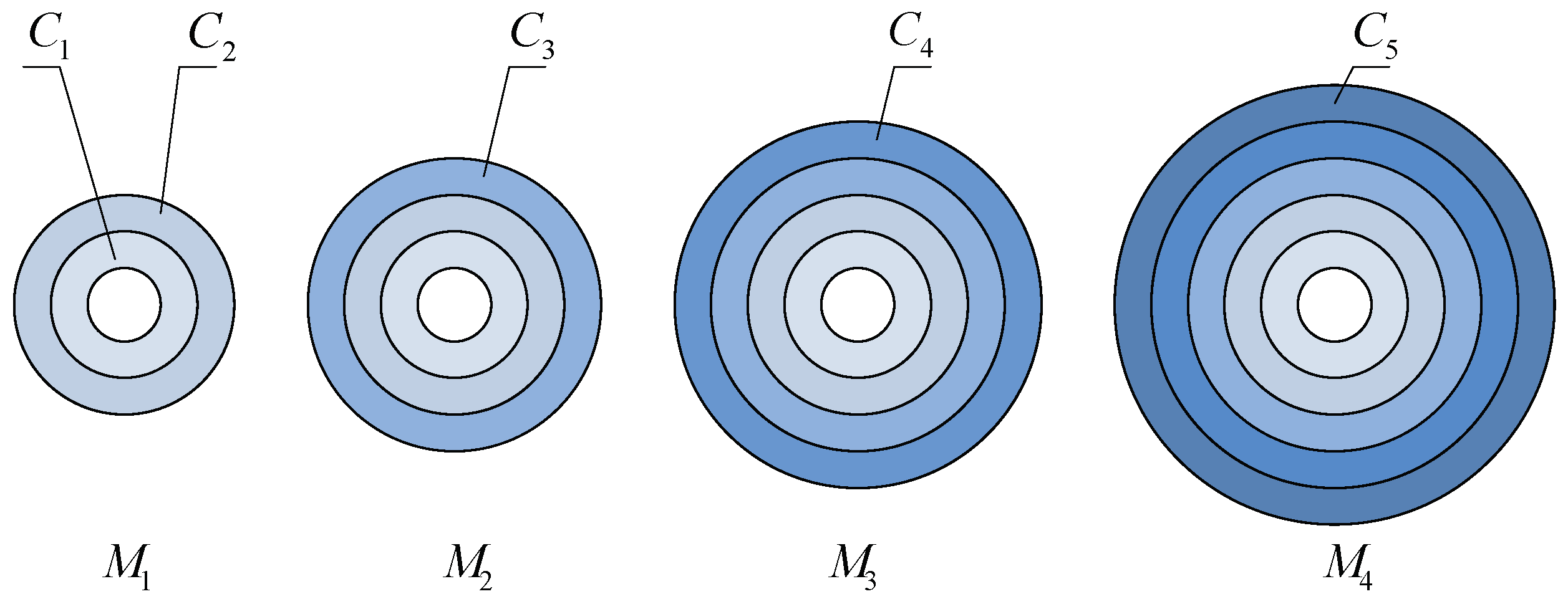

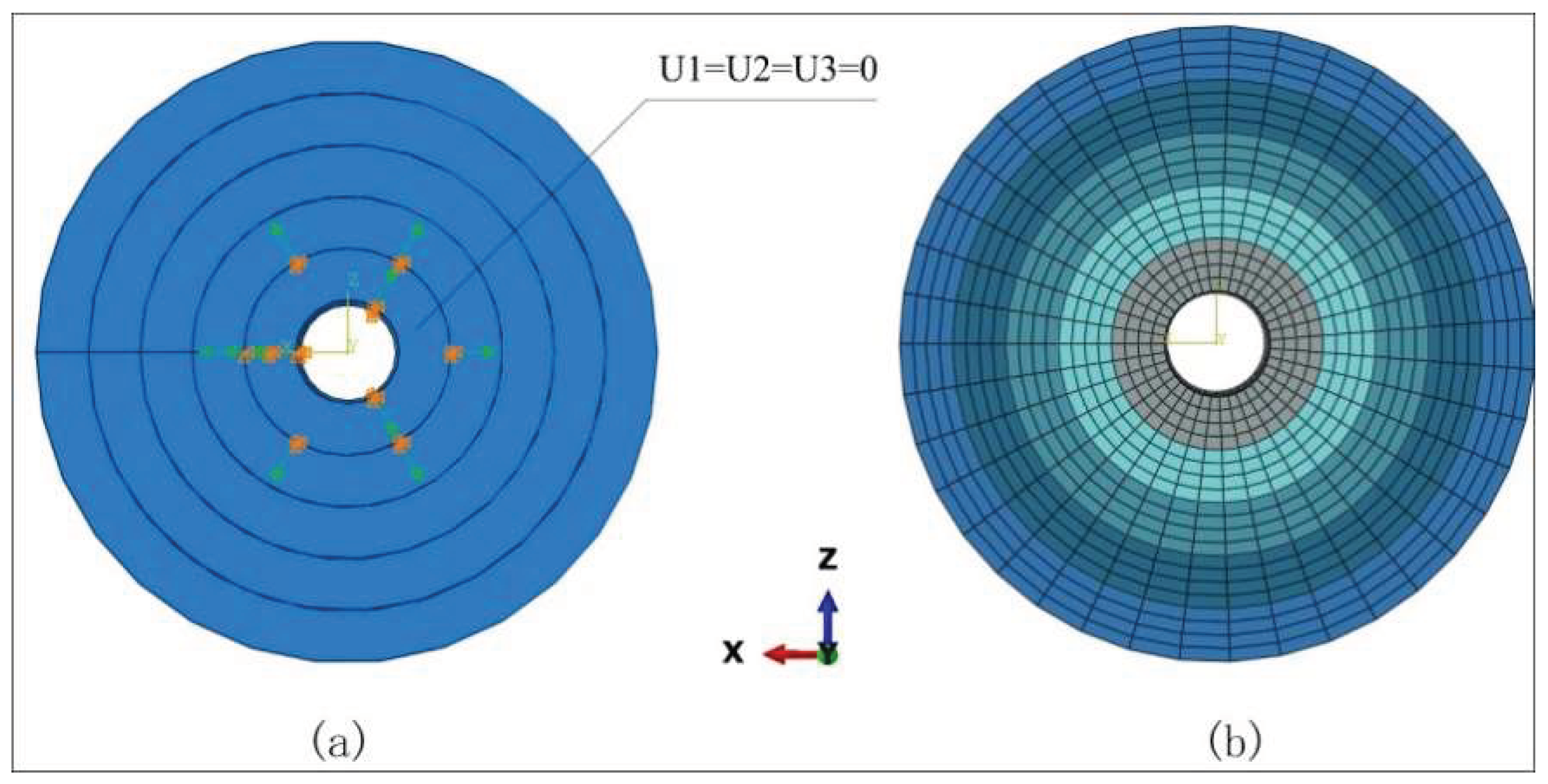

In order to optimize the algorithm on contact pressure and interference magnitude of multi-layer interference cylinders, the effects of centrifugal force and temperature gradient on the performance of multi-layer interference cylinders are considered. The mathematical matrix model of contact pressure and interference magnitude of multi-layer interference cylinder is constructed under centrifugal force and temperature gradient. Four kinds of interference cylinder models are established, and the numerical solutions using finite element methods are compared with the analytical solutions. The results show that the contact pressure of each contact surface of multi-layer interference cylinder decreases with speed increase; the slip rate of contact pressure increases with speed increase; the maximum radial displacement of an interference cylinder under centrifugal force occurs at the outermost layer. The contact pressure of a multi-layer interference cylinder decreases linearly with the increase of temperature gradient. The analytical solution is basically consistent with the numerical solution, and the maximum relative error of midpoint is 11.62% and −7.69% under two factors. It means that the algorithm can provide a theoretical guide for the design of a multi-layer interference cylinder considering centrifugal force and temperature gradient. View Full-Text
Keywords: centrifugal force; temperature gradient; multi-layer interference cylinder; contact pressure centrifugal force; temperature gradient; multi-layer interference cylinder; contact pressure
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
