Appl. Sci. 2018, 8(5), 720; https://doi.org/10.3390/app8050720

Improvement of the Torque-Speed Performance and Drive Efficiency in an SRM Using an Optimal Torque Sharing Function

School of Automation Science and Electrical Engineering, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Received: 16 April 2018 / Revised: 26 April 2018 / Accepted: 1 May 2018 / Published: 4 May 2018
Full-Text   |   PDF [8168 KB, uploaded 4 May 2018]   |

Abstract

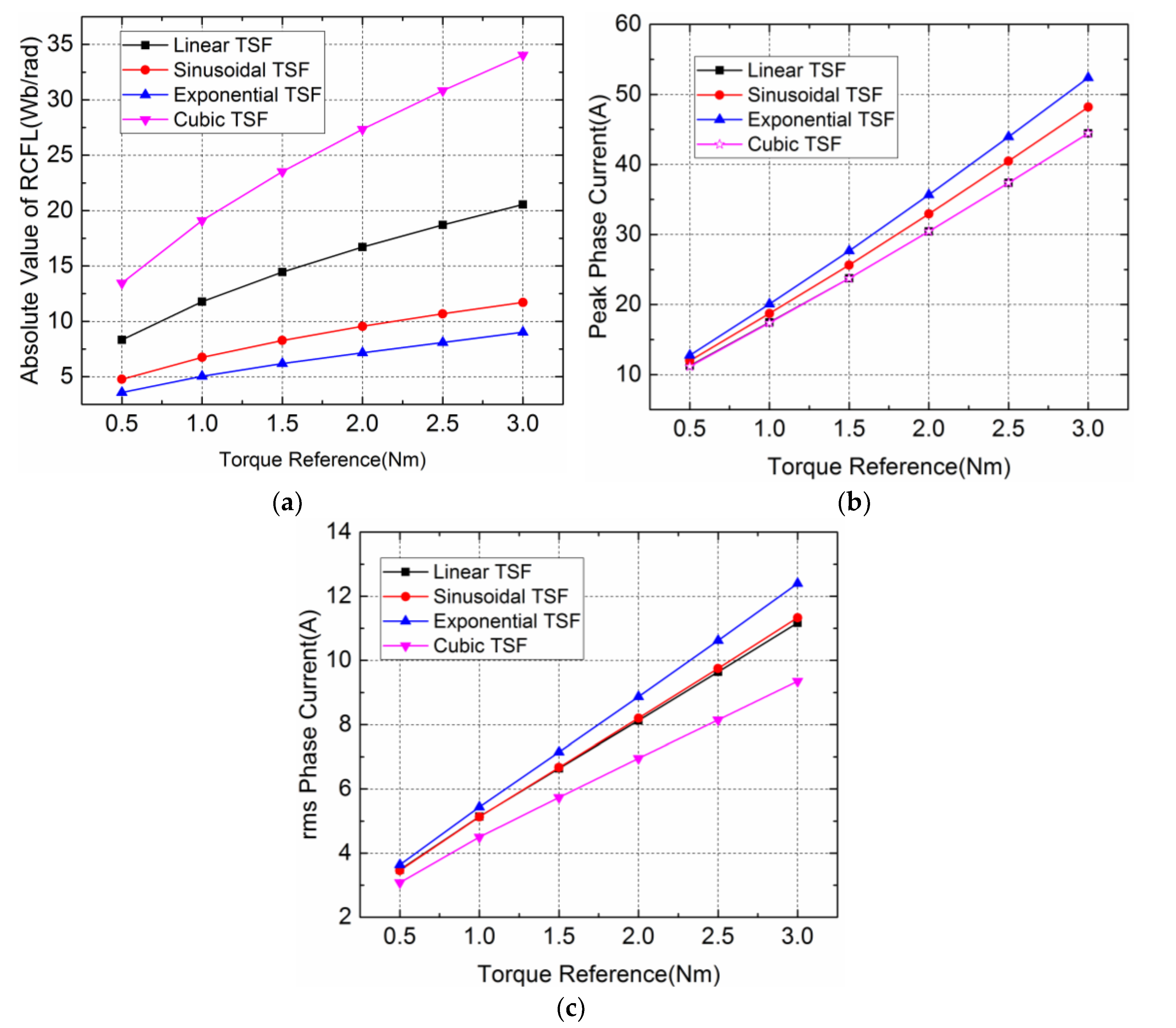

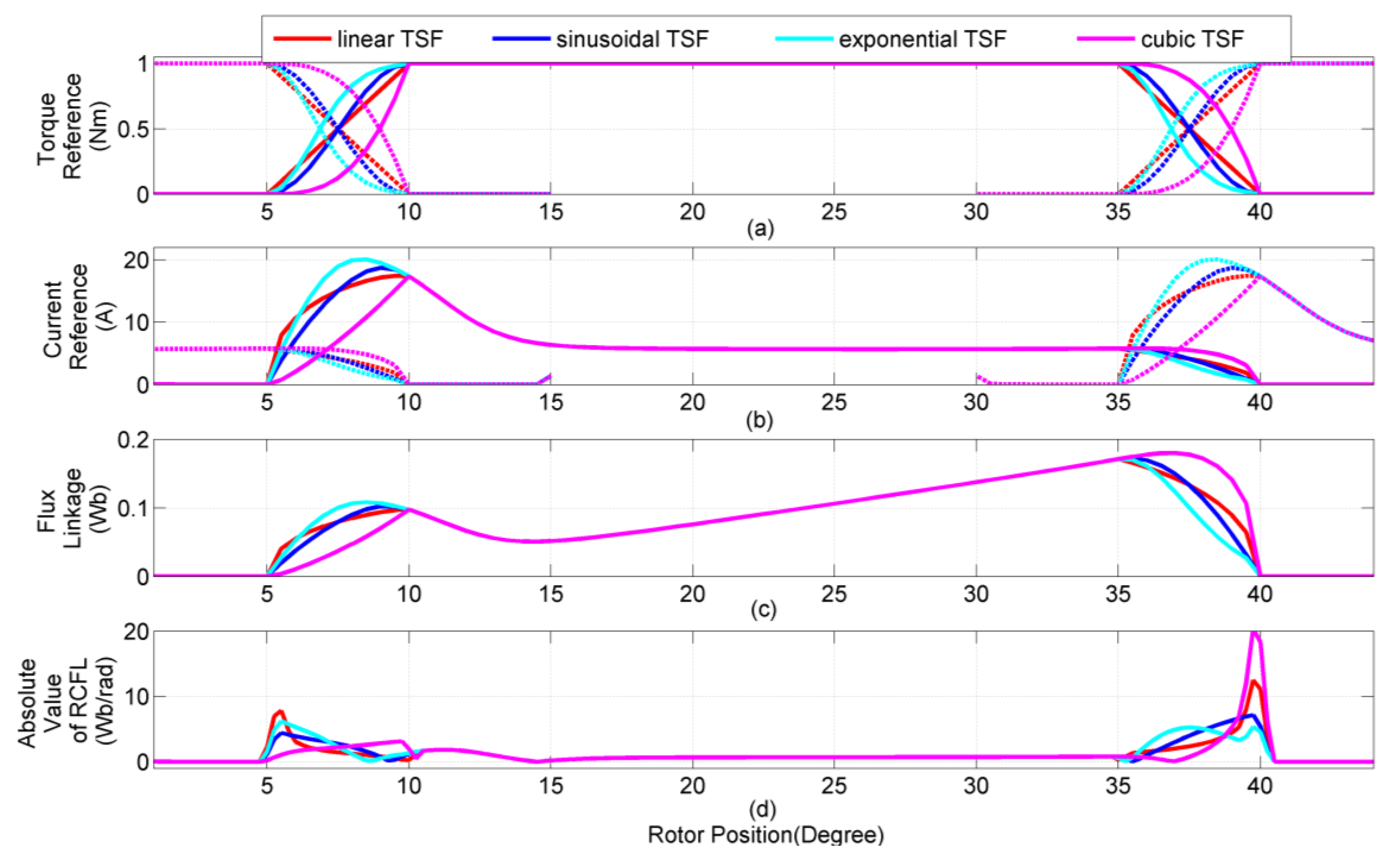

In this paper, by evaluating the extreme value of the qth-power current, a torque sharing function (TSF) family for reducing the torque ripples in the switched reluctance motor (SRM) is proposed. The optimization criteria of the TSF has two secondary objectives, including the maximization of the torque-speed range and the minimization of copper loss. The evaluation indices in terms of the peak phase current, the rms (root mean square) phase current, and the torque ripple factor are compared between the proposed TSF family and four conventional TSFs including linear, sinusoidal, exponential, and cubic TSFs. An optimization objective function that combines the maximum absolute value of the rate-of-change of the flux linkage (MAV-RCFL) and the qth-power of current is proposed and a weighting factor is used to balance the influence of the two optimization objectives. An optimal TSF can be easily obtained by solving the optimization problem from the TSF family. The proposed TSF is validated by using simulations and experiments with a three-phase 6/4 SRM with 7.5 kW, 3000 rpm, and 270 V DC-link voltage. The dynamic simulation model is implemented in Matlab/Simulink. The results demonstrate the validity and superiority of the proposed control method; the optimal TSF provides better torque-speed performance, and a better reduction in copper loss and torque ripples at high speed, as compared to conventional TSFs. View Full-Text
Keywords: switched reluctance motor (SRM); torque-speed performance; drive efficiency; torque sharing function (TSF) switched reluctance motor (SRM); torque-speed performance; drive efficiency; torque sharing function (TSF)
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
