# Model Predictive Control Home Energy Management and Optimization Strategy with Demand Response

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

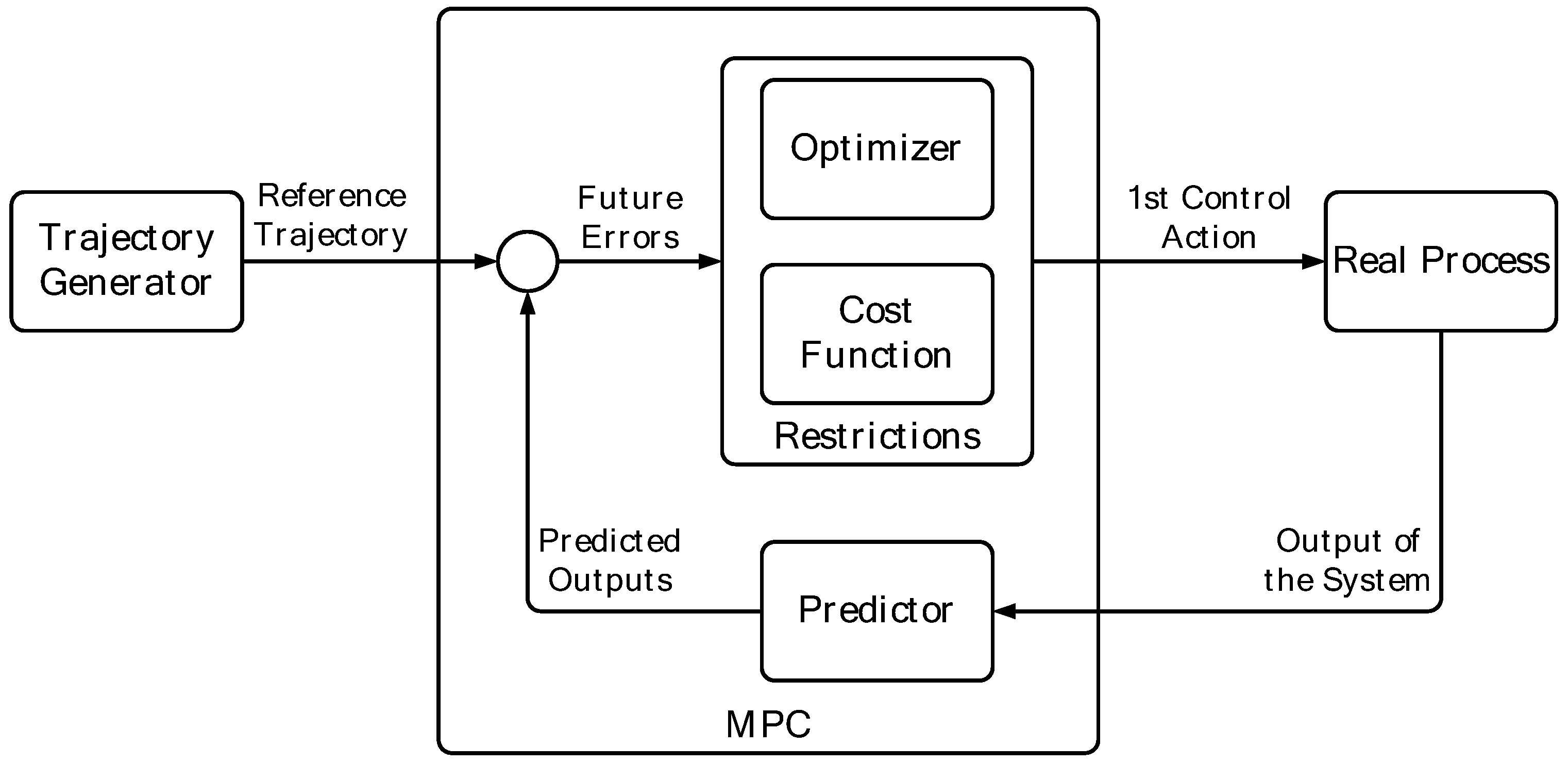

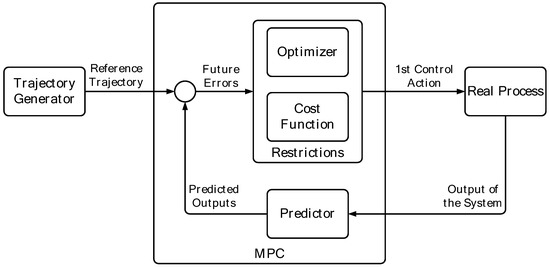

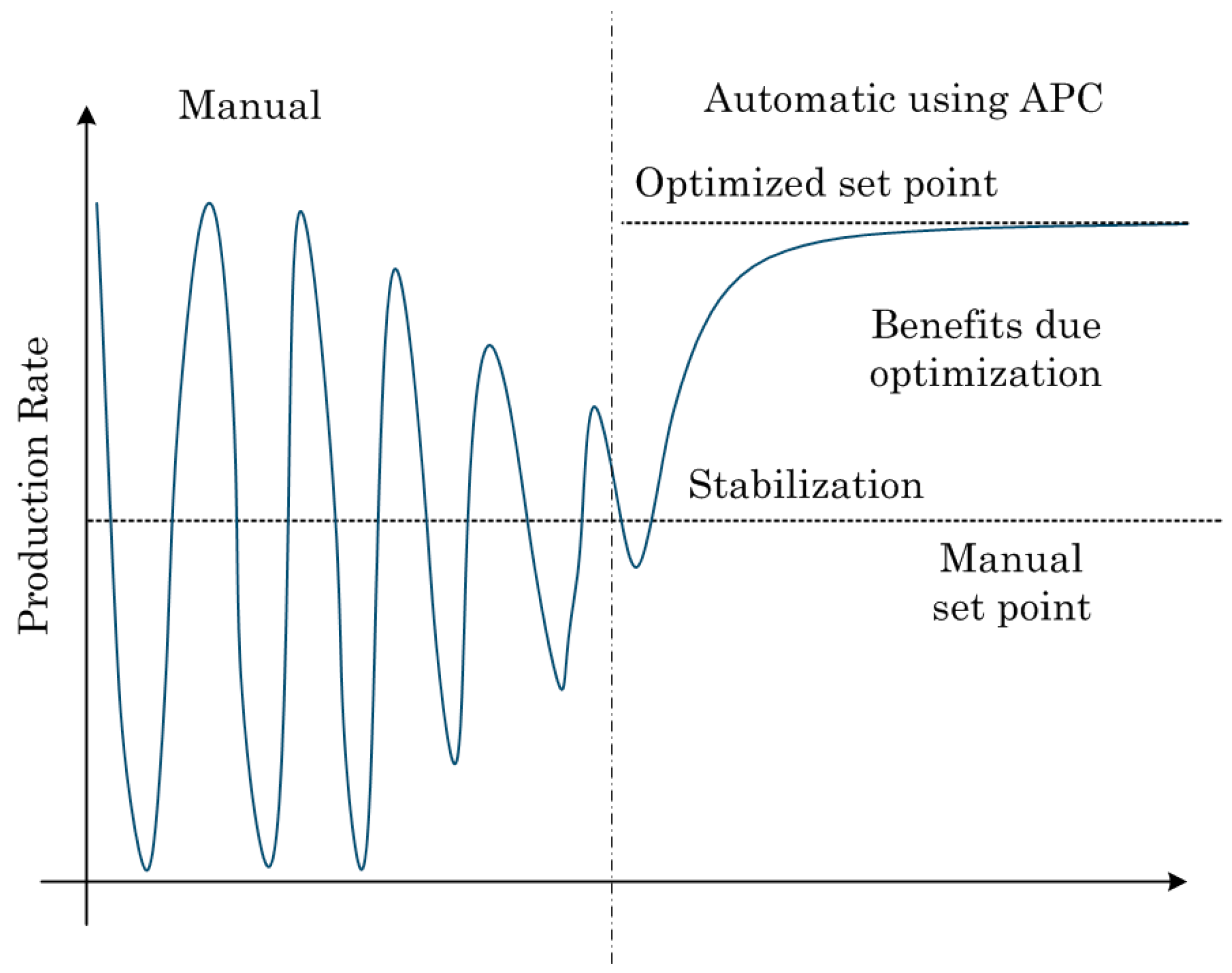

## 2. Model Predictive Control

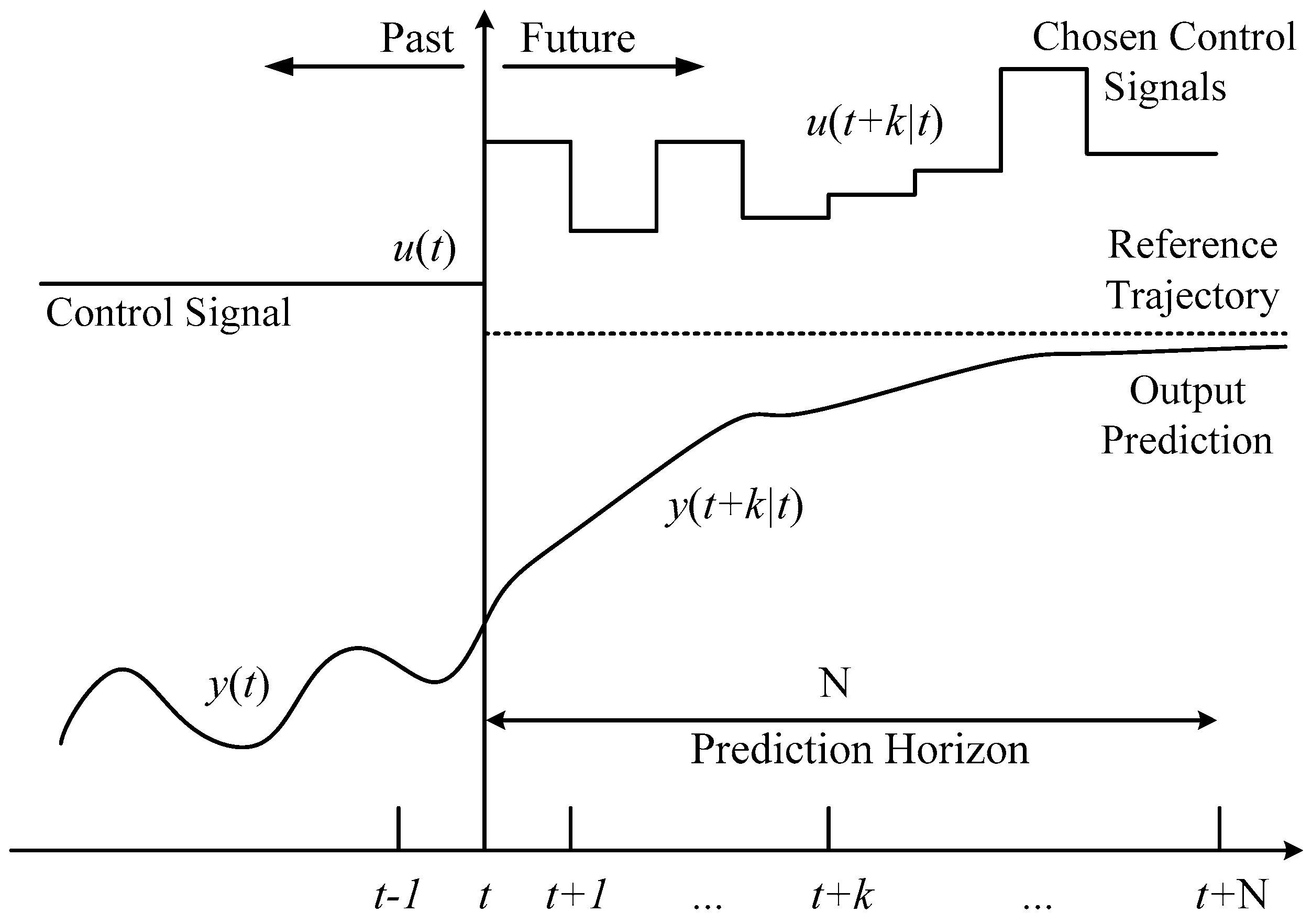

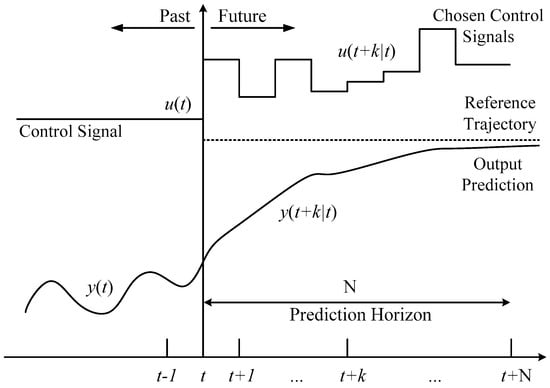

^{2}throughout the horizon of prediction N, from the dynamic information available up to that moment (measurements of the process variables and inputs passed up to the current time t) and a postulated or future control law [u(t|t), ..., u(t + N|t)], along the prediction horizon, as shown in Figure 3 [48].

_{i}are the sampled values obtained by subjecting the process to an impulse unit of amplitude equal to the sampling period. This sum is truncated and only N values are considered (therefore, it only allows representing stable processes and without integrators), having:

_{i}are the sampled values before the step input y:

_{0}can be taken as 0 without loss of generality, with which the predictor will be:

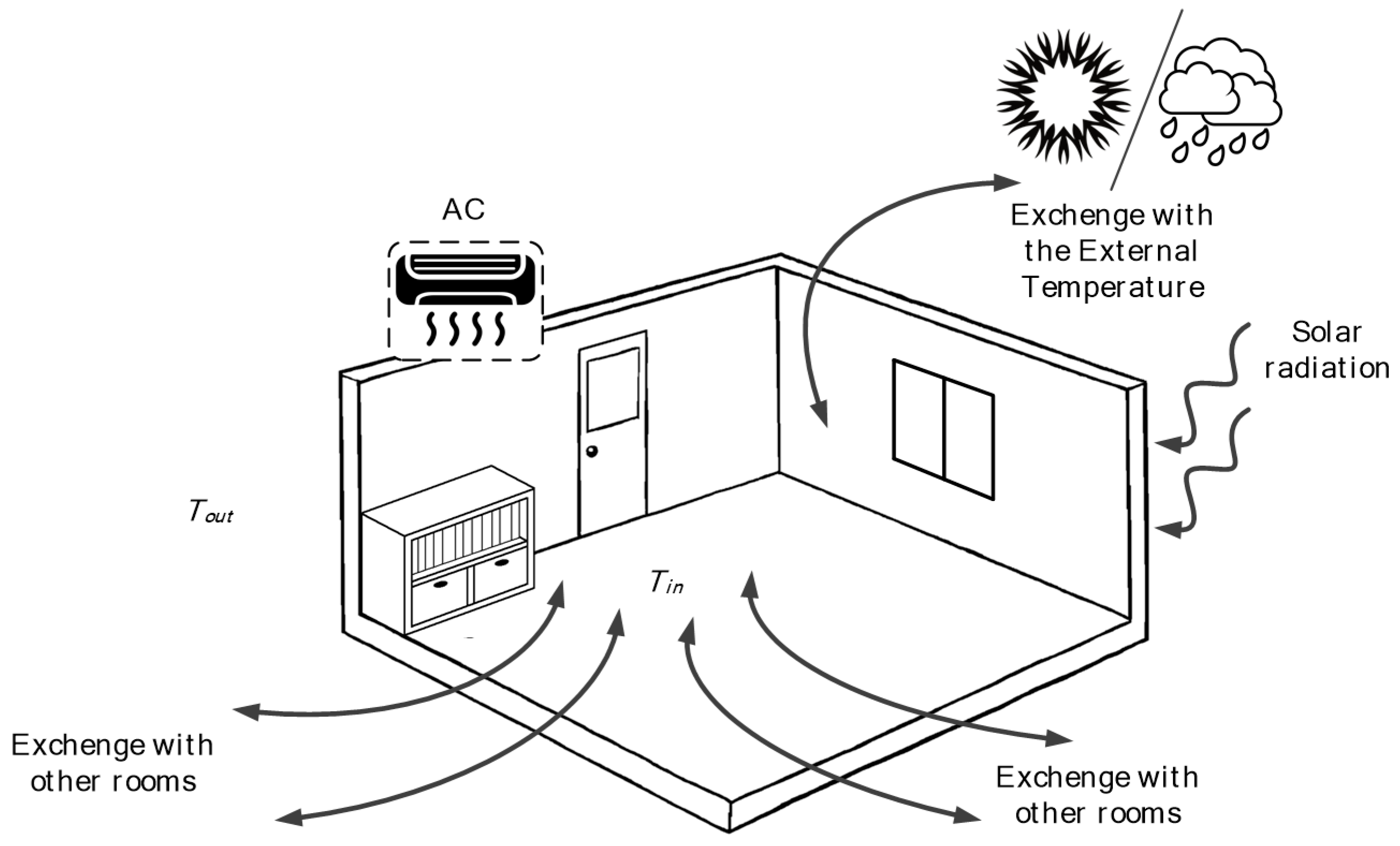

## 3. The Model of the Room

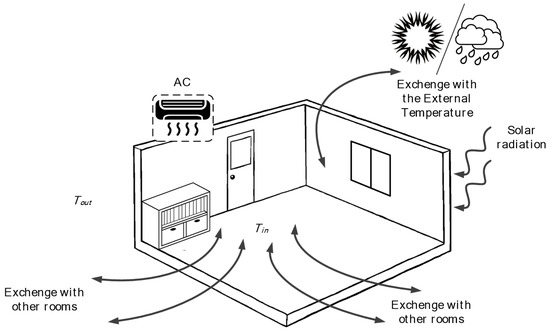

_{ac}embodies the cooling power input to the room, T

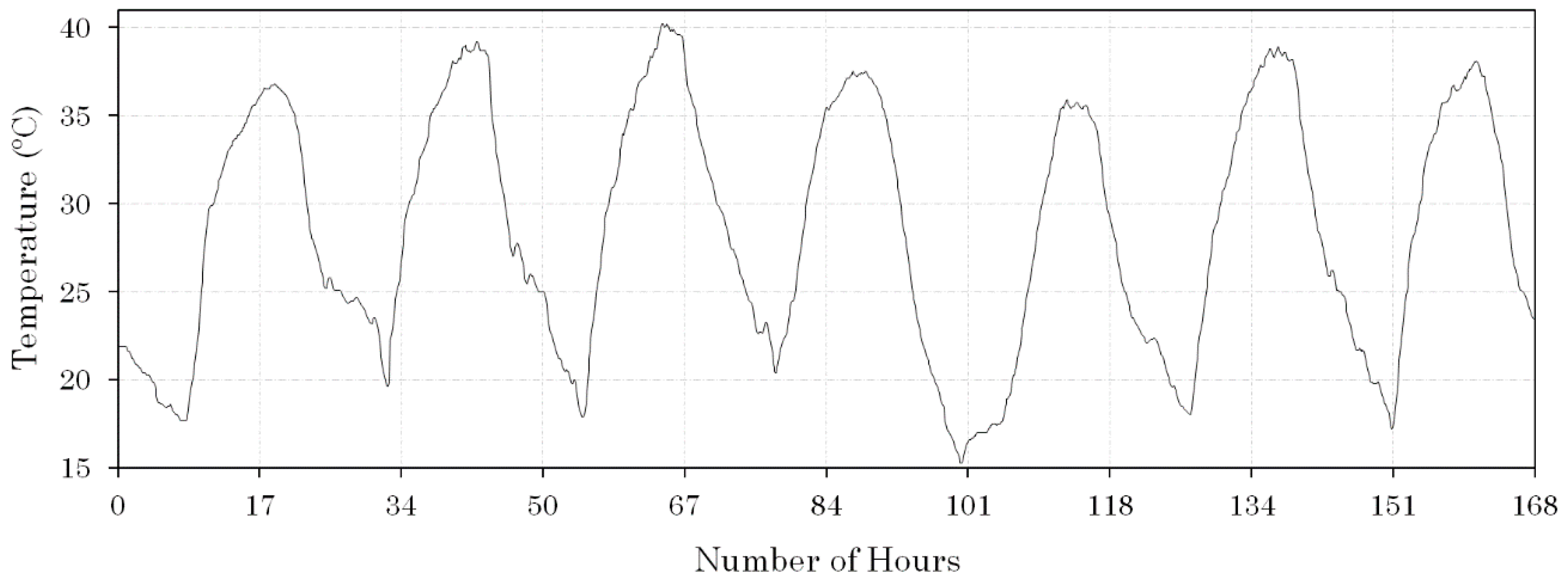

_{out}is the variable that represents the ambient temperature, the temperature of the room is given by T

_{in}, T

_{wl}symbolizes the wall temperature and C

_{wl}symbolizes the thermal capacitance of the wall. The thermal resistance of the wall is given by R

_{wl}, the thermal resistance of the windows is characterized by R

_{wd}, C

_{in}represents the thermal capacitance of the interior air and Q

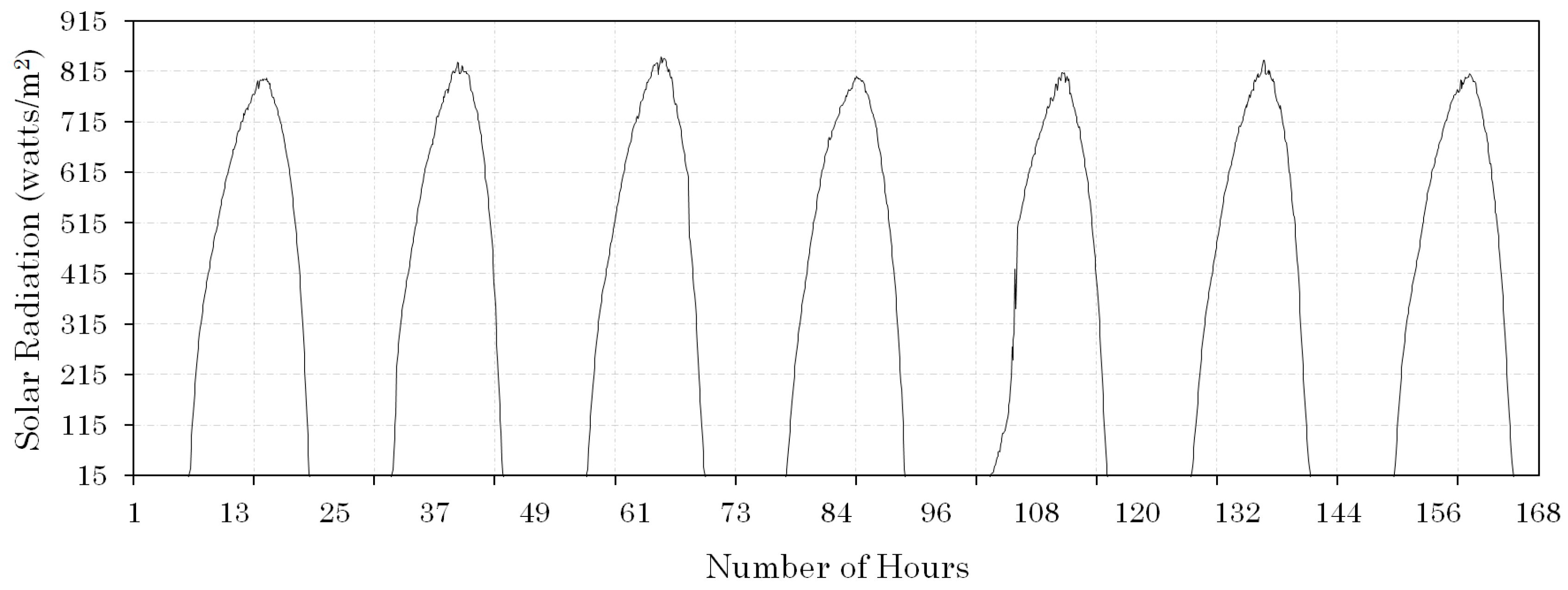

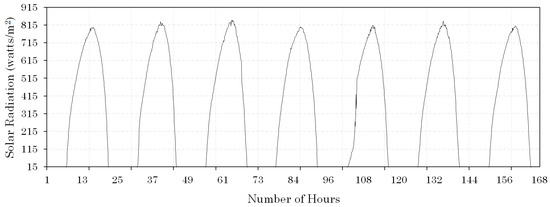

_{s}gives the heat flow into an exterior surface of the room exposed to the solar radiation. In this model, h

_{o}represents the combined radiation and convection heat transfer coefficient, and A

_{w}symbolizes the area of the wall while the temperature of the surface of the wall is given by T

_{s}. Lastly, the binary variable that can simulate the turn-on and turn-off of the ON/OFF is represented by S(t). In this model, the running of the AC unit is characterized by a power switch block in which is assumed that no internal losses occur. All the variables and constants that were not recorded from this study were extracted from [63].

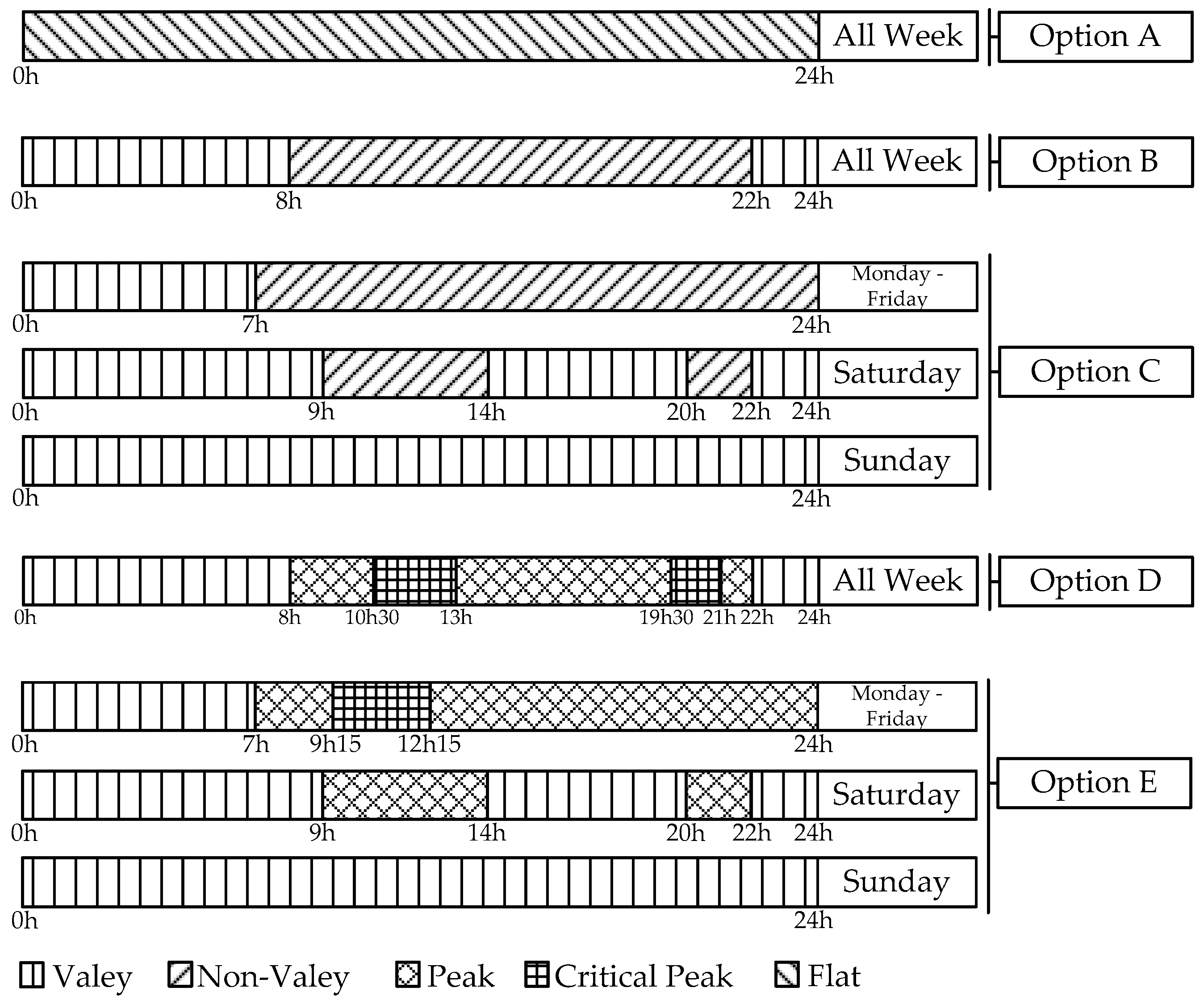

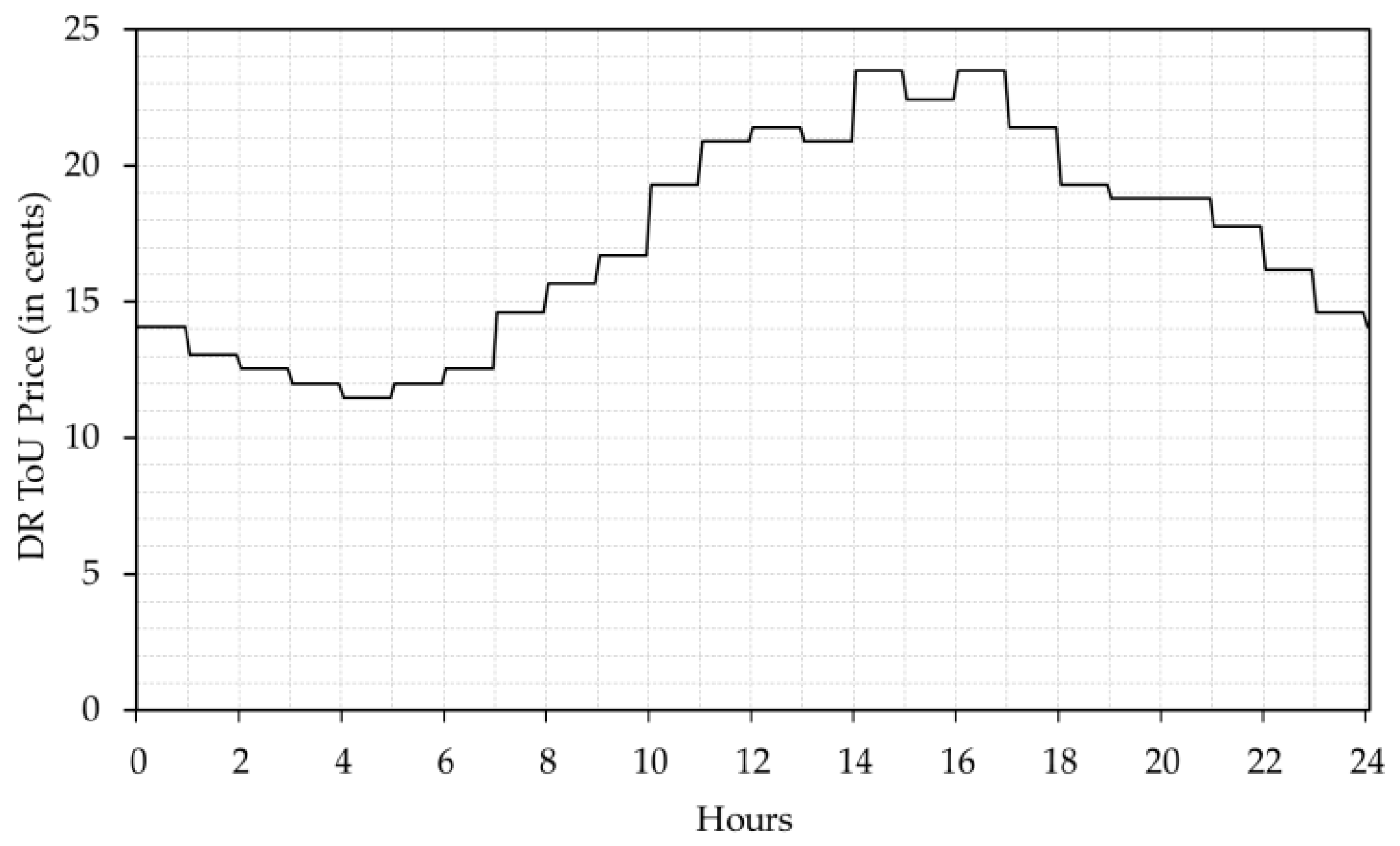

#### Time-of-Use (ToU) Electricity Rates

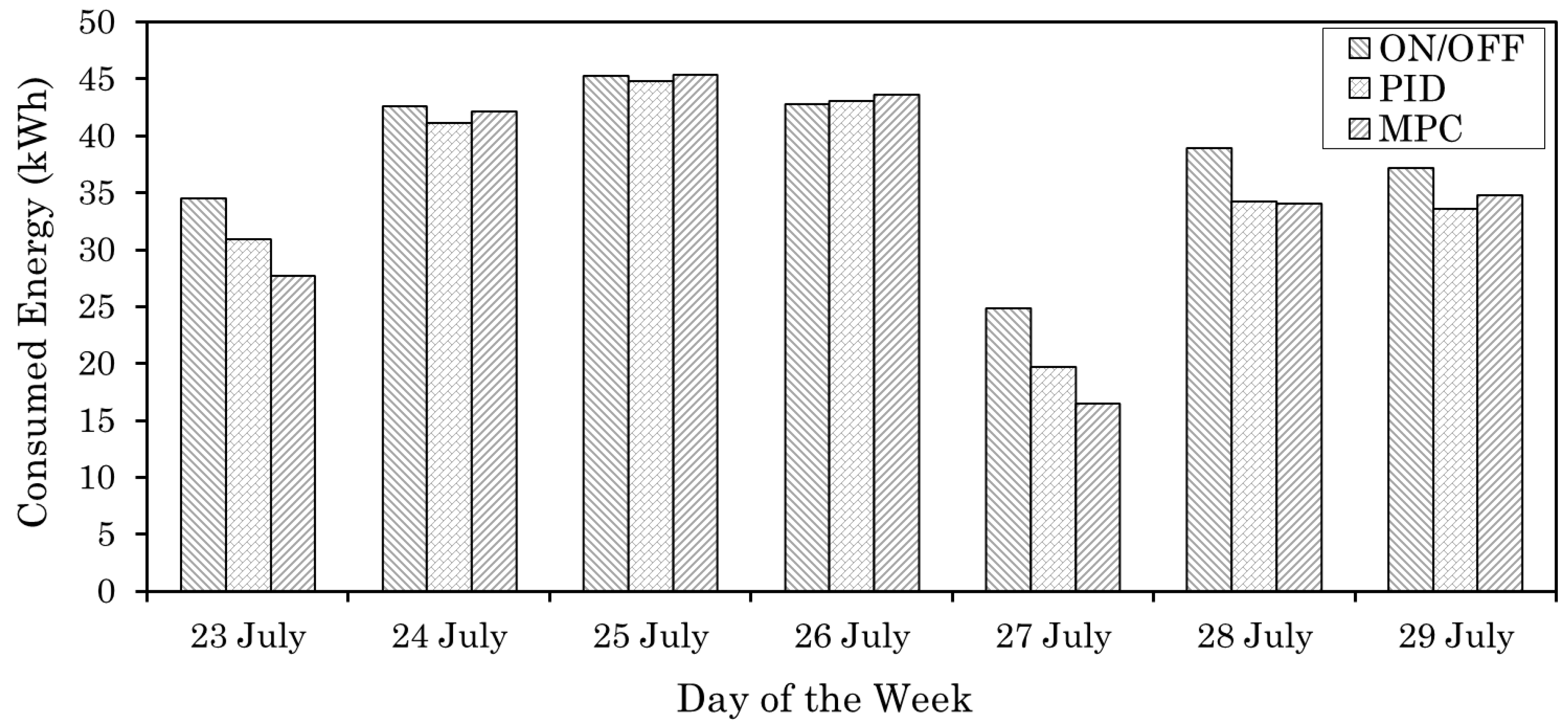

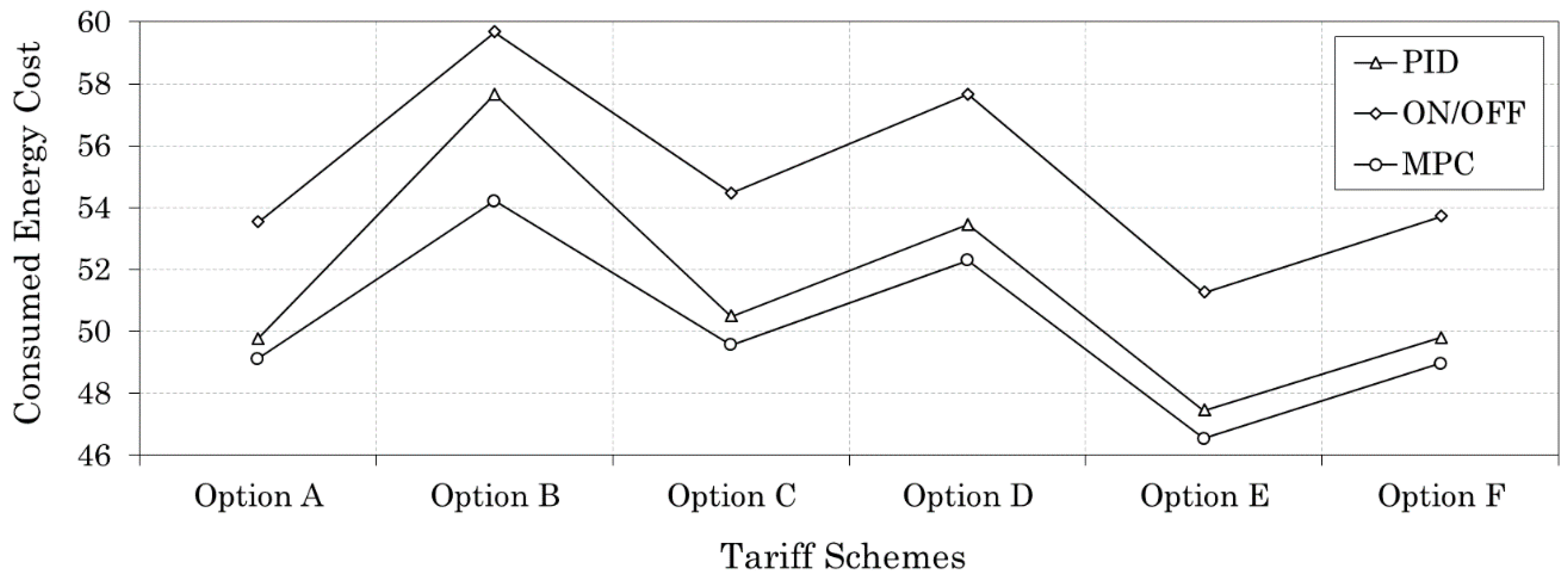

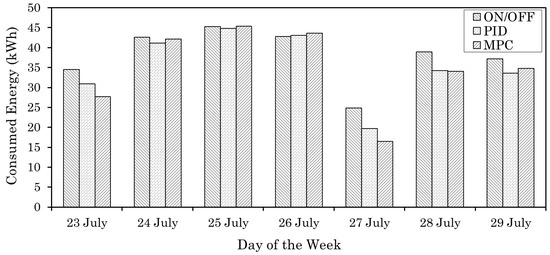

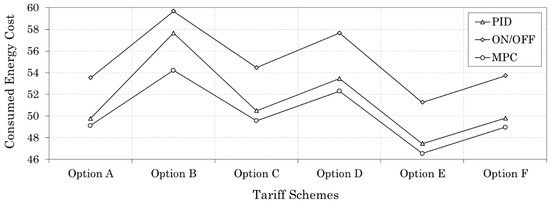

## 4. Result Analysis

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Amasyali, K.; El-Gohary, N.M. A review of data-driven building energy consumption prediction studies. Renew. Sustain. Energy Rev.
**2018**, 81, 1192–1205. [Google Scholar] [CrossRef] - Tirado Herrero, S.; Nicholls, L.; Strengers, Y. Smart home technologies in everyday life: Do they address key energy challenges in households? Curr. Opin. Environ. Sustain.
**2018**, 31, 65–70. [Google Scholar] [CrossRef] - Kaya, A.; Yalcintas, M. Energy consumption trends in Hawaii. Energy
**2010**, 35, 1363–1367. [Google Scholar] [CrossRef] - Berardi, U. A cross-country comparison of the building energy consumptions and their trends. Resour. Conserv. Recycl.
**2017**, 123, 230–241. [Google Scholar] [CrossRef] - Yun, G.Y. Influences of perceived control on thermal comfort and energy use in buildings. Energy Build.
**2018**, 158, 822–830. [Google Scholar] [CrossRef] - Damette, O.; Delacote, P.; Lo, G.D. Households energy consumption and transition toward cleaner energy sources. Energy Policy
**2018**, 113, 751–764. [Google Scholar] [CrossRef] - Alvarez-Herranz, A.; Balsalobre-Lorente, D.; Shahbaz, M.; Cantos, J.M. Energy innovation and renewable energy consumption in the correction of air pollution levels. Energy Policy
**2017**, 105, 386–397. [Google Scholar] [CrossRef] - Zhao, X.; Chang, T.; Hwang, B.-G.; Deng, X. Critical Factors Influencing Business Model Innovation for Sustainable Buildings. Sustainability
**2017**, 10, 33. [Google Scholar] [CrossRef] - Štreimikienė, D. Residential energy consumption trends, main drivers and policies in Lithuania. Renew. Sustain. Energy Rev.
**2014**, 35, 285–293. [Google Scholar] [CrossRef] - Ortiz, M.A.; Kurvers, S.R.; Bluyssen, P.M. A review of comfort, health, and energy use: Understanding daily energy use and wellbeing for the development of a new approach to study comfort. Energy Build.
**2017**, 152, 323–335. [Google Scholar] [CrossRef] - Lv, W.; Shen, C.; Li, X. Energy efficiency of an air conditioning system coupled with a pipe-embedded wall and mechanical ventilation. J. Build. Eng.
**2018**, 15, 229–235. [Google Scholar] [CrossRef] - Park, J.Y.; Nagy, Z. Comprehensive analysis of the relationship between thermal comfort and building control research—A data-driven literature review. Renew. Sustain. Energy Rev.
**2018**, 82, 2664–2679. [Google Scholar] [CrossRef] - Buyak, N.A.; Deshko, V.I.; Sukhodub, I.O. Buildings energy use and human thermal comfort according to energy and exergy approach. Energy Build.
**2017**, 146, 172–181. [Google Scholar] [CrossRef] - Hemmati, R.; Saboori, H. Stochastic optimal battery storage sizing and scheduling in home energy management systems equipped with solar photovoltaic panels. Energy Build.
**2017**, 152, 290–300. [Google Scholar] [CrossRef] - Shafie-Khah, M.; Siano, P. A Stochastic Home Energy Management System Considering Satisfaction Cost and Response Fatigue. IEEE Trans. Ind. Inform.
**2018**, 14, 629–638. [Google Scholar] [CrossRef] - Jacobsson, A.; Boldt, M.; Carlsson, B. A risk analysis of a smart home automation system. Future Gener. Comput. Syst.
**2016**, 56, 719–733. [Google Scholar] [CrossRef] - Ashabani, M.; Gooi, H.B. Multiobjective Automated and Autonomous Intelligent Load Control for Smart Buildings. IEEE Trans. Power Syst.
**2017**, PP, 1. [Google Scholar] [CrossRef] - Afram, A.; Janabi-Sharifi, F. Supervisory model predictive controller (MPC) for residential HVAC systems: Implementation and experimentation on archetype sustainable house in Toronto. Energy Build.
**2017**, 154, 268–282. [Google Scholar] [CrossRef] - Afram, A.; Janabi-Sharifi, F.; Fung, A.S.; Raahemifar, K. Artificial neural network (ANN) based model predictive control (MPC) and optimization of HVAC systems: A state of the art review and case study of a residential HVAC system. Energy Build.
**2017**, 141, 96–113. [Google Scholar] [CrossRef] - Michailidis, I.T.; Schild, T.; Sangi, R.; Michailidis, P.; Korkas, C.; Fütterer, J.; Müller, D.; Kosmatopoulos, E.B. Energy-efficient HVAC management using cooperative, self-trained, control agents: A real-life German building case study. Appl. Energy
**2018**, 211, 113–125. [Google Scholar] [CrossRef] - Manjarres, D.; Mera, A.; Perea, E.; Lejarazu, A.; Gil-Lopez, S. An energy-efficient predictive control for HVAC systems applied to tertiary buildings based on regression techniques. Energy Build.
**2017**, 152, 409–417. [Google Scholar] [CrossRef] - Guerrero-Martinez, M.A.; Milanes-Montero, M.I.; Barrero-Gonzalez, F.; Miñambres-Marcos, V.M.; Romero-Cadaval, E.; Gonzalez-Romera, E. A Smart Power Electronic Multiconverter for the Residential Sector. Sensors
**2017**, 17, 1217. [Google Scholar] [CrossRef] [PubMed] - Ford, R.; Pritoni, M.; Sanguinetti, A.; Karlin, B. Categories and functionality of smart home technology for energy management. Build. Environ.
**2017**, 123, 543–554. [Google Scholar] [CrossRef] - Croce, D.; Giuliano, F.; Tinnirello, I.; Galatioto, A.; Bonomolo, M.; Beccali, M.; Zizzo, G. Overgrid: A Fully Distributed Demand Response Architecture Based on Overlay Networks. IEEE Trans. Autom. Sci. Eng.
**2017**, 14, 471–481. [Google Scholar] [CrossRef] - Brusco, G.; Burgio, A.; Menniti, D.; Pinnarelli, A.; Sorrentino, N.; Scarcello, L. An Energy Box in a Cloud-Based Architecture for Autonomous Demand Response of Prosumers and Prosumages. Electronics
**2017**, 6, 98. [Google Scholar] [CrossRef] - Huang, Y.; Wang, L.; Guo, W.; Kang, Q.; Wu, Q. Chance Constrained Optimization in a Home Energy Management System. IEEE Trans. Smart Grid
**2018**, 9, 252–260. [Google Scholar] [CrossRef] - Li, S.; Zheng, Y. Distributed Model Predictive Control for Plant-Wide Systems; John Wiley & Sons: Hoboken, NJ, USA, 2017; ISBN 978-1-118-92159-3. [Google Scholar]
- Afram, A.; Janabi-Sharifi, F. Theory and applications of HVAC control systems—A review of model predictive control (MPC). Build. Environ.
**2014**, 72, 343–355. [Google Scholar] [CrossRef] - Afroz, Z.; Shafiullah, G.; Urmee, T.; Higgins, G. Modeling techniques used in building HVAC control systems: A review. Renew. Sustain. Energy Rev.
**2017**, 83, 64–84. [Google Scholar] [CrossRef] - Kheradmandi, M.; Mhaskar, P. Model predictive control with closed-loop re-identification. Comput. Chem. Eng.
**2018**, 109, 249–260. [Google Scholar] [CrossRef] - Ahmad, M.W.; Mourshed, M.; Yuce, B.; Rezgui, Y. Computational intelligence techniques for HVAC systems: A review. Build. Simul.
**2016**, 9, 359–398. [Google Scholar] [CrossRef] - Dullinger, C.; Struckl, W.; Kozek, M. A general approach for mixed-integer predictive control of HVAC systems using MILP. Appl. Therm. Eng.
**2018**, 128, 1646–1659. [Google Scholar] [CrossRef] - Wang, D.; Meng, K.; Gao, X.; Coates, C.; Dong, Z. Optimal air-conditioning load control in distribution network with intermittent renewables. J. Mod. Power Syst. Clean Energy
**2017**, 5, 55–65. [Google Scholar] [CrossRef] - Rawlings, J.B.; Patel, N.R.; Risbeck, M.J.; Maravelias, C.T.; Wenzel, M.J.; Turney, R.D. Economic MPC and real-time decision making with application to large-scale HVAC energy systems. Comput. Chem. Eng.
**2017**. [Google Scholar] [CrossRef] - Parisio, A.; Varagnolo, D.; Molinari, M.; Pattarello, G.; Fabietti, L.; Johansson, K.H. Implementation of a Scenario-based MPC for HVAC Systems: An Experimental Case Study. IFAC Proc. Vol.
**2014**, 47, 599–605. [Google Scholar] [CrossRef] - Hilliard, T.; Swan, L.; Qin, Z. Experimental implementation of whole building MPC with zone based thermal comfort adjustments. Build. Environ.
**2017**, 125, 326–338. [Google Scholar] [CrossRef] - Leephakpreeda, T. Implementation of adaptive indoor comfort temperature control via embedded system for air-conditioning unit. J. Mech. Sci. Technol.
**2012**, 26, 259–268. [Google Scholar] [CrossRef] - Reka, S.S.; Ramesh, V. Demand side response modeling with controller design using aggregate air conditioning loads and particle swarm optimization. In Advanced Computing and Communication Technologies; Advances in Intelligent Systems and Computing; Springer: Singapore, 2016; pp. 573–581. ISBN 978-981-10-1021-7. [Google Scholar]
- Smith, R.; Meng, K.; Dong, Z.; Simpson, R. Demand response: A strategy to address residential air-conditioning peak load in Australia. J. Mod. Power Syst. Clean Energy
**2013**, 1, 223–230. [Google Scholar] [CrossRef] - Aftab, M.; Chen, C.; Chau, C.-K.; Rahwan, T. Automatic HVAC control with real-time occupancy recognition and simulation-guided model predictive control in low-cost embedded system. Energy Build.
**2017**, 154, 141–156. [Google Scholar] [CrossRef] - Ascione, F.; Bianco, N.; De Stasio, C.; Mauro, G.M.; Vanoli, G.P. A new comprehensive approach for cost-optimal building design integrated with the multi-objective model predictive control of HVAC systems. Sustain. Cities Soc.
**2017**, 31, 136–150. [Google Scholar] [CrossRef] - Rahmani-Andebili, M. Scheduling deferrable appliances and energy resources of a smart home applying multi-time scale stochastic model predictive control. Sustain. Cities Soc.
**2017**, 32, 338–347. [Google Scholar] [CrossRef] - Rahmani-andebili, M.; Shen, H. Cooperative distributed energy scheduling for smart homes applying stochastic model predictive control. In Proceedings of the 2017 IEEE International Conference on Communications (ICC), Paris, France, 21–25 May 2017; pp. 1–6. [Google Scholar]
- Rahmani-andebili, M. Nonlinear demand response programs for residential customers with nonlinear behavioral models. Energy Build.
**2016**, 119, 352–362. [Google Scholar] [CrossRef] - Rodrigues, E.M.G.; Godina, R.; Pouresmaeil, E.; Ferreira, J.R.; Catalão, J.P.S. Domestic appliances energy optimization with model predictive control. Energy Convers. Manag.
**2017**, 142, 402–413. [Google Scholar] [CrossRef] - EDP Opção Horária-Apoio ao Cliente-EDP. 2016. Available online: https://energia.edp.pt/particulares/apoio-cliente/opcao-horaria/ (accessed on 11 December 2016).
- InovGrid Project-EDP Distribuição (Portugal). Available online: http://www.gridinnovation-on-line.eu/Articles/Library/InovGrid-Project---EDP-Distribuicao-Portugal.kl (accessed on 14 February 2017).
- Camacho, E.F.; Alba, C.B. Model Predictive Control; Springer Science & Business Media: Berlin, Germany, 2013; ISBN 978-0-85729-398-5. [Google Scholar]
- Oliveira, D.; Rodrigues, E.M.G.; Godina, R.; Mendes, T.D.P.; Catalão, J.P.S.; Pouresmaeil, E. MPC weights tunning role on the energy optimization in residential appliances. In Proceedings of the 2015 Australasian Universities Power Engineering Conference (AUPEC), Wollongong, Australia, 27–30 September 2015; pp. 1–6. [Google Scholar]
- Oliveira, D.; Rodrigues, E.M.G.; Godina, R.; Mendes, T.D.P.; Catalão, J.P.S.; Pouresmaeil, E. Enhancing home appliances energy optimization with solar power integration. In Proceedings of the IEEE EUROCON 2015—International Conference on Computer as a Tool (EUROCON), Salamanca, Spain, 8–11 September 2015; pp. 1–6. [Google Scholar]
- Godina, R.; Rodrigues, E.M.G.; Pouresmaeil, E.; Catalão, J.P.S. Home HVAC energy management and optimization with model predictive control. In Proceedings of the 2017 IEEE International Conference on Environment and Electrical Engineering and 2017 IEEE Industrial and Commercial Power Systems Europe (EEEIC/I CPS Europe), Milan, Italy, 6–9 June 2017; pp. 1–5. [Google Scholar]
- Godina, R.; Rodrigues, E.M.G.; Pouresmaeil, E.; Catalão, J.P.S. Optimal residential model predictive control energy management performance with PV microgeneration. Comput. Oper. Res.
**2017**. [Google Scholar] [CrossRef] - Kouvaritakis, B.; Cannon, M. Model Predictive Control: Classical, Robust and Stochastic; Advanced Textbooks in Control and Signal Processing; Springer: New York, NY, USA, 2016; ISBN 978-3-319-24851-6. [Google Scholar]
- Godina, R.; Rodrigues, E.M.G.; Pouresmaeil, E.; Matias, J.C.O.; Catalão, J.P.S. Model predictive control technique for energy optimization in residential sector. In Proceedings of the 2016 IEEE 16th International Conference on Environment and Electrical Engineering (EEEIC), Florence, Italy, 7–10 June 2016; pp. 1–6. [Google Scholar]
- Model Predictive Control-MPC Technology from ABB-What is New. Available online: http://new.abb.com/control-systems/features/model-predictive-control-mpc (accessed on 8 February 2018).
- Lawrynczuk, M. Computationally Efficient Model Predictive Control Algorithms: A Neural Network Approach; Studies in Systems, Decision and Control; Springer: New York, NY, USA, 2014; ISBN 978-3-319-04228-2. [Google Scholar]
- Grüne, L.; Pannek, J. Nonlinear Model Predictive Control: Theory and Algorithms, 2nd ed.; Communications and Control Engineering; Springer: New York, NY, USA, 2017; ISBN 978-3-319-46023-9. [Google Scholar]
- Lorenzen, M.; Allgöwer, F.; Cannon, M. Adaptive Model Predictive Control with Robust Constraint Satisfaction. IFAC-PapersOnLine
**2017**, 50, 3313–3318. [Google Scholar] [CrossRef] - Kwon, W.H.; Han, S.H. Receding Horizon Control: Model Predictive Control for State Models; Advanced Textbooks in Control and Signal Processing; Springer: London, UK, 2005; ISBN 978-1-84628-024-5. [Google Scholar]
- Wang, L. Classical MPC Systems in state-space formulation. In Model Predictive Control System Design and Implementation Using MATLAB
^{®}; Advances in Industrial Control; Springer: London, UK, 2009; pp. 297–332. ISBN 978-1-84882-330-3. [Google Scholar] - Smart Residential Load Simulator (SRLS). Available online: https://uwaterloo.ca/power-energy-systems-group/downloads/smart-residential-load-simulator-srls (accessed on 23 February 2018).
- Lin, Y.; Middelkoop, T.; Barooah, P. Issues in identification of control-oriented thermal models of zones in multi-zone buildings. In Proceedings of the 2012 IEEE 51st IEEE Conference on Decision and Control (CDC), Maui, HI, USA, 10–13 December 2012; pp. 6932–6937. [Google Scholar]
- Cengel, Y.A. Heat Transfer: A Practical Approach; Mcgraw-Hill: Boston, MA, USA, 2002; ISBN 978-0-07-245893-0. [Google Scholar]
- Paterakis, N.G.; Pappi, I.N.; Erdinç, O.; Godina, R.; Rodrigues, E.M.G.; Catalão, J.P.S. Consideration of the Impacts of a Smart Neighborhood Load on Transformer Aging. IEEE Trans. Smart Grid
**2016**, 7, 2793–2802. [Google Scholar] [CrossRef]

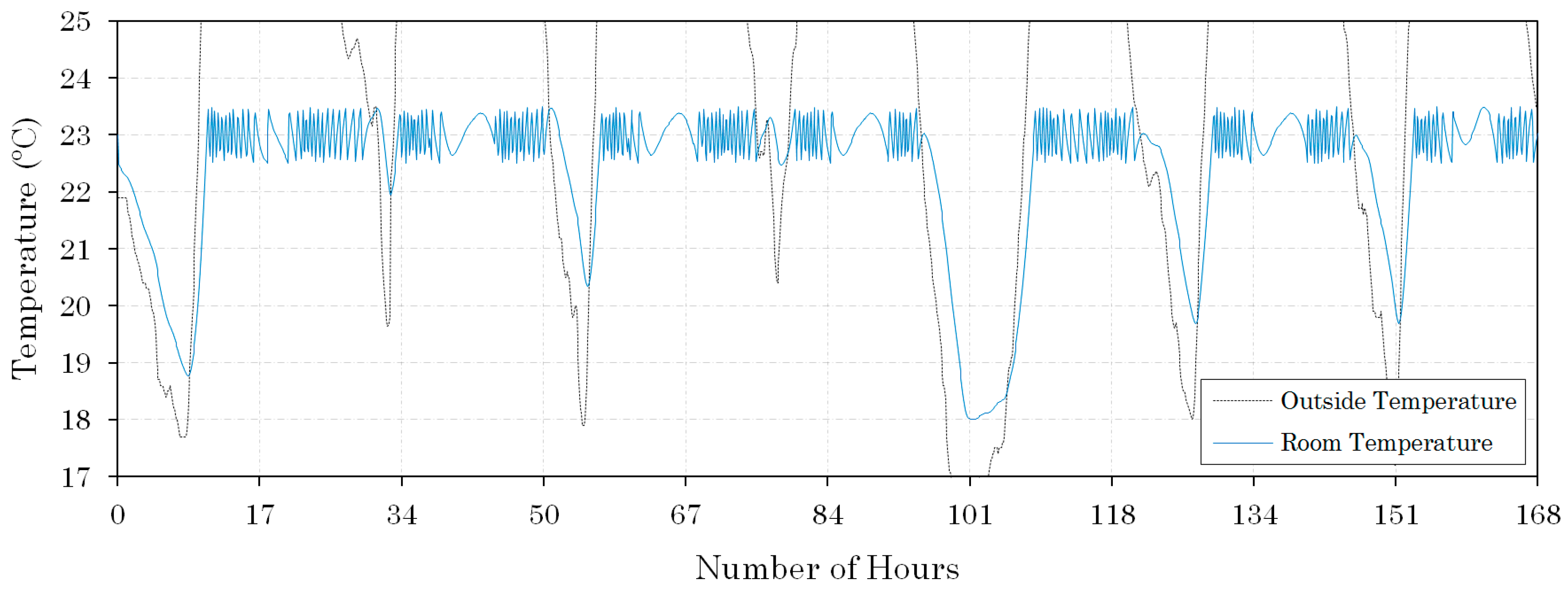

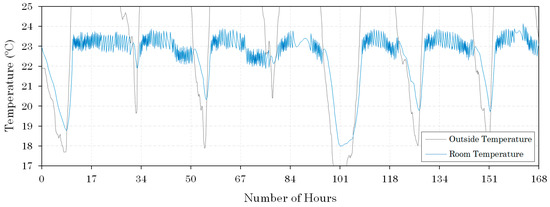

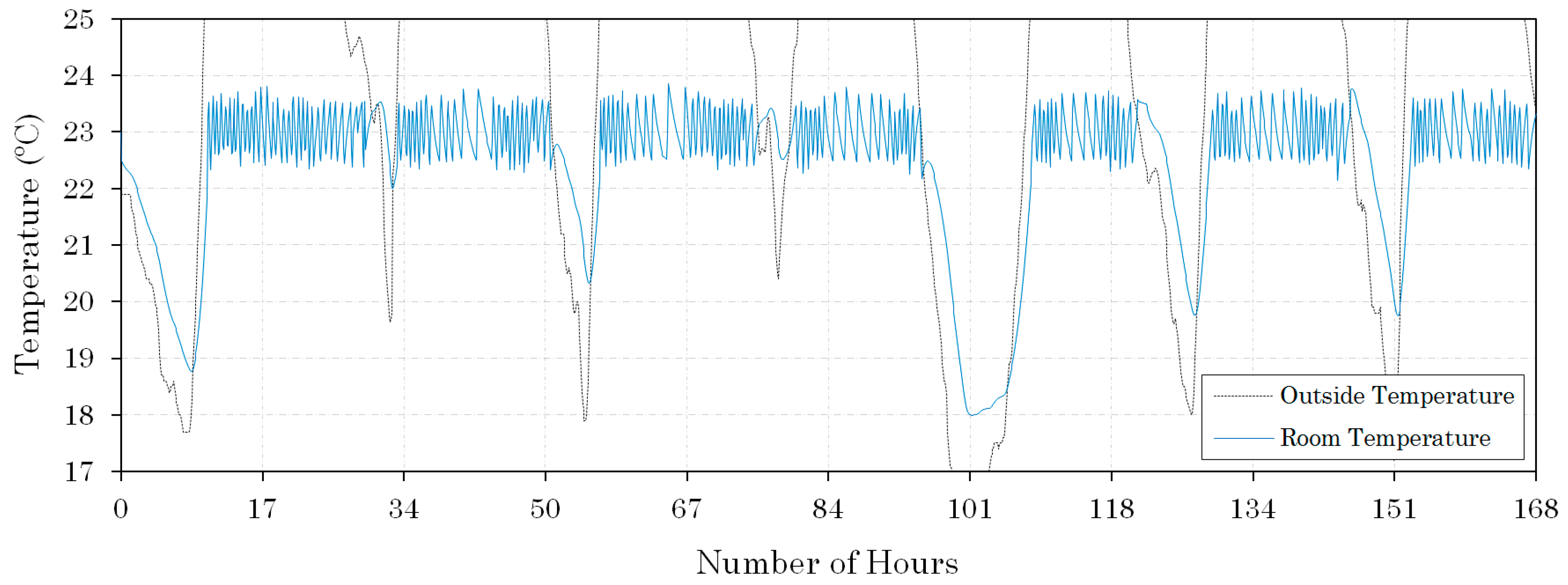

**Figure 10.**The temperature of the room by using PID (proportional-integral-derivative) control option.

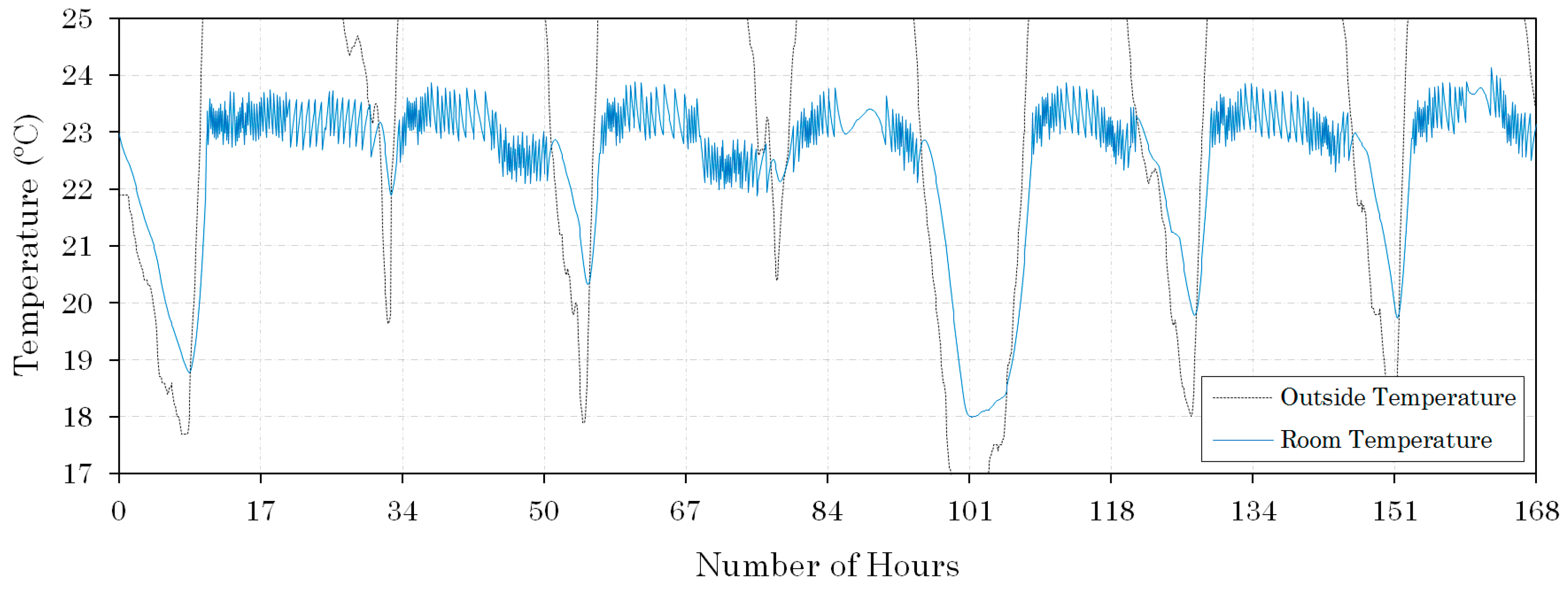

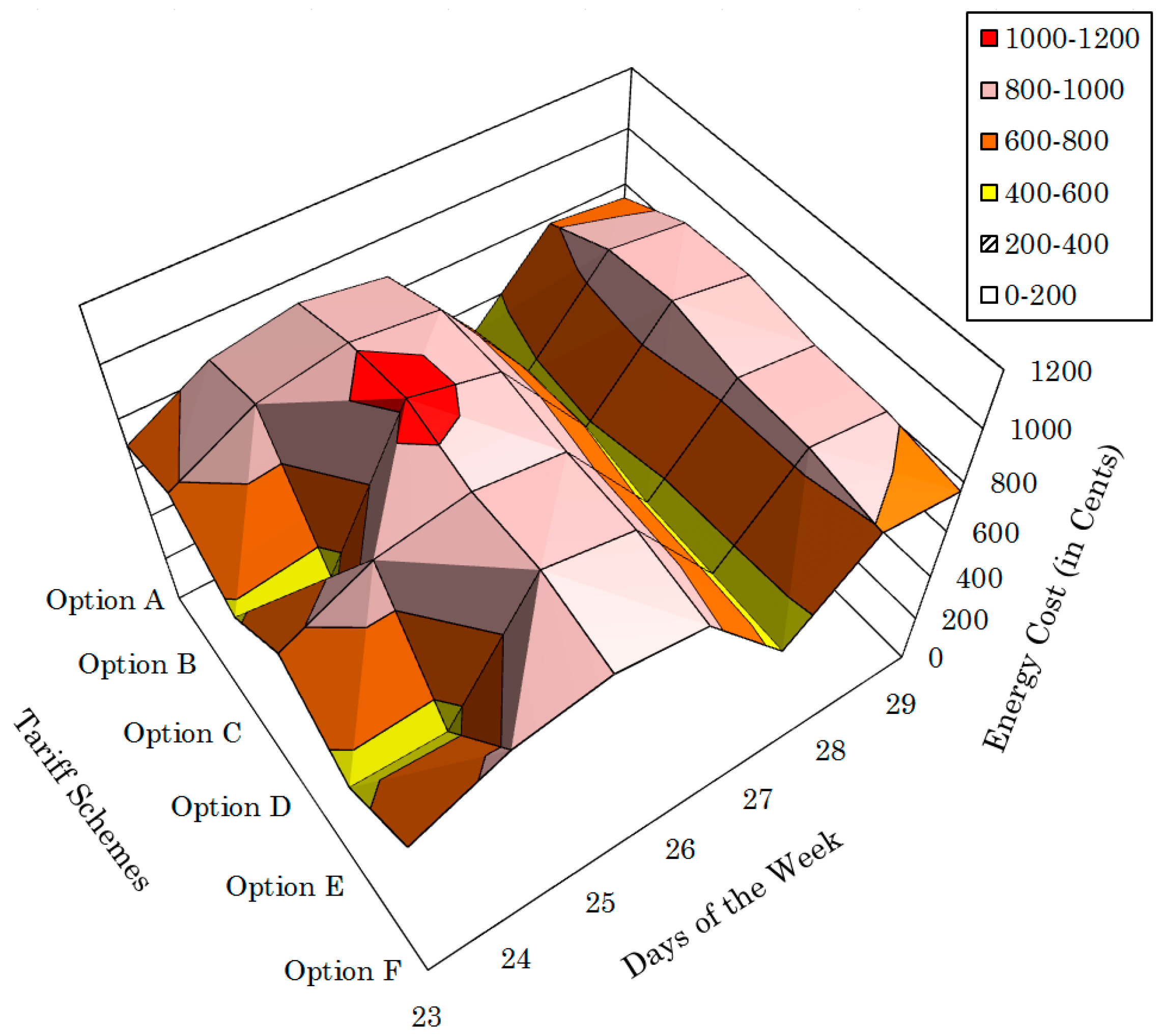

**Figure 12.**The consumed energy cost in cents by the ON/OFF of the controlled AC unit by employing the 6 options of ToU rates.

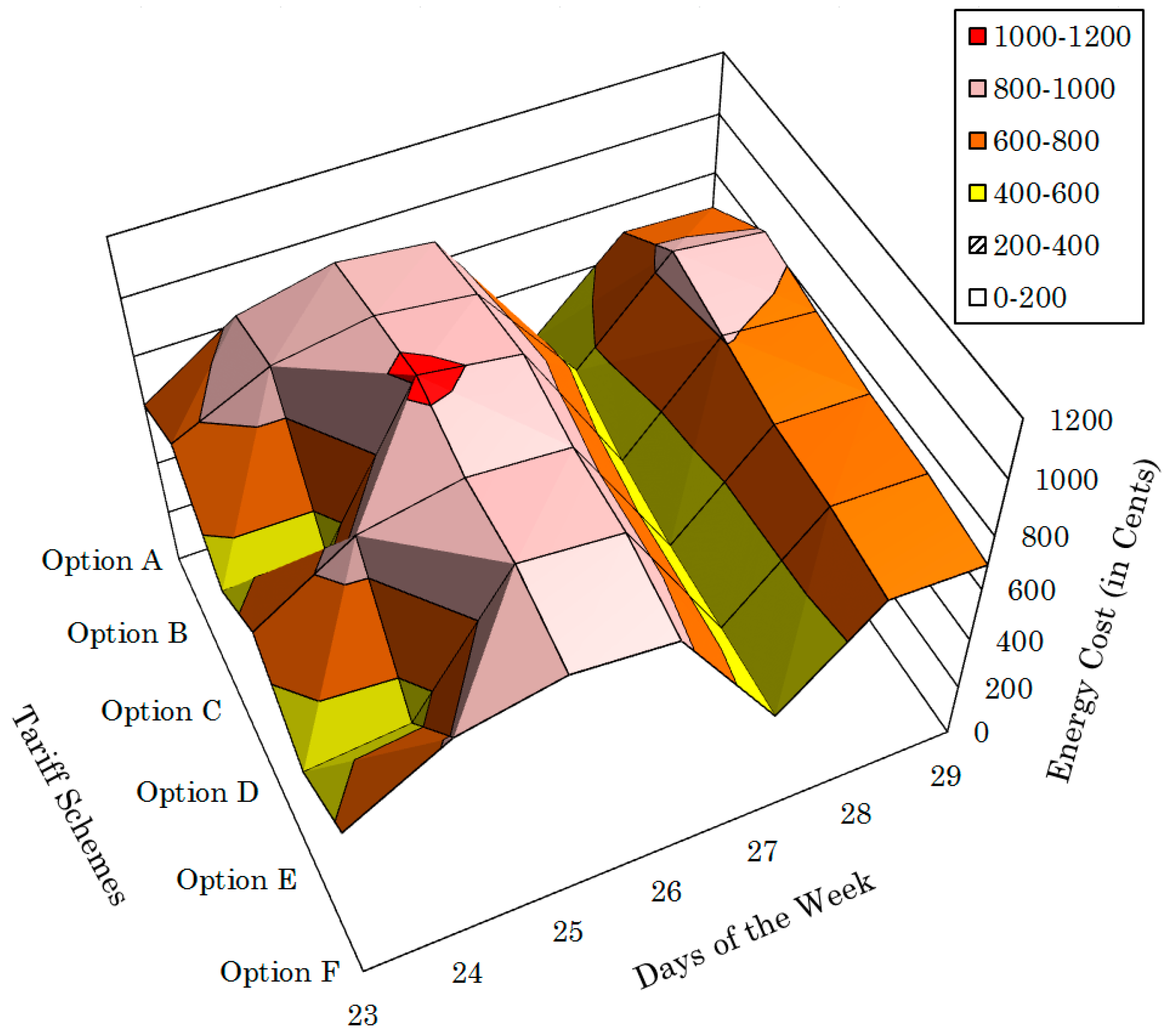

**Figure 13.**The consumed energy cost in cents by the PID of the controlled AC unit by employing the 6 options of ToU rates.

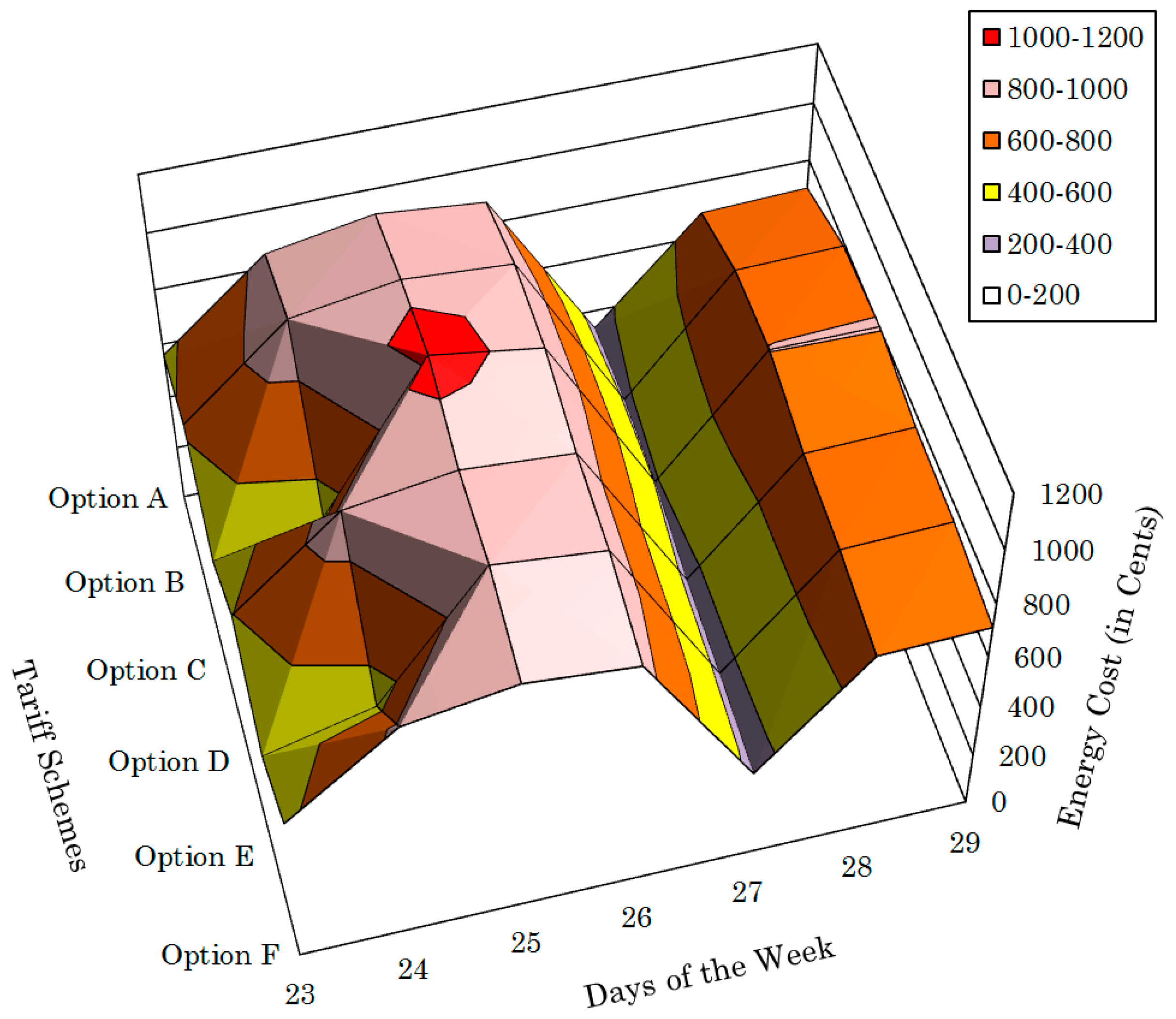

**Figure 14.**The consumed energy cost in cents by the MPC of the controlled AC unit by employing the 6 options of ToU rates.
