Metal Carbides for Biomass Valorization

Abstract

Transition metal carbides have been utilized as an alternative catalyst to expensive noble metals for the conversion of biomass. Tungsten and molybdenum carbides have been shown to be effective catalysts for hydrogenation, hydrodeoxygenation and isomerization reactions. The satisfactory activities of these metal carbides and their low costs, compared with noble metals, make them appealing alternatives and worthy of further investigation. In this review, we succinctly describe common synthesis techniques, including temperature-programmed reaction and carbothermal hydrogen reduction, utilized to prepare metal carbides used for biomass transformation. Attention will be focused, successively, on the application of transition metal carbide catalysts in the transformation of first-generation (oils) and second-generation (lignocellulose) biomass to biofuels and fine chemicals.

1. Introduction

Carbon-rich fossil feedstocks have been identified as the main resource for obtaining fuels and fine chemicals [1]. However, they are not renewable and have a non-negligible impact on environmental pollution. Human activity, such as the burning of fossil fuels and the clearing of forests, increases the total amount of greenhouse gas emissions, which in turn contributes to climate change. Worldwide demand for energy is increasing with increasing population and the improvement in economic wellbeing. Therefore, new methods for the production of energy from alternative, renewable resources must be developed. Solar, wind, hydropower and biomass are possible solutions that can satisfy the growing worldwide energy demand. Environmentally friendly biomass was demonstrated to be a valid carbon-based alternative source for the production of renewable chemicals and fuels [1,2,3,4,5]. Biomass can be broadly classified into two categories: first-generation and second-generation biomass. First-generation biomass materials consist of triglycerides, which are the major component of vegetable oils, waste grease, and oil-processing waste [2,3]. Second-generation biomass consists of lignocellulose, which has attracted much attention in recent decades [4,5,6,7]. Biomass must undergo several transformations in order to be converted into biofuels and fine chemicals. Systems utilizing heterogeneous catalysts have been demonstrated to be more efficient for the transformation of biomass than homogenous or enzymatic systems. Furthermore, heterogeneous catalysts are easier to recover and have a higher durability [8]. The first step of biomass transformation is depolymerization through hydrolysis to produce a mixture of oxygenate molecules. The removal of oxygen is required in order to produce fuel biomass-derived molecules with the same number of carbon atoms, because these biomass derivatives contain an large amount of oxygen, i.e., a high O/C ratio, deoxygenation is a significant reaction [9]. The products deriving from the pyrolysis of raw biomass contain ketones, aldehydes or acids, i.e., C=O bonds, and they need to be selectively hydrogenated (-C-O-H) to increase the stability of the oils [10,11]. Selective cleavage of C-OH or C-O bonds by dehydroxylation or deoxygenation results in water formation with the elimination of oxygen. Loss of carbon as CO or CO₂ by decarbonylation or decarboxylation, respectively, is therefore avoided and results in the preservation of the number of the initial carbon atoms. One drawback of this strategy lies in the lack of hydrogen before the end of the dehydration process. To be able to further remove oxygen, additional hydrogen should be provided through hydrodeoxygenation (HDO). The desired HDO catalyst should therefore be able to selectively cleave C-O bonds without any C-C cleavage. Serrano-Ruiz and co-authors [12] and later Jae et al. [13] reported that a metal/Brønsted bifunctional catalyst fulfills the prerequisites. Metal and acid sites are responsible for the hydrogenation and the dehydration, respectively.

Up to now, mainly noble metal-based catalysts have been used for the transformation of biomass-based resources [5,6]. They have demonstrated good activity and stability under the harsh reaction conditions (acidic, basic and aqueous) required for biomass conversion. Nevertheless, noble metals have a significant cost and are they are present in limited quantity. Therefore, suitable substitutes should be found [14,15].

Transition metal carbides constitute a suitable alternative for noble metal-based catalysts [16,17]. Indeed, the utilization of these materials as a replacement for noble metal will decrease the final cost of the catalyst. For example, the cost per gram of tungsten (purity 99.5%, Aldrich, Milano, Italy) and molybdenum (Mo₂C, purity 99.5%, Aldrich, Milano, Italy) carbides is 4 and 1 EUR respectively. On the other hand, the cost per gram of Pt (powder, purity 99.99%, Aldrich, Milano, Italy), Ru (powder, purity 99.99%, Aldrich, Milano, Italy) and Pd (foil, purity 99.9%, Aldrich, Milano, Italy) is 291, 205 and 100 EUR, respectively. Levy and Boudart [18] reported that W-carbide and Pt have a similar electronic structure, as well as similar catalytic properties. Since then, transition metal carbide has attracted much interest in catalysis and surface science. It has been demonstrated that the catalytic properties of these cheaper metal carbides are comparable to the catalytic properties of the more expensive Pt-groups metals [19,20,21,22]. In the case of dehydrogenation, hydrogenation and hydrogenolysis, which involve a transformation of hydrocarbons’ C-H bonds, activities of these metal carbides are similar or better than the activities of Pt-group metals [19,23,24,25]. For example, W-carbides can substitute Pt in hydro-isomerization reactions [26,27,28], if the correct pretreatment has been applied. Carbides were reported to be highly selective in the HDO of vegetable oils, where the C-O bonds scission and maintaining the C-C bonds intact are the prerequisites [29].

Supported molybdenum carbide was reported to be active for the phenol HDO during the hydrogenation of levulinic acid to gamma valerolactone in a continuous flow liquid phase reactor [30].

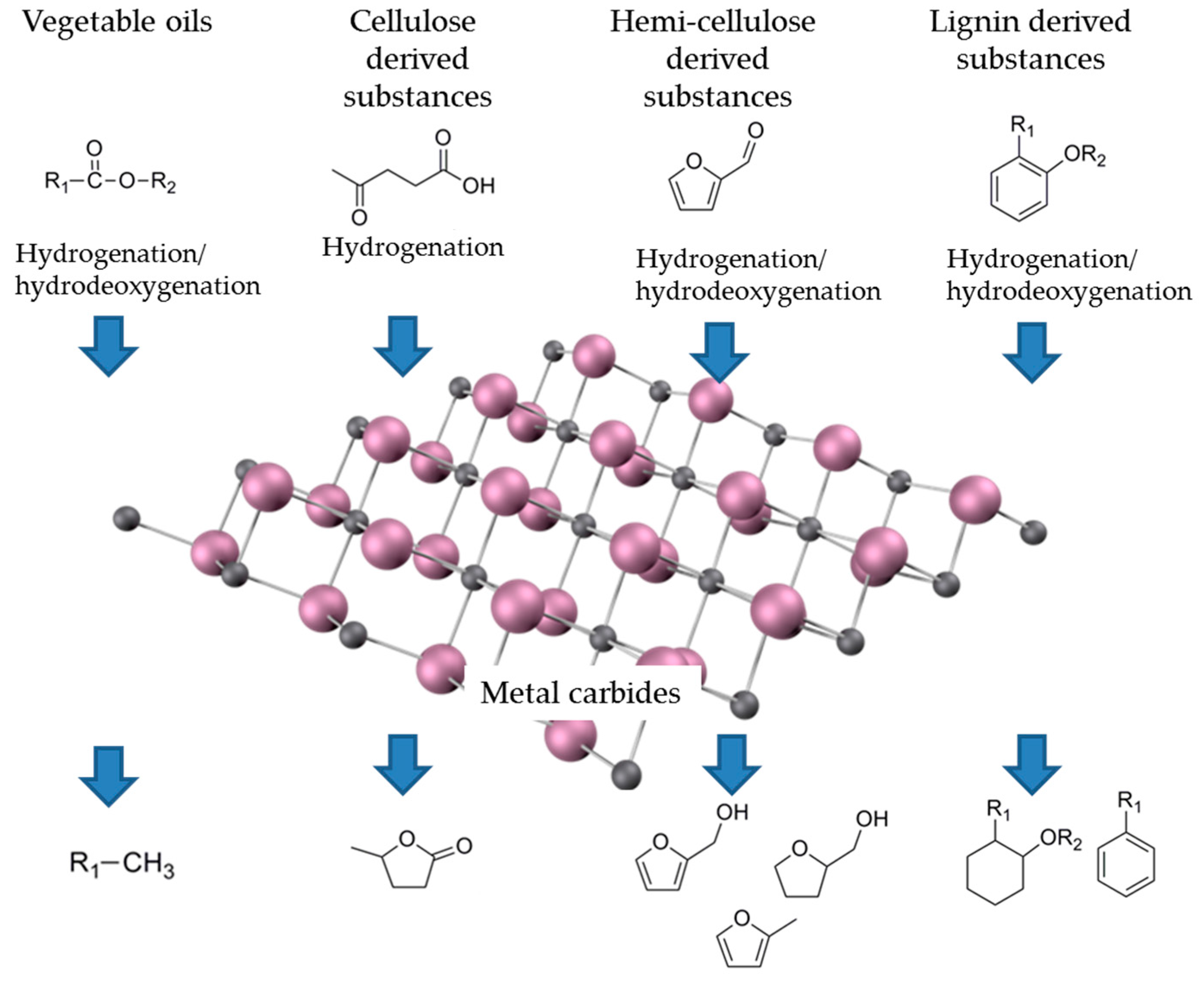

For a better understanding of such promising results, accurate attention to the synthesis and characterization of these carbides is essential. The first part of this review will describe the most common techniques used to prepare metal carbides, which have been used in the transformation of biomass. The second part will be devoted to the different applications of these metal carbides in biomass transformation. The application of metal carbides in hydrogenation and hydrodeoxidation reactions of first-generation (vegetable oils) and second-generation (cellulose, hemicellulose and lignin) biomass-derived molecules will be discussed (Scheme 1). In the last paragraph, we report a few examples of carbides as catalysts for reforming reactions.

2. Carbide Synthesis and Characterization

Several methods for the preparation of metal carbides are reported in the literature. However, in this review we choose to focus on the following three methods; temperature-programmed reduction, ball milling and carbothermal hydrogen reduction. These methods are used most often to synthesize catalysts for biomass transformation.

2.1. Temperature-Programmed Reduction (TPR)

Solid-state reactions are the most direct method used to prepare metal carbides. Boudart and coworkers developed a method to prepare metal carbides using temperature-programmed reduction (TPR) [31]. This methodology consists of treating a Mo precursor under continuous H₂/hydrocarbon flow of differing compositions and different temperatures. This technique has been largely utilized to produce unsupported and supported molybdenum carbides [32,33]. Djéga-Mariadassou and coworkers studied the sequential transformation of the crystal structure of the oxide precursor from molybdic acid to Mo₄O₁₁ to MoO₂ to Mo to Mo₂C, by X-ray diffraction (XRD) [34]. These transformations involve the sequential loss of lattice oxygen as H₂O and lattice carburization via CH₄.

Quiroz et al. prepared Mo₂C carbide with varying sizes and shapes [35]. Well-oriented β-Mo₂C nanoparticles with a fibril morphology were formed when carbon nanotubes (CNTs) were used as the source of carbon at 700 °C for 6 h under an inert environment. Well-defined β-Mo₂C 1D nanostructures were formed after carburization of the nano-sized α-MoO₃ precursor at 650 °C under CH₄/H₂ atmosphere.

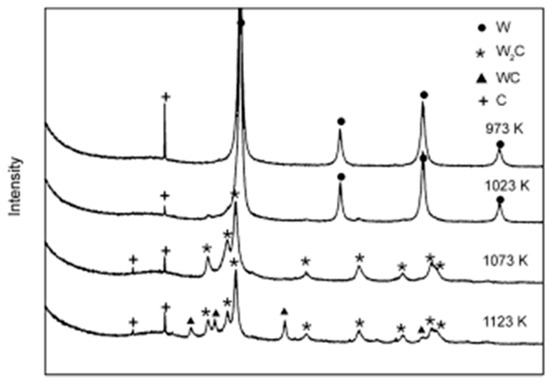

This technique was also employed to prepare WC_x starting from tungsten oxide precursor under similar H₂/hydrocarbon flow, but at higher temperatures [36,37].

2.2. Ball Milling

Ball milling is widely used to grind metal carbide precursor and prepare materials with a nanocrystalline state and good dispersion. For example, Regmi et al. prepared a carbide-phosphide composite by ball milling together MoO₃ and multi-walled carbon nanotubes (MWCNTs). The catalyst was further calcined at high temperature (950 °C), followed by the hydrothermal deposition of phosphide on as-synthesized carbide (Figure 1) [38].

2.3. Carbothermal Hydrogen Reduction (CHR)

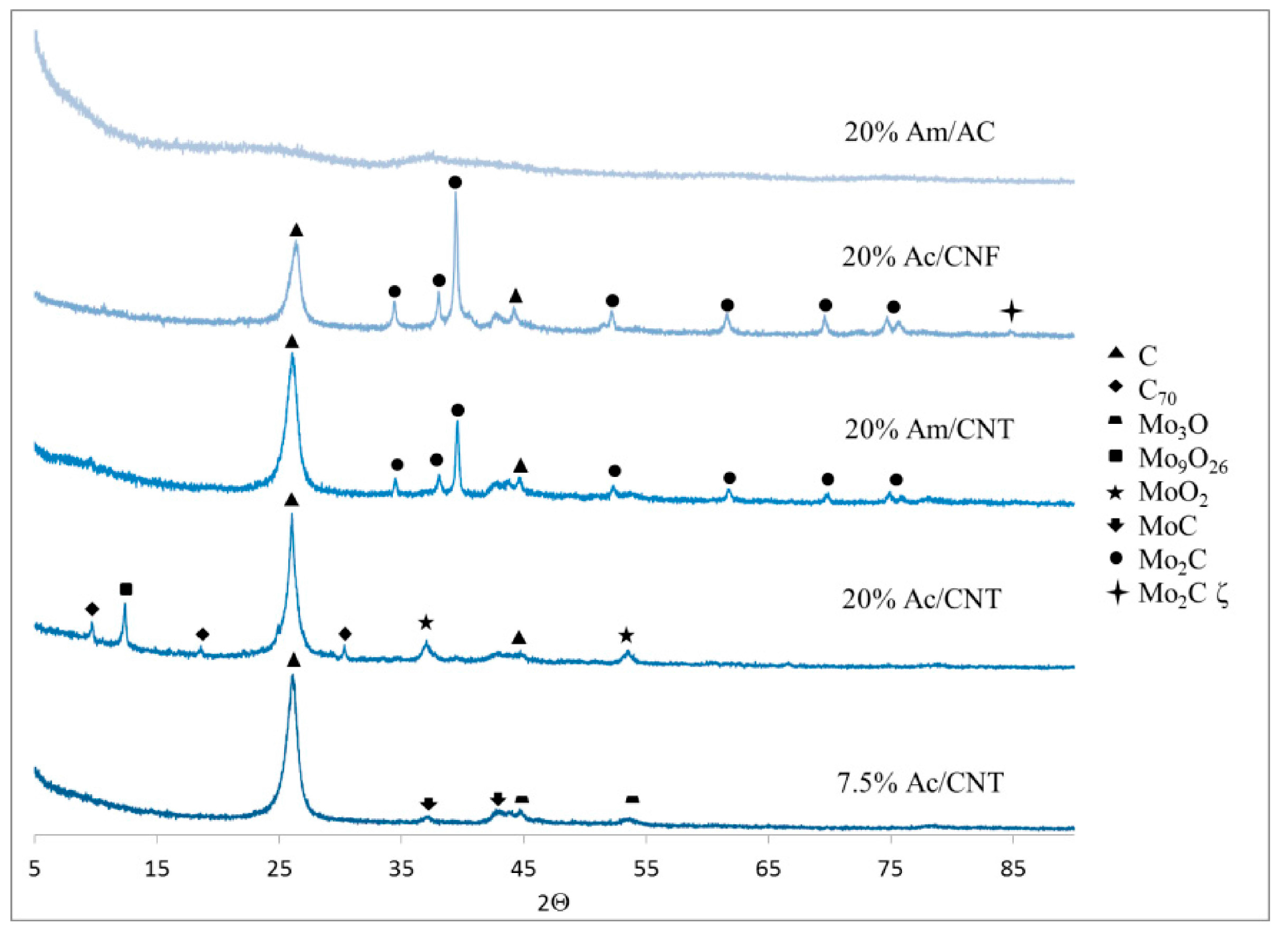

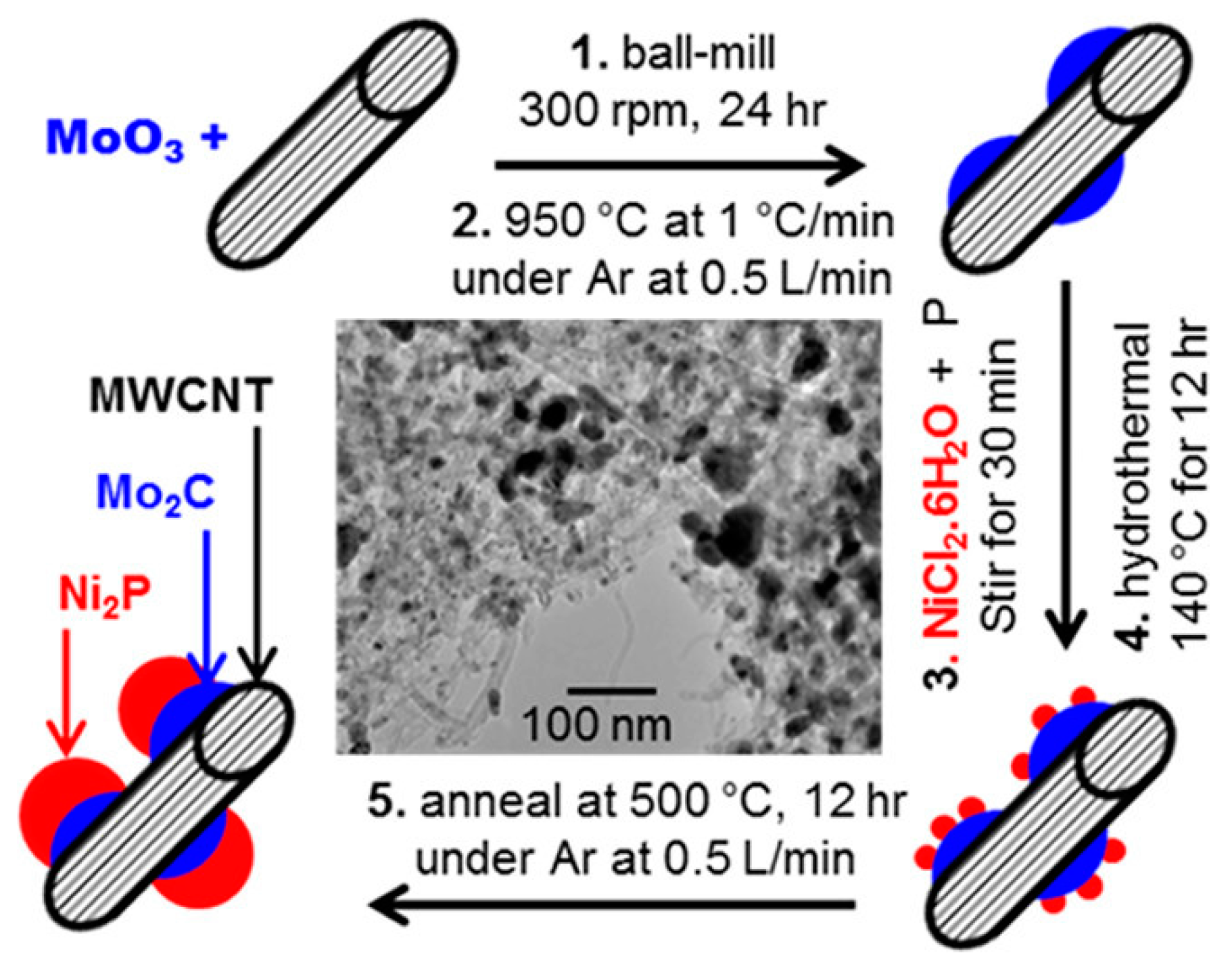

Mo₂C/AC and Mo₂/CNTs were prepared by incipient wetness impregnation using ammonium heptamolybdate. The precursors overcame a temperature-programmed carburization (TPC) under a stream of CH₄/H₂ at 650 °C [30]. Jimenez et al. prepared Mo₂C carbides supported on activated carbon (AC), carbon nanofibers and carbon nanotubes, by impregnation with ammonium molybdate or molybdic acid and carbothermal hydrogen reduction at 1000 °C [39]. The catalysts obtained showed different crystalline phases depending upon both the Mo precursor used and the support (Figure 2).

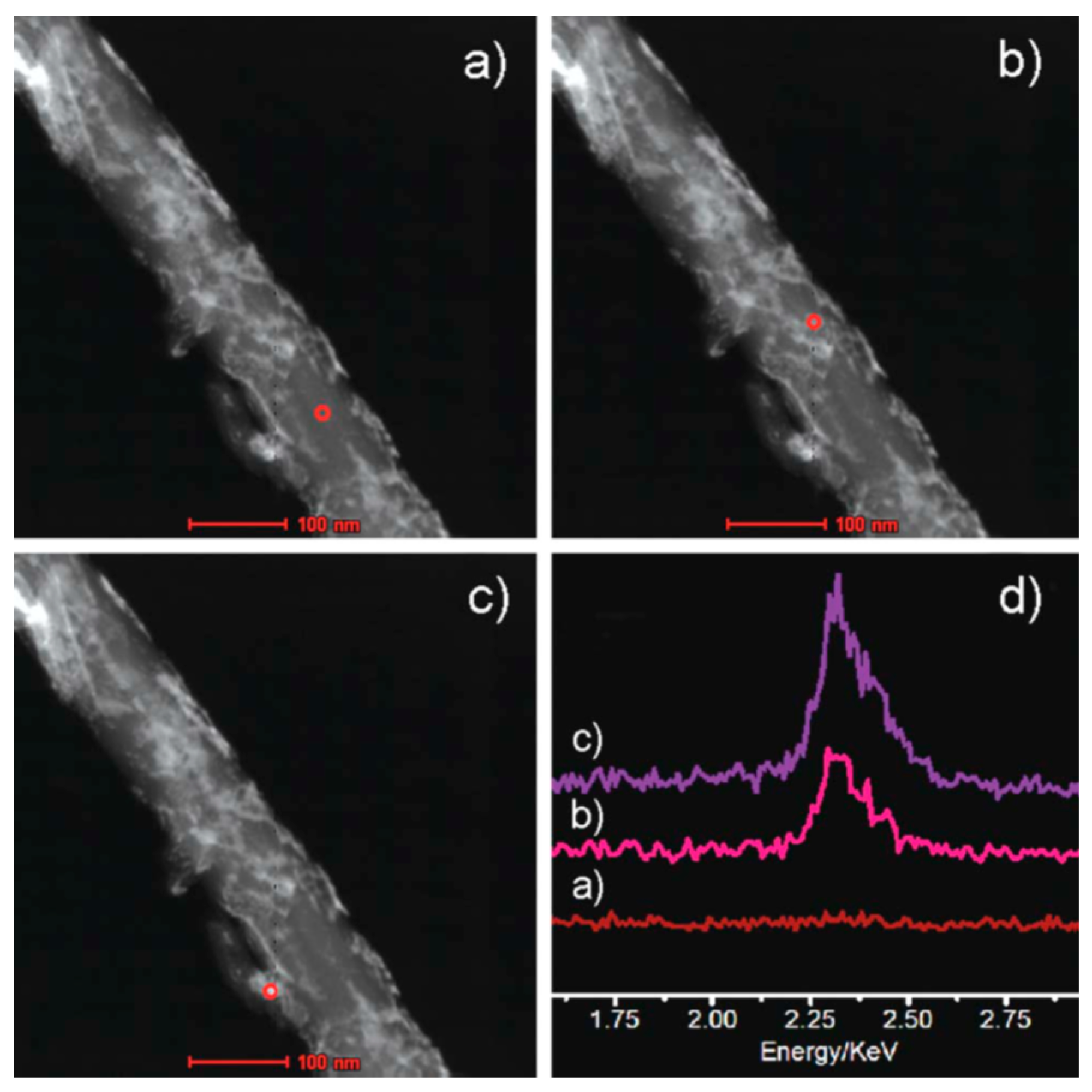

High-angle annular dark-field (HAADF) scanning transmission electron microscopy (STEM) was used to characterize the structure of Mo₂C/CNTs prepared by carbothermal hydrogen reduction [40]. The distribution of brighter spots indicated that the Mo₂C particles (Figure 3) are uniformly dispersed on CNTs supports.

CHR is the methodology used to prepare tungsten carbide using ammonium metatungstate as W precursor at varying carburization temperatures [41]. Ji et al. demonstrated the phase composition depends on the CHR temperature [42]. A well-crystallized and phase-pure W₂C was formed only at 800 °C, above which temperature a fraction of W₂C was further carburized to WC (Figure 4).

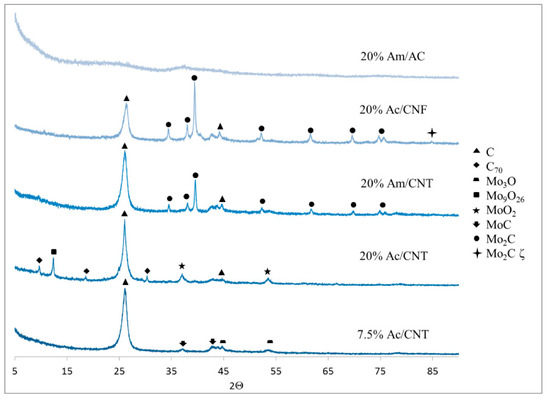

Although not mentioned here, other methods are also used to characterize the prepared carbides for reactions. Raman spectroscopy confirms the introduction of oxygen-containing functional groups on the CNTs’ surface [35]. CO-pulsed chemisorption measurements, thermal gravimetric analysis (TGA) and differential thermal analysis (DTA) were utilized to characterize nanostructured molybdenum carbide [35]. Microcalorimetry of CO adsorption was performed to determine the CO uptake and to calculate the dispersion of active sites [43].

3. Application in Biomass Transformation

Biomass can be split into two categories: first-generation biomass and second-generation biomass. Both categories will be described in this section.

3.1. First-Generation Biomass

The pyrolysis of raw biomass results in the production of bio-oil. The hydrolysis reaction of fats and oils, also called triglycerides, results in the production of glycerol and fatty acids which are carboxylic acids characterized by a high O/C ratio. Once the excess oxygen atoms are removed, these hydrocarbon chains, in the diesel range, constitute possible renewable feedstocks for transportation fuels. HDO reaction has thus gained much attention in making suitable triglycerides as an alternative fuel precursor to replace diesel from fossil sources.

Carbon nanotube-supported Mo₂C (Mo₂C/CNT) and active carbon-supported Mo₂C (Mo₂C/AC) catalysts were reported as active and selective in the one-step conversion of vegetable oils into branched diesel-like hydrocarbons [40,44]. When supported on AC, Mo₂C was found to be more active than the unsupported Mo₂C for the HDO of methyl stearate, a model compound [44]. After only 1 h reaction, Mo₂C/AC reaches 65% conversion. Similar conversion (67%) was reached with the unsupported Mo₂C after 5 h. Both catalysts led to the formation of paraffins via HDO, 42% versus 69% selectivity with Mo₂C and Mo₂C/AC, respectively. Mo₂C/AC was therefore utilized as catalyst for the conversion of diverse vegetable oils (such as, among others, soybean oil, rapeseed, olive oil and sunflower oil) into hydrocarbons. The highest yield of hydrocarbon was obtained with olive oil (88%), while sunflower oil as feedstock led to a lower yield, 76%. Mo₂C/AC was found to be active and stable over sixteen runs with olive oil as feedstock.

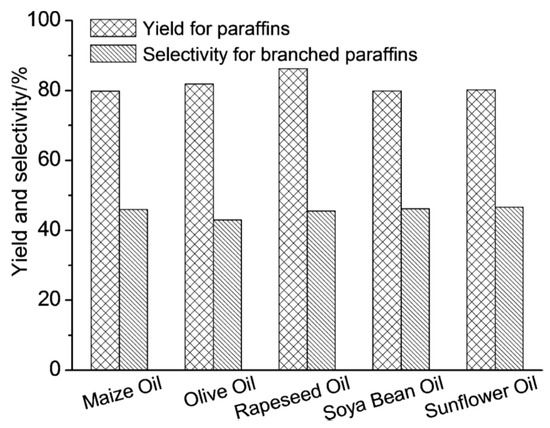

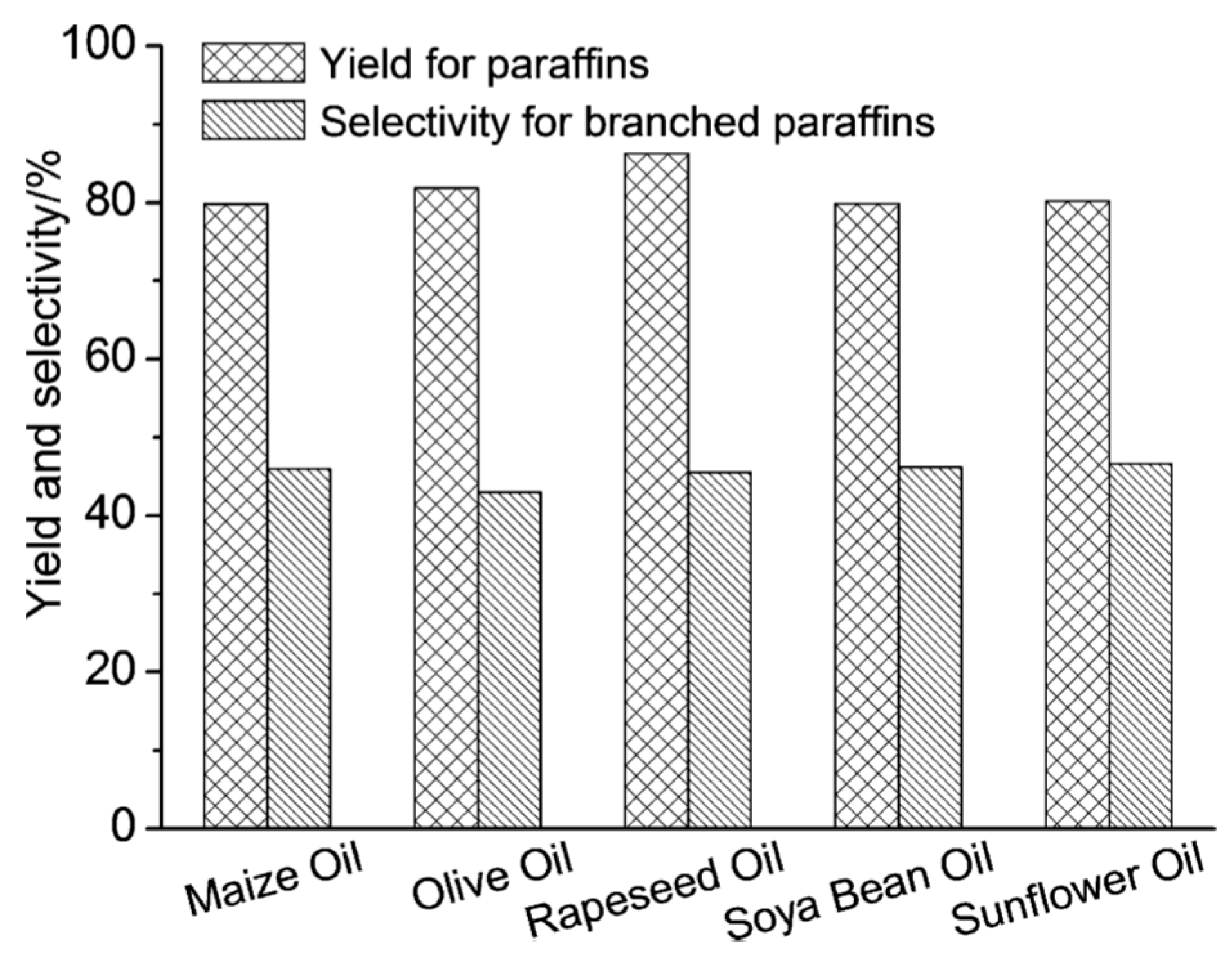

20% Mo₂C/CNT was tested and compared to 5% Pd/CNTs and 5% Pt/CNTs for the one-step hydrodeoxygenation and isomerization of vegetable oils (Scheme 2) [40]. 20% Mo₂C/CNTs was more active than 5% Pd/CNTs and 5% Pt/CNTs (90%, 41% and 32%, respectively) in the transformation of methyl palmitate at 240 °C. The authors observed that the main reaction route of higher aliphatic esters on Mo₂C is hydrodeoxygenation, compared to noble metals (Scheme 1). The authors further investigated the HDO of vegetable oils catalyzed with 20% Mo₂C/CNTs. The highest paraffin yields were obtained (86%) when rapeseed oil was used as feedstock (Figure 5). Surprisingly, the catalyst was also selective to branched alkanes including 2-methylheptadecane, 3-methylheptadecane, 4-methylheptadecane, 8-methylheptadecane and 2,6,10-trimethylpentadecane. Branched alkanes are high-grade diesel fuels with a low freezing point. The authors postulated that the isomerization reaction of linear alkanes into branched alkanes on Mo₂C/CNTs catalysts was possible thanks to the structure of esters, especially the length of the carbon chains. Compared to rapeseed oil, a similar hydrocarbon yield (87%) and higher branched alkane yield (55%) were obtained with sunflower oil by reducing the mass ratio of sunflower oil with Mo₂C to 7.5:1.

Mo₂C/CNT exhibited better catalytic performance compared to noble metal (5% Pd and 5% Pt) supported catalysts, the classical catalyst for the transformation of the model compound methyl palmitate into hydrocarbons, (conversion of 90%, 41% and 32% for Mo₂C/CNTs, Pd/CNTs and Pt/CNTs, respectively) as well as a higher resistance to deactivation.

Carbon nanofibers were investigated as a support for Mo₂C and W₂C by Hollak et al. [45] for the hydrodeoxygenation of oleic acid. Both catalysts showed a good activity, but a different selectivity. Mo₂C/CNF was selective to paraffin (saturated carbon) whereas W₂C/CNF was more selective to olefin. Moreover, Mo₂C/CNF was reported more active and more stable than W₂C/CNF.

More recently, Shi and co-authors [46] reported a theoretical study of butyric acid HDO to butane over a hexagonal Mo₂C(101) surface catalyst. They proposed that the reaction starts with the butyric acid dissociation into surface OH and acyl species, followed by acyl hydrogenation into surface aldehyde. The butanal obtained is hydrogenated into butanol. Finally, butanol is dissociated into surface OH and butyl groups, which in turn are further hydrogenated into butane. The authors warn that these results are correlated only to the hexagonal phase of Mo₂C and might therefore diverge from the experimental activity and selectivity. Indeed, Mo₂C catalysts are made of several phases and thus display different facets and surface structure.

One concern about first-generation biomass lies in the food-chain competition. It is recommended not to divert fats and oils deriving from edible vegetables from the food chain. Attention is therefore directed to waste oil or to non-edible cellulosic resources. These latter compounds constitute second-generation biomass.

3.2. Second-Generation Biomass

Lignocellulose, the second-generation biomass feedstock, is composed of cellulose, hemicellulose and lignin. The transformation of each feedstock will be discussed.

3.2.1. Cellulose

Cellulose from plant biomass can serve as a sustainable feedstock for fuels, chemicals and polymers that are currently produced from petroleum. The efficient conversion of biomass to valuable and sustainable fuels and chemicals is still a challenge. One attractive approach lies in the transformation of cellulose into levulinic acid (LA) by acid-catalyzed hydrolysis. LA is a versatile building block containing a ketone carbonyl group and an acidic carboxyl group. When cellulose with a high O/C ratio is transformed into fuels, an excess of oxygen must be removed. Alternatively, when cellulose is transformed into oxygenates, most of the oxygen-functional groups in the cellulose are preserved in the target molecule, polyols for example.

Sustainable production of fuels. LA has been accepted as a promising and sustainable platform molecule for further application in biorefineries [47]. Ideally, LA can be hydrogenated to γ-valerolactone (GVL), another platform molecule that finds application as a precursor for chemicals, solvent, fuel additives and fuel [48] (Figure 6).

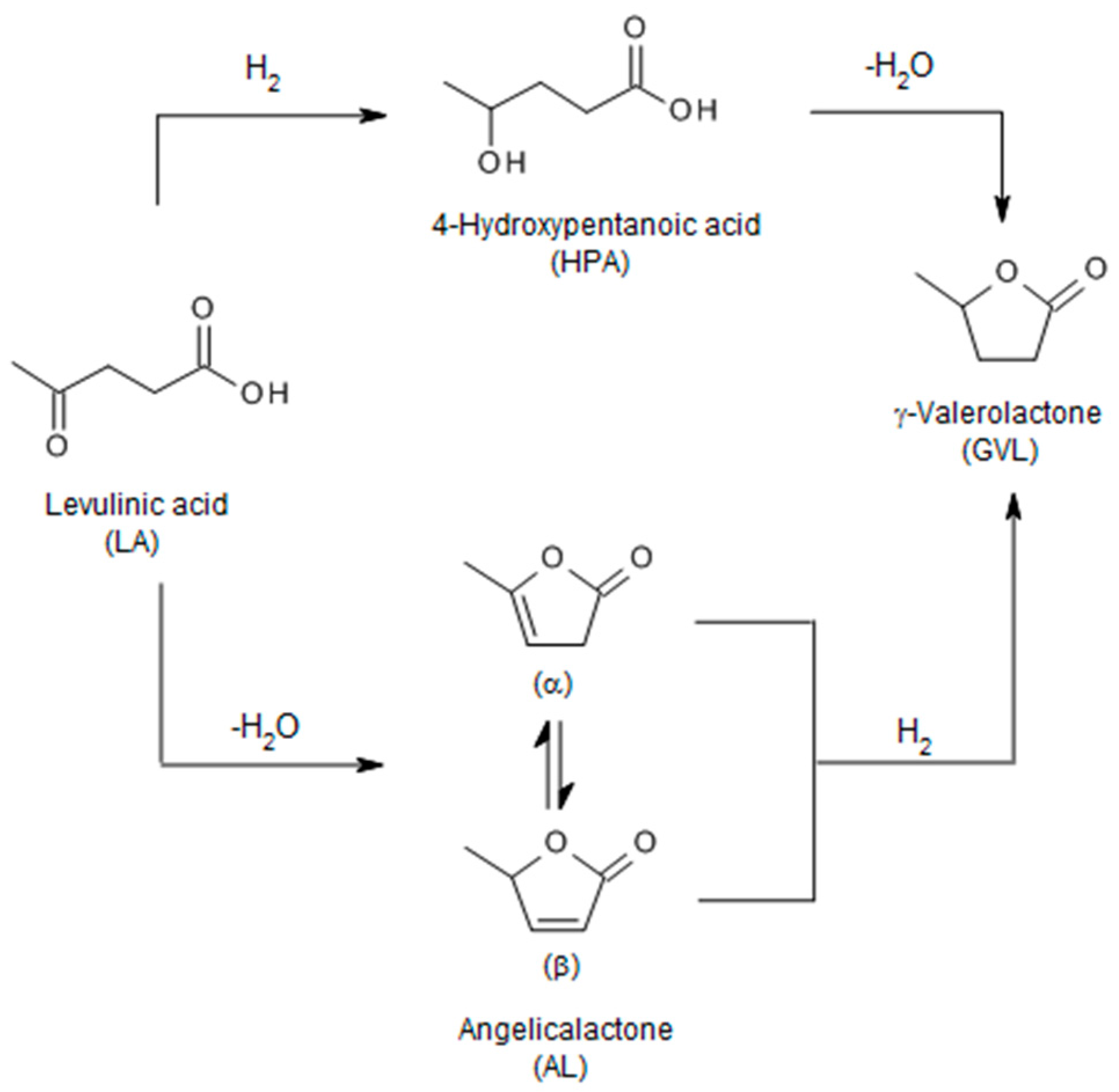

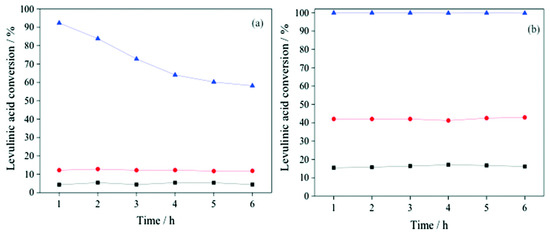

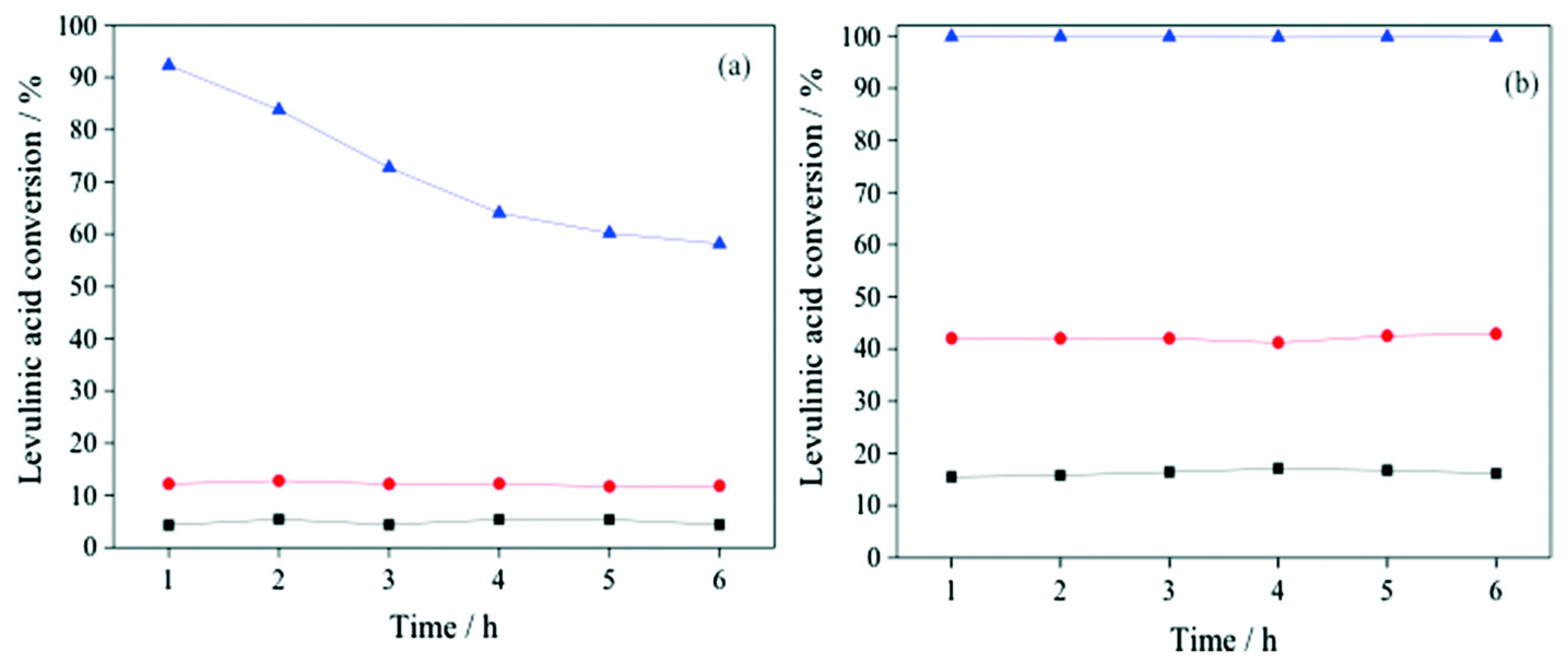

Hydrogenation of levulinic acid to γ-valerolactone over supported molybdenum carbide was reported by Mai et al. [30]. For comparison, molybdenum carbide was supported on both active carbon and carbon nanotubes. The choice of alternative, cheap, non-noble catalysts was directed by the availability and price limitations of noble metal-based catalysts, which are the catalytic systems most often used for GVL production. Molybdenum carbide was chosen not only for its comparable catalytic behavior to precious metals [23,49], but also for its mechanical strength, as well as its electrical and thermal conductivity. To highlight the influence of the support during the reaction, the reaction was carried out at different temperatures (100, 150 and 200 °C). The higher the temperature, the better the LA conversion with both catalysts (approximately 95% and over 99% for 20% Mo₂C/CNT and 20% Mo₂C/AC, respectively). With Mo₂C/CNT, better conversion was obtained (at 200 °C, over 99% LA conversion against 15% at 100 °C) and the LA conversion was stable over 6 h in the three cases (Figure 7).

To better highlight the potential of Mo₂C as an alternative to the noble metal-based catalysts, the authors performed the same reaction on a prepared 5 wt % Ru catalyst supported on AC (figure not shown). At 150 °C, 83% LA conversion was obtained versus a full conversion at 200 °C. The Ru/AC catalyst is therefore more active than Mo₂C/CNT at 150 °C (83% versus 42% respectively) and similar results were obtained at 200 °C. CO chemisorption studies at 100 °C and 150 °C were carried out in order to better compare both catalysts. The number of metal active sites deriving from the CO chemisorption allows the calculation of the turnover frequency (TOF). At 150 °C, the TOF obtained for the LA hydrogenation to GVL were 10.3 h⁻¹, 4.5 h⁻¹ and 2.3 h⁻¹ for 20% Mo₂C/CNT, 20% Mo₂C/AC and 5% Ru/AC, respectively. 20% Mo₂C/CNT exhibits a higher TOF than 5% Ru/AC.

Unsupported Mo₂C was either prepared by the physical mixture of molybdenum oxide, MoO₃, and CNTs or by using nanostructured α-MoO₃ as a precursor. The catalysts obtained after carburization were labeled Mo₂C_PM and Mo₂C_N, respectively. They were further tested, together with commercial MoO₃, during aqueous phase LA hydrogenation. All catalysts were active. After 6 h reaction, 20%, 45% and 60% LA conversion was obtained for Mo₂C_PM, Mo₂C_C and Mo₂C_N, respectively [35]. For a better understanding of the catalytic performance, CO chemisorption was carried out. The nature of the active sites is similar in both synthesized catalysts, but the preparation method influenced the total number of sites. Despite a higher surface area, Mo₂C_PM presented a lower CO uptake and catalytic activity compared to the nanostructured Mo₂C_N. On Mo₂C_PM, agglomeration of well-orientated β-Mo₂C nanoparticles implies a higher surface area, as well as a coating of particles by a thin layer of carbon [50,51]. The results of this research underlined the importance of the control over the particle morphology and size, compared to the surface area in unsupported molybdenum carbide for LA hydrogenation.

From both examples, molybdenum carbide, unsupported or supported, can be a valid candidate for replacing noble metal-based catalysts in the hydrogenation of LA.

Sustainable production of chemicals. Ethylene glycol (EG), is the monomer for the large-scale manufacture of poly(ethylene teraphtalate) (PET) fibers and bottles [52]. Ji et al. reported on the catalytic conversion of cellulose to EG over supported carbide catalysts [53]. The reaction was carried out over 2.5% Pt/AC, W₂C/AC-800 (30 wt % tungsten nominal value) and Mo₂C/AC-700 (30 wt % molybdenum nominal value). W₂C/AC-800 and Mo₂C/AC-700 are active carbon tungsten carbide catalyst carburized at 800 °C and molybdenum carbide supported on active carbon carburized at 700 °C, respectively. The difference in the carburization temperature depends upon the temperature at which the corresponding pure phase is reached. The catalytic transformation of cellulose was performed at 245 °C, at an initial H₂ pressure of 6 MPa for 0.5 h. The catalysts were active, 98% and 85% cellulose conversion was obtained for W₂C/AC-800 and Mo₂C/AC-700, respectively. The cellulose conversion was calculated via the cellulose weight difference before and after reaction. Pt/AC was less active (66%) than the carbide catalysts. 27.4%, 8.2% and 5.3% EG yield was obtained for W₂C/AC-800, Pt/AC and Mo₂C/AC-700, respectively. A low EG yield was obtained over Mo₂C/AC-700, which formed more unsaturated acids, due to an incomplete hydrolysis of cellulose. The high selectivity to EG, instead of sorbitol, demonstrates that the reaction involves not only the hydrolysis of cellulose to glucose and the hydrogenation of glucose to sorbose, but also the cleavage of the C-C bonds. To highlight the effect of the metal active phase and the support itself, the authors moved to alumina as the support. Tungsten carbide or molybdenum carbide supported catalysts were poorly selective to polyols. Mesoporous carbon (MC) was also used as a support to disperse tungsten carbide (WC_x) by Zhang et al. and 73% EG yield was reached [54]. MC might facilitate the hydrogenation activity of the unsaturated intermediates formed during the conversion of cellulose to EG. Dispersion and accessibility of active components of WC_x could be favored by the 3D interconnected mesoporous structure.

Hot water and the tungsten oxide surface might provide the acid sites necessary for cellulose hydrolysis [55], while the platinum-like electronic properties of tungsten carbide deliver the hydrogenation sites [18]. Moreover, hot water helps in the dissolution of cellulose. Once improved dissolution and hydrolysis of cellulose are carried out, the subsequent hydrogenolysis reaction to produce EG becomes easier.

3.2.2. Hemicellulose

The effective use of biomass is also directly associated with the transformation of sugars (xylose) within hemicellulose, into more valuable products (furfural, furfuryl alcohol, methylfuran, etc.). Mo₂C, which was demonstrated as active in the cellulose transformation, is also reported to be a highly selective catalyst in the HDO of furfural. Furfural, a C₅H₄O₂ molecule, is an important intermediate for the formation of important fine chemicals, such as 2-methylfuran, furfuryl alcohol and tetrahydrofurfuryl alcohol or the corresponding ethers, such as isopropryl furfuryl ether (1) and isopropryl tetrahydrofurfuryl ether (2), when isopropanol is used as the solvent (Figure 8). A 60% selectivity of 2-methylfuran results from the furfural HDO at 150 °C in a flow reactor [56]. 2-methylfuran, which has a high research octane number (RON ~131) and a high energy density, together with low water solubility, is considered a promising biofuel [57,58].

Through a combined approach of density function theory (DFT) and ultra-high vacuum (UHV) studies on model surfaces, Xiong and coauthors investigated on the HDO of furfural on Mo₂C [56]. The DFT calculations showed a strong interaction between the C=O (aldehyde) bond of furfural and the Mo₂C(001) surface. For comparison, they also studied the interaction between Pt(111) and Mo₂C. The Mo₂C surface, compared to Pt(111), exhibited stronger affinity to the C=O (aldehyde) bond. This strong interaction was confirmed by high-resolution electron energy loss spectroscopy (HREELS) experiments on model Mo₂C surfaces prepared on a Mo(110) single crystal. Surface experiments in UHV of furfural and furfuryl alcohol suggest that Mo₂C could selectively cleave the C=O (aldehyde) bond of furfural to produce 2-methylfuran as the main product. The HREELS of furfuryl alcohol and 2-methylfuran on Mo₂C are compared (Figure 9) in order to identify possible reaction intermediates during the HDO of furfural. At 27 °C, a methylfuran-like intermediate was observed for both furfural and furfuryl alcohol reaction on Mo₂C at 27 °C and −23 °C, respectively.

McManus and Vohs used a model catalyst that consisted of a Mo₂C thin film on a Mo(100) single crystal for the deoxygenation of glycolaldehyde and furfural [59]. Deoxygenation products were detected by temperature-programmed desorption (TPD). Indeed, ethanol and ethylene were detected in the case of glycolaldehyde, and methylfuran in the case of furfural. For a better insight into the bonding configuration, the authors performed HREELS in order to identify any stable reaction intermediates. The authors concluded that both molecules interact with the Mo₂C/Mo(100) surface through both carbon and oxygen atoms, i.e., the aldehyde functional group. Moreover, Mo₂C/Mo(100) is active in the production of 2-methylfuran, but inactive in the hydrogenation of the furan ring, since tetrahydromethylfuran and tetrahydrofurfuryl alcohol were not produced.

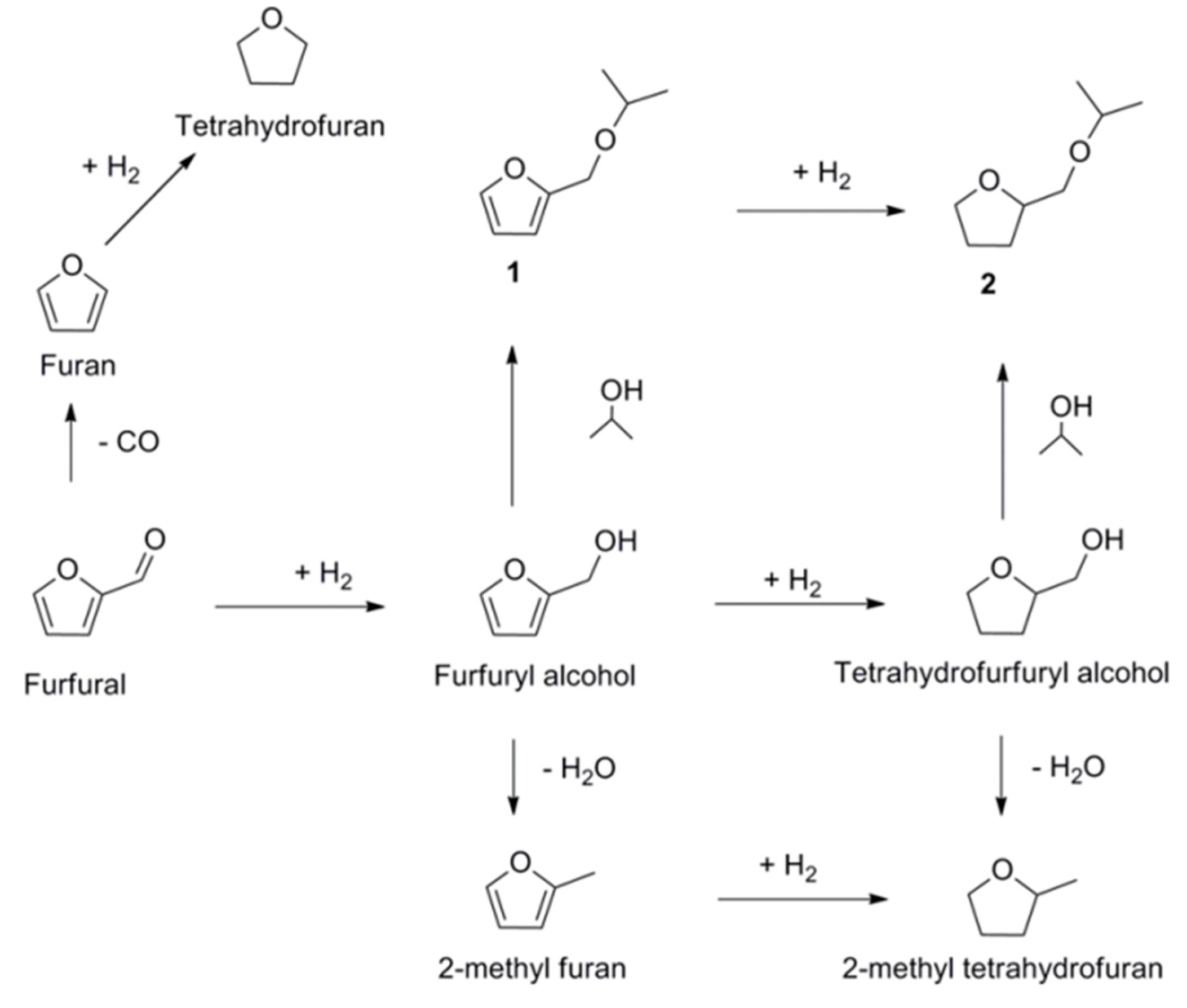

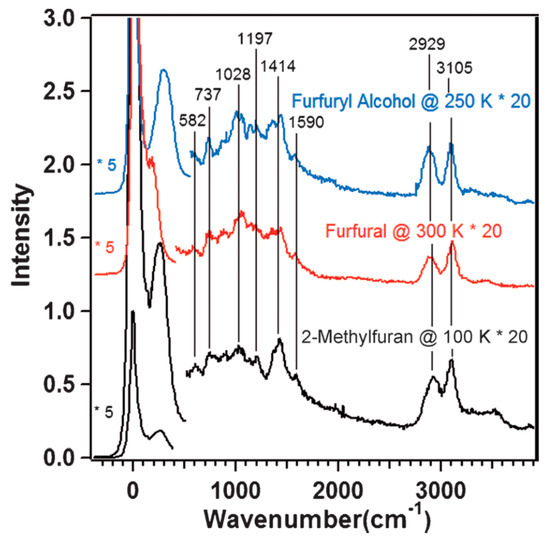

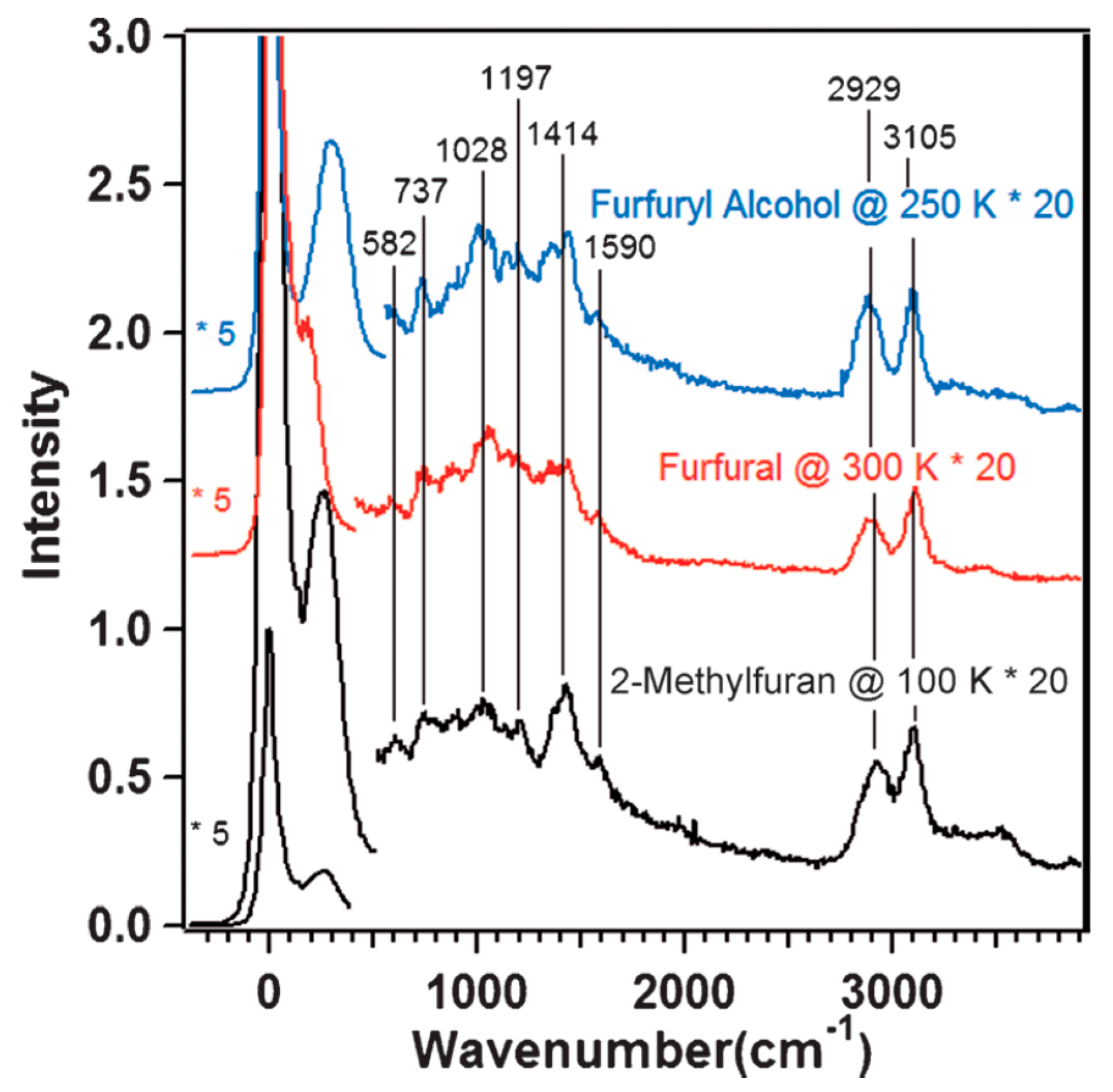

The ability of the Mo₂C surface to selectively deoxygenate was also investigated by Xiong et al. with furfural and furfuryl alcohol [60]. They were able to form 2-methylfuran through a 2-methylfuran-like intermediate from both substrates. Investigations on both substrates contribute to a better understanding of the impact of the furan ring on the reaction pathways. Indeed, together with the production of 2-methylfuran, a reforming reaction, as well as the complete decomposition of the furfural, could occur. In the case of furfural, 2-methylfuran (selectivity 38%) was detected by TPD between 7 °C and 127 °C. This suggests that Mo₂C could selectively cleave the C=O (aldehyde) of furfural, while not affecting the furan ring. The simultaneous detection of H₂ and CO at 44 °C, together with carbon accumulation, revealed an additional reforming reaction (17% selectivity) pathway. The complete decomposition (45% selectivity) pathway was suggested by the detection of extra surface oxygen by Auger Electron Spectroscopy.

In the case of furfuryl alcohol conversion over Mo₂C, 2-methylfuran was mainly detected between −33 °C and 127 °C, hinting at a selective deoxygenation of furfuryl alcohol on the C-O (alcohol). However, together with the deoxygenation, neither hydrogenation of furfural nor dehydrogenation of furfuryl alcohol were observed in TPD and HREELS. For the same range of temperatures, the authors concluded that hydrogenation-dehydrogenation reactions of the two substrates would not interfere with the deoxygenation reaction. This is in agreement with Medlin et al. who reported that the furan ring weakened the C-O bond of the furfuryl alcohol [61].

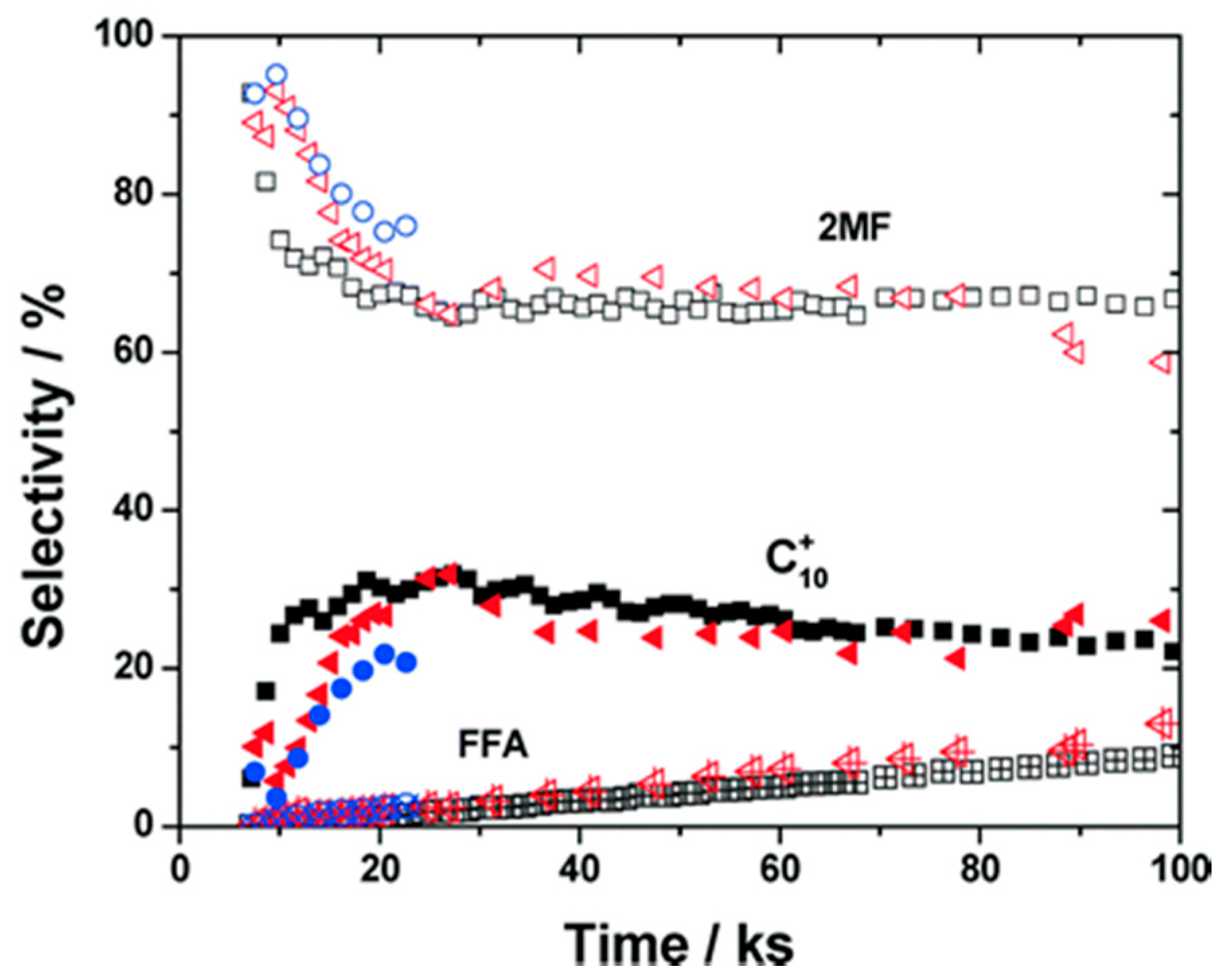

Performing kinetic measurements of vapor-phase furfural HDO over a Mo₂C catalyst, Lee and coauthors [32] converted furfural to 2-methylfuran with 50–60% selectivity, C₁₀⁺ products (such as decane and 2-(furan-2-ylmethyl)-5-methylfuran) and furfuryl alcohol at 150 °C. Selective C=O bond cleavage, instead of C-C bond cleavage, was suggested by the low amount of furan (<1%) produced. Moreover, consecutive hydrogenation of 2-methylfuran did not occur, as established by the absence of 2-methyltetrahydrofuran, indicating an efficient hydrogen usage during the reaction. Gas chromatography mass spectroscopy analysis of the reactor effluents confirmed that not only 2-methylfuran was produced during the HDO of furfural, but also C₁₀⁺ products (~30%). The authors inferred that the C₁₀⁺ products result from the dimerization of furfural and/or furfuryl alcohol through acid-catalyzed reactions [62,63]. Probe reaction studies, as well as NH₃ TPD experiments performed by Bej et al. highlighted the existence of acidic sites on Mo₂C catalysts [64]. The Mo₂C catalyst suffers, however, from deactivation, mainly due to a loss of active sites (CO chemisorption analysis), which is a consequence of carbonaceous species deposition on the surface of the catalyst. This is confirmed by High resolution transmission electron microscopy (HRTEM) images. Furfural conversion, as well as product selectivity, were reestablished under H₂ flow at 477 °C for one hour after two regeneration cycles (Figure 10).

Based on DFT calculations with a correction for the long-range dispersion interaction (PBE-D3), Shi et al. also studied the furfural conversion to 2-methylfuran and furan on the clean and 4H pre-covered Mo₂C(101) surfaces [65]. The Mo₂C(101) surface has two distinct surface sites, the unsaturated C_A atoms for H adsorption and unsaturated Mo_A atoms for furfural adsorption. C_A represents the 4-coordinated (two surface Mo atoms and two bulky phase Mo atoms) C atom; while Mo_A stands for 10-coordinated (three surface Mo atoms, three surface C atoms and four bulky phase Mo atoms) surface Mo. The adsorption energy value of furfural at the Mo_A compared to those of H at the Mo_A and C_A sites indicates that the surface will be principally covered by furfural. From their study, furfural is converted according to two parallel and competitive reaction paths. The first one leads to the formation of 2-methylfuran through first the furfural hydrogenation into furfuryl oxide, followed by the dissociation of the later into furfuryl and finally the formation of 2-methylfuran. The second reaction path, on the clean surface, results in the formation of furan after the C-H dissociation of furfural. In this case, the furfural dissociation is favored in comparison to the furfural hydrogenation to furfuryl oxide. According to their calculations, the authors recommend to first pretreat the catalyst with H₂ before carrying out the furfural hydrogenation.

3.2.3. Lignin

Lignin is an important component of lignocellulosic biomass after harvest [66] and its composition varies according to the biomass source. Kraft lignin is waste produced during the utilization of lignocellulosic biomass in paper production [67]. Lignin is a complex and irregular macromolecule, constituting of mainly hydroxyphenyl propane and aliphatic chains [5,68]. Lignin has a lower oxygen content than that of polysaccharides and is thus a promising candidate to produce renewable petroleum-derived products.

Vapor phase hydrodeoxygenation of a lignin-derived phenolic compound mixture to aromatics over a Mo₂C catalyst was investigated by Chen et al. [69]. The authors carried out the vapor phase HDO of a mixture of phenolic compounds such as m-cresol, anisole, 1,2-dimetoxybenzene (DMB) and guaiacol (GUA) over a Mo₂C catalyst at 260–280 °C and at ambient pressure. The x-ray diffraction pattern identified β-Mo₂C as the major carbide phase. At 280 °C, 95% conversion was observed with a 95% yield of benzene and toluene, the deoxygenate aromatics. The successive hydrogenation reaction of the HDO products to cyclohexane and methylcyclohexane were limited to less than 10% selectivity (molar basis) at 280 °C with a high hydrogen to oxygenate molar ratio (~3300). The authors further investigated the in situ titration of a mixture of toluene and benzene over Mo₂C in the presence of methanol or water at 80 °C. The hydrogenation of the aromatic rings was inhibited. The results suggest that the introduction of the oxygen-containing compounds that constitute lignin to Mo₂C under HDO reaction modifies the surface catalyst and therefore impedes the hydrogenation property of the molybdenum carbide catalyst.

Ma et al. reported on the transformation of Kraft lignin into valuable chemicals over a molybdenum carbide catalyst in supercritical ethanol [67]. The products of reaction were a mixture of aliphatic alcohols, esters, monophenols, benzyl alcohols and arenes, with ester the predominant product (yield of 947 mg/g of lignin).

Kraft lignin was also converted by Ma and coauthors into C₆-C₁₀ chemicals at high-yield without any tar or char formation over a nanostructured α-molybdenum carbide catalyst [33]. Ethanolysis of the Kraft lignin in supercritical ethanol without the addition of gaseous hydrogen took place over an activated carbon-supported α-molybdenum carbide (α-MoC_1−x/AC) catalyst. At the end of the reaction, aliphatic compounds in C₆ alcohols and C₈–C₁₀ esters, as well as aromatic compounds in the form of C₈–C₁₀ arenes, phenols and benzyl alcohols were produced. 25 products were identified and quantified and their overall total yield was 1.64 g per gram of lignin; almost 15 times more than the yield obtained with noble metal-based catalysts [70]. Due to the fact that the obtained yield is over 100%, it can be assumed that ethanol participates in the reaction. Indeed, the solvent here and the catalyst are both protagonists and play a role in the molecular yields and product composition.

Hydrodeoxygenation of guaiacol, a widely used product model resulting from lignin depolymerization, was performed on molybdenum carbide supported on carbon catalysts. Understanding the influence of the carbon support on the Mo phase justified the choice of activated carbon, multi-walled carbon nanotubes and carbon nanofibers. The supports were impregnated either with ammonium molybdate labeled Am or molybdic acid labeled Ac, and had varying loading (7.5 wt % or 20 wt %). On activated carbon, an amorphous Mo phase was obtained while on CNT, large Mo₂C or MoC particles (~2 µm) were revealed in TEM images. The Carbon Nanofibers (CNF)-supported catalysts contained molybdenum carbide in nanoparticle form. The authors based their study on the yield of phenol obtained after the HDO of guaiacol in dodecane as the solvent at 300 °C. The catalysts, 20% Ac/CNF, 7.5% Am/CNF, 20% Am/CNF and 20% Am/CNT, which showed relevant yield (~35%) to phenol, all contained crystalline Mo₂C. By increasing the reaction temperature to 350 °C, almost 98% guaiacol conversion and about 50% selectivity to phenol were reported, suggesting that the crystalline Mo₂C is selective to phenol. The durability of 20% Am/CNF was tested at 300 °C: over three runs, the conversion to guaiacol and the yield to phenol decreased, mainly due to coke formation. However, the authors emphasized that both the guaiacol and the amount of coke decrease continuously. This result hints that not only coke formation is responsible for the observed deactivation, but also probably the encapsulation of carbide particles into the carbon support, as suggested by Jongerius et al. [37].

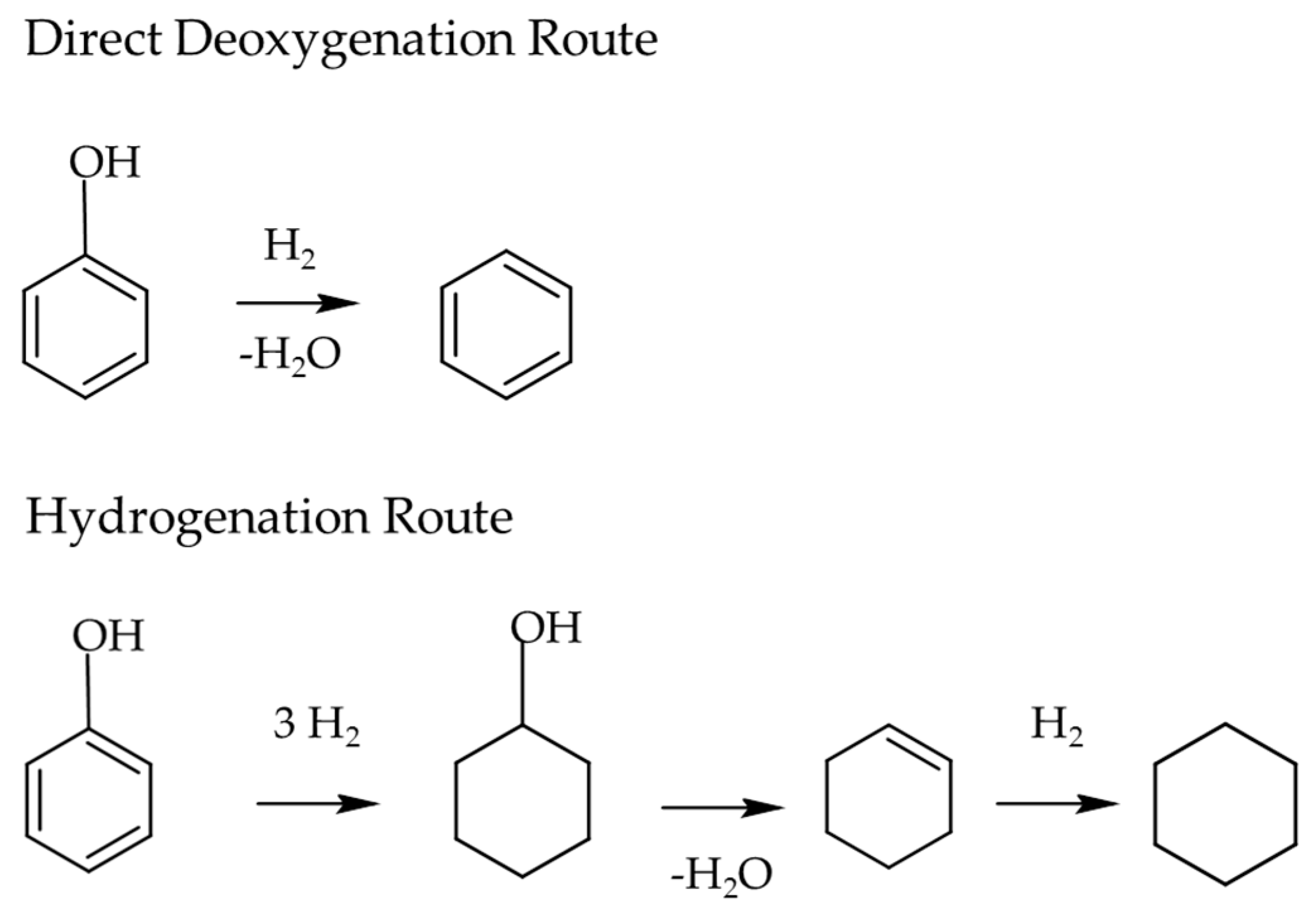

Altering the carbon support to hollow carbon spheres (HCS), Engelhardt and coauthors studied the HDO of phenol over Mo₂C and more specifically the direct deoxygenation (DDO) and the hydrogenation (HYD), the two mechanisms of HDO (Figure 11) [71].

In the phenol DDO on MoC_x/HCS, the authors reported a preferred pathway in the DDO both from experimental and computational investigations. A high selectivity to benzene (85%) was obtained at 350 °C. They explained this predilection to direct deoxygenation by the affinity of phenol to adsorb on the hydrogenated Mo₂C surface. The negative effect of water during the phenol HDO was also examined. Both molecules, phenol and water, are in competition for the Mo adsorption sites. When the water partial pressure increases, the Mo active sites are covered by water, thus obstructing the access of phenol to the Mo surface atoms. However, the effect is reversible. Deactivation of the catalyst is therefore due to, first, the competition between water and phenol and, second, to the irreversible formation of MoO₂.

Due to its similar catalytic properties compared to Pt-group metals in diverse reactions, including hydrogenation, tungsten carbide was utilized as a catalyst for the transformation of lignin [72,73]. The C-O bond cleavage of a model compound of lignin, 2-(2-Methoxyphenoxy)-1-phenylethanol a common β-O-4 dimeric model, on W₂C/AC was investigated [72]. The authors investigated the effect of the reaction temperature and solvent on the activity and selectivity. 2-(2-Methoxyphenoxy)-1-phenylethanol converts to mainly guaiacol, followed randomly by styrene and ethylbenzene. At 200 °C, low conversion (23.3%) and low selectivity to the products of reaction were reported, with an almost similar selectivity to styrene (16%) and guaiacol (17.4%). At 260 °C the initial substrate was practically fully converted after 2 h with ethylbenzene and guaiacol yields of 88.4% and 93.0%, respectively. W₂C/AC is thus a promising catalyst for the cleavage of β-O-4, without altering the aromatic rings of the lignin compounds. The study was extended to other molecules and W₂C/AC was active in destroying more resistant linkages in lignin, namely α-O-4 and β-β. It is worth mentioning, that at higher reaction temperature, the selectivity to ethylbenzene (88.4%) is higher than the selectivity of styrene (8.5%). At lower temperature, the selectivity to ethylbenzene was 2.3% and the selectivity of styrene was 16.0%. At higher reaction temperature, hydrogenation of the alkene group into styrene is favored. Reaction in methanol is preferable, as the solvent allows the in situ hydrogen-transfer reaction from methanol to the substrate on W₂C/AC. The catalyst was not only active and selective, but also stable along five runs with a nearly comparable aptitude in the C-O bond cleavage.

Moving away from the model compound, Guo and coworkers studied the transformation of corn stalk lignin over W₂C/AC in methanol [73]. The lignin was extracted by three different methods, namely organosolv, alkaline and klason. W₂C/AC is a potential active catalyst for the hydrocracking of various lignins into aromatics. The high selectivity of the catalyst to aryl ether bonds was established by the high yield in aromatic liquid oil and the absence of cycloalkane. The three different extraction techniques lead to the formation of lignins with different structures and linkage strength. Organosolv lignin was easily depolymerized by W₂C/C and a high-yield in oil was obtained, while klason and alkaline lignins with resistant structure were difficult to fragment. Dividing organosolv lignin category to hardwood (basswood and poplar) and softwood (pine and spruce), the study described that softwood lignin is more difficult to hydrocrack compared to its hardwood counterpart. The results can be explained by the higher molecular weights and the presence of more resistant β-5 linkages contained in softwood lignin. Moreover, the catalytic conversion of these lignins is also correlated to both the internal mass transportation and the surface chemistry.

3.2.4. Reforming Reactions: Selective C-C Bond Scission

In contrast to the HDO reaction, where C-O cleavage is desired, in the reforming reaction the C-O bond should be maintained, while C-C bond is cleaved. The interest in selective reforming of oxygenates lies in the possibility of producing hydrogen or syngas, which are necessary for several applications. Tar, a byproduct of biomass gasification, which leads to the formation of hydrogen and synthesis gas, is undesired [74]. Tar condenses at reduced temperature, thus blocking and fouling process equipment, such as engines and turbines. Hydrogen finds many applications as an energy carrier, for example in fuel cells for power generation.

Mo₂C supported biomass char (Mo₂C/BC) was utilized as a catalyst for the steam-reforming of heavy tar into hydrogen between 550 and 750 °C [75]. In order to obtain H₂ and CO₂, the authors proposed that the biomass tar is first decomposed to H₂ and CO on the catalyst. The resulting CO reacts further with the excess steam through water gas shift reaction, leading finally to the formation of the desired H₂ and CO₂.

High yields were observed with an optimized Mo loading of 20 wt % at a reaction temperature of 650 °C. At higher temperatures, Mo₂C is oxidized to MoO₂, as reported previously by Darujati et al. [76]. MoO₂, known not to be active in the steam reforming reaction, was identified in the XRD pattern of the spent catalyst at the expense of the Mo₂C phase. Carburization at 900 °C allows the full recovery of the Mo₂C phase.

4. Conclusions and Perspective

Transition metal carbides have been shown to be good candidates to substitute noble metal-based catalysts for biomass transformation. Their metal-acid bifunctionality makes them effective catalysts for the hydrogenolysis, hydrogenation and isomerization of biomass-based feedstock to fuels and chemicals. Metal carbides exhibit similar catalytic performance to those of Pt-group metals, but present a lower cost. For example, W₂C has attracted much interest, because it exhibits high catalytic performance in a variety of reactions, such as hydrogenation and hydrodeoxygenation of cellulose, hemicellulose and lignin derived molecules. Another example is W₂C/AC, which is highly active and selective in the cleavage of aryl C-O bonds in lignin, breaking the β-O-4 bond as well as the α-O-4 and β-β linkages, which are the more resistant ones. Moreover, the C-O bond cleavage aptitude, important in the HDO of lignin, was kept constant for up to 5 cycles.

A drawback of these catalytic systems is deactivation, which has been often observed in the liquid phase reaction, due to coke deposition and leaching, but also due to the over-reduction of the carbide to the metallic form. It has been shown that one strategy to enhance the metal carbides’ stability is to deposit them on the external surface of a support, such as on activated carbon or carbon nanotubes. However, a strong interaction between the metal carbides and the support is never observed, and the deactivation due to leaching of the active phase is still an issue that needs to be solved. A possible solution to overcome the low durability of these systems is the incorporation of finely dispersed carbide nanoparticles into, rather than onto, the porous supports, such as CNTs or mesoporous carbon. This incorporation not only allows a much better control of the particle size during the synthesis, but also provides a further stabilization of these carbides during the reaction. Moreover, several attempts in promoting theses carbides with Ni or Co. are reported, but more efforts should be dedicated to improving the activity over a longer time and the selectivity to the desired products of reaction. Trusting that the properties of transition metal carbides can soon be improved, it can be confidently stated that these environmentally green catalysts represent an efficient step forward in the challenge of the cost-efficient production of aromatic chemicals from biomass.
