Effects of Silk-Worm Excrement Biochar Combined with Different Iron-Based Materials on the Speciation of Cadmium and Lead in Soil

Abstract

A 56d incubation experiment was conducted to explore the effects of the silk-worm excrement biochar (500 °C, BC) combined with different iron-based materials (FeCl₃, FeSO_4, and reduced iron powder) on the speciation of cadmium (Cd) and lead (Pb) in a contaminated soil. Application rate of BC and iron-based materials is 1% (W/W) and 0.2% (W/W) of the soil, respectively. At the same time, the soil physicochemical properties, such as pH, cation exchange capacity (CEC), and the structure of soil, were determined in order to explore the influence mechanism of amendments to forms of Cd and Pb in soil. The results show that the stabilization effects on Cd is (BC + FeSO₄) > (BC + FeCl₃) > (BC + Fe) > (BC) and Pb is (BC + Fe) > (BC + FeSO₄) > (BC + FeCl₃) > (BC) at the end of incubation, compared with the effect of the control group. The treatment of (BC + FeSO₄) is the most effective in terms of the stabilization of Cd and Pb, which makes the percentages of organic-bound and residual Cd and Pb increase by 40.90% and 23.51% respectively. In addition, with different ways of treatment, the pH value and CEC of soil see a remarkable increase by 1.65–2.01 units and 2.01–2.58 cmol·kg⁻¹ respectively. X-ray diffraction (XRD) patterns show that the soil imprisons Cd and Pb in different mineral phases. As such the treatment of (BC + FeSO₄) can significantly improve soil environment, increase soil pH value & CEC and exert a relatively good stabilization effect on both Cd and Pb.

1. Introduction

Cadmium (Cd) and lead (Pb) are two typical potential toxic metals (PTMs) [1] that often compound with each other and cause soil pollution. PTMs firstly accumulate in the soil, and then lead to deterioration of the soil ecosystem and a decline in crop yields and quality [2]. Finally, it enters human body through the food chain and thus endangers humans’ physical health [3,4]. As a noxious carcinogenic pollutant, Cd is classified as a category I human carcinogen [5,6]. Numerous studies on the health effects of Cd showed that its adverse effects on the bones and kidneys [7,8,9,10]. Pb is a potent human neurotoxin which when accumulated in the blood results in neurocognitive damage including intelligence quotient (IQ) deficits, behavioral problems and, at very high levels, death [11]. Therefore, it is particularly important to prevent PTMs from getting into plants so as to ensure food safety.

The toxicity of PTMs not only has a closed relation with their total amount, but also involves their speciation in soil [12]. The biological effectiveness of PTMs greatly depends on its speciation [13]. Once in the soil, PTMs are adsorbed by initial fast reactions (minutes, hours), followed by slow adsorption reactions (days, years) and are, therefore, redistributed into different chemical forms with varying bioavailability, mobility, and toxicity [14,15]. This distribution is believed to be controlled by reactions of PTMs in soils such as (i) mineral precipitation and dissolution, (ii) ion exchange, adsorption, and desorption, (iii) aqueous complexation, (iv) biological immobilization and mobilization, and (v) plant uptake [16]. According to Li et al. [17] and Sun et al. [18], soil in situ stabilization technology is used to reduce the activity of PTMs by adding some kinds of material to the soil contaminated by PTMs, which can transform these metals into a form that is difficult to exploit through a series of chemical reactions. By doing so, the biological effectiveness of PTMs can be reduced.

Cui et al. [19] reported that 10–40 t/hm² biochar dosage can significantly reduce the percentage of Cd inside wheat seed by 24.8%–44.2%, improve soil fertility [20], and reduce the proportion of CaCl₂ leaching Cd in soil by 10.1%–40.2%. Using the Miscanthus straw to make biochar to remediate Cd, Pb, and Zn in soil, the percentage of the bioavailability of Cd and Pb decrease by 71% and 92% respectively [21]. Moreover, biochar can also induce root growth of plants [22,23,24,25]. The stabilizers of ferric salt such as FeSO₄, Fe₂(SO₄)₃, and FeCl₃ are commonly used in soil stabilization [26,27]. The iron compound has been widely recognized as an antidote that can effectively reduce the mobility of As [28]. However, studies on the stabilization effect of Cd and Pb in soil by iron-based materials are relatively few and the results are divided. Studies have found that ferrihydrite can enhance the adsorption capacity of Cd in soil with the help of Fe(III)-reducing bacteria, and it is also possible to produce a mixed mineral phase of CdCO₃-FeCO₃-CaCO₃ [29,30]. Cui et al. [29,31] use phosphate, FeSO₄ and Fe₂(SO₄)₃ to stabilize Pb and As in soil, as they find that Pb and As cannot be stabilized by solely used one of the stabilizers. The percentage of the exchangeable content of Pb and As can only be reduced by using two stabilizers together. However, other studies have found that ferric salt can increase the dissolution of Cd and Pb in soil. Shao et al. [32] found that ferrous sulphate fertilization significantly increased Cd concentrations in rice grains. Warren and Alloway have shown that mixing ferrous sulfate with lime can increase the uptake of Cu, Zn and Pb by plant [33].

At present, many organic materials such as animal excrement, plant straw, etc. have already been used in the remediation of PTMs contaminated soil, however, studies on the remediation of PTMs contaminated soil by silk-worm excrement have rarely been reported [34]. Moreover, studies on the remediation of Cd and Pb contaminated soil by the combination of iron-based materials and biochar which is made from silk-worm excrement have been not reported at home and abroad. This research uses the silk-worm excrement biochar, ferric chloride (FeCl₃), ferrous sulfate (FeSO₄·7H₂O), and reduced iron powder (Fe) as materials to explore whether adding iron-based materials can increase the stabilization of Cd and Pb in soil under the condition of applying the silk-worm excrement biochar. Meanwhile, this is trying to explore the effects of combination of these materials on the speciation of Cd and Pb in composite contaminated soil and to analyze the effects of different treatments on soil physicochemical properties in soil. Through analysis, hopefully a material combination which has a good effects on stabilization of Cd and Pb can be found, and therefore can provide a new suggestion for Cd and Pb contaminated soil remediation and also open up a new way for agricultural waste disposal in Guangxi.

2. Materials and Methods

2.1. Materials

The soil sample was collected from a polluted farmland near a lead-zinc mine in Chongzuo city, Guangxi, China. Basically, soil was collected from the surface layer (0–20 cm) of a cropland area. Sampling took place in 25 points over a 0.5-ha area, totaling an amount of 50 kg of soil. After removing leaves, stones, and other miscellanies, the soil sample was air-dried, crushed, and sieved to 1 mm to conduct general analyses. Part of the soil was sieved to 0.15 mm to conduct the total content measurement of Cd and Pb in soil. The soil sample GBW07456 (GSS-27) was used as the quality control (QC) sample of the total content measurement of Cd and Pb, and purchased from Shide Jia Technology Co., Ltd., in Shenzhen, China. The soil sample GBW07459 (ASA-8) was used as the quality control (QC) sample of the pH and cation exchange capacity (CEC) measurement, and purchased from Aike Yingchuang Biological Technology Co., Ltd., in Beijing, China. The physicochemical properties of the experiment soil are shown in

Table 1. The basic properties of the tested soil.

Item	pH	Cation Exchange Capacity (cmol·kg−1)	Total Lead (mg·kg−1)	Total Cadmium (mg·kg−1)
Paddy soil	6.76	10.86	1320.29	52.24
Control sample	8.60	13.42	0.61	41.57

.

Preparation of Silk-worm excrement biochar (BC): silk-worm excrement was collected from Guangxi Silk-Worm Technology Promotion Centre. The silk-worm excrement was placed in a ceramic crucible for weighing. The crucible was then heated in a muffle furnace (Nabertherm LT40, heating rate: 20 °C/min; ventilatory rate: 2 mL N₂/min) at 500 °C for 3 h, and then removed after cooling to room temperature. The crucible was then weighed to calculate the silk-worm excrement biochar yield at 500 °C pyrolysis.

$$\mathrm{Biochar}\mathrm{yield}(\%)=({\mathrm{m}}_1/{\mathrm{m}}_0)\times 100\%,$$

(1)

where m₀ (g) was the weight of silk-worm excrement before entering the muffle furnace, and m₁ (g) was the biochar weight of silk-worm excrement after charring.

The ash content was calculated by placing a fixed amount of biochar in a ceramic crucible, charring at 800 °C in a muffle furnace, and recording the weight once a constant value was obtained.

$$\mathrm{Ash}\mathrm{content}(\%)=({\mathrm{M}}_1/{\mathrm{M}}_0)\times 100\%,$$

(2)

where M₀ (g) was the biochar weight of silk-worm excrement before entering the muffle furnace, and M₁ (g) was the biochar weight of silk-worm excrement after charring.

Equation (1) was used to calculate yield rate which is 40.14%. Equation (2) was used to calculate ash content which is 32.57%. Then BC was sieved to 0.25 mm to conduct general analyses. The basic properties of BC are shown in

Table 2. The basic properties of BC.

Material	pH	Cation Exchange Capacity (cmol·kg−1)	Alkaline Functional Groups (mmol·g−1)	Acid Functional Groups (mmol·g−1)
BC	10.20	71.58	4.02	0.59

.

2.2. Experimental Method

50 g soil samples through 1 mm sieves were put in fifteen 200 mL plastic jars respectively. Different materials were added into the soil samples as follows: ① control (CK); ② 1% (mass ratio) silk-worm excrement biochar (BC); ③ 1% silk-worm excrement biochar + 0.2% FeCl₃ (BC + FeCl₃); ④ 1% silk-worm excrement biochar + 0.2% FeSO₄·7H₂O (BC + FeSO₄); ⑤ 1% silk-worm excrement biochar + 0.2% reduced iron powder (BC + Fe). Each treatment was replicated three times. The stabilizers and soil were fully mixed in accordance to the test setting. Then added distilled water to maintain a maximum moisture holding capacity of the soil at 40%. The plastic jars were covered with kraft paper and put in a (25 ± 1) °C biochemical incubator (LRH-70, Suzhou, China) to allow incubation for 56d. The moisture contents of soil were kept using weighing method throughout the experiment every two days [35,36].

2.3. Items for Determination

pH of BC was measured with a pH meter (Mettler Toledo FE20 Plus) using “GB-T 12496.7-1999 pH measurements for wood-based activated carbon” [37] as a reference. Two grams of biochar were placed into a beaker, before adding 50 mL of ultrapure water and putting a glass evaporating dish over the beaker, and heating to boiling temperature for 5 min. Following that, the original 5 mL of filtrate was filtrated and discarded, and the remaining filtrate was cooled to room temperature for determining the pH value. The experiment was repeated three times.

The ash content of BC was determined using “GB-T12496.3-1999 ash content measurements for wood-based activated carbon” [38] as a reference. CEC of soil and BC were determined by a method described by Gillman and Sumpter [39]. Soil pH was determined using the “ISO soil quality-determination of pH” [40]. The determination of the content of surface functional groups was referred to Bohem method [41]. Tessier [42] five-step sequential extraction method was used to extract PTMs in soil at the end of incubation, extracting exchangeable fraction (F₁), carbonate bound fraction (F₂), Fe-Mn oxide fraction (F₃), bound organic fraction (F₄), and residual fraction (F₅) one by one. Cd and Pb in leaching solution and digestion liquid were filtered by 0.45-μm membranes and measured by atomic absorption spectrophotometer (Agilent 55B AA, AUS). The soil samples before and after passivation were analyzed by using high power (4 KW) polycrystal X-ray diffractometer (DX-2700A, Liaoning, China).

2.4. Data Processing

IBM SPSS 21.0 statistical package program was applied to analyze data, and Origin Pro 8.0 were used to draw a data diagram.

3. Results and Discussion

3.1. The Effect of Different Treatments on Cd and Pb in Soil

3.1.1. The Effect of Different Treatments on Cd in Soil

At the end of incubation, the influence of different treatments on the speciation of Cd in soil is shown in Figure 1. After the four treatments (BC, BC + FeCl₃, BC + FeSO₄ and BC + Fe), the percentages of the Cd (F₁) of each treatment decreased by 17.77%, 33.81%, 39.53%, and 24.40% respectively, the percentages of Cd (F₂) of each treatment decreased by 1.29%, 11.56%, 12.52%, and 14.43% respectively, the percentage of Cd (F₃) of each treatment increased by 0.45%, 3.80%, 18.85%, and 8.56% respectively, the percentages of Cd (F₄) of each treatment increased by 35.68%, 58.75%, 47.69%, and 29.13%, and the percentages of Cd (F₅) of each treatment increased by 13.10%, 32.89%, 39.38%, and 27.02% respectively, compared with the percentages of these chemicals in the CK (F₁: 31.11%, F₂: 21.28%, F₃: 9.47%, F₄: 7.23%, and F₅: 30.92%).

The exchangeable fraction and carbonate bound fraction are greatly affected by the environment, because they are easy to be transferred and converted by plants [43]. Fe-Mn oxide fraction can be greatly influenced by soil pH value and redox conditions. While the bound organic and residual fraction are stable forms that cannot be easily absorbed by plants. As shown in Figure 1, different treatments can effectively reduce the percentages of Cd (F₁ and F₂) and increase those of the Cd (F₄ and F₅) at the end of incubation, so as to achieve the purpose of reducing Cd bioavailability. The effect of different treatments on speciation of Cd is not consistent. Among them, the treatment of (BC + FeSO₄) has the best effect, causing an increase of 40.90% in the percentages of the Cd (F₄ and F₅), and of 28.44% in the percentages of Cd (F₁ and F₂). The stabilization effect is (BC + FeSO₄) > (BC + FeCl₃) > (BC + Fe) > (BC), which indicates that adding iron-based materials can increase the stabilization effect of Cd in soil. Some studies mention that adding iron-based materials can promote the formation of hydroxylated metal ions and promote the formation of hydroxide precipitate of Cd, Pb, Zn, and other PTM ions in soil [44].

3.1.2. The Effect of Different Treatments on Pb in Soil

At the end of incubation, the influence of different treatments on the speciation of Pb in soil is shown in Figure 2. After the four treatments (BC, BC + FeCl₃, BC + FeSO₄ and BC + Fe), the percentages of the Pb (F₁) of each treatment decreased by 41.87%, 30.68%, 38.79%, and 51.84% respectively, the percentages of Pb (F₂) of each treatment increased by 24.13%, 7.48%, 12.17%, and 1.88% respectively, the percentage of Pb (F₃) of each treatment increased by 0.17%, 0.93%, 0.70%, and 8.00% respectively, the percentages of Pb (F₄) of each treatment increased by 13.46%, 31.77%, 31.53%, and 31.09% respectively, and the percentages of Pb (F₅) of each treatment increased by 23.95%, 17.51%, 19.67%, and 29.77% respectively, compared with the percentages of these chemicals in the CK (F₁: 6.13%, F₂: 49.40%, F₃: 20.53%, F₄: 7.76%, and F₅: 16.18%).

As shown in Figure 2, the percentages of Pb (F₁) in different treatments significantly decrease while the percentages of other fractions to some extent increase at the end of incubation, which indicates the Pb in soil is transformed from the exchangeable fraction to more stable fractions. Different treatments have certain passivation effects on Pb in soil, and the treatment of (BC + Fe) has the best effect among all treatments. The percentages of Pb (F₄ and F₅) increase by 30.2% and the Pb (F₁ and F₂) decrease by 8.43% compared with those percentages of these chemicals in the control sample. The stabilization effect is (BC + Fe) > (BC + FeSO₄) > (BC + FeCl₃) > (BC), which indicates that adding iron-based materials can increase the stabilization effect of Pb in soil. Research show that after FeSO₄ is oxidized to Fe₂(SO₄)₃ in soil, FeSO₄ and Fe₂(SO₄)₃ would generate Fe₂O₃ precipitation [45], and iron oxide has a strong metal ion adsorption and enrichment ability [46].

3.2. The Effect of Different Treatments on Soil Property and Soil Crystal Structure

3.2.1. The Effect of Different Treatments on Soil pH Value

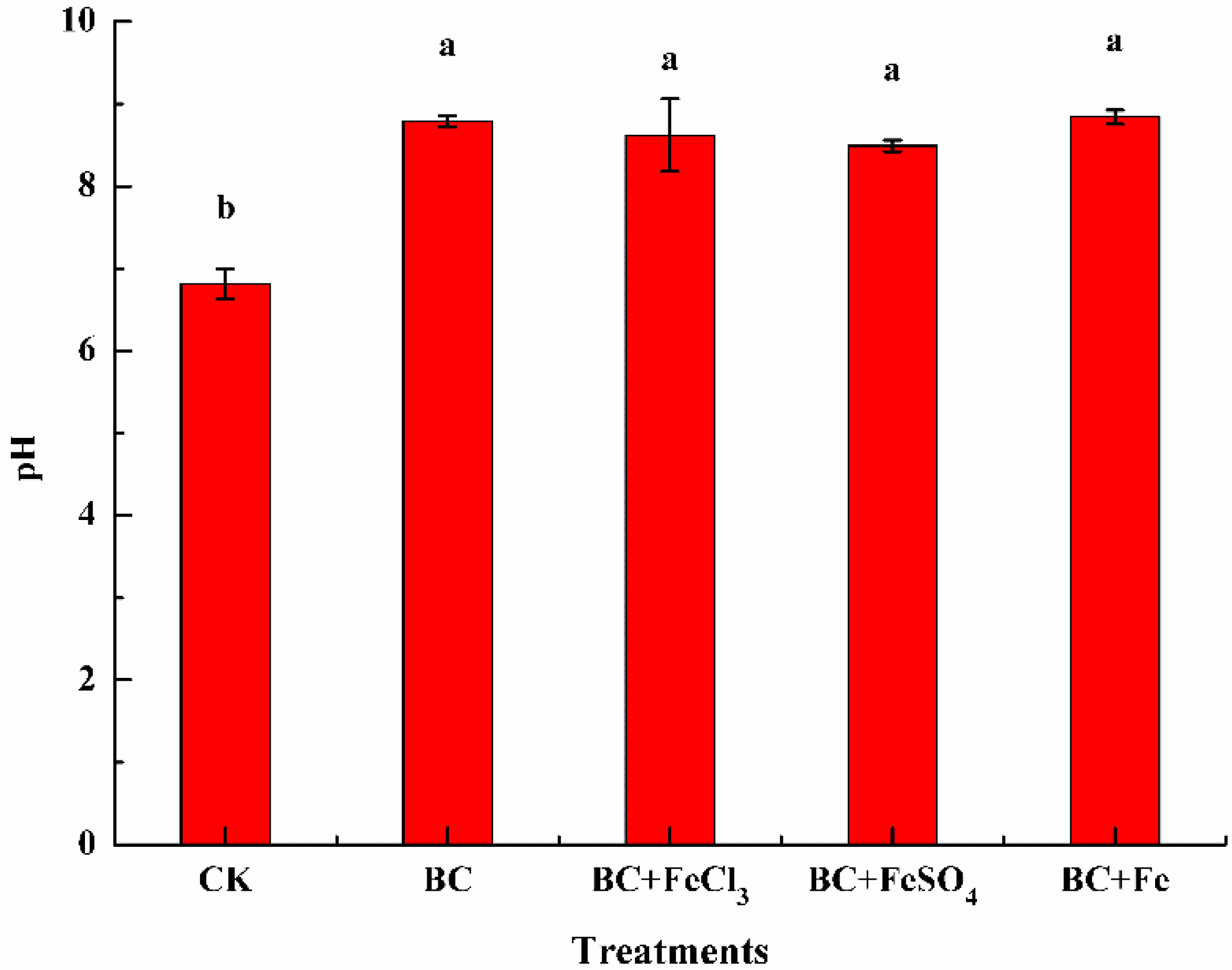

As shown in Figure 3, soil pH values of the treatments with stabilizer were significantly higher than that of CK (pH: 6.81). The pH values of the four treatments (BC, BC + FeCl₃, BC + FeSO₄ and BC + Fe) significantly increased by 1.96, 1.94, 1.65, and 2.01 units when compared with the control sample at the end of incubation. The difference of soil pH by the treatment of (BC) and iron-based materials is not significant, but there are significant differences with the treatment of blank control. This indicates that the soil pH can be significantly increased by adding the silk-worm excrement biochar. The reason why the pH value of soil got increased after adding stabilizers was that silk-worm excrement contains alkaline matter (Na, K, Ca, Mg, and CaCO₃) [47,48], which can increase the pH value of soil [49]. And this result is consistent with previous ones [50,51].

3.2.2. The Effect of Different Treatments on Soil CEC

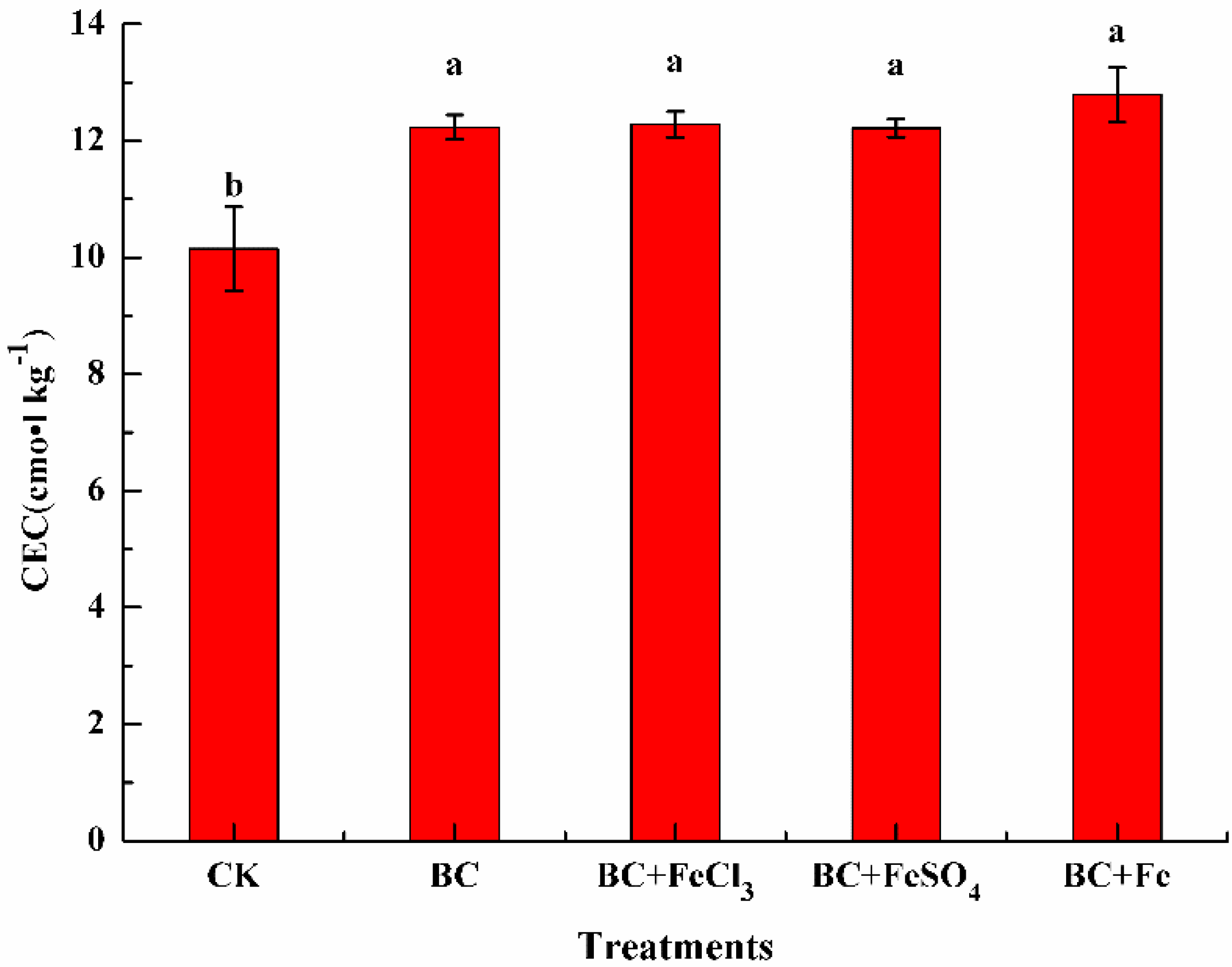

As shown in Figure 4, soil CEC of the treatments with stabilizer were significantly higher than that of CK (CEC: 10.15 cmol·kg⁻¹). The content of soil CEC after the four treatments (BC, BC + FeCl₃, BC + FeSO₄ and BC + Fe) significantly increased by 2.13, 2.16, 2.01, and 2.58 cmol·kg⁻¹ respectively compared with that of the control sample at the end of incubation. CEC refers to the amount of cationic ions in the soil that can be absorbed by the soil colloid [52]. Its amount can reflect the soil system buffering ability, which is also an important basis for evaluating synthetical fertility and soil improvement. The soil CEC got increased after the use of stabilizer, which means that the fertility of the soil also got increased. The difference of soil CEC by the treatment of (BC) and iron-based materials is not significant, but there are significant differences with the treatment of blank control. This indicates that the soil CEC can be significantly increased by adding the silk-worm excrement biochar. Due to the micropore structure of biochar, it can adsorb a lot of mineral elements, so causing the application of biochar to increase the soil CEC [53]. In addition, the increase of soil CEC may be related to relatively high content of ash of silk-worm excrement biochar in this study. Singh et al. [54] reported that because insect feces tend to have high ash content, biochar made from them has higher CEC than charcoal or straw, which leads to a significant increase in soil CEC by the application of silk-worm excrement biochar compared with CK.

3.2.3. The Effect of Different Treatments on the Soil Crystal Structure

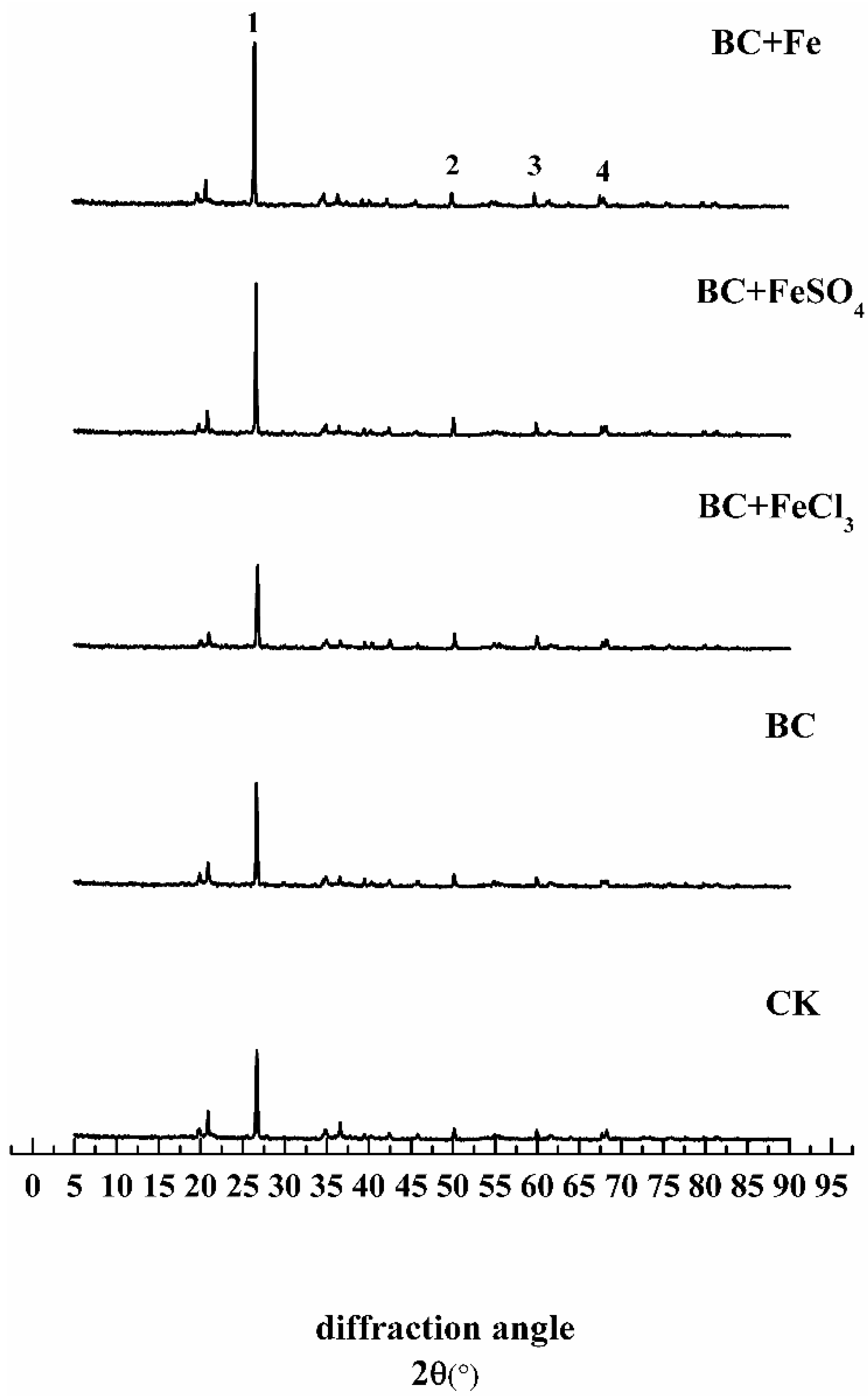

The effect of different treatments on soil crystal structure is shown in Figure 5. It can be seen from the figure that Cd in soil crystal mainly exists in the forms of Cd(OH)NO₃ and Cd(OH)₂. Pb mainly exists in the forms of Pb₅O₄ and Pb₃(CO₃)₂(OH)_2. This indicates that Cd and Pb are fixed in the soil in different mineral phases. However, the mineral phase is relatively less. It is speculated that, this phenomenon may be because only a handful of PTM is stabilized in the form of crystals in soil. The content of Pb₅O₄ mineral phase treated by (BC + Fe) and (BC + FeSO₄) at the number 1 is higher than others. This indicates that the majority of Pb₅O₄ is fixed in the form of soil crystals, and the soil treated by (BC + Fe) and (BC + FeSO₄) has more crystal of Pb₅O₄. The differences of crystal structures after different treatments are not distinct when compared with the crystal structure of the control sample. This shows that there is no significant change in soil crystal structure by adding different stabilizers. The content of Cd(OH)NO₃, Pb₃(CO₃)₂(OH)₂ and Cd(OH)₂ mineral phase treated by (BC + FeCl₃), (BC + FeSO₄) and (BC + Fe) are higher than that treated by BC at the number 2, 3, and 4, which indicates that it is feasible to apply iron-based materials to the stabilization of Cd and Pb. In addition, mineral phase of Cd(OH)NO₃ treated by (BC + FeSO₄) at the number 2 is higher than (BC + Fe), which indicates that the treatment of (BC + FeSO₄) has a better stabilizing effect on Cd in soil than (BC + Fe). In summary, the treatment of (BC + FeSO₄) has a better promotion of conversion of Cd and Pb into mineral phases, which means that Cd and Pb eventually exist in the soil in a form of low bioavailability.

3.3. Correlation between the Speciation of PTMs and Soil Properties

The results of correlation among the speciation of Cd and Pb, the pH value and CEC are shown in

Table 3. Correlation analysis among the speciation of typical potential toxic metals (PTMs), pH value and CEC.

Index	The Speciation of Cd
	F1	F2	F3	F4	F5
pH	−0.816 **	−0.729 **	0.059	0.705 **	0.142
CEC	−0.792 **	−0.839 **	0.126	0.630 *	0.225
Index	The Speciation of Pb
	F1	F2	F3	F4	F5
pH	−0.929 **	−0.323	0.156	0.692 **	0.919 **
CEC	−0.860 **	−0.207	0.325	0.651 **	0.861 **

Note: * and ** indicate respectively that the correlation is statistically significant (p < 0.05 and p < 0.01).

. The pH value and CEC were significantly negatively correlated with the content of exchangeable fraction and carbonate bound fraction Cd (P < 0.01), and positively correlated with the content of bound organic and residual fraction Cd (P < 0.05); the pH value and CEC were significantly negatively correlated with the content of exchangeable fraction and carbonate bound fraction Pb, and significantly positively correlated with the content of bound organic and residual fraction Pb. This indicates that the exchangeable and carbonate bound Cd fraction and Pb were respectively gradually converted to the bound organic and residual fraction Cd and Pb after adding stabilizers. This process is mainly achieved through increasing the pH value and CEC. In the process of remediating soil contaminated by PTMs, soil pH value is a very important factor [55]. Soil pH value directly controls the solubility of metal hydroxide, carbonate, and phosphate, the hydrolysis of PTMs, the formation of ionic radius, the dissolution of organic matter, and the charge property of soil surface [56,57,58]. With the increasing pH value, the functional groups, such as the phenols, hydroxyl groups and carbonyl groups are separated from soil organic matter. In this way, their affinity for metal cation increases, and thus they can reduce the mobility of PTMs ions [13]. The exchange adsorption is also one of important reasons for the reduction of PTMs activities [59]. The bigger the number of cation exchange, the stronger the retention of PTMs [60,61]. As the content of soil CEC increases, the adsorption and exchange ability on cationic in soil is enhanced, and the content of the available PTMs in soil can be reduced by exchangeable reaction [62].

4. Conclusions

(1) Adding iron-based materials can increase the stabilization effect of Cd and Pb in soil under the condition of applying the silk-worm excrement biochar.

(2) The speciation of Cd and Pb in soil could be changed after the application of BC and iron-based materials. In doing so, the speciation of Cd and Pb can be transformed into fraction of low bioavailability. The treatment of (BC+FeSO₄) has a good effect on the stabilization of Cd and Pb in soil relative to other treatments. In addition, XRD patterns showed that Cd and Pb were respectively immobilized on the soil in the form of Cd (OH)NO₃, Cd (OH)₂, Pb₅O₄, and Pb₃(CO₃)₂(OH)₂.

(3) The soil pH value and CEC could be significantly improved after the application of BC and iron-based materials; the pH value and CEC were significantly negatively correlated with the content of exchangeable fraction and carbonate bound fraction Cd, and positively correlated with the content of bound organic and residual fraction Cd; the pH value and CEC were significantly negatively correlated with the content of exchangeable fraction and carbonate bound fraction Pb, and significantly positively correlated with the content of bound organic and residual fraction Pb. The increase of soil pH and CEC are important factors affecting the speciation transformation of Cd and Pb in soil.
