# Ablation of Copper Metal Films by Femtosecond Laser Multipulse Irradiation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Background

#### 2.1. Two Temperature Model

#### 2.2. Dynamic Thermal Properties

#### 2.3. Dynamic Optical Properties

## 3. Results and Discussion

## 4. Conclusions

## Author Contributions

## Conflicts of Interest

## Abbreviations

TTM | Two Temperature Model |

CE | Coulomb Explosion |

FTAE | Fast Thermal Accumulation Effect |

MD | Molecular Dynamics |

## References

- Chichkov, B.N.; Momma, C.; Nolte, S.; Von Alvensleben, F.; Tünnermann, A. Femtosecond, picosecond and nanosecond laser ablation of solids. Appl. Phys. A
**1996**, 63, 109–115. [Google Scholar] [CrossRef] - Momma, C.; Nolte, S.; Chichkov, B.N.; Alvensleben, F.V.; Tünnermann, A. Precise laser ablation with ultrashort pulses. Appl. Surf. Sci.
**1997**, 109, 15–19. [Google Scholar] [CrossRef] - Nolte, S.; Momma, C.; Jacobs, H.; Tünnermann, A.; Chichkov, B.N.; Wellegehausen, B.; Welling, H. Ablation of metals by ultrashort laser pulses. JOSA B
**1997**, 14, 2716–2722. [Google Scholar] [CrossRef] - Leitz, K.H.; Redlingshöfer, B.; Reg, Y.; Otto, A.; Schmidt, M. Metal ablation with short and ultrashort laser pulses. Phys. Procedia
**2011**, 12, 230–238. [Google Scholar] [CrossRef] - Tatra, S.; Vázquez, R.G.; Stiglbrunner, C.; Otto, A. Numerical simulation of laser ablation with short and ultra-short pulses for metals and semiconductors. Phys. Procedia
**2016**, 83, 1339–1346. [Google Scholar] [CrossRef] - Mannion, P.T.; Magee, J.; Coyne, E.; O’connor, G.M.; Glynn, T.J. The effect of damage accumulation behaviour on ablation thresholds and damage morphology in ultrafast laser micro-machining of common metals in air. Appl. Surf. Sci.
**2004**, 233, 275–287. [Google Scholar] [CrossRef] - Gamaly, E.G.; Rode, A.V.; Luther-Davies, B.; Tikhonchuk, V.T. Ablation of solids by femtosecond lasers: Ablation mechanism and ablation thresholds for metals and dielectrics. Phys. Plasmas
**2002**, 9, 949–957. [Google Scholar] [CrossRef] [Green Version] - Stoian, R.; Rosenfeld, A.; Ashkenasi, D.; Hertel, I.V.; Bulgakova, N.M.; Campbell, E.E.B. Surface charging and impulsive ion ejection during ultrashort pulsed laser ablation. Phys. Rev. Lett.
**2002**, 88, 097603. [Google Scholar] [CrossRef] [PubMed] - Jiang, L.; Tsai, H.L. Modeling of ultrashort laser pulse-train processing of metal thin films. Int. J. Heat Mass Transf.
**2007**, 50, 3461–3470. [Google Scholar] [CrossRef] - Cheng, C.; Xu, X. Mechanisms of decomposition of metal during femtosecond laser ablation. Phys. Rev. B
**2005**, 72, 165415. [Google Scholar] [CrossRef] - Cheng, C.W.; Wang, S.Y.; Chang, K.P.; Chen, J.K. Femtosecond laser ablation of copper at high laser fluence: Modeling and experimental comparison. Appl. Surf. Sci.
**2016**, 361, 41–48. [Google Scholar] [CrossRef] - Byskov-Nielsen, J.; Savolainen, J.M.; Christensen, M.S.; Balling, P. Ultra-short pulse laser ablation of copper, silver and tungsten: Experimental data and two-temperature model simulations. Appl. Phys. A
**2011**, 103, 447–453. [Google Scholar] [CrossRef] - Rethfeld, B.; Sokolowski-Tinten, K.; Von Der Linde, D.; Anisimov, S.I. Timescales in the response of materials to femtosecond laser excitation. Appl. Phys. A
**2004**, 79, 767–769. [Google Scholar] [CrossRef] - Yang, J.; Zhao, Y.; Zhu, X. Theoretical studies of ultrafast ablation of metal targets dominated by phase explosion. Appl. Phys. A
**2007**, 89, 571–578. [Google Scholar] [CrossRef] - Ren, Y.; Cheng, C.W.; Chen, J.K.; Zhang, Y.; Tzou, D.Y. Thermal ablation of metal films by femtosecond laser bursts. Int. J. Therm. Sci.
**2013**, 70, 32–40. [Google Scholar] [CrossRef] - Huang, J.; Zhang, Y.; Chen, J.K. Ultrafast solid–liquid–vapor phase change in a thin gold film irradiated by multiple femtosecond laser pulses. Int. J. Heat Mass Transf.
**2009**, 52, 3091–3100. [Google Scholar] [CrossRef] - Eaton, S.M.; Zhang, H.; Herman, P.R.; Yoshino, F.; Shah, L.; Bovatsek, J.; Arai, A.Y. Heat accumulation effects in femtosecond laser-written waveguides with variable repetition rate. Opt. Express
**2005**, 13, 4708–4716. [Google Scholar] [CrossRef] [PubMed] - Ancona, A.; Döring, S.; Jauregui, C.; Röser, F.; Limpert, J.; Nolte, S.; Tünnermann, A. Femtosecond and picosecond laser drilling of metals at high repetition rates and average powers. Opt. Lett.
**2009**, 34, 3304–3306. [Google Scholar] [CrossRef] [PubMed] - Kerse, C.; Kalaycıoğlu, H.; Elahi, P.; Çetin, B.; Kesim, D.K.; Akçaalan, Ö.; Yavaş, S.; Aşık, M.D.; Öktem, B.; Hoogland, H.; et al. Ablation-cooled material removal with ultrafast bursts of pulses. Nature
**2016**, 537, 84–88. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Povarnitsyn, M.E.; Levashov, P.R.; Knyazev, D.V. Simulation of ultrafast bursts of subpicosecond pulses: In pursuit of efficiency. Appl. Phys. Lett.
**2018**, 112, 051603. [Google Scholar] [CrossRef] [Green Version] - Chowdhury, I.H.; Xu, X. Heat transfer in femtosecond laser processing of metal. Numer. Heat Transf. Part A Appl.
**2003**, 44, 219–232. [Google Scholar] [CrossRef] - Nowak, D.; Lee, M.J. Optical and Thermal Effective Masses of Copper. Phys. Rev. B
**1972**, 5, 2851. [Google Scholar] [CrossRef] - Kittel, C.; McEuen, P.; McEuen, P. Introduction to Solid State Physics; Wiley: New York, NY, USA, 1996; Volume 8, pp. 323–324. [Google Scholar]
- Anisimov, S.I.; Rethfeld, B. Theory of ultrashort laser pulse interaction with a metal. In Nonresonant Laser-Matter Interaction (NLMI-9); International Society for Optics and Photonics: Bellingham, WA, USA, 1997; Volume 3093, pp. 192–204. [Google Scholar]
- Chen, J.K.; Latham, W.P.; Beraun, J.E. The role of electron-phonon coupling in ultrafast laser heating. J. Laser Appl.
**2005**, 17, 63–68. [Google Scholar] [CrossRef] - Nash, D.J.; Sambles, J.R. Surface plasmon-polariton study of the optical dielectric function of copper. J. Mod. Opt.
**1995**, 42, 1639–1647. [Google Scholar] [CrossRef] - Ren, Y.; Chen, J.K.; Zhang, Y. Optical properties and thermal response of copper films induced by ultrashort-pulsed lasers. J. Appl. Phys.
**2011**, 110, 113102. [Google Scholar] [CrossRef] - Adachi, S. The Handbook on Optical Constants of Metals: In Tables and Figures; World Scientific: Singapore, 2012. [Google Scholar]
- Cheng, C.W.; Chen, J.K. Drilling of Copper Using a Dual-Pulse Femtosecond Laser. Technologies
**2016**, 4, 7. [Google Scholar] [CrossRef] - Kotsedi, L.; Kaviyarasu, K.; Fuku, X.G.; Eaton, S.M.; Amara, E.H.; Bireche, F.; Ramponi, R.; Maaza, M. Two temperature approach to femtosecond laser oxidation of molybdenum and morphological study. Appl. Surf. Sci.
**2017**, 421, 213–219. [Google Scholar] [CrossRef] [Green Version] - Sundaram, S.K.; Mazur, E. Inducing and probing non-thermal transitions in semiconductors using femtosecond laser pulses. Nat. Mater.
**2002**, 1, 217–224. [Google Scholar] [CrossRef] [PubMed] - Abdelmalek, A.; Bedrane, Z.; Amara, E.H. Thermal and non-thermal explosion in metals ablation by femtosecond laser pulse: Classical approach of the Two Temperature Model. J. Phys. Conf. Ser.
**2018**, 987, 012012. [Google Scholar] [CrossRef]

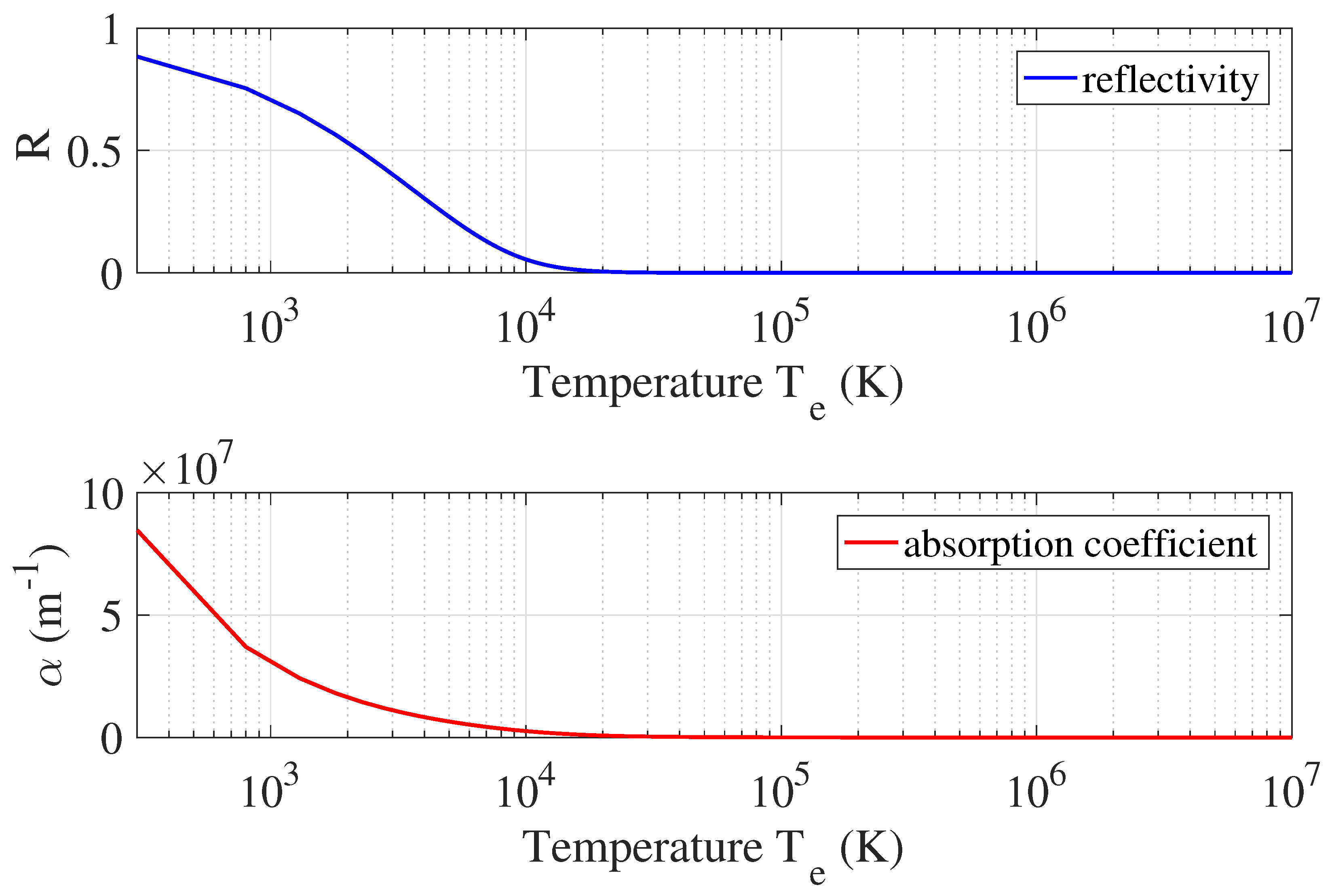

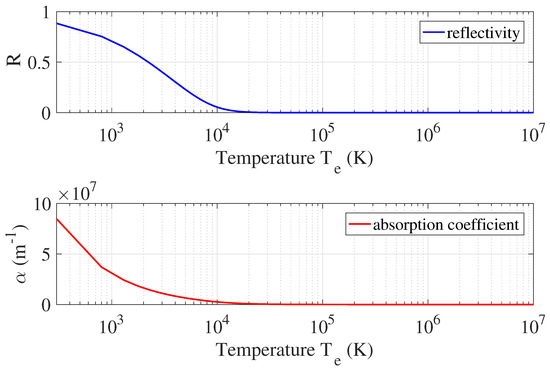

**Figure 1.**Reflectivity and absorption coefficient versus electron temperature. Note that the x-axis starts at 300 K.

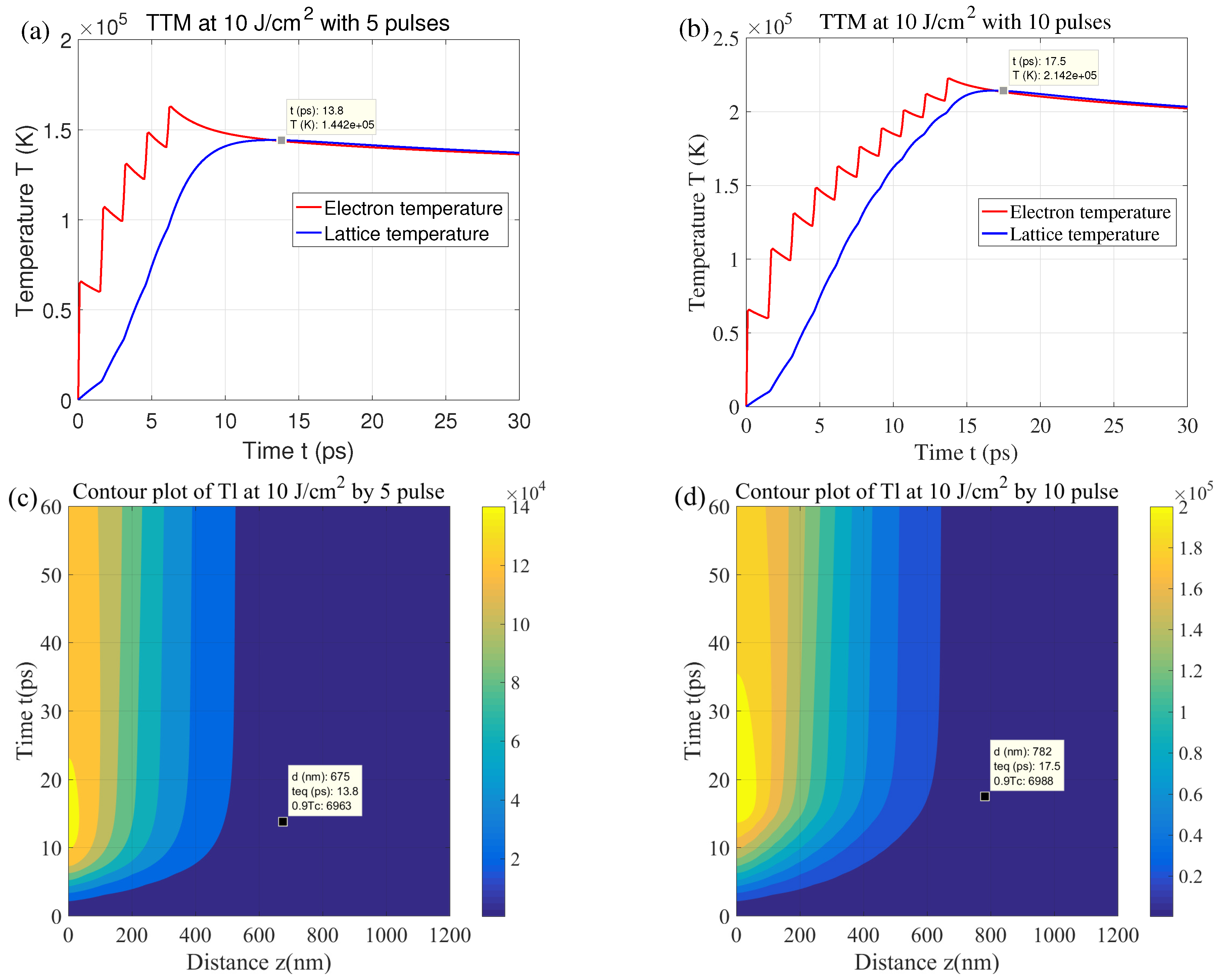

**Figure 2.**Evolution of electron and lattice temperature as a function of time during the irradiation by 10 ${\mathrm{J}/\mathrm{cm}}^{2}$: (

**a**) 5 pulses and (

**b**) 10 pulses with 1.5 ps ($\frac{2}{3}$ THz) of separation time (repetition rate). Lattice temperature (${T}_{l}$) versus time and position into a copper sample for an absorbed fluence of 10 ${\mathrm{J}/\mathrm{cm}}^{2}$: (

**c**) 5 pulses and (

**d**) 10 pulses with 1.5 ps ($\frac{2}{3}$ THz) of separation time (repetition rate). d, ${t}_{eq}$ and ${T}_{\mathrm{c}}$ represent ablation depth, time equilibrium and critical temperature, respectively. ${T}_{\mathrm{c}}=7696$ K. TTM: Two Temperature Model.

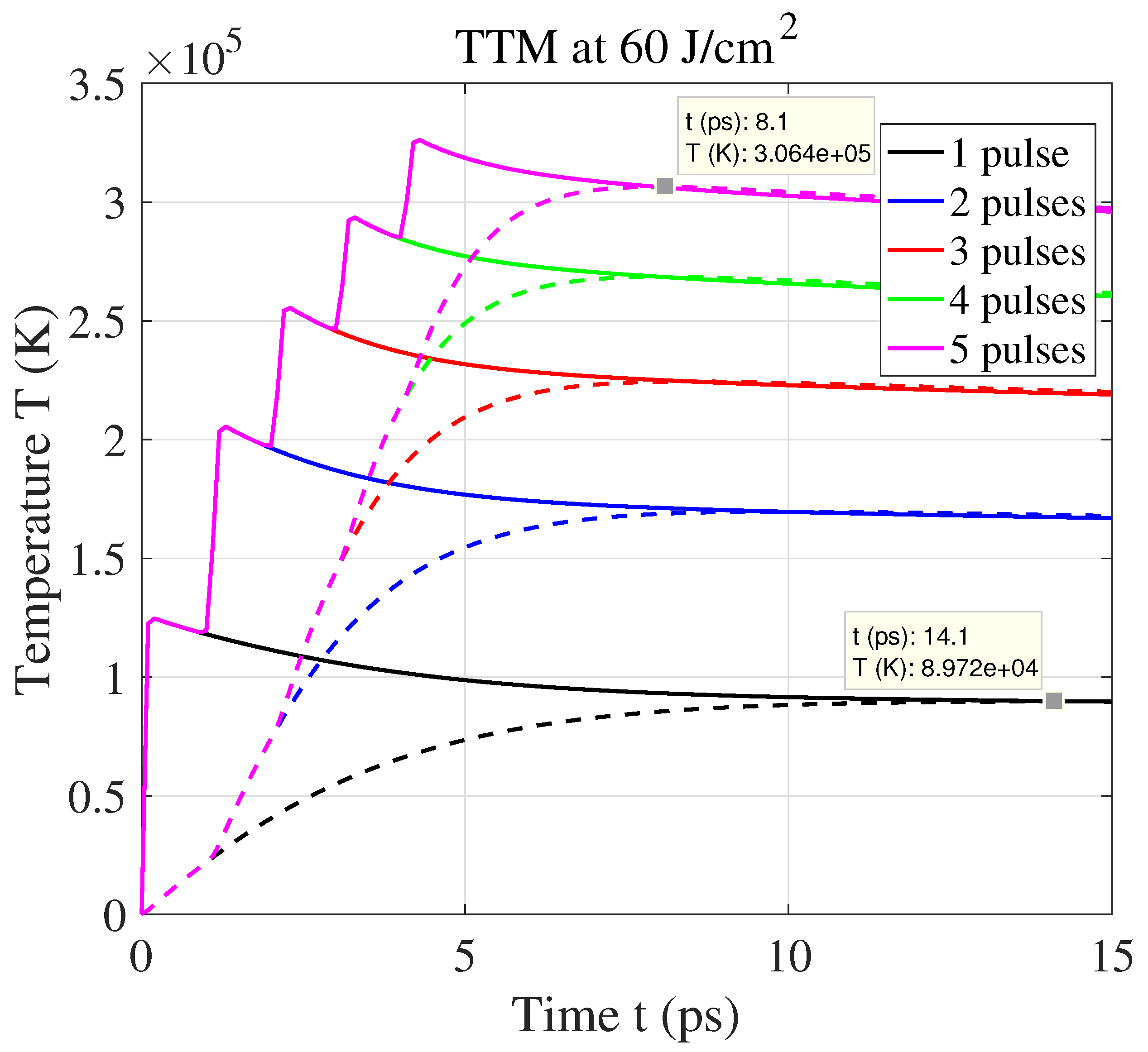

**Figure 3.**Time dependence of the calculated electron (solid line) and lattice (dash line) temperature with varying pulse number at a fluence of 60 ${\mathrm{J}/\mathrm{cm}}^{2}$ and 1 ps (1 THz) of separation time (repetition rate).

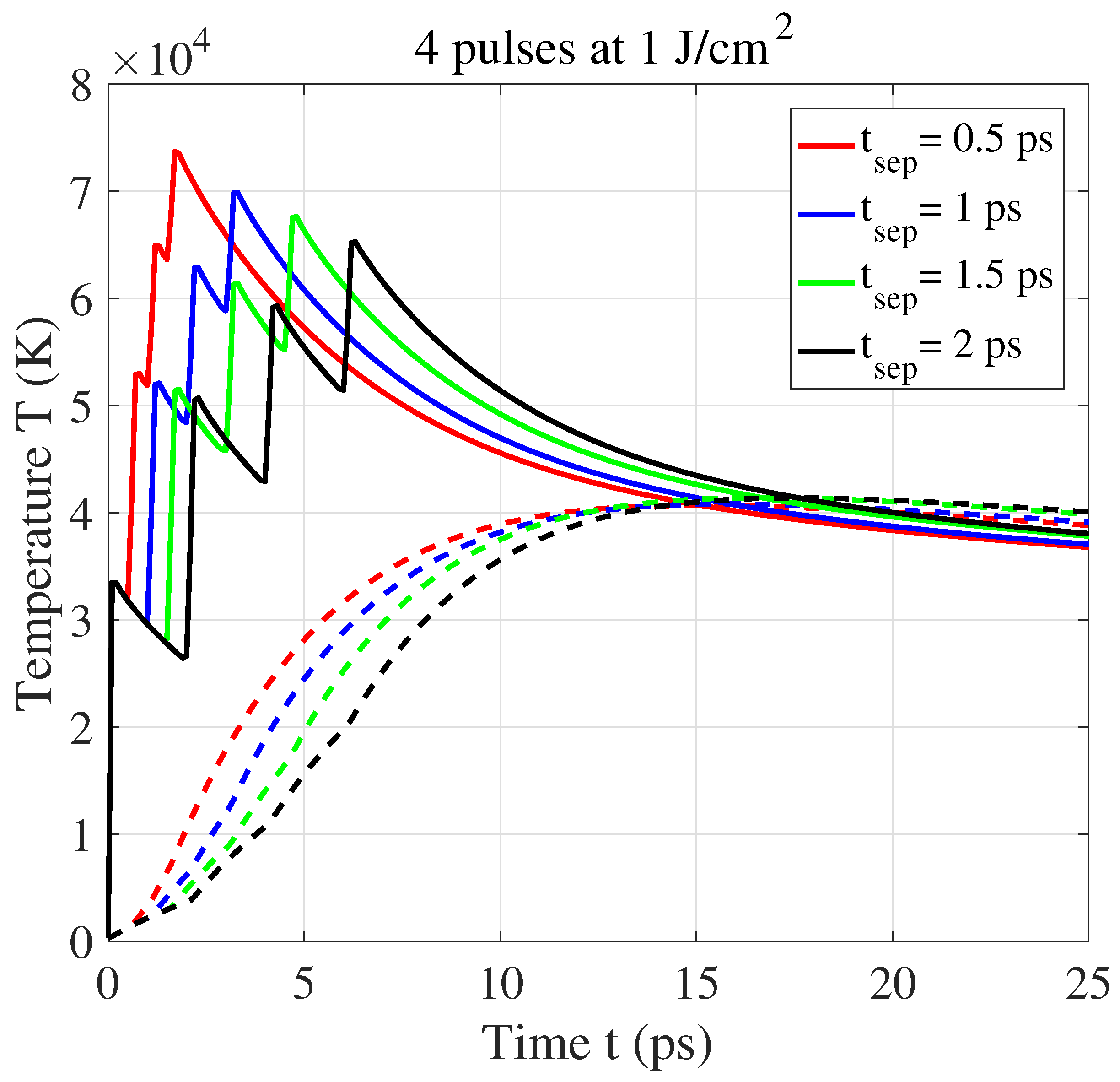

**Figure 4.**Time dependence of the calculated electron (solid line) and lattice (dash line) temperatures with varying separation time ${t}_{sep}$ at a fluence of 1 ${\mathrm{J}/\mathrm{cm}}^{2}$ and four pulses.

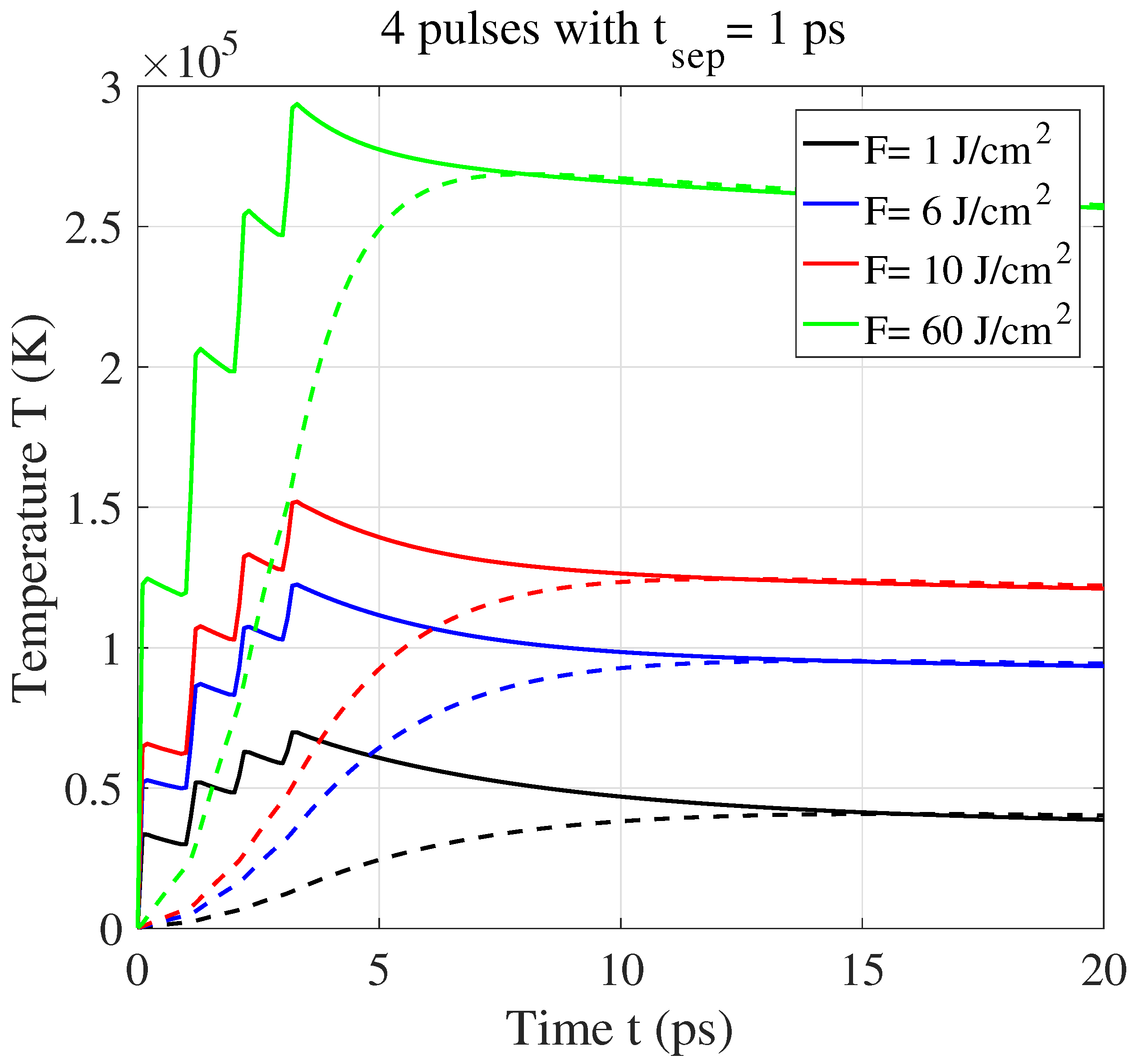

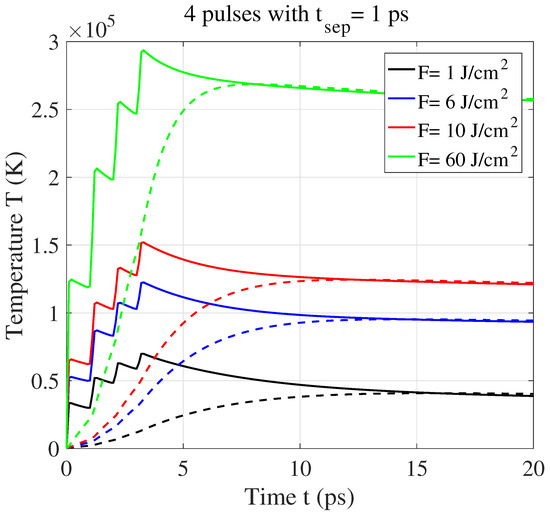

**Figure 5.**The time dependence of the calculated electron (solid line) and lattice (dash line) temperatures at different laser fluences with 4 pulse and 1 ps (1 THz) of separation time (repetition rate).

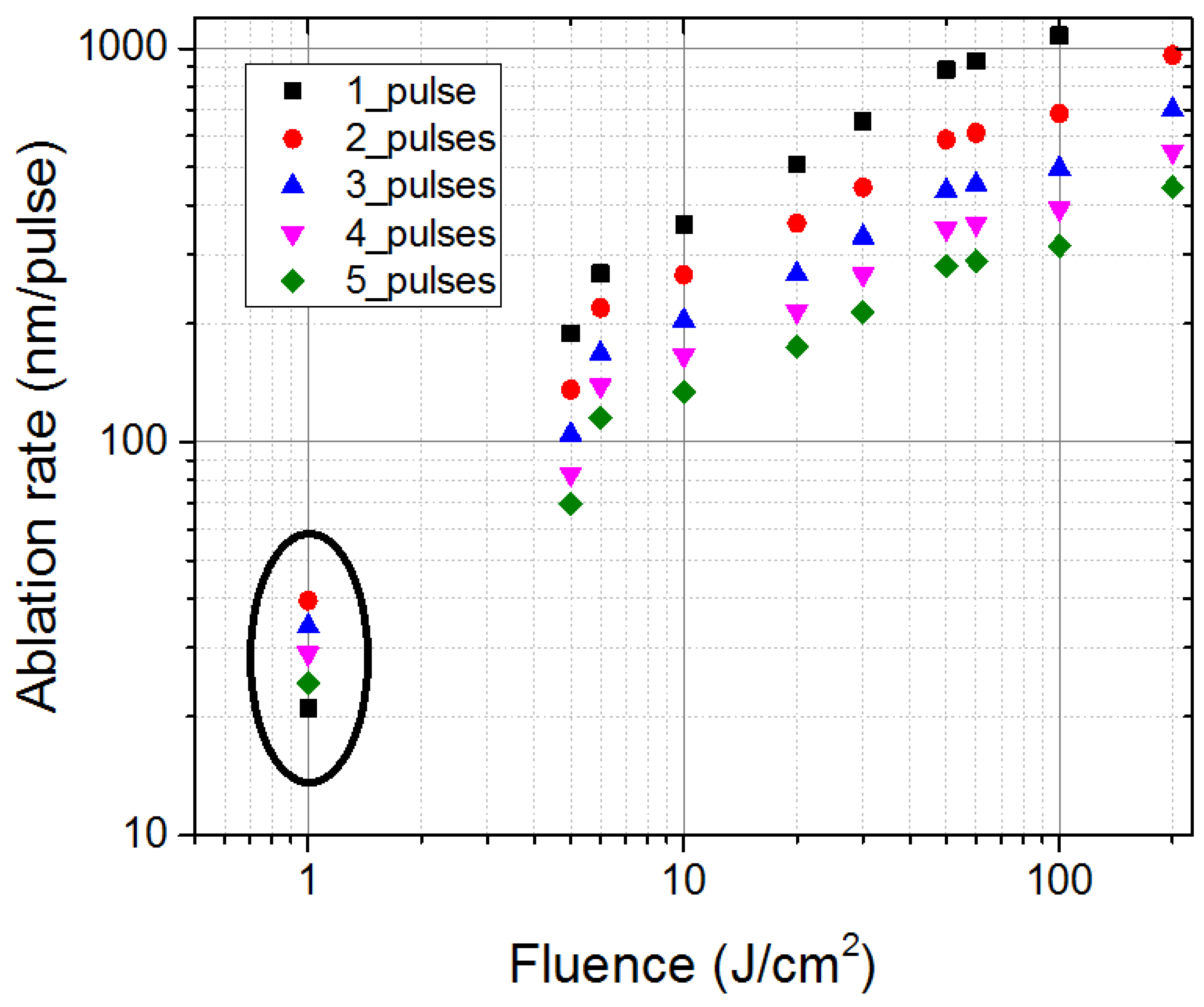

**Figure 7.**The ablation rate as a function of fluence at different pulse numbers with ${t}_{sep}=1.5$ ps ($\frac{2}{3}$ THz repetition rate).

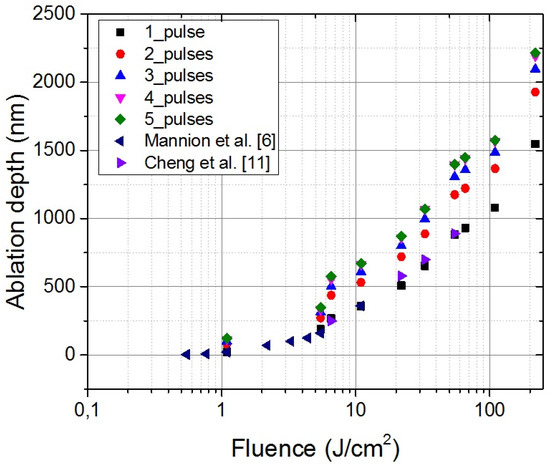

Fluence (${\mathbf{J}/\mathbf{cm}}^{2}$) | N = 1 | N = 2 | N = 3 | N = 4 | N = 5 |
---|---|---|---|---|---|

Ablation Depth (nm) | |||||

1 | 21 | 78 | 102 | 116 | 122 |

5 | 189 | 272 | 314 | 332 | 348 |

6 | 268 | 438 | 503 | 556 | 575 |

10 | 357 | 532 | 611 | 664 | 671 |

20 | 509 | 720 | 802 | 861 | 871 |

30 | 653 | 888 | 997 | 1067 | 1070 |

50 | 883 | 1175 | 1307 | 1394 | 1398 |

60 | 931 | 1222 | 1357 | 1439 | 1447 |

100 | 1080 | 1367 | 1485 | 1566 | 1575 |

200 | 1547 | 1927 | 2096 | 2192 | 2216 |
