Open AccessArticle
Appl. Sci. 2017, 7(12), 1308;

Wearable Plasma Pads for Biomedical Applications

Department of Electrical and Biological Physics, Kwangwoon University, 20 Kwangwoon-Ro, Nowon Wallgye, Seoul 01897, Korea
Institute of Biomaterials, Kwangwoon University, 20 Kwangwoon-Ro, Nowon Wallgye, Seoul 01897, Korea
These authors contributed equally to this work.
Authors to whom correspondence should be addressed.
Received: 20 November 2017 / Revised: 7 December 2017 / Accepted: 14 December 2017 / Published: 17 December 2017
(This article belongs to the Special Issue Smart Environment and Healthcare)
Full-Text   |   PDF [3375 KB, uploaded 17 December 2017]   |


A plasma pad that can be attached to human skin was developed for aesthetic and dermatological treatment. A polyimide film was used for the dielectric layer of the flexible pad, and high-voltage and ground electrodes were placed on the film surface. Medical gauze covered the ground electrodes and was placed facing the skin to act as a spacer; thus, the plasma floated between the gauze and ground electrodes. In vitro and in vivo biocompatibility tests of the pad showed no cytotoxicity to normal cells and no irritation of mouse skin. Antibacterial activity was shown against Staphylococcus aureus and clinical isolates of methicillin-resistant S. aureus. Furthermore, skin wound healing with increased hair growth resulting from increased exogenous nitric oxide and capillary tube formation induced by the plasma pad was also confirmed in vivo. The present study suggests that this flexible and wearable plasma pad can be used for biomedical applications such as treatment of wounds and bacterial infections. View Full-Text
Keywords: biomedicine; dielectric barrier discharge; plasma devices; plasma pads; plasma treatment biomedicine; dielectric barrier discharge; plasma devices; plasma pads; plasma treatment

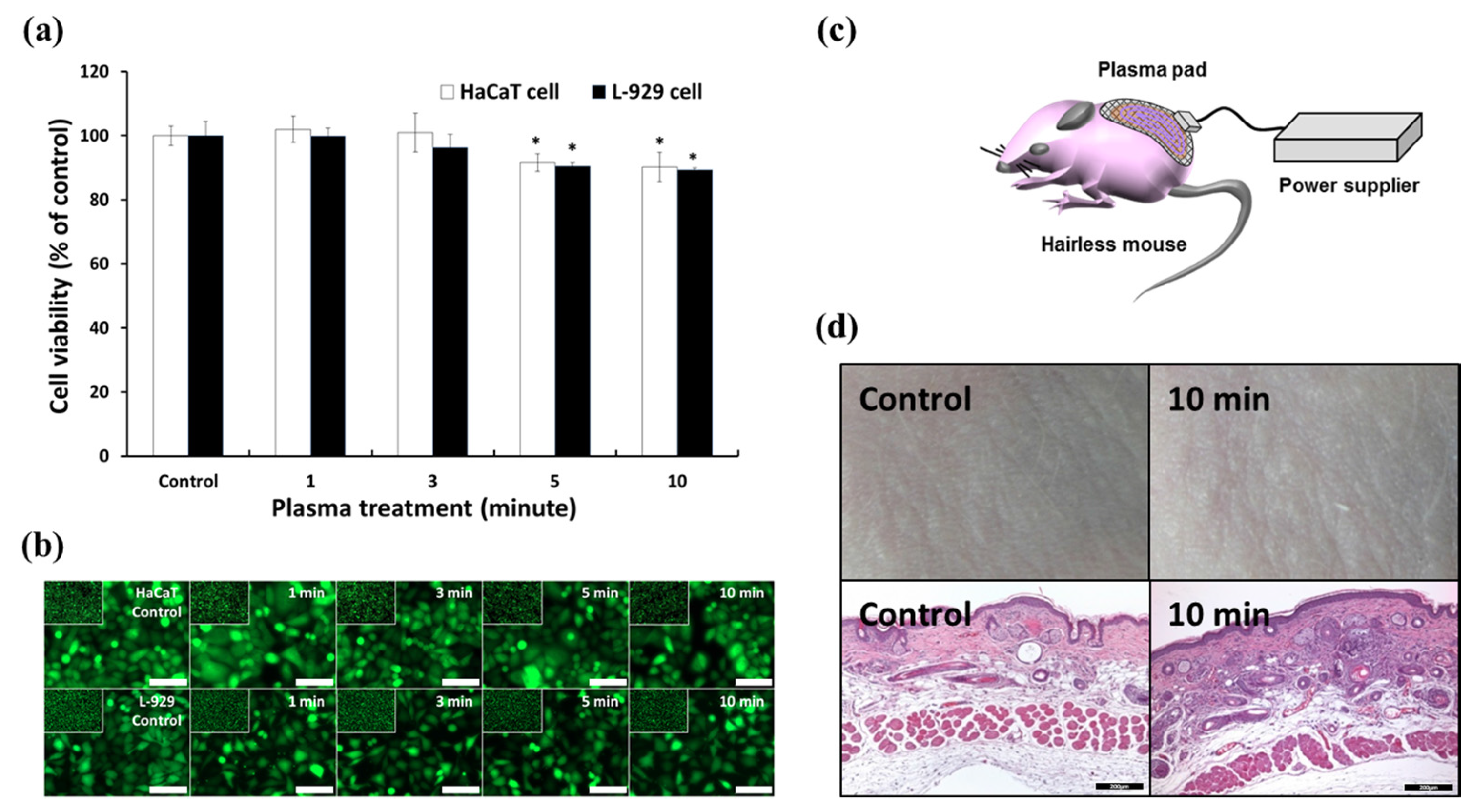

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
