Performance Assessment and Scooter Verification of Nano-Alumina Engine Oil

by
Yu-Feng Lue
1,
Yi-Hsuan Hung
1,*,
Fang-Sheng Li
1,
Tun-Ping Teng
1,*,
Syuan-Yi Chen
2,
Chien-Hsun Wu
3 and
Yu-Chang Ou
1
1
Department of Industrial Education, National Taiwan Normal University, Taipei 10610, Taiwan
2
Department of Electrical Engineering, National Taiwan Normal University, Taipei 10610, Taiwan
3
Department of Vehicle Engineering, National Formosa University, Yunlin County 632, Taiwan
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2016, 6(9), 258; https://doi.org/10.3390/app6090258
Submission received: 1 July 2016 / Revised: 24 August 2016 / Accepted: 8 September 2016 / Published: 13 September 2016
Browse Figures
Versions Notes

Abstract

:
The performance assessment and vehicle verification of nano-alumina (Al2O3) engine oil (NAEO) were conducted in this study. The NAEO was produced by mixing Al2O3 nanoparticles with engine oil using a two-step synthesis method. The weight fractions of the Al2O3 nanoparticles in the four test samples were 0 (base oil), 0.5, 1.5, and 2.5 wt. %. The measurement of basic properties included: (1) density; (2) viscosity at various sample temperatures (20–80 °C). A rotary tribology testing machine with a pin-on-disk apparatus was used for the wear test. The measurement of the before-and-after difference of specimen (disk) weight (wear test) indicates that the NAEO with 1.5 wt. % Al2O3 nanoparticles (1.5 wt. % NAEO) was the chosen candidate for further study. For the scooter verification on an auto-pilot dynamometer, there were three tests, including: (1) the European Driving Cycle (ECE40) driving cycle; (2) constant speed (50 km/h); and (3) constant throttle positions (20%, 40%, 60%, and 90%). For the ECE40 driving cycle and the constant speed tests, the fuel consumption was decreased on average by 2.75%, while it was decreased by 3.57% for the constant throttle case. The experimental results prove that the engine oil with added Al2O3 nanoparticles significantly decreased the fuel consumption. In the future, experiments with property tests of other nano-engine oils and a performance assessment of the nano-engine-fuel will be conducted.

1. Introduction

Enhancing material performance by using nanoparticles already has considerable achievements in the past decades. Nanoparticles (nano-additives) are added to the working fluid to form nanofluids which have been widely used to enhance the thermal conductivity, heat transfer performance, and tribological properties of the working fluid [1,2,3,4,5,6]. In recent years, many researchers have added nanoparticles to oils in order to fabricate nano-oils that can improve the tribological properties of oil in order to enhance the operating efficiency and the life of machinery.
The nano-additives in nano-oils comprise various metal oxide nanoparticles (Al2O3, CuO, TiO2, and ZnO) [7,8,9,10,11], metal nanoparticles (Cu, Ag) [12,13,14,15], non-metal/metal oxide nanoparticles (graphite, boric acid, diamond, MWCNT/multi-walled carbon nanotubes) [13,14,16,17,18], and hybrid nanoparticles (MWCNT/ZnO and SiO2-MWCNTs) [19,20]. Most of the literature shows that nano-oils can reduce friction coefficients, power losses, wear, wear resistance, and can also improve the tribological performance of machinery. In addition, nano-oils had high thermal conductivity, enhancing heat dissipation caused by mechanical friction [9,21]. Therefore, adding nanoparticles into oils to enhance their mechanical properties was expected. Many studies showed that the viscosity of nano-oils was increased with the concentration of nanoparticles [9,11,19,20,22]. However, the effect of nanoparticle concentration on the increasing viscosity of nano-oils is gradually reduced with increasing nano-oil temperature [9,19]. Furthermore, the rheological properties of nano-oils exhibit Newtonian fluid behavior at low nanoparticle concentrations, while they show non-Newtonian fluid with shear thinning behavior at higher nanoparticle concentrations [22].
Operating performance evaluation of nano-oils in the actual operation of mechanical equipment has included refrigerators, vacuum pumps, internal combustion (IC) engines, gear rigs, bearings, etc. Lee et al. [23] used a fullerene nano-oil in a refrigerator, and found that the electric power consumption was reduced by decreasing the friction coefficient and wear rate to the compressor. Jwo et al. [24] used an Al2O3 nano-oil with various concentrations (0.1%, 0.2%, and 0.3 wt. %) in a direct-drive oil-sealed rotary vacuum pump. The optimal condition showed that the temperatures of cylinder, case surface, and discharge pipeline were reduced by 1.3%, 1.7%, and 3.8%, respectively. The performance of IC engines in terms of frictional power loss, fuel consumption, oil consumption, and harmful exhaust emissions is closely related to the friction force and wear between moving parts of the engine, such as the piston assembly, valve train, and bearings. Generally, frictional losses in IC engines vary between 17% and 19% of the total indicated horse power [4]. Rasheed et al. [21] adopted graphene-based nano-oil in a four-stroke IC engine to investigate the coefficient of friction and the transfer rate of the engine. The results showed that the enhancement in thermal conductivity at 80 °C and the heat transfer rate of the engine were 23% and 70%, with a 21% reduction in the coefficient of friction of the piston rings by using a 0.01 wt. % graphene-based nano-oil compared to the base oil (API20W50SN/CF). Choi et al. [13] observed that a graphite and silver nano-oil enhanced load-carrying and anti-wear properties in the Forschungsstelle fur Zahnrader und Getriebebau (FZG) gear rig test, and also reduced the electric power consumption by more than 3% compared to the base oil. Binu et al. [25] investigated the influence of TiO2 nano-oil on the load carrying capacity of a journal bearing. The results showed an increase in the load carrying capacity of a journal bearing using TiO2 nano-oil as compared to the base oils without nanoparticle addition.
The main role of nanoparticles added to oils is to improve mechanical performance due to effects such as: the rolling-sliding effect [26,27,28], protective film [29,30,31], third-body effect [26,32], mending and smoothing effect of surface roughness [14,26,33,34], cleaning effect on surfaces [35,36], and shear thinning of nano-oils [9,19,22] that could be adopted to mitigate mechanical friction, to enhance anti-wear performance, and to facilitate the energy-efficient operation of machinery. The main advantages of incorporating nanoparticles into lubricants include their sizes and shapes, which are suitably adapted for a perfect feeding of the sliding interface, and for potentially reducing the friction coefficient and increasing the load-carrying capacity of coupled surfaces in mechanical systems [13,15,22,25,36,37,38]. Furthermore, using nanoparticles with high thermal conductivity to enhance the heat-transfer performance of lubricants can enhance the heat-dissipation performance of a mechanical system [21,39,40,41].
By literature survey, it can be found that studies of nano-oils focused primarily on the indexes of nano-oils characteristics itself, wear, friction coefficient, power consumption in the past. However, studies of IC engines with nano-oils for fuel efficiency (consumption) were rarely seen. In this study, ultrafine alumina (Al2O3) nanoparticles were added to engine oil (EO), and a stable suspension was maintained to form nano-alumina (Al2O3) engine oil (NAEO). The density, viscosity, specific heat, and tribological performance of the NAEO with various weight fractions of Al2O3 (0 wt. %, 0.5 wt. %, 1.5 wt. %, and 2.5 wt. %) were evaluated to assess the relevant characteristics. Finally, we conducted various real engine operation tests with the EO and NAEO to evaluate the practicability of NAEO in a 125 c.c. spark ignition engine of a scooter in a ECE40 driving cycle by analyzing the fuel consumption of a scooter using those oils.

2. Basic Properties and Wear Test

2.1. Basic Properties

The NAEO was produced by mixing the Al2O3 nanoparticles (gamma phase, spherical shape, average particle size of 15 nm) with the EO (SAE15W/40, API SL, GP, KYMCO, Kaohsiung, Taiwan) using a two-step synthesis method without any stabilizer. The weight fractions of the Al2O3 nanoparticles in the four test samples were 0 wt. % (base oil), 0.5 wt. %, 1.5 wt. %, and 2.5 wt. %. The stirring and mixing devices of the two-step synthesis method consisted of a magnetic stirrer (PC420D, Corning, NY, USA), an ultrasonic bath (5510R-DTH, Branson, Danbury, CT, USA), and a high-speed homogenizer (YOM300D, Yotec, Hsinchu, Taiwan) for NAEO. The suspension performance of NAEO was evaluated by a static testing method (static position) for 15 days. The basic properties of NAEO include: (1) density; (2) viscosity; (3) specific heat at various sample temperatures (20, 30, 40, 50, 60, 70, and 80 °C) with various weight fractions of Al2O3. The constant temperature of test samples for density and viscosity tests was controlled by a thermostatic bath (P-20, YSC, Hsinchu, Taiwan). For the densities with different weight fractions of Al2O3, the weight of a sample was measured by an electronics balance (XS-1220M, Precisa, Dietikon, Switzerland) with an electronic pipette (5 mL, Eppendorf, Germany) to measure the sample weights of a fixed volume (5 mL) to determine the densities of test samples. For viscosity tests, a resonant viscometer (VL700-T15, Hydramotion, Malton, UK) was used to test the viscosities of all samples. The specific heat of the sample was measured using a differential scanning calorimeter (DSC, Q20, New Castle, TA, USA) equipped with a vapor compression refrigeration system (RCS40, New Castle, TA, USA) filled with high-purity nitrogen (5 N) atmosphere. The specific heat test method was a standard reference approach, in which the standard reference was sapphire (TN8, 61.48 mg) [42].

2.2. Wear Test

A rotary tribology testing machine with a pin-on-disk apparatus conducted a wear test to evaluate the anti-wear performance of each sample (EO and NAEO). In Figure 1, the testing machine (7085, Sensetek, Kaohsiung, Taiwan) was at the left-hand side, where the test procedures referred to [43,44,45]. The control panel was in the middle, where the chamber temperature, normal force, and rotational speed of the platform could be set and controlled. An electronic balance (XS-125A, Precisa, Dietikon, Switzerland) was used to measure the weight difference of the disk (wear loss) before and after the wear test. Figure 2a shows the pin-on-disk chamber, while in Figure 2b, the disk (22 ± 0.5 g) was composed of bearing steel (φ = 32 mm, SUJ2) and three carbon steel balls (6 mm, AISI 1045) that were fixed to the turntable as the pin. The pin-on-disk apparatus was fixed on the rotary tribology testing machine to perform the wear test. The disk has a flange to prevent the outflow of EO or NAEO of test samples, and therefore it could minimize the starvation effect in the wear test. The 0.5 c.c. test sample was dropped onto the disk, and then the wear test was conducted at various rotating speeds (500–1000 rpm) and normal forces (200–450 N). The total number of rotations was fixed at 10,000. The wear loss between the original disk and the final one can be derived to evaluate the anti-wear performance of EO and NAEO.

3. Real Scooter Test

After the wear loss test, the optimal wear performance of NAEO is the best candidate to prevent high friction between the cylinder wall and the piston in a 125 c.c. scooter spark ignition engine. In Figure 3, a scooter was equipped on a chassis dynamometer. An auto-pilot machine was used to clamp the handlebar (throttle actuator), which was controlled by a servo motor. In the experiments, three test scenarios were conducted. The first was the constant vehicle speed test (50 kph), the second was the time-variant test (driving cycle), and the third was a test of four constant throttle positions. As shown in Figure 4, a common time-variant driving test scenario for light-duty vehicles—the ECE40 driving cycle—was selected. It includes three acceleration periods, and the maximal speed is 50 kph. The real vehicle speed must track the demanded vehicle speed well at each sampling time so that the retrieved data is convincing. This is because the values of consumed power (energy) for all tests are consistent. Before and after the standard driving cycle test, the difference of fuel weight was measured by the electric balance. Figure 4 shows that the tracking performance was good and confirms the applicability of the dynamometer test.

4. Results and Discussion

From Figure 5a, the higher the density of the test sample at the higher weight fraction was due to the higher density of the nanoparticles themselves. With higher test sample temperatures, the density dropped because of increased volume expansion. From Figure 5b, with more nanoparticles added, the viscosity was higher due to the interfacial relationship between the solid particles and the liquid molecules. In Figure 5c, the lower specific heat of the test sample at the higher weight fraction was due to the lower specific heat of the nanoparticles themselves.
The influence of specific heat and density of the NAEO at various weight fractions was not significant, because the added weight fraction was low based on the concept of a solid–liquid mixture. Therefore, the effect of the specific heat and density of the NAEO on the wear performance and loading of the mechanical parts should be relatively small. However, the viscosity of the 2.5 wt. % NAEO was significantly higher than the EO. It is noteworthy that the higher weight-fraction Al2O3-NAEO with higher viscosity did not flow easily; therefore, the highly-viscous NAEO was difficult to clean from the surface of the disk. Consequently, the inability to remove debris from the disk surface may cause an increase in interface roughness between the fixed and movable elements, causing an increase in wear weight loss. However, the shear thinning behavior of the NAEO at high rotating speeds may partly solve the problems described above [9,19,22]. Therefore, the search for the optimal weight fraction of NAEO must include a wear test to confirm the optimal performance of the specific weight fraction.
Figure 6 displays the wear loss of the NEAO with various weight fractions and normal forces at constant rotating speeds of 500 and 1000 rpm. For the weight fractions, it shows that the 1.5 wt. % has better anti-wear performance. This is because at lower weight-fraction NAEO (<1.5 wt. %), the amount of nanoparticles decreases so that the protection and anti-wear effects decrease, causing the wear loss to increase. With a higher weight-fraction NAEO (>1.5 wt. %), though the amount of nanoparticles increases, debris will be trapped near the surface and cannot be released because the higher weight-fraction NEAO has higher viscosity. Therefore, the wear loss also increases. Overall, higher rotational speeds will indeed result in higher wear loss.
Figure 7 illustrates the wear loss at four weight fractions of the Al2O3 nanoparticles at various rotating speeds with a constant normal force of 350 N. For the weight fractions, it shows that the 1.5 wt. % has better anti-wear performance, because in a lower weight-fraction NAEO (<1.5 wt. %), the amount of nanoparticles decreases so that the protection and anti-wear effects decrease, causing the friction to increase. With a higher weight-fraction NAEO (>1.5 wt. %), though the amount of nanoparticles increases, the debris will be trapped near the surface and cannot be released. Therefore, the wear loss also increases. Overall, higher normal force will indeed result in higher wear loss.
Since 1.5 wt. % NAEO had the best anti-wear performance (see Figure 6 and Figure 7), the wear loss of 0 wt. %, 1.5 wt. %, and 2.5 wt. % NAEO at various rotating speeds and normal forces is shown in Figure 8. Figure 8 shows that with higher speed (at the same normal force on the disk), the wear effect is more obvious. Similarly, at higher normal force and with the same rotating speed of the disk, the wear increases. This is because with either higher normal force or rotating speed, the amount of debris from the disk surface caused an increase in interface roughness between the pin and disk; thereby, it caused an increase in wear loss. Experimental results displayed in Figure 8 further confirm that the 1.5 wt. % NEAO had the best anti-wear performance.
Regarding the anti-wear performance of test samples from Figure 6, Figure 7 and Figure 8, the wear loss of the disk was lower for the 1.5 wt. % NAEO than for the EO. However, the NAEO with a higher weight fraction of Al2O3 did not guarantee a more favorable anti-wear performance. This phenomenon primarily occurred because the higher weight fraction NAEO with higher viscosity flows more uneasily. Therefore, the highly-viscous NAEO was difficult to clean from the surface of the disk; consequently, the inability to remove debris from the disk surface caused an increase in interface roughness between the pin and disk. This then caused an increase in wear loss. However, the nano-oils may reduce wear loss by the the rolling-sliding effect, by providing a protective film, by third-body effect, by the mending and smoothing effect of surface roughness, by shear thinning, and by the high thermal conductivity of nano-oils. The effects mentioned above can reduce the wear loss of test samples. These effects, combined with the effect of viscosity, thereby determine the optimal nanoparticle weight fraction in nano-oils. Therefore, the optimal tribological performance was observed in the NAEO with 1.5 wt. % Al2O3 nanoparticles; moreover, the wear loss of the 1.5 wt. % Al2O3-NAEO was lower than that of the EO. Therefore, the 1.5 wt. % NAEO and EO were selected as the test samples for the dynamometer test.
For the real scooter test on the dynamometer, each experimental item was tested three times for the average value. The experimental results of fuel consumption are shown in Figure 9. For the constant speed test (50 km/h), the fuel consumption of the EO was 58.10 km/L, while the fuel consumption of the NAEO was 59.35 km/L. This shows that the improvement in fuel consumption comparing the NAEO to EO is 2.15%. For the ECE40 driving cycle, the fuel consumption of the EO was 38.35 km/L, while the fuel consumption of the NAEO was 37.23 km/L. The improvement of fuel consumption comparing the NAEO to the original engine oil is 3.01%. The average fuel consumption is defined as:
F C a v g = 1 / ( 0.6 / F C E C E + 0.4 / F C c o n s t )
where F C a v g , F C E C E , and F C c o n s t represent the average fuel consumption, fuel consumption of the ECE cycle, and the fuel consumption at constant speed, separately. The average fuel consumption for the EO is calculated to be 43.48 km/L, while it was 44.67 km/L for the NAEO case according to Equation (1). Therefore, the fuel consumption improvement for the NAEO was calculated to be 2.75%. Figure 10 illustrates the comparison of the original EO and NAEO at four constant throttle positions (20%, 40%, 60%, and 90%). Each experimental item was tested three times. For throttle position at 20%, the fuel consumption for EO was 54.35 km/L, while it was 55.62 km/L for the NAEO case. The improvement was 2.28%. For throttle position at 40%, the fuel consumption for EO was 56.20 km/L, while it was 58.95 km/L for the NAEO case. The improvement was 4.66%. For throttle position at 60%, the fuel consumption for EO was 54.32 km/L, while it was 56.95 km/L for the NAEO case. The improvement was 4.62%. For 90% throttle position, the fuel consumption for EO was 53.45 km/L, while it was 55.63 km/L for the NAEO case. The improvement was 3.92%. The average fuel improvement for the four throttle positions was 3.87% ((2.28 + 4.66 + 4.62 + 3.92)%/4). The above experiments prove that the 1.5 wt. % NAEO truly improves the wear performance, and the fuel consumption either in transient dynamics or in steady-state simulation while operating the spark ignition engine of the scooter was decreased. For future studies, experiments with property tests of other nano-engine oils and a performance assessment of the nano-engine fuel (or EO) will be conducted.

5. Conclusions

This study conducted a performance evaluation of NAEO for use in the spark ignition (SI) engine of a scooter. The academic and industrial contributions are as follows:
(1)
Basic properties of NAEO: four test samples with weight fractions were set at 0 (non-additive), 0.5 wt. %, 1.5 wt. %, and 2.5 wt. %. The experimental evaluation of density and viscosity at various sample temperatures (20–80 °C) was conducted.
(2)
Wear test on the platform of NAEO: A tribology testing machine with a pin-on-disk apparatus was established for the wear test. Results prove that NAEO with 1.5 wt. % Al2O3 nanoparticles (1.5 wt. % NAEO) demonstrated the best wear performance.
(3)
Real scooter implementation: the 1.5 wt. % NAEO was added to the SI engine of a scooter. A dynamometer test emulated the road load to evaluate the performance. The ECE40 driving cycle, the constant speed case, and four cases of constant throttle position were conducted. Results proved that the fuel consumption for ECE40 and constant speed was decreased on average by 2.75%, while a reduction of 3.87% was seen for the constant throttle position cases.
For future works, experiments with property tests of other nano-engine oils and a performance assessment of the nano-engine fuel will be conducted.

Acknowledgments

The authors would like to thank the Ministry of Science and Technology of Republic of China (Taiwan) for their financial support to this research under Contract No. MOST 104-2221-E-003-025-, MOST 105-2221-E-003 -017-MY3, and MOST 105-2221-E-003-019-.

Author Contributions

Y.-F.L. and Y.-H.H. conceived of the study. Y.-F.L., Y.-H.H. and F.-S.L. designed the experimental procedure. F.-S.L., T.-P.T. and C.-H.W. fabricated the samples and carried out the measurements. Y.-F.L., Y.-H.H., F.-S.L., T.-P.T., S.-Y.C. and Y.-C.O. performed the test system calibration and analyzed the measurements. Y.-H.H. and T.-P.T. wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hung, Y.H.; Teng, T.P.; Teng, T.C.; Chen, J.H. Assessment of Heat Dissipation Performance for Nanofluid. Appl. Therm. Eng. 2012, 32, 132–140. [Google Scholar] [CrossRef]
  2. Lomascolo, M.; Colangelo, G.; Milanese, M.; de Risi, A. Review of heat transfer in nanofluids: Conductive, convective and radiative experimental results. Renew. Sustain. Energy Rev. 2015, 43, 1182–1198. [Google Scholar] [CrossRef]
  3. Sarkar, J.; Ghosh, P.; Adil, A. A review on hybrid nanofluids: Recent research, development and applications. Renew. Sustain. Energy Rev. 2015, 43, 164–177. [Google Scholar] [CrossRef]
  4. Ali, M.K.A.; Hou, X. Improving the tribological behavior of internal combustion engines via the addition of nanoparticles to engine oils. Nanotechnol. Rev. 2015, 4, 347–358. [Google Scholar] [CrossRef]
  5. Dai, W.; Kheireddin, B.; Gao, H.; Liang, H. Roles of nanoparticles in oil lubrication. Tribol. Int. 2016, 102, 88–98. [Google Scholar] [CrossRef]
  6. Ali, M.K.A.; Hou, X.; Turkson, R.F.; Peng, Z.; Chen, X. Enhancing the thermophysical properties and tribological behaviour of engine oils using nano-lubricant additives. RSC Adv. 2016, 6, 77913–77924. [Google Scholar]
  7. Ettefaghi, E.; Ahmadi, H.; Rashidi, A.; Mohtasebi, S.S.; Alaei, M. Experimental evaluation of engine oil properties containing copper oxide nanoparticles as a nanoadditive. Int. J. Ind. Chem. 2013, 4, 28. [Google Scholar] [CrossRef]
  8. Babu, K.S.; Nair, K.P.; Rajendrakumar, P.K. Computational analysis of journal bearing operating under lubricant containing Al2O3 and ZnO nanoparticles. Int. J. Eng. Sci. Technol. 2014, 6, 34–42. [Google Scholar] [CrossRef]
  9. Dinesh, R.; Prasad, M.J.G.; Kumar, R.R.; Jerome Santharaj, N.; Santhip, J.; Raaj, A.S.A. Investigation of tribological and thermophysical properties of engine oil containing nano additives. Mater. Today Proc. 2016, 3, 45–53. [Google Scholar] [CrossRef]
  10. Laad, M.; Jatti, V.K.S. Titanium oxide nanoparticles as additives in engine Oil. J. King Saud Univ. Eng. Sci. 2016. [Google Scholar] [CrossRef]
  11. Ali, M.K.A.; Hou, X.; Liqiang, M.; Cai, Q.; Turkson, R.F.; Chen, B. Improving the tribological characteristics of piston ring assembly in automotive engines using Al2O3 and TiO2 nanomaterials as nano-lubricant additives. Tribiol. Int. 2016, 103, 540–554. [Google Scholar] [CrossRef]
  12. Zhang, M.; Wang, X.; Liu, W.; Fu, X. Performance and antiwear mechanism of Cu nano-particles as lubricating additives. Ind. Lubr. Tribol. 2009, 61, 311–318. [Google Scholar] [CrossRef]
  13. Choi, C.; Jung, M.; Choi, Y.; Lee, J.; Oh, J. Tribological properties of lubricating oil-based nanofluids with metal/carbon nanoparticles. J. Nanosci. Nanotechnol. 2011, 11, 368–371. [Google Scholar] [CrossRef] [PubMed]
  14. Vadiraj, A.; Manivasagam, G.; Kamani, K.; Sreenivasan, V.S. Effect of nano oil additive proportions on friction and wear performance of automotive materials. Tribol. Ind. 2012, 34, 3–10. [Google Scholar]
  15. Zin, V.; Agresti, F.; Barison, S.; Colla, L.; Gondolini, A.; Fabrizio, M. The synthesis and effect of copper nanoparticles on the tribological properties of lubricant oils. IEEE Trans. Nanotechnol. 2013, 12, 751–759. [Google Scholar] [CrossRef]
  16. Chu, H.Y.; Hsu, W.C.; Lin, J.F. The anti-scuffing performance of diamond nano-particles as an oil additive. Wear 2010, 268, 960–967. [Google Scholar] [CrossRef]
  17. Wang, B.; Wang, X.; Lou, W.; Hao, J. Rheological and tribological properties of ionic liquid-based nanofluids containing functionalized multi-walled carbon nanotubes. J. Phys. Chem. C 2010, 114, 8749–8754. [Google Scholar] [CrossRef]
  18. Hsin, Y.L.; Chu, H.; Jeng, Y.; Huang, Y.; Wang, M.H.; Chang, C.K. In situ de-agglomeration and surface functionalization of detonation nano-diamond, with the polymer used as an additive in lubricant oil. J. Mater. Chem. 2011, 21, 13213–13222. [Google Scholar] [CrossRef]
  19. Asadi, M.; Asadi, A. Dynamic viscosity of MWCNT/ZnO-engine oil hybrid nanofluid: An experimental investigation and new correlation in different temperatures and solid concentrations. Int. Commun. Heat Mass Transf. 2016, 76, 41–45. [Google Scholar] [CrossRef]
  20. Afrand, M.; Najafabadi, K.N.; Akbari, M. Effects of temperature and solid volume fraction on viscosity of SiO2-MWCNTs/SAE40 hybrid nanofluid as a coolant and lubricant in heat engines. Appl. Therm. Eng. 2016, 102, 45–54. [Google Scholar] [CrossRef]
  21. Rasheed, A.K.; Khalid, M.; Javeed, A.; Rashmi, W.; Gupta, T.C.S.M.; Chan, A. Heat transfer and tribological performance of graphene nanolubricant in an internal combustion engine. Tribol. Int. 2016, 103, 504–515. [Google Scholar] [CrossRef]
  22. Esfe, M.H.; Afrand, M.; Yan, W.M.; Yarmand, H.; Toghraie, D.; Dahari, M. Effects of temperature and concentration on rheological behavior of MWCNTs/SiO2(20–80)-SAE40 hybrid nano-lubricant. Int. Commun. Heat Mass Transf. 2016, 76, 133–138. [Google Scholar] [CrossRef]
  23. Lee, K.; Hwang, Y.; Cheong, S.; Kwon, L.; Kim, S.; Lee, J. Performance evaluation nano-lubricants of fullerene nanoparticles in refrigeration mineral oil. Curr. Appl. Phys. 2009, 9, e128–e131. [Google Scholar] [CrossRef]
  24. Jwo, C.S.; Jeng, L.Y.; Chang, H.; Chen, S.L. Research of vacuum pump with nano-lubricant. Key Eng. Mat. 2008, 364–366, 867–872. [Google Scholar] [CrossRef]
  25. Binu, K.G.; Shenoy, B.S.; Rao, D.S.; Pai, R. A variable viscosity approach for the evaluation of load carrying capacity of oil lubricated journal bearing with TiO2 nanoparticles as lubricant additives. Proc. Mater. Sci. 2014, 6, 1051–1067. [Google Scholar] [CrossRef]
  26. Rapoport, L.; Leshchinsky, V.; Lvovsky, M.; Nepomnyashchy, O.; Volovik, Y.; Tenne, R. Mechanism of friction of fullerenes. Ind. Lubr. Tribol. 2002, 54, 171–176. [Google Scholar] [CrossRef]
  27. Chiñas-Castillo, F.; Spikes, H.A. Mechanism of action of colloidal solid dispersions. J. Tribol. 2003, 125, 552–557. [Google Scholar] [CrossRef]
  28. Wu, Y.Y.; Tsui, W.C.; Liu, T.C. Experimental analysis of tribological properties of lubricating oils with nanoparticle additives. Wear 2007, 262, 819–825. [Google Scholar] [CrossRef]
  29. Hu, Z.S.; Lai, R.; Lou, F.; Wang, L.G.; Chen, Z.L.; Chen, G.X.; Dong, J.X. Preparation and tribological properties of nanometer magnesium borate as lubricating oil additive. Wear 2002, 252, 370–374. [Google Scholar] [CrossRef]
  30. Zhou, J.; Yang, J.; Zhang, Z.; Liu, W.; Xue, Q. Study on the structure and tribological properties of surface-modified Cu nanoparticles. Mater. Res. Bull. 1999, 34, 1361–1367. [Google Scholar] [CrossRef]
  31. Zhou, X.; Fu, X.; Shi, H.; Hu, Z. Lubricating properties of Cyanex 302-modified MoS2 microspheres in base oil 500SN. Lubr. Sci. 2007, 19, 71–79. [Google Scholar]
  32. Rapoport, L.; Leshchinsky, V.; Lapsker, I.; Volovik, Y.; Nepomnyashchy, O.; Lvovsky, M.; Popovitz-Biro, R.; Feldman, Y.; Tenne, R. Tribological properties of WS2 nanoparticles under mixed lubrication. Wear 2003, 255, 785–793. [Google Scholar] [CrossRef]
  33. Liu, G.; Li, X.; Qin, B.; Xing, D.; Guo, Y.; Fan, R. Investigation of the mending effect and mechanism of copper nano-particles on a tribologically stressed surface. Tribol. Lett. 2004, 17, 961–966. [Google Scholar]
  34. Wan, Q.; Jin, Y.; Sun, P.; Ding, Y. Tribological behaviour of a lubricant oil containing boron nitride, nanoparticles. Proc. Eng. 2015, 102, 1038–1045. [Google Scholar] [CrossRef]
  35. Peng, D.X.; Chen, C.H.; Kang, Y.; Chang, Y.P.; Chang, S.Y. Size effects of SiO2 nanoparticles as oil additives on tribology of lubricant. Ind. Lubr. Tribol. 2010, 62, 111–120. [Google Scholar] [CrossRef]
  36. Nunn, N.; Mahbooba, Z.; Ivanov, M.G.; Ivanov, D.M.; Brenner, D.W.; Shenderova, O. Tribological properties of polyalphaolefin oil modified with nanocarbon additives. Diam. Relat. Mater. 2015, 54, 97–102. [Google Scholar] [CrossRef]
  37. Choi, Y.; Lee, C.; Hwang, Y.; Park, M.; Lee, J.; Choi, C.; Jung, M. Tribological behavior of copper nanoparticles as additives in oil. Curr. Appl. Phys. 2009, 9, e124–e127. [Google Scholar] [CrossRef]
  38. Mansot, J.L.; Bercion, Y.; Romana, L.; Martin, J.M. Nanolubrication. Braz. J. Phys. 2009, 39, 186–197. [Google Scholar] [CrossRef]
  39. Alawi, O.A.; Sidik, N.A.C.; Beriache, M. Applications of nanorefrigerant and nanolubricants in refrigeration, air-conditioning and heat pump systems: A review. Int. Commun. Heat Mass Transf. 2015, 68, 91–97. [Google Scholar] [CrossRef]
  40. Khalil, A.N.M.; Alib, M.A.M.; Azmi, A.I. Effect of Al2O3 nanolubricant with SDBS on tool wear during turning process of AISI 1050 with minimal quantity lubricant. Procedia Manuf. 2015, 2, 130–134. [Google Scholar] [CrossRef]
  41. Padmini, R.; Krishna, P.V.; Rao, G.K.M. Effectiveness of vegetable oil based nanofluids as potential cutting fluids in turning AISI 1040 steel. Tribol. Int. 2016, 94, 490–501. [Google Scholar] [CrossRef]
  42. TA Instruments. Sapphire Specific Heat Capacity Literature Values, Thermal Applications Note (TN-8A). Available online: http://www.tainstruments.co.jp/application/pdf/Thermal_Library/Applications_Notes/TN008.PDF (accessed on 9 August 2016).
  43. ASTM. G99–95a, Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus; ASTM International: West Conshohocken, PA, USA, 2000. [Google Scholar]
  44. Lue, Y.F.; Li, F.S.; Teng, T.P.; Hsu, Y.C.; Hung, Y.H. Basic properties and wearing performance of mineral oil with adding nano particles. In Proceedings of the 31th CSME Conference, Taichung, Taiwan, 6–7 December 2014. (In Chinese)
  45. Lue, Y.F.; Hsu, Y.C.; Teng, T.P. Performance evaluation on vacuum pumps using nanolubricants. J. Mech. Sci. Technol. 2016, in press. [Google Scholar]
Applsci 06 00258 g001 1024
Figure 1. Experimental setup of the wear test machine.
Figure 1. Experimental setup of the wear test machine.
Applsci 06 00258 g001
Applsci 06 00258 g002 1024

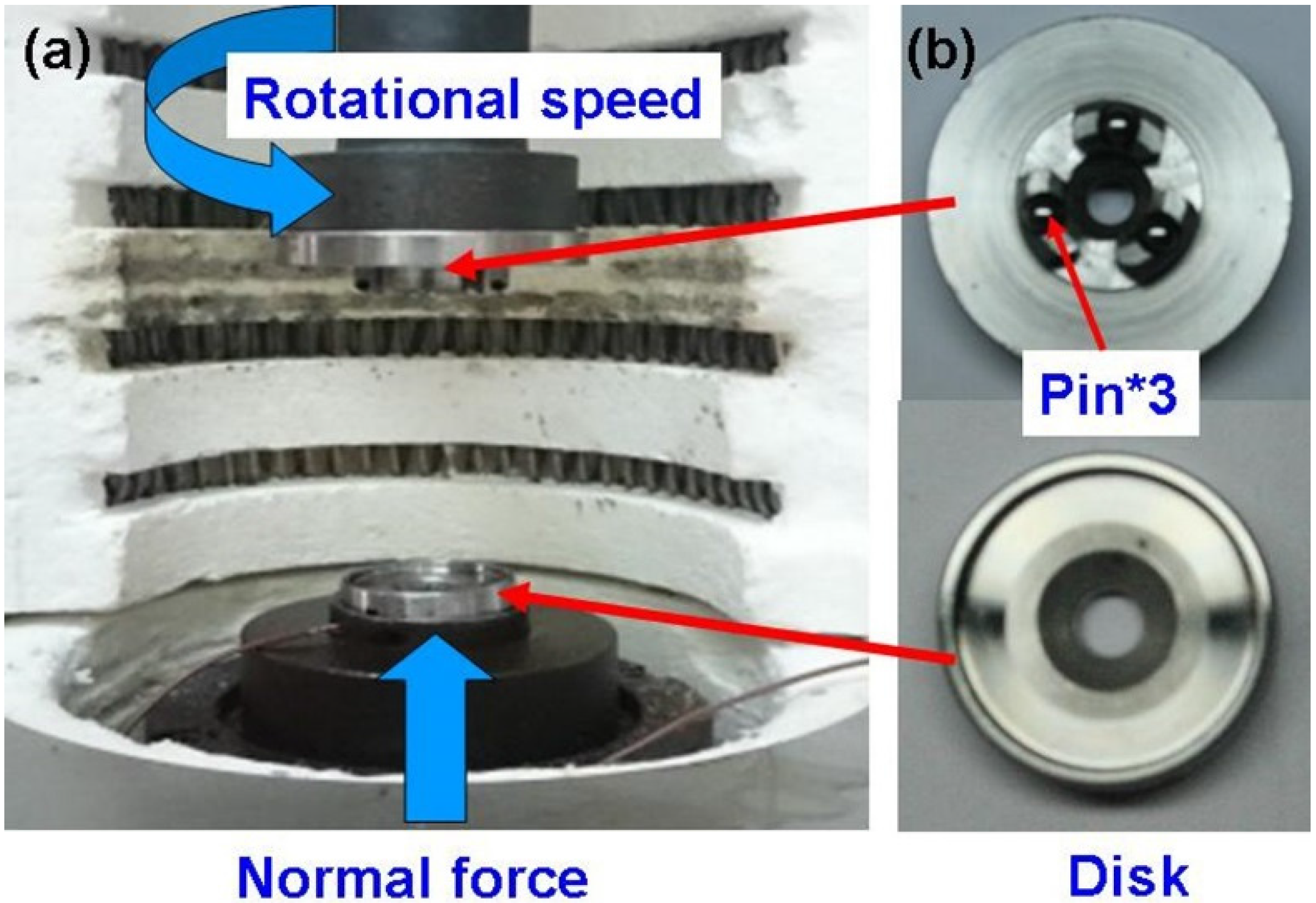

Figure 2. Inside the chamber: (a) chamber and (b) pin-on-disk apparatus.
Figure 2. Inside the chamber: (a) chamber and (b) pin-on-disk apparatus.
Applsci 06 00258 g002
Applsci 06 00258 g003 1024
Figure 3. Dynamometer test for a scooter with a 125 c.c. engine.
Figure 3. Dynamometer test for a scooter with a 125 c.c. engine.
Applsci 06 00258 g003
Applsci 06 00258 g004 1024

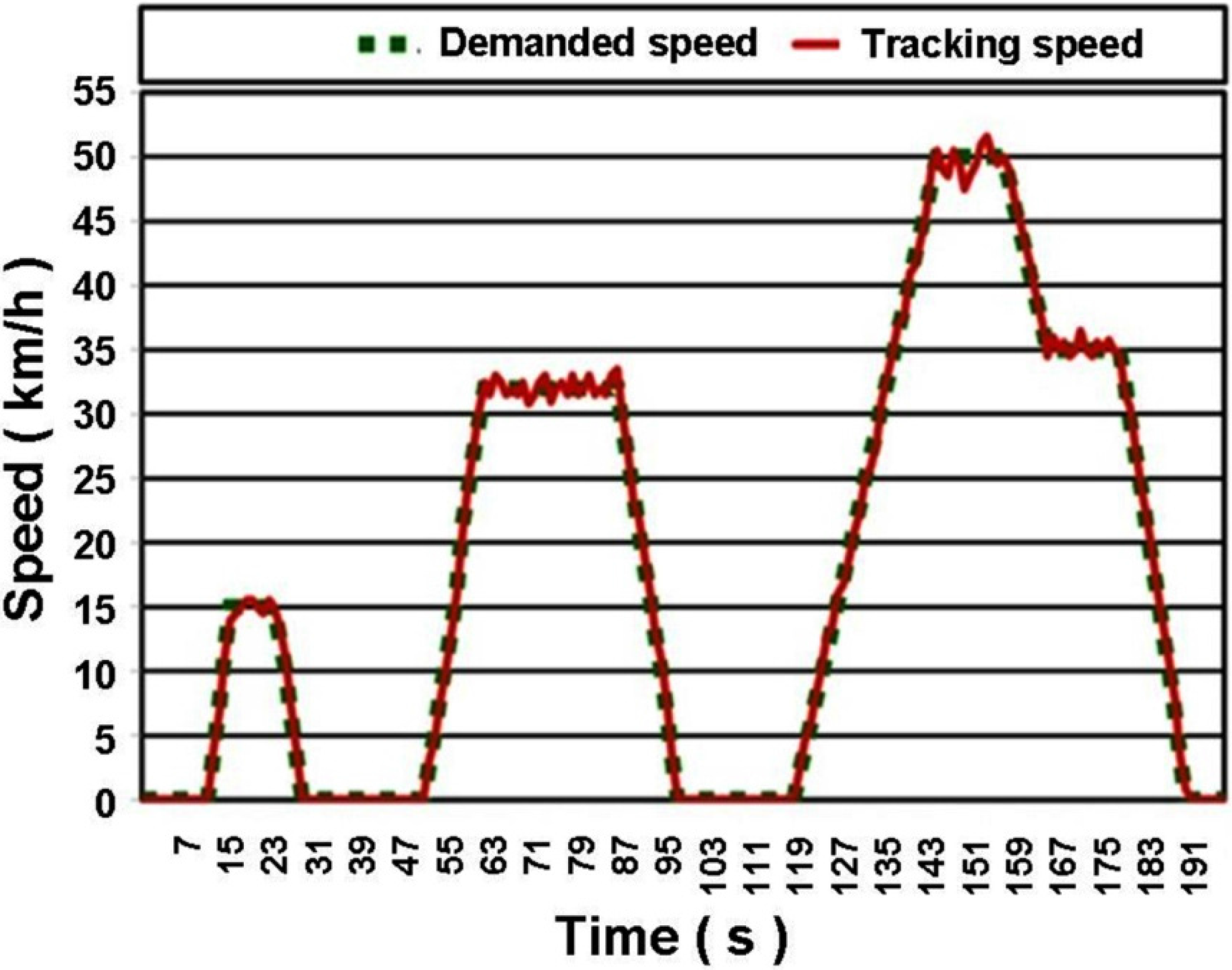

Figure 4. Demanded speed and tracking speed of the ECE40 driving cycle.
Figure 4. Demanded speed and tracking speed of the ECE40 driving cycle.
Applsci 06 00258 g004
Applsci 06 00258 g005 1024
Figure 5. Basic properties of engine oil (EO) and nano-alumina engine oil (NAEO): (a) density; (b) viscosity; and (c) specific heat.
Figure 5. Basic properties of engine oil (EO) and nano-alumina engine oil (NAEO): (a) density; (b) viscosity; and (c) specific heat.
Applsci 06 00258 g005
Applsci 06 00258 g006 1024

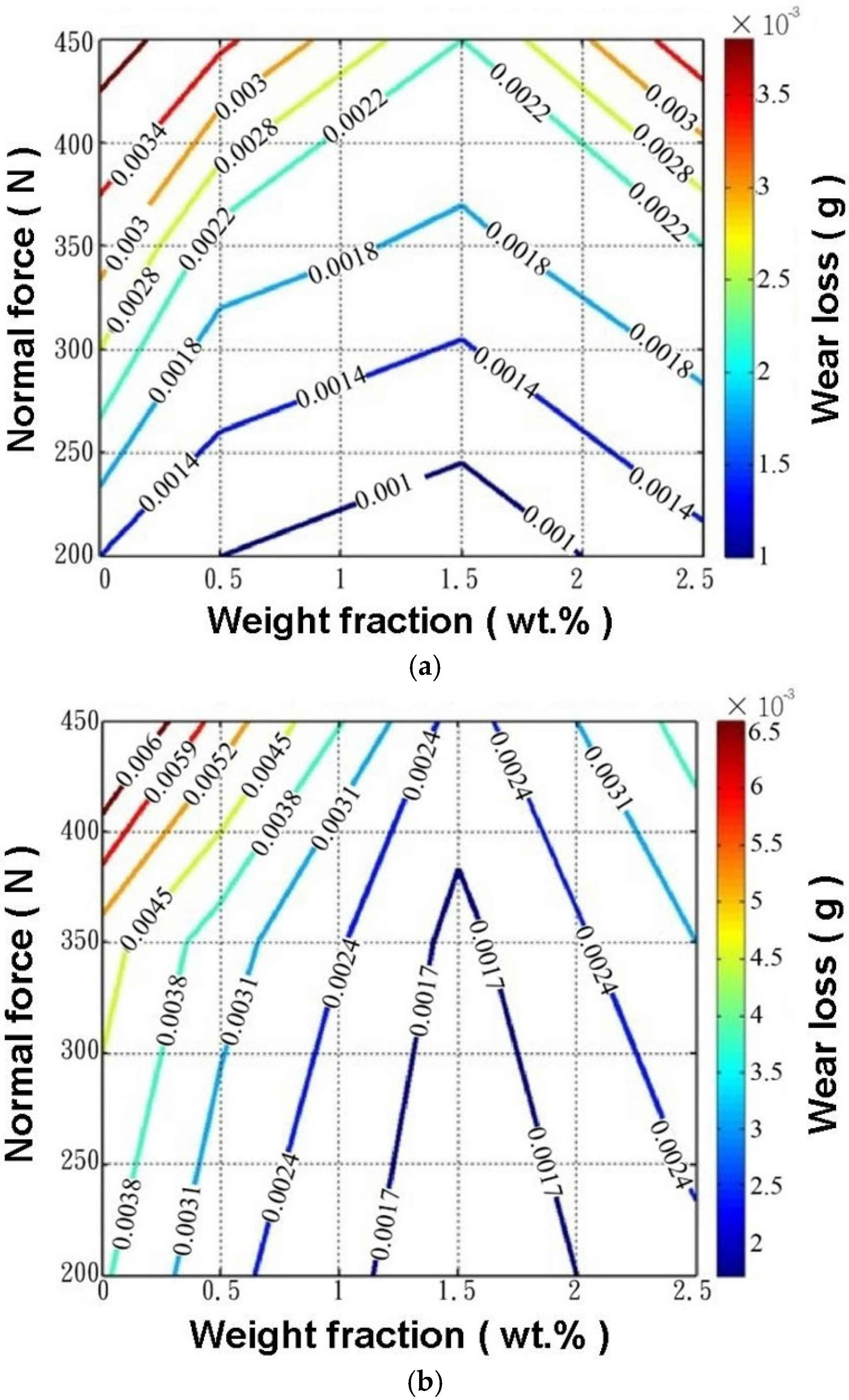

Figure 6. Wear loss with various weight fractions and normal forces at (a) 500 rpm and (b) 1000 rpm.
Figure 6. Wear loss with various weight fractions and normal forces at (a) 500 rpm and (b) 1000 rpm.
Applsci 06 00258 g006
Applsci 06 00258 g007 1024
Figure 7. Wear loss with various weight fractions and rotating speeds at (a) 350 N and (b) 450 N normal forces.
Figure 7. Wear loss with various weight fractions and rotating speeds at (a) 350 N and (b) 450 N normal forces.
Applsci 06 00258 g007
Applsci 06 00258 g008 1024

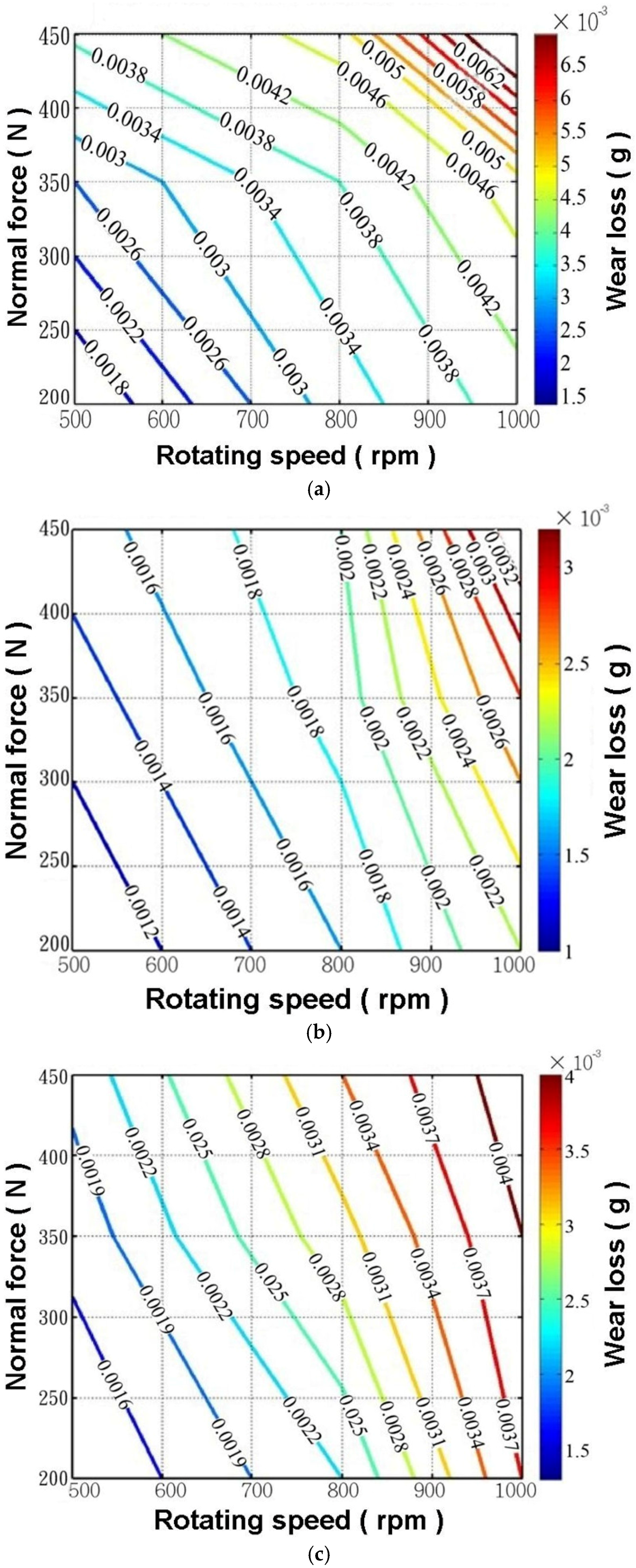

Figure 8. The wear loss of (a) 0 wt. %; (b) 1.5 wt. %; and (c) 2.5 wt. % nano-alumina (Al2O3) engine oil (NAEO) at various rotating speeds and normal forces.
Figure 8. The wear loss of (a) 0 wt. %; (b) 1.5 wt. %; and (c) 2.5 wt. % nano-alumina (Al2O3) engine oil (NAEO) at various rotating speeds and normal forces.
Applsci 06 00258 g008
Applsci 06 00258 g009 1024
Figure 9. Comparison of fuel consumption between the engine oil and the NAEO (driving cycle and constant speed).
Figure 9. Comparison of fuel consumption between the engine oil and the NAEO (driving cycle and constant speed).
Applsci 06 00258 g009
Applsci 06 00258 g010 1024

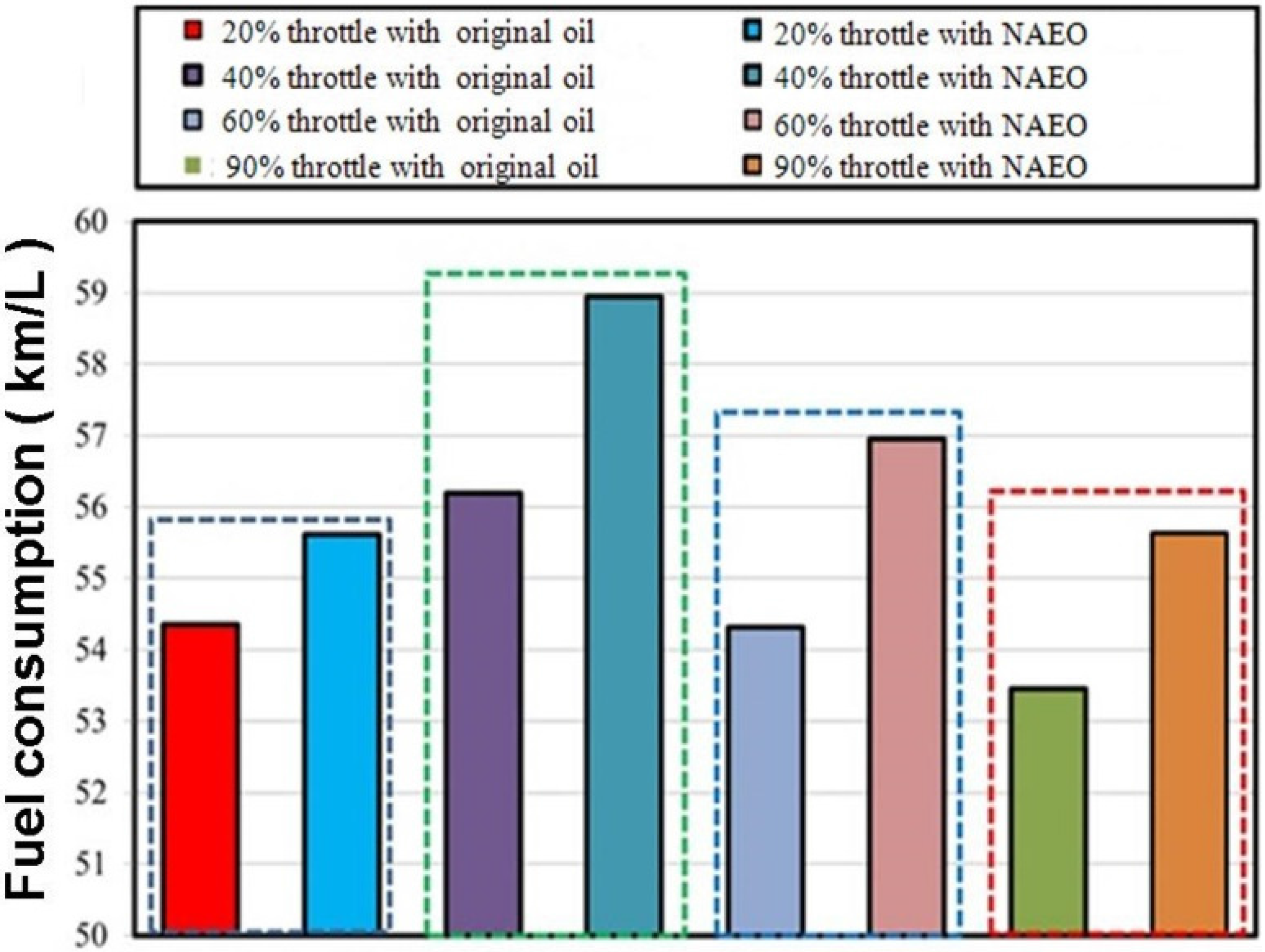

Figure 10. Comparison of fuel consumption between the engine oil and the NAEO (throttle position at 20%, 40%, 60%, and 90%).
