Next Article in Journal
Evaluation of High-Speed Railway Bridges Based on a Nondestructive Monitoring System
Next Article in Special Issue
Research on a Composite Power-Superimposed Ultrasonic Vibrator for Wire Drawing
Previous Article in Journal
Analysis of the Stiffness Ratio at the Interim Layer of Frame-Supported Multi-Ribbed Lightweight Walls under Low-Reversed Cyclic Loading
Previous Article in Special Issue
A Novel Tunable Multi-Frequency Hybrid Vibration Energy Harvester Using Piezoelectric and Electromagnetic Conversion Mechanisms
Open AccessArticle

Effect of Different Heating Process on the Photoluminescence Properties of Perovskite Eu-Doped BaZrO3 Powder

1
Department of Electrical Engineering, Kun-Shan University, No.195, Kunda Rd., Yongkang Dist., Tainan 710, Taiwan
2
Department of Mechanical Engineering, National Kaohsiung University of Applied Science, No. 415 Chien Kung Road, Kaohsiung 807, Taiwan
3
School of Information Engineering, Jimei University, Xiamen 361021, China
4
Department of Chemical and Materials Engineering, National University of Kaohsiung, No. 700 Kaohsiung University Road, Nan-Tzu District, Kaohsiung 811, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editors: Sheng-Yuan Chu and Takayoshi Kobayashi
Appl. Sci. 2016, 6(1), 22; https://doi.org/10.3390/app6010022
Received: 31 October 2015 / Revised: 12 December 2015 / Accepted: 7 January 2016 / Published: 18 January 2016
(This article belongs to the Special Issue Ferroelectric Ceramics)

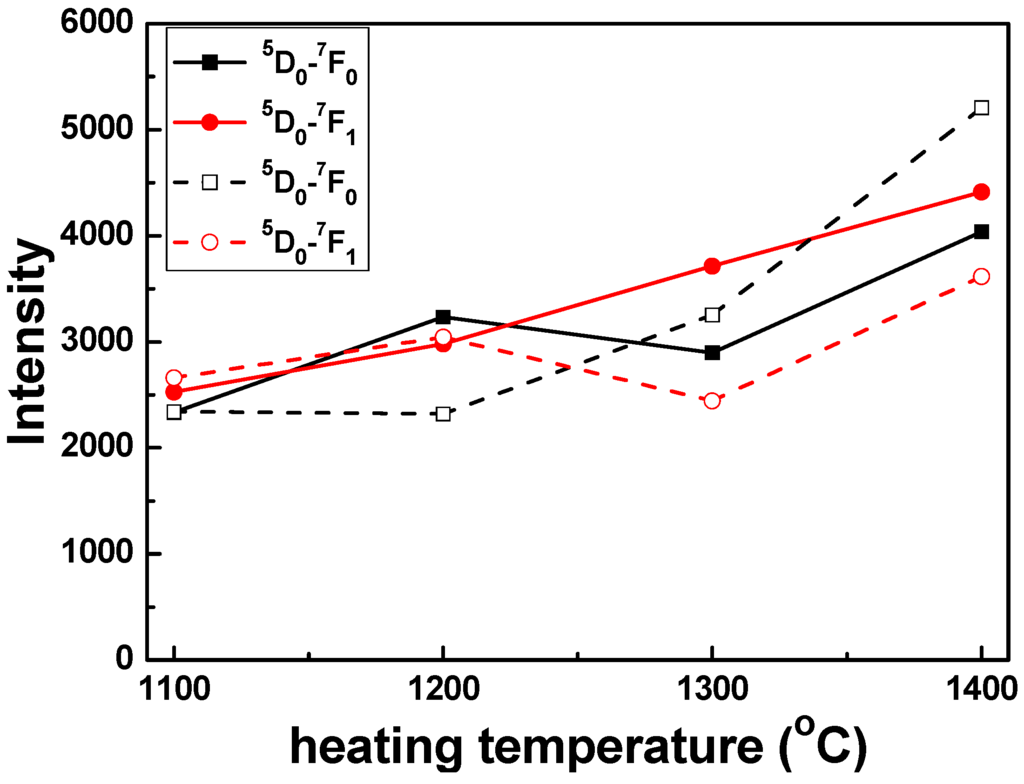

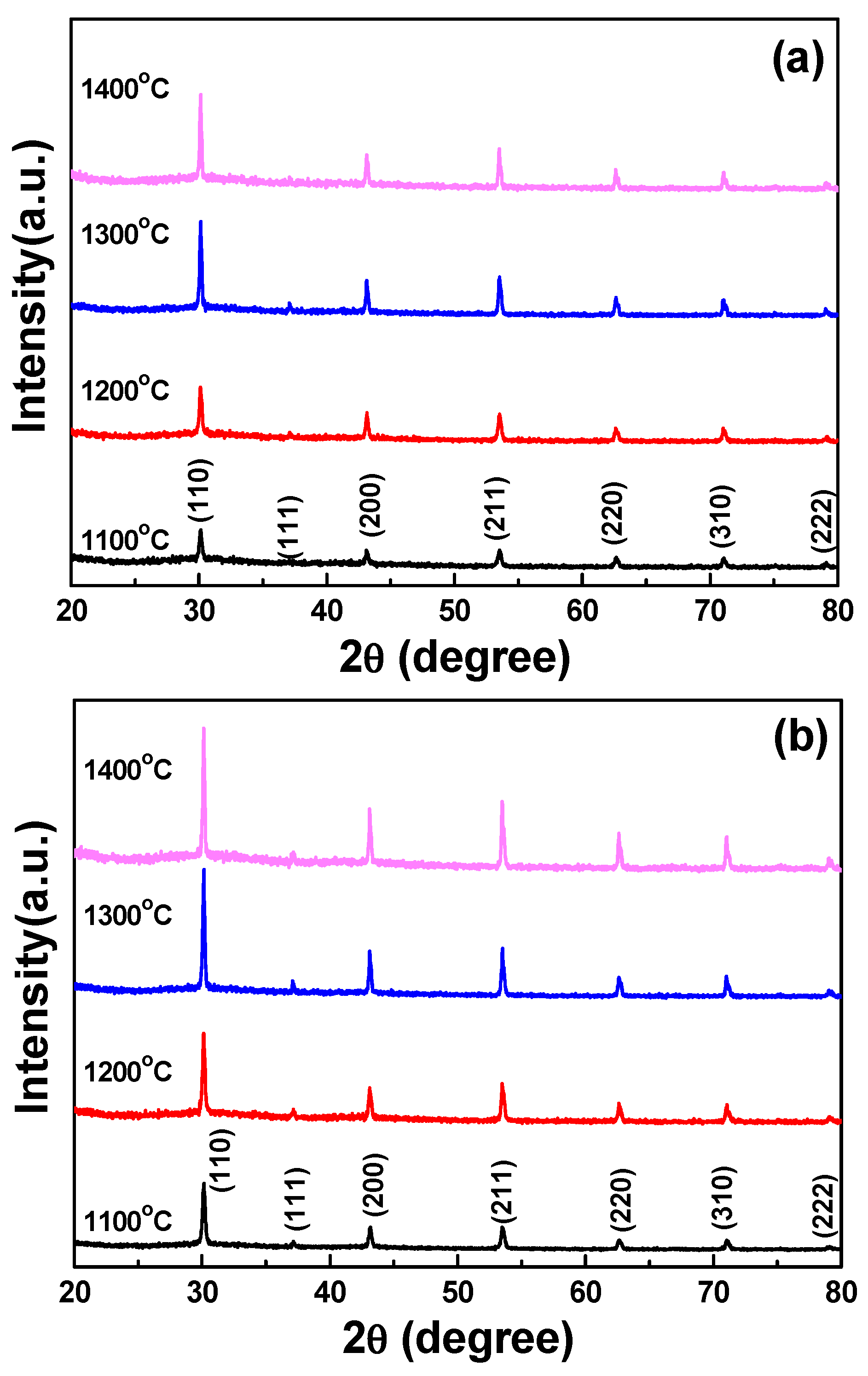

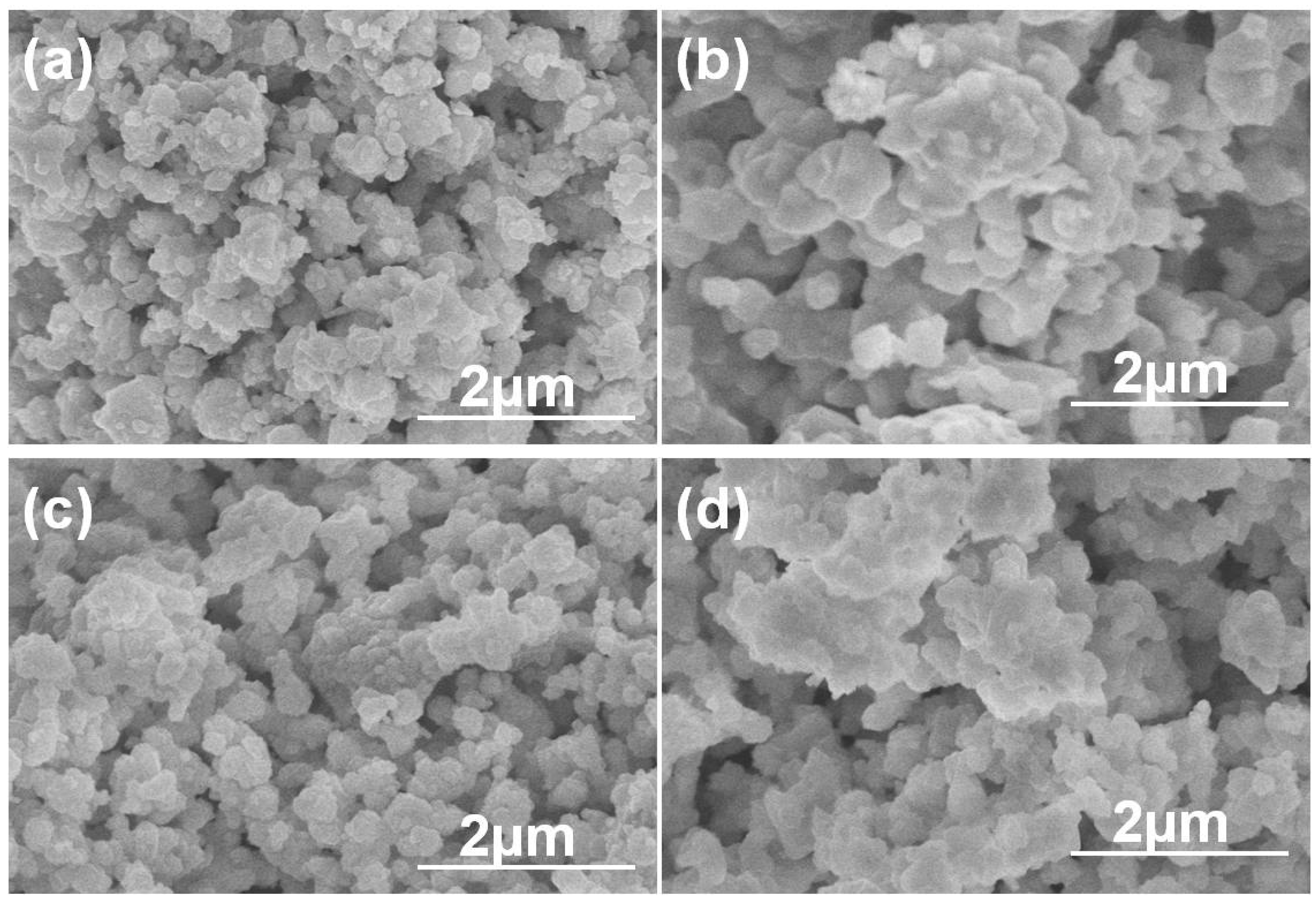

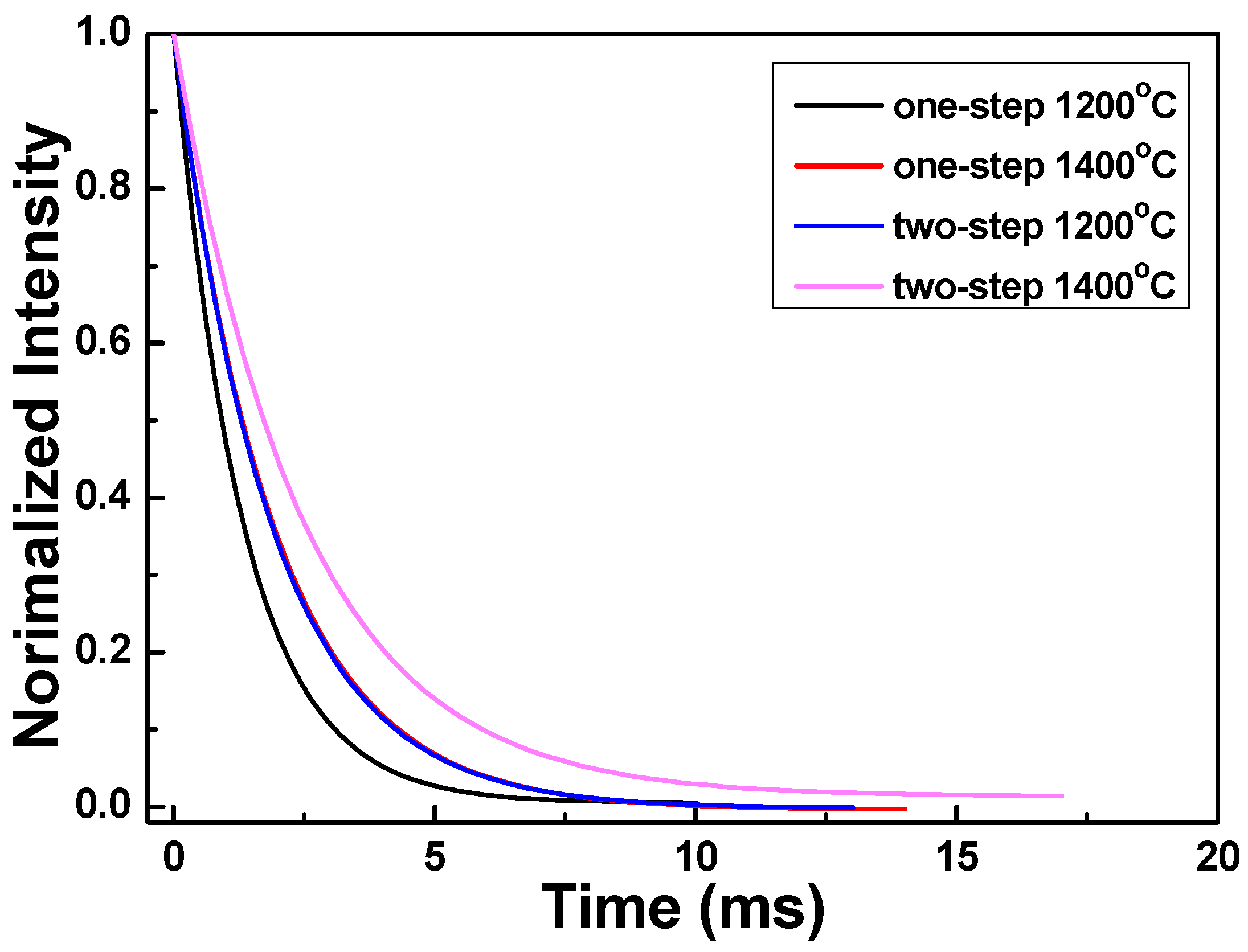

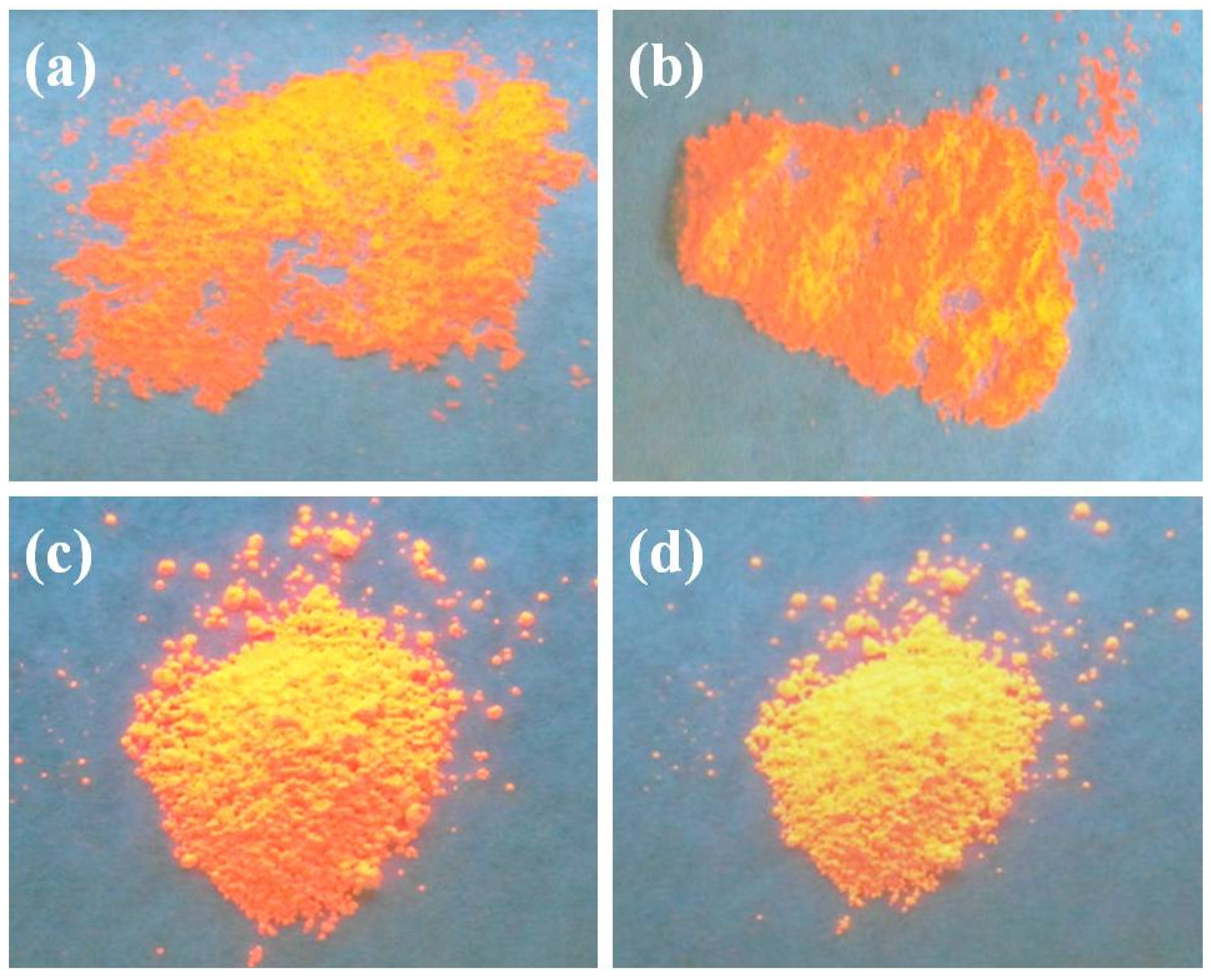

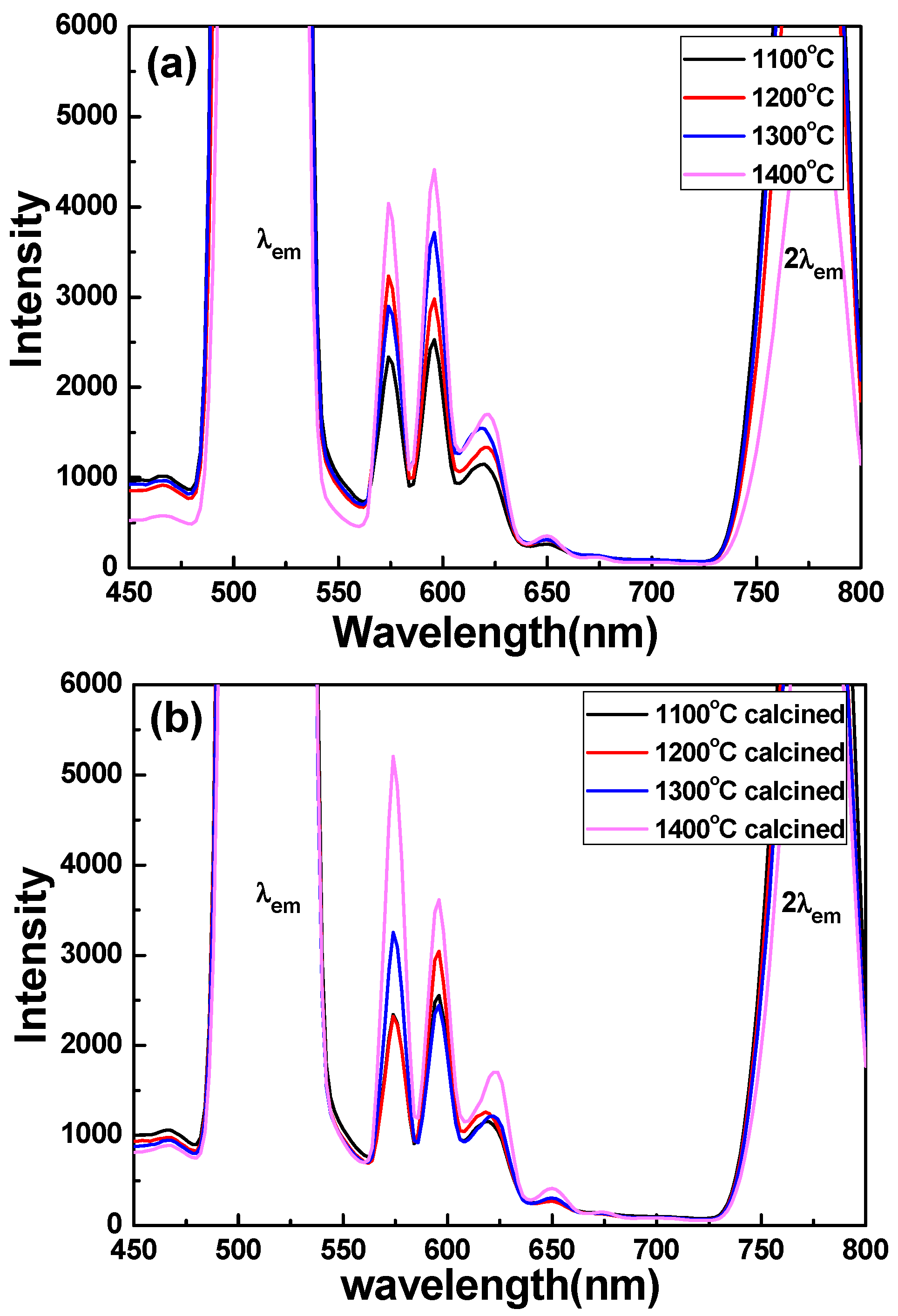

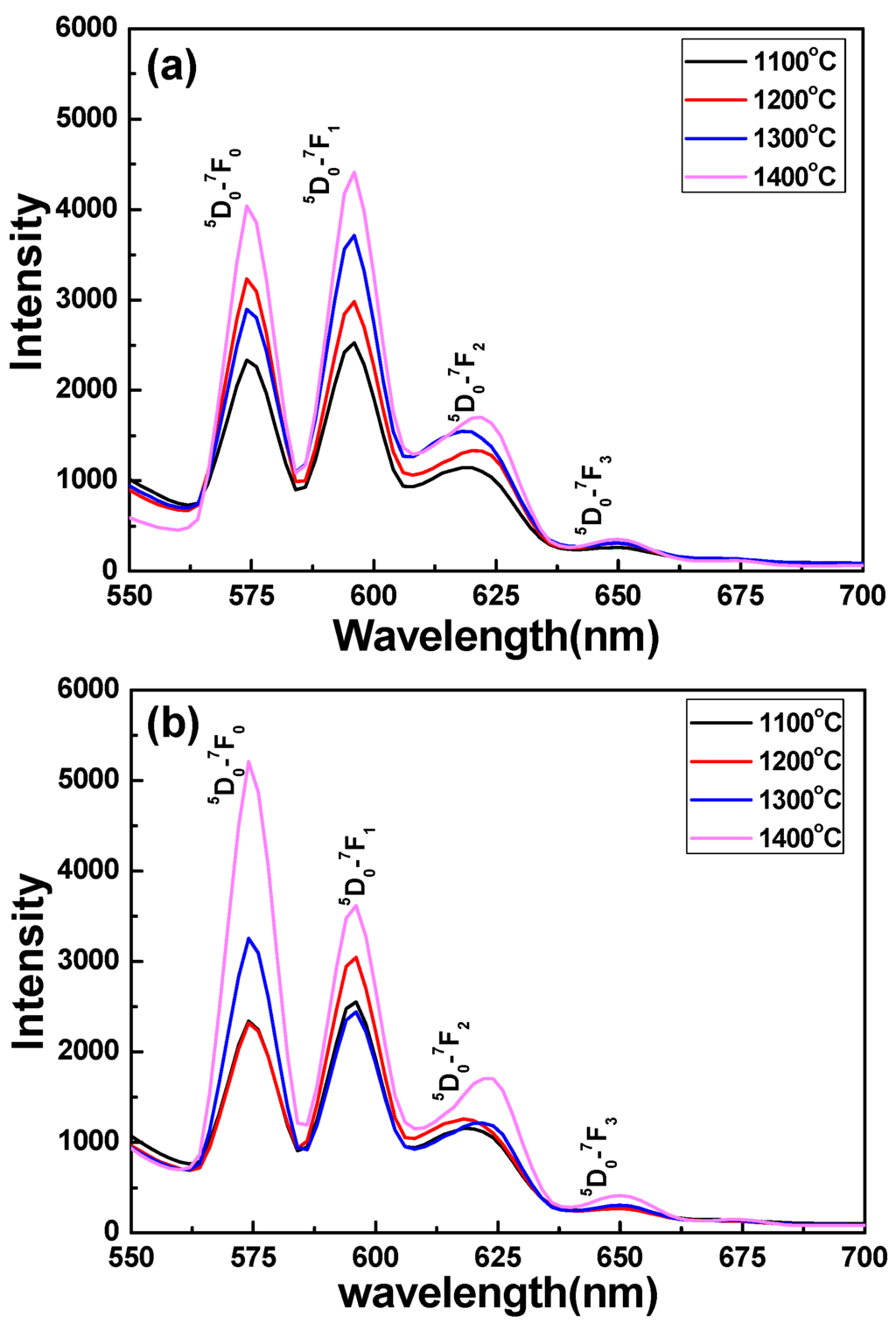

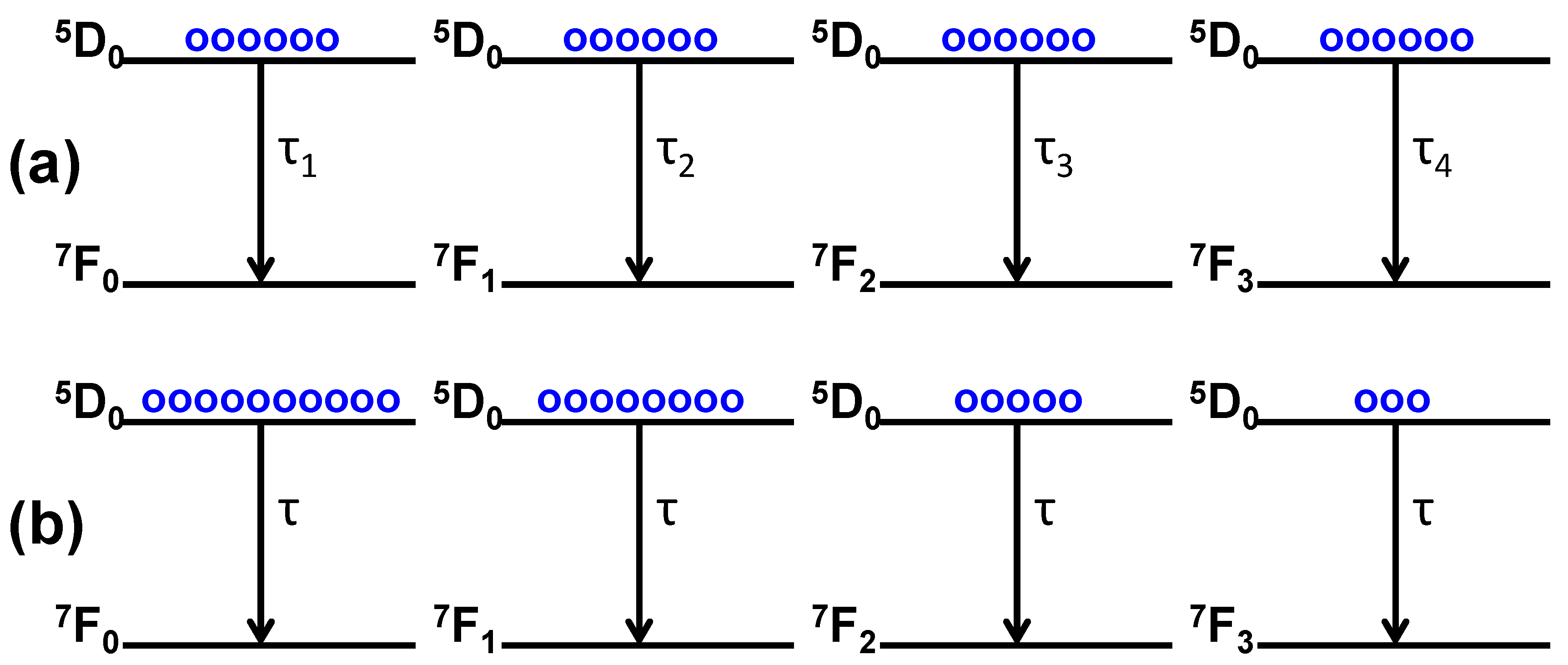

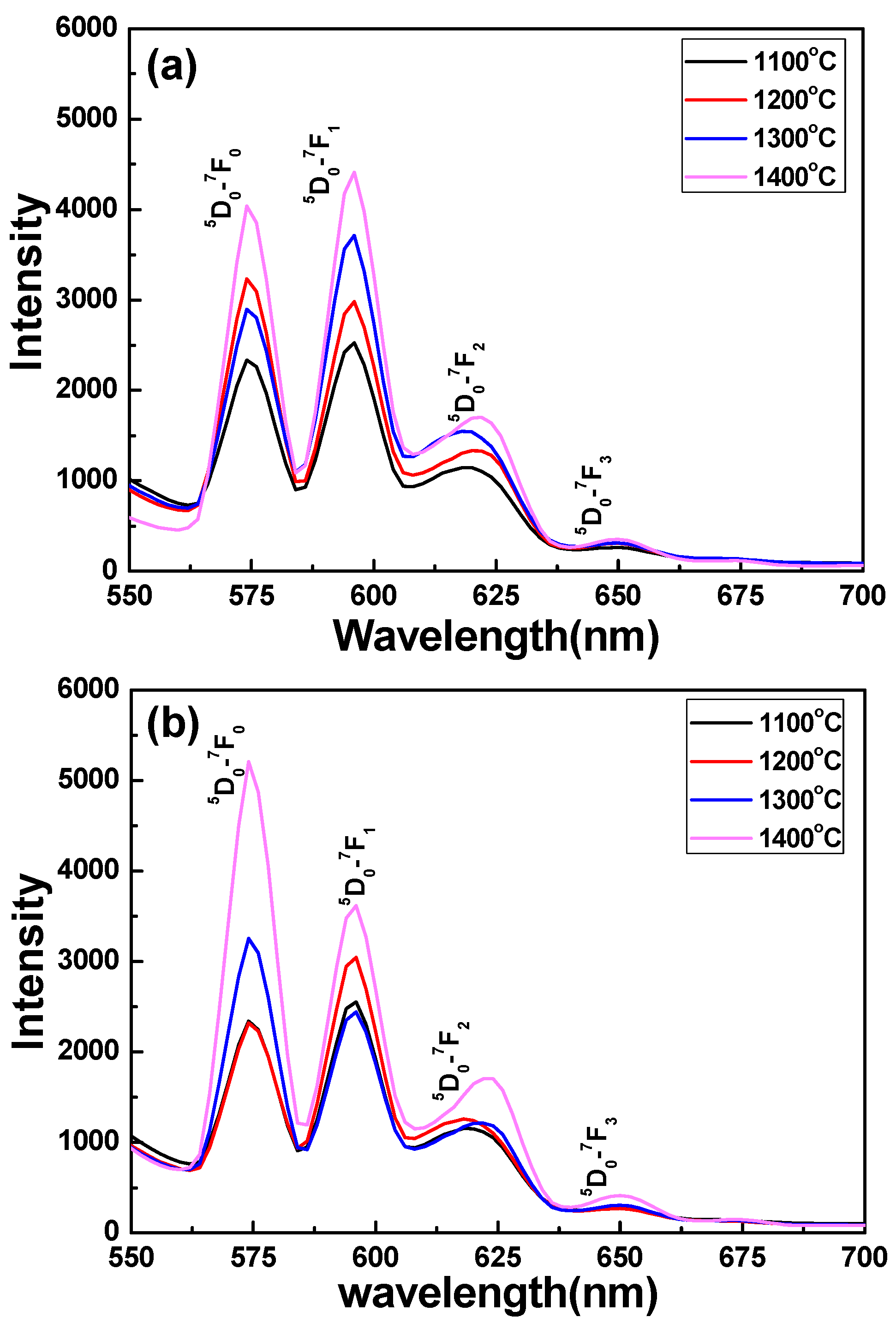

In this study, BaZrO3:Eu0.025 powder was synthesized through the solid-state reaction method with two different heating processes. For the one-step process, the BaZrO3:Eu0.025 powder was heated to 1000 °C–1400 °C for 2 h. For the two-step heating process, the BaZrO3:Eu0.025 powder was pre-heated at 800 °C for 2 h, after being cooled to room temperature and ground, then the powder was heated to 1000 °C–1400 °C again for 2 h. The optimum excitation optical wavelength of BaZrO3:Eu0.025 powders were 271 nm and the maximum intensity of the emission spectrum of BaZrO3:Eu0.025 powders increased with increasing heating temperature. The all-heated BaZrO3:Eu0.025 powders showed two strong orange emission bands peaking at the wavelengths of 574 and 596 nm and two weak emission bands peaking at 620 and 650 nm. As the heating temperatures were 1300 °C and 1400 °C, the maximum intensity of one-step heating BaZrO3:Eu0.025 powders appeared at the 5D07F0 (574 nm) and the maximum intensity of one-step heating BaZrO3:Eu0.025 powders appeared at the 5D07F1 (596 nm) transitions of Eu3+ ions, respectively. View Full-Text
Keywords: BaZrO3 phosphor; Different heating processes; Europium; Photoluminescence property BaZrO3 phosphor; Different heating processes; Europium; Photoluminescence property
Show Figures

Graphical abstract

MDPI and ACS Style

Chen, K.-N.; Hsu, C.-M.; Liu, J.; Chiu, Y.-T.; Yang, C.-F. Effect of Different Heating Process on the Photoluminescence Properties of Perovskite Eu-Doped BaZrO3 Powder. Appl. Sci. 2016, 6, 22.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
