Research of Integrity and Authentication in OPC UA Communication Using Whirlpool Hash Function
Abstract
:1. Introduction
2. Overview of Whirlpool Hash Function

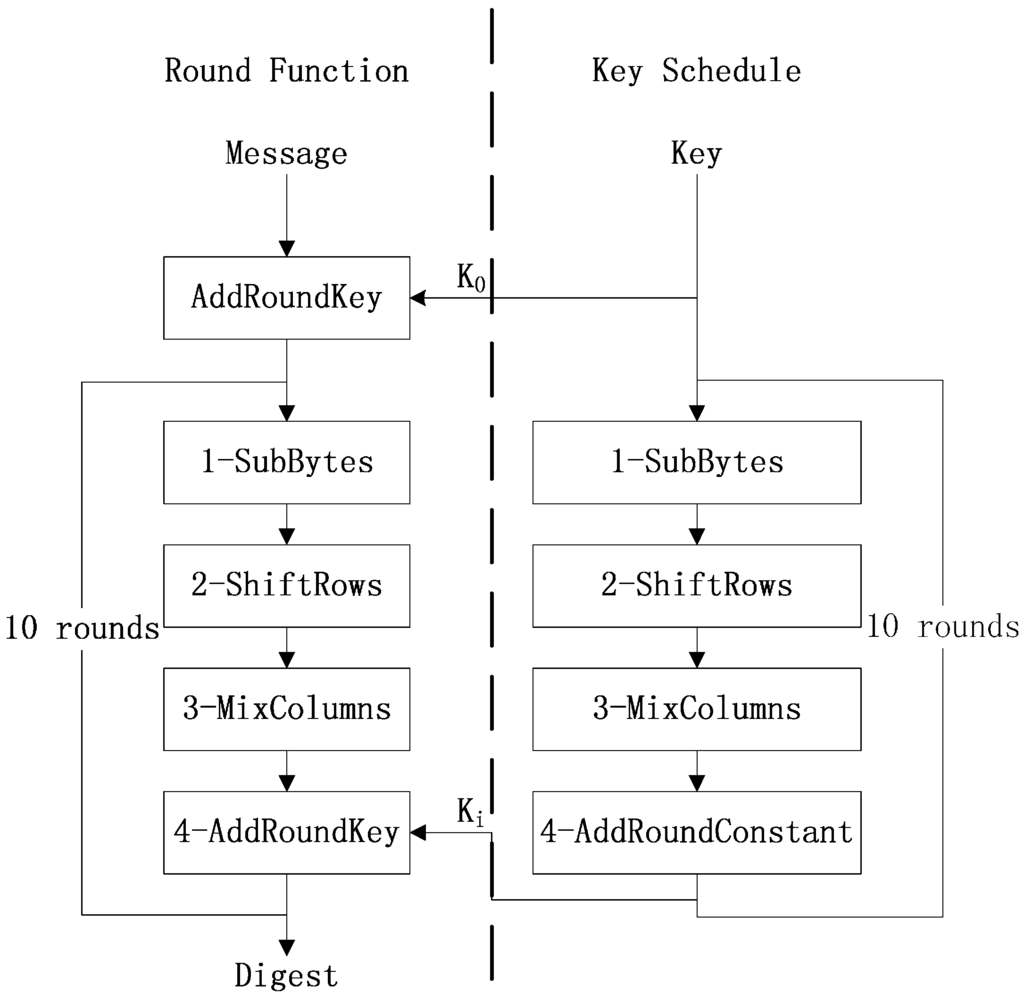

2.1. Principle of Whirlpool
- (1)
- Append padding bits. The message is padded so that its length is congruent to 256 modulo 512, that is to say, the length of padded message is some times of 512 minus 256, and the reserved 256 bits will be used in step 2. The pattern of padding is the same, it consists of a single 1-bit followed by the necessary of 0-bits.
- (2)
- Append length. The padded message is appended by a block of 256 bits representing the length of message before the padding. After that the message m can be divided into t 512-bit blocks m1, ⋯, mt, each block can be treated as an 8 × 8 byte array called hash state.
- (3)
- Substitute bytes. This is a non-linear byte substitution, each byte of a state is substituted individually according to a table called S-box.
- (4)
- Shift columns. The shift column transformation is a simple cyclical permutation performed against a state column by column except column 0. For column i, it is shifted downwards by i − 1 bytes.
- (5)
- Mix rows. In this step, each row of a state array is treated as a polynomial a(x) over Galois field GF(28), a(x) is multiplied by a fixed polynomial c(x) modulo x8 + x4 + x3 + x2 + 1. The polynomial c(x) is expressed in the following formula in the designing of Whirlpool (the factors are expressed in hexadecimal numbers).
- (6)
- Add round key. This step is a simple bitwise XOR calculation between the state and round key. The round key is derived from a seed key and the length of round key is equal to the block size. The key schedule is same as the round function.
2.2. Features of Whirlpool
2.2.1. Adoption of AES-Like Structure to Construct Compression Function
2.2.2. Using Miyaguchi-Preneel Scheme to Construct Hash Function
2.2.3. Convenient for Hardware Implementation
2.3. Comparison between Whirlpool and SHA-1

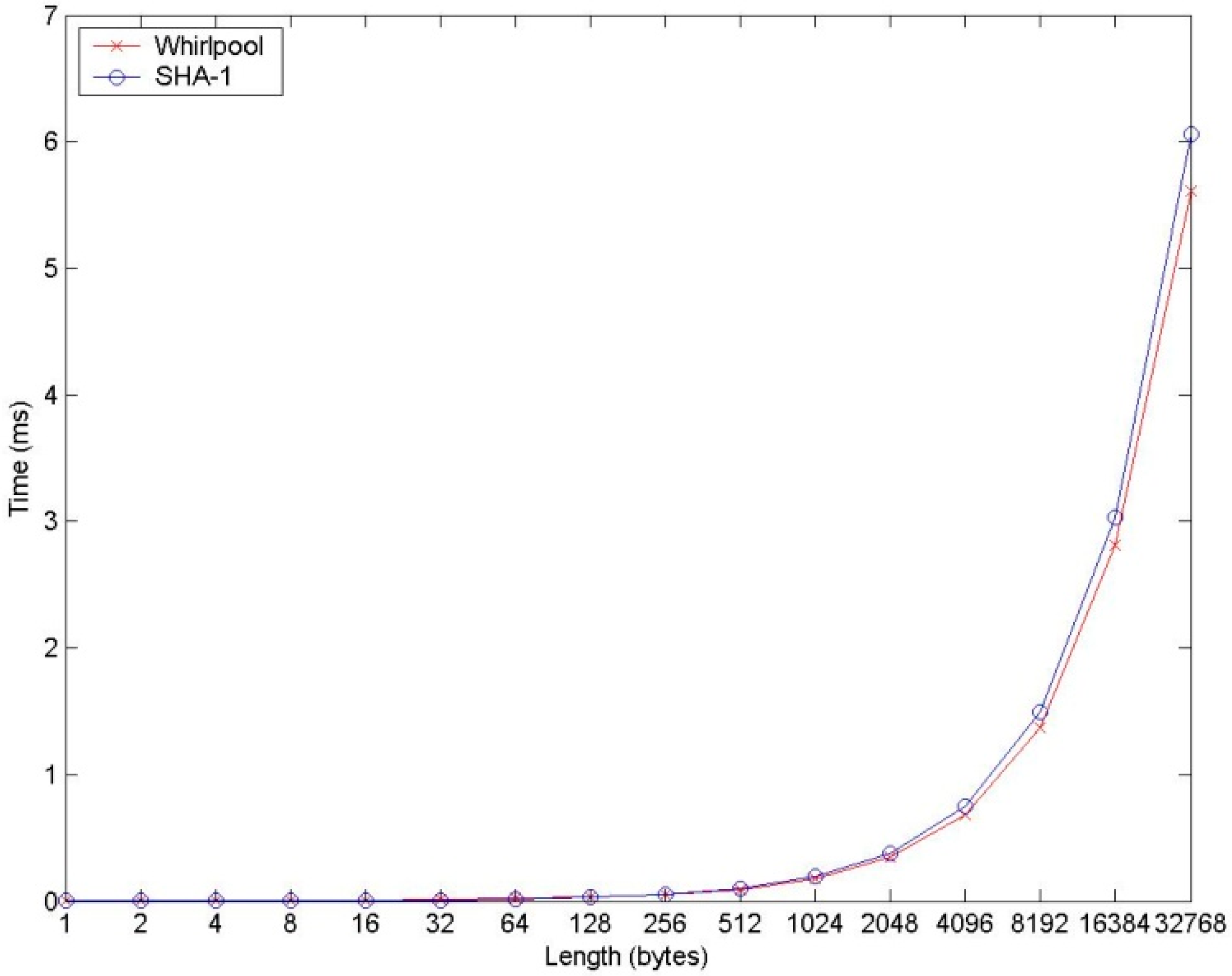

2.3.1. Computation Speed
2.3.2. Security
3. Security Communication Model of OPC UA Based on Whirlpool

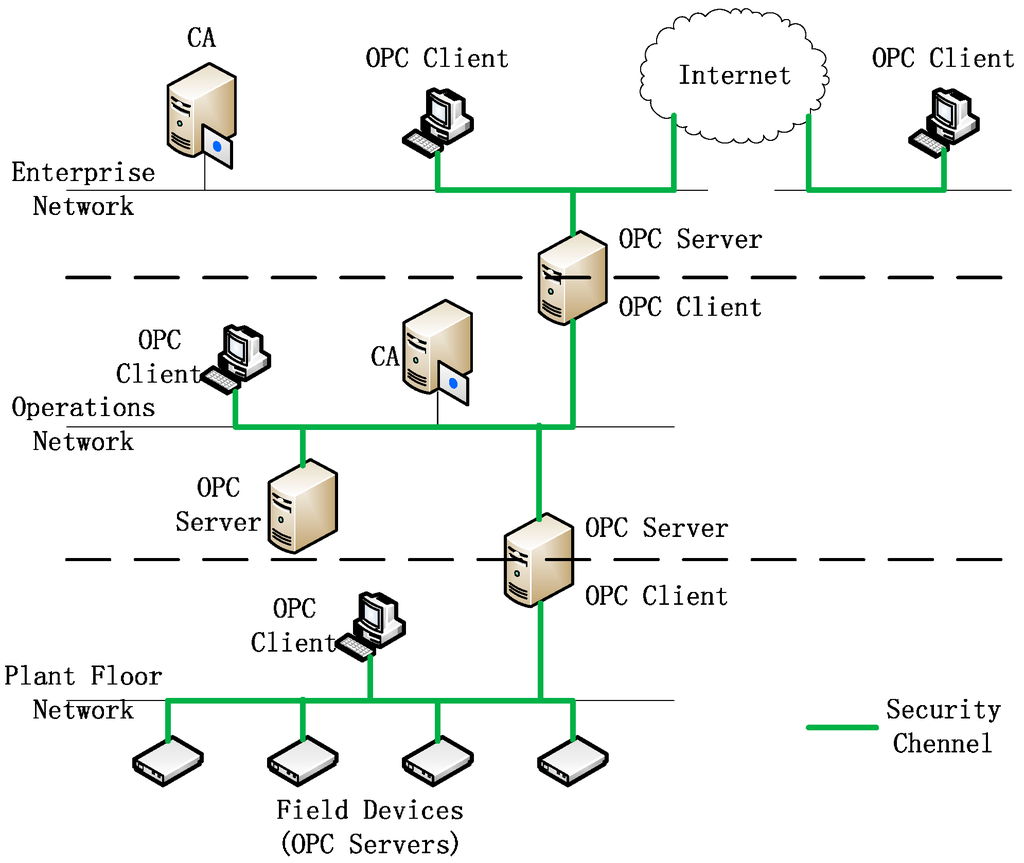

3.1. Architecture of Model
3.2. Procedure of Security Channel Establishment

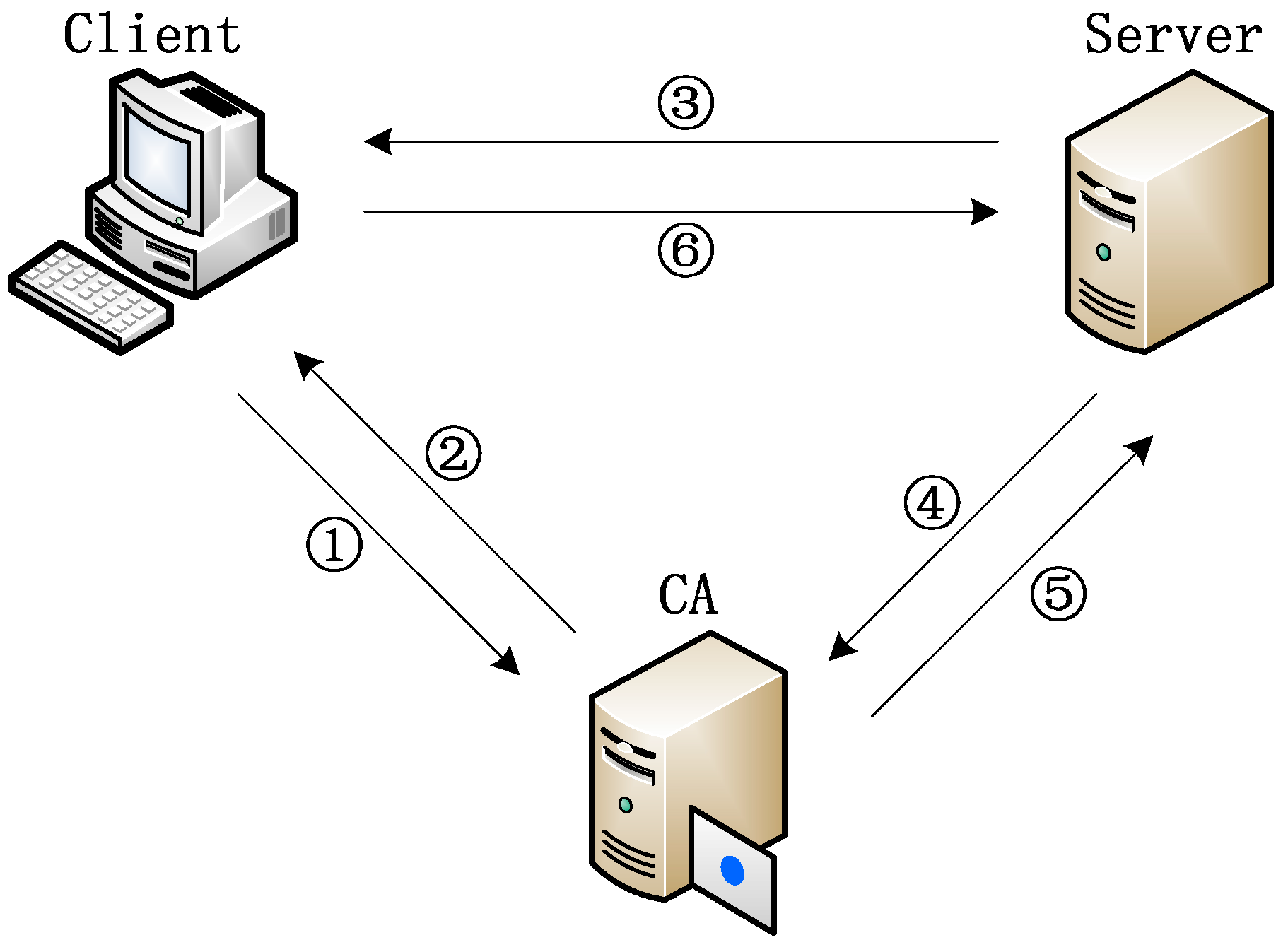

- (1)
- Before building a security channel, the client requests CA to authenticate whether the server is legal. The contents of authentication include CA signature, issue and expiry date, and CA revocation list.
- (2)
- The CA returns the result of authentication to the client.
- (3)
- The client requests the server to build security connection. The client provides its certificate and a nonce to the server. The data to be sent are signed with the private key of the client, and then encrypted by the public key of the server.
- (4)
- After the connection request is received by the server, the server requests CA to authenticate the client. The contents of authenticate also include CA signature, issue and expiry date, and CA revocation list.
- (5)
- The CA returns the result of authentication to the server.
- (6)
- After the client is authenticated, the server responses the connection request from the client. The server sends a nonce, security token, and the lifetime of the token to the client. The contents to be sent is encrypted by the private key of the server, and then encrypted by the public key of the client. After that the client and the server can communicate with each other through the security channel. In the subsequent communication, the receiver of the message calculates the digest of the received message using Whirlpool, then compares it with the digest in the signature to check whether the message is intact or not.

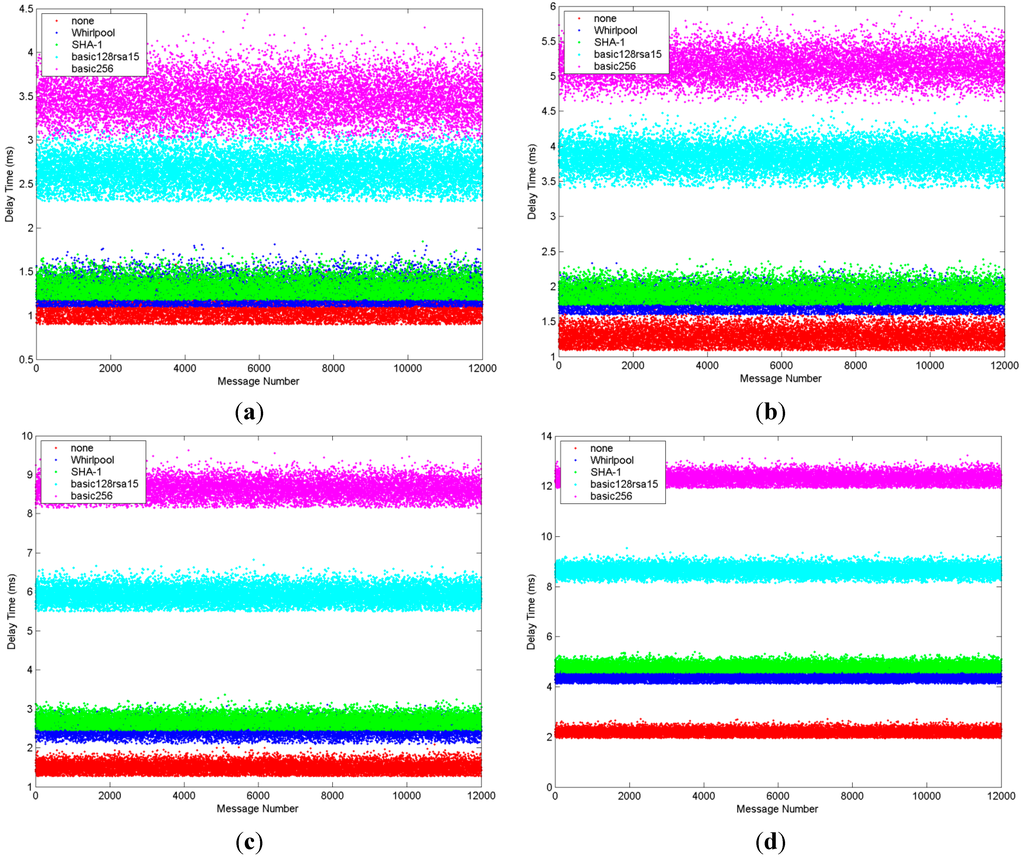

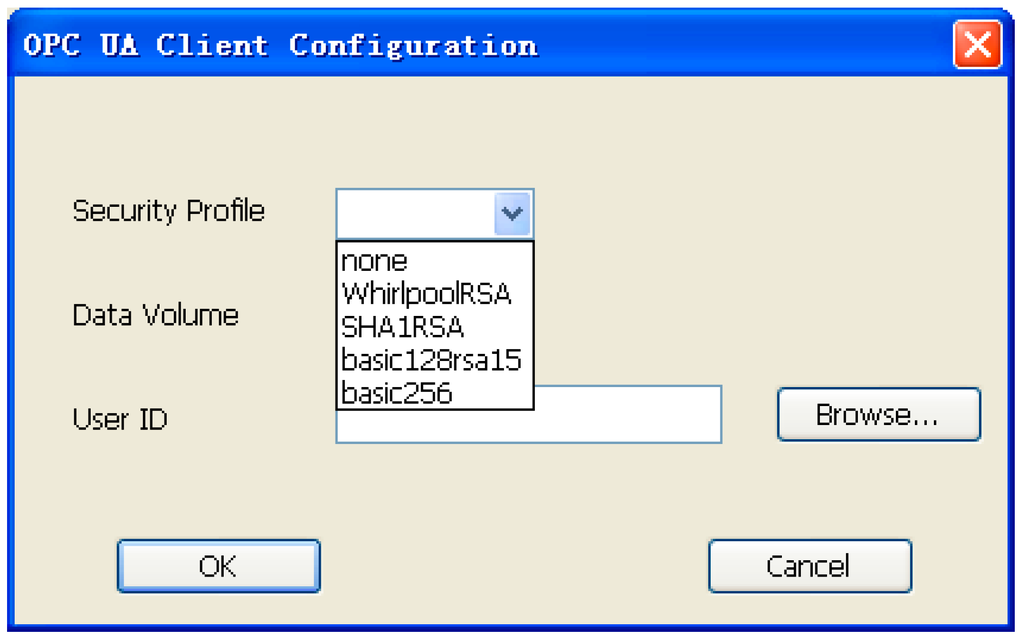

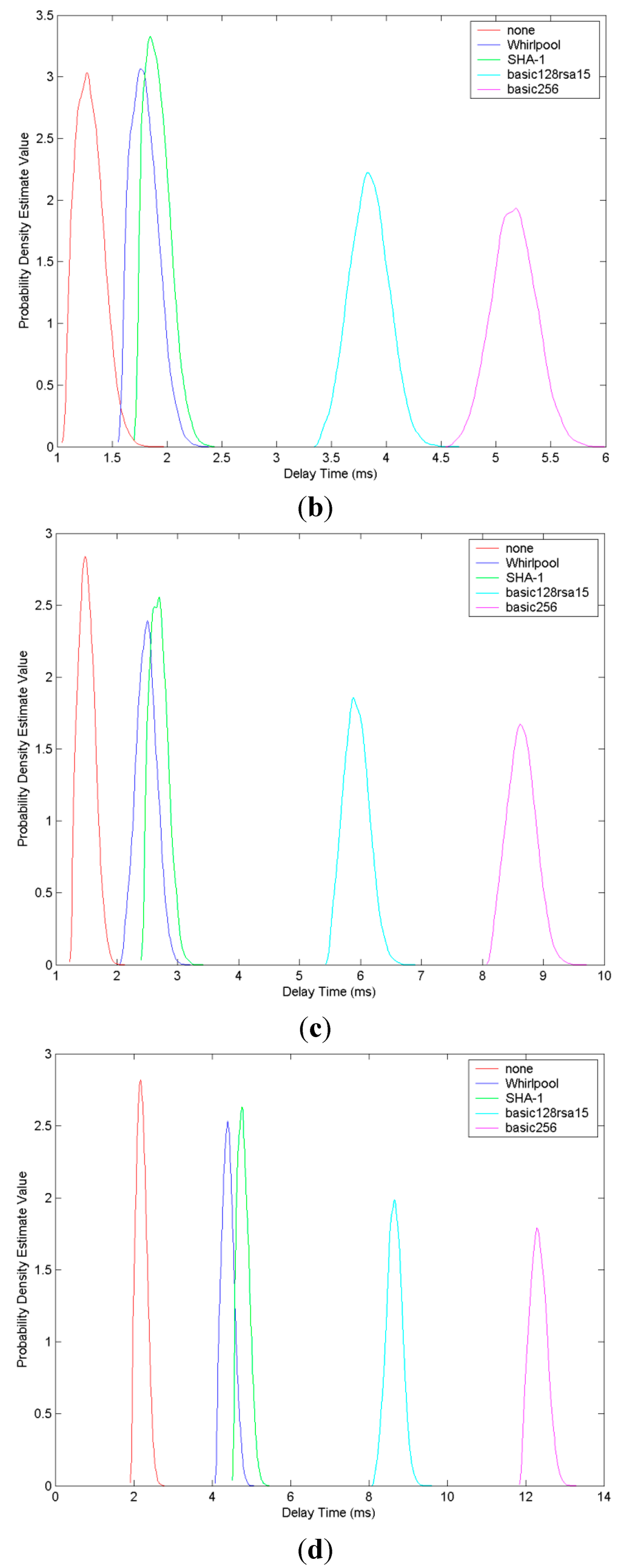

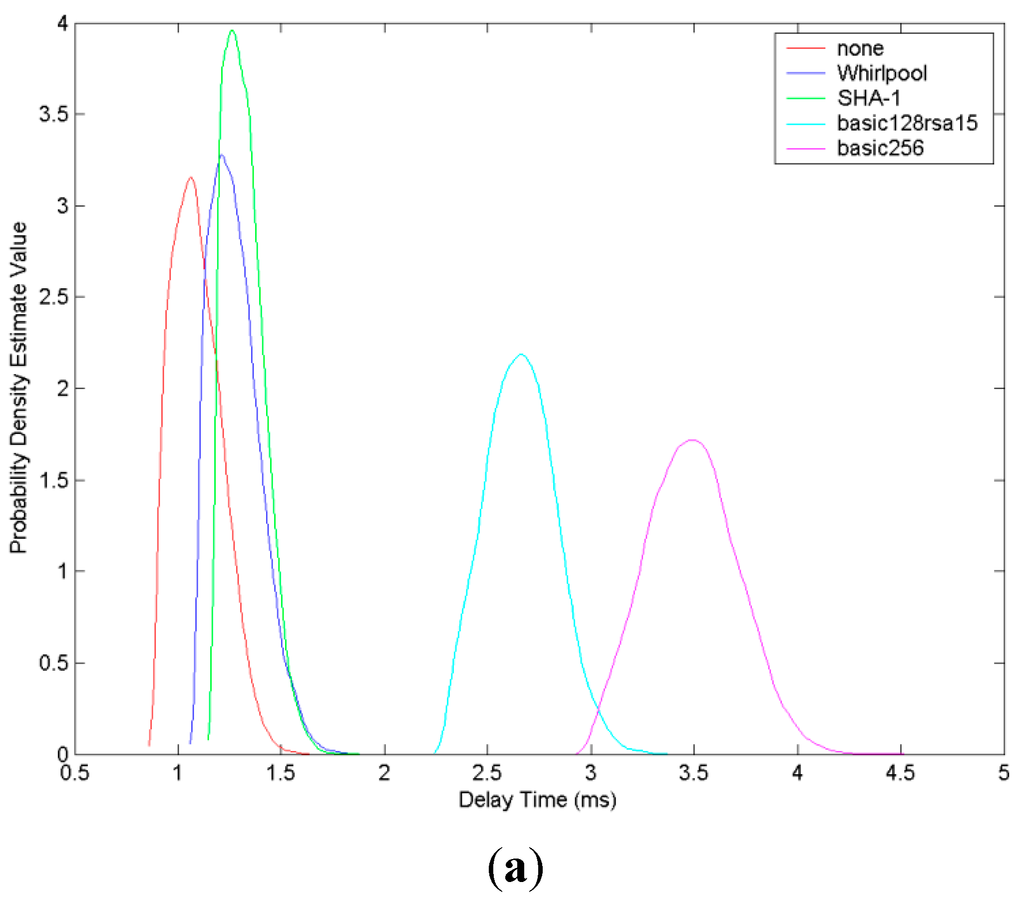

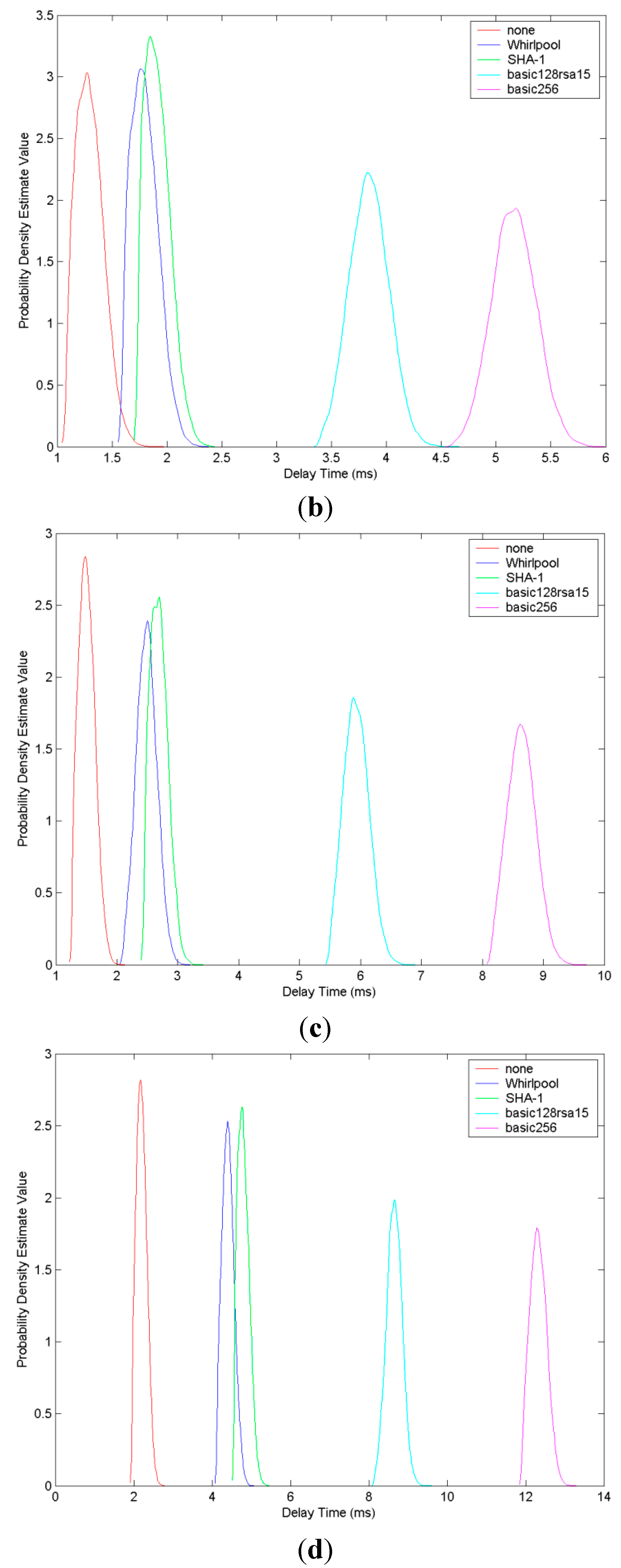

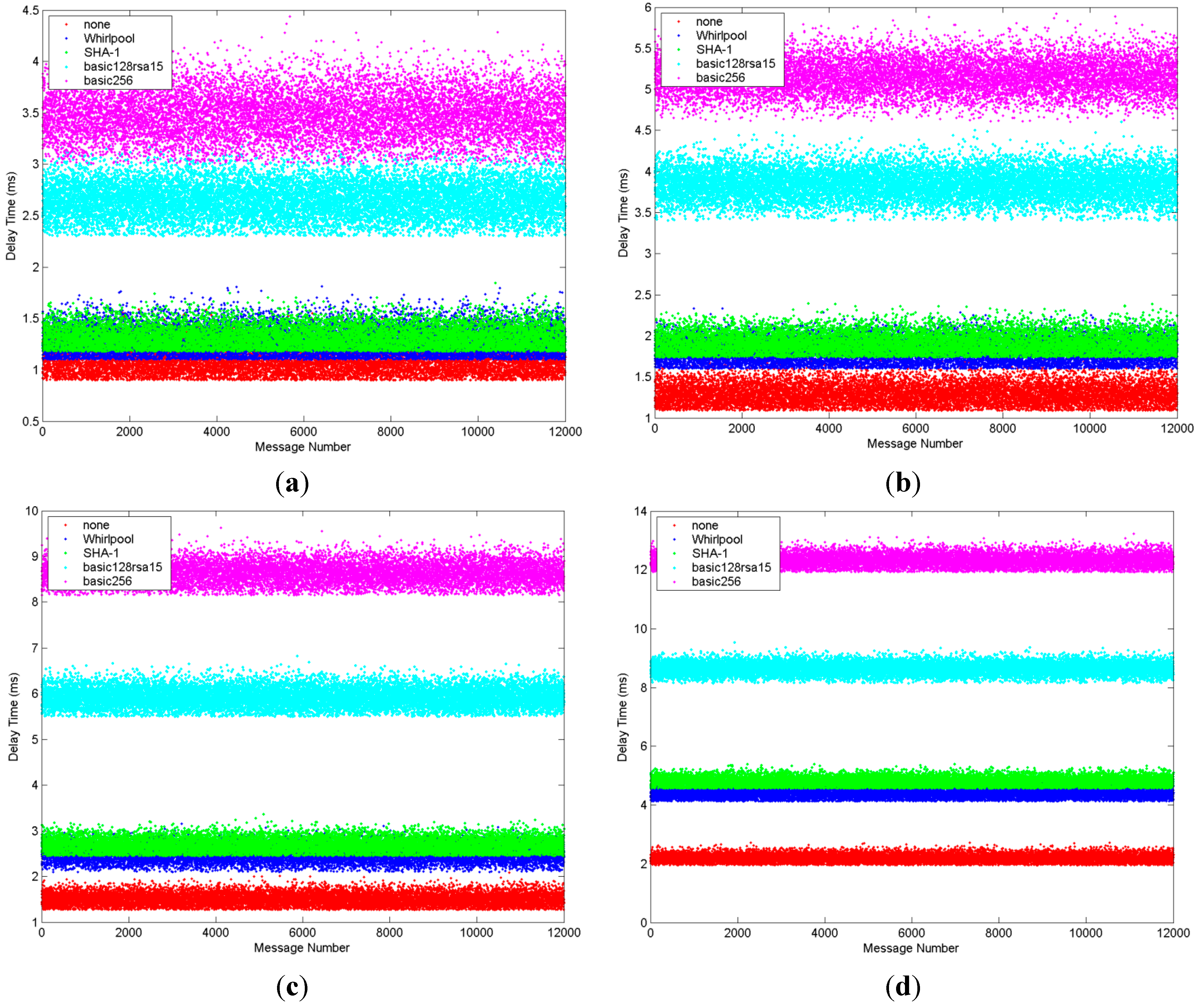

4. Experiment and Analysis
Profile | 1024 Bytes | 4096 Bytes | 8192 Bytes | 16384 Bytes |
---|---|---|---|---|
none | 1.052 ms | 1.265 ms | 1.684 ms | 2.179 ms |
WhirlpoolRSA | 1.215 ms | 1.736 ms | 2.485 ms | 4.387 ms |
SHA1RSA | 1.268 ms | 1.859 ms | 2.659 ms | 4.753 ms |
basic128rsa15 | 2.648 ms | 3.839 ms | 5.914 ms | 8.647 ms |
basic256 | 3.473 ms | 5.164 ms | 8.627 ms | 12.304 ms |
5. Conclusions
