Crystallization of Ag Nanoparticles in Borate–Bismuth Glass and Its Influence on Eu³⁺ Luminescence

Abstract

The aim of this study was to investigate the possibility of Ag nanoparticle crystallization in B₂O₃–Bi₂O₃ glass using a heat treatment method and to investigate the possible influence of the obtained nanoparticles on the emission intensity of Eu³⁺ ions. Borate–bismuth glasses with different B₂O₃:Bi₂O₃ molar ratios of 50:50, 60:40 and 70:50 with Ag and Eu³⁺ ions were successfully synthesized. The structure of the glasses was studied using XRD and FTIR methods. The XRD results exhibited a characteristic amorphous halo, confirming the absence of long-range order in the samples. The glass transition temperatures of various compositions, required to select the annealing temperature, were measured using DTA analysis. The strong maximum in the UV–Vis spectrum of the sample with the highest Bi₂O₃ content clearly indicated the presence of Ag nanoparticles in the glass. Moreover, a color change was observed for this sample, from slightly yellow to red. The presence of Ag nanoparticles was further confirmed via TEM and XPS studies. However, with a high content of Ag nanoparticles in the matrix, their positive effect on luminescence intensity was not observed. The obtained results show that B₂O₃–Bi₂O₃ glass and glass ceramics, with Ag nanoparticles and rare-earth (Re) ions, could be considered as a new phosphor for light-emitting diodes (LEDs).

1. Introduction

Glasses doped with noble metal nanoparticles are a fascinating group of materials. The presence of nanoparticles in the glass matrix can significantly affect the optical properties of a material [1]. One of the most known effects of adding nanoparticles is the ability to control the optical properties of the material or even enhance the luminescence properties of rare-earth (Re) ions, which can lead to applications, e.g., in LEDs.

The presence of Ag nanoparticles in the glass matrix can lead to the occurrence of localized surface plasmon resonance (LSPR) phenomenon [2]. LSPR occurs when light interacts with nanoparticles smaller or similar in size to the incident light wavelength. As a result, the electrons of the conduction band oscillate coherently, creating surface plasmons that propagate along the metal–insulator boundary as electromagnetic waves [3]. The LSPR results in enhancement of the electric field around the nanoparticle and its optical absorption, which is maximal at the plasmon resonant frequency. If Re ions are embedded in glass, and some of their energy levels are resonant with the plasmons, an enhancement of their luminescence properties can occur [4].

The formation of Ag nanoparticles can be obtained via a controlled crystallization process of glass using adequate heat treatment (HT) parameters, such as time and temperature [5]. The crystallization of nanoparticles in the glass matrix can occur slightly above the glass transition temperature (Tg) but lower than the first crystallization peak (Tc). In this temperature region, it is likely that silver ions can easily diffuse through glass, changing its valence state due to the one-step reduction process (Ag⁺ + 1e⁻ → Ag⁰), and form nanoparticles via Ostwald ripening [3,5]. The formation of Ag nanoparticles in an amorphous matrix through thermal annealing has been described, in various glass compositions, such as Bi₂O₃–SiO₂–Ga₂O₃–Tm₂O₃–AgNO, TeO₂–BaO–Bi₂O₃, bismuth–germanate and K₂O–B₂O₃–Sb₂O₃ glasses [5,6,7,8].

The LSPR phenomenon, which enhances the luminescence properties of Re ions embedded in glass matrices, has been observed in various types of glasses, e.g., Er³⁺/Yb³⁺ co-doped bismuth–germanate glasses containing silver NPs, 73TeO₂–4BaO–3Bi₂O₃–2Eu₂O₃–Ag and Dy³⁺ doped boro-tellurite glasses with Ag nanoparticles [9,10]. It should be noted that in the case of glasses containing bismuth, one aspect can affect the formation of Ag nanoparticles. Eutectic transition has been reported between Ag and Bi₂O₃ [11]. According to the phase diagram by Assel et al., eutectic transformation can occur at around 687 ⁰C, which is lower than the B₂O₃–Bi₂O₃ glass melting point [12]. The formation of (Bi₂O₃–Ag) eutectic was observed in Bi₂O₃–Ag bulk composite [13].

Borate–bismuth glass seems to be a good host for Ag nanoparticles. Boron oxide is a commonly used glass former in various types of commercial glasses with the ability to form glass in a wide range of Bi₂O₃ additions (20–80 mol% Bi₂O₃) [14,15]. The combination of boron and bismuth oxides results in their excellent optical properties, including a high refractive index and wide transparency for both visible and IR light [14,16,17]. Borate–bismuth glasses are also known for their good solubility for rare-earth (Re) ions, which makes them excellent hosts for them [18]. Moreover, they have high chemical and physical durability. Our prior experience with borate glasses demonstrates their efficacy as a matrix for luminescence applications when doped with bismuth oxide. So far, SrF₂ nanoparticles have been synthesized in B₂O₃–Bi₂O₃–Eu³⁺ glass using the heat treatment method, leading to enhanced luminescence of Eu³⁺ ions [19]. The enhancement of rare-earth ion luminescence was also achieved via modification of the basic borate–bismuth glass with AlF₃ while maintaining the transparency of the glass [20,21]. However, doping with Ag NPs has been successfully employed in fluoroborate B₂O₃–CaF₂ glasses with Eu³⁺ ions [22]. An enhanced luminescence caused by plasmon resonance was then observed. Silver nanoparticles were also successfully synthesized using the heat treatment method in sodium borate glasses doped with Er³⁺ ions [23]. The presence of Ag nanoparticles resulted in a significant enhancement of photoluminescence properties owing to the local field generated by Ag NPs. The suitability of borate glasses as a matrix for Ag nanoparticles was further confirmed by the results obtained for alkali borate-based glasses embedded with Nd³⁺ and silver nanoparticles [24]. The photoluminescence intensity spectra were enhanced due to the presence of silver nanoparticles.

The aim of this study was to investigate the possibility of Ag nanoparticle crystallization in B₂O₃–Bi₂O₃ glass using a heat treatment method and to investigate the possible influence of the obtained nanoparticles on the emission intensity of Eu³⁺ ions. Studies on the synthesis of Ag nanoparticles refer to matrices where B₂O₃ is either one of the components in multicomponent glass or is associated with Ge₂O₃ or Si₂O₃. In this work, bismuth oxide was used as a component of borate glass. Due to the existence of eutectic between Bi₂O₃ and Ag, it should have a positive effect on the formation of nanoparticles in the matrix. To the best of our knowledge, there is no information on the synthesis of Ag nanoparticles in two-component B₂O₃–Bi₂O₃ glass. Due to the interesting properties of the proposed glass ceramics, borate–bismuth glasses with Ag nanoparticles are promising materials for Re ion luminescence enhancement and therefore for optical applications of such a material.

2. Experimental Section

For the purpose of silver and europium doping, three basic types of bismuth–borate glass matrices were proposed, with B₂O₃:Bi₂O₃ molar ratios of 50:50 (BBO(50:50)), 60:40 (BBO(60:40)) and 70:50 (BBO(70:30)). To such compositions, 1 mol% Ag and 0.5 mol% Eu₂O₃ (relative to the total composition of Bi and B) were added. The nominal compositions are reported in

Table 1. Batch compositions (mol%) of the studied glasses.

Sample	B2O3	Bi2O3	Ag	Eu2O3
BBO(50:50)	50	50	-	-
BBO(60:40)	60	40	-	-
BBO(70:30)	70	30	-	-
BBO(50:50) + Ag	49.5	49.5	1	-
BBO(60:40) + Ag	59.5	39.5	1	-
BBO(70:30) + Ag	69.5	29.5	1	-
BBO(50:50) + Ag + Eu	49.25	49.25	1	0.5
BBO(60:40) + Ag + Eu	59.25	59.25	1	0.5
BBO(60:40) + Ag + Eu	69.25	29.25	1	0.5

. Glasses were synthesized using conventional melt-quenching technique. Well-mixed starting raw materials (H₃BO₃, Bi₅OH(OH)₉(NO₃)₄, Eu(NO₃)₃ and AgNO₃) were melted in a porcelain crucible at 850 °C for 15 min. Afterward, the melts were poured onto a steel hot plate (~250 °C) and pressed by another plate immediately; they were then cooled down to room temperature. The as-prepared glasses were transparent, with a slightly yellow tint (Figure 1).

To investigate the formation of Ag nanoparticles in the glassy matrix, samples were annealed at 480 °C for 5 h in an air atmosphere. The interval was selected based on differential thermal analysis (DTA) studies, which were performed as follows.

Netzsch Simultaneous Thermal Analyzer STA 449 F1 Jupiter^® (Netzsch, Selb, Germany) equipment was utilized for the analysis, with samples placed in a covered alumina crucible (sample mass ~50 mg). The measurements were conducted in a synthetic air atmosphere at a controlled heating rate of 10 K/min. Calibration was performed to account for buoyancy effects, ensuring accurate thermal analysis for each sample within the temperature range of 45 °C–600 °C. Based on the collected data, the key thermal parameters, including glass transition temperature (Tg) and temperature at the beginning of the crystallization process (Tx) (the onset of the exothermic peak), were determined.

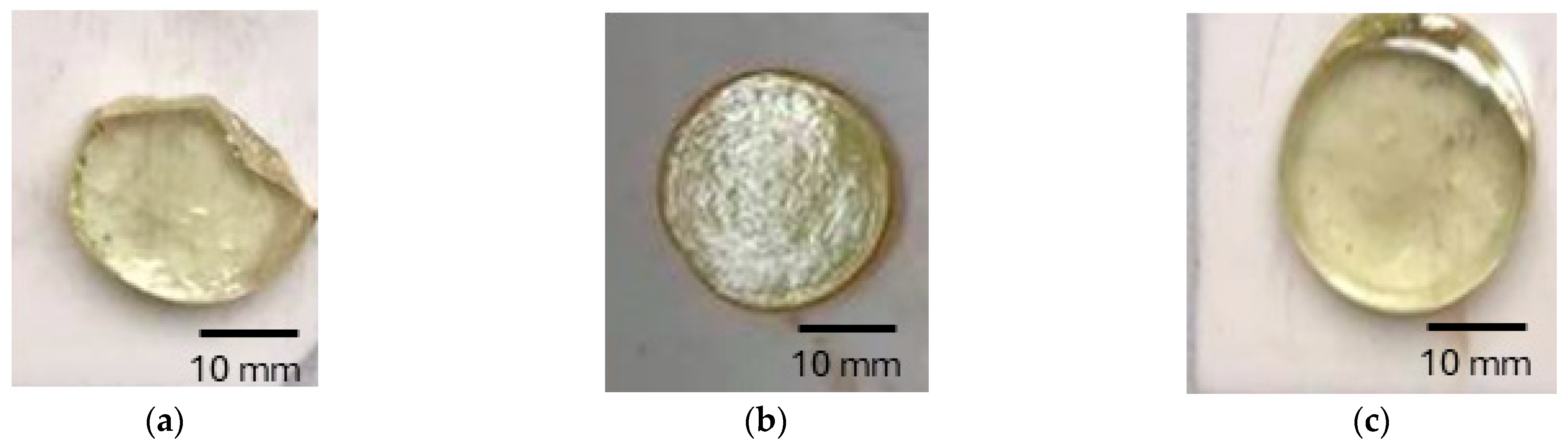

To obtain Ag nanoparticles, samples were annealed at three different temperatures: 450 °C, 480 °C and 500 °C, in the ∆T = Tx − Tg range. Among these, samples annealed at 480 °C for 5 h were selected for further luminescence analysis. The most noticeable change in color was observed in the BBO(50:50) + Ag sample (a photo of which is included in the figure showing the UV–Vis results). Samples annealed at 450 °C showed no change in color or transparency compared to unannealed samples. In contrast, the temperature of 500 °C turned out to be too high, as samples lost their transparency at this temperature.

The amorphous nature of the glasses was confirmed through X-ray diffraction (XRD) studies. The XRD measurements were conducted on powdered samples using a Philips X’PERT PLUS diffractometer (Philips, Amsterdam, The Netherland) with Cu-Kα radiation at room temperature.

To identify the structural units present in the samples, Fourier transform infrared spectroscopy (FTIR) was performed. The measurements were carried out using a Perkin-Elmer Frontier MIR/FIR spectrometer equipped with a TGS detector (Perkin-Elmer, Waltham, MA, USA). Pellet samples were prepared by mixing the material with potassium bromide (KBr) in a 1:100 weight ratio (sample:KBr).

UV–Vis spectra were recorded using a Perkin-Elmer Lambda 35 UV–Vis spectrophotometer (Perkin-Elmer, Waltham, MA, USA) within the wavelength range of 350–700 nm. The measurements were performed under argon atmosphere.

An X-ray photoelectron spectroscopy (XPS) analysis was conducted to determine the chemical state of silver nanoparticles present in the samples. The measurements were carried out using an Omicron NanoTechnology spectrometer (ScientaOmicron, Uppsala, Sweden) equipped with a 128-channel collector under ultra-high vacuum conditions (<1.1 × 10⁻⁸ mBar). Photoelectrons were excited using an Mg-Kα X-ray source, with the X-ray anode operating at 15 keV and 300 W. Binding energy calibration was achieved by referencing the C1s peak (285.0 eV). The XPS spectra were processed using CasaXPS software (Casa Software Ltd., ver. 2.3.23., Devon, UK).

Photoluminescence emission and excitation spectra were acquired using a SCINCO FluoroMate FS-2 fluorescence spectrometer. Pellet samples were prepared by mixing the material with potassium bromide (KBr) in a 1:1 weight ratio.

For the transmission electron microscopy (TEM), samples were placed on copper grids coated with a 2% collodion solution and carbon. Probes were examined using a Tecnai Spirit BioTWIN (FEI) electron microscope (FEI Company, Eindhoven, The Netherlands) at 120 kV.

3. Results and Discussion

3.1. DTA Analysis

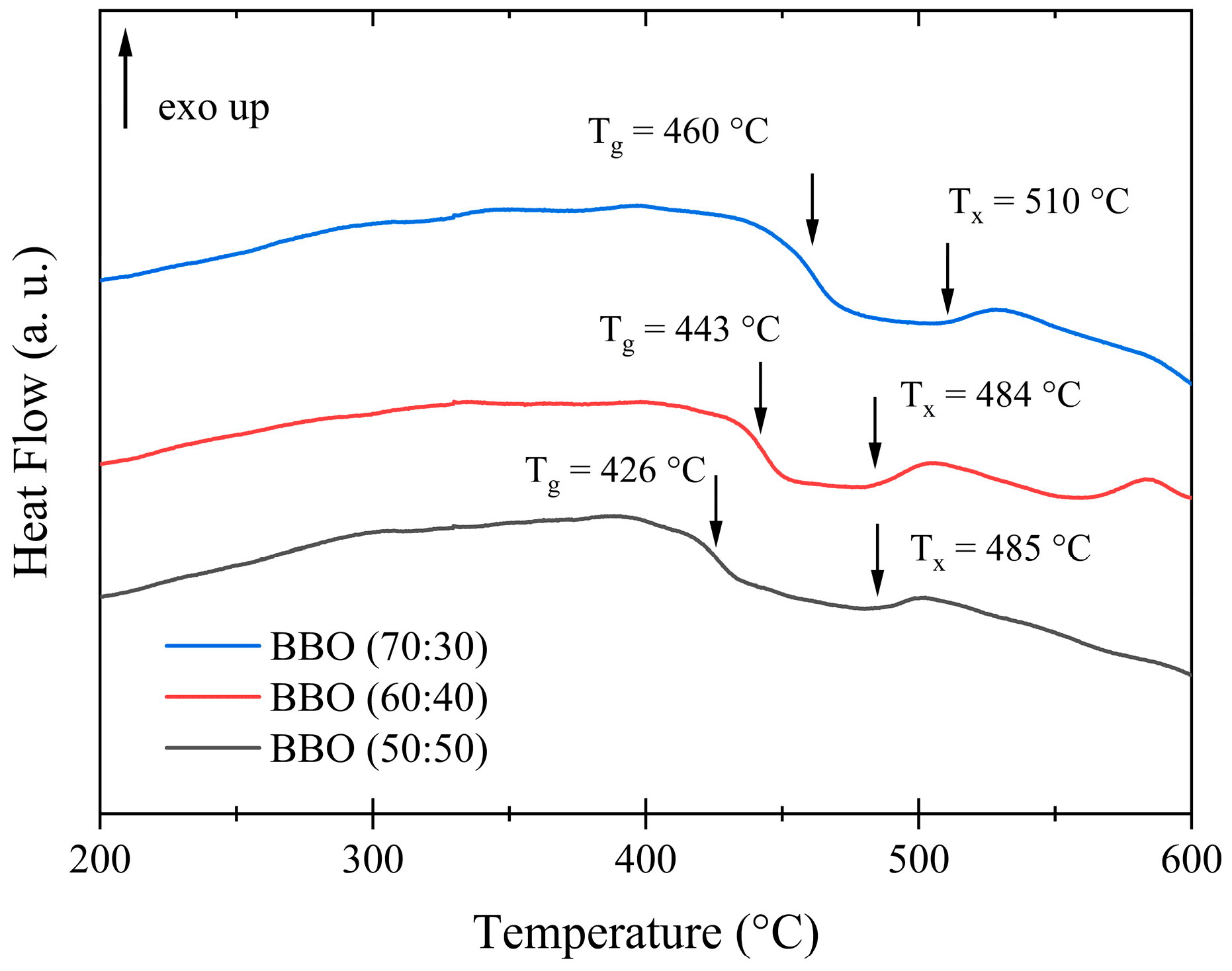

To investigate the thermal properties and stability of the synthesized glasses, differential thermal analysis (DTA) measurements were conducted. The results are presented in Figure 2. It can be observed that the glass transition temperature is influenced by B₂O₃ content. The glass transition temperatures (Tg) are approximately 426 °C, 443 °C and 460 °C for the respective B₂O₃:Bi₂O₃ molar ratios of 50:50, 60:40 and 70:50. The onset of the exothermic peak (Tx) associated with the crystallization process of the matrix shifts toward higher temperatures with the increase in B₂O₃ amount only for B₂O₃:Bi₂O₃ molar ratios of 70:50 and is as follows: 485 °C, 484 °C and 510 °C (for 50:50, 60:40 and 70:50 ratios, respectively). None of the tested glass compositions exhibit a high-intensity peak. Taking the difference between Tx and Tg in order to define the glass stability region, it can be concluded that the increased B₂O₃ content relative to Bi₂O₃ positively influences the thermal stability of glasses. These measurements were performed mainly to investigate the glass stability region, which is a critical parameter in the formation of Ag nanoparticles. Their synthesis typically occurs at temperatures below the first exothermic peak but above the glass transition temperature. Above Tg, glass properties such as viscosity and ion mobility undergo significant changes, promoting the agglomeration of Ag nanoparticles. Silver ion Ag⁺ can be reduced to metallic silver Ag⁰ through a one-step process (Ag⁺ + 1e⁻ → Ag⁰), with a reduction potential of E₀ = 0.7996 V [5]. Moreover, this low-temperature annealing prevents crystallization of the glass matrix, as observed in B₂O₃–Bi₂O₃ glasses [19]. The synthesis of Ag nanoparticles was carried out within the temperature range between Tg and Tx at 450 °C, 480 °C and at the temperature at which (for the two compositions) the crystallization process had started: 500 °C. These temperatures should be sufficient to initiate the migration of Ag ions, leading to the formation of Ag nanoparticles.

3.2. XRD Analysis

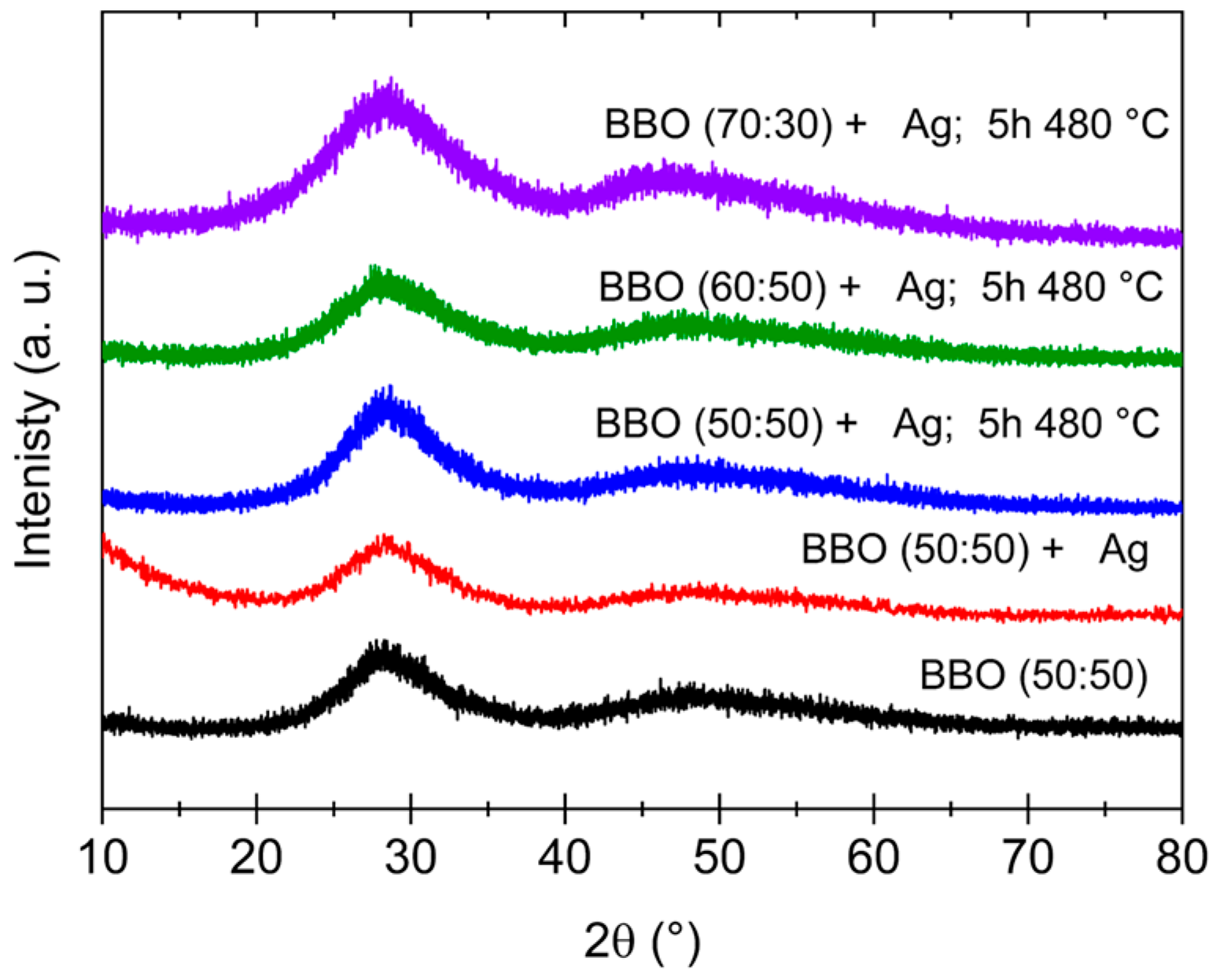

Based on XRD measurements, the amorphous nature of the as-prepared glasses was confirmed. Similarly, glasses annealed at temperatures of 450 °C, 480 °C and 500 °C, proposed on the basis of DTA studies, are characterized by an amorphous structure. The exemplary diffraction patterns for unannealed samples and the BBO(50:50) + Ag, BBO(60:40) + Ag and BBO(70:30) + Ag samples annealed at 480 °C for 5 h are shown in Figure 3. Although bismuth–borate glass is very susceptible to crystallization, at least five stable crystalline phases can be observed [15,19,25,26], the broad maxima present in the 20–35 (2θ) and 40–55 (2θ) ranges indicate short-range ordering present in the samples. It was not possible to observe Ag nanoparticles in the glassy matrix due to the fact that only 1 mol% of silver was introduced into the samples.

3.3. FTIR Analysis

As demonstrated in the results of FTIR studies, heating the glass at a temperature below Tc does not affect its internal structure. An exemplary comparison of the FTIR spectra of as-prepared BBO(50:50) and BBO(50:50) + Ag samples and BBO(50:50) + Ag samples annealed at 480 °C for 5 h is shown in Figure 4.

It is well established that the borate glass network is primarily composed of [BO₃] triangular structural units, which can undergo transformation into [BO₄] tetrahedral units in the presence of a modifying agent. Such structural rearrangement may also be induced by Bi₂O₃ [15]. The broad absorption bands observed in the range of 680–720 cm⁻¹ and 1100–1250 cm⁻¹ are typically associated with the deformation and stretching vibrations of [BO₃] groups [26,27,28]. Also, a characteristic band appearing between 1200 and 1400 cm⁻¹ corresponds to the stretching mode of the [BO₃] groups. Furthermore, the absorption band appearing at approximately 900–1100 cm⁻¹ can be attributed to [BO₄] groups [27,28]. However, it is important to note that these bands may shift due to the influence of Bi₂O₃, and they may potentially overlap with the Bi₂O₃ peaks and shoulders [28]. Looking at the spectra presented in Figure 5, it can be observed that neither the incorporation of Ag into the glass nor heating it below the crystallization temperature (Tc) had a significant effect on the spectra. Considering the DTA results, the chosen annealing temperature of 480 °C is well below the crystallization peak, and thus, it is not expected to induce any structural changes in the glass matrix. Additionally, the silver—introduced in very small quantities in the tested samples—did not alter the fundamental structural units of the glass.

3.4. UV–Vis Analysis

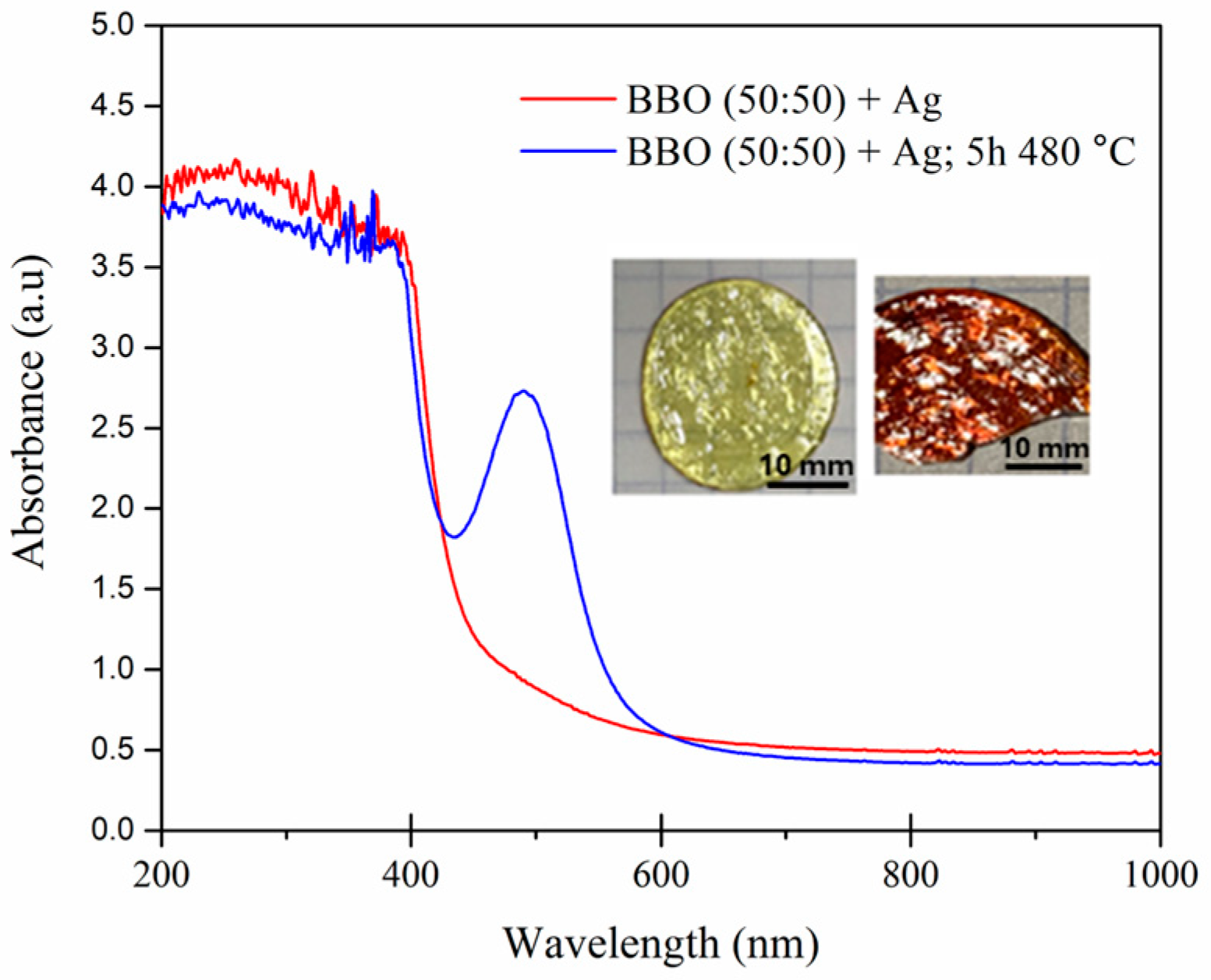

Although heating the samples at 480 °C for 5 h did not change their structure, their color clearly indicated the formation of silver nanoparticles in the matrix. This can be confirmed by the UV–Vis spectrum shown in Figure 5. The position of localized surface plasmon resonance (LSPR) strongly depends on the dielectric function of the host material which surrounds the nanoparticles [29,30]. Therefore, for example, the LSPR of silver nanoparticles in the air can be observed at a wavelength of approximately 400 nm [29], while the LSPR maximum of Ag nanoparticles in tellurite [2,31] or bismuth–germanate [8] glass matrix is red-shifted and observed at a wavelength of about 500 nm. Therefore, we can conclude that the peak at 500 nm observed in the borate–bismuth BBO(50:50) + Ag glass annealed at 480 °C for 5 h is related to the LSPR of Ag nanoparticles.

3.5. XPS Analysis

An XPS experiment was conducted to investigate the valence state of silver in a tellurite glass matrix. The representative spectrum of the BBO(50:50) + Ag sample, annealed at 480 °C for 5 h, is presented in Figure 6. The spectrum is highly noisy due to the low concentration of silver nanoparticles in the glass matrix. Despite this noise limitation, the Ag 3d core-level spectrum exhibits two distinct peaks, corresponding to Ag3d5/2 at ca. 368 eV and Ag 3d3/2 at 374 eV. These values and the spin–orbit splitting of 6 eV are consistent with the characteristic binding energies of silver [2,32]. However, analysis of only the Ag 3d spectrum provides limited information. In order to gain more comprehensive information on the valence state, it is necessary to reference the Auger electron spectrum and analyze the Wagner plot or calculate the Wagner parameter [2,33,34]. Based on the 3d photoelectron spectrum and the Auger electron plot, it could be concluded that the results indicate the presence of silver nanoparticles composed of pure metallic silver. Additionally, the survey spectrum indicates high sample purity, with no detectable contamination.

3.6. TEM Analysis

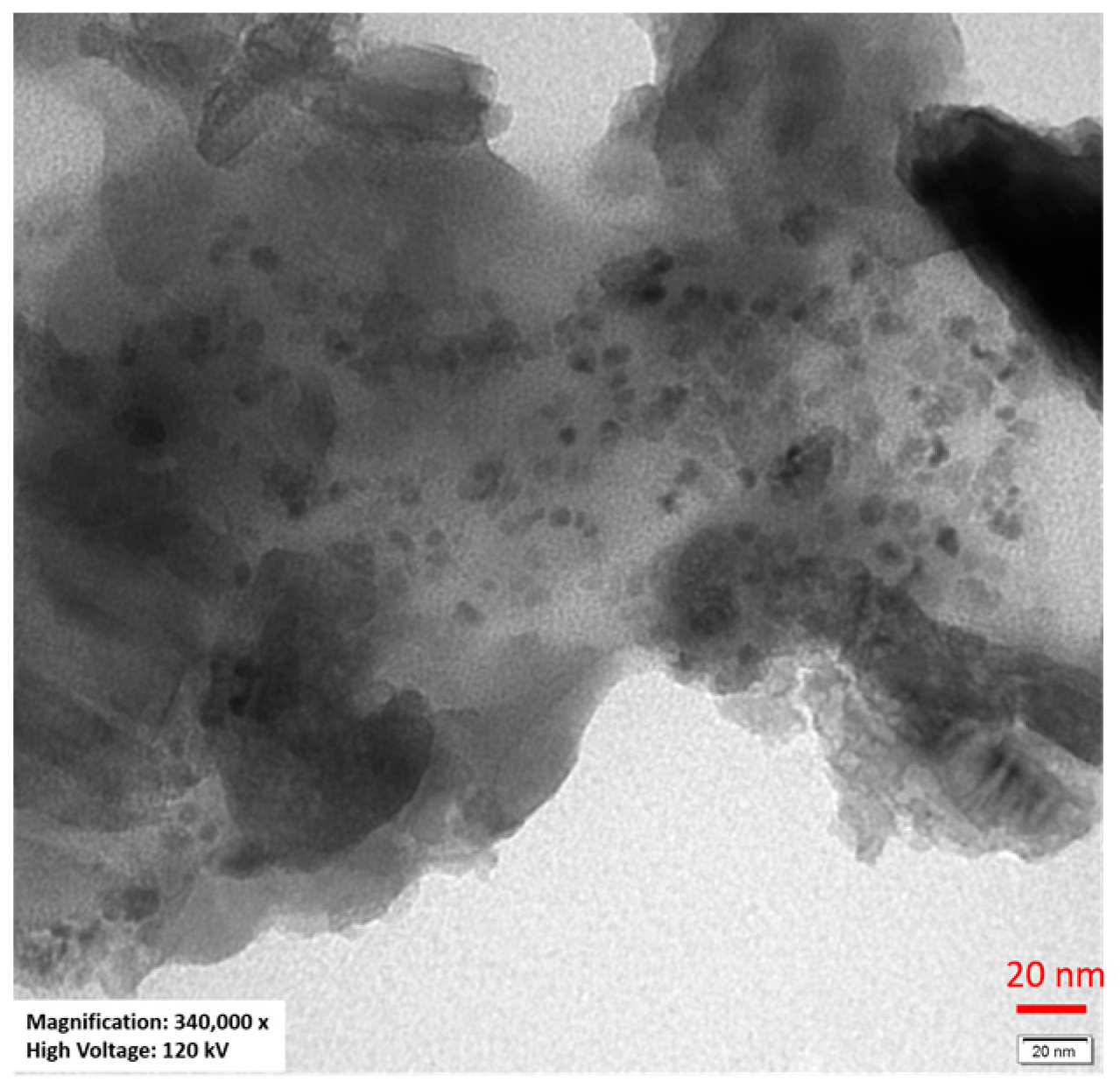

To confirm the presence of nanoparticles in the annealed borate–bismuth glass, TEM microscopy studies were performed. An exemplary image of the BBO(50:50) + Ag sample annealed at 480 °C for 5 h is presented in Figure 7. The shape of the nanoparticles is spherical, and they are rather randomly distributed in the glassy matrix. Taking into account the color change of the glass to red during annealing, the presence of an intense maximum in the UV–Vis spectrum, the results obtained via the XPS method and the TEM images, it can be clearly stated that the annealing of borate–bismuth glass led to the formation of silver nanoparticles in it. The diameters of the nanoparticles are approximately 2–5 nm, and they are randomly distributed in the glass.

3.7. Photoluminescence

The excitation spectra of BBO(50:50) + Eu, BBO(60:40) + Eu and BBO(70:30) + Eu as-prepared samples monitored at 615 nm (Figure 8a–c, respectively) reveal several bands associated with the 4f–4f transitions of Eu³⁺. They can be assigned to ⁷F₀–⁵D₄ (362 nm), ⁷F₀–⁵G₂ (382 nm), ⁷F₀–⁵L₆ (395 nm), ⁷F₁–⁵D₃ (415 nm) and ⁷F₀–⁵D₂ (465 nm) transitions [35,36]. In the case of two glass compositions, two bands at 395 and 465 nm are characterized by the highest intensity. The 454 nm wavelength line was selected in order to observe the emission spectra. The emission spectra of the as-prepared BBO(50:50) + Ag + Eu, BBO(60:40) + Ag + Eu and BBO(70:30) + Ag + Eu glasses and glasses annealed at 480 °C for 5 h are shown in Figure 8a–c, respectively. In all of them, several bands corresponding to Eu³⁺ radiative transitions are present: ⁵D₀ → ⁷F₀ (578 nm), ⁵D₀ → ⁷F₁ (591 nm), ⁵D₀ → ⁷F₂ (615 nm), ⁵D₀ → ⁷F₃ (652 nm) and ⁵D₀ → ⁷F4 (700 nm). It was found that the electric dipole transition ⁵D₀ → ⁷F₂ was the transition with the highest intensity for all samples.

However, the positive effect of Ag nanoparticles on the emission of Eu³⁺ ions was not observed for all samples. Metallic NPs embedded in a glassy matrix near rare-earth ions can significantly influence the excitation and emission rates of these ions [37,38]. This effect is due to the enhancement of the local electromagnetic field around the nanoparticles caused by their localized surface plasmon resonance. As a result, energy transfer between the NPs and rare-earth ions can occur. However, the energy transfer can proceed in two directions: from metallic NPs to rare-earth ions, leading to an enhancement of luminescence intensity, and/or from rare-earth ions to NPs, resulting in luminescence quenching. The direction of the process depends on the concentration of metallic nanoparticles in the glassy matrix, or more precisely, on the ratio of the concentration of nanoparticles to Re ions [39,40]. If this ratio is greater than one, a reverse transfer from the ion to the nanoparticle will most likely occur, resulting in a decrease in luminescence intensity. Annealing had a positive effect on emission intensity only for the BBO(70:30) + Ag + Eu sample. It is possible that in this particular sample, where neither UV–Vis spectrum peak indicative of LSPR nor any color change of the sample after annealing were observed, a very small amount of nanoparticles was formed, and energy transfer from the nanoparticles to Eu³⁺ ions occurred, leading to an enhancement of luminescence. Meanwhile, in the other samples, a high concentration of nanoparticles had a negative effect, causing luminescence quenching due to reverse energy transfer from Eu³⁺ ions to Ag nanoparticles. Of course, further research would be necessary to confirm the validity of the proposed explanation. Further research is also required in order to select the optimal glass composition at which the intensity of rare-earth ion luminescence would be maximal. Nevertheless, the obtained results show that borate–bismuth glasses are very promising materials for the manufacturing of silver nanostructures in them.

4. Conclusions

In summary, Ag nanoparticles in borate–bismuth glass were obtained via thermal annealing. Due to the existence of eutectic between Bi₂O₃ and Ag, an influence of Bi₂O₃ on the formation of Ag nanoparticles was observed, which was reflected in the color change of the glass with a high molar content of Bi₂O₃ (B₂O₃:Bi₂O₃ molar ratios of 50:50) during the annealing of the glass, from slightly yellow to red. In this sample, a strong absorption maximum on the UV–Vis spectrum was observed at a wavelength of about 500 nm, caused by the localized plasmon resonance of Ag nanoparticles. However, at a high content of Ag nanoparticles in the glass, quenching of the luminescence of Eu³⁺ ions took place, caused most probably by the energy transfer from Eu³⁺ ions to Ag nanoparticles. Selecting the most optimal glass composition at which the intensity of rare-earth ion luminescence would be maximal requires further research. The obtained results show that B₂O₃–Bi₂O₃ glass and glass ceramics, with Ag nanoparticles and rare-earth ions, could be considered as a new phosphor for light-emitting diodes (LEDs) [41,42].
