Enhancing the Perceived Quality of a Vehicle Sliding Door Inner Handle Concept Design

1
TOFAS Turkish Automobile Factory, Bursa 16110, Türkiye
2
Department of Automotive Engineering, Faculty of Engineering, Bursa Uludag University, Bursa 16059, Türkiye
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(8), 4218; https://doi.org/10.3390/app15084218
Submission received: 12 March 2025 / Revised: 6 April 2025 / Accepted: 7 April 2025 / Published: 11 April 2025
(This article belongs to the Section Mechanical Engineering)

Abstract

:
Customers can always verbalize their feelings about a product, but engineers can only methodically improve what they measure in a robust and reliable manner. There is a need to convert customer needs into technical parameters. The aim of this study is to carefully examine statistical methodologies for product development in collaboration with perceived quality (PQ). This paper presents PQ activities from a customer-oriented approach to the final product through an automotive sliding inner door handle. The inner door handle is not just a functional part of opening the door; many engineering parameters should be considered for customer satisfaction. In this study, the team collected customer points of view, categorized customer expectations in the Kano model, and created a QFD table. In the phase of concept solution development, PQ factors are defined as a part of design input. Concept solutions are created with the help of the Taguchi orthogonal array and evaluated with the Pugh matrix. Our findings show that not only the shape of the component, but also its position, hold significance for the customer. The design was developed and verified accordingly.

1. Introduction

Delighting customers means exceeding their expectations. Customers can express their feelings about a product using basic words like “nice”, “wow”, or “awful”, but they cannot explain what their opinions in measurable engineering terms. As the opposites to customers, engineers can only improve metrics if they can measure them. The transformation from feelings to technical parameters is particularly challenging, especially in the automotive industry. The automotive world develops a wide range of customer needs with the help of engineering disciplines. Customer satisfaction consists of what we achieve through the five senses. Moreover, perceived quality has a sixth sense, and customers cannot even define why they perceive it positively or negatively. Understanding PQ is crucial for manufacturers and marketers in the highly competitive automotive industry, as it significantly influences consumer purchasing decisions and brand loyalty.

1.1. Perceived Quality

Quality comes from the Latin word qualis, its basic meaning is “of what kind”, and other meanings it carries include character, nature and essence. Garvin defines the eight dimensions of quality as performance, other characteristics that provide the product’s attractiveness, reliability, suitability, durability, service, esthetics, and PQ [1]. PQ, as defined by Castleberry and McIntyre, is a “belief about the degree of excellence of a goods or service that is derived by examining consciously and/or unconsciously, relevant cues that are appropriate and available, and made within the context of prior experience, relative alternatives, evaluative criteria and/or expectations” [2].
PQ is often distinguished from actual manufacturing quality, which is typically defined by adherence to specifications and technical standards. As noted by Stylidis et al., PQ involves customers’ cognitive and emotional responses to a vehicle’s design, which can be influenced by esthetics, brand reputation, and user experience [3]. This distinction is essential because while manufacturing quality can be objectively measured, PQ is inherently subjective and varies among consumers based on personal preferences and experiences [4]. Moreover, product quality differs from perceived quality, and human interactions with the product define it [5]. PQ represents the customer’s assessment of a product’s quality based on visible and hidden cues when they have limited information about its specific quality attributes [6].
PQ is a multi-approach concept that encompasses various aspects of a product, including its visual harmony, tactile sensations, and sound quality [7]. Industrial design, ergonomics, and psychology are not fundamental branches of science, but the intersection of these fields and perceived quality cannot be ignored [5]. Pogson (2020) [8] focused on how consumers evaluate the PQ level of vehicles. Their research investigates visual harmony, like interior and exterior style or color matching of surfaces, which significantly influences consumer perceptions, evokes positive emotional reactions, and contributes to the overall perception [8]. The design attributes of automobiles also significantly impact PQ. For instance, the study by Kato explores how exterior finishes, such as matte versus reflective surfaces, affect consumer perceptions of attractiveness and quality [9]. His study aligns with the findings of Stylidis et al., who propose a framework for evaluating PQ attributes, suggesting that design elements are critical in shaping consumer perceptions and preferences [10].
Bhise, V. D. (2011) [11] describes interviews with many automotive users, main attributes of PQ are declared;
  • Visual quality (perfect fit of the parts; similarity between different surface and materials; invisible fasteners; reflection optimization to not distract users);
  • Touch/feel quality, pleasantness of surfaces;
  • Sound quality (pleasantness of noises and prevent annoying noises);
  • Harmony between materials, sizes of the parts, their finishes and smell quality.

1.2. QFD and Kano Models

QFD (Quality Function Deployment) is an impressive method of integrating design methods for the concept development of the parts [12]. QFD gives an approach to convert customer requirements (CRs) to measurable and repeatable technical requirements (TRs) [13]. QFD is a method for matching engineering design concerns and customer needs, including effective benchmarking. QFD is helpful for developing a design quality aimed at satisfying the consumer and then translating the consumer’s demands into design targets [14]. QFD helps to increase overall quality, and it is part of the Total Quality Management (TQM).
The ISO standard 16355-1:2015 defines QFD as a method for systematically creating a correlation between the customer or stakeholders’ needs and technical inputs as a part of design process [15]. In Figure 1, the overview of the QFD table is shared.
Kano is a method of better understanding of CRs, and it sorts them in five categories; these include ‘excitement’, which refers to delight of the customer, ‘performance’ means customer are willing to have and ‘basic’ refers to must have needs, indifferent and reverse refers to having features that are contrary (Figure 2) [16]. Besides the traditional Kano model, new approaches are also suggested for the CRs classification. It is proposed to use eight satisfaction types of the Kano model, including less attractiveness and high attractiveness categories [17].
The Kano model questionnaire asks about each specification with two questions, the first question is functional when the feature is present, and the second question is dysfunctional when the feature is absent. In the next step, the answers are evaluated and finally, each specification is categorized with respect to the Kano model [15].

1.3. Taguchi Design of Experiment

The method developed by Dr. Genichi Taguchi demonstrates a systematic approach based on the experimental design for design optimization and quality control. The methodology suggests the use of orthogonal arrays, which allows for the efficient design of experiments by reducing the number of trials [18].

1.4. Brief Explanation of Pugh Matrix

The Pugh matrix includes the evaluation of the strengths and weaknesses of the conceptual solutions created compared to the reference solution, thus selecting the best conceptual solution and creating hybrid solutions if necessary. This process is continued iteratively until the best solution is found [19].
The ISO 16355-1:2021 [15], “Application of statistical and related methods to new technology and product development process”, is a standard that provides guidelines in the context of product design, development, and improvement. Its main goal is to offer a systematic framework for using statistical tools to enhance the process and product design. The QFD, Kano, Taguchi experiment design, orthogonal array, and Pugh matrix are customer driven, robust design methods respect to this standard.
This study aims to use the PQ approach as an input for design specifications. Although other methods, such as QFD, Kano, Taguchi, and Pugh matrix, are referred to in the ISO 16355-1:2021 standard and are well-known in the literature, merging them with the PQ approach is a new topic. In this context, the current study explores a systematic approach to designing an automotive sliding door inner handle design and aligning design specifications with customer needs and perceived quality. This study targets the following issues: (1) translating customer feelings into technical parameters in a case study, (2) creating a sliding door inner handle concept design by implementing customer-driven and robust design methodologies and merging with the PQ approach. This integrated approach, grounded in the principles of customer relationship management, can enhance the design and delivery of products/services to better meet customer expectations [20].

2. Methodology

The flow of the study is presented in Figure 3. The team started the analysis by examining four vehicles with sliding doors. The inner handle features unlock the door and the handle positions differ. The Kano model is initially used to categorize the needs, which are then translated into technical requirements using the QFD method. The perceived quality approach is a design cue to increase customer satisfaction during the design phase. Instead of making many experiments for each parameter, the Taguchi method designs experiments. Finally, the Pugh matrix compares various design alternatives, selecting the one that best meets customer needs. Each method contributes to the framework by addressing different aspects of the design process, ensuring that the final solution is customer-centric and technically robust. The steps of this study are given in the flowchart in Figure 3.

2.1. Problem Domain Overview

For the automotive industry, the appearance of a vehicle, particularly the execution of individual design elements, is an opportunity to differentiate from competitors and captivate customers [7]. The inner handle of a sliding door is one such design element that can contribute to the overall perceived quality of the vehicle. This study investigates the integration of perceived quality activities to improve the design of the sliding door inner opening and closing system. The automotive body is a complex system that systematically links design specifications to customer needs and translates these requirements into a component design [21]. OEMs present standard solutions for passenger car opening and closing door systems. Only material, shape, and coloring differences exist between them. On the other hand, there is no standard solution for the sliding door inner handles which are generally used for commercial vehicles. Passengers should unlock the door to open/close, slide, and put the door into locking position to keep it in the open/close state. The passengers need to reach out to the handle to open it. The door is in an open state, and the handle remains facing backwards to the passenger while closing. In addition, the passenger’s hand movement is limited as there is a small gap between the door and the vehicle’s body when the door is open (Figure 4). Turning back slightly and accessing the handle is undesirable. When designing the sliding door opening system, automotive manufacturers must strike a delicate balance between functionality and esthetics, ensuring that the handle not only operates smoothly but also complements the overall perceived quality of the vehicle.

2.2. Implementation of the Methodology

The study’s main objective is to understand opinions and preferences from the customers’ point of view about sliding door inner handle design. This research aims to shed light on the design process. Four cars with sliding doors were selected to evaluate different styles during the subjective tests (Figure 4). Brief details of the features and positions of door handles are shared in Table 1. Sliding door designs and vehicle specifications have led to a diversification of handle types. Releasing the lock from a fully open/closed position, which can be performed with two sides, movable handles, buttons, passenger car type handles, or trigger, is given as feature 1 of the table. Sliding the door can be performed with the same handle, or in some vehicles, another handle is assembled, as briefed in feature 2. We can accept the bottom of the door glass as a line, the handles are mainly positioned on the upper side or aligned with this line, and these are given as feature 3 in the table. Twenty respondents are invited to understand the customer’s point of view. The team asked “for what purpose do you usually use your current vehicle” 35% is using for work, 35% for private, and 30% answered both. The distribution of gender, usage aim, and age are presented in Figure 5. A face-to-face interview technique where respondents could physically experience product design is applied. Additionally, an in-depth interview technique is used to dive deep into various perceptions of the tested part.

3. Results

3.1. Voice of the Customer

In the process, interviewees get into the four vehicles, visually check them, and open/close the door and evaluate the ease of closing and opening, the handle reachability during opening/closing, posture to operate the handle, and the consequent hand/arm movement (Figure 6). The first question is, “When you consider the door opening system and the ease of use, how much did you generally like the sliding door?”. Then, the customers’ expectations of the door opening system were collected and ranked between 1 and 5. The customer satisfaction score is calculated by dividing the total number of participants by those who gave 4 and 5 points, and the result is then multiplied by 100. In this scoring, evaluations above 80% are positive, evaluations between 60 and 80% indicate issues with potential for improvement, and ratings below 60% indicate customer dissatisfaction [22]. The results are in Table 2.
Based on our observations and verbal customer feedback, the expected aspects include the desired heavy/strong door feeling and ease of movement, and the sliding door fitting comfortably and confidently. The closing activity and its sound provide confidence. The sliding door needs to be easily used. This feedback is critical for PQ as it focuses on the customers’ first impressions.

3.2. Kano and Quality Function Deployment Implementation

The team used a questionnaire concerning the Kano method with the collaboration of 20 customers. The results showed that the customer needs for the inner handle can be quantified into excitement, performance, and basic categories according to the Kano Model in the QFD table. Many studies merge QFD and Kano studies [23]. In this paper, Kano results are directly implemented to the QFD table (Table 3) on the side of CRs, given as ‘B’ for basic, ‘E’ for excitement, and ‘P’ for performance needs. Then, CR rankings from 1 to 5 are added to the table. Concerning the QFD table structure, technical parameters affecting the design of the door opening system are written on the top line. The matrix is filled as 0, 3, 6, and 9, considering the strong relationship between each technical parameter and customer expectation. Competitive vehicles are evaluated in the last part of the table. Instead of using the brand names, they have been added to the table as vehicle A, vehicle B, vehicle C, and vehicle D. Customers rank each CR by evaluating competitive vehicles. In parallel with customer evaluations, technical parameters in competitor vehicles are taken, the matrix is calculated, and the values taken from the competitor vehicles are added to the target line determined at the bottom of the table.

3.3. Voice of the Customer to Create Concept Solution

By integrating the Kano model with QFD, the proposed framework can effectively prioritize design attributes and align them with customer needs while also considering the relative importance of these needs. The QFD table guides the team in converting non-technical CRs into technical parameters. CR “sensation of how to operate” is directly related to technical parameters like shape, grabbing properties, position, and clamp movement direction of the handle.
In addition, the QFD table’s bottom area shows us the prioritization of the technical values linked to CRs. The shape and grabbing properties of the handle relate to “design” and have scores of 415 and 409, respectively. The position of the handle had a score of 393. These scores lead us to the parameters to directly change. The strength required to open/close and the effort to open/close comes from the whole door system, like door weight, gravity center, and angle of the door rails and hinges, which are important technical parameters.
The team needs to check how each CR can be incorporated into designing the shape of the part. Regarding CRs, the ‘sensation of how to operate’ can only be provided by a simple design, and it can decrease geometrical variation. Additionally, other customer requirements, like fluid in motion, fast door movement, and ease of opening a door, can be achieved by a simple straight handle that transforms the force quickly into the system.

3.4. Identify Perceived Quality Factors as a Part of Design Input

One of the objectives of this research is to investigate PQ criteria as design input. Accordingly, the PQ approach and related design cues are in Table 4.
PQ’s point of view suggests that designing a handle as a unique part is the best solution. The team designed the part with one handle, moving two sides for opening and closing. The handle needs to be fixed to the door, and all the screws and connections should be placed on the bottom surface due to concerns about invisibility.

3.5. Taguchi Design of Experiment Implementation

Sliding door opening and closing system parameters and levels are in presented Table 5. The two factors and three-level experiment design are shared in Table 6.
The team created a Taguchi orthogonal array design of nine combinations using Minitab 17 and shared it in Table 7.

3.6. Pugh Matrix

The team makes comparisons in terms of customer demands between combinations created with orthogonal arrays. If the suggestion is more favorable than the reference system, it is shown with a ‘+’ sign, if it is negative, it is shown with a ‘-’ sign, and if it has no superiority over the other, it is shown with an S sign in Table 7.

4. Discussion

Ensuring that the inner handle is well-designed and strategically positioned can significantly enhance the overall usability and accessibility of sliding doors, leading to increased user satisfaction and efficient door operation. The outcomes of our study reveal that a single handle, rotatable to both sides, is the output of the PQ approach (Figure 7). The team designed crank movements to provide technical requirements aligned with the handle movement. The system uses a crank lever to rotate the handle movement with minimum effort.
The team created a virtual prototype of the proposed handle (Figure 8). The same handle design is validated virtually in lower and upper positions, as they are crucial technical requirements due to the QFD table. The virtual validation is prepared using 3D CAD models, integrating Siemens Jack virtual human modeling, establishing a team to evaluate virtually, defining criteria for validation, and reporting the results. CAD models are prepared, and Siemens Jack virtual human modeling is performed (Figure 9). This step helps assess how real users of different body types, postures, and movement capabilities interact with the product. Then, a jury of 10 individuals is invited to validate virtually according to the QFD table CRs list, and the customer’s posture is added to the validation criteria, and all are shared in Table 8. The jury consists of automotive experts working on part design.
The jury discussed that the movement of the arm when opening and closing the door from a completely open position is uncomfortable; the handle position can only be reached by twisting the customer’s body backward and awkwardly bending the arm (Figure 4). The maneuver becomes even more uncomfortable if three people sit on the rear seats, reducing the space to turn back and grab the handle. Furthermore, during the opening phase, it may be necessary to rotate the customer’s body further to avoid touching the door parts, such as seals with the elbow. The jury agreed to fix the door handle in the lower area of the sliding door to help with arm movement. The visibility of the handle is controversial: the handle is visible, but the hand and arm positions are not comfortable enough to open the door in the upper position of the handle. A standard solution in vehicles is to locate the sliding door handle on the upper side of the door. The jury evaluates the handle reachability and postures better during the opening in the upper position. However, the overall score for the opening is higher concerning the lower position (Table 8). For closing the door, the rest of the eight scores of the usability criteria are higher than the lower position. The jury agreed that the lower position was preferable. Having a unique part for opening and closing the door and assembling it to the lower position of the door are the final decisions.
The design and positioning of sliding door inner handles is a crucial aspect of user experience and functionality, as they are the primary means of interacting with and operating these doors. This study suggests that a well-designed and strategically positioned sliding door handle can contribute to a heightened sense of perceived quality, thereby enhancing the user experience.

5. Conclusions

In summary, this research provides valuable insights into perceived quality activities that merge with the customer’s point of view with the help of a systematic approach to Kano and QFD methods. In the case of sliding doors, the inner handle is a critical touchpoint that can significantly influence a customer’s perception of the product. The sliding door inner handle of the vehicle is chosen to collect customer feedback, correlate it with technical parameters, evaluate benchmarks, and create a design. Our findings support the idea that perceived quality focus areas can be involved in product design. This study addresses a significant gap in our understanding of perceived quality as a design input by merging with QFD/Kano.
Beginning with VoC, all CRs are collected and evaluated using the Kano method, and the team started working on the QFD table. Our findings reveal that the design of a product from the conceptual phase begins with collecting CRs, and it is possible to convert them into technical parameters by seeing all inputs in the QFD table. Moreover, the research suggests that PQ criteria can be matched with CRs. Perceived quality reflects a customer’s first impression, and craftsmanship supports better-crafted parts by focusing on the fit of the part, robust design, and matching surfaces. This study bridges the gap between CRs, TRs, and PQ. The study aims to convert customer expectations to engineering parameters using methodologies and integrating the perceived quality point of view.
While this study focuses on a specific automotive component, the proposed approach can be generalized to various industries. The flexibility of this framework allows it to be adapted to any product design. Perceived quality is the first impression about a product; customer-driven methods could be merged systematically. Merging PQ methodology to concept design is a new approach based on established frameworks of Kano, QFD, Taguchi, and Pugh matrix. The connections of these methods establish customer-driven methodologies and extend current academic knowledge. This study can be used to build upon the framework established here to harmonize methodologies with a perceived quality approach for the optimization of product design from the beginning of a project.

Limitations

Some limitations are listed below, which have been highlighted for future studies. The study was based on 20 participants evaluating four vehicle models; although the team considered having a good balance between participants, the sample size could be improved in future studies. Many valuable studies define PQ, implement evaluations of products, and focus on customer interaction. Although PQ is a popular topic, implementing the voice of the customer and using it as a design input both methodologically and measurably has not yet been addressed in the literature. Future studies about statistical and customer-driven methodologies may be enlarged with the PQ point of view. Moreover, virtual prototypes are chosen but physical prototypes may be more useful for precise evaluations.

Author Contributions

Corresponding author, E.U.I.; conceptualization, E.U.I. and R.E.; methodology, E.U.I. and R.E.; investigation, E.U.I.; data curation, E.U.I., R.E. and K.S.; writing—original draft preparation, E.U.I.; writing—review and editing, E.U.I. and R.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Ethical review and approval were waived for this study as it involved the administration of anonymous questionnaires that did not collect sensitive personal information. The study adhered to the ethical guidelines of Bursa Uludag University. Participants’ age, sex, profession, and years of experience were recorded for demographic analysis but were not linked to individual responses.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Acknowledgments

The authors would like to express their gratitude to TOFAS Turkish Automobile Factory A.S. and Bursa Uludag University for their support.

Conflicts of Interest

Authors Emel Unlukal Ilhan and Kenan Sert were employed by the company TOFAS Turkish Automobile Factory. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
PQPerceived Quality
QFDQuality Function Deployment
VOCVoice of customer
CRCustomer Requirement
TRTechnical Requirement
TQMTotal Quality Management

References

  1. Garvin, D.A. Managing Quality: The Strategic and Competitive Edge; Simon and Schuster: New York, NY, USA, 1988. [Google Scholar]
  2. Castleberry, S.B.; McIntyre, F.S. Consumers’ quality evaluation process. J. Appl. Bus. Res. 1992, 8, 74–82. [Google Scholar] [CrossRef]
  3. Stylidis, K. Perceived Quality of Cars. A Novel Framework and Evaluation Methodology. Ph.D. Thesis, Chalmers University of Technology, Gothenburg, Sweden, 2019. [Google Scholar]
  4. Yee, C.J.; San, N.C. Consumers’ perceived quality, perceived value and perceived risk towards purchase decision on automobile. Am. J. Econ. Bus. Adm. 2011, 3, 47–57. [Google Scholar]
  5. Jumisko-Pyykko, S.; Reiter, U.; Weigel, C. Produced quality is not perceived quality a qualitative approach to overall audiovisual quality. In Proceedings of the 2007 3DTV Conference, Kos, Greece, 7–9 May 2007; IEEE: New York, NY, USA, 1975; pp. 1–4. [Google Scholar]
  6. Solin, A.; Curry, A. Perceived quality: In search of a definition. TQM J. 2023, 35, 778–795. [Google Scholar] [CrossRef]
  7. Striegel, S.S. Perceived Quality in the Automotive: A Neural Network Based Assessment of Split-Lines; Technische Universitaet Berlin: Berlin, Germany, 2021. [Google Scholar]
  8. Pogson, I. The Assessment of Automotive Perceived Quality. Ph.D. Thesis, Coventry University, Coventry, UK, 2020. [Google Scholar]
  9. Kato, T. Perceived color quality: The effect of light reflection brightness of a car’s exterior design on consumers’ purchase intentions. Int. J. Eng. Bus. Manag. 2022, 14, 18479790221126791. [Google Scholar] [CrossRef]
  10. Stylidis, K.; Wickman, C.; Söderberg, R. Defining perceived quality in the automotive industry: An engineering approach. Procedia CIRP 2015, 36, 165–170. [Google Scholar] [CrossRef]
  11. Bhise, V.D. Ergonomics in the Automotive Design Process; CRC Press: Boca Raton, FL, USA, 2011. [Google Scholar]
  12. Frizziero, L.; Donnici, G.; Francia, D.; Liverani, A.; Caligiana, G.; Di Bucchianico, F. Innovative urban transportation means developed by integrating design methods. Machines 2018, 6, 60. [Google Scholar] [CrossRef]
  13. Chan, L.K.; Wu, M.L. Quality function deployment: A comprehensive review of its concepts and methods. Qual. Eng. 2002, 15, 23–35. [Google Scholar] [CrossRef]
  14. Altuntaş, S.; Dereli, T.; Özşalap, C. New product design for military aviation maintenance activities through quality function deployment (QFD). J. Fac. Eng. Archit. Gazi Univ. 2019, 34, 2187–2202. [Google Scholar]
  15. ISO 16355-1:2015; Application of Statistical and Related Methods to New Technology and Product Development Process. BSI Standards Publication: London, UK, 2015.
  16. Yadav, H.C.; Jain, R.; Singh, A.R.; Mishra, P.K. Aesthetical design of a car profile: A Kano model-based hybrid approach. Int. J. Adv. Manuf. Technol. 2013, 67, 2137–2155. [Google Scholar] [CrossRef]
  17. Yang, C.C. The refined Kano’s model and its application. Total Qual. Manag. Bus. Excell. 2015, 16, 1127–1137. [Google Scholar] [CrossRef]
  18. Khan, M.; Akhtar, R.; Babar, A. Optimization of high-pressure laminate manufacturing process by Taguchi method. Int. J. Adv. Eng. Res. Appl. 2021, 7, 47–57. [Google Scholar] [CrossRef]
  19. Guler, K.; Petrisor, D.M. A Pugh Matrix based product development model for increased small design team efficiency. Cogent Eng. 2021, 8, 1923383. [Google Scholar] [CrossRef]
  20. Shahin, A.; Nikneshan, P. Integration of CRM and QFD: A novel model for enhancing customer participation in design and delivery. TQM J. 2008, 20, 68–86. [Google Scholar] [CrossRef]
  21. Morello, L.; Rossini, L.R.; Pia, G.; Tonoli, A. The Automotive Body: Volume I: Components Design; Springer: Dordrecht, The Netherlands, 2011. [Google Scholar]
  22. Giró Manzano, P. Customer Satisfaction Measurement: Strategies, Methodologies and Factors Influencing Customer Satisfaction Measures. 2021. Available online: http://hdl.handle.net/10609/131866 (accessed on 10 January 2025).
  23. Chaudha, A.; Jain, R.; Singh, A.R.; Mishra, P.K. Integration of Kano’s Model into quality function deployment (QFD). Int. J. Adv. Manuf. Technol. 2011, 53, 689–698. [Google Scholar] [CrossRef]

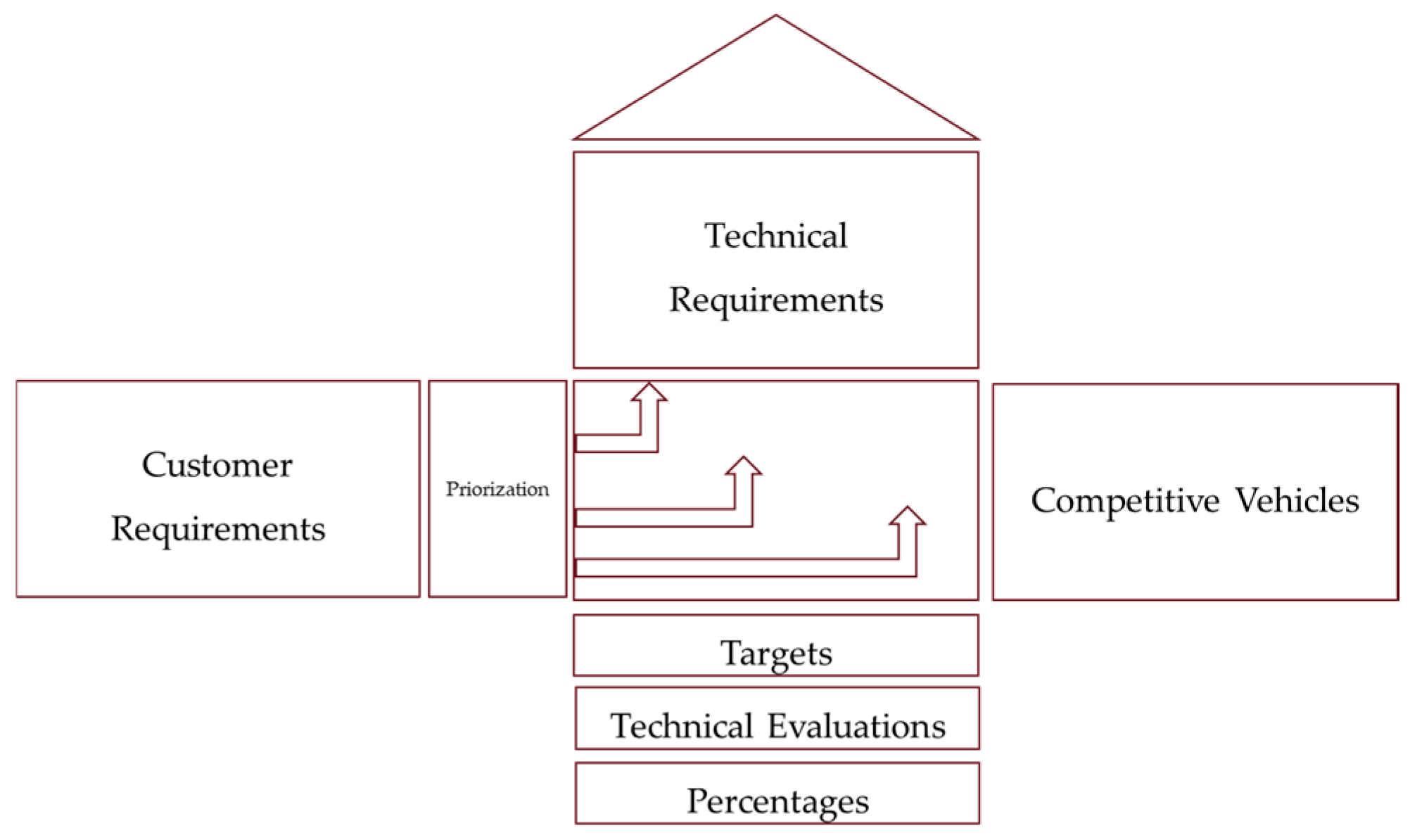

Figure 1. QFD Table [15].
Figure 1. QFD Table [15].
Applsci 15 04218 g001

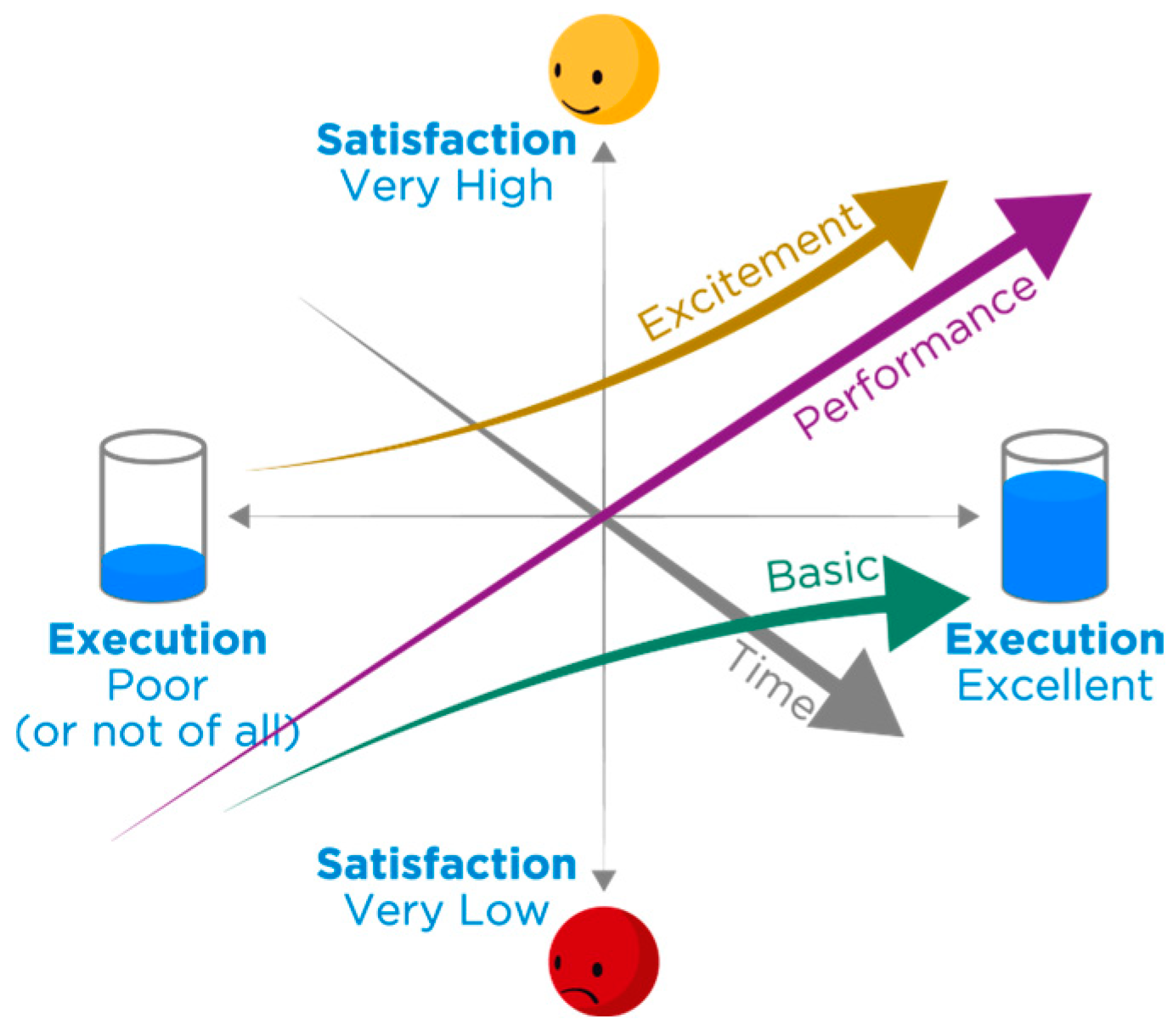

Figure 2. Kano Model [17].
Figure 2. Kano Model [17].
Applsci 15 04218 g002

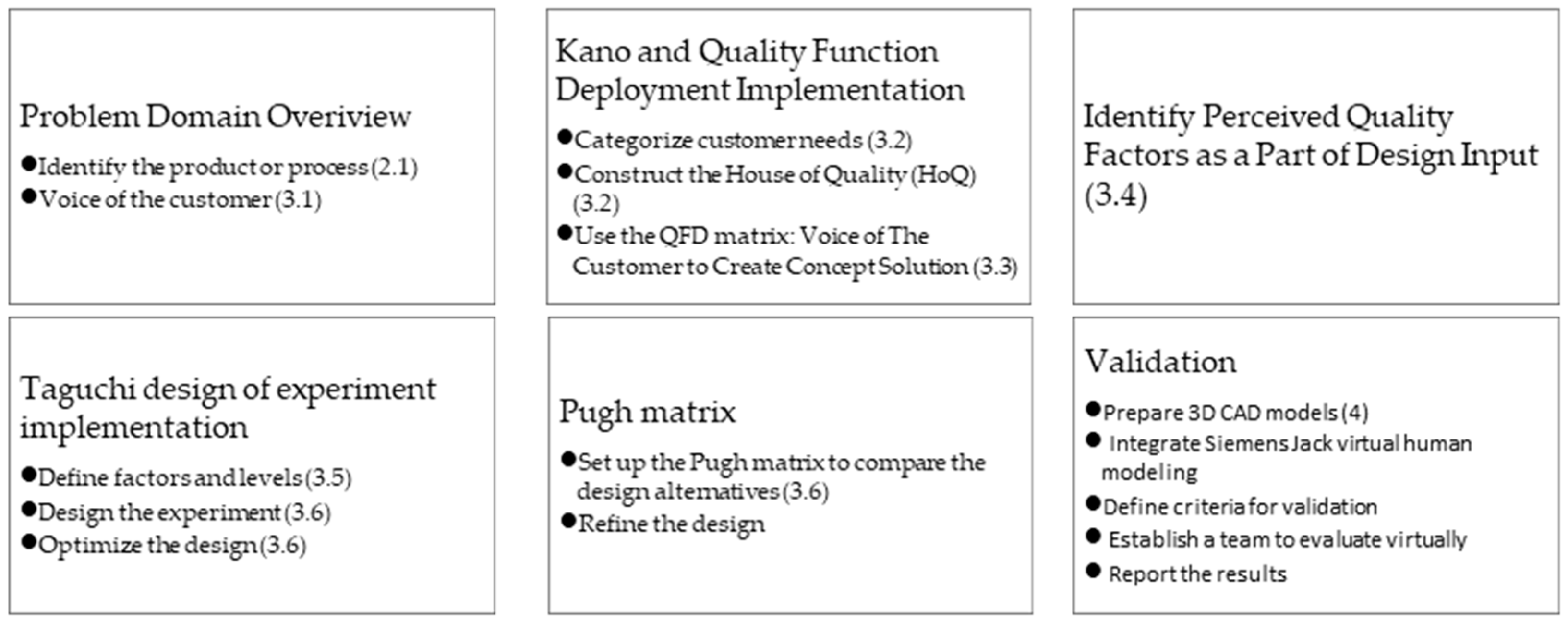

Figure 3. Integrated framework for perceived quality enhanced concept design processes.
Figure 3. Integrated framework for perceived quality enhanced concept design processes.
Applsci 15 04218 g003

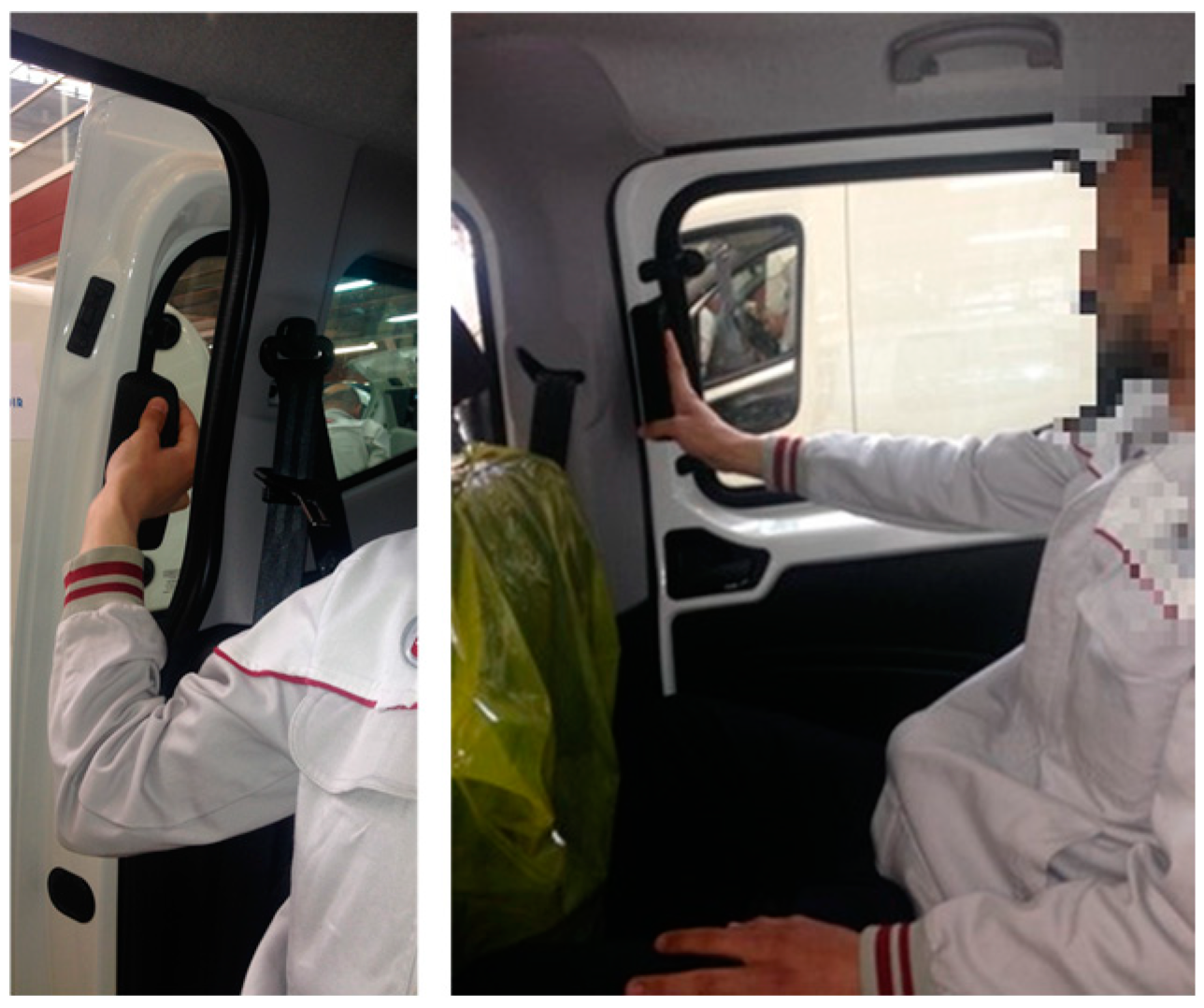

Figure 4. Sliding door inner handle, the door opening and closing positions.
Figure 4. Sliding door inner handle, the door opening and closing positions.
Applsci 15 04218 g004

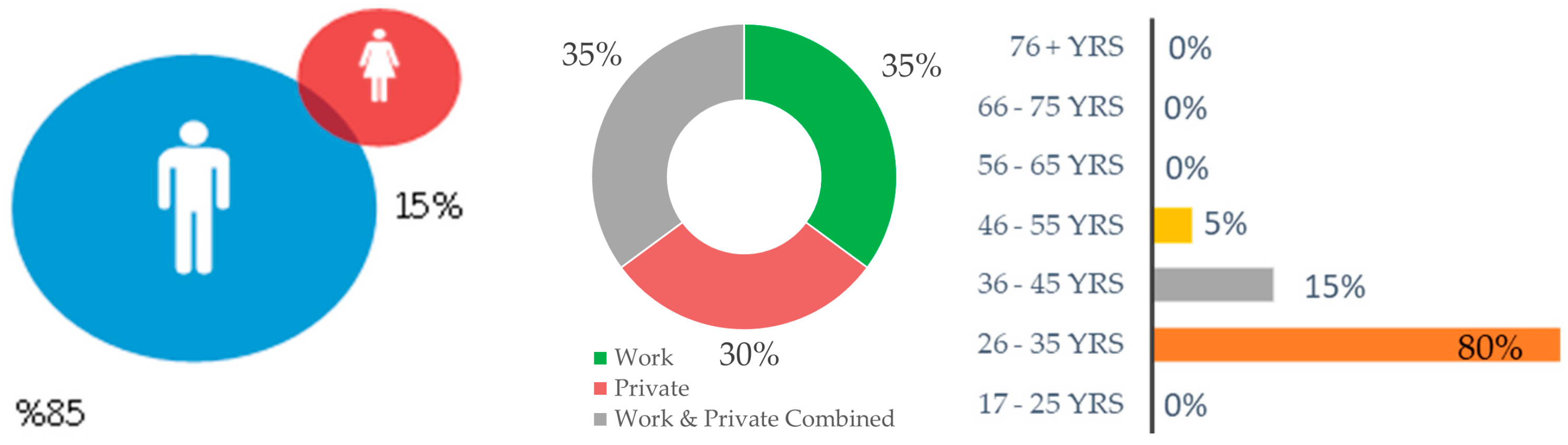

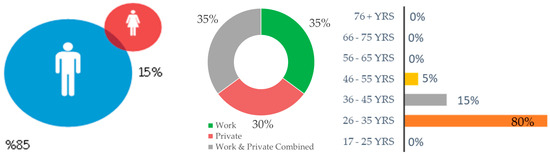

Figure 5. Gender, usage aim, and age distribution of jury members.
Figure 5. Gender, usage aim, and age distribution of jury members.
Applsci 15 04218 g005

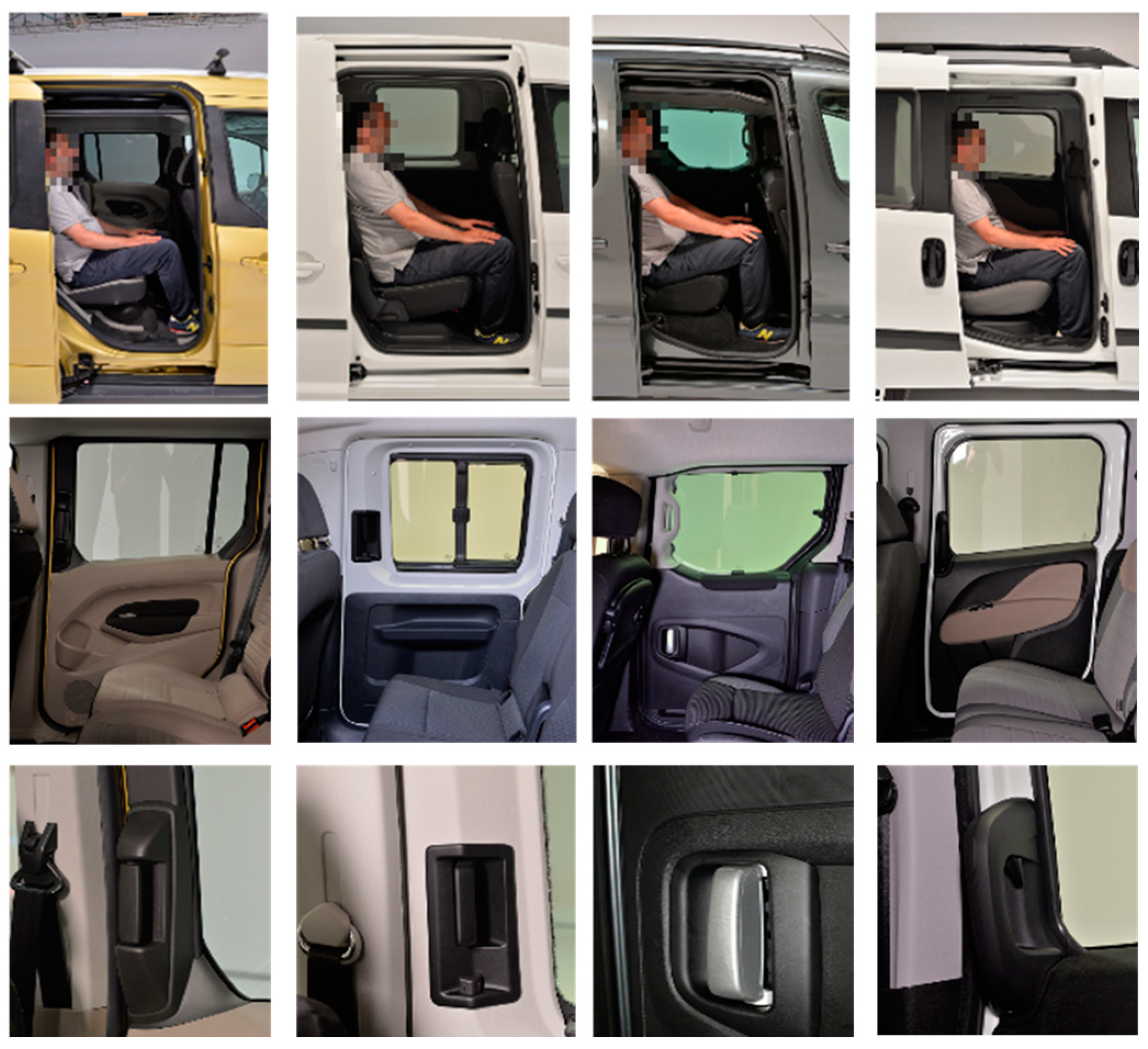

Figure 6. Vehicles with sliding door inner handle named as vehicle A, B, C and D.
Figure 6. Vehicles with sliding door inner handle named as vehicle A, B, C and D.
Applsci 15 04218 g006

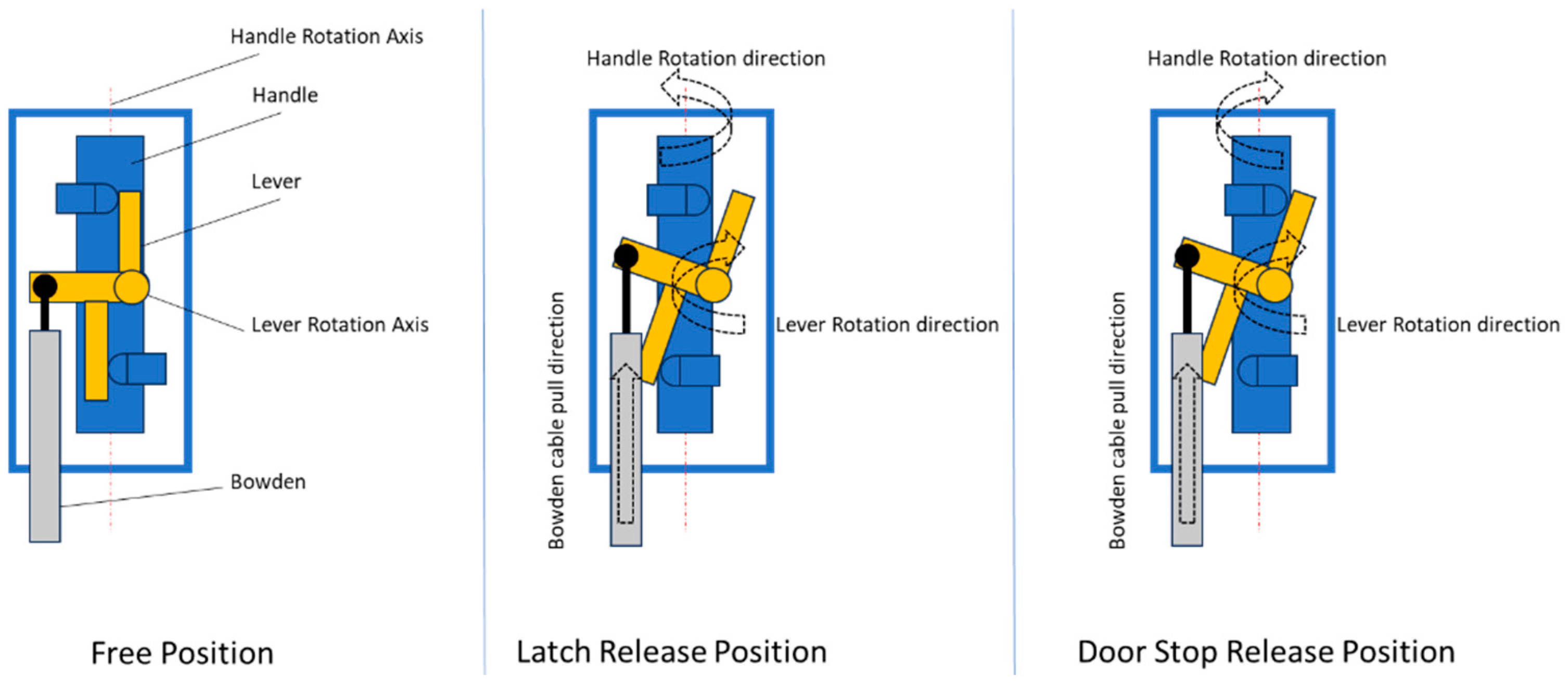

Figure 7. Basic design of unique sliding door inner handle to open and close.
Figure 7. Basic design of unique sliding door inner handle to open and close.
Applsci 15 04218 g007

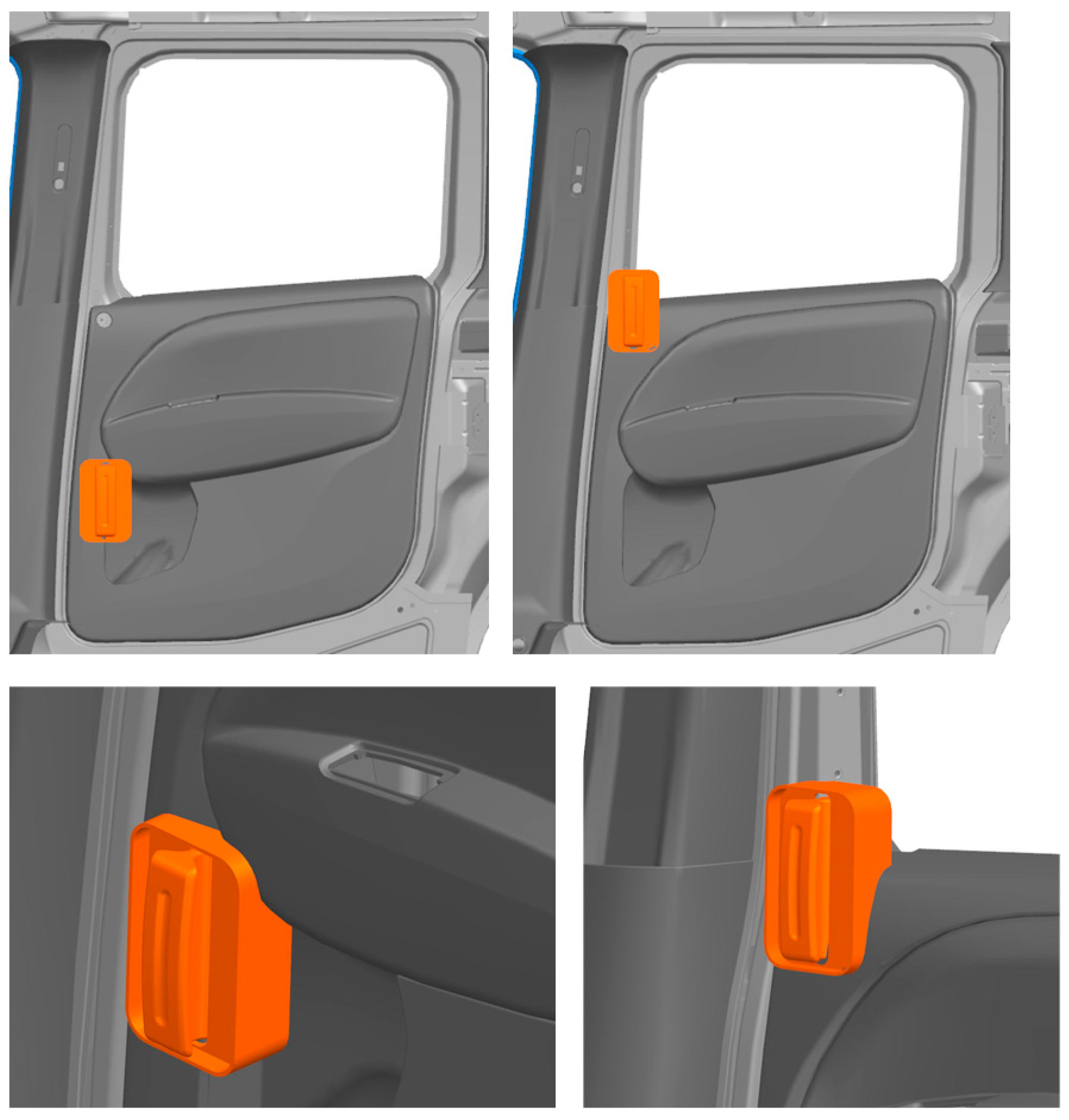

Figure 8. Concept Handle Designs and Positions.
Figure 8. Concept Handle Designs and Positions.
Applsci 15 04218 g008

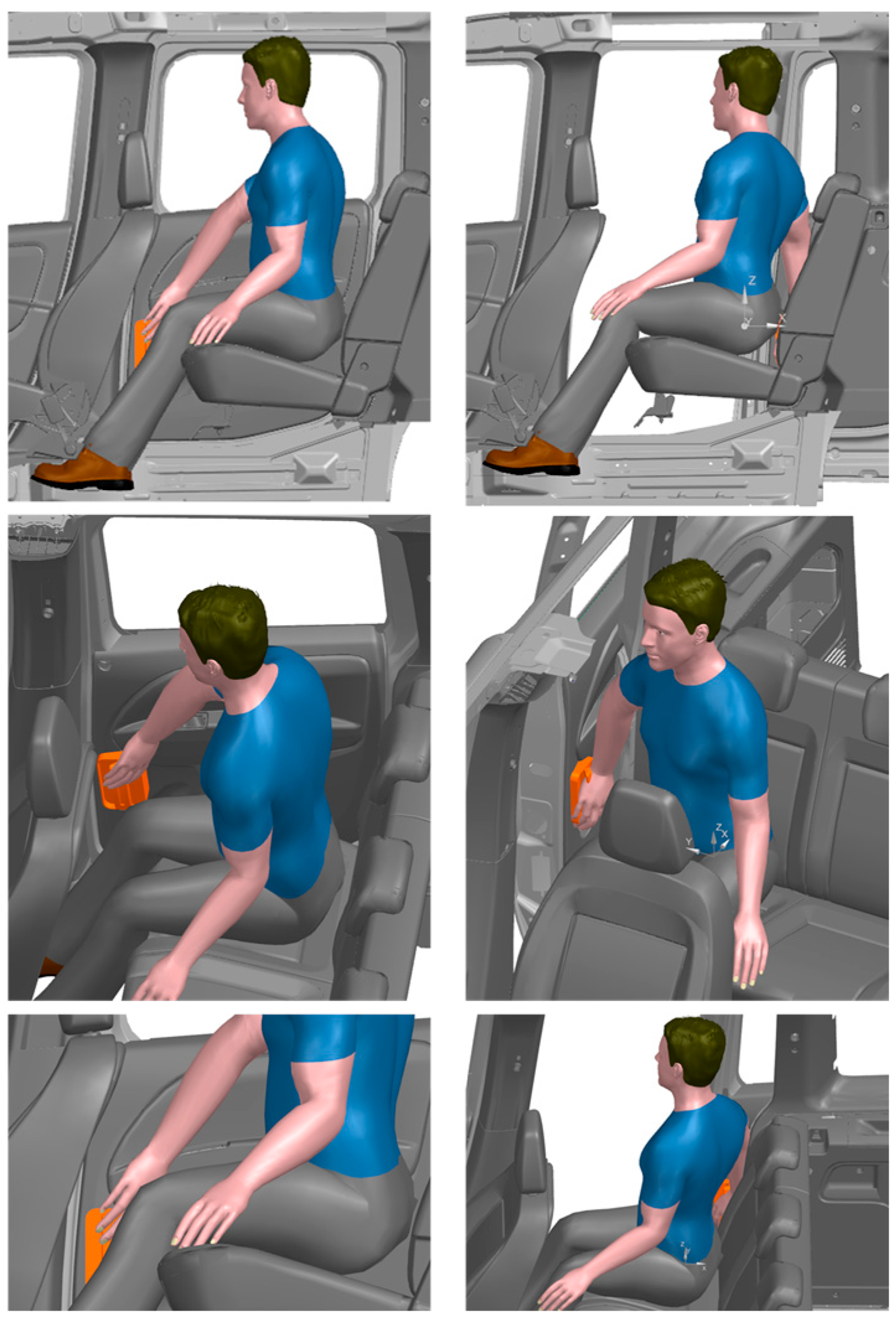

Figure 9. Validation of Concept Handle Designs and Positions.
Figure 9. Validation of Concept Handle Designs and Positions.
Applsci 15 04218 g009
Table 1. Properties of sliding door inner handle for 4 different vehicle models.
Table 1. Properties of sliding door inner handle for 4 different vehicle models.
FeatureVehicle AVehicle BVehicle CVehicle D
1Release the lock from fully open/closed positionPull two side
moveable
system
Push
the button
Pull
passenger car type handle
Pull
the trigger
2Slide the door
to open/close
Keep two side moveable
System
Keep
the handle
Keep
the handle
Keep
the handle
3Position of the door handleUpper side of the door glass lineAligned with door glassUpper side of the door glass lineUpper side of the door glass line
Table 2. Sliding door inner handle opening and closing customer satisfaction survey results.
Table 2. Sliding door inner handle opening and closing customer satisfaction survey results.
Survey QuestionsVehicle AVehicle BVehicle CVehicle D
When you consider the door opening system, and the ease of use, how much did you generally like the sliding door?42%49%57%69%
Sensation of order for how to operate55%66%76%77%
Fluid in motion59%69%76%77%
The handle has appropriate shape to grab52%61%74%72%
Position of the opening/closing system47%63%70%68%
Reachability when door is closed66%42%62%61%
Reachability when door is open49%66%76%67%
Convenient for hand/arm’s move during opening65%23%72%67%
Low effort for opening62%48%71%72%
Low effort for closing38%51%66%47%
Proper to operate with only one hand47%50%70%44%
Release the lock in open state30%55%63%56%
Release the lock in closed state30%54%65%58%
Style73%66%66%49%
Visibility50%74%64%70%
Table 3. Sliding door inner handle QFD Table 1.
Table 3. Sliding door inner handle QFD Table 1.
Customer
Requirements
KanoImp.Design Parameters
(Technical Requirements)
Competitive Value
Door Handle ShapeY PositionGrabbing PropertiesTravel Dist. of DoorX PositionLoad to Close the DoorEffortLatch Activation Load to OpenLatch Activation Load to CloseClosing EnergyZ PositionClamp Movement DistanceClamp Movement DirectionActivation TypeSoundVehicles
ABCDEFGHIJKLMOPVeh. AVeh. BVeh. CVeh. D
Sensation of how to
operate
B59191900000909303344
Fluid in
motion
E49133999009300033344
Appropriate shape to grabP39139999009101013344
PositionP41913111003919033344
Reachability when door is closedB49199099000901003234
Reachability when door is openB49191099000301003244
Convenient for hand/armP29399933003903003334
Low effort for openingP59199099330333004244
Low effort for closingP59199999339903003344
Operate with only one handE30003133001013003344
Release the lock in open stateB49199133330993013344
Release the lock in close stateB43130933330993013333
StyleE30339100330913003343
VisibilityE49993300000000903443
Vehicle A x x x
Vehicle B x x x x
Vehicle C x x x
Vehicle Dx x x x x
Value4151914093343143043041351351503931512517835
Vehicle A33716533228726725325311011013832211820163287
Vehicle B30217329925324920820893393312129911018772297
Vehicle C37321137231830226826811011015537112422884347
Vehicle D39519538233730129829811211215937912923266353
1 ‘B’ basic, ‘E’ excitement, and ‘P’ performance.
Table 4. PQ Approach and Design Cues.
Table 4. PQ Approach and Design Cues.
PQ ApproachDesign Cue
Create smallest gaps between joint partsDesign with as few parts as possible
Visual harmonyCreate part style matching with interior style of the vehicle
Perception of quality on visible surfacesDesign with as few parts as possible to avoid visible Connections
Invisible jointsDesign joints at hard to see areas of the part
Surface harmonyMatching style with interior of the vehicle
Touching pleasantnessMaterial and surface quality
Sound harmony Preventing squeaking noises by designing with as few parts as possible
Table 5. Experiment parameters and levels.
Table 5. Experiment parameters and levels.
FactorLevel 1Level 2Level 3
1Releasing the door from the lock when it is fully closed and fully openPress the button Pull two side
moveable system
Pull passenger car type handle
2Slide the door and lock to open/close the doorHandleKeep handle and
opening closing system together
Keep opening closing system
Table 6. Orthogonal array.
Table 6. Orthogonal array.
NoReleasing the Door from the Lock
When It Is Fully Closed/Open
Slide The Door and Lock to Close/Open the Door
1Press the buttonHandle
2Press the buttonHandle and opening closing system together
3Press the buttonKeep opening/closing system
4Pull two side moveable systemHandle
5Pull two side moveable systemHandle and opening closing system together
6Pull two side moveable systemKeep opening/closing system
7Pull passenger car type handleHandle
8Pull passenger car type handleHandle and opening closing system together
9Pull passenger car type handleKeep opening/closing system
Table 7. Taguchi Orthogonal array and Pugh matrix.
Table 7. Taguchi Orthogonal array and Pugh matrix.
Criteria123456789
Sensation of how to operateRef.++++++++
Low effort to open and closeRef.+++++---
Convenient for hand/arm’s move during openingRef.S+-S+---
Perceived qualityRef.SS-++SS-
Total ‘+’ 23234111
Total ‘-’ 00200223
Total ‘S’ 21010110
Table 8. Customer evaluation for the handle at the lower position and upper position.
Table 8. Customer evaluation for the handle at the lower position and upper position.
Door Handle PositionUpper AreaLower Area
Handle reachability during opening7.56.6
Posture to operate the handle during the opening phase7.56.9
Hand/arm movement when releasing the handle for opening5.96.8
Overall evaluation of the opening phase5.16.4
Handle reachability during closing5.26.7
Posture to operate the handle during the closing phase5.76.0
Hand/arm movement when releasing the handle for closing5.66.5
Overall evaluation of the closing phase6.26.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Unlukal Ilhan, E.; Ertan, R.; Sert, K. Enhancing the Perceived Quality of a Vehicle Sliding Door Inner Handle Concept Design. Appl. Sci. 2025, 15, 4218. https://doi.org/10.3390/app15084218

AMA Style

Unlukal Ilhan E, Ertan R, Sert K. Enhancing the Perceived Quality of a Vehicle Sliding Door Inner Handle Concept Design. Applied Sciences. 2025; 15(8):4218. https://doi.org/10.3390/app15084218

Chicago/Turabian Style

Unlukal Ilhan, Emel, Rukiye Ertan, and Kenan Sert. 2025. "Enhancing the Perceived Quality of a Vehicle Sliding Door Inner Handle Concept Design" Applied Sciences 15, no. 8: 4218. https://doi.org/10.3390/app15084218

APA Style

Unlukal Ilhan, E., Ertan, R., & Sert, K. (2025). Enhancing the Perceived Quality of a Vehicle Sliding Door Inner Handle Concept Design. Applied Sciences, 15(8), 4218. https://doi.org/10.3390/app15084218

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
