Article

Subcritical Extraction of Coal Tar Slag and Analysis of Extracts and Raffinates

1
School of Chemistry and Chemical Engineering, Xian University of Science and Technology, Xi’an 710054, China
2
School of Automobile, Chang’an University, Xi’an 710054, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(5), 2694; https://doi.org/10.3390/app15052694
Submission received: 5 January 2025 / Revised: 19 February 2025 / Accepted: 24 February 2025 / Published: 3 March 2025

Abstract

:
Coal is an important energy source for the development of modern society. The processing and utilization of coal have brought significant economic benefits for people, but at the same time, a large amount of coal-based solid waste is produced. Coal tar slag is one of the many types of solid waste. Coal tar slag contains a large number of PAHs (Polycyclic Aromatic Hydrocarbons) that are carcinogenic to humans and are therefore categorized as hazardous waste. There is a large historical stockpile of coal tar slag, and if not properly handled, it will cause great harm to people and the environment; therefore, the disposal of coal tar slags is a hot issue for scholars to study. In this paper, the toxic PAHs in coal tar slag were removed by subcritical extraction, and the extracts and raffinates were tested using infrared spectroscopy, GC-MS (gas chromatography–mass spectrometry), and PY-GC-MS (Pyrolysis Gas Chromatography–Mass Spectrometry). The results showed that after three subcritical extractions at 60 °C, there were obvious aromatic hydrocarbon absorption peaks in the extracts, and the intensity of aromatic hydrocarbons in the extracts was significantly reduced. In the first extract, mainly aliphatic hydrocarbons and aromatic hydrocarbons dominated; the relative content of aliphatic hydrocarbons was 28.68%, and the relative content of aromatic hydrocarbons was 56.56%. In the second extract, mainly aliphatic hydrocarbons and ethers dominated; the relative content of aliphatic hydrocarbons was 37.11%, and the relative content of ethers was 18.5%. In the third extract, mainly aliphatic hydrocarbons dominated, and the relative content of aliphatic hydrocarbons was 81.78%. Only one substance, benzaldehyde, was detected in the PY-GC-MS results of the third extract, and this substance is not included in the national hazardous waste list. After subcritical extraction, the coal tar residue is transformed from coal-based hazardous waste to coal-based solid waste that can be used directly, which is convenient for people to recycle coal tar residue in the future.

1. Introduction

The world’s three major fossil energy sources are oil, natural gas, and coal, but China’s energy structure is “rich in coal, poor in oil, and poor in gas”, so coal will dominate China’s social development for a long time [1]. The development and use of coal have introduced good economic benefits for social development, but a large amount of coal-based waste has been generated in the process of mining and utilization [2,3]. Coal tar slag is a kind of viscous solid residue produced in the process of coal pyrolysis and coking, with an irritating odor, which contains heteroatomic compounds such as N, S, etc., and it is mixed with a large number of polycyclic aromatic hydrocarbons (PAHs). These PAHs, such as naphthalene, fluoranthene, pyrene, and benzo[a]pyrene, etc., have a high degree of carcinogenicity to human beings and are classified as hazardous waste by the U.S. Environmental Protection Agency (USEPA), especially benzo[a]pyrene. The gastric cancer induction rate in mice can reach 8% when 1 mg of benzo[a]pyrene is ingested orally; moreover, the carcinogenicity rate increases to 70% when the total dose is 10 mg. Benzo[a]pyrene mainly causes tumors in epithelial tissues, such as skin, lung, stomach, and digestive tract cancers [4,5]. China is a large coal utilization country; every year it produces a large amount of coal tar slag. If not disposed of properly, this coal tar slag will cause great harm to the environment and people. The clean and harmless recycling of coal tar slag has been identified as a major problem in studies [6,7].
At present, people commonly use coal tar slag as a resource in coal coking, as a fuel, and in the preparation of carbon materials [8]. Chen [9] investigated the coking mechanism of coal liquefaction residue in coal coking by mixing the coal direct liquefaction residue with coking coal. He found through experiments that adding 10% of coal direct liquefaction residue can reduce the high caking coal by 13%, and the mechanical strength of coal can be increased from 90% to 97%. The direct coal liquefaction residue can improve the quality of coke by squeezing the viscous metamorphic layer into the pores between the coal particles at the critical stage of coal pyrolysis (380–450 °C). In the composition of coal tar slag, it can be seen that the fixed carbon content in coal tar slag is high, so its calorific value is high, and it is a good secondary energy source; however, because its combustion may produce NO, SO2, and other gases that can be harmful to the environment and people, it is necessary to pre-treat it. Xu [10] investigated the reduction in the viscosity of coal tar slag with the aid of microwave treatment by using thermogravimetric tests and tube furnace combustion to investigate the combustion phenomena of the coal tar slag before and after treatment. The experimental results show that high temperature and high liquid–solid ratio in microwave-assisted coal tar slag treatment can greatly reduce its viscosity. Moreover, after the combustion of coal tar slag, the NO emission was less than 140 mg/m3, and the SO2 emission was less than 100 mg/m3. The combustion of coal tar slag treated in this way reduces the emission of toxic gases, and it can be used as a fuel for fluidized beds used in industrial production. Due to the high carbon content in coal tar slag, it can be used as an excellent raw material for the preparation of new carbon materials. Liang [11] utilized semi-coke to prepare Ni/C-based composite microwave absorbers. The synthesis mainly involved loading an ethanol solution of nickel nitrate onto SC followed by in situ carbothermal reduction. The results showed that thermal treatment at 700 °C and above with a fixed Ni loading of 20 wt% could exploit the properties of the SC carbon-based material by removing most of the coal tar and also inducing complete reduction.
The above-described treatments for the recovery of coal tar slag were used directly, ignoring the aromatic hydrocarbons in the coal tar slag. People used to commonly extract aromatic hydrocarbons in coal tar slag for ordinary solvent extraction and supercritical extraction. Ordinary solvent extraction is simple and easy to realize, but the extraction effect is poor, and commonly used organic solvents have a certain degree of toxicity, which can easily harm personnel. The effect of supercritical extraction is good, and the extractant is generally CO2, non-toxic, and non-hazardous, but the pressure required for supercritical extraction is too great, and the cost of the equipment is high. In this article, we used a new extraction technology to recover aromatic hydrocarbons from the coal tar slag, which are important raw materials in chemical production. Removing these aromatic hydrocarbons allows the coal tar slag to be more easily recycled as solid waste [12]. Subcritical extraction is a novel separation technology that uses subcritical fluids as extractants. In this state, the extractant is above its boiling point but below its critical temperature and pressure. Under these conditions, molecular diffusion enhances mass transfer rates, and the permeability and solubility of weakly polar and nonpolar substances significantly improve. Butane is commonly used as the solvent. The process involves immersing the material in the extractant in a closed, oxygen-free, low-pressure vessel, allowing fat-soluble components to transfer to the liquid extractant through molecular diffusion. The extractant is then separated from the product via reduced-pressure evaporation [13,14]. Subcritical extraction is a low-temperature technology that preserves the active ingredients of the extract without destruction or oxidation. It is efficient, energy saving, and suitable for the large-scale industrial production. The extractant and target product are easily separated, improving product purity and quality. The entire process is non-toxic, environmentally friendly, and aligns with modern green chemistry trends. In summary, subcritical extraction is an efficient, environmentally friendly, energy-saving technology with broad applications. As technology advances, it will play an important role in agriculture, medicine, cosmetics, and other industries [15,16]. Ding [17] separated high-temperature coal tar samples into 10 narrow oil fractions and one solid-phase asphaltene product using supercritical fluid extraction with n-pentane at 220 °C and pressures ranging from 5 to 15 MPa. The results showed that the cumulative yield increased with pressure, especially at lower pressures, and the rate of increase gradually decreased. The total yield of the oil extract was 78.36%, while the bitumen yield was 21.64%.
Fourier Infrared Spectroscopy (FTIR) determines the chemical composition of a substance by analyzing the specific vibrational frequencies of chemical bonds between molecules, which produce characteristic absorption peaks under infrared light. GC-MS separates substances based on properties such as the boiling point or polarity, identifies the signals transmitted by the GC through the mass spectrometer, and generates mass spectra. PY-GC-MS involves thermally cracking solid substances to break large molecules into smaller ones, which are then analyzed using GC-MS [18,19]. Qi [20] pyrolyzed two Victorian lignite samples and characterized the pyrolysis products using GC-MS and PY-GC-MS. The results showed that the low-temperature pyrolysis products contained abundant triterpene polycyclic compounds and aliphatic hydrocarbons, while the yield of aromatic hydrocarbons increased significantly with a higher pyrolysis temperature. Sun [21] used GC-MS to analyze the composition of washed fractions from low-temperature and high-temperature coal tar. The experimentals revealed that petroleum ether effectively extracted light fractions, primarily consisting of aliphatic hydrocarbons, aromatic hydrocarbons, and phenolics. Four dehydrogenation reactions occurred in the rapid pyrolysis process, including alkane dehydrogenation, alkane cleavage, polymerization, and bridge bond cleavage. This method is also applicable for the quantitative analysis of oil sands and oil shale.
In this article, coal tar slag was extracted using subcritical butane at 60 °C, with three extraction cycles performed. The extracts and raffinates were collected after each cycle and analyzed using FTIR, GC-MS, and PY-GC-MS to determine their organic components. This approach was used to evaluate the extraction efficiency of aromatic hydrocarbons. The innovative application of subcritical extraction technology in the coal chemical industry is a new expansion of its application field of subcritical extraction and provides novel insights for the sustainable development of the coal chemical industry chain.

2. Materials and Methods

2.1. Experimental Materials

The coal tar slag used in this experiment was obtained from the production process of orchid charcoal at the Yulin Orchid Charcoal Factory. After sampling, the slag was crushed, sieved to a particle size below 200 mesh (0.075 mm), and dried in an oven at 40 °C for over 2 h. The dried samples were cooled to room temperature and stored in a desiccator containing color-changing silica gel for further use. The subcritical extraction equipment produced by the Henan Institute of Subcritical Extraction utilized butane as the extractant. A schematic diagram is shown in Figure 1.

2.2. Subcritical Extraction Experiments

A 1000 g sample of prepared coal tar slag was weighed in the extraction tank. The tank door was tightened, and butane was added at a mass-to-volume ratio of 1:10 (coal tar slag to butane). The temperature was set to 60 °C. After 60 minutes of extraction, the first extract and 300 g of raffinate were collected. The remaining coal tar slag was extracted for another 60 minutes, and the second extract and 300 g of raffinate were collected. This process was repeated once more to obtain the third extract and raffinate. All three extracts and raffinates were stored in a desiccator.
The whole experimental process is illustrated in Figure 2.
EXT1: subcritical 60 °C extraction of the first extract; RAF1: subcritical 60 °C first extraction raffinate; EXT2: subcritical 60 °C extraction of the second extract; RAF2: subcritical 60 °C second extraction raffinate; EXT3: subcritical 60 °C extraction of the third extract; RAF3: subcritical 60 °C third extraction raffinate; FTIR: Fourier Transform Infrared Spectroscopy (FTIR); GC-MS: gas chromatography–mass spectrometry (GC-MS); PY-GC-MS: Pyrolysis Gas Chromatography–Mass Spectrometry (PY-GC-MS).

2.3. Test Analysis

Infrared spectroscopy test: Infrared spectroscopy measurements were conducted using a Thermo Fisher Scientific Nicolet IN10&iZ10 FTIR spectrometer (Waltham, MA, USA) with KBr pellets. The scanning time was 2 min, the resolution was 4 cm−1, and the scanning range was 400–4000 cm−1.
GC-MS: The GC-MS-QP 2010S gas chromatography–mass spectrometry (GC-MS) instrument was manufactured by Shimadzu Corporation, Nishinokyo Kuwabara-cho, Japan; the column was 30.0 m × 250 μm × 0.25 μm, the carrier gas was high-purity He, the temperature of the ion source was 230 °C, the temperature of the inlet port was 300 °C, the injection mode was shunt injection, the ratio of shunt injection was 120:1, and the injection volume was 1 μL. The warming program was initialized. The temperature increase program was 60 °C, residence time of 5 min, 5 °C/min to 300 °C, and retained for 8 min.
PY-GC-MS test: The instrument was an Agilent 7890B Thermal Cracking Mass Spectrometer (TCS-MS), Santa Clara, CA, USA; Firstly, the sample was pyrolyzed by the thermal cracker; the temperature of the sample was set at 200 °C, the time of the thermal cracking was 10 s, the injection volume of the thermal cracking was 0.5 mg, and the sample was detected using the gas chromatography–mass spectrometer (GC-MS), and the chromatographic column was an HP-5 ms Ultra. The column was HP-5ms Ultra 30.0 m × 250 μm × 0.25 μm, the carrier gas was high-purity He, the temperature of the ion source was 230 °C, the scanning mode was Scan, the scanning mass range was 40–500 μ, the splitting ratio was 150:1, and the injection volume was 1 μL. The warming program was 5 °C/min at room temperature to 60 °C for 10 min, then 8 °C/min to 100 °C for 5 min, and then 8 °C/min for 5 min at room temperature for 5 min. The temperature increase program was 5 °C/min to 60 °C for 10 min at room temperature, then 8 °C/min to 100 °C for 5 min, followed by 10 °C/min to 200 °C for 5 min.
Compound identification in extracts and raffinates was conducted using GC-MS and PY-GC-MS. The detected compounds were identified using NIST17 (National Institute of Standards and Technology Mass Spectral Library), with compound names and species determined based on confidence levels and similarity indices. Subsequently, semi-quantitative analysis was performed using the peak area method to determine compound species and relative concentrations.
Data analysis and plotting in the article were performed using Origin2021 software from OriginLab, Inc. of Northampton, MA, USA.
Experimental apparatus and equipment details are provided in Table 1.

3. Results and Discussion

3.1. Coal Tar Slag Basic Property Test

The results of industrial analysis and elemental analysis of coal tar slag are as follows in Table 2.
It can be seen in the results of industrial analysis that the fixed carbon content in the samples is high; it can be seen in the results of elemental analysis that the sample varieties also contain more O elements, which may be due to the reaction with oxygen in the air during the coking of the raw coal.

3.2. Infrared Spectroscopy and PY-GC-MS Tests on Raw Coal Tar Slag Samples

Figure 3 below shows the infrared spectra of the original sample of coal tar slag, from which it can be seen that the original sample of coal tar slag has obvious absorption peaks at 3430 cm−1, 1600 cm−1, 1430 cm−1, 870 cm−1, 807 cm−1, and 745 cm−1. The absorption peak appearing at 3430 cm−1 is generally that of the -OH functional group. The absorption peaks appearing at 1600 cm−1 are generally C=C stretching vibrations, which indicate that coal tar slag may contain aromatic hydrocarbons. The absorption peak at 1430 cm−1 is generally a C-H bending vibration, which indicates that the coal tar slag may contain aliphatic hydrocarbons. The absorption peaks at 870 cm−1, 807 cm−1, and 745 cm−1 are generally =C-H out-of-plane bending vibrations, which indicates that the coal tar slag may contain aromatic hydrocarbons. Infrared spectroscopy is an important reference in the scientific research process, but the infrared spectroscopy test is generally not able to determine the composition of the substance, and other tests must be used to further determine the composition of the components in the tar slag.
Figure 4 below shows the total ion flow chromatogram of coal tar slag samples tested using PY-GC-MS.
In the total ion flow chromatogram 3 and Table 3 of the compositional composition of the tarry slag, it can be seen that 12 volatilizable substances were detected in the original sample of tarry slag, including one aliphatic hydrocarbon substance with a relative content of 1.23%, 10 aromatic hydrocarbon substances with a relative content of 15.85%, and one aldehyde substance with a relative content of 9.46%. The next experiment will remove these aromatic hydrocarbons.

3.3. Infrared Spectroscopic Testing of Coal Tar Slag Raffinates and Extracts

Figure 5 and Figure 6 below show the infrared spectra of the extracts from three subcritical extractions of coal tar slag at 60 °C.
Figure 5 shows the infrared spectroscopy of three 60 °C subcritical extracts. The first extract exhibits strong absorption peaks at 700–900 cm−1, suggesting abundant volatile aromatic hydrocarbons. In contrast, the second and third extracts show significantly reduced peaks in this region, indicating that most aromatic hydrocarbons were removed during the first extraction. In Figure 5, the solid red line in the region of 700–900 cm−1 indicates the distribution of absorption peaks in the extract. Figure 6 shows the infrared spectra of Figure 5’s magnified red line area; it is more obvious that the first extractive aromatic hydrocarbon absorption peaks are of high intensity, while the second and third almost have no obvious absorption peaks.
Figure 7 and Figure 8 below show the infrared spectra of the raffinates from three subcritical extractions of coal tar slag at 60 °C.
Figure 7 shows the infrared spectra of three raffinates, revealing no significant absorption peak at 700–900 cm−1 (red line region), indicating minimal aromatic hydrocarbon content. Figure 8 presents an enlarged view of this region, demonstrating spectral flattening with increasing extraction cycles and the near absence of absorption peaks, suggesting the effective removal of volatile and toxic PAHs. These infrared spectra results are crucial references for our study, which will further investigate the extracts and raffinates using GC-MS and PY-GC-MS analyses.

3.4. GC-MS Testing of Coal Tar Slag Extracts

The previous infrared spectroscopy measurement is an important reference to analyze the extracts and raffinates of coal tar slag, but it can only detect the functional groups and chemical bonds in the substance and cannot analyze the composition of the substance. Therefore, we continued with the extraction of coal tar slag using GC-MS. Figure 9 presents the total ion flow chromatogram for the first extraction of coal tar slag at a subcritical 60 °C.
Table 4 below shows the results of the identification and analysis of the 61 volatile organic components detected in Figure 9, and the relative content was calculated based on the corresponding peak areas of the compounds.
As can be seen in the total ion flow chromatogram 9 and Table 4 of the substance composition, a total of 61 compounds were detected in the first extract, including 24 aliphatic hydrocarbons with a relative content of 28.68%, 22 aromatic hydrocarbons with a relative content of 56.56%, 2 alcohols with a relative content of 1.15%, 5 esters with a relative content of 1.88%, 1 ketone with a relative content of 1.46%; 1 phenolic substance with a relative content of 1.87%; 1 ether substance with a relative content of 0.48%; 2 nitrogen-containing compounds with a relative content of 3.22%; 1 sulfur-containing compound with a relative content of 0.27%; and 2 other compounds with a relative content of 2.98%. The main substances detected in the first extract were aliphatic hydrocarbons and aromatic hydrocarbons, among which the content of aromatic hydrocarbons was the highest, which was in line with the results of the previous infrared spectroscopy test.
Figure 10 below shows the total ion flow chromatogram of the GC-MS test on the second extract of coal tar slag at a subcritical 60 °C.
Table 5 below shows the results of the identification and analysis of the 16 volatile organic components detected in Figure 10.
As can be seen in the total ion flow chromatogram 10 and Table 5 of the substance composition, a total of 16 substances were detected in the second extract, including 7 aliphatic hydrocarbons, with a relative content of 37.11%; 1 carboxylic acid, with a relative content of 1.96%; 1 alcohol, with a relative content of 3.55%; 1 aldehyde, with a relative content of 1.36%; 3 esters, with a relative content of 18.50%; 1 sulfur-containing compound with a relative content of 11.26%; and 2 other compounds with a relative content of 7.24%. In the results of the second extract, it can be preliminarily concluded that after two subcritical extractions, no aromatic hydrocarbon substances were detected in the extract, and the largest proportion of the extract was aliphatic hydrocarbon substances, which indicated that the aromatic hydrocarbon substances in the coal tar slag had been completely extracted.
Figure 11 below shows the total ion flow chromatogram of the GC-MS test on the third extract of coal tar slag at a subcritical 60 °C.
Table 6 below shows the results of the identification and analysis of 58 volatile organic components detected in Figure 11.
As can be seen in the total ion flow chromatogram 11 and the substance composition Table 6, a total of 58 substances were detected in the third extract, including 36 aliphatic hydrocarbons with a relative content of 81.78%, 4 alcohols with a relative content of 5.06%, 3 ethers with a relative content of 0.85%, 8 esters with a relative content of 7.55%, 1 ketone with a relative content of 0.14%, 1 nitrogen-containing compound with a relative content of 0.09%, 2 sulfur-containing compounds with a relative content of 1.43%, and 3 other compounds with a relative content of 1.58%. The percentage of aliphatic hydrocarbons in the third extract detection was very high, reaching 81.78%, and no aromatic hydrocarbon substances were detected, which was consistent with the infrared spectroscopy results and the GC-MS results of the second extract, indicating that the volatilizable aromatic hydrocarbon substances in the coal tar slag were extracted to completion. The next three extracts of the subcritical extraction will be detected, and the results of the extract detection will be used to corroborate the conclusions reached so far.

3.5. Coal Tar Slag Raffinate PY-GC/MS Test

After the previous infrared spectroscopy and GC-MS extract results, a preliminary conclusion can be drawn: after subcritical 60 °C extraction on coal tar slag, a large number of aromatic hydrocarbons were detected in the extract; in the second and third extracts, aromatic hydrocarbons were not detected, indicating that the tar slag contained volatile aromatic hydrocarbons. A PY-GC-MS test will be performed on the three raffinates to confirm this conclusion.
Figure 12 below shows the PY-GC-MS total ion flow chromatogram of the first raffinates of the subcritical extraction of tar slag.
Table 7 below shows the results of the identification and analysis of the three volatile organic components detected in Figure 12.
As can be seen in total ion flow chromatogram 12 and Table 7 of the composition of the extract, only three volatile substances were detected in the first extract, which were aliphatic hydrocarbons, with a relative content of 0.79%; aldehydes, with a relative content of 7.60%; and carboxylic acids, with a relative content of 37.56%. These three substances are not in the 16 PAHs announced by the U.S. Environmental Protection Agency, indicating that there are no volatile toxic PAHs in the raffinates after a subcritical 60 °C extraction.
Table 8 below shows the results of the identification and analysis of the two volatile organic components detected in Figure 13.
As can be seen in total ion flow chromatogram 13 and Table 8 of the composition of the raffinates, only two volatile substances were detected in the second raffinate, which were aldehydes, with a relative content of 7.70%, and carboxylic acids, with a relative content of 37.55. Both substances were not included in the 16 PAHs published by the U.S. Environmental Protection Agency, which indicated that after the two subcritical 60 °C extractions, there were no volatile toxic PAHs in the raffinates, and the test results are consistent with the previous extracts.
Table 9 below shows the results of the identification and analysis of one volatile organic component detected in Figure 14.
As can be seen in total ion flow chromatogram 14 and extract composition Table 9, only one volatilizable substance was detected in the third raffinate, which was an aldehyde, with a relative content of 11.84%, and this substance was not in the 16 PAHs published by the U.S. Environmental Protection Agency, which indicated that after the three subcritical 60 °C extractions, there was no volatilizable toxic PAH in the raffinate, and the preliminary conclusion was again confirmed to be credible.

4. Conclusions

This study demonstrates that subcritical extraction can extract the toxic aromatic hydrocarbons from coal tar slag. Firstly, the basic properties of coal tar slag were tested, and it was found that coal tar slag contained a large amount of volatile toxic aromatic hydrocarbons. These toxic aromatic hydrocarbons were extracted via subcritical 60 °C three times. According to the test results, it can be concluded that the first extract had a large number of aromatic hydrocarbon substances, with a relative content of 56.56%; the second extract showed that the main component was aliphatic hydrocarbon substances, with a relative content of 37.11%; the third extract showed a main component of aliphatic hydrocarbon substances, with a relative content of 81.78%. No aromatic hydrocarbons were detected in the three raffinates, indicating that after a subcritical extraction, all the toxic aromatic hydrocarbons in the coal tar slag were extracted, and the “purified” coal tar slag can be reused as a new resource. Compared with the supercritical extraction in the previous work by Ding [17], this study improves efficiency, and the extraction conditions are easier to realize, which saves on equipment costs. While subcritical extraction is well-established in biomedicine, our application in coal chemical processing represents a novel expansion of this technology, offering new perspectives for industry researchers and significantly contributing to coal chemical industry chain development.

Author Contributions

Conceptualization, X.W. and J.Z.; methodology, X.W. and Z.Z.; software, Z.Z.; validation, X.W. and J.Z.; formal analysis, X.W. and J.Z.; investigation, X.W. and J.Z.; resources, X.W.; data curation, Z.Z.; writing—original draft preparation, Z.Z.; writing—review and editing, X.W.; visualization, J.Z.; supervision, X.W.; project administration, J.Z.; funding acquisition, X.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Shaanxi Province Special Funds for Technological Innovation (grant number 2021QFY04-02); the Special Funds for Central Administration Guiding Local Science and Technology Development of Shaanxi Province (grant number 2021ZY-QY-08-04); the Research Program of Shaanxi Anjian Investment Construction Co, Ltd. (grant number KY-2022-B15,B16); Special Key Research Project of Integration of Industry and Innovation Chain of QINCHUANGYUAN Industrial Cluster Programme (grant number 2023QCY-LL-24); 2024 Henan Province Key Research and Development Project (grant number 241111322100); Shaanxi Provincial Department of Transportation 2023 Annual Traffic Science and Research Projects (grant number 23-100K, 104K); and Shaanxi Transportation Scientific Research Programme (grant number 20-26K).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article; further inquiries can be directed to the corresponding author.

Acknowledgments

We would like to thank Hongjun Zhang, Qi Fan, and Ping Li (The Xi-Fu Branch of Shaanxi Transportation Holding Group Co., Ltd.) for their support in writing and publishing this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Su, X.B.; Liu, X.C.; Du, Z.M.; Hou, C.R.; Li, M.J.; Cao, F.B.; Chen, M.F.; Zhang, T. Advances in development of safe and efficient mining of coexisting coal and uranium resources. Processes 2024, 12, 1340. [Google Scholar] [CrossRef]
  2. Yue, G.X.; Lyu, J.F.; Li, S.Q. Clean and highly-efficient utilization of coal. Front. Energy 2021, 15, 1–3. [Google Scholar] [CrossRef]
  3. Wang, X.L.; He, X.; Wang, X.H. FTIR analysis of the functional group composition of coal tar residue extracts and extractive residues. Appl. Sci. 2023, 13, 5162. [Google Scholar] [CrossRef]
  4. Shen, J.; Wang, X.L.; Niu, Y.X.; Liu, G.; Sheng, Q.T.; Wang, Y.G. Combustion properties and toxicity analysis of coal gasification tar residue. J. Clean. Prod. 2016, 139, 567–575. [Google Scholar] [CrossRef]
  5. Gao, F.Y.; Zhou, C.C.; Wang, Z.H.; Zhu, W.W.; Wang, X.; Liu, G.J. Solid-oil separation of coal tar residue to reduce polycyclic aromatic hydrocarbons via microwave-assisted extraction. J. Environ. Manag. 2023, 337, 117679. [Google Scholar] [CrossRef]
  6. Apicella, B.; Russo, C.; Senneca, O. Analytics for recovery and reuse of solid wastes from refineries. Energies 2022, 15, 4026. [Google Scholar] [CrossRef]
  7. Ma, Z.H.; Wei, X.Y.; Liu, G.H.; Liu, F.J.; Zong, Z.M. Value-added utilization of high-temperature coal tar: A review. Fuel 2021, 292, 119954. [Google Scholar] [CrossRef]
  8. Yang, B.; Fan, X.Y.; Li, D.; Cui, L.W.; Chang, C.R.; Yan, L.; Lu, B.W.; Li, J. Simulation and experimental study of solid–liquid extraction of coal tar residue based on different extractants. ACS Omega 2023, 8, 47835–47845. [Google Scholar] [CrossRef]
  9. Chen, Z.H.; Wu, Y.Q.; Huang, S.; Wu, S.Y.; Gao, J.S. Coking behavior and mechanism of direct coal liquefaction residue in coking of coal blending. Fuel 2020, 280, 118488. [Google Scholar] [CrossRef]
  10. Xu, Z.W.; Shao, H.S.; Wang, Y.G.; Zhao, Q.X.; Liang, Z.Y. Characteristics of coal tar residue treated with microwave-assisted hydrothermal treatment. Fuel Process. Technol. 2021, 211, 106580. [Google Scholar] [CrossRef]
  11. Liang, L.P.; Gao, F.; Mao, L.T.; Wang, Y.K.; Zhu, B.S.; Zhang, R.; Li, G.M. Resource utilization of coal hydrogasification residue to Ni/carbon-based composites for efficient microwave absorption. J. Mater. Sci. Mater. Electron. 2022, 33, 12857–12870. [Google Scholar] [CrossRef]
  12. Yao, Q.X.; Liu, Y.Q.; Zhang, D.; Sun, M.; Ma, X.X. Catalytic conversion of a≥ 200° C fraction separated from low-temperature coal tar into light aromatic hydrocarbons. ACS Omega 2021, 6, 4062–4073. [Google Scholar] [CrossRef] [PubMed]
  13. Yabalak, E.; Aminzai, M.T.; Gizir, A.M.; Yang, Y. A review: Subcritical water extraction of organic pollutants from environmental matrices. Molecules 2024, 29, 258. [Google Scholar] [CrossRef] [PubMed]
  14. Cheng, Y.; Xue, F.M.; Yu, S.; Du, S.C.; Yang, Y. Subcritical water extraction of natural products. Molecules 2021, 26, 4004. [Google Scholar] [CrossRef]
  15. Zhang, J.X.; Wen, C.T.; Zhang, H.H.; Duan, Y.Q.; Ma, H.L. Recent advances in the extraction of bioactive compounds with subcritical water: A review. Trends Food Sci. Techol. 2020, 95, 183–195. [Google Scholar] [CrossRef]
  16. Fărcaș, A.C.; Socaci, S.A.; Nemeș, S.A.; Salanță, L.C.; Chiș, M.S.; Pop, C.R.; Borșa, A.; Diaconeasa, Z.; Vodnar, D.C. Cereal waste valorization through conventional and current extraction techniques—An up-to-date overview. Foods 2022, 11, 2454. [Google Scholar] [CrossRef]
  17. Ding, Y.H.; Chen, H.; Wang, D.F.; Ma, W.G.; Wang, J.F.; Xu, D.P.; Wang, Y.G. Supercritical fluid extraction and fractionation of high-temperature coal tar. J. Fuel Chem. Technol. 2010, 38, 140–143. [Google Scholar] [CrossRef]
  18. Meziani, A.; Verloy, S.; Ferroukhi, O.; Roca, S.; Curat, A.; Tisse, S.; Peulon-Agasse, V.; Gardeniers, H.; Desmet, G.; Cardinael, P. Evaluation of gas chromatography columns with radially elongated pillars as second-dimension columns in comprehensive two-dimensional gas chromatography. Anal. Chem. 2022, 94, 14126–14134. [Google Scholar] [CrossRef]
  19. Yu, Q.; Xu, S.Y.; Shi, W.Y.; Tian, Y.; Wang, X.H. Mass spectrometry coupled with vacuum thermal desorption for enhanced volatile organic sample analysis. Anal. Methods 2020, 12, 1852–1857. [Google Scholar] [CrossRef]
  20. Qi, Y.; Hann, W.; Subagyono, D.J.N.; Fei, Y.; Marshall, M.; Jackson, W.R.; Patti, A.F.; Chaffee, A.L. Characterisation of the products of low temperature pyrolysis of Victorian brown coal in a semi-continuous/flow through system. Fuel 2018, 234, 1422–1430. [Google Scholar] [CrossRef]
  21. Sun, M.; Zhang, D.; Yao, Q.X.; Liu, Y.Q.; Su, X.P.; Jia, C.Q.; Hao, Q.Q.; Ma, X.X. Separation and composition analysis of GC/MS analyzable and unanalyzable parts from coal tar. Energ. Fuels 2018, 32, 7404–7411. [Google Scholar] [CrossRef]
  22. GBT212-2022; Industrial Analysis Method of Coal. State Administration for Market Regulation: Beijing, China, 2022.

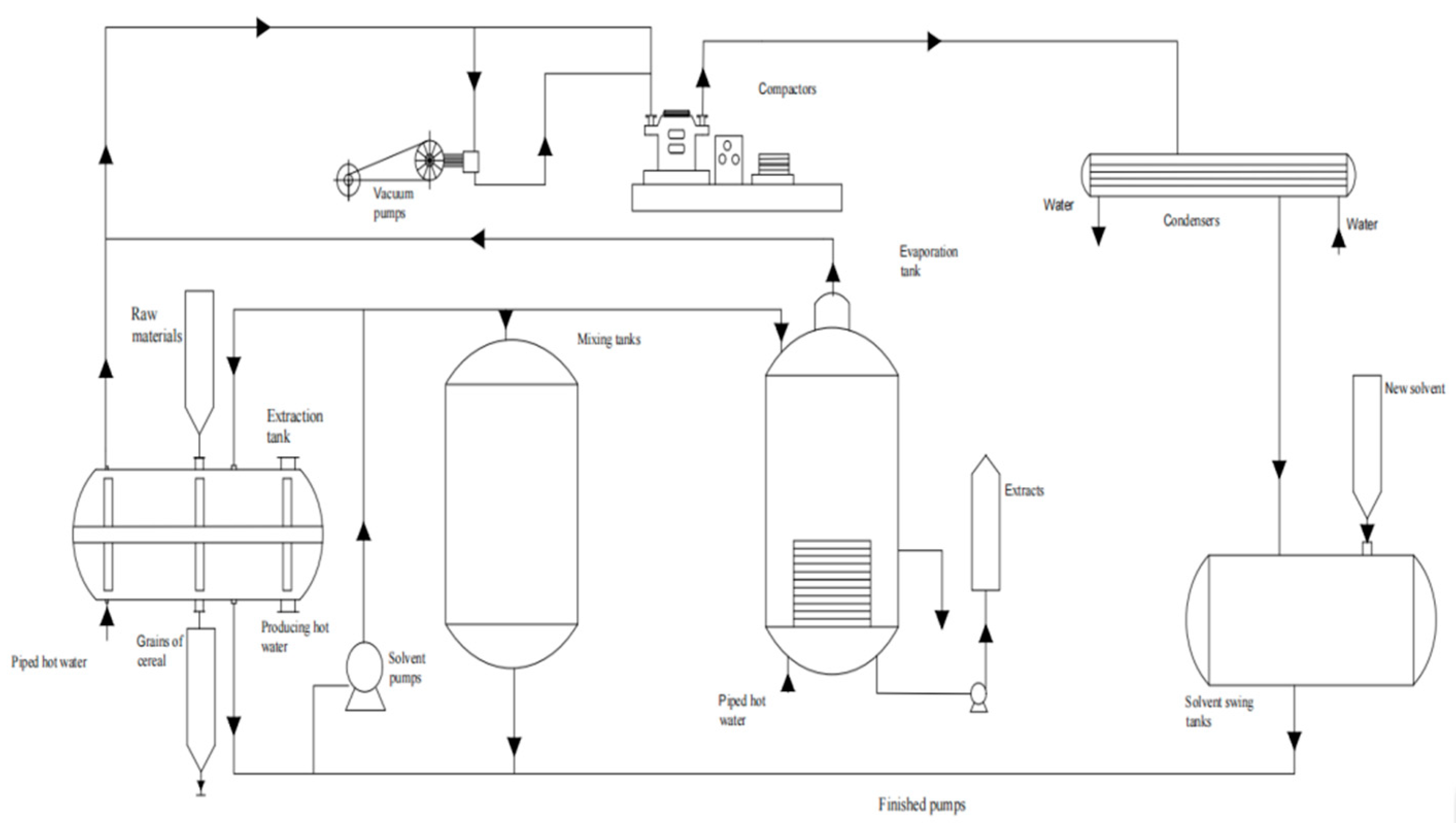

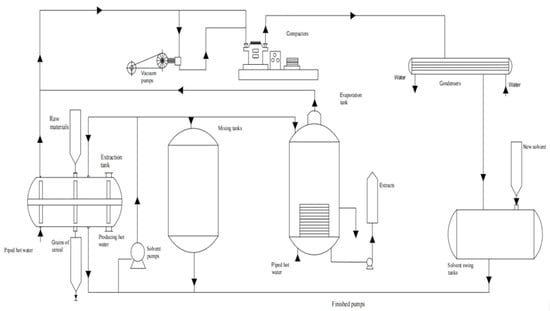

Figure 1. Schematic diagram of subcritical extraction equipment.
Figure 1. Schematic diagram of subcritical extraction equipment.
Applsci 15 02694 g001

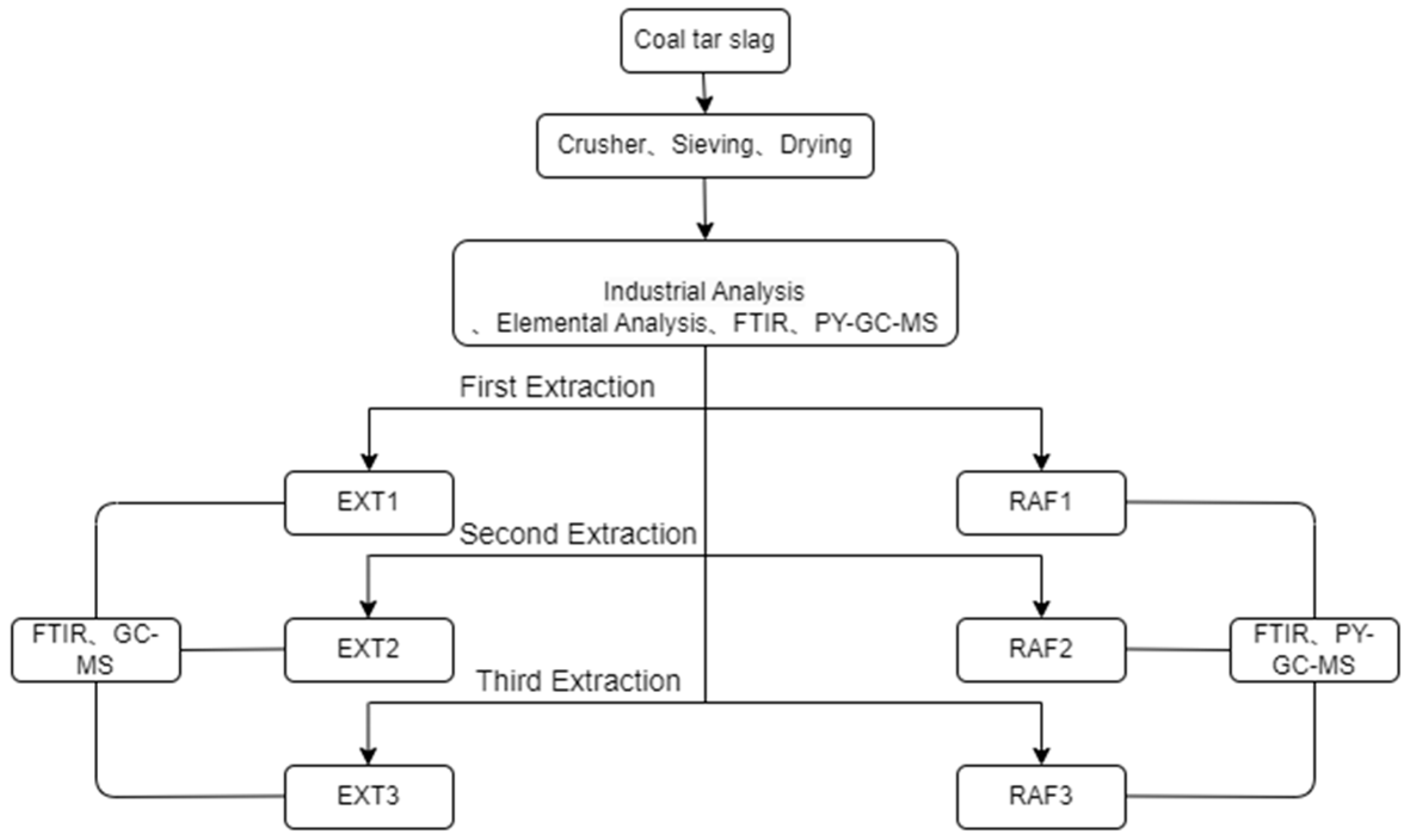

Figure 2. Flowchart of the experiment.
Figure 2. Flowchart of the experiment.
Applsci 15 02694 g002

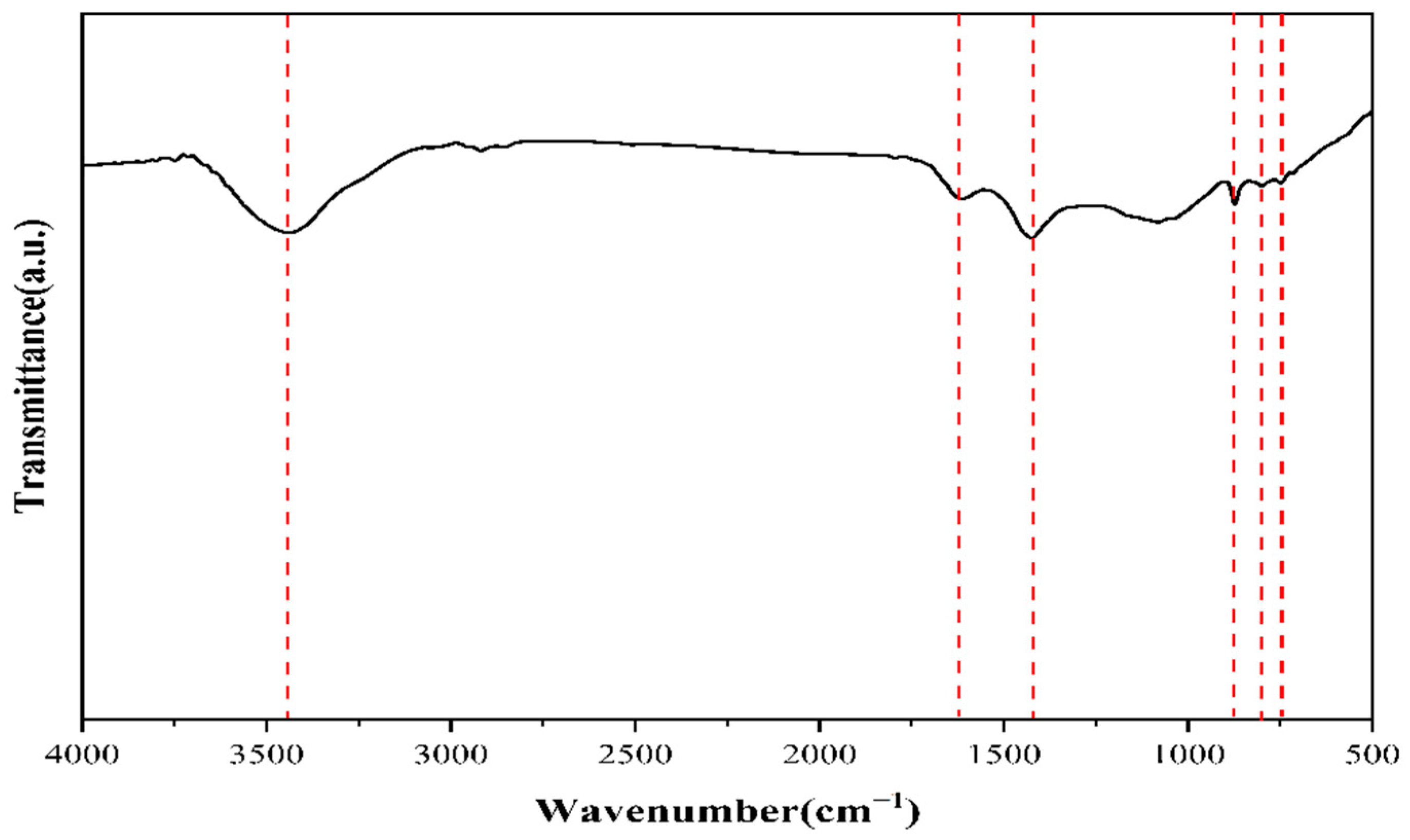

Figure 3. Infrared spectral test chart of tarry slag raw sample.
Figure 3. Infrared spectral test chart of tarry slag raw sample.
Applsci 15 02694 g003

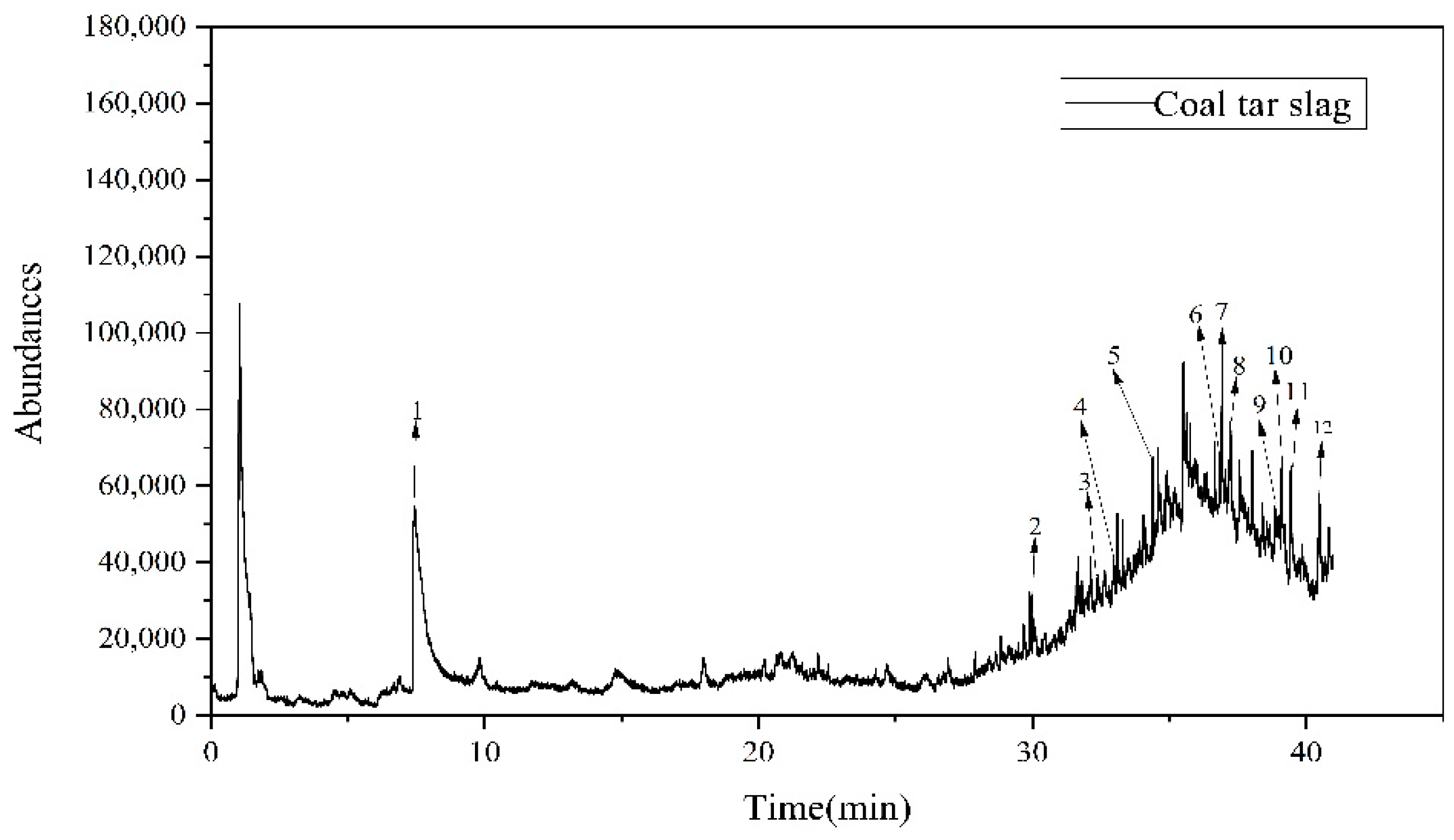

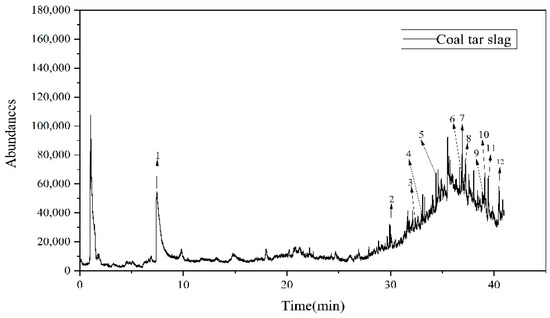

Figure 4. Total ion flow chromatogram of PY-GC-MS of coal tar slag raw sample.
Figure 4. Total ion flow chromatogram of PY-GC-MS of coal tar slag raw sample.
Applsci 15 02694 g004

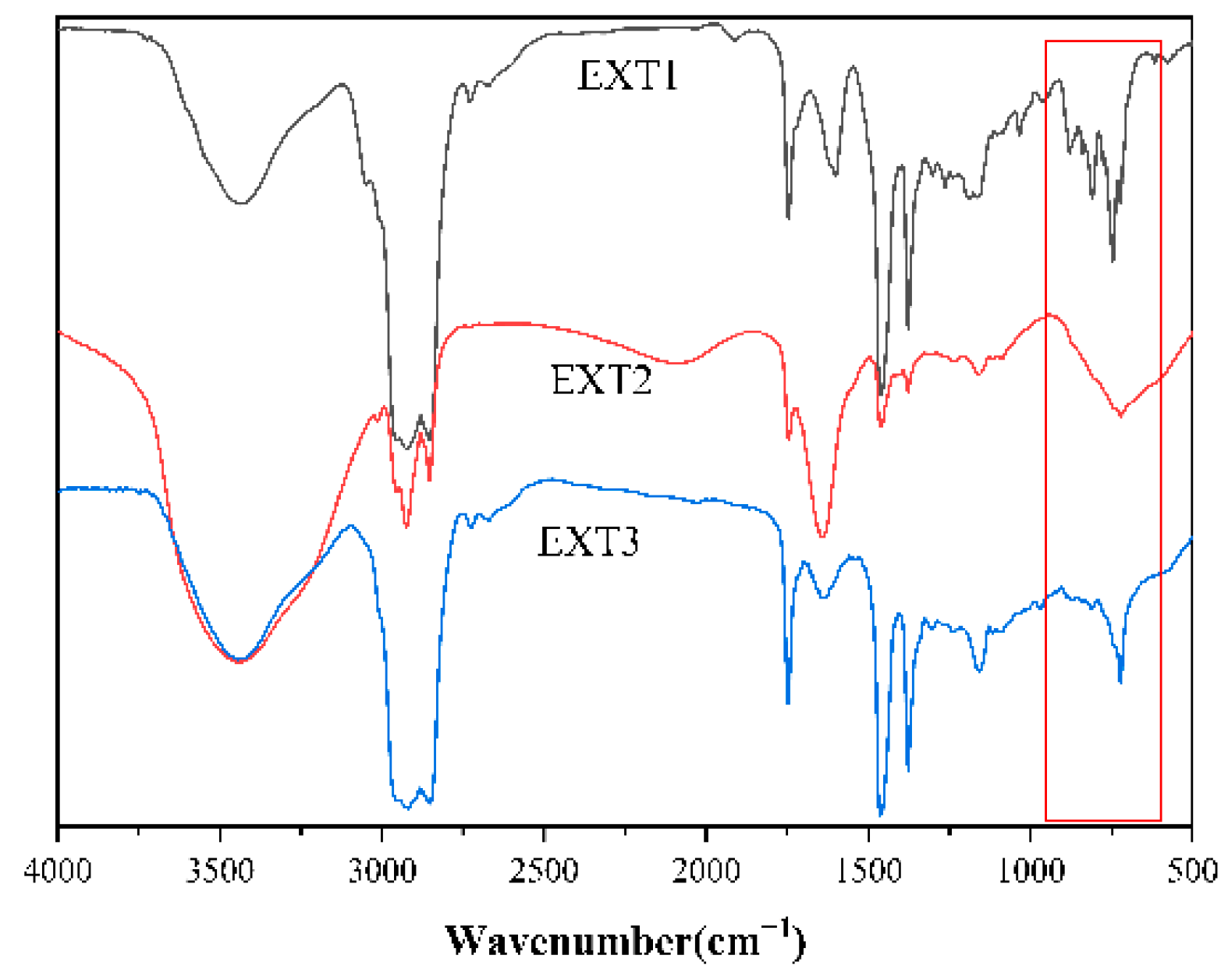

Figure 5. Infrared spectra of 3 subcritical extracts at 60 °C.
Figure 5. Infrared spectra of 3 subcritical extracts at 60 °C.
Applsci 15 02694 g005

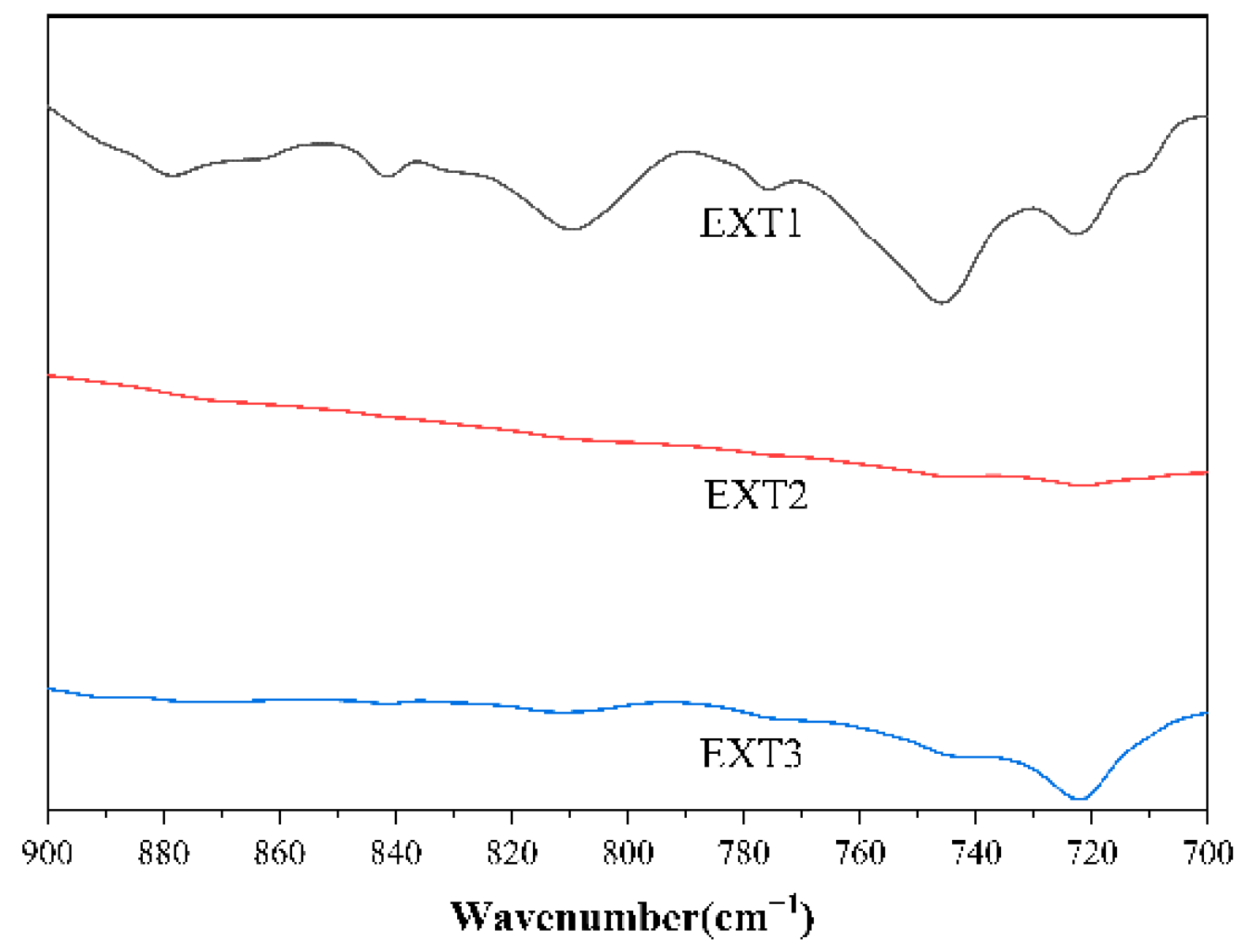

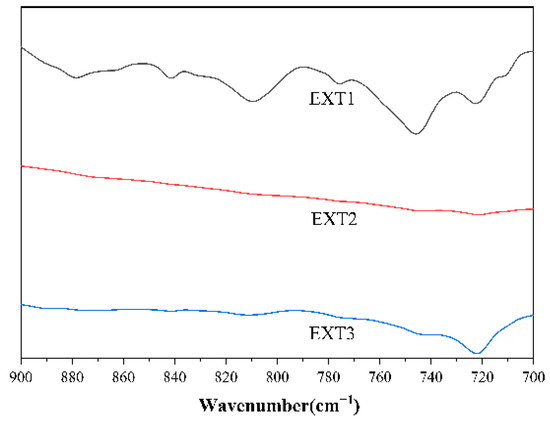

Figure 6. Localized enlargement of infrared spectra of 3 extracts.
Figure 6. Localized enlargement of infrared spectra of 3 extracts.
Applsci 15 02694 g006

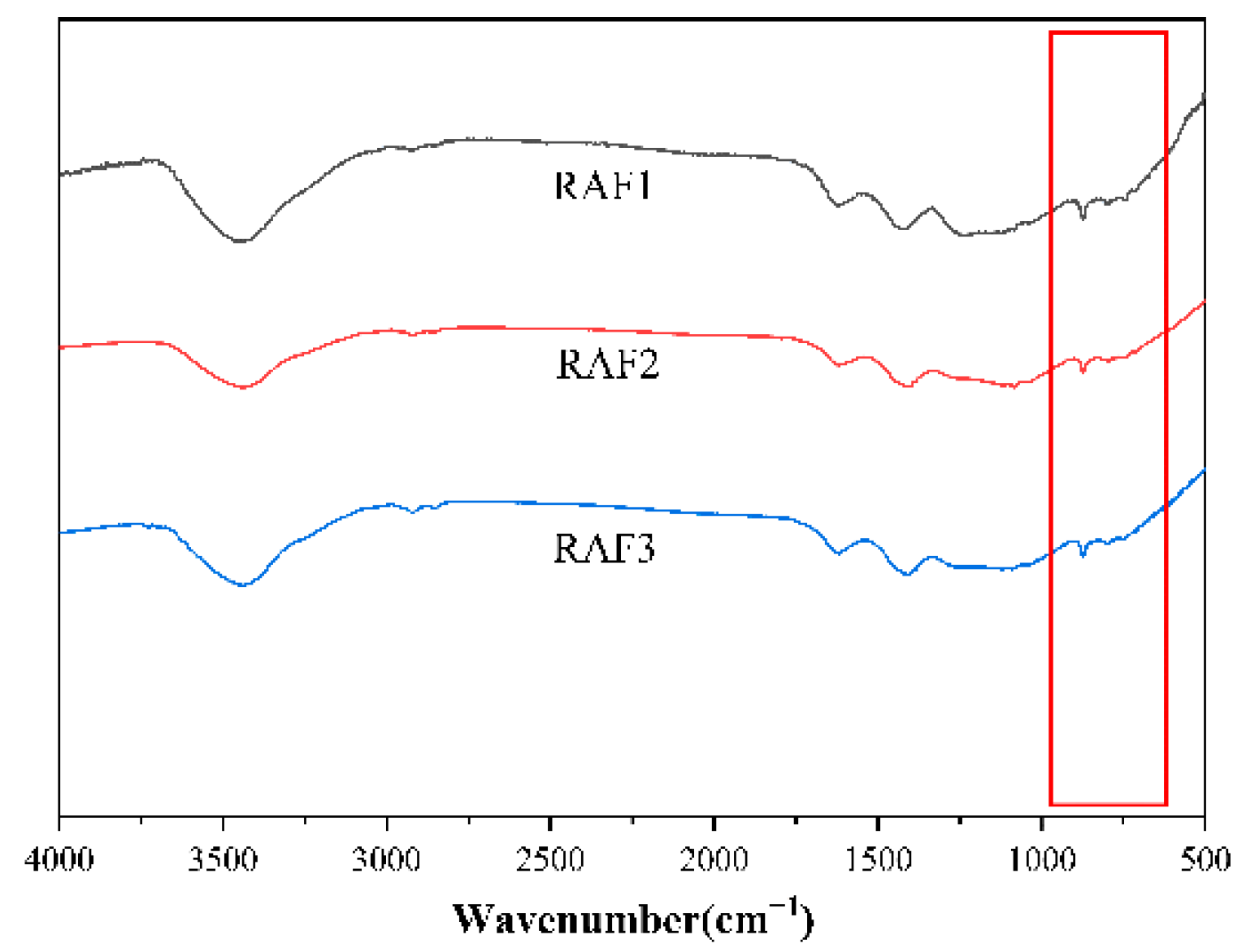

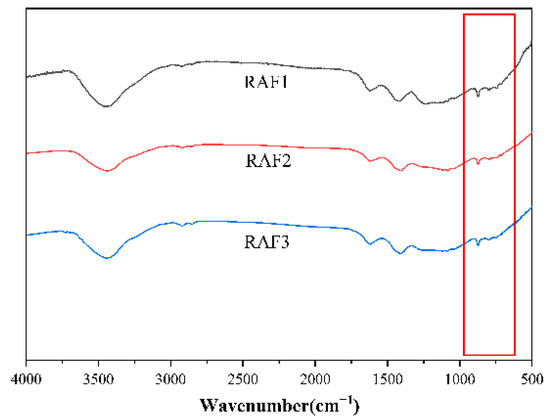

Figure 7. Infrared spectra of subcritical raffinates extracted 3 times at 60 °C.
Figure 7. Infrared spectra of subcritical raffinates extracted 3 times at 60 °C.
Applsci 15 02694 g007

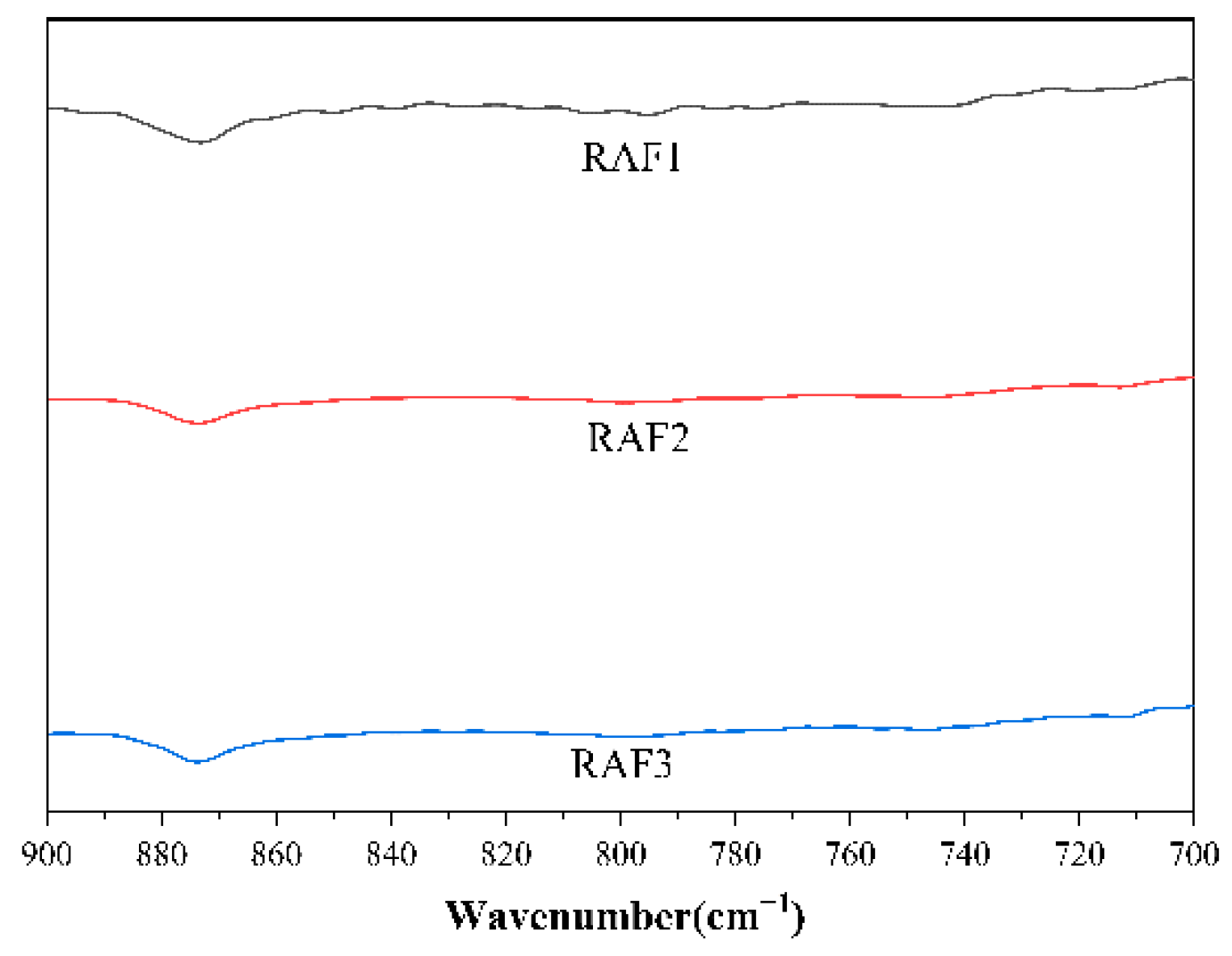

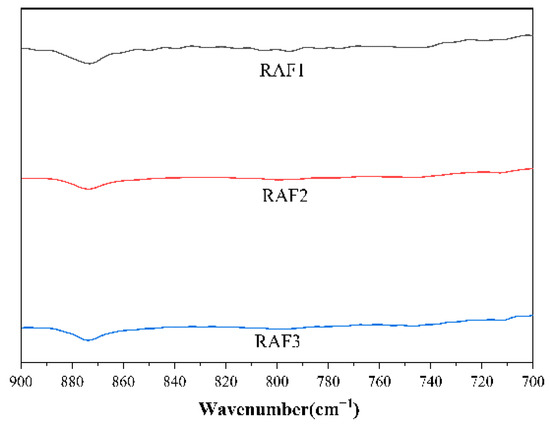

Figure 8. Localized enlarged view of 3 raffinates.
Figure 8. Localized enlarged view of 3 raffinates.
Applsci 15 02694 g008

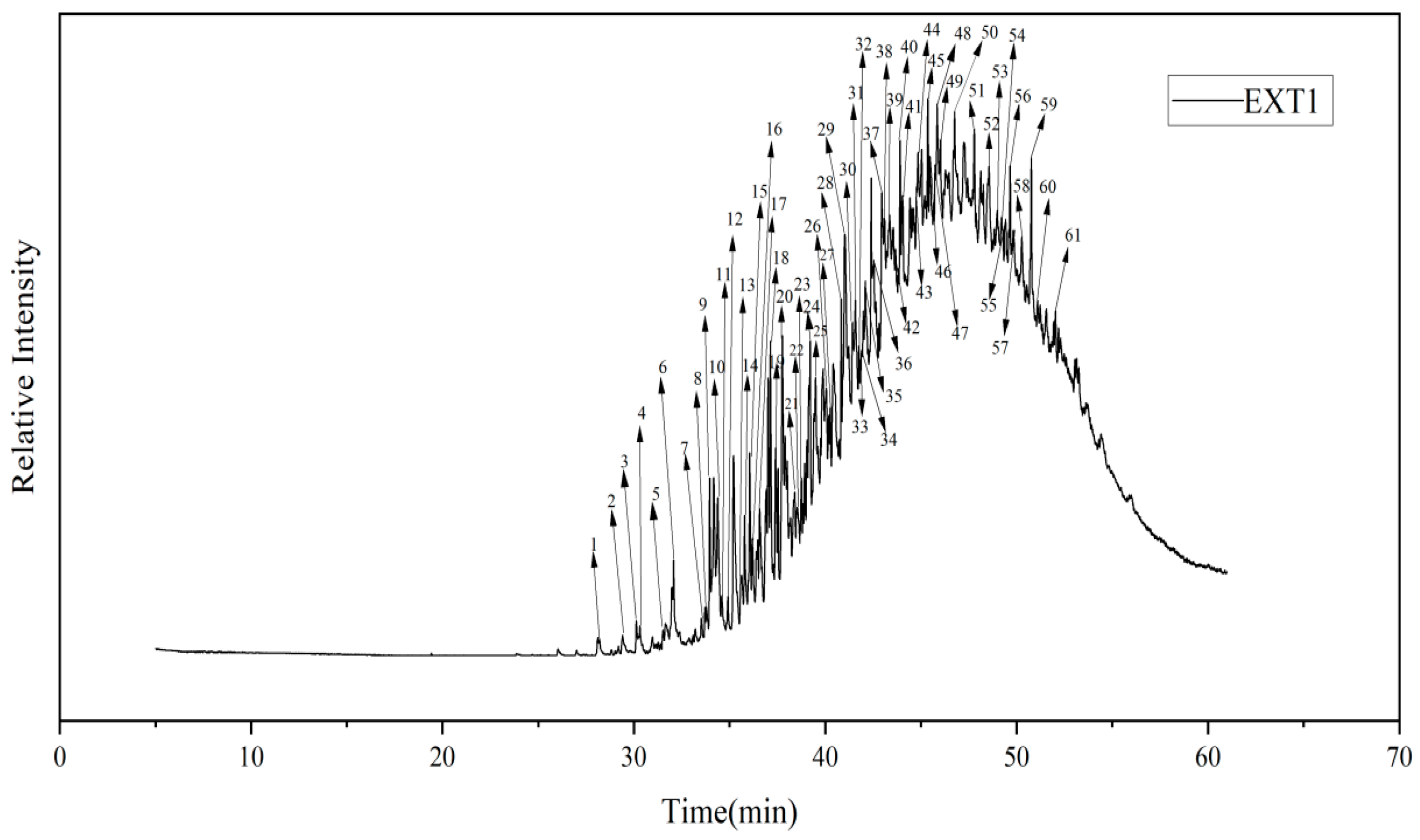

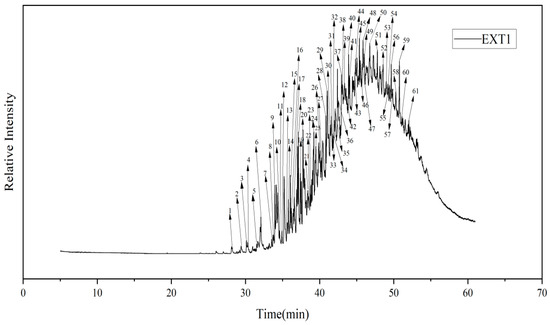

Figure 9. GC-MS total ion flow chromatogram of the first extract of coal tar slag.
Figure 9. GC-MS total ion flow chromatogram of the first extract of coal tar slag.
Applsci 15 02694 g009

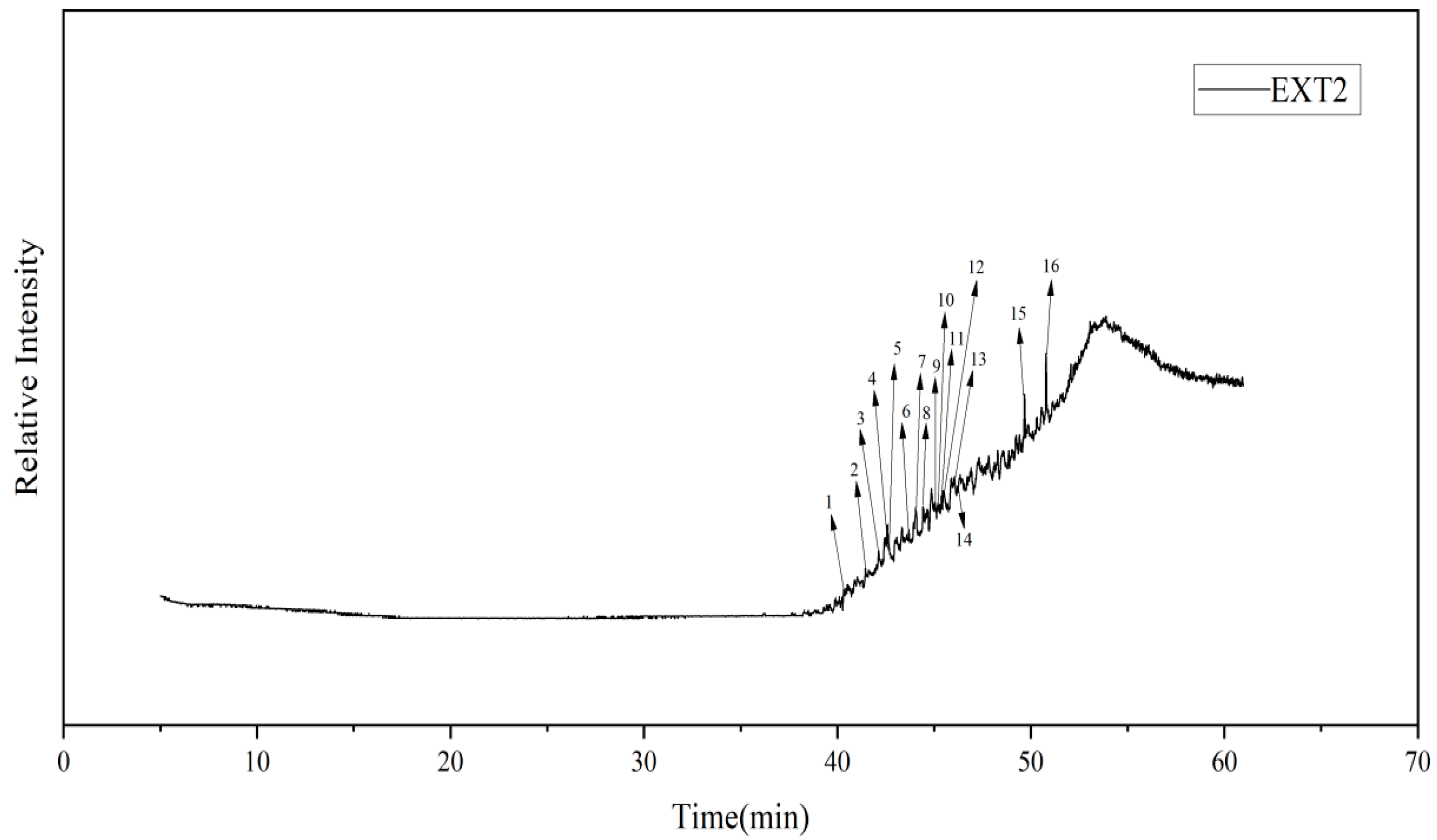

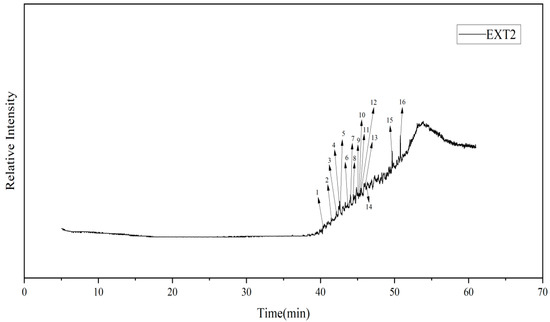

Figure 10. GC-MS total ion flow chromatogram of the second extract of coal tar slag.
Figure 10. GC-MS total ion flow chromatogram of the second extract of coal tar slag.
Applsci 15 02694 g010

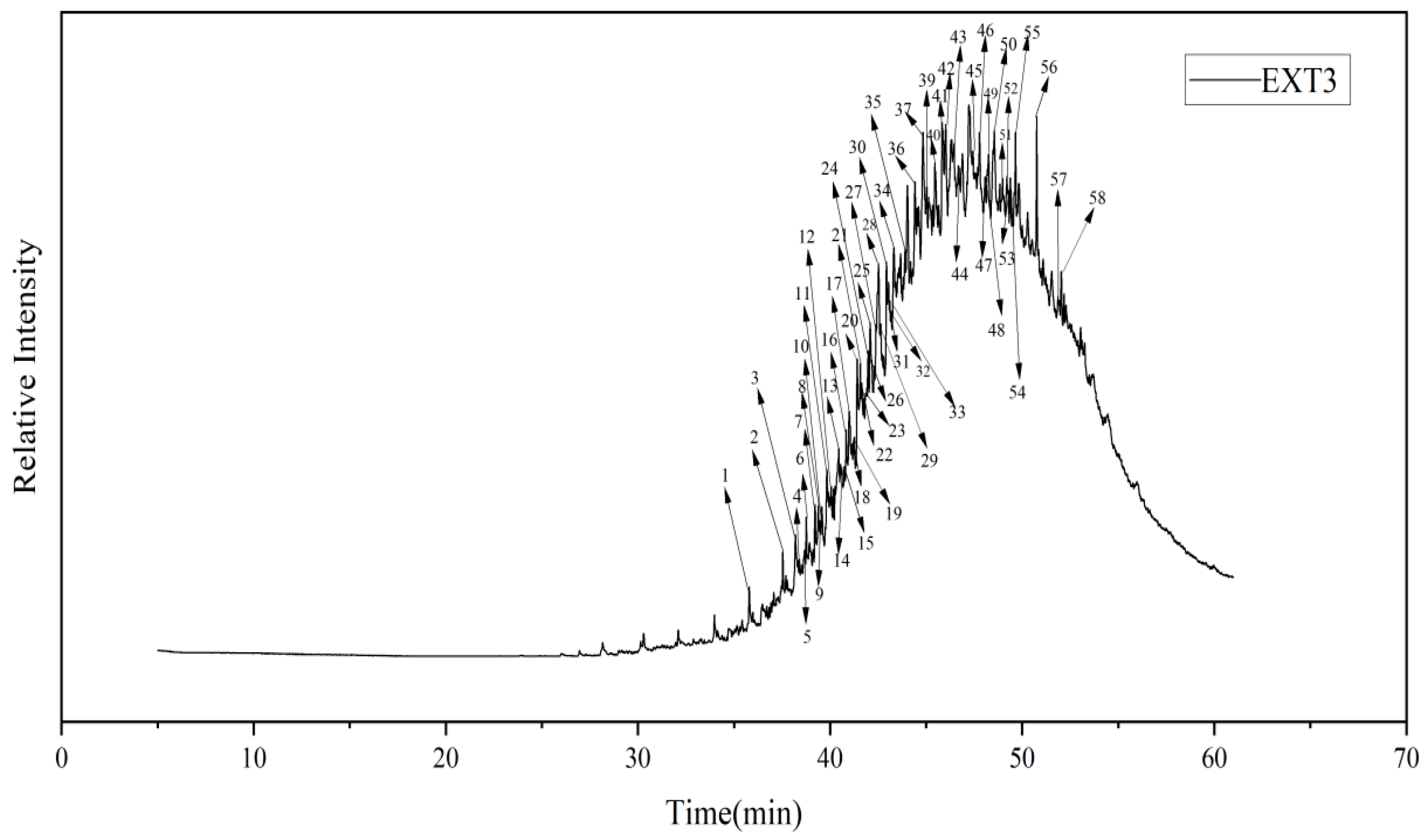

Figure 11. GC-MS total ion flow chromatogram of the third extract of coal tar slag.
Figure 11. GC-MS total ion flow chromatogram of the third extract of coal tar slag.
Applsci 15 02694 g011

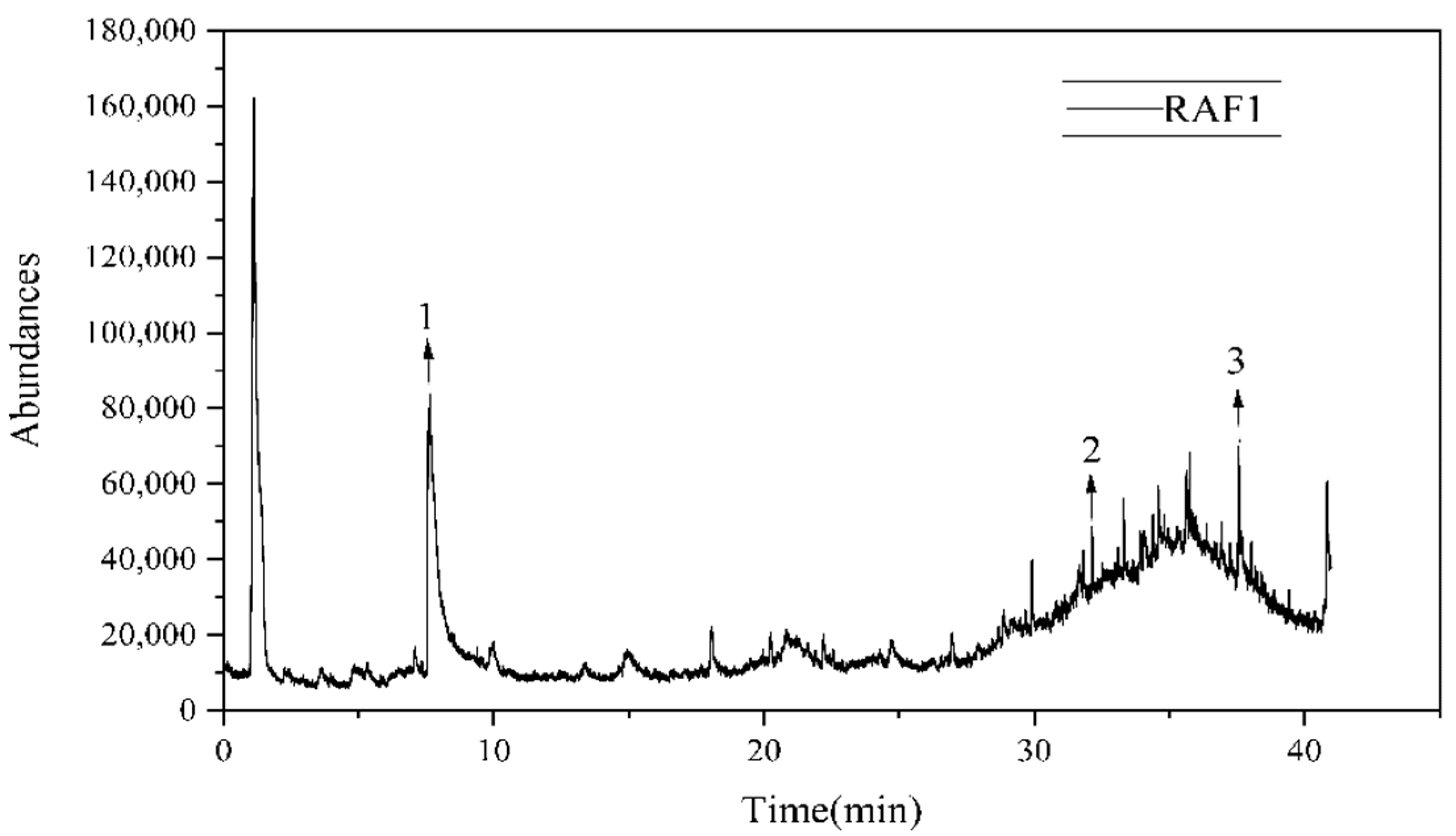

Figure 12. Total ion flow chromatogram of PY-GC-MS of the first raffinate of coal tar slag.
Figure 12. Total ion flow chromatogram of PY-GC-MS of the first raffinate of coal tar slag.
Applsci 15 02694 g012

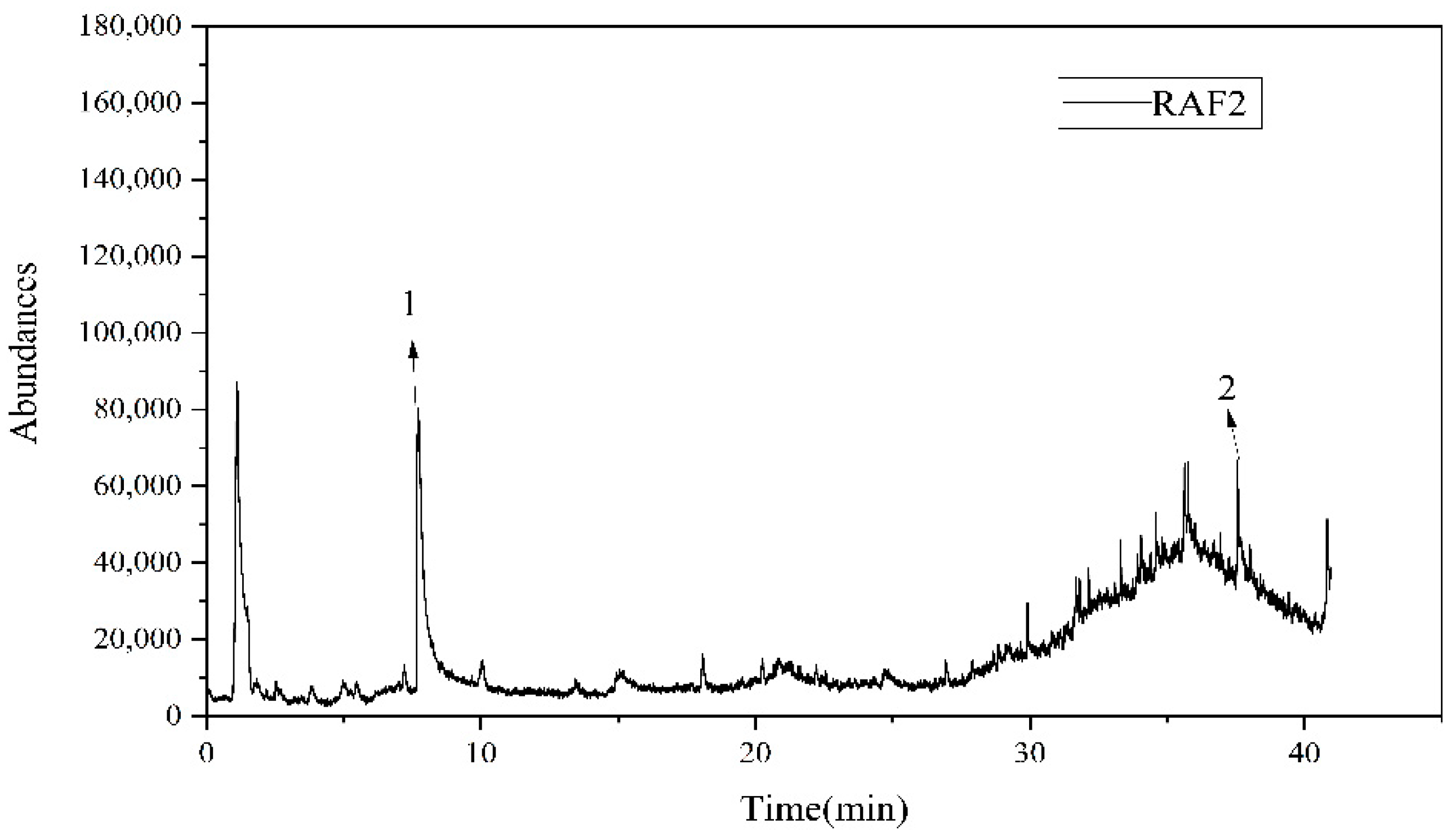

Figure 13. Total ion flow chromatogram of PY-GC-MS of the second raffinate of coal tar slag.

Figure 13. Total ion flow chromatogram of PY-GC-MS of the second raffinate of coal tar slag.
Applsci 15 02694 g013
Figure 14. Total ion flow chromatogram of PY-GC-MS of the third extract of coal tar slag.
Figure 14. Total ion flow chromatogram of PY-GC-MS of the third extract of coal tar slag.
Applsci 15 02694 g014
Table 1. Experimental apparatuses and equipment.
Table 1. Experimental apparatuses and equipment.
Equipment NameEquipment ModelAddressManufacturer
Muffle furnaceKSL-1100XHefei, ChinaHefei Kejing Material Technology Co., Ltd.
Electrically heated blast drying oven101-OABTianjin, ChinaTianjin Taist Instrument Co., Ltd.
Elemental AnalyserElementar Vario EL IIHebi, ChinaHebi Yingtai Electronic and Electrical Appliance Co., Ltd.
Sulfur meter5E-S3200Yuncheng, ChinaNanfeng Chemical Group Co., Ltd.
Subcritical extraction equipmentCBE-T-1LHenan, ChinaHenan Subcritical Extraction Research Institute
Infrared spectrometerNicolet iN10&iZ10Waltham, MA, USAThermo Fisher Sciedtific, USA
GC-MS7890A-5975CNishinokyo Kuwabara-cho, JapanShimadzu Manufacturing, Japan
PY-GC-MS7890A-5975CSanta Clara, CA, USAAgilent Corporation of the United States
Table 2. Industrial and elemental analysis of raw coal tar slag samples.
Table 2. Industrial and elemental analysis of raw coal tar slag samples.
SampleIndustrial Analysis/W%Elemental Analysis/W%, daf
MadAadVdafFCadCHNSO*
Coal tar slag5.3313.4317.5867.5574.642.461.830.5620.51
The industrial analysis adopts the “Industrial Analysis Methods of Coal” GBT212-2022 [22] to conduct the test. Mad: moisture content in coal tar slag; Aad: ash content in coal tar slag; Vdaf: volatile matter content in coal tar slag; FCad: fixed carbon content in coal tar slag. C, H, and N indicate elemental content in elemental analyzer test, and S indicates elemental content in sulfur meter test. O* stands for O. The elemental analysis results were obtained using the difference subtraction method.
Table 3. Composition of original coal tar slag samples. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font indicate the information of other MS ion fragments detected.
Table 3. Composition of original coal tar slag samples. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font indicate the information of other MS ion fragments detected.
No.Compound NamesProposed
Formula
Molecular WeightRelative Content, %
Aliphatic Hydrocarbons
5TetradecaneC14H30198.391.23
DodecaneC12H26170.33
HentriacontaneC31H64436.80
Aromatic Hydrocarbons
Bicyclic Aromatic Hydrocarbons
22,7-dimethyl-NaphthaleneC12H12156.220.15
2,3-dimethyl-Naphthalene
1,8-dimethyl-Naphthalene
32,3,6-trimethyl-NaphthaleneC13H14170.250.55
4,6,8-Trimethylazulene
1,6,7-trimethyl-Naphthalene
44,6,8-TrimethylazuleneC13H14170.251.34
1,4,5-trimethyl-Naphthalene
1,6,7-trimethyl-Naphthalene
Tricyclic Aromatic Hydrocarbons
61-methyl-PhenanthreneC15H12192.254.22
4-methyl-Phenanthrene
l-methyl-Anthracene
74-methyl-PhenanthreneC15H12192.253.86
4-methyl-Phenanthrene
2-methyl-Anthracene
81-methyl-AnthraceneC15H12192.251.80
1-methyl-Phenanthrene
4-methyl-Phenanthrene
93,4-DimethylphenanthreneC16H14206.282.57
di-p-Tolylacetylene
2,7-dimethyl-Phenanthrene
103,6-dimethyl-PhenanthreneC16H14206.281.36
2,7-dimethyl-Phenanthrene
l,2-dihydro-1-phenyl-Naphthalene
Tetracyclic Aromatic Hydrocarbons
11FluorantheneC16H10202.252.16
Fluoranthene
Pyrene
12PyreneC16H10202.251.18
Pyrene
Fluoranthene
Aldehyde
1BenzaldehydeC7H6O106.129.47
Benzaldehyde
Benzaldehyde
Table 4. Compositional composition of the first extract of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
Table 4. Compositional composition of the first extract of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
No.Compound NamesProposed
Formula
Molecular WeightRelative Content, %
Aliphatic hydrocarbons
3Heptadecane, 2,6,10,15-tetramethyl-C21H44296.600.51
Heptadecane, 2,6,10,15-tetramethyl-C21H44296.60
2-Bromo dodecanC32H40BrN5O5654.60
4Nonane, 3,7-dimethyl-C11H24156.310.30
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
Carbonic acid, tridecyl vinyl esterC16H30O3270.41
6Octacosane, 2-methyl-C29H60408.800.74
2-MethyltetracosaneC25H52352.70
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
14HeneicosaneC21H44296.602.10
2-MethylhexacosaneC27H56380.70
2-MethyltetracosanC25H52352.70
22Cyclohexane, (1-butylhexadecyl)-C26H52364.700.22
Fumaric acid, dodecyl 2,3,4,6-tetrachlorophenyl esterC22H28Cl4O4498.30
Fumaric acid, heptadecyl octyl esterC29H54O4466.70
24HeneicosaneC21H44296.604.45
2-MethylhexacosaneC27H56380.70
1-Decanol, 2-hexyl-C16H34O 242.44
29TetrapentacontaneC54H110759.400.99
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
Heptacosyl trifluoroacetateC29H55F3O2492.70
322-MethylhexacosaneC27H56380.700.53
1-Decanol, 2-hexyl-C16H34O 242.44
5-Methyl-Z-5-docoseneC23H46322.60
34Cyclohexane, octadecyl-C24H48336.600.34
17-PentatriaconteneC35H70490.90
17-PentatriaconteneC35H70490.90
35DotriacontaneC32H66450.902.07
1-Decanol, 2-hexyl-C16H34O 242.44
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
39SqualaneC30H62422.801.24
1-Decanol, 2-hexyl-C16H34O 242.44
1-Dodecanol, 2-octyl-C20H42O298.50
40TetracontaneC40H82563.102.11
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
1-Decanol, 2-octyl-C18H38O270.50
41DotriacontaneC32H66450.905.65
1-Decanol, 2-hexyl-C16H34O 242.44
17-PentatriaconteneC35H70490.90
4811-MethyltricosaneC24H50338.701.50
1-Decanol, 2-hexyl-C16H34O 242.44
17-PentatriaconteneC35H70490.90
492-MethylhexacosaneC27H56380.700.68
17-PentatriaconteneC35H70490.90
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
5117.alpha.(H),21.beta.(H)-HomohopaneC31H54426.800.31
1-Decanol, 2-hexyl-C16H34O 242.44
2-Dodecen-1-yl(-)succinic anhydrideC16H26O3 266.38
52PentatriacontaneC35H72492.901.13
17-PentatriaconteneC35H70490.90
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
53Cholestane, (5.alpha.,14.beta.)-C27H48372.700.40
E-10,13,13-Trimethyl-11-tetradecen-1-ol acetateC19H36O2 296.50
17-PentatriaconteneC35H70490.90
552-MethylhexacosaneC27H56380.700.39
17-PentatriaconteneC35H70490.90
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
5628-Nor-17.alpha.(H)-hopaneC29H50398.700.64
2-Dodecen-1-yl(-)succinic anhydrideC16H26O3 266.38
7-Hexadecenal, (Z)-C16H30O 238.41
57TetrapentacontaneC54H110759.400.66
E-10,13,13-Trimethyl-11-tetradecen-1-ol acetateC19H36O2 296.50
Heptacosyl trifluoroacetateC29H55F3O2 492.70
59TetracontaneC40H82563.100.39
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
Heptacosyl trifluoroacetateC29H55F3O2492.70
6017.alpha.(H),21.beta.(H)-HopaneC30H52412.700.93
E-10,13,13-Trimethyl-11-tetradecen-1-ol acetateC19H36O2296.50
Undec-10-ynoic acid, tetradecyl esterC25H46O2378.60
6117.alpha.(H),21.beta.(H)-HomohopaneC31H54426.800.40
E-10,13,13-Trimethyl-11-tetradecen-1-ol acetateC19H36O2296.50
cis-1-Chloro-9-octadeceneC18H35Cl286.90
Aromatic hydrocarbons
Tricyclic aromatic hydrocarbons
29H-Fluorene, 9-methylene-C14H10178.230.89
9,10-Ethanoanthracene-11,12-dicarbonitrile, 9,10-dihydro-, cis-C18H12N2256.30
PhenanthreneC14H10178.23
5Phenanthrene, 2-methyl-C15H12192.252.70
Phenanthrene, 2-methyl-
Phenanthrene, 4-methyl-
7Phenanthrene, 9-ethyl-C16H14206.280.42
Anthracene, 9-dodecyltetradecahydro-C26H48360.70
Phenanthrene, 9-dodecyltetradecahydro-C26H48360.70
8Phenanthrene, 2,5-dimethyl-C16H14206.282.46
Phenanthrene, 2,5-dimethyl-
Phenanthrene, 4,5-dimethyl-
11Anthracene, 9-(1-methylethyl)-C17H16220.312.16
Phenanthrene, 2,3,5-trimethyl-
Anthracene, 9-(1-methylethyl)-
12[14]Annulene, 1,6:7,12-bis(methano)-, anti-C16H14206.280.29
18.alpha.-Olean-3.beta.-ol, acetateC32H54O2470.80
5-Fluoro-2-trifluoromethylbenzoic acid, eicosyl esterC28H44F4O2488.60
152,3,5-trimethyl-Phenanthrene,C17H16220.310.63
2,3,5-trimethyl-Phenanthrene,
2,3,5-trimethyl-Phenanthrene,
17ReteneC18H18234.302.23
Retene
Retene
211-benzyl-3-methylnaphthaleneC18H16232.300.50
Fumaric acid, dodecyl 2,3,4,6-tetrachlorophenyl esterC22H28Cl4O4498.30
5-Methyl-Z-5-docoseneC23H46322.60
Tetracyclic aromatic hydrocarbons
10PyreneC16H10202.259.43
Fluoranthene
Pyrene
1611H-Benzo[b]fluoreneC17H12216.285.50
11H-Benzo[b]fluorene
Pyrene, 2-methyl-
18Fluoranthene, 2-methyl-C17H12216.282.08
Pyrene, 2-methyl-
Fluoranthene, 2-methyl-
19Pyrene, 1-methyl-C17H12216.284.67
Pyrene, 1-methyl-
Fluoranthene, 2-methyl-
23Pyrene, 1,3-dimethyl-C18H14230.303.82
Pyrene, 1,3-dimethyl-C18H14230.30
Succinic acid, 2,2,3,3-tetrafluoropropyl heptadecyl esterC24H42F4O4 470.60
27Benz[a]anthraceneC18H12228.301.17
1-Decanol, 2-hexyl-C16H34O 242.44
Tetradecanoic acid, hexadecyl esterC30H60O2 452.80
28TriphenyleneC18H12228.306.60
2-Aminopent-4-enoic acid, N-(2-ethylhexyloxycarbonyl)-, undecyl esterC25H47NO4425.60
2-Aminopent-4-enoic acid, N-octyloxycarbonyl-, undecyl esterC25H47NO4425.60
301,3,9-TrimethylpyreneC19H16244.330.95
5-Methyl-Z-5-docoseneC23H46322.60
Tetradecanoic acid, hexadecyl esterC30H60O2 452.80
37Bicyclo[4.1.0]hepta-1,3,5-triene, 2,5-diphenyl-C19H14242.302.15
1-Decanol, 2-hexyl-C16H34O 242.44
Carbonic acid, decyl heptadecyl esterC28H56O3 440.70
38Benz[a]anthracene, 8-methyl-C19H14242.301.97
1-Decanol, 2-hexyl-C16H34O 242.44
Benz[a]anthracene, 8-methyl-C19H14242.30
Pentacyclic aromatic hydrocarbons
43Chrysene, 5-ethyl-C20H16256.300.57
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
17-PentatriaconteneC35H70490.90
47PeryleneC20H12252.303.60
E-10,13,13-Trimethyl-11-tetradecen-1-ol acetateC19H36O2296.50
Pentafluoropropionic acid, octadecyl esterC21H37F5O2416.51
50Benzo[a]pyreneC20H12252.301.77
17-PentatriaconteneC35H70490.90
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
Alcohols
421-Decanol, 2-hexyl-C16H34O242.301.01
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
Heptacosyl trifluoroacetateC29H55F3O2 492.70
584a,7,7,10a-Tetramethyldodecahydrobenzo[f]chromen-3-olC17H30O2266.400.14
17-PentatriaconteneC35H70490.90
2-Dodecen-1-yl(-)succinic anhydrideC16H26O3266.38
Esters
31Succinic acid, 4-methylhept-3-yl nonyl esterC21H40O4356.500.28
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
1-Decanol, 2-hexyl-C16H34O 242.44
36Palmitic acid vinyl esterC18H34O2282.500.27
17-PentatriaconteneC35H70490.90
E-10,13,13-Trimethyl-11-tetradecen-1-ol acetateC19H36O2296.50
45Palmitic acid 2-nonanol esterC27H54O2410.700.25
1-Decanol, 2-hexyl-C16H34O 242.44
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
46Carbonic acid, decyl heptadecyl esterC28H56O3440.700.69
1-Decanol, 2-hexyl-C16H34O 242.44
Tetracosyl pentafluoropropionateC27H49F5O2 500.70
54Phytyl, 2-methylbutanoateC25H48O2380.600.39
E-10,13,13-Trimethyl-11-tetradecen-1-ol acetateC19H36O2296.50
Tetracosyl pentafluoropropionateC27H49F5O2500.70
Ketones
262-(2-Indanylidene)-1-indanoneC18H14O246.301.46
2-(2-Indanylidene)-1-indanoneC18H14O246.30
Undec-10-ynoic acid, tetradecyl esterC25H46O2378.60
Phenols
131-HydroxypyreneC16H10O218.251.87
1-HydroxypyreneC16H10O218.25
Olean-12-eneC30H50410.70
Ethers
33Nonyl tetracosyl etherC33H68O480.900.48
1-Decanol, 2-hexyl-C16H34O242.44
5-Methyl-Z-5-docoseneC23H46322.60
Nitrogen compounds
20Naphthalen-2-ol, 1-(4-morpholyl)(phenyl)methyl-C21H21NO2319.401.52
2-[1-(2-[1,3]Dithian-2-yl-ethyl)-pent-4-enyloxy]-tetrahydropyranC16H28O2S2316.50
Fumaric acid, dodecyl 2,3,4,6-tetrachlorophenyl esterC22H28Cl4O4498.30
25EllipticineC17H14N2246.311.70
Fumaric acid, heptadecyl octyl esterC29H5O2466.70
Tetradecanoic acid, hexadecyl esterC30H60O2452.80
Sulfurous compounds
1Sulfurous acid, 2-ethylhexyl isohexyl esterC17H30O3S314.500.27
Tridecane, 1-iodo-C13H27I310.26
Sulfurous acid, butyl nonyl esterC13H28O3S264.43
Other compounds
9Silane, trichlorooctadecyl-C18H37Cl3Si387.900.90
Di-n-decylsulfoneC20H42O2S346.60
Diglycolic acid, 2-bromo-4-fluorophenyl decyl esterC20H28BrFO5447.30
44Hexacosane, 1-iodo-C26H53I492.602.08
1-Decanol, 2-hexyl-C16H34O242.44
1-Decanol, 2-octyl-C18H38O270.50
Table 5. Constituent composition of the second extract of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
Table 5. Constituent composition of the second extract of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
No.Compound NamesProposed
Formula
Molecular WeightRelative Content, %
Aliphatic hydrocarbons
3Cyclohexane, tricosyl-C29H58406.802.73
Dodecane, 5-cyclohexyl-C18H36252.50
Undecane, 5-cyclohexyl-C17H34238.50
51-(1,5-dimethylhexyl)
-4-(4-methylpentyl)-Cyclohexane
C20H40280.502.23
Octadecanoic acid, 2-oxo-, methyl esterC19H36O3312.50
Heneicosane, 11-cyclopentyl-C26H52364.70
6pentacosyl-CyclohexaneC31H62434.803.44
Dodecane, 5-cyclohexyl-C18H36252.50
Undecane, 5-cyclohexyl-C17H34238.50
82-methyl-OctacosaneC29H60408.807.13
1-Decanol, 2-hexyl-C16H34O242.44
Hexacosyl trifluoroacetateC28H53F3O2478.70
92,6,10,15-tetramethyl-HeptadecaneC21H44296.606.11
Hexacosyl trifluoroacetateC28H53F3O2478.70
Sulfurous acid, octadecyl 2-propyl esterC21H44O3S376.60
132-MethyltetracosaneC25H52352.708.38
Hexacosyl trifluoroacetateC28H53F3O2478.70
1-Decanol, 2-hexyl-C16H34O242.44
1617.alpha.(H),21.beta.(H)-HomohopaneC31H54426.807.09
17.alpha.(H),21.beta.(H)-HopaneC30H52412.70
28-Nor-17.alpha.(H)-hopaneC29H50398.70
Carboxylic acids
12Tetracosyl benzoateC31H54O2458.801.96
Hexacosyl trifluoroacetateC28H53F3O2478.70
Dotriacontanal $$ n-DotriacontanalC32H66450.90
Alcohols
155-(7a-Isopropenyl-4,5-dimethyl-octahydroinden-4-yl)-3-methyl-pent-2-en-1-olC20H34O290.503.55
2,4a,8,8-Tetramethyldecahydrocyclopropa[d]naphthaleneC15H26206.37
28-Nor-17.alpha.(H)-hopaneC29H50398.70
Aldehydes
12-Butyn-1-al diethyl acetalC8H14O2142.201.36
2-PropenamideC3H5NO71.08
Stearic acid hydrazideC18H38N2O298.50
Ethers
2Carbonic acid, eicosyl vinyl esterC23H44O3368.606.40
Octadecanoic acid, 2-oxo-, methyl esterC19H36O3312.50
10-MethylnonadecaneC20H42282.50
10Fumaric acid, trans-hex-3-enyl tridecyl esterC23H40O4380.607.65
Tricosyl pentafluoropropionateC26H47F5O2486.60
Docosyl pentafluoropropionateC25H45F5O2472.60
11Fumaric acid, octadecyl trans-hex-3-enyl esterC28H50O4450.704.45
Hexacosyl trifluoroacetateC28H53F3O2478.70
Docosyl pentafluoropropionateC25H45F5O2472.60
Sulfurous compounds
7Sulfurous acid, octadecyl 2-propyl esterC21H44O3S376.6011.26
Sulfurous acid, octadecyl 2-propyl esterC21H44O3S376.60
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
Other compounds
42-Bromo dodecaneC12H25Br249.235.68
1-Dodecanol, 2-octyl-C20H42O298.50
1-Decanol, 2-octyl-C18H38O270.50
14Phosphonofluoridic acid, ethyl-, decyl esterC12H26FO2P252.311.56
Heptyl ethylphosphonofluoridateC9H20FO2P210.23
1,1-Dimethylpropyl ethylphosphonofluoridateC7H16FO2P182.17
Table 6. Constituent composition of the third extract of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
Table 6. Constituent composition of the third extract of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
No.Compound NamesProposed
Formula
Molecular WeightRelative Content, %
Aliphatic hydrocarbons
1Octacosane,2-methyl-C29H60408.801.19
HeneicosaneC21H44296.60
Pentadecane, 8-hexyl-C21H44296.60
2HeneicosaneC21H44296.601.08
Tetracosane, 1-iodo-C24H49I464.50
PentacosaneC25H52352.70
3EicosaneC20H42282.501.97
2-MethylhexacosaneC27H56380.70
Octacosane, 2-methyl-C29H60408.80
53,8-dimethyl-DecaneC12H26170.330.43
Decane, 2,3,5-trimethyl-C13H28184.36
Hexadecane, 1-iodo-C16H33I352.34
6Tridecane, 5-cyclohexyl-C19H38266.500.44
Cyclohexane, (1-butylhexadecyl)-C26H52364.70
Tridecane, 4-cyclohexylC19H38266.50
7PentacosaneC25H52352.701.19
Octacosane,2-methyl-C29H60408.80
Octacosane,2-methyl-C29H60408.80
9Cyclohexane, 1-(cyclohexylmethyl)-2-methyl-, cis-C14H26194.360.45
Cyclohexane, 1-bromo-2-methyl-C7H13Br177.08
Cyclohexane, 1-isopropyl-1-methyl-C10H20140.27
10EicosaneC20H42282.501.46
11-MethyltricosaneC24H50338.70
Carbonic acid, octadecyl vinyl esterC21H40O3340.50
112-MethylhexacosaneC27H56380.702.04
DotriacontaneC32H66450.90
HeneicosaneC21H44296.60
13Cyclohexane, octadecyl-C24H48336.600.76
Cyclohexane, 1,1′-(1,3-propanediyl)bis-C15H28208.38
n-HeptadecylcyclohexaneC23H46322.60
1511-MethyltricosaneC24H50338.700.29
9-MethylheneicosaneC22H46310.60
9-methylheptadecaneC18H38254.50
16HeneicosaneC21H44296.603.89
PentacosaneC25H52352.70
TetracontaneC40H82563.10
171,1-dicyclohexyl-HeptaneC19H36264.500.19
Cyclohexane, 1-(cyclohexylmethyl)-2-methyl-, cis-C14H26194.36
Cyclohexane, 1-(cyclohexylmethyl)-4-methyl-C14H26194.36
19TetrapentacontaneC54H110759.400.78
EicosaneC20H42282.50
Hexadecane, 2,6,10,14-tetramethyl-C20H42282.50
20PentatriacontaneC35H72492.9010.47
2-MethylhexacosaneC27H56380.70
Octacosane, 2-methyl-C29H60408.80
217,7-DiethylheptadecaneC21H44296.602.42
Pentadecane, 6-methyl-C16H34226.44
HentriacontaneC31H64436.80
23Octacosane, 2-methyl-C29H60408.800.86
Heptadecane, 2,6,10,15-tetramethyl-C21H44296.60
Hexadecane, 2,6,10,14-tetramethyl-C20H42282.50
25Cyclohexane, octadecyl-C24H48336.600.85
Cyclohexane, nonadecyl-C25H50350.70
2-CyclohexylnonadecaneC25H50350.70
2711-MethyltricosaneC24H50338.701.14
Carbonic acid, octadecyl vinyl esterC21H40O3340.50
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
30TetracontaneC40H82563.1016.35
DotriacontaneC32H66450.90
PentacosaneC25H52352.70
32Pentadecane, 2,6,10,14-tetramethyl-C19H40268.501.90
11-MethylpentacosaneC26H54366.70
11-MethyltricosaneC24H50338.70
333,3-DiethylpentadecaneC19H40268.500.87
3,3,13,13-TetraethylpentadecaneC23H48324.60
HentriacontaneC31H64436.80
34DotriacontaneC32H66450.904.52
TetracontaneC40H82563.10
PentacosaneC25H52352.70
35PentacosaneC25H52352.701.22
PentacosaneC25H52352.70
DotriacontaneC32H66450.90
372-MethylheptacosaneC28H58394.804.41
DotriacontaneC32H66450.90
TetrapentacontaneC54H110759.40
40Octacosane, 2-methyl-C29H60408.801.71
PentatriacontaneC35H72492.90
Carbonic acid, octadecyl vinyl esterC21H40O3340.50
4111-MethyltricosaneC24H50338.705.33
PentatriacontaneC35H72492.90
Carbonic acid, octadecyl vinyl esterC21H40O3340.50
422-MethylhexacosaneC27H56380.704.16
PentatriacontaneC35H72492.90
Hexacosane, 1-iodo-C26H53I492.60
4417.alpha.(H),21.beta.(H)-HopaneC30H52412.700.40
28-Nor-17.alpha.(H)-hopaneC29H50398.70
A’-Neogammacer-22(29)-eneC30H50410.70
45TetrapentacontaneC54H110759.402.91
EicosaneC20H42282.50
DotriacontaneC32H66450.90
4617.alpha.(H),21.beta.(H)-HomohopaneC30H52412.700.64
17.alpha.(H),21.beta.(H)-HomohopaneC30H52412.70
28-Nor-17.alpha.(H)-hopaneC29H50398.70
49Trispiro[4.2.4.2.4.2.]heneicosaneC21H36288.500.44
4a,7,7,10a-Tetramethyldodecahydrobenzo[f]chromen-3-olC17H30O2266.40
28-Nor-17.alpha.(H)-hopaneC29H50398.70
531-(2,2,3,5,6-Pentamethylcyclohex-4-enyl)-
9-(3,3,4-trimethylcyclohex-1-enyl)-
3,6-dimethyl-6-ethenyl-dec-4-ene
C34H58466.800.12
1,1,6-trimethyl-3-methylene-2-(3,6,9,13-tetramethyl-6-ethenye-10,14-dimethylene-pentadec-4-enyl)cyclohexaneC33H56452.80
Cholestane, (5.alpha.,14.beta.)-C27H48372.70
5428-Nor-17.alpha.(H)-hopaneC29H50398.701.72
17.alpha.(H),21.beta.(H)-HomohopaneC31H54426.80
17.alpha.(H),21.beta.(H)-HomohopaneC31H54426.80
5617.alpha.(H),21.beta.(H)-HopaneC30H52412.701.95
28-Nor-17.alpha.(H)-hopaneC29H50398.70
28-Nor-17.alpha.(H)-hopaneC29H50398.70
5817.alpha.(H),21.beta.(H)-HomohopaneC31H54426.801.23
17.alpha.(H),21.beta.(H)-HopaneC30H52412.70
17.alpha.(H),21.beta.(H)-HopaneC30H52412.70
Alcohols
81-Decanol, 2-hexyl-C16H34O242.442.02
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
2-MethylhexacosaneC27H56380.70
22OctacosanolC28H58O410.800.43
Tetracosyl trifluoroacetateC26H49F3O2450.70
Tricosyl trifluoroacetateC25H47F3O2436.60
281-Dodecanol, 2-octyl-C20H42O298.500.43
Nonyl tetracosyl etherC33H68O480.90
Carbonic acid, octadecyl vinyl esterC21H40O3340.50
381-Decanol, 2-hexyl-C16H34O242.442.18
Docosyl octyl etherC30H62O438.80
Octyl tetracosyl etherC32H66O466.90
Ethers
12Docosyl octyl etherC30H62O438.800.40
2-MethylhexacosaneC27H56380.70
5-MethylnonacosaneC30H62422.80
26Nonyl tetracosyl etherC33H68O480.900.19
DotriacontaneC32H66450.90
EicosaneC20H42282.50
50Isophthalic acid, 3,7-dimethyloct-6-enyl tridecyl esterC31H50O4486.700.26
Citronellyl palmitoleateC26H48O2392.70
Citronellyl oleateC28H52O2420.70
Esters
14Carbonic acid, eicosyl vinyl esterC23H44O3368.601.04
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
PentatriacontaneC35H72492.90
24Carbonic acid, octadecyl vinyl esterC21H40O3340.500.65
1-Decanol, 2-hexyl-C16H34O242.44
Docosyl octyl etherC30H62O438.80
36Carbonic acid, decyl hexadecyl esterC27H54O3426.701.46
Heptacosyl trifluoroacetateC29H55F3O2492.70
Carbonic acid, decyl heptadecyl esterC28H56O3440.70
39Carbonic acid, decyl octadecyl esterC27H54O3426.700.79
2-MethylhexacosaneC27H56380.70
2-MethyltetracosaneC25H52352.70
43Carbonic acid, decyl hexadecyl esterC27H54O3426.702.39
DotriacontaneC32H66450.90
HentriacontaneC31H64436.80
51Phytyl decanoateC30H58O2450.800.12
1-(2,2,3,5,6-Pentamethylcyclohex-4-enyl)-9-(3,3,4-trimethylcyclohex-1-enyl)-3,6-dimethyl-6-ethenyl-dec-4-eneC34H58466.80
AllopregnaneC21H36288.50
52ValtrateC22H30O8422.500.84
Squalane $$ Tetracosane, 2,6,10,15,19,23-hexamethyl-C30H62422.80
11-MethyltricosaneC24H50338.70
55Isophthalic acid, 3,7-dimethyloct-6-enyl tridecyl esterC31H50O4486.700.26
Heptacosyl trifluoroacetateC29H55F3O2492.70
Hexacosyl trifluoroacetateC28H53F3O2478.70
Ketones
4721-Nor-5.alpha.-cholest-24-en-20-oneC26H42O370.600.14
2-Methyl-E-7-octadeceneC19H38266.50
5-Methyl-Z-5-docoseneC23H46322.60
Nitrogen compounds
4HexadecanedinitrileC16H28N2248.410.09
1-Decanol, 2-hexyl-C16H34O242.44
Carbonic acid, eicosyl vinyl esterC23H44O3368.60
Sulfurous compounds
18Sulfurous acid, cyclohexylmethyl heptyl esterC14H28O3S276.440.37
Sulfurous acid, di(cyclohexylmethyl) esterC14H26O3S274.42
Sulfurous acid, cyclohexylmethyl pentadecyl esterC22H44O3S388.60
31Sulfurous acid, cyclohexylmethyl pentadecyl esterC22H44O3S388.601.06
Sulfurous acid, di(cyclohexylmethyl) esterC14H26O3S274.42
2-Pyrazoline, 5-ethyl-1,4-dimethyl-C7H14N2126.20
Other compounds
29Tetracosyl pentafluoropropionateC27H49F5O2500.700.44
Nonyl tetracosyl etherC33H68O480.90
1-Decanol, 2-hexyl-C16H34O242.44
48Triacontane, 1-bromo-C30H61Br501.700.61
Hexacosane, 1-iodo-C26H53I492.60
DotriacontaneC32H66450.90
572- Bromopropionic acid, octadecyl esterC21H41BrO2405.500.53
Heptadecane, 9-(2-cyclohexylethyl)-C25H50350.70
Cyclohexane, (2-decyldodecyl)-C28H56392.70
Table 7. Composition of the first extraction raffinate of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
Table 7. Composition of the first extraction raffinate of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
No.Compound NamesProposed
Formula
Molecular WeightRelative Content, %
Aliphatic hydrocarbons
2CyclododecaneC12H24168.320.79
1-TetradecanolC14H30O214.39
CyclotetradecaneC14H28196.37
Aldehydes
1BenzaldehydeC7H6O106.127.60
Benzaldehyde
Benzaldehyde
Carboxylic acids
3n-Hexadecanoic acidC16H32O2256.4237.56
Butyraldehyde, semi carbazoneC3H7N3O101.11
n-Hexadecanoic acidC16H32O2256.42
Table 8. Composition of the second extracted raffinate of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
Table 8. Composition of the second extracted raffinate of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
No.Compound NamesProposed
Formula
Molecular WeightRelative Content, %
Aldehydes
1BenzaldehydeC7H6O106.127.70
Benzaldehyde
Benzaldehyde
Carboxylic acids
2n-Hexadecanoic acidC16H32O2256.4237.55
n-Hexadecanoic acid
n-Hexadecanoic acid
Table 9. Composition of the third extracted raffinate of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
Table 9. Composition of the third extracted raffinate of coal tar slag. The compounds marked in red in the first row of each substance in the table are those that were present in the coal tar slag after judgment, and those in black font are the information on other MS ion fragments detected.
No.Compound NamesProposed
Formula
Molecular WeightRelative Content, %
Aldehydes
1BenzaldehydeC7H6O106.1211.84
Benzaldehyde
Benzaldehyde
