Article

A Comparative Study of the Availability of Electric Buses in the Public Transport System

1
Motor Transport Institute, 80 Jagiellonska St., 03-301 Warsaw, Poland
2
Department of Sustainable Transport and Energy Sources, Lublin University of Technology, 20-618 Lublin, Poland
3
Faculty of Transport and Information Technology, WSEI University, 20-209 Lublin, Poland
4
Municipal Transport Company Lublin Ltd., 56 Antoniny Grygowej St., 20-260 Lublin, Poland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2025, 15(3), 1212; https://doi.org/10.3390/app15031212
Submission received: 30 December 2024 / Revised: 20 January 2025 / Accepted: 23 January 2025 / Published: 24 January 2025

Abstract

:
This study deals with the assessment of the progress of the electromobility programme with regard to the technical availability of public transport buses. The aim of this study was to conduct a comparative assessment of the availability of electric buses in relation to diesel buses (of analogous capacity). The study was carried out in real operating conditions using the example of Lublin city. Over a period of 33 months, the availability of electric buses and diesel buses was tested in a sample of 18 vehicles for each type of bus. Availability indices were compared using the method of variance analysis. It was found that electric buses had a higher level of availability and no trend during the study period. The applied research method can be used in operational practice to monitor the risks associated with vehicle failure rates and the continuity of fleet operations.

1. Introduction

The subject of the research described in this article is the availability (readiness) of electric buses as an important component of their operational quality in the public transport system [1,2,3].
Availability can be considered as a ratio of the expected uptime of a system to the total amount of observed time. The total amount of observed time is the sum of the uptime and downtime of the system. In reliability engineering, availability is expressed as a ratio of the Mean Time to Failure (MTTF) and the Mean Time Between Failure (MTBF). Depending on what is taken into account when determining the uptime and downtime, different types of availability are distinguished [4].
From the carrier’s point of view, availability is one of the most important indicators characterising the operational quality of vehicles and the efficiency of the transport system [5,6,7].
Low availability in the transport system can have a significant impact by increasing costs within the company, as well as reducing the fluidity of the company’s operations [8]. In contrast, high fleet availability enables a haulier to reduce the number of operational vehicles and the number of reserve vehicles [9].
Regarding the factors determining fleet availability in a public transport system, the following breakdown can be proposed, among others [10,11]:
  • Random external factors not attributable to the carrier, e.g., sudden weather conditions, road traffic collisions, and information misunderstandings due to contractors;
  • Internal system factors relating to day-to-day operational management;
  • Technical factors resulting from the reliability of vehicles.
Delivering a guaranteed transport service in line with passenger expectations requires that the carrier continuously monitors the technical availability of the means of transport and infrastructure and that the reasons for insufficient availability are systematically analysed [12,13].
Classifications of the factors affecting technical availability can also be presented as follows [14]:
  • Non-damageability of vehicles—resistance to the wear and tear of structural components and operational forcing, which determine the frequency of damage;
  • Serviceability—effective maintenance management, the availability of spare parts, and the efficiency of service processes that minimise operational downtime;
  • Reliability—the use of vehicle condition monitoring systems to plan maintenance work;
  • Operating conditions—the intensity of use and the impact of the operating environment determine the wear and tear dynamics of vehicles and their availability for transport.
Vehicle availability studies are widely reported in the literature. In relation to the topic of this thesis, this literature review mainly considers publications on the following:
  • The availability of vehicles for intervention tasks, e.g., police cars, military vehicles, and aircraft;
  • The availability of urban public transport vehicles.
This study highlights, among others, references [15,16,17,18,19]. In [19], to model the exploitation system of special vehicles, a semi-Markov process was used based on three exploitation states: use, use stoppage, and repair. Using a statistical sample of police cars as an example, an experimental study of the intensity of fleet use and the time of failure-free operation of vehicles was carried out, and it was shown that the studied transport system is characterised by a satisfactory stationary availability factor. The developmental possibilities of the presented modelling method are highlighted.
Reference [15] presents an analysis of the impact of contractual categories of bus downtime due to maintenance and repair on the technical availability index. A retrospective study covering a period of 12 years of vehicle use was carried out using the example of a selected urban transport company. The share of each downtime category in the total vehicle downtime was analysed. The Spearman rank correlation coefficient was used for the analysis. The study covered seven brands and types of buses and six categories of downtime. Technical availability was shown to be strongly correlated with outage categories and loosely correlated with bus age.
Reference [16] presents the influence of selected factors of technical availability of public transport buses using the examples of Solaris and Mercedes-Benz buses in the Municipal Transport Company. A study of changes in technical availability was carried out with a division into two periods of use: warranty and post-warranty. A one-factor analysis of variance was used to test the significance of differences in mean availability values depending on the bus brand and depending on the periods of use. It was shown that in the warranty period, the technical availability of buses of both brands is comparable, while in the post-warranty period, it is significantly different.
Reference [17] describes a mathematical model of the operation process of vehicles supplying fuel to aircraft prior to flight. The phase space of the investigated process was mapped using a seven-state vehicle operation model. Markov chains and processes were used to calculate the technical readiness index, KG(t). Optional methods for determining the vehicle’s technical readiness index based on the total operating time of the facility in each state are presented.
Reference [18] proposes an author’s method for assessing helicopter availability using Markov processes. An assessment of the availability of Mi8 helicopters equipped at the Transport Aviation Base is presented. Based on the analysis of the exploitation process, nine exploitation states are distinguished, for which boundary probabilities are calculated in discrete and continuous time.
In the field of public transport, there has been a rapid increase in the number of electric vehicles in recent years. This trend is expected to continue into the future. The use of electric propulsion, especially in public transport, is primarily aimed at reducing local emissions, i.e., dust and gases that are harmful to human health, as well as carbon dioxide, which contributes to the global warming process [20,21].

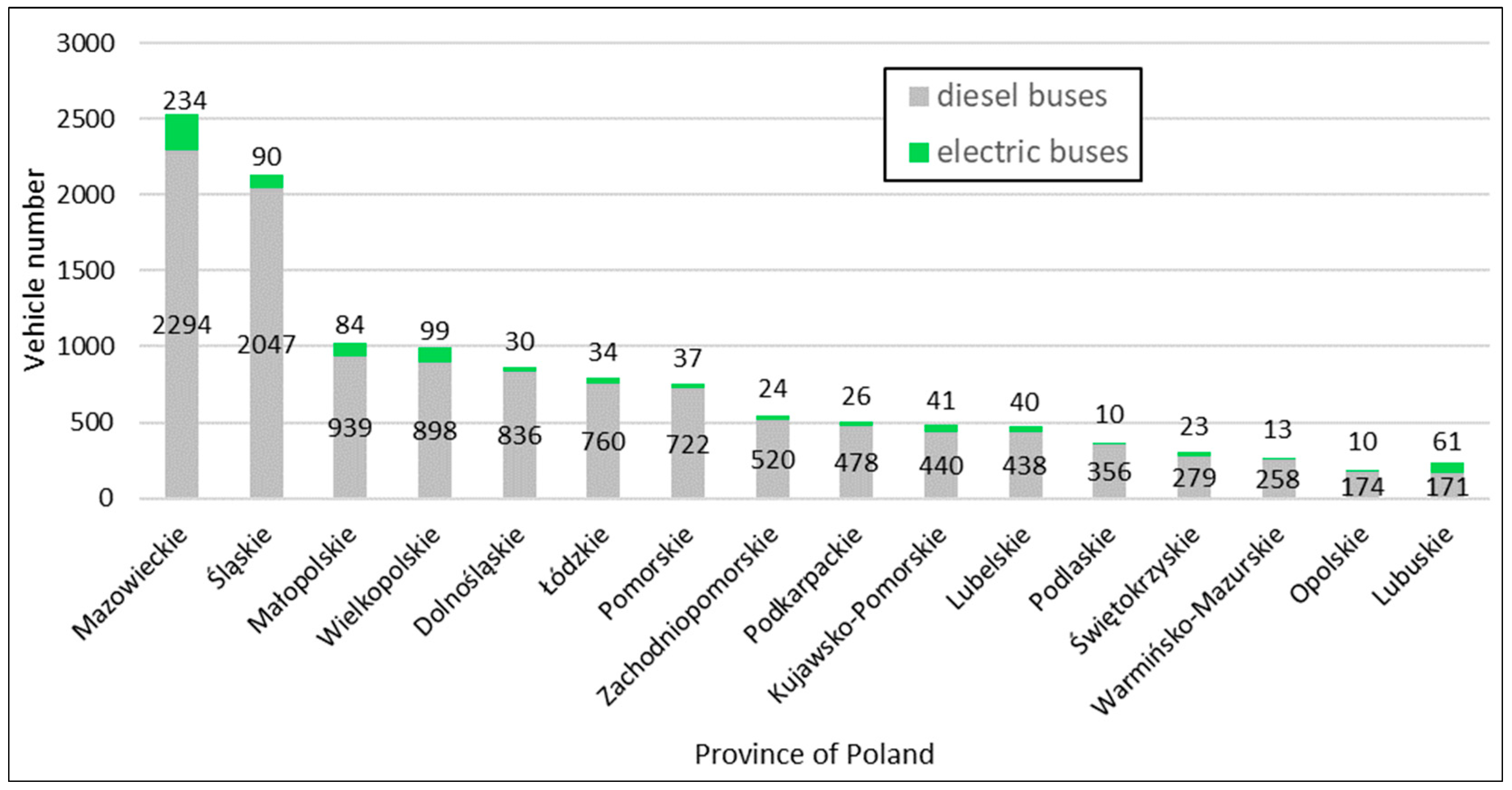

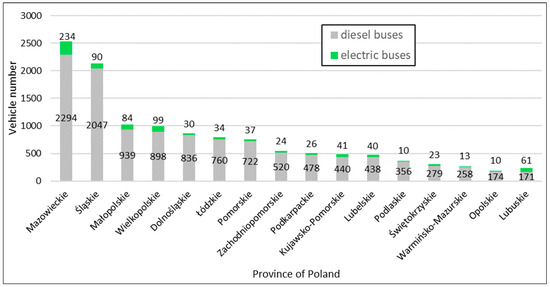

The characteristics of the size of the urban bus fleet in Poland in 2023, including the share of electric vehicles, are shown in Figure 1.
Currently, in Poland, the share of electric buses in the total number of public transport buses is about 7%. The leading manufacturer of electric buses in the country is Solaris [24]. In view of the dynamic development of electromobility programmes, there is a need to assess new electric vehicles being launched on the market from environmental, economic, and technical points of view. In the literature, examples of assessing the operational maintenance of electric buses are quite few and methodologically diverse [25,26].
Lublin is a city with a very long tradition of using electric vehicles in public transport. It is one of three cities in Poland, apart from Gdynia and Tychy, where trolleybuses are used. What distinguishes Lublin trolleybuses from other electric vehicles used in Poland and Europe is the fact that all of them are equipped with autonomous energy sources. These are serial hybrid systems and lithium-ion batteries of various types, mainly NMC, LFP, and LTO batteries. The experience gained during the operation and servicing of trolleybuses by Municipal Transport Company Lublin (MTCL) resulted in the creation of a system of electric buses ‘tailor-made’ for the city of Lublin. These buses have a relatively short range, around 70 km. Thanks to the knowledge, years of experience and appropriate use of battery technologies, together with appropriate charging infrastructure, these buses can perform transport tasks without downtime needed for charging. Properly designed infrastructure for electric vehicles allows for charging times to be minimised and for the vehicles to be used similarly to diesel vehicles [27].
In Lublin, there are eight main end-route stops at which chargers with two or four charging points with a nominal power of 450 kW each are installed. The length of the route covered by the bus between subsequent charging stations, on a full all-day schedule, does not exceed 40 km, and the energy consumption is 43 kWh. Therefore, the charging time does not exceed 6 min and corresponds to the times of breaks in the schedule at end-route stops. Pantographs are used in the buses for fast charging, and their special design allows them to be connected for charging in a short time.
The charging infrastructure was also equipped with stationary chargers installed in the road with a nominal power of 40 kW. This system was created with the aim to meet the assumptions of charging a bus in three hours, so a bus leaving the route at 0:00 am, after performing service activities related to its preparation for running the following day, would be ready to leave at 4:00 am to provide transport tasks. The chargers are also used to charge buses dispatched on a given day to perform tasks on peak schedules.
The infrastructure for electric buses in Lublin ensures that the routes can be served by both diesel and electric vehicles, which do not need additional time for charging.
The authors of the present study attempted to assess the progress of electromobility in a selected example of a public bus service with regard to the problem of vehicle technical availability. The aim of the study was to evaluate the comparative availability of electric buses in relation to buses of similar capacity with diesel engines. It was assumed that the study will be carried out in real operating conditions with the example of the city of Lublin.

2. Research Methodology

2.1. Technical Availability Index for Vehicles

The availability of a technical facility is defined as the probability that the facility will be in a state of serviceability at any randomly selected time [28]. In practice, the technical availability index is used to quantify availability. It is a basic parameter that determines how often a vehicle is available to perform transport tasks. The technical availability index is expressed by the following relationship [5,11,12]:
KG(t) = Nz/(Nz + Nn)
where
Nz—the number of buses available for use in a given operating period;
Nn—the number of buses unavailable for use in a given operating period.
The above relationship regarding the technical availability index formed the basis for determining the technical availability of the vehicle fleets presented in this study.

2.2. Method of Statistical Analysis of Results

It was assumed that the basis of the analysis would be the availability reports produced by the company under study for each vehicle and that the scope of this analysis would include the determination of descriptive statistics and the performance of statistical significance tests for differences in mean values. In order to assess the influence of the drive type on the technical availability index, KG(t), the analysis was carried out for a total observation period of 33 months and for annual observation periods. In addition, a comparative analysis of technical availability, KG(t), was carried out between consecutive annual vehicle operating periods and between drive types.
The following research hypotheses were formulated:
  • The first null hypothesis, H1.0, states that there are no significant differences in technical availability, KG(t), between electric and diesel buses over the observed operating period.
  • The second null hypothesis, H2.0, states that there are no significant differences in technical availability, KG(t), between the operating periods of vehicles.
Hypothesis verification was performed using a one-way ANOVA (analysis of variance). The use of ANOVA is conditional on the following assumptions:
  • All observations are randomly selected and independent;
  • The dependent variable is measured on a quantitative scale;
  • There is equality of observations in the groups—individual categories of the independent variable should be statistically equal;
  • The distribution of results in the analysed groups is close to a normal distribution;
  • The variances in the groups are homogeneous [29].
The Kolmogorov–Smirnov and Shapiro–Wilk tests were used to check the normality of the distribution across groups. p = 0.05 was used as the required significance level. The condition of homogeneity of variance was analysed using Levene’s test. The results of the statistical analysis are presented in the box-and-whisker plots in Section 3.2.

3. Experimental Procedure

3.1. Test Facilities and Conditions

The research was carried out at the Municipal Transport Company in Lublin using samples of buses of two makes, SOLARIS URBINO12 ELECTRIC with electric drive and URSUS BUS CF 12 LFD with internal diesel drive, with 18 vehicles of each make. All the vehicles tested were new units with no previous operating mileage. The technical characteristics of the vehicles tested are shown in Table 1.
The tests were conducted under standard operating conditions in the Municipal Transport Company in Lublin. The tests were conducted over the calendar time period from 2021 to 2024, with a total of 33 months of bus use.
The studied buses operated on regular public transport routes in urban traffic. The average daily mileage was about 238 km for electric vehicles and 243 km for diesel vehicles; the deviation of the extreme values did not exceed 85 km. The average monthly mileage was 4860 km for electric buses and 4920 km for diesel buses.
Any of the studied vehicles that were technically efficient could be sent to serve one of the operated lines. The lines were operated in a two-shift, all-day operating pattern or only during the peak period. During full service on all lines, a bus could also remain at the depot in a state of technical availability as a reserve vehicle.
Damage incurred or discovered during the run was a signal to the driver to stop transport work and take the bus to the depot. Each repair was carried out, depending on the time of departure, either immediately or starting from the next mechanic’s shift.
In this study, the source data base was the company’s vehicle technical availability reports. The availability reports contained a record of the operating states of each vehicle, broken down by the next day of each month. Due to limited access to data, a vehicle was considered unavailable when a failure occurred on a given day. If a vehicle performed tasks without faults during a shift (two-shift, all-day, or peak period), it was counted as an unavailable vehicle. Two states were considered: the availability state, denoted as ‘1’, and the unavailability state, denoted as ‘0’ (Figure 2). The same indicator defined in Equation (1) was used to calculate the technical availability index of diesel and electric vehicles.

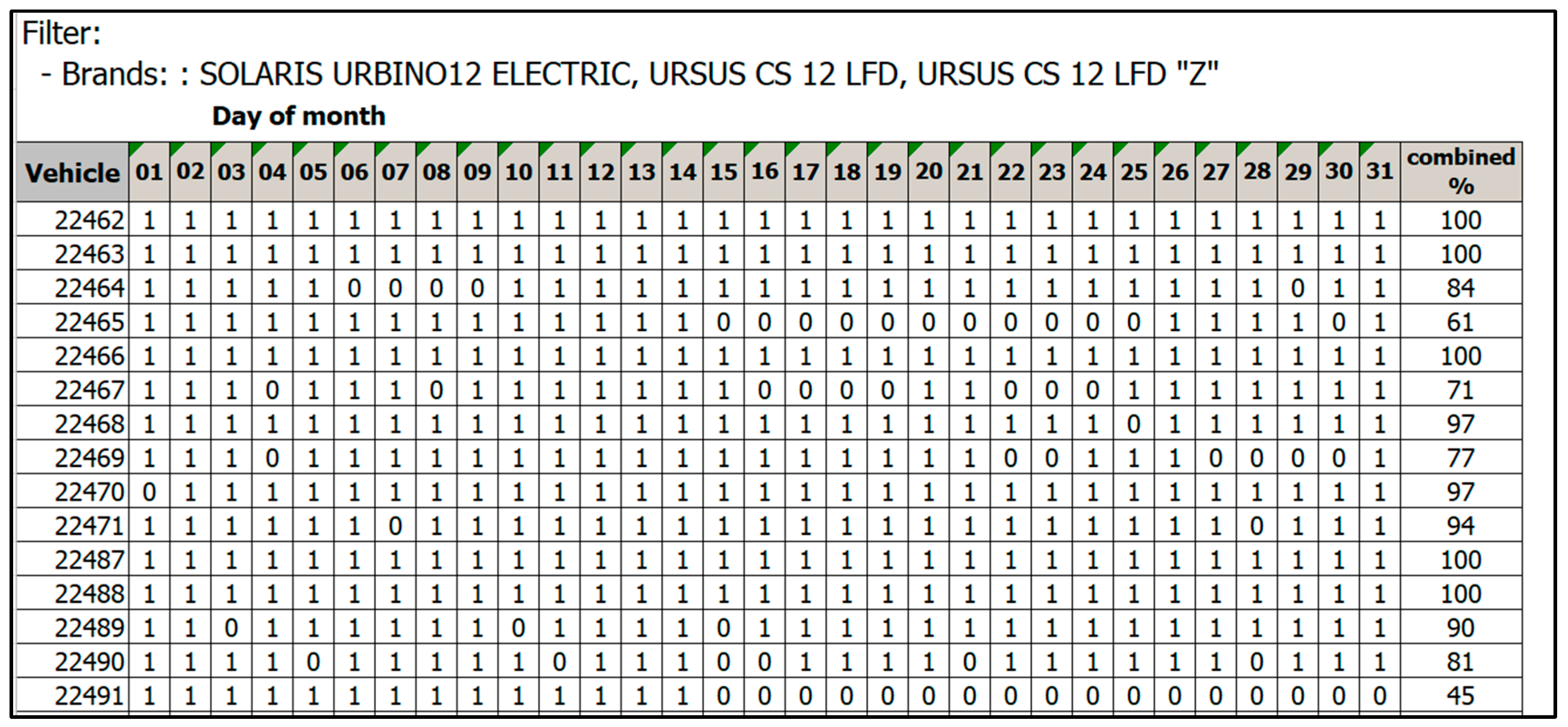

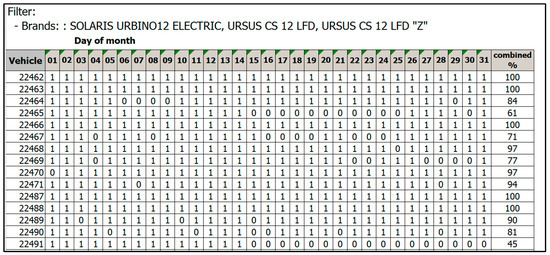

The readiness reports were prepared by the carrier using the integrated IT management system MUNICOM TARAN. At the end of each work shift, as part of the use of the aforementioned system, the technical support (service) employee monitored the vehicle’s operational status. The data recorded in the system were sent to dispatchers at the company’s traffic headquarters. For a faulty vehicle, the system prevented issuing a road card on the next working day, which meant stopping the vehicle at the service and repair base. The aforementioned technical readiness reports were the basis for warranty settlements with individual vehicle manufacturers, as well as for meeting the implementation of the transport task plan.
In a later section of the article, abbreviated names of the tested vehicles are introduced according to the type of drive, and it is assumed that Ursus buses will be labelled as ‘diesel’ and Solaris buses as ‘electric’.

3.2. The Results of the Study

The results of the KG(t) availability tests are presented in the form of graphs in Figure 3 and in numerical form in Table 2. The graphs presented in Figure 3 illustrate the values averaged over each month of operation of the vehicle sample and the 3-month moving average of the KG(t) index values.
An analysis of the data in the column chart shows a higher level of KG(t) indexes for electric vehicles in each of the observed monthly periods. Higher KG(t) technical availability of diesel vehicles was only observed in the 1st, 2nd, and 11th months.
The mean technical availability, KG(t), of diesel vehicles for the whole observation period was KG(t) = 0.79 with a standard deviation of S(KG) = 0.08. For electric vehicles, the mean statistic was KG(t) = 0.89 with a standard deviation of S(KG) = 0.12. When comparing the median, similar values were found for KG(t) = 0.80 and KG(t) = 0.92 for diesel and electric vehicles, respectively. The lowest availability value for electric buses, KG(t) = 0.28, was recorded in 1 month of operation. The lowest availability of diesel buses, KG(t) = 0.58, was recorded in the 15th month of operation.

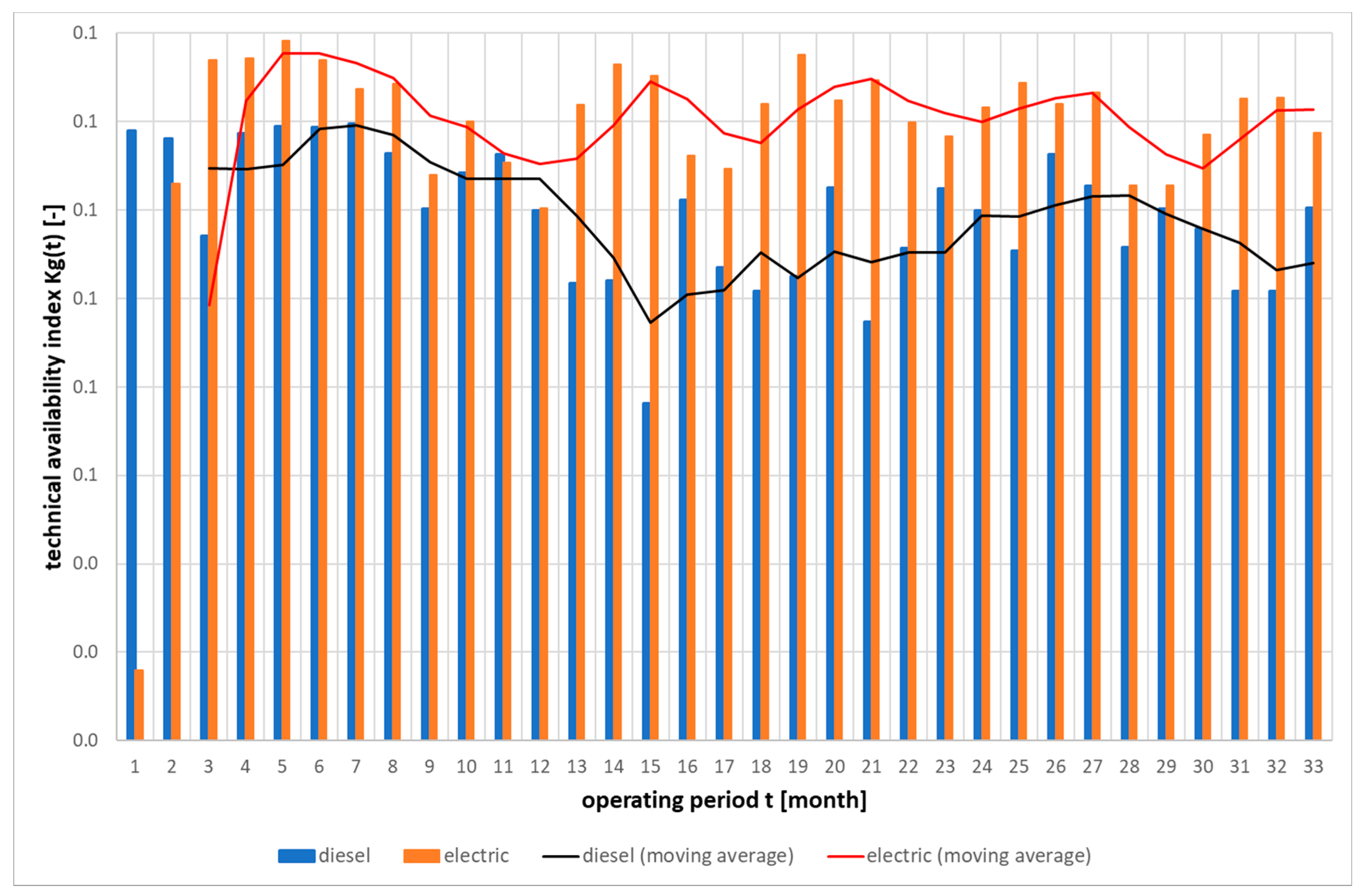

Figure 3. Technical availability, KG(t), of diesel and electric buses and 3-month moving average as function of monthly operating period, t.
Figure 3. Technical availability, KG(t), of diesel and electric buses and 3-month moving average as function of monthly operating period, t.
Applsci 15 01212 g003
Table 2. Descriptive statistics of technical availability.
Table 2. Descriptive statistics of technical availability.
StatisticsDieselElectric
33 Months1st Year2nd Year3rd Year33 Months1st Year2nd Year3rd Year
Average0.790.850.740.780.890.860.920.90
Median0.800.870.740.780.920.920.920.92
Variation0.010.000.010.000.020.040.000.00
Std. deviation0.080.060.070.050.120.190.040.04
Minimum0.580.710.580.710.280.280.850.83
Maximum0.900.900.830.860.990.990.980.94
Interquartile range0.320.190.250.150.710.710.130.11
Coefficient of variation [%]0.140.080.100.080.090.140.060.07
A graphical illustration of technical availability is shown in the box-and-whisker figures. Figure 4 shows the results for the whole observation period, and Figure 5 shows the results for the ‘drive type’ and ‘operating period’ groups. An analysis of the box–whisker plots indicates that there are outlier observations. Further analysis and calculations were carried out excluding these observations.
The condition of independence of observations, required for a univariate analysis of variance, was considered to be met. It was assumed that there are no latent relationships between observations. The measurability condition was also assumed to be met, as technical availability, KG(t), as the dependent variable is considered on a quantitative scale.
The normality of the distribution in the analysed groups–drive type’ and ‘operating period’—was verified using the Kolmogorov–Smirnov and Shapiro–Wilk tests (Table 3). For all analysed types of ‘operating period’ and ‘drive type’, the null hypothesis of normality of distribution was fulfilled in at least one verification test. Ambiguous results from both tests were only obtained for diesel vehicles at the 1st year of operation, and for electric vehicles, at the 2nd and 3rd years of operation. Of the aforementioned groups, the normality condition of the distribution (p > α = 0.05) was only met by one of the two tests. Due to some robustness in the one-way analysis of variance to deviations from the normality of the distribution, the condition was considered to be met [30].
Another condition for the validity of the analysis of variance was to check the homogeneity of the variances. Therefore, Levene’s test was further performed in four variations: based on the arithmetic mean, median, median and adjusted df, and truncated mean. Table 4 shows the results of Levene’s tests in relation to H1.0. The results of the analysis of homogeneity of variance for the entire observation period (33 months), and for the 2nd and 3rd years of operation, indicate that the null hypothesis of homogeneity of variance should be considered. On the other hand, the homogeneity of variance is not fulfilled for the mean value and the trimmed mean.

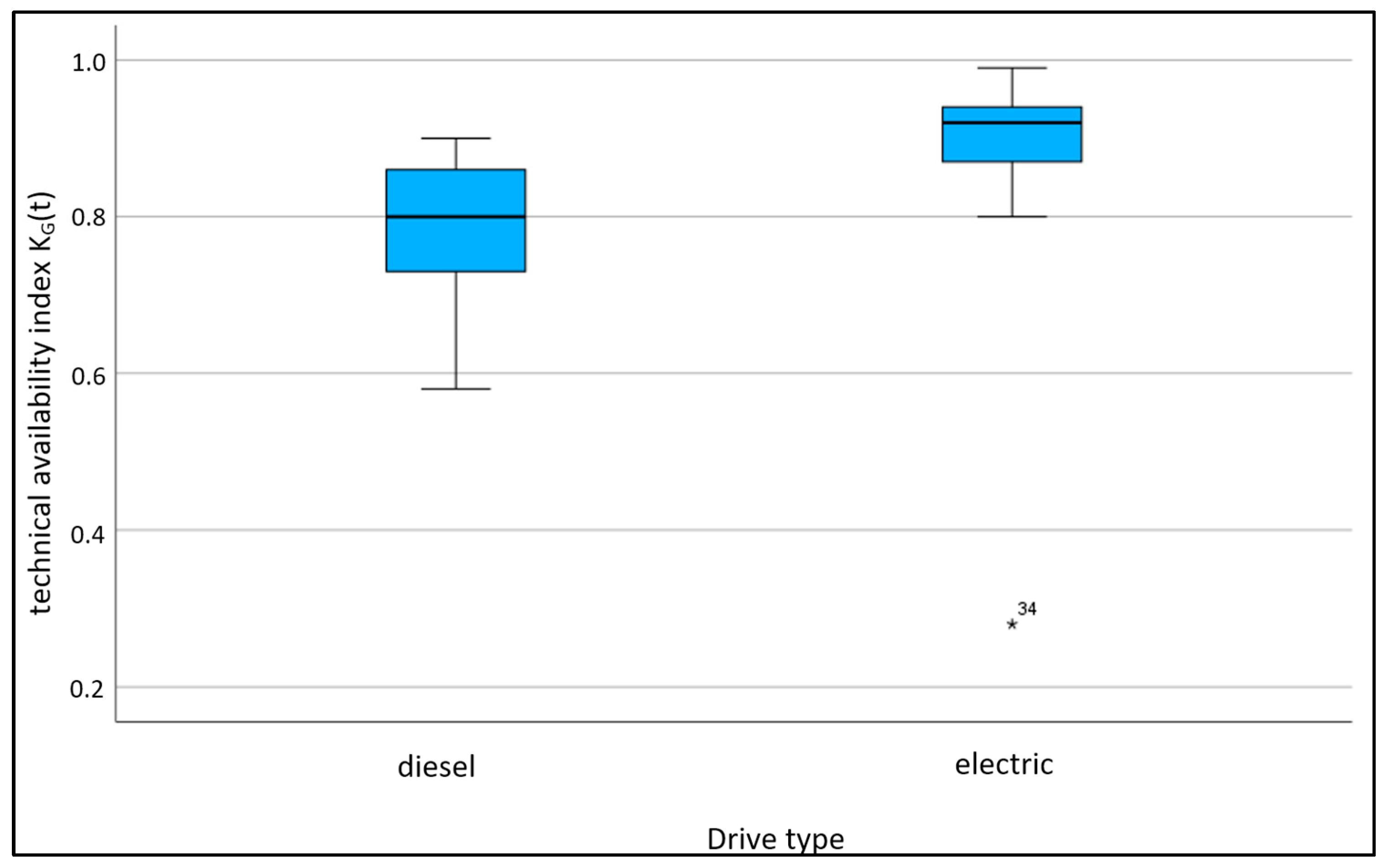

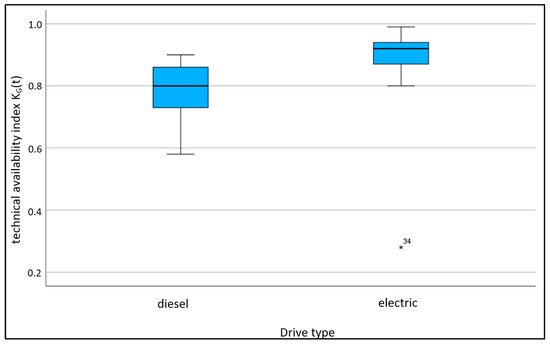

Figure 4. A box-and-whisker plot of the dependent variable of technical availability, KG(t), of buses for the ‘drive type’ groups (* 34—outlier).
Figure 4. A box-and-whisker plot of the dependent variable of technical availability, KG(t), of buses for the ‘drive type’ groups (* 34—outlier).
Applsci 15 01212 g004

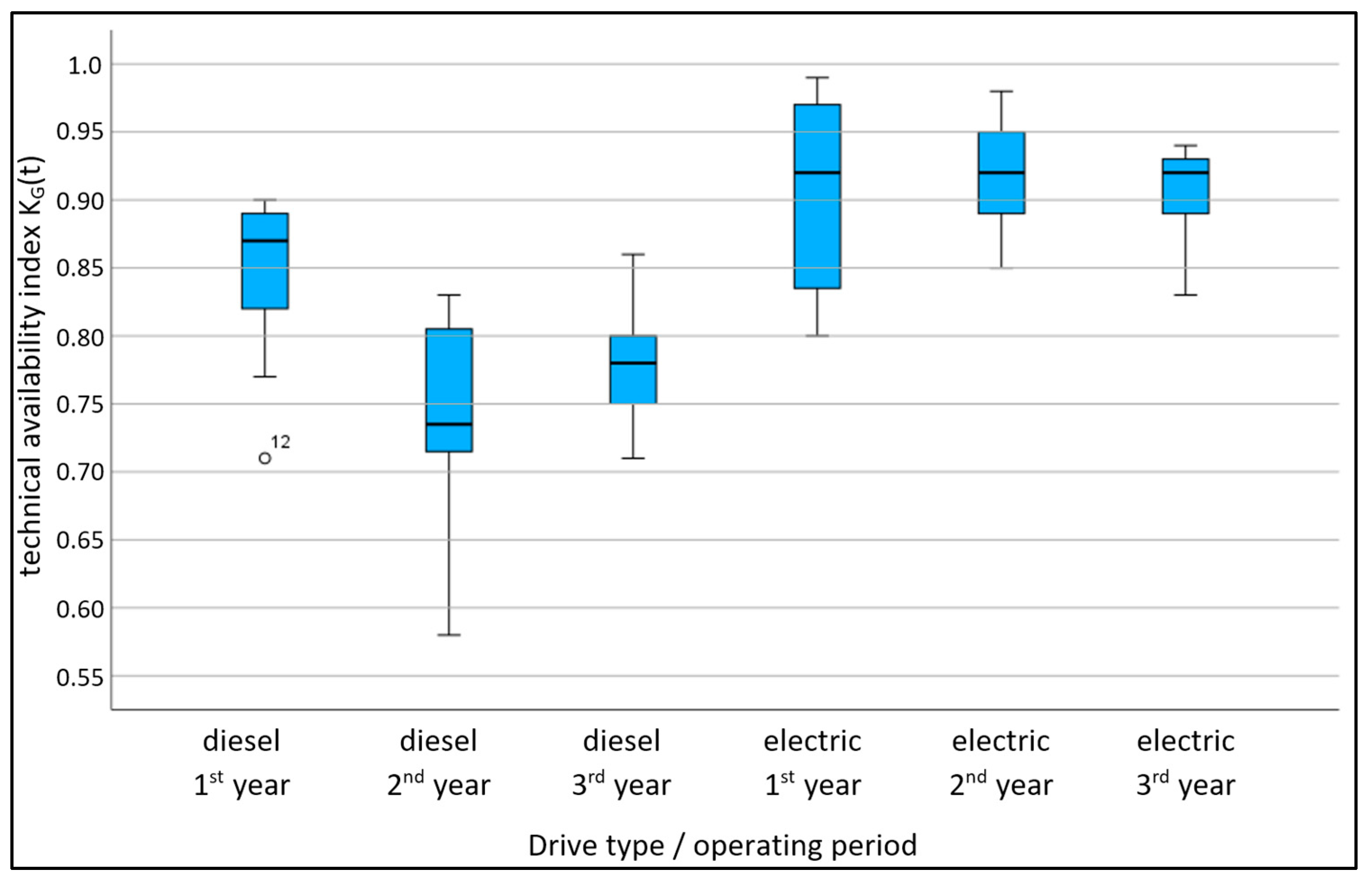

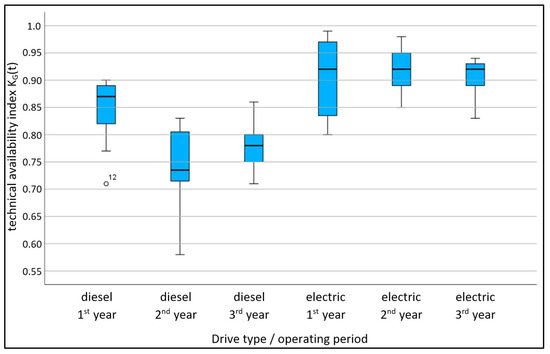

Figure 5. A box-and-whisker plot of the dependent variable technical availability, KG(t), of buses for the groups ‘drive type’ and ‘operating period’ (° 12—outlier).
Figure 5. A box-and-whisker plot of the dependent variable technical availability, KG(t), of buses for the groups ‘drive type’ and ‘operating period’ (° 12—outlier).
Applsci 15 01212 g005
Table 5 shows the results of the test for H2.0. The results of the analysis indicate that the homogeneity of variance should be recognised for both diesel and electric vehicles when comparing the 1st and 2nd years of operation and the 2nd and 3rd years of operation.
Table 3. The results of the normality test analysis of the technical availability distribution, KG(t).
Table 3. The results of the normality test analysis of the technical availability distribution, KG(t).
Drive Type/Operating PeriodKolmogorov–SmirnovShapiro–Wilk
StatisticsSignificance pStatisticsSignificance p
diesel/33 months0.790.850.890.86
diesel/1st year0.800.870.920.92
diesel/2nd year0.010.000.020.04
diesel/3rd year0.080.060.120.19
electric/33 months0.580.710.280.28
electric/1st year0.900.900.990.99
electric/2nd year0.320.190.710.71
electric/3rd year0.140.080.090.14
Table 4. Results of Levene’s test for homogeneity of variance for ‘drive type’.
Table 4. Results of Levene’s test for homogeneity of variance for ‘drive type’.
Operating
Period
VariableEffectBased on:StatisticsDegree of
Freedom df1
Degree of
Freedom df2
Significance
p
33 monthsKG(t)Drive typeAverage0.0041640.952
Median0.0311640.860
Median and adjusted df0.031142.6420.861
Average cut0.0131640.908
1st yearAverage5.4571200.030
Median2.1501200.158
Median and adjusted df2.150118.2810.160
Average cut5.3221200.032
2nd yearAverage2.3281220.141
Median2.3711220.138
Median and adjusted df2.371117.3320.142
Average cut2.5371220.125
3rd yearAverage0.2301160.638
Median0.2761160.606
Median and adjusted df0.276115.4560.607
Average cut0.2501160.624
Table 5. Results of Levene’s test for homogeneity of variance for ‘operating period’.
Table 5. Results of Levene’s test for homogeneity of variance for ‘operating period’.
Drive TypeVariableEffectBased on:StatisticsDegree of
Freedom df1
Degree of
Freedom df2
Significance
p
dieselKG(t)1st and 2nd years of operationAverage1.6671210.211
Median1.6281210.216
Median and adjusted df1.628119.4030.217
Average cut1.8491210.188
2nd and 3rd years of operationAverage0.5241190.478
Median0.5191190.480
Median and adjusted df0.519116.2400.482
Average cut0.5891190.452
electric1st and 2nd years of operationAverage3.5751220.072
Median2.4191220.134
Median and adjusted df2.419111.5000.147
Average cut3.0271220.096
2nd and 3rd years of operationAverage0.1931190.665
Median0.0551190.817
Median and adjusted df0.055117.5680.818
Average cut0.1831190.674
The univariate analysis of variance in the ‘drive type’ group indicates that a statistically significant difference was found for the total (33 month) operating period and the 2nd and 3rd years of operation (Table 6). For these operating periods, a significance level of p < 0.001 was found. Thus, the null H1.0 about the absence of statistically significant differences in technical availability KG(t) between bus makes (drive type) should be rejected. A different result was obtained when comparing the technical availability of KG(t) in the 1st year of operation. The level of significance was found to be p = 0.065, and there were no grounds to reject H1.0. Thus, the availability of KG(t) is not significantly different. Due to the lack of homogeneity of variance for the technical availability of KG(t) in the 1st year of operation, Welch and Brown–Forsythe tests were additionally performed. The significance level of p = 0.068 for both tests indicates that there is no basis for rejecting H1.0 (Table 7).
The results of the analysis of variance obtained are consistent with the results of the box-and-whisker plots (Figure 4 and Figure 5).
In verifying H2.0 in the sample of diesel vehicles, it was found that statistically significant differences exist only between the 1st and 2nd years of operation. In contrast, in the period groups of the 2nd and 3rd years of operation of diesel vehicles and in all period groups of operation of electric vehicles, the differences are not statistically significant.
Table 6. Results of calculations of one-way analysis of variance for ‘drive type’.
Table 6. Results of calculations of one-way analysis of variance for ‘drive type’.
Operating
Period
VariableEffectSourceSum of
Squares
Degrees of
Freedom
Mean
Squares
F
Ratio 1.
Significance
p
33 monthsKG(t)Drive typeBetween phases0.16510.16516.187<0.001
Inside phases0.652640.010
Total0.81765
1st yearBetween phases0.01210.0123.8140.065
Inside phases0.064200.003
Total0.07721
2nd yearBetween phases0.18710.18756.346<0.001
Inside phases0.073220.003
Total0.26023
3rd yearBetween phases0.06610.06629.796<0.001
Inside phases0.035160.002
Total0.10117
1. Mean square between groups divided by mean square within groups.
Table 7. Results of Welch and Brown–Forsythe tests for 1st year of operation.
Table 7. Results of Welch and Brown–Forsythe tests for 1st year of operation.
TestStatisticsDegrees of
Freedom df1
Degrees of
Freedom df2
Significance
p
Welch3.814116.8770.068
Brown–Forsythe3.814116.8770.068

4. Discussion of Results

The results of the study indicate that electric buses have higher availability compared to diesel buses. The differences were shown to be statistically significant. The average technical availability in the sample of electric buses is in the range KG,avg (0.76 ÷ 0.92) while that of diesel buses is in the range KG,avg (0.74 ÷ 0.85). These results are in line with reports from the literature. Indeed, many authors emphasised the systematic improvement in the quality of electric drives introduced to the market in recent years [31,32,33]. In comparison with the availability of Solaris diesel buses operated in Municipal Transport Company in Lublin in the 2008–2010 period, whose availability was KG = (0.88–0.91) [13], it may be considered that the results of the availability assessment of electric buses presented in this study do not differ significantly.
The time series of the KG indicator of electric vehicles in the three initial years of operation is characterised by the lack of a trend. On this basis, it is possible to forecast the maintenance of a stable availability in the subsequent periods of bus operation. In addition, a seasonality of changes in the technical availability index after the first year of operation was found. The moving average in Figure 3 shows a decrease in the indicator in a repeated cycle of about 6 months. This is probably related to the 6-month cycle of periodic inspections of electric vehicles. Electric vehicles were introduced to operation in a similar period of time (within 1 month). That caused periodic inspections of all vehicles to fall at the same time. Even if vehicles were serviced simultaneously in smaller groups in the span of one month, the overall technical availability would be lower in this month.
The reasons for the differences in availability between electric and diesel vehicles can be of a technical nature related to the reliability of the design or of an operational nature related to managing the continuity of the fleet.
One of the key factors for the high technical availability of electric buses is their technical quality. It can be assumed that electric buses have been made to a higher standard of quality than their diesel counterparts. The reason for this may be the growing construction and technological experience of the vehicle manufacturer (Solaris Bus & Coach SA, Owińska, Poland) and high production standards.
Electric buses, due to their simpler mechanical design, have fewer moving parts, reducing the number of potential tribological failure points compared to diesel buses, which require regular maintenance of many components. In addition, electric buses have lower operating and maintenance costs [26]. The greater reliability of electrical and design structures, combined with higher build quality, means that these buses require less frequent service interventions, which reduces operating costs and makes them more efficient for long-term use.
Considering the entire period under study, electric vehicles showed a technical availability that was 11.2% higher (based on the arithmetic mean); in individual years, it was, respectively, 0.9%, 19.3%, and 13.5%. The low difference in the first year was strongly influenced by the low technical availability index in the first month of electric vehicle operation, KG = 0.28. It is worth noting that the first implementation of a new technology, as was the case described in this article, required a period of adaptation, such as solving the problem of adapting the charging system to local conditions.
With regard to diesel vehicles, it should be noted that there is a significant drop in the technical availability index after the first year of operation. This is due to the impact of mechanical wear and tear on vehicle components.
The described system of the Lublin electric bus is unique. It allows for a diesel bus to be replaced with an electric bus on the same routes. For all-day operation, a necessary condition is the location of the bus charging point at one of the end-route stops. In the case of the implementation of the peak period, there are no differences. Therefore, it is possible to compare both of these vehicles performing transport tasks, in the same conditions, without taking into account differences related to the limitations of operability for one group of vehicles.
Future research should consider a wider range of specific factors affecting vehicle technical availability, such as intensity of use, qualification of technical staff, and quality of servicing. An important future topic is the extension of the analysis to include issues of repairability of electric buses, both in terms of quantity and type of failure. Mainly, an extensive analysis should be conducted while considering a powertrain failure comparison between diesel and electric vehicles.

5. Conclusions

Studies show that electric buses have a higher technical availability than traditional diesel buses under the same operating conditions. For the bus company, this may mean there is a possibility to reduce maintenance costs and the cost of a reserve fleet.
The higher technical availability of electric buses is due to the lower failure rate of the vehicle design and simpler maintenance and repair procedures.

Author Contributions

Conceptualization, A.N.; methodology, A.N. and Ł.M.; formal analysis, Ł.M.; validation, E.D. and J.R.; resources, D.K. and P.H.; writing—original draft, D.K.; data curation, P.H.; supervision, A.N.; investigation, D.K.; funding acquisition, E.D.; writing—review & editing, A.N., Ł.M., E.D., J.R., D.K. and P.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors upon request.

Conflicts of Interest

Author Piotr Hołyszko was employed by the company Municipal Transport Company Lublin Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Daraio, C.; Diana, M.; Di Costa, F.; Leporelli, C.; Matteucci, G.; Nastasi, A. Efficiency and effectiveness in the urban public transport sector: Critical review with directions for future research. Eur. J. Oper. Res. 2016, 248, 1–20. [Google Scholar] [CrossRef]
  2. Świderski, A. Inżynieria Jakości w Wybranych Obszarach Transportu; Motor Transport Institute: Warsaw, Poland, 2018. [Google Scholar]
  3. Zwierzchowska, M. Ocena jakości usług komunikacji miejskiej—Dobór zmiennych do badania metodą delficką. Autobusy 2018, 19, 18–21. [Google Scholar]
  4. Trivedi, S.K.; Bobbio, A. Reliability and Availability Engineering: Modeling, Analysis, and Applications, 1st ed.; Cambridge University Press: Cambridge, UK, 2017. [Google Scholar]
  5. Woropay, M.; Szubartowski, M.; Migawa, K. Model oceny i kształtowania gotowości operacyjnej podsystemu wykonawczego w systemie transportowym. In Wydawnictwo i Zakład Poligrafii Instytutu Technologii i Eksploatacji; Instytut Technologii Eksploatacji: Radom, Poland, 2003. [Google Scholar]
  6. Jardine, A.K.S. Optimizing Maintenance and Replacement Decisions. In Asset Management Excellence: Optimizing Life—Cycle Decision, 2nd ed.; Campbell, J.D., Jardine, A.K.S., McGlynn, J., Eds.; CRC Press—Taylor and Francis Group: Boca Raton, FL, USA, 2011; pp. 259–300. [Google Scholar]
  7. Wu, F.; Niknam, S.A.; Kobza, J.E. A cost-effective degradation-based maintenance strategy under imperfect repair. Reliab. Eng. Syst. Saf. 2015, 144, 234–243. [Google Scholar] [CrossRef]
  8. Laizans, A.; Graurs, I.; Rubenis, A.; Utehin, G. Economic Viability of Electric Public Busses: Regional Perspective. Procedia Eng. 2015, 134, 316–321. [Google Scholar] [CrossRef]
  9. Raposo, H.; Farinha, J.T.; Ferreira, L.; Galar, D.P. An integrated econometric model for bus replacement and determination of reserve fleet size based on predictive maintenance. Eksploat. Niezawodn. Maint. Reliab. 2017, 19, 358–368. [Google Scholar] [CrossRef]
  10. Guihaire, V.; Hao, J.K.H. Transit network timetabling and vehicle assignment regulating authorities. Comput. Ind. Eng. 2010, 59, 16–23. [Google Scholar] [CrossRef]
  11. Kruk, Z.; Kupicz, W. Przykłady kwantyfikacji gotowości operacyjnej środków transportowych użytkowanych akcyjnie. Bezpieczeństwo Tech. Pożarnicza 2014, 2, 85–91. [Google Scholar]
  12. Selech, J. Prognozowanie Kosztów Obsługiwania Korekcyjnego Pojazdów Transportu Masowego; Wydawnictwo Instytutu Technologii Eksploatacji-PIB: Poznań, Poland; Radom, Poland, 2019. [Google Scholar]
  13. Staniak, M.; Kotliński, A. Identification the Operational Activities Impact of the Transport Process Effectiveness. Zesz. Nauk. Wyższej Szkoły Humanit. 2016, 17, 323–335. [Google Scholar] [CrossRef]
  14. Herder, P.M.; van Luijk, J.A.; Bruijnooge, J. Industrial application of RAM modeling development and implementation of a RAM simulation model for the Lexan plant at GE Industrial. Reliab. Eng. Syst. Saf. 2008, 93, 501–508. [Google Scholar] [CrossRef]
  15. Rymarz, J.; Niewczas, A.; Hołyszko, P.; Dębicka, E. Application of Spearman’s Method for the Analysis of the Causes of Long-Term Post-Failure Downtime of City Buses. Appl. Sci. 2022, 12, 2921. [Google Scholar] [CrossRef]
  16. Rymarz, J.; Niewczas, A.; Krzyżak, A. Comparison of operational availability of public city buses by analysis of variance. Eksploat. Niezawodn. Maint. Reliab. 2016, 18, 373–378. [Google Scholar] [CrossRef]
  17. Ziółkowski, J.; Oszczypała, M.; Lęgas, A.; Konwerski, J.; Małachowski, J. A method of calculating the technical readiness of aviation refuelling vehicles. Eksploat. Niezawodn. Maint. Reliab. 2024, 26, 187888. [Google Scholar] [CrossRef]
  18. Żurek, J.; Ziółkowski, J. Metody oceny gotowości technicznej śmigłowców z zastosowaniem procesów Markowa. In Proceedings of the XLVI Zimowa Szkoła Niezawodności, Szczyrk, Poland, 7–13 January 2018. [Google Scholar]
  19. Borucka, A.; Niewczas, A.; Hasilova, K. Forecasting the readiness of special vehicles using the semi-Markov model. Eksploat. Niezawodn. Maint. Reliab. 2019, 21, 662–669. [Google Scholar] [CrossRef]
  20. IEA. Global EV Data Explorer. 2021. Available online: https://www.iea.org/articles/global-ev-data-explorer (accessed on 17 January 2025).
  21. Guo, D.; Zhou, C. Potential performance analysis and future trend prediction of electric vehicle with V2G/V2H/V2B capability. AIMS Energy 2016, 4, 331–346. [Google Scholar] [CrossRef]
  22. Bawelska, A.; Bącela, K.; Budny, D.; Jóźwicka, K.; Kaczmarczyk, K.; Krejner, I.; Pawłowska, J.; Schodowski, G.; Stochniałek, B. Passenger transport. In Road transport in Poland in the Years 2022 and 2023; Statistical Office in Szczecin: Szczecin, Poland, 2024; pp. 78–83. [Google Scholar]
  23. Rynek autobusów elektrycznych w Polsce w I połowie 2023 roku. Available online: https://pire.pl/rynek-autobusow-elektrycznych-w-polsce-w-i-polowie-2023-roku/ (accessed on 16 October 2024).
  24. Skalski, P. Autobusy elektryczne w Polsce. Autobusy 2017, 12, 415–418. [Google Scholar]
  25. Ammenberg, J.; Dahlgren, S. Sustainability Assessment of Public Transport, Part I—A Multi-Criteria Assessment Method to Compare Different Bus Technologies. Sustainability 2021, 13, 825. [Google Scholar] [CrossRef]
  26. Dahlgren, S.; Ammenberg, J. Sustainability Assessment of Public Transport, Part II—Applying a Multi-Criteria Assessment Method to Compare Different Bus Technologies. Sustainability 2021, 13, 1273. [Google Scholar] [CrossRef]
  27. Samawi, G.A.; Bwaliez, O.M.; Jreissat, M.; Kandas, A. Advancing Sustainable Development in Jordan: A Business and Economic Analysis of Electric Vehicle Adoption in the Transportation Sector. World Electr. Veh. J. 2025, 16, 45. [Google Scholar] [CrossRef]
  28. Szkoda, M.; Lorenc, A.A. Analiza gotowości taboru kolejowego z uwzględnieniem rezerwy eksploatacyjnej. Rail Veihicles/Pojazdy Szyn. 2014, 3, 59–65. [Google Scholar] [CrossRef]
  29. Illowsky, B.; Dean, S. Statistics; OpenStax: Houston, TX, USA, 2020; pp. 761–765. [Google Scholar]
  30. Aranowska, E.; Rytel, J. Wielowymiarowa analiza wariancji—MANOVA. Psychol. Społeczna 2010, 5, 117–141. [Google Scholar]
  31. Ammaiyappan, B.S.; Ramalingam, S. Reliability investigation of electric vehicle. Life Cycle Reliab. Saf. Eng. 2019, 8, 141–149. [Google Scholar] [CrossRef]
  32. Mahmoud, M.; Garnett, R.; Ferguson, M.; Kanaroglou, P. Electric buses: A review of alternative powertrains. Renew. Sustain. Energy Rev. 2016, 62, 673–684. [Google Scholar] [CrossRef]
  33. Pietrzak, O.; Pietrzak, K. The Economic Effects of Electromobility in Sustainable Urban Public Transport. Energies 2021, 14, 878. [Google Scholar] [CrossRef]
Figure 1. Public transport fleet by province in 2023; authors’ own elaboration based on [22,23].
Figure 1. Public transport fleet by province in 2023; authors’ own elaboration based on [22,23].
Applsci 15 01212 g001
Figure 2. Bus technical readiness report, January 2022.
Figure 2. Bus technical readiness report, January 2022.
Applsci 15 01212 g002
Table 1. Technical and operational parameters of tested buses.
Table 1. Technical and operational parameters of tested buses.
ParameterURSUS BUS CS 12 LFDSOLARISURBINO12 ELECTRIC
Bus typetwo-axle, low-floor, urban
Length [m]12.012.0
Door layout2 −2 −22 −2 −2
Total number of seats10581
Number of seating places2829
Battery capacity [KWh]not applicable120
Charging power [KWh]not applicableUp to 450
Engine characteristic6 cylinders, 6.7 L, 221 kWTwo asynchronous motors in rear drive axle, maksimum total power of 240 kW
Maximum permissible weight [kg]19,00018,745
Exhaust emissions standardEuro VInot applicable
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Niewczas, A.; Mórawski, Ł.; Dębicka, E.; Rymarz, J.; Kasperek, D.; Hołyszko, P. A Comparative Study of the Availability of Electric Buses in the Public Transport System. Appl. Sci. 2025, 15, 1212. https://doi.org/10.3390/app15031212

AMA Style

Niewczas A, Mórawski Ł, Dębicka E, Rymarz J, Kasperek D, Hołyszko P. A Comparative Study of the Availability of Electric Buses in the Public Transport System. Applied Sciences. 2025; 15(3):1212. https://doi.org/10.3390/app15031212

Chicago/Turabian Style

Niewczas, Andrzej, Łukasz Mórawski, Ewa Dębicka, Joanna Rymarz, Dariusz Kasperek, and Piotr Hołyszko. 2025. "A Comparative Study of the Availability of Electric Buses in the Public Transport System" Applied Sciences 15, no. 3: 1212. https://doi.org/10.3390/app15031212

APA Style

Niewczas, A., Mórawski, Ł., Dębicka, E., Rymarz, J., Kasperek, D., & Hołyszko, P. (2025). A Comparative Study of the Availability of Electric Buses in the Public Transport System. Applied Sciences, 15(3), 1212. https://doi.org/10.3390/app15031212

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
