A Method for Batch Allocation of Equipment Maintenance Tasks Considering Dynamic Importance
Abstract
1. Introduction

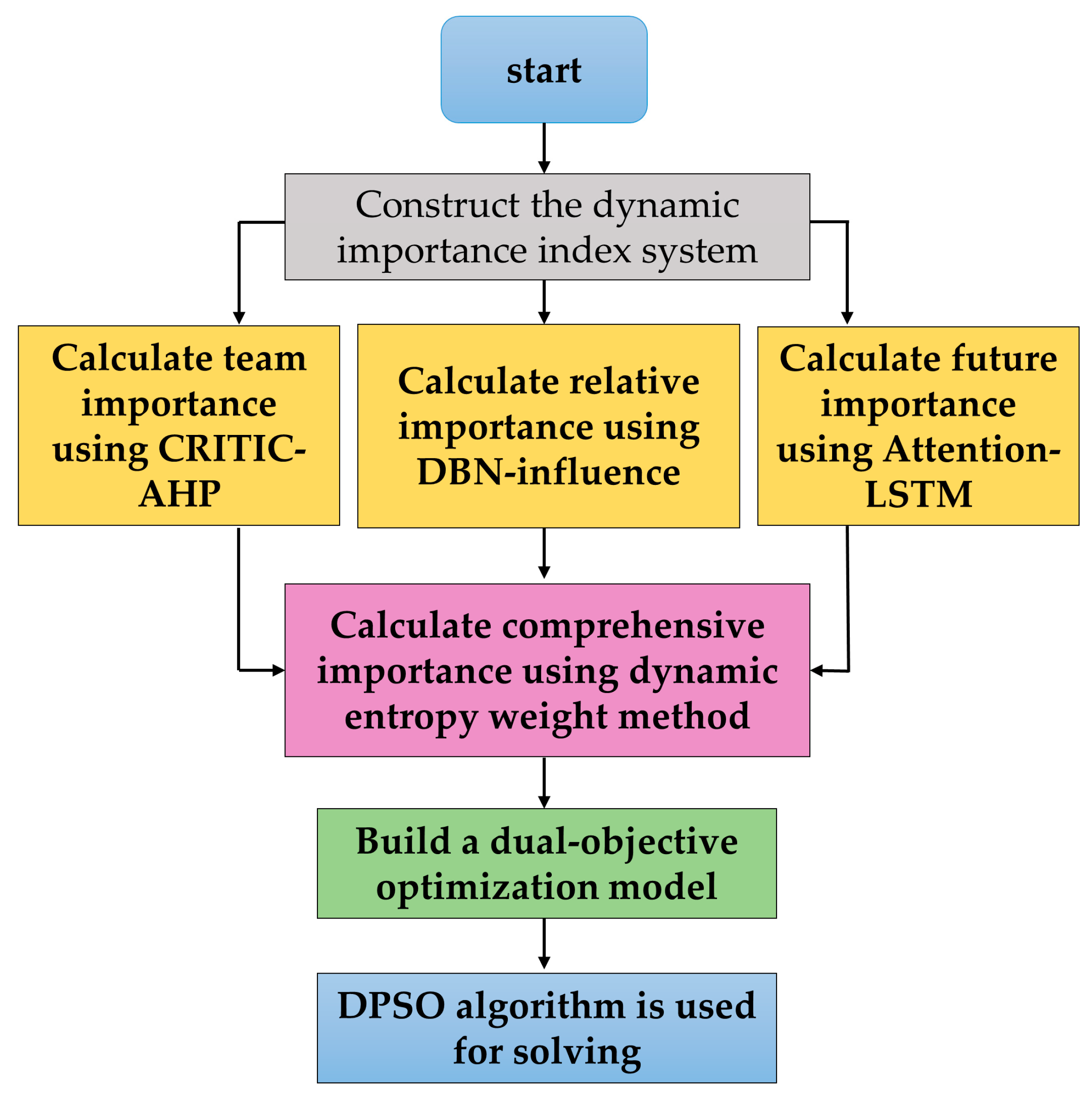

2. Comprehensive Importance Index and Calculation
2.1. Problem Description
2.2. Establishment of Equipment Importance Index
2.3. Calculation of Comprehensive Importance

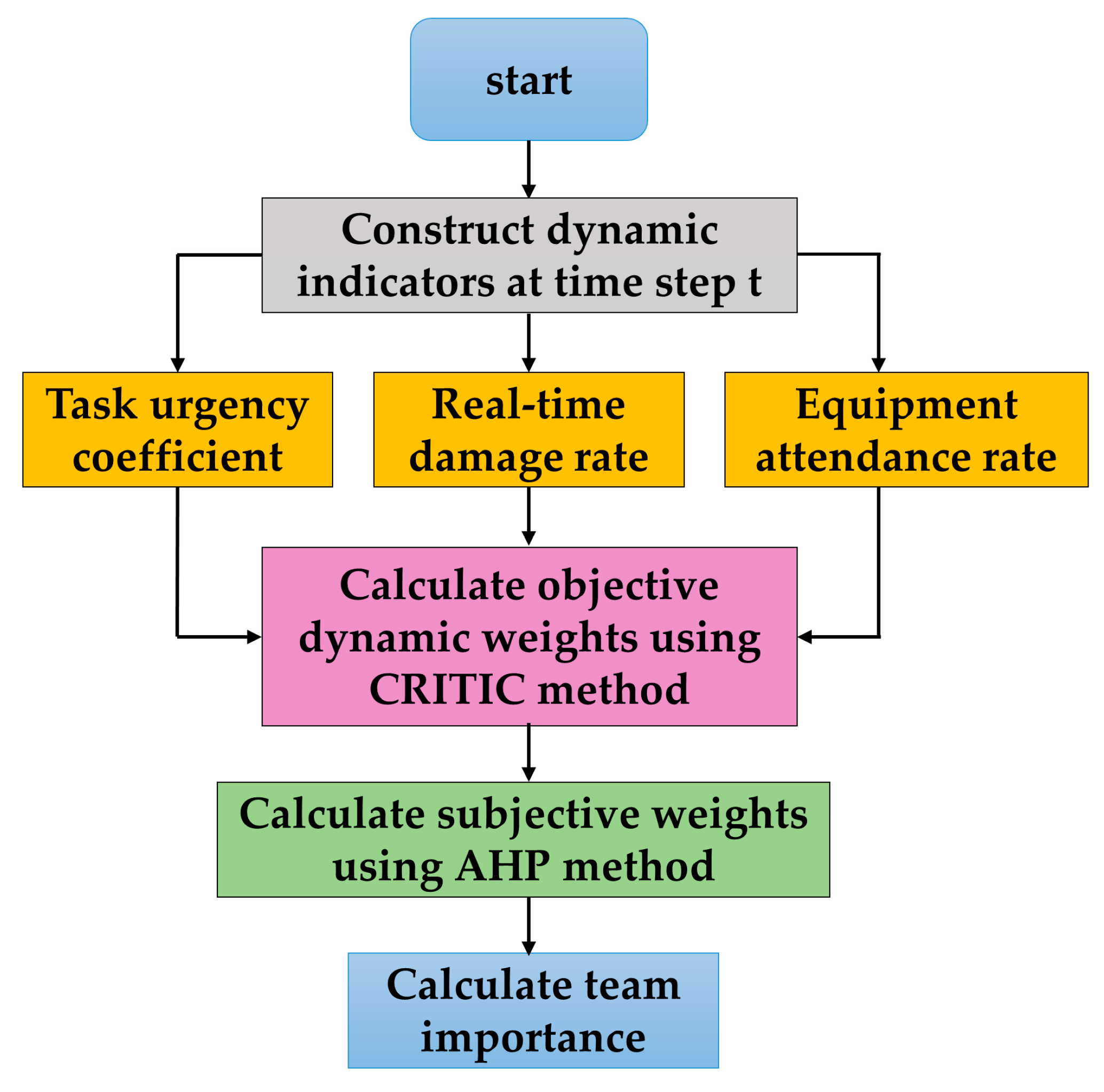

2.3.1. Team Importance

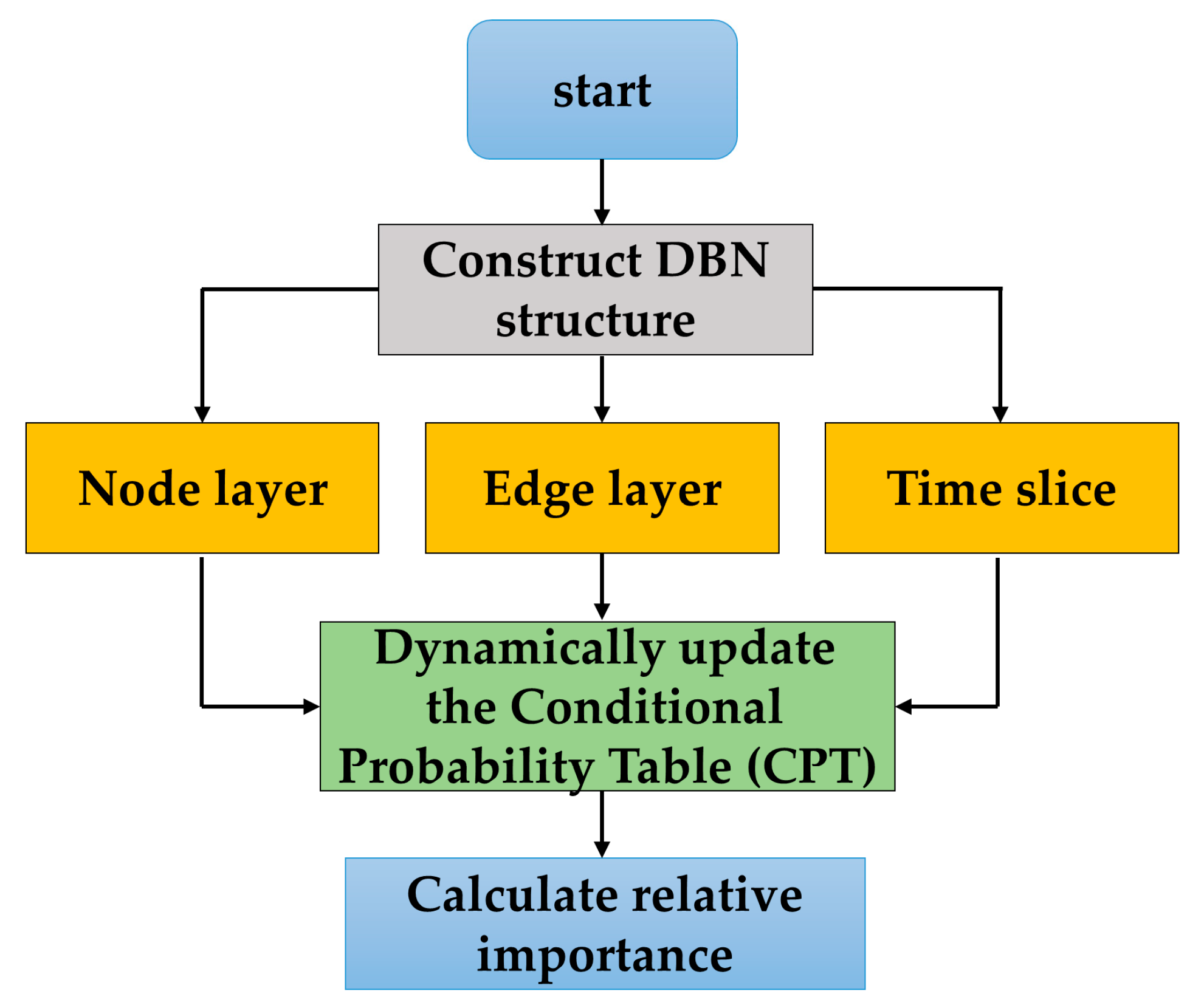

2.3.2. Relative Importance

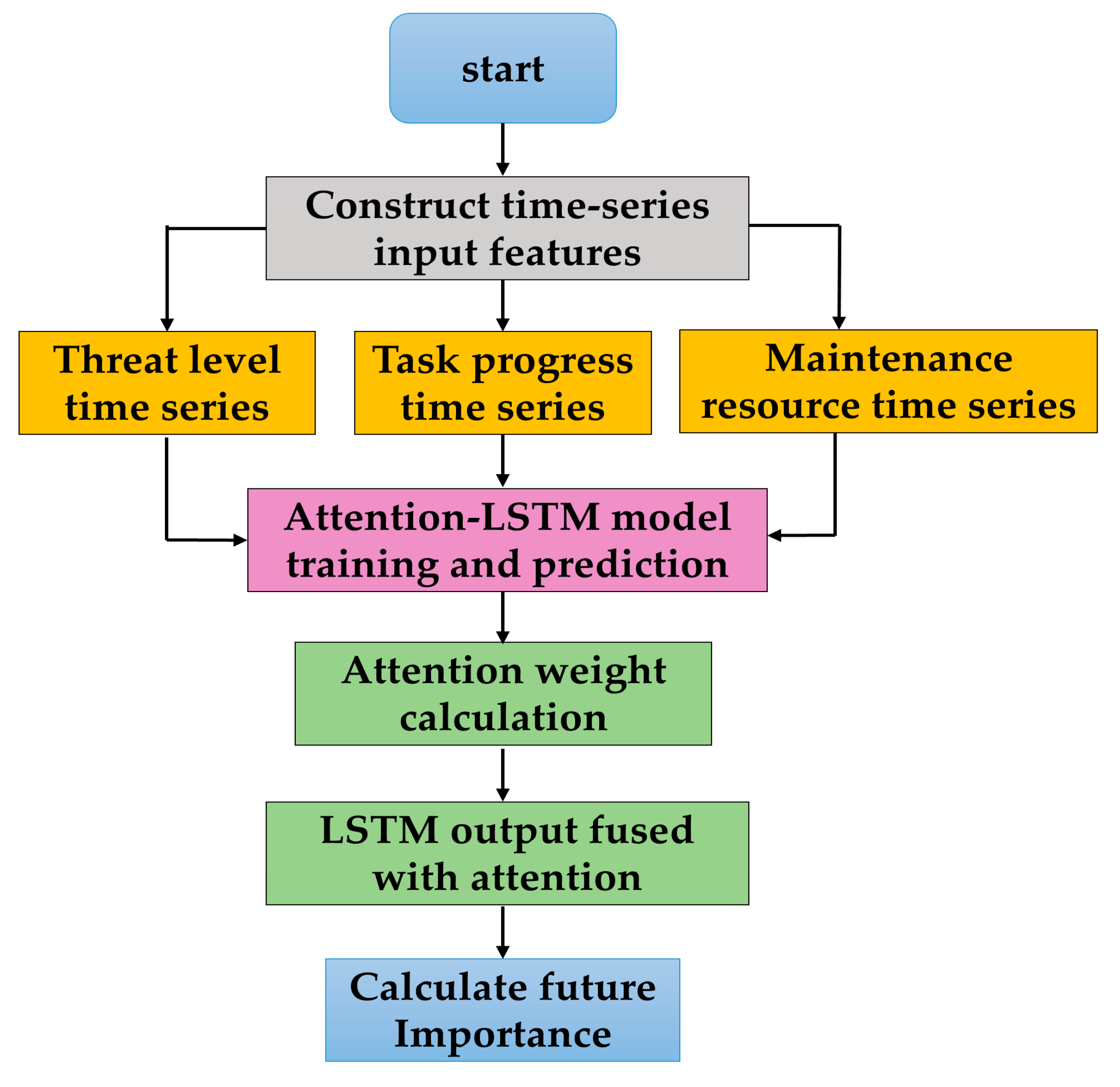

2.3.3. Future Importance

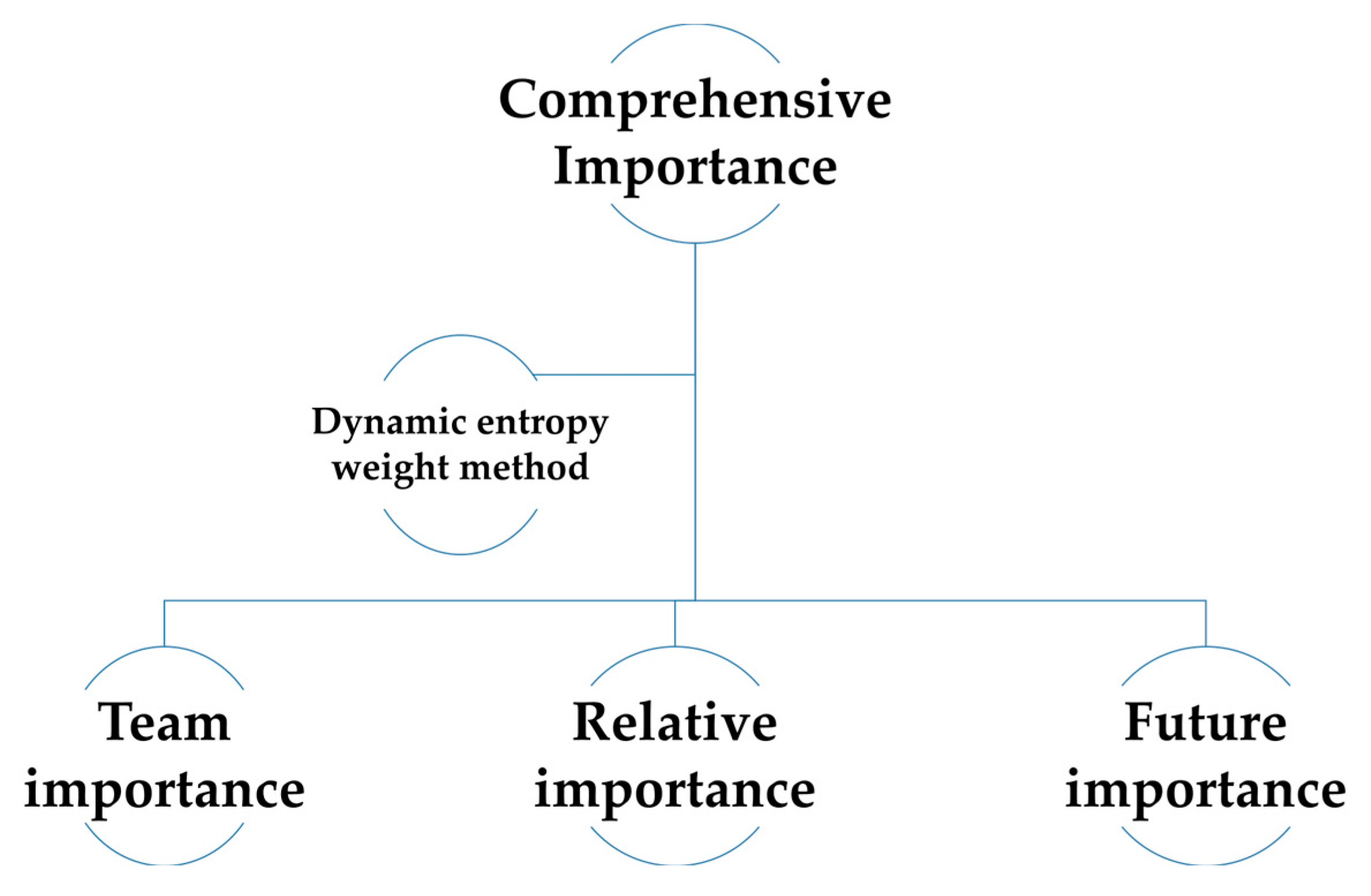

2.3.4. Comprehensive Importance
2.3.5. Historical Data-Fitting Process for Weight Allocation
2.3.6. Compatibility Analysis of Static Ratio and Dynamic Ratio
3. Model Establishment
3.1. Assumptions
3.2. Multi-Objective Optimization Model
3.2.1. Decision Variables
3.2.2. Multi-Objective Function
3.2.3. Constraints
4. Solution with Dynamic Particle Swarm Optimization Algorithm
4.1. Algorithm Design

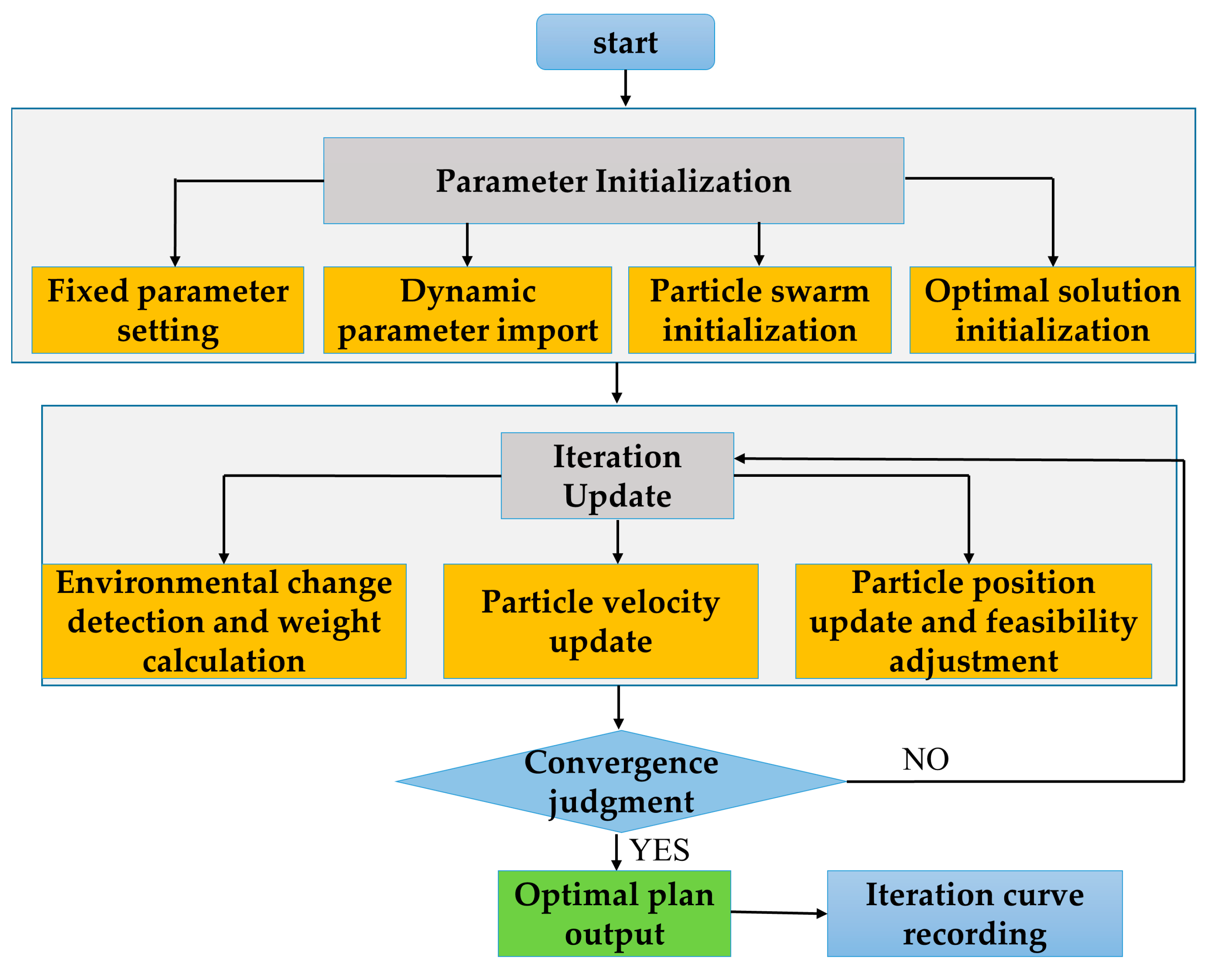

4.2. Algorithm Steps
5. Simulation Verification
5.1. Basic Data
5.1.1. Equipment Parameters
5.1.2. Maintenance Constraint Parameters
5.1.3. Real-Time Time-Series Data
5.2. Dynamic Importance Calculation Results
5.2.1. Calculation of Team Importance ()
5.2.2. Calculation of Relative Importance ()
5.2.3. Calculation of Future Importance ()
5.2.4. Results of Comprehensive Importance ()
5.3. DPSO Solution Results
5.3.1. Task Allocation Results in Static Scenario
5.3.2. Task Allocation Results in Dynamic Scenario
5.3.3. Error Comparison and Sensitivity Analysis

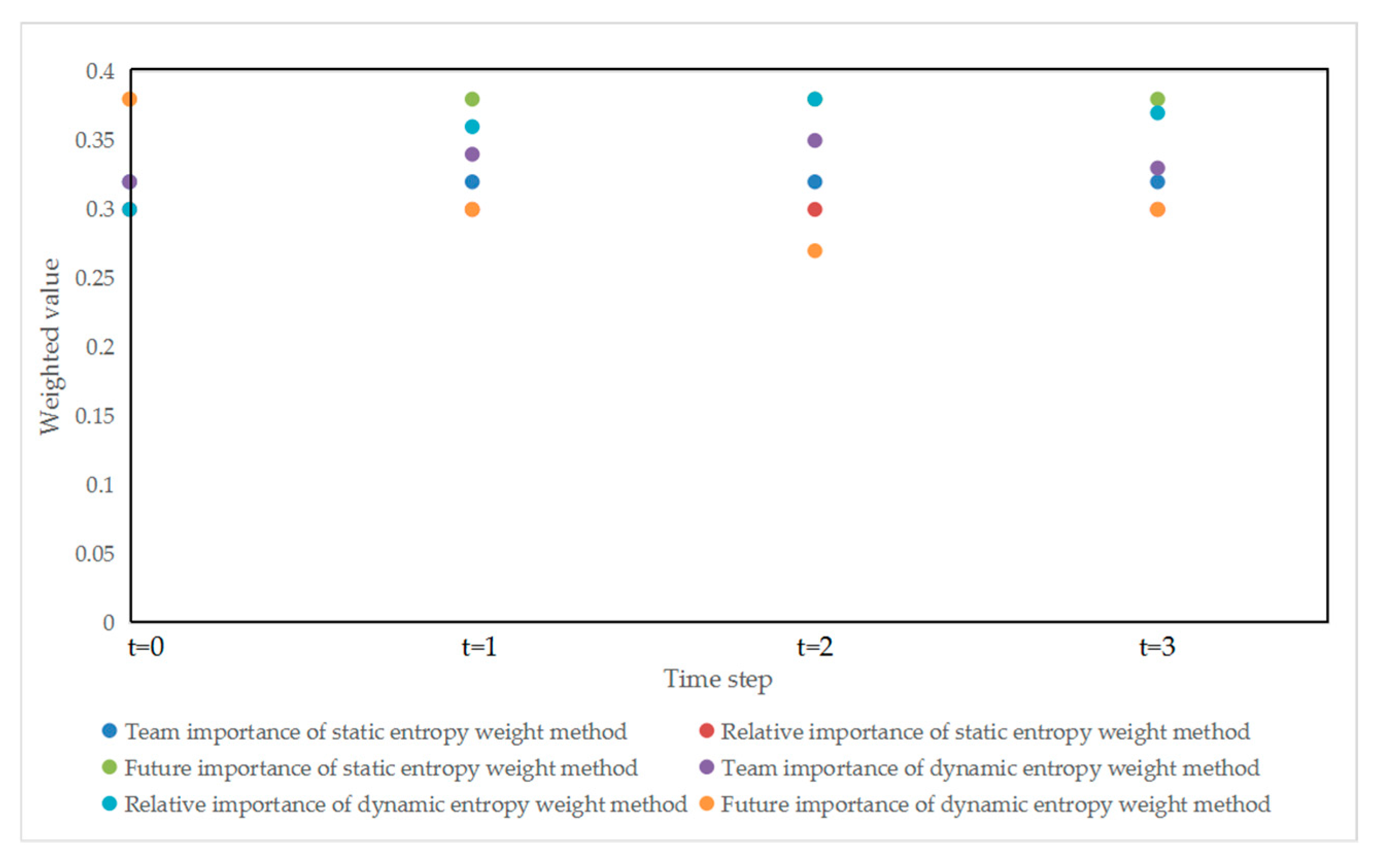

5.3.4. Comparative Analysis of Static Entropy Weight Method and Dynamic Entropy Weight Method

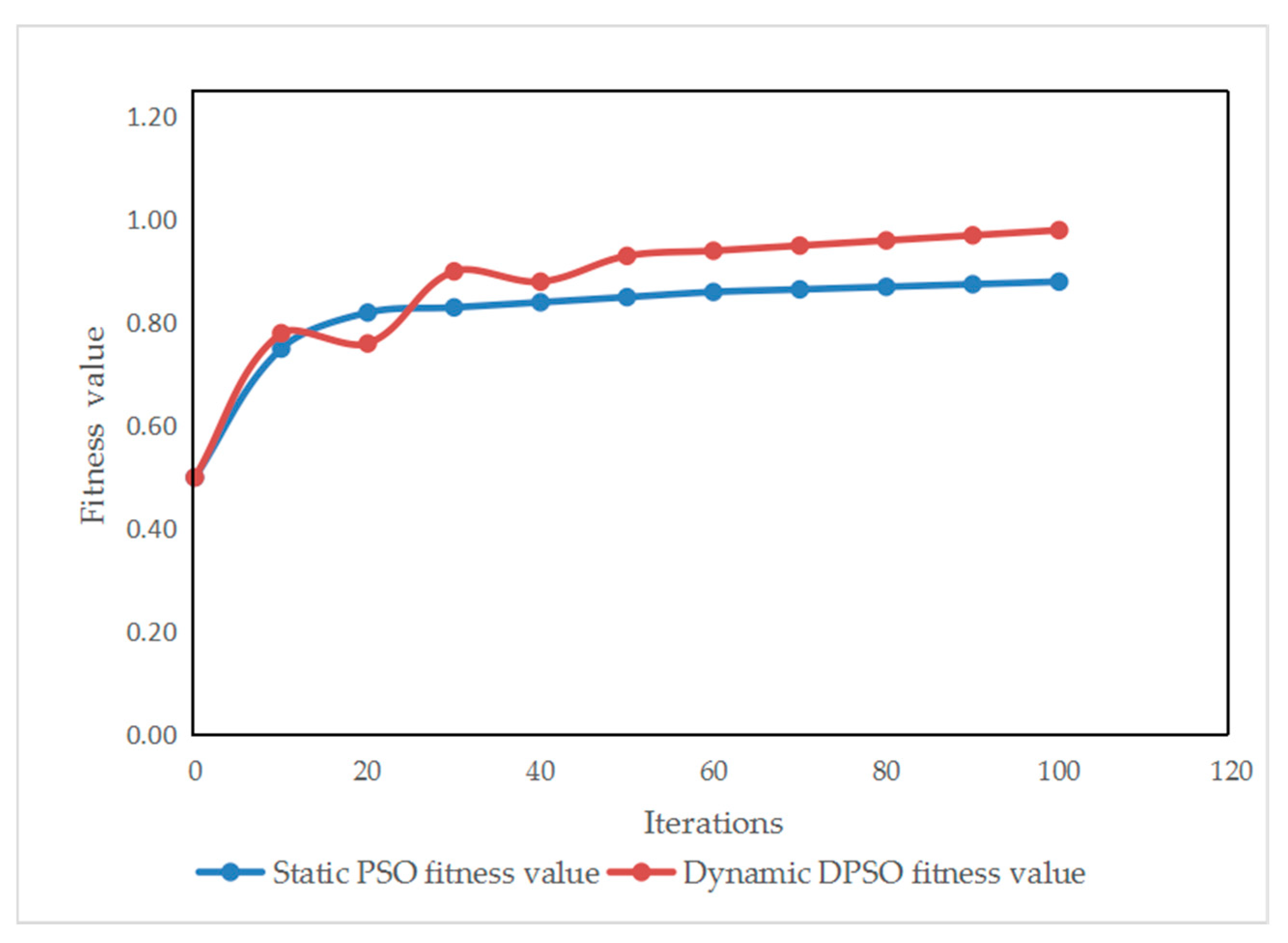

5.3.5. Comparative Analysis of Static and Dynamic Algorithms
5.4. Result Analysis
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Kwon, S.; Jeong, W.L.; Moon, S.B. A relative importance evaluation of bridge navigational equipment using AHP. J. Korean Navig. Port Res. 2021, 45, 9–15. [Google Scholar]
- Li, C.; Yang, W.; Yu, Y.; Li, B. Research on node importance evaluation of complex products based on three-parameter interval grey number grey relational model. J. Intell. Fuzzy Syst. 2021, 41, 1931–1948. [Google Scholar] [CrossRef]
- Huang, X.; Chen, J.; Cai, M.; Wang, W.; Hu, X. Traffic node importance evaluation based on clustering in represented transportation networks. IEEE Trans. Intell. Transp. Syst. 2022, 23, 16622–16631. [Google Scholar] [CrossRef]
- Ju, X.; Zhao, X.; Ma, C.; Qin, J.; Zhou, B.; Jiang, S.; Ji, X.; Xi, R.; Zhang, Y. Evaluation method of sandy conglomerate reservoir heterogeneity based on the combined weighted TOPSIS model. Interpret. A J. Subsurf. Charact. 2024, 12, T197–T208. [Google Scholar] [CrossRef]
- Hill, K.P.; Puli, A.V. An opportunity to advance cannabis science-DEA rescheduling. JAMA Psychiatry 2025, 82, 331–332. [Google Scholar] [CrossRef]
- Nethamba, L.; Grobbelaar, S. The development of an action priority matrix and technology roadmap for the implementation of data-driven and machine-learning-based predictive maintenance in the south African railway industry. S. Afr. J. Ind. Eng. 2023, 34, 318–335. [Google Scholar] [CrossRef]
- Qi, F.; Wang, Y.; Li, F. A condition-based maintenance policy considering batch sizes for warm standby systems with priority to repair. IEEE Trans. Reliab. 2024, 73, 1721–1730. [Google Scholar] [CrossRef]
- Zhao, J.; Wang, X.; Wang, S.; Guo, Y.; Ji, G.; Li, S. An evaluation method for pavement maintenance priority classification based on an unsupervised data-driven multidimensional performance model. Arab. J. Sci. Eng. 2022, 47, 13265–13278. [Google Scholar] [CrossRef]
- Zhou, H.; Parlikad, A.K.; Brintrup, A. Data-driven maintenance priority recommendations for civil aircraft engine fleets using reliability-based bivariate cluster analysis. Qual. Eng. 2023, 35, 584–599. [Google Scholar] [CrossRef]
- Choi, J.; Woo, M. A study on the priority selection method for the maintenance project of abandoned buildings focusing on regional ripple effects. Stud. Reg. Dev. 2021, 53, 71–98. [Google Scholar]
- Guo, Y. Towards the efficient generation of variant design in product development networks: Network nodes importance based product configuration evaluation approach. J. Intell. Manuf. 2023, 34, 615–631. [Google Scholar] [CrossRef]
- Yang, P.; Hu, S.; Zhou, S.; Zhang, J. A topological sensitive node importance evaluation method in aerospace information networks. Sensors 2023, 23, 266. [Google Scholar] [CrossRef]
- Zhao, M.; Wu, M.; Qiao, L.; An, Q.; Lu, S. Evaluation of cross-layer network vulnerability of power communication network based on multi-dimensional and multi-layer node importance analysis. IEEE Access 2022, 10, 67181–67197. [Google Scholar]
- Wang, B.Y.; Yang, X.C.; Lu, S.R.; Tang, Y.; Hong, S.; Jiang, H. A multidimensional node importance evaluation method based on graph convolutional networks. Acta Phys. Sin. 2024, 73, 1256–1263. [Google Scholar] [CrossRef]
- Wang, T.T.; Liang, Z.W.; Zhang, R.X. Importance evaluation method of complex network nodes based on information entropy and iteration factor. Acta Phys. Sin. 2023, 72, 856–868. [Google Scholar] [CrossRef]
- Wu, Y.; Yang, Z.; Wang, J.; Chen, X.; Hu, W. Optimizing opportunistic preventive maintenance strategy for multi-unit system of CNC lathe. J. Mech. Sci. Technol. 2022, 36, 145–155. [Google Scholar] [CrossRef]
- Xu, X.; Wang, S.; Kang, F.; Li, S.; Li, Q.; Wu, T. Multi-attribute decision-making method in preventive maintenance of asphalt pavement based on optimized triangular fuzzy number. Sustainability 2024, 16, 2787. [Google Scholar] [CrossRef]
- Khan, R.A.; Keshta, I.; Alhashimi, H.A.; Almagrabi, A.O.; Alwageed, H.S.; Alzahrani, M. A Fuzzy-AHP decision-making framework for optimizing software maintenance and deployment in information security systems. J. Softw.-Evol. Process 2025, 37, e2758. [Google Scholar] [CrossRef]
- Guan, X.; Zhang, H.; Du, X.; Zhang, X.; Sun, M. An Improved Method for Optimizing the Timing of Preventive Maintenance of Pavement: Integrating LCA and LCCA. Appl. Sci. 2023, 13, 10629. [Google Scholar] [CrossRef]
- Ge, Y.; You, Y. Safety risk assessment of jacking renovation construction for aging bridges based on DBN and fuzzy set theory. Buildings 2025, 15, 1493. [Google Scholar] [CrossRef]
- Wei, X.; Dong, Y. A hybrid approach combining Bayesian networks and logistic regression for enhancing risk assessment. Sci. Rep. 2025, 15, 1038–1049. [Google Scholar] [CrossRef]
- Xing, J.; Qian, J.; Peng, R.; Zio, E. Physics-informed data-driven Bayesian network for the risk analysis of hydrogen refueling stations. Int. J. Hydrog. Energy 2024, 110, 371–385. [Google Scholar] [CrossRef]
- Diao, Z.; Yu, F.; Wu, H.; Xia, X. A dynamic state cluster-based particle swarm optimization algorithm. Int. J. Comput. Intell. Syst. 2025, 18, 1221–1231. [Google Scholar] [CrossRef]
- Li, Y.; Sun, B. An intelligent indoor fire localization system combining dynamic clustering algorithm and particle swarm optimization algorithm. J. Build. Eng. 2024, 98, 111180. [Google Scholar] [CrossRef]
- Lv, J.; Chen, L.; Zhu, Z.; Long, P.; Hu, L.; FDS Consortium. Optimization of dynamic multi-leaf collimator based on multi-objective particle swarm optimization algorithm. J. X-Ray Sci. Technol. 2025, 33, 145–156. [Google Scholar] [CrossRef]
- Shahbazi, M.; Heidari, M.; Ahmadzadeh, M. Optimization of dynamic parameter design of stewart platform with particle swarm optimization (PSO) algorithm. Adv. Mech. Eng. 2024, 16, 16878132241263940. [Google Scholar] [CrossRef]
Equipment Importance | Points |
---|---|
Extremely Important | 8 |
Very Important | 7 |
Relatively Important | 6 |
Generally Important | 5 |
Slightly Important | 4 |
Insufficiently Important | 3 |
Unimportant | 2 |
Very Unimportant | 1 |
Indicator | Task Urgency | Real-Time Damage Rate | Equipment Attendance Rate |
---|---|---|---|
Task Urgency | 1 | 3 | 5 |
Real-time Damage Rate | 1/3 | 1 | 3 |
Equipment Attendance Rate | 1/5 | 1/3 | 1 |
Candidate Ratio () | Average Error Rate | Average Adaptability | Convergence Speed | Key Issues |
---|---|---|---|---|
0.5/0.5 | ±3.8% | 82% | 80 iterations | Expert experience is overly dominant, ignoring the data of the sudden increase in damage rate at t = 2, resulting in low adaptability. |
0.6/0.4 | ±2.5% | 87% | 90 iterations | The weight of dynamic data is insufficient, leading to low decision-making efficiency when data is redundant at t = 0. |
0.7/0.3 | ±2.0% | 92% | 60 iterations | The error is the smallest, the adaptability is the highest, and the convergence speed meets the requirements of the 30 min time step. |
0.8/0.2 | ±2.3% | 88% | 75 iterations | The weight of dynamic data is too high, resulting in an expanded error when data fluctuates at t = 2. |
0.9/0.1 | ±3.1% | 81% | 100 iterations | The lack of expert experience makes it impossible to correct the cooperative relationship between K4 and K2. |
Equipment Type | Spacing/km | Diagnosis Time/h | Replacement Time/h | Verification Time/h |
---|---|---|---|---|
K1 | 5 | 0.2 | 0.8 | 0.1 |
K2 | 1.5 | 0.2 | 1.0 | 0.1 |
K3 | 2.0 | 0.2 | 1.0 | 0.1 |
K4 | 3.0 | 0.2 | 0.5 | 0.1 |
K5 | 2.0 | 0.2 | 0.5 | 0.1 |
K6 | 3.0 | 0.2 | 1.2 | 0.1 |
K7 | 3.0 | 0.2 | 1.0 | 0.1 |
K8 | 2.0 | 0.2 | 1.0 | 0.1 |
Time Step | Block | Safety Distance/km | Safety Time/h | Basic Maintenance Upper Limit/Unit | Number of Teams | Skill Coefficient | Mobile Speed/km·h−1 |
---|---|---|---|---|---|---|---|
0 | 1 | 6 | 3.0 | 2 | 1 | 1.2 | 30 |
2 | 11 | 4.0 | 6 | 2 | 1.0 × 2 | 50 | |
3 | 9 | 3.5 | 5 | 2 | 0.8 × 2 | 80 | |
1 | 1 | 5 | 2.8 | 2 | 1 | 1.2 | 30 |
2 | 10 | 3.8 | 6 | 2 | 1.0 × 2 | 50 | |
3 | 9 | 3.5 | 5 | 2 | 0.8 × 2 | 80 | |
2 | 1 | 4 | 2.5 | 3 | 1 | 1.3 | 25 |
2 | 9 | 3.5 | 7 | 2 | 1.0 × 2 | 45 | |
3 | 8 | 3.2 | 5 | 2 | 0.8 × 2 | 75 | |
3 | 1 | 4 | 2.5 | 3 | 1 | 1.3 | 25 |
2 | 9 | 3.5 | 7 | 2 | 1.0 × 2 | 45 | |
3 | 8 | 3.2 | 5 | 2 | 0.8 × 2 | 75 |
t | K2 Task Urgency (Calculation Logic) | K2 Damage Rate (Damaged/Total Quantity) | K2 Attendance Rate (Available/Total Quantity) | K2→K3 Conduction Times | K2 Damage Times | Threat Level (Detection and Evaluation) | Task Progress (Destroyed/Total Target) | Resource Arrival Rate (Arrived/Planned) |
---|---|---|---|---|---|---|---|---|
0 | 0.4 ((6 − 3.6)/6) | 0.2 (2/10) | 0.8 (8/10) | 1 | 2 | 3 (Low–Medium) | 30% (3/10) | 60% (6/10) |
1 | 0.3 ((6 − 4.2)/6) | 0.35 (3.5/10) | 0.65 (6.5/10) | 3 | 3 | 4 (Medium–High) | 45% (4.5/10) | 70% (7/10) |
2 | 0.2 ((6 − 4.8)/6) | 0.5 (5/10) | 0.5 (5/10) | 5 | 5 | 5 (Extremely High) | 60% (6/10) | 80% (8/10) |
3 | 0.15 ((6 − 5.1)/6) | 0.45 (4.5/10) | 0.55 (5.5/10) | 4 | 4 | 5 (Extremely High) | 75% (7.5/10) | 85% (8.5/10) |
Time Step t | Standardized Indicators | Combined Weight | Team Importance |
---|---|---|---|
0 | (0.75, 0.5, 0.75) | (0.51, 0.39, 0.18) | 6.2 |
1 | (0.5, 0.88, 0.38) | (0.53, 0.37, 0.20) | 7.1 |
2 | (0.2, 1.0, 0.33) | (0.57, 0.15, 0.28) | 7.8 |
3 | (0.1, 0.75, 0.5) | (0.55, 0.20, 0.25) | 7.6 |
Time Step t | Correlation Probability Between K2 Equipment and Other Equipment | Total Degree of Influence | Relative Importance |
---|---|---|---|
0 | (0.7, -, 0.5, 0.7, 0.7, 0.7, 0.7, 0.7) | ≈0.69 | 6.0 |
1 | (0.7, -, 0.67, 0.7, 0.7, 0.7, 0.7, 0.7) | ≈0.79 | 7.7 |
2 | (0.8, -, 1.0, 0.8, 0.8, 0.8, 0.8, 0.8) | ≈0.89 | 8.0 |
3 | (0.78, -, 0.9, 0.78, 0.78, 0.78, 0.78, 0.78) | ≈0.86 | 7.8 |
Time Step t | Input Feature (Threat Level Sequence) | Input Feature (Task Progress Sequence) | Input Feature (Resource Arrival Rate Sequence) | Attention Key Weight | Predicted Value | Future Importance |
---|---|---|---|---|---|---|
0 | [2,2,3,3,3,3] | [10%,15%,20%,25%,28%,30%] | [45%,50%,52%,55%,58%,60%] | t = 0 Threat 3 (0.2) | 0.83 | 6.8 |
1 | [2,3,3,3,4,4] | [15%,20%,25%,28%,30%,45%] | [50%,52%,55%,58%,60%,70%] | t = 1 Threat 4 (0.25) | 0.93 | 7.5 |
2 | [3,3,4,4,5,5] | [20%,25%,28%,30%,45%,60%] | [52%,55%,58%,60%,70%,80%] | t = 2 Threat 5 (0.3) | 1.0 | 8.0 |
3 | [3,4,4,5,5,5] | [25%,28%,30%,45%,60%,75%] | [55%,58%,60%,70%,80%,85%] | t = 3 Threat 5 (0.28) | 0.99 | 7.9 |
Time Step t | Three Types of Importance | Standardized Value | Information Entropy | Dynamic Weight | Comprehensive Importance |
---|---|---|---|---|---|
0 | (6.2, 6.0, 6.8) | (0.74, 0.71, 0.83) | (0.98, 0.99, 0.97) | (0.32, 0.30, 0.38) | 6.38 |
1 | (7.1, 7.7, 7.5) | (0.87, 0.96, 0.93) | (0.96, 0.94, 0.95) | (0.34, 0.36, 0.30) | 7.39 |
2 | (7.8, 8.0, 8.0) | (0.97, 1.0, 1.0) | (0.93, 0.92, 0.92) | (0.35, 0.38, 0.27) | 7.94 |
3 | (7.6, 7.8, 7.9) | (0.94, 0.97, 0.99) | (0.94, 0.93, 0.92) | (0.33, 0.37, 0.30) | 7.78 |
Time Step t | K1 | K2 | K3 | K4 | K5 | K6 | K7 | K8 |
---|---|---|---|---|---|---|---|---|
0 | 7.29 | 6.38 | 7.14 | 6.52 | 6.54 | 7.11 | 6.88 | 6.83 |
1 | 7.13 | 7.39 | 7.18 | 6.72 | 7.08 | 7.24 | 7.24 | 7.14 |
2 | 7.28 | 7.94 | 7.20 | 6.80 | 7.29 | 7.43 | 7.35 | 7.32 |
3 | 7.09 | 7.78 | 7.13 | 6.63 | 7.42 | 7.23 | 7.14 | 7.54 |
Importance Type | Expert Scoring Method | Method in This Paper | Error Reduction Rate |
---|---|---|---|
Team Importance | ±5% | ±2% | 60% |
Relative Importance | ±10% | ±3% | 70% |
Future Importance | ±8% | ±3% | 62.5% |
