Article

Hydrogen–Rock Interactions in Carbonate and Siliceous Reservoirs: A Petrophysical Perspective

by
Rami Doukeh
1,
Iuliana Veronica Ghețiu
1,*,
Timur Vasile Chiș
1,
Doru Bogdan Stoica
1,
Gheorghe Brănoiu
2,
Ibrahim Naim Ramadan
3,
Ștefan Alexandru Gavrilă
3,
Marius Gabriel Petrescu
3,* and
Rami Harkouss
4
1
Department of Well Drilling, Extraction and Transport of Hydrocarbons, Petroleum-Gas University of Ploiesti, 39 Bucharest Blvd., 100680 Ploiesti, Romania
2
Petroleum Geology and Reservoir Engineering Department, Petroleum-Gas University of Ploiești, 100680 Ploiesti, Romania
3
Department of Mechanical Engineering, Petroleum-Gas University of Ploiesti, 100680 Ploiesti, Romania
4
Chemical and Petroleum Engineering Department, Faculty of Engineering, Debbieh Campus, Beirut Arab University, Beirut 1107 2809, Lebanon
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2025, 15(14), 7957; https://doi.org/10.3390/app15147957
Submission received: 19 June 2025 / Revised: 11 July 2025 / Accepted: 14 July 2025 / Published: 17 July 2025
(This article belongs to the Topic Exploitation and Underground Storage of Oil and Gas)

Abstract

Underground hydrogen storage (UHS) in carbonate and siliceous formations presents a promising solution for managing intermittent renewable energy. However, experimental data on hydrogen–rock interactions under representative subsurface conditions remain limited. This study systematically investigates mineralogical and petrophysical alterations in dolomite, calcite-rich limestone, and quartz-dominant siliceous cores subjected to high-pressure hydrogen (100 bar, 70 °C, 100 days). Distinct from prior research focused on diffraction peak shifts, our analysis prioritizes quantitative changes in mineral concentration (%) as a direct metric of reactivity and structural integrity, offering more robust insights into long-term storage viability. Hydrogen exposure induced significant dolomite dissolution, evidenced by reduced crystalline content (from 12.20% to 10.53%) and accessory phase loss, indicative of partial decarbonation and ankerite-like formation via cation exchange. Conversely, limestone exhibited more pronounced carbonate reduction (vaterite from 6.05% to 4.82% and calcite from 2.35% to 0%), signaling high reactivity, mineral instability, and potential pore clogging from secondary precipitation. In contrast, quartz-rich cores demonstrated exceptional chemical inertness, maintaining consistent mineral concentrations. Furthermore, Brunauer–Emmett–Teller (BET) surface area and Barrett–Joyner–Halenda (BJH) pore distribution analyses revealed enhanced porosity and permeability in dolomite (pore volume increased >10×), while calcite showed declining properties and quartz showed negligible changes. SEM-EDS supported these trends, detailing Fe migration and textural evolution in dolomite, microfissuring in calcite, and structural preservation in quartz. This research establishes a unique experimental framework for understanding hydrogen–rock interactions under reservoir-relevant conditions. It provides crucial insights into mineralogical compatibility and structural resilience for UHS, identifying dolomite as a highly promising host and highlighting calcitic rocks’ limitations for long-term hydrogen containment.

1. Introduction

In light of the rapid expansion of hydrogen production and its adoption as a clean energy carrier, there is a growing need for subsurface geological storage solutions capable of balancing fluctuations in supply driven by variable renewable electricity input and seasonal variations in demand, thereby enhancing long-term energy security [1]. While salt caverns are considered a promising option due to their operational flexibility [2,3], porous reservoirs such as depleted gas fields [4] and deep saline aquifers [5], despite their broader availability, still require comprehensive investigation to assess their geochemical behavior and effectiveness as safe and efficient media for hydrogen storage [6,7].
The study of geochemical processes within underground hydrogen storage systems is of critical importance, particularly those that may contribute to hydrogen loss during storage operations [8]. Although the past decade has seen numerous investigations ranging from geochemical modeling to experimental studies [9,10,11,12] across various rock types, the current understanding of the physicochemical interactions between hydrogen and geological formations remains limited and requires further systematic development [13,14].
Hydrogen loss during high-pressure underground hydrogen storage (UHS) is primarily attributed to geochemical and microbial interactions that typically occur under reservoir conditions characterized by temperatures below 127 °C and pressures below 350 bar. Understanding these interactions is essential for evaluating hydrogen mobility and reactivity within geological media, which is key to enhancing storage monitoring and ensuring long-term operational stability [15].
Hydrogen–rock interactions are influenced by various factors, including mineral composition, storage pressure and temperature, pore structure, and the rock’s specific properties such as heterogeneity, mechanical stability, organic content, and wettability behavior [16]. These physical, chemical, and biological interactions can induce changes in permeability, porosity, and wettability [15,17,18], as well as trigger microfracture activation directly impacting the long-term safety and efficiency of geological hydrogen storage systems [19].
In this context, Al-Yaseri et al. [17] investigated carbonate cores exposed to hydrogen for 75 days (48 bar, 75 °C), revealing that calcite expansion reduced effective porosity by 47%, significantly impairing limestone storage capacity. In contrast, dolomite showed a slight (~6%) improvement due to a balance between dissolution and grain expansion. Another study by Al-Yaseri et al. [9] exposed calcite-rich shale samples from the EFS and WCS formations to hydrogen at 9.65 MPa and 348 K for 108 days. Calcite precipitation occurred due to organic matter interactions, with no sulfate or pyrite reduction. Minimal pore changes were observed, indicating preserved rock integrity and suitability for geological hydrogen storage. Bo et al. [20] suggest that calcite-free reservoirs and caprocks are geochemically more suitable for underground hydrogen storage, as carbonate presence, particularly calcite, can induce hydrogen dissociation during dissolution, leading to losses of up to 9.5%. The study by Cheng et al. [21] demonstrated that hydrogen interaction with pyrite-free Buntsandstein sandstone is limited, even after exposure to 150 bar and 100 °C for four weeks. No significant mineralogical transformations were observed, and no noticeable changes were detected in key petrophysical properties such as porosity and permeability, confirming the rock’s suitability for hydrogen storage. Flesch et al. [22] investigated how sandstone formations respond petrographically and petrophysically to hydrogen exposure. The study revealed a moderate decline in median porosity from 13.3% to 11.9% accompanied by a notable increase in permeability, rising from 48.78 mD to 61.53 mD. Interestingly, in some cases, an inverse behavior was observed, with porosity increasing while permeability declined. The observed porosity increase was primarily attributed to the dissolution of pore-filling phases such as anhydrite and carbonate minerals, whereas permeability remained relatively unaffected. In a recent study, Al-Yaseri et al. [23] examined the geochemical interaction of hydrogen with sandstone and limestone formations under 75 °C and 96 bar for six months. Only minor morphological changes were observed, with slight reductions in porosity from 14.4% to 13.33% for sandstone and from 20.2% to 18.44% for limestone. These results indicate limited H2 reactivity. Overall, the minimal hydrogen loss confirms the potential of sandstone and limestone as suitable candidates for underground hydrogen storage.
Building upon the existing knowledge gaps concerning the mineralogical and petrophysical responses of geological formations to hydrogen exposure, this study adopted a comprehensive experimental methodology to evaluate three representative lithologies: dolomite, calcite-rich limestone, and quartz-dominated siliceous rock. The investigations focused on quantifying hydrogen-induced changes in crystallographic structure and in characteristics related to porosity, permeability, and elemental distribution. By integrating X-ray diffraction (XRD), Brunauer–Emmett–Teller (BET) surface area analysis, Barrett–Joyner–Halenda (BJH) pore size distribution analysis, scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), and porosity–permeability (poro-perm) analyses, this study allowed a rigorous comparison of reactivity and structural integrity between the analyzed rock types under reservoir-relevant conditions. The results discussed in the following section provide valuable insights into the physicochemical mechanisms governing hydrogen–rock interactions, with implications for assessing them.

2. Materials and Methods

This research included laboratory experiments that aimed to evaluate the effect of hydrogen gas (Linde, purity 5.0) on three distinct rock types: dolomite (CaMg(CO3)2), vaterite-rich limestone (CaCO3), and a siliceous sample composed predominantly of quartz. These samples were labeled A, B, and C, respectively, as shown in Figure 1. The experiments were designed to simulate subsurface underground hydrogen storage conditions.
All core samples were obtained from intact and homogeneous outcrop blocks collected from representative carbonate and siliceous formations in Romania. Prior to experimentation, each sample was visually inspected and subjected to XRD and SEM analyses to ensure mineralogical consistency and structural uniformity. Samples exhibiting visible laminations, fossil inclusions, or macroporosity anomalies were excluded.
Prior to hydrogen exposure, the intrinsic moisture content of each rock core was determined using a KERN DBS 60-3 moisture analyzer. The measurements indicated that the dolomitic sample (Core A) had a moisture content of 4.89%, the limestone sample (Core B) had a moisture content of 7.34%, and the siliceous sample (Core C) had a moisture content of 2.41%. These values confirm the presence of residual water within the cores, which may facilitate moisture-dependent geochemical reactions during hydrogen exposure.
To identify geochemical alterations and variations in petrophysical properties induced by hydrogen exposure, a combination of analytical techniques was employed. The petrophysical properties of the rock cores were characterized both before and after hydrogen treatment to assess the extent of any changes.
Mineralogical analysis was performed using X-ray diffraction (XRD) with a D8 Advance diffractometer (Bruker-AXS, Karlsruhe, Germany) operating with Cu-Kα radiation (λ = 1.54 Å), equipped with a nickel filter, θ-θ geometry, and a Bragg–Brentano configuration. XRD measurements were carried out under the following conditions: 40 kV, 40 mA, a step size of 0.1°, a scan speed of 0.1° per 5 s, and a 2θ scan range from 5° to 60°.
Permeability and porosity measurements of the rock cores were conducted using a GASPERM permeameter (Vinci Technologies, Nanterre, France) and a helium porosimeter (He-Porosimeter, Vinci Technologies, France), respectively.
To analyze textural changes such as BET surface area, pore size distribution, and mean pore diameter, nitrogen adsorption–desorption isotherms were recorded using a Quantachrome NOVA 2200e gas adsorption analyzer (Boynton Beach, FL, USA). Isotherms were collected at 77.35 K over a relative pressure range (p/p0) of 0.005 to 1.0, and the data were processed using the NovaWin software, version 11.03.
Additionally, morphological changes and elemental composition of the rock samples before and after hydrogen treatment were examined using scanning electron microscopy (SEM). A Hitachi S-3400N SEM and an FEI SEM system (Hillsboro, OR, USA), both equipped with energy-dispersive X-ray spectroscopy (EDS), were utilized. The SEM images were acquired at an accelerating voltage of 2 kV, while EDS analyses were conducted at 30 kV.
Initially, cylindrical rock samples (core plugs) were placed in a stainless steel test cell. The cell had a diameter of 3.5 cm, a wall thickness of 1 cm, and a length of 50 cm, and was designed to withstand pressures up to 250 bar. It was equipped with a gas inlet fitted with a pressure gauge and a sealed outlet connected to a flowmeter for monitoring hydrogen flow.
Hydrogen gas was introduced into the cell until a pressure of 100 bar was reached, using a 50 L hydrogen cylinder pressurized to 200 bar and regulated with a pressure controller. The rock samples were exposed to a hydrogen atmosphere for 100 days under constant pressure (100 bar). The internal temperature of the cell was monitored using a thermocouple and maintained at 70 °C throughout the experiment. After exposure, the samples were retrieved and stored under a hydrogen atmosphere for subsequent characterization analyses.

3. Results and Discussion

3.1. X-Ray Diffraction (XRD) Analysis

The X-ray diffraction (XRD) analysis conducted on the untreated dolomite sample (Core A) revealed distinct and intense reflections at a 2θ value equal to 24.10°, 30.88°, 37.25°, 41.05°, 44.85°, and 50.90°, corresponding to the characteristic crystallographic planes of dolomite [24,25,26], as presented in Figure 2a. Additionally, minor peaks related to chlorite and calcite were identified at 6.2° and 29.5°, attributed to the (001) and (104) planes, respectively [26,27]. Quartz-related peaks were also observed at 20.8° and 26.6°, assigned to the (100) and (101) planes, respectively [28], alongside a weak reflection for illite at 8.9° (the 001 plane) [29].
Following hydrogen exposure at 100 bar and 70 °C, the XRD patterns of the treated dolomite sample (Core AH) (Figure 2a) revealed significant mineralogical and structural transformations. A marked reduction in the intensity of the characteristic reflections at 24.1° and 41.05°, corresponding to the (012) and (113) planes, was observed. Additionally, reflections associated with calcite, chlorite, and illite diminished or disappeared entirely. These changes are attributed to the ability of hydrogen to induce partial dissolution and destabilization of the mineral’s crystalline structure, possibly due to the phase transformation or local rearrangement of the crystal lattice [30]. The process is illustrated by the dissolution mechanism of dolomite, which leads to the release of constituent ions and rearrangement within the mineral matrix, and the following reaction describes the hydrogen-induced breakdown of dolomite in the presence of moisture [17,30,31,32]:
C a M g ( C O 3 ) 2 ( s ) + 4 H 2 ( g ) C a C O 3 ( s ) + M g ( O H ) 2 ( s ) + C H 4 ( g ) + H 2 O ( l )
C a M g ( C O 3 ) 2 ( s ) + 10 H 2 ( g ) C a 2 + + M g 2 + + 2 C H 4 ( g ) + 6 H 2 O ( l ) + 4 e
These pathways suggest that dolomite undergoes hydrogen-driven destabilization, releasing Ca2+ and Mg2+ ions, hydroxides, and methane, thus altering its crystalline framework.
It is important to note that, although the injected hydrogen gas was dry, the reactions described by Equations (1) and (2) are still feasible due to the inherent moisture content within the rock samples. Moisture analysis confirmed the presence of residual water in all cores prior to hydrogen exposure, with values ranging from 2.41% to 7.34%. This internal moisture acted as a reactant medium, enabling the partial dissolution and transformation of carbonate minerals observed in the XRD results.
In the case of the limestone sample (Core B), the XRD pattern depicted in Figure 2b confirmed the dominance of carbonates (calcite and dolomite) as the primary crystalline phases. Calcite (CaCO3) shows sharp peaks at 29.4°, 36.10°, 39.38°, 43.2°, 47.4°, and 48.50° matching the (104), (110), (113), (202), (018), and (116) planes. On the other hand, dolomite show significant peaks at 30.88°, 56.2°, and 57.3°, corresponding to the (104), (018), and (116) planes [24,26,27]. Furthermore, vaterite (the CaCO3 biogenic polymorph) was detected through additional peaks at 24.8°, 27.1°, 32.7°, 43.8°, and 55.7°, corresponding to the (110), (112), (114), (300), and (224) planes [27].
Following hydrogen exposure, the treated sample Core BH (Figure 2b) exhibited the complete disappearance of several calcite-associated peaks, including those at 31.3°, 43.2°, and 57.3° (the (006), (202), and (122) planes), along with the 20.9° peak corresponding to the (004) plane of vaterite. These changes imply strong reactivity between hydrogen and carbonate phases, particularly calcite, resulting in progressive dissolution [17]. The reduction of carbonate by H2 likely increases the acidity of the pore fluid [9,15], thereby accelerating the dissolution process and possibly leading to methane formation, as outlined in reaction (3) [32].
C a C O 3 + 5 H 2 C a 2 + + C H 4 + 3 H 2 O + 2 e
The siliceous rock sample (Core C), prior to hydrogen exposure, exhibited a mineralogical composition dominated by quartz, accompanied by minor amounts of chlorite and albite, as shown in Figure 2c. The diffractogram revealed prominent quartz peaks at 20.8°, 26.7°, 36.45°, 39.5°, 42.5°, 45.9°, 50.2°, 54.9, and 60.2°, corresponding to the (100), (101), (110), (102), (200), (201), (112), (202), and (211) planes [28,33]. In addition, chlorite reflections were noted at 6.2° and 12.5° (the (001) and (002) planes), with a distinct illite signal at 8.9° (100) [29], and peaks at 27.92° (albite (112)) [33] and 29.4° (calcite (104)) [27], indicating minor accessory phases.
Following hydrogen exposure, the XRD analysis of the siliceous rock sample Core CH (Figure 2c) showed that the diffraction peaks associated with quartz remained unchanged after hydrogen exposure compared to other minerals such as feldspars [30]. This observation confirms the exceptional chemical stability of quartz in reactive hydrogen-rich environments, thereby reinforcing its suitability as a long-term host matrix for underground hydrogen storage.
These findings establish the baseline mineralogical composition of the three core samples, serving as a reference for comparative analysis after hydrogen exposure.
Table 1, Table 2 and Table 3 provide quantitative insights into the compositional changes in core samples A, B, and C before and after hydrogen exposure, highlighting the extent of mineral dissolution and secondary transformations as reflected in the variation in mineral content (%). These variations, more than peak position shifts, directly illustrate the chemical reactivity and structural resilience of different lithologies under high-pressure hydrogen conditions.
In Table 1, the dolomitic core (A) exhibits a clear reduction in dolomite content after hydrogen treatment (from 12.20% to 10.53% for the dominant (104) plane, and complete disappearance of other dolomite components), confirming the selective dissolution of CaMg(CO3)2. This process is facilitated by hydrogen in the presence of moisture, which triggers the partial decarbonation and release of Ca2+ and Mg2+ ions. Concurrently, the complete loss of calcite (from 1.32% to 0%) and albite (2.03% to 0%) suggests a destabilization of accessory phases, while the increase in the (116) dolomite plane (from 2.68% to 2.84%) may indicate local recrystallization or lattice reorganization, as mentioned above. These compositional shifts align with the dissolution–reprecipitation mechanism and support the formation of secondary Fe-rich carbonates (ankerite), as also confirmed by EDS.
In Table 2, the limestone core (B) demonstrates a sharp decrease in the vaterite content (e.g., from 6.05% to 4.82% at 27°, and complete loss at 20.9°), as well as the disappearance of several calcite planes (e.g., from 2.35% to 0% at 31.2° and from 1.11% to 0% at 43.1°). These losses indicate intensive carbonate dissolution, likely promoted by pore fluid acidification due to hydrogen–carbonate interactions. The slight increase in some vaterite and calcite reflections (e.g., 43.8° vaterite from 2.98% to 3.50%, 50° calcite from 2.68% to 2.94%) suggests secondary carbonate precipitation possibly clogging pore throats and contributing to the observed drop in porosity and permeability. This mineralogical behavior reinforces the idea that calcitic formations are structurally vulnerable under reductive hydrogen environments.
Table 3 shows minimal compositional changes in the siliceous core (C), particularly for quartz, whose dominant reflections remain almost unchanged (e.g., 14.64% to 13.87% for 26.7°, and 3.57% to 3.78% for 20.9°). Minor losses in illite (2.62% to 0%) and chlorite variations (6.87% to 5.94% for 6.3°, but 2.19% to 3.22% for 12.6°) are within the experimental margin and may reflect superficial rearrangements rather than true dissolution. This overall mineralogical stability strongly supports the chemical inertness of quartz-rich formations under hydrogen storage conditions.

3.2. Porosity, Permeability, and Textural Characteristics

The nitrogen adsorption–desorption isotherms obtained at 77 K for core samples A and AH (Figure 3a) exhibit the characteristics of mesoporous materials, showing a type IV profile in accordance with the IUPAC classification. The presence of hysteresis loops confirms capillary condensation in pores with intricate geometries. Specifically, core A displays a hysteresis loop of the H2 type, associated with “Ink Bottle”-shaped pores, whereas core AH exhibits an H3-type loop, indicative of groove pores [34,35,36].
Hydrogen exposure at 100 bar for 100 days led to pronounced morphological alterations in Core (AH), resulting in a 61.57% increase in the adsorbed nitrogen volume at high relative pressures from 14.376 cm3/g (Core (A)) to 23.35 cm3/g (Core (AH)), as shown in Figure 3a and Table 4. Although the total porosity variation was negligible (23.95% for Core (A) vs. 23.87% for Core (AH)), the pore network in Core (AH) appears significantly more extended and interconnected.
BET and BJH analyses corroborate this transformation: the specific surface area increased from 3.270 m2/g (Core (A)) to 4.023 m2/g (Core (AH)), and the total pore volume rose from 0.0214 cm3/g to 0.245 cm3/g. Additionally, the mean pore diameter (Dv(d)) increased from 3.3 nm to 5.09 nm (Figure 4a), reflecting a more open and fluid-accessible mesoporous architecture.
The pore size distribution further reveals a higher density of small pores in AH, contributing to enhanced adsorption capacity and internal network expansion. These structural modifications positively influence permeability, which increased from 574.84 mD (Core (A)) to 592.44 mD (Core (AH)), suggesting improved pore connectivity and possibly reduced tortuosity.
These textural and transport enhancements are primarily attributed to selective dolomite (CaMg(CO3)2 dissolution under reductive hydrogen exposure [17,30,31,32], as described by reactions (1) and (2), along with the concurrent precipitation of ankerite (Fe-carbonate). The elevated presence of ankerite likely originates from the reduction of siderite, while the cationic substitution of Mg2+ by Fe2+ in the dolomite matrix led to the formation of ferroan carbonates (reaction (4)) [31].
C a M g ( C O 3 ) 2 + F e 2 + + H 2 C a ( F e , M g ) ( C O 3 ) 2 + H 2 O
Accordingly, dolomitic formations emerge as promising candidates for subsurface hydrogen storage. These findings extend the current literature [17,37], highlighting that not only the geochemical reactivity but also the physical structure of the host rock is critical in governing mineralogical transformation kinetics in reductive environments.
The nitrogen adsorption–desorption isotherms at 77 K for all studied core samples (B/BH and C/CH) reveal mesoporous characteristics with type IV profiles and H3-type hysteresis loops and H4-type hysteresis, respectively, according to the IUPAC classification, denoting capillary condensation within groove pores and silt pores, thus indicating the presence of a developed but poorly connected pore network typical of carbonate rocks with irregular medium porosity [34,35,36]. However, the impact of hydrogen exposure (100 bar for 100 days) differed significantly depending on the mineralogical composition.
Upon hydrogen exposure (100 bar for 100 days), Core BH exhibited a considerable reduction in adsorption capacity throughout the relative pressure range. At the maximum relative pressure, the nitrogen adsorption volume dropped by approximately 19%, from 26.11 cm3/g (B) to 21.17 cm3/g (BH), as observed in Figure 3b, suggesting significant structural alterations in the pore network caused by the hydrogen treatment.
Textural parameter analysis confirmed this trend: the BET specific surface area decreased from 6.93 m2/g (B) to 5.80 m2/g (BH), while the total pore volume (BJH) declined from 0.0175 cm3/g to 0.0143 cm3/g (Table 4). Additionally, the mean pore diameter (Dv(d)) experienced a slight reduction from 3.023 nm to 2.853 nm. These variations align with the decrease in total porosity (from 19.89% to 16.33%) and permeability (from 132.16 mD to 107.43 mD), indicating diminished pore connectivity and a potential partial collapse of the porous framework.
The pore size distribution (Figure 4b) further supports this observation, revealing a reduced density of active pores especially within the 3–6 nm range in the hydrogen-treated sample. Such transformations are likely attributable to mineral reprecipitation phenomena or localized pore blockage, possibly induced by the formation of secondary carbonate phases (e.g., redeposited calcite), triggered by solid gas reactions under high hydrogen pressure [32,38].
These findings underscore the negative impact of prolonged hydrogen exposure on the structural integrity of calcitic rocks. Unlike dolomite, which exhibited pore network enhancement, calcite underwent compaction and occlusion, leading to reduced storage potential. Consequently, calcitic formations appear less favorable for long-term hydrogen containment due to their susceptibility to morphological degradation under reductive conditions.
In contrast, core samples C and CH, composed primarily of quartz, exhibited remarkable structural resilience following exposure to hydrogen at 100 bar for 100 days. However, the structural response of quartz was notably more stable.
The adsorbed nitrogen volume, as shown in Figure 3c, showed only a marginal decrease of ~1.5%, from 27.81 cm3/g (C) to 27.40 cm3/g (CH), significantly lower than the changes observed in dolomite (+61.57%) and calcite (−19%). This indicates that hydrogen has a minimal effect on the microstructural integrity of quartz.
This conclusion is further supported by the textural parameters: the BET surface area slightly decreased from 19.048 m2/g to 18.87 m2/g, the total pore volume (BJH) declined marginally from 0.0291 cm3/g to 0.0284 cm3/g, and the mean pore diameter (Dv(d)) increased moderately from 3.107 nm to 3.305 nm. Total porosity and permeability also exhibited only slight reductions, from 24.5% to 24.13% and from 581.96 mD to 567.43 mD, respectively.
The pore size distributions (Figure 4c) for samples C and CH are nearly superimposed, indicating negligible structural changes. The stable pore population within the 3–10 nm range confirms the absence of collapse, obstruction, or secondary-phase precipitation, in contrast to the behavior observed in dolomite and calcite.
Quartz, as a silica-dominated mineral phase, demonstrates outstanding stability under high-pressure hydrogen conditions, maintaining both its structural and petrophysical integrity. Unlike dolomite, which undergoes pronounced pore enlargement, or calcite, which shows susceptibility to partial network collapse, quartz exhibits negligible microstructural degradation, thereby reinforcing its candidacy as a robust matrix component in subsurface hydrogen storage environments [15,20,37,39].
This stability is quantitatively reflected in the minimal variations recorded across key textural descriptors, the BET surface area decreased only slightly (from 19.048 to 18.87 m2/g), total pore volume showed a marginal reduction (0.0291 to 0.0284 cm3/g), and the average pore diameter increased modestly (3.107 to 3.305 nm). Additionally, total porosity declined from 24.5% to 24.13%, and permeability from 581.96 to 567.43 mD. These minor shifts, detailed in Table 4, underscore the resilience of the quartz framework and further validate its functional neutrality in the face of hydrogen-induced chemical and physical stress.

3.3. SEM-EDS Analysis

The SEM micrographs acquired at magnifications of 100× and 200× reveal substantial morphological differences between untreated and hydrogen-exposed carbonate core samples. As illustrated in Figure 5, Core A (dolomite, untreated) displays a relatively compact granular structure, composed of well-defined dolomite crystals with sharp boundaries and tight grain contact features typical of a preserved stoichiometric carbonate phase with a uniform crystalline framework [40].
Conversely, the hydrogen-exposed counterpart (Core AH) exhibits a more developed porous texture, with partially eroded grains, irregular margins, and expanded intergranular voids. Fine particles are observed to accumulate between larger crystals, indicating localized dolomite dissolution and the possible reprecipitation of secondary phases [17,30,31,32]. These morphological observations corroborate the BET/BJH adsorption data and confirm the partial reorganization of the pore network following hydrogen exposure.
A similar trend is observed for calcitic samples. As shown in Figure 6, the SEM images of Core B reveal a relatively dense microstructure formed by large, well-faceted calcite crystals with regular faces and compact intergranular contacts. The pore network is poorly developed, with minimal connectivity. After hydrogen treatment (Core BH), the microstructure becomes noticeably irregular, characterized by fragmented crystal surfaces, fine fissures, and increased grain boundary roughness. While intercrystalline voids are more apparent, they do not translate into enhanced effective porosity, likely due to partial pore clogging by redeposited carbonate phases (Figure 6).

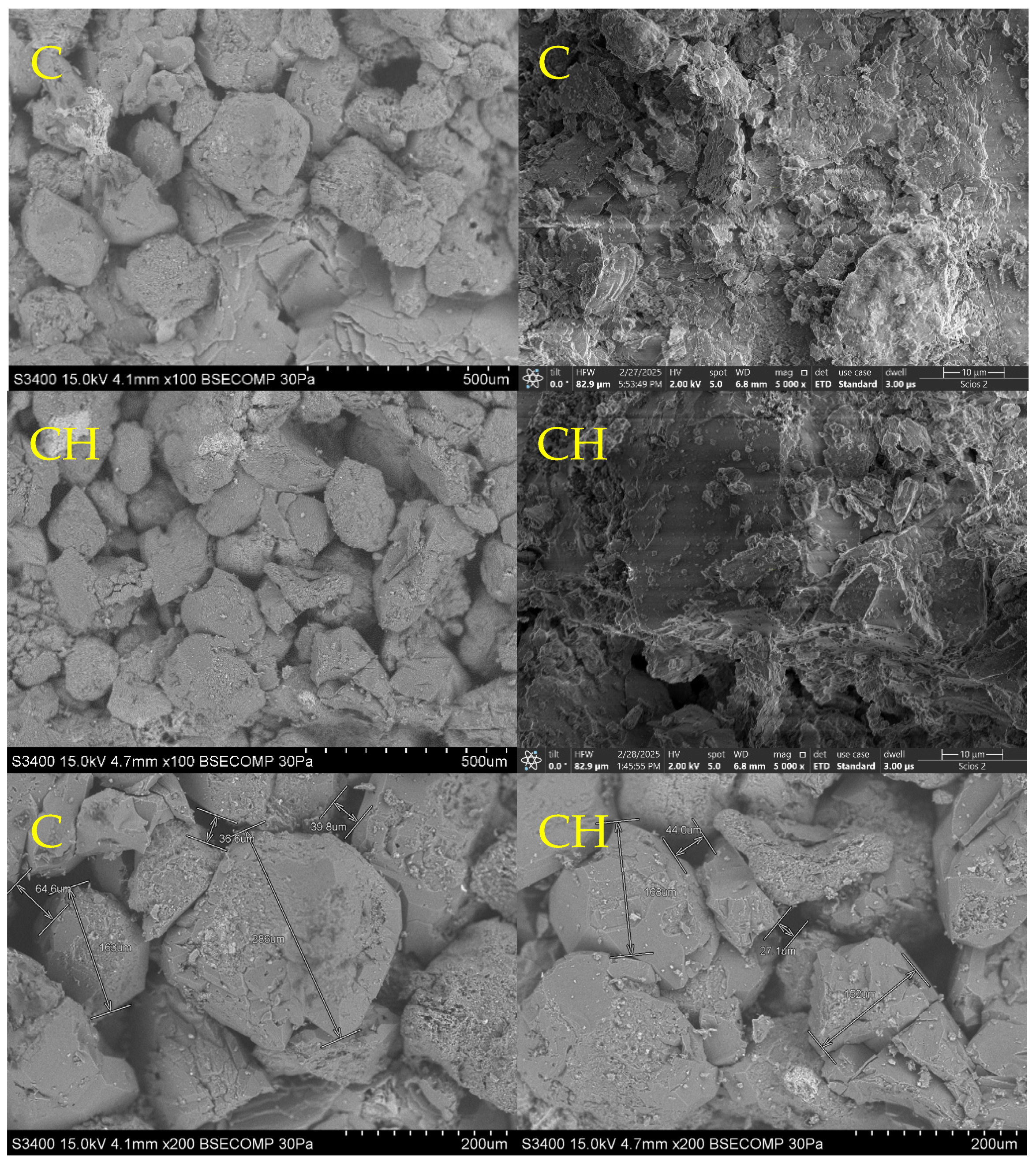

Quartz-based samples exhibit a markedly different behavior. As seen in Figure 7, Core C shows compact granular architecture with large, smooth-faced quartz crystals and a limited intergranular space. Following hydrogen exposure, Core CH maintains this structure with only minor surface roughening and the appearance of microcracks. The pore network remains largely unaffected, with no signs of structural collapse or significant mineralogical alteration, confirming the high chemical and structural stability of quartz under reductive conditions [15,20,37,39].

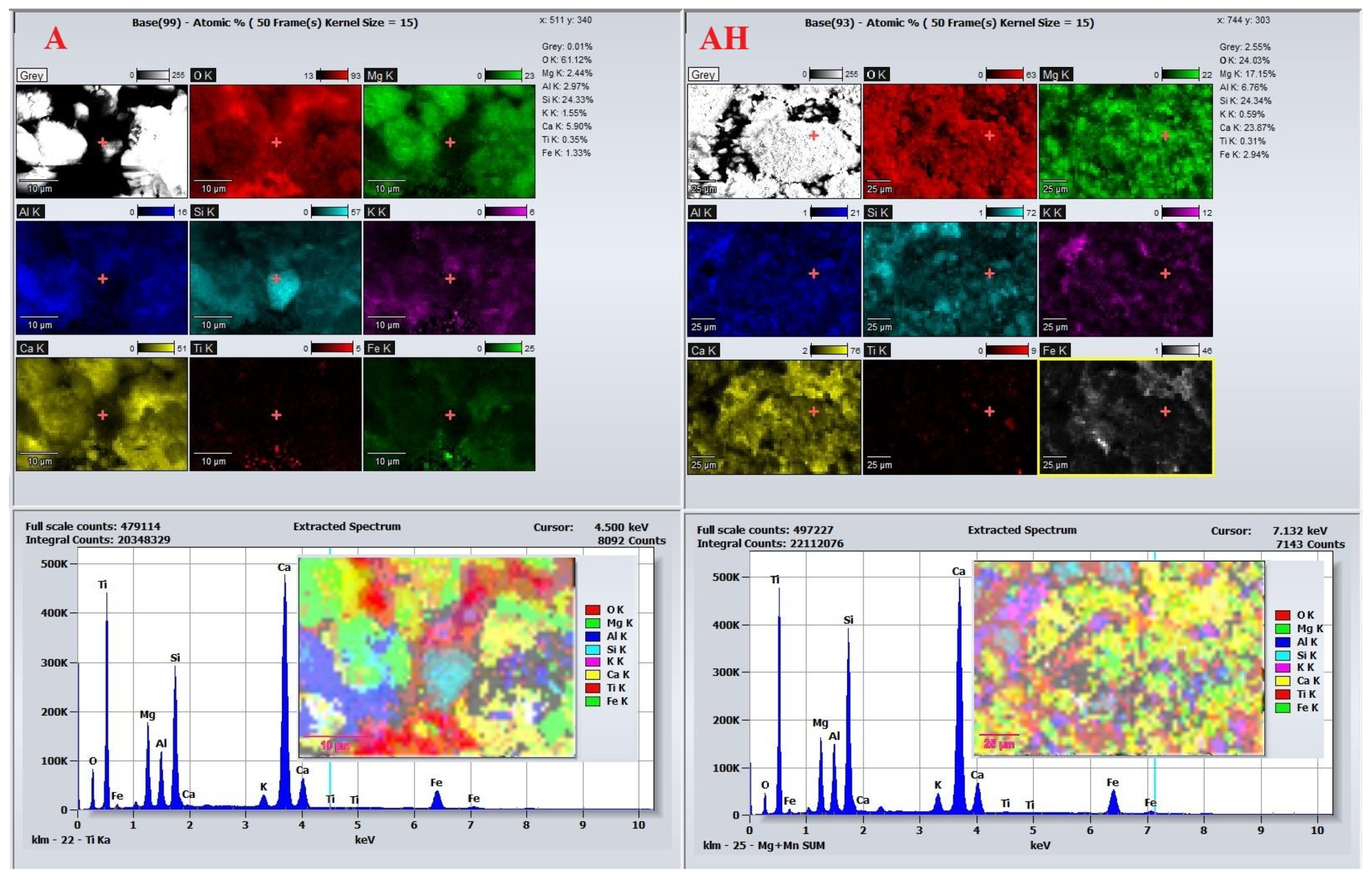

The EDS analysis provides further insights into the chemical evolution associated with hydrogen treatment. For dolomitic cores, the EDS spectra and elemental maps, in Figure 8, show that Core A is dominated by calcium and magnesium with uniform distribution, consistent with stoichiometric CaMg(CO3)2. Iron is present only in trace amounts. After hydrogen exposure, Core AH exhibits a notable increase in iron concentration and a relative decrease in magnesium. The heterogeneous distribution of Fe suggests cation exchange, where Fe2+ likely sourced from siderite reduction partially replaces Mg2+ in the dolomite lattice, leading to ankerite-type phase formation [31].
Other elements (Si, Al, K) show no significant compositional variation between A and AH, indicating that these elements are not actively involved in hydrogen-induced reactions (Figure 8). This SEM–EDS evidence confirms that dolomite is susceptible to both structural and chemical alterations under hydrogen exposure, primarily via selective dissolution, Fe for Mg substitution, and secondary carbonate reprecipitation. These changes reshape the pore framework and influence the rock’s petrophysical behavior, which is critical when assessing its suitability for hydrogen storage applications.

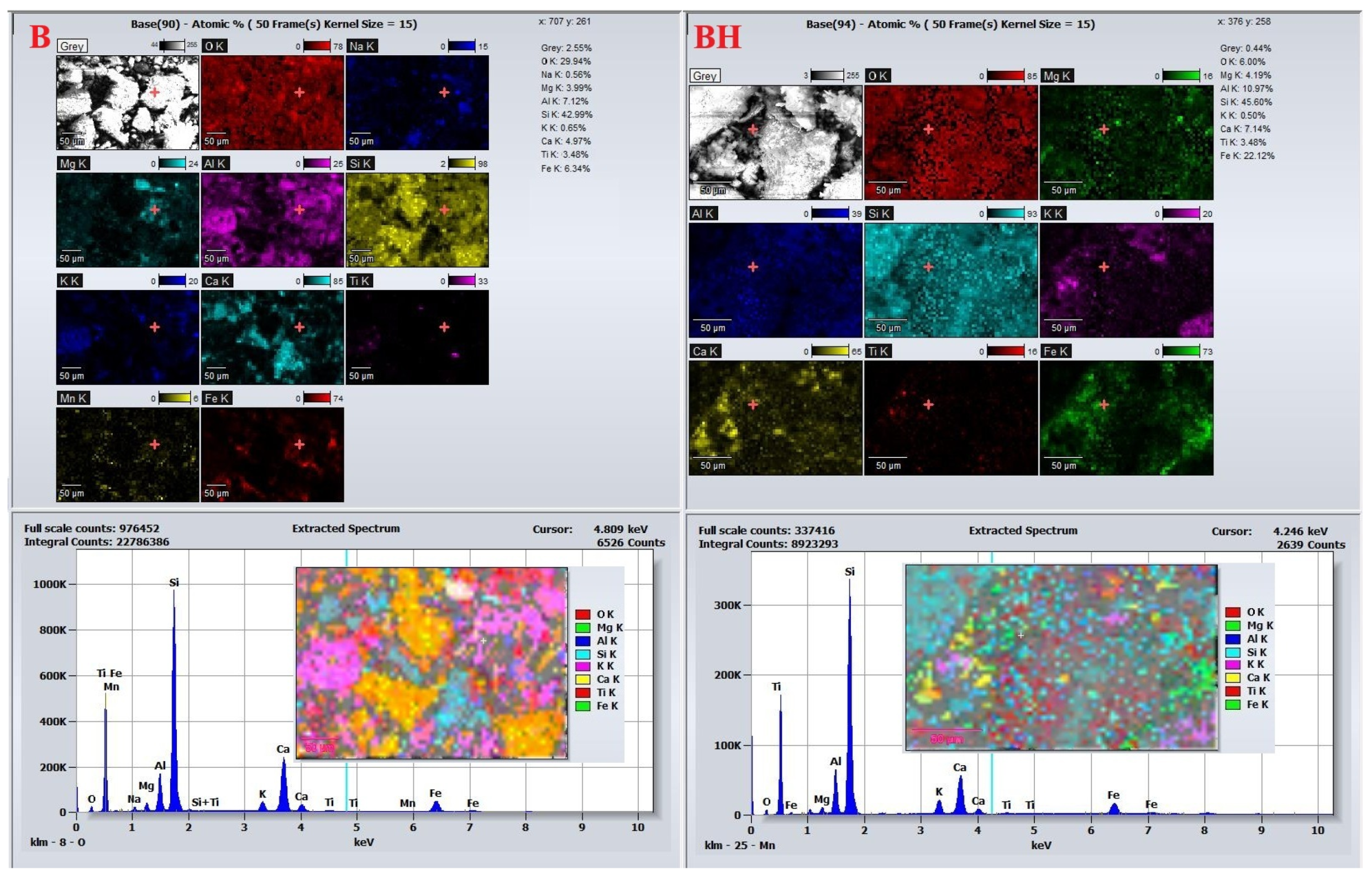

The EDS analysis of the calcitic cores (Figure 9) reinforces these trends. Core B exhibits a composition dominated by Ca and O with a uniform distribution of minor elements. In Core BH, a slight increase in Fe is detected, with a more heterogeneous spatial pattern, suggesting secondary Fe-rich phase formation driven by hydrogen-induced redox reactions. The redistribution of Mg and minor elements is also observed, indicating localized elemental migration within the calcite matrix.

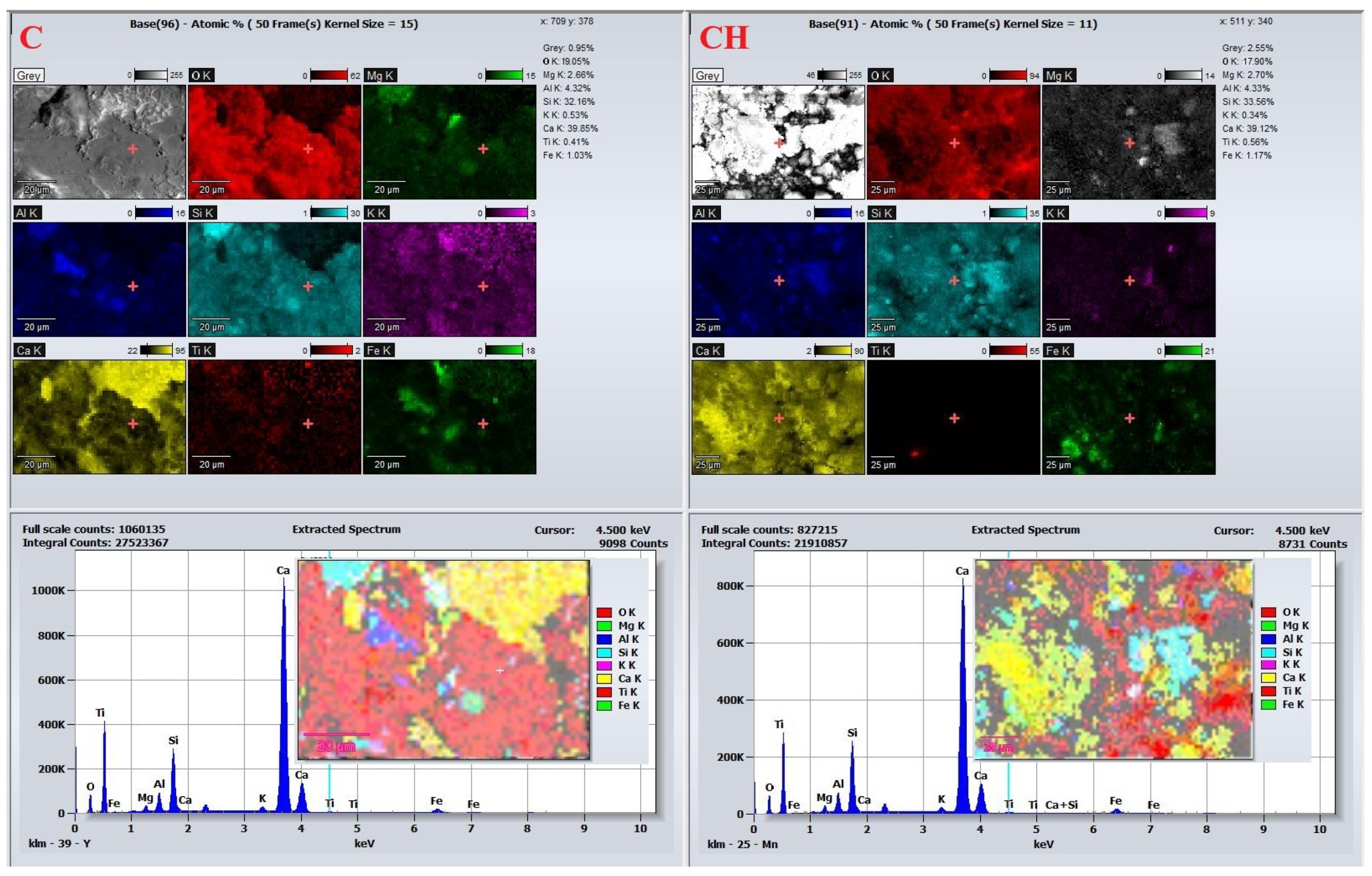

In contrast, the EDS results for the quartz samples (C and CH, Figure 10) reveal consistent compositional stability. Both spectra show Si and O as dominant elements with uniform distributions of Al, K, Mg, and Fe. No notable differences are observed in elemental composition or spatial distribution after hydrogen treatment, further affirming the chemical inertness of quartz. Meanwhile, major elemental redistributions were observed in AH and BH samples, linked to ankerite formation (in dolomite) and secondary calcite precipitation (in calcite).
These microstructural and compositional findings are consistent with textural parameter evolution. In calcite, hydrogen exposure reduced the BET surface area from 6.93 to 5.80 m2/g, total pore volume from 0.0175 to 0.0143 cm3/g, mean pore diameter from 3.023 to 2.853 nm, porosity from 19.89% to 16.33%, and permeability from 132.16 to 107.43 mD, highlighting partial pore collapse and occlusion due to carbonate reprecipitation.
In contrast, the dolomitic system demonstrated a distinct structural response: after hydrogen exposure, the total pore volume increased from 0.0214 to 0.245 cm3/g, average pore diameter expanded from 3.3 to 5.09 nm, and permeability improved alongside surface area growth. The SEM images of Core AH confirmed severe grain disaggregation and development of an interconnected pore system, enriched with Fe-bearing phases attributed to ankerite formation.
These contrasting behaviors clearly illustrate that calcite and dolomite respond differently to hydrogen treatment. While dolomite undergoes beneficial structural modifications enhancing porosity and permeability, calcite exhibits the degradation of the pore network through mineral reprecipitation and occlusion. This distinction is crucial for evaluating the petrophysical suitability of carbonate rocks in geological hydrogen storage, with dolomite emerging as a more promising candidate than calcite.

4. Conclusions

This experimental study investigated the mineralogical and petrophysical responses of three representative reservoir lithologies, i.e., dolomite, calcite-rich limestone, and quartz-rich siliceous rock, under simulated underground hydrogen storage (UHS) conditions (100 bar, 70 °C, 100 days).
The results revealed that dolomite underwent constructive mineralogical transformations, enhancing pore connectivity and permeability without compromising structural integrity. Calcite-rich limestone, on the other hand, exhibited deterioration in petrophysical quality due to dissolution–reprecipitation processes that led to pore clogging. In contrast, quartz-rich siliceous rocks demonstrated remarkable stability, with negligible changes in structural and chemical properties.
These findings emphasize the critical role of lithology in determining the viability of UHS sites. Dolomite stands out as a promising host formation, while calcitic rocks require caution due to their structural vulnerability. Quartz-dominant formations, although inert, may be strategically integrated as stable frameworks in multi-lithologic storage settings.
These findings contribute valuable scientific insight for the strategic selection of geological formations suited for long-term green hydrogen storage.

Author Contributions

Conceptualization, R.D., I.V.G., and T.V.C.; methodology, R.D., Ș.A.G., and G.B.; validation, R.D., D.B.S., R.H., and I.N.R.; formal analysis, R.D., G.B., and D.B.S.; investigation, M.G.P., Ș.A.G., and T.V.C.; resources, R.D. and R.H.; data curation, R.D. and D.B.S.; writing—original draft preparation, R.D., M.G.P., and G.B.; writing—review and editing, R.D. and R.H.; visualization, D.B.S., I.N.R., R.H., I.V.G., and R.D.; supervision, T.V.C., D.B.S., I.V.G., and M.G.P.; project administration, R.D. All authors have read and agreed to the published version of the manuscript.

Funding

The authors thankfully acknowledge the Petroleum-Gas University of Ploiesti, Romania for the financial support, project GO-GICS “Research on the reduction of greenhouse gas emissions in the exploitation process of natural gas deposits/deposits” number 27715/07.11.2024.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.

Conflicts of Interest

The authors declare no conflicts of interest.

Nomenclature

barUnit of pressure
BETBrunauer–Emmett–Teller (method for measuring specific surface area)
BJHBarrett–Joyner–Halenda (method for pore size distribution analysis)
CaCO3Calcite
CaMg(CO3)2Dolomite
cm3/gCubic centimeters per gram (pore volume unit)
CO2Carbon dioxide
Cu-KαCopper K-alpha radiation (X-ray source used in XRD)
Dv(d)Mean pore diameter (physical parameter in pore size analysis)
EDSEnergy-dispersive X-ray spectroscopy
GASPERMBrand/model of permeameter used for permeability measurements
H2, H3, H4Types of hysteresis loops in nitrogen adsorption isotherms according to IUPAC classification
He-PorosimeterHelium porosimeter used for porosity measurements
IUPACInternational Union of Pure and Applied Chemistry
m2/gSquare meters per gram (surface area unit)
mDMillidarcy (unit of permeability)
nmNanometer (length unit)
NOVA 2200eModel of gas adsorption analyzer used for BET/BJH measurements
p/p0Relative pressure (used in adsorption isotherms)
SEMScanning electron microscopy
UHSUnderground hydrogen storage
XRDX-ray diffraction
θ-θTheta–theta geometry (XRD measurement configuration)

References

  1. IEA. Global Hydrogen Review 2023; International Energy Agency: Paris, France, 2023; p. 68.
  2. Caglayan, D.G.; Weber, N.; Heinrichs, H.U.; Linßen, J.; Robinius, M.; Kukla, P.A.; Stolten, D. Technical potential of salt caverns for hydrogen storage in Europe. Int. J. Hydrogen Energy 2020, 45, 6793–6805. [Google Scholar] [CrossRef]
  3. Li, P.; Shi, X.; Li, Y.; Zhu, S.; Liu, W.; Ma, H.; Yang, C. Optimizing geological hydrogen storage in bedded salt formations: Assessing permeation and leakage dynamics. J. Energy Storage 2025, 122, 116709. [Google Scholar] [CrossRef]
  4. Zhang, J.; Zhang, L.; Hu, S. Underground hydrogen storage in depleted gas fields: Progress, challenges, and outlook. J. Energy Storage 2024, 102, 113842. [Google Scholar] [CrossRef]
  5. Luboń, K.; Tarkowski, R. Hydrogen Storage in Deep Saline Aquifers: Non-Recoverable Cushion Gas after Storage. Energies 2024, 17, 1493. [Google Scholar] [CrossRef]
  6. Bade, S.O.; Taiwo, K.; Ndulue, U.F.; Tomomewo, O.S.; Aisosa Oni, B. A review of underground hydrogen storage systems: Current status, modeling approaches, challenges, and future prospective. Int. J. Hydrogen Energy 2024, 80, 449–474. [Google Scholar] [CrossRef]
  7. Ali, M.; Isah, A.; Yekeen, N.; Hassanpouryouzband, A.; Sarmadivaleh, M.; Okoroafor, E.R.; Al Kobaisi, M.; Mahmoud, M.; Vahrenkamp, V.; Hoteit, H. Recent progress in underground hydrogen storage. Energy Environ. Sci. 2025, 18, 5740–5810. [Google Scholar] [CrossRef]
  8. Shojaee, A.; Ghanbari, S.; Wang, G.; Mackay, E. Interplay between microbial activity and geochemical reactions during underground hydrogen storage in a seawater-rich formation. Int. J. Hydrogen Energy 2024, 50, 1529–1541. [Google Scholar] [CrossRef]
  9. Al-Yaseri, A.; Amao, A.; Fatah, A. Experimental investigation of shale/hydrogen geochemical interactions. Fuel 2023, 346, 128272. [Google Scholar] [CrossRef]
  10. Al-Yaseri, A.; Yekeen, N.; Al-Mukainah, H.; Hassanpouryouzband, A. Geochemical interactions in geological hydrogen Storage: The role of sandstone clay content. Fuel 2024, 361, 130728. [Google Scholar] [CrossRef]
  11. Hassanpouryouzband, A.; Adie, K.; Cowen, T.; Thaysen, E.M.; Heinemann, N.; Butler, I.B.; Wilkinson, M.; Edlmann, K. Geological Hydrogen Storage: Geochemical Reactivity of Hydrogen with Sandstone Reservoirs. ACS Energy Lett. 2022, 7, 2203–2210. [Google Scholar] [CrossRef] [PubMed]
  12. Driba, D.L.; Beckingham, L.E. Unraveling hydrogen induced geochemical reaction mechanisms through coupled geochemical modeling and machine learning. Appl. Geochem. 2025, 183, 106330. [Google Scholar] [CrossRef]
  13. Thiyagarajan, S.R.; Emadi, H.; Hussain, A.; Patange, P.; Watson, M. A comprehensive review of the mechanisms and efficiency of underground hydrogen storage. J. Energy Storage 2022, 51, 104490. [Google Scholar] [CrossRef]
  14. Zeng, L.; Keshavarz, A.; Xie, Q.; Iglauer, S. Hydrogen storage in Majiagou carbonate reservoir in China: Geochemical modelling on carbonate dissolution and hydrogen loss. Int. J. Hydrogen Energy 2022, 47, 24861–24870. [Google Scholar] [CrossRef]
  15. Al-Yaseri, A.; Al-Mukainah, H.; Yekeen, N. Experimental insights into limestone-hydrogen interactions and the resultant effects on underground hydrogen storage. Fuel 2023, 344, 128000. [Google Scholar] [CrossRef]
  16. Aslannezhad, M.; Ali, M.; Kalantariasl, A.; Sayyafzadeh, M.; You, Z.; Iglauer, S.; Keshavarz, A. A review of hydrogen/rock/brine interaction: Implications for Hydrogen Geo-storage. Prog. Energy Combust. Sci. 2023, 95, 101066. [Google Scholar] [CrossRef]
  17. Al-Yaseri, A.; Al-Mukainah, H.; Yekeen, N.; Al-Qasim, A.S. Experimental investigation of hydrogen-carbonate reactions via computerized tomography: Implications for underground hydrogen storage. Int. J. Hydrogen Energy 2023, 48, 3583–3592. [Google Scholar] [CrossRef]
  18. Ugarte, E.R.; Tetteh, D.; Salehi, S. Experimental studies of well integrity in cementing during underground hydrogen storage. Int. J. Hydrogen Energy 2024, 51, 473–488. [Google Scholar] [CrossRef]
  19. Mwakipunda, G.C.; Franck Kouassi, A.K.; Ayimadu, E.T.; Komba, N.A.; Nadege, M.N.; Mgimba, M.M.; Ngata, M.R.; Yu, L. Underground hydrogen storage in geological formations: A review. J. Rock Mech. Geotech. Eng. 2025; in press. [Google Scholar] [CrossRef]
  20. Bo, Z.; Zeng, L.; Chen, Y.; Xie, Q. Geochemical reactions-induced hydrogen loss during underground hydrogen storage in sandstone reservoirs. Int. J. Hydrogen Energy 2021, 46, 19998–20009. [Google Scholar] [CrossRef]
  21. Cheng, C.; Busch, B.; Kontny, A.; Hilgers, C. Underground hydrogen storage in sandstone reservoirs: Effects of geochemical reactivity of hydrogen on reservoir performance. Int. J. Hydrogen Energy 2025, 105, 492–504. [Google Scholar] [CrossRef]
  22. Flesch, S.; Pudlo, D.; Albrecht, D.; Jacob, A.; Enzmann, F. Hydrogen underground storage—Petrographic and petrophysical variations in reservoir sandstones from laboratory experiments under simulated reservoir conditions. Int. J. Hydrogen Energy 2018, 43, 20822–20835. [Google Scholar] [CrossRef]
  23. Al-Yaseri, A.; Fatah, A.; Adebayo, A.R.; Al-Qasim, A.S.; Patil, P.D. Pore structure analysis of storage rocks during geological hydrogen storage: Investigation of geochemical interactions. Fuel 2024, 361, 130683. [Google Scholar] [CrossRef]
  24. Kaczmarek, S.E.; Gregg, J.M.; Bish, D.L.; Machel, H.G.; Fouke, B.W. Dolomite, Very High-Magnesium Calcite, and Microbes—Implications for the Microbial Model of Dolomitization. In Characterization and Modeling of Carbonates–Mountjoy Symposium 1; SEPM (Society for Sedimentary Geology): Tulsa, OK, USA, 2017; Volume 109. [Google Scholar] [CrossRef]
  25. Medina-Carrasco, S.; Valverde, J.M. In situ XRD analysis of dolomite calcination under CO2 in a humid environment. CrystEngComm 2020, 22, 6502–6516. [Google Scholar] [CrossRef]
  26. Al-Jaroudi, S.S.; Ul-Hamid, A.; Mohammed, A.-R.I.; Saner, S. Use of X-ray powder diffraction for quantitative analysis of carbonate rock reservoir samples. Powder Technol. 2007, 175, 115–121. [Google Scholar] [CrossRef]
  27. Zhao, T.; Xu, C.; Ma, Y.; Zeng, Y.; Wang, N. Study on preparation and structure of chrysanthemum-shaped micron calcium carbonate based on inverse microemulsion. Micro Nano Lett. 2020, 15, 1151–1155. [Google Scholar] [CrossRef]
  28. Zhang, C.; Xu, Z.; Hu, Y.; He, J.; Tian, M.; Zhou, J.; Zhou, Q.; Chen, S.; Chen, D.; Chen, P.; et al. Novel Insights into the Hydroxylation Behaviors of α-Quartz (101) Surface and its Effects on the Adsorption of Sodium Oleate. Minerals 2019, 9, 450. [Google Scholar] [CrossRef]
  29. Liu, R.; Mei, X.; Zhang, J.; Zhao, D.-B. Characteristics of clay minerals in sediments of Hemudu area, Zhejiang, China in Holocene and their environmental significance. China Geol. 2019, 2, 8–15. [Google Scholar] [CrossRef]
  30. Braid, H.; Taylor, K.; Hough, E.; Rochelle, C.; Niasar, V.; Ma, L. Hydrogen-induced mineral alteration: A review in the context of underground hydrogen storage (UHS) in saline aquifers. Earth-Sci. Rev. 2024, 259, 104975. [Google Scholar] [CrossRef]
  31. Davies, K.; Esteban, L.; Sarout, J.; Keshavarz, A.; Iglauer, S. Hydrogen-Induced Transformations in Dolomite: Unlocking Natural Hydrogen Exploration and Subsurface Storage in Carbonates. Energy Fuels 2025, 39, 6644–6653. [Google Scholar] [CrossRef]
  32. Opoku Duartey, K.; Ampomah, W.; Rahnema, H.; Mehana, M. Underground Hydrogen Storage: Transforming Subsurface Science into Sustainable Energy Solutions. Energies 2025, 18, 748. [Google Scholar] [CrossRef]
  33. Kharya, A.; Sachan, H.K.; Tiwari, S.K.; Singhal, S.; Singh, P.C.; Rai, S.; Kumar, S.; Mehta, M.; Gautam, P.K.R. New occurrence of albitite from Nubra valley, Ladakh: Characterization from mineralogy and whole rock geochemistry. Curr. Sci. 2016, 111, 1531–1535. [Google Scholar] [CrossRef]
  34. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  35. Yang, Y.; Zhang, J.; Xu, L.; Li, P.; Liu, Y.; Dang, W. Pore Structure and Fractal Characteristics of Deep Shale: A Case Study from Permian Shanxi Formation Shale, from the Ordos Basin. ACS Omega 2022, 7, 9229–9243. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, K.; Zhang, T.; Chen, X.; He, Y.; Liang, X. Model construction of micro-pores in shale: A case study of Silurian Longmaxi Formation shale in Dianqianbei area, SW China. Pet. Explor. Dev. 2018, 45, 412–421. [Google Scholar] [CrossRef]
  37. Truche, L.; Jodin-Caumon, M.-C.; Lerouge, C.; Berger, G.; Mosser-Ruck, R.; Giffaut, E.; Michau, N. Sulphide mineral reactions in clay-rich rock induced by high hydrogen pressure. Application to disturbed or natural settings up to 250 °C and 30 bar. Chem. Geol. 2013, 351, 217–228. [Google Scholar] [CrossRef]
  38. Gelencsér, O.; Árvai, C.; Mika, L.T.; Breitner, D.; LeClair, D.; Szabó, C.; Falus, G.; Szabó-Krausz, Z. Effect of hydrogen on calcite reactivity in sandstone reservoirs: Experimental results compared to geochemical modeling predictions. J. Energy Storage 2023, 61, 106737. [Google Scholar] [CrossRef]
  39. Yekta, A.E.; Pichavant, M.; Audigane, P. Evaluation of geochemical reactivity of hydrogen in sandstone: Application to geological storage. Appl. Geochem. 2018, 95, 182–194. [Google Scholar] [CrossRef]
  40. Liu, X.; Fu, M.; Gluyas, J.; Song, R.; Lan, H.; Fan, Y.; Wu, D. Dolomitization Facilitated by Clay Minerals on Mixed Siliciclastic-Carbonate Shoals of Carboniferous Age in the Tarim Basin, China: Constraints on Element Mobility and Isotope Geochemistry. Minerals 2025, 15, 419. [Google Scholar] [CrossRef]

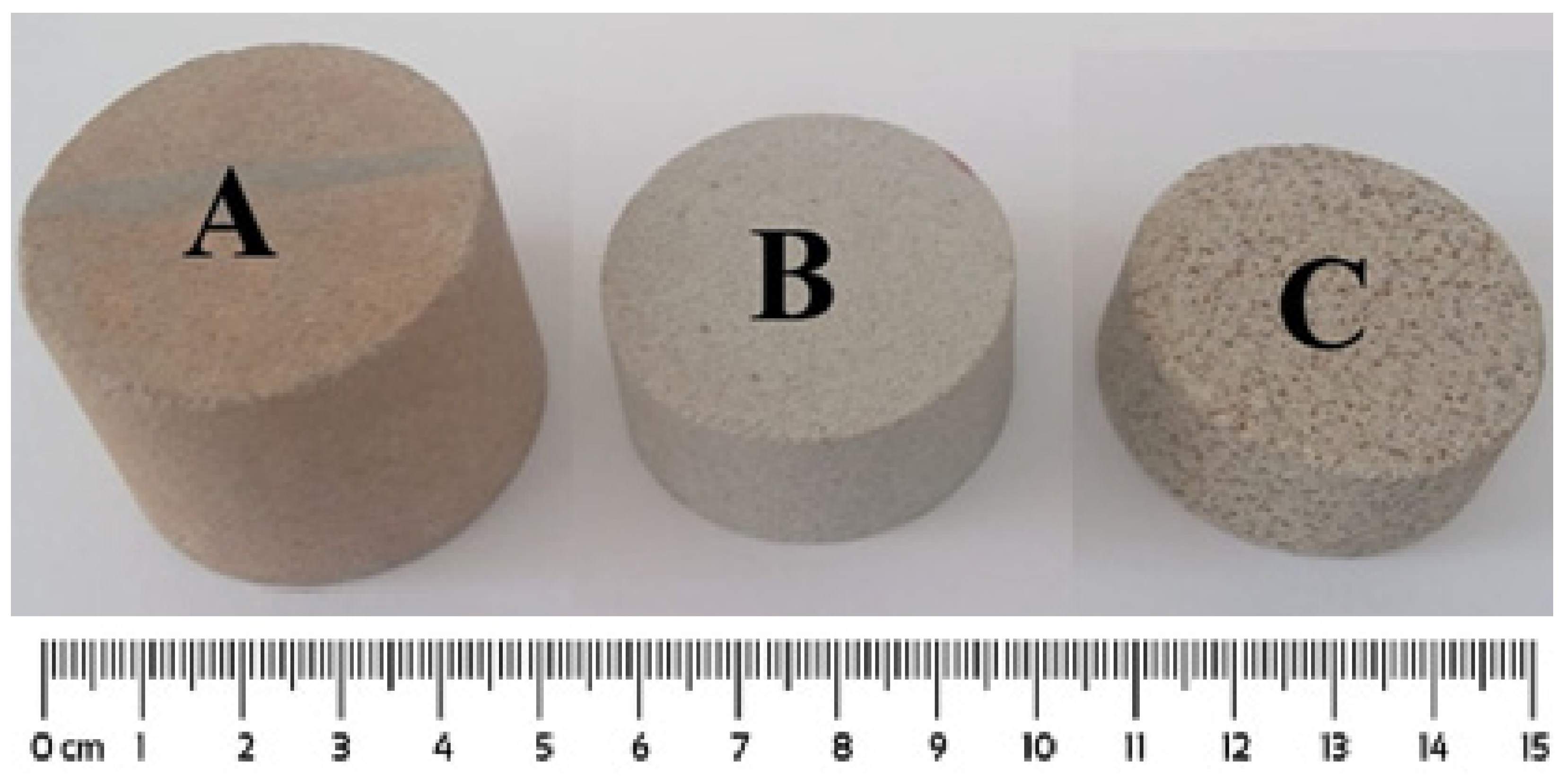

Figure 1. Core samples used in study of hydrogen’s effect on geological components where A—dolomite, B—limestone and C—siliceous rock.
Figure 1. Core samples used in study of hydrogen’s effect on geological components where A—dolomite, B—limestone and C—siliceous rock.
Applsci 15 07957 g001

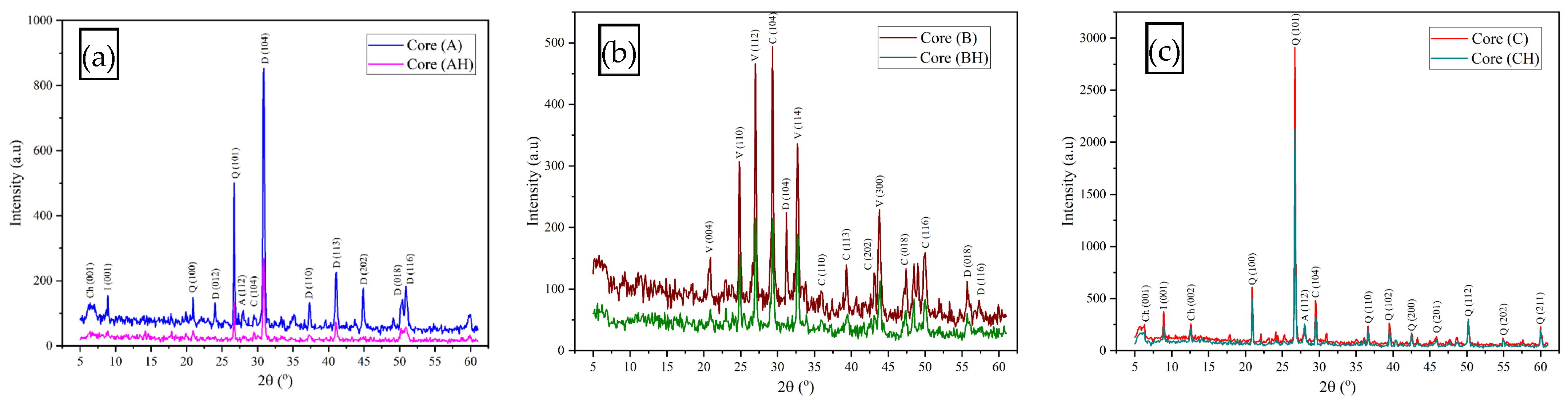

Figure 2. XRD diffractograms of raw core samples before and after hydrogen exposure at 100 bar: (a) dolomite (A/AH), (b) limestone (B/BH), and (c) siliceous rock (C/CH).
Figure 2. XRD diffractograms of raw core samples before and after hydrogen exposure at 100 bar: (a) dolomite (A/AH), (b) limestone (B/BH), and (c) siliceous rock (C/CH).
Applsci 15 07957 g002
Figure 3. Nitrogen adsorption–desorption isotherms of core samples before and after hydrogen exposure: (a) dolomite (A/AH), (b) limestone (B/BH), and (c) siliceous rock (C/CH).
Figure 3. Nitrogen adsorption–desorption isotherms of core samples before and after hydrogen exposure: (a) dolomite (A/AH), (b) limestone (B/BH), and (c) siliceous rock (C/CH).
Applsci 15 07957 g003

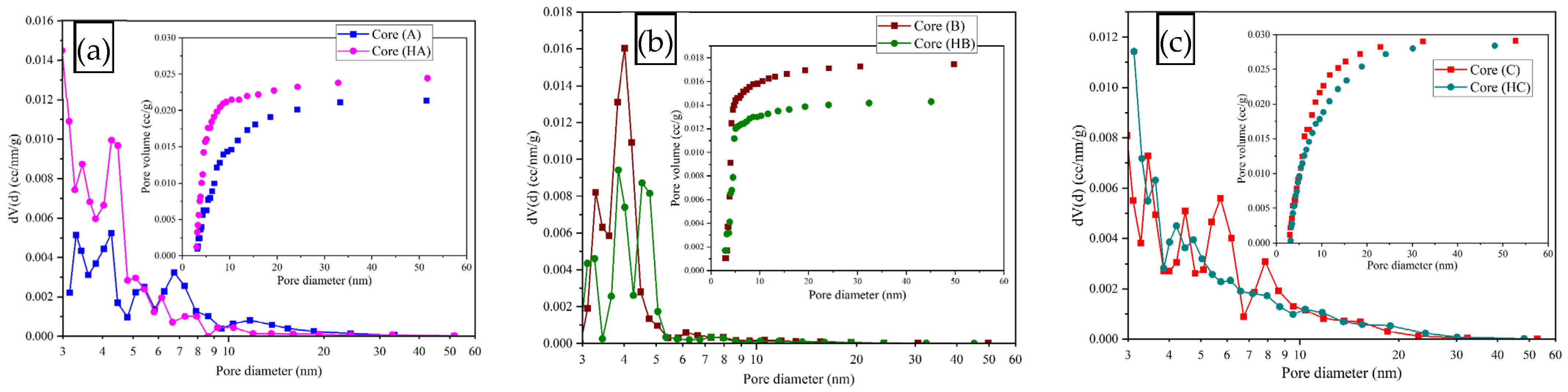

Figure 4. Pore size distribution and total pore volume of core samples before and after hydrogen exposure: (a) dolomite (A/AH), (b) limestone (B/BH), and (c) siliceous rock (C/CH).
Figure 4. Pore size distribution and total pore volume of core samples before and after hydrogen exposure: (a) dolomite (A/AH), (b) limestone (B/BH), and (c) siliceous rock (C/CH).
Applsci 15 07957 g004

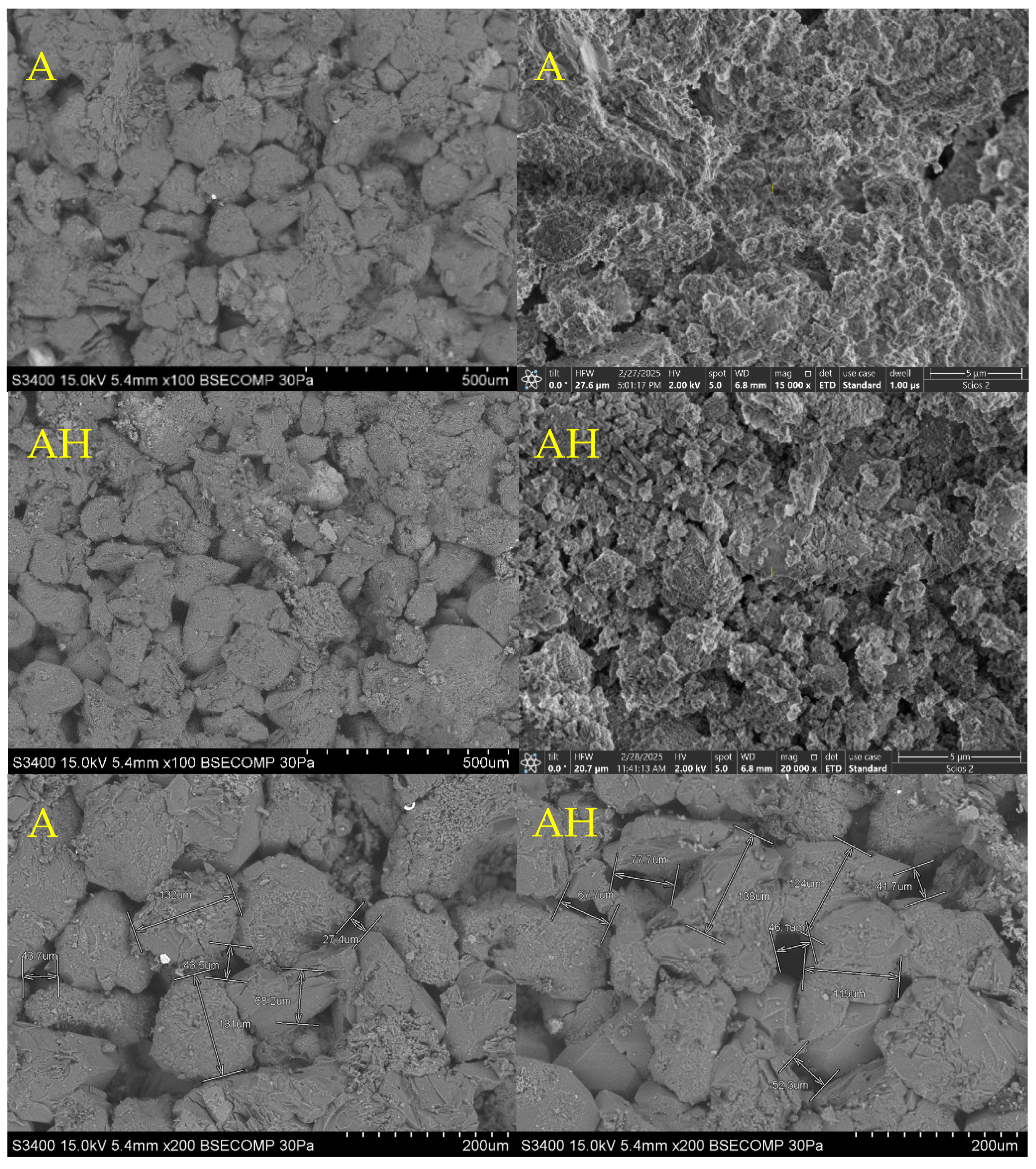

Figure 5. Scanning electron microscopy (SEM) images of core samples A and AH.
Figure 5. Scanning electron microscopy (SEM) images of core samples A and AH.
Applsci 15 07957 g005

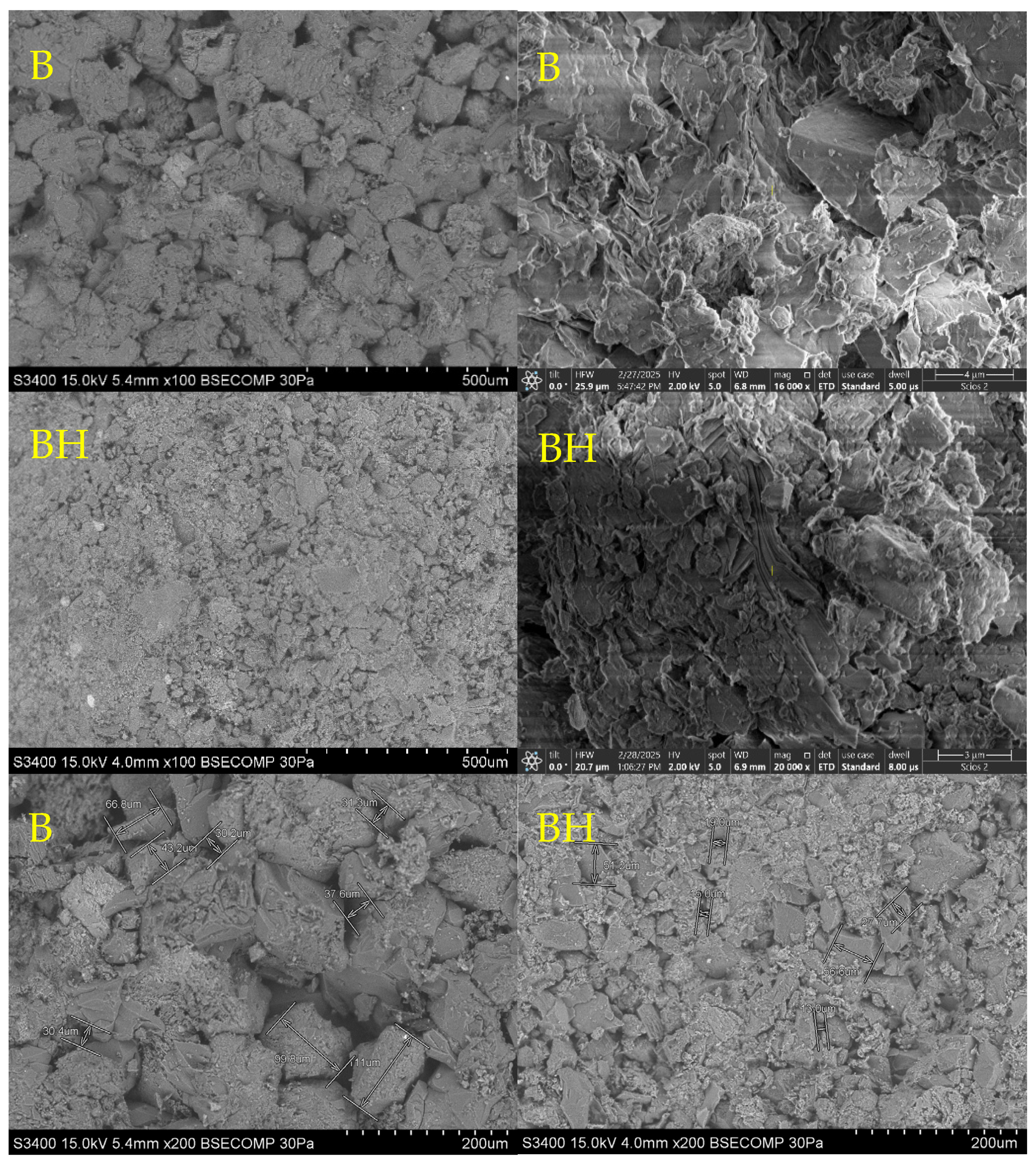

Figure 6. Scanning electron microscopy (SEM) images of core samples B and BH.
Figure 6. Scanning electron microscopy (SEM) images of core samples B and BH.
Applsci 15 07957 g006
Figure 7. Scanning electron microscopy (SEM) images of core samples C and CH.
Figure 7. Scanning electron microscopy (SEM) images of core samples C and CH.
Applsci 15 07957 g007
Figure 8. EDS spectrum and elemental distribution for core samples A and AH.
Figure 8. EDS spectrum and elemental distribution for core samples A and AH.
Applsci 15 07957 g008
Figure 9. EDS spectrum and elemental distribution for core samples B and BH.
Figure 9. EDS spectrum and elemental distribution for core samples B and BH.
Applsci 15 07957 g009
Figure 10. EDS spectrum and elemental distribution for core samples C and CH.
Figure 10. EDS spectrum and elemental distribution for core samples C and CH.
Applsci 15 07957 g010
Table 1. Characteristic XRD reflections and variations in mineralogical composition of Core A and Core AH samples.
Table 1. Characteristic XRD reflections and variations in mineralogical composition of Core A and Core AH samples.
Mineral PhaseCrystal Plane—Miller Index (hkl) 2 θ (°)Content % in Core AContent % in Core AH
Chlorite (Ch)0016.25.62-
Illite (I)0018.92.842.41
Quartz (Q)10020.82.492.10
Dolomite (D)01224.11.92-
Quartz (Q)10126.64.133.46
Albite (A)11227.922.03-
Calcite (C)10429.41.32-
Dolomite (D)10430.8812.2010.53
Dolomite (D)11037.251.31-
Dolomite (D)11341.053.173.13
Dolomite (D)20244.852.04-
Dolomite (D)01850.42.192.21
Dolomite (D)11650.92.682.84
Table 2. Characteristic XRD reflections and variations in mineralogical composition of Core B and Core BH samples.
Table 2. Characteristic XRD reflections and variations in mineralogical composition of Core B and Core BH samples.
Mineral PhaseCrystal Plane—Miller Index (hkl) 2 θ (°)Content % in Core BContent % in Core BH
Vaterite (V)00420.92.61-
Vaterite (V)11024.83.873.43
Vaterite (V)11227.16.054.82
Calcite (C)10429.36.426.37
Calcite (C)00631.22.35-
Vaterite (V)11432.75.135.44
Calcite (C)11339.381.66-
Calcite (C)20243.21.11-
Vaterite (C)30043.82.983.50
Calcite (C)01847.41.751.75
Calcite (C)11648.52.682.94
Vaterite (V)22455.71.271.64
Calcite (C)12257.30.52-
Table 3. Characteristic XRD reflections and variations in mineralogical composition of Core C and Core CH samples.
Table 3. Characteristic XRD reflections and variations in mineralogical composition of Core C and Core CH samples.
Mineral PhaseCrystal Plane—Miller Index (hkl) 2 θ (°)Content % in Core BContent % in Core BH
Chlorite (Ch) 001 6.2 6.87 5.94
Illite (I) 001 8.9 2.62 -
Chlorite (Ch) 002 12.5 2.19 3.22
Quartz (Q) 100 20.8 3.57 3.78
Quartz (Q) 101 26.7 14.64 13.87
Albite (A) 112 27.92 2.58 -
Calcite (C) 104 29.4 3.90 -
Quartz (Q) 110 36.45 1.52 1.77
Quartz (Q) 102 39.5 1.92 1.68
Quartz (Q) 200 42.5 1.16 1.39
Quartz (Q) 201 45.9 1.30 1.52
Quartz (Q) 112 50.2 2.02 2.88
Quartz (Q) 211 60.2 1.50 1.64
Table 4. Physical and textural parameters of core samples: porosity and permeability.
Table 4. Physical and textural parameters of core samples: porosity and permeability.
CorePorosity (%)Permeability (mD)BET Surface Area (m2/g)Total Pore Volume (cm3/g)Mean Pore Diameter (nm)Adsorbed N2 Volume (cm3/g)
A23.95574.843.2700.02143.314.376
AH23.87592.444.0230.2455.0923.35
B19.89132.166.930.01753.02326.11
BH16.33107.435.800.01432.85321.17
C24.50581.9619.0480.02913.10727.81
CH24.13567.4318.870.02843.30527.40
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Doukeh, R.; Ghețiu, I.V.; Chiș, T.V.; Stoica, D.B.; Brănoiu, G.; Ramadan, I.N.; Gavrilă, Ș.A.; Petrescu, M.G.; Harkouss, R. Hydrogen–Rock Interactions in Carbonate and Siliceous Reservoirs: A Petrophysical Perspective. Appl. Sci. 2025, 15, 7957. https://doi.org/10.3390/app15147957

AMA Style

Doukeh R, Ghețiu IV, Chiș TV, Stoica DB, Brănoiu G, Ramadan IN, Gavrilă ȘA, Petrescu MG, Harkouss R. Hydrogen–Rock Interactions in Carbonate and Siliceous Reservoirs: A Petrophysical Perspective. Applied Sciences. 2025; 15(14):7957. https://doi.org/10.3390/app15147957

Chicago/Turabian Style

Doukeh, Rami, Iuliana Veronica Ghețiu, Timur Vasile Chiș, Doru Bogdan Stoica, Gheorghe Brănoiu, Ibrahim Naim Ramadan, Ștefan Alexandru Gavrilă, Marius Gabriel Petrescu, and Rami Harkouss. 2025. "Hydrogen–Rock Interactions in Carbonate and Siliceous Reservoirs: A Petrophysical Perspective" Applied Sciences 15, no. 14: 7957. https://doi.org/10.3390/app15147957

APA Style

Doukeh, R., Ghețiu, I. V., Chiș, T. V., Stoica, D. B., Brănoiu, G., Ramadan, I. N., Gavrilă, Ș. A., Petrescu, M. G., & Harkouss, R. (2025). Hydrogen–Rock Interactions in Carbonate and Siliceous Reservoirs: A Petrophysical Perspective. Applied Sciences, 15(14), 7957. https://doi.org/10.3390/app15147957

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
