Development of a Computer Vision-Based Method for Sizing and Boat Error Assessment in Olive Pitting Machines
Abstract

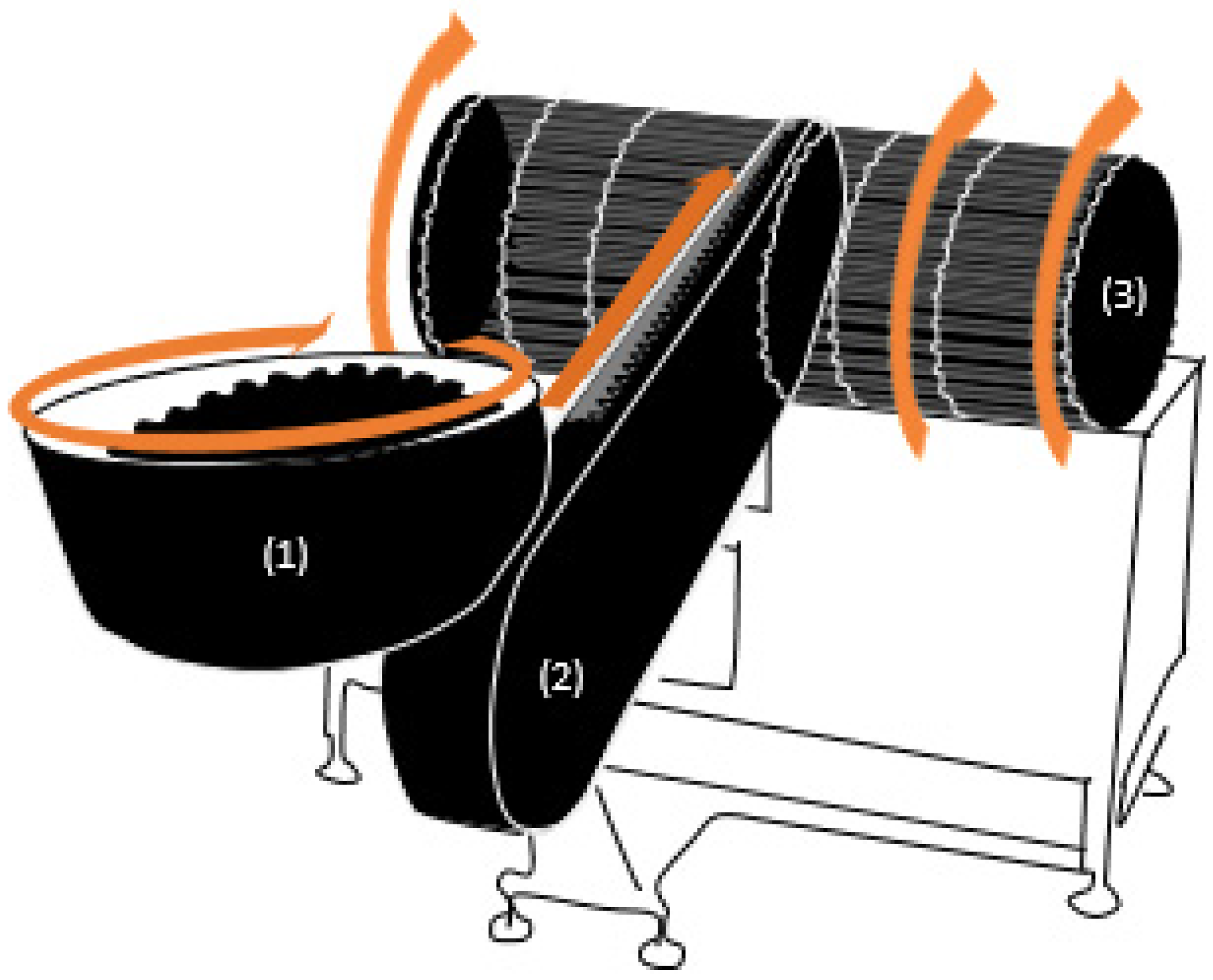

1. Introduction
2. Materials and Methods
2.1. Olive Varieties and Treatment

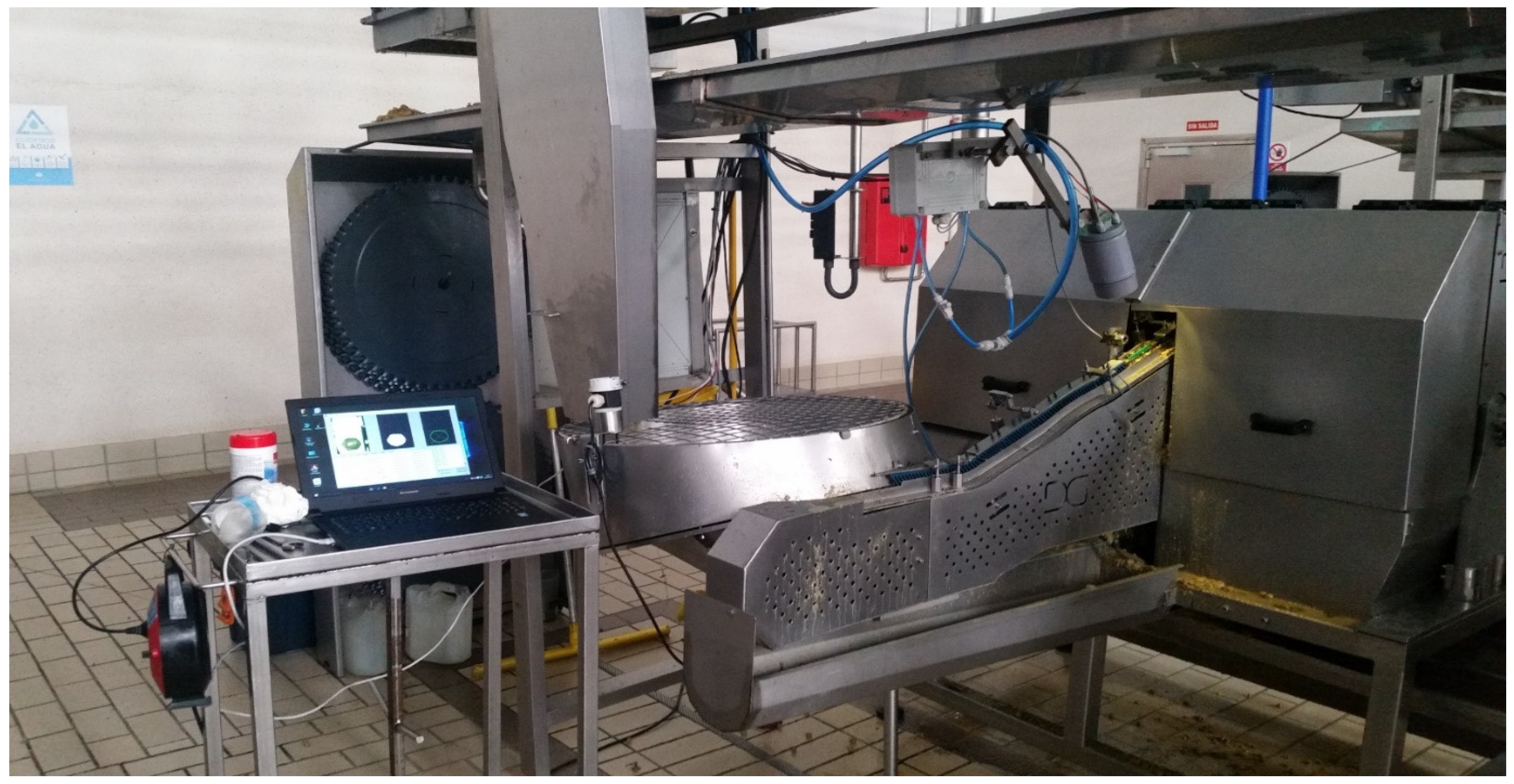

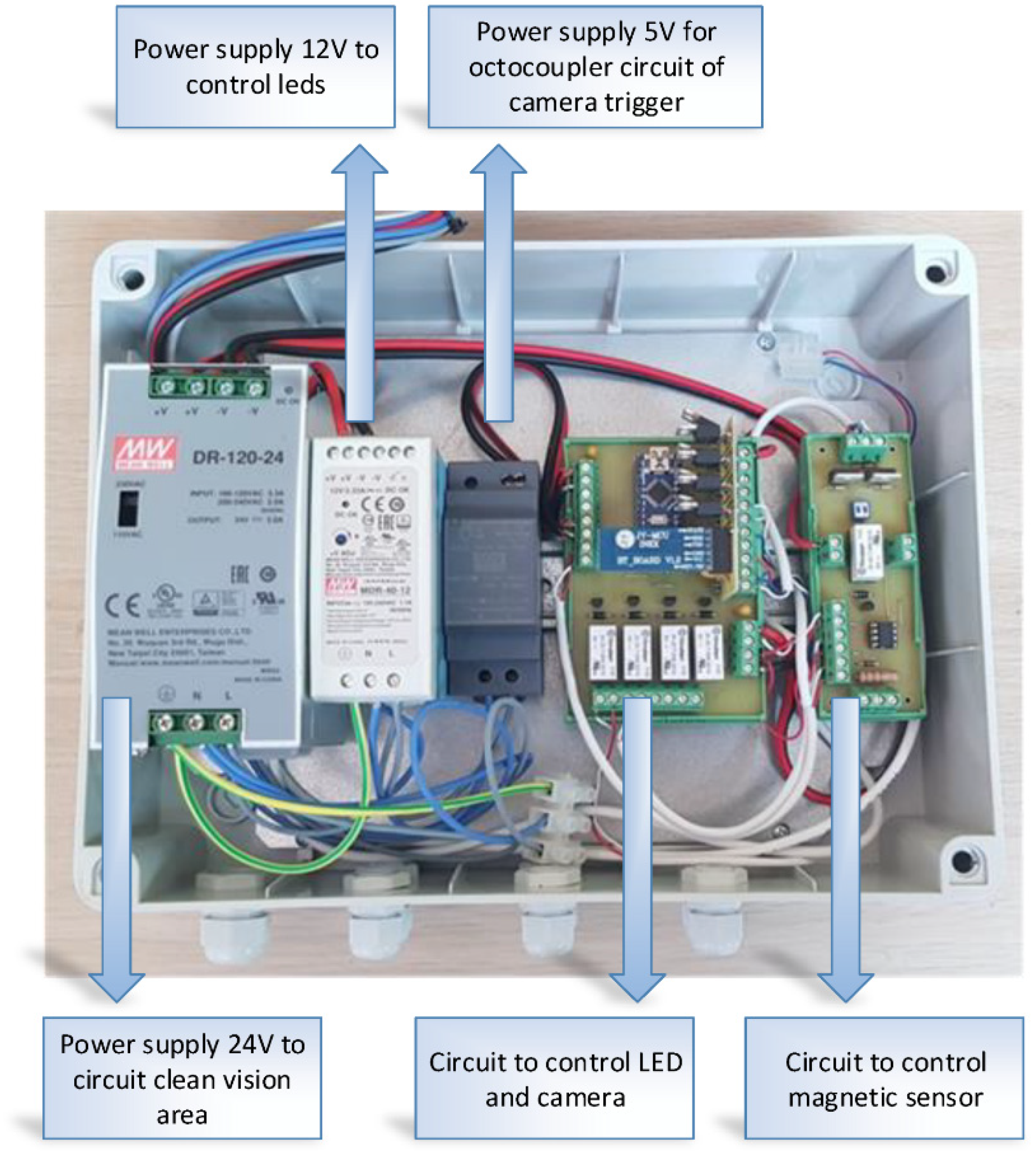

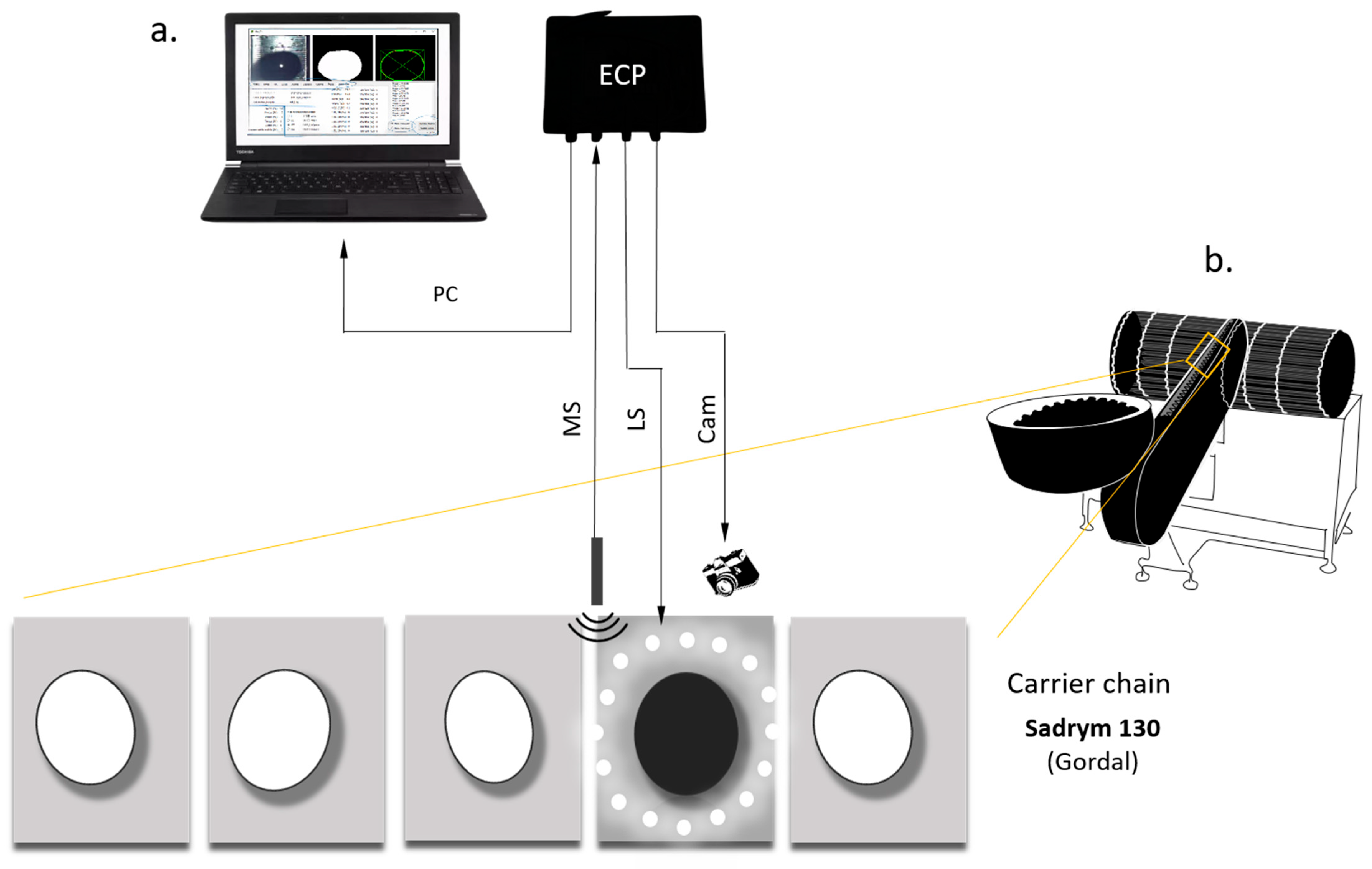

2.2. Machine Vision System and DRR

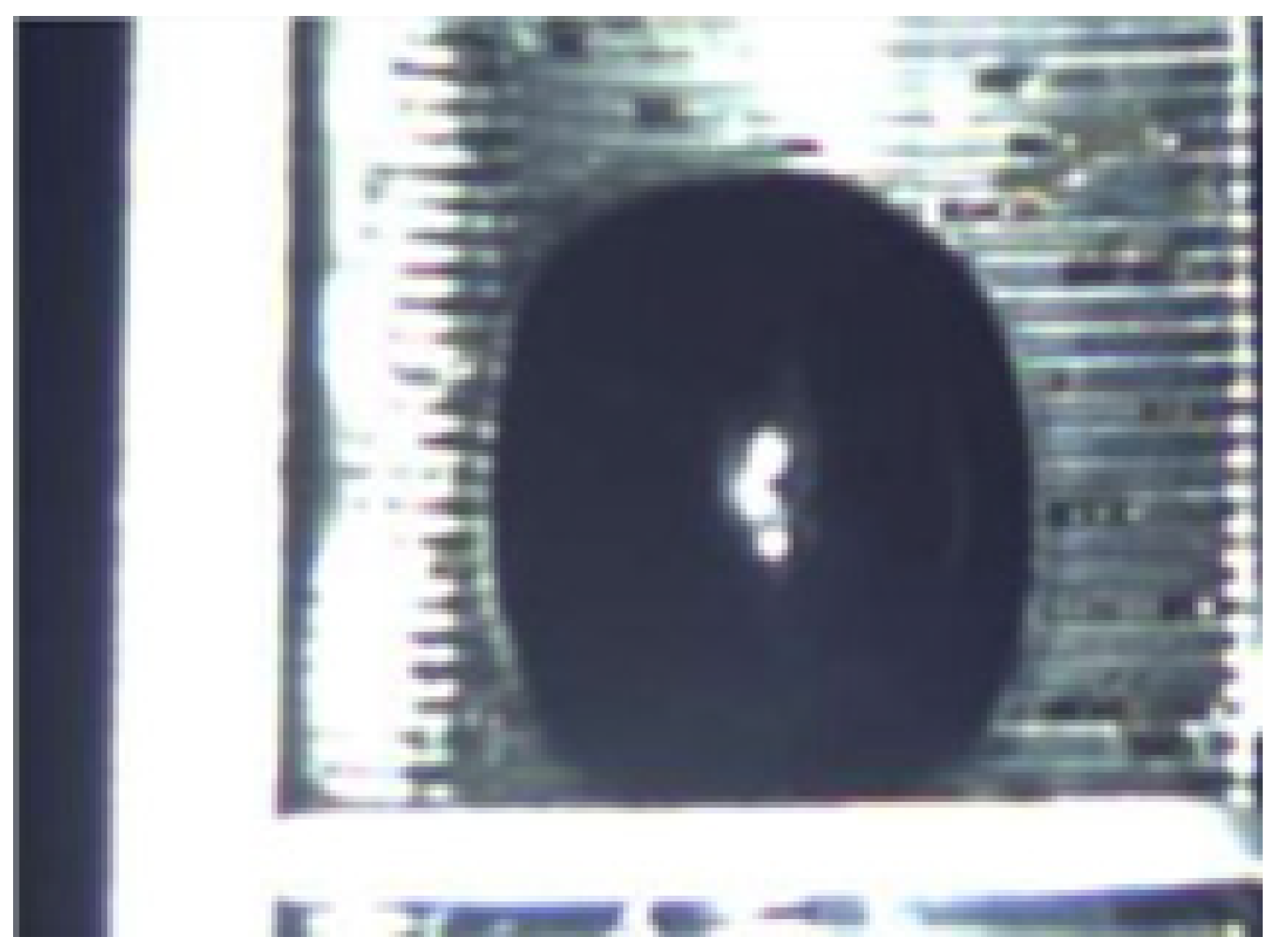

2.3. Computer Vision Software for Image Processing

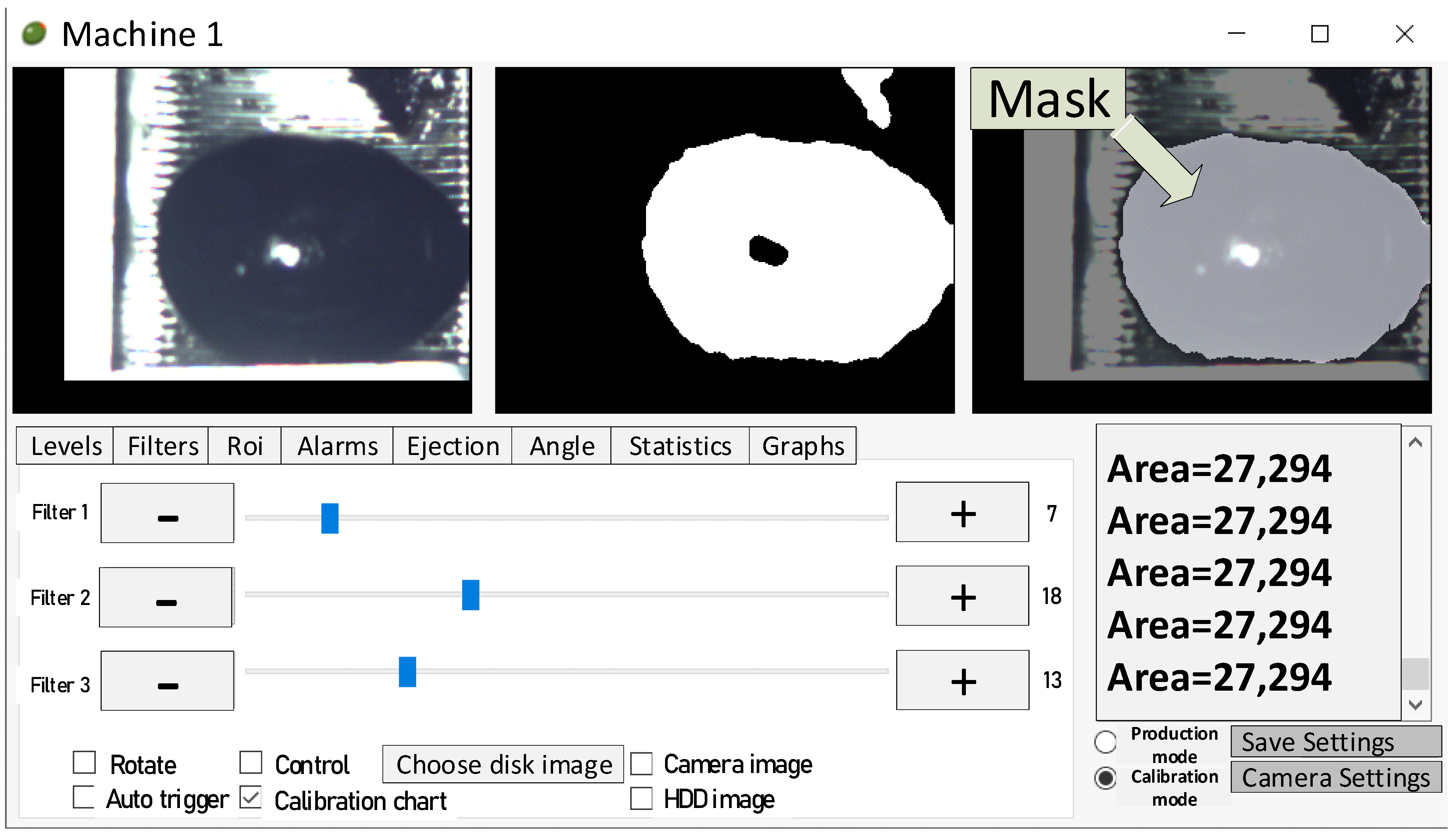

2.3.1. Application of Qt-Creator/OpenCV for Color Sampling of Californian Black Olives

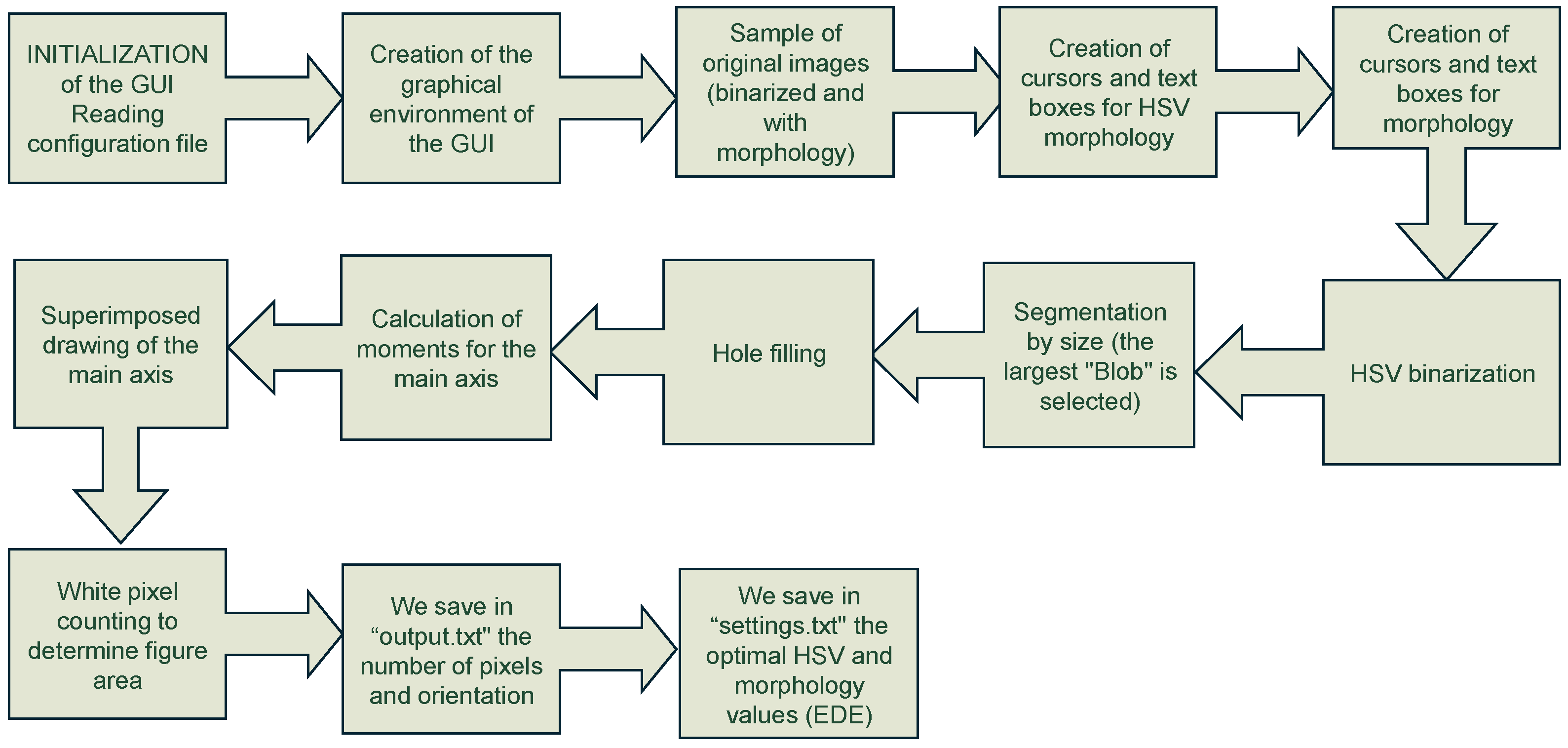

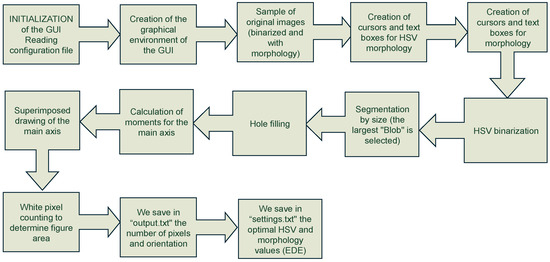

2.3.2. Self-Developed Software to Process Black Gordal Color Images
- Binarization.

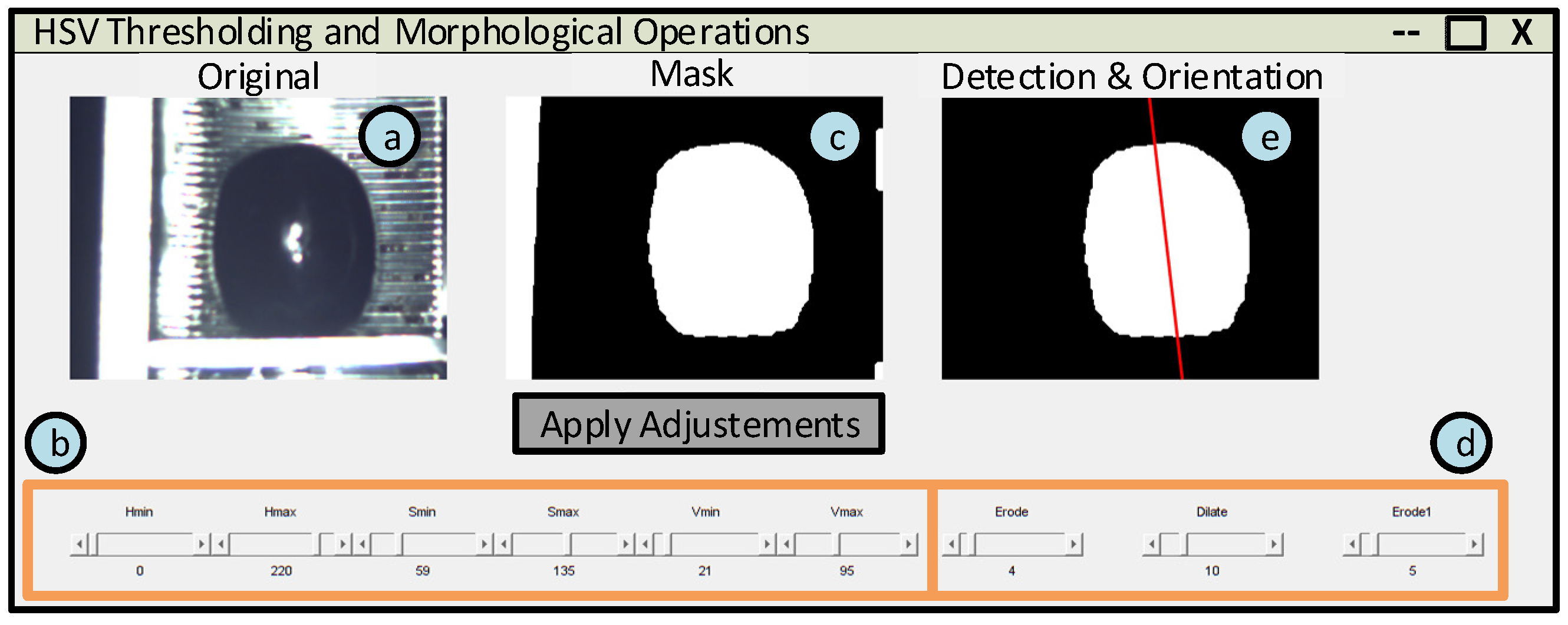

Algorithm 1: HSV segmentation and orientation extraction |
Input: RGB frame I; thresholds (Hmin…Vmax); radii (r1, r2, r3) Output: Clean mask Mclean, projected area A, major-axis angle θ |
1 IHSV ← convertRGBtoHSV(I) 2 M0 ← applyThreshold(IHSV) ▹ binary mask, see Equation (1) 3 M1 ← erode(M0, disk r1) ▹ Equation (2) 4 M2 ← dilate(M1, disk r2) ▹ Equation (2) 5 M3 ← erode(M2, disk r3) ▹ Equation (2) 6 Mask_clean← fillHoles( largestComponent(M3) ) 7 (μ20, μ02, μ11) ← centralMoments(Mclean) 8 (θ, A) ← orientationAndArea(μ20, μ02, μ11)▹ Equation (3) 9 return (Mclean, A, θ) |

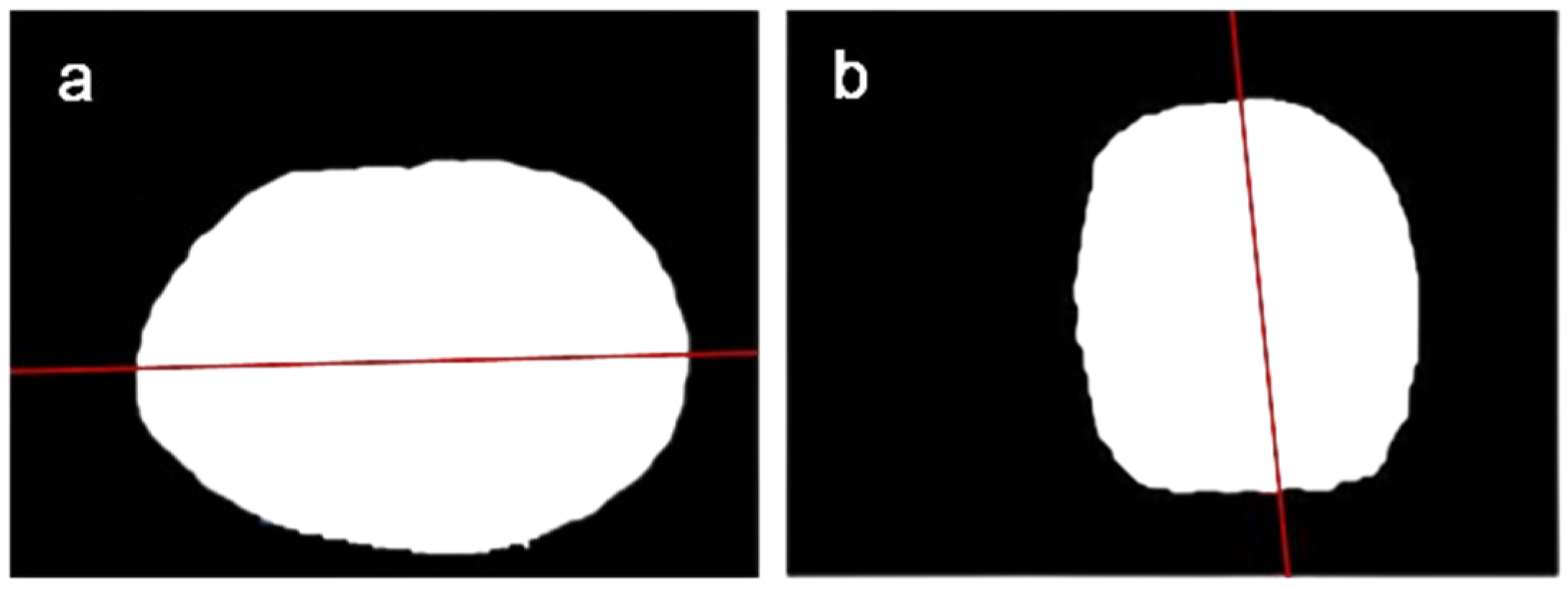

- Morphological analysis.
- Statistical analysis.

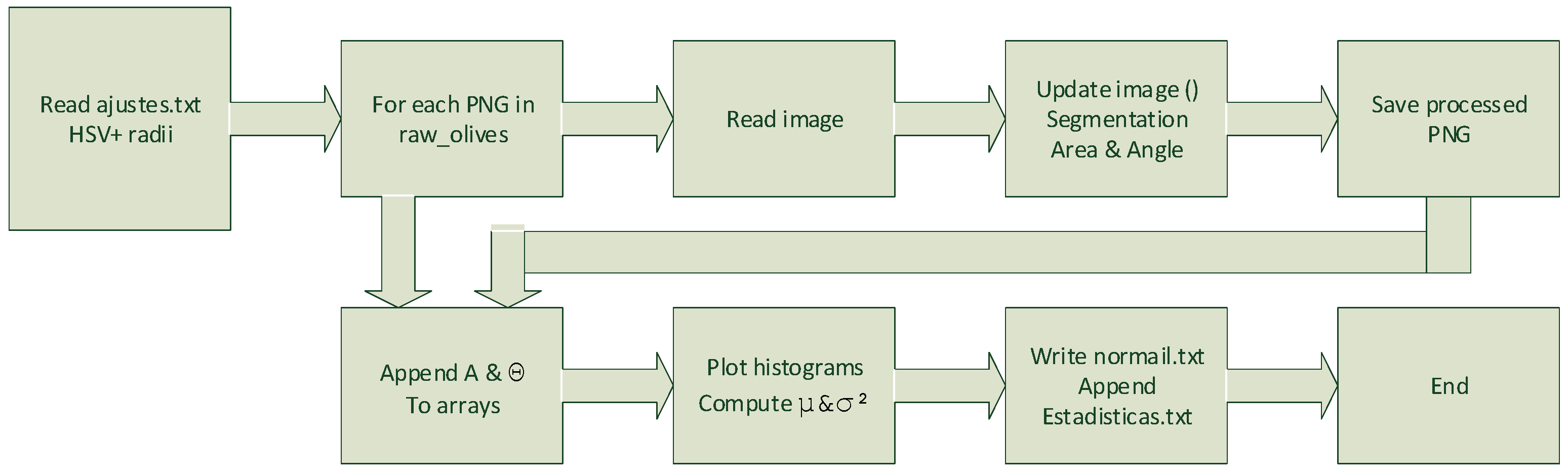

Algorithm 2: Batch processing and statistical analysis |
Input: settings.txt, folder non_processed_olives Output: Folder processed_olives, normal.txt, statistics.txt, histograms 1 Read HSV thresholds (Hmin…Vmax) and radii (r1, r2, r3) from settings.txt 2 for each PNG file I in non_processed_olives do 3 (Iproc, A, θ) ← updateImage(I, thresholds, radii) 4 Save Iproc into processed_olives 5 Append A to array Areas; θ to array Angles 6 Append <filename, A, θ> to statistics.txt 7 end for 8 μ ← mean(Areas) 9 σ2 ← variance(Areas) 10 Plot histogram of Areas (PDF) and overlay N(μ, σ2) 11 Plot histogram of Angles 12 Write “Mean: μ, Variance: σ2” into normal.txt |
2.3.3. Comparison with Existing CV Approaches

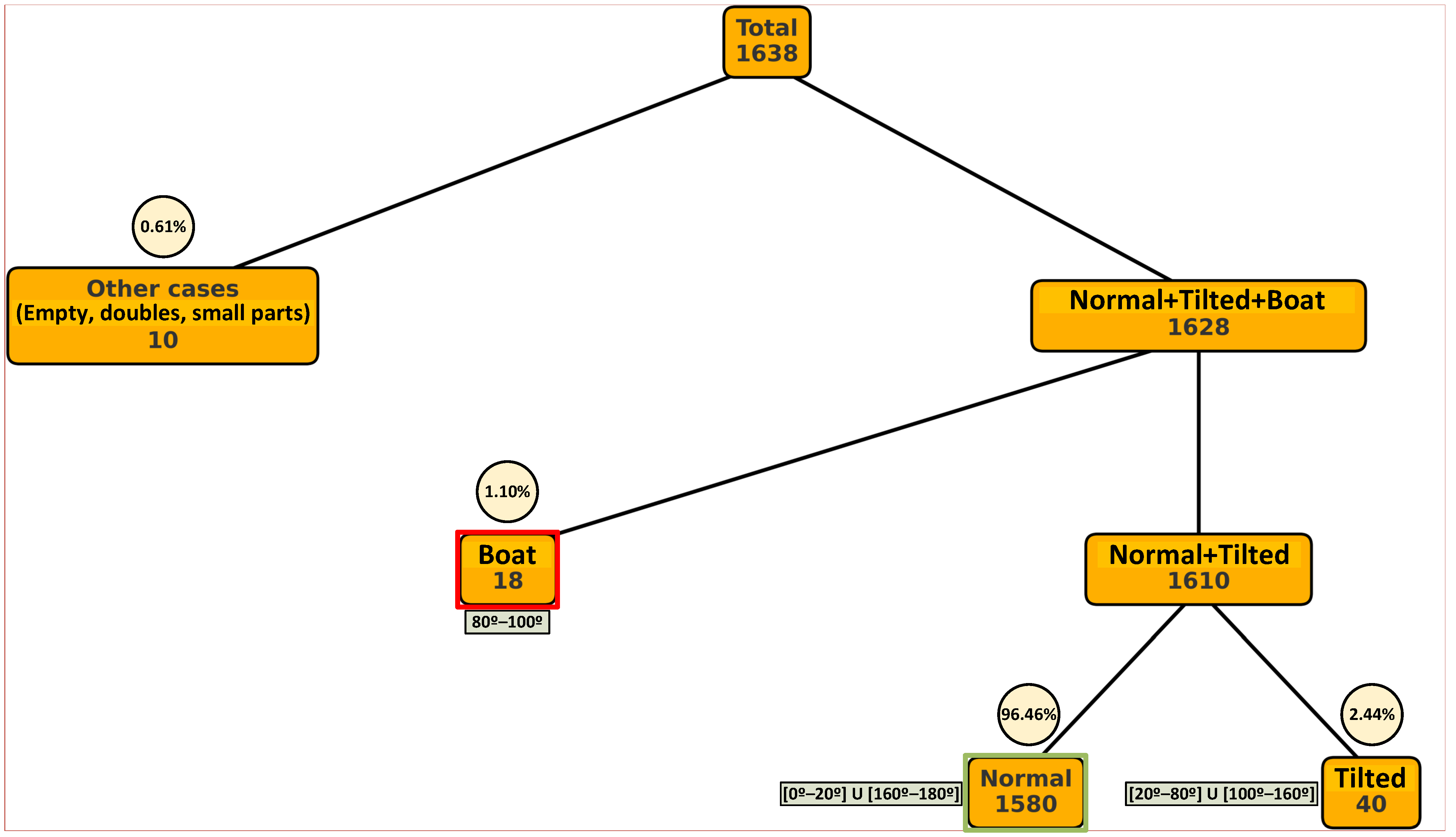

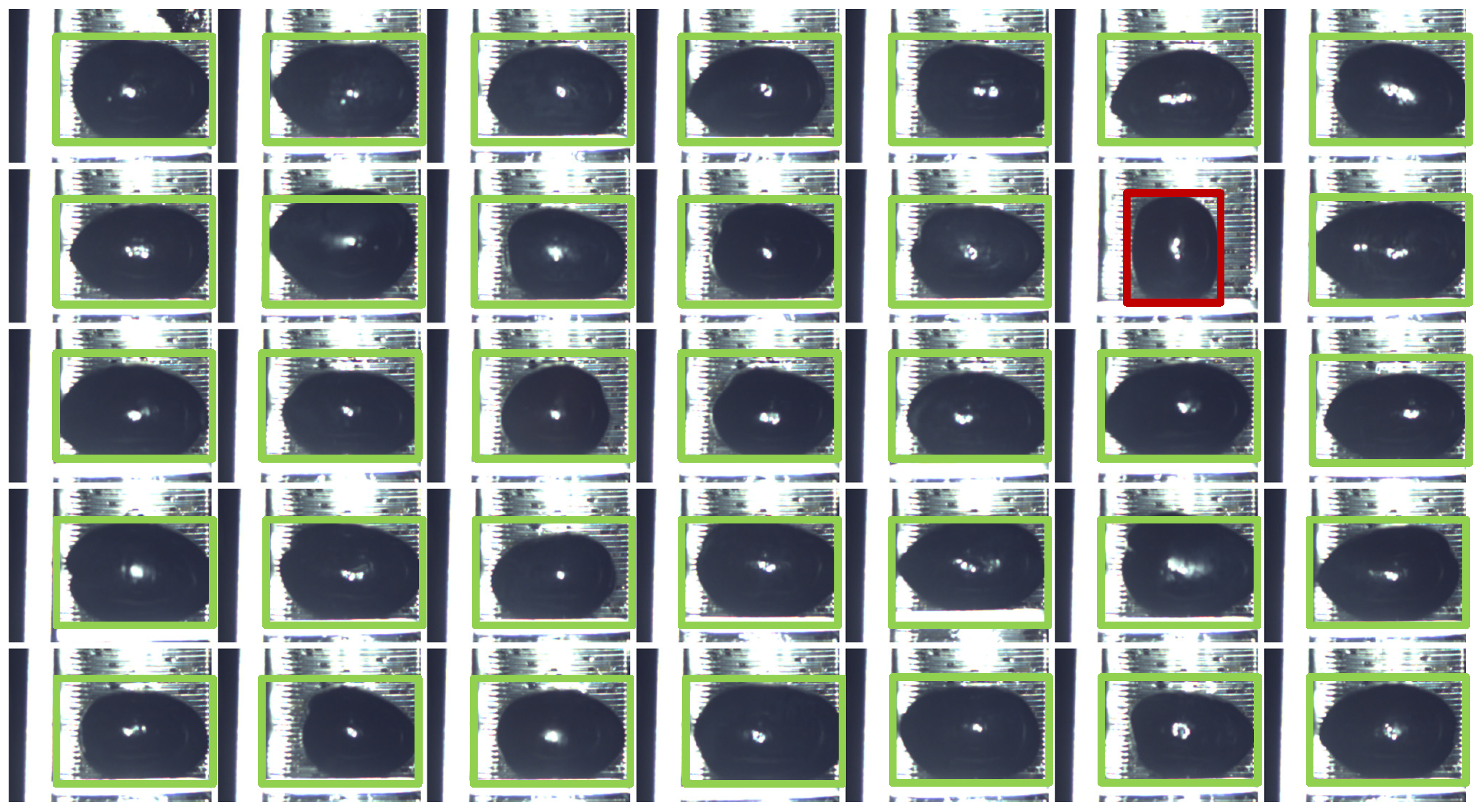

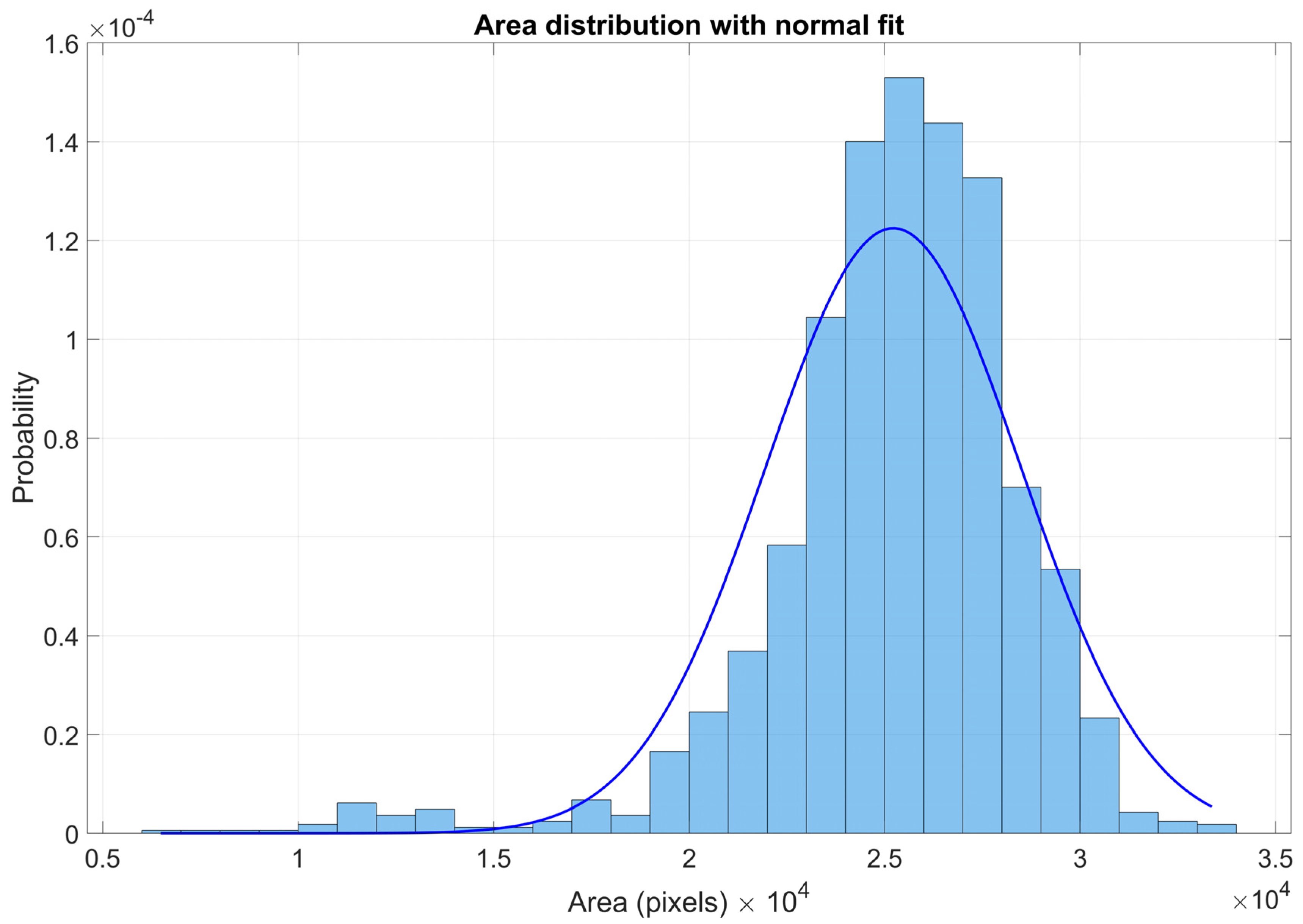

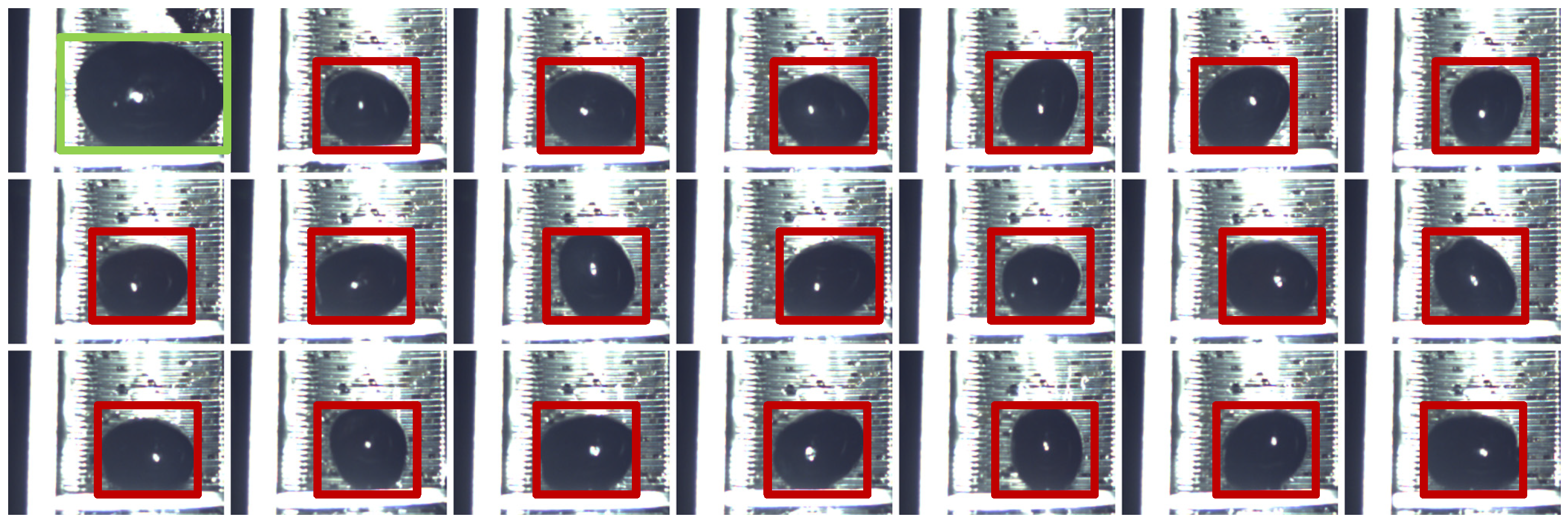

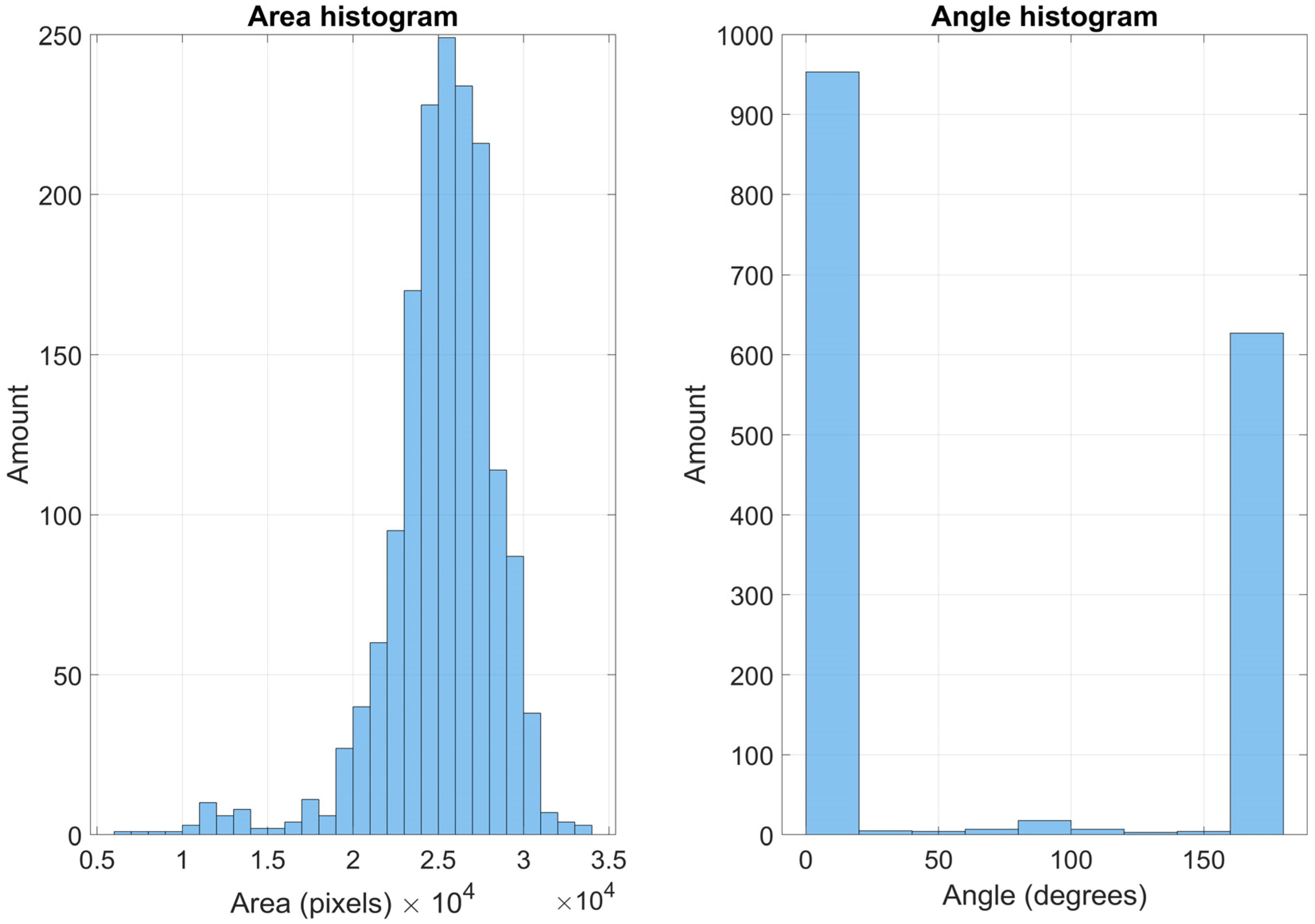

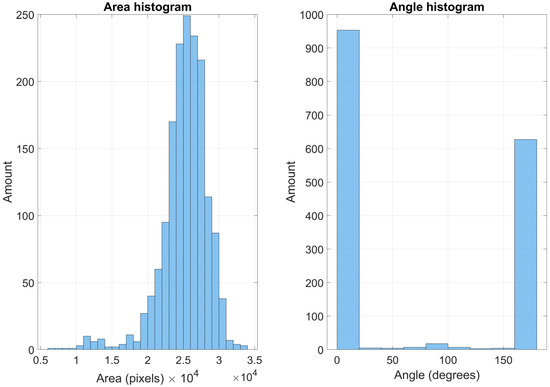

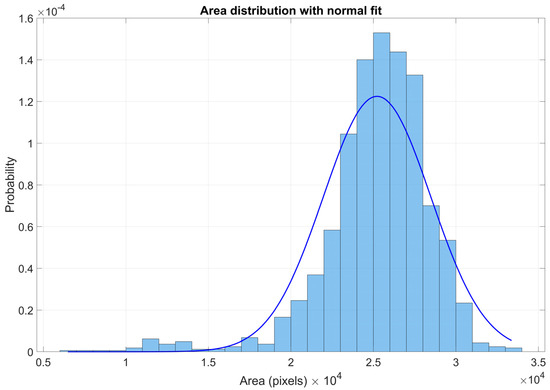

3. Results
4. Discussion
5. Conclusions
