Linearly Polarized γ Photon Generation from Unpolarized Electron Bunch Interacting with Laser

Abstract

Highly polarized high-energy $\gamma$ photons demonstrate potential application in the efficient detection of strong-field quantum electrodynamics effects. Currently, polarized $\gamma$-rays are mostly generated in conventional particle accelerators, which are typically huge and expensive. This study proposes a scheme for generating linearly polarized $\gamma$ photons from the interaction of a GeV-level unpolarized electron bunch with currently available laser pulses at moderate intensity. We investigate the scheme by considering the electron bunch of various initial energies and various laser intensities using two-dimensional particle-in-cell simulation and the theory of quantum electrodynamics. Results show that GeV-level linearly polarized $\gamma$ photons were generated from the interaction with a high polarization degree of $63\%$ and brightness of $1.8\times {10}^{21}\mathrm{photons}/(\mathrm{s}{\mathrm{mm}}^2{\mathrm{mrad}}^{2}0.1\%\mathrm{bandwidth}\left(\mathrm{BW}\right))$ at 1 GeV. Moreover, it is also shown that the photon generation rate was enhanced with higher laser intensity and electron bunch energy, whereas the polarization degree decreased with higher laser intensities. Our scheme can be realized experimentally at currently available laser wakefield electron acceleration facilities.

1. Introduction

Laser technology has significantly evolved in recent years, with intensities having reached $I\sim 1\times {10}^{23}{\mathrm{Wcm}}^{-2}$ [1]. Intensities are further expected to reach $I\sim 1\times {10}^{24}-{10}^{26}{\mathrm{Wcm}}^{-2}$ by the next-generation ultra-intense laser facilities [2], such as extreme light infrastructure [3], EP-OPAL, and SEL [4]. Future advancements in laser intensities may provide opportunities and platforms for nonlinear quantum electrodynamics (QED) physics [5,6,7,8], laser–plasma interaction physics [9,10], and other related domains such as high-energy-density physics and laboratory astrophysics [11,12,13]. Although the required strong field intensity for vacuum decay (termed the Schwinger limit $E_{\mathrm{cr}}\sim {10}^{16}\mathrm{V}/\mathrm{cm}$, where the corresponding laser intensity is $I_{\mathrm{cr}}\sim {10}^{29}\mathrm{W}/{\mathrm{cm}}^2$) is beyond the current and near-future capability of contemporary laser facilities [14], electron–positron pair production via laser collision using a high-energy electron beam was realized 27 years ago at SLAC [15,16], and several promising QED experiments are currently being conducted based on the current laser technology and GeV-level electron beam [17,18,19] plan to measure the transition of nonlinear Compton scattering (NCS) to the nonperturbative regime.

Polarization is an important intrinsic property of a $\gamma$ photon and has crucial applications in QED experiments and other widespread research fields. For instance, polarized $\gamma$-rays can excite the polarization-dependent photofission and photoproduction of muon [20,21]. Highly polarized high-energy photons are essential in generating polarized electron–positron pairs [22], probing radiation mechanisms, and the properties of dark matter and black holes [23,24]. Another important application is the detection of the vacuum birefringence effect using strong laser and polarized high-energy photon collision [4]. Understanding the process of the $\gamma$ photon polarization is essential in the high-precision detection of the high-field QED process and basis of the practical application of the polarization-dependent QED process.

Currently, polarized $\gamma$-rays are mostly generated in conventional particle accelerators, which are typically huge and expensive. In the bremsstrahlung process, polarized $\gamma$ photons produced by a pre-polarized seed electron and the spin polarization of the seed electron determine the photon polarization [25,26]. Moreover, a high-energy pre-polarized seed electron beam is mostly produced by the Sokolov–Terno effect in a conventional storage ring [27], which is huge and has a long electron polarization time and low polarization degree. In linear Compton scattering, an unpolarized seed electron can produce polarized $\gamma$ photons and the polarization of the photons is determined by an incident laser polarization [28]. However, for coherent bremsstrahlung, because of the threshold of crystal materials, the seed electron current density and the energy of the produced photons are limited [29]. The incoherent bremsstrahlung cannot generate linearly polarized photons, and the photon divergence angle and directivity are not very good [30]. In addition, polarized $\gamma$ photons in bremsstrahlung and linear Compton scattering are not applicable in most leading studies. For example, the detection of the vacuum birefringence requires highly polarized high-flux high-energy photons [31].

With the rapid advancement in laser technologies, the laser plasma-based scheme is one of the preferred alternatives for high-energy electron acceleration and high-energy photon generation. Therefore, considerable theoretical and numerical studies on new physical mechanisms for producing highly polarized high energy $\gamma$ photons have been conducted [30,32,33,34,35]. Among these schemes, the plasma-based all optical [17,34] and laser electron collision schemes [17,30,36] are the most fascinating for current laser intensities and upcoming laser electron QED experiments at high power laser platforms around the world [3,18,37,38,39,40]. When a high-energy electron (an electron bunch) collides with a high-intensity laser, the photons can be produced via the NCS process. For a high-intensity laser $a_0\gg 1$, where $a_0$ is the normalized laser intensity, the photon formation length is significantly smaller than the laser wavelength and the laser field can be approximated as a constant field for photon formation. The process can be addressed using the locally constant field approximation (LCFA) [41]. In the laser-based photon production schemes, the energy and polarization of the photon can be controlled by either incoming seed electron or incident laser parameters. Recently, several proposals have been put forward to detect vacuum birefringence using GeV-level highly polarized photons [31].

In this study, we investigated the generation of a linearly polarized $\gamma$ photon with GeV energy by an intense laser colliding with an unpolarized electron bunch. We simulated the photon emission process of the laser–electron collision using QED particle-in-cell (PIC) simulation, and the photon polarization process was calculated by applying the QED theory. We considered incoming electron bunches with various initial energies within the range of 1–10 GeV, which can be obtained in present day laser wakefield acceleration experiments [9,42]. The results indicated that the production rate and energy of the produced photons could be enhanced by increasing the laser intensity and electron initial energies. However, high laser intensity and initial beam energy could not yield a high photon polarization degree. In particular, the photon polarization degree reached its maximum (approximately $63\%$) with an energy exceeding 1 GeV in the case of a low laser intensity of $a_0=50$ with an initial electron beam energy of 5 GeV.

The rest of this paper is organized as follows: In Section 2, we present the simulation model, simulation parameters, and simulation results for the laser–electron bunch collision process. In Section 3, we first briefly review and present key equations for the photon polarization process and develop a QED calculation model of the photon polarization. Subsequently, the results of QED calculations for different electron energies and laser intensities are presented and their physical implications are discussed. Comparisons of the results obtained from PIC simulation and QED calculation are presented in the final subsection of Section 3. Finally, the main conclusions are presented in Section 4.

2. Simulation of the High Energy $\mathit{\gamma }$ Photon Production

2.1. Model and Simulation Parameters

The $\gamma$ photon production process of an electron colliding with a laser field is referred to as NCS ($n{\gamma }_{laser}+e^{-}\to \gamma +e^{-}$). We focused on the production of a linearly polarized $\gamma$ photon by an unpolarized electron bunch interacting with a linearly polarized laser pulse in the NCS process. Our physical model is shown in Figure 1a. The photon production process is tested by conducting a set of 2D-QED-PIC simulations using the code EPOCH [43]. The simulation size is set as $x\times y=(40\times 40)\mathrm{\mu }\mathrm{m}$, which corresponds to the grid cell number of $2000\times 800$. We considered a linearly polarized laser pulse with a Gaussian intensity profile $a=a_{0}exp[-{(y/y_0)}^2-{(t/\tau )}^2]$ entering the simulation region from the right boundary at $t=0$. For the test simulation, the laser intensity is $I_0=5\times {10}^{22}\mathrm{W}/{\mathrm{cm}}^2$, and the corresponding normalized field amplitude is $a_0=e{E}_0/m_{e}c{\omega }_0=192$, where e and $m_e$ are the electron charge and rest mass, respectively; c is the speed of light in a vacuum; and $E_0$ and ${\omega }_0$ are the laser electric field strength and laser frequency, respectively. The laser pulse duration, wavelength, and pulse spot size are $\tau =30$ fs, ${\lambda }_0=1\mathrm{\mu }\mathrm{m}$, and $y_0=6\mathrm{\mu }\mathrm{m}$, respectively, in all simulations. To verify the effects of laser intensity on photon energy and polarization degree, the laser intensity was varied in the simulation as $a_0=50,100,150,192,300,400,500,1000$.

The electron beam enters the simulation region from the left boundary at $t=0$. The electron density has a transversely Gaussian and longitudinally uniform distribution with a transverse size (FWHM) $r_0=3\mathrm{\mu }\mathrm{m}$, and the duration is ${\tau }_1=30$ fs (beam length of 9 $\mathrm{\mu }$m), which is represented by $1\times {10}^7$ of the total macroscopic particles and total charge of 1 pC. The energy spread of each electron beam is fixed to 0.06 in all calculations. The longitudinal and transverse initial temperatures of the electrons are set to 1 and 0.01 MeV, respectively. We set 100 macro electrons in each cell of the electron bunch. Periodic and simple-outflow boundary conditions are used in the transverse and longitudinal direction, respectively. To investigate the influence of the electron initial energy on the final photon production rate, energy, and polarization degree, the electron bunch energy changes from $1\mathrm{GeV}$ to $10\mathrm{GeV}$. Such a high energy compact electron bunch can be obtained via laser wakefield acceleration experiments [9,42].

In the EPOCH code, the emission of $\gamma$ photons via the NCS process is controlled using the key quantum nonlinear parameter ${\eta }_{\mathrm{e}}=\sqrt{-{\left(F_{\mu \nu }{p}^{\nu }\right)}^2}/\left(E_{\mathrm{s}}{m}_{\mathrm{e}}c\right)$. Here, $F_{\mu \nu }={\partial }_{\mu }{A}_{\nu }-{\partial }_{\nu }{A}_{\mu }$ is the electromagnetic field tensor, $p^{\nu }={\gamma }_{\mathrm{e}}{m}_{\mathrm{e}}c(1,\beta )$ is the four-momentum of electron, ${\gamma }_{\mathrm{e}}$ is the electron relativistic factor, and $E_{\mathrm{s}}=m_{\mathrm{e}}^2{c}^3/e\hslash =1.38\times {10}^{18}\mathrm{V}/\mathrm{m}$ is the Schwinger critical field strength, corresponding to the laser intensity of $I_{\mathrm{cr}}=1\times {10}^{29}\mathrm{W}/{\mathrm{cm}}^2$ far beyond the currently available laser intensity. The photon emission can be considerable and dominate the dynamics of the electron only if ${\eta }_{\mathrm{e}}\gtrsim 1$ [44,45]. Notably, for a high-energy electron bunch co-propagating with a laser pulse, the parameter ${\eta }_{\mathrm{e}}$ can be approximated as ${\eta }_{\mathrm{e}}\approx \left|E_{\perp }\right|/\left({\gamma }_{\mathrm{e}}{E}_{\mathrm{s}}\right)$, which requires the laser intensity to be extremely high to satisfy ${\eta }_{\mathrm{e}}\sim 1$. Here, $E_{\perp }$ is the perpendicular electric field that is experienced by the electron. However, for a high-energy electron head-on colliding with a laser pulse, the QED parameter ${\eta }_{\mathrm{e}}\approx 2{\gamma }_{\mathrm{e}}\left|E_{\perp }\right|/E_{\mathrm{s}}$ becomes comparable to a unit including the currently available lasers because of the boosted electric field. Therefore, the photon emission rate can efficiently be enhanced via the laser–electron colliding NCS process. We take in to account the radiation reaction in all simulations and calculations. In the Epoch code, we not implemented the electron spin polarization and photon polarization because of the complexity of the process. However, in Section 3, we introduced a simple and quick method to calculate the photon polarization by corporation of the PIC simulation and QED calculation. We theoretically calculate the photon polarization probability and polarization degree based on the data of the electron beam with acquired in the simulation [35].

2.2. Simulation Results

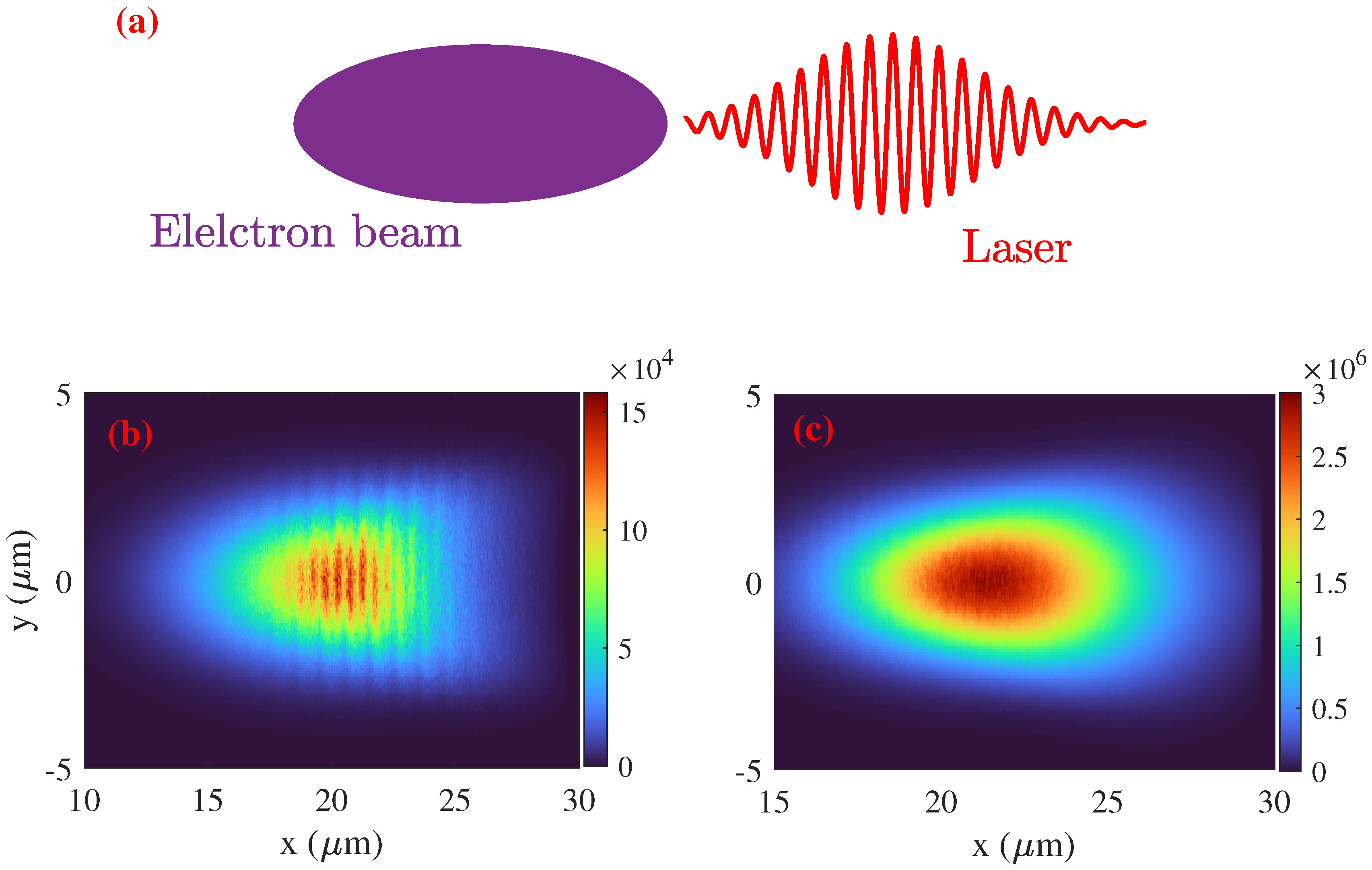

In this section, we first demonstrate the 2D-QED-PIC simulation results of the photon production via the NCS process, and the photon polarization is discussed in the next section. We begin with a simulation of a laser pulse with a normalized intensity of $a_0=192$ interacting with a 2 GeV electron bunch. Figure 1b,c show the distribution of the electron and produced $\gamma$ photon number density. During the interaction, the dynamics of the electrons are highly affected by the laser field. The laser field is equivalent to a natural undulator, and most of the electrons oscillate perpendicularly, as illustrated in Figure 1b. The electrons absorb laser energy, accelerated higher energy than its initial energy and emit high-energy photons via the NCS process. Because the electron dynamics determine the photon emission and photons are emitted on the electron trajectories, the photons have an identical density distribution with the seed electron bunch, as illustrated in Figure 1c. Numerous photons are produced at the central region because of the Gaussian distribution of the electron beam density and laser intensity, corresponding to high laser intensity and energetic electrons at the central region.

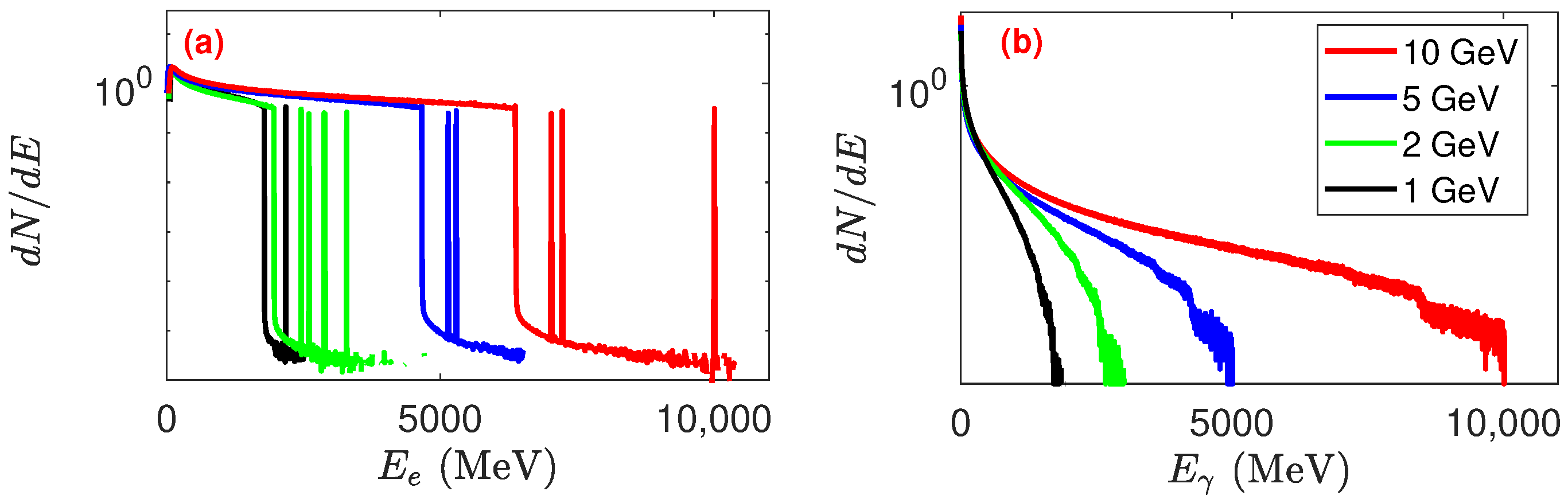

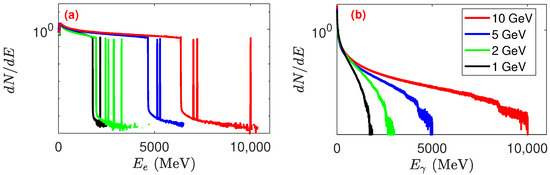

Figure 2 illustrates the energy spectrum of the electron spectrum after interaction and produced photons for different electron energies with a fixed laser intensity of $a_0=192$. As the initial energy of the electron increases, high-energy photons can be produced. The energy of the $\gamma$ beam is determined by that of the seed electron $E_{\mathrm{e}}={\gamma }_{\mathrm{e}}{m}_{\mathrm{e}}{c}^2$ and is, at most, radiated with an energy of $E_{\gamma }\approx 0.44{\eta }_e{E}_{\mathrm{e}}$ for ultra-relativistic electrons ${\gamma }_{\mathrm{e}}\gg 1$ [45]. Therefore, the $\gamma$ photons cutoff energies are approximately $E_{\gamma }\approx 1.7,2.8,5$, and $10$ GeV for initial electron energies of ${\epsilon }_e=1,2,5$, and 10 GeV, respectively, as shown in Figure 2. Notably, the $\gamma$ photon cutoff energies were comparable with the electron energies for electrons with initial energies of 5 and 10 GeV. However, the photon cutoff energies exceeded electron energies for electrons with initial energies of 1 and 2 GeV. This can be explained as follows: because the laser exists during the interaction, some electrons accelerated to higher energy by laser electric field after laser-electron interaction and effective electron cutoff energy higher than incoming electron energy, as shown in Figure 2a. For example, with the low initial energy of the electron bunch (indicating low electron momentum) in our simulation, the electrons could stay in the high field region for a long time (indicating a long interaction time), and accelerated to energies higher than the initial incoming energy as shown in Figure 2a. This accounts for the high energy of the generated photons. Therefore, emitted photon final energy lager than electron beam initial energy but not exceed the electron final cut of energy after acceleration, this result is consistent with previous results [46]. However, for electrons with high initial energies (5 and 10 GeV), the momenta were also high, and they rapidly penetrated the high field region and pass through the laser (referring to a short interaction time) with less chance for additional acceleration in the laser field. Thus, the photon cutoff energy was comparable with the initial energy of the electron.

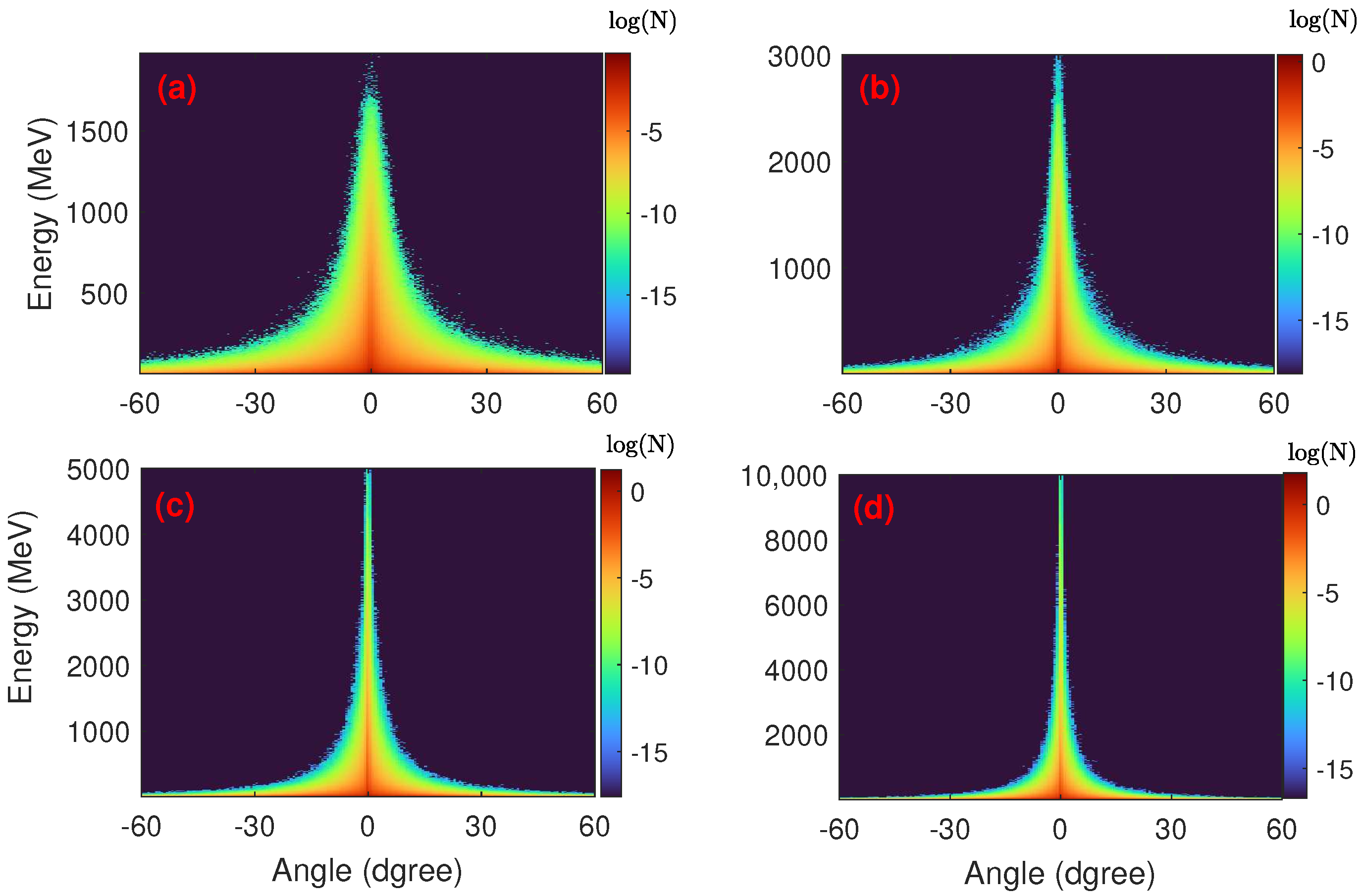

Figure 3 illustrates the energy angular distribution of the produced $\gamma$ photons for the different initial energies of the electron bunches. Here, with increasing electron bunch initial energy for a fixed laser intensity ($a_0=192$), the divergence angle of the photons decreases. As aforementioned, electrons with low energy could easily be maintained in the high field region for a long time but were scattered at large angles with higher than initial energy by the laser ponderomotive force. Therefore, the divergence angles of the photons increased for low electron energies. The photon divergence angles were approximately ${20}^{\circ }$ and ${15}^{\circ }$ for initial electron energies of 1 and 2 GeV, as shown in Figure 3a,b, respectively. However, for high-electron initial energies, the momentum of the electron was high and well-directed to the propagation direction. Parent electrons maintained their initial directions and had fewer chances to be scattered to other angles. Because the photons were mostly produced in the direction of electron motion, they had low divergence angles. For the 5 and 10 GeV electron initial energies, the divergence angle of the $\gamma$ photon is approximately $5^{\circ }$, as shown in Figure 3c,d.

Several practical applications of $\gamma$ photons require high energy and the high brightness of the photon source. We estimate the brightness of the high-energy photon source in our scheme. The angular divergence, total number, and source size of the photon beam are determined by the electron bunch. The $\gamma$ photon spectrum (see Figure 2) shows that for a photon beam with an energy of 1 GeV, the total number of photons (approximately $3\times {10}^6$) is approximately the same for different initial electron energies. Most of the photons are concentrated within a source size of approximately $x\times y=(5\times 2.7){}^{-}\mathrm{m}^2$ for all cases (see Figure 1). However, the divergence angle is different for different electron initial energies, as shown in Figure 3, accounting for the different photon beam brightness. The photon number in a $0.1\%$ bandwidth (BW) at 1 GeV is obtained by averaging the total number of photons. We predict the brightness of the 2 GeV electron initial energy to be approximately $1.1\times {10}^{20}\mathrm{photons}/(\mathrm{s}{\mathrm{mm}}^2{\mathrm{mrad}}^{2}0.1\%\mathrm{BW})$ at 1 GeV, which is more than two orders of magnitude brighter than recently suggested high energy polarized photon sources [30]. If we consider a high initial electron energy of 10 GeV, which is similar to that of the electron source of the FACET II [42], the brightness would be approximately one order higher as $1.8\times {10}^{21}\mathrm{photons}/(\mathrm{s}{\mathrm{mm}}^2{\mathrm{mrad}}^{2}0.1\%\mathrm{BW})$ at 1 GeV.

3. Photon Polarization

When a high-energy electron bunch scatters off a laser pulse of sufficient intensity, high-energy $\gamma$ photons are produced as demonstrated in the previous section. We focus on photon polarization theoretically. Polarization is an important feature of photons, and high-energy polarized photons show potential applications in many research fields. Correct and high-precision calculations of photon polarization using the QED theory are necessary in the theoretical investigations of upcoming QED experiments. In this section, we theoretically calculate the photon polarization probability and polarization degree.

3.1. Theory

When an unpolarized electron bunch collides with a linearly polarized laser pulse, the photon polarization is determined by the laser field. For the intense laser field in this study, as the radiation formation length is significantly smaller than the laser wavelength, the laser field can be considered constant during the photon formation interval. Therefore, we use an LCFA [41] and Nikishov–Ritus method for the QED calculations, photon production probability, and polarization degree. The detailed derivation of the basic formulas is given in Refs. [32,33], so we will briefly introduce the ideas and key points below. The probability of emitting a photon in the polarization state ${\epsilon }_j$ with a momentum k via the NCS process can be expressed as [32,33]

$$P_1=-{\displaystyle \frac{\alpha }{2}}\int d^{3}p{\rho }_e\left(\mathit{p}\right){\displaystyle \frac{1}{{\eta }_p}}{\int }_0^{1}ds\int d\varphi \left[\left(1+{\displaystyle \frac{s^2}{t}}+2{\displaystyle \frac{{\xi }_y^2}{{\left|\mathit{\xi }\right|}^2}}\right){\displaystyle \frac{1}{x}}{\mathrm{Ai}}^{\prime }\left(x\right)+{\mathrm{Ai}}_1\left(x\right)\right],$$

(1)

$$P_2=-{\displaystyle \frac{\alpha }{2}}\int d^{3}p{\rho }_e\left(\mathit{p}\right){\displaystyle \frac{1}{{\eta }_p}}{\int }_0^{1}ds\int d\varphi \left[\left(1+{\displaystyle \frac{s^2}{t}}+2{\displaystyle \frac{{\xi }_z^2}{{\left|\mathit{\xi }\right|}^2}}\right){\displaystyle \frac{1}{x}}{\mathrm{Ai}}^{\prime }\left(x\right)+{\mathrm{Ai}}_1\left(x\right)\right],$$

(2)

corresponding to the photon scattered by an unpolarized electron onto the polarization state ${\epsilon }_1$ and ${\epsilon }_2$:

$${\epsilon }_1^{\mu }={ϵ}_y^{\mu }-{\displaystyle \frac{\mathcal{\ell }·{ϵ}_y^{\mu }}{k·\mathcal{\ell }}}{k}^{\mu },{\epsilon }_2^{\mu }={ϵ}_z^{\mu }-{\displaystyle \frac{\mathcal{\ell }·{ϵ}_z^{\mu }}{k·\mathcal{\ell }}}{k}^{\mu },$$

(3)

where ${\mathcal{\ell }}^{\mu }$ is the photon momentum, $k^{\mu }={\omega }_0(1,-1,0,0)$ is the laser wave vector, ${ϵ}_y^{\mu }=(0,0,1,0)$, and ${ϵ}_z^{\mu }=(0,0,0,1)$. The Airy functions are defined as follows:

$$\begin{array}{cc}\hfill {\mathrm{Ai}}_1\left(x\right)& ={\int }_x^{\infty }dk\mathrm{Ai}\left(\mathrm{k}\right),\mathrm{Ai}\left(x\right)\hfill \\ \hfill & =1/\pi {\int }_x^{\infty }dkcos(kx+k^3/3),\hfill \end{array}$$

(4)

where ${\mathrm{Ai}}^{\prime }\left(x\right)$ is the derivative of the Airy function Ai(x).

For small-angle collision ${\mathcal{\ell }}^{\mu }\approx {\mathcal{\ell }}^0(1,1,0,0)$, ${\epsilon }_1^{\mu }$ (${\epsilon }_2^{\mu }$) indicates polarization in the y-direction (z-direction). The total yield is

$$\begin{array}{cc}\hfill P& =P_1+P_2\hfill \\ \hfill & =-\alpha \int d^{3}p{\rho }_e\left(\mathit{p}\right){\displaystyle \frac{1}{{\eta }_p}}{\int }_0^{1}ds\int d\varphi \left[{\displaystyle \frac{1+t^2}{t}}{\displaystyle \frac{1}{x}}{\mathrm{Ai}}^{\prime }\left(x\right)+{\mathrm{Ai}}_1\left(x\right)\right],\hfill \end{array}$$

(5)

where $\alpha$ is the fine-structure constant, ${\eta }_p={\displaystyle \frac{k·p}{m^2}}$, $s={\displaystyle \frac{k·\mathcal{\ell }}{k·p}}$ is the light-front momentum fraction of the scattered photon, $t=1-s$, $x={\left({\displaystyle \frac{s}{{\chi }_{p}t}}\right)}^{2/3}$, ${\chi }_p=\left|\xi \left(\varphi \right)\right|{\eta }_p$, and $\xi \left(\varphi \right)$ is the field intensity parameter ($\varphi$ is the laser pulse phase). ${\rho }_e\left(\mathit{p}\right)$ is the momentum distribution of the electron bunch and satisfies the normalization condition $\int d^{3}p{\rho }_e\left(\mathit{p}\right)=1$.

The polarization degree can be determined by the probability change ($\Delta P=P_1-P_2$) and total probability ($P=P_1+P_2$) of photon scattering to a linearly polarized state as

$${\mathrm{\Gamma }}_1={\displaystyle \frac{P_1-P_2}{P_1+P_2}}.$$

(6)

Notably, for the intense laser field in this study, as the radiation formation length is significantly smaller than the laser wavelength, the laser field can be considered constant during the photon formation interval. Therefore, we use an LCFA [41] for the QED calculations, photon production probability, and polarization degree.

The momentum distribution of an accelerated high-energy electron bunch can be expressed as

$${\rho }_e\left(\mathit{p}\right)=\delta (p_x-\sqrt{E_p^2/c^2-m^2{c}^2})\delta (p_y-0)\delta (p_z-0).$$

(7)

Herein, we consider a head-on collision between a high-energy electron bunch and an intense laser field, as illustrated in Figure 1a. For the high-energy electron $E_p\gg m_e{c}^2$ and $p_x\gg p_{y,z}$, we have $E_p^2\approx p_x^2{c}^2$. Therefore, the two-dimensional density distribution of the high-energy electron bunch in our PIC simulation can be approximated to a one-dimensional representation as

$$\int d{p}_x{\rho }_e\left(p_x\right)\approx \int d{E}_p{\rho }_e\left(E_p\right),$$

(8)

Because of the head-on collision, we have

$$\begin{array}{cc}\hfill & s={\displaystyle \frac{k·k_{ph}}{k·p}}\approx {\displaystyle \frac{E_{ph}}{E_p}}\to ds={\displaystyle \frac{d{E}_{ph}}{E_p}},\hfill \end{array}$$

(9)

$$\begin{array}{cc}\hfill & {\int }_0^{1}ds(····)={\int }_0^{E_p}{\displaystyle \frac{d{E}_{ph}}{E_p}}(···).\hfill \end{array}$$

(10)

The probability of generating photons for the differently polarized states can be expressed as

$$\begin{array}{ccc}\hfill P_1& =& -{\displaystyle \frac{\alpha }{2}}\int d{E}_p{\rho }_e\left(E_p\right){\displaystyle \frac{1}{{\eta }_p}}{\int }_0^{E_p}{\displaystyle \frac{d{E}_{ph}}{E_p}}\int d\varphi \left[\left(1+{\displaystyle \frac{s^2}{t}}+2\right){\displaystyle \frac{1}{x}}{\mathrm{Ai}}^{\prime }\left(x\right)+{\mathrm{Ai}}_1\left(x\right)\right]\hfill \\ & =& -{\displaystyle \frac{\alpha }{2}}{\int }_{0}d{E}_{ph}{\int }_{E_{ph}}^{+\infty }{\displaystyle \frac{d{E}_p}{E_p}}{\displaystyle \frac{{\rho }_e\left(E_p\right)}{{\eta }_p}}\int d\varphi \left[\left(1+{\displaystyle \frac{s^2}{t}}+2\right){\displaystyle \frac{1}{x}}{\mathrm{Ai}}^{\prime }\left(x\right)+{\mathrm{Ai}}_1\left(x\right)\right],\hfill \end{array}$$

(11)

$$\begin{array}{ccc}\hfill P_2& =& -{\displaystyle \frac{\alpha }{2}}\int d{E}_p{\rho }_e\left(E_p\right){\displaystyle \frac{1}{{\eta }_p}}{\int }_0^{E_p}{\displaystyle \frac{d{E}_{ph}}{E_p}}\int d\varphi \left[\left(1+{\displaystyle \frac{s^2}{t}}+0\right){\displaystyle \frac{1}{x}}{\mathrm{Ai}}^{\prime }\left(x\right)+{\mathrm{Ai}}_1\left(x\right)\right]\hfill \\ & =& -{\displaystyle \frac{\alpha }{2}}{\int }_{0}d{E}_{ph}{\int }_{E_{ph}}^{+\infty }{\displaystyle \frac{d{E}_p}{E_p}}{\displaystyle \frac{{\rho }_e\left(E_p\right)}{{\eta }_p}}\int d\varphi \left[\left(1+{\displaystyle \frac{s^2}{t}}+0\right){\displaystyle \frac{1}{x}}{\mathrm{Ai}}^{\prime }\left(x\right)+{\mathrm{Ai}}_1\left(x\right)\right].\hfill \end{array}$$

(12)

3.2. Calculation Results

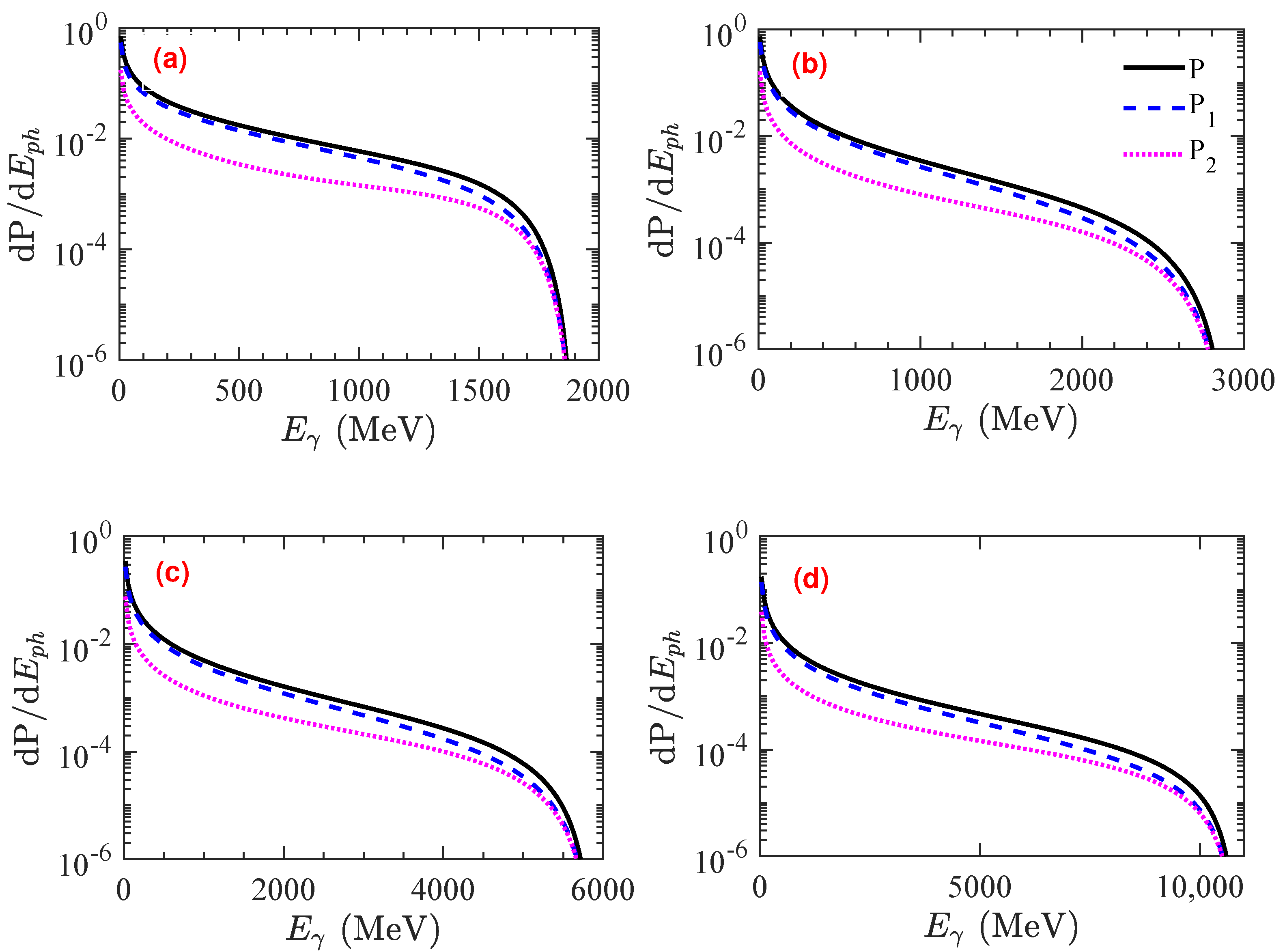

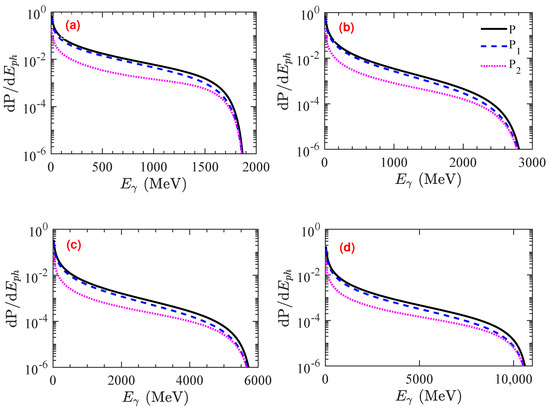

Figure 4 presents the energy distribution of the scattered $\gamma$ photons by the electron bunch with different initial energies while the laser pulse intensity is fixed to $a_0=192$. With an increase in the initial energy of the electron bunch, the electron Lorenz factor ${\gamma }_e=E_e/m{c}^2$ and QED parameter ${\eta }_{\mathrm{e}}\approx 2{\gamma }_{\mathrm{e}}\left|E_{\perp }\right|/E_{\mathrm{s}}$ increase. The production rate of the photon is proportional to the parameter ${\eta }_{\mathrm{e}}$, and thus the energy of the photon is given as $E_{\gamma }={\eta }_e{E}_e/2$. Therefore, the production rate and energy of photon increases with the initial electron energy, as shown in Figure 4. However, Figure 4 shows that most of the photons are linearly polarized in the y-direction ($P_1>P_2$) for different electron initial energies because the photon polarization mainly transfers from background field polarization for an unpolarized initial electron. In this study, the linearly polarized laser pulse is in the y direction and, therefore, the linearly polarized photons are parallel to the laser field.

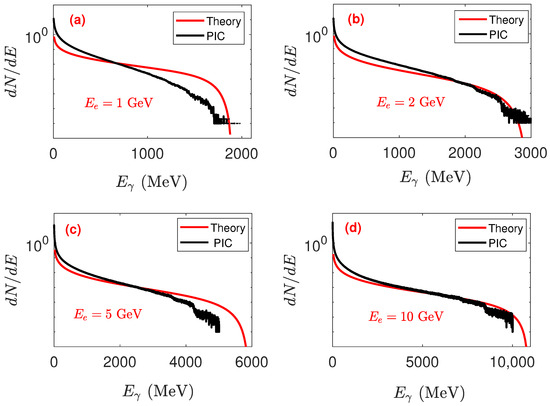

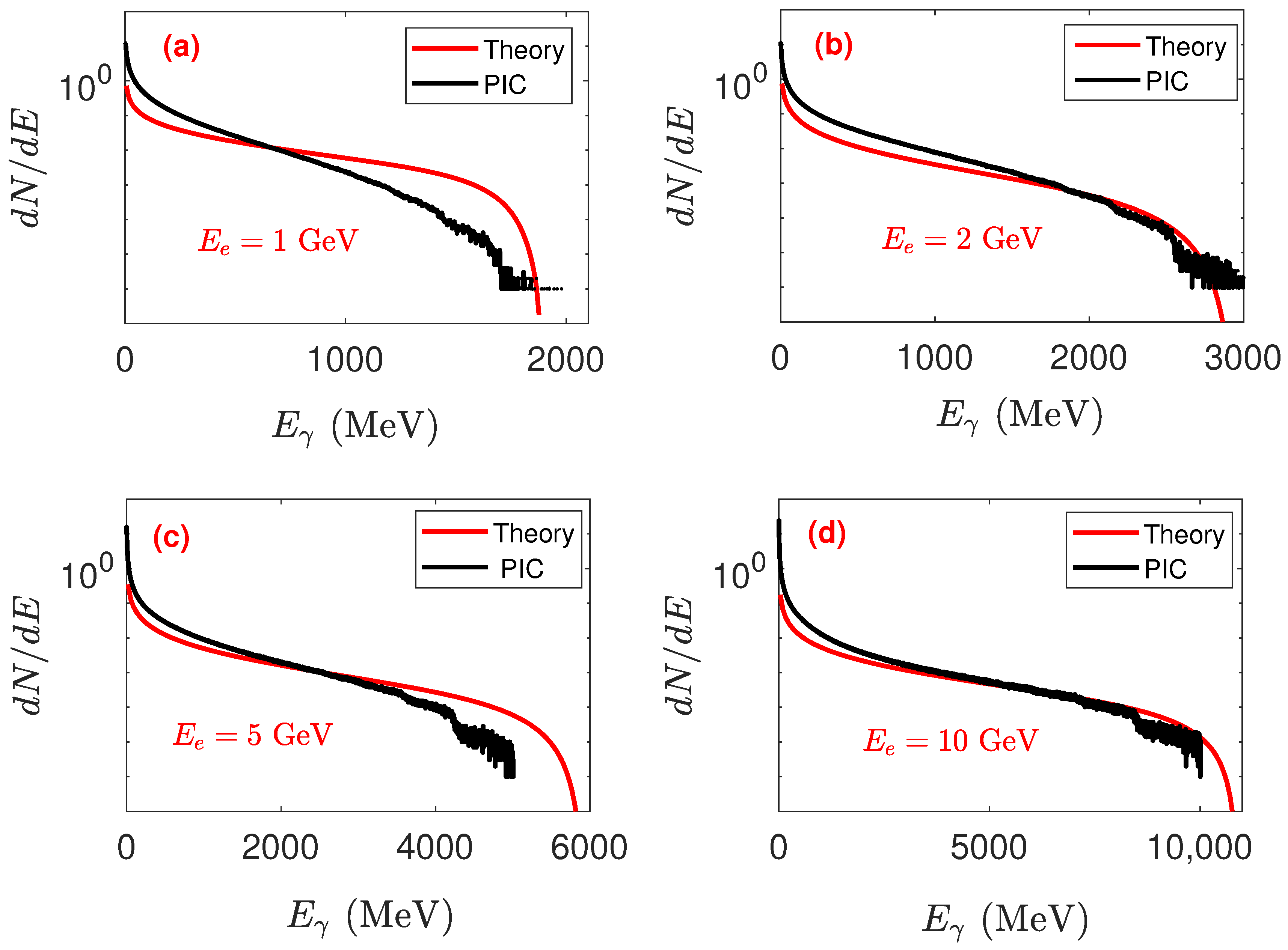

To validate the feasibility of our scheme, we compared the energy spectrum of the $\gamma$ photons from the PIC simulations and spectrum from QED calculations shown in Figure 5 for different electron initial energies and fixed laser intensity. The results show that the energy spectra of the PIC simulation and QED calculation are consistent for low electron energies (for initial electron energies 1 and 2 GeV), whereas for high electron energies, a slight difference is observed at the tail of the photon spectrum, as illustrated in Figure 5. This indicates that our scheme and the theoretical calculation are consistent.

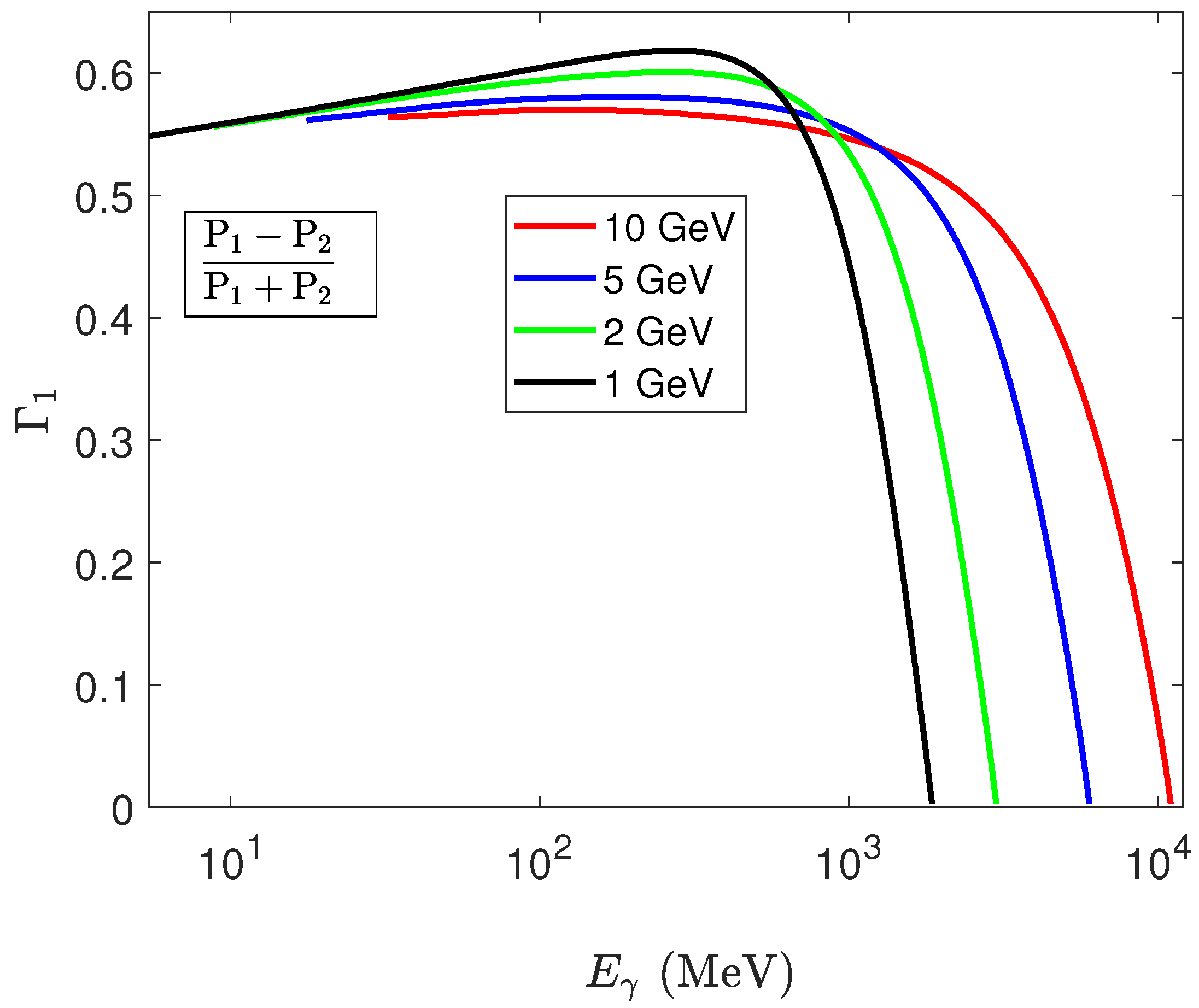

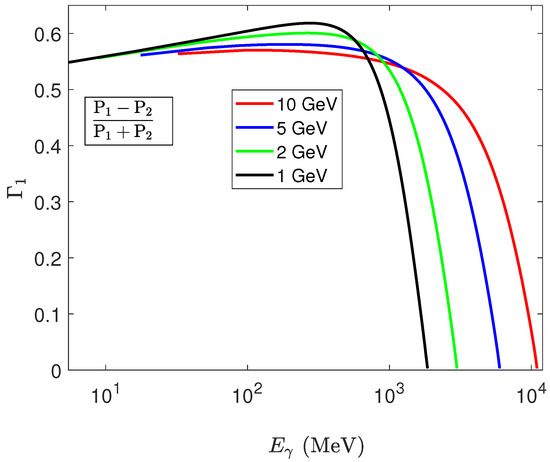

To discuss the photon polarization degree, first, we consider different initial electron energies and fixed laser intensity, as shown in Figure 6. Here, for electron bunches with low initial energies (1 and 2 GeV), the polarization degree of the photon increases as the photon energy increases and reaches its maximum at approximately $63\%$ and $60\%$, respectively, at a photon energy of approximately 700 MeV. However, for high electron bunch initial energies (5 and 10 GeV), the peak photon polarization degree is only approximately $55\%$ at the same energy level (700 MeV) with the low initial energy cases. For photon energy exceeding 700 MeV, the photon polarization degree significantly decreases with a further increase in photon energy. This indicates that highly polarized photons are produced only at low photon energy regions, and high-electron initial energies only maintain the polarization unchanged in a broader photon energy range but do not increase the polarization. Notably, in our unpolarized initial electron bunch case, the photon polarization is transferred from the linearly polarized background field. Here, the polarization degree of the background field decreases with an increase in the energy absorbed by the scattered photon from the incident electron. The higher the photon energy, the lower the field polarization degree and polarization transfer efficiency to the photon. This results in a significant decrease in the photon polarization degree at high energy levels. For the initial electron energies of 5 and 10 GeV, the laser–electron interaction times may be shorter than those of the low electron initial energy cases. This results in the low photon polarization degree for the high initial electron energies, as illustrated in Figure 6.

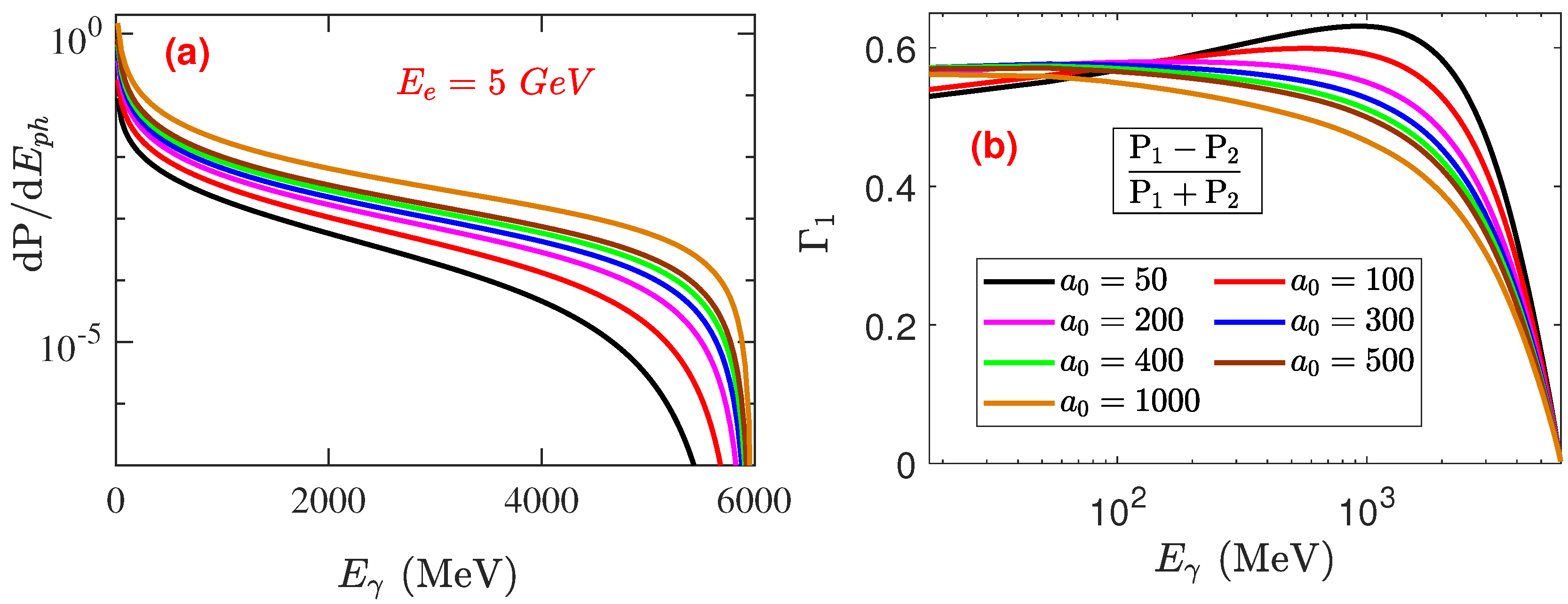

Finally, we discuss the effect of the laser field intensity on the photon spectrum and photon polarization degree. In this case, we fixed the initial electron energy to 5 GeV, and the normalized laser intensity $a_0$ changes from 50 to 1000. The QED parameter ${\eta }_{\mathrm{e}}\approx 2{\gamma }_{\mathrm{e}}\left|E_{\perp }\right|/E_{\mathrm{s}}$ and produced photon energy $E_{\gamma }\approx 0.44{\eta }_e{E}_{\mathrm{e}}$ increase with increasing laser intensity. Similarly, the photon production rate and cutoff energy increase with increasing laser intensity, as shown in Figure 7a. However, the photon polarization degree decreases with increasing laser intensity, as shown in Figure 7b. For the high electron energy (5 GeV) and high laser intensity ($a_0=1000$) case, the electron Lorentz factor ${\gamma }_e$ and QED parameter ${\eta }_e$ are efficiently enhanced and the NCS process is triggered with high efficiency. However, at an extremely high laser intensity, the ponderomotive force $F_{\mathrm{p}}\sim -m_{\mathrm{e}}{c}^2\nabla a_0^2$ acting on an electron is extremely high, thereby scattering high-speed electrons. This results in a short interaction time and low polarization conversion rate. Therefore, the photon polarization degree is only approximately $45\%$ for the extremely high laser intensity of $a_0=1000$, as shown in Figure 7b. For the low laser intensity ($a_0=50$), the ponderomotive force acting on an electron is lower than that acting in the high-intensity laser case. High-energy electrons can penetrate the high field region and stay for a long time in this region (indicating a long interaction time). This may result in a high polarization conversion rate. Thus, 1 GeV level linearly polarized photons with a high polarization degree of $63\%$ are produced in the low laser intensity configuration, as shown in Figure 7b.

Notably, in the theoretical calculation of the photon polarization in Section 3, we considered the photon energy distribution only from single Compton scattering. However, in a simulation, an electron can experience multiple Compton scattering, which would change the energy of the acquired electron bunch, causing the theoretical results slightly different from our simulation result shown in Figure 5.

4. Conclusions

This study proposed a scheme that can produce linearly polarized $\gamma$ photons in an unpolarized electron bunch interacting with a linearly polarized laser pulse. The normal and polarization properties of the emitted $\gamma$ photons were investigated using 2D-QED-PIC simulation and a theoretical model. The simulation results indicated that the properties of the $\gamma$ photons could be varied by changing either the laser intensity or electron bunch initial energy. The cutoff energy, brightness, and polarization degree of the $\gamma$ photons were enhanced by properly choosing the laser intensity and electron bunch initial energy. Highly collimated (a divergence angle of $5^{\circ }$) $\gamma$ rays were emitted with a brightness of $1.8\times {10}^{21}\mathrm{photons}/(\mathrm{s}{\mathrm{mm}}^2{\mathrm{mrad}}^{2}0.1\%\mathrm{BW})$ at 1 GeV. Further, the $\gamma$ photons had high probabilities of being emitted into a polarization state parallel to the polarization of the background field and possessed a positive polarization degree, which attained its maximum ∼63% at a photon energy of approximately 1 GeV. Moreover, results showed that the low-intensity laser and high-energy electron bunch could generate highly polarized $\gamma$ photons with high energies, and the extremely intense laser could not achieve this effect. Our findings point to potential application in theoretical studies on upcoming QED experiments. The well-collimated, high-energy, ultrabright, and linearly polarized photon beam obtained using our scheme may be suitable for the generation of energetic polarized positrons and laboratory astrophysics research.
