GNSS and LiDAR Integrated Navigation Method in Orchards with Intermittent GNSS Dropout

Abstract

Considering the vulnerability of satellite positioning signals to obstruction and interference in orchard environments, this paper investigates a navigation and positioning method based on real-time kinematic global navigation satellite system (RTK-GNSS), inertial navigation system (INS), and light detection and ranging (LiDAR). This method aims to enhance the research and application of autonomous operational equipment in orchards. Firstly, we design and integrate robot vehicles; secondly, we unify the positioning information of GNSS/INS and laser odometer through coordinate system transformation; next, we propose a dynamic switching strategy, whereby the system switches to LiDAR positioning when the GNSS signal is unavailable; and finally, we combine the kinematic model of the robot vehicles with PID and propose a path-tracking control system. The results of the orchard navigation experiment indicate that the maximum lateral deviation of the robotic vehicle during the path-tracking process was 0.35 m, with an average lateral error of 0.1 m. The positioning experiment under satellite signal obstruction shows that compared to the GNSS/INS integrated with adaptive Kalman filtering, the navigation system proposed in this article reduced the average positioning error by 1.6 m.

1. Introduction

At present, China is the world’s largest producer and consumer of forest fruit [1], with the State Bureau of Statistics reporting that in 2021, orchards occupied approximately 12,962 thousand hectares, marking a 2.5% increase, and the annual fruit production in China was 296.11 million tons. However, compared with farmland production, the mechanization rate in orchards is low, and complex tasks such as picking, transportation, weeding, and pruning are common. The issue of seasonal employment makes it difficult to hire expensive workers, and the rising labor cost has become an important factor restricting the improvement of the forest and fruit industry. Therefore, it is vital to enhance the mechanization level of orchard industry and improve the efficiency of orchard operations [2,3,4]. In view of the unique advantages of intelligent operating equipment in complex agricultural production, autonomous navigation technology in orchards has become more and more widely used in recent years, and the orchard autonomous navigation technology has become an indispensable core technology in the intelligent operation equipment. The autonomous navigation technology of operational equipment involves its own precise positioning, path planning, path-tracking control, and other functions, which is an important prerequisite for realizing intelligent and efficient operation of orchard machinery.

The real-time kinematic global satellite navigation system (RTK-GNSS) is currently one of the most widely utilized navigation technologies. It achieves centimeter-level accuracy in satellite positioning by processing carrier phase measurements as a ranging source in open outdoor environments [5]. It provides real-time, absolute positioning with broad coverage, all-weather capabilities, and high precision [6,7,8]. However, the tree canopy and bird-proof nets block the satellite signals [5], making it difficult to ensure continuous high-precision autonomous movement. Therefore, it is necessary to integrate information from other sensors to overcome this drawback.

Recently, some robot navigation frameworks have been proposed based on combinations of different types of sensor information, including GNSS-INS [9,10], GNSS-Visual [11,12,13], and GNSS-LiDAR [14,15,16]. Among them, inertial navigation is widely used in the case of transient loss of satellite signals due to its advantages of isolation from the environment and high operational accuracy in a short period of time. Huang et al. [17] designed an integrated navigation system based on real-time dynamic kinematics BeiDou satellite navigation system (RTK-BDS) and INS and conducted navigation experiments using an agricultural machine to keep the position error within 3 cm on an open road. Sun et al. [18] fused the GNSS with Kalman-filter-processed inertial measurement unit (IMU) information for position estimation between GNSS position updates to improve the positioning accuracy. Chuang et al. [19] greatly improve the accuracy and robustness of high-precision localization in forests by utilizing GNSS/INS to obtain high-precision attitude and velocity information via fusion of the two sensors. Due to the accuracy limitation of inertial devices, INS has a drift error accumulated over time [20]. This drift makes INS unsuitable for orchard environments where satellite signals are blocked for extended periods, and the terrain is uneven and overgrown with weeds.

The positioning of a visual sensor is obtained by transforming the pixel position, pixel–camera distance, camera coordinate system, and robot coordinate system. Ball et al. [21] used a GNSS/INS-based navigation system and machine-vision-based obstacle monitoring to achieve normal operation and the obstacle avoidance function of the robot without a GNSS signal for five minutes. Zuo et al. [22] proposed a GNSS navigation method enhanced by vision, which uses a Kalman filter to integrate binocular vision with GNSS-provided positioning. This approach effectively reduces navigation errors when GNSS signals are disrupted by significant noise. Chu et al. [23] developed an integrated system comprising a camera, IMU, and GNSS, utilizing the extended Kalman filter (EKF). This integrated approach delivers precise position estimation and potentially surpasses the performance of tightly coupled GNSS/IMU systems, especially in challenging environments with limited GNSS observations. In the natural outdoor environment, visual sensors are susceptible to the influence of light. In addition, due to the large amount of image information captured by the visual sensors, a large amount of computing power is consumed [15].

The information gathered by light detection and ranging (LiDAR) is extensive. Its accuracy and robustness are contingent upon the feature information extracted through position analysis algorithms and intelligent point cloud matching algorithms. Shamsudin et al. [24] derived a weight function through the fusion of GPS and LIDAR-SLAM to ensure their respective advantages and realize the consistent construction of the map of the fire robot. Jiang et al. [25] propose a LiDAR-assisted GNSS/INS integrated navigation system to ensure continuous positioning in GNSS-available and GNSS-blocked scenarios for seamless train positioning. Elamin et al. [26] integrated GNSS and LiDAR into an unmanned aerial vehicle (UAV) mapping system to overcome the problem of massive and prolonged GNSS signal interruptions caused by GNSS antenna failures during data collection. For laser navigation techniques, LiDAR positioning adopts an idea similar to inertial navigation odometer, which also accumulates errors.

Although laser odometers have smaller accumulated errors than INS in orchard environments, long-term operation can still cause positioning information to shift. This issue is particularly pronounced during row changes. Therefore, this paper uses accurate GNSS positioning information in differential mode to correct the accumulated errors of the laser odometer.

In summary, this paper investigates a GNSS/INS/LiDAR navigation method for complex orchard environments characterized by dense canopies, changing light conditions, uneven terrain, and weeds. In the following sections, Section 2 describes the hardware and software design and construction of the orchard robot vehicle, the autonomous positioning methods based on multi-sensor fusion, and the design of the navigation control system. In Section 3, the experimental study verifies the effectiveness of the proposed navigation system. Finally, in Section 4 and Section 5, discussion and conclusions are presented to summarize the whole paper.

2. Materials and Methods

2.1. Orchard Robotic Vehicle Design

2.1.1. Hardware Integration of the Orchard Robotic Vehicle

Utilized in complex orchards, our robot features a tracked chassis, an industrial computer, GNSS antennas (T1 Receiver), a receiver (FRII-D-Plus-INS), servo motors, a motor driver (KYDBL4875-2E), LiDAR (RS-LiDAR-16), and a wireless radio (HX-DU1601D). The chassis has a 0.32 m track gauge and a 1.2 m track length. The T1 receiver, enabling RTCM3.3 and centimeter-level RTK positioning, provides full RTCM differential data. Equipped with a high-performance MEMS inertial device, the FRII-D-Plus-INS receiver supports differential positioning with under 1.5 cm accuracy. The HX-DU1601D boasts a robust design and supports features such as full-duplex communication, channel viewing, and power adjustment. It enables users to set frequencies between 410 and 470 MHZ, fitting for varied outdoor scenarios. The RS-LiDAR-16, employing hybrid solid-state LiDAR technology, includes 16 laser transceivers. It offers a maximum range of 150 m, precision within ±2 cm, a capacity of 300,000 points per second, 360° horizontal angles, and −15° to 15° vertical angles. The RS-LiDAR-16 projects high-frequency lasers through 16 rotating emitters to scan the environment continually, yielding 3D point cloud data and reflectivity via its ranging algorithms. The overall hardware assembly composition of the robotic vehicle is shown in Figure 1.

2.1.2. Navigation System Design of the Orchard Robotic Vehicle

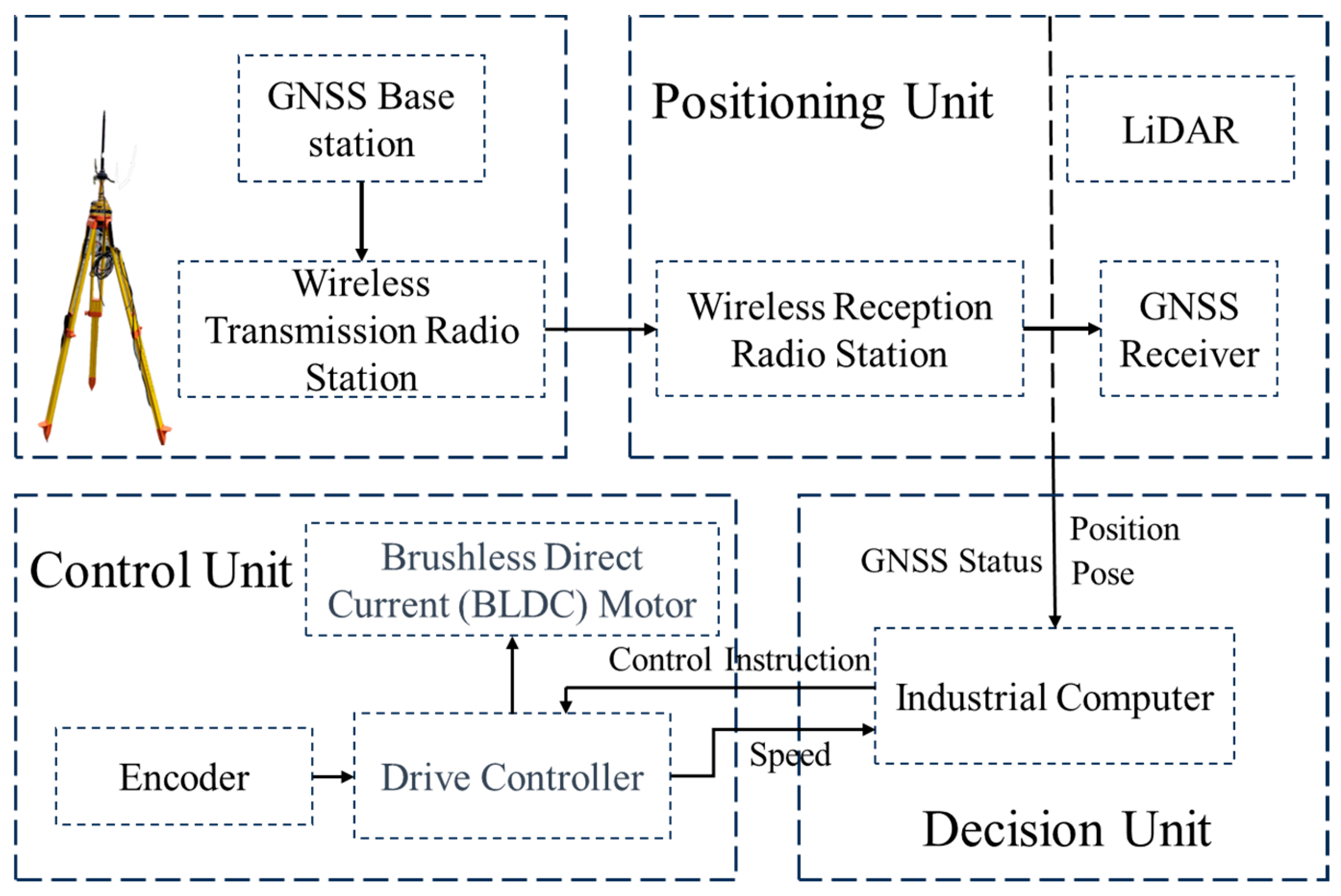

The framework of the automatic orchard navigation system is shown in Figure 2, which mainly focuses on the positioning unit, decision unit, and control unit. The localization unit consists of RTK-GNSS, LiDAR, and the inertial measurement unit, and provides the central control unit of the robot with localization information and RTK-GNSS signal status information. RTK-GNSS includes a wireless transmission radio, GNSS receiver, GNSS antenna, and GNSS base station. The decision unit is connected to each module through the serial port to process the positioning information. Firstly, based on RTK-GNSS status information, the system selects the appropriate navigation positioning mode. Next, it calculates the navigation path and determines the speeds of the left and right wheels using the PID control algorithm. Finally, the system issues control commands to the motion control module.

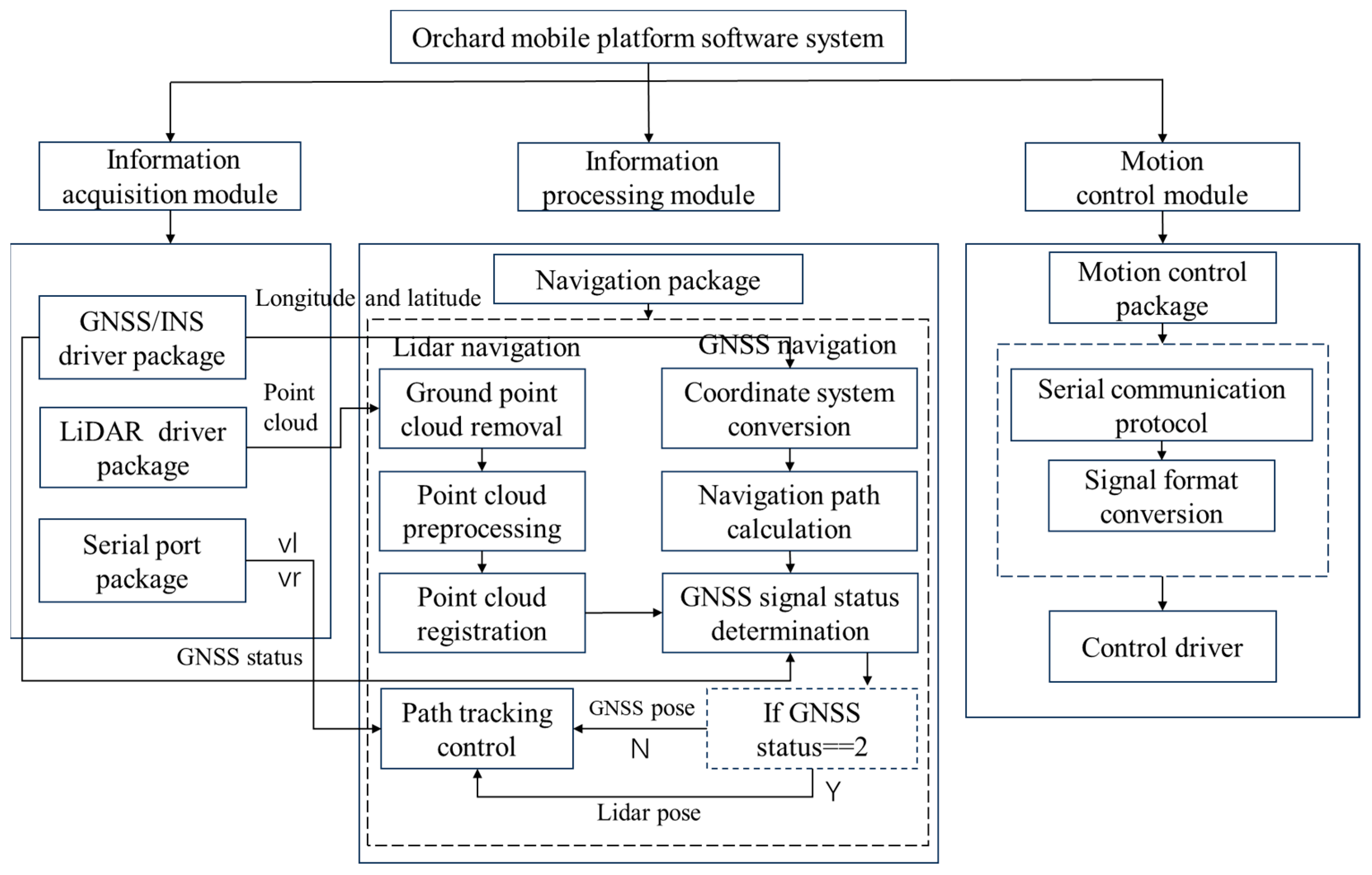

The system software of the orchard mobile platform runs on the Linux operating system, using ROS as the software integration platform for the autonomous positioning and navigation system. The robot vehicle acquires and publishes the satellite-based self-positioning information and positioning status, as well as the LiDAR-based self-positioning information and positioning status, through the ROS-driven sensors. The information processing module subscribes to the sensor information through ROS and analyzes and processes the data. When the GNSS status, which indicates satellite positioning status information, is at 2, meaning the GNSS differential signal is good, the system navigates using GNSS positioning information. If the status is not 2, it switches to using laser odometer positioning information for navigation and positioning. After the information is processed and calculated, the system sends the robot’s motion control signals to the motion control module. Upon receiving the command, the drive controller activates the left and right brushless DC motors, causing the main control wheel to rotate and thereby controlling the movement of the robot vehicle. The overall architecture of the software system is depicted in Figure 3.

2.2. GNSS-LiDAR Fusion Positioning Principle

2.2.1. Coordinate System Integration of GNSS and LiDAR

When the orchard robot operates on open and unobstructed roadways, it primarily relies on the GNSS system for navigation. The positioning information output by this system is based on the WGS84 geodetic coordinate system, presented in the form of LLA (latitude, longitude, altitude). This type of LLA position information cannot be directly used for robot vehicle localization and navigation. It is necessary to convert the latitude and longitude information obtained by the robot into coordinate values in a planar rectangular coordinate system. The Gauss–Krüger projection is essentially an equirectangular projection, which can convert the latitude and longitude coordinates of the Earth into two-dimensional right-angle coordinates of the plane [27]. Its geometric schematic is shown in Figure 4.

This paper adopts the 6° projection, whereby every 6° is divided into a projection belt from the meridian of 1.5°E, the world is divided into a total of 60 projection belts from west to east, and the belt number is sequentially coded as the 1st, 2nd, …, 60th belt. For the longitude of the central meridian of China’s 6° band, totaling 11 bands from 73° every 6° to 135°. The band number is denoted by $n$ and the central meridian of longitude by $L$. If the geodetic coordinate of a certain point $\left(E,N\right)$ is known, the 6° belt projection of the point can be obtained. The formula for belt number is

$$n=\frac{L-1.5}{6}$$

(1)

Assuming that the earth is a rotating ellipsoid, since the format of latitude and longitude information output by the GNSS system used for navigation and positioning is WGS-84, the WGS-84 ellipsoid model is used in this paper, and its long half-axis $a$ = 637,8137 m, short half-axis $b$ = 6,356,752.3142 m, and inverse of the oblateness is 298.257233563 m. If $e_1$ is the first eccentricity of the earth’s ellipsoid and $e_2$ is the second eccentricity of the earth, then

$$e_1=\sqrt{\frac{a^2-b^2}{a^2}}$$

(2)

$$e_2=\sqrt{\frac{a^2-b^2}{b^2}}$$

(3)

Suppose that the radius of curvature of the meridian circle of the earth is $M$, the radius of curvature of the dolomite circle is S, and that the length of the meridian from the equator to the latitude W of the point where it is located is $L_s$. Then,

$$M=\frac{a\left(1-e_1^2\right)}{\sqrt{{\left(1-{e_1}^2{\mathit{sin}}^{2}N\right)}^3}}$$

(4)

$$S=\frac{a}{\sqrt{\left(1-{e_1}^2{\mathit{sin}}^{2}N\right)}}$$

(5)

$$L_s=a\left(1-e_1^2\right)\left[C_{1}N-\frac{C_2}{2}\sin 2N+\frac{C_3}{4}\sin 4N-\frac{C_4}{6}\sin 6N+\frac{C_5}{8}\sin 8N\right]$$

(6)

$C_1$, $C_2$, $C_3$, $C_4$, and $C_5$ in Equation (10) are the basic constants, which are calculated as shown in Equation (11):

$$\left\{\begin{array}{l}{C}_1=h_0+\frac{h_2}{2}+\frac{3}{8}{h}_4+\frac{5}{16}{h}_6+\frac{35}{128}{h}_8\\ C_2=\frac{h_2}{2}+\frac{h_4}{2}+\frac{15}{32}{h}_6+\frac{7}{16}{h}_8\\ C_3=\frac{h_4}{8}+\frac{3}{16}{h}_6+\frac{7}{32}{h}_8\\ C_4=\frac{h_6}{32}+\frac{h_8}{16}\\ C_5=\frac{h_8}{128}\end{array}\right.$$

(7)

where $h_0=a\left(1-e_1^2\right),h_2={\frac{3}{2}e}_1^2{h}_0,h_4=5e_1^2{h}_2,h_6=\frac{7}{6}{e}_1^2{h}_4,h_8=\frac{9}{8}{e}_1^2{h}_6.$

Then, the algorithm formula to convert geodesic coordinates $\left(E,N\right)$ to planar coordinates $\left(x,y\right)$ by Gaussian projection orthographic formula is as follows:

$$\left\{\begin{array}{l}x=L_s+\frac{M}{2{\rho }_2^2}{l}^2\sin N\cos N+\frac{M}{24{\rho }_2^4}{l}^4\sin N{\cos }^{3}N\left(5-t^2+9{\eta }^2+4{\eta }^2\right)+\\ \frac{M}{720{\rho }_2^6}{l}^6\sin N{\cos }^{5}N\left(61-{58t}^2+t^4\right)\\ y=\frac{M}{{\rho }_2}{l}^2\cos N+\frac{M}{6{\rho }_2^3}{l}^3{\cos }^{3}N\left(1-t^2+{\eta }^2\right)+\\ \frac{M}{120{\rho }_2^4}{l}^5{\cos }^{5}N\left(5-{18t}^2+t^4+14{\eta }^2-58{\eta }^2{t}^2\right)\end{array}\right.$$

(8)

where $l$ is the difference in longitude from the position of the point to the position of the central meridian, ${\rho }_2$ is a constant, and η is an auxiliary parameter, with

$${\rho }_2=\frac{180}{\pi }\times 3600$$

(9)

$$l=E-L_0$$

(10)

$$\eta =e_{2\cos N}$$

(11)

By using Gauss–Kruger projection algorithm, the $\left(x,y\right)$ coordinate representation of latitude and longitude in a planar coordinate system is obtained.

To ensure stability and consistency in the switching and usage of the two sensors, it is necessary to unify the GNSS navigation planar coordinate system with the three-dimensional LiDAR-SLAM navigation coordinate system after Gaussian projection. By doing so, descriptions of self-positioning and environmental information under the unified coordinate system can be obtained.

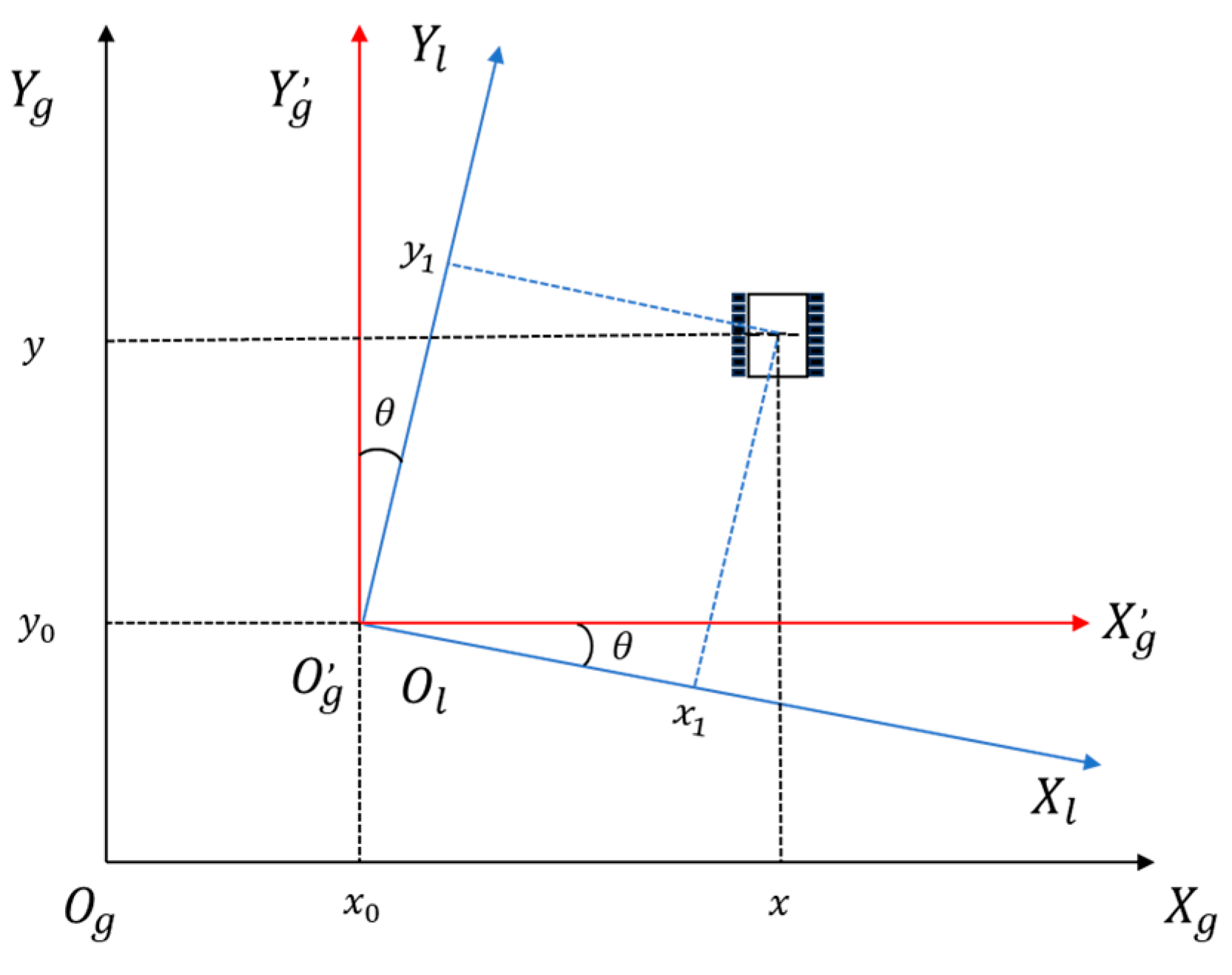

As shown in Figure 5, $X_l{O}_l{Y}_l$ is the laser odometer reference coordinate system, and $X_g{O}_g{Y}_g$ is the coordinate system after Gauss–Krüger projection. This paper takes the laser odometer reference coordinate system $X_l{O}_l{Y}_l$ as the unified coordinate system, with $\left(x_0,y_0\right)$ as the initial position after the robot operates the navigation system. At the same time, $\left(x_0,y_0\right)$ is also the origin of the laser odometer reference coordinate system. This paper obtains the angle $\theta$ between the $Y_l$ axis of the laser odometer reference coordinate system and the true north from the heading angle output by the INS. Then, the coordinates $\left(x_1,y_1\right)$ are transformed through rotation and translation transformations to obtain $\left(x_1^{″},y_1^{″}\right)$ in the laser odometer coordinate system as follows.

First, the laser odometer coordinate system $X_l{O}_l{Y}_l$ is used as the unified coordinate system, and $\left(x_0,y_0\right)$ is the starting position of the autonomous positioning navigation system. The angle between the $X_0$ axis of the laser odometer coordinate system and true north is obtained by receiving the heading angle output from INS as $\theta$, and then the GNSS navigation plane coordinates $\left(x,y\right)$ after Gaussian projection are transformed by translation to obtain $\left(x_1,y_1\right)$ in the laser odometer coordinate system as

$$\left[\begin{array}{c}{x}_1^{″}\\ y_1^{″}\end{array}\right]=\left[\begin{array}{cc}\cos \theta & -\sin \theta \\ \sin \theta & \cos \theta \end{array}\right]\left[\begin{array}{c}{x}_1-x_0\\ y_1-y_0\end{array}\right]$$

(12)

By rotating and translating the coordinate system, an accurate description of the laser odometer positioning information, the GNSS positioning information, and the navigation path in the same coordinate system can be obtained. Following the conversion of the coordinate system, the system now articulates the positioning information from both the laser odometer and GNSS, along with the navigation path defined by latitude and longitude, in a unified coordinate framework.

2.2.2. GNSS-Corrected Laser Odometer

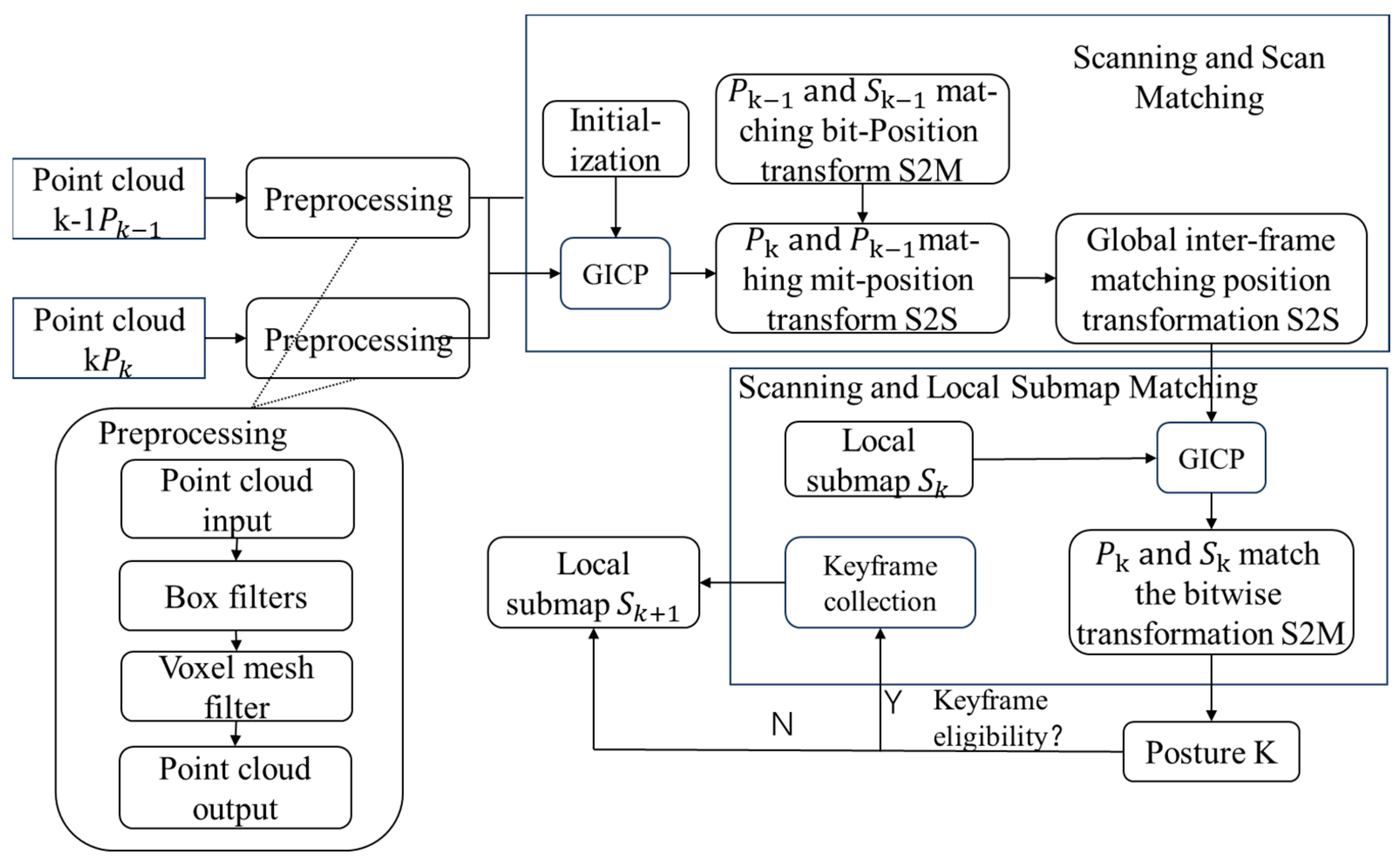

The GICP algorithm improves the accuracy and robustness of the registration between point cloud data by considering the position uncertainty of each point. Compared with the traditional ICP algorithm, GICP not only incorporates the Gaussian distribution information of points in the solution process but also uses KD-tree to efficiently search for the nearest point, which greatly accelerates the registration speed. Suppose the source point cloud $P^s$=$\left\{P_1^s,P_2^S{,\dots ,P}_n^s\right\}$ and the target point cloud $P^t$=$\left\{P_1^t,P_2^t{,\dots ,P}_n^t\right\}$, which are registered by the estimated transformation matrix $\widehat{X}$. $\widehat{X}$ belongs to the special Euclidean group $SE\left(3\right)$, consists of a rotation matrix and translation vectors, and can be expressed as $\widehat{X}\in SE\left(3\right)$.

$$p_i^t=\widehat{X}\times p_i^s$$

(13)

Since real-world measurements include noise, the location of each point cloud is assumed to be the mean of the estimated position that obeys the point. The covariance matrix of the point is the Gaussian distribution of the covariance. ${\widehat{p}}_i^s$ and ${\widehat{p}}_i^t$ are the mean values of the source point cloud $P^s$ and the target point cloud $P^t$, respectively. $C_i^{p^s}$ and $C_i^{p^t}$ are the covariance matrices of the source point cloud $P^s$ and the target point cloud $P^t$, respectively. The source point cloud $P^s$ and the target point cloud $P^t$ are the Gaussian distribution:

$$p_i^s~{\rm N}({\widehat{p}}_i^s,C_i^{p^s})$$

(14)

$$p_i^t~N({\widehat{p}}_i^t,C_i^{p^t})$$

(15)

The alignment error $d_i$ for each pair of corresponding points can be obtained as

$$d_i=p_i^t-\widehat{X}{p}_i^s$$

(16)

Since $p_i^s,p_i^t$ are Gaussian distributions independent of each other, then $d_i$ also belongs to a Gaussian distribution:

$$d_i~N\left(0,C_i^{p^t}+\left(\widehat{X}\right)C_i^{p^s}{\left(\widehat{X}\right)}^T\right)$$

(17)

The iterative calculation of $\widehat{X}$ is obtained by the maximum likelihood estimation (MLE) method:

$$\widehat{X}=arg \underset{\widehat{X}}{\mathit{max}}\epsilon \left(\widehat{X}{P}^s,P^t\right)$$

(18)

where the residual error $\epsilon$ is defined as

$$\epsilon \left(\widehat{X}{P}^s,P^t\right)=\sum _i^n{d}_i^T{\left(C_i^{p^s}+\widehat{X}{C}_i^{p^s}{\widehat{X}}^T\right)}^{-1}{d}_i$$

(19)

The GICP algorithm has a wider range of applications than the classical ICP algorithm, and the GICP alignment is better than the ICP in terms of matching speed and accuracy [28]. Therefore, this paper chooses the algorithm based on GICP matching for point cloud alignment. The structure of the laser odometer workflow is shown in Figure 6.

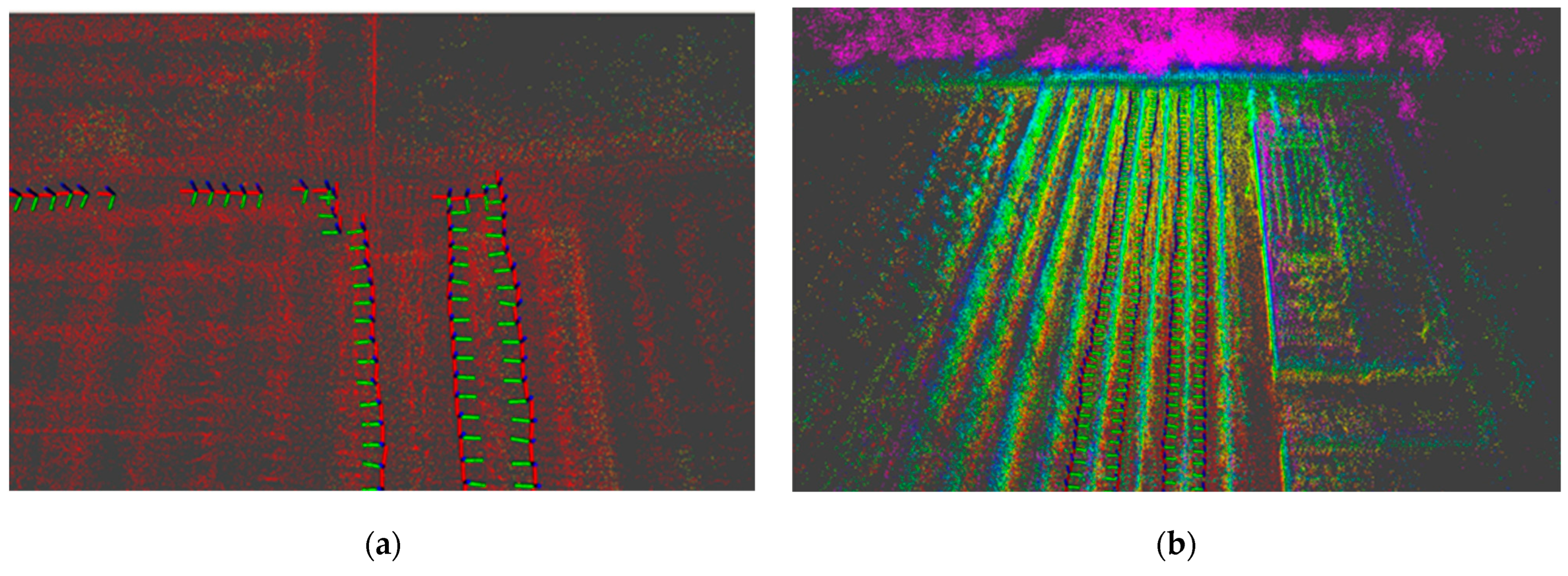

After the work described above, we obtained descriptions of GNSS and LiDAR positioning information under a unified coordinate system. In actual use of the LiDAR odometry based on generalized iterative closest point (GICP), we discovered that although its cumulative error is smaller compared to INS, it can still lead to shifts in positioning information over long periods of use. This shift phenomenon is especially noticeable when changing rows, as illustrated in Figure 7a. To enhance the navigation accuracy of the LiDAR odometer in the orchard, we integrate the GNSS positioning information after coordinate alignment to correct and initialize the LiDAR odometer at the end of each row. After reaching the next transverse end of the field, initialization is stopped, and the current frame is used as the initial frame, taking the GNSS output at this moment as the pose information for the initial frame. Then, the keyframes in the stored keyframe library are cleared to eliminate accumulated errors. The effect of the GNSS-corrected LiDAR odometer is shown in Figure 7b.

2.2.3. GNSS-LiDAR Orchard Positioning Scheme Based on Dynamic Switching

To meet the navigation needs of the orchard environment, we utilize the ROS system to subscribe to the GNSS STATUS topic. Based on the assessment of GNSS signal status, we propose a method for dynamically switching between GNSS-LiDAR positioning modes. Figure 8 is a schematic diagram of the work performed by the orchard robotic vehicle. In this diagram, the green areas represent the end of the field, where there is no overhead cover, and the satellite differential signals are good. The yellow areas represent the working areas between the rows of trees, and the black areas are where satellite signals are obstructed. During operation, the orchard robotic vehicle dynamically switches between odometer positioning information and RTK-GNSS positioning information, based on the GNSS signal status. In the green areas, the orchard robotic vehicle navigates using RTK-GNSS positioning information. In the black areas, it determines the switch to laser odometer positioning mode by assessing GNSS signal status. Upon exiting such areas, it switches back to RTK-GNSS positioning mode.

2.3. Path-Tracking Control System

2.3.1. Kinematic Model of Robotic Vehicle

To adapt to the complex, uneven, and soft soil ground in the orchard, the robotic vehicle adopts a track structure for its chassis. This structure has a large contact area with the ground, providing greater friction and stronger off-road performance compared to wheel drive, making it more suitable for the orchard environment. The chassis used in this study is based on the principle of differential motion, whereby steering is achieved by controlling the speed difference between the left and right tracks. We assume that the surface of the orchard roads is approximately a two-dimensional plane, and the mass of the mobile platform is uniformly distributed. Its center of mass is located on the geometric longitudinal symmetry line, and it will not deflect or slip during driving. Based on this, a differential drive kinematic model is established.

The robot kinematics model is shown in Figure 9. The point $O_L\left(x_0,y_0\right)$ is the center of mass of the moving platform, XOY is the world coordinate system, and $X_L{O}_L{Y}_L$ is the robot coordinate system. The forward motion direction is the positive direction of the y-axis, the right motion direction is the positive direction of the x-axis, and the z-axis is perpendicular to the paper surface outward. At this time, the position of the robot is represented by the vector ${\left[\begin{array}{ccc}x& y& \theta \end{array}\right]}^T$, which serves as the reference coordinate point of the moving platform in the orchard. $O_c$ is the center of rotation center of mass; v is the linear velocity of the center of mass; $r_c$ is the turning radius of the center of mass; $v_l$, $v_r$ are the linear velocities of the left and right driving wheels; $\omega$ is the angular velocity of the center of mass with respect to the rotational center $O_c$; and $L_r$ is the distance between the centers of the two tracks.

The linear velocity of the orchard moving platform can be expressed as

$$V=\frac{v_l+v_r}{2}$$

(20)

The angular velocity of the orchard moving platform can be expressed as

$$\omega =\frac{V}{L_c}=\frac{v_r}{L_c+L_r/2}=\frac{v_l}{L_c-L_r/2}=\frac{v_r-v_l}{L_r}$$

(21)

The derivative of the positional state of the orchard moving platform is

$$\left[\begin{array}{c}\dot{x}\\ \dot{y}\\ \dot{\theta }\end{array}\right]=\left[\begin{array}{cc}\cos \theta & 0\\ \sin \theta & 0\\ 0& 1\end{array}\right]\left[\begin{array}{c}v\\ \omega \end{array}\right]$$

(22)

According to Equations (20) and (21), $\dot{x},\dot{y},\dot{\theta }$ are, respectively,

$$\left\{\begin{array}{l}\dot{x}=\frac{v_l+v_r}{2}\cos \theta \\ \dot{y}=\frac{v_l+v_r}{2}\sin \theta \\ \dot{\theta }=\frac{v_r-v_l}{L_r}\end{array}\right.$$

(23)

The above equation shows that controlling the rotational speed of the tracks on both sides of the robotic vehicle can realize the control of its steering and driving speed, which can be obtained by discretization:

$$\left\{\begin{array}{l}x(t+1)=x\left(t\right)+V\cos \theta \times T\\ y(t+1)=y\left(t\right)+V\sin \theta \times T\\ \theta (t+1)=\theta \left(t\right)+\omega \times T\end{array}\right.$$

(24)

In summary, it can be seen that by controlling the rotational speed of the tracks on both sides of the robot, it is possible to control the robot’s steering and straight-line travel.

2.3.2. PID-Based Path-Tracking Algorithm

Due to the uneven ground of the orchard and the soft soil, the mobile platform of the orchard often deflects and slips during the walking process, causing it to deviate from the preset navigation path. The PID control algorithm is an important part of classical control theory and has been widely used in practical engineering [29], and we use it to implement path-tracking control.

The essence of a PID controller is a linear controller. In the PID control system, the selection of PID controller parameters $K_p$, $K_I$, $K_D$ can significantly affect the effectiveness of the system. Continuous PID algorithm prototype formula:

$$u\left(t\right)=K_p\left[e\left(t\right)+\frac{1}{T_i}{\int }_0^{t}e\left(t\right)d\left(t\right)+T_d\frac{de\left(t\right)}{dt}\right]$$

(25)

where $u\left(t\right)$ is the PID controller output regulation, $K_p$ is the proportionality coefficient, $e\left(t\right)$ is the real value and the set value of the error, $T_i$ is the integral time constant, and $T_d$ is the differential time constant.

Since the industrial control machine cannot directly use the continuous PID prototype function, the algorithm is discretized as follows:

$$u\left(n\right)=K_{p}e\left(n\right)+\frac{k_{p}T}{T_i}\sum _{i=1}^{n}e\left(i\right)+\frac{K_p{T}_d}{T}\left[e\left(n\right)-e\left(n-1\right)\right]$$

(26)

where $k_p$, $k_p/T_i$, $K_p{T}_d$ correspond to the three parameters $K_p$, $K_I$, and $K_D$ in the PID controller, $e\left(n\right)$ is the error between the real value and the set value at n moments, and T is the sampling period.

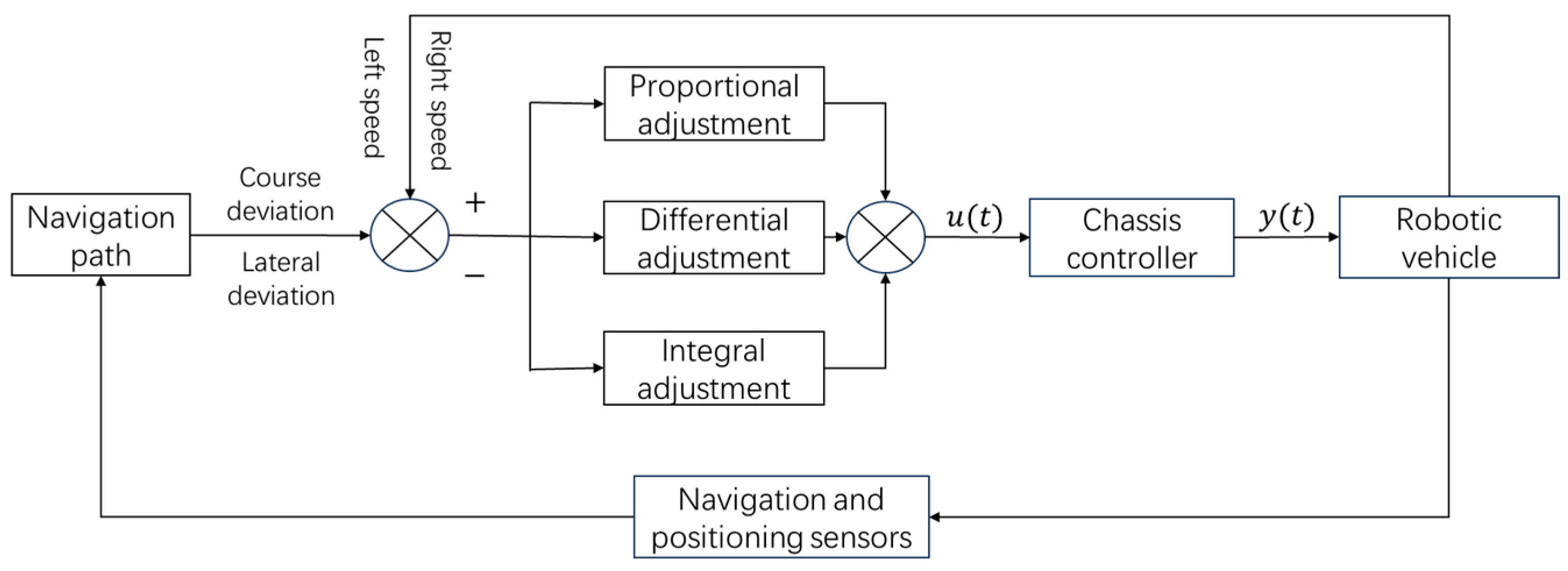

The PID controller studied in this paper takes the heading deviation $\theta$ and lateral deviation d between the navigation process of the robotic vehicle in the orchard and the set navigation line as inputs, and the left and right wheel rotational speeds of the mobile chassis as outputs. The control principle is shown in Figure 10, and the control model is as follows:

$$u\left(n\right)=K_{p1}\dot{x}+K_{p2}\dot{\theta }+K_I\sum _{i=1}^{n}d\left(i\right)+K_D\left[d\left(n\right)-d\left(n-1\right)\right]$$

(27)

This can be obtained by combining the differential robot model above:

$$\left\{\begin{array}{c}{v}_r=v-\frac{1}{2}\left(K_{p1}\dot{x}+K_{p2}\dot{\theta }+K_I{\displaystyle \sum _{i=1}^n}d\left(i\right)+K_D\left[d\left(n\right)-d\left(n-1\right)\right]\right)\\ v_l=v+\frac{1}{2}\left(K_{p1}\dot{x}+K_{p2}\dot{\theta }+K_I{\displaystyle \sum _{i=1}^n}d\left(i\right)+K_D\left[d\left(n\right)-d\left(n-1\right)\right]\right)\end{array}\right.$$

(28)

The sampling time was set to 250 milliseconds, and the path-tracking speed to v = 0.25 m/s. Through testing, it was determined that when$K_{p1}$ = 59.6, $K_{p2}=0.65$, $K_I=1.2$, and $K_D=6.5$, the system exhibits the best stability and fastest response time. The simulation results of the PID control performance under the selected parameters are shown in Figure 11. The controller used in this paper has a rise time of no more than 1 s, a lateral deviation overshoot of no more than 0.1 m, a course deviation overshoot of no more than 0.2 rad, a settling time of no more than 2 s, and a steady-state error of zero. These characteristics meet the fundamental requirements of PID control.

3. Results

3.1. Experiment Setting

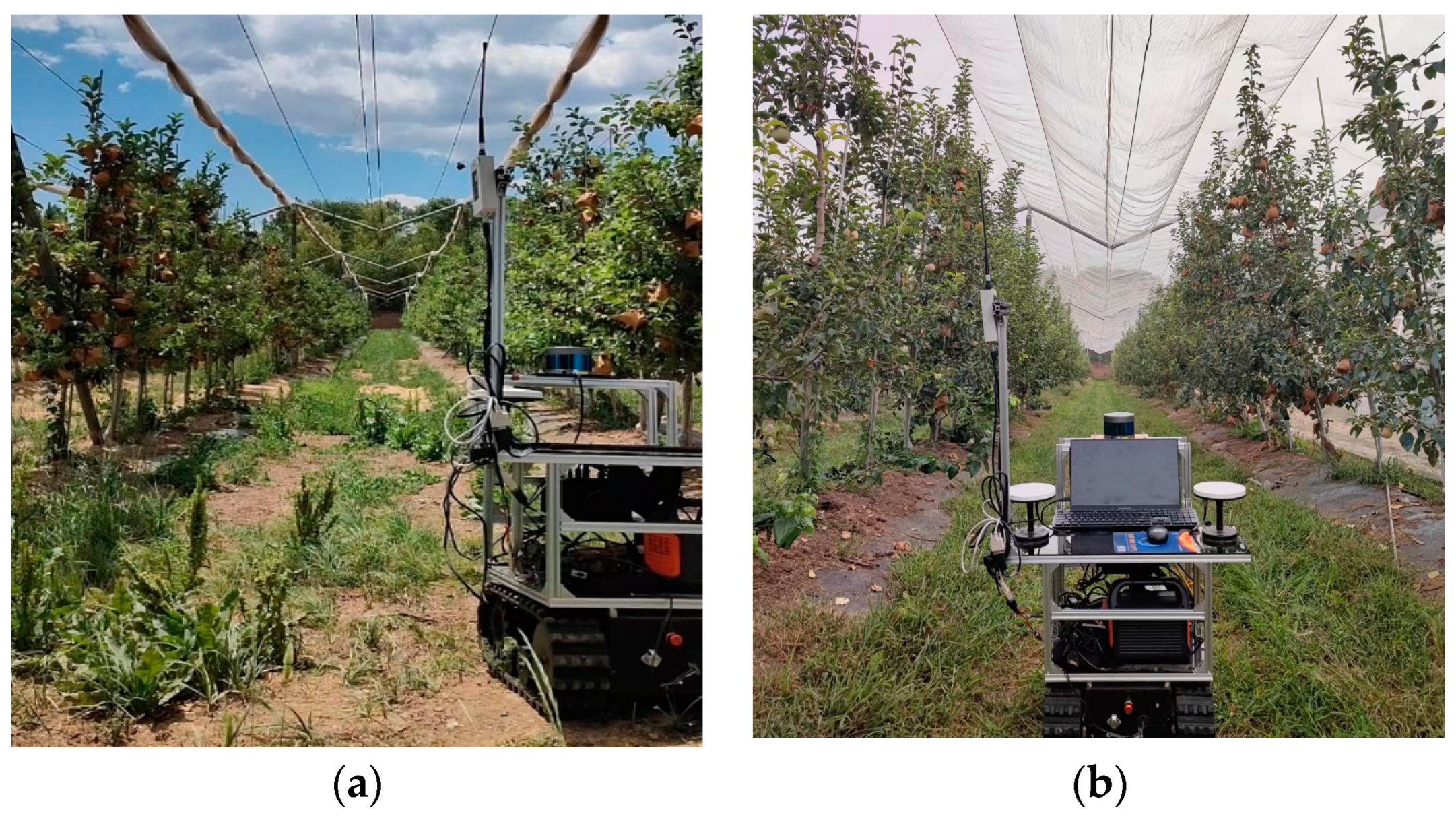

To verify the performance of the orchard navigation system proposed in this paper, tests on its path-tracking and positioning functions were conducted in an apple orchard in Beijing City, as shown in Figure 12. Five rows of apple trees were selected in the experimental area, spaced approximately 3.5 m apart, with each row being about 95 m long, and the orchard floor was covered in weeds. The robot vehicle walked through the rows of apple trees, covering a total distance of about 360 m. During the test, a dynamic switching GNSS/INS-LiDAR positioning mode was used within the rows of trees, while the GNSS/INS positioning method was employed at the row ends. Given that the positioning information error obtained by the GNSS/INS navigation system under good signal conditions is equal to or less than 1.5 cm, this experiment used it as the actual path trajectory during the orchard traversal process.

3.2. Navigation Test with Unobstructed GNSS

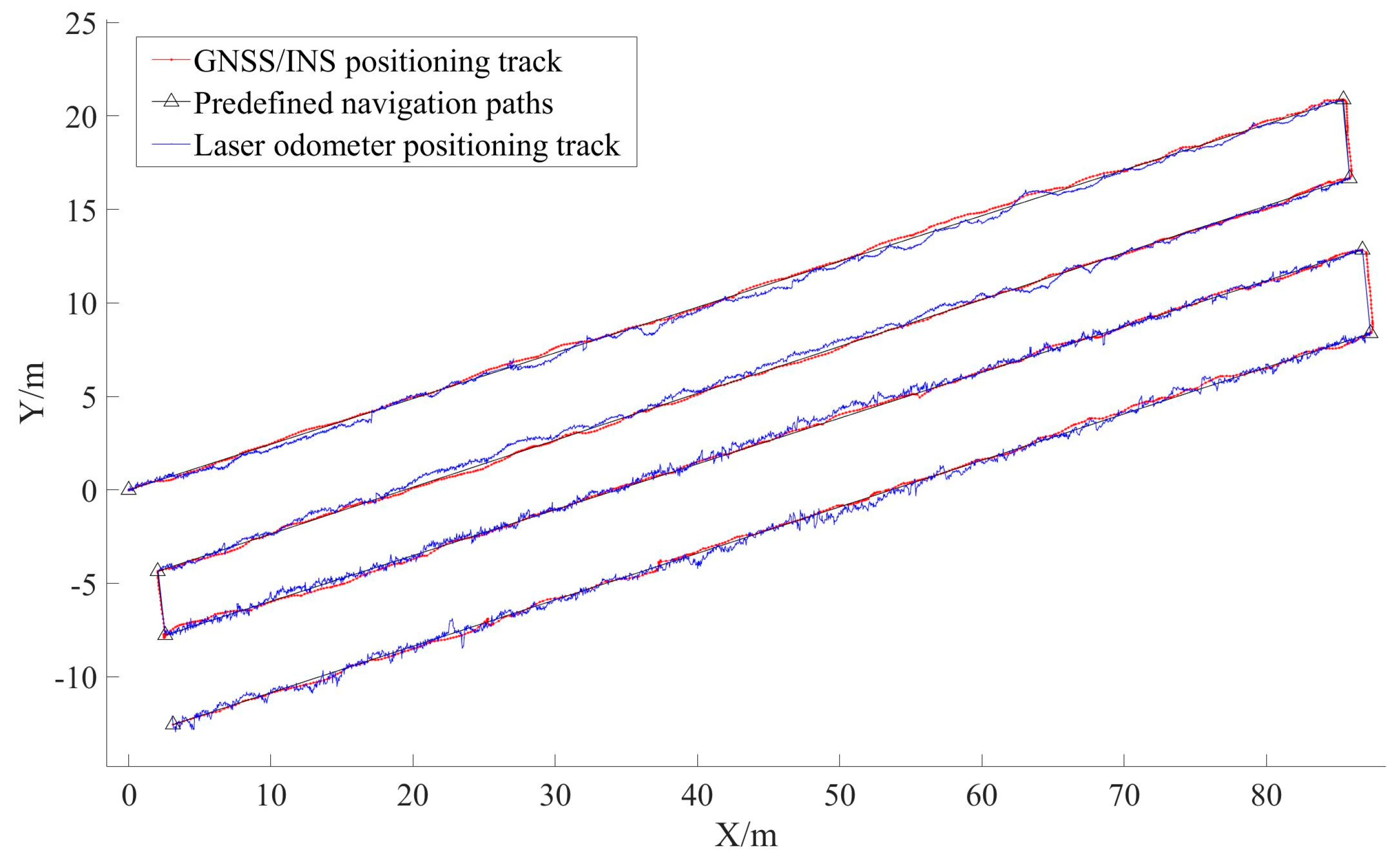

In the experimental orchard area without anti-bird nets, the road between the rows of apple trees has no overhead obstructions. This condition allows for a strong satellite differential signal, enabling the autonomous navigation test for the orchard’s robotic vehicle. Given the robust satellite differential signal, the system relies solely on the GNSS/INS system’s positioning information for path tracking. The walking trajectory during navigation is shown in Figure 13, and the lateral deviation value of the real walking trajectory from the preset navigation path is shown in Figure 14. Due to the uneven ground of the orchard, and because the robotic vehicle used in the test is small and prone to side-slip, the lateral deviation value fluctuates greatly in the figure. The test indicates that the maximum path-tracking lateral error does not exceed 0.35 m, and the average path-tracking lateral error does not exceed 0.1 m. The standard deviation of the lateral error is 0.076 and the root mean square error (RMSE) is 0.016 m.

3.3. Navigation Test with Intermittent GNSS Dropout

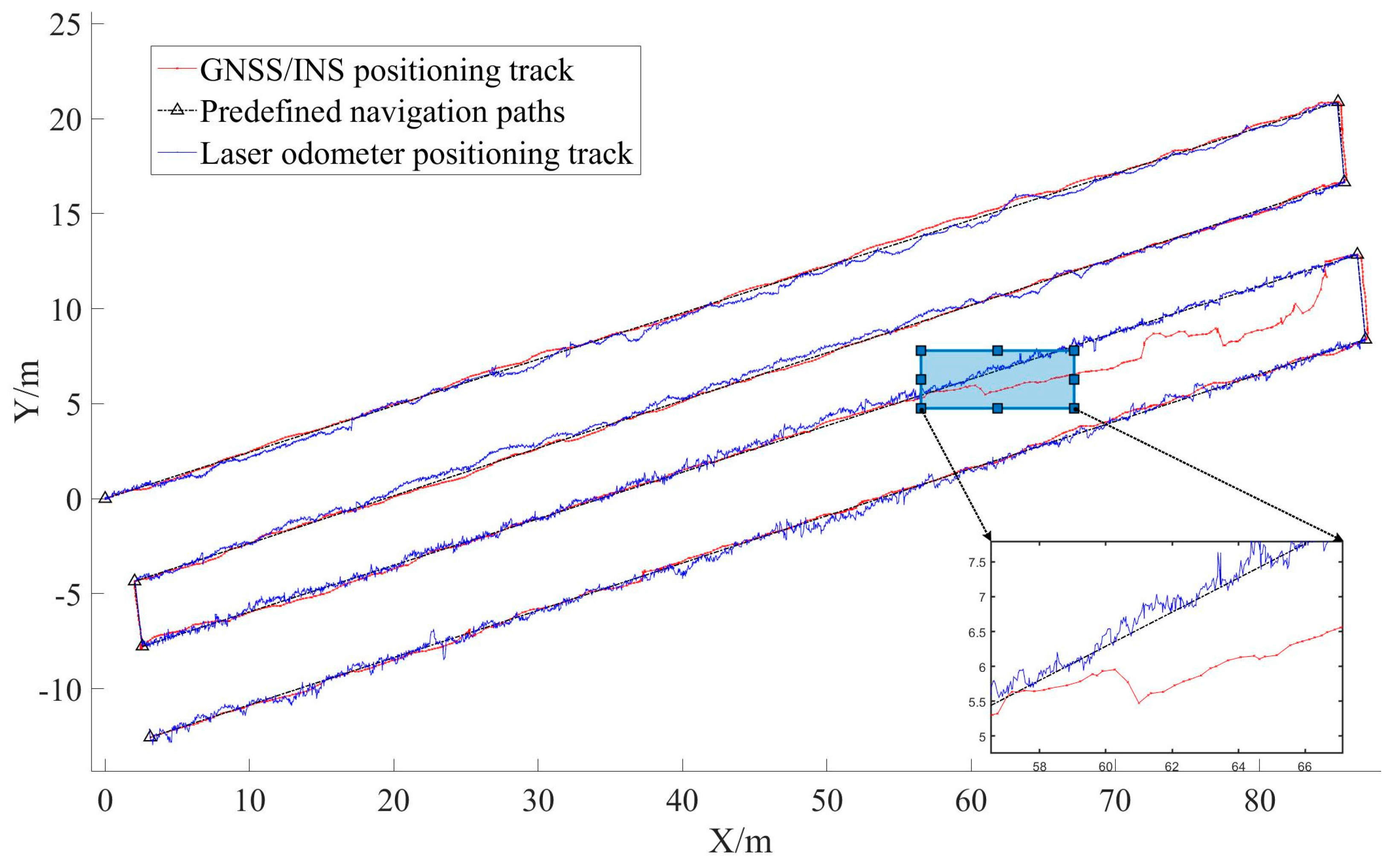

An anti-bird net was laid over a part of the road between the third and fourth rows of apple trees in the orchard experimental area to test the effect of satellite differential signal blocking. The positioning trajectory during navigation is shown in Figure 15. Figure 16 shows the positioning deviation of the laser odometer and the GNSS/INS positioning deviation of the occluded part of the satellite differential signal. The positioning deviations of the laser odometer and the GNSS/INS under obstruction conditions are shown in

Table 1. Comparison of positioning deviation between laser odometer and GNSS/INS under occlusive conditions.

Positioning Method	Mean (m)	Std	RMSE (m)	Max (m)
GNSS/INS	1.24	0.6927	2.0195	2.23
LiDAR Odometer	0.14	0.115	0.0328	0.62

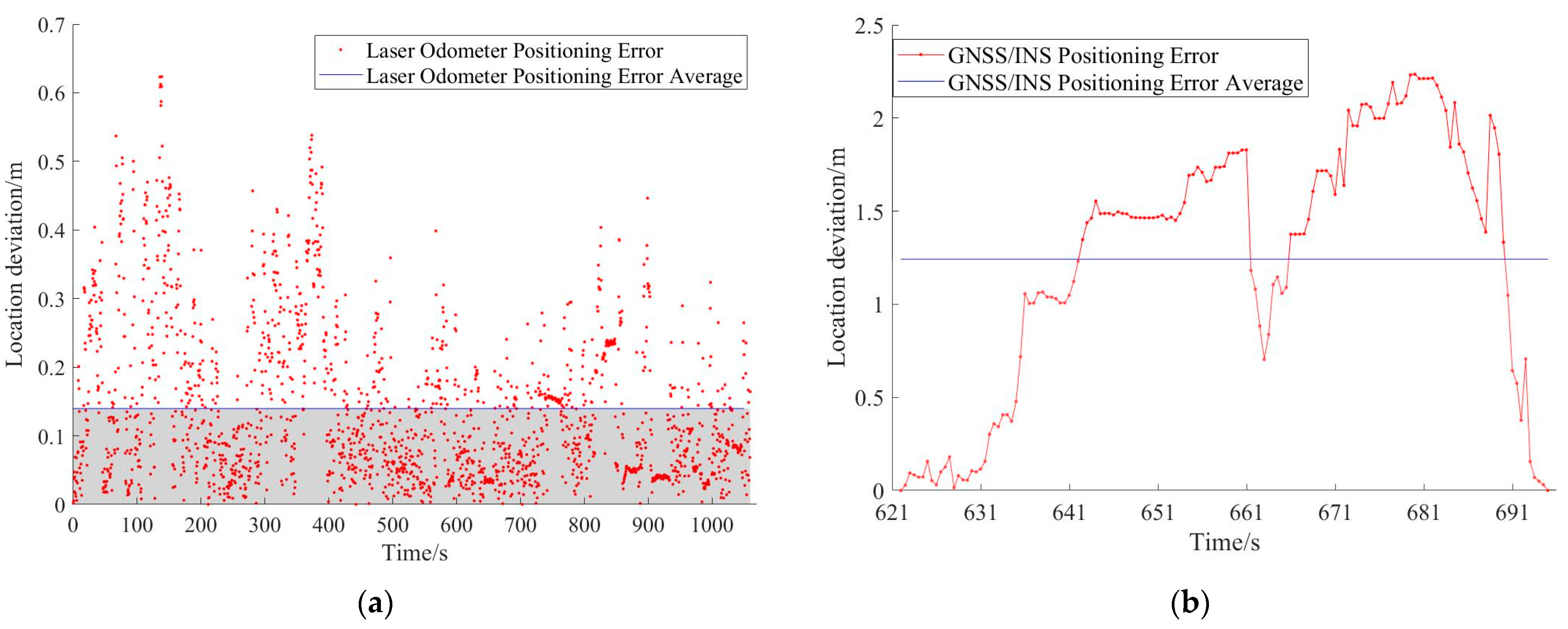

. The average positioning deviation of the laser odometer is 0.14 m, the maximum positioning deviation is 0.62 m, the standard deviation is 0.115, and the RMSE is 0.0328 m. When the satellite differential signal is obstructed, the average positioning deviation of the GNSS/INS positioning system is 1.24 m, the maximum positioning deviation is 2.23 m, the standard deviation is 0.6927, and the RMSE is 2.0195 m. When the satellite signal is blocked, the positioning accuracy of the laser odometer and the fluctuation of positioning error are better than that of the GNSS/INS navigation and positioning system.

4. Discussion

The satellite signal enables RTK differential positioning without barriers, achieving a GNSS/INS navigation accuracy within 1.5 cm. This accuracy serves as the baseline for the robotic vehicle’s path trajectory during autonomous navigation. Field tests show that with satellite signal blockage, GNSS/INS positioning records an average error of about 1.24 m and a maximum error of roughly 2.23 m, alongside a standard deviation of 0.69 and an RMSE of 2.02 m. Conversely, the laser odometer’s average error remains below 0.14 m, with the maximum deviation not exceeding 0.63 m, a standard deviation of 0.16, and an RMSE of 0.03 m. By the fusion of the laser positioning information, the problem of intermittent loss of satellite positioning signals in the complex environment of the orchard is effectively overcome. Although the positioning error fluctuates greatly, it can be used as the basis for the robotic vehicle’s navigation and positioning when the satellite signal is lost or blocked. Its positioning accuracy is acceptable for orchard spraying, weeding, transportation, and other uses of mechanical mobile platforms. The results are expected to improve the navigation capability of autonomous operating equipment in orchards.

5. Conclusions

To mitigate the issue of signal blockage by dense orchard canopies causing significant drops in satellite navigation system accuracy, this study introduces a loosely coupled laser odometer and GNSS/INS system for robotic vehicles in orchards. The approach includes creating the vehicle’s kinematic model, developing a PID-based path-tracking algorithm, planning paths tailored to orchard terrain, and executing navigation trials. Results indicate that with the robotic vehicle moving at 0.35 m/s, the peak tracking error stays below 0.35 m, the mean absolute error remains under 0.1 m, with a standard deviation close to 0.078, and an RMSE under 0.017 m. The autonomous navigation and control system adopted by the robotic vehicle meets the requirements of autonomous navigation of orchard robots. It improves the navigation accuracy in the partially obstructed orchard environment and improves the performance of the navigation system. When satellite signals are obstructed, laser odometry becomes the standard for navigation and positioning. Compared to the GNSS/INS method, this approach reduces the maximum and average positioning deviations by 1.6 m and 1.1 m, respectively. This effectively enhances navigation stability and positioning accuracy under conditions of blocked satellite signals, overcoming the challenges of self-positioning in environments where satellite signal interruptions occur. The disadvantage is that the positioning error of the laser odometer fluctuates greatly, which still needs to be further optimized and improved.
