Hypergraph of Functional Connectivity Based on Event-Related Coherence: Magnetoencephalography Data Analysis

Abstract

We construct hypergraphs to analyze functional brain connectivity, leveraging event-related coherence in magnetoencephalography (MEG) data during the visual perception of a flickering image. Principal network characteristics are computed for the delta, theta, alpha, beta, and gamma frequency ranges. Employing a coherence measure, a statistical estimate of correlation between signal pairs across frequencies, we generate an edge time series, depicting how an edge evolves over time. This forms the basis for constructing an edge-to-edge functional connectivity network. We emphasize hyperedges as connected components in an absolute-valued functional connectivity network. Our coherence-based hypergraph construction specifically addresses functional connectivity among four brain lobes in both hemispheres: frontal, parietal, temporal, and occipital. This approach enables a nuanced exploration of individual differences within diverse frequency bands, providing insights into the dynamic nature of brain connectivity during visual perception tasks. The results furnish compelling evidence supporting the hypothesis of cortico–cortical interactions occurring across varying scales. The derived hypergraph illustrates robust activation patterns in specific brain regions, indicative of their engagement across diverse cognitive contexts and different frequency bands. Our findings suggest potential integration or multifunctionality within the examined lobes, contributing valuable perspectives to our understanding of brain dynamics during visual perception.

1. Introduction

Understanding the intricacies of brain connectivity in response to diverse stimuli is crucial for unraveling the mechanisms underlying information processing and decision making within the brain. This study delves into three essential forms of brain connectivity: structural, functional, and efficient [1,2,3,4]. Structural connectivity entails the identification of anatomical neural networks, revealing potential pathways for neural communication [5,6]. On the other hand, functional connectivity explores active brain regions exhibiting correlated frequency, phase, and/or amplitude [7]. Finally, effective connectivity utilizes information from functional connectivity to discern the dynamic flow of information within the brain [8,9].

Measurement of effective and functional connectivity can be conducted in both the frequency domain, employing methods such as coherence [10], and in the time domain, utilizing approaches like Granger causality [4] or artificial-neural-network-based functional connectivity [11]. When a sufficiently large population of neurons synchronizes, their electrical and magnetic activities become detectable outside the skull through techniques like electroencephalography (EEG) and magnetoencephalography (MEG) [12]. While EEG measures return or bulk currents outside the neuron (secondary currents), MEG captures ionic currents inside the neuron (primary currents). Notably, MEG holds a distinct advantage over EEG due to its superior spatial resolution, rendering it an exceptional tool for investigating and characterizing interactions between distinct brain regions [13].

To study functional connectivity, some researchers use approaches borrowed from graph theory [14]. Using connections between the biorhythms of the brain in its various parts, a model of a complex network is recreated, in which parts of the brain are considered as nodes, and the connection forces between them are considered as links [15,16]. Using this approach makes it possible to identify not only individual cognitive differences between subjects [17], but also helps to diagnose some diseases at an early stage [18,19,20] and also monitor the aging process [21,22,23,24].

One of the important measures that can be used to quantify neuronal synchrony is event-related coherence [10,25,26]. It examines the frequency domain relationship between two signals, indicating the degree to which their spectral components are synchronized. Essentially, it is an assessment of the constancy of the relative amplitude and phase between two signals within a given frequency range. There is a linear mathematical method that creates a symmetrical matrix, devoid of any directional information. Identical signals produce a coherence value of 1, while the coherence value approaches 0 as the difference between the signals in question increases. Since then, coherence has been used in many brain connectivity studies with both patients and control individuals; these include but are not limited to studies of working memory [27], brain lesions [28], hemiparesis [29], resting state networks [30], schizophrenia [31,32], favorable responses to panic medications [33], and motor imagery [34]. As a result of the unique characteristics of human brains, distinct patterns of coherent neuronal activity were observed among different subjects. For instance, the presentation of flickering visual stimuli induces coherent responses in the visual cortex of subjects at both the flicker frequency and its harmonics, resulting in varied sizes of coherent neural networks [35,36].

In this work, we employ hypergraph analysis, a technique rooted in dynamic graph theory [37], to investigate functional connectivity. We analyze variations in functional connectivity networks using MEG data collected during the observation of flickering images. This approach is an extension of conventional graph theory methods. Specifically, we begin by defining a standard functional network that connects nodes across consecutive time segments. We then generate a set of edge time series, representing the fluctuation of edges over time. We process these edge time series similarly to node time series, creating a network of edge-to-edge functional connectivity. Within this framework, we focus on “hyperedges,” which are the connected components of an absolute-valued end-to-end functional connectivity network.

Conventional graphs are limited in their ability to represent connections between pairs of nodes, while hypergraphs can depict relationships among sets of nodes, especially when complex interactions involve more than two elements. Using a hypergraph allows for a more intuitive interpretation of inter-element relationships, enhancing comprehension and result interpretation. It should be noted that Wang et al. [38] have already demonstrated the utility of hypergraphs in showcasing multiple relationships between vertices by employing Pearson correlation for interaction derivation. However, despite the fact that the hypergraph theory was applied several years ago, our paper introduces a significant advancement in hypergraph data representation by leveraging event-related coherence between brain lobes rather than conventional correlation metrics. We prefer coherence due to its ability to measure signal relationships based on relative phase, thereby capturing temporal synchronization between signals. By using a hypergraph, we can clearly and succinctly visualize the correlation between brain lobes and frequency bands, crucial for unraveling the intricate network of cerebral interactions. Moreover, our approach, centered on visualization with modulation, enriches our research with an additional layer of depth, offering an innovative and pertinent perspective in this burgeoning field.

2. Materials and Methods

2.1. Subjects

In this study, we analyze the MEG data of 15 control subjects (aged 17–64 years; 10 men and 5 women) obtained in the experiment based on a flickering image paradigm [39] at the Center for Biomedical Technology of the Universidad Politécnica de Madrid, Spain. The MEG data have been downloaded from https://zenodo.org/record/4408648#.X-72UdYo-Cc (accessed on 10 August 2023).

2.2. Experimental Paradigm

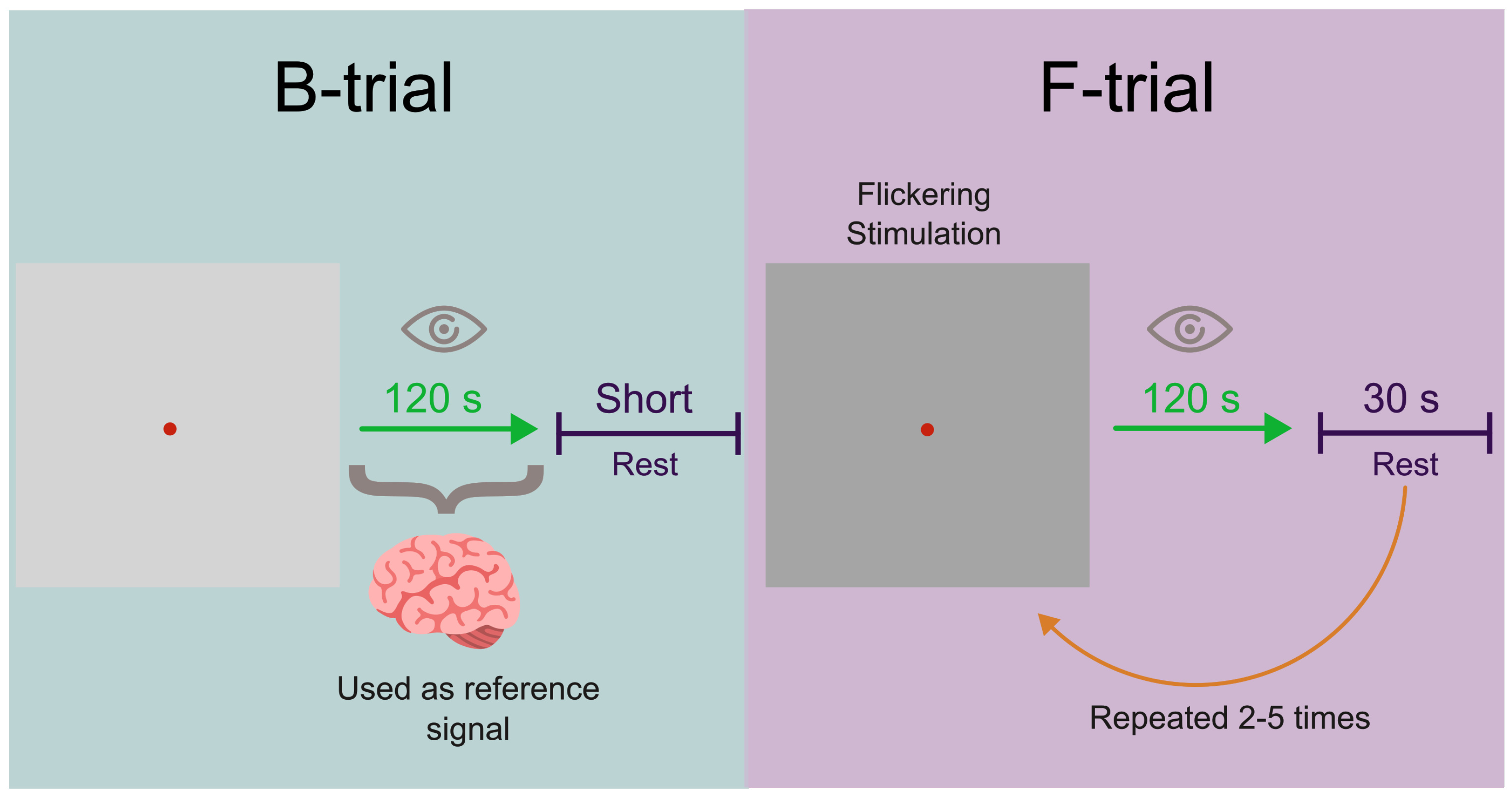

The experimental protocol, depicted in Figure 1, consists of two stages. During the first stage, subjects were presented with a static (unmodulated) black square with white lines for 120 s. They were instructed to fix their gaze on a red dot located at the center of the square. The MEG of the baseline neuronal activity (B-trial) was recorded during this stage. After a brief break (40–390 s), the second stage of the experiment commenced. During this stage, the brightness of pixels on the square image was periodically modulated with a frequency of $f_m=6.67$ Hz and a maximum amplitude of 50% of the RGB color model, oscillating between black (0) and gray (127). This frequency was chosen due to its ability to elicit a prominent spectral response in the visual cortex [35]. The flickering image was presented 2–5 times at intervals of 120 s, with a 30-second break between each presentation, and the MEG was recorded (F-trials). The averaged F-trials were then normalized to the B-trial for each subject and subsequently averaged across all subjects.

2.3. Signal Analysis in Brainstorm

The signal analysis was performed using the Brainstorm 3.231017 software, a collaborative, open-source application based on MATLAB R2022a that is dedicated to processing and analyzing brain recordings obtained through different brain imaging techniques [40]. The included tools, along with the interface, facilitated the creation of the scripts used in this article.

2.4. Head Model Adjustment

The default Brainstorm head model was adjusted to the head points recorded using a Polhemus Fastrak system, with 2% deformation and automatic refinement of head points.

2.5. Signal Processing

Signal analysis involved reading MEG data, and applying a Notch filter to eliminate 50 Hz power line frequencies and their harmonics. Artifacts from the electrooculogram (EOG) and electrocardiogram (ECG) signals were automatically identified and manually reviewed to ensure the inclusion of any potentially omitted artifacts. Signal–space projection (SSP) methods were applied to correct the artifacts by order.

2.6. Event Segmentation

The signals were segmented into 120 s epochs for two experimental phases: B-trial and F-trial (Figure 1). The signal recorded during the B section was used as a reference signal. These epochs were further divided into 3 s trials.

2.7. Source Reconstruction

Reconstruction of electrical activity in the brain from MEG measurements was carried out by creating a forward model and a lead field matrix. Brainstorm’s overlapped spheres method was used, maintaining the recommended 15,000 cortical sources. The inverse solution was calculated using standardized low-resolution electromagnetic tomography (sLORETA).

2.8. Fourier Analysis

To analyze the recorded signal, a Fourier analysis technique using a hanning window was employed. First, a Hanning window was generated with an appropriate length corresponding to the duration of the recorded signal (3 s). Subsequently, this window was applied to the signal to mitigate edge effects and enhance frequency domain resolution. Once the frequency spectrum of the processed signals was obtained, the spectrum of the signal of interest was normalized to the reference signal. This was accomplished by computing the fast Fourier transform (FFT)—using MATLAB’s FFT function—of each processed signal and subsequently dividing the frequency spectrum of the signal of interest by that of the reference (baseline) signal.

2.9. Signal Coherence

The brain is known to generate electromagnetic activity in a wide frequency range, from slow waves of 0.5 Hz to fast waves of 500 Hz and higher frequencies [41]. These rhythms are classified according to their frequencies and are assigned Greek letters. In this paper, we consider five frequency bands: delta (0.5–4 Hz), theta (4–7 Hz), alpha (8–12 Hz), beta (13–30 Hz), and gamma (31–90 Hz). Coherence measures the correlation within discrete frequency bands for selected epoch lengths and is independent of signal amplitude [42]. We constructed brain networks based on coherence, a mathematical measure quantifying synchronization patterns between spatially separated sensors or between brain areas [10].

After the Hanning window was applied to the signal, we estimated the strength of network interactions according to coherence between eight brain areas: frontal left—FL; frontal right—FR; occipital left—OL; occipital right—OR; parietal left—PL; parietal right—PR; temporal left—TL; temporal right—TR. The 15,000 brain sources were grouped into these eight lobes using Brainstorm’s segmentation model, PALS-12 Lobes with ten structures, excluding the insula, resulting in eight structures or vertices.

The stored vertices were used to average signals within each lobe, reducing complexity to eight signals. The square magnitude coherence was then calculated between time series of each lobe with the rest, for both F and B trials ($C_F$ and $C_B$, respectively). Subsequently, the absolute difference between the coherence values of F and B was obtained and normalized to the B activity, giving event-related coherence ($ERC$) as

$$ERC=\frac{|C_F-C_B|}{C_B}.$$

(1)

2.10. Visualization with BrainNet

The output consisted of a tensor with dimensions $8\times 8\times 15$. The average matrix of all subjects was calculated for each frequency band, and these matrices were saved in “.edge” text files for visualization with BrainNet Viewer. The latter is a tool that facilitates the visualization of structural and functional connectivity patterns in brain networks [43]. The surface template used was “BrainMesh_ICBM152_smoothed.nv”, included in the “BrainNetViewer_20191031” folder when downloaded.

A “Node.node” text file was created with the format defined by BrainNet Viewer to set the position of nodes in the brain figure. The “.edge” files for each frequency band obtained earlier were used to display interactions.

2.11. Graph Construction

Coherence matrices showed coefficients between 0.1 and 19.16. A threshold ${\sigma }_{th}$ was set for graph construction, with its value varying between 0.1 and 1.25. The analysis was conducted to assess how graph characteristics change when including interactions above ${\sigma }_{th}$. Various centrality measures were calculated such as degree centrality (number of edges [44]), betweenness centrality (fraction of shortest paths passing through a node [45]), and eigenvector centrality (importance of a node considering the importance of its neighbors [44]). Connected components of the graphs were explored [45]. The shortest path distances between all node pairs were calculated, and cycles in the graph were identified, and defined as connected graphs in which each vertex has degree 2 [46]. These metrics, with respect to ${\sigma }_{th}$, are presented in Appendix (Figure A1, Figure A2, Figure A3, Figure A4, Figure A5, Figure A6 and Figure A7).

To assess the connectivity of the graphs generated in this study, the ‘conncomp’ function in MATLAB was employed. This function facilitates the identification of connected components in an undirected graph, thus providing a measure of the level of connection within the network. This function assigns each node in the graph a connected component identifier, enabling the determination of the total number of connected components present in the graph. The graph’s connectivity coefficient can be calculated as

$$\kappa =\frac{1}{n},$$

(2)

where n is the number of connected components. This methodological approach allowed for the analysis of how the variation in the threshold ${\sigma }_{th}$ affects the global connectivity of the graphs.

A threshold value of ${\sigma }_{th}=0.5$ was decided upon, as lower values show coherence interactions that may include noise, and values higher than this completely lose one of our frequency bands.

With the specified threshold, we generated graphs explicitly depicting the mentioned measures using MATLAB. The calculation of the distances between node pairs was carried out without considering the weight of the edges, i.e., treating it as an unweighted graph. Betweenness centrality and eigenvector centrality measures can be found in Appendix A (Figure A6 and Figure A7).

2.12. Hypergraph Construction

To contextualize the analysis of hypergraphs, we define the elements of graph theory used to construct hypergraphs formed by nodes and edges, where nodes denote brain regions, or groups of voxels, and edges denote correlations in activity between pairs of nodes over time. Significant correlation in activity between pairs of edges over time is denoted as links. In this context, we define a hyperedge as a group of links connecting two or more edges with significantly correlated temporal profiles. Finally, a set of hyperedges forms a hypergraph, H, defined as an ordered pair $(V,\epsilon )$. Here, V is a finite set of nodes or vertices $V=\{1,\dots ,N\}$ and $\epsilon =\{h_1,h_2,\dots ,h_n\}$ is a family of nonempty subsets of elements of X, called hyperedges or hyperlinks, showing the interaction between elements of X [14].

The algorithm of [47] was used for part of the hypergraph visualization. The incidence matrix was given as input. The obtained representations included the hypergraph, the incidence matrix in linear form, and the star expansion. Hypergraph characteristics were obtained along with some matrix representations of the same.

2.12.1. Adjacency and Node Stars

Adjacency between vertices is established when at least one hyperedge contains two vertices [14]. This is illustrated by the star of the nodes, which is defined as the collection of hyperedges incident on node i: $\epsilon \left(i\right)=\left\{h|i\in h\right\}$ is referred to as the star of i, where h is a hyperedge.

2.12.2. Degrees of Vertices and Hyperedges

The degree of vertices in the hypergraph is defined as $de{g}_H\left(i\right)=\left|\epsilon \left(i\right)\right|$, which corresponds to the size of its stars, i.e., the number of hyperedges incident to i. The degree of a hyperedge, $h\in \epsilon$, is the number of vertices it contains, denoted as $deg\left(h\right)=\left|h\right|$.

3. Results and Discussion

3.1. Coherence Brain Networks and Matrices

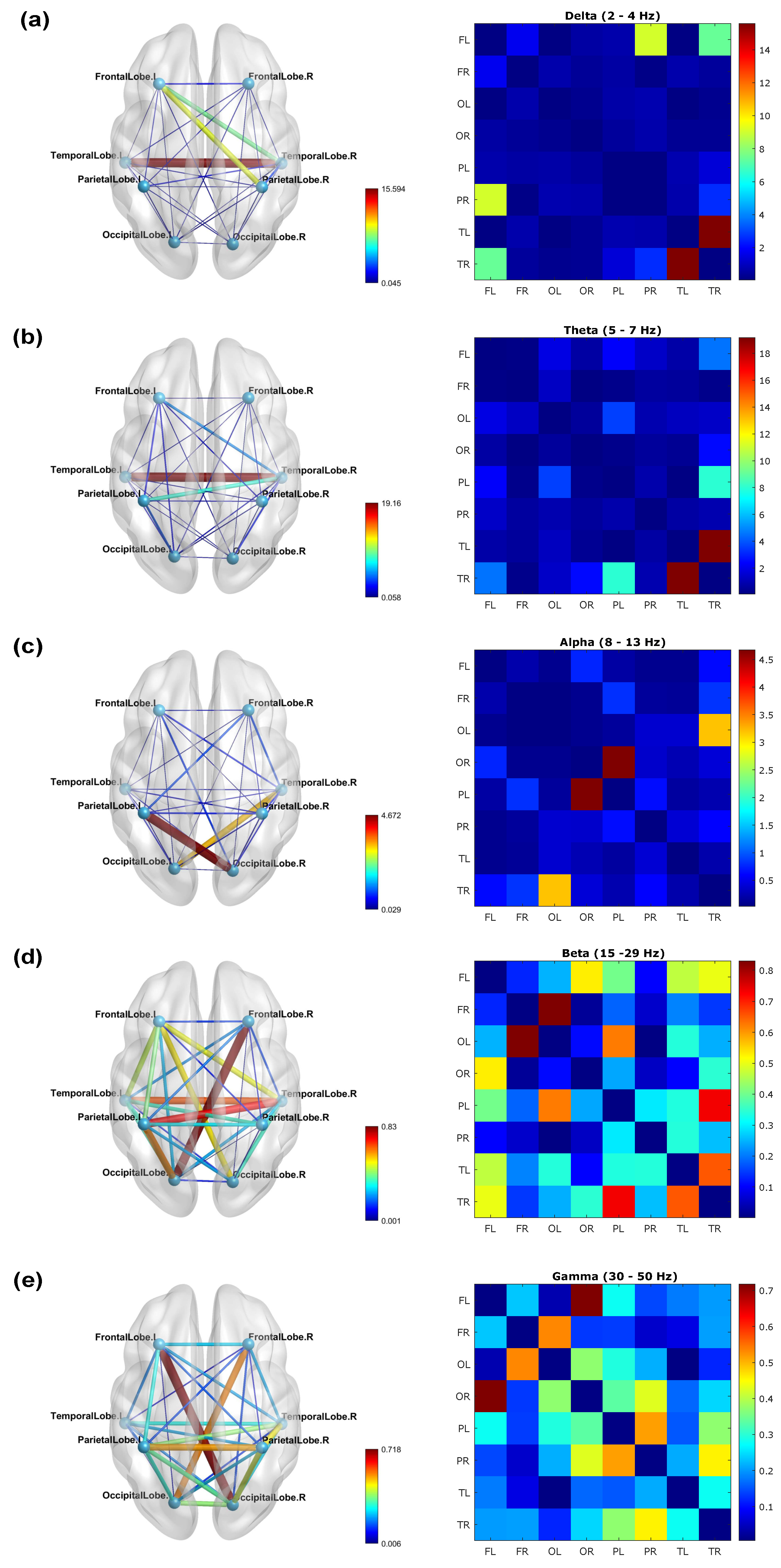

Figure 2 displays brain networks (left column) of the coherence and corresponding $8\times 8$ coherence matrices (right column) for five frequency bands (delta, theta, alpha, beta, and gamma), presented using the BrainNet Viewer template. The coherence values shown in this figure were computed from the averaged F-trials normalized to the B-trials. One can observe that, in general, the coherence at low frequencies (delta and theta waves) is stronger than that at high frequencies (alpha, beta, and gamma waves). In particular, the strongest coherence at low frequencies occurred between the right and left temporal lobes (Figure 2a,b). At the same time, for alpha waves, the strongest coherence was observed between the right occipital and left parietal lobes (Figure 2c), while for beta waves, the strongest coherence occurred between the right frontal and left occipital lobes (Figure 2d). Finally, for gamma waves, the strongest coherence was observed between the left frontal and right occipital lobes (Figure 2e). The coherence values in both the brain and matrix representations are prominently depicted in the color bar, appearing as a distinct shade of dark red.

3.2. Frequency Spectra

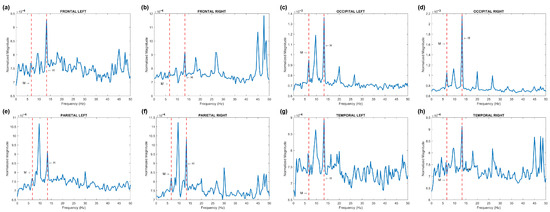

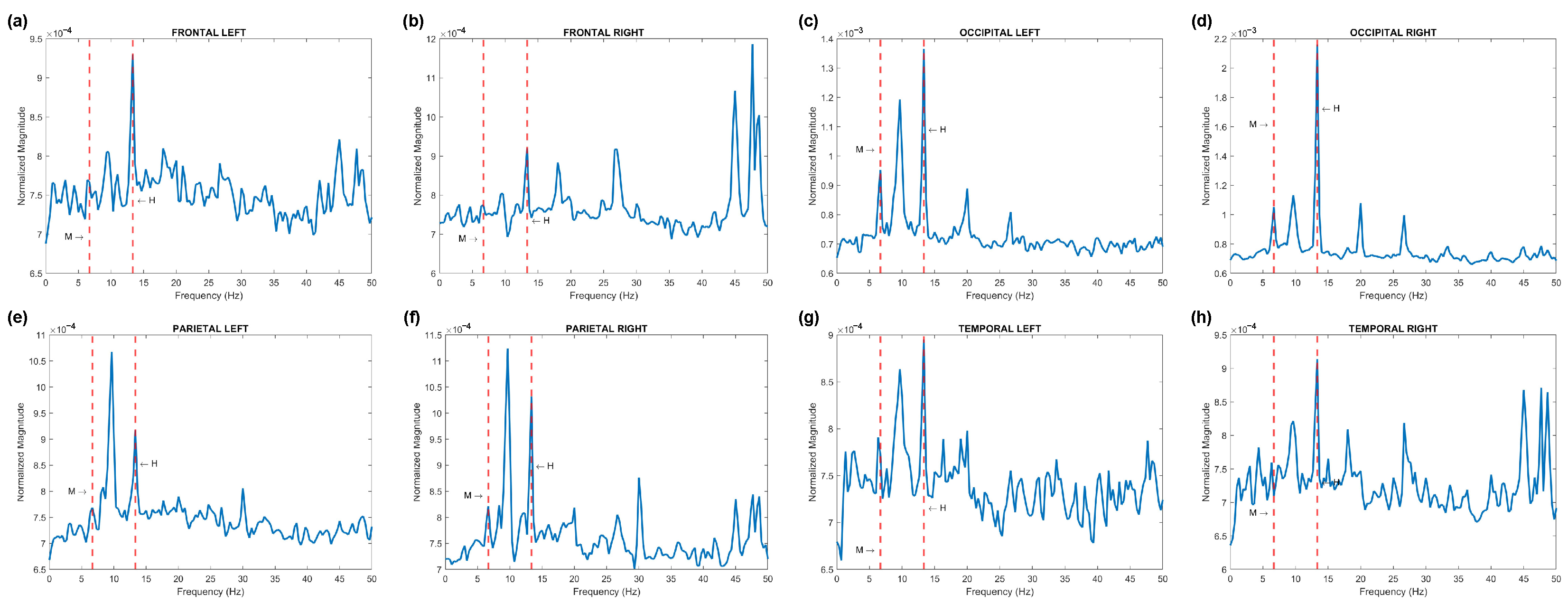

Figure 3 displays the brain activity in the frequency domain. Here, we present the normalized power spectra in eight lobes, which correspond to the average fast Fourier transform (FFT) of the F-trials, normalized to the FFT of the B-trials.

The modulation frequency $f_m=6.67$ Hz (M) is notably visible in the frequency spectrum of most lobes. However, its second harmonic, $2f_m=13.34$ Hz (H), exhibits the highest amplitude across all lobes. Furthermore, the higher harmonics at $3f_m$ and $4f_m$ are discernible in the occipital lobes. This observation aligns cohesively with findings reported by Chholak et al. [39].

3.3. Network Characteristics

We computed various network characteristics. As depicted in Figure 2, the coherence coefficient ranges from 0 to 19.16 across different frequency bands, reaching a distinct maximum value for each band.

Table 1. Maximum coherence of each frequency band.

Frequency Band	Maximum Coherence	Lobes
Delta	15.5940	Temporal Left–Temporal Right
Theta	19.160	Temporal Left–Temporal Right
Alpha	4.6720	Parietal Left–Parietal Right
Beta	0.8300	Frontal Right–Occipital Left
Gamma	0.7180	Frontal Left–Occipital Right

displays the maximum coherences observed within each frequency band, along with the lobes between which they were identified.

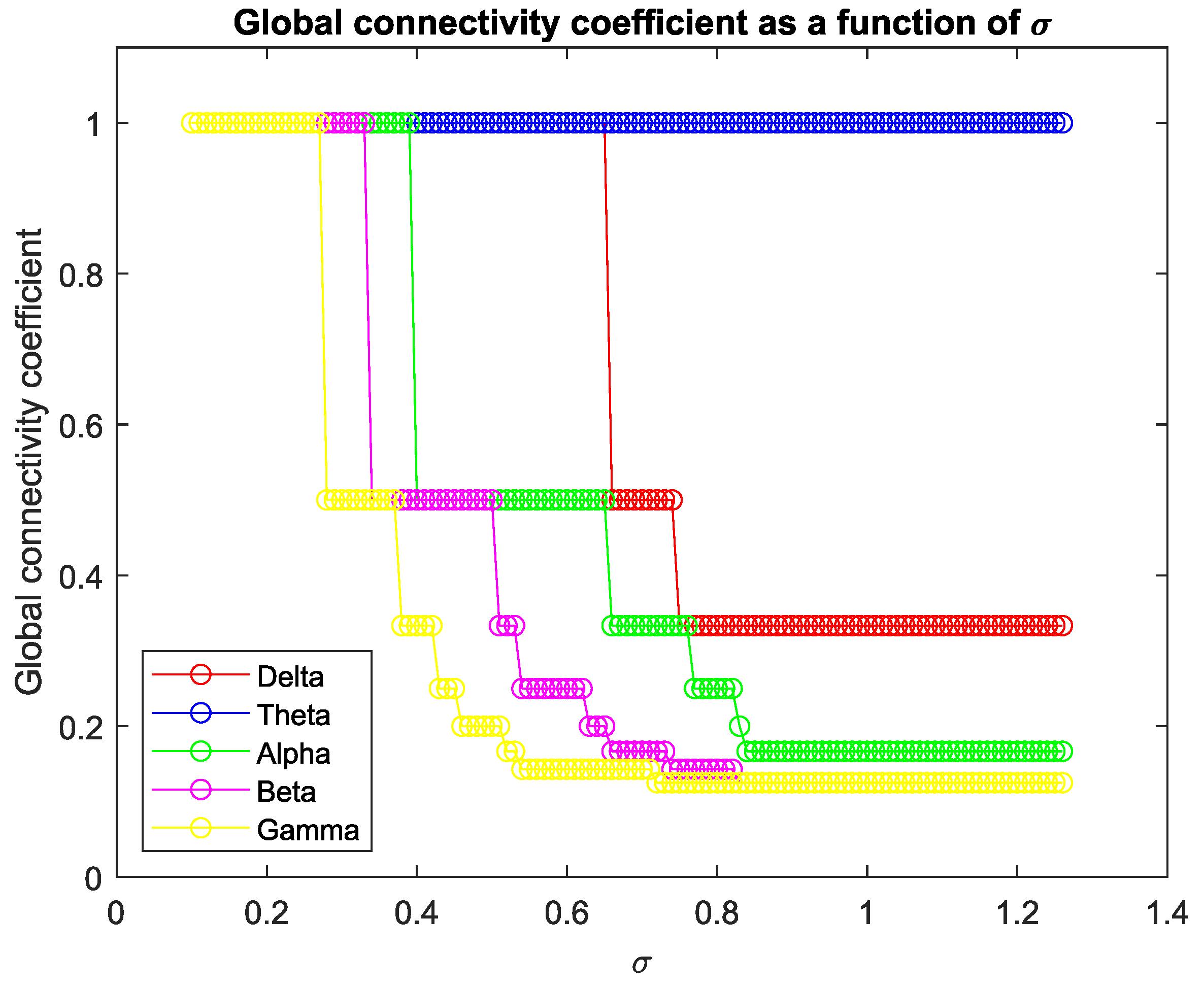

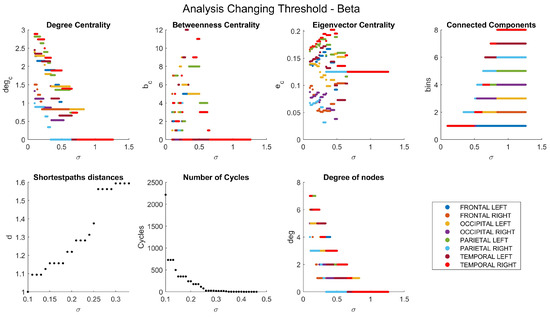

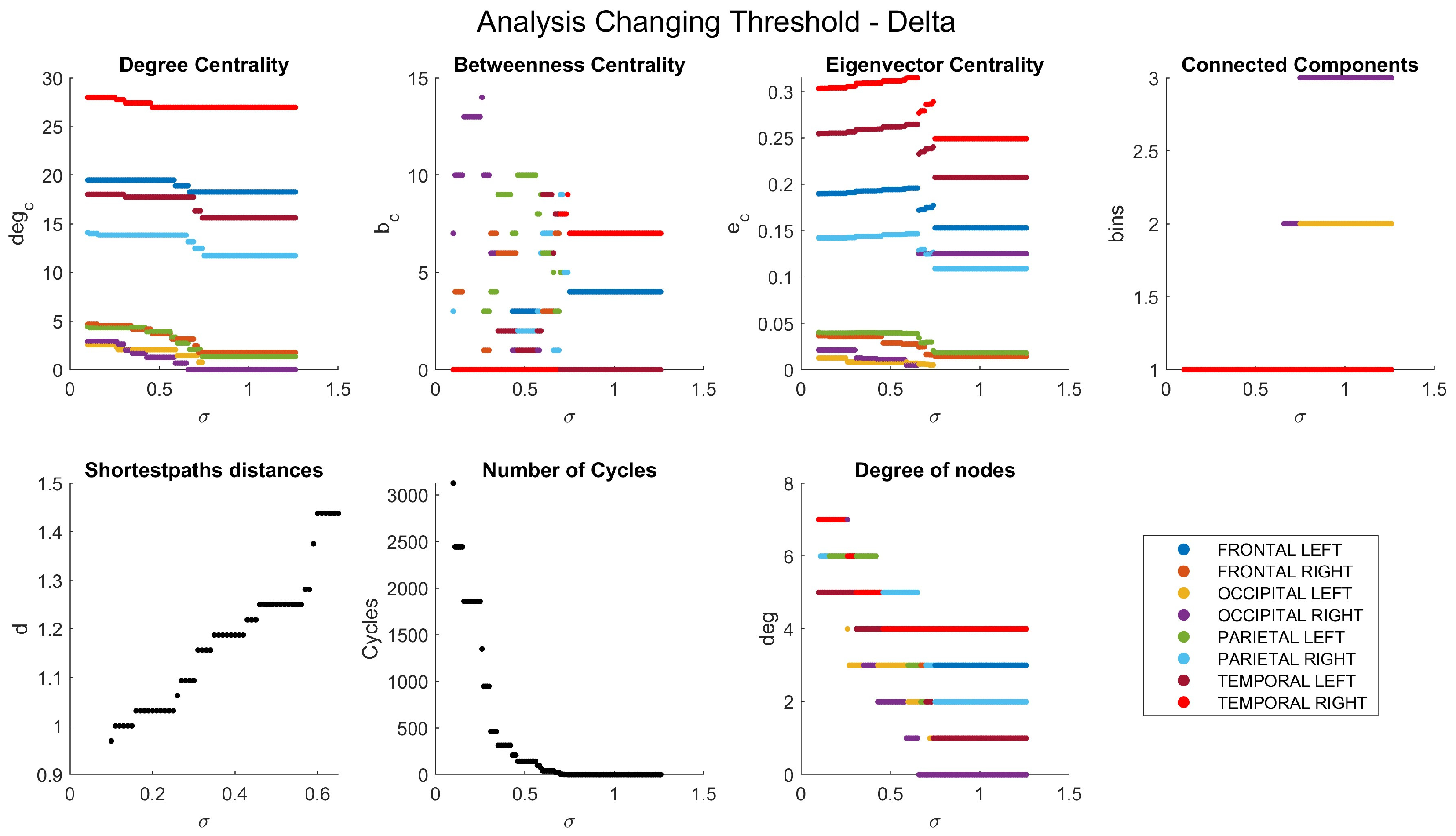

In Figure 4, we plot the global connectivity coefficient $\kappa$ found by Equation (2) for each frequency band with respect to the threshold value ${\sigma }_{th}$. A general decrease in the coherence coefficient between nodes was observed with increasing frequency.

Additionally, it is noteworthy that our representation emphasizes the heightened connectivity of low-frequency components compared to high frequencies, aligning with previous observations by Salvador et al. [48]. This depiction offers a clearer insight into the variations in connectivity between lobes within each frequency band.

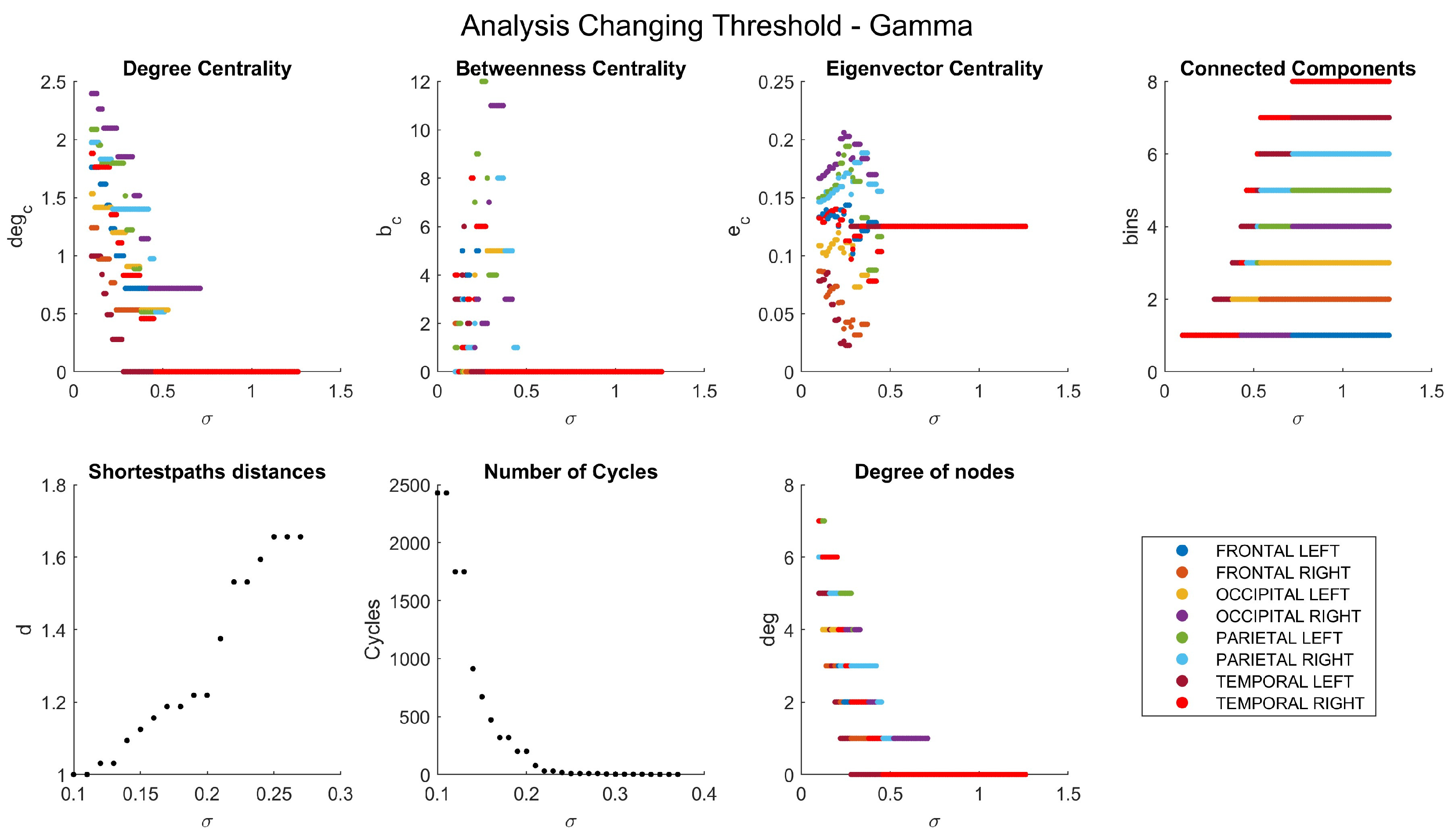

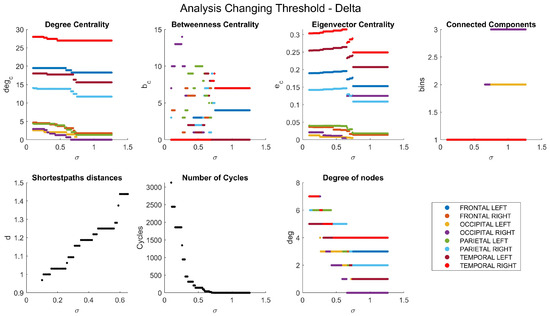

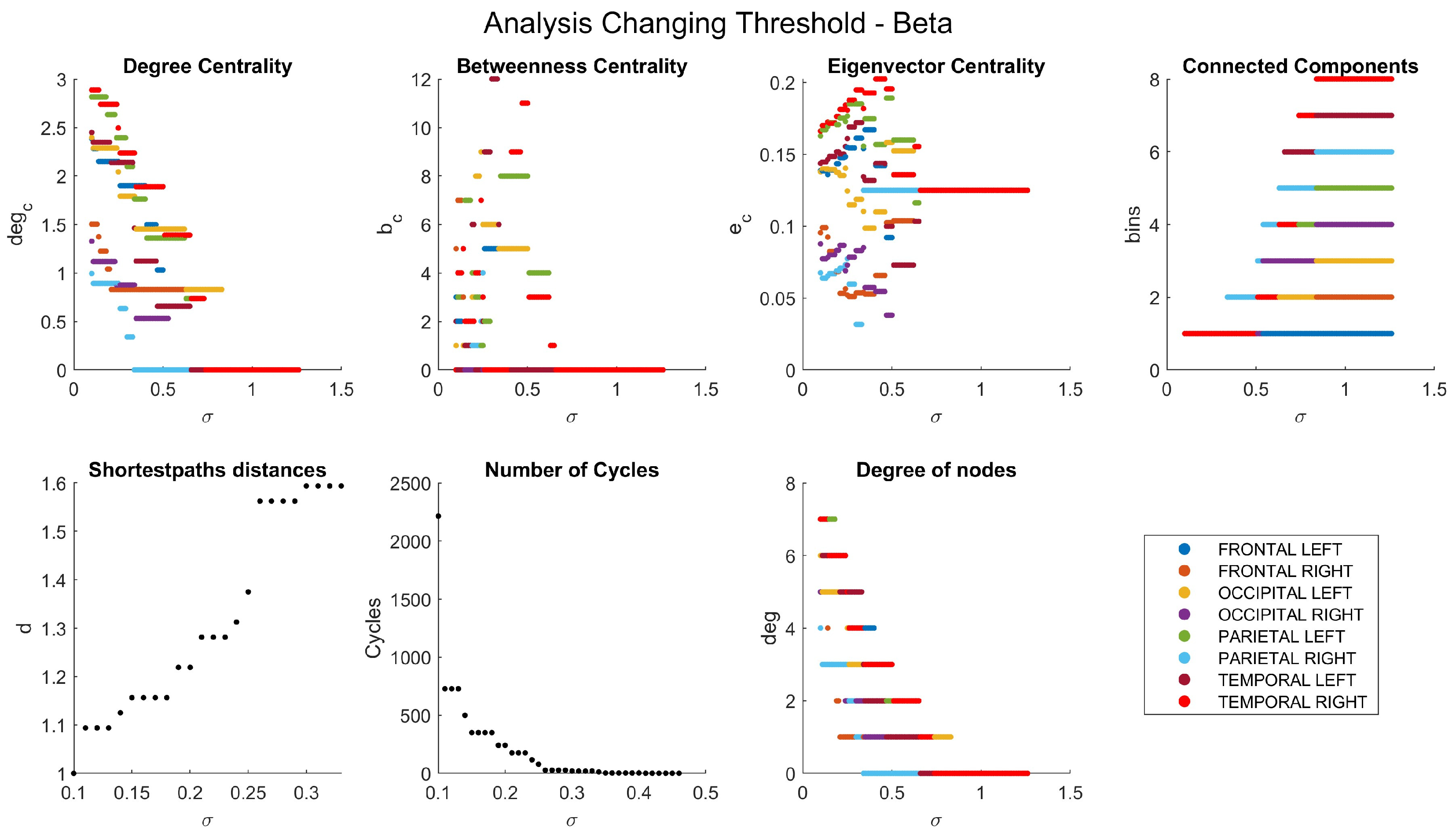

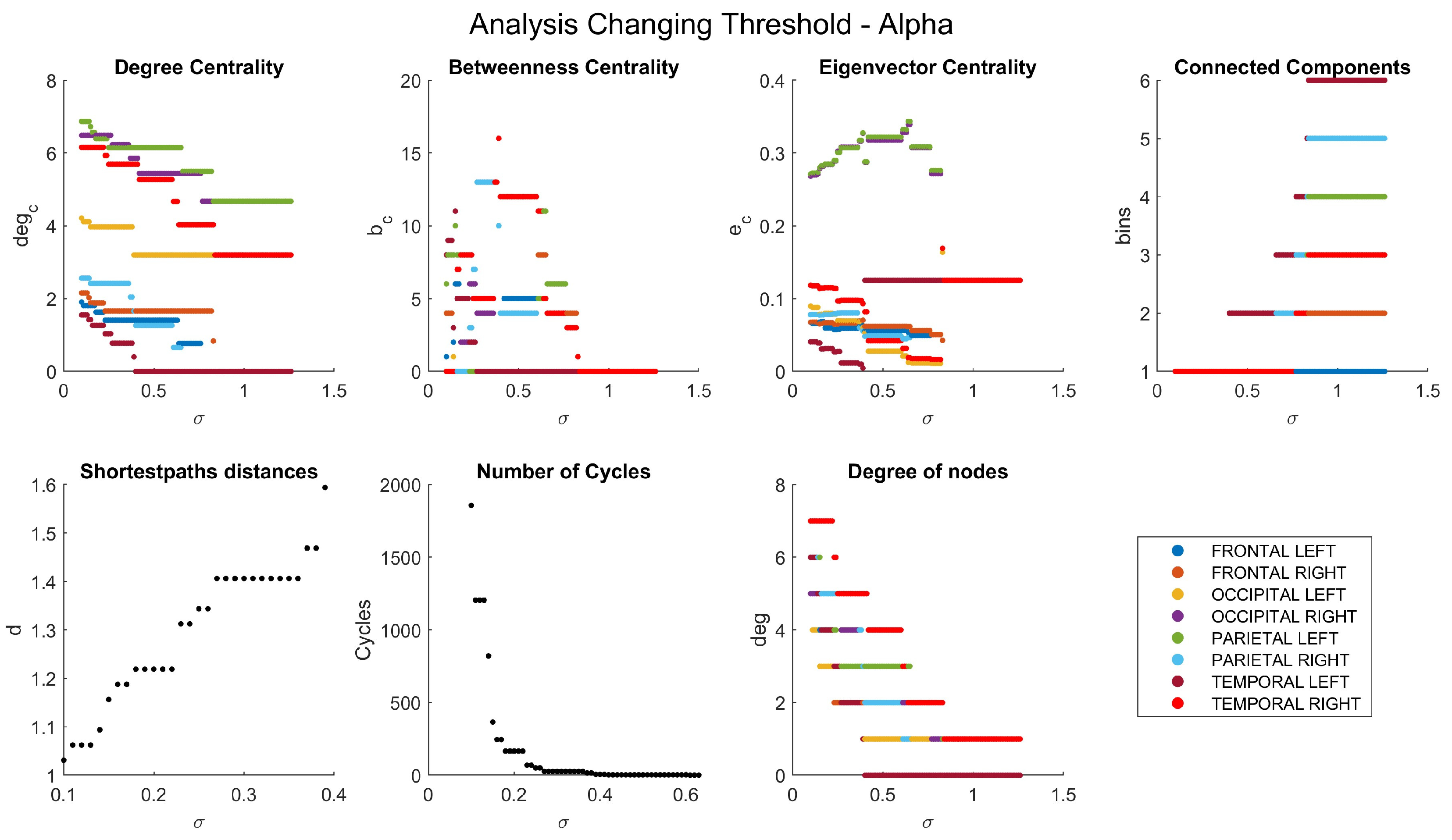

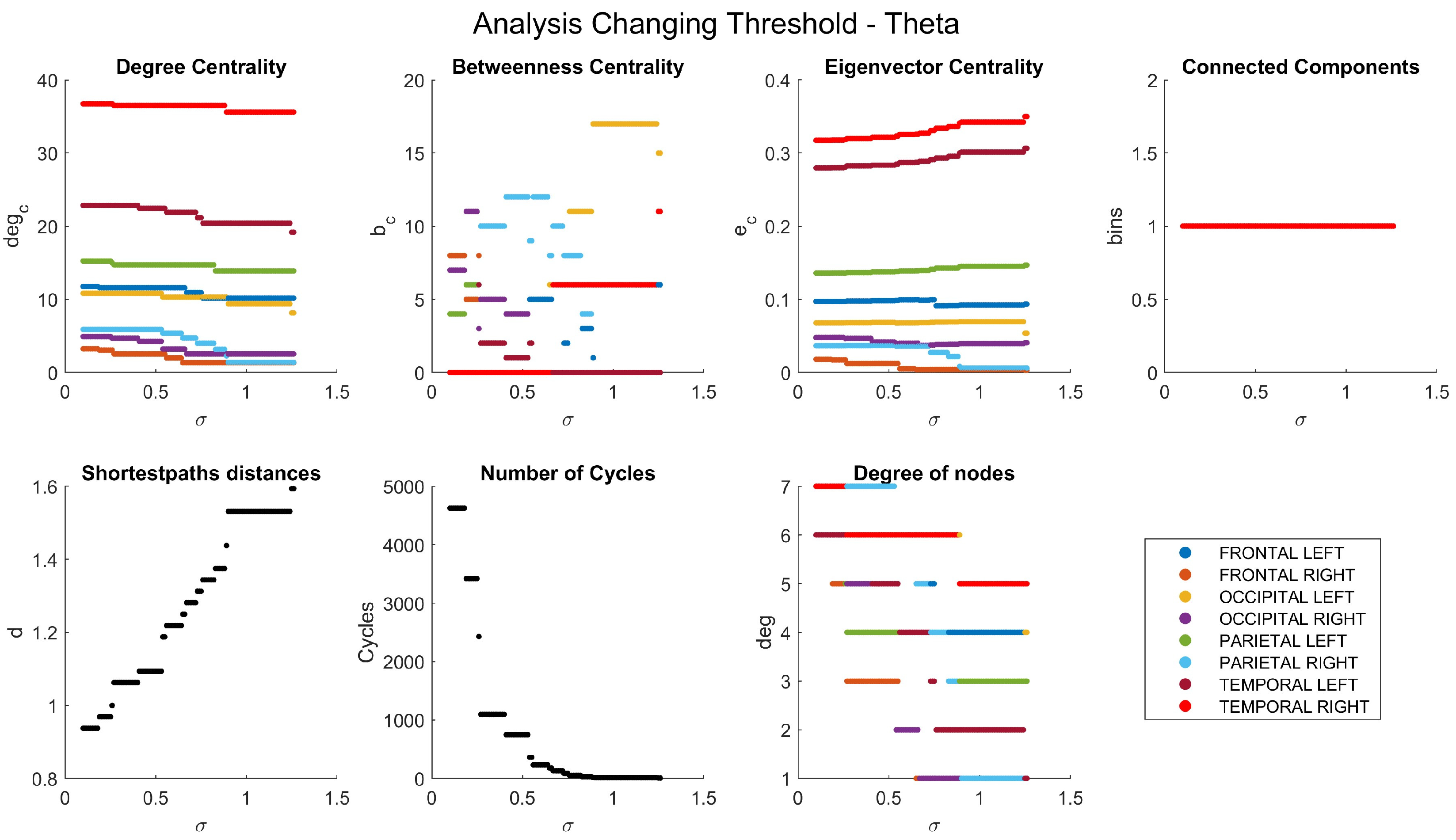

One can see that, for each frequency range, there is a coherence threshold value ${\sigma }_{th}$ at which centrality measures, shortest-path distances, and degree of nodes undergo significant changes (Figure A1, Figure A2, Figure A3, Figure A4 and Figure A5). This threshold value depends on the wave frequency. Specifically, as seen in Figure 4, for delta waves ${\sigma }_{th}\approx 0.75$ and for theta waves, the global connectivity appears to remain constant at 1 at all these ${\sigma }_{th}$ values: for alpha waves, this is ${\sigma }_{th}\approx 0.42$, for beta waves, this is ${\sigma }_{th}\approx 0.37$, and for gamma waves, this is ${\sigma }_{th}\approx 0.3$. This means that ${\sigma }_{th}$ decreases as the wave frequency increases, i.e., the brain network of functional connectivity is more stable at low frequencies.

A connectivity threshold serves as a crucial parameter in delineating genuine connections within a functional network while filtering out spurious ones. This approach enables a focused examination of network properties. Analyzing a graph necessitates setting a connectivity threshold to discern valid connections among nodes and discard erroneous ones. The choice of threshold value is somewhat arbitrary, with increasing thresholds excluding weaker, potentially noisy connections. However, setting the threshold too high risks eliminating important frequency bands like beta and gamma, resulting in a connectivity coefficient of 0 for the resulting graph. Our chosen threshold value of ${\sigma }_{th}=0.5$ ensures a minimum coherence of this magnitude between lobes’ signals. Despite its strictness, this threshold preserves all connections across various frequency bands.

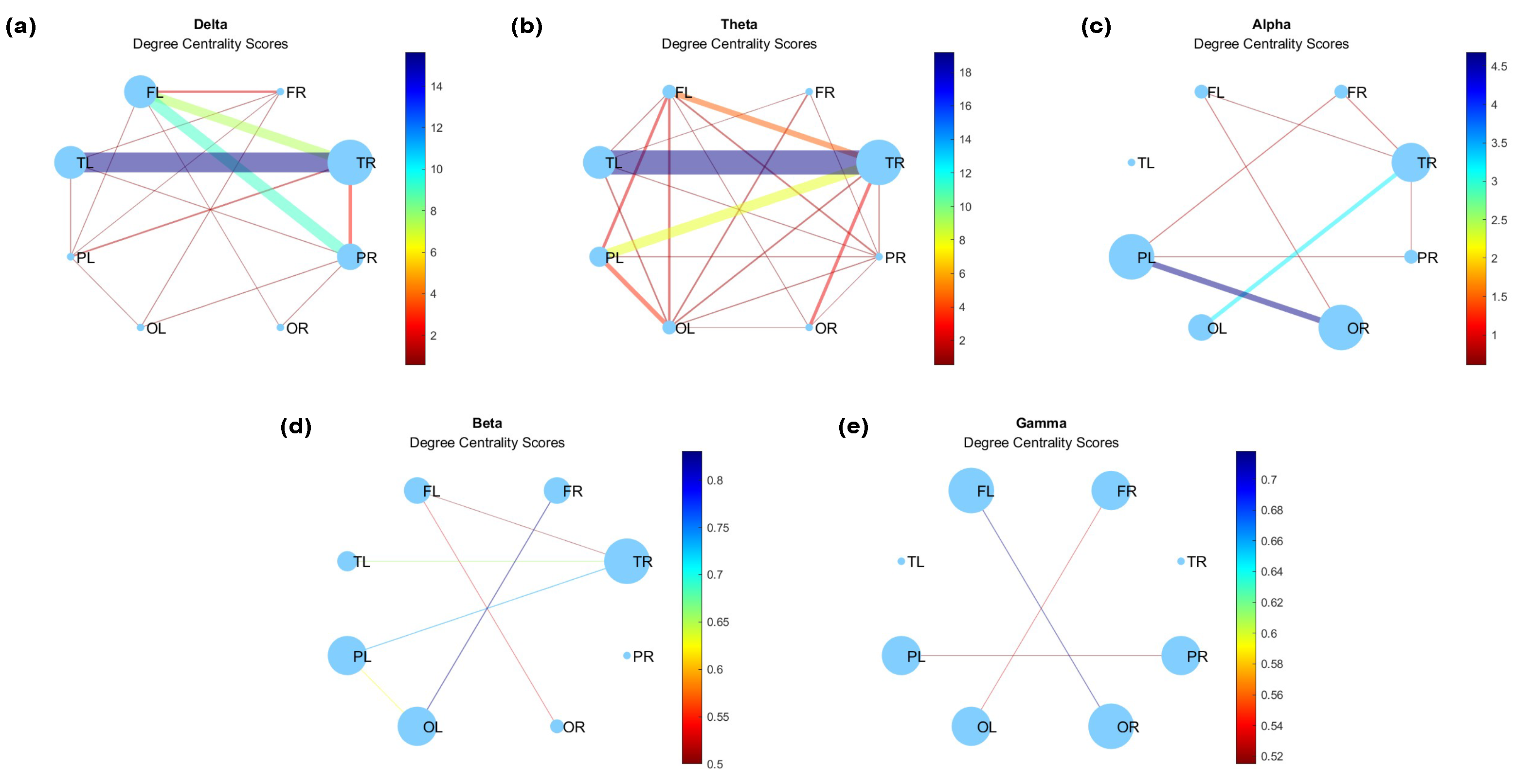

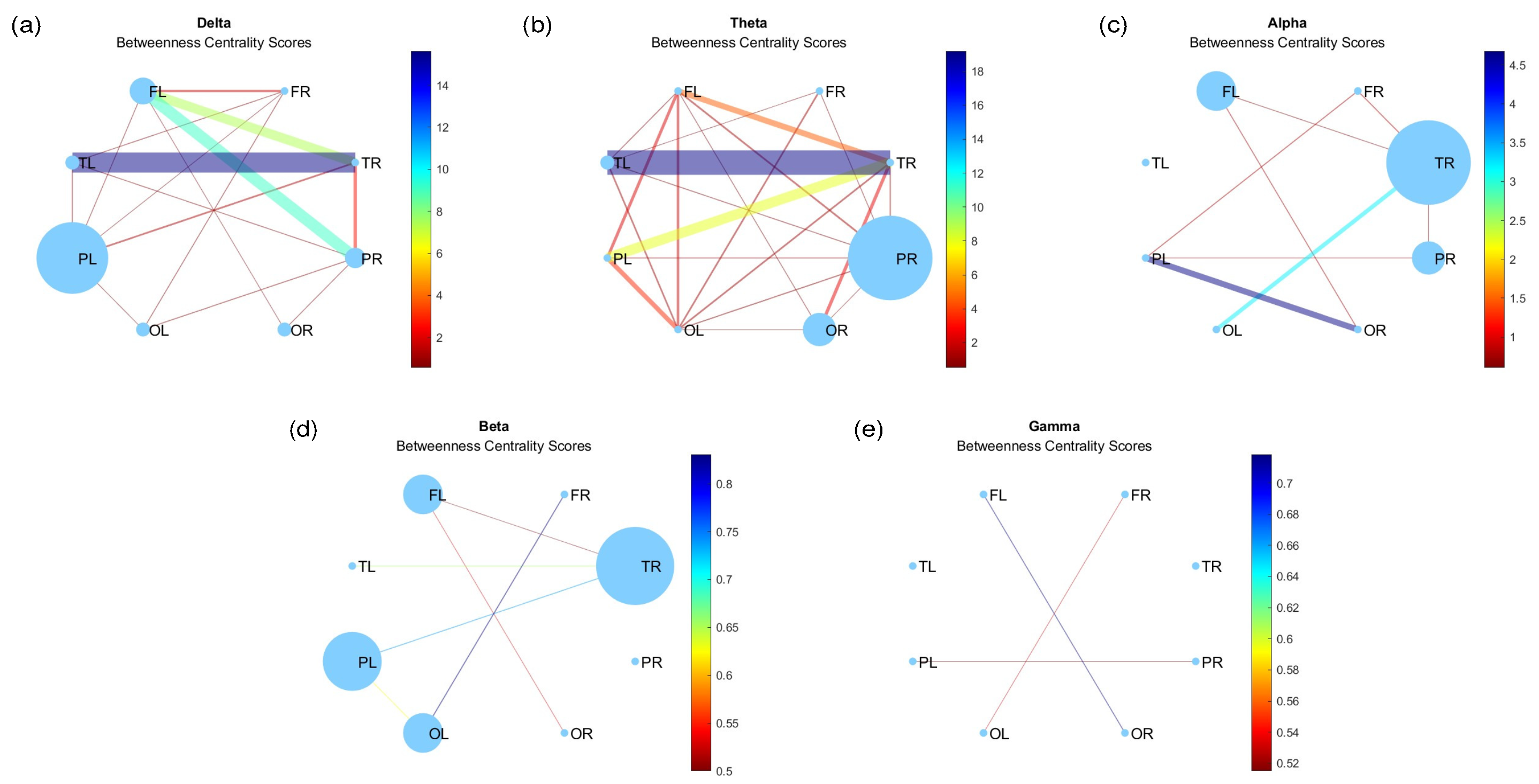

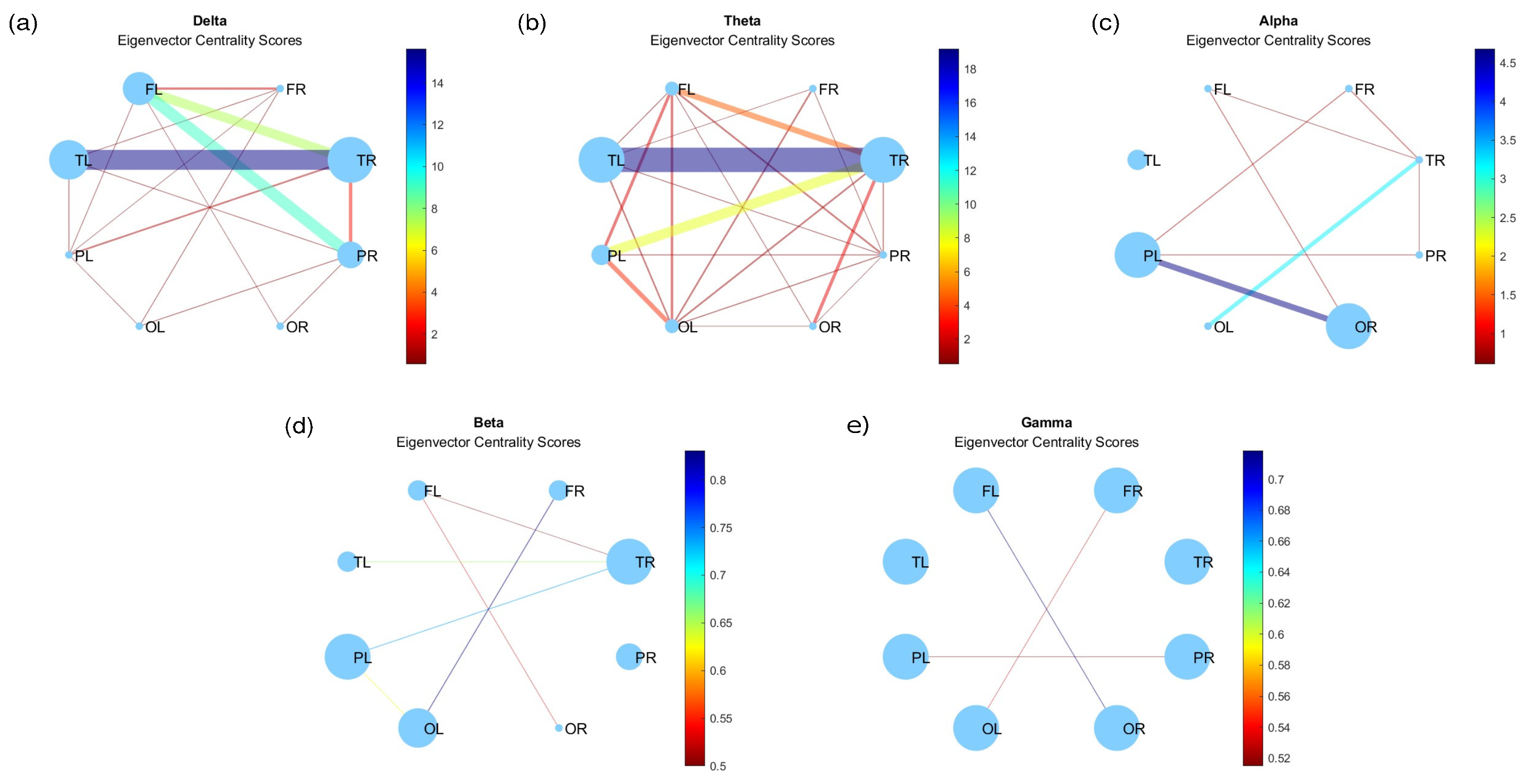

Figure 5 illustrates the results of the analysis of degree centrality in the brain network of the eight lobes for different frequency ranges. The node sizes indicate their importance as a function of edge weights. Centrality, as extensively documented in the electrophysiological literature, has consistently underscored the non-uniform distribution of coherence across frequencies [49]. It is well established that different systems of brain regions may exhibit varying levels of coherence at distinct frequencies [48].

The centrality patterns also demonstrate frequency-specific nuances. Specifically, at low frequencies, centrality predominantly manifests in temporal lobes, with noteworthy lateralization observed in delta and theta waves (Figure 5a,b). For alpha frequencies (Figure 5c), the coherence reveals a shift in centrality, now prominently observed in the right occipital and left parietal lobes, whereas in the case of beta and gamma waves (Figure 5d,e), the centrality is very weak and homogeneous between lobes. Contralateral coherences are observed between frontal and occipital lobes in the high-frequency bands.

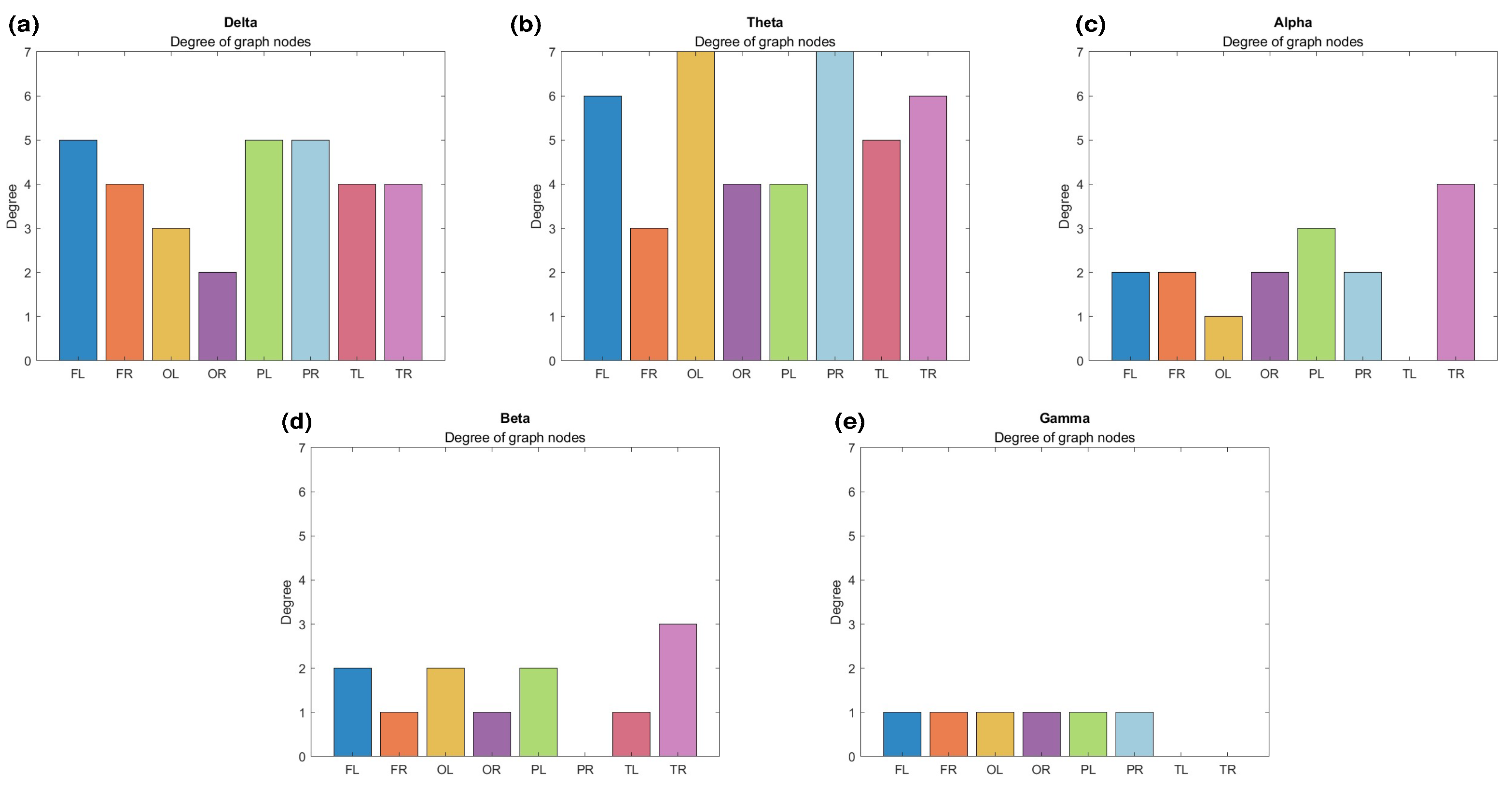

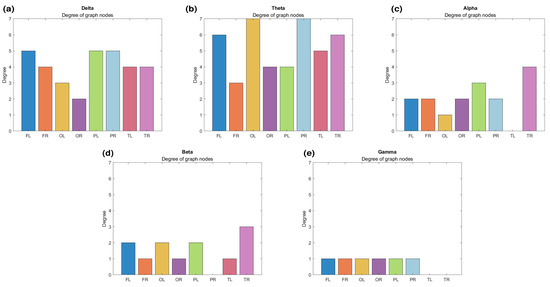

Figure 6 presents another representation of the node degrees for the lobes. It is evident that the nodes exhibit larger coherence-related connections in the low-frequency bands (Figure 6a,b). However, in the higher-frequency bands (Figure 6c–e), the connections are less pronounced. Notably, the connections in the delta band (Figure 6a) are smaller compared to those in the theta network (Figure 6b), which shows nodes with degrees of 7. A more evident alteration is observed for alpha waves (Figure 6c), where the left temporal lobe is completely disconnected, while the other lobes experience a reduction in connections. In the beta graph (Figure 6d), the right parietal lobe ceases to participate entirely. Meanwhile, for gamma waves (Figure 6e), engagement diminishes for the temporal lobes, while the rest show a degree of 1.

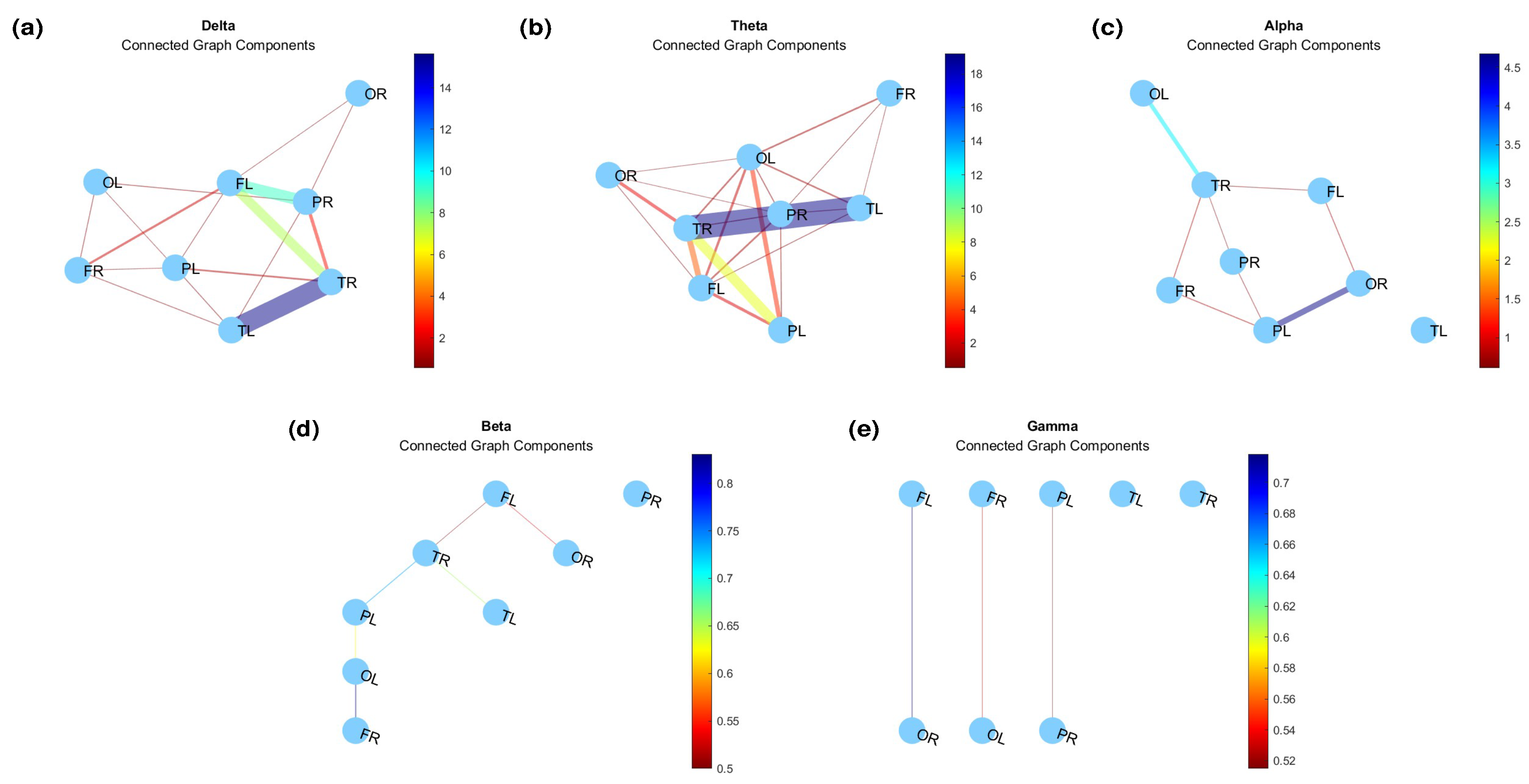

Figure 7 illustrates the connected graph components, which are the subset of network nodes where there is a path from each node in the subset to any other node in the same subset [45]. This representation allows us to observe the formation of groups as connections begin to dissolve. Identifying connected components within an undirected graph provides insight into the network’s level of connectivity and aids in the extraction of coefficient $\kappa$ (Equation (2)).

Table 2. Connectivity coefficients for different frequency bands.

Frequency Band	$\mathit{\kappa }$
Delta	1
Theta	1
Alpha	0.5
Beta	0.5
Gamma	0.2

presents the global connectivity coefficients for ${\sigma }_{th}=0.5$.

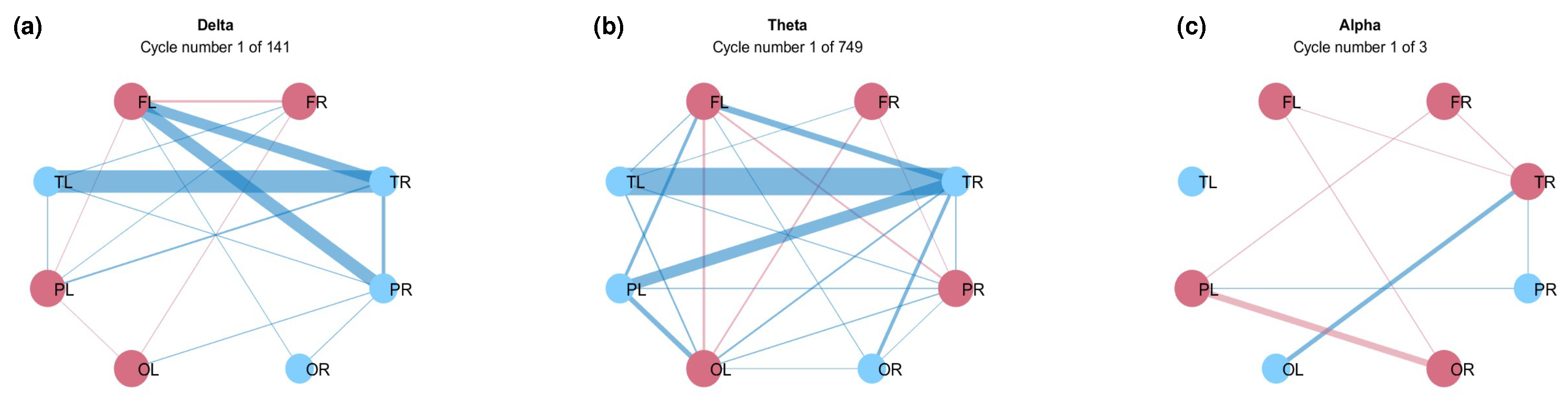

Figure 8 shows cycles formed in the networks for three frequency bands: delta, theta, and alpha. A cycle is a connected graph, in which each vertex has degree 2 [46]. The total number of cycles found for each graph is indicated in the figure. The theta graph (Figure 8b) displays the greatest connectivity and the most edges, resulting in a higher number of cycles within the network. In contrast, both the alpha and delta graphs (Figure 8a–c, respectively) exhibit fewer connections, with the alpha graph revealing only three cycles. Furthermore, no cycles were observed in the beta or gamma graphs. This observation is consistent with the broader literature, which suggests that slower rhythmic patterns typically exhibit a more widespread network configuration compared to faster ones [50,51].

Distances between nodes are represented as $8\times 8$ matrices ($Delt{a}_D$, $Thet{a}_D$, $Alph{a}_D$, $Bet{a}_D$, $Gamm{a}_D$), showing the shortest path distances. When the nodes are not connected, the distance is infinite. The disconnection of the networks is also noticeable in these matrices. The largest value is a five-node distance, only seen in the beta wave.

$$Delt{a}_D=\left[\begin{array}{cccccccc}0& 1& 2& 1& 1& 1& 2& 1\\ 1& 0& 1& 2& 1& 2& 1& 2\\ 2& 1& 0& 2& 1& 1& 2& 2\\ 1& 2& 2& 0& 2& 1& 2& 2\\ 1& 1& 1& 2& 0& 2& 1& 1\\ 1& 2& 1& 1& 2& 0& 1& 1\\ 2& 1& 2& 2& 1& 1& 0& 1\\ 1& 2& 2& 2& 1& 1& 1& 0\end{array}\right]$$

$$Thet{a}_D=\left[\begin{array}{cccccccc}0& 2& 1& 1& 1& 1& 1& 1\\ 2& 0& 1& 2& 2& 1& 1& 2\\ 1& 1& 0& 1& 1& 1& 1& 1\\ 1& 2& 1& 0& 2& 1& 2& 1\\ 1& 2& 1& 2& 0& 1& 2& 1\\ 1& 1& 1& 1& 1& 0& 1& 1\\ 1& 1& 1& 2& 2& 1& 0& 1\\ 1& 2& 1& 1& 1& 1& 1& 0\end{array}\right]$$

$$Alph{a}_D=\left[\begin{array}{cccccccc}0& 2& 2& 1& 2& 2& \infty & 1\\ 2& 0& 2& 2& 1& 2& \infty & 1\\ 2& 2& 0& 3& 3& 2& \infty & 1\\ 1& 2& 3& 0& 1& 2& \infty & 2\\ 2& 1& 3& 1& 0& 1& \infty & 2\\ 2& 2& 2& 2& 1& 0& \infty & 1\\ \infty & \infty & \infty & \infty & \infty & \infty & 0& \infty \\ 1& 1& 1& 2& 2& 1& \infty & 0\end{array}\right]$$

$$Bet{a}_D=\left[\begin{array}{cccccccc}0& 4& 3& 1& 2& \infty & 2& 1\\ 4& 0& 1& 5& 2& \infty & 4& 3\\ 3& 1& 0& 4& 1& \infty & 3& 2\\ 1& 5& 4& 0& 3& \infty & 3& 2\\ 2& 2& 1& 3& 0& \infty & 2& 1\\ \infty & \infty & \infty & \infty & \infty & 0& \infty & \infty \\ 2& 4& 3& 3& 2& \infty & 0& 1\\ 1& 3& 2& 2& 1& \infty & 1& 0\end{array}\right]$$

$$Gamm{a}_D=\left[\begin{array}{cccccccc}0& \infty & \infty & 1& \infty & \infty & \infty & \infty \\ \infty & 0& 1& \infty & \infty & \infty & \infty & \infty \\ \infty & 1& 0& \infty & \infty & \infty & 1& \infty \\ 1& \infty & \infty & 0& \infty & \infty & \infty & \infty \\ \infty & \infty & \infty & \infty & 0& 1& \infty & \infty \\ \infty & \infty & \infty & \infty & 1& 0& \infty & \infty \\ \infty & \infty & \infty & \infty & \infty & \infty & 0& \infty \\ \infty & \infty & \infty & \infty & \infty & \infty & \infty & 0\end{array}\right]$$

3.4. Hypergraphs

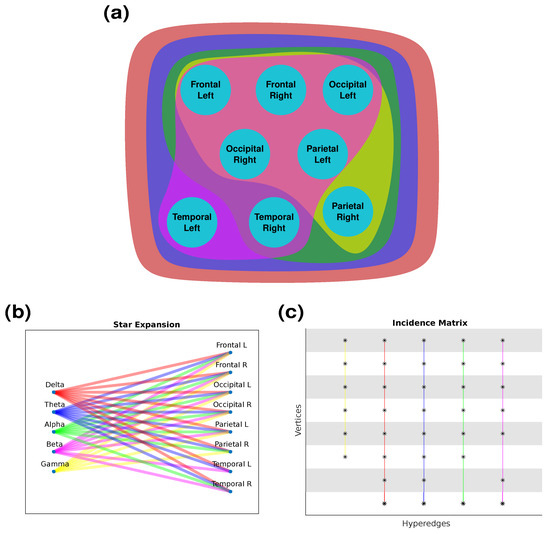

Figure 9 represents the hypergraph constructed based on a chosen threshold (${\sigma }_{th}=0.5$) in different forms with colors corresponding to different frequency bands. In particular, the hypergraph is shown as a network in Figure 9a, a star expansion in Figure 9b with connections for each node, and as its incidence matrix in Figure 9c. It is observed that all eight lobes are coupled in the low-frequency ranges of the delta and theta bands, seven lobes (FL, FR, OL, OR, TR, PL, and PR) are coupled for the alpha band, eight lobes (FL, FR, TL, TR, OL, OR, and PL) for the beta band, and six lobes (FL, FR, OL, OR, PL, and PR) for the gamma band.

The analysis was carried out following the basic properties of hypergraphs. The degrees of the vertices and hyperedges are given in

Table 3. Vertices and hyperedges degrees.

Vertice	|$\mathit{\epsilon }$(i)|	Hyperedge	|e|
Frontal Left	5	Delta	8
Frontal Right	5	Theta	8
Occipital Left	5	Alpha	7
Occipital Right	5	Beta	7
Parietal Left	5	Gamma	6
Parietal Right	4
Temporal Left	3
Temporal Right	4

, where $de{g}_H\left(i\right)=\left|\epsilon \left(i\right)\right|$ is the number of vertices incident on i, and the degree of a hyperedge $deg\left(h\right)=\left|h\right|$ is the number of vertices it contains.

A star, as mentioned earlier, denotes a pattern where a central vertex—in this case, representing a cerebral lobe—is intricately connected to multiple peripheral vertices, symbolizing different brain frequency ranges. This graphical representation is valuable as it effectively portrays the intricate relationship between a specific cerebral lobe and its involvement across diverse frequency bands. The presence of stars within the graph signifies that the central cerebral lobe exhibits activation across various cognitive conditions or mental states, indicative of its multifunctional nature.

The stars of each lobe are the following:

-

Left frontal lobe (node 1): Delta, theta, alpha, beta, and gamma.

-

Right frontal lobe (node 2): Delta, theta, alpha, beta, and gamma.

-

Left occipital lobe (node 3): Delta, theta, alpha, beta, and gamma.

-

Right occipital lobe (node 4): Delta, theta, alpha, beta, and gamma.

-

Left parietal lobe (node 5): Delta, theta, alpha, beta, and gamma.

-

Right parietal lobe (node 6): Delta, theta, alpha, and gamma.

-

Left temporal lobe (node 7): Delta, theta, and beta.

-

Right temporal lobe (node 8): Delta, theta, alpha, and beta.

Although correlations between frequencies have been observed in previous studies [52], and biophysical models have been proposed to explain interactions among different frequency bands, such as theta and gamma [53], further research, similar to the current study, is necessary to elucidate the potential coupling between the mechanisms generating these distinct frequencies.

4. Conclusions

In this study, we conducted a comprehensive hypergraph analysis of functional connectivity using MEG data acquired from a modulated visual stimulus. By focusing on differences within distinct frequency bands, we constructed a coherence-based hypergraph to explore functional connectivity among the frontal, parietal, temporal, and occipital brain lobes. Our findings suggest that each frequency band has a specific coherence threshold; beyond this, significant changes occur in network characteristics, such as centrality, shortest-path distances, and node degree. Interestingly, this threshold is lower for higher-frequency bands, indicating stronger connectivity between lobes at lower frequencies and greater stability in the brain network of functional connectivity. Specifically, we observed strong coherence among all eight lobes in the delta and theta bands; this was only observed among six lobes in the gamma band.

Furthermore, we noted variations in global connectivity with coherence thresholds across different frequency bands. Strong coherence was observed between temporal right and left lobes for delta and theta waves, occipital right and parietal left lobes for alpha waves, frontal right and occipital left lobes for beta waves, and frontal and occipital lobes for gamma waves. These findings collectively contribute to our understanding of brain network dynamics across different frequency bands. Our results lend credence to the idea that cortico–cortical interactions can manifest at multiple levels. The resultant hypergraph exposes robust activation patterns in select brain regions across varied cognitive contexts associated with various frequency bands, hinting at possible integration or multifunctionality within these lobes.

While previous studies have noted correlations between frequencies and proposed biophysical models to explain interactions, our results highlight the importance of further research to unravel potential connections between the mechanisms generating different frequencies and with a modulated visual stimulus, using coherence instead of traditional correlation. Additionally, we argue that exploring hypergraph visualizations with a focused examination of finer-grained neural ensembles or smaller regions of interest (ROIs) can reveal compelling dynamics that merit further scholarly investigation.
