A Proof of Principle Study Conducted by Community-Dwelling Seniors Using a Novel Passive Gait Assist System

Abstract

It is vital for rehabilitating patients to perform as many task-related exercises as possible. These patients often need either force or trajectory assistance in order to perform gait. While this can be provided in the form of traditional gait rehabilitation or currently emerging robot-assisted gait training, there is a need for an affordable means to assist gait training. In this study, we present a passive gait assistance device that is composed of a spring-bar system attached to an elastic cord and a specialized shoe. The shoe has two straps attached such that both plantar and dorsiflexion torque can be applied to the user depending on the angle of the pulling force. The merit of the devices is that it is an affordable means to provide the user with gait assistance while allowing some freedom of one’s foot movement. We show that, with 20 community-dwelling seniors, our system successfully produces plantar flexion and dorsiflexion torque according to the gait cycle. Furthermore, electromyography analysis suggests that plantar flexor demand during the late stance phase and dorsiflexor demand during the swing phase are significantly reduced.

1. Introduction

It has been reported by the World Health Organization that adults should participate in 150 min/week of physical activities to maintain good health [1,2]. However, it is difficult for bedridden patients suffering from muscle atrophy, caused by long-term disuse, to fulfill this requirement [3,4,5,6,7]. This elicits a vicious cycle where the ramifications include, but are not limited to, an increased risk of cancer, cardiovascular diseases, diabetes, and sarcopenia [8,9]. Current strategies to avoid the deconditioning cycle consist mainly of gait exercises provided with assistance from therapists and personal trainers. While effective, limited resources often prevent patients from receiving the required exercise. Furthermore, it is imperative that physiological gait patterns are preserved during these exercises as compensation patterns may lead to gait deficits [10].

Recent advancements have led to the development of gait rehabilitation robots [11,12,13,14,15,16,17,18,19]. These devices are designed to provide assistance by supporting bodyweight, lower limb trajectory control, and, furthermore, quantitative monitoring of the patient. However, studies have shown that full-bodyweight-supporting robot-assisted gait training (RAGT) exhibits lackluster rehabilitative efficacy [20,21,22]. The primary reason behind this is thought to be due to the lack of patient participation [23,24,25]. In order to resolve this issue, more recently, various wearable robots have been incorporated into the exercise regimen [26,27,28,29]. While hard exoskeletons were initially developed to assist patients with total loss of lower extremity function, they are now being utilized for more general RAGT purposes [30,31]. Due to added inertia and the wearability and comfort issues of hard exoskeletons, soft-type exoskeletons comprising textiles and Bowden cables have also been developed to boost users’ mobility [32,33,34,35,36]. However, both types are relatively expensive and require specialist assistance; thus, they have fallen short of being immersed in the rehabilitation scene.

While there exists a plethora of assistive devices, simple rollators do not provide any force or trajectory assistance, and it has been reported that RAGT devices restrict free movement and have an inherent difficulty in providing assist-as-needed control [24,25]. Unpowered exosuits and devices consisting of only passive elements and no actuators have become a popular research topic [37,38,39,40,41]. The main goal of such devices has been lowering the metabolic costs during gait. The strategy behind this is storing and releasing elastic energy among the joints. Collins et al. proposed an ankle orthosis consisting of a spring, rope, and clutch that harvests energy and assists the calf muscle, resulting in reduced metabolic energy during muscle contraction [37]. More recently, Barazesh and Sharbafi proposed a biarticular passive exosuit that is capable of reducing metabolic costs by 10% during gait [42]. These promising results suggest that further research is warranted in the field of passive exosuits.

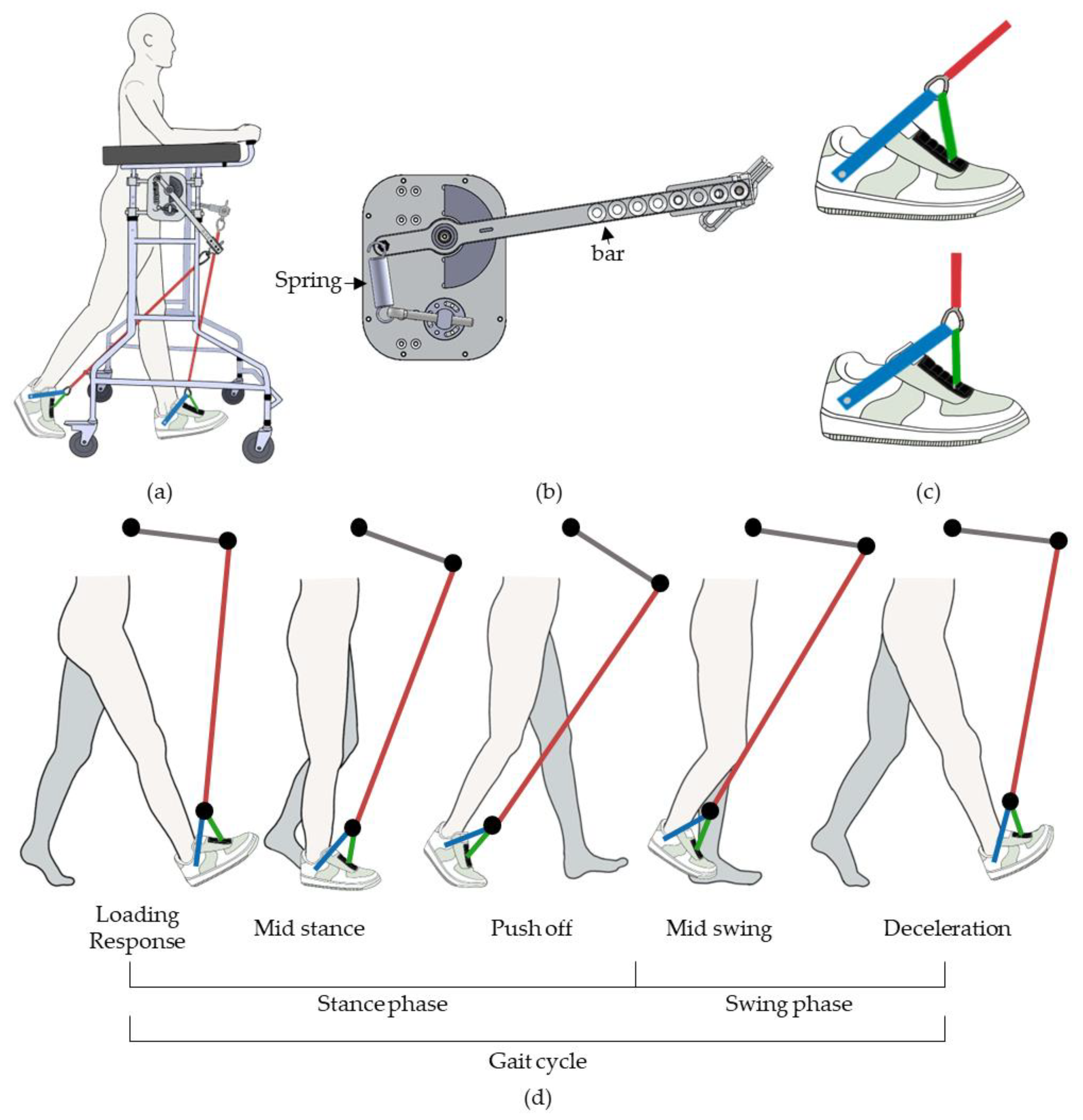

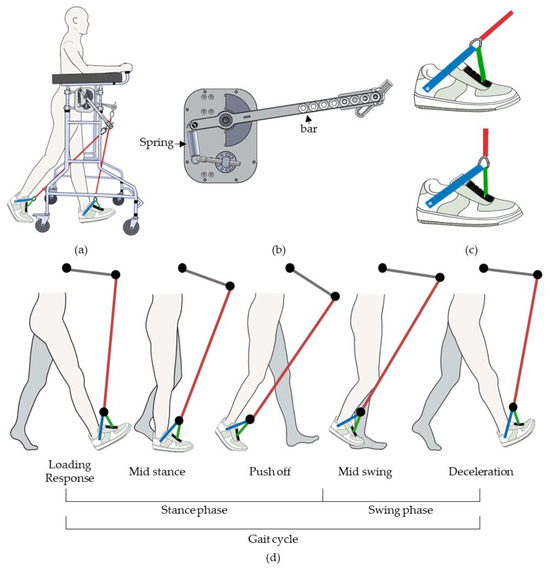

In this paper, we present a novel apparatus, that can be independently used by the user without external assistance, that attaches to a conventional rollator consisting of only passive elements that aims to support patients with diminished lower extremity capabilities. Our device, unlike traditional rollators, provides force assistance according to the gait cycle while allowing relatively free lower limb movements compared to RAGT devices. This system (Figure 1a) comprises a spring-bar system with an elastic cord that is attached to a specialized shoe which has two straps, one anchored at the heel and one above the metatarsal head. Our device offers plantar flexion torque during the late stance phase which immediately transitions to dorsiflexion torque during the early swing phase. This is vital to accommodate the user’s natural gait patterns, which require plantar flexion torque for gait propulsion and subsequent dorsiflexion torque for swift foot clearance [43]. We provide simulation data, which assisted with optimizing the system’s parameters followed by empirical verification using load cells. Furthermore, we found that, with 20 community-dwelling older adults, our device successfully lowers electromyography (EMG) signals from the soleus during the stance phase and the tibialis anterior (TA) during the swing phase.

2. Materials and Methods

2.1. Passive Gait Assist System

We designed the passive gait assist system to assist with plantar flexion during the late stance phase and dorsiflexion during the swing phase. This was achieved using a specialized shoe, shown in Figure 1b, which consists of straps 1 and 2 anchored at the heel and above the metatarsal, represented as blue and green lines, respectively. When the pulling force is at a low angle, relative to the ground, more tension resides within strap 1 compared to that of strap 2 which provides plantar flexion torque. When the pulling force is at a high angle, the greater tension in strap 2 induces dorsiflexion torque (Figure 1c). Thus, a device that can change the angle of the pulling force in accordance with the gait cycle needed to be implemented. We approached this by adding a spring-bar system (Figure 1b). During late stance, the elastic cord is lengthened and the bar drops, causing tension to reside more in strap 1 than strap 2, which elicits heel-off (HO) torque. When the heel lifts off from the ground, the spring-bar system returns to its original height, which increases the angle eliciting dorsiflexion torque (Figure 1d).

The height at which the spring-bar system is attached can be varied by adjusting the screws. During our treadmill gait experiments, they were adjusted to be 1.05 m from the ground, which is higher than that of overground gait in order to compensate for the height of the treadmill (5 cm). The length of the bar was 36 cm, and the stiffness of the spring was 11.77 N/mm. Also, the free length and stiffness of the elastic cord were 61 cm and 0.18 N/mm, respectively.

2.2. Simulation and Load Cell Verification

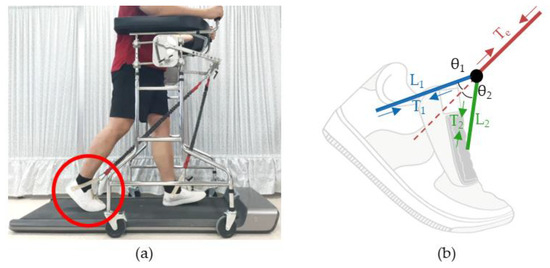

We estimated the forces acting on straps 1 and 2 by analyzing a video recording, via an RGB camera, of a healthy participant using the passive gait assist system. We initially obtained the force profile of the elastic cord during the gait cycle by measuring its change in length. This was carried out by marking the two ends of the elastic cord for each frame and then scaling the pixel lengths to mm lengths by normalizing them against the known free length of the elastic cord (Figure 2a). We then applied simple geometry (Figure 2b) to estimate the forces acting on each strap when varying the lengths of straps 1 and 2. The equations for estimating the tension in straps 1 and 2:

$$T_1=T_e·\mathit{sin}{\theta }_2/\mathit{sin}{(\theta }_1+{\theta }_2)$$

(1)

$$T_2=T_e·\sin {\theta }_1/\sin {(\theta }_1+{\theta }_2)$$

(2)

In order to verify that our simulations indeed reflect the actual forces, we attached load cells (HUMMA, HAIAM ENG., Seoul, Republic of Korea) to the end of the elastic cord and straps 1 and 2.

2.3. Experimental Setup

We recruited participants over the age of 60 and those who had sustained lower-limb injuries in the past 6 months, suffered severe medical conditions, or had a history of such conditions, and individuals with cognitive impairments were not excluded from this study. In total, 20 volunteers (age: 65.6 ± 6.2 years, height: 163.2 ± 7.5 cm, weight: 64.3 ± 9.6 kg, 13 males and 7 females) participated in this study. Each subject performed two rollator gait conditions: with and without the passive gait assist device. Data for both conditions were obtained using a treadmill set at a self-selected comfortable speed. The self-selected speed was chosen by increasing the treadmill speed up to the point at which the participant felt that it matched their typical gait speed. In order to investigate whether our system reduced plantar and dorsiflexor demands, EMG signals were obtained from the tibialis anterior (TA) and soleus (SL) using wireless EMG sensors (Trigno wireless system, Delsys Inc., Natick, MA, USA). In addition, foot pressure insoles (PedarX, Novel GmbH, Munich, Germany) were used to identify heel contact (HC) and toe-off (TO) events such that EMG signals could be assessed according to the stance and swing phase. In order to utilize the HC and TO events, the plantar force data and EMG data needed to be synchronized. This was carried out by applying an impact force to the sole of the shoe, which caused a sharp signal to appear in the plantar force data and the IMU sensor, which co-exists within the EMG sensor. The EMG and foot pressure signals were obtained at a sampling frequency of 1777 and 74 Hz, respectively. The size of the shoe and insoles were determined according to the subject’s foot size.

The participants provided a signed written consent form, and the research ethics of human experiments was ensured by conducting the experiments within the contents approved by the Institutional Review Board of Korea University (IRB No. 2022-0399-01).

2.4. EMG Signal Processing

A fourth-order Butterworth bandpass filter (20 to 500 Hz) was initially applied to the raw EMG data. We then acquired the envelope function by calculating the waveform length (WL). The EMG WL was calculated as shown in the Equation (3) below:

$$EMG WL\left(n\right)={\sum }_{i=n-N+2}^n\left|EMG\left(i\right)-EMG(i-1)\right|$$

(3)

where n is the current sample and N is the window size.

The EMG WL for the SL and TA muscles was divided into stance and swing phases by identifying the HC and TO events, which were obtained by applying a simple threshold on the ground reaction force obtained from the foot pressure insoles. The signals were normalized against the time axis such that the data could be represented as means and standard deviations (S.D.) across percentages of the gait phase. Because we needed to analyze the EMG WL data from the entire group, the EMG WL was further normalized against the maximum EMG WL value observed from the rollator-only gait condition. All data processing was performed using a custom-built MATLAB 2021a (Mathworks Inc., Natick, MA, USA) code.

3. Results

Prior to investigating the changes in muscle activation patterns elicited by the passive gait assist device, we needed to configure the ideal length of straps 1 and 2. For instance, if the difference between strap 1 and strap 2 is too small, tension will still reside in strap 2 even if the pulling angle of the elastic cord is high; this will cause plantar flexion torque to be present during the swing phase. For the opposite case, in which the difference between straps 1 and 2 is large, dorsiflexion torque will be applied during the late stance stage. This was confirmed by our simulation as seen in Figure 3a. The two black lines represent HO and TO during the gait cycle. The red lines represent the total pulling force by the elastic cord and the blue and green lines represent the tension present in straps 1 and 2, respectively. As seen in the bottom left panel of Figure 3a, when strap 2 (90 mm) is relatively shorter than strap 1 (160 mm), there is a significant amount of tension in strap 2 prior to HO. Also, in the top right panel, when strap 2 (130 mm) is comparable in length to strap 1 (140 mm), we observe plantar flexion torque after TO. Thus, our simulation results suggest that the optimal lengths are 160 mm and 110 mm for straps 1 and 2, respectively, with the base of the triangle being 150 mm.

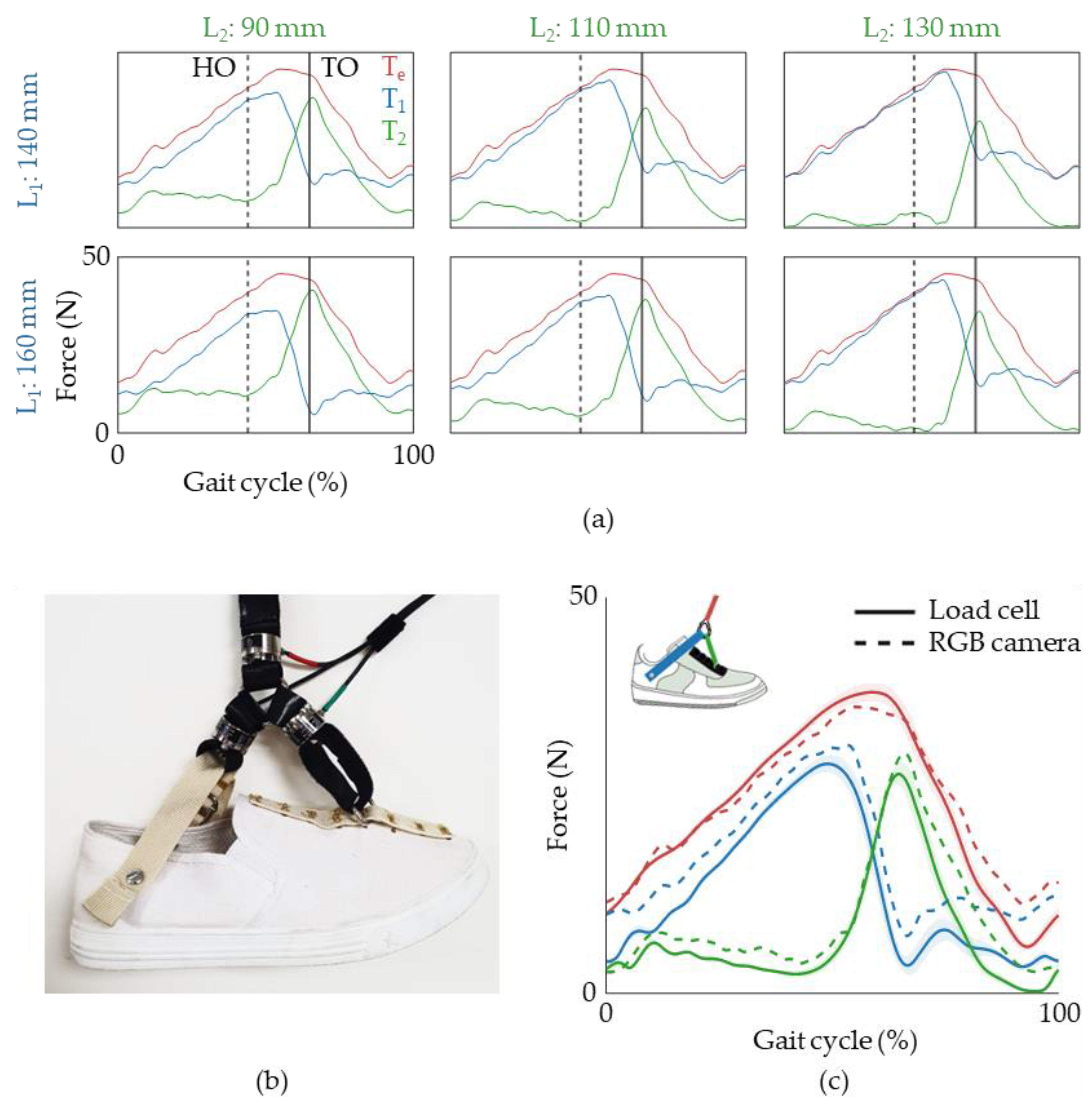

Once we had selected the lengths for straps 1 and 2, we verified whether the simulated tension profiles were indeed what was present in the straps during the gait cycle. We attached three load cells to our system, one at the end of the elastic cord and one on each strap (Figure 3b). We note that the lengths were adjusted such that the length of the strap was 160 mm and 110 mm for straps 1 and 2, including the load cell length. We found that the force profiles obtained from the load cells (Figure 3c, solid lines) and those from the simulated data (Figure 3b, dashed lines) qualitatively matched well with one another. Thus, with our system parameters, we can assert that plantar flexion torque is provided during the late stance and dorsiflexion torque is present during the swing phase.

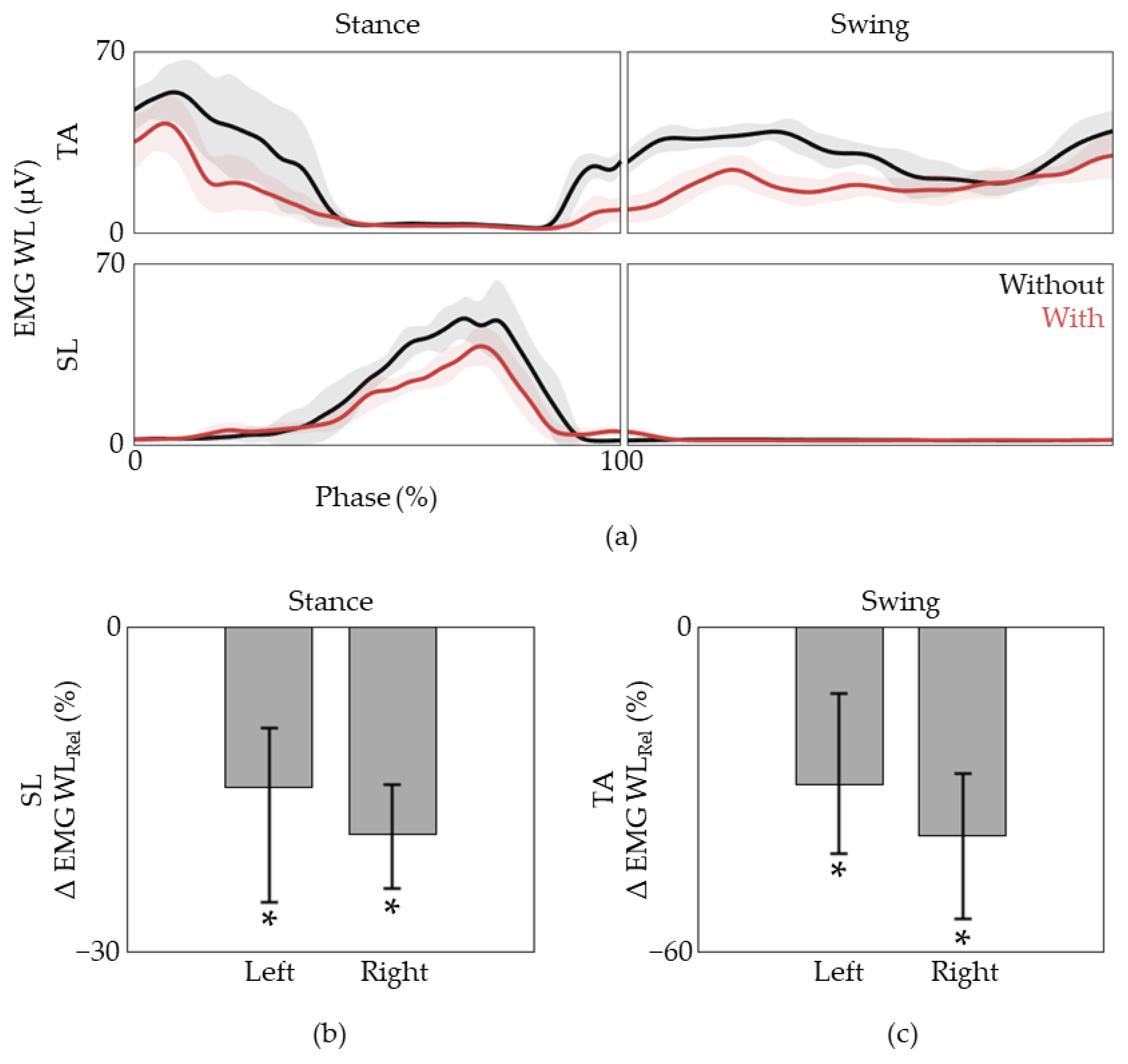

The next question one might ask is whether this system actually assists the user during gait. It is common for gait-assistive devices to impede the user’s natural gait patterns. The goal is to reduce the amplitude of the EMG signals while maintaining the overall patterns. We evaluated the patterns of two lower-limb muscles (TA and SL) that have well-documented functions during gait. The EMG WL patterns during rollator walking (Figure 4a, black lines) and passive gait assist device-assisted gait (Figure 4a, red lines) qualitatively match each other well. More importantly, we observed a decrease in dorsiflexor EMG WL during the swing phase and the plantar flexor EMG WL during the late stance phase. This agrees well with the initial objective of our system. We went further and analyzed the average EMG WL for SL and TA for the stance and swing phases, respectively (Figure 4b). The results suggest that this effect is not confined to one subject but instead seen across the participant group.

4. Discussion

In this study, we present a passive gait assist device that can be attached to a conventional rollator. Our device assists the user’s natural muscular activities, which in turn results in trajectory assistance because the force pulls from the front of the user. This is a considerable improvement when compared to traditional rollators where it is common for the user to drag their feet. Furthermore, unlike rigid exoskeletons, our device allows for relatively free movement in space. This may in turn result in a safer gait rehabilitation environment. We provided both simulated and empirical, via load cells, force profiles that reside within the elastic cord, strap 1, and strap 2. The analysis of EMG data obtained from the SL and TA suggests that our device successfully reduces the lower limb demands without disrupting the user’s natural gait patterns.

While the configuration was not tested, our system is able to change the stiffness of the spring-bar system, the width at which the elastic cords are anchored, the spring constant of the elastic cord, and the length of strap 1 and strap 2. This suggests that this system is highly adjustable and can be set up according to the user’s needs. For instance, we would be able to lessen the elastic force as increases in the user’s lower limb functions occur. Also, because we can independently configure each limb, we believe that it is possible to aid stroke patients. Moreover, we would be able to adjust the length of strap 1 and strap 2 to provide more dorsiflexion torque during the swing phase for the afflicted limb.

There are some limitations that need to be addressed. The experiments were performed by community-dwelling elder adults without any gait impairments. In order to confirm that our passive gait assist device works in practice, further studies with gait-impaired populations such as bedridden, post-stroke, and post-surgery patients need to be conducted. Also, because our device attaches to a conventional rollator, it may be difficult to ambulate non-level surfaces. This hindrance could be inconvenient in real-world situations. Moreover, the EMG levels of only the SL and TA were examined. In order to assess lower-limb gait patterns, a more extensive investigation of the lower limb muscles when using our devices, such as the rectus femoris, vastus medialis, biceps femoris, and gluteus maximus, should be performed.

By comparing the SL and TA EMG patterns during gait with the passive gait assist system with that of rollator gait conditions, we were able to observe that, at least for the tibia muscles, the overall patterns were similar. While conserved, we observed decreases in SL during the stance phase and TA during the swing phase, which is where the respective muscles are active. This decrease in tibia muscle demand should benefit subjects with weakened lower limb functions to perform gait without the help of a physiotherapist. This would allow for more frequent training, as resources are limited, which would in turn result in higher rehabilitative efficacy.
