Vibration Signal Classification Using Stochastic Configuration Networks Ensemble
Abstract
:1. Introduction

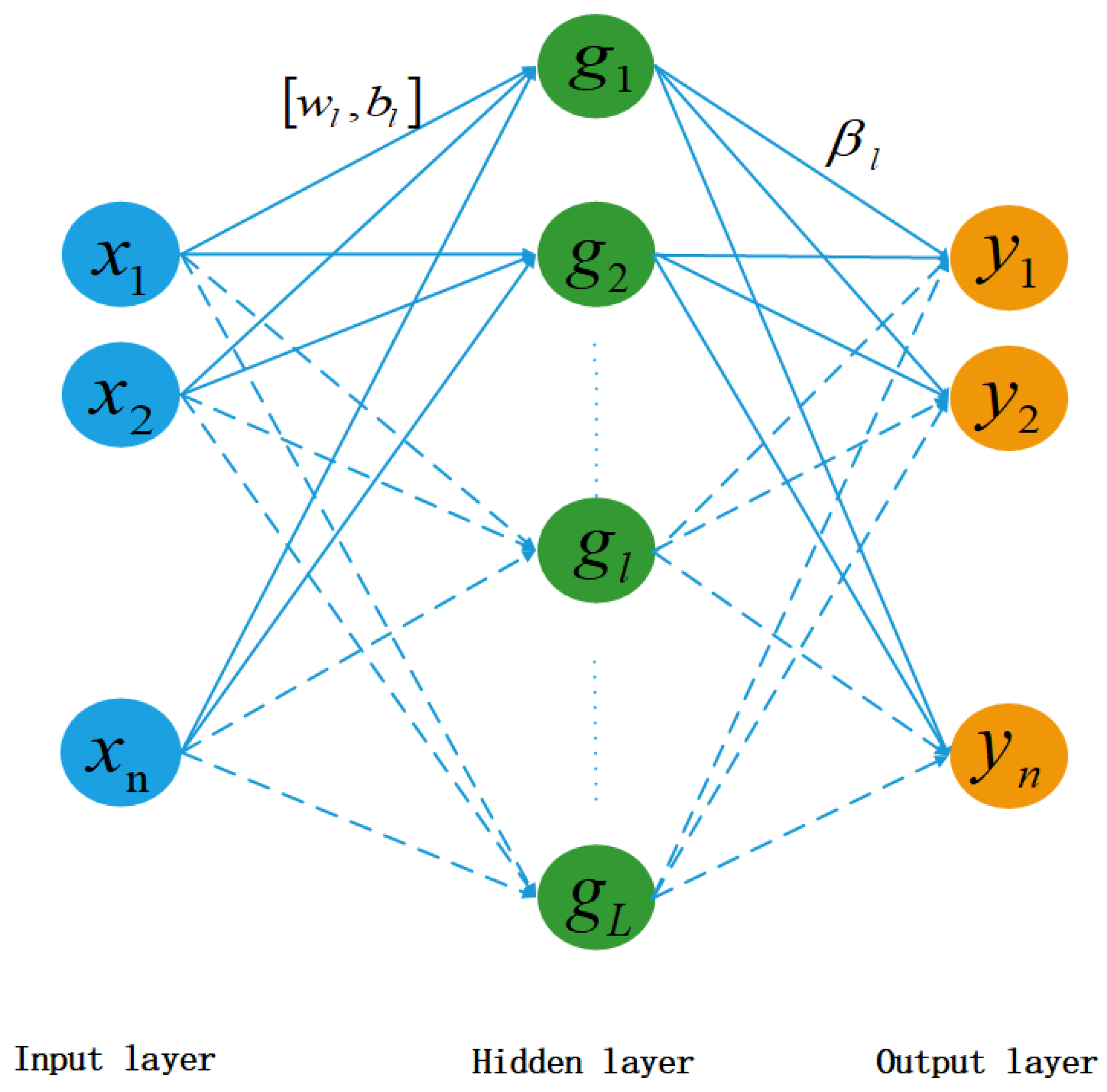

2. Stochastic Configuration Networks
3. Fault Diagnosis Based on Ensemble SCNs

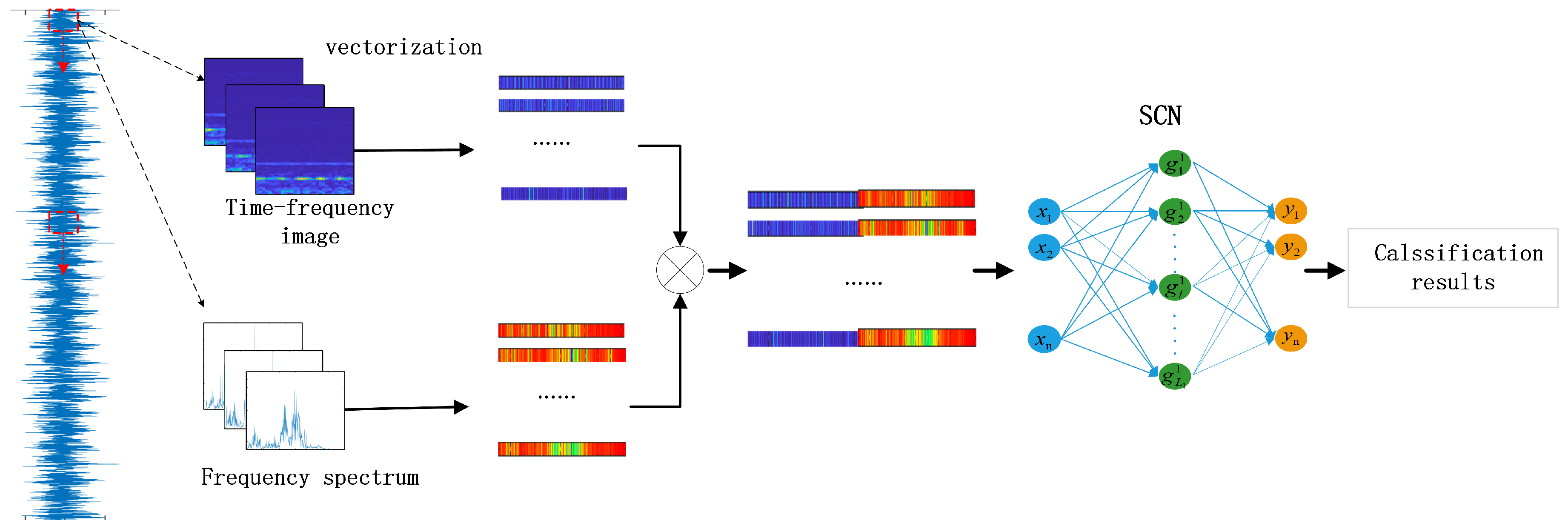

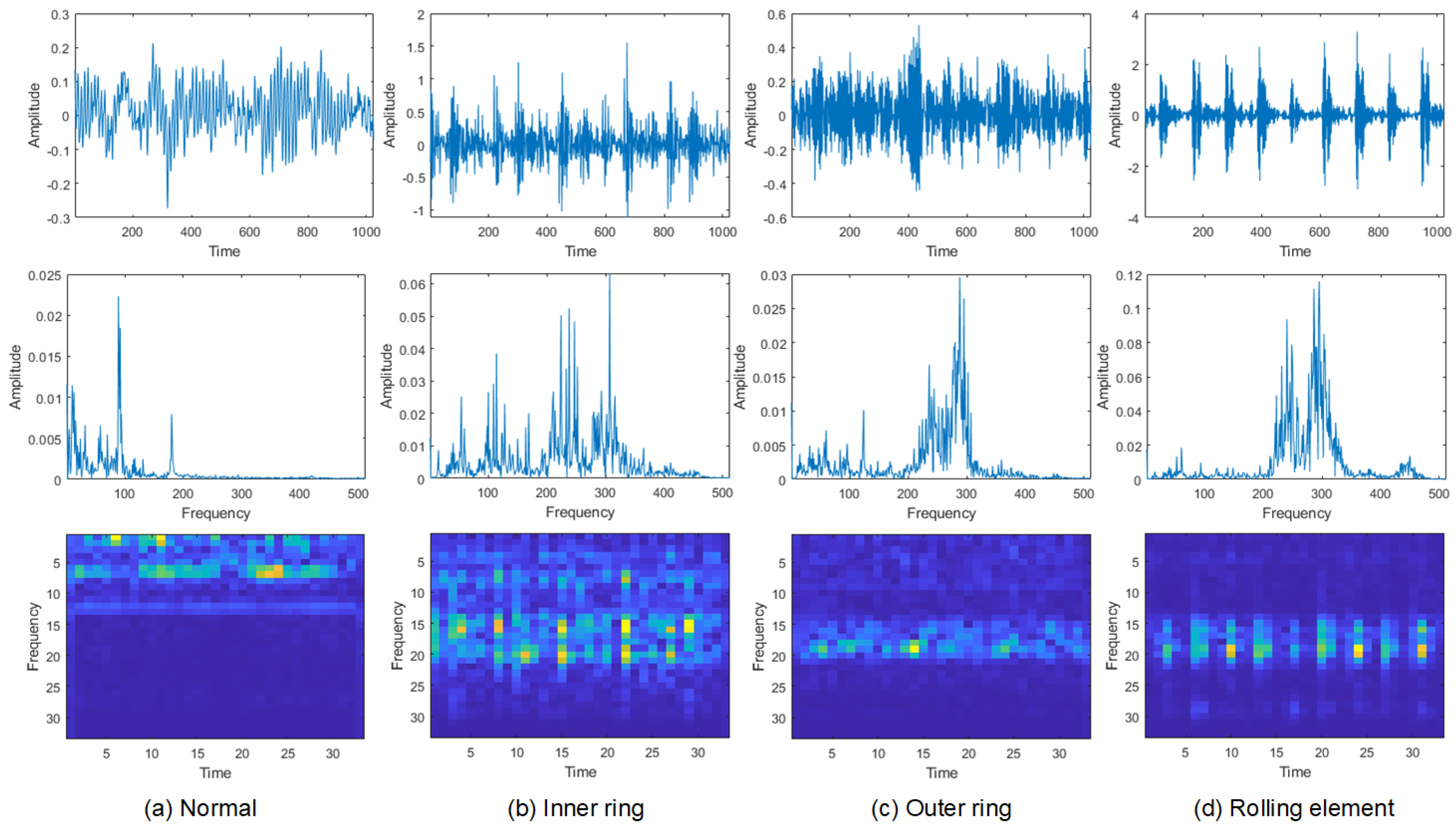

3.1. SCN Model with Hybrid Data

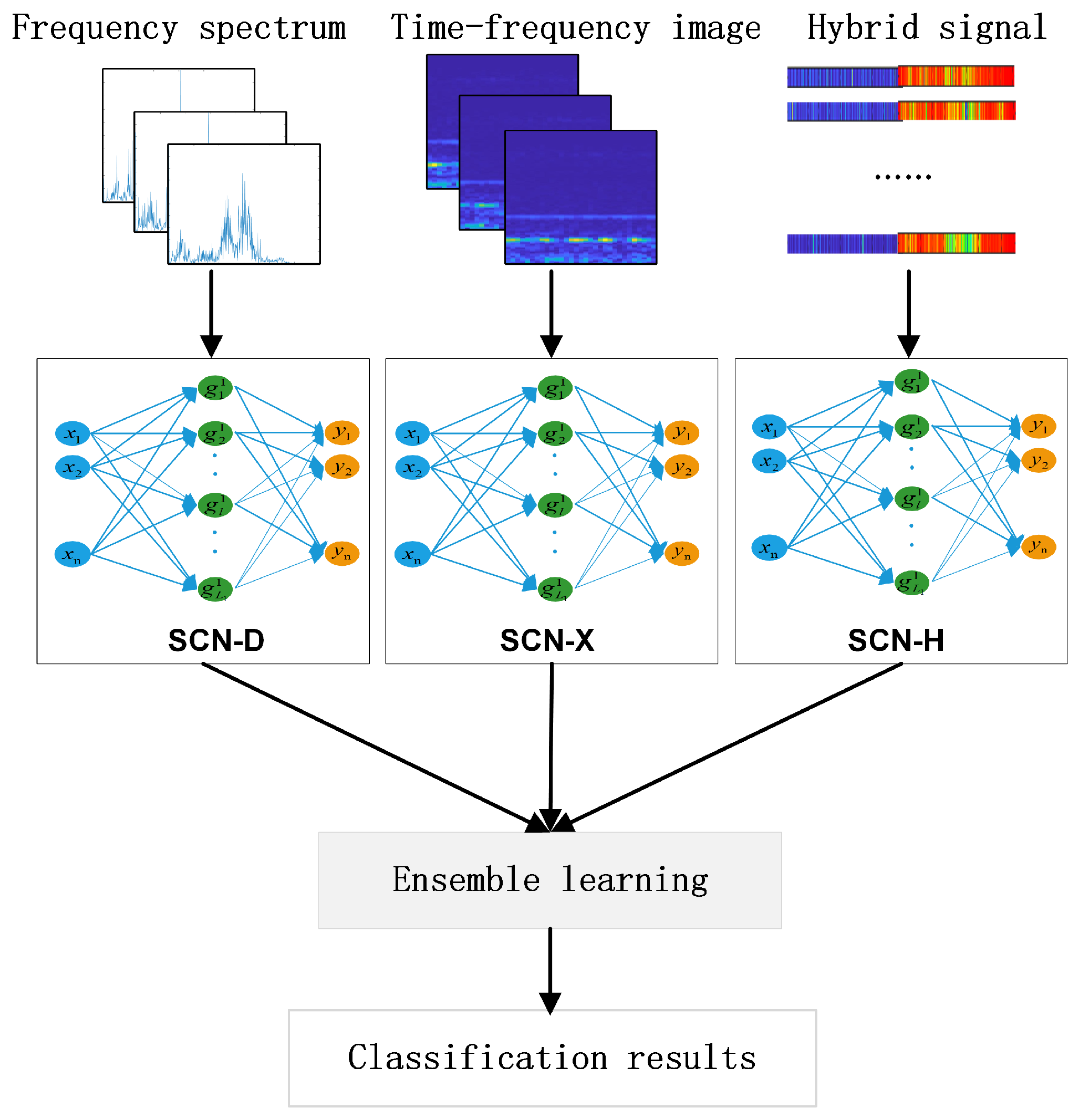

3.2. SCNs Ensemble
Algorithm 1: SCN with hybrid data |
- SCN-D:
- SCN-X:
- SCN-H:
Algorithm 2: SCNs ensemble |
4. Performance Evaluation
4.1. Experimental Setup

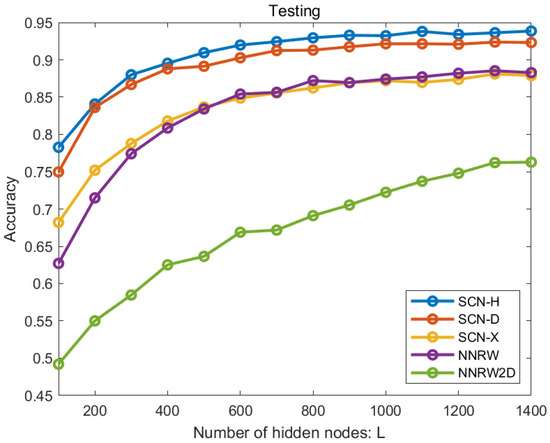

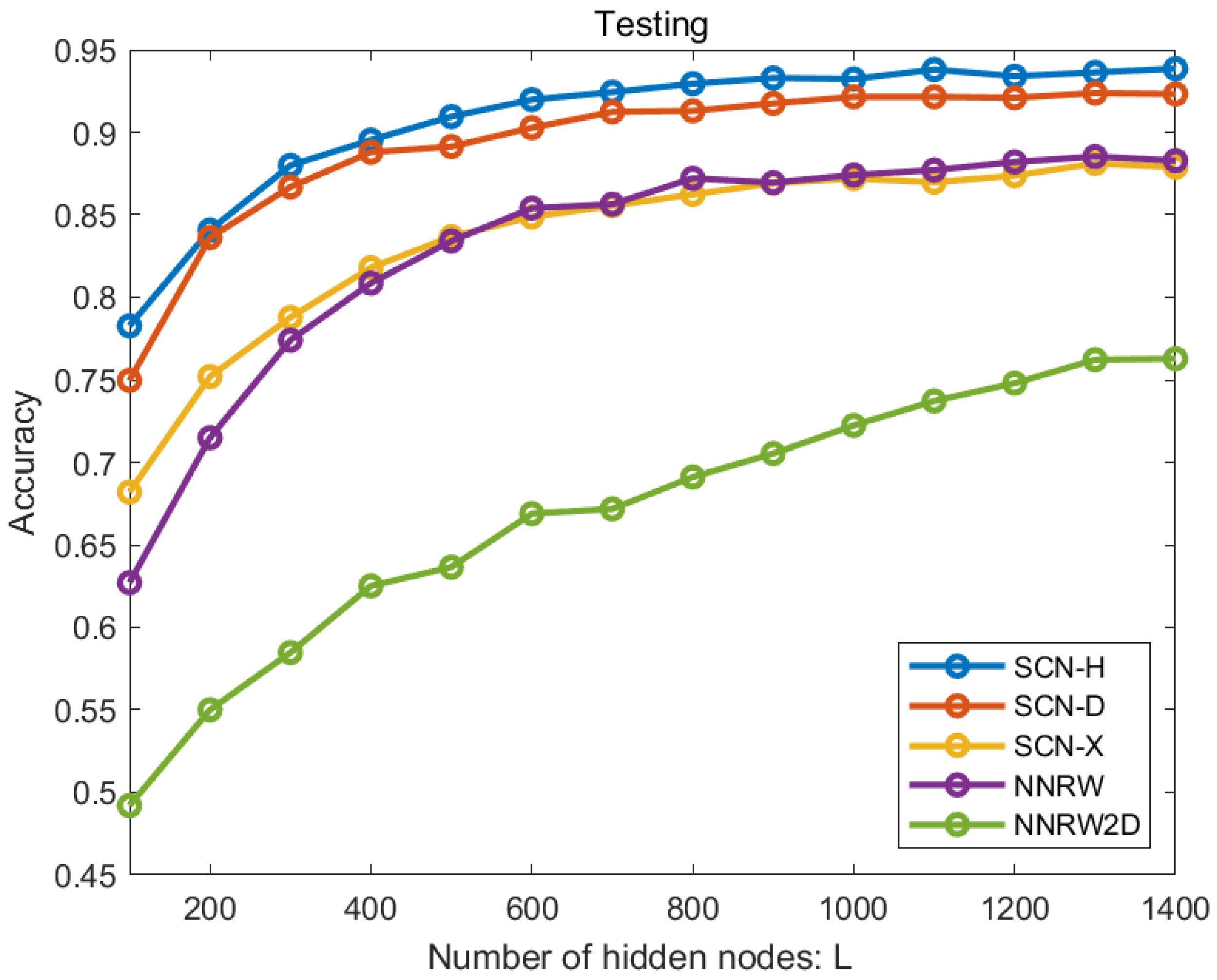

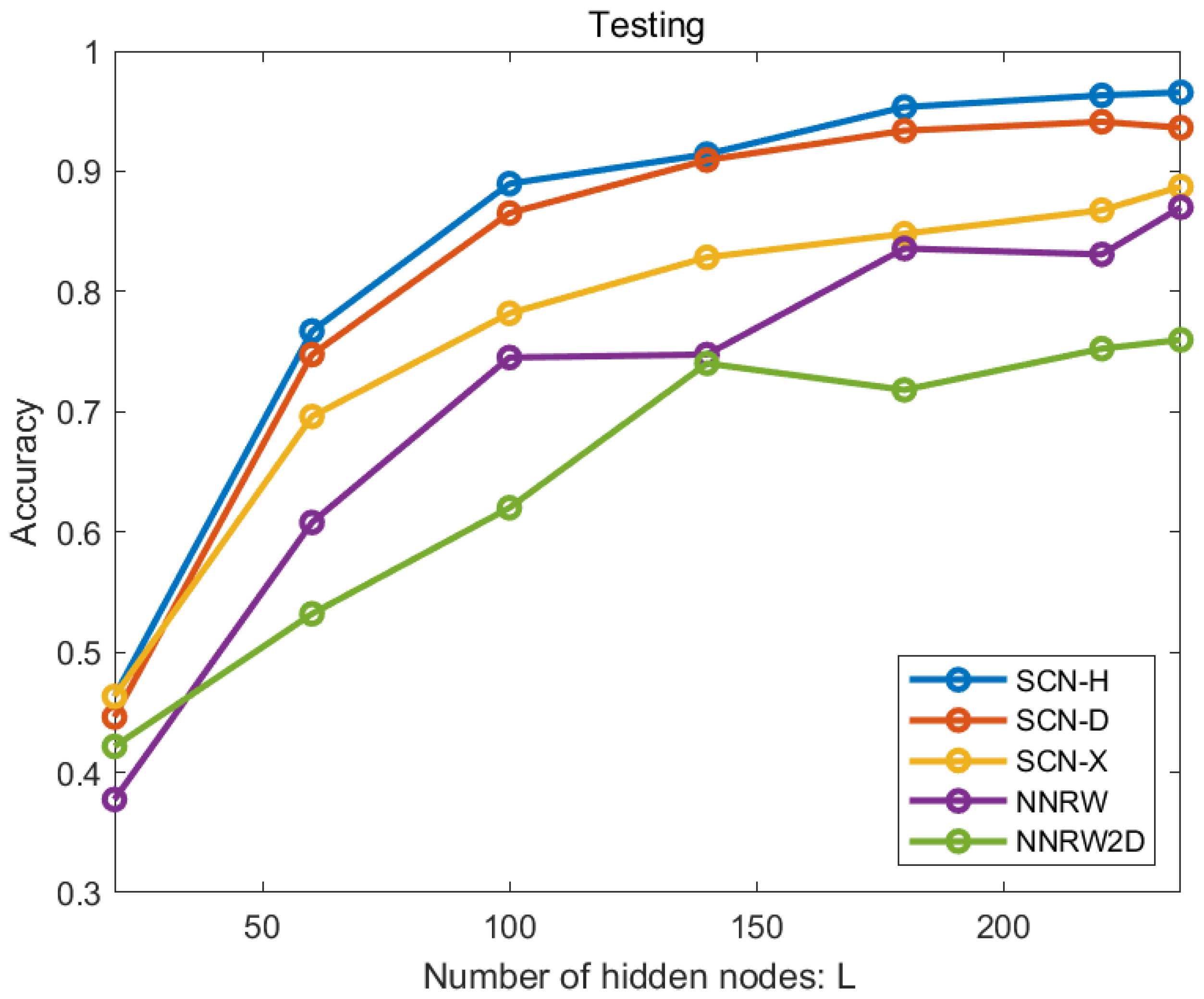

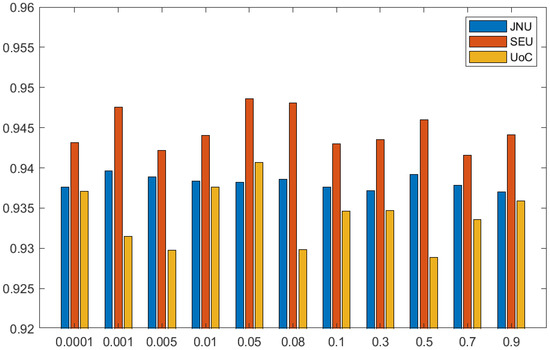

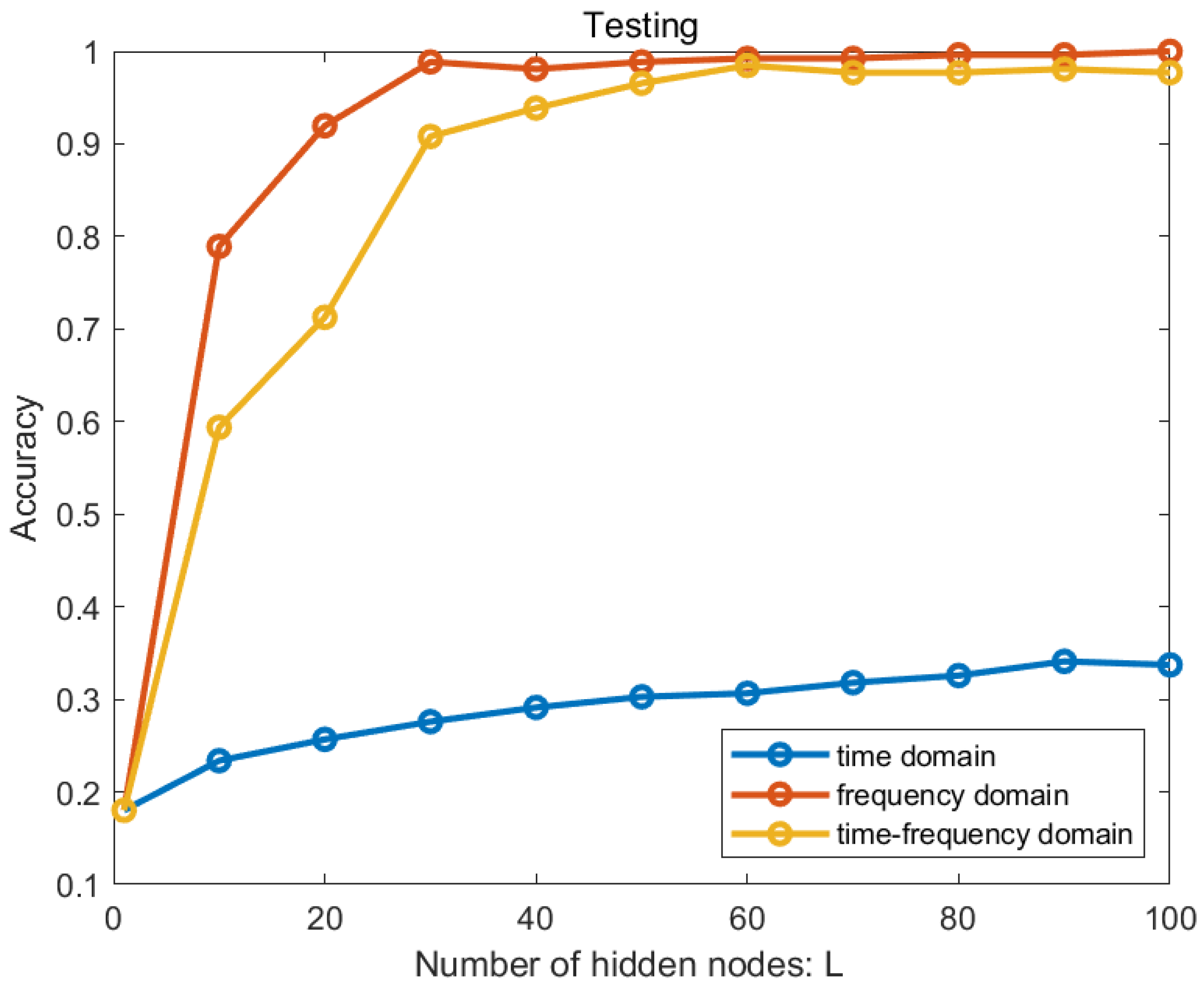

4.2. Results and Discussion
4.3. Comparison with Deep Learning Models
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
