Machine Learning Applications and Uncertainty Quantification Analysis for Reflood Tests
Abstract
:Featured Application
Abstract
1. Introduction
2. Methods and Data Preparation

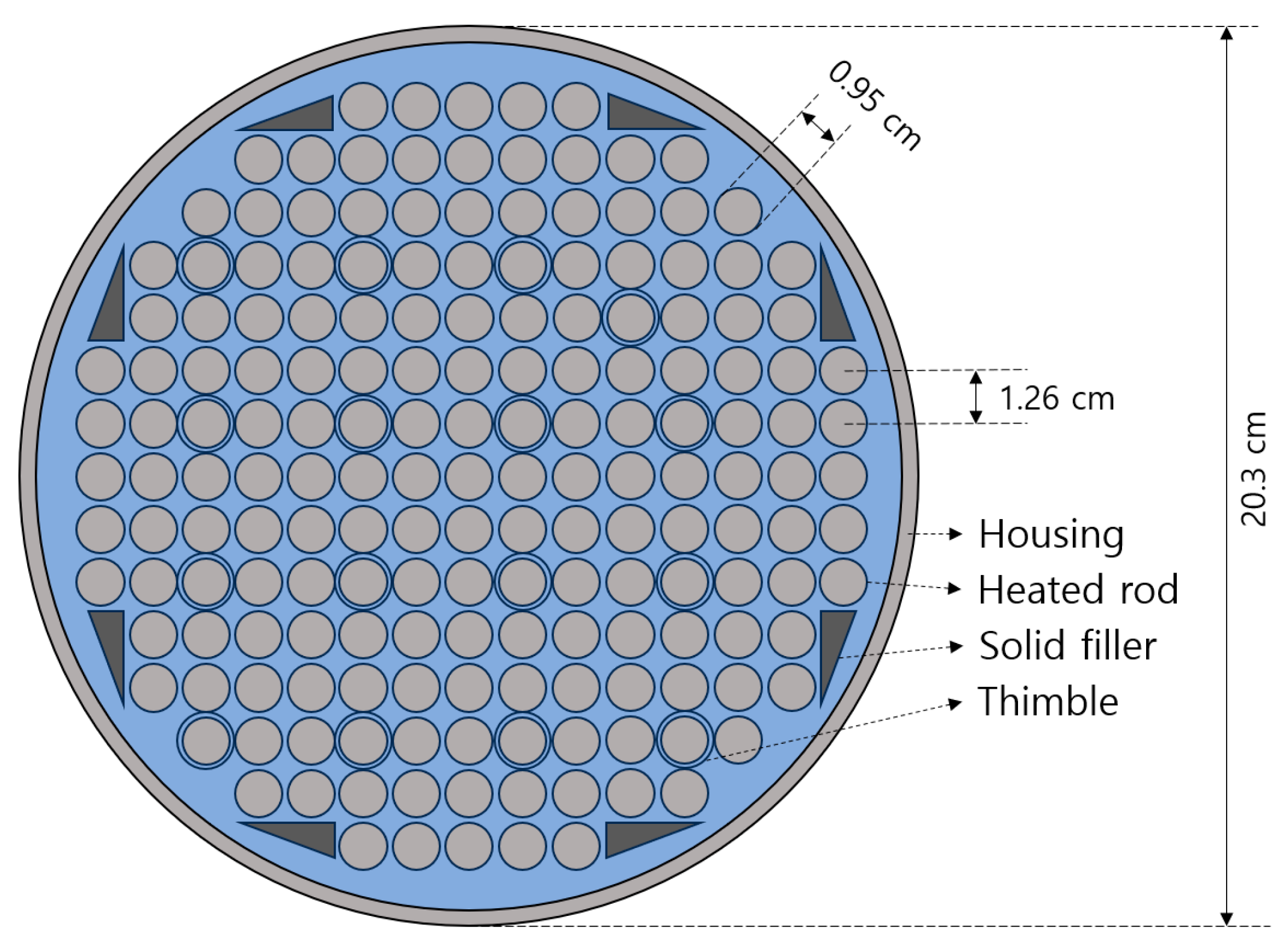

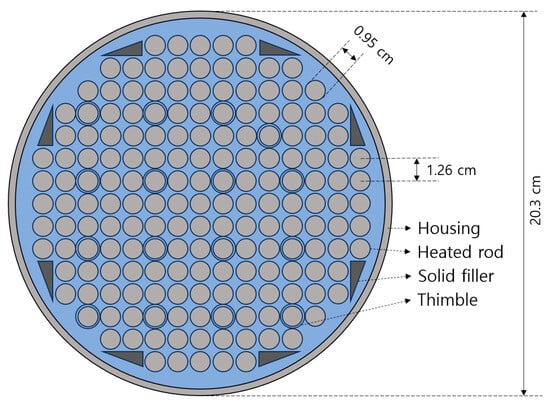

2.1. FLECHT SEASET Reflood Tests
2.2. UQ Analysis
2.3. Machine Learning Model

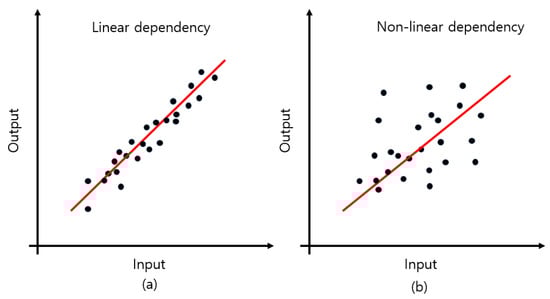

2.3.1. Linear Regression
2.3.2. Random Forest
2.3.3. Deep Neural Networks

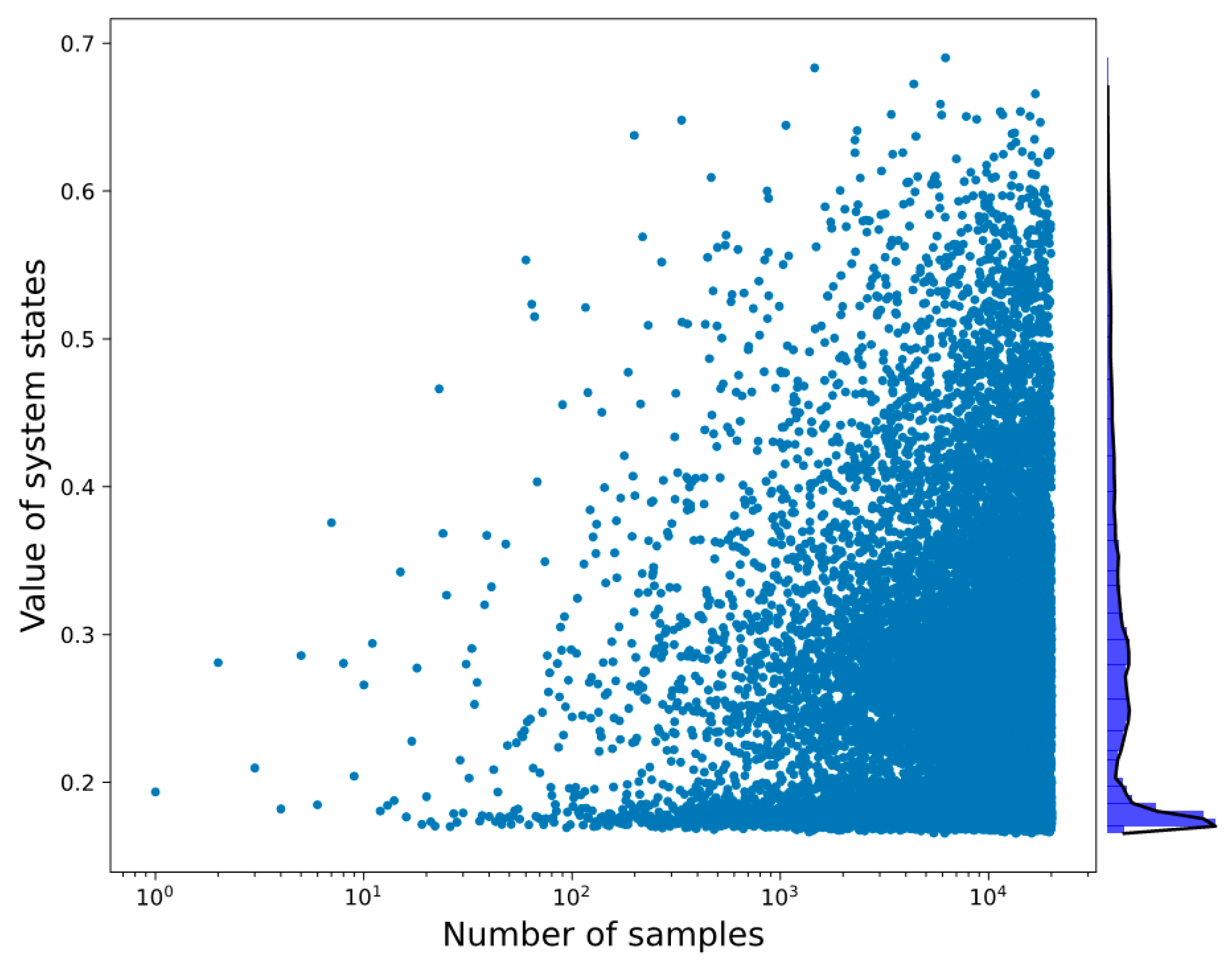

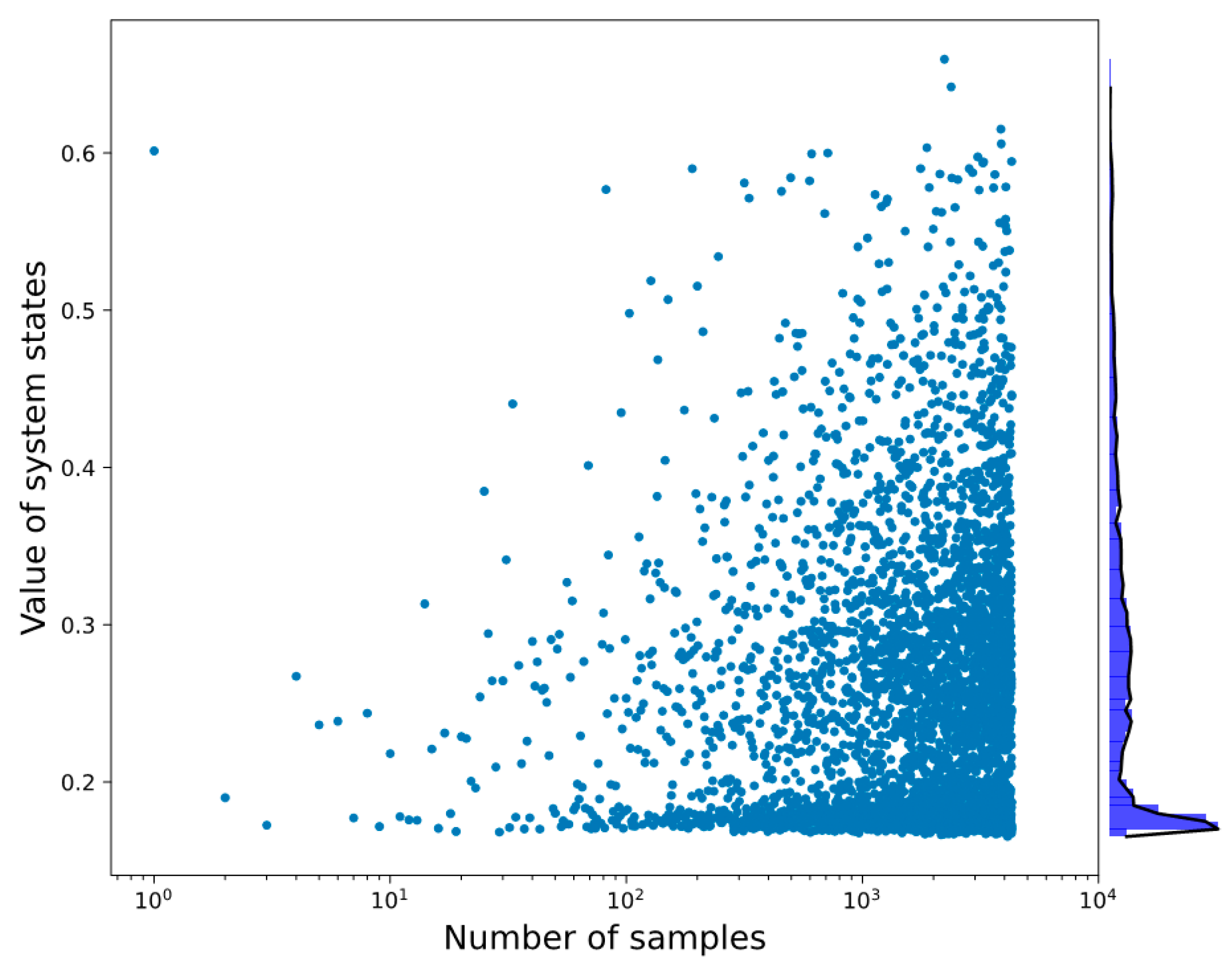

2.4. Dataset
2.5. Standard Deviation Method
3. Results and Discussions

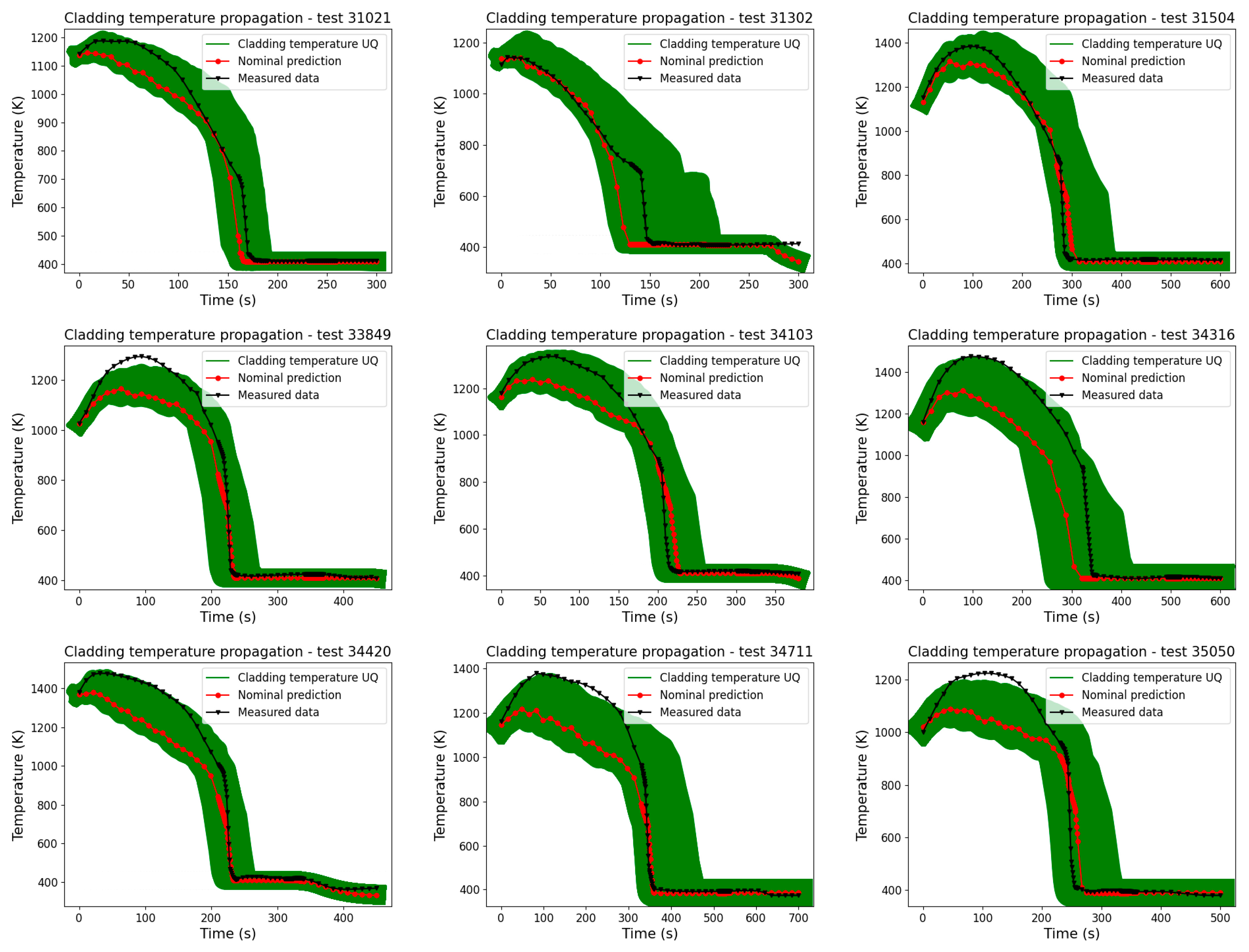

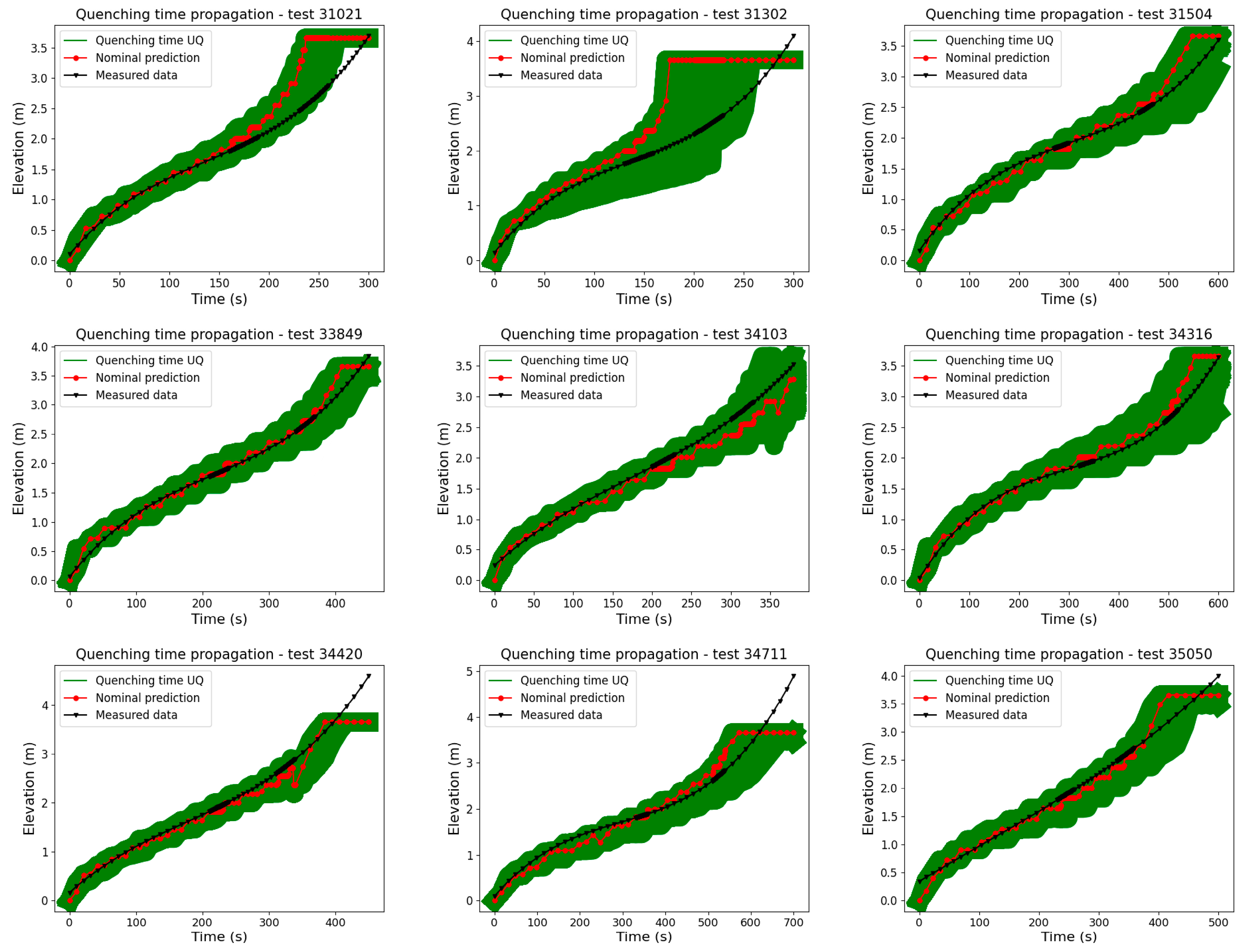

3.1. Uncertainty Quantification Results

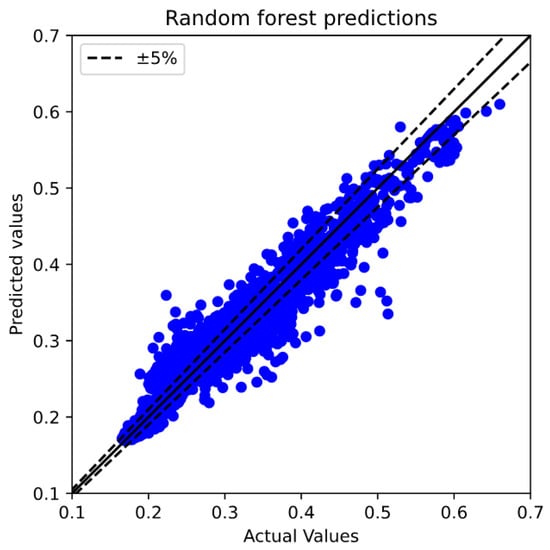

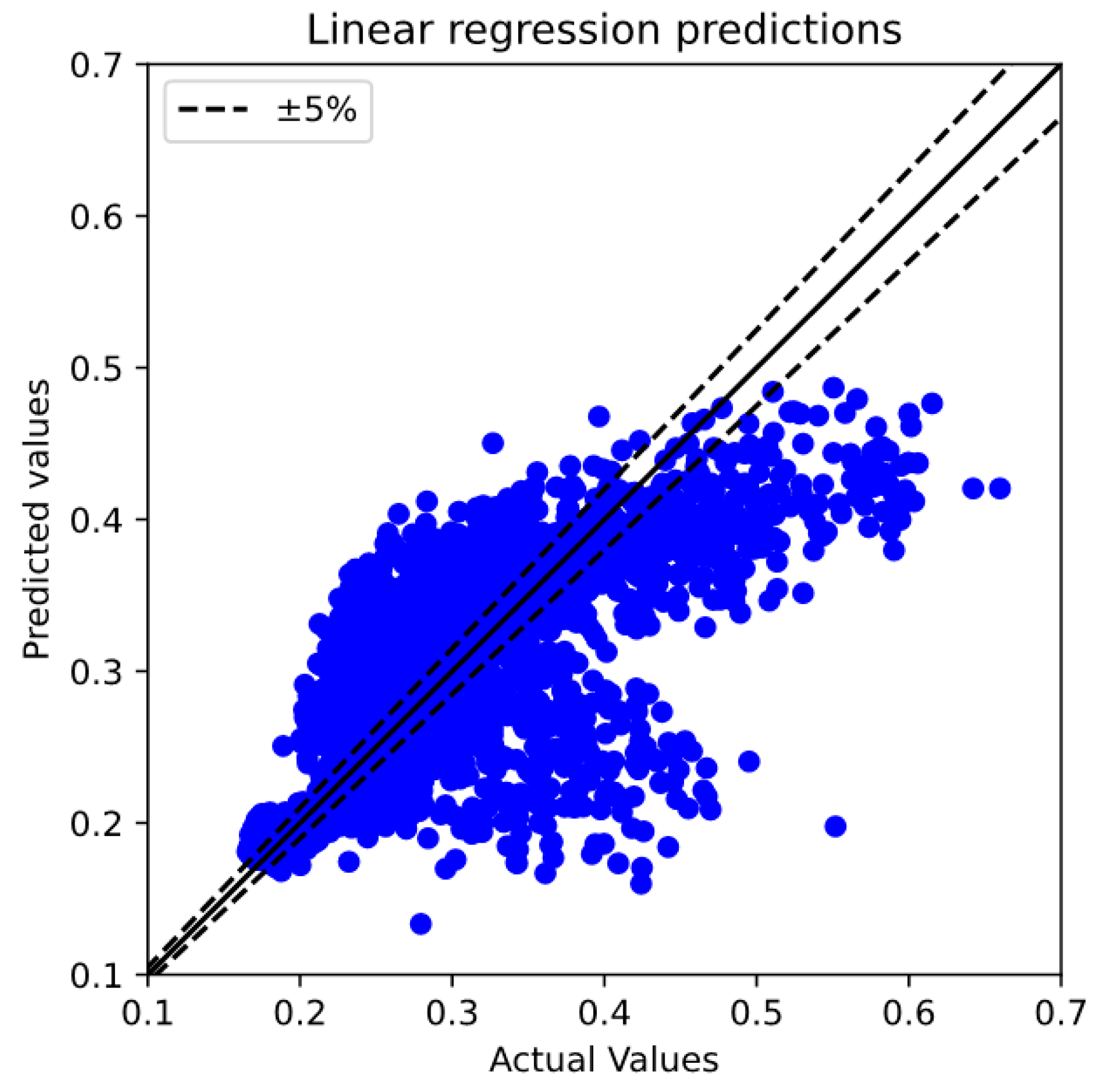

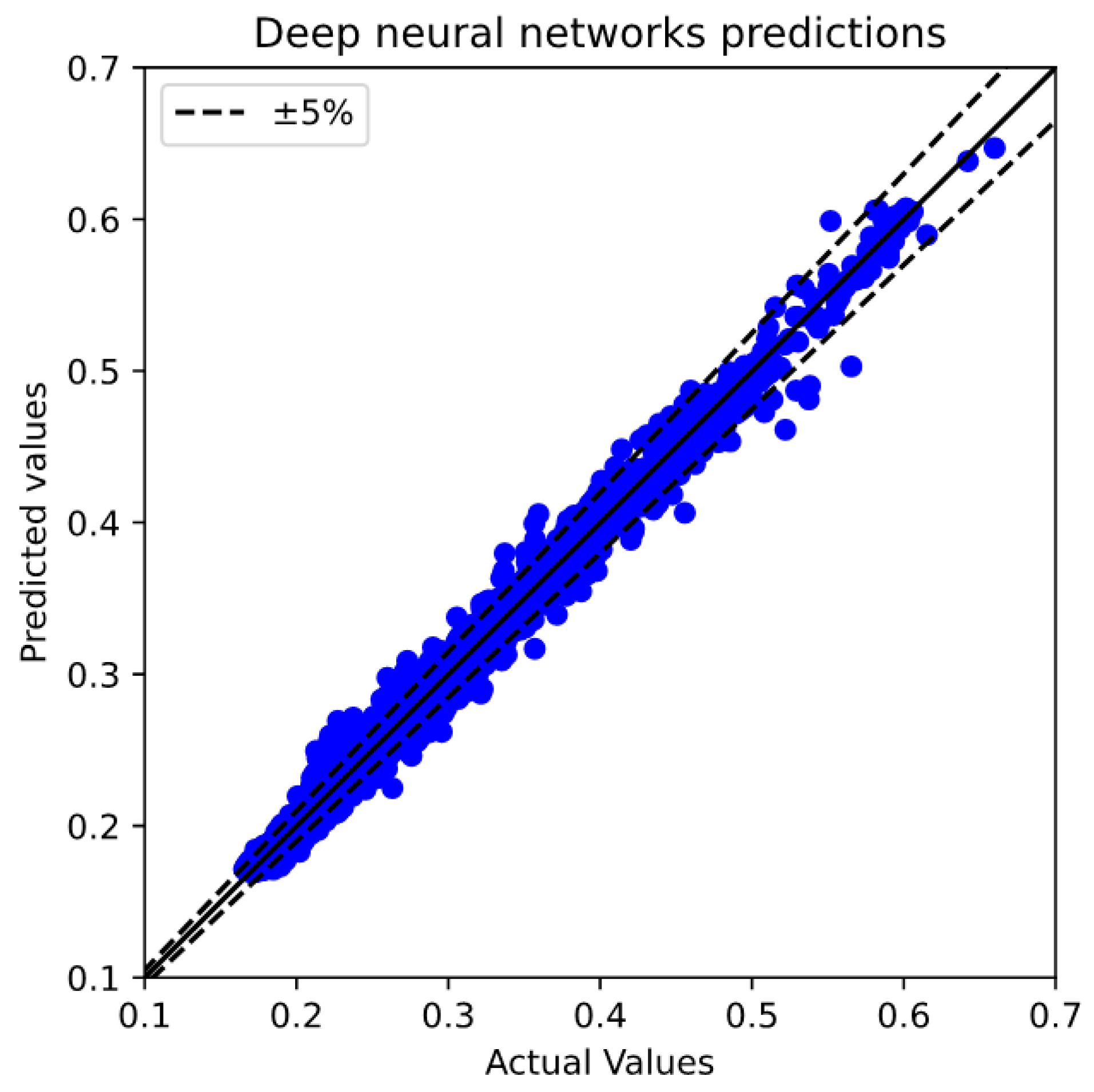

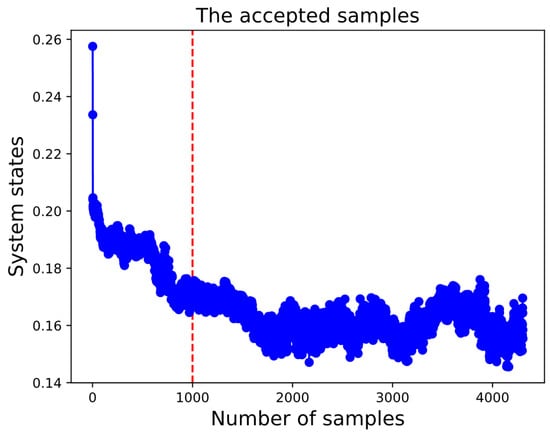

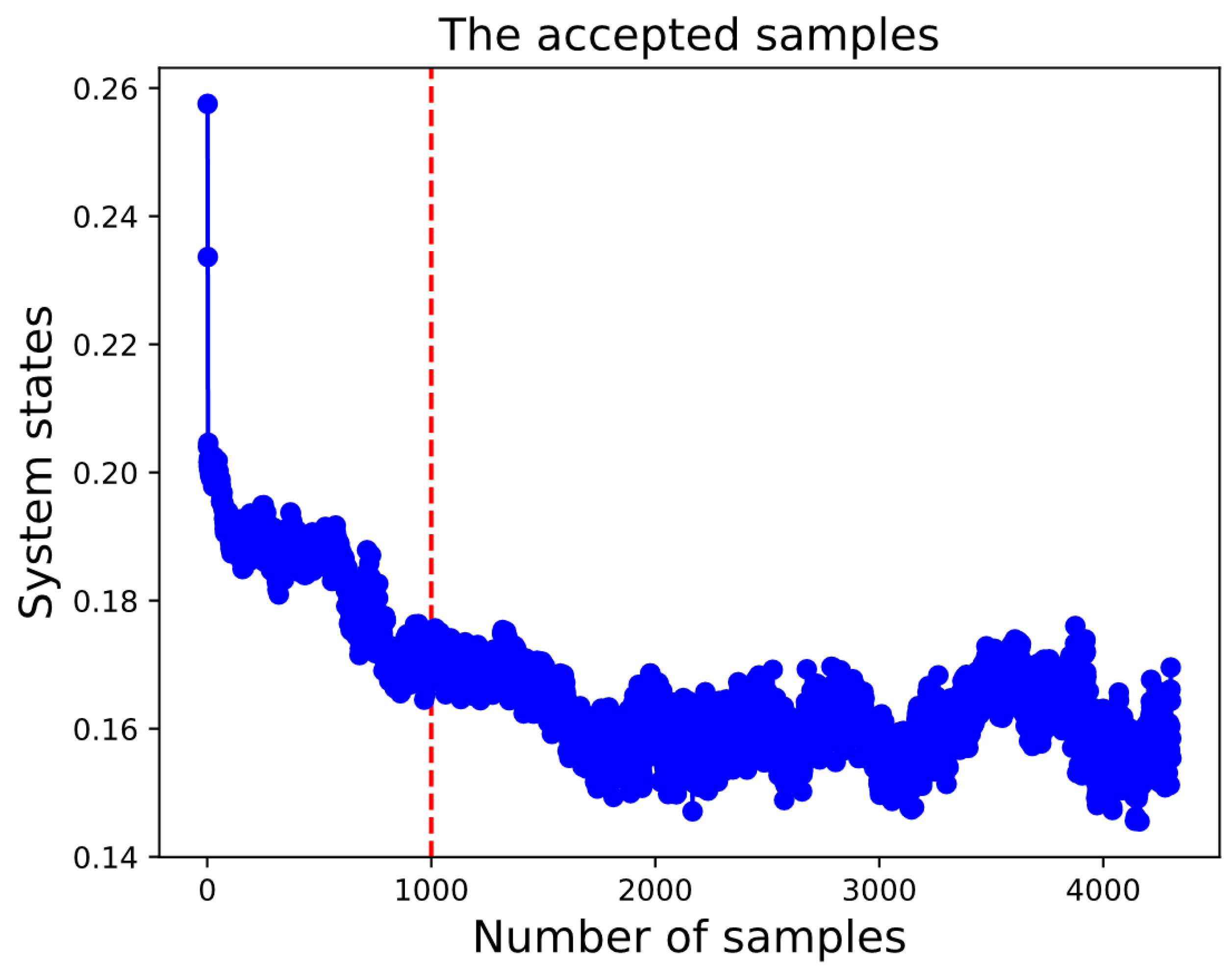

3.2. Machine Learning Predictions and Comparisons

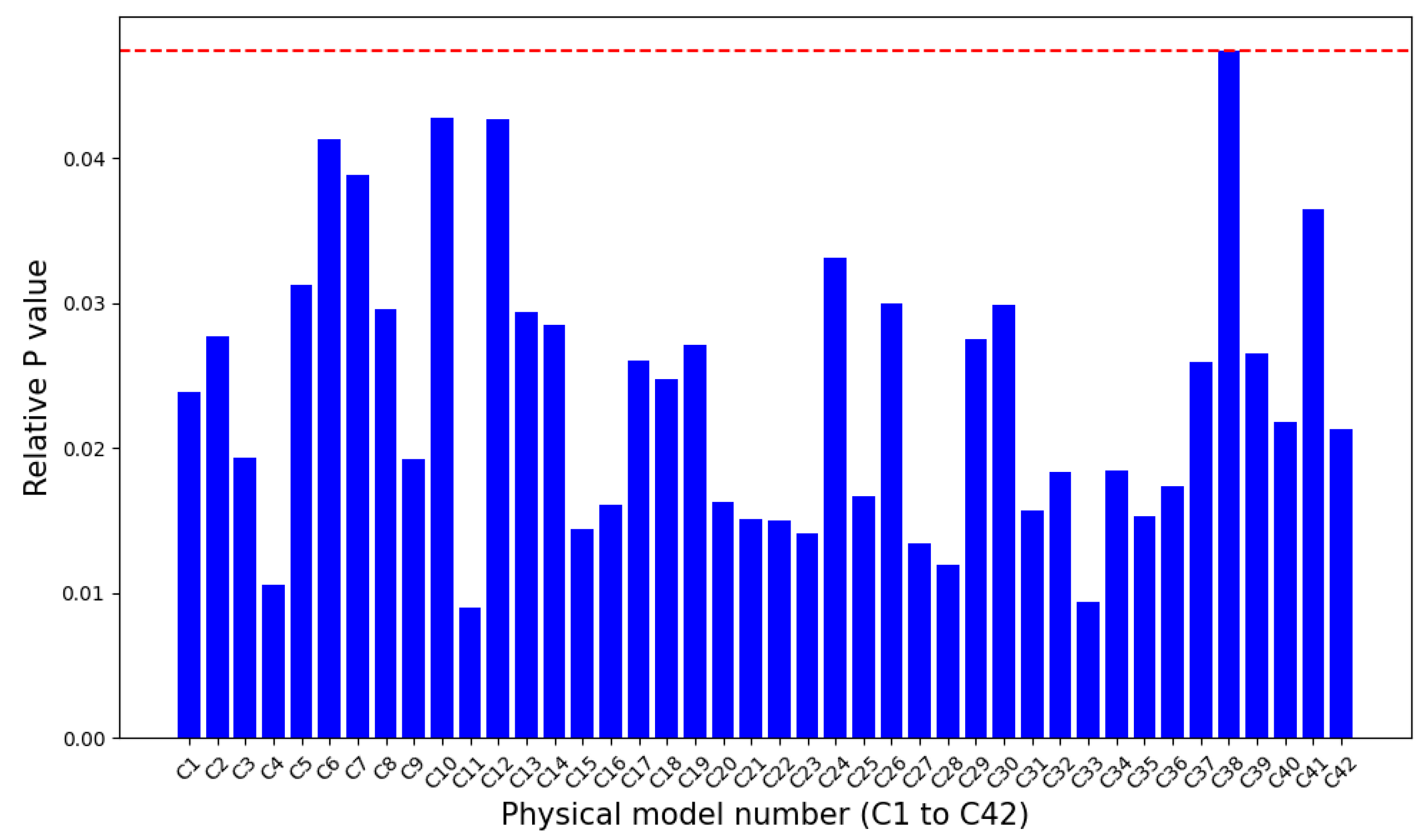

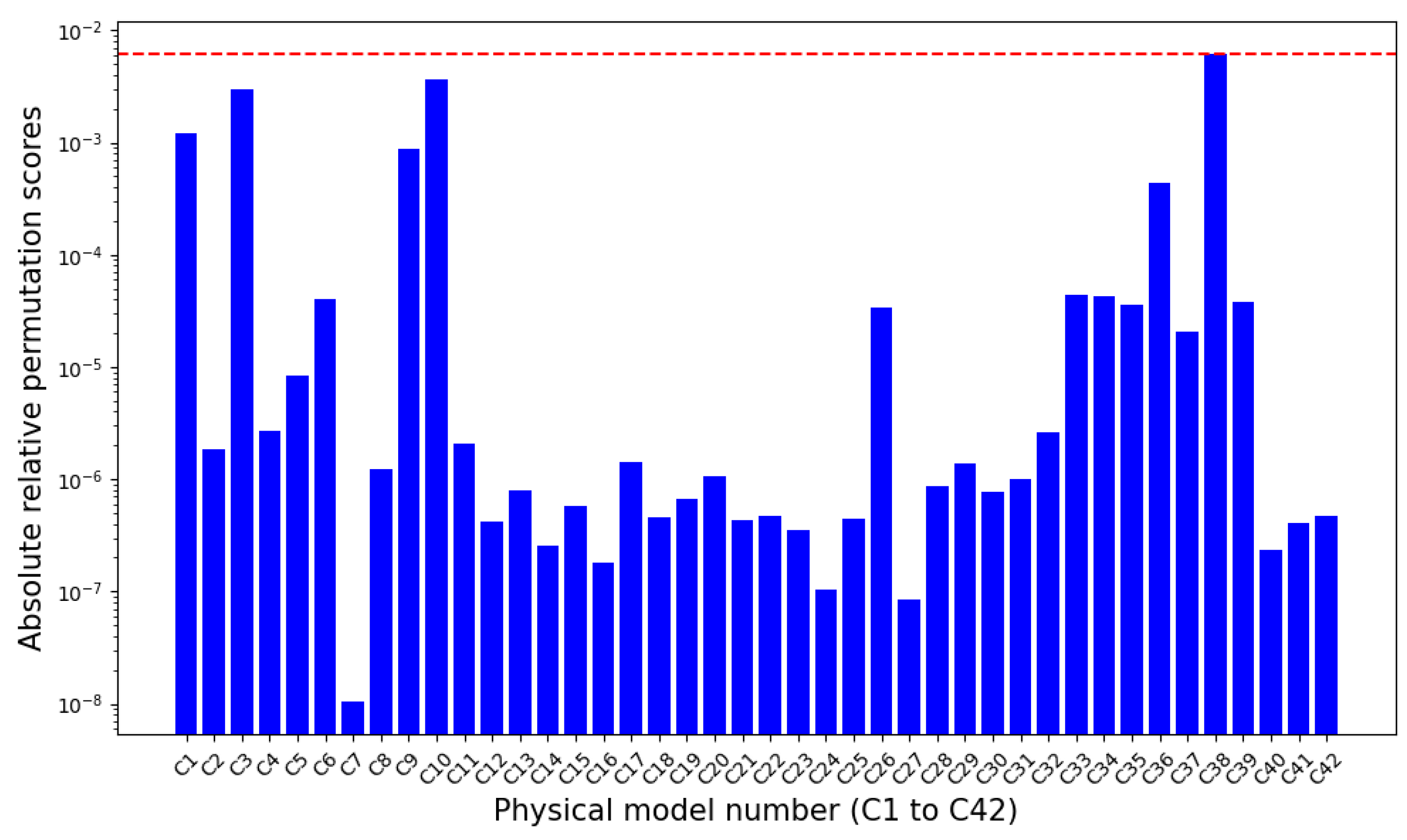

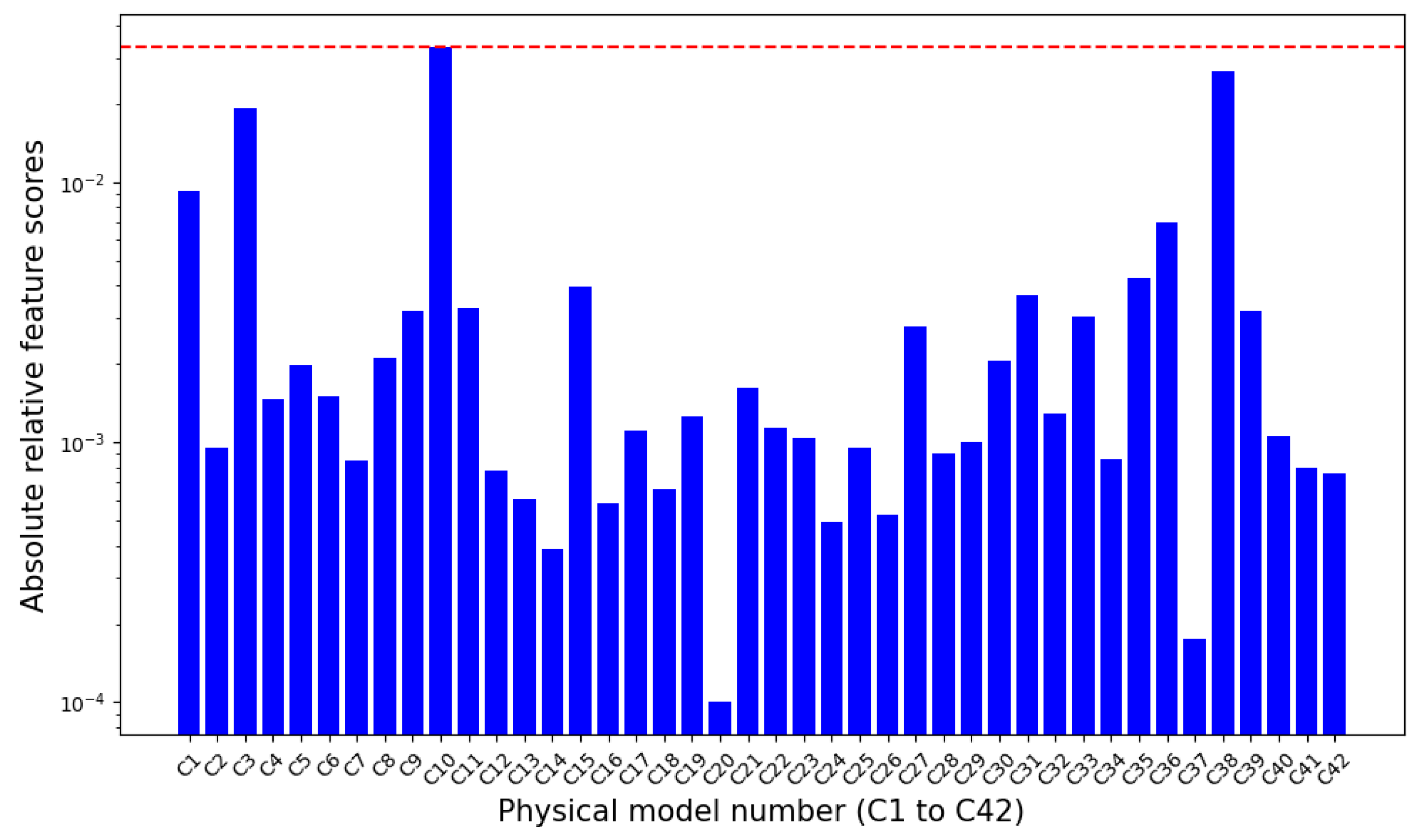

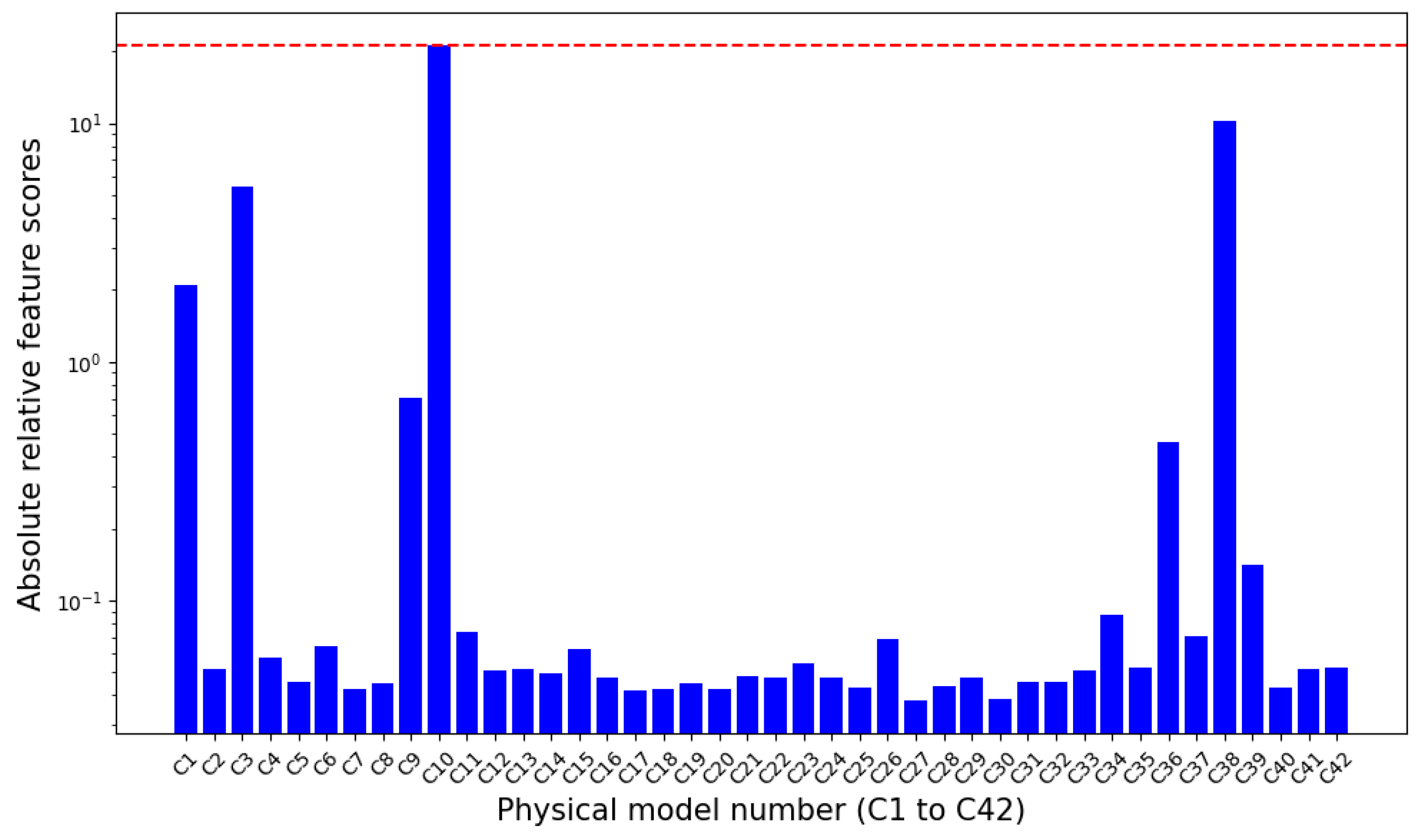

3.3. Sensitive Physical Model Investigation Results
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
ARD | Absolute Relative Difference |
BEPU | Best Estimate Plus Uncertainty |
COBRA-TF | Coolant-Boiling in Rod Arrays—Two Fluid |
DA | Data Assimilation |
DFFB | Dispersed Flow Film Boiling |
DNN | Deep Neural Network |
ECCS | Emergency Core Cooling System |
FEBA | Flooding Experiment with Blocked Arrays |
FLECHT SEASET | Full-Length Emergency Core Cooling Heat Transfer-Separate Effects Tests and System-Effects Tests |
IAFB | Inverted Annular Film Boiling |
LOCA | Loss Of Coolant Accident |
LR | Linear Regression |
MARS | Multidimensional Analysis of Reactor Safety |
MSE | Mean Squared Error |
PAPIRUS | Parallel Computing Platform Integrated for Uncertainty and Sensitivity Analysis |
PWR | Pressurized Water Reactor |
RBHT | Rod Bundle Heat Transfer |
RELAP | Reactor Excursion and Leak Analysis Program |
RF | Random Forest |
SFB | Saturated Film Boiling |
SPACE | Safety and Performance Analysis Code for Nuclear Power Plants |
STARU | Sampling Method for Highly Nonlinear System Uncertainty Analysis |
STD | Standard Deviation |
SVM | Support Vector Machine |
TRACE | TRAC/RELAP Advanced Computational Engine |
UQ | Uncertainty Quantification |
References
- Yadigaroglu, G.; Nelson, R.A.; Teschendorff, V.; Murao, Y.; Kelly, J.; Bestion, D. Modeling of reflooding. Nucl. Eng. Des. 1993, 145, 1–35. [Google Scholar] [CrossRef]
- Andreani, M.; Yadigaroglu, G. Difficulties in modeling dispersed-flow film boiling. Warme Stoffubertrag. 1992, 27, 37–49. [Google Scholar] [CrossRef]
- Yang, B.W.; Bajorek, S.M.; Jin, Y.; Cheung, F.B. Progress in reflood thermal hydraulics studies in the past 40 years. Nucl. Eng. Des. 2021, 376, 111073. [Google Scholar] [CrossRef]
- Zubair, M.; Al Suwaidi, R.R.; Al Souqi, A.A. Behavior of Emergency Core Cooling System (ECCS) during the early stage of Loss of Coolant Accident (LOCA) for APR 1400 with Flownex software. Prog. Nucl. Energy 2021, 141, 103949. [Google Scholar] [CrossRef]
- Takeda, T.; Ohtsu, I. RELAP5 uncertainty evaluation using ROSA/LSTF test data on PWR 17% cold leg intermediate-break LOCA with single-failure ECCS. Ann. Nucl. Energy 2017, 109, 9–21. [Google Scholar] [CrossRef]
- El-Sahlamy, N.M.; Elsaid, A.M. Effect of ECCS cold-leg injection angle on thermal hydraulic characteristics and core recovery during LBLOCA in a PWR. Prog. Nucl. Energy 2021, 142, 104033. [Google Scholar] [CrossRef]
- Safarzadeh, O.; Pourrostam, A. The large-break LOCA uncertainty analysis in a VVER-1000 reactor using TRACE and DAKOTA. Nucl. Eng. Des. 2023, 412, 112459. [Google Scholar] [CrossRef]
- Yukio, S.; Murao, Y. Film Boiling Heat Transfer during Reflood Process; No. JAERI-M—6848; Japan Atomic Energy Research Institute: Ibaraki, Japan, 1976. [Google Scholar]
- Yukio, S. Film boiling heat transfer during reflood phase in postulated PWR loss-of-coolant accident. J. Nucl. Sci. Technol. 1980, 17, 516–530. [Google Scholar] [CrossRef]
- Yoshio, M.; Sugimoto, J. Correlation of heat transfer coefficient for saturated film boiling during reflood phase prior to quenching. J. Nucl. Sci. Technol. 1981, 18, 275–284. [Google Scholar] [CrossRef]
- Akira, O.; Akimoto, H.; Murao, Y. Effect of liquid flow rate on film boiling heat transfer during reflood in rod bundle. J. Nucl. Sci. Technol. 1990, 27, 535–546. [Google Scholar] [CrossRef]
- Ishii, M.; Denten, J.P. Two-phase flow characteristic of inverted bubbly, slug and annular flow in post-critical heat flux region. Nucl. Eng. Des. 1990, 121, 349–366. [Google Scholar] [CrossRef]
- Hammouda, N.; Groeneveld, D.C.; Cheng, S.C. Two-fluid modelling of inverted annular film boiling. Int. J. Heat Mass Transf. 1997, 40, 2655–2670. [Google Scholar] [CrossRef]
- Mohanta, L.; Riley, M.P.; Cheung, F.B.; Bajorek, S.M.; Kelly, J.M.; Tien, K.; Hoxie, C.L. Experimental investigation of inverted annular film boiling in a rod bundle during reflood transient. Nucl. Technol. 2015, 190, 301–312. [Google Scholar] [CrossRef]
- Mendizabal, R.; de Alfonso, E.; Freixa, J.; Reventos, F. OECD/NEA Premium Benchmark Final Report; NEA/CSNI/R. 2016, Volume 18. Available online: https://one.oecd.org/document/NEA/CSNI/R(2016)18/En/pdf (accessed on 1 December 2023).
- Jaeseok, H.; Kim, K.D.; Lee, S.-W. Validation and uncertainty quantification for FEBA, FLECHT SEASET, and PERICLES tests incorporating multi-scaling effects. Ann. Nucl. Energy 2018, 111, 499–508. [Google Scholar] [CrossRef]
- Yue, J.; Cheung, F.-B.; Shirvan, K.; Stephen, M.; Tien, B.K.; Chris, L. Hoxie. Development of a droplet breakup model for dry spacer grid in the dispersed flow film boiling regime during reflood transients. Int. J. Heat Mass Transf. 2019, 143, 118544. [Google Scholar] [CrossRef]
- USNRC. TRACE V5.0—Theory Manual; ML120060218; US Nuclear Regulatory Commission: Rockville, MA, USA, 2010. [Google Scholar]
- Fletcher, C.D.; Scuhltz, R.R. RELAP5/MOD3 Code Manual, No. NUREG/CR-5535-Vol. 5, EGG-2596-Vol. 5; Idaho National Engineering Laboratory: Idaho Falls, ID, USA, 1992. [Google Scholar]
- Hochreiter, L.E.; Cheung, F.-B.; Lin, T.F.; Ergun, S.; Sridharan, A.; Ireland, A.; Rosal, E.R. RBHT Reflood Heat Transfer Experiments Data and Analysis; Technical report (NUREG/CR-6980); United States Nuclear Regulatory Commission: Washington, DC, USA, 2012. Available online: https://www.nrc.gov/reading-rm/doc-collections/nuregs/contract/cr6980/index.html (accessed on 1 December 2023).
- Jeong, J.-J.; Ha, K.S.; Chung, B.D.; Lee, W.J. Development of a multi-dimensional thermal-hydraulic system code, MARS 1.3.1. Ann. Nucl. Energy 1999, 26, 1611–1642. [Google Scholar] [CrossRef]
- Moonkyu, H.; Chung, B.-D. MARS Code Reflood Model Improvements and Comparisons with Flecht-Seaset and RBHT Tests. In Proceedings of the Transactions of the Korean Nuclear Society Autumn Meeting, Gyeongju, Republic of Korea, 27–28 October 2011. [Google Scholar]
- Ihle, P.; Rust, K. FEBA: Flooding Experiments with Blocked Arrays: Data Report; Test Series I through IV; Kernforschungszentrum Karlsruhe GmbH: Baden-Württemberg, Germany, 1984. [Google Scholar]
- Sang-Jun, H.; Park, C.-E.; Kim, K.-D.; Ban, C.-H. Development of the SPACE code for nuclear power plants. Nucl. Eng. Technol. 2011, 43, 45–62. [Google Scholar] [CrossRef]
- Tiep, N.H.; Kim, K.D.; Heo, J. Improvement in the accuracy of SPACE prediction for the unblocked FLECHT SEASET reflood tests by data assimilation. Ann. Nucl. Energy 2021, 161, 108462. [Google Scholar] [CrossRef]
- Tiep, N.H.; Kim, K.-D.; Heo, J.; Choi, C.-W.; Jeong, H.-Y. A newly proposed data assimilation framework to enhance predictions for reflood tests. Nucl. Eng. Des. 2022, 390, 111724. [Google Scholar] [CrossRef]
- Mo, K.K.; Hurley, P.; Duarte, J.P. High-resolution prediction of quenching behavior using machine learning based on optical fiber temperature measurement. Int. J. Heat Mass Transf. 2022, 184, 122338. [Google Scholar] [CrossRef]
- Mo, K.K.; Hurley, P.; Duarte, J.P. Physics-informed machine learning-aided framework for prediction of minimum film boiling temperature. Int. J. Heat Mass Transf. 2022, 191, 122839. [Google Scholar] [CrossRef]
- Yue, J.; Bajorek, S.M.; Cheung, F.-B. Validation and Uncertainty Quantification of Transient Reflood Models Using COBRA-TF and Machine Learning Techniques Based on the NRC/PSU RBHT Benchmark. Nucl. Sci. Eng. 2023, 197, 967–986. [Google Scholar] [CrossRef]
- Loftus, M.J.; Hochreiter, L.E.; Conway, C.E.; Dodge, C.E.; Tong, A.; Rosal, E.R.; Valkovic, M.M.; Wong, S. PWR FLECHT SEASET Unblocked Bundle, Forced and Gravity Reflood Task Data Report; Nuclear Regulatory Commission: Rockville, MD, USA, 1981; Volume 1 + 2. [Google Scholar]
- D’Auria, F.; Camargo, C.; Mazzantini, O. The Best Estimate Plus Uncertainty (BEPU) approach in licensing of current nuclear reactors. Nucl. Eng. Des. 2012, 248, 317–328. [Google Scholar] [CrossRef]
- Wilson, G.E. Historical insights in the development of best estimate plus uncertainty safety analysis. Ann. Nucl. Energy 2013, 52, 2–9. [Google Scholar] [CrossRef]
- Queral, C.; Montero-Mayorga, J.; Gonzalez-Cadelo, J.; Jimenez, G. AP1000® Large-Break LOCA BEPU analysis with TRACE code. Ann. Nucl. Energy 2015, 85, 576–589. [Google Scholar] [CrossRef]
- Kovtonyuk, A.; Petruzzi, A.; D’Auria, F.S. Post-BEMUSE Reflood Model Input Uncertainty Methods (PREMIUM) Benchmark Phase II: Identification of Influential Parameters; Nuclear Energy Agency: Paris, France, 2015. [Google Scholar]
- Breiman, L.; Friedman, J.; Stone, C.J.; Olshen, R.A. Classification and Regression Trees; CRC Press: Boca Raton, FL, USA, 1984. [Google Scholar]
- Kingma, D.P.; Ba, J. Adam: A method for stochastic optimization. arXiv 2014, arXiv:1412.6980. [Google Scholar] [CrossRef]
- Nair, V.; Hinton, G.E. Rectified linear units improve restricted Boltzmann machines. In Proceedings of the 27th International Conference on Machine Learning (ICML-10), Haifa, Israel, 21–24 June 2010; pp. 807–814. [Google Scholar]
- Keras Documentation. 2022. Available online: https://keras.io/api/ (accessed on 3 August 2023).
- Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef]
- Yoo, J.M.; Cho, Y.J.; Yoon, H.Y.; Jeong, J.J. Analysis of the effect of liquid droplet models on the reflood heat transfer using the CUPID code. Nucl. Eng. Des. 2019, 354, 110148. [Google Scholar] [CrossRef]
Test No. | Flooding Rate (m/s) | Power (W/m) | Initial Clad Temperature at 1.83 m (K) | Pressure (MPa) |
---|---|---|---|---|
31021 | 0.0386 | 1300 | 1153 | 0.28 |
31302 | 0.0765 | 2300 | 1142 | 0.28 |
31504 | 0.0240 | 2300 | 1136 | 0.28 |
33849 | 0.0259 | 1900 | 1018 | 0.28 |
34103 | 0.0381 | 2400 | 1158 | 0.28 |
34316 | 0.0250 | 2400 | 1162 | 0.28 |
34420 | 0.0389 | 2400 | 1392 | 0.27 |
34711 | 0.0170 | 1400 | 1161 | 0.13 |
35050 | 0.0259 | 1600 | 1031 | 0.14 |
C | Type | Parameter Descriptions | Uncertainty Band (Min to Max) |
---|---|---|---|
1 | Form loss | Form loss coefficient for forward flow corresponding to elevation | 0.01–0.24 |
2 | Form loss coefficient for reverse flow corresponding to elevation | 0.98–1.55 | |
3 | Interfacial friction factors | Interfacial friction coefficient between vapor-droplet | 0.99–1.80 |
4 | Continuous liquid–vapor interfacial friction factor for bubbly flow | 1.43–2.04 | |
5 | Continuous liquid–vapor interfacial friction factor for slug flow | 0.35–1.07 | |
6 | Continuous liquid–vapor interfacial friction factor for annular flow | 0.46–1.05 | |
7 | Continuous liquid–vapor interfacial friction factor for horizontally stratified flow | 0.08–0.48 | |
8 | Continuous liquid–vapor interfacial friction factor for inverted annular flow | 0.82–1.41 | |
9 | Continuous liquid–vapor interfacial friction factor for inverted slug flow | 0.72–1.04 | |
10 | Entrainment | Droplet entrainment factor | 0.15–0.40 |
11 | Droplet de-entrainment factor | 0.22–1.20 | |
12 | Interphase heat transfer coefficients | Single-phase liquid flow regime | 1.45–2.08 |
13 | Bubbly flow regime | 0.01–0.52 | |
14 | Slug flow regime | 1.61–2.06 | |
15 | Bubbly–annular flow regime | 1.08–1.51 | |
16 | Cap/slug–annular transition flow regime | 0.59–1.09 | |
17 | Annular flow regime | 0.62–1.05 | |
18 | Stratified flow regime | 0.85–1.45 | |
19 | Stratified–bubbly transition flow regime | 0.46–0.87 | |
20 | Cap/slug–stratified transition flow regime | 0.86–1.36 | |
21 | Bubbly/annular–stratified transition flow regime | 1.43–2.33 | |
22 | Cap/slug–bubbly/annular–stratified transition flow regime | 0.54–1.09 | |
23 | Annular–stratified transition flow regime | 0.63–1.31 | |
24 | Inverted annular flow regime | 0.29–0.79 | |
25 | Hot wall interpolation regime | 0.30–0.80 | |
26 | Inverted slug flow regime | 0.65–1.02 | |
27 | Dispersed flow regime | 1.59–2.30 | |
28 | Single-phase vapor flow regime | 0.58–1.35 | |
29 | Flashing | 0.18–0.71 | |
30 | Convective heat transfer | Noncondensable gas–vapor–water mixture or stratified flow heat transfer modes | 0.99–1.60 |
31 | Natural convection heat transfer model | 0.06–0.72 | |
32 | Forced convection heat transfer model | 1.28–1.83 | |
33 | Subcooled nucleate boiling heat transfer model | 0.45–1.05 | |
34 | Saturated nucleate boiling heat transfer model | 1.25–2.21 | |
35 | Subcooled transition boiling heat transfer model | 0.35–1.08 | |
36 | Saturated transition boiling heat transfer model | 1.34–1.84 | |
37 | Subcooled film boiling heat transfer model | 0.23–0.42 | |
38 | Saturated film boiling heat transfer model | 0.77–1.13 | |
39 | Single-phase vapor heat transfer model | 0.31–0.79 | |
40 | Supercritical flow heat transfer model | 0.40–1.12 | |
41 | Condensation heat transfer model | 0.83–1.42 | |
42 | Post-CHF heat transfer model | 0.60–1.11 |
Quantity | DNN | LR | RF |
---|---|---|---|
Number of hidden layers | 2 | - | - |
Number of nodes in the hidden layer | 256, 128 | - | - |
Loss function | MSE | MSE | MSE |
Activator | ReLU | - | - |
Optimizer | Adam | - | - |
Training samples | 20,000 | 20,000 | 20,000 |
Testing samples | 4000 | 4000 | 4000 |
Number of trees | - | - | 200 |
Random seed number (random state) | - | - | 10 |
Number of epochs | 200 | - | - |
Validation split | 10% | - | - |
Quantity | LR | RF | DNN | System Code |
---|---|---|---|---|
Computation time, minutes | 0.21 | 2.74 | 2.51 | ~16,000 |
Machine used | Desktop | Desktop | Desktop | Workstation |
