Review

Safe Functional Modified CuO Nanoparticles?

by
L. Reijnders
Institute for Biodiversity and Ecosystem Dynamics, University of Amsterdam, Science Park 904, 1090 GE Amsterdam, The Netherlands
Appl. Sci. 2023, 13(6), 3425; https://doi.org/10.3390/app13063425
Submission received: 9 December 2022 / Revised: 14 February 2023 / Accepted: 16 February 2023 / Published: 8 March 2023
(This article belongs to the Section Nanotechnology and Applied Nanosciences)
Browse Figure
Versions Notes

Abstract

:
CuO nanoparticles produced by methods from inorganic chemistry and physics are applied as biocides and applications thereof in solar stills, solar collectors, catalysis, sensing and diesel fuels have been proposed. Such CuO nanoparticles are hazardous due to the release of Cu ions and the induced generation of reactive oxygen species after uptake by organisms. Nanoparticle hazard may be reduced by surface modification (coating or capping) and doping which reduces the release of Cu ions and the generation of reactive oxygen species. None of the published safe-by-design modifications of CuO nanoparticles that will be discussed here have been proven safe (no risk). By targeting the release of Cu ions and the generation of reactive oxygen species by CuO nanoparticles, safe(r)-by-design studies target properties that underly the biocidal functionality of CuO nanoparticles. Other functionalities of CuO nanoparticles may also be impacted. There is a case for complementing safe(r)-by-design studies by investigating the impact of the modifications studied on CuO nanoparticle functionality.

1. Introduction

Maynard et al. [1] called safe-by-design ‘a grand challenge of safe nanotechnology’. In this journal, Martins and Kczarewska [2], discussing green nanotechnology, noted the importance of safer-by-design approaches as objects for future research. Reviews suggest that most of the research regarding safe(r)-by-design nanomaterials is in the field of nanomedicine, where the focus is on safety for humans in the use stage [3,4,5]. As to nanoparticles that can be applied outside the field of nanomedicine, there is now a substantial amount of research regarding safe(r)-by-design efforts based on modifications of CuO nanoparticles, which will be reviewed in Section 2.
CuO nanoparticles are used as biocides, for instance in wood preservation and antifouling, and presumably also in agricultural fungicides [6,7,8,9,10]. The proposed applications of CuO nanoparticles regard catalysts [11,12,13], sensing [14,15,16], solar stills [17], solar collectors [18,19] and additives in diesel fuels [20].
CuO nanoparticles are traditionally generated using methods from physics and inorganic chemistry. Approaches to synthesis include electrochemistry, sonochemistry, mechanochemistry and solvothermal and hydrothermal methods [15]. Nanoparticles generated by such methods will be considered here. It is possible to synthesize specific nanostructures, such as CuO nanorods, belts, fibers and flowers, but these will not be discussed. Recently, there has been an upsurge in the laboratory-scale biosynthetic generation of CuO nanoparticles, especially using plant extracts [21]. Such particles will be briefly referred to below.
Hazards of CuO nanoparticles apply to their production, processing, use and waste stages. In a variety of organisms, including invertebrates, plants and mammalian species, hazard of such CuO nanoparticles have been linked to the release of Cu ions and the pro-oxidant activity associated with the induced generation of reactive oxygen species (ROS) [22,23,24,25,26,27,28,29,30,31]. It may be noted, though, that Nations et al. [6] have found that exposure of the tadpole Xenopus laevis to low CuO nanoparticle concentrations positively affected growth and metamorphosis, whereas, at higher concentrations, the impact on development was negative. The mechanism underlying this biphasic impact has not been clarified, but it has been reported that CuO nanoparticles may have an antioxidant effect by scavenging free radicals [32]. It has furthermore been documented by Ge et al. [33] and Podder et al. [34] that, dependent on morphology and concentration, several other metal oxide nanoparticles have an antioxidant effect, in which the scavenging of free radicals and the mimicking of antioxidant enzymes may be involved. Jiang et al. [35] studied manganese oxide nanoparticles that were predominantly antioxidant at low concentrations and predominantly pro-oxidant at higher concentrations. It may be that, similar to the manganese oxide nanoparticles studied by Jiang et al. [35], CuO nanoparticles may have a predominantly antioxidant effect at low nanoparticle concentrations. In the case of biosynthesized CuO nanoparticles, biogenic compounds with antioxidant activity might be present in the nanoparticles, enhancing the overall antioxidant activity of CuO nanoparticles [36,37]. An antioxidant effect is relevant to the hazard of metal oxide nanoparticles, e.g., [33].
One safe-by-design option for nanoparticles that prevents exposure during their use, is their irreversible binding to large inorganic substrates, e.g., [38]. This option may be considered for CuO nanoparticles in terms of their application in sensors and regarding a part of their proposed applications in catalysis. When irreversible binding to large inorganic substrates is at variance with nanoparticle functionality, the modification of CuO nanoparticles may be considered.
In two cases it has been claimed that modifications of Cu nanoparticles confer safety-by-design. Naatz et al. [39] studied CuO nanoparticles doped with Fe. The rationale behind this was that Fe-doping should decrease the dissolution of Cu ions which were held to be responsible for cytotoxicity. Such a decrease in metal ion dissolution was shown by Naatz et al. [39] in several media. Naatz et al. [39] furthermore tested Fe-doped and non-doped CuO nanoparticles as to their cytotoxicity in the human cell lines BEAS-2B and THP-1, and regarding their hatching inhibition of zebrafish embryos. Fe-doping was found to be linked to reduced cytotoxicity and reduced inhibition of hatching. Naatz et al. [39] concluded that their study demonstrated the safe use of (6–10%) Fe-doped CuO nanoparticles in the environment. Feng et al. [40] focused on the generation of reactive oxygen species (ROS) induced by Mn3O4 nanoparticles and in their conclusions generalized their findings to all metal oxide nanoparticles. Feng et al. [40] have shown that doping with about 5 (molar)% Zn is linked to a substantial reduction in ROS generation compared with non-doped Mn3O4 nanoparticles in exposed BEAS-2B cells. They concluded that the way doping by Zn shifts the Fermi energy edge far away from the valence band energy edge, to reduce pro-oxidant activity, becomes a feasible safe-by-design approach to achieve safe Mn3O4 nanoparticles, and more in general safe metal oxide nanoparticles. This would include CuO nanoparticles.
In the next two sections, studies regarding safe(r)-by-design efforts based on the modification of CuO nanoparticles will be reviewed. The central question asked is whether these efforts have led to safe functional CuO nanoparticles, cf. Figure 1.
The focus will be on two matters. The fist regards the question of whether nanoparticle modifications have been be proven safe by the available studies. Safe is defined here as posing no risk. Risk is the chance that negative impacts will occur. This is the subject of Section 2. The second matter, discussed in Section 3, is the compatibility of the modifications studied with the functionality of CuO nanoparticles. Section 4 summarizes the conclusions of this paper.

2. Safe(r)-By-Design CuO Nanoparticles

Safe(r)-by-design modifications of CuO nanoparticles target the release of Cu ions and/or the generation of reactive oxygen species (ROS) [39,40,41,42,43,44,45,46,47]. Two strategies can be found in safe-by-design studies. One safe-by-design strategy regarding CuO nanoparticles is based on coating or capping (surface modification), often with organic substances. Another safe-by-design strategy for CuO nanoparticles is based on doping. Both strategies will be considered here: surface modification by coating or capping in Section 2.1, and doping in Section 2.2. The focus will be on the impact of doping and coating on hazard. Toxicity will be used as a proxy for hazard. The matter of whether these studies addressed the impact of safe-by-design modifications on an antioxidant effect of CuO nanoparticles will also be addressed. Section 2.3 will raise the question as to whether the modified CuO nanoparticles discussed in Section 2.1 and Section 2.2 are proven to be safe.

2.1. Surface Modification by Coating or Capping

The rationale for the surface modification of CuO nanoparticles by coating or capping is that the coating or capping may act as a scavenger for copper ions and reactive oxygen species [46,47,48]. It may be noted, though, that coating or capping may also increase nanoparticle hazard mechanisms [23]. An example thereof is the substantial increase in CuO nanoparticle toxicity to the green alga Chlamydomonas reinhardtii and the aquatic macrophyte Lemna gibba by coating CuO nanoparticles with styrene-butylacrylate co-polymer [23]. Perreault et al. [23] have suggested that this increase in toxicity is linked to changing nanoparticle interactions with cells and toxicity mechanisms.
In a safe-by-design study by Cai at al. [47] CuO nanoparticles were coated with citrate, polyvinylpyrrolidone (PVP) and aminomethylphosphonate. Testing was for cytotoxicity in the (human) cell lines BEAS-2B and THP-1 and for inflammation of mouse lung tissue. The reduction in negative impacts by CuO nanoparticles was very limited when coating was with citrate. In the case of coating with PVP, the reduction in negative impact was moderate and in the case of phosphonate coating was relatively large, though not complete.
In a safe-by-design study, Fiandra et al. [45] studied the impact on A549 human lung epithelial cells and Xenopus laevis embryos of capping of CuO with polyethyleneimine (PEI) and polyethyleneglycol (PEG). They found that modifying the surface of CuO nanoparticles with PEG reduced hazard, but capping with PEI did not. As to the mechanism underlying reduced hazard, Fiandra et al. [45] found in the case of exposure to CuO nanoparticles capped with PEG, that the generation of reactive oxygen species in cells was reduced. The presence of Cu ions in lung cells was higher in the case of PEI-capped CuO nanoparticles than in the case of their PEG-coated counterparts. Hazard was not eliminated by capping with PEG. Extrapolation of the findings of Fiandra et al. [45] to humans and the different ways of intake by humans is subject to uncertainty [49,50,51] and the extrapolation to other organisms that can be exposed to CuO nanoparticles is beset by uncertainties [50,52].
In a safe-by-design study, Gosens et al. [46] studied the impact of CuO nanoparticles surface-modified with ascorbate and PEI on short-term pulmonary inflammation in rats. These surface modifications had been tested before as to their cytotoxicity in a mouse macrophage cell line [41]. In the latter study ascorbate-modified CuO particles scored best in reducing cytotoxicity. However, Gosens et al. [46] found no significant differences as to toxic effects and toxic potency in the lungs of rats between the two surface modifications. This underlines the uncertainty in extrapolating outcomes of tests in cell lines to organisms. Inhalation hazard to rats was not eliminated by capping.
There is a set of studies testing the hazard of CuO nanoparticles coated with polyethylene glycol, carboxylate and methylaminated compounds, if compared with the hazard of pristine CuO nanoparticles, in a variety of biological settings [43,48,53,54,55]. These studies will be briefly presented below. Table 1 compares the hazard of CuO nanoparticles coated with polyethylene glycol (PEGylated CuO nanoparticles), with the hazard of pristine CuO nanoparticles.
Tatsi et al. [43] used CuO nanoparticles with polyethylene glycol, carboxylate and methylaminated compounds in 14 days toxicity tests with earthworms. In fresh soil, CuO nanoparticles with a carboxylate and methylaminated coating were more toxic than pristine CuO nanoparticles, whereas PEGylated CuO nanoparticles had the lowest toxicity. In aged soil, Cu nanoparticles that had a methylaminated organic coating were more toxic than pristine CuO nanoparticles, whereas carboxylated and PEGylated CuO nanoparticles had (similar) lower toxicities than pristine CuO nanoparticles. Using CuO nanoparticles with the same coatings as used by Tatsi et al. [43], Gajda-Meissner et al. [53] concluded that coated CuO nanoparticles were more toxic in acute tests with Daphnia magna than pristine CuO nanoparticles. Kubo et al. [54] found that coatings of CuO nanoparticles with PEG and carboxylate reduced the cytotoxicity in the human cell lines THP-1 and HACAT, and that a methylaminated organic coating increased cytotoxicity. Extrapolation of these tests to human organisms is subject to uncertainty [49,50,51]. Ilves et al. [55] did show that pristine, methylaminated- and carboxylate-coated CuO nanoparticles strongly exacerbated allergen-induced lung inflammation in mice, but that the exacerbation was much less in the case of PEGylated CuO nanoparticles. Conolly et al. [48] studied the effect on mussels (Mytilus spp.) of pristine CuO nanoparticles and CuO nanoparticles coated with the same organic substances as used by Tatsi et al. [43]. The focus was on gill cells, lysosomes and haemocytes. Genotoxicity affecting DNA in gill cells and haemocytes was found for both pristine and coated CuO nanoparticles. Based on acute toxicity to lysosomes and haemocytes, the hazard potential of PEG-coated CuO nanoparticles was found to be larger than for the pristine CuO nanoparticles. Chronic exposures suggested lower levels of oxidative stress associated with pristine CuO nanoparticles than with CuO nanoparticles that had carboxylate coatings.
Ribeiro et al. [42] found that in an acute toxicity test coating or capping with organic substances (citrate, ascorbate, PEI and polyvinylpyrrolidone (PVP)) of CuO nanoparticles increased the negative impact on earthworm coelomocytes compared with pristine CuO nanoparticles.
In a safer-by-design study, Mendes et al. [44] considered surface-modification of CuO nanoparticles with citrate, ascorbate, PEI and PVP. These modifications were tested in a mesocosm with six soil invertebrate species (consumers) during relatively long periods, up to 84 days [44]. In this test, overall hazard was reported to be reduced by PEI, but actually increased by citrate and ascorbate modifications, whereas PVP had hardly any effect. Responses differed between species, suggesting species-specific response mechanisms. Mendes et al. [44] stressed the importance of long-term testing to assess nanoparticle hazard and stated that multispecies testing increases the relevance to ecological hazard. Multigenerational tests would seem preferable because, as pointed out by Yu et al. [56] and Gomes et al. [57], there is evidence for transgenerational epigenetic effects. Extrapolation of these findings to other organisms that may be exposed to surface-modified CuO nanoparticles in a variety of environments is beset by uncertainties [50,52,58].
In proving that CuO nanoparticles with coatings or cappings are safe or safer, the robustness of coatings or cappings under conditions encountered in their use stage and beyond should be considered [50]. None of the studies discussed here addressed the robustness of coatings or cappings.
In summary: In the studies discussed here, the negative impacts of CuO nanoparticles can be decreased, increased and remain unaffected by coating or capping with organic substances. The series of papers regarding CuO nanoparticles coated with polyethylene glycol, carboxylate and methylaminated compounds ([43,48,53,54,55] did show that, for a specific coating, toxicities can differ substantially across species and components thereof. As indicated in Table 1, PEGylated CuO nanoparticles did in several cases show a lower toxicity than pristine CuO nanoparticles [43,54,55] but not in studies with Daphnia magna [53] and mussel lysosomes and haemocytes [48]. Tatsi et al. [43] also found that relative toxicities may differ in different environments (fresh and aged soil). This underlines that in extrapolations to all organisms of findings showing a decrease in the negative impacts for specific organisms, parts thereof and derived cell lines are beset by uncertainties. None of the studies discussed here showed the elimination of CuO nanoparticle hazard by coating or capping. Furthermore, none of these studies addressed the impact of safe-by-design modifications on an antioxidant effect of CuO nanoparticles, though changes in antioxidant effects can be relevant to safety [33].

2.2. Doping

In the Introduction it was noted that two studies [39,40] claimed that safety-by-design was achieved by doping. Table 2 summarizes the characteristics of CuO nanoparticles contributing to hazard that these studies addressed and their findings regarding these characteristics as impacted by doping.
As pointed out in the Introduction, Naatz et al. [39] studied the hatching inhibition of zebrafish embryos by Fe-doped CuO nanoparticles and found reduced inhibition of hatching, if compared with pristine CuO nanoparticles. Naatz et al. [39] also studied the effect of Fe-doped CuO nanoparticles on cytotoxicity in BEAS-2B and THP-1 (human) cell lines. In addition, Joshi et al. [59] studied exposure of (human) C6 glioma cell lines to Fe-doped and non-doped CuO nanoparticles. Both Naatz et al. [39] and Joshi et al. [59] found CuO nanoparticles were reduced by Fe-doping. As Joshi et al. [59] did show that the generation of reactive oxygen species (and its associated hazard) was to be unaffected by Fe-doping, whereas the release of Cu ions from CuO nanoparticles was slowed, reduced cytotoxicity was ascribed to the latter effect. Pugazhandi et al. [60] tested the impact of CuO nanoparticles doped with 3.6% Fe against three microbial species (two bacteria and one yeast). A substantial antimicrobial activity was found. The experiments presented by Naatz et al. [39], Pugazhandi et al. [60] and Joshi et al. [59] did not show that CuO nanoparticle hazard was eliminated by doping with Fe. Taking into account the uncertainties besetting extrapolation [49,50,51,52,58], these studies did not demonstrate that Fe-doped CuO nanoparticles can be safely used in the environment.
The induced generation of ROS by Mn3O4 nanoparticles as tested by Feng et al. [40] was not eliminated by Zn doping. The aim of the doping experiments performed by Feng et al. [40] has been to reduce the generation of ROS by keeping conduction band energy out of the biological redox potential range and having the edge of the Fermi energy (which dominates charge transfer) far away from the valence band energy edge. Feng et al. [40] were successful as to the latter but not regarding the former. As the conduction band of CuO nanoparticles has been reported in the same range as biological redox potentials [61], it would seem that the doping strategy used by Feng et al. [40] is also unlikely to eliminate the generation of ROS induced by doped CuO nanoparticles. Feng et al. [40] did not address the impact of Zn-doping on the release of metal ions from Mn3O4 nanoparticles, as they stated that these nanoparticles are insoluble. Insolubility, however, does not apply to CuO nanoparticles. In view of research presented by Ivask et al. [22], Naatz et al. [39] and Joshi et al. [59], the release of Cu ions from CuO nanoparticles in biologically relevant settings is well established. It might also be pointed out that Katsnelson et al. [62] and Illarionova et al. [63] have presented evidence for the release of Mn ions from Mn3O4 nanoparticles in organisms and cell lines. Finally, the extrapolation of the experiments performed by Feng et al. [40], regarding the cytotoxicity Zn-doped CuO nanoparticles to cell lines, to all organisms that can be exposed to CuO nanoparticles, is beset by uncertainties [49,50,51,52,58]. The experiments presented by Feng et al. [40] did not show that metal oxide nanoparticle hazard was eliminated by doping with Zn. The impact of doping with Zn on an antioxidant effect of metal oxide nanoparticles was not addressed by Feng et al. [40].

2.3. Are the Modified CuO Nanoparticles Discussed in This Section Safe?

None of the studies previously discussed in this section provided evidence for the elimination of hazard by safe(r)-by-design doped, coated or capped CuO nanoparticles. Still, one might argue that such elimination is not necessary for the absence of risk, as there may be exposure levels that do not give rise to negative impacts (no-negative effect levels) and exposure may remain below these levels. However, there is as yet no proof that this actually applies. Such proof is also complex. No-negative effect levels for modified CuO nanoparticles have not as yet been established. Their establishment is likely to be difficult, as Mendes et al. [44] have shown that there are substantial differences in the response to coated nanoparticles between species, and it is also known that the toxicity of Cu ions (central to the safety claim of Naatz et al. [39], shows large differences between species, between varieties and even between individuals [64,65,66]. Furthermore, as pointed out above, there are currently no data about the robustness of CuO nanoparticle coatings or cappings in the real world. In the real world, no-negative effect levels in practice depend on the presence of other substances. There may be co-exposure to other nanoparticles, e.g., to ZnO nanoparticles, which may give rise to strong interactions [67]. Furthermore, background-exposure data regarding other substances that induce the generation of ROS (central to the safety claim of Feng et al. [40]) and can release Cu ions are needed to establish no-negative effect levels for modified CuO nanoparticles in the real world. Such exposure data are currently patchy at best. Finally, realistic fate and exposure studies are needed to show that actual exposure remains below no-negative effect levels. Such studies are currently lacking. It can be concluded that the safe(r)-by-design studies regarding the modified doped, coated or capped CuO nanoparticles discussed here do not prove that these modified nanoparticles are indeed safe. Providing such proof does not seem feasible in the near future, due to its complexity and the present lack of data.

3. Safe(r)-By-Design and Functionality

Tavernaro et al. [68] have pointed out that safe(r)-by-design modifications may impact functionality. This is highly relevant to the use of CuO nanoparticles as biocides. The biocidal properties of Cu nanoparticles have been shown to involve the induce generation of reactive oxygen species and the release of Cu ions [69,70,71,72,73,74,75], and these are the properties targeted by safe(r)-by-design modifications as discussed in Section 2.1 and Section 2.2.
Only one of the safe(r)-by-design studies discussed here addressed the impact of the safe(r)-by-design modifications on the biocidal functionality of CuO nanoparticles. Kubo et al. [54] found that coatings of CuO with PEG and carboxylate reduced the cytotoxicity in the human cell lines THP1 and HACAT and improved the ratio of activity against Escherichia coli strain MG1655 versus human cell line cytotoxicity, when compared with pristine CuO nanoparticles. The significance of the results obtained by Kubo et al. [54] would seem to be limited. Escherichia coli strain MG1655 is not a known pathogen. Extrapolation of the cytotoxicity tests performed by Kubo et al. [54] to the impact on human organisms is subject to uncertainty [49,50,51]. Furthermore, extrapolations to other organisms are problematic as tests with earthworms [43], Daphnia magna [53] and mussels [48] suggested that coatings with carboxylates and PEG might also increase toxicity. Other studies regarding the impact of coating or capping CuO nanoparticles with organic compounds on biocidal activity have shown variable outcomes, which may be dependent on differences in interactions with cells and impacts on toxicity mechanisms [23]. Padmavathi et al. [74] found that capping CuO nanoparticles with cetyl trimethyl ammonium bromide reduced the antibacterial activity against Staphylococcus lentus. Sohail et al. [76] did show that the coating of biosynthetically produced Cu nanoparticles coated with polyamine increased the antifungal effect against Aspergillus parasiticus.
The proposed applications of CuO nanoparticles may also have functionalities that might be impacted by the safe(r)-by-design modifications considered here. The creation of electron holes which underlies sensing responses [16] might, e.g., be affected by shifting the edge of the Fermi energy (which dominates charge transfer) far away from the valence band energy edge, which is instrumental in hazard reduction by doping studied by Feng et al. [40]. As to the proposed application of CuO nanoparticles as catalysts, it may be noted that adsorption of reactants to CuO nanoparticles is important in catalytic activity [11,77]. This property might be impacted by coating or capping. As shown by Wang et al. [78] electron transfer can be implicated in the catalytic activity of CuO nanoparticles. It seems plausible that doping with Fe and Zn and coating or capping might affect such electron transfer.
The CuO functionalities’ high thermal conductivity and absorbing solar radiation can be exploited in solar stills [17]. As the doping of CuO nanoparticles may, by changing the bandgap, impact the absorption of solar radiation [79], the functionality of doped CuO nanoparticles for use in solar stills may be affected. Furthermore, thermal conductivity may be negatively affected by doping by a metal [80], which may affect functionality in solar stills and collectors. As to the application of CuO particles as fuel additives, coating or capping with organic substances to improve safety is not a good option as organic substances will be degraded during combustion. Bitire et al. [20] suggested that the reduction of NOx emissions by CuO nanoparticles in diesel combustion was linked to improved heat transfer, which, as pointed out above, might be affected by doping.
In view of the forgoing, there is a case to complement studies regarding safe-by-design modifications of CuO nanoparticles with studies regarding the implications thereof for functionality.

4. Conclusions

None of the studies considered here provided evidence for the elimination of hazard by the safe(r)-by-design doping, coating or capping of CuO nanoparticles. No study addressed the impact of these safe(r)-by-design modifications on an antioxidant effect of CuO nanoparticles, though changes in antioxidant effects can be relevant to safety. None of the studies regarding coatings or cappings addressed the robustness thereof. Nor has it been proven that levels of exposure to the modified nanoparticles discussed here remain below real world no-negative effect levels. Thus, the studies discussed here did not show that the CuO nanoparticle modifications they considered are safe (no risk). By targeting the release of Cu ions and the generation of reactive oxygen species by CuO nanoparticles, safe(r)-by-design studies target properties that underly the biocidal functionality of CuO nanoparticles. Functionality of CuO nanoparticles in other applications, e.g., in catalysis, solar stills and fuels, may also be impacted. Against this background there is a case for complementing safe(r)-by-design studies by investigating the impact of the modifications studied on CuO nanoparticle functionality. All in all, it has not been proven that the modified CuO nanoparticles discussed in this review are safe and functional.

Funding

This research received no external funding.

Acknowledgments

The author is grateful for the comments of two reviewers and the Academic Editor.

Conflicts of Interest

The author declares that he has no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Maynard, A.; Aitken, R.J.; Butz, T.; Colvin, V.; Donaldson, K.; Oberdörster, G.; Philbert, M.A.; Ryan, J.; Seaton, A.; Stone, V.; et al. Safe handling of nanotechnology. Nature 2006, 444, 267–269. [Google Scholar] [CrossRef] [PubMed]
  2. Martins, R.; Kaczerewska, O.B. Green nanotechnology: The latest innovations, knowledge and future perspectives. Appl. Sci. 2021, 11, 4513. [Google Scholar] [CrossRef]
  3. Yan, L.; Zhao, F.; Wang, J.; Zu, Y.; Gu, Z.; Zhao, Y. A safe-by-design strategy towards safer nanomaterials in nanomedicines. Adv. Mater. 2019, 31, 1805391. [Google Scholar] [CrossRef]
  4. Damasco, J.A.; Ravi, S.; Perez, J.D.; Hagaman, D.E.; Melancon, M.P. Understanding nanoparticle toxicity to direct a safe-by-design approach in cancer nanomedicine. Nanomaterials 2020, 10, 2186. [Google Scholar] [CrossRef]
  5. Reijnders, L. Safer by design for nanomaterials. In Nanotoxicity. Prevention and Antibacterial Applications of Nanomaterials; Rajendran, S., Mukherjee, A., Nguyen, T.A., Godugu, C., Shukla, R.K., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 215–240. [Google Scholar]
  6. Nations, S.; Long, M.; Wages, M.; Maul, J.D.; Theodorakis, C.W.; Cobb, G.P. Subchronic and chronic developmental effects of copper oxide nanoparticles on Xenopus laevis. Chemosphere 2015, 135, 166–174. [Google Scholar] [CrossRef] [PubMed]
  7. Miller, R.J.; Adeleye, A.S.; Page, H.M.; Kui, L.; Lenihan, H.S.; Keller, A.A. Nano and traditional copper and zinc antifouling coatings: Metal release and impact on marine sessile invertebrate communities. J. Nanopart. Res. 2020, 22, 19. [Google Scholar] [CrossRef]
  8. Donelly, B.; Samut, K.; Tang, Y. Materials selection for antifouling systems on marine structures. Molecules 2022, 27, 3408. [Google Scholar] [CrossRef]
  9. Kora, A.J. Copper-based nanopesticides. In Copper Nanostructures: Next Generation of Agrochemicals for Sustainable Agroecosystems; Elsevier: Amsterdam, The Netherlands, 2022; pp. 133–153. [Google Scholar]
  10. Wang, C.; Qi, C. Revealing the chemical and structural properties of copper-based nanoparticles released from copper-treated wood. RSC Adv. 2022, 12, 11391–11401. [Google Scholar] [CrossRef] [PubMed]
  11. Gawande, M.J.; Goswami, A.; Felpin, F.; Asefa, F.; Huang, X.; Silva, R.; Zou, X.; Zboril, R.; Varma, R.S. Cu and Cu-based nanoparticles in synthesis and applications in catalysis. Chem. Rev. 2016, 116, 3722–3811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Wang, Q.; Domen, K. Particulate photocatalysts for light driven water splitting: Mechanisms, challenges, and design strategies. Chem. Rev. 2020, 120, 919–985. [Google Scholar] [CrossRef]
  13. Paris, E.C.; Malafatti, J.O.D.; Moreira, A.J.; Santos, L.C.; Sciena, C.R.; Zenatti, A.; Escote, M.T.; Mastelaro, V.R.; Joya, M.R. CuO nanoparticles decorated on hydoxyapatite/ferrite magnetic support: Photocatalytic activity, cytotoxicity, and antimicrobial response. Environ. Sci. Pollut. Res. 2022, 29, 41505–41519. [Google Scholar] [CrossRef] [PubMed]
  14. George, J.M.; Antony, A.; Mathew, B. Metal oxide nanoparticles in electrochemical sensors and biosensors. Microchim. Acta 2019, 185, 358. [Google Scholar] [CrossRef] [PubMed]
  15. Verma, N.; Kumar, N. Synthesis and biomedical application of copper oxide nanoparticles: An expanding horizon. ACS Appl. Biomater. Sci. Eng. 2019, 5, 1170–1188. [Google Scholar] [CrossRef]
  16. Steinhauer, S. Gas sensors based on copper oxide nanomaterials: A review. Chemosensors 2021, 9, 51. [Google Scholar] [CrossRef]
  17. Attia, M.E.H.; Kabeel, A.I.; Elaloui, I.; Abdelgaied, M.; Abdullah, A. Experimental study of improving the yield of hemispherical distillers using CuO nanoparticles and cooling the glass cover. Solar Energy Mater. Solar Cells 2022, 235, 111482. [Google Scholar] [CrossRef]
  18. Mustafa, J.; Alqaed, S.; Kalbasi, S. Challenging of using CuO nanoparticles in flat plate solar collector–energy saving in a solar-assisted hot process stream. J. Taiwan Inst. Chem. Eng. 2021, 124, 256–265. [Google Scholar] [CrossRef]
  19. Wang, Y.; Zhou, J.J.; Jin, Z.G.; Yang, X.H. Performance investigation of the organosilicone conductor oil with CuO nanoparticles filled in twist tube flow for solar energy storage. J. Energy Storage 2021, 41, 102911. [Google Scholar] [CrossRef]
  20. Bitire, S.P.; Mwanne, E.C.; Jen, T. The impact of CuO nanoparticles as fuel additives in biodiesel-blend fuelled diesel engine: A review. Energy Environ. 2022. [Google Scholar] [CrossRef]
  21. Cuong, H.N.; Pansambal, S.; Ghotekar, S.; Oza, R.; Hai, N.T.T.; Viet, N.M.; Nguyen, V. New frontiers in the plant extract mediated biosynthesis of copper oxide (CuO) nanoparticles and their potential applications: A review. Environ. Res. 2022, 203, 111858. [Google Scholar] [CrossRef]
  22. Ivask, A.; Juganson, K.; Bondarenko, O.; Mortimer, M.; Aruoja, V.; Kasemets, K.; Blinova, I.; Heinlaan, M.; Slaveykova, V.; Kahru, A. Mechanisms of toxic action of Ag, ZnO and CuO nanoparticles in selected ecotoxicological test organisms and mammalian cells in vitro. A comparative review. Nanotoxicology 2014, 8 (Suppl. S1), 57–71. [Google Scholar] [CrossRef]
  23. Perreault, F.; Popovic, R.; Dewez, D. Different toxicity mechanisms between bare and polymer-coated copper oxide nanoparticles in Lemna gibba. Environ. Pollut. 2014, 185, 219–227. [Google Scholar] [CrossRef]
  24. Ivask, A.; Titma, T.; Visnapuu, M.; Vija, H.; Käkinen, A.; Sihtmäe, M.; Pokhrel, S.; Mädler, S.L.; Heinlaan, M.; Kisand, V.; et al. Toxicity of 11 metal oxide nanoparticles to three mammalian cell types in vitro. Curr. Top. Med. Chem. 2015, 15, 1914–1929. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, S.; Liu, H.; Zhang, Y.; Xin, H. The effect of Cu NP on reactive oxygen species and cell cycle gene expression in rice. Environ. Toxicol. Chem. 2015, 34, 554–561. [Google Scholar] [CrossRef]
  26. Gonsalves, M.F.M.; Gomes, S.I.L.; Scott-Fordsmand, J.J.; Amorim, M.J.B. Shorter lifetime of a soil invertebrate exposed to copper oxide nanoparticles in a full lifespan exposure test. Sci. Rep. 2017, 7, 1355. [Google Scholar] [CrossRef] [Green Version]
  27. Rastogi, A.; Zivcak, O.; Kalaji, H.M.; He, X.; Mbarki, S.; Brestic, M. Impact of metal and metal oxide nanoparticles on plants: A critical review. Front. Chem. 2017, 5, 78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Rizwan, M.; Ali, S.; Quayyum, M.F.; Ok, Y.S.; Adrees, M.; Ibrahim, M.; Zia-u-Rehman, M.; Fahrid, M.; Abbas, F. Effect of metal and metal oxide nanoparticles on growth and physiology of globally important food crops. J. Hazard. Mater. 2017, 322, 2–16. [Google Scholar] [CrossRef] [PubMed]
  29. Denluck, L.; Wu, F.; Crandon, L.E.; Harper, B.J.; Harper, S.L. Reactive oxygen species generation is a likely driver of copper-based nanomaterial toxicity. Environ. Sci. Nano 2018, 5, 1473–1481. [Google Scholar] [CrossRef]
  30. Lin, S.; Yu, T.; Hu, X.; Yin, D. Nanomaterials safer-by-design: An environmental safety perspective. Adv. Mater. 2018, 30, 1705691. [Google Scholar] [CrossRef]
  31. Paruthi, A.; Brown, J.M.; Panda, E.; Gautam, A.R.S.; Singh, S.; Misra, S.K. Transformation in band energetics of CuO nanoparticles as a function of solubility and its impact on cellular response. NanoImpact 2021, 22, 100324. [Google Scholar] [CrossRef]
  32. Das, D.; Nath, B.C.; Phukon, P.; Dolui, S.K. Synthesis and evaluation of anti-oxidant and antibacterial behaviour of CuO nanoparticles. Colloids Surf. Biointerf. 2013, 101, 430–433. [Google Scholar] [CrossRef]
  33. Ge, X.; Cao, X.; Chu, L. The antioxidant effect of the metal and metal-oxide nanoparticles. Antioxidants 2022, 11, 791. [Google Scholar] [CrossRef]
  34. Podder, S.; Gosh, C.K.; Das, A.; Hardy, J.G. Light-responsive nanomaterials with pro-oxidant and anti-oxidant activity. Emerg. Mater. 2022, 5, 455–475. [Google Scholar] [CrossRef]
  35. Jiang, X.; Gray, P.; Patel, M.; Zheng, J.; Yin, J. Cross-over between anti- and pro-oxidant activities of different manganese oxide nanoparticles and their biological implications. J. Mater. Chem. B 2020, 8, 1191–1201. [Google Scholar] [CrossRef] [PubMed]
  36. Iqbal, J.; Andleeb, A.; Ashraf, H.; Meer, B.; Mahmood, A.; Jam, H.; Zaman, G.; Nadeem, M.; Drouet, S.; Fazal, H.; et al. Potential antimicrobial, antidiabetic, catalytic, antioxidant and ROS/RNS inhibiting activities of Silybam marianum mediated biosynthesized copper oxide nanoparticles. RSC Adv. 2022, 12, 14069–14083. [Google Scholar] [CrossRef] [PubMed]
  37. Shah, I.H.; Ashraf, M.; Sabir, I.A.; Manzoor, M.A.; Malik, M.S.; Gulzar, S.; Ashraf, F.; Iqbal, J.; Niu, Q.; Zhang, Y. Green synthesis and characterization of copper oxide nanoparticles using Calotropis procera leaf extract and their different biological potentials. J. Mol. Struct. 2022, 1259, 132696. [Google Scholar] [CrossRef]
  38. Reijnders, L. Hazard reduction for the application of titania nanoparticles in environmental technology. J. Hazard. Mater. 2008, 152, 440–445. [Google Scholar] [CrossRef] [PubMed]
  39. Naatz, H.; Lin, S.; Li, R.; Jiang, W.; Ji, Z.; Chang, C.H.; Köser, J.; Thörning, J.; Xia, T.; Nel, A.E.; et al. Safe-by-design CuO nanoparticles via Fe-doping Cu-O bond length variation and biological assessment in cells and zebrafish embryos. ACS Nano 2017, 11, 501–515. [Google Scholar] [CrossRef] [Green Version]
  40. Feng, Y.; Chang, Y.; Xu, K.; Zheng, R.; Wu, X.; Chen, Y.; Zhang, H. Safety-by-design of metal oxide nanoparticles based on the regulation of their energy edges. Small 2020, 16, 1907643. [Google Scholar] [CrossRef]
  41. Líbalová, H.; Costa, P.M.; Olsson, M.; Farcal, L.; Ortelli, K.L.; Ortelli, S.; Blosi, M.; Topinka, J.; Costa, A.L.; Fadeel, B. Toxicity of surface modified copper oxide nanoparticles in a mouse macrophage cell line: Interplay of particles, surface modification and particle dissolution. Chemosphere 2018, 196, 482–493. [Google Scholar] [CrossRef]
  42. Ribeiro, M.J.; Amorim, M.J.B.; Scott-Fordsmand, J.J. Cell in vitro testing with soil invertebrates -challenges and opportunities towards modelling the effect of nanomaterials: A surface-modified CuO case study. Nanomaterials 2019, 9, 1087. [Google Scholar] [CrossRef] [Green Version]
  43. Tatsi, K.; Shaw, B.J.; Hutchinson, T.H.; Hardy, R.D. Copper concentration and toxicity in earthworms exposed to effects of particle coating and soil aging. Ecotoxicol. Environ. Safet. 2018, 16, 462–473. [Google Scholar] [CrossRef]
  44. Mendes, L.A.; Amorim, M.J.B.; Scott- Fordsmand, J.J. Assessing safer-by-design CuO surface modifications using terrestrial multispecies assays. Sci. Total Environ. 2019, 678, 457–465. [Google Scholar] [CrossRef]
  45. Fiandra, L.; Bonfanti, B.; Piunno, Y.; Nagvenkar, A.P.; Perlesthein, I.; Gedanken, A.; Saibene, M.; Colombo, A.; Mantecca, P. Hazard assessment of polymer-capped CuO and ZnO nanocolloids. A contribution to safe-by-design implementation of biocidal agents. NanoImpact 2020, 17, 100195. [Google Scholar] [CrossRef]
  46. Gosens, I.; Costa, P.M.; Olsson, M.; Stone, V.; Costa, A.L.; Brunelli, A.; Badetti, E.; Bonetto, A.; Bokkers, A.G.H.; de Jong, W.H.; et al. Pulmonary toxicity and gene expression changes after short-term inhalation exposure to surface modified copper oxide nanoparticles. NanoImpact 2021, 22, 100373. [Google Scholar] [CrossRef]
  47. Cai, X.; Lee, A.; Ji, Z.; Huang, C.; Chang, C.H.; Wang, X.; Liao, Y.-P.; Xia, T.; Li, R. Reduction of pulmonary toxicity of metal oxide nanoparticles by phosphonate-based surface passivation. Partic. Fibre Toxicol. 2017, 14, 13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Conolly, M.; Little, S.; Hartl, M.G.J.; Fernandez, T.T. An integrated testing strategy for ecotoxicity (ITS-ECO) assessment in the marine environment using Mytilus spp.: A case study using pristine and coated CuO and TiO2 nanomaterials. Environ. Toxicol. Chem. 2022, 41, 1390–1406. [Google Scholar] [CrossRef] [PubMed]
  49. Perkins, E.J.; Ankley, G.K.T.; Crofton, K.M.; Garcia-Reyero, N.; Lalone, C.A.; Johnson, M.S.; Tietge, J.E.; Villeneuve, D.L. Current perspectives on the use of alternative species in human health and ecological hazard assessment. Environ. Health Perspect. 2013, 121, 1002–1010. [Google Scholar] [CrossRef] [Green Version]
  50. Mattsson, M.; Simkó, M. The changing face of nanomaterials: Risk assessment challenges along the value chain. Regulat. Toxicol. Pharmacol. 2017, 84, 105–115. [Google Scholar] [CrossRef]
  51. Erlichman, J.S.; Leiter, J.C. Complexity of the nano-bio interface and the tortuous path of metal oxides in biological systems. Antioxidants 2021, 10, 547. [Google Scholar] [CrossRef]
  52. Lewis, R.W.; Bertsch, P.M.; McNear, D.H. Nanotoxicology of engineered nanomaterials (ENMs) to environmentally relevant beneficial soil bacteria: A critical review. Nanotoxicology 2019, 13, 392–428. [Google Scholar] [CrossRef]
  53. Gajda-Meissner, Z.; Matyja, K.; Brown, D.M.; Hartl, M.G.J.; Fernandes, T.F. Importance of surface coating to accumulation dynamics and acute toxicity of copper nanomaterials and dissolved copper in Daphnia magna. Environ. Toxicol. Chem. 2020, 39, 287–299. [Google Scholar] [CrossRef]
  54. Kubo, A.; Vasiliev, G.; Vija, H.; Krishtal, J.; Tougu, V.; Vishapuu, M.; Kisand, V.; Kahru, A.; Bondarenko, O.M. Surface carboxylation or PEGylation decrease CuO nanoparticles’ cytotoxicity in vitro without compromising their antibacterial properties. Arch. Toxicol. 2020, 94, 1561–1573. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Ilves, M.; Kinaret, P.A.S.; Ndika, J.; Karisola, P.; Marwah, V.; Fortino, V.; Fedutik, Y.; Correia, M.; Ehrlich, N.; Loeschner, K.; et al. Surface PEGylation suppresses effects of CuO nanoparticles on allergen-induced lung inflammation. Partic. Fibre Toxicol. 2019, 16, 28. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Yu, J.; Loh, X.J.; Luo, Y.; Ge, S.; Tan, X.; Ruan, J. Insights into the epigenetic effects of nanomaterials. Biomater. Sci. 2020, 8, 763–775. [Google Scholar] [CrossRef] [PubMed]
  57. Gomes, S.I.L.; Scott-Fordsmand, J.J.; Amorim, M.J.B. Alternative test methods for nanomaterial hazard assessment and recommendations for regulatory preparedness. Nano Today 2021, 20, 101242. [Google Scholar] [CrossRef]
  58. Thit, A.; Selck, H. Biodynamics and adverse effects of CuO nanoparticles and CuCl2 in the oligochaete T. tubifex: Cu form influences biodynamics in water but not in sediment. Nanotoxicology 2021, 15, 673–689. [Google Scholar] [CrossRef]
  59. Joshi, A.; Naatz, H.; Faber, K.; Pokhrel, S.; Dringen, R. Iron doping of copper oxide nanoparticles lowers their toxic potential in C6 glioma cells. Neurochem. Res. 2020, 43, 809–823. [Google Scholar] [CrossRef] [Green Version]
  60. Pugazhandi, A.; Kumar, S.C.; Menikandan, M.; Saravanan, M. Photocatalytic properties and antimicrobial efficacy of Fe doped Cu nanoparticles against the pathogenic bacteria and fungi. Microb. Pathog. 2018, 122, 84–89. [Google Scholar] [CrossRef]
  61. Burello, E.; Worth, A.P. A theoretical framework for predicting the oxidative stress potential of oxide nanoparticles. Nanotoxicology 2011, 5, 228–235. [Google Scholar] [CrossRef]
  62. Katsnelson, B.A.; Minigaliyeva, I.A.; Pasov, V.; Privalova, L.T.; Varaksin, A.N.; Gurvich, V.B.; Sutunkova, M.P.; Shur, V.Y.; Shishina, E.; Valamina, I.E.; et al. Some patterns of metallic nanoparticles combined subchronic toxicity exemplified by a combination of nickel and manganese oxide nanoparticles. Food Chem. Toxicol. 2015, 86, 351–361. [Google Scholar] [CrossRef]
  63. Illarionova, N.; Mozorova, K.N.; Petrovskii, D.V.; Shaparova, M.B.; Romashchenko, A.V.; Troitskii, S.Y.; Kiselva, E.; Moshkin, V.M.; Moshkin, M.P. ‘Trojan Horse’ stress-granule formation mediated by manganese oxide nanoparticles. Nanotoxicology 2020, 14, 1432–1444. [Google Scholar] [CrossRef] [PubMed]
  64. Gupta, R.K. A review of copper poisoning in animals: Sheep, goats and cattle. Int. J. Veter. Sci. Anim. Husband. 2018, 3, 1–4. [Google Scholar]
  65. Taylor, A.A.; Tsuji, J.S.; Garry, M.R.; McArdle, M.E.M.; Goodfellow, J.W.L.; Adams, W.J.; Menzie, Z.A. Critical review of exposure effects: Implications for setting regulatory health criteria for ingested copper. Environ. Manag. 2020, 65, 131–159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Azizishirazi, A.; Klemish, J.L.; Pyle, G.G. Sensitivity of amphibians to copper. Environ. Toxicol. Chem. 2021, 40, 1808–1819. [Google Scholar] [CrossRef]
  67. Zhang, F.; Wang, Z.; Peijnenburg, W.J.G.M.; Vijver, M.G. Review and prospects on the ecotoxicity of mixtures of nanoparticles and hybrid nanomaterial. Environ. Sci. Technol. 2022, 56, 15238–15250. [Google Scholar] [CrossRef]
  68. Tavernaro, I.; Dekkers, S.; Soeteman-Hernández, L.G.; Habeck-Engel, P.; Noorlander, C.; Kraegeloh, A. Safe-by-design part II: A strategy for balancing safety and functionality in the different stages of the innovation process. NanoImpact 2021, 24, 100354. [Google Scholar] [CrossRef]
  69. Applerot, G.; Lellouche, J.; Lipovsky, A.; Nitzan, V.; Lubart, R.; Gedanken, A. Understanding the antibacterial mechanism of CuO nanoparticles: Revealing the route of induced oxidative stress. Small 2012, 8, 3326–3337. [Google Scholar] [CrossRef]
  70. Ananth, A.; Dharaneedharan, S.; Heo, M.S.; Mok, S.Y. Copper nanoparticles: Synthesis, characterization and structure-specific antibacterial performance. Chem. Eng. J. 2015, 262, 179–188. [Google Scholar] [CrossRef]
  71. Meghana, S.; Kabra, P.; Chakraborthy, S.; Padmavathy, N. Understanding the pathway of anti-bacterial activity of copper oxide nanoparticles. RSC Adv. 2015, 5, 12293–12299. [Google Scholar] [CrossRef]
  72. Stankic, S.; Suman, S.; Haque, F.; Vidic, J. Pure and multi metal oxide nanoparticles.: Synthesis, antibacterial and cytotoxic properties. J. Nanobiotechnol. 2016, 14, 73. [Google Scholar] [CrossRef] [Green Version]
  73. Bala, N.; Sarkar, M.; Maiti, M.; Nandy, P.; Basu, R.; Das, S. Phenolic compound-mediated single-step fabrication of copper oxide nanoparticles for elucidating their influence on anti-bacterial and catalytic activities. New J. Chem. 2017, 41, 4458–4467. [Google Scholar] [CrossRef]
  74. Padmavathi, A.R.; Murthy, P.S.; Das, A.; Nishad, P.A.; Pandion, R.; Rao, T.S. Copper oxide nanoparticles as an effective anti-biofilm agent against a copper tolerant marine bacterium Staphylococcus lentus. Biofouling 2019, 35, 1007–1025. [Google Scholar] [CrossRef]
  75. Padmavathi, A.R.; Murthy, P.S.; Das, A.; Priya, A.; Sushmitha, T.J.; Pandion, R.; Toleti, S.R. Impediment to growth and yeast-to-hypha transition in Candida albicans by copper oxide nanoparticles. Biofouling 2020, 36, 56–72. [Google Scholar] [CrossRef] [PubMed]
  76. Sohail, Y.; Raza, N.; Shakeel, N.; Raza, H.; Manzoor, S.; Yasmin, G.; Iqbal, A.; Manzoor, S.; Albaqami, M.D.; Wabaidur, S.M. Polyaniline coated nanoparticles of zinc oxide and copper oxide as antifungal agents against Aspergillus parasiticus. Front. Plant Sci. 2022, 13, 925451. [Google Scholar] [CrossRef] [PubMed]
  77. Sartin, M.M.; Yu, Z.; Chen, H.; He, F.; Sun, Z.; Chen, Y.; Huang, W. Effect of particle shape and electrolyte cation on CO adsorption to copper oxide nanoparticle electrocatalysts. J. Phys. Chem. C 2018, 46, 26489–26498. [Google Scholar] [CrossRef]
  78. Wang, G.; Ge, L.; Liu, Z.; Zhu, X.; Yang, S.; Wu, K.; Jin, P.; Zeng, X.; Zhang, X. Activation of peroxydisulfate by defect-rich CuO nanoparticles supported on layered MgO for organic pollutants degradation: An electron transfer mechanism. Chem. Eng. J. 2022, 43, 13406. [Google Scholar] [CrossRef]
  79. Maini, A.; Shah, M.A. Investigation of physical properties of nanosized copper oxide (CuO) doped with cobalt (Co): A material for electronic device application. Int. J. Ceram. Eng. Sci. 2021, 3, 192–199. [Google Scholar] [CrossRef]
  80. Baghdadi, N.; Saeed, A.; Ansari, A.R.; Hammad, A.H.; Afifi, A.; Salah, N. Controlled nanostructuring via aluminum doping in CuO nanosheets to enhance thermoelectric performance. J. Alloys Compd. 2022, 869, 159370. [Google Scholar] [CrossRef]
Applsci 13 03425 g001 550

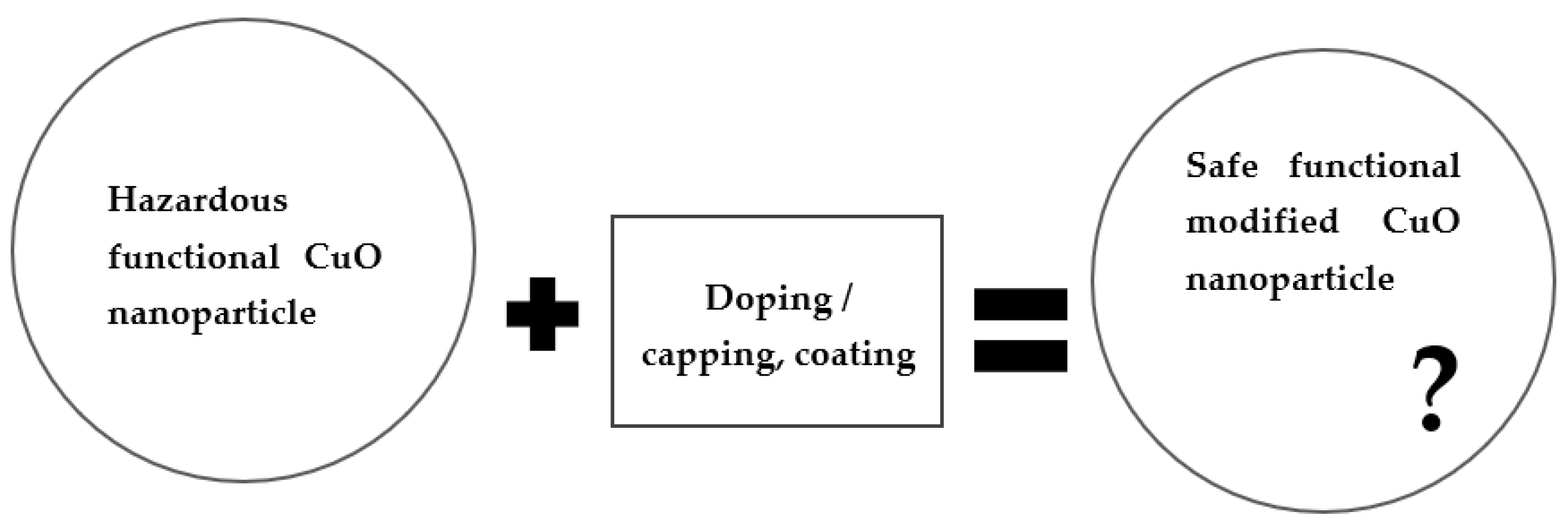

Figure 1. The central question: do doping or coating lead to safe functional Cu nanoparticles?
Figure 1. The central question: do doping or coating lead to safe functional Cu nanoparticles?
Applsci 13 03425 g001
Table
Table 1. Hazard of PEGylated CuO nanoparticles compared with pristine CuO nanoparticles.
Table 1. Hazard of PEGylated CuO nanoparticles compared with pristine CuO nanoparticles.
StudyObject of TestHazard of PEGylated CuO Nanoparticles Compared with the Hazard of Pristine Nanoparticles
Tatsi et al. [43]EarthwormsReduced
Conolly et al. [48]Haemocytes and lysosomes of musselsIncreased
Gajda-Meissner et al. [53]Daphnia magnaIncreased
Kubo et al. [54]THP-1 and HACA human cell linesReduced
Ilves et al. [55]Lungs of miceReduced
Table
Table 2. Characteristics of CuO nanoparticles that can contribute to hazard addressed by Naatz et al. [39] and Feng et al. [40] and their findings regarding these characteristics as impacted by doping.
Table 2. Characteristics of CuO nanoparticles that can contribute to hazard addressed by Naatz et al. [39] and Feng et al. [40] and their findings regarding these characteristics as impacted by doping.
Characteristic of Nanoparticle That Can Contribute to HazardWas This Addressed by Naatz et al. [39]? If So, What Impact of Doping Was Found?Was This Addressed by Feng et al. [40]? If So, What Impact of Doping Was Found?
Release of metal ionsYes, reduction of copper ion release was found.No.
Generation of reactive oxygens species (ROS)NoYes, a reduced generation of ROS was found
