PSDFH: A Phase-Space-Based Depth from Hologram Extraction Method

Abstract

Object pre-localization from computer-generated holograms is still an open problem in the current state of the art. In this work, we propose the use of the hologram phase space representation to determine a set of regions of interest where the searched object can be located. The extracted regions can be used to pre-locate the object in 3D space and are further refined to produce a more accurate depth estimate. An iterative refinement method is proposed for 1D holograms and is extended in a parsimonious version for 2D holograms. A series of experiments are conducted to assess the quality of the extracted regions of interest and the sparse depth estimate produced by the iterative refinement method. Experimental results show that it is possible to pre-localize the object in 3D space from the phase space representation and thus to improve the calculation time by reducing the number of operations and numerical reconstructions necessary for the application of s (DFF) methods. Using the proposed methodology, the time for the application of the DFF method is reduced by half, and the accuracy is increased by a factor of three.

1. Introduction

Holography [1], introduced by Dennis Gabor in 1948, was originally a two-stage coherent imaging technology for recording and reconstructing the light wave scattered by an illuminated object through interference. While initially restricted to monochromatic still models captured in optics laboratories, its modern evolution into digital holography has recently allowed the processing of completely general content, such as color-animated hologram sequences.

A hologram contains the entire light field of the recorded object, including intensity and phase information. It therefore requires larger storage space, but this additional information can be used for a wider range of applications. In most computer vision applications, only the intensity image and depth map of the scene are used to completely describe the 3D scene. Both of them are contained in the hologram but require a preprocessing step in order to extract them. The simplest and most effective approach for this purpose is to use the depth-from-focus (DFF) method [2]. This technique starts from a reconstruction volume, built using several numerical reconstructions performed at different sampled depths. It then estimates a depth map of the recorded scene by detecting the reconstruction depth at which the focus is locally optimal using a focus measure (FM) for each pixel. Once the depth map has been estimated, the intensity map is constructed by assigning to each pixel the intensity present at the same position in the numerical reconstruction performed at the estimated depth.

Although the DFF approach gives convincing results, it has many limitations. First, it requires carefully choosing several hyperparameters, including the reconstruction interval, the number of reconstructions to be performed, the focus operator, and how it applies to the reconstruction volume. Each of these factors can greatly affect the estimation performance. Second, this approach is computationally expensive, since it requires computing a large number of numerical reconstructions and in some particular cases pre-processing the hologram to remove the zero-order, twin image, and speckle noise from the reconstructed images, resulting in additional computational overhead.

In this work, we propose a PS-DFF (phase-space-based DFF), a region of interest (ROI) extraction procedure based on the phase space representation of holograms to pre-localize the scene in 3D space. The extracted regions can be used to select an appropriate numerical reconstruction interval, as well as the spatial location where the focus measure should be applied. In addition, an iterative method is proposed to refine the extracted regions of interest and produce a finer depth estimate. A series of experiments are conducted to evaluate the quality of the extracted regions of interest, the gain in computation time with respect to the classical DFF method, and the accuracy of the sparse depth estimate produced by the iterative refinement method.

The main contributions of this paper can be summarized as follows:

• A novel methodology to estimate a complex and deep depth map with multiple values based on the phase space representation of the hologram.
• An iterative voting process to extract regions containing scene objects (called ROIs in the paper) from the hologram phase space transform support.
• An ROI-constrained DFF method to improve speed and accuracy with respect to classical DFF.

The remainder of this article is organized as follows: Section 2 reviews previous works that use phase space to process holographic data. Then, Section 3 presents the proposed method. In Section 4, a series of experiments are conducted to validate the proposed approach. Finally, in Section 5, we discuss the advantages and limitations of the proposed approach.

2. Related Works

In this section, we review the two main approaches that can be used to estimate the depth map from a digital hologram: depth-from-focus methods and phase-space-based methods.

2.1. Depth-From-Focus Methods

A simple depth estimation method is the use of the DFF method [3,4,5]. First, a reconstruction volume is built from the input hologram, with a predefined number of holographic reconstructions within a fixed depth interval. Each numerical reconstruction can be computed using the angular spectrum method [6] defined as

$${\mathcal{P}}_{z_i}\left\{H\right\}={\mathcal{F}}^{-1}\left\{\mathcal{F}(H)e^{j2\pi z_i\sqrt{{\lambda }^{-2}-f_x^2-f_y^2}}\right\},$$

(1)

where H is the hologram, $\mathcal{F}$ is the Fourier transform, $\lambda$ is the acquisition wavelength, $f_x$ and $f_y$ are the spatial frequencies along the X- and Y-axis, $\lambda$ is the acquisition wavelength, and $z_i$ is the reconstruction depth, given by

$$z_i=\frac{z_{max}-z_{min}}{N}i+z_{min},$$

(2)

where N is the total number of holographic reconstructions, and $z_{min},z_{max}$ are the boundaries of the reconstruction interval. Then, the focus level of each pixel $(m,n)$ in the reconstruction volume is evaluated locally using a focus measure $FM$ applied on a centered patch $R_{m,n}$ around the pixel. Finally, the pixel depth is set to the depth $d_{m,n}$ at which the maximum focus level $FM(R)$ is reached. More formally,

$$d_{m,n}=\underset{i\in [1,N]}{arg\; max}\left\{FM(R_{m,n,i})\right\},$$

(3)

where

$$R_{m,n,i}(u,v)=\left|{\mathcal{P}}_{z_i}\left\{H\right\}\right|(m+u-s/2,n+v-s/2),$$

(4)

and s is the used patch size. Despite its time-consuming nature, the DFF method can produce relevant results under optimal conditions in which the holographic reconstruction parameters, focus measure, and patch sizes are carefully chosen.

In practice, determining the proper reconstruction parameters is difficult. It is simpler to use a very large reconstruction interval $[0,z]$ that spans the entire space and a high sampling rate N to cover all possible depths. Even if this methodology appears to be advantageous, the obtained results will depend on the focus measure $FM$, which must be sensitive enough to distinguish the correct optimal focus plane.

A detailed benchmark of focus measurement operators can be found in [7]. More recently, [8] studied various types of focus measurements and how different choices of hyperparameters can affect their performance when used in CGH. The results obtained demonstrate that the focusing curves are subject to a change in polarity depending on the region treated. Therefore, the authors propose an automatic switching method to automatically choose the global minimum or maximum depending on the offset from the mean value.

2.2. Phase-Space-Based Methods

One of the pioneer works on the extraction of depth information directly from a hologram without any numerical reconstruction was published in [3]. The proposed method is based on Wigner’s analysis of a 1D cross section of 2D in-line holograms. Each particle that was used to record the hologram is represented by a cross-shaped pair of line impulses in Wigner’s analysis of the hologram. The authors showed analytically that if one of the two straight lines slopes is known, the distance between the particle and the hologram plane can be obtained. The experiments were conducted using several holograms with a varying number from one to three particles that are spaced far enough. The obtained results confirmed the analytical formula and showed that the proposed approach can be used to obtain an accurate estimate of the particle depth.

Ozgen et al. [9] extended the previous work by replacing the Wigner–Ville distribution by the Cohen bilinear class with fixed kernels given by analytical expressions in order to improve the precision in the case of multiple particles. The proposed method was compared to a scaling of the chirp transformation [10] and showed better results in terms of automation of the algorithm and a better visual interpretation of the obtained results.

In the same spirit, Zhang et al. [11] used the Gabor transform to extract the depth information of small particles from in-line holograms by using the analytical relation between the Gabor angle and the object distance from the CCD camera. The experiments were performed on a 1D cross section of a 2D in-line hologram of three particles located at the same depth. The 1D cross section was analyzed using the Gabor transform, and the Gabor angle was calculated manually in order to obtain a depth estimate. The estimated depth is very close to the ground truth with an approximation error of 3 $\mathsf{\mu }\mathrm{m}$. The authors pointed out that the estimation error may be due to the high signal-to-noise ratio caused by the acquisition conditions.

Other applications based on the phase space transform are discussed in [12].

2.3. State-of-the-Art Limitations

As shown in this section, while depth-from-focus methods enable estimation of accurate depth maps from digital holograms, they require a set of hyperparameters to be carefully chosen. In addition, since multiple numerical reconstructions need to be computed, their computational complexity increases for scenes with a large depth range. On the other hand, phase-space-based methods do not require computing numerical reconstructions. Nevertheless, state-of-the-art works were limited to scenes composed of a small number of particles, and their application to complex scenes with a large depth range was never studied in the literature.

In this work, we propose using these two approaches together: we use a phase-space-based method to extract regions of interest (ROIs) from the input hologram, which are then exploited to determine the depth range to apply a DFF method to extract the scene depth map from the hologram.

3. Proposed Methodology

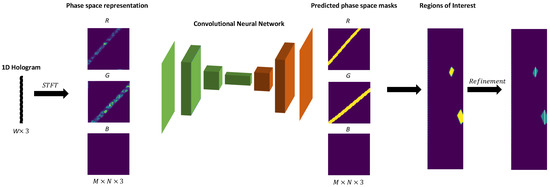

The following sections introduce the proposed method illustrated in Figure 1 for phase space depth estimation. The proposed methodology is designed for 1D holograms and is applied to 1D slices of 2D holograms.

3.1. Overview

Our proposed methodology comprises 4 steps for 1D holograms and an additional step when processing 1D slices of 2D holograms. First, considering a 1D hologram obtained from a 2D scene, the  hologram phase space representation is computed using the short-term Fourier transform (STFT), producing for each color channel a 2D matrix of size $N\times M$ corresponding to the axis $(x,\xi )$. This matrix represents the decomposition of the hologram as local frequencies $\xi$ around the specified position x. Since frequencies are related to light propagation through the grating equation, each couple $(x,\xi )$ represents a light beam passing through x and oriented according to $\xi$. The phase space transform is a compact representation of the hologram and contains a sufficient amount of information to fully describe it.

Second, a neural network is used to estimate the support of the hologram phase space representation, resulting in a set of binary masks. The phase space segmentation makes it possible to consider only the shape of the representation created by the scene in phase space without taking into account the values of the transform, which are subject to variation from one hologram to another. Furthermore, by using this segmentation step, a unique thresholding value that is not affected by the color intensity or phase value of the input hologram can be defined.

Third, the predicted masks are used to detect regions of interest containing the scene objects. The probability for each 2D position to belong to the scene is estimated based on the binary masks, and points exceeding a given threshold define the region of interest.

Finally, the initial regions of interest are refined using an iterative method to reduce their depth extent and obtain a set of straight lines that represent the final depth estimate of the scene.

In the case of 1D slices of the 2D hologram, a fixed-size ROI centered on the estimated straight lines is defined and used with the DFF method to further recover the curvature of the extracted lines.

3.2. Step 1: Computing the Phase Space Representation of the Hologram

We assume that a 1D hologram of a 2D scene has been generated. Given the 1D input hologram denoted $\mathcal{H}\in {\mathbb{C}}^W$, its 2D phase space transform is computed using the STFT based on sub-sampled hologram points x and sampled frequencies $\xi$ defined as

$$\left\{x\left[n_1\right]:=\frac{W{\Delta }_x}{2N}(2n_1-N+1):n_1=0,1,\dots ,N-1\right\},$$

(5)

$$\left\{\xi \left[m_1\right]:=\frac{1}{2{\Delta }_{x}M}(2m_1-M+1):m_1=0,1,\dots ,M-1\right\},$$

(6)

where W is the hologram size, ${\Delta }_x$ is the hologram pixel pitch, and N and M are the number of sampled points and frequencies.The 2D phase space representation of the hologram is therefore given by

$$L[n_1,m_1]=\sum _{s=0}^{L-1}w[n_1-s]H\left[s\right]e^{-js\xi \left[m_1\right]},$$

(7)

where w is a Hann window of size $M+1$ defined as

$$w(m)=0.5(1-cos(2\pi \frac{m}{M})),0\le m\le M+1.$$

(8)

For a colored hologram, the STFT transform is applied to each color channel $(R,G,B)$ of the hologram producing a complex-valued tensor of size $N\times M\times 3$.

3.3. Step 2: Extraction of Phase Space Masks

In this step, a binary mask representing the support of the hologram phase space representation is computed through binarization. To do so, the computed phase space representation L is fed to a convolution neural network (CNN) denoted by G based on the U-Net architecture [13] to binarize the phase space representation and estimate phase space masks, with one $M\times N$ binary mask per color channel. The network is supervised using ground truth masks computed from the scene point cloud $\mathcal{P}$ which produces the hologram $\mathcal{H}$ using the analytical formula proposed in [14]. The function $\Omega$ mapping the 2D point cloud $\mathcal{P}$ onto phase space can be defined as

$$\Omega (\mathcal{P})=\bigcup _{n_1=0}^{N-1}\bigcup _{p=(y_1,y_2)\in \mathcal{P}}{\Lambda }_p(n_1)$$

(9)

where

$${\Lambda }_p(n_1)=\left\{(x\left[n_1\right],f_{\xi }(n_1))\mid -\frac{1}{2\Delta x}\le f_{\xi }(n_1)\le \frac{1}{2\Delta x},\right\}$$

(10)

and $f_{\xi }(n_1)$ is the frequency component related to the sampled point $x\left[n_1\right]$, which is given as

$$f_{\xi }(n_1):=-\frac{(x\left[n_1\right]-y_1)}{\lambda \sqrt{{(x\left[n_1\right]-y_1)}^2+{(y_2)}^2}}.$$

(11)

From there, the ground truth binary mask defining the phase space projection support can be computed as

$$M_b[n_1,m_1]={𝟙}_{(x\left[n_1\right],\xi \left[m_1\right])\in \Omega (\mathcal{P})}.$$

(12)

where $𝟙$ is the indicator function.

Using the resulting phase space representation as input, the network is trained to output a binary mask ${\widehat{M}}_b$ as close as possible to the ground truth binary mask $M_b$. The training process can be formalized as follows:

$${\widehat{M}}_b={\mathcal{G}}_{\theta }\left\{(\mathbb{R}e\left\{L\right\},\mathbb{I}m\left\{L\right\})\right\},L\in {\mathcal{C}}^{N\times M}$$

(13)

$$\underset{\theta }{min}\mathcal{L}=BCE({\widehat{M}}_b,M_b),M_b,{\widehat{M}}_b\in {\mathbb{R}}^{N\times M}$$

(14)

where $(\mathbb{R}e\{L\},\mathbb{I}m\{L\})$ is the concatenation of the real and imaginary parts of the hologram phase space representation L defined in Equation (7), $\theta$ are the parameters of the network, and $BCE$ is the binary cross-entropy loss.

The use of a CNN model was preferred to thresholding the values of the matrix L for two main reasons. First, the threshold value varies from one hologram to another; it is therefore necessary to compute an optimal threshold value for each hologram. Second, the resulting binary mask from thresholding is coarse and requires an additional processing step using filters with sizes adapted to the level of degradation. This is an additional operation that requires significant computation time and often results in a degradation of the initial outline of the object. Using a CNN model ensures fast and accurate phase space segmentation without the need for manual editing or an additional post-processing step.

3.4. Step 3: Regions of Interest First Estimate

The goal of this step is to extract an area of the 2D scene, further called ROI (region of interest), the 2D points belonging to the scene. To do so, each point $p=(x,y)$ belonging to the 2D scene is mapped into phase space using the mapping $\Omega$ defined in Equation (9). The obtained phase space representation of the 2D candidate point is intersected with the binary mask estimated ${\widehat{M}}_b$ in Step 2. The relative intersection provides the candidate point score. More formally:

$$score(p,{\widehat{M}}_b)=\frac{\left|{\widehat{\Omega }}_{{\widehat{M}}_b}(\mathcal{P})\cap \Omega (p)\right|}{\left|\Omega (p)\right|},p=(x,z)\in {\mathbb{R}}^2$$

(15)

where

$${\widehat{\Omega }}_{{\widehat{M}}_b}(\mathcal{P})=\{(x\left[n_1\right],\xi \left[m_1\right])\mid {𝟙}_{{\widehat{M}}_b[n_1,m_1]=1}\}.$$

(16)

The score for a candidate point $(x,z)$ defined in Equation (15) quantifies how much active frequencies that define this point in phase space are also active in the support ${\widehat{M}}_b$ of the input hologram phase space representation. For a candidate point to truly belong to the scene, all those frequencies should be active. Therefore, a thresholding step is performed in order to keep only the points $(x,z)$ with a score equal to 1, i.e., all points fulfill the condition of active frequencies, as follows:

$$ROI({\widehat{M}}_b)=\widehat{\mathcal{P}}=\{(x,z)\mid {𝟙}_{score(p,{\widehat{M}}_b)=1}\forall p=(x,z)\in {\mathbb{R}}^2\}.$$

(17)

A score less than 1 can also be encountered with a point that really belongs to the scene but with a degraded mask ${\widehat{M}}_b$.

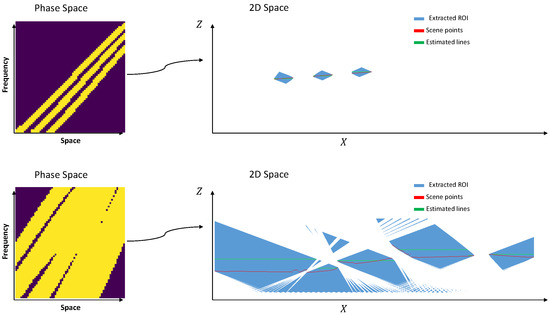

Figure 2 gives two mapping examples with the extracted ROI colored in blue. In the first case, the extracted ROI consists of perfect diamonds that encapsulate the scene points colored in red. In this specific case, the geometry of the scene can be estimated using the set of lines that connect the two extremities of each diamond along the X-axis. In the second case, the extracted ROI does not have a perfect diamond shape due to the proximity of the different scene points.

The closer the points are to each other, the larger the extracted ROI and the bigger its depth extent. In contrast, the further apart the points are, the finer the ROI and the smaller the depth extent. Therefore, if the scene points are very close to each other and extend along the entire X-axis, then the extracted ROI will be very large with a high depth extent.

3.5. Step 4: Regions of Interest Iterative Refinement

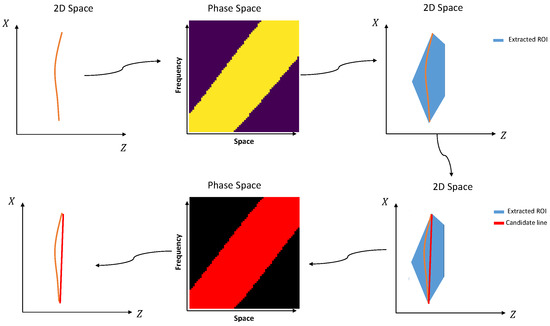

To better control the depth extent of the extracted regions of interest, a proposed iterative refinement algorithm is introduced in the next section and is applied to the extracted ROI in order to calculate the optimal representation line. Then, a new ROI of fixed size centered on the predicted line is defined and used as the final ROI.

The initially extracted ROI is a subset of the minimal set of points that produce the same binarized phase space representation as ${\widehat{M}}_b$. As a result, the ROI can be further refined to produce the smallest set of points that when mapped into phase space produce the same representation as ${\widehat{M}}_b$. To reduce combinatorial complexity, primitives larger than the points, namely lines, are chosen as the set of candidates to be combined in order to produce the same representation as ${\widehat{M}}_b$, as shown in Figure 3.

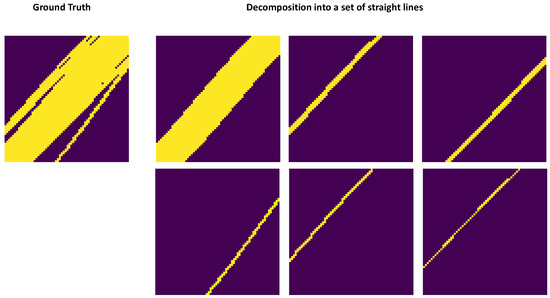

The decomposition into a minimal set of lines is described in Algorithm 1. First, the set of candidate points $\widehat{P}$ is decomposed into a set of disjoint regions $ROIs(\widehat{P})$ using the findContours from the Opencv Library [15]. Then, all lines that are completely embedded in each subregion are extracted. Each line is mapped into phase space, and its contribution to the estimated phase space representation ${\widehat{M}}_b$ is evaluated. The line that contributes the most is selected. Finally, all candidate points that are in the same interval along the X-axis as the selected line are removed.

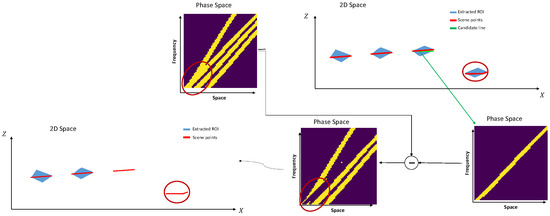

As shown in Figure 4, the contribution of the selected line is not removed from the matrix ${\widehat{M}}_b$ because other candidate lines may share the same points as the selected line in phase space. Therefore, removing the line contribution would remove candidate lines that may actually belong to the scene. To prevent this from happening, a buffer $M_{pred}$ is used and is incremented with the phase space representation of the selected line at each iteration. The iteration stops when the contribution of the newly selected line is less than 5% overlap of the input phase space representation. An example of phase space decomposition is given in Figure 5.

Algorithm 1 Iterative decomposition into a set of lines

Require: Set of candidate points $\widehat{P}$, and the estimated phase space representation ${\widehat{M}}_b$. 1: $M_{pred}\leftarrow zeros(size({\widehat{M}}_b))$; 2: $S_{last}\leftarrow 0$; 3: ${\widehat{\Omega }}_{{\widehat{M}}_b}(\mathcal{P})=\{(x\left[n_1\right],\xi \left[m_1\right])\mid {𝟙}_{{\widehat{M}}_b[n_1,m_1]=1}\}$ 4: repeat 5:   $ROIs(\widehat{P})=findContours(\widehat{P})$; 6:   $line{s}_{scores}\leftarrow \left[\right]$; 7:   for $R\in ROIs(\widehat{P})$ do 8:     Extract the set $\Theta (R)$ of horizontal lines that are completely included in R; 9:     for $l\in \Theta (R)$ do 10:       $\gamma =\frac{\mid \Omega (l)\cap {\widehat{\Omega }}_{{\widehat{M}}_b}(\mathcal{P})\mid }{\mid \Omega (l)\mid }$ 11:       $line{s}_{scores}.append(\gamma )$ 12:     end for 13:   end for 14:   Select the optimal line $l=arg\; maxline{s}_{scores}$ 15:   $S_{current}\leftarrow maxline{s}_{scores}$ 16:   if $(S_{current}-S_{last})\ge 0.05$ then 17:     $S_{last}\leftarrow S_{current}$ 18:   else 19:     Break 20:   end if 21:   $M_{pred}\leftarrow (\Omega (l)\cup M_{pred})$ 22:   Remove contribution of line l in set $\widehat{P}$, $$\widehat{P}\leftarrow \{(x,z):x\notin [mi{n}_x(l),ma{x}_x(l)]\forall (x,z)\in \widehat{P}\}$$ 23:    24: until$(S_{current}-S_{last})<0.05$.

3.6. Step 5: Curvature Estimation Using a DFF Method

The three steps described in the previous sections implicitly assume that the 2D scene is composed of piece-wise planar objects and are thus not suited for curved objects. In this section, we propose to refine the set of linear segments into a set of curved segments when processing 1D slices of a 2D hologram by using the DFF method presented in the following.

It is not possible to extract 1D holograms corresponding to each of the 2D space slices directly from the 2D hologram. However, it is possible to extract a 2D phase space $(x,\xi )$ corresponding to one slice (x,z) from 4D phase space $(x,y,\xi ,\eta )$ computed from a 2D hologram by selecting only the 2D phase space representation along a specific frequency. More formally, given a 2D hologram, the 4D representation in phase space is calculated using STFT producing a four-dimensional complex-valued matrix of size $N\times N\times M\times M$ which represents the axes $x,y,\xi ,\eta$, given as:

$$\left\{x\left[n_1\right]:=\frac{W{\Delta }_x}{2N}(2n_1-N+1):n_1=0,1,\dots ,N-1\right\},$$

(18)

$$\left\{y\left[n_2\right]:=\frac{H{\Delta }_y}{2N}(2n_2-N+1):n_2=0,1,\dots ,N-1\right\},$$

(19)

$$\left\{\xi \left[m_1\right]:=\frac{1}{2{\Delta }_{x}M}(2m_1-M+1):m_1=0,1,\dots ,M-1\right\},$$

(20)

$$\left\{\eta \left[m_2\right]:=\frac{1}{2{\Delta }_{y}M}(2m_2-M+1):m_2=0,1,\dots ,M-1\right\},$$

(21)

where $H,W$ are the height and width of the hologram, and ${\Delta }_x$, ${\Delta }_y$ are the pixel along the X and Y directions.

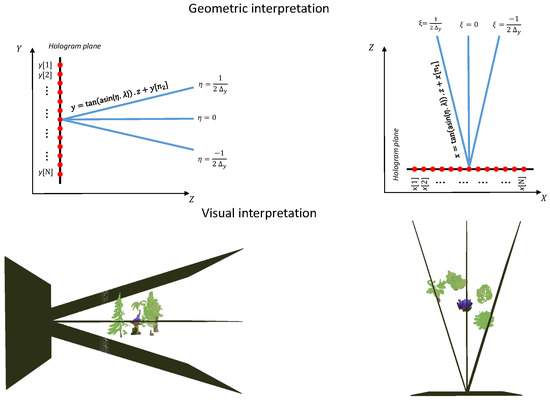

By rearranging the axes of the matrix to $y,\eta ,(x,\xi )$, the phase space representation can be seen as a set of 2D phase space representation $(x,\xi )$ of oriented 2D planes with an orientation and a position that depend on $\eta$ and y, respectively, as shown in Figure 6. The choice of frequency $\eta$ corresponds to a certain orientation of the 2D plane, and the central frequency $\eta =0$ produces a set of 2D planes $(x,z)$ which cut the scene horizontally at y without containing occlusion, i.e., two points cannot share the same x position at different depths.

In the present work, only a sub-part of the phase space representation defined from a central frequency $\eta =0$ is kept, thus producing a tensor denoted L of size $N\times N\times M$ corresponding to a 2D phase space representation $(x,\xi )$ of a 2D horizontal plane $(x,z)$ with a height equal to y. The choice of the frequency $f_{\eta }=0$ is motivated by two reasons. First, it produces horizontal slices which do not contain an occlusion. Second, it makes it easier to extract 2D patches for the application of the DFF method, which does not need to be oriented in the same direction as the plane defined by the frequency $f_{e}ta$.

The ROIs are extracted for each of these 2D phase space representations $(x,\xi )$ as shown in Figure 7, and then the minimal representation lines are extracted from the extracted ROIs using the iterative algorithm. More formally:

$${\widehat{M}}_b(y\left[n_2\right])={\mathcal{G}}_{\theta }\left\{(\mathbb{R}e\left\{L\left[n_2\right]\right\},\mathbb{I}m\left\{L\left[n_2\right]\right\})\right\},$$

(22)

$$\widehat{\mathcal{P}}(y\left[n_2\right])=\{(x,z)\mid {𝟙}_{score(p,{\widehat{M}}_b(y\left[n_2\right]))=1}\forall p=(x,z)\in {\mathbb{R}}^2\},$$

(23)

$$\widehat{D}(y)=Refinement(\widehat{P}(y\left[n_2\right])).$$

(24)

Finally, a new fixed-size ROI centered on the predicted lines is defined and used for the DFF method using the auto-switch proposed in [8] as follows:

$$d(x,y)=\underset{i\in [\widehat{D}(y)\left[x\right]-[N_z/2],\widehat{D}(y)\left[x\right]+[N_z/2]]}{arg\; max}\mid FM(R_{x,y,i})-\mu \mid ,$$

(25)

$$\mu =\frac{1}{N_z}\sum _{\widehat{D}(y)\left[x\right]-[N_z/2]}^{\widehat{D}(y)\left[x\right]+[N_z/2]}FM(R_{x,y,i})$$

(26)

$$R_{x,y,i}(u,v)=I_i(x+u-s/2,y+v-s/2),$$

(27)

where d is the final depth map, $N_z$ is the interval size, $FM$ is the focus measure function, $I_i$ is the intensity of the holographic reconstruction performed at the i-th distance, and s is the patch size fixed at 17 which showed the best performance in the experiments through hyperparameter tuning.

In this final stage, the depth of each point $(x,y)$ in the initial line segment $\widehat{D}(y)\left[x\right]$ is refined by the DFF process, which assesses the depth i for which the focus of the patch $R_{x,y,i}$ is optimal inside a reconstruction interval of size $N_z$ + 1 centered around the initial depth estimate $\widehat{D}(y)\left[x\right]$. The obtained results will depend on the choice of the focus measure, the size of the chosen interval, and the obtained result from the iterative method.

4. Experimental Results

The following section details the experiments that were conducted to validate the proposed approach. Section 4.1 presents the holographic dataset used for the experiments. Section 4.2 analyzes the phase space masks extracted in the second step of our method, and Section 4.3 provides the depth estimation results obtained with our method. Finally, the calculation time of our method is analyzed in Section 4.5.

4.1. Holographic Dataset

For training the $\mathcal{G}$ network, a large-scale dataset consisting of 4200 RGB holograms was obtained from three different scenes (piano, table, wood). The holograms were acquired using a layer-based method [16] with a resolution of $1024\times 1024$, a pixel pitch of 1 $\mathsf{\mu }$m, and 1400 acquisition angles. The evaluation phase was performed on two sets: a test set consisting of 300 holograms evenly distributed over the training classes and a validation set consisting of 200 holograms from two additional scenes (cars, dice).

Table 1. Scene object sizes along the X/Y/Z, in centimeters.

	Object 1	Object 2	Object 3	Object 4	Object 5
Piano	0.044/0.054/0.052	0.023/0.017/0.01
Table	0.039/0.026/0.038	0.018/0.037/0.016	0.016/0.037/0.018	0.018/0.037/0.016	0.016/0.037/0.018
Woods	0.03/0.045/0.03	0.021/0.046/0.023	0.034/0.032/0.028	0.025/0.042/0.025	0.031/0.042/0.022
Dice	0.02/0.017/0.021	0.028/0.029/0.034	0.023/0.025/0.028	0.0512/0.0512
Cars	0.085/0.014/0.052	0.082/0.016/0.052	0.049/0.025/0.082	0.046/0.03/0.073

summarizes the depth in centimeters of each object that makes up each scene.

For each hologram of the dataset, its 4D phase space representation L of size of $N\times N\times M\times M$ and the associated phase space masks $M_b$ of size $N\times N\times M\times M$ are computed using 3D formulas proposed in [14]. Then, the two tensors L and M are reorganized as a 3D tensor of size $(N\times N)\times M\times M$ and used as the initial batch for the network training. Finally, for each iteration, a sub-sample of size 1024 is randomly sampled from the initial batch to constitute the final network input/output data.

The network was trained for a total of 100 epochs, using the stochastic gradient descent and an exponential learning rate decay.

4.2. Phase Space Segmentation

In the following, we analyze the binary phase masks extracted in the second step of our method. The Dice and Jaccard metrics [17] are used to evaluate the quality of the overlap between the predicted binary mask and the ground truth.

Table 2. Segmentation metric for the test (piano, table, woods) and validation set (cars, dice).

	Piano	Table	Woods	Cars	Dice
Dice	0.97	0.97	0.98	0.94	0.94
Jaccard	0.94	0.94	0.96	0.89	0.88

gives the results obtained for the test and validation set.

From the obtained results, we can see that for the test part, the network has an overall accuracy of 95%. This performance drops by 5% on the validation set, but the general performance remains high enough to hope for good results in the next steps of the algorithm. The low difference in segmentation performance between the validation and test set suggests that the network is not subject to overfitting, which can occur when the network is over-parameterized and the amount of data is not sufficient.

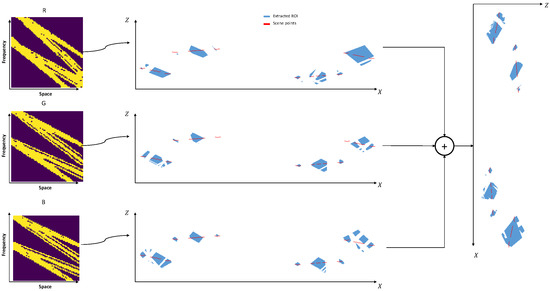

A bad segmentation performance leads to a bad estimation of the phase space representation. Therefore, fewer candidate points can be extracted during the back projection operation, and some scene points may not be included in the extracted ROIs as shown in Figure 8. By using multiple color channels those areas that are missing on one color channel can be filled in on another channel. It is therefore important but not mandatory when processing RGB holograms to merge the extracted ROIs. The merged ROIs can be projected back into a selected color channel phase space representation and used as a target for the iterative algorithm. More formally,

$$R_b={\mathcal{G}}_{\theta }\left\{(\mathbb{R}e\left\{L_R\right\},\mathbb{I}m\left\{L_R\right\})\right\},$$

(28)

$$G_b={\mathcal{G}}_{\theta }\left\{(\mathbb{R}e\left\{L_G\right\},\mathbb{I}m\left\{L_G\right\})\right\},$$

(29)

$$B_b={\mathcal{G}}_{\theta }\left\{(\mathbb{R}e\left\{L_B\right\},\mathbb{I}m\left\{L_B\right\})\right\},$$

(30)

$$\widehat{\mathcal{P}}=\bigcup _{M\in \{R_b,G_b,B_b\}}ROI(M),$$

(31)

$${\widehat{M}}_b=\Omega (\widehat{\mathcal{P}}),$$

(32)

where $R_b,G_b,$ and $B_b$ are the estimated phase space representation for each color channel. Their mappings in the 2D space are unified by selecting all the points that fall in at least one of the three mappings and projected back into phase space using a single color channel. The set of candidate points $\widehat{\mathcal{P}}$ and its projection ${\widehat{M}}_b$ are used as input to the iterative algorithm.

4.3. Depth Estimation Results

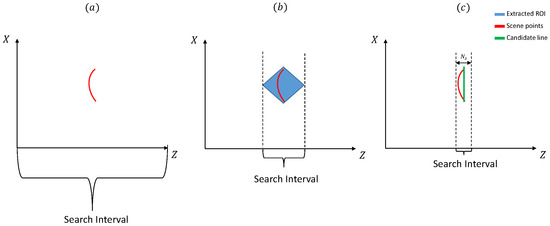

To evaluate the depth estimation performance of our proposed method, three experiments illustrated in Figure 9 are conducted:

• Without ROI: in this experiment, the depth extent in Equation (25) spans the interval $[0,z]$, where z is the maximum possible depth value set to 0.20 cm in the experiment.
• With ROI: in this second experiment, the depth extent in Equation (25) is reduced to the interval $[z_{min},z_{max}]$ where $z_{min},z_{max}$ are the maximum and minimum depth values present in the extracted ROI.
• With refined ROI: in this third experiment, the depth extent in Equation (25) is reduced to a fixed-size interval of size $N_z$ + 1 centered on the minimal representation lines extracted from the initial ROI using the iterative method.

Those experiments have two objectives: (1) to assess the quality of the extracted regions of interest (ROIs), as any degradation of the ROI can negatively impact the DFF method, especially if a few scene points fall within it, and (2) to evaluate the efficiency of the iterative method by aiming to produce an estimate that is as close as possible to the ground truth. This is crucial in order to minimize the number of reconstruction planes required for the DFF, specified by $N_z$.

In our experiments, the DFF method was performed using the six most performing focus measures in [8] and detailed in

Table 3. Abbreviations of focus measure operators used in the experiments.

Focus Operator	Abbr.	Focus Operator	Abbr.
Variance of Laplacian [18]	LAPV	Image contrast [19]	CONT
Variance of wavelet coefficients [20]	WAVV	Ratio of the wavelet coefficients [20]	WAVR
Gray level variance [21]	GLVA	Normalized Gray level variance [22]	GLVN

. The operators used are highly parallelizable and offer a good compromise between performance and speed.We evaluated the performance of each focus measure using the ${\ell }_1$ norm between the predicted and ground truth depth maps used by the layer-based method.

Table 4. The obtained ${\ell }_1$ norm for the test (piano, table, woods) and validation set (cars, dice).

	Piano	Table	Woods	Cars	Dice
	Without ROI
LAPV	28.80	42.61	71.57	85.65	68.34
WAVV	18.27	43.09	12.28	34.87	17.72
WAVR	14.99	32.84	15.89	31.96	30.03
GLVN	14.87	38.54	15.97	34.82	26.65
GLVA	14.30	39.26	12.09	33.06	18.53
CONT	22.67	54.47	42.88	59.94	74.01
	With ROI
LAPV	26.22	38.67	29.50	83.80	15.82
WAVV	11.36	23.78	25.37	31.97	23.61
WAVR	8.63	23.68	25.04	46.17	14.73
GLVN	6.84	20.86	13.55	32.42	9.72
GLVA	11.26	23.00	28.62	41.23	22.24
CONT	24.86	35.46	36.28	65.55	29.56
	ROI Refinement
11	9.28	11.04	10.42	25.58	5.31
21	7.44	10.22	8.65	24.84	4.05
31	6.33	10.03	7.53	24.28	3.8
41	5.65	10.32	6.97	24.18	3.93
51	4.94	10.79	6.90	24.03	4.37
61	4.86	11.08	6.76	24.13	4.98
71	4.73	11.48	6.68	22.87	5.83
81	4.81	12.10	6.57	21.72	6.68
91	4.88	13.00	6.38	20.73	7.54

gives the obtained results with and without the proposed ROI approach, Figure 10 gives the obtained results with an additional ROI refinement step using the iterative method with different $N_z$ values, and Figure 11 gives some visual results.

First, we can observe that the WAVR, WAVV, and GLVA operators are the best focus measure operators for the without ROI case. The FM performance varies depending on the processed scene, with a mean ${\ell }_1$ norm of roughly 15 reconstruction planes. Performance may be lower if the scene contains many flat areas with no texture variation. The focus operators generally work best on regions with high texture variances such as edges and corners.

Second, using extracted regions of interest results in improved performance, with gray-level variance-based operators being the most optimal. This is because the depth extent used in Equation (25) is reduced, providing a more accurate estimate of the depth of each pixel. The performance variance between the first and second cases may be due to the quality of the extracted ROI or to multiple extremum values present in the focus curve.

Finally, the refinement of the initial ROI and the use of a new fixed-size interval allows an additional gain in performance. From Figure 10, we can observe that optimal performance (except LAPV and CONT operators) can be controlled by changing the parameter $N_z$ in Equation (25), and a minimum value can be reached around $N_z=41$. Then, the performance degrades with a larger choice of $N_z$. For the LAPV and CONT operators, the overall performance degrades as $N_z$ increases which indicates that the operators are not sensitive enough to the slight focus change between different images of the reconstruction volume. For the Cars scene, where the objects that compose the scene are very large, the optimal performances are achieved for the largest value of $N_z$ regardless of the choice of the FM function.

4.4. Hyperparameter Tuning

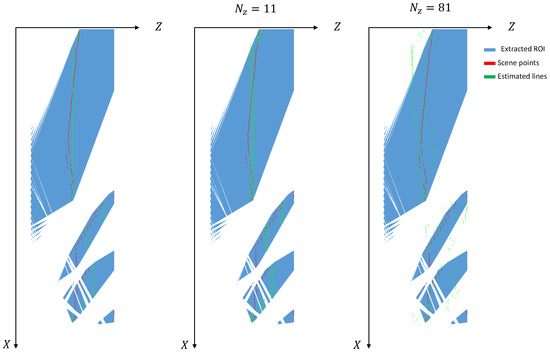

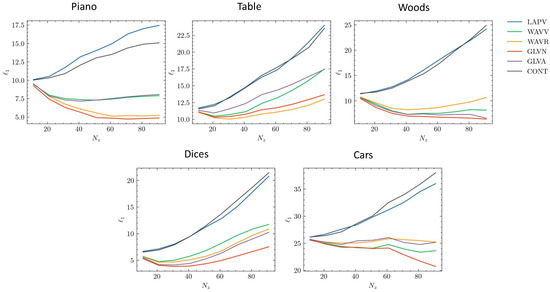

When each object in the scene spans the entire 3D space, the value $N_z$ must be large enough in order to correctly refine the depth of each object. However, as shown in Figure 12, there is a trade-off between choosing the right interval size and the used focus measure. The larger the interval size, the greater the risk of having a large estimation error due to the lack of sensitivity of the focus measures. Therefore, when increasing the size of the interval, some points may converge to the correct value that will be included in the chosen interval, and others may diverge because the used focus measure is not robust enough to detect the optimal focus plane given a very large number of images, which may lead to a bad final result.

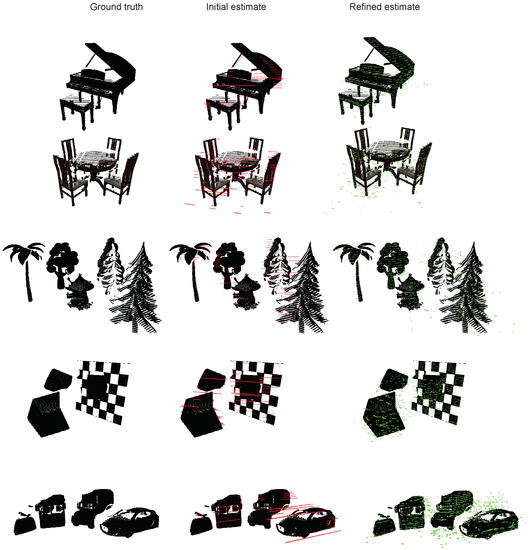

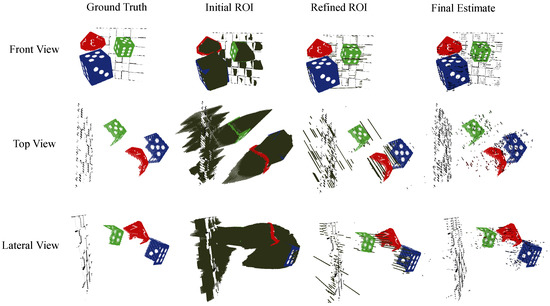

A visual example of the different steps involved in our proposed methodology is given in Figure 7, where the initially extracted ROI perfectly encapsulate the scene points, and their refinement falls either close to the objects or inside them. The curvature is estimated in the last step of the algorithm using the DFF method on a new fixed-size ROI of size 31 around the refined ROI. It can be observed that the final estimate is relatively close to the ground truth value; however, some regions are poorly estimated by the GLVN operator, which results in a dispersion of the point cloud clearly visible in the figure.

In summary, depth estimation without ROI is a tedious task since the possible depth values for each pixel span a large interval. The performance can be improved using the ROI which reduces the possible depth interval for each pixel and therefore reduces uncertainty during the final estimation. However, if the processed scene has complex geometry with points that are close to each other and span over the entire X-axis, then the extracted ROI may have a large depth extent; therefore the gain when using the ROI is reduced.

The ROI refinement and the use of fixed-size ROI can manage the large depth extent and produce better interval bounding. The use of refined ROI may not be the best choice when processing scenes with objects spanning a large depth range. In that case, the best choice for $N_z$ may be large, and the produced depth interval can be approximately $[0,z]$.

The $N_z$ values in the DFF method can be selected adaptively by starting from the ends of the representation lines with a small $N_z$ value, and gradually increasing it as the process moves towards the center of the line, with the maximum value determined by prior knowledge about the object’s curvature.

4.5. Calculation Time

Table 5. Calculation time in seconds to calculate the final depth map with and without ROI.

	Piano	Table	Woods	Cars	Dice
	Without ROI
LAPV	3.89	4.10	4.92	5.91	4.97
WAVV	11.80	13.00	14.29	17.84	14.35
WAVR	6.87	6.88	7.78	9.20	7.28
GLVN	4.65	4.82	5.31	6.42	5.35
GLVA	3.64	4.19	4.70	5.75	4.50
CONT	2.90	3.16	3.46	4.30	3.51
	With ROI
LAPV	1.18	1.17	1.46	2.98	1.23
WAVV	2.58	2.38	3.39	8.64	2.54
WAVR	1.37	1.29	1.82	3.85	1.35
GLVN	1.26	1.31	1.62	3.09	1.43
GLVA	1.12	1.10	1.44	2.71	1.19
CONT	0.87	0.87	1.09	2.05	0.92

gives the number of operations needed for each approach. The table does not include the calculation of pre-operators, such as Laplacian for LAVP which are applicable to the whole image, and the performed holographic reconstructions which are not a good criterion. As shown in the bottom of Figure 2, if the scene points on one of the 1D hologram slices are spatially very close to each other and extend across the entire X-axis, the extracted regions of interest will have a large depth extent, which can extend in the interval $[0,z]$ and thus require the same number of holographic reconstructions as without ROI.

From the table, we observe that the computation time is significantly reduced by using the extracted regions of interest. The calculation time is variable depending on whether the operator needs to calculate the mean, the variance, or a ratio.

For the same number of holographic reconstructions performed, the post-processing of the reconstruction volume can be performed more quickly, and better results can be expected with the extracted regions of interest.

5. Conclusions

In this work, we proposed a regions of interest extraction procedure from the hologram phase space representation. The extracted regions are used to bound the numerical reconstruction interval and the spatial delimitation when applying the focus measure during the DFF approach. Moreover, an iterative refinement method is proposed to refine the extracted regions of interest and produce a more accurate depth estimate.

Experimental results have shown that the use of extracted regions of interest with the DFF method can reduce the number of calls to focus measure operators while improving the initial performance. In addition, the refinement of the extracted regions of interest and the use of a fixed-size interval when applying the DFF method allows better control of the depth extent of the provided regions of interest and an improvement in the final performance. The proposed methodology halved the computation time while increasing the accuracy by a factor of three.

The iterative method can be an alternative to the depth-from-focus method if the following two limitations are solved. First, the curvature must be directly recovered from the phase space representation without requiring any numerical reconstruction. Second, an appropriate fusing method to merge the estimations produce using different angle values $\eta$ must be designed.

Future works will be dedicated to the design of an efficient end-to-end learning-based-method for fast and accurate depth estimation from a hologram phase space representation without requiring any additional post- or pre-processing steps, such as numerical reconstruction.
