Communication

Manganese-Cobalt Spinel Nanoparticles Anchored on Carbon Nanotubes as Bi-Functional Catalysts for Oxygen Reduction and Oxygen Evolution Reactions

by
Yixiao Zhang
1,2,
Xinyu Xie
1,
Zhichuang Zheng
1,
Xian He
1,
Peng Du
1,2,*,
Ru Zhang
2,
Limin Guo
1,* and
Kai Huang
1,*
1
State Key Laboratory of Information Photonics and Optical Communications, School of Science, Beijing University of Posts and Telecommunications, Beijing 100876, China
2
Beijing Key Laboratory of Space-Ground Interconnection and Convergence, Beijing University of Posts and Telecommunications (BUPT), Xitucheng Road No. 10, Beijing 100876, China
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2023, 13(23), 12702; https://doi.org/10.3390/app132312702
Submission received: 30 October 2023 / Revised: 12 November 2023 / Accepted: 23 November 2023 / Published: 27 November 2023
(This article belongs to the Special Issue Novel Study on Photochemistry and Electrochemistry of Composite Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
The pivotal role of oxygen electrocatalysis in the realm of energy conversion and storage is unmistakably significant. In an endeavor to diminish the reliance on precious metals, the development of innovative catalysts exhibiting exceptional bifunctional durability and heightened activity for both the oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) has garnered considerable scholarly interest. Employing a straightforward two-step methodology, we have successfully synthesized uniformly distributed MnCo2O4 and CoMn2O4 nanoparticles of diminutive size, meticulously anchored onto carbon nanotubes (CNTs). Owing to the synergistic covalent interplay between the spinel oxide nanoparticles and CNTs, these nanocomposites demonstrate ORR activity on par with, and notably superior OER activity compared to, commercially available Pt/C catalysts. The onset potential of MnCo2O4-CNTs stands at 1.03 V vs. RHE, maintaining 95.76% of its initial current density following a 10,000-s chronoamperometry test. Furthermore, MnCo2O4-CNTs outperform CoMn2O4-CNTs in OER catalysis. The outstanding performance of MnCo2O4-CNTs is attributed to the higher content of Co3+ ions, which are active for the oxygen electrocatalysis.

1. Introduction

The swift exhaustion of traditional fossil fuels coupled with an escalating demand for energy has heightened the urgency to innovate sustainable energy conversion and storage technologies that are not only efficient and cost-effective but also environmentally benign [1,2,3]. Among various electrochemical energy systems, such as fuel cells and rechargeable metal–air batteries, the roles of the oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) are critical as key performance indicators. Yet, the broader commercial adoption and efficacy of these energy devices are considerably hampered by the inherently slow kinetics and substantial overpotential required for these reactions [4,5]. To date, materials based on noble metals have been acknowledged as the most effective catalysts in the realm of commercial energy conversion. And it has been verified that oxides, alloys, and carbon materials of Ir, Ru, and Pt species have advantageous performance in OER and ORR catalysis [6,7,8,9]. In pursuit of minimizing the substantial costs associated with the extensive use of noble metals and to attain an impressive catalytic efficiency for both ORR and OER, considerable research has been directed towards the discovery and development of innovative, bifunctional catalysts based on non-precious metals [10,11,12,13].
Extensive research underscores the electrocatalytic prowess of transition metal oxides composed of constituent elements such as Ni, Cu, Fe, Co, and Mn, along with their nanostructured forms (including Co3O4, Mn3O4, NiCo2O4, ZnCo2O4, CoMn2O4, CoFe2O4, NiFe2O4), which have demonstrated remarkable performance in electrocatalysis [14,15,16,17,18,19,20,21,22]. Among various catalysts, the mixed valence transition metal oxides have exhibited great importance in applications of energy technologies because of their low cost, facile synthesis, considerable activity, and stability in aqueous alkaline solutions [23,24,25,26]. Notably, catalysts based on Co and Mn have garnered attention for their high bifunctional efficacy in ORR and OER. This largely ascribes to the high oxidation potential of Co and the enhanced electronic transport characteristics of Mn [27,28,29]. Nonetheless, the inherently low electronic conductivity of these mixed valence transition metal oxides remains a critical barrier, impeding further enhancements in catalytic performance. The recent innovation in carbon-support materials such as graphene, carbon fibers, and nanotubes, offers promising approaches to overcome this limitation [30,31]. Consequently, the integration of oxides with nanocarbons significantly amplifies the electrocatalytic activity and stability, a result of the exceptional electronic conductivity, remarkable flexibility, and expansive surface area of carbon-based materials. Furthermore, the fine dispersion of oxide particles and the robust interfacial coupling within these composites are crucial factors driving superior catalytic efficiency [32,33,34,35].
Due to the structural superiority, a series of cobalt-manganese mixed oxides have been explored, such as MnxCo3-xO4, MnCoOx, and CoMn2O4 systems [36,37]. However, the majority of previous work leaned towards the applications for anode materials, supercapacitor, and ORR electrocatalysts. Hence, developing the kind of nanocomposite catalysts with bi-functional electrocatalysis still remains a great challenge [38,39].
In this work, we have adeptly synthesized uniform MnCo2O4 and CoMn2O4 nanoparticles of reduced size, composed primarily of non-precious metals, seamlessly anchored onto carbon nanotubes (CNTs) using a straightforward, surfactant-free, two-step process with superior performance compared to Pt/C at a low price. We evaluated the catalytic efficiency of MnCo2O4-CNTs and CoMn2O4-CNTs towards ORR and OER. When contrasted with pure manganese cobalt oxide nanoparticles, the activity of the composites integrated with CNTs is markedly enhanced. Notably, the MnCo2O4-CNTs nanocomposites outshine all other prepared samples in ORR performance, displaying activity comparable to, and durability surpassing, that of the conventional Pt/C catalyst. Additionally, MnCo2O4-CNTs demonstrate a more pronounced positive onset potential, superior current density, and enhanced durability compared to the mere physical mixtures of MnCo2O4 and CNTs (MnCo2O4 + CNTs). This improvement is largely ascribed to the strengthened chemical bonding between MnCo2O4 and CNTs [40]. Furthermore, MnCo2O4-CNTs also exhibit significant catalytic performance in OER, positioning them as a formidable contender for bifunctional catalysts in the domain of energy conversion and storage.

2. Materials and Methods

2.1. Materials

Hydroxylated CNTs (CNTs-OH, hydroxyl content: 3.0 wt%, purity > 95 wt%, XFNANO), Manganese acetate (Mn(Ac)2, 98%, Sinopharm Chemical Reagent, Shanghai, China), Cobaltous acetate (Co(Ac)2, 98%, Sinopharm Chemical Reagent), ammonium hydroxide (NH4OH, 25 wt%, Merck Chemicals, Merck, Darmstadt, Germany) and ethanol (C2H6O, 99.7%, Aladdin, Shanghai, China) were employed in their pristine forms without necessitating further purification.

2.2. Synthesis of MnCo2O4-CNTs and CoMn2O4-CNTs

Typically, 20 mg of CNTs-OH was firstly dispersed in 65 mL of ethanol to achieve a homogeneous suspension solution with 30 min of sonication process. Also, 1 mmol of Mn(Ac)2 and 2 mmol of Co(Ac)2 were added into the suspension solution. After 10 min of continuous sonication, the mixture should be heated at 80 °C under the gentle magnetic stirring. In an hour, 1 mL of H2O and 1 mL of NH4OH (~25%) were added dropwise, and the mixture was steadfastly maintained at 80 °C for an additional 20 h. Thereafter, the reaction concoction was transferred into a 40 mL Teflon-lined stainless steel autoclave, where it underwent a hydrothermal reaction at 150 °C for 3 h. The product was isolated via centrifugation and subsequently purified with multiple washes using deionized water and ethanol. The MnCo2O4-CNTs composites were ultimately obtained after a drying period of 12 h at 40 °C under vacuum conditions. Employing an identical methodology but with an altered molar ratio of Mn(Ac)2 and Co(Ac)2, CoMn2O4-CNTs composites were similarly synthesized. For comparative purposes, MnCo2O4 and CoMn2O4 nanoparticles were also produced using the same protocol, albeit excluding the addition of CNTs-OH in the initial step.

2.3. Characterization

X-ray diffraction (XRD) analyses of the powdered samples were meticulously performed using a Panalytical X’pert diffractometer. Measurements spanned an angular range from 10° to 90°, employing a scanning velocity of 2° per minute, with Cu Kα radiation serving as the source. The microstructure and morphological attributes of the catalysts were extensively examined via a transmission electron microscope (TEM, JEM-ARM200F, JEOL Ltd., Tokyo, Japan). X-ray photoelectron spectroscopy (XPS) assessments were conducted with an ESCALAB 250Xi spectrometer (Thermo Scientific, Waltham, MA, USA), aiming to precisely determine the binding energies associated with Mn 2p, Co 2p, O 1s, and C 1s.

2.4. Electrochemical Measurements

Electrocatalytic efficacy was rigorously evaluated utilizing an Autolab PGSTAT204 (Metrohm AG, Herisau, Switzerland) electrochemical workstation, structured in a classical three-electrode cell arrangement. This setup included a working electrode comprising a glassy carbon rotating disk electrode (RDE) with a diameter of 5 mm, a counter electrode fashioned from Pt foil, and a Hg/HgO reference electrode (referenced at 0.92 V vs. RHE). For preparatory steps, 5 mg of the catalyst was uniformly dispersed in a solvent blend comprising 300 μL of isopropanol, 700 μL of ultrapure water, and 30 μL of a 5.0 wt% Nafion solution. This dispersion was subjected to a 30 min sonication to ensure a well-homogenized ink. Specifically for ORR processes, the catalyst ink was similarly prepared, though 1 mg of Vulcan XC-72R carbon powder replaced 20 wt% of the catalyst. Subsequently, 10 μL of this catalyst ink was carefully applied onto the glassy carbon electrode, establishing a catalyst loading density of approximately 0.25 mg cm−2. The working electrode thus prepared was utilized in the evaluations. Electrolyte solutions, saturated, respectively, with O2 and N2, were used to examine ORR and OER activities, with both solutions containing aqueous 0.1 M KOH. For typical measurement protocols, cyclic voltammetry (CV) tests were conducted at a scan rate of 5 mV s−1, whereas linear sweep voltammetry (LSV) tests proceeded at a scan rate of 10 mV s−1. The stability of the electrocatalysts under chronoamperometric conditions was ascertained at a rotating speed of 1600 rpm and a potential of 0.7 V over a duration of 10,000 s.

3. Results

In this study, the uniform manganese-cobalt spinel nanoparticles and their composites with carbon nanotubes have been prepared through a straightforward two-step methodology. The structural formation and crystallization characteristics of the samples were initially verified through X-ray diffraction (XRD) analysis. Illustrations in Figure 1a demonstrate that the specific diffraction peaks’ positions and intensities correspond precisely with those of the cubic MnCo2O4 spinel structure (JCPDS no. 23-1237), devoid of any extraneous diffraction peaks indicating impurities. It is indicated that cubic spinel MnCo2O4 has been successfully synthesized via the two-step process with precursor Mn/Co molar ratio of 1:2 (Mn/Co). Meanwhile, the XRD patterns of the products prepared with a precursor Mn/Co molar ratio of 2:1 (Mn/Co) are presented in Figure 1b. The characteristic diffraction peaks can be indexed as the tetragonal CoMn2O4 phase (JCPDS no. 77-0471). This suggests the formation of CoMn2O4 characterized by a slightly altered spinel framework. Notably, the XRD patterns illustrate no marked distinction between the two manganese-cobalt spinel nanoparticles and MnCo2O4 (CoMn2O4)-CNTs composites, due to the limited amount of CNTs and presence of MnCo2O4 and CoMn2O4 in the composites [41,42].
Subsequent examinations of the microstructures and morphological characteristics of the synthesized samples were conducted using transmission electron microscopy (TEM). Figure 2a–c show the image of pure MnCo2O4, and uniform nanoparticles with an average diameter of approximately 7 nm can be observed. The high-resolution TEM (HRTEM) image, depicted in Figure 2c, distinctly displays lattice fringes, with the measured d-spacing of 0.25 and 0.48 nm aligning perfectly with the (311) and (111) planes of the cubic spinel MnCo2O4 structure, respectively [43]. Furthermore, in the MnCo2O4-CNT nanocomposites illustrated in Figure 2d–f, the MnCo2O4 nanoparticles, denoted as MCO, exhibit a reduced average size of about 4 nm and are evenly distributed on the carbon nanotubes’ surfaces. The TEM imagery of unadulterated CoMn2O4, presented in Figure S1a–c, shows CoMn2O4 nanoparticles mirroring the morphology of MnCo2O4 but with a larger average size of 9 nm. Additionally, the observed lattice fringes of the CoMn2O4 nanoparticles, exhibiting an interfringe spacing of 0.49 nm, correspond to the (101) plane of the tetragonal spinel CoMn2O4 phase, which is shown in Figure S1c [44]. Figure S1d–f depict the CoMn2O4-CNT nanocomposites, where carbon nanotubes are uniformly encapsulated by CoMn2O4 nanoparticles averaging 5 nm in size. Notably, MnCo2O4 and CoMn2O4 nanoparticles were not detected outside the CNTs following ultrasonication in ethanol for TEM analysis, suggesting a robust interaction between the CNTs and the manganese-cobalt spinel nanoparticles [45]. Additionally, it is noteworthy that the integration of CNTs curtails the size expansion of manganese-cobalt nanoparticles, attributable to the abundant hydroxyl functionalities on the CNTs-OH surfaces serving as prolific nucleation sites for the spinel nanoparticles [46].
To delve deeper into the composition and valence states of the surface elements, X-ray photoelectron spectroscopy (XPS) analyses were conducted. The outcomes are presented in Figure 3. Figure 3a displays the survey spectra for both MnCo2O4-CNTs and CoMn2O4-CNTs, definitively confirming the presence of Mn, Co, O, and C elements. Furthermore, the Mn/Co atomic ratios in each sample are conspicuously inverse, aligning with the ratios used in the initial precursors. Through Gaussian fitting, the primary Mn 2p spin-orbit peaks, Mn 2p1/2 at approximately 653.1 eV and Mn 2p3/2 at about 641.5 eV, were deconstructed into four distinct peak components. The binding energies at approximately 641.2 and 652.6 eV, as seen in Figure 3b, are indicative of Mn2+, while the peaks at around 643.0 and 653.9 eV can be ascribed to Mn3+ [47]. Likewise, the Co 2p spectrum, illustrated in Figure 3c, was optimally fitted assuming eight variants, including two pairs of spin-orbit doublets representative of Co2+ and Co3+ states, along with their respective four shakeup satellites (denoted Sat.) [47,48]. Thus, it is reasonable to conclude that the mixed-valence metal cations (Mn2+, Mn3+, Co2+ and Co3+) co-exist in both MnCo2O4-CNTs and CoMn2O4-CNTs nanocomposites at octahedral and tetrahedral stacking interstices [46]. It is significant to note that these fluctuating valence states of the metal cations are likely to augment the electrochemical performance of the materials [49]. As depicted in Figure 3d, the C 1s spectra exhibit a predominant peak at 284.3 eV, attributable to the C=C bonds within the CNTs, and two subsidiary peaks corresponding to oxidized carbon forms, such as C-O and C=O, underscoring the robust interactions between the manganese-cobalt nanoparticles and the CNTs [50,51].
The electrocatalytic efficacies of the synthesized catalysts for the oxygen reduction reaction (ORR) were initially evaluated using cyclic voltammetry (CV) in a 0.1 M KOH solution with a glassy carbon electrode. As depicted in Figure 4a, all O2-saturated curves displayed pronounced reduction current peaks compared to those recorded in N2-saturated electrolytes, thereby indicating the ORR catalytic capabilities of the manganese-cobalt spinel nanoparticles and their composites. Additionally, the results of the rotating disk electrode (RDE) linear sweep voltammetry (LSV) assays conducted in O2-saturated 0.1 M KOH solution at a rotation speed of 1600 rpm are showcased in Figure 4b. Notably, the MnCo2O4-CNTs and CoMn2O4-CNTs composite catalysts demonstrated superior catalytic performance relative to their individual constituents. This enhanced efficiency is credited to the CNTs’ hybridization of chemical bonds, which bolsters the electronic conductivity of the manganese-cobalt oxides [52]. Remarkably, the MnCo2O4-CNTs nanocomposites exhibited the most proficient catalytic activity for ORR, outstripping other catalysts in terms of onset potential and current density. The onset and half-wave potentials of the MnCo2O4-CNTs were measured at 1.03 and 0.73 V vs. RHE, respectively, rivaling the performance of commercial Pt/C catalysts, and also exhibited a substantial current density. The Co3+ at octahedral sites is known to be the catalytic sites for the ORR. [18] In the case of MnCo2O4-CNTs, Co3+ and Mn2+ are the dominant component in octahedral and tetrahedral interstices, thus favoring MnCo2O4-CNTs to exhibit a superior ORR catalytic activity [53].
Furthermore, the ORR performance of the MnCo2O4-CNTs composite catalyst significantly surpasses that of mere physical mixtures of MnCo2O4 and CNTs, as illustrated in Figure S2. This clearly indicates that robust hybrid coupling between the nanoparticles and carbon nanotubes plays a crucial role in enhancing ORR catalysis. [54,55]. To delve deeper into the pronounced ORR activity of the MnCo2O4-CNTs nanocomposite, linear sweep voltammetry (LSV) curves at various rotation rates ranging from 400 to 2000 rpm are depicted in Figure 4c. In these curves, the broad current plateaus indicative of the diffusion-limiting current density are readily apparent, with the limiting current density escalating and the rotation rate increasing, attributed to the reduced diffusion distance at higher rates. Additionally, the Koutecky–Levich (K-L) analysis, portrayed in Figure 4d at varying potentials from 0.20 to 0.55 V vs. RHE across rotation speeds from 400 to 2000 rpm, is performed to elucidate the underlying reaction mechanism of the MnCo2O4-CNTs catalyst. The impeccable linearity and nearly uniform slope across these plots corroborate the first-order reaction kinetics. Moreover, the calculated average number of electrons transferred (n) is approximately 3.95, indicating that the MnCo2O4-CNTs catalyst predominantly follows a quasi-four-electron (quasi-4e−) pathway for ORR, underscoring its efficient electron transfer mechanism.
The long-term durability of a catalyst is a critical factor for its practical application. Chronoamperometric tests for MnCo2O4-CNTs composites, MnCo2O4 + CNTs physical mixtures, and commercial Pt/C were performed at 0.7 V vs. RHE in an O2-saturated 0.1 M KOH environment. As illustrated in Figure S4, the current density of the MnCo2O4-CNTs composites exhibited a mere 4.24% decline following 10,000 s of continuous operation, in stark contrast to the 13.79% and 12.89% reductions observed in the MnCo2O4 + CNTs mixtures and Pt/C, respectively. Notably, the endurance of the nanocomposites surpasses that of the physical blends of MnCo2O4 and CNTs. This considerable enhancement in stability is largely ascribed to the robust chemical hybrid coupling between MnCo2O4 and CNTs, as substantiated via X-ray photoelectron spectroscopy (XPS) analysis. Consequently, the MnCo2O4-CNTs nanocomposites not only demonstrate competitive ORR activity but also superior durability compared to commercial Pt/C catalysts, positioning them as a viable alternative to platinum-based catalysts.
To explore the broader applications of manganese-cobalt nanoparticles–CNTs composites in electrochemical catalysis, oxygen evolution reaction (OER) experiments were carried out in a 0.1 M KOH solution. Displayed in Figure S5, the RDE polarization curves for MnCo2O4-CNTs, CoMn2O4-CNTs, and commercial Pt/C catalysts reveal significant findings. The OER onset potential for both MnCo2O4-CNTs and CoMn2O4-CNTs composites is approximately 1.53 V vs. RHE, showcasing a marked improvement over the Pt/C catalyst. Despite being slightly less efficient than elite precious metal oxides like RuO2 and IrO2, which currently represent the pinnacle of OER catalysts, these manganese-cobalt nanoparticles–CNTs nanocomposites emerge as promising candidates in active OER electrocatalysis. Notably, the overpotential required for MnCo2O4-CNTs to achieve OER is about 450 mV at 10 mA cm−2, which is more favorable than the CoMn2O4-CNTs composite (approximately 560 mV). This superior catalytic activity in OER exhibited by MnCo2O4-CNTs can be primarily credited to the presence of Co3+ species within the octahedral sites of the cubic MnCo2O4 spinel structure, playing a pivotal role in facilitating water oxidation [18].

4. Conclusions

In summary, manganese-cobalt spinel nanoparticles–carbon nanotubes composites of cubic MnCo2O4-CNTs and tetragonal CoMn2O4-CNTs have been effectively synthesized via a two-step method by involving the meticulous calibration of precursor ratios. Compared with a simple physical mixture of MnCo2O4 and CNTs (MnCo2O4 + CNTs), MnCo2O4-CNTs showed more positive starting potential, superior current density, and greater durability. These spinel oxides, characterized by their mixed valence properties, showcase a uniform dispersion of nanoparticles across the carbon nanotubes, anchored securely through robust hybrid coupling. Remarkably, these nanocomposites have demonstrated ORR activities on par with, and OER activities surpassing, those observed in the commercially available Pt/C catalysts. This work provides an attractive approach for designing efficient ORR/OER electrocatalysts and will open exciting avenues for exploring new strategies for the design of high-performance electrocatalysts for renewable energy applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/app132312702/s1, Figure S1: TEM images of (a–c) CoMn2O4 nanoparticles, and (d–f) CoMn2O4-CNTs nanocomposites; Figure S2: ORR polarization curves of MCO, MCO-CNTs, and MCO + CNTs samples; Figure S3: The current density at the electrode potential of 0.8 V vs. RHE of MnCo2O4, MnCo2O4-CNTs, and CoMn2O4 + CNTs with the rotation of 1600 rpm; Figure S4: Chronoamperometric curves of MnCo2O4-CNTs, MnCo2O4 + CNTs, and Pt/C with the rotation of 1600 rpm; Figure S5: OER polarization curves of MnCo2O4-CNTs, CoMn2O4-CNTs, and commercial Pt/C catalyst at the rotation of 1600 rpm.

Author Contributions

The conceptualization and design of the experiments were the collective effort of K.H., Y.Z. and P.D. The experimental work was carried out by Y.Z., X.X. and P.D. X.H. and Z.Z. were responsible for data analysis. Reagents, materials, and analytical tools were provided by R.Z., K.H. and L.G. The manuscript was principally authored by Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received funding from the National Natural Science Foundations of China (Grant Nos. 51902027, 61874014, 51976143, 61874013, 61672108, 61976025, 61674019, and 61974011), National Basic Research of China (Grant No. 2015CB932500), Fundamental Research Funds for the Central Universities (Grant No. 2019RC20, 2023ZCJH03), Teaching Reform Projects at BUPT (2022CXCY-B03), Fund of State Key Laboratory of Information Photonics and Optical Communications (Beijing University of Posts and Telecommunications, P.R. China) and BUPT Excellent Ph.D. Students Foundation (CX2022240).

Data Availability Statement

The data from this research are available upon request from the corresponding author. The data are not publicly available because they are part of the ongoing research of the authors.

Conflicts of Interest

The authors report no conflict of interest regarding this publication.

References

  1. Gröger, O.; Gasteiger, H.A.; Suchsland, J.-P. Electromobility: Batteries or fuel cells? J. Electrochem. Soc. 2015, 162, A2605. [Google Scholar] [CrossRef]
  2. Stamenkovic, V.R.; Strmcnik, D.; Lopes, P.P.; Markovic, N.M. Energy and fuels from electrochemical interfaces. Nat. Mater. 2017, 16, 57–69. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, J.; Liu, J.; Zhang, B.; Cheng, F.; Ruan, Y.; Ji, X.; Xu, K.; Chen, C.; Miao, L.; Jiang, J. Stabilizing the oxygen vacancies and promoting water-oxidation kinetics in cobalt oxides by lower valence-state doping. Nano Energy 2018, 53, 144–151. [Google Scholar] [CrossRef]
  4. Gewirth, A.A.; Thorum, M.S. Electroreduction of dioxygen for fuel-cell applications: Materials and challenges. Inorg. Chem. 2010, 49, 3557–3566. [Google Scholar] [CrossRef]
  5. Yuan, C.; Wu, H.B.; Xie, Y.; Lou, X.W. Mixed transition-metal oxides: Design, synthesis, and energy-related applications. Angew. Chem. Int. Ed. 2014, 53, 1488–1504. [Google Scholar] [CrossRef]
  6. Shi, Q.; Zhu, C.; Du, D.; Lin, Y. Robust noble metal-based electrocatalysts for oxygen evolution reaction. Chem. Soc. Rev. 2019, 48, 3181–3192. [Google Scholar] [CrossRef]
  7. Huang, K.; Wang, R.; Wu, H.; Wang, H.; He, X.; Wei, H.; Wang, S.; Zhang, R.; Lei, M.; Guo, W. Direct immobilization of an atomically dispersed Pt catalyst by suppressing heterogeneous nucleation at −40° C. J. Mater. Chem. A 2019, 7, 25779–25784. [Google Scholar] [CrossRef]
  8. Huang, K.; Zhang, L.; Xu, T.; Wei, H.; Zhang, R.; Zhang, X.; Ge, B.; Lei, M.; Ma, J.-Y.; Liu, L.-M. −60° C solution synthesis of atomically dispersed cobalt electrocatalyst with superior performance. Nat. Commun. 2019, 10, 606. [Google Scholar] [CrossRef]
  9. Ma, Z.; Tian, H.; Meng, G.; Peng, L.; Chen, Y.; Chen, C.; Chang, Z.; Cui, X.; Wang, L.; Jiang, W. Size effects of platinum particles@ CNT on HER and ORR performance. Sci. China Mater 2020, 63, 2517–2529. [Google Scholar] [CrossRef]
  10. Zhang, J.; Zhao, Z.; Xia, Z.; Dai, L. A metal-free bifunctional electrocatalyst for oxygen reduction and oxygen evolution reactions. Nat. Nanotechnol. 2015, 10, 444–452. [Google Scholar] [CrossRef]
  11. Hong, W.T.; Risch, M.; Stoerzinger, K.A.; Grimaud, A.; Suntivich, J.; Shao-Horn, Y. Toward the rational design of non-precious transition metal oxides for oxygen electrocatalysis. Energy Environ. Sci. 2015, 8, 1404–1427. [Google Scholar] [CrossRef]
  12. Bi, K.; Yang, D.; Chen, J.; Wang, Q.; Wu, H.; Lan, C.; Yang, Y. Experimental demonstration of ultra-large-scale terahertz all-dielectric metamaterials. Photonics Res. 2019, 7, 457–463. [Google Scholar] [CrossRef]
  13. Xu, J.; Bi, K.; Zhang, R.; Hao, Y.; Lan, C.; McDonald-Maier, K.D.; Zhai, X.; Zhang, Z.; Huang, S. A small-divergence-angle orbital angular momentum metasurface antenna. Research 2019, 2019, 9686213. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Y.; Zhou, T.; Jiang, K.; Da, P.; Peng, Z.; Tang, J.; Kong, B.; Cai, W.B.; Yang, Z.; Zheng, G. Reduced mesoporous Co3O4 nanowires as efficient water oxidation electrocatalysts and supercapacitor electrodes. Adv. Energy Mater. 2014, 4, 1400696. [Google Scholar] [CrossRef]
  15. Ramírez, A.; Hillebrand, P.; Stellmach, D.; May, M.M.; Bogdanoff, P.; Fiechter, S. Evaluation of MnOx, Mn2O3, and Mn3O4 electrodeposited films for the oxygen evolution reaction of water. J. Phys. Chem. C 2014, 118, 14073–14081. [Google Scholar] [CrossRef]
  16. Pletcher, D.; Li, X.; Price, S.W.; Russell, A.E.; Sönmez, T.; Thompson, S.J. Comparison of the spinels Co3O4 and NiCo2O4 as bifunctional oxygen catalysts in alkaline media. Electrochim. Acta 2016, 188, 286–293. [Google Scholar] [CrossRef]
  17. Hung, T.-F.; Mohamed, S.G.; Shen, C.-C.; Tsai, Y.-Q.; Chang, W.-S.; Liu, R.-S. Mesoporous ZnCo2O4 nanoflakes with bifunctional electrocatalytic activities toward efficiencies of rechargeable lithium–oxygen batteries in aprotic media. Nanoscale 2013, 5, 12115–12119. [Google Scholar] [CrossRef]
  18. Menezes, P.W.; Indra, A.; Sahraie, N.R.; Bergmann, A.; Strasser, P.; Driess, M. Cobalt–manganese-based spinels as multifunctional materials that unify catalytic water oxidation and oxygen reduction reactions. ChemSusChem 2015, 8, 164–171. [Google Scholar] [CrossRef]
  19. Bian, W.; Yang, Z.; Strasser, P.; Yang, R. A CoFe2O4/graphene nanohybrid as an efficient bi-functional electrocatalyst for oxygen reduction and oxygen evolution. J. Power Sources 2014, 250, 196–203. [Google Scholar] [CrossRef]
  20. Li, Y.; Guo, K.; Li, J.; Dong, X.; Yuan, T.; Li, X.; Yang, H. Controllable synthesis of ordered mesoporous NiFe2O4 with tunable pore structure as a bifunctional catalyst for Li–O2 batteries. ACS Appl. Mater. Interfaces 2014, 6, 20949–20957. [Google Scholar] [CrossRef]
  21. Istrate, B.; Munteanu, C.; Cimpoesu, R.; Cimpoesu, N.; Popescu, O.D.; Vlad, M.D. Microstructural, electrochemical and in vitro analysis of Mg-0.5 Ca-xGd biodegradable alloys. Appl. Sci. 2021, 11, 981. [Google Scholar] [CrossRef]
  22. Topçu, E.; Dağcı Kıranşan, K. Flexible gold nanoparticles/rGO and thin film/rGO papers: Novel electrocatalysts for hydrogen evolution reaction. J. Chem. Technol. Biotechnol. 2019, 94, 3895–3904. [Google Scholar] [CrossRef]
  23. Huang, K.; Liu, J.; Wang, L.; Chang, G.; Wang, R.; Lei, M.; Wang, Y.; He, Y. Mixed valence CoCuMnOx spinel nanoparticles by sacrificial template method with enhanced ORR performance. Appl. Surf. Sci. 2019, 487, 1145–1151. [Google Scholar] [CrossRef]
  24. Wu, G.; Wang, J.; Ding, W.; Nie, Y.; Li, L.; Qi, X.; Chen, S.; Wei, Z. A strategy to promote the electrocatalytic activity of spinels for oxygen reduction by structure reversal. Angew. Chem. Int. Ed. 2016, 55, 1340–1344. [Google Scholar] [CrossRef]
  25. Palem, R.R.; Meena, A.; Soni, R.; Meena, J.; Lee, S.-H.; Patil, S.A.; Ansar, S.; Kim, H.-S.; Im, H.; Bathula, C. Fabrication of Fe2O3 nanostructure on CNT for oxygen evolution reaction. Ceram. Int. 2022, 48, 29081–29086. [Google Scholar] [CrossRef]
  26. Andersen, N.I.; Serov, A.; Atanassov, P. Metal oxides/CNT nano-composite catalysts for oxygen reduction/oxygen evolution in alkaline media. Appl. Catal. B Environ. 2015, 163, 623–627. [Google Scholar] [CrossRef]
  27. Liang, Y.; Wang, H.; Zhou, J.; Li, Y.; Wang, J.; Regier, T.; Dai, H. Covalent hybrid of spinel manganese–cobalt oxide and graphene as advanced oxygen reduction electrocatalysts. J. Am. Chem. Soc. 2012, 134, 3517–3523. [Google Scholar] [CrossRef]
  28. Pickrahn, K.L.; Park, S.W.; Gorlin, Y.; Lee, H.B.R.; Jaramillo, T.F.; Bent, S.F. Active MnOx electrocatalysts prepared by atomic layer deposition for oxygen evolution and oxygen reduction reactions. Adv. Energy Mater. 2012, 2, 1269–1277. [Google Scholar] [CrossRef]
  29. Buruiana, D.L.; Obreja, C.-D.; Herbei, E.E.; Ghisman, V. Re-use of silico-manganese slag. Sustainability 2021, 13, 11771. [Google Scholar] [CrossRef]
  30. Jin, H.; Wang, J.; Su, D.; Wei, Z.; Pang, Z.; Wang, Y. In situ cobalt–cobalt oxide/N-doped carbon hybrids as superior bifunctional electrocatalysts for hydrogen and oxygen evolution. J. Am. Chem. Soc. 2015, 137, 2688–2694. [Google Scholar] [CrossRef]
  31. Huang, K.; Wang, R.; Zhao, S.; Du, P.; Wang, H.; Wei, H.; Long, Y.; Deng, B.; Lei, M.; Ge, B. Atomic species derived CoOx clusters on nitrogen doped mesoporous carbon as advanced bifunctional electro-catalysts for Zn-air battery. Energy Storage Mater. 2020, 29, 156–162. [Google Scholar] [CrossRef]
  32. Tian, G.L.; Zhao, M.Q.; Yu, D.; Kong, X.Y.; Huang, J.Q.; Zhang, Q.; Wei, F. Nitrogen-doped graphene/carbon nanotube hybrids: In situ formation on bifunctional catalysts and their superior electrocatalytic activity for oxygen evolution/reduction reaction. Small 2014, 10, 2251–2259. [Google Scholar] [CrossRef] [PubMed]
  33. Gadipelli, S.; Zhao, T.; Shevlin, S.A.; Guo, Z. Switching effective oxygen reduction and evolution performance by controlled graphitization of a cobalt–nitrogen–carbon framework system. Energy Environ. Sci. 2016, 9, 1661–1667. [Google Scholar] [CrossRef]
  34. Hou, X.; Wang, X.; Liu, B.; Wang, Q.; Luo, T.; Chen, D.; Shen, G. Hierarchical MnCo2O4 nanosheet arrays/carbon cloths as integrated anodes for lithium-ion batteries with improved performance. Nanoscale 2014, 6, 8858–8864. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, C.; Lu, M.; Zhan, Y.; Lee, J.Y. A bifunctional oxygen electrocatalyst from monodisperse MnCo2O4 nanoparticles on nitrogen enriched carbon nanofibers. RSC Adv. 2014, 4, 25089–25092. [Google Scholar] [CrossRef]
  36. Hu, C.; Zhang, L.; Zhao, Z.J.; Luo, J.; Shi, J.; Huang, Z.; Gong, J. Edge sites with unsaturated coordination on core–shell Mn3O4@ MnxCo3− xO4 nanostructures for electrocatalytic water oxidation. Adv. Mater. 2017, 29, 1701820. [Google Scholar] [CrossRef] [PubMed]
  37. Ye, J.; Zhao, D.; Hao, Q.; Xu, C. Facile fabrication of hierarchical manganese-cobalt mixed oxide microspheres as high-performance anode material for lithium storage. Electrochim. Acta 2016, 222, 1402–1409. [Google Scholar] [CrossRef]
  38. Li, C.; Han, X.; Cheng, F.; Hu, Y.; Chen, C.; Chen, J. Phase and composition controllable synthesis of cobalt manganese spinel nanoparticles towards efficient oxygen electrocatalysis. Nat. Commun. 2015, 6, 7345. [Google Scholar] [CrossRef]
  39. Li, R.; Hu, D.; Zhang, S.; Zhang, G.; Wang, J.; Zhong, Q. Spinel manganese–cobalt oxide on carbon nanotubes as highly efficient catalysts for the oxygen reduction reaction. Energy Technol. 2015, 3, 1183–1189. [Google Scholar] [CrossRef]
  40. Abouali, S.; Garakani, M.A.; Xu, Z.-L.; Kim, J.-K. NiCo2O4/CNT nanocomposites as bi-functional electrodes for Li ion batteries and supercapacitors. Carbon 2016, 102, 262–272. [Google Scholar] [CrossRef]
  41. Tang, X.; Li, C.; Yi, H.; Wang, L.; Yu, Q.; Gao, F.; Cui, X.; Chu, C.; Li, J.; Zhang, R. Facile and fast synthesis of novel Mn2CoO4@ rGO catalysts for the NH3-SCR of NOx at low temperature. Chem. Eng. J. 2018, 333, 467–476. [Google Scholar] [CrossRef]
  42. Shi, J.; Lei, K.; Sun, W.; Li, F.; Cheng, F.; Chen, J. Synthesis of size-controlled CoMn2O4 quantum dots supported on carbon nanotubes for electrocatalytic oxygen reduction/evolution. Nano Res. 2017, 10, 3836–3847. [Google Scholar] [CrossRef]
  43. Chen, C.; Liu, B.; Ru, Q.; Ma, S.; An, B.; Hou, X.; Hu, S. Fabrication of cubic spinel MnCo2O4 nanoparticles embedded in graphene sheets with their improved lithium-ion and sodium-ion storage properties. J. Power Sources 2016, 326, 252–263. [Google Scholar] [CrossRef]
  44. Wang, Y.; Hu, T.; Liu, Q.; Zhang, L. CoMn2O4 embedded in MnOOH nanorods as a bifunctional catalyst for oxygen reduction and oxygen evolution reactions. Chem. Commun. 2018, 54, 4005–4008. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, C.; Ru, Q.; Hu, S.; An, B.; Song, X.; Hou, X. Co2SnO4 nanocrystals anchored on graphene sheets as high-performance electrodes for lithium-ion batteries. Electrochim. Acta 2015, 151, 203–213. [Google Scholar] [CrossRef]
  46. Xu, Y.; Wang, X.; An, C.; Wang, Y.; Jiao, L.; Yuan, H. Facile synthesis route of porous MnCo2O4 and CoMn2O4 nanowires and their excellent electrochemical properties in supercapacitors. J. Mater. Chem. A 2014, 2, 16480–16488. [Google Scholar] [CrossRef]
  47. Kong, X.; Zhu, T.; Cheng, F.; Zhu, M.; Cao, X.; Liang, S.; Cao, G.; Pan, A. Uniform MnCo2O4 porous dumbbells for lithium-ion batteries and oxygen evolution reactions. ACS Appl. Mater. Interfaces 2018, 10, 8730–8738. [Google Scholar] [CrossRef]
  48. Huang, K.; Zhao, Z.; Du, H.; Du, P.; Wang, H.; Wang, R.; Lin, S.; Wei, H.; Long, Y.; Lei, M. Rapid thermal annealing toward high-quality 2D cobalt fluoride oxide as an advanced oxygen evolution electrocatalyst. Acs Sustain. Chem. Eng. 2020, 8, 6905–6913. [Google Scholar] [CrossRef]
  49. Ma, T.Y.; Zheng, Y.; Dai, S.; Jaroniec, M.; Qiao, S.Z. Mesoporous MnCo2O4 with abundant oxygen vacancy defects as high-performance oxygen reduction catalysts. J. Mater. Chem. A 2014, 2, 8676–8682. [Google Scholar] [CrossRef]
  50. Wu, H.; Sun, J.; Qi, D.; Zhou, C.; Yang, H. Photocatalytic removal of elemental mercury from flue gas using multi-walled carbon nanotubes impregnated with titanium dioxide. Fuel 2018, 230, 218–225. [Google Scholar] [CrossRef]
  51. Shang, N.G.; Papakonstantinou, P.; McMullan, M.; Chu, M.; Stamboulis, A.; Potenza, A.; Dhesi, S.S.; Marchetto, H. Catalyst-free efficient growth, orientation and biosensing properties of multilayer graphene nanoflake films with sharp edge planes. Adv. Funct. Mater. 2008, 18, 3506–3514. [Google Scholar] [CrossRef]
  52. Xu, J.; Aili, D.; Li, Q.; Pan, C.; Christensen, E.; Jensen, J.O.; Zhang, W.; Liu, G.; Wang, X.; Bjerrum, N.J. Antimony doped tin oxide modified carbon nanotubes as catalyst supports for methanol oxidation and oxygen reduction reactions. J. Mater. Chem. A 2013, 1, 9737–9745. [Google Scholar] [CrossRef]
  53. Mohamed, S.G.; Tsai, Y.-Q.; Chen, C.-J.; Tsai, Y.-T.; Hung, T.-F.; Chang, W.-S.; Liu, R.-S. Ternary spinel MCo2O4 (M=Mn, Fe, Ni, and Zn) porous nanorods as bifunctional cathode materials for lithium–O2 batteries. ACS Appl. Mater. Interfaces 2015, 7, 12038–12046. [Google Scholar] [CrossRef] [PubMed]
  54. Yan, W.; Bian, W.; Jin, C.; Tian, J.-H.; Yang, R. An efficient Bi-functional electrocatalyst based on strongly coupled CoFe2O4/carbon nanotubes hybrid for oxygen reduction and oxygen evolution. Electrochim. Acta 2015, 177, 65–72. [Google Scholar] [CrossRef]
  55. Tong, Y.; Chen, P.; Zhou, T.; Xu, K.; Chu, W.; Wu, C.; Xie, Y. A bifunctional hybrid electrocatalyst for oxygen reduction and evolution: Cobalt oxide nanoparticles strongly coupled to B, N-decorated graphene. Angew. Chem. Int. Ed. 2017, 56, 7121–7125. [Google Scholar] [CrossRef]
Applsci 13 12702 g001

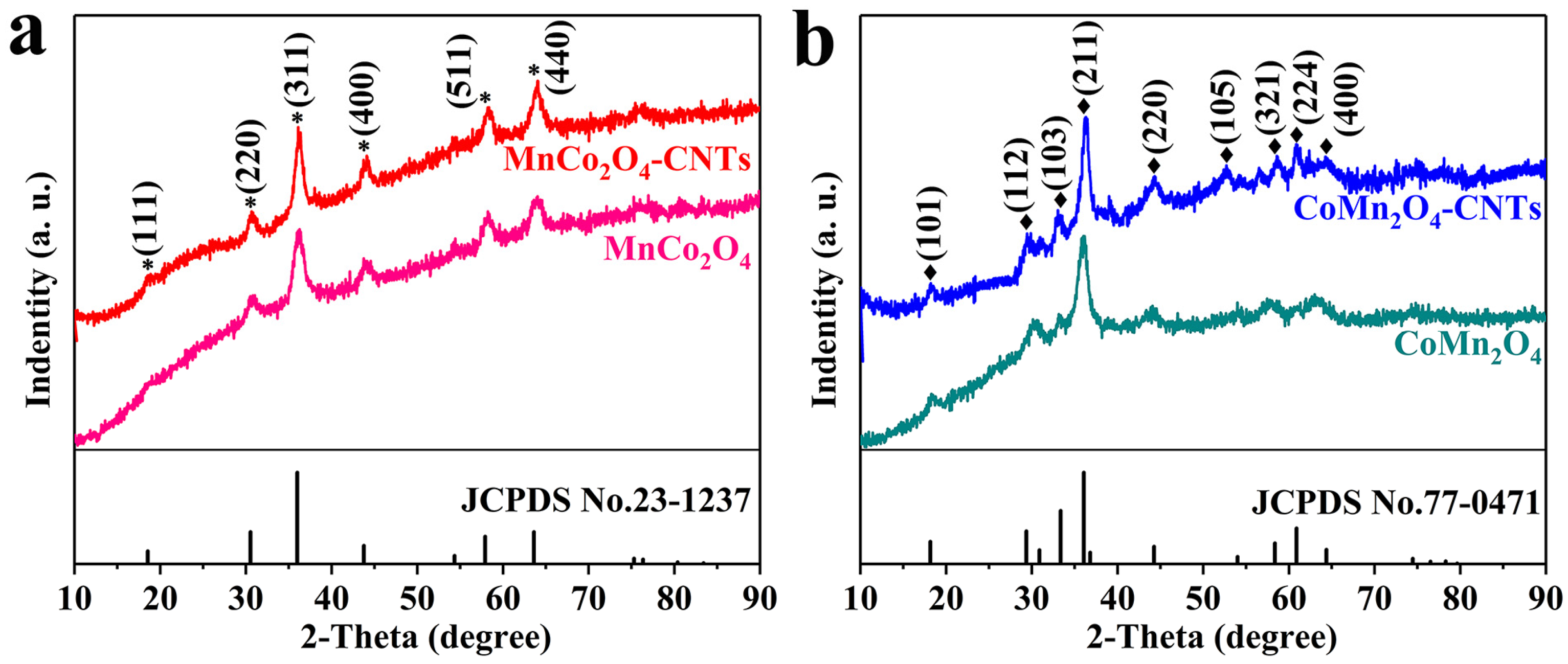

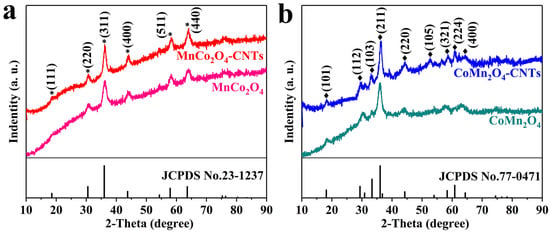

Figure 1. XRD patterns of (a) MnCo2O4 and MnCo2O4-CNTs and (b) CoMn2O4 and CoMn2O4-CNTs.
Figure 1. XRD patterns of (a) MnCo2O4 and MnCo2O4-CNTs and (b) CoMn2O4 and CoMn2O4-CNTs.
Applsci 13 12702 g001
Applsci 13 12702 g002
Figure 2. TEM images of (a–c) MnCo2O4 nanoparticles and (d–f) MnCo2O4-CNTs nanocomposites.
Figure 2. TEM images of (a–c) MnCo2O4 nanoparticles and (d–f) MnCo2O4-CNTs nanocomposites.
Applsci 13 12702 g002
Applsci 13 12702 g003

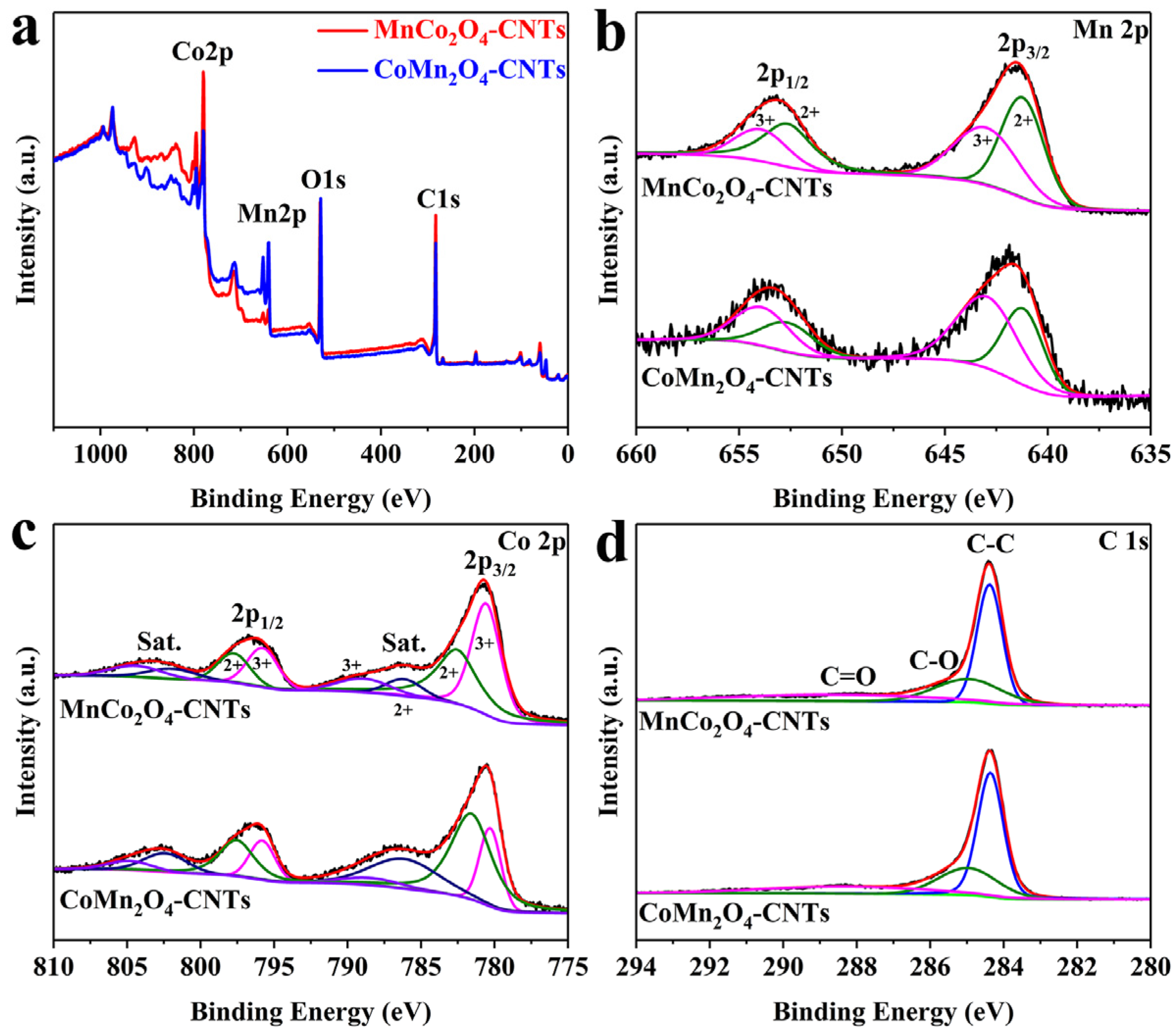

Figure 3. XPS spectra of MnCo2O4-CNTs and MnCo2O4-CNTs. (a) Survey spectrum, (b) Mn 2p, (c) Co 2p, and (d) C 1s.
Figure 3. XPS spectra of MnCo2O4-CNTs and MnCo2O4-CNTs. (a) Survey spectrum, (b) Mn 2p, (c) Co 2p, and (d) C 1s.
Applsci 13 12702 g003
Applsci 13 12702 g004

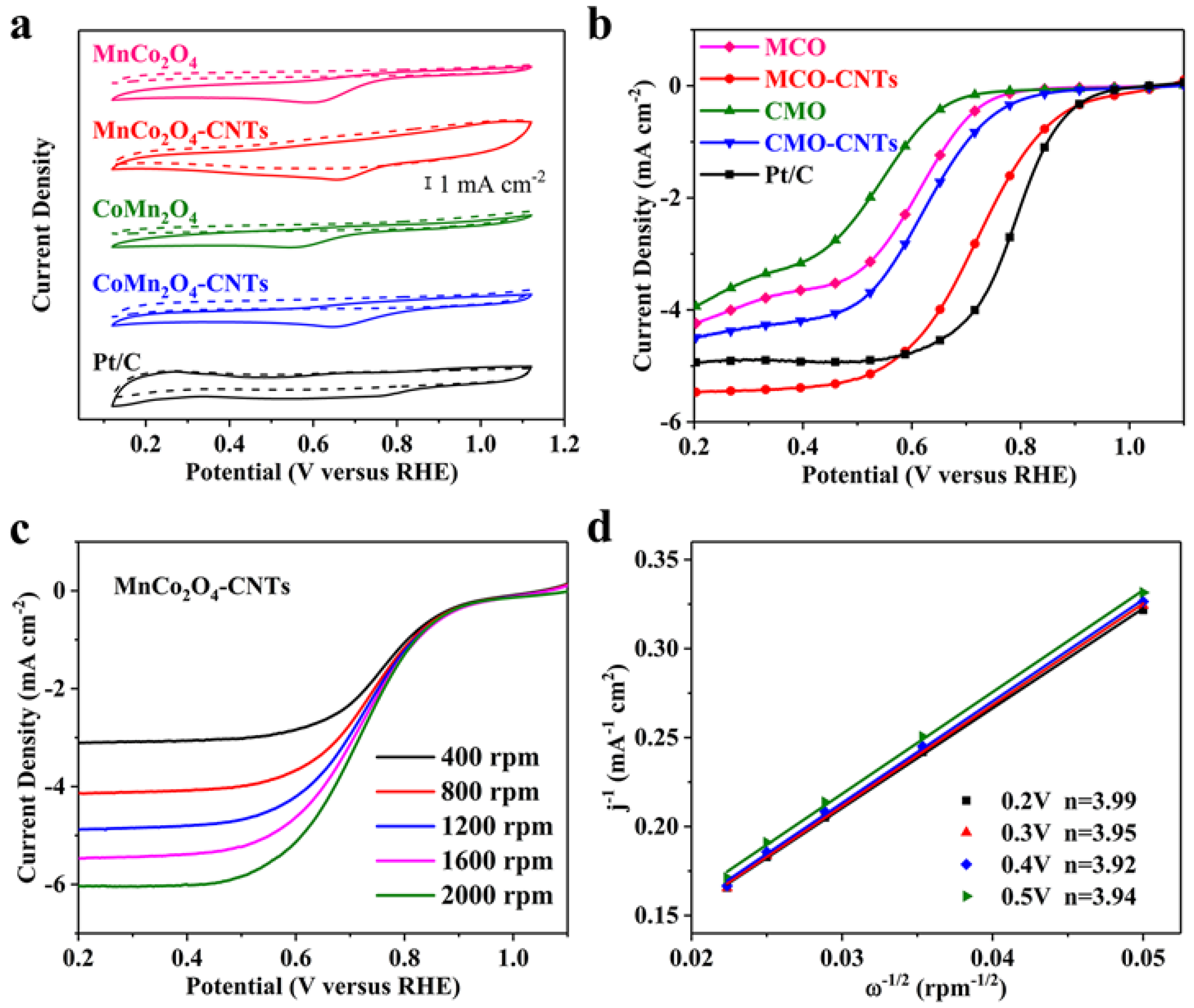

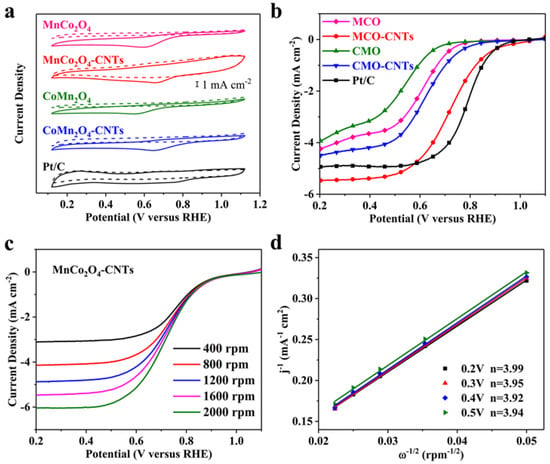

Figure 4. (a) CV curves of as-prepared samples (solid line for O2-saturated, dashed line for N2-saturated); (b) ORR polarization curves of MnCo2O4, MnCo2O4-CNTs, CoMn2O4, CoMn2O4-CNTs, and commercial Pt/C catalyst with the rotation of 1600 rpm; (c) LSV curves of MnCo2O4-CNTs nanocomposites in O2-saturated 0.1 M KOH electrolyte from 400 to 2000 rpm; (d) linear fitting of the Koutecky–Levich model at different potentials of MnCo2O4-CNTs nanocomposites.
Figure 4. (a) CV curves of as-prepared samples (solid line for O2-saturated, dashed line for N2-saturated); (b) ORR polarization curves of MnCo2O4, MnCo2O4-CNTs, CoMn2O4, CoMn2O4-CNTs, and commercial Pt/C catalyst with the rotation of 1600 rpm; (c) LSV curves of MnCo2O4-CNTs nanocomposites in O2-saturated 0.1 M KOH electrolyte from 400 to 2000 rpm; (d) linear fitting of the Koutecky–Levich model at different potentials of MnCo2O4-CNTs nanocomposites.
Applsci 13 12702 g004
