Article

Geo-Based Assessment of Vegetation Health Related to Agroecological Practices in the Southeast of Togo

1
Laboratory of Botany and Plant Ecology, Department of Botany, Faculty of Sciences, University of Lomé, Lomé 01 BP 1515, Togo
2
Forest Management and Development, Institute of Terrestrial Ecosystems, Department of Environmental Systems Science, ETH Zürich, 8092 Zürich, Switzerland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(16), 9106; https://doi.org/10.3390/app13169106
Submission received: 17 June 2023 / Revised: 27 July 2023 / Accepted: 6 August 2023 / Published: 10 August 2023
(This article belongs to the Section Ecology Science and Engineering)

Abstract

:
In the context of climate change, the need to contribute to achieving Sustainable Development Goal (SDG) 2 is no longer in doubt, especially in sub-Saharan Africa. In this study of the landscape within 10 km of the Donomadé model farm, southeastern Togo, researchers sought to assess vegetation health in ecosystems and agrosystems, including their capacity to produce biomass for agroecological practices. Sentinel-2 sensor data from 2015, 2017, 2020, and 2022 were preprocessed and used to calculate the normalized vegetation fire ratio index (NBR), the vegetation fire severity index (dNBR), and CASA-SEBAL models. From these different analyses, it was found that vegetation stress increased across the landscape depending on the year of the time series. The research estimated that 9952.215 ha, 10,397.43 ha, and 9854.90 ha were highly stressed in 2015, 2017, and 2020, respectively. Analysis of the level of interannual severity revealed the existence of highly photosynthetic areas that had experienced stress. These areas, which were likely to have been subjected to agricultural practices, were estimated to be 8704.871 ha (dNBR2017–2015), 8253.17 ha (dNBR2020–2017), and 7513.93 ha (dNBR2022–2020). In 2022, the total available biomass estimated by remote sensing was 3,741,715 ± 119.26 kgC/ha/y. The annual average was 3401.55 ± 119.26 kgC/ha/y. In contrast, the total area of healthy vegetation was estimated to be 4594.43 ha, 4301.30 ha, and 4320.85 ha, in 2015, 2017, and 2022, respectively. The acceptance threshold of the net primary productivity (NPP) of the study area was 96%. The coefficient of skewness (0.81 ± 0.073) indicated a mosaic landscape. Productive and functional ecosystem components were present, but these were highly dispersed. These findings suggest a great opportunity to promote agroecological practices. Mulching may be an excellent technique for enhancing overall ecosystem services as targeted by the SDGs, by means of reconversion of plant biomass consumed by vegetation fires or slash-and-burn agricultural practices.

1. Introduction

As a multifunctional resource, plant biomass has always played a vital role in human life. Today, it is a source of food, energy, and materials for thousands of millions of people. However, ecological sustainability and global food security are also major contemporary concerns [1]. Despite the importance of natural ecosystems in general, and agroecosystems in particular, for poverty reduction and food security, such systems are those most disturbed and threatened by anthropogenic pressures and climate change.
In sub-Saharan Africa, agriculture accounts for about 36% of the gross domestic product and 65% of employment [2]. However, the sector faces many challenges, including a growing demand for food and the environmental impact of conventional agriculture. It is vital that ecological supply and consumption remain in balance. Agriculture must also be able to meet local survival and development needs [3]. Over the past few decades, modern agricultural practices have often been detrimental to the environment and to human health [4,5]. Rapidly urbanizing populations have profoundly affected land use and land cover, leading to changes in the supply of, and demand for, ecosystem services [3,6]. In response to these changes, many rural communities have adopted agroecological practices to improve the sustainability and resilience of their food-producing systems. Reducing the use of nonorganic fertilizers, promoting biodiversity, and improving soil quality are some of the methods used to achieve the goal of scaling up and to promote agroecological practices.
In Togo, agricultural practices have significant environmental and social impacts [7]. Farmers face the challenges of climate change, biodiversity loss, and food insecurity. Against this backdrop, more attention needs to be paid to ecosystem stability by implementing agroecological restoration projects to achieve the Sustainable Development Goals [8].
In southeastern Togo, various agricultural practices have been experimentally introduced, promoted, and implemented in the farming environment. Among these, mulching has recently received particular attention because of its many advantages [9]. These agricultural practices aim to protect and restore soil health, biodiversity, and agricultural ecosystems [10]. They also ensure sufficient food production while minimizing negative environmental impacts. Understanding vegetation health and biomass availability in agricultural areas is essential for assessing the effectiveness of these agroecological practices.
A promising method for assessing vegetation health and biomass availability is the use of geographic information systems and remote sensing. Indeed, for the sustainable management of green biomass, including residues, the use of satellite-based remote sensing products to investigate the effects of post-fire rehabilitation treatments on vegetation appears to represent a significant opportunity. Among the form of spectral index-based remote sensing commonly used for biomass estimation is the normalized difference vegetation index (NDVI) [11,12].
A considerable number of remote sensing studies have used the NDVI algorithm [13] to assess burn severity [14,15], and the normalized burn ratio (NBR) has been adopted as the standard spectral index for estimating fire/burn severity [16,17]. As mentioned above, vegetation indices based on remote sensing data can effectively reflect canopy chlorophyll ratios. Hence, they are often used to calculate FPAR (photosynthetically active radiation). Other green biomass assessment models take different environmental factors into account.
In Togo, the low productivity of crops increases the vulnerability of local populations [18]. Despite a small population size and the presence of rivers and wetlands, socioeconomic and ecological factors mean that the country faces significant exposure to climate change [19]. The Model Farm of Donomadé (FeMoDo) initiative was established in 2015 near the National Park of South Togodo to mitigate the long-lasting effect of vulnerability in the Donomadé ecovillage [20]. The main objective of FeMoDo is to promote agroecological best practices among rural communities to add value to food crops. The low-cost and appropriate agroecological practices best suited to the context of Donomadé are agroforestry combined with mulching. However, within a radius of 200 m from the model farm, grasslands become increasingly scarce [21]. It is therefore crucial to better understand the impact of agroecological practices on the health of agroecosystems. Promoting agroecological best practices will help guide natural resource management decisions in of Togo. This study assesses vegetation health and biomass availability in agroecological production systems in Togo.

2. Materials and Methods

2.1. Study Area and Scope

The study area is located in the southeast of Togo, in West Africa (Figure 1), with 35,296 habitants as per the 2022 census data. The focal point of the study was the ecovillage of Donomadé. It is located about 130 km from Lomé, the capital of Togo. The geomorphology of the Donomadé zone consists of a peneplain covered by infertile soils degraded by intensive agriculture and slash-and-burn cultivation [22]. The ecovillage is included in the transboundary Mono River biosphere [23,24]. The climate is subequatorial Guinean with 1000 mm.y−1 annual average rainfall and an average temperature of 27.6 °C [25]. Five (05) land cover types comprise the landscape components: croplands, fallows, and parklands (72.64%), followed by woody savanna and open forest (21.70%) and build area (3.80%), are the most important land cover features in the study area. The main crops grown are maize, cassava, and groundnut. New agroecological practices have spread from the Donomadé model farm (FeMoDo) to the surrounding area in recent years.
A zoning approach was adopted to assess the availability of plant materials and their accessibility for mulching purposes. A series of concentric buffer zones with radii of 200 m, 2 km, 5 km, and 10 km were designed, with the model farm at the center, using the geoprocessing tools in QGIS software (Figure 1).

2.2. Data Sources and Preprocessing

Sentinel-2 sensor images were acquired free of charge from ESA [26] as part of the Copernicus program [27]. Images from the Sentinel-2B satellite are used in this paper. The characteristics of the Sentinel-2B raw image time series are shown in Table 1.
The Sentinel-2B datasets acquired for this study consisted of images from December 2015, 2017, 2020, and 2022. They covered the southeast of Togo, extending into the southwest of neighboring Benin. After extracting the layers and stacking the spectral bands, atmospheric correction was performed using the dark object subtraction (DOS1) method [29] to reduce the scattering effects in the satellite scenes. This method is an add-on to QGIS software [30]. The DOS function is one of the most commonly used atmospheric correction methods. It enables use of the stretch function by converting raw or TOA (top-of-atmosphere) digital numbers into reflectance values [31,32]. The QGIS 2.18 masking feature was used to extract the survey area from the four enhanced scenes. The National Institute of Statistics (INSEED/Togo) database was used to collect secondary data on population, climate, and agriculture [33]. Downscaled data from socioeconomic field surveys were also used to interpret the processed images.

2.3. Vegetation Ecophysiology Assessment Using the Normalized Burn Ratio (NBR) Model

The normalized burn ratio (NBR) is a standard vegetation index widely used to highlight burned areas in areas where fire often occurs. The NBR is considered the standard for fire severity assessment [34]. The combination of near-infrared (NIR) and mid-infrared (MIR) reflectance allows the NBR index to be considered an operational tool [34,35] for assessing the vigor and moisture of vegetation on a national scale. However, the NBR formula is too similar to that of the NDVI [17]. To take advantage of the magnitude of the spectral difference provided by remote sensing data, the NBR equation uses the ratio between NIR (near-infrared) and SWIR (shortwave-infrared) bands.
The NBR formula used in this study combines the use of both NIR (B8A) and SWIR (B12) wavelengths (Table 1) and is defined as:
N B R = N I R ( B 8 A ) S W I R ( B 12 ) N I R ( B 8 A ) + S W I R ( B 12 )
A high NBR value generally indicates healthy vegetation conditions. A low value suggests bare ground and/or recently burned areas. Values close to zero indicate unburnt areas [36].
The burn severity rating (dNBR) was calculated from the NBR products of the current study to express the dynamics of vegetation health. The difference between the NBRs obtained from the images for years one and two was used to calculate the delta NBR. This could then be used to estimate the burn severity rating. The dNBR formula is shown below:
d N B R   o r   Δ N B R = P r e f i r e N B R P o s t f i r e N B R
dNBR values vary widely from case to case, so interpretation in specific cases should also be carried out by ELD assessment so that the best results may be obtained. A higher value of dNBR indicates more severe damage, but areas with negative dNBR values may be experiencing regrowth. The interpretation of fire severity (Table 2) promoted by the United States Geological Survey (USGS) [35] was adopted for the purposes of this study.

2.4. Spatial Estimation of Vegetation Biomass Using the Net Primary Production (NPP) Model

Remote sensing provides spatially and temporally continuous data for quantifying and monitoring vegetation productivity [16]. Three approaches exist for estimating primary vegetation productivity. The most widely used technique using remote sensing data to estimate NPP is the light use efficiency (LUE) model [37,38]. LUE models estimate vegetation primary productivity by multiplying the remotely sensed fraction of incident photosynthetically active radiation (PAR) absorbed by vegetation (fAPAR) by an energy-to-biomass conversion factor, typically referred to as the LUE coefficient. The NDVI, the SR (simple ratio vegetation index), and NPP-based radiation use efficiency models [39,40] were used to assess the living organic matter available in the landscape in 2022 [3]. The SR (simple ratio vegetation index) is calculated by the NDVI; it represents the richness of vegetation but is affected by the region and seasonality [13].
N D V I ( x , t ) = B a n d   8 N I R B a n d   4 R e d   ( x , t ) B a n d   8 N I R + B a n d   4 R e d   ( x , t )
S R ( x , t ) = 1 + N D V I ( x , t ) 1 N D V I ( x , t )
The CASA (Carnegie–Ames–Stanford approach) and SEBAL (surface energy balance algorithm for land) algorithms [41] were used for model evaluation. NDVI and SR were applied to estimate the fraction of the incident photosynthetically active radiation (FPAR) and absorbed incident photosynthetically active radiation (APAR). This allowed for the estimation of the NPP [42] as follows:
N P P   x ,   t = A P A R × L U E
N P P   x ,   t = F P A R x ,   t × P A R × L U E
where LUE = light use efficiency factor, x = pixel, and t = time.
FPAR has a linear relationship with NDVI and SR [43,44]. FPAR can be calculated from the NDVI and the SR using the following equations:
F P A R x , t = S R x , t S R i ,   m i n × ( F P A R m a x F P A R m i n ) ( S R i ,   m a x S R i ,   m i n ) + F P A R m i n
F P A R x , t = N D V I x , t N D V I i ,   m i n × ( F P A R m a x F P A R m i n ) ( N D V I i ,   m a x N D V I i ,   m i n ) + F P A R m i n
(FPARmax and FPARmin are assumed to be 0.95 and 0.001, respectively).
Estimates of FPAR from the NDVI are usually higher than the absolute values. This is in contrast to calculations based on SR, which tend to be lower than the absolute values [45]. To reduce the error in estimating FPAR, averaging NDVI- and SR-derived results has been suggested [46,47]. The following equation was used for this purpose:
F P A R   x , t = α F P A R N D V I + ( 1 α ) F P A R S R
α = 0.5 is the adjustment factor of NDVI and SR [3,13].
For clear-sky conditions and in tropical countries, PAR is commonly set to 0.51 [3,48]. The light use efficiency (LUE) is calculated as follows:
L U E = ε × T 1 × T 2 × W
where ε = light use efficiency, T1 and T2 relate to plant growth regulation (acclimation) by temperature, and W = the evaporative fraction, calculated thus:
W = 0.5 + ( E E T / P E T )
where PET is the potential evapotranspiration and EET is the estimated evapotranspiration. The PET and EET employed in the study were those estimated by Adamou [49] in the framework of climate classification based on vegetation, rainfall, and temperature research. Thus, PET is the potential evapotranspiration, which is calculated by the Thornthwaite formula, whereas the estimated evapotranspiration (EET) is estimated by the soil water molecule model.
Finally, ε is calculated as follows:
ε = ε ° × T 1 × T 2 × W
where ε° = globally uniform maximum equal to 2.5 g/MJ [46,50], T1 relates to the mean temperature during the month of maximum NDVI, and T2 relates to both the mean temperature during the month of maximum NDVI (July in the study area) and to the mean monthly air temperature [3,51]. For the purposes of this study, T1 refers to the mean temperature of the entire wet season, from April to September.
To validate the estimated NPP results, the calculated NPP was compared with the reference NPP data of regions such as MODIS A17 [52]. By such means, 70 random sampling points were generated. Polygons of 1 m square were then designed for each sampling point. The NPP values were then extracted from the estimated and referenced NPP data and used to model the regression [53,54].
The complete research workflow is illustrated in Figure 2.

3. Results

3.1. NBR Time Series of Vegetation Health across the Landscape

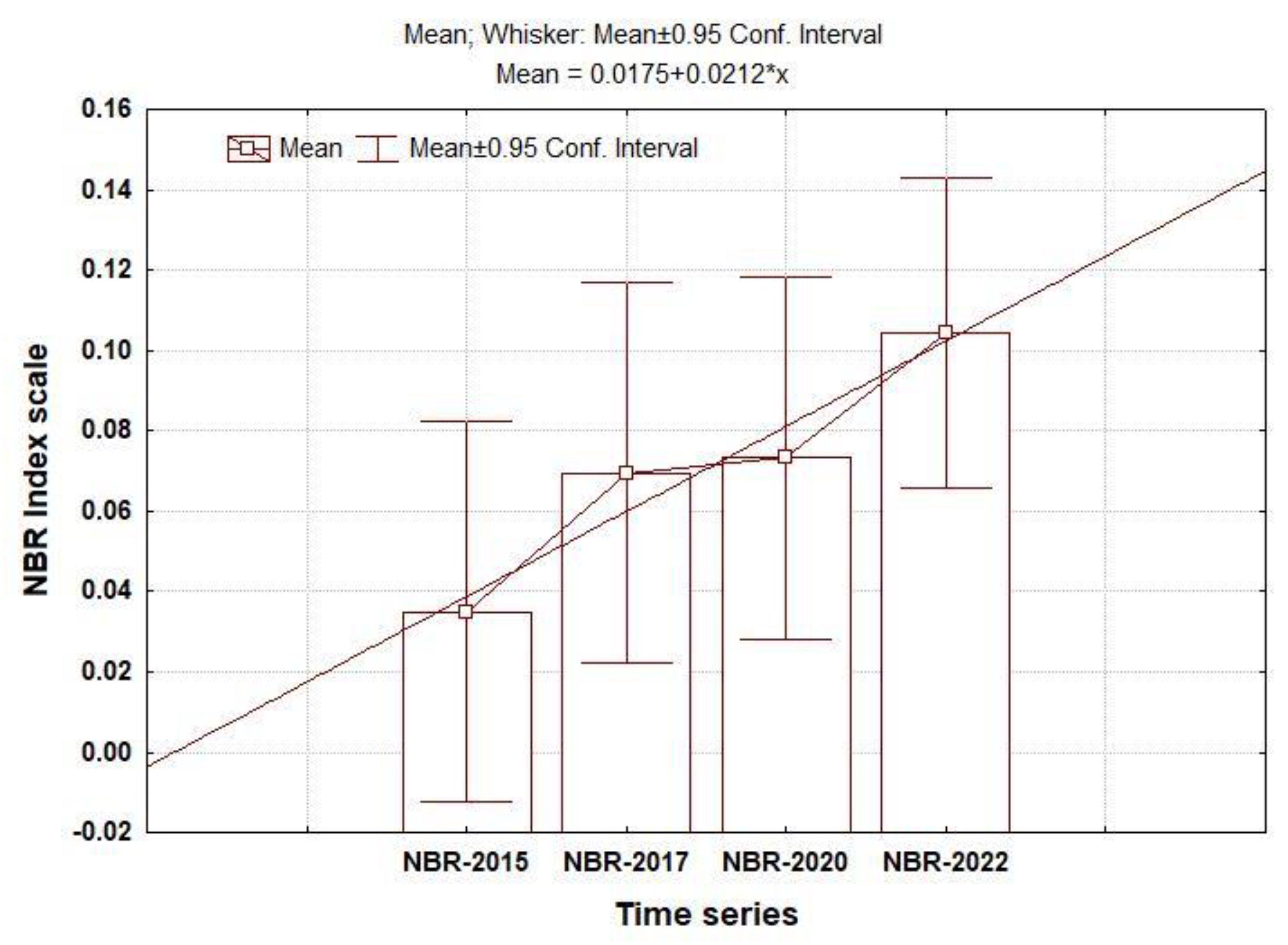

Statistical averages of NBR (Figure 3) calculated from the Sentinel-2 time series showed a positive increase in the NBR average between 2015 and 2022. For the whole study area, this mean value—which is an ecological indicator—was estimated as 0.034 ± 0.023 in 2015, and 0.104 ± 0.019 in 2022. These results probably imply improved local ecological conditions related to human intervention.

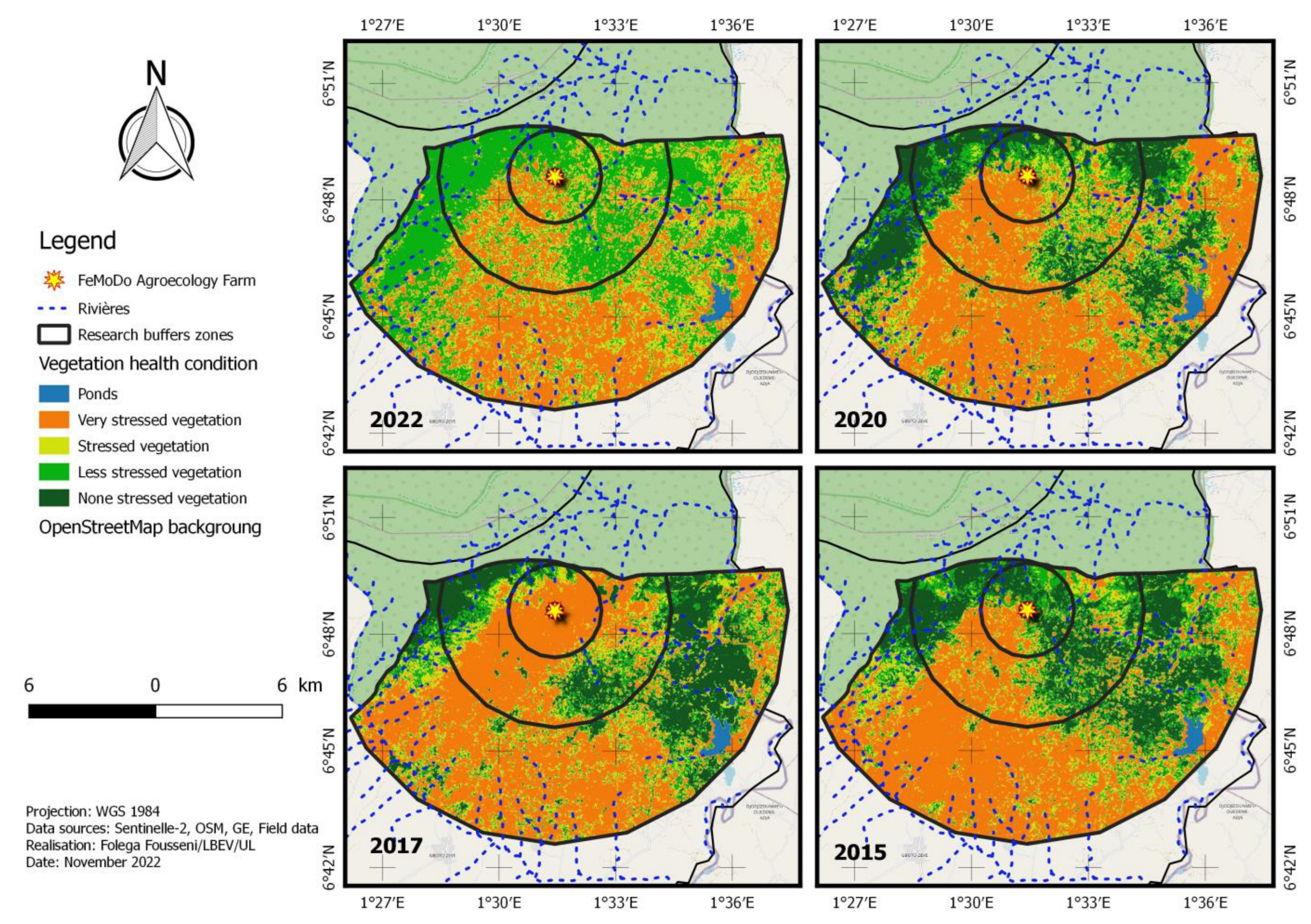

From a geospatial perspective, four components were distinguished to explain the vegetation health status of the studied landscape. Generally, highly stressed vegetation, represented by the orange color in Figure 4, occupies the southwestern part of the study area in a northeastern direction. This area borders the southeast of the Togodo National Park and was estimated to comprise 47% (9952.21 ± 0.82 ha) of the total study area in 2015 (Figure 5), increasing slightly to 50% (10,397.43 ± 0.87 ha) in 2017. However, in 2022, the highly stressed vegetation component underwent a significant fragmentation. It was transformed into an area of less-stressed vegetation (Figure 4). In 2022, the spatial fraction of unstressed vegetation was wholly transformed into less-stressed vegetation. This was especially the case in the southern periphery of Togodo South National Park. Thus, the less-stressed fraction increased from 16% (3335.81 ± 0.23 ha) in 2015 to 39% (8177.96 ± 0.34 ha) in 2022.
The vegetation that was unstressed before 2022 was essentially located in the buffer zone of the southern Togodo National Park, and mainly in the transboundary Mono River biosphere (Figure 4). Estimated at 22% (4594.44 ± 0.23 ha) in 2015, this area decreased drastically over the time series.

3.2. Severity of Ecophysiological Conditions of Landscape Vegetation

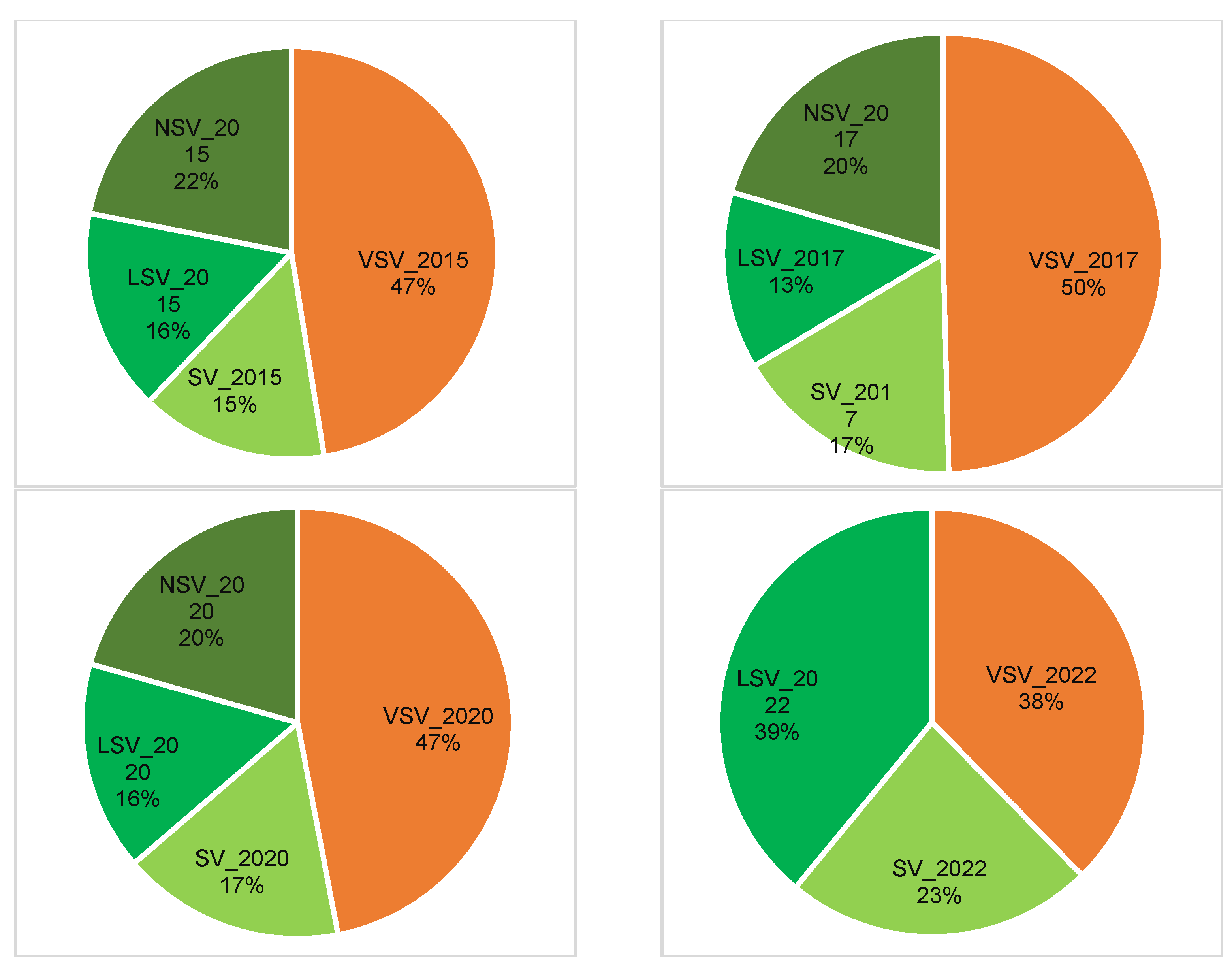

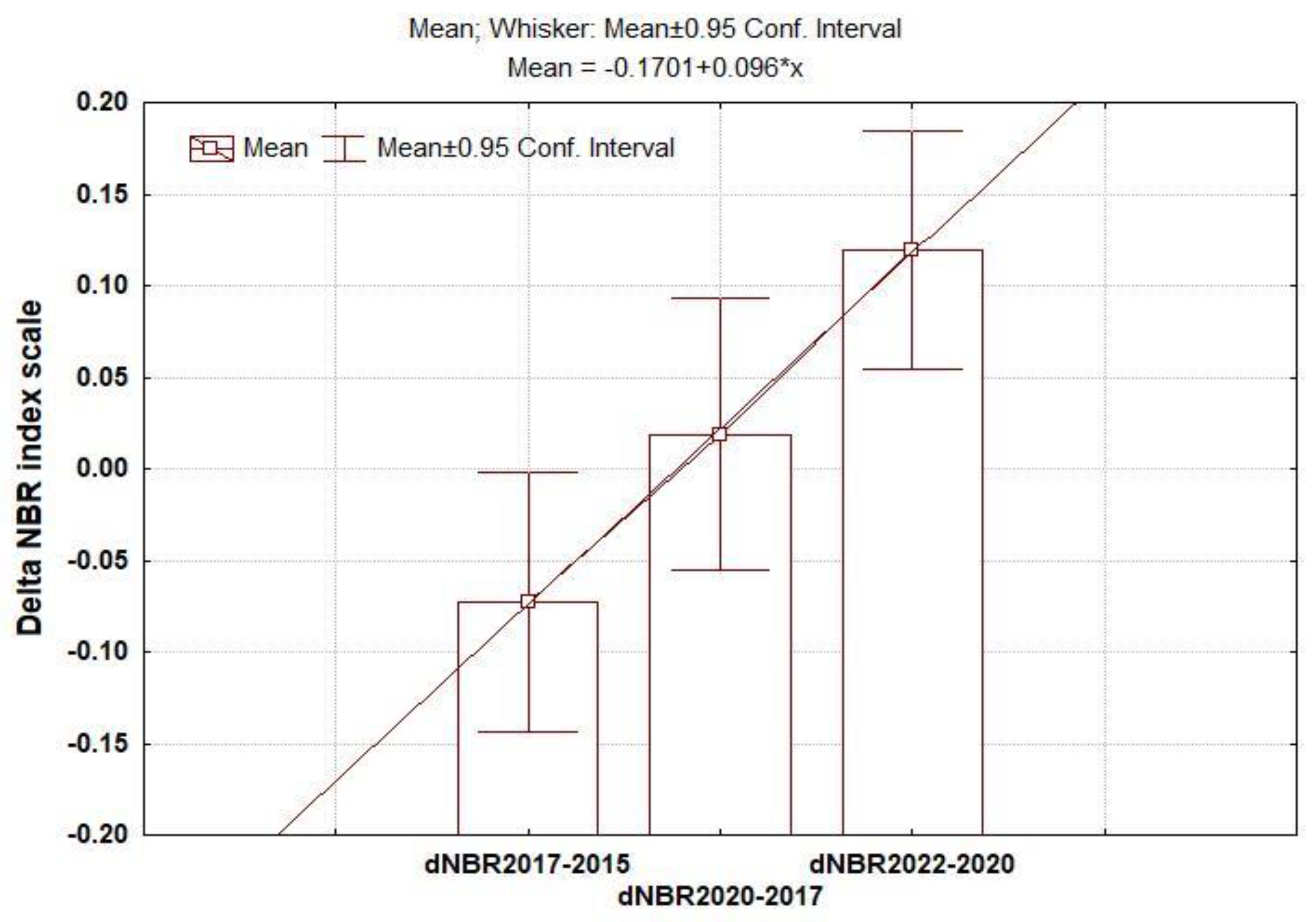

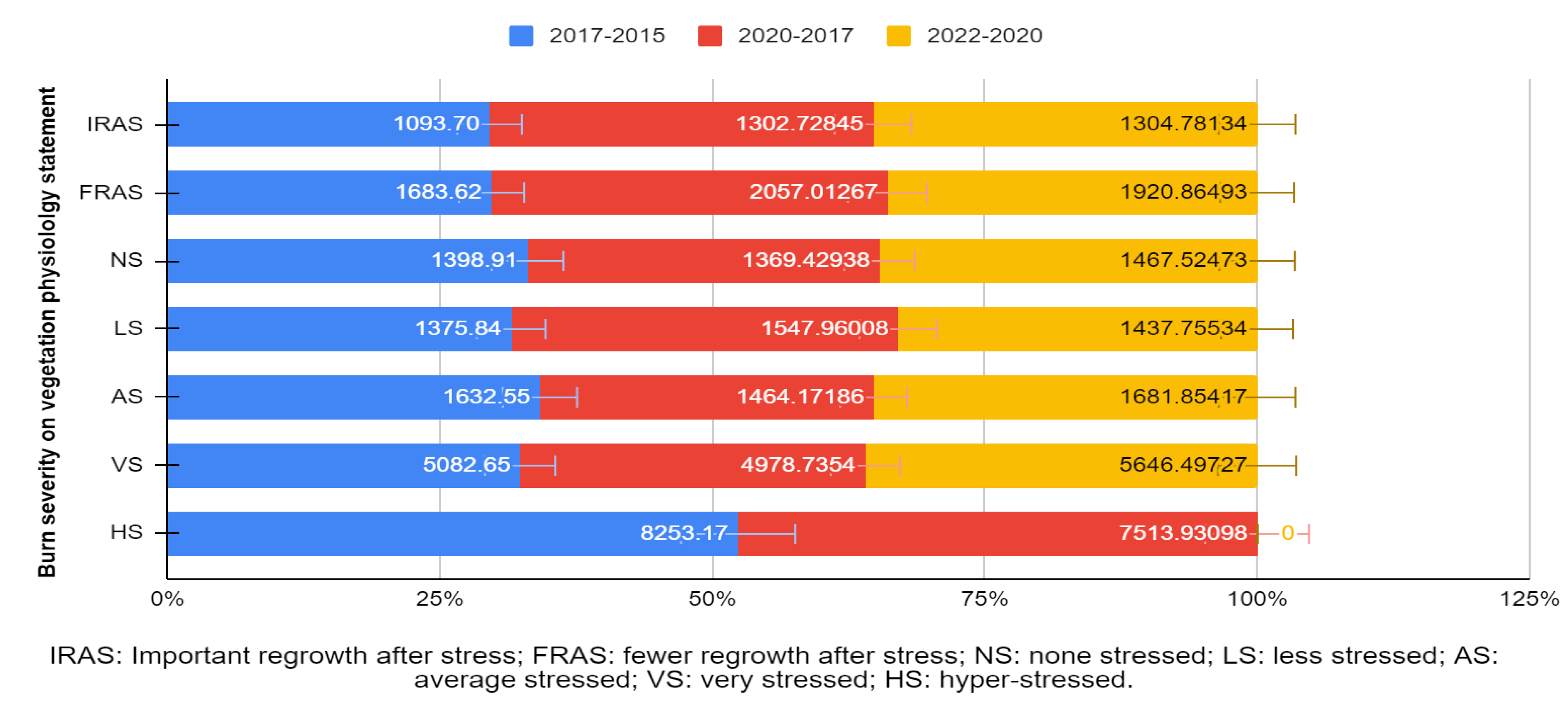

The analysis of the severity of the physiological conditions governing vegetative growth indicated, in general, a degradation of the vegetation in the studied landscape. This situation is supported by the values of the statistical means of the fire severity index in relation to the vegetation components (Figure 6). The relatively low prevalence of healthy vegetation across the landscape is explained by the average dNBR of 0.119 ± 0.033 estimated for 2020–2022. This is further supported by the complete conversion of the less environmentally and anthropogenically disturbed vegetation component to an increasingly disturbed vegetation landscape pattern. The average dNBR between 2015 and 2017 was negative (−0.072 ± 0.035), indicating a relatively low level of severity of environmental factors on the whole vegetation component across the studied landscape compared with the periods 2017–2020 and 2020–2022.
The spatial analysis of the wildfire severity index map products and associated factors showed a stable dispersion of hyper-stressed and highly stressed landscape patches between 2020 and 2022 compared with the periods 2017–2020 and 2015–2017 (Figure 7). During 2015–2017, areas with high wildfire severity and associated factors were located in populated areas of traditional agricultural practices that do not respect agroecological values. During 2017–2020, areas with high wildfire severity and associated factors were relocated to the western sector, which was less exploited at the time and consists mainly of depressions dominated by grasslands and shrub savannahs.
In the 2017–2015 period (dNBR2017-2015), 40.22% of the vegetation was hyper-stressed, compared with 37.14% for the 2022–2020 period. The area of hyper-stressed vegetation was almost zero between 2022 and 2020. The area of highly stressed vegetation was 24.77% in 2017–2015, 24.61 in 2020–2017, and 41.95% in 2022–2020. The area of unstressed vegetation was 6.82% in 2017–2015, 6.77% in 2020 to 2017, and 10.90% in 2022–2020. The highest vegetation regrowth (IRAS) was 5.33% in 2017–2015, 6.44% in 2020–2017, and 9.69% in 2022–2020. In contrast, the lowest vegetation regrowth after stress (FRAS) was 8.20% in 2017–2015, 10.17% in 2020–2017, and 14.27% in 2022–2020 (Figure 8).

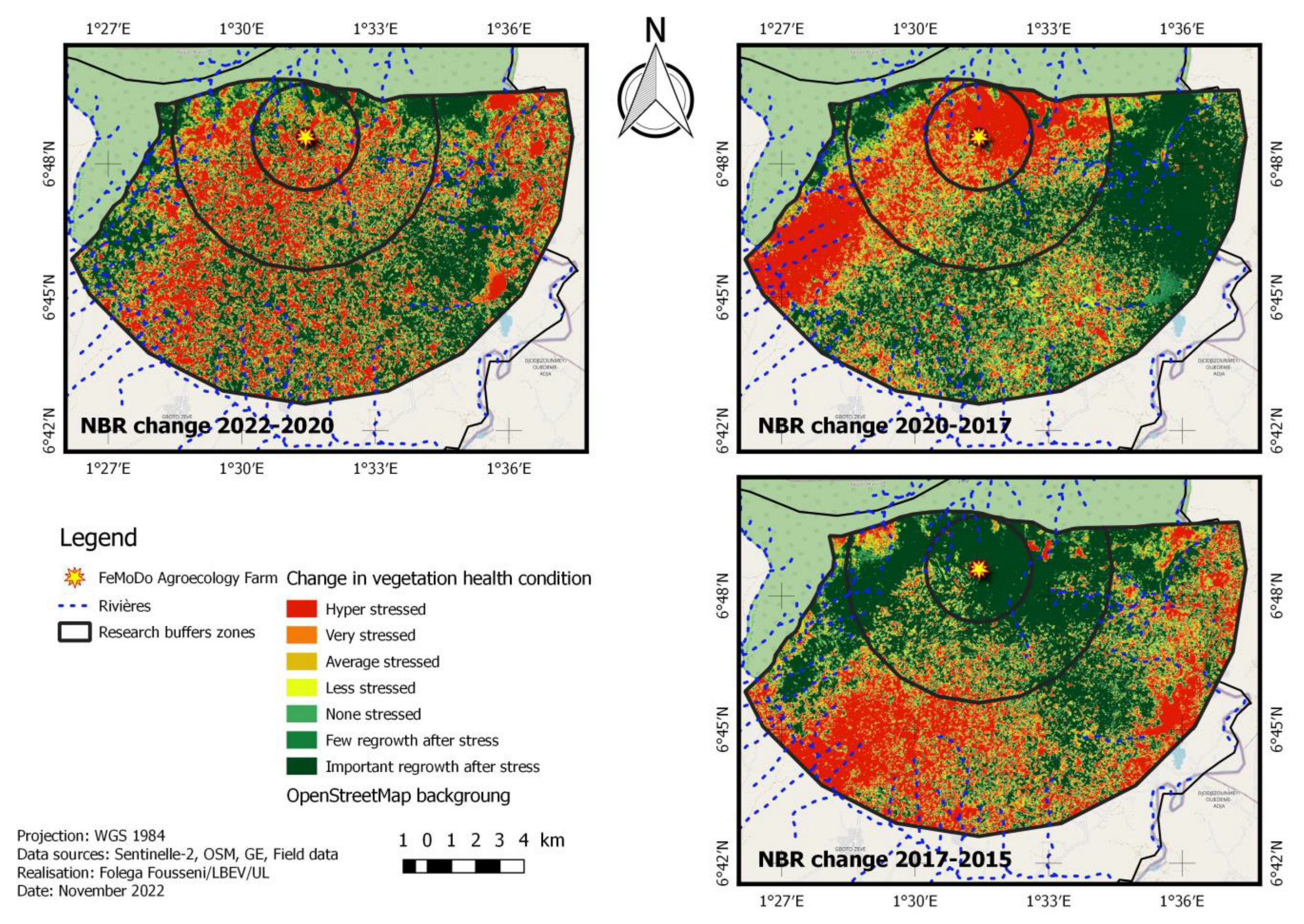

The spatiotemporal distribution of the vegetation dNBR showed significant spatial variations across the three periods. In 2020–2017, the vegetation at FeMoDo was quasi-hyper-stressed, whereas in 2017–2015, there was a very significant regrowth around the farm. Vegetation regrowth is more critical when a longer time period is considered. This explains why the dNBR for 2017–2015 is not similar to the other dNBR values (Figure 8).

3.3. Global Productivity of Ecosystems’ Vegetation across the Landscape

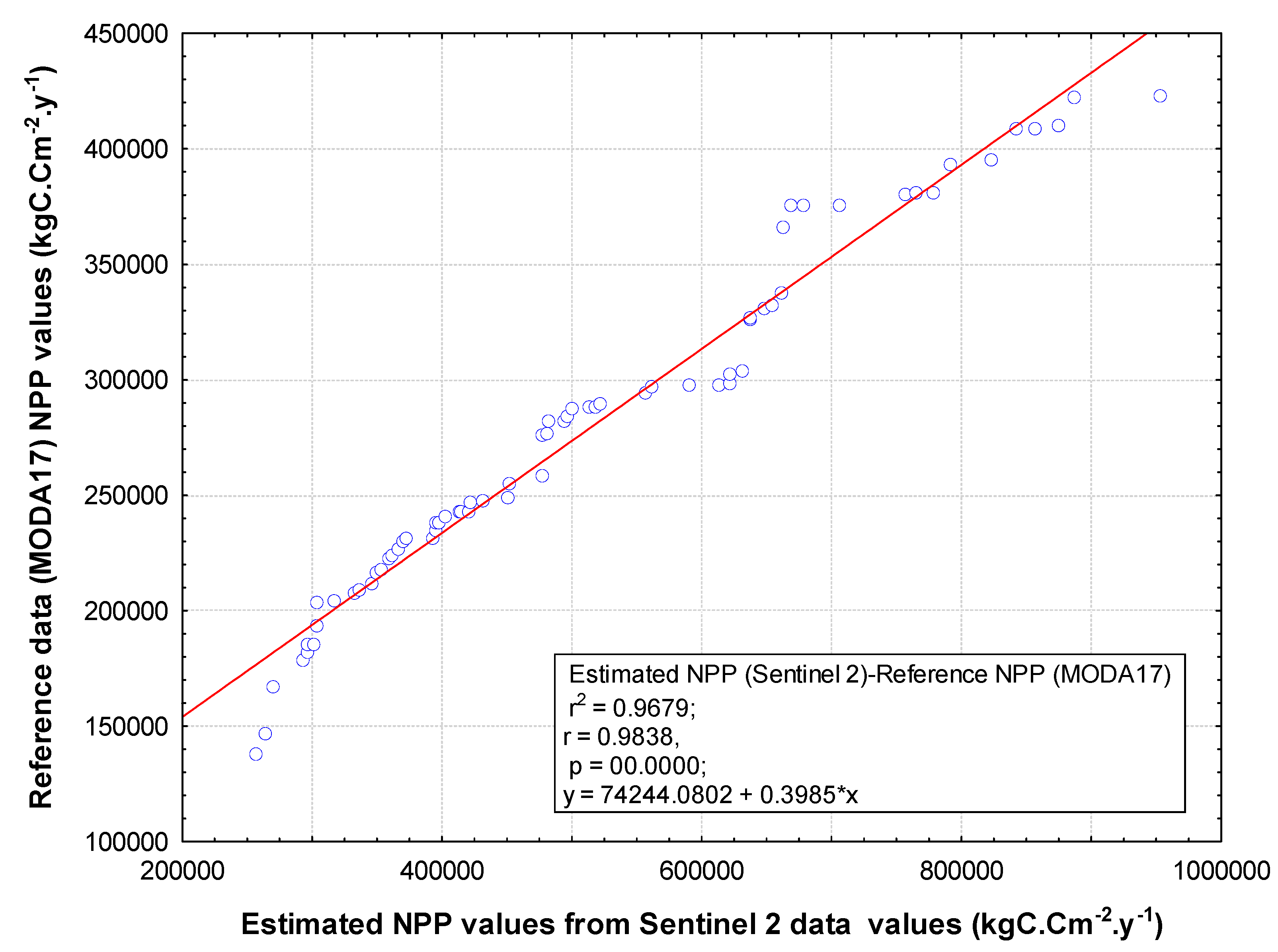

The plant biomass estimated by the CASA-SEBAL model for 2022 correlated highly with the MODA17 reference data. The correlation coefficient R2 was 0.96. This raised the acceptance threshold of the net primary productivity of the study area to 96% (Figure 9).

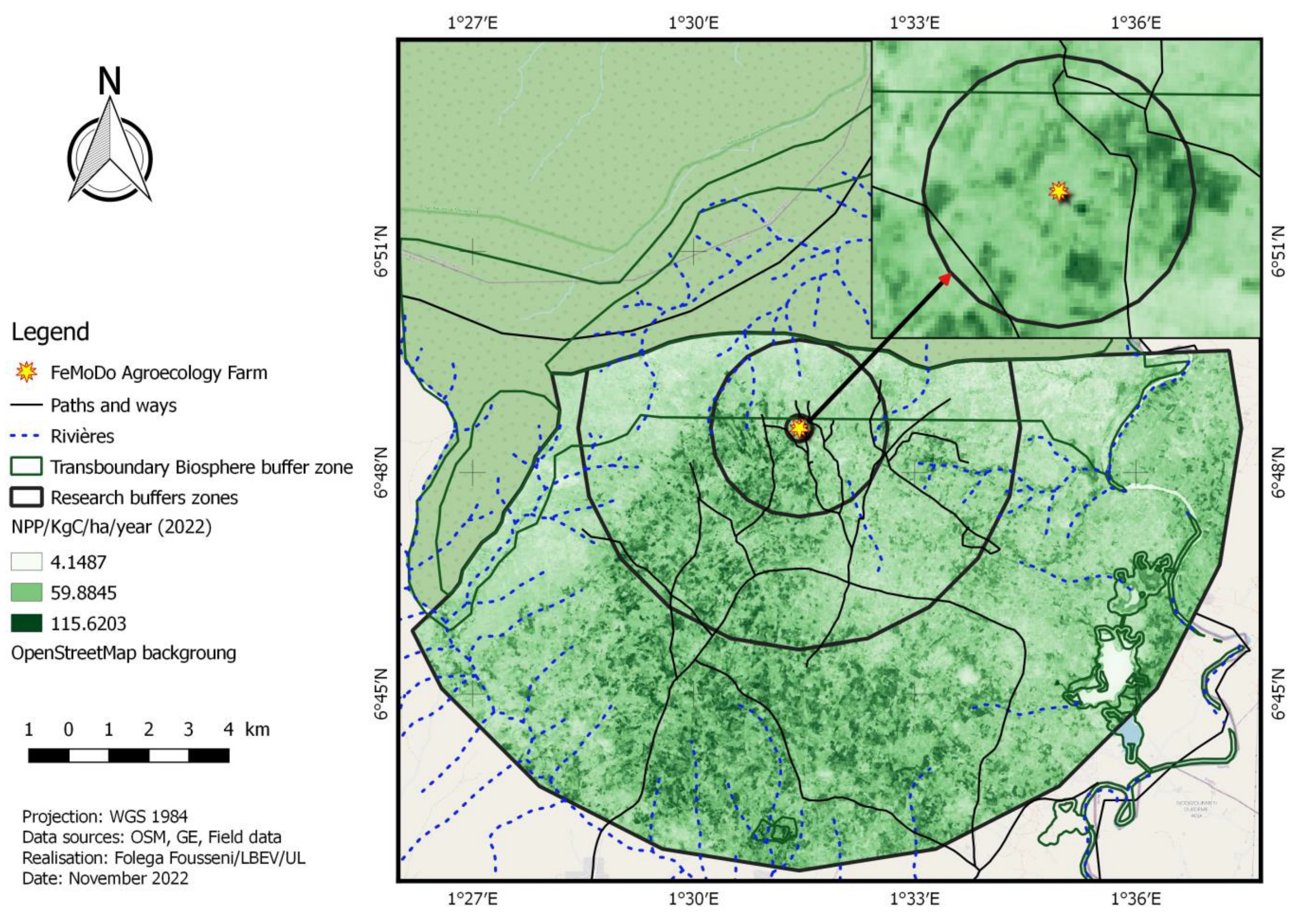

Available biomass or net primary productivity (NPP) ranged from 4.15 to 115.62 kgC/ha in 2022 (Figure 10). The estimated total available biomass was equivalent to 3,741,715 ± 119.26 kgC/ha/y. The annual average was 3401.55 ± 119.26 kgC/ha/y. The highly positive skewness coefficient (0.81 ± 0.073) indicated a mosaic landscape with productive and functional—but also dispersed—ecosystem components (Figure 10). Thus, permanent wetlands and agrosystems were the areas with high annual biomass productivity (Figure 10). The latter can also be regarded as a reservoir of residual or fresh plant biomass, which may be exploited for mulching after production of the various crops. Areas with low productivity or high availability of plant biomass were located in the buffer zone of the protected area; this consists mainly of grass-dominated depressions and shrub savannahs less affected by agricultural practices.

4. Discussion

Sustainable land management and agroecological approaches are becoming more widely accepted to ensure the sustainability of agricultural systems, whatever their scale of production. Negative impacts on ecosystem services are significantly reduced by integrated management of non- and underutilized phytomass from both forestry and agricultural perspectives [55,56,57]. In Togo, there is unanimous agreement that landscape approaches can reduce the impact of human-induced drivers [58].
The NBR and the dNBR are the most commonly used models for monitoring and assessing ecosystem health. The four landscape patterns of different levels of disturbance to vegetation, mainly caused by wildfire in the study area, show that they are unevenly distributed [44]. The time series product of the NBR shows a regressive trend in terms of the quality of ecosystems and the functioning of agroecosystems. The impact of fire on the landscape was very damaging in 2017 compared with 2015, despite attempts to raise awareness of forest fires led by the National Forest Service and reinforced by the collaborative actions of local NGOs on the adoption of agroecological best practices since 2015. By 2020, this tendency had been reduced. The fact that 2015 and 2020 were both regarded as drought years in Togo [59] could explain this situation. Another explanation may involve the reappearance of uncontrolled wildfire previously caused by newcomers in the area for cultivation purposes, at least from the perspective of indirect benefits [60] generated by FeMoDo actions.
Changes in vegetation in FeMoDo include abrupt, gradual, and seasonal changes [4,61]. Throughout the time series, the vegetation component of FeMoDo showed an increase in stress levels, with regular spatial distribution. Similar trends have been observed in African Sahel vegetation dynamics [62]. The results of the present study are also consistent with previous studies of vegetation health using satellite data, which have found vegetation to be sensitive to climatic and agro-demographic stimuli [63]. Increasing productivity was characteristic of some landscape patterns of the study area in the present work, whereas in other areas this has shown decreasing associations with levels of stress [6]. Such dynamics may occur due to seasonality, the passage of time, climatic conditions, different land use patterns, invasive species, wildfire, and pests [63,64].
The significant correlation (R2 = 0.98) between the calculated NPP and the reference value (MODIS A17) may mean that the finding of the current study is similar to 98% of existing reference NPP data. Current patterns of NPP in the study landscape are the combined result of environmental and land use changes. Thus, low NPP values in study landscapes could be explained by the fact that they were highly prone to wildfire or had been converted to agricultural land. Other studies have found a similar trend [65,66]. Changes in precipitation and temperature regimes due to climate change can lead to extreme environmental conditions that are detrimental to plant and crop productivity [67]. However, it also appears that the high temperatures resulting from increased evapotranspiration and the arid conditions of this peneplain may strongly affect vegetation growth [68]. The low primary productivity observed mainly at the edge of the buffer zone, especially in protected areas, may be explained by the oldest phytomass components, which are affected annually by wildfire damage. Elsewhere in the landscape, the lower estimated NPPs may be explained by the fact that grasslands and temporary wetlands were generally burned. The increases and decreases in NPP may also have been influenced by the expansion of settlements and population growth, as well as the physico-chemical properties of the soil, as found in previous research [69].
It is mainly the sprawl from FeMoDo towards the periphery that constitutes the permanent active zone due to cropping systems. High values of NPP are observed in patterns consisting of croplands and agroforestry systems under some agroecological practices (around FeMoDo). Whatever the specific patterns of high-productivity processes, the land is continuously exploited for a range of products (maize, cassava groundnut, palms, pineapple, and exotic fruits). This might explain the relatively high rate of NPP in this area. A contribution to green or dead organic matter may also be made by agroecological practices promoted by various NGOs through national and local projects [70].
The different types of mulching practiced in FeMoDo are inspired by ecological principles and social and economic aspects. They show a positive effect on landscape patterns along the positive gradient of crop cover. Phytomass residues from the cultivation process or raw materials from living green plants improve soil quality. This remains a crucial production factor for most of the vulnerable rural communities in Donomadé. A study in Tanzania showed that the plant biomass on agroforestry plots was 70% higher than on conventional annual crop plots [71]. Other studies have confirmed that agroecological practices, such as crop rotation, soil management, and the use of biological pests and disease control methods, can improve vegetation health [72,73].
Thus, vegetation health is an essential indicator that measures the effectiveness of agroecological practices on socioecological production factors. Several scientific studies have proposed biomass as an agronomic parameter for crop growth, development, and nutrition [74,75]. In tropical subregions, such as the area in the current study, sustainable management of natural resources for the benefit of the resilience of rural communities has been identified as a vital need. The role of Earth observation data in monitoring vegetation status has never been more critical [76].

5. Conclusions

Agroecological practices can bring many benefits to farmers, society, and the environment. In FeMoDo, several agricultural practices make use of mulching. Local conditions and socio-economic factors must be taken into account when deciding on the best method. Based on the observations from the mapping products, between 2015 and 2020, there was a significant level of vegetative stress in the low-geomorphic, grassland-dominated areas that are highly prone to wildfire. Changes in biomass productivity around the FeMoDo vegetation due to climate change and anthropogenic pressures can significantly impact ecosystem processes and biodiversity. This study recommends diversifying forest residues by increasing plant diversity. This alternative could positively impact the quality of plant habitats and the long-term availability of biomass.

Author Contributions

F.F. conceptualized the work, analyzed the data, and wrote the first draft. B.D., W.A., H.P. and I.P.N. have evaluated the statistical analysis and contributed to the manuscript editing. A.D., C.G., K.W., K.B. and K.A. have approved the design of methodology and validated the research outputs. A.D. and C.G. have facilitated the acquisition of the financial support for the project leading to this publication. All authors have read and agreed to the published version of the manuscript.

Funding

The research is funded by the Swiss National Science Foundation (SNSF) for funding this project [Grant number IZSTZ0_193032].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors thank the Swiss National Science Foundation (SNSF) for funding this project [Grant number IZSTZ0_193032]. The authors also thank Koffi Attiogbe, Attiogbé Agbewanou for facilitating field assessment. May the Forest Management and Development, Institute of Terrestrial Ecosystems, Department of Environmental Systems Science, ETH Zürich, Zürich, Switzerland, the Laboratory of Botany and Plant Ecology (LBEV) of University of Lomé (Togo), and the NGOs “Etoile Verte” and Happy Togo accept our gratitude for their solid support.

Conflicts of Interest

The authors declare that they have no competing interest.

References

  1. Zhu, B.; Hashimoto, S.; Cushman, S.A. A two concentric circles model incorporating availability of ecosystem services and affordability of humans to clarify the ecological security concept. Ecol. Model. 2023, 481, 110343. [Google Scholar] [CrossRef]
  2. OECD-FAO. L’agriculture en Afrique subsaharienne: Perspectives et enjeux de la décennie à venir. In Perspectives Agricoles de l’OCDE et de la FAO 2016–2025; FAO: Rome, Italy, 2016; pp. 63–104. [Google Scholar]
  3. Peng, J.; Wang, X.; Liu, Y.; Zhao, Y.; Xu, Z.; Zhao, M.; Qiu, S.; Wu, J. Urbanization impact on the supply-demand budget of ecosystem services: Decoupling analysis. Ecosyst. Serv. 2020, 44, 101139. [Google Scholar] [CrossRef]
  4. Amharref, M.; Aassine, S.; Bernoussi, A.S.; Haddouchi, B.Y. Cartographie de la vulnérabilité à la pollution des eaux souterraines: Application à la plaine du Gharb (Maroc). Rev. Sci. L’eau 2007, 20, 185–199. [Google Scholar] [CrossRef] [Green Version]
  5. Seguin, B.; Soussana, J.-F. Emissions de gaz à effet de serre et changement climatique: Causes et conséquences observées pour l’agriculture et l’élevage. Courr. L’environ. L’inra 2008, 55, 79–91. [Google Scholar]
  6. Folega, F.; Datche-Danha, K.E.; Folega, A.A.; Woegan, A.Y.; Wala, K.; Akpagana, K. Diversité des services écosystémiques et utilisation des terres dans le paysage du socle Eburnéen au Togo. Rev. Nat. Technol. 2022, 14, 61–75. [Google Scholar]
  7. Kanda, M.; Djaneye-Boundjou, G.; Wala, K.; Gnandi, K.; Batawila, K.; Sanni, A.; Akpagana, K. Application des pesticides en agriculture maraichère au Togo. VertigO 2013, 13, 1–19. [Google Scholar] [CrossRef]
  8. Abalo-Esso, M.; Agossou, G.-T.; Blavet, D.; Hien, E.; Chotte, J.L. Dégradation de la fertilité des sols et de l’environnement dans la Région des Savanes au Nord-Togo: Analyse des perceptions et stratégies d’adaptation indigènes. Eur. Sci. J. 2021, 17, 40–65. [Google Scholar] [CrossRef]
  9. Anani, C.K.S.; Tounou, A.K.; Agboka, K.; Gnon, T.; Kotor, K.E.S. Analyse des impacts agroenvironnementaux et socioéconomiques des systèmes de culture d’ananas (Ananas comosus L.) au Sud-Togo. J. Appl. Biosci. 2020, 153, 15807–15820. [Google Scholar]
  10. Gnissien, M.; Coulibaly, K.; Senou, I.; Yameogo, T.J.; Nacro, B.H. Diversité des systèmes de cultures et des modes de gestion des ligneux arborés et arbustifs des parcs agroforestiers en zone nord-soudanienne du Burkina Faso. Sci. Nat. Agron. 2022, 41, 81–89. [Google Scholar]
  11. Berger, K.; Hank, T.; Halabuk, A.; Rivera-Caicedo, J.P.; Wocher, M.; Mojses, M.; Gerhátová, K.; Tagliabue, G.; Dolz, M.M.; Venteo, A.B.P. Assessing non-photosynthetic cropland biomass from spaceborne hyperspectral imagery. Remote Sens. 2021, 13, 4711. [Google Scholar] [CrossRef]
  12. Tigges, J.; Lakes, T. High resolution remote sensing for reducing uncertainties in urban forest carbon offset life cycle assessments. Carbon Balance Manag. 2017, 12, 1–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jiang, Z.; Huete, A.R.; Didan, K.; Miura, T. Development of a two-band enhanced vegetation index without a blue band. Remote Sens. Environ. 2008, 112, 3833–3845. [Google Scholar] [CrossRef]
  14. Riva, M.J.; Daliakopoulos, I.N.; Eckert, S.; Hodel, E.; Liniger, H. Assessment of land degradation in Mediterranean forests and grazing lands using a landscape unit approach and the normalized difference vegetation index. Appl. Geogr. 2017, 86, 8–21. [Google Scholar] [CrossRef]
  15. Evangelides, C.; Nobajas, A. Red-Edge Normalised Difference Vegetation Index (NDVI705) from Sentinel-2 imagery to assess post-fire regeneration. Remote Sens. Appl. Soc. Environ. 2020, 17, 100283. [Google Scholar] [CrossRef]
  16. Mallinis, G.; Mitsopoulos, I.; Chrysafi, I. Evaluating and comparing Sentinel 2A and Landsat-8 Operational Land Imager (OLI) spectral indices for estimating fire severity in a Mediterranean pine ecosystem of Greece. GIScience Remote Sens. 2018, 55, 1–18. [Google Scholar] [CrossRef]
  17. Cardil, A.; Mola-Yudego, B.; Blázquez-Casado, Á.; González-Olabarria, J.R. Fire and burn severity assessment: Calibration of Relative Differenced Normalized Burn Ratio (RdNBR) with field data. J. Environ. Manag. 2019, 235, 342–349. [Google Scholar] [CrossRef]
  18. Gadédjisso-Tossou, A. Understanding farmers’ perceptions of and adaptations to climate change and variability: The case of the Maritime, Plateau and Savannah Regions of Togo. Agric. Sci. 2015, 6, 1441. [Google Scholar] [CrossRef] [Green Version]
  19. Munang, R.; Andrews, J.; Alverson, K.; Mebratu, D. Harnessing ecosystem-based adaptation to address the social dimensions of climate change. Environ. Sci. Policy Sustain. Dev. 2014, 56, 18–24. [Google Scholar] [CrossRef]
  20. Adjanke, A.; Tona, K.; Gbeassor, M. Effects of frequency of feeding on feed intake, growth and survival of Nile Tilapia, Oreochromis niloticus reared in hapas implanted in pond in Togo. Int. J. Fish. Aquat. Stud. 2021, 9, 350–353. [Google Scholar] [CrossRef]
  21. Akodéwou, A.; Oszwald, J.; Gazull, L.; Akpavi, S.; Akpagana, K.; Gond, V.; Saidi, S. Land Use and Land Cover Dynamics Analysis of the Togodo Protected Area and Its Surroundings in Southeastern Togo, West Africa. Sustainability 2020, 12, 5439. [Google Scholar] [CrossRef]
  22. Akodéwou, A.; Godron, M. Agricultural land-use increases flo-ral species richness in tropical dry forest and savannah ecosystems in West Africa. Diversity 2022, 14, 106. [Google Scholar] [CrossRef]
  23. Abalo, M.; Badabate, D.; Fousseni, F.; Kpérkouma, W.; Koffi, A. Landscape-based analysis of wetlands patterns in the Ogou River basin in Togo (West Africa). Environ. Chall. 2021, 2, 100013. [Google Scholar] [CrossRef]
  24. Gnansounou, S.C.; Salako, K.V.; Sagoe, A.A.; Mattah, P.A.D.; Aheto, D.W.; Glèlè Kakaï, R. Mangrove ecosystem services, associated threats and implications for wellbeing in the Mono Transboundary Biosphere Reserve (Togo-Benin), West-Africa. Sustainability 2022, 14, 2438. [Google Scholar] [CrossRef]
  25. Sodokin, K.; Nyatefe, V. Cash transfers, climate shocks vulnerability and households’ resilience in Togo. Discov. Sustain. 2021, 2, 3. [Google Scholar] [CrossRef]
  26. Copernicus Open Access Hub. Welcome to the Copernicus Open Access Hub. 2022. Available online: https://scihub.copernicus.eu/ (accessed on 16 June 2023).
  27. Directorate for Space, Security & Migration, European Commission’s Joint Research Centre. Copernicus Emergency Management Service. 2017. Available online: https://emergency.copernicus.eu/ (accessed on 16 June 2023).
  28. European Space Agency (ESA). Sentinel-2 User Handbook; ESA Standard Document Date; ESA-HQ: Paris, France, 2015; Volume 1, pp. 1–64. [Google Scholar]
  29. Song, C.; Woodcock, C.E.; Seto, K.C.; Lenney, M.P.; Macomber, S.A. Classification and change detection using Landsat TM data: When and how to correct atmospheric effects? Remote Sens. Environ. 2001, 75, 230–244. [Google Scholar] [CrossRef]
  30. Plakman, V.; Janssen, T.; Brouwer, N.; Veraverbeke, S. Mapping species at an individual-tree scale in a temperate forest, using sentinel-2 images, airborne laser scanning data, and random forest classification. Remote Sens. 2020, 12, 3710. [Google Scholar] [CrossRef]
  31. Folega, F.; Atakpama, W.; Wala, K.; Mukete, B.; Shozo, S.; Akira, O.; Zhao, X.-h.; Akpagana, K. Land use patterns and tree species diversity in the Volta Geological Unit, Togo. J. Mt. Sci. 2019, 16, 1869–1882. [Google Scholar] [CrossRef]
  32. Nazeer, M.; Nichol, J.E. Combining landsat TM/ETM+ and HJ-1 A/B CCD sensors for monitoring coastal water quality in Hong Kong. IEEE Geosci. Remote Sens. Lett. 2015, 12, 1898–1902. [Google Scholar] [CrossRef]
  33. Lamboni, M. Analyses des Données RGPH4-Novembre 2010 (État Matrimonial et Nupitialité); Institut National de la Statistique et des Études Économiques et Démographiques (INSEED-TOGO): Lomé, Togo, 2016. [Google Scholar]
  34. Storey, E.A.; Lee West, K.R.; Stow, D.A. Utility and optimization of LANDSAT-derived burned area maps for southern California. Int. J. Remote Sens. 2021, 42, 486–505. [Google Scholar] [CrossRef]
  35. Bright, B.C.; Hudak, A.T.; Kennedy, R.E.; Braaten, J.D.; Henareh Khalyani, A. Examining post-fire vegetation recovery with Landsat time series analysis in three western North American forest types. Fire Ecol. 2019, 15, 8. [Google Scholar] [CrossRef] [Green Version]
  36. Alcaras, E.; Costantino, D.; Guastaferro, F.; Parente, C.; Pepe, M. Normalized Burn Ratio Plus (NBR+): A new index for sentinel-2 imagery. Remote Sens. 2022, 14, 1727. [Google Scholar] [CrossRef]
  37. Kumar, M.; Monteith, J. Remote sensing of crop growth. In Plants and the Daylight Spectrum; Academic Press: Cambridge, MA, USA, 1981; pp. 133–144. [Google Scholar]
  38. Tao, F.; Yokozawa, M.; Zhang, Z.; Xu, Y.; Hayashi, Y. Remote sensing of crop production in China by production efficiency models: Models comparisons, estimates and uncertainties. Ecol. Model. 2005, 183, 385–396. [Google Scholar] [CrossRef]
  39. Zhu, Q.; Zhao, J.; Zhu, Z.; Zhang, H.; Zhang, Z.; Guo, X.; Bi, Y.; Sun, L. Remotely sensed estimation of net primary productivity (NPP) and its spatial and temporal variations in the Greater Khingan Mountain region, China. Sustainability 2017, 9, 1213. [Google Scholar] [CrossRef] [Green Version]
  40. Wang, Y.; Xu, X.; Huang, L.; Yang, G.; Fan, L.; Wei, P.; Chen, G. An improved CASA model for estimating winter wheat yield from remote sensing images. Remote Sens. 2019, 11, 1088. [Google Scholar] [CrossRef] [Green Version]
  41. Bastiaanssen, W.G.; Ali, S. A new crop yield forecasting model based on satellite measurements applied across the Indus Basin, Pakistan. Agric. Ecosyst. Environ. 2003, 94, 321–340. [Google Scholar] [CrossRef]
  42. Zhang, Y.; Xu, M.; Chen, H.; Adams, J. Global pattern of NPP to GPP ratio derived from MODIS data: Effects of ecosystem type, geographical location and climate. Glob. Ecol. Biogeogr. 2009, 18, 280–290. [Google Scholar] [CrossRef]
  43. Los, S.O.; Justice, C.; Tucker, C. A global 1 by 1 NDVI data set for climate studies derived from the GIMMS continental NDVI data. Int. J. Remote Sens. 1994, 15, 3493–3518. [Google Scholar] [CrossRef]
  44. Veloso, G.A. Produtividade Primária Bruta e Biomassa em Pastagem no Bioma Cerrado: Uma Análise a Partir dos Modelos SEBAL/CASA e MOD17 no estado de Goiás. Ph.D. Thesis, Universidade Federal de Goiás, Goiás, Brasil, 2018. [Google Scholar]
  45. Wang, Y.; Yan, G.; Xie, D.; Hu, R.; Zhang, H. Generating long time series of high spatiotemporal resolution FPAR images in the remote sensing trend surface framework. IEEE Trans. Geosci. Remote Sens. 2021, 60, 4401915. [Google Scholar] [CrossRef]
  46. Peng, D.; Zhang, B.; Liu, L.; Fang, H.; Chen, D.; Hu, Y.; Liu, L. Characteristics and drivers of global NDVI-based FPAR from 1982 to 2006. Glob. Biogeochem. Cycles 2012, 26, GB3015. [Google Scholar] [CrossRef] [Green Version]
  47. Zhu, M.; Zhang, J.; Zhu, L. Variations in growing season NDVI and its sensitivity to climate change responses to green development in mountainous areas. Front. Environ. Sci. 2021, 9, 678450. [Google Scholar] [CrossRef]
  48. Jiang, S.; Huang, Y.; Zhao, L.; Cui, N.; Wang, Y.; Hu, X.; Zheng, S.; Zou, Q.; Feng, Y.; Guo, L. Effects of clouds and aerosols on ecosystem exchange, water and light use efficiency in a humid region orchard. Sci. Total Environ. 2022, 811, 152377. [Google Scholar] [CrossRef]
  49. Moussa, A. Classification of Climates according to Vegetation, Rainfall and Temperature (Togo). Master’s Thesis, University of Lomé, Lomé, Togo, 2008. [Google Scholar]
  50. Folega, F.; Woegan, Y.A.; Marra, D.; Wala, K.; Batawila, K.; Seburanga, J.L.; Zhang, C.y.; Peng, D.l.; Zhao, X.h.; Akpagana, K. Long term evaluation of green vegetation cover dynamic in the Atacora Mountain chain (Togo) and its relation to carbon sequestration in West Africa. J. Mt. Sci. 2015, 12, 921–934. [Google Scholar] [CrossRef]
  51. Field, C.B.; Behrenfeld, M.J.; Randerson, J.T.; Falkowski, P. Primary production of the biosphere: Integrating terrestrial and oceanic components. Science 1998, 281, 237–240. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Sun, J.; Yue, Y.; Niu, H. Evaluation of NPP using three models compared with MODIS-NPP data over China. PLoS ONE 2021, 16, e0252149. [Google Scholar] [CrossRef]
  53. Xie, X.; Li, A.; Tan, J.; Jin, H.; Nan, X.; Zhang, Z.; Bian, J.; Lei, G. Assessments of gross primary productivity estimations with satellite data-driven models using eddy covariance observation sites over the northern hemisphere. Agric. For. Meteorol. 2020, 280, 107771. [Google Scholar] [CrossRef]
  54. De Leeuw, J.; Rizayeva, A.; Namazov, E.; Bayramov, E.; Marshall, M.T.; Etzold, J.; Neudert, R. Application of the MODIS MOD 17 Net Primary Production product in grassland carrying capacity assessment. Int. J. Appl. Earth Obs. Geoinf. 2019, 78, 66–76. [Google Scholar] [CrossRef]
  55. Monette, M.; Hénault-Ethier, L.; Rony, F.J.; Beaudoin Nadeau, M.; Michel, G. Restauration des paysages forestiers et agroforestiers jumelée à la valorisation des déchets organiques en Haïti pour le développement durable d’une économie verte résiliente aux changements climatiques. Haiti Perspect. 2018, 6, 33–42. [Google Scholar]
  56. Gazull, L. Les filières agricoles et forestières du Sud à l’heure des bioénergies. In Développement Durable et Filières Tropicales; Biénabe, E., Lœillet, D., Rival, A., Eds.; Quae: Versailles, France, 2016; pp. 171–182. [Google Scholar]
  57. Diogo, R.V.; Adedigba, S.; Djedje, M.; Dossa, L.H. Gestion et contribution des résidus de récolte à la réduction du déficit alimentaire des élevages traditionnels de petits ruminants dans la zone soudanienne du Nord Bénin. Ann. UP Série Sci. Nat. Agron 2018, 8, 1–12. [Google Scholar]
  58. Inda, H.; García-Rodríguez, F.; del Puerto, L.; Stutz, S.; Figueira, R.C.L.; de Lima Ferreira, P.A.; Mazzeo, N. Discriminating between natural and human-induced shifts in a shallow coastal lagoon: A multidisciplinary approach. Anthropocene 2016, 16, 1–15. [Google Scholar] [CrossRef]
  59. Djan’na, K.H.; Atchonouglo, K.; Adounkpe, J.G.; Diwediga, B.; Lombo, Y.; Kpemoua, K.E.; Agboka, K. Changes In Land Use/Cover And Water Balance Components During 1964–2010 Period In The Mono River Basin, Togo-Benin. Geogr. Environ. Sustain. 2023, 15, 171–180. [Google Scholar] [CrossRef]
  60. Bengston, D.N.; Fan, D.P.; Celarier, D.N. A new approach to monitoring the social environment for natural resource management and policy: The case of US national forest benefits and values. J. Environ. Manag. 1999, 56, 181–193. [Google Scholar] [CrossRef]
  61. Zhu, Z.; Woodcock, C.E. Continuous change detection and classification of land cover using all available Landsat data. Remote Sens. Environ. 2014, 144, 152–171. [Google Scholar] [CrossRef] [Green Version]
  62. Herrmann, S.M.; Anyamba, A.; Tucker, C.J. Recent trends in vegetation dynamics in the African Sahel and their relationship to climate. Glob. Environ. Chang. 2005, 15, 394–404. [Google Scholar] [CrossRef]
  63. Meneses, B.M. Vegetation recovery patterns in burned areas assessed with landsat 8 OLI imagery and environmental biophysical data. Fire 2021, 4, 76. [Google Scholar] [CrossRef]
  64. Akodéwou, A.; Oszwald, J.; Akpavi, S.; Gazull, L.; Akpagana, K.; Gond, V. Problématique des plantes envahissantes au sud du Togo (Afrique de l’Ouest): Apport de l’analyse systémique paysagère et de la télédétection. Biotech. Agron. Soc. 2019, 23, 1–16. [Google Scholar]
  65. Tian, Z.; Qin, T.; Wang, H.; Li, Y.; Yan, S.; Hou, J.; Li, C.; Abebe, S. Delayed response of net primary productivity with climate change in the Yiluo River basin. Front. Earth Sci. 2023, 10, 1017819. [Google Scholar] [CrossRef]
  66. Ma, B.; Jing, J.; Liu, B.; Xu, Y.; Dou, S.; He, H. Spatiotemporal variation of net primary productivity influenced by climatic variables in the karst area of China. Geocarto Int. 2022, 37, 1–19. [Google Scholar] [CrossRef]
  67. Houot, S.; Pons, M.-N.; Pradel, M.; Tibi, A. Recyclage de Déchets Organiques en Agriculture: Effets Agronomiques et Environnementaux de Leur Épandage; Editions Quae: Montpellier, France, 2016. [Google Scholar]
  68. Cheng, Q.; Gao, L.; Zhong, F.; Zuo, X.; Ma, M. Spatiotemporal variations of drought in the Yunnan-Guizhou Plateau, southwest China, during 1960–2013 and their association with large-scale circulations and historical records. Ecol. Indic. 2020, 112, 106041. [Google Scholar] [CrossRef]
  69. Hu, X.; Hou, Y.; Li, D.; Hua, T.; Marchi, M.; Urrego, J.; Huang, B.; Cherubini, F. Changes in multiple ecosystem services and their influencing factors in Nordic countries. Ecol. Indic. 2023, 146, 109847. [Google Scholar] [CrossRef]
  70. Mier y Terán Giménez Cacho, M.; Giraldo, O.F.; Aldasoro, M.; Morales, H.; Ferguson, B.G.; Rosset, P.; Khadse, A.; Campos, C. Bringing agroecology to scale: Key drivers and emblematic cases. Agroecol. Sustain. Food Syst. 2018, 42, 637–665. [Google Scholar] [CrossRef]
  71. Rufino, M.C.; Dury, J.; Tittonell, P.; Van Wijk, M.T.; Herrero, M.; Zingore, S.; Mapfumo, P.; Giller, K.E. Competing use of organic resources, village-level interactions between farm types and climate variability in a communal area of NE Zimbabwe. Agric. Syst. 2011, 104, 175–190. [Google Scholar] [CrossRef]
  72. Renaud, S.; Colin, D. Les Rotaztions de Culture: Intérêt en Agriculture Biologique. Master’s Thesis, Université de Rennes, Rennes, France, 2017. [Google Scholar]
  73. Perrin, B.; Lefevre, A. L’association culturale, un levier pour améliorer santé des plantes, fertilité du sol et production des systèmes de culture maraichers diversifiés? Innov. Agron. 2019, 76, 51–70. [Google Scholar] [CrossRef]
  74. Liu, Y.; Feng, H.; Yue, J.; Li, Z.; Yang, G.; Song, X.; Yang, X.; Zhao, Y. Remote-sensing estimation of potato above-ground biomass based on spectral and spatial features extracted from high-definition digital camera images. Comput. Electron. Agric. 2022, 198, 107089. [Google Scholar] [CrossRef]
  75. Lu, N.; Zhou, J.; Han, Z.; Li, D.; Cao, Q.; Yao, X.; Tian, Y.; Zhu, Y.; Cao, W.; Cheng, T. Improved estimation of aboveground biomass in wheat from RGB imagery and point cloud data acquired with a low-cost unmanned aerial vehicle system. Plant Methods 2019, 15, 17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Abdelkarim, A. Monitoring and forecasting of land use/land cover (LULC) in Al-Hassa Oasis, Saudi Arabia based on the integration of the Cellular Automata (CA) and the Cellular Automata-Markov Model (CA-Markov). Geol. Ecol. Landsc. 2023. [CrossRef]

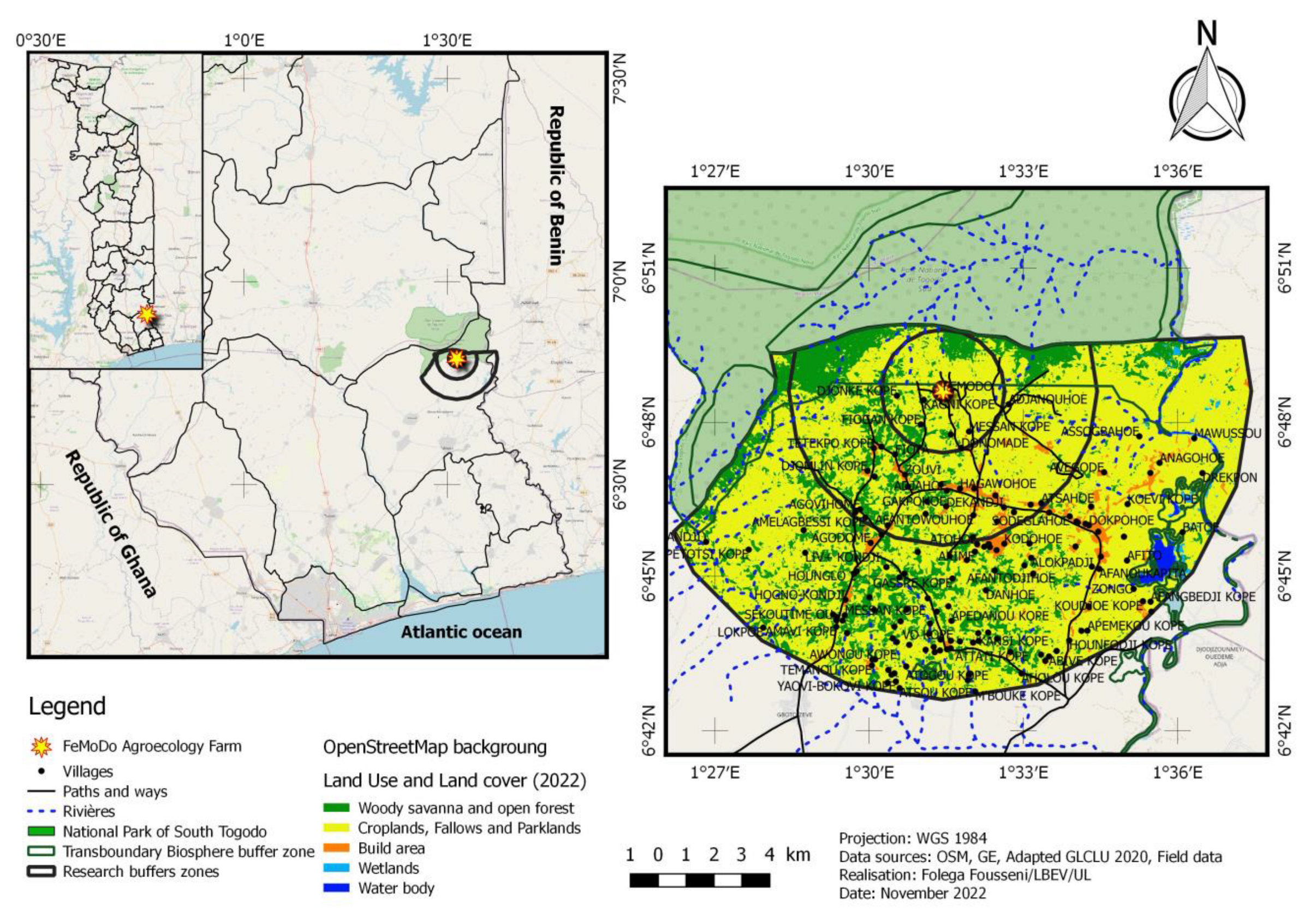

Figure 1. Study area.
Figure 1. Study area.
Applsci 13 09106 g001

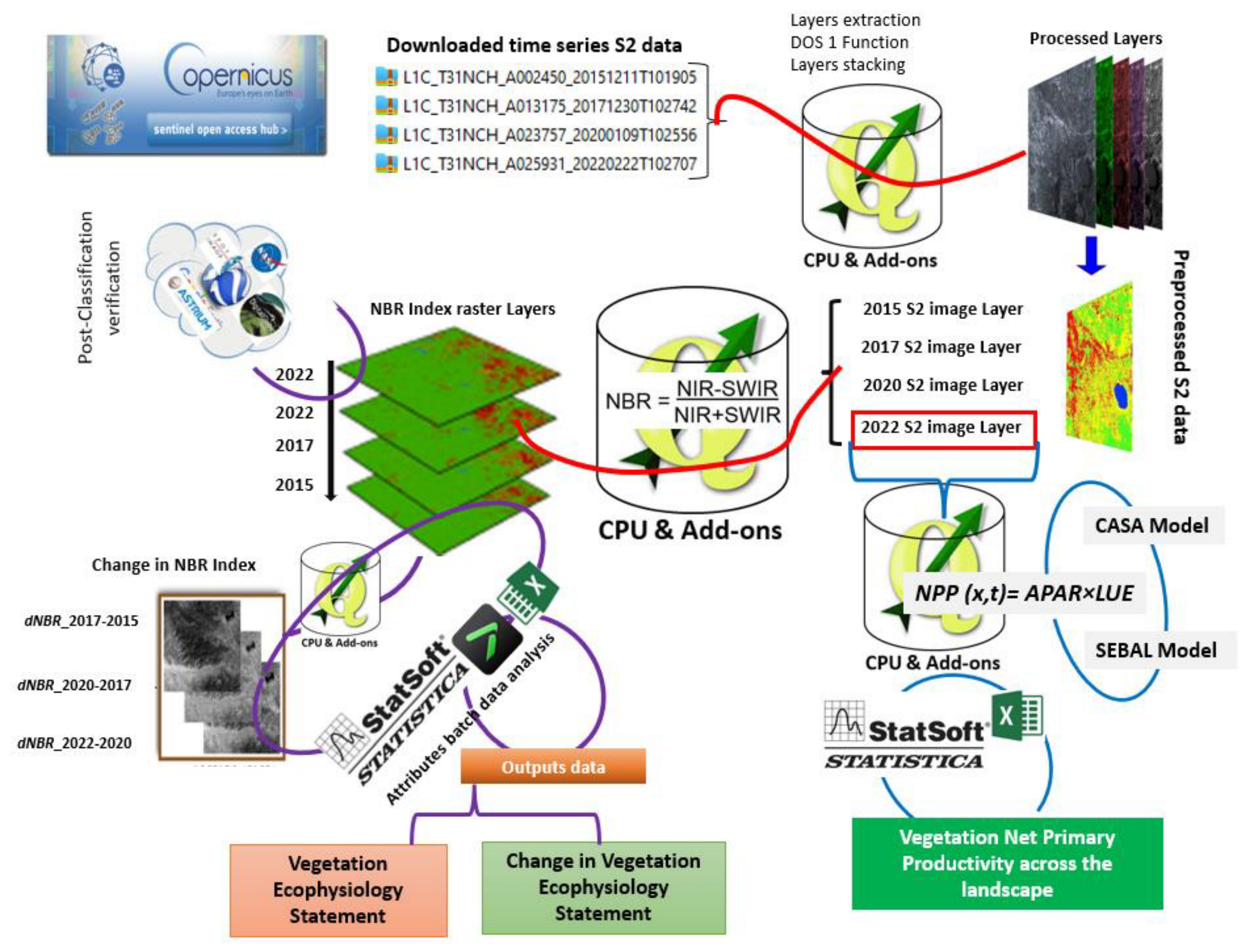

Figure 2. Workflow of the whole approach.
Figure 2. Workflow of the whole approach.
Applsci 13 09106 g002
Figure 3. Distribution of normalized burn ratio (NBR) means across the time series.
Figure 3. Distribution of normalized burn ratio (NBR) means across the time series.
Applsci 13 09106 g003
Figure 4. Spatial patterns of vegetation ecophysiological conditions in 2022.
Figure 4. Spatial patterns of vegetation ecophysiological conditions in 2022.
Applsci 13 09106 g004
Figure 5. Distribution of normalized burn ratio (NBR) means across the time series (2015, 2017, 2020 and 2022).
Figure 5. Distribution of normalized burn ratio (NBR) means across the time series (2015, 2017, 2020 and 2022).
Applsci 13 09106 g005
Figure 6. Interannual burn severity mean statistics.
Figure 6. Interannual burn severity mean statistics.
Applsci 13 09106 g006
Figure 7. Change in spatial patterns of vegetation ecophysiology.
Figure 7. Change in spatial patterns of vegetation ecophysiology.
Applsci 13 09106 g007
Figure 8. Changes in vegetation health condition statistics.
Figure 8. Changes in vegetation health condition statistics.
Applsci 13 09106 g008
Figure 9. Estimated NPP validation regression curve.
Figure 9. Estimated NPP validation regression curve.
Applsci 13 09106 g009
Figure 10. Estimated NPP spatial pattern distribution map.
Figure 10. Estimated NPP spatial pattern distribution map.
Applsci 13 09106 g010
Table 1. Nature of Sentinel-2B images [28].
Table 1. Nature of Sentinel-2B images [28].
Sentinel-2BCenter Wavelength (nm)Spatial Resolution (m)
Band 1—Coastal aerosol442.260
Band 2—Blue492.110
Band 3—Green559.010
Band 4—Red664.910
Band 5—Vegetation red edge703.820
Band 6—Vegetation red edge739.120
Band 7—Vegetation red edge779.720
Band 8—NIR832.910
Band 8A—Narrow NIR864.020
Band 9—Water vapor943.260
Band 10—SWIR—Cirrus1376.960
Band 11—SWIR1610.420
Band 12—SWIR2185.720
Table 2. Burn severity levels obtained by calculating dNBR, proposed by USGS [35].
Table 2. Burn severity levels obtained by calculating dNBR, proposed by USGS [35].
Severity LeveldNBR Range (Scaled by 103)dNBR Range (Not Scaled)
Enhanced regrowth, high (post-fire)−500 to −251−0.500 to −0.251
Enhanced regrowth, low (post-fire)−250 to −101−0.250 to −0.101
Unburned−100 to +99−0.100 to +0.99
Low severity+100 to +269+0.100 to +0.269
Moderate–low severity+270 to +439+0.270 to +0.439
Moderate–high severity+440 to +659+0.440 to +0.659
High severity+660 to +1300+0.660 to +1.300
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Folega, F.; Atakpama, W.; Pereki, H.; Diwediga, B.; Novotny, I.P.; Dray, A.; Garcia, C.; Wala, K.; Batawila, K.; Akpagana, K. Geo-Based Assessment of Vegetation Health Related to Agroecological Practices in the Southeast of Togo. Appl. Sci. 2023, 13, 9106. https://doi.org/10.3390/app13169106

AMA Style

Folega F, Atakpama W, Pereki H, Diwediga B, Novotny IP, Dray A, Garcia C, Wala K, Batawila K, Akpagana K. Geo-Based Assessment of Vegetation Health Related to Agroecological Practices in the Southeast of Togo. Applied Sciences. 2023; 13(16):9106. https://doi.org/10.3390/app13169106

Chicago/Turabian Style

Folega, Fousseni, Wouyo Atakpama, Hodabalo Pereki, Badabaté Diwediga, Ivan Pontin Novotny, Anne Dray, Claude Garcia, Kperkouma Wala, Komlan Batawila, and Kofi Akpagana. 2023. "Geo-Based Assessment of Vegetation Health Related to Agroecological Practices in the Southeast of Togo" Applied Sciences 13, no. 16: 9106. https://doi.org/10.3390/app13169106

APA Style

Folega, F., Atakpama, W., Pereki, H., Diwediga, B., Novotny, I. P., Dray, A., Garcia, C., Wala, K., Batawila, K., & Akpagana, K. (2023). Geo-Based Assessment of Vegetation Health Related to Agroecological Practices in the Southeast of Togo. Applied Sciences, 13(16), 9106. https://doi.org/10.3390/app13169106

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
