Behavioral Indicator-Based Initial Flight Training Competency Assessment Model

Flight Technology and Flight Safety Research Base, Civil Aviation Flight University of China, Guanghan 618307, China
School of Airport, Civil Aviation Flight University of China, Guanghan 618307, China
School of Economics and Management, Civil Aviation Flight University of China, Guanghan 618307, China
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(10), 6346;
Submission received: 6 April 2023 / Revised: 16 May 2023 / Accepted: 18 May 2023 / Published: 22 May 2023
(This article belongs to the Special Issue Research on Aviation Safety)


Ensuring training safety is paramount to flight schools. In response to the inadequacy of traditional flight training assessment for comprehensive quantitative evaluation of cadet competency, an initial flight training competency assessment standard based on behavioral indicators was developed and optimized using the VENN model. Firstly, the Assessor Score Measurement Form (ASMF) was constructed according to the requirements of the Training Evaluation Worksheet specification, such as typical subjects, observations, and completion criteria. Secondly, based on the basic principles of the experience of the flight expert and the Competency-Based Training and Assessment (CBTA), a matrix of correlations between the observations and each competency-based behavioral indicator was created to construct a competency assessment matrix. In addition, a two-dimensional model for representing competency items characterized by behavioral indicators was established and an optimization model for competency assessment criteria was constructed. Finally, through combining actual flight training data, the proposed method was validated in the flight screening check phase. The results show that the optimized flight training competency assessment scheme can be well quantified and matched to real instructor ratings with an accuracy of 84%. The assessment worksheet, the assessment matrix, and the VENN competency rating model can be adapted to the different teaching requirements of each flight phase, achieving a perfect match between the behavioral indicators and the competency items, which is highly versatile. The proposed model can more accurately reflect the core competencies of flight trainees, enable quantitative assessment of behavioral indicators and competency items, and provide support for subsequent training of trainees.

1. Introduction

The Airline Transport Pilot License theory test (ATPL) is a test that students must pass to work in airline transport. The initial flight training is a key stage in helping students build the comprehensive skills needed to enter airline transport flight in the future. The purpose of the training evaluation of the students in the ATPL flight school is to evaluate the skills that they show during the training, finding their skill structure deficiencies and optimizing the training program. Significant safety risks may arise on subsequent flights if the training is not tailored to the relevant technical requirements and training characteristics. For example, on 29 October 2018, a B-737 Max aircraft operated by Indonesia’s Lion Air Airlines with call sign PK-LQP crashed into the Java Sea at 23:31:53 UTC. All 189 people on board were killed, and the aircraft was destroyed. In this case, the pilot’s lack of training in the specific Maneuvering Characteristics Augmentation System (MCAS) technique was the cause of the accident. Therefore, a comprehensive and accurate flight capability assessment is essential to ensure the quality and progress of flight training. The current training evaluation of flight students in flight schools mainly relies on the experienced judgment of highly qualified flight instructors. However, with the rapid development of civil aviation, the traditional training evaluation method has two major flaws. On one hand, the trainees remain only at the pass or fail stage, with the assessment lacking a comprehensive picture of the cadet’s ability structure, which is not in line with the Pilot Skills Life Cycle Management (PLM) concept proposed by the civil aviation industry; on the other hand, the implementation of standards by different flight instructors may lead to different assessment criteria, making it difficult to ensure the objectivity and stability of the assessment’s results. Therefore, there is an urgent need to change the initial training quality assessment method from the old “tick-box” and “fixed subject” training quality assessment to a core Competency-Based Training Assessment (CBTA) based on Observable Behaviors (OB) [1]. For this purpose, it is necessary to rely on the core competency assessment index system established by the International Civil Aviation Organization (ICAO) in order to optimize the flight training competency assessment scheme, achieve refinement and precision in assessing flight competence, and solve the practical problems associated with the traditional instructor assessment, which is more subjective and less stable.
In connection with the development of sensors, the Internet of Things, and artificial intelligence, in the field of aviation, aircraft have a large number of different types of sensor devices. The research on evaluating based on sensing data has attracted much attention worldwide. Researchers conducted numerous studies on aviation safety [2,3,4], flight quality [5], and flight monitoring [6,7,8] with the help of sensor flight parameter data, and provided a large amount of data in support of flight operation quality assessment [9,10,11]. From a psychological perspective, the evolution of human-based behavioral research was accompanied by the development of human-monitoring devices. In the field of civil aviation, many researchers investigated the relationship between pilots’ physiological factors and flight operation behavior [12,13,14]. However, as research on “pilot competence” intensified, the research on flight quality shifted to the core competencies of pilots via analyzing industry characteristics and behavioral traits [15]. The research on flight quality based on competencies, therefore, became of the main focuses of research.
Until now, the evaluation of flight operation quality in China and abroad was conducted from three perspectives: flight parameter data, pilot physiological parameter data, and pilot core competency data. Firstly, in terms of flight parameter data, researchers utilized big data from the Quick Access Recorder (QAR) to quantify the operational quality of pilots. For example, Liu S. et al. [16] developed a system to evaluate flight operation performance and a quantitative evaluation method model based on QAR data. One or more flight parameters were selected for combination to objectively evaluate the pilot’s flight operation performance. Sembiring J. et al. [17] estimated the parameters of some aircraft parameters for subsequent flight maneuver evaluation using aircraft quick access recorder data via the output error method based on the maximum likelihood principle and the classical least squares method. Wang L. et al. [5,11,18] analyzed the QAR data to extract and characterize the flight parameters of the aircraft during the landing and propose preventive measures from the perspective of the pilot operation. In summary, from the perspective of flight parameter data, existing methods are able to overcome the subjectivity of instructor evaluation, rely on flight data, and match data to operational capability through the knowledge transformation paradigm to achieve digital quantitative evaluation, fully exploiting the obvious advantages of flight big data in measuring pilot operational capability. However, the variability in cadets’ flight skills and the complexity of training scenarios lead to poor quality of actual flight data, making it difficult to conduct scientific and standardized data analysis. Furthermore, flight data are only a concrete demonstration of behavioral actions in flight operations, which does not include the assessment of deeper physiological and psychological factors behind the iceberg theory.
In terms of physiological parameters, related researchers use relevant physiological data, such as the pilot’s heart rate, heartbeat, and respiration rate, to make a comprehensive and holistic evaluation of flight operation quality. For example, Lahtinen et al. [19] showed that heart rates reflect the magnitude of cognitive load during simulated flight through recording Electrocardiograms (ECGs) and calculating individual Incremental Heart Rates (IHR) at rest during each flight phase and using them for statistical analysis. Maciejewska et al. [20] analyzed pilots’ psychophysiological states according to their cardiovascular work, examining Heart Rate Variability (HRV) parameters. In summary, in the quantitative research of flight maneuver quality evaluation, scholars mostly used QAR data or psychological signal data as the basis; selected internal indicators; and established corresponding evaluation models, which can evaluate the overall training quality. Through the changes in physiological factor indicators, this method can reflect the pilot’s flight physiological state to a certain extent, though it is difficult to objectively analyze and evaluate their specific ability level. In addition, none of the above studies include the study of cadet competence development in flight academies, the correspondence between physiological information and specific competencies is lacking, and the study of flight cadet training competencies is still in its infancy. Therefore, from the point of view of competencies, the study of all aspects of flight cadets’ comprehensive competencies from the core competencies is the focus of current flight training research, which can expand the evaluation of ideas regarding cadet operational skills.
In the context of competency assessment research, Jirgl et al. [21] discussed the change or progressive development of pilot competencies during training and based their hypothesis on a corresponding behavioral model against which pilot competencies can be initially assessed. Mansikka et al. [15] used Principal Component Analysis (PCA) of pilot performance scores for different competencies to construct a path analysis model to examine the relationship between different flight-related core competencies of professional airline pilots. Sarkar et al. [22] focused on the process of skills mapping and the use of skills mapping for training needs assessment to validate changes in skills gaps for needs-driven training. To summarize, research to date on competence assessment tends to focus on the theoretical level, which has provided a more comprehensive theoretical underpinning, but lacks more detailed assessment criteria. Behavioral indicators of students’ level of competence, as demonstrated in specific subjects and training, are also relatively unexplored.
In conclusion, the specific characteristics of the above research are shown in Table 1. It is clear that current research is mainly confronted with the complexity of data processing, the limitations of the assessment scope, and the subjectivity of the assessment criteria. Moreover, current research on student handling quality in initial flight training mainly focuses on quantitative analysis of QAR and physiological data, though there is a lack of in-depth research on core competency assessment. Although the ICAO has proposed the nine core competencies of pilots and a theoretical framework for competency assessment based the OB, it lacks quantitative definitions of competency assessment criteria, especially for the implementation of CBTA in the initial flight training phase. In particular, there is a lack of quantitative definitions of competency assessment criteria and manipulable recommendations for the implementation of CBTA in the initial flight training phase [16]. Therefore, based on the traditional operational model of flight training performance assessment, using specific flight training practices as the research object and relying on regulatory documents, this paper proposes an optimized solution for the initial flight training competency assessment criteria based on behavioral indicators. For the first time, specific flight data, flight maneuver characteristics, and competency items are mapped to form a more comprehensive, refined, and objective assessment process through the Venn competency assessment model. This approach ensures the scientific and objective nature of the assessment and promotes the further development of pilot core competency-based assessment research, providing suggestions and directions for subsequent targeted competency training improvements. In Section 2, the basic concept of core competency and the observable terms are introduced. In Section 3, the proposed competency-based assessment optimization model is presented in detail. In Section 4, the validity of the design is verified through comparing the OB-based evaluation criteria to the examiner’s evaluation, using “screening check” as an example. Finally, Section 5 summarizes the contributions and implications of this paper and draws conclusions.

2. Research Method

Flight training is the basis for flight safety assurance and high-quality development in civil aviation. A scientific and standardized training quality assessment scheme is an important linkage to control training quality and improve training efficiency. In the increasingly complex civil aviation system, the ICAO proposed that flight training and assessment focus on nine core competencies for pilots, including Application of Knowledge (KNO), Application of Procedures and Compliance with Regulations (APK), Communication (COM), Airplane Flight Path Management—Automation (FPA), Airplane Flight Path Management—Manual control (FPM), Leadership and Teamwork (LTW), Problem Solving and Decision-Making (PSD), Situation Awareness and Management of Information (SAW), and Workload Management (WLM). As a strategy to continuously improve global aviation safety, the Global Aviation Safety Program (GASP) emphasizes the Competency-Based Training System (CBTA). On 21 June 2019, the Civil Aviation Administration of China (CAAC) issued the “Guidance on the Comprehensive Deepening of Transport Airline Flight Training Reform” document, which explicitly puts forward the new era of flight training reform guidelines for “implementing flight training based on core competence”. Among them, nine competencies of mature pilots [25] and the dimensions of behavioral indicators are defined, as shown in Table 2 below.
Competencies must be demonstrated through a set of “behaviors” that can be observed and assessed; ICAO and IATA outlined specific “Behavioral Indicators—OB” for each “competency” based on extensive research. If a pilot has a sufficient number of OBs in flight training, the pilot can be judged to have the appropriate performance level. Taking as an example the most important and fundamental skill of initial flight training, i.e., Flight Path Management (FPM), the FPM skills of a mature pilot should include the dimensions of OB shown in Table 3. Existing competency assessment guidelines are mainly based on the VENN model proposed by the ICAO, which assesses the level of competency in three dimensions: quantity, frequency, and results of hazard and error management. VENN model assessment essentially uses the minimum of the three-dimensional assessment scores as the final competency level.
From the perspective of the competency evaluation index system and guidelines, there are specific provisions for core competency evaluation indexes and situational elements for identifying competencies; however, there is only a principled approach for evaluating each competency, as well as a lack of operational quantitative criteria. Therefore, implementation is particularly dependent on the experienced judgment of highly qualified instructors, and there is a lack of specific description of core competency training requirements and evaluation criteria for initial flight training. In practice, there are some deficiencies, such as the standardized definition of behavior indicators OB, as well as how to measure and quantitatively classify the number and frequency of OB displays given the lack of quantitative standards.

3. Optimization Model of Competency Assessment Criteria Based on VENN Criteria

Combining the VENN criteria with the core concept of competency, this paper proposes an optimization model of competency evaluation criteria based on the VENN criteria with reference to the traditional flight training performance evaluation operation model. The proposed model framework includes designing training assessment worksheets, constructing measurement vectors, constructing correlation matrices between observations and behavioral indicators, and creating a CBTA Competency Assessment Matrix that can be applied to all phases of initial flight training with four core modules. The specific model framework is shown in Figure 1.

3.1. Training Evaluation Worksheet

Subjects are an important tool for organizing and conducting initial flight training. Thus, students are trained through a series of typical subjects to develop relevant skills, and the quality of the training is assessed through examining the students’ performance in each subject. Based on the characteristics of traditional training evaluation implementation, a uniform evaluation worksheet was designed by flight experts for each inspection item. The typical examination topics, as well as the observation items and completion criteria for each topic, were standardized in the modified worksheet to provide a consistent quantitative measure of the cadet’s skill mastery, as detailed in Table 4. The initial training assessment worksheet is designed. During the assessment process, the assessor scores the trainee’s observations in each subject based on the completion criteria of the training assessment worksheet.
According to the flight training practical examination standards issued by the Civil Aviation Administration of China (CAAC) and the requirements of each training institution’s curriculum, the observation items and evaluation criteria for each training subject can be analyzed. The evaluation criteria focus on refining the evaluation scale, scoring performance as 4, 3, 2, or 1. The assessor obtains a score observation vector through scoring the student’s completion, as shown in Equation (1).
A s = a i m × 1 = a 1 , a 2 , , a m i = 1 , 2 , 3 m s = 1 , 2 , 3 q ,
where A s is the observation vector of the S-th sample participant, a i is the score of the i-th observation, and its maximum value a i max is the full score of the observation. If all observations have full scores, the observation vector can be obtained as follows. A max = a 1 max , a 2 max , a m max T .
For example, the landing attitude subject contains three observations, namely the pull start height, the pull level height, and the grounded attitude. The Section Landing Attitude Training Evaluation Worksheet is shown in Table 5.

3.2. Correlation Matrix of Observations Corresponding to Behavioral Indicators

To avoid the disadvantages of traditional initial flight training assessments, i.e., “only subjects, only results, but not ability”, the mapping relationship between data and ability should be further established using the concept of CBTA. There are corresponding behavioral indicators OB for each of the nine core competencies, and each observation corresponds to the behavioral indicator of a particular competency that is used in the training evaluation. Using the Delphi survey method to solicit the opinions of flight experts, an association can be constructed between any observable i and the behavioral indicator of competence O B J , and an association matrix B between the observable and the behavioral indicator can be constructed, as shown in Equation (2).
B = B 1 , B 2 , B n = b 11 b 12 b 1 n b 21 b 22 b 2 n b m 1 b m 2 b m n ,
where b i j denotes the association property of the i-th observation with the j-th OB, and if b i j = 1, it means that the i-th observation is associated with the n-th OB; otherwise, it takes 0. i = 1 , 2 , , m ; j = 1 , 2 , , n .

3.3. Modeling of VENN Criteria Based on Competency Assessment Matrix

According to the VENN guidelines, a student’s competency level can be measured through counting the number and frequency of OBs demonstrated in the assessment and constructing a competency assessment matrix using the observation vector A s and the association matrix B, as shown in Equation (3).
Y = Y 1 , Y 2 , , Y n = a 1 b 11 a 1 b 12 a 1 b 1 n a 2 b 21 a 2 b 22 a 2 b 2 n a m b m 1 a m b m 2 a m b m n ,
where a o b i j represents the contribution of the i-th observation to m. Using the properties of vector (or matrix) parameterization [19], which have the length of the space of the metric vector (or matrix), the frequency and number of observations can be shown through the parametric characterization of the behavior indicator (OB) of the Y-matrix. Firstly, it is agreed that if the frequency of the OB displayed exceeds 25% of the maximum, the OB is displayed, while the opposite is not displayed. Through calculating the rating matrix paradigm using Equations (4) and (5), the number ( f m n y ) and frequency ( f o f n ) of OB presentations based on the competency rating matrix are obtained.
f m n y = c o u n t Y j , | | Y j | | 1 1 4 A max B j , j = 1 , 2 , , n ,
f o f n = | | Y | | 1 = i = 1 m j = 1 n a i b i j ,

3.4. Competency Assessment Criteria Optimization Model

This grading method was used in the design of the OB-based Competency Rating Criteria to continue the traditional training evaluation using the four rating categories of excellent, good, fair, and poor. Here, p e x a indicates the grade the proctor gave the student, i.e., P e x a = Excellent ,   good ,   medium ,   poor = 4 , 3 , 2 , 1 .To facilitate further calculation and comparison, it is necessary to convert Equations (4) and (5). Indeed, if all observations are taken as full values, i.e., A max = a 1 max , a 2 max , a m max T , the maximum value of the number ( f m n y ) and frequency ( f o f n ) of OB presentations is obtained according to the evaluation matrix as follows.
f m n y max = c o u n t Y j , | | Y j max | | 0 > 0 , j = 1 , 2 , , n ,
f o f n max = i = 1 m j = 1 n a i max b i j ,
Given the different training institutions and training courses involved in observing and completing the standard set of differences in the situation, as well as the need to facilitate the unification of competency assessment standards, the need to show the number of OB ( f m n y ), frequency ( f o f n ) for normalization, is as follows. f o f n ¯ , f m n y ¯ [ 0 , 1 ]
f m n y ¯ = f m n y f m n y max ,
f o f n ¯ = f o f n f o f n max ,
where f o f n ¯ , f m n y ¯ [ 0 , 1 ] . p o f n denotes the evaluation of OB presentation frequency ( f m n y ), p m n y is the evaluation of OB presentation quantity, and ( f o f n ) is the final competency evaluation based on VENN criteria. Equations (9)–(11) show the competency evaluation model.
P O B = min ( P o f n , P m n y ) ,
P o f n = 1 , 0 f o f n ¯ < 1 2 , 1 f o f n ¯ < 2 3 , 2 f o f n ¯ < 3 4 , 3 f o f n ¯ 1 1 2 3 ,
P m n y = 1 , 0 f m n y ¯ < γ 1 2 , γ 1 f m n y ¯ < γ 2 3 , γ 2 f m n y ¯ < γ 3 4 , γ 3 f m n y ¯ 1 γ 1 γ 2 γ 3 ,
where 1 , 2 , 3 and γ 1 , γ 2 , γ 3 denote the hierarchical frequency ( f o f n ¯ ) and quantity ( f m n y ¯ ) thresholds for presenting the OB, respectively. These threshold calculations are first obtained via solving, based on sample data from the flight expert’s evaluation of cadet training quality, an integer optimization problem consisting of Equations (9)–(12).
min s = 1 q | P O B P e x a | ,
where the objective function Equation (13) represents the minimum mean deviation based on the VENN criterion from the ratings given by the examiner.

4. Case Research

4.1. Screening Check Phase Competency Assessment

In this section, based on the overall training syllabus for an air transport pilot course, the ‘screening check’ phase of the single engine airplane private pilot training program is selected as an example. The screening check, which focuses on the fourth of the nine competencies, i.e., “Flight Path Management—Manual Flight” (FPM), is an important assessment of a student’s “flying talent” in the early stages of initial flight training. In addition, the screening check focused mainly on the selection of basic piloting skills; thus, the two higher-order FPM pilot competency indicators, i.e., OB4.6 and OB4.7, were not addressed in the behavioral indicators, while the behavioral FPM competency indicators demonstrated by the trainees in the screening phase focused on the five dimensions of OB4.1–OB4.5. The study selected a sample of 93 trainees in 2020, of whom 74 were trained and 19 were tested, and conducted a statistical analysis of the trained samples’ performances on the screening exam. The overall program implementation process consisted of four steps. Using a participant as an example, the specific steps are as follows:
(1): Construct the Observation Vector
Firstly, according to the main assessment items of the screening check [17], the training assessment worksheet was determined, which consisted of 24 typical subjects, 99 observations, and corresponding scoring criteria, as shown in Table 6 (See Appendix A for detailed criteria). In additional, the observation vector can be derived from the examiner scoring column in Table 6: A = 4 , 2 , , 3 , 3 , 3 T .
(2): Construct the Observation and OB Correlation Matrix
The research first used a Delphi survey to solicit input from flight professionals to correlate the 99 screening checklist observations with the 5 FPM behavioral indicators. Here, 1 indicates correlation between an observation and behavioral measure, while 0 indicates no management relation. The final analysis of the flight expert’s opinion is aggregated to obtain the Observation–Behavior Correlation Matrix B.
B = 0 1 1 0 0 0 1 1 0 0 1 1 0 0 0 1 0 0 1 0 1 0 0 1 0
(3): Construction of a competency assessment matrix
From the observation vector A and the association matrix B, the evaluation matrix Y can be constructed in combination. The number ( f m n y = 5 ) and frequency ( f o f n = 240 ) of the participant’s OB performances based on the competency rating matrix can be obtained via calculating the rating matrix paradigm.
Y = 0 4 4 0 0 0 2 2 0 0 3 3 0 0 0 3 0 0 3 0 3 0 0 3 0
When all observations are fully scored using A max = 4 , 4 , 4 T , the maximum values for the number ( f m n y ) and frequency ( f o f n ) of OB presentations for this participant are f m n y max = 5 and f o f n max = 428 , respectively, according to the scoring matrix. In order to facilitate the unification of competency evaluation criteria, this paper normalizes and takes the relative norm to obtain f m n y ¯ = 5 5 = 1 , f o f n ¯ = 240 428 = 0.56 .
(4): Optimization results of competency evaluation criteria
Through repeating the above steps, the FPM competency rating matrix of 74 sampled trainees was obtained, and the relative values of OB, which show the quantity and frequency, were derived. The VENN criterion shows that the OB-based evaluation is determined through both frequency and quantity, i.e., the minimum value of both is taken as the OB-based evaluation. According to Section 3.4, the evaluation model is solved considering the non-linearity of the approximation model; thus, this paper adopts a grid-based search method to derive the optimal approximation solution, as shown in Table 7, where the evaluation results for the trainees are shown in Appendix B.

4.2. Comparing Evaluation Results

Based on the evaluation criteria shown in Table 6, the FPM competency rating of the examinee based on OB can be obtained. To verify the feasibility of the competency rating scheme designed in this paper, the rating is tested for consistency with the rating given by the examiner. Firstly, the monotonic relationship with the data was verified via SPSS data analysis software. On the basis of the monotonic relationship, the Spearman’s rank correlation coefficient was calculated using a non-parametric hypothesis test to analyse the correlation between the OB-based ratings and the surveyors’ ratings. The correlation coefficient was 0.846 (as shown in Table 8), which was obtained via testing whether there was a correlation between the two variables from the perspective of whether they were synergistically consistent. The results indicated that there was a significant correlation between the OB-based scores and the surveyor scores.
Furthermore, the statistical analysis of the performance of the participants in the screening check can be carried out according to the steps shown in the previous section, and the results of the evaluation are shown in Table 9.
According to Table 9, after further comparing the similarities and differences between OB-based ratings and examiner ratings, a comparative analysis of the two ratings can be performed. According to Figure 2, 84% of the samples based on OB ratings are exactly the same as examiner ratings, and 16% of the samples have rating differences within one level. Level 1 deviation indicates the acceptable range of deviation in the rating. This outcome is because examiner ratings are subjective and there is some uncertainty about the boundaries between two adjacent levels.
It can be seen that through constructing a competency assessment matrix to measure the number and frequency of observable items within an acceptable range of assessment bias, a quantitative assessment of competencies can be achieved with a high degree of consistency. This result fully validates the effectiveness of the proposed competency assessment model.

5. Conclusions

Through integrating experts’ experience, constructing a typical subject observation and OB correlation matrix, and establishing a competency optimization evaluation model based on the VENN criterion, this research solves the shortcomings of the traditional initial flight training evaluation procedure based on the traditional flight training work order evaluation model. The conclusions are as follows:
The optimized Training Assessment Worksheet highlights the core competencies for manual control at this screening stage. The specific behavioral indicators in the subject under this competency are presented in the form of a Training Assessment Worksheet, which allows a straightforward correlation between the behavioral indicators and the competency items, resulting in a more refined and scientific quantitative assessment, and providing important data support for the subsequent targeted training of trainees.
Through combining the data of flight trainees in the screening stage of the case, the optimal solution of the objective function was obtained, the threshold of the optimal skill evaluation model was derived according to the steps of the evaluation model, and the skill evaluation criteria based on behavioral indicators could be further obtained. In addition, test samples were selected to validate the scheme, and the results showed that 84% of the 19 test samples agreed with the examiner’s scores based on the above skill evaluation criteria, thus validating the feasibility of the scheme.
An optimized evaluation scheme of competency assessment criteria for the initial flight training phase is designed. For the student, this scheme provides a quantitative assessment of the quality of flight training and a competency level for this phase, which can provide suggestions and directions for subsequent targeted training improvements; for the flight instructor, the use of the new Training Assessment Worksheet provides the ability to quantify the assessment and track the data, facilitating the implementation of “individualized” training for students.
In the whole competency evaluation model and evaluation scheme study, the subject-based teaching organization characteristics of initial flight training are well utilized. On one hand, the traditional subject-based assessment is continued; on the other hand, the shortcomings of subject-based assessment, which seems to be generalized and not refined enough, are improved, and core competencies are added to assess the overall training quality of trainees, thus providing a comprehensive picture of trainees’ competencies. In addition, this scheme can be extended to the CBTA assessment of all phases of initial flight training, such as the instrument rating training phase, commercial pilot license training, etc. The difference is that the corresponding assessment worksheet, assessment matrix, and associated competency rating model must be designed according to the instructional requirements and characteristics of each phase of the training course.

Author Contributions

Conceptualization, F.Y. and H.S.; methodology, F.Y. and P.Z.; software, F.Y. and P.Z.; validation, F.Y. and Q.H.; formal analysis, F.Y. and H.S.; writing—original draft preparation, F.Y.; writing—review and editing, F.Y. and P.Z.; supervision, H.S.; project administration, H.S. All authors have read and agreed to the published version of the manuscript.


This research was funded by the National Natural Science Foundation of China (U2033213); supported by “the Fundamental Research Funds for the Central Universities”: (FZ2021ZZ01).

Institutional Review Board Statement

Informed consent was obtained from all subjects involved in the study.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data contained in this study can be obtained upon request from the corresponding author. Readers can also request part of the original data and the results of data processing outlined in this paper.


We would like to thank those who contributed to our research. We are particularly grateful to flight instructors Yunsong Lu, Hong Huang and Wuyang Song from the Civil Aviation Flight University of China for their expert support and validation work in this research.

Conflicts of Interest

The authors declare that they have no conflict of interest to report regarding the present study.

Appendix A

Table A1. Part of the assessment details.
Table A1. Part of the assessment details.
Subject (Sub)Observation (No)Scoring Criteria
Up downDirection of navigation4: Remains accurate.
3: Within ±5°.
2: Within ±10°.
1: Beyond ±10°.
Speed4: Remains accurate.
3: Within ±5 knts.
2: Within ±10 knts.
1: Beyond ±10 knts.
Horizontal flightDirection of navigation4: Remains accurate.
3: Points: within ±5 knts.
2: Points: within ±10 knts.
1: Point: beyond ±10 knts.
Speed4: Remains accurate.
3: Within ±5 knts.
2: Within ±10 knts.
1: Beyond ±10 knts
Height4: Within ±15 ft.
3: Within ±30 ft.
2: Within ±50 ft.
1: Outside ±50 ft
SwerveSlope4: Remains accurate.
3: ±2° or less.
2: Within ±5°.
1: Beyond ±5°.
Compatibility4: Maintained accuracy without side slippage.
3: Within half a frame.
2: More than half a frame.
1: More than one frame.
Speed4: Within +5 knts.
3: Within +10/−5 knts.
2: Within +15/−10 knts.
1: Outside +15/−10 knts
Change course4: Within ±2°.
3: Within ±4°.
2: Within ±6°.
1: Outside ±6°
Grounding gesturePulling start height4: Conform to the regulations.
3: Within 1 m.
2: Within 2 m.
1: Beyond 2 m.
Leveling height4: Conform to the regulations.
3: Within 0.25 m, slightly pulled, corrected.
2: Within 0.5 m, slightly pulled, corrected.
1: Within 0.5 m.
Grounding gesture4: Three points smoothly earthed.
3: Slightly tilted or slightly heavily earthed, but no secondary earthed.
2: Jumps of up to 0.25 m or more and pronounced tilting when earthed, corrected.
1: Mark: jumps of more than 0.25 m when earthed, corrected

Appendix B

Table A2. Results of trainee ratings.
Table A2. Results of trainee ratings.
Sample Serial No. f m n y f m n y ¯ p m n y f o f n f o f n ¯ p o f n p o b p e x a


  1. Ouyang, T.; Sun, H.; Li, F. Researches on the Education Reform for the Core Competencies -oriented Flight Training of Civil Aviation Pilots. In Proceedings of the Proceedings of 2021 6th International Conference on Education Reform and Modern Management (ERMM2021), Beijing, China, 11 April 2021; pp. 399–402. [Google Scholar]
  2. Holbrook, J. Exploring methods to collect and analyze data on human contributions to aviation safety. In Proceedings of the 49th International Symposium on Aviation Psychology, Online, 5 January 2021; pp. 110–115. [Google Scholar]
  3. Rose, R.L.; Puranik, T.G.; Mavris, D.N. Natural language processing based method for clustering and analysis of aviation safety narratives. Aerospace 2020, 7, 143. [Google Scholar] [CrossRef]
  4. Pate, J.; Adegbija, T. AMELIA: An application of the Internet of Things for aviation safety. In Proceedings of the 2018 15th IEEE Annual Consumer Communications & Networking Conference (CCNC), Las Vegas, NV, USA, 12–15 January 2018; pp. 1–6. [Google Scholar]
  5. Wang, L.; Zhang, J.; Dong, C.; Sun, H.; Ren, Y. A method of applying flight data to evaluate landing operation performance. Ergonomics 2019, 62, 171–180. [Google Scholar] [CrossRef] [PubMed]
  6. Feigl, F. Combination of ADS-B and QAR Data for Mid-Air Collision Analysis; Technische Universität München: München, Germany, 2018. [Google Scholar]
  7. Li, W.-C.; Nichanian, A.; Lin, J.; Braithwaite, G. Investigating the impacts of COVID-19 on aviation safety based on occurrences captured through Flight Data Monitoring. Ergonomics 2022, 2022, 1–39. [Google Scholar] [CrossRef] [PubMed]
  8. Gavrilovski, A.; Jimenez, H.; Mavris, D.N.; Rao, A.H.; Shin, S.; Hwang, I.; Marais, K. Challenges and opportunities in flight data mining: A review of the state of the art. In Proceedings of the AIAA SciTech Forum, San Diego, CA, USA, 4–8 January 2016. [Google Scholar]
  9. Wang, L.; Wu, C.; Sun, R.; Cui, Z. An analysis of hard landing incidents based on flight QAR data. In Proceedings of the Engineering Psychology and Cognitive Ergonomics: 11th International Conference, EPCE 2014, Heraklion, Crete, Greece, 22–27 June 2014; pp. 398–406. [Google Scholar]
  10. Wang, L.; Wu, C.; Sun, R. Pilot operating characteristics analysis of long landing based on flight QAR data. In Proceedings of the Engineering Psychology and Cognitive Ergonomics. Applications and Services: 10th International Conference, EPCE 2013, Las Vegas, NV, USA, 21–26 July 2013; pp. 157–166. [Google Scholar]
  11. Wang, L.; Wu, C.; Sun, R. An analysis of flight Quick Access Recorder (QAR) data and its applications in preventing landing incidents. Reliab. Eng. Syst. Safety 2014, 127, 86–96. [Google Scholar] [CrossRef]
  12. Thomas, L.C.; Gast, C.; Grube, R.; Craig, K. Fatigue detection in commercial flight operations: Results using physiological measures. Procedia Manuf. 2015, 3, 2357–2364. [Google Scholar] [CrossRef]
  13. Shao, S.; Zhou, Q.; Liu, Z. A new assessment method of the pilot stress using ECG signals during complex special flight operation. IEEE Access 2019, 7, 185360–185368. [Google Scholar] [CrossRef]
  14. Jun, C.; Lei, X.; Jia, R.; Xudong, G. Real-time evaluation method of flight mission load based on sensitivity analysis of physiological factors. Chin. J. Aeronaut. 2022, 35, 450–463. [Google Scholar]
  15. Mansikka, H.; Harris, D.; Virtanen, K. An input–process–output model of pilot core competencies. Aviat. Psychol. Appl. Human Factors 2017, 7, 78–85. [Google Scholar] [CrossRef]
  16. Liu, S.; Zhang, Y.; Chen, J. A system for evaluating pilot performance based on flight data. In Proceedings of the Engineering Psychology and Cognitive Ergonomics: 15th International Conference, EPCE 2018, Las Vegas, NV, USA, 15–20 July 2018; pp. 605–614. [Google Scholar]
  17. Sembiring, J.; Drees, L.; Holzapfel, F. Extracting unmeasured parameters based on quick access recorder data using parameter-estimation method. In Proceedings of the AIAA Atmospheric Flight Mechanics (AFM) Conference, Boston, MA, USA, 19–22 August 2013; p. 4848. [Google Scholar]
  18. Wang, L.; Ren, Y.; Sun, H.; Dong, C. A landing operation performance evaluation system based on flight data. In Proceedings of the Engineering Psychology and Cognitive Ergonomics: Cognition and Design: 14th International Conference, EPCE 2017, Vancouver, BC, Canada, 9–14 July 2017; pp. 297–305. [Google Scholar]
  19. Lahtinen, T.M.; Koskelo, J.P.; Laitinen, T.; Leino, T.K. Heart rate and performance during combat missions in a flight simulator. Aviat. Space Environ. Med. 2007, 78, 387–391. [Google Scholar] [PubMed]
  20. Maciejewska, M.; Galant-Gołębiewska, M. Case study of pilot’s Heart Rate Variability (HRV) during flight operation. Transp. Res. Procedia 2021, 59, 244–252. [Google Scholar] [CrossRef]
  21. Jirgl, M.; Jalovecky, R.; Bradac, Z. Models of pilot behavior and their use to evaluate the state of pilot training. J. Electr. Eng. 2016, 67, 267–272. [Google Scholar] [CrossRef]
  22. Sarkar, S. Competency based training need assessment–approach in Indian companies. Organizacija 2013, 46, 253–263. [Google Scholar] [CrossRef]
  23. Chen, J.; Xue, L.; Liu, Z. A pilot workload evaluation method based on EEG data and physiological data. In Proceedings of the 2020 IEEE international conference on signal processing, communications and computing (ICSPCC), Macau, China, 21–24 August 2020; pp. 1–6. [Google Scholar]
  24. Dehais, F.; Causse, M.; Pastor, J. Embedded eye tracker in a real aircraft: New perspectives on pilot/aircraft interaction monitoring. In Proceedings of the 3rd International Conference on Research in Air Transportation, Fairfax, VA, USA, 1–4 June 2008. [Google Scholar]
  25. Arana, R. Horizontalização na Observação de Habilidades Não-Técnicas nos Treinamentos em Simulador. Available online: (accessed on 16 May 2023).

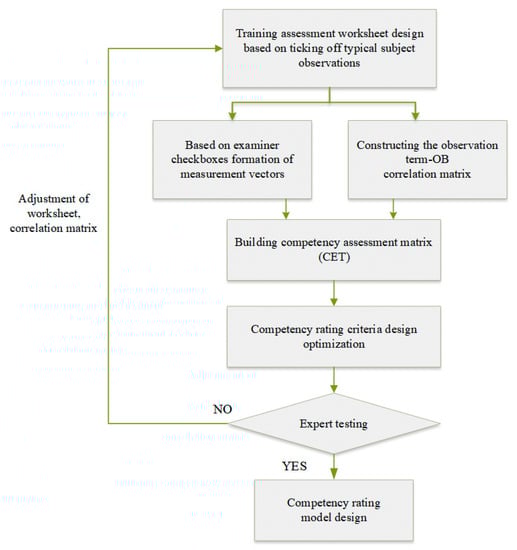

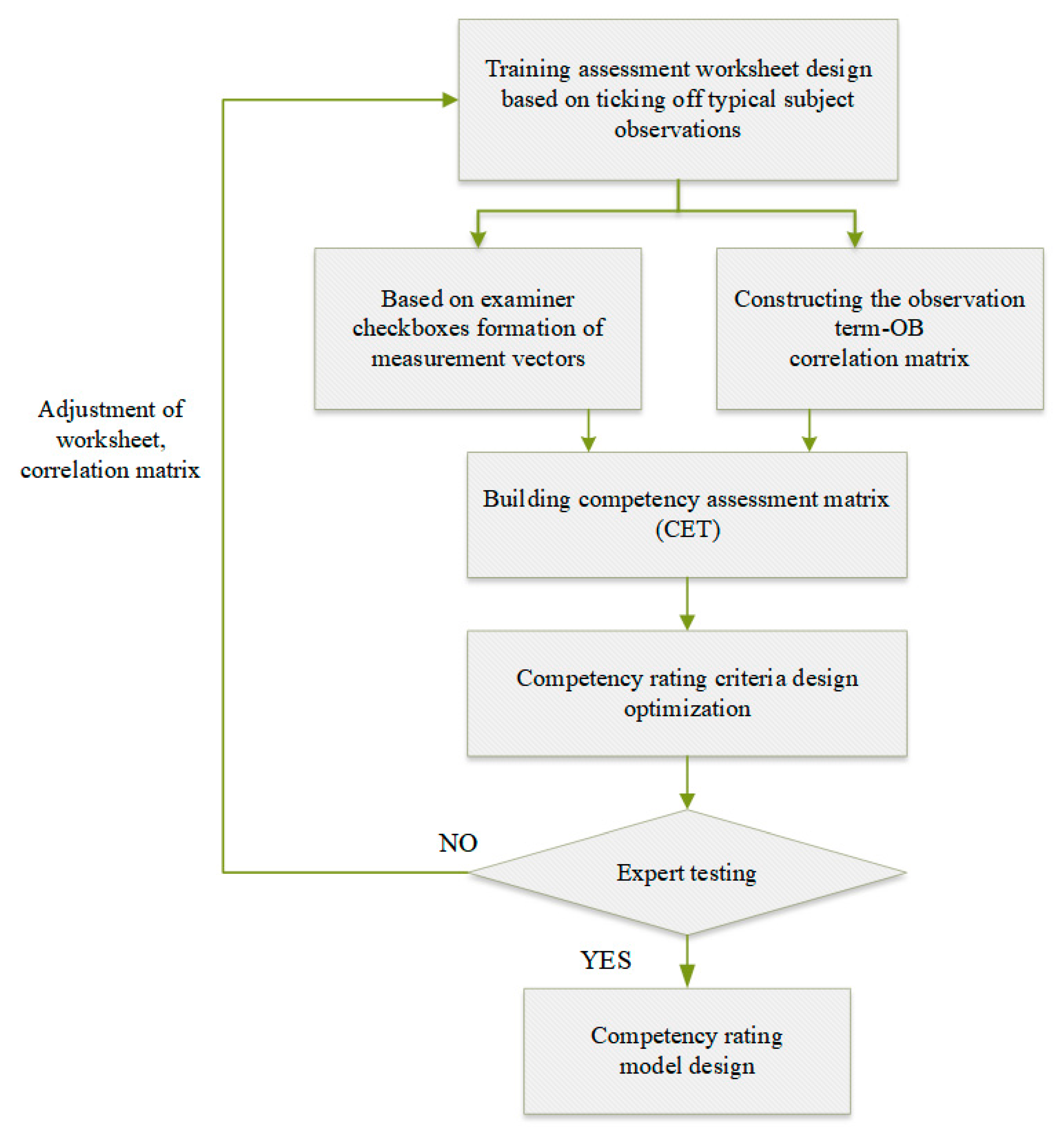

Figure 1. Initial flight training CBTA evaluation process.
Figure 1. Initial flight training CBTA evaluation process.
Applsci 13 06346 g001

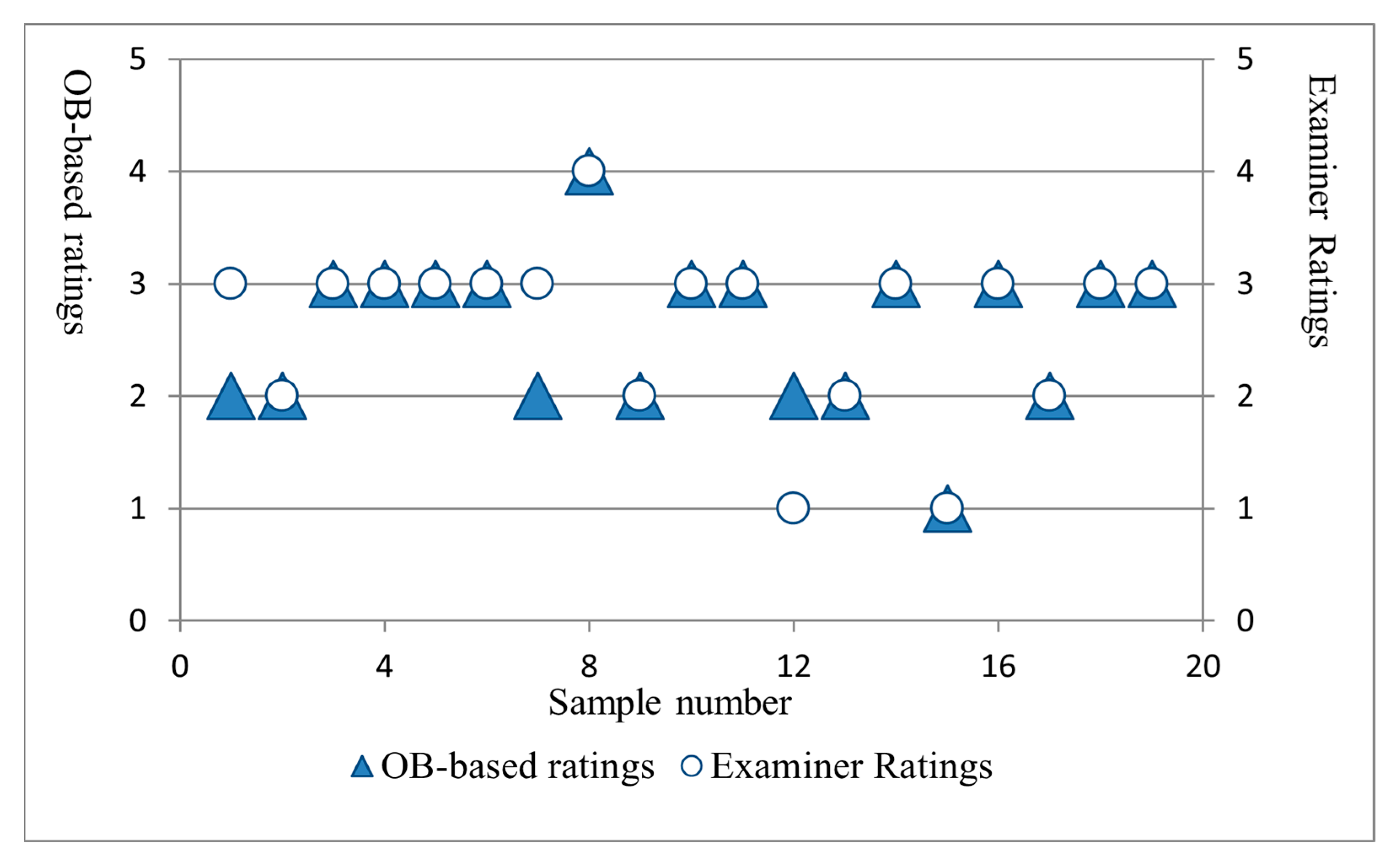

Figure 2. OB rating vs. examiner rating analysis.
Figure 2. OB rating vs. examiner rating analysis.
Applsci 13 06346 g002
Table 1. Related literature features.
Table 1. Related literature features.
Research CategoryRelated LiteratureDifficulty of Data ProcessingComprehensiveness of the AssessmentNature of Assessment
Flight data aspects[5,11,18,20]Extremely complexSingularityObjectivity
Physiological data aspects[19,23,24]Complex and less relevantSingularityObjectivity
Competence aspects[15,21,22]Lack of specific criteriaComprehensive but not detailedSubjective
The proposed model-Easy to access and understandComprehensive and detailedObjectivity
Table 2. Competencies and descriptions.
Table 2. Competencies and descriptions.
CompetencyDescriptionObservable Behavior (OB)
0. Application of knowledgeDemonstrates knowledge and understanding of relevant information, operating instructions, aircraft systems, and the operating environment.OB0.1–OB0.7
1. Application of procedures and compliance with regulationsIdentifies and applies appropriate procedures, in accordance with published operating instructions and applicable regulations.OB1.1–OB1.7
2. CommunicationCommunicates through appropriate means in the operational environment, in both normal and non-normal situationsOB2.1–OB2.10
3. Airplane flight path management—automationControls the flight path through automation.OB3.1–OB3.6
4. Airplane flight path management—manual controlControls the flight path through manual control.OB4.1–OB4.7
5. Leadership and teamworkInfluences others to contribute to a shared purpose. Collaborates to accomplish the goals of the teamOB5.1–OB5.11
6. Problem solving and decision-makingIdentifies precursors, mitigates problems, and makes decisions.OB6.1–OB6.9
7. Situation awareness and management of informationPerceives, comprehends, and manages information and anticipates its effect on the operation.OB7.1–OB7.7
8. Workload managementMaintain available workload capacity through prioritizing and distributing tasks using appropriate resources.OB8.1–OB8.8
Table 3. Competence “Flight Track Management—Manual Flight” OB item.
Table 3. Competence “Flight Track Management—Manual Flight” OB item.
Observable Behavior (OB)Description of the Observable Behavior (OB)
OB4.1Controls the aircraft manually with accuracy and smoothness as appropriate to the situation.
OB4.2Monitors and detects deviations from the intended flight path and takes appropriate action.
OB4.3Manually controls the airplane using the relationship between airplane attitude, speed and thrust, and navigation signals or visual information.
OB4.4Manages the flight path safely to achieve optimum operational performance.
OB4.5Maintains the intended flight path during manual flight while managing other tasks and distractions.
OB4.6Uses appropriate flight management and guidance systems, as installed and applicable to the conditions.
OB4.7Effectively monitors flight guidance systems including engagement and automatic mode transitions
Table 4. Design of Initial Flight Training Evaluation Worksheet.
Table 4. Design of Initial Flight Training Evaluation Worksheet.
SubjectObservation (OB)Scoring CriteriaExaminer Scoring
Subject 1OB. 14: …; 3: …; 2: …; 1: …
OB. 24: …; 3: …; 2: …; 1: …
Subject K
OB. m − 14: …; 3: …; 2: …; 1: …
OB. m4: …; 3: …; 2: …; 1: …
Table 5. Section Landing Attitude Training Evaluation Worksheet.
Table 5. Section Landing Attitude Training Evaluation Worksheet.
SubjectObservationScoring CriteriaExaminer Scoring
Landing positionPulling start height4: Conform to the regulations.
3: Within 1 m.
2: Within 2 m.
1: Beyond 2 m.
Leveling height4: Points: conform to the regulations.
3: Within 0.25 m, slightly pulled, corrected correctly.
2: Points; within 0.5 m, slightly pulled, corrected correctly.
1: Points: within 0.5 m.
Grounding gesture4: Three points smoothly grounded.
3: Slightly tilted when grounded.
2: Significant tilt when grounded.
1: Jump when grounded.
Table 6. Screening Check Training Evaluation Worksheet.
Table 6. Screening Check Training Evaluation Worksheet.
Subject (Sub)Observation (No)Scoring CriteriaExaminer Scoring
Sub 1: Up DownNo. 1: Direction of navigation4: Maintain accuracy.
3: Within 5 degrees.
2: Within 10 degrees.
1: Beyond 10 degrees.
No. 2: Speed4: Maintain accuracy.
3: Within 5 knots.
2: Within 10 knots.
1: Beyond 10 knots.
Sub 24: Landing positionNo. 97: Pulling start height4: Conform to the regulations.
3: Within 1 m.
2: Within 2 m.
1: Beyond 2 m.
No. 98: Leveling height4: Conform to the regulations.
3: Within 0.25 m, slightly pulled, corrected correctly.
2: Within 0.5 m, slightly pulled, corrected correctly
1: Within 0.5 m.
No. 99: Grounding gesture4: Three points smoothly grounded.
3: Slightly tilted when grounded.
2: Significant tilt when grounded.
1: Jump when grounded.
Table 7. FPM competency grading criteria based on frequency and number of OB presentations.
Table 7. FPM competency grading criteria based on frequency and number of OB presentations.
OB frequency classification interval   ( f o f n ¯ )[0, 0.56](0.56, 0.71](0.71, 0.86](0.86, 1]
OB number of classification interval   ( f m n y ¯ )///1
Notes: f o f n ¯ represents numerical division of the four levels of a specific OB; f m n y ¯ represents specific score of student in batch showing OB; / represents no score in level range; 1 represents in level 4. OB is shown in full and level is four.
Table 8. Spearman’s correlation analysis results.
Table 8. Spearman’s correlation analysis results.
_-Based on OB RatingExaminer Rating
Based on OB ratingCorrelation coefficient1.0000.846
Table 9. Test sample rating results.
Table 9. Test sample rating results.
Sample Serial No. f m n y f m n y ¯ p m n y f o f n f o f n ¯ p o f n p o b p e x a
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sun, H.; Yang, F.; Zhang, P.; Hu, Q. Behavioral Indicator-Based Initial Flight Training Competency Assessment Model. Appl. Sci. 2023, 13, 6346.

AMA Style

Sun H, Yang F, Zhang P, Hu Q. Behavioral Indicator-Based Initial Flight Training Competency Assessment Model. Applied Sciences. 2023; 13(10):6346.

Chicago/Turabian Style

Sun, Hong, Fangquan Yang, Peiwen Zhang, and Qingqing Hu. 2023. "Behavioral Indicator-Based Initial Flight Training Competency Assessment Model" Applied Sciences 13, no. 10: 6346.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
