Shear Behaviour of Aeolian Sand with Different Density and Confining Pressure
Abstract
:1. Introduction
2. Materials and Methods
2.1. Basic Parameters of Aeolian Sand
2.2. Testing Program
2.3. Test Method

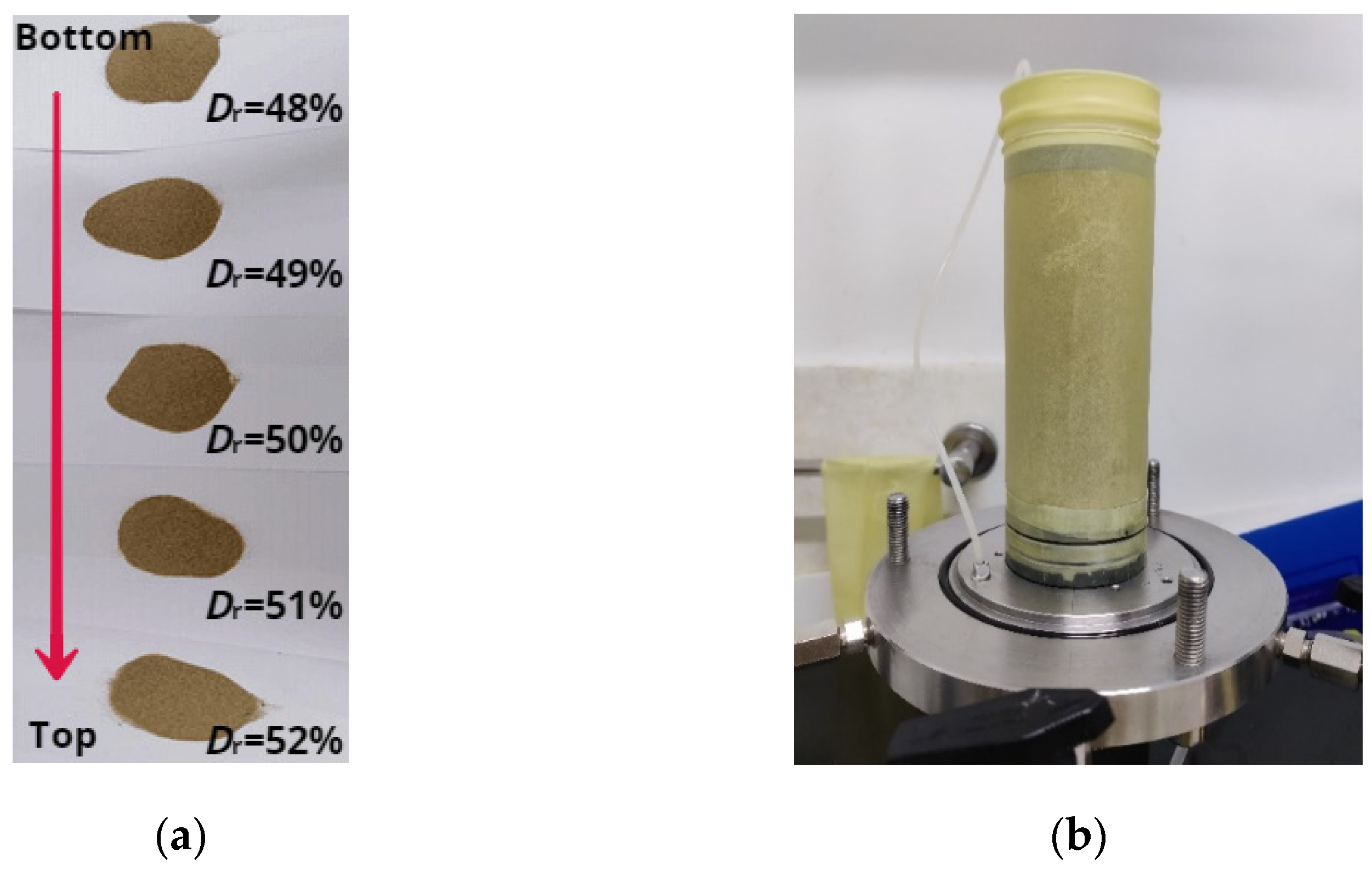

- In the test, the sample mass of the dry sand was divided into five parts and the relative density of the lower layer is 1% lower than that of the upper layer. For example, to prepare a specimen with a relative density of 50%, the relative density of the five layers from bottom to top is 48%, 49%, 50%, 51% and 52%, respectively, as shown in Figure 2a;
- It needs to bind the latex membrane on the base of the triaxial cell, put the porous stone and filter paper into the latex membrane in turn, and then fix the mould on the base. Then, a vacuum pump was used to draw the mould so that the latex membrane was tightly attached to the inner wall of the mould;

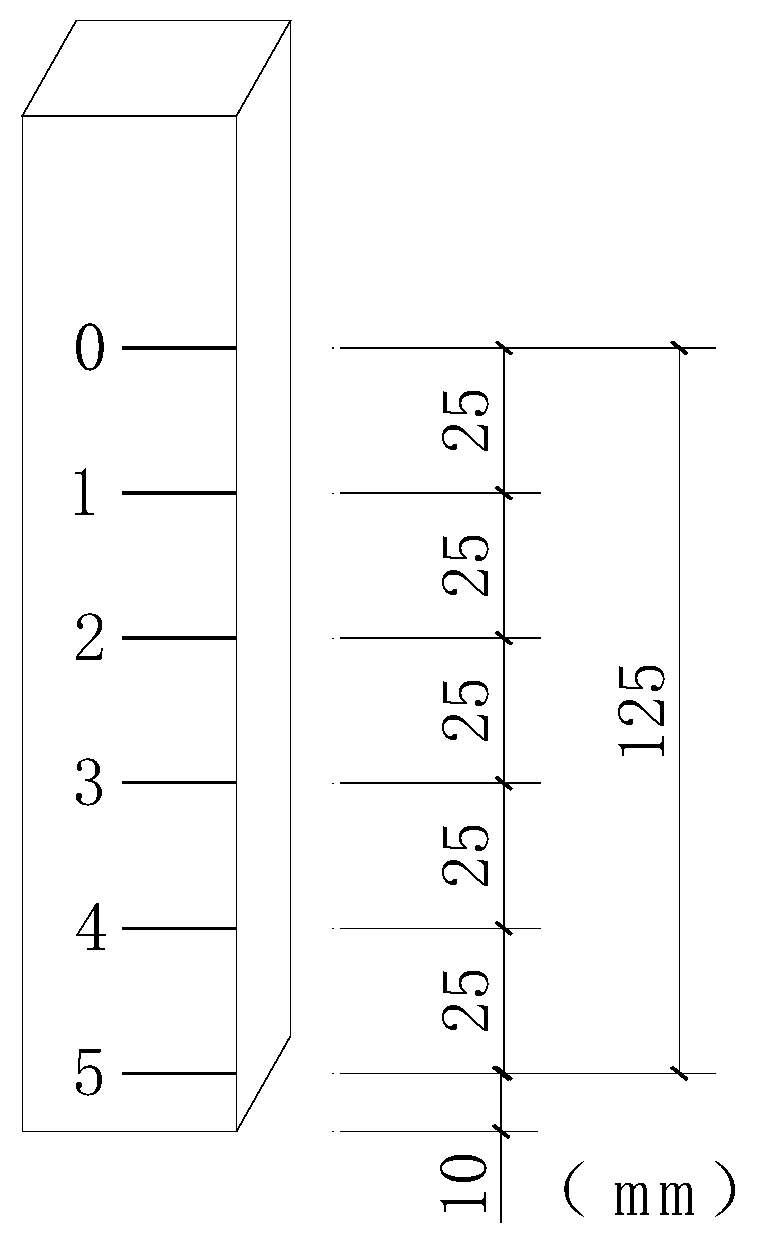

- Next, sprinkle the divided specimen into the latex membrane, and to use a tool (as shown in Figure 3) to accurately control the height of each layer. Then, the filter paper, porous stone, and loading cap were installed in turn;
- After the specimen preparation, a small vacuum was applied to stabilize the specimen and the mould was carefully removed. As shown in Figure 2b.
3. Results and Discussion

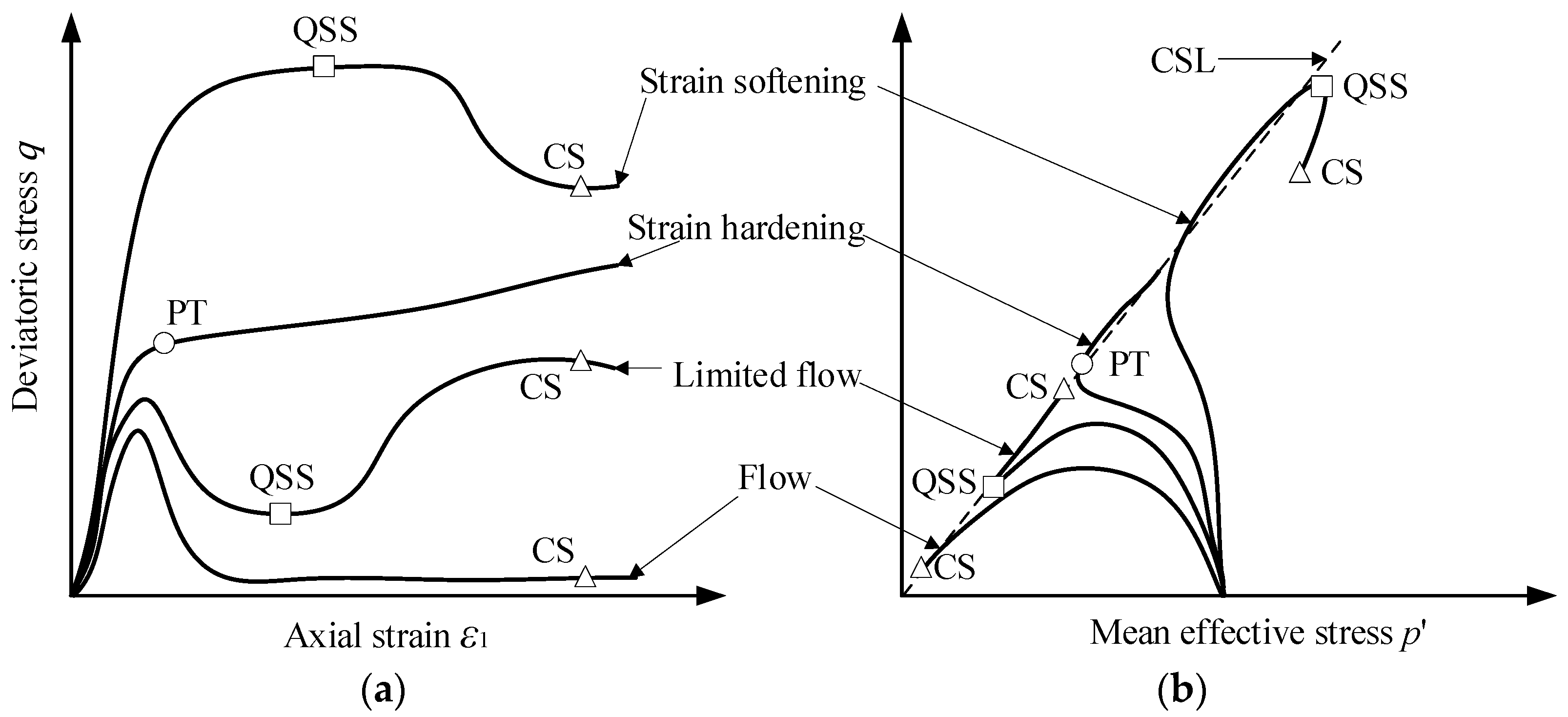

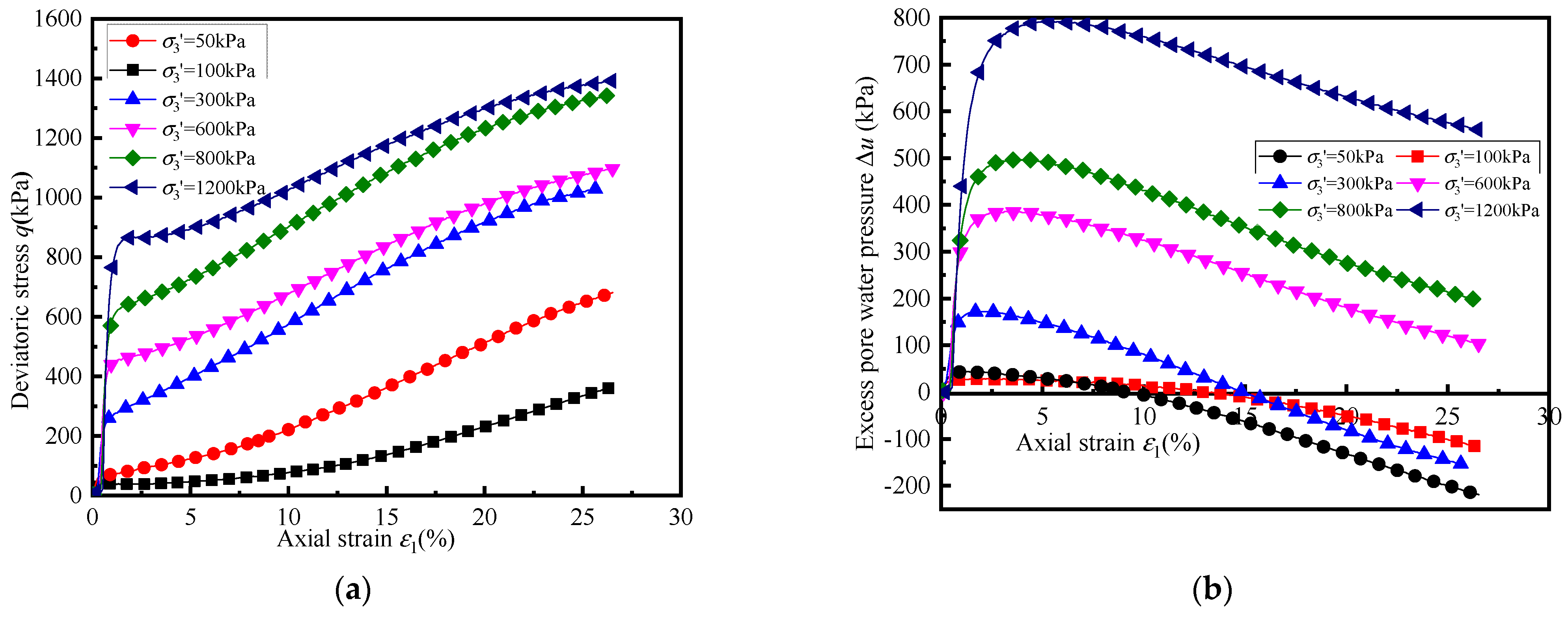

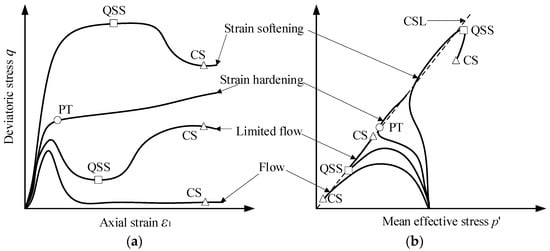

3.1. Stress-Strain Behaviour

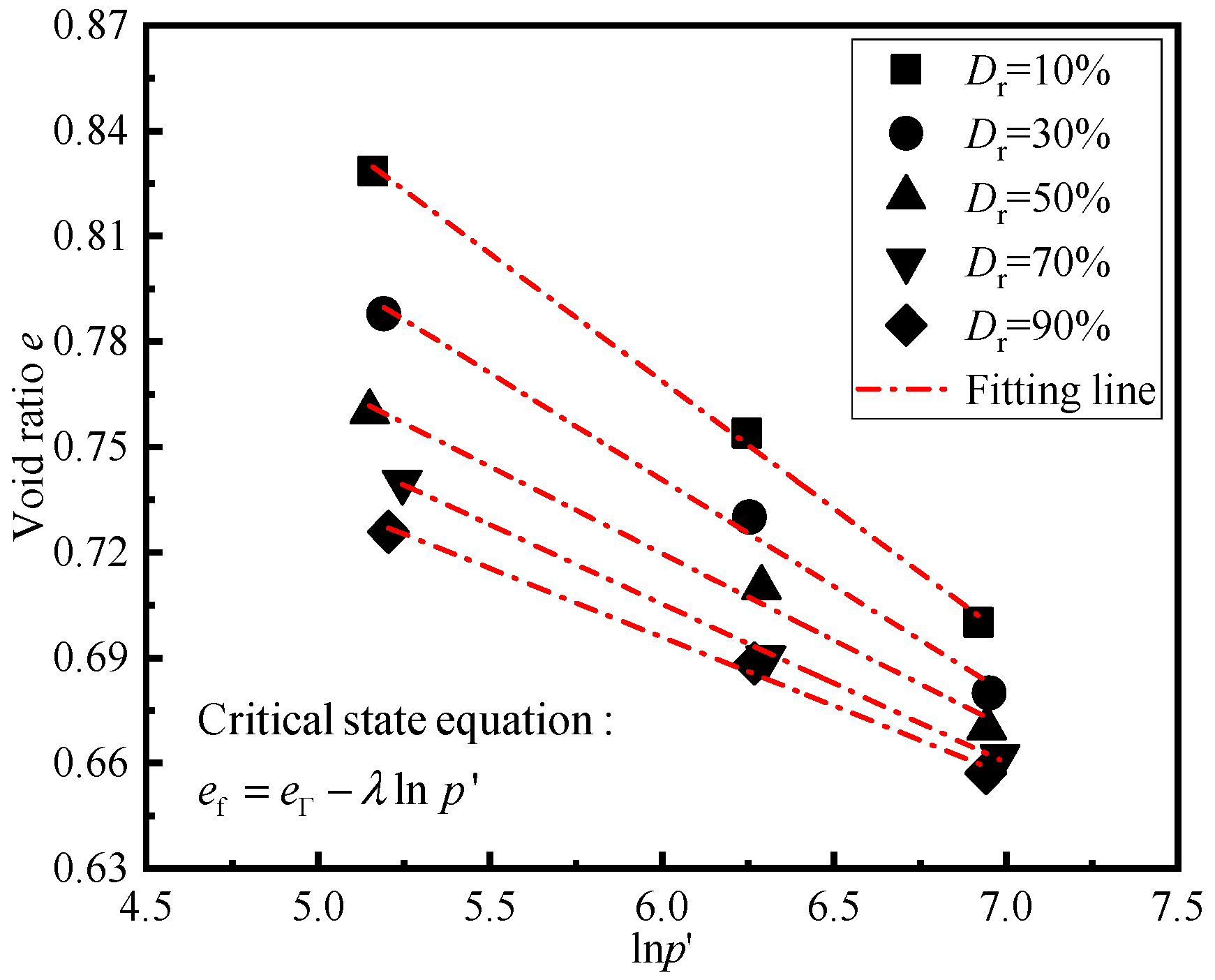

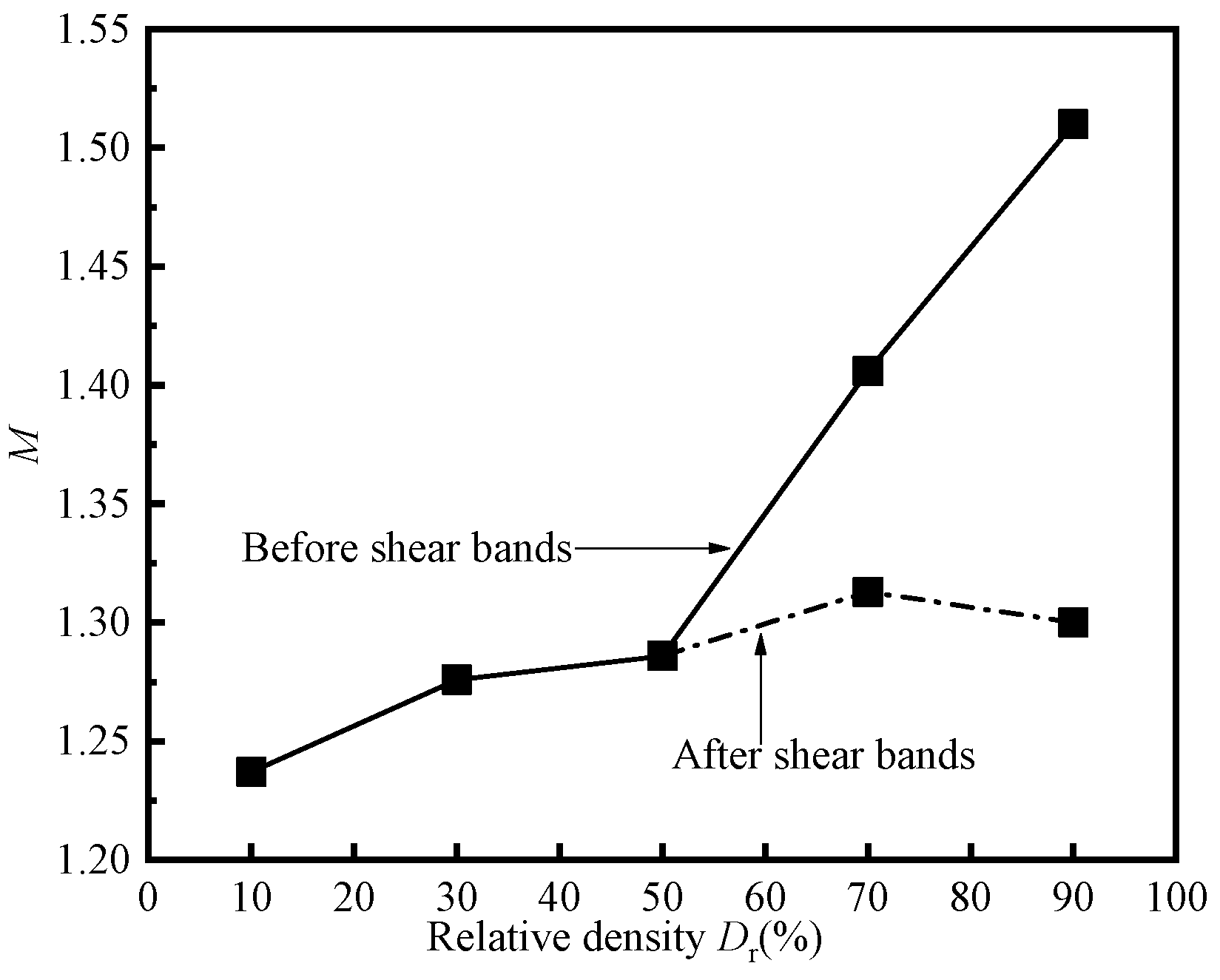

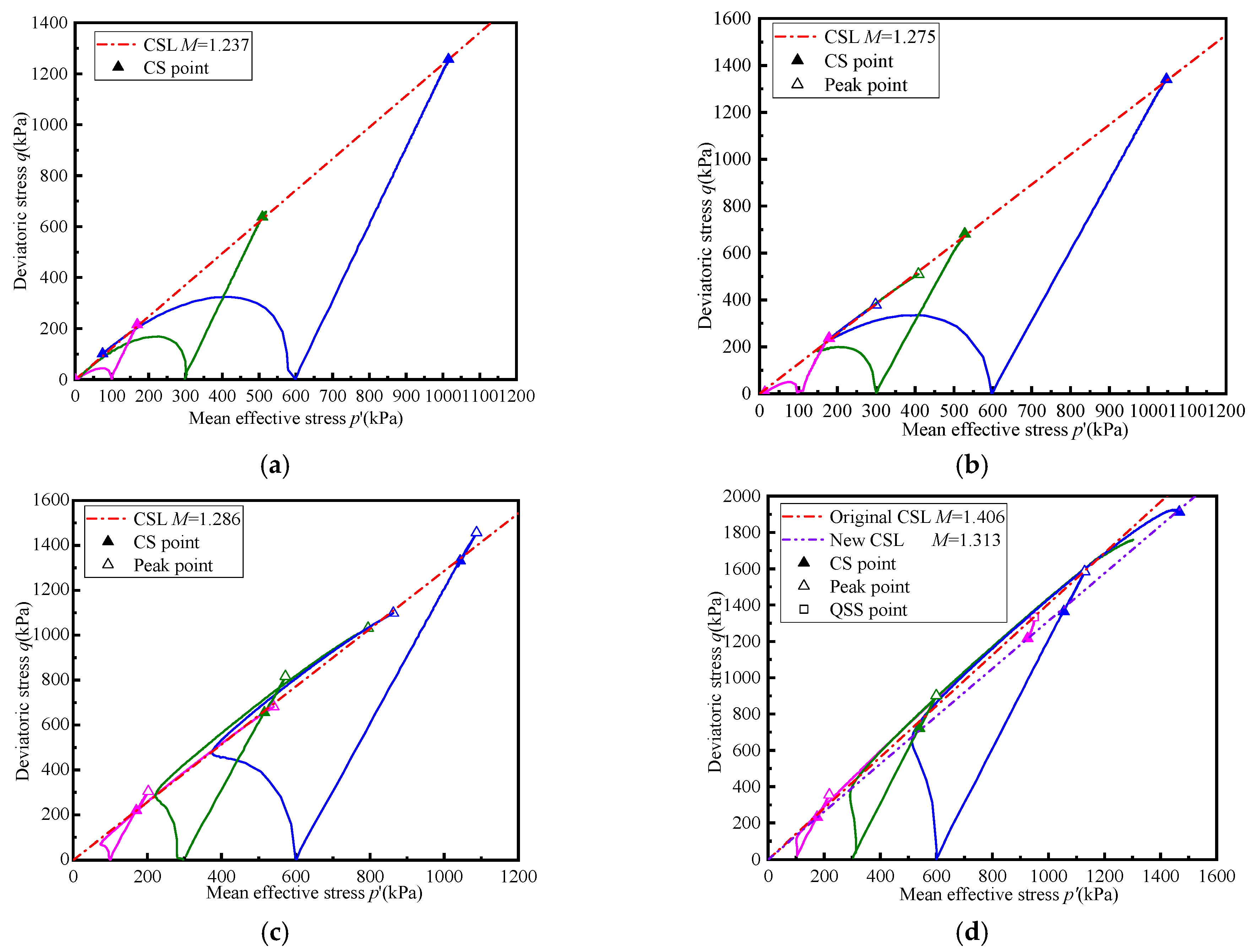

3.2. Critical State
3.3. Strength Characteristic
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Kok, J.F.; Parteli, E.J.; Michaels, T.I.; Karam, D.B. The physics of wind-blown sand and dust. Rep. Prog. Phys. 2012, 75, 106901. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Li, F.Y.; Cai, L.N.; Wang, S.G.; Liu, W.; Li, X.J. Application of multi-scale microstructure analysis technique in mineral morphology and particle size distribution of aeolian sand. Land Dev. Eng. Res. 2019, 4, 13–21. [Google Scholar]
- Zeng, Z.Z.; Zhang, M.Q.; Liang, Z.R.; Shan, F.C. Engineering geological features of aeolian deposit sandy soil ground at southern edge of the tenggeli. Northwest Hydropower 2001, 2001, 18–20. [Google Scholar]
- Soroush, A.; Shourijeh, P.T.; Aghajani, H.F.; Mohammadinia, A.; Aminzadeh, A.H. A review of the sand castle test for assessing collapsibility of filters in dams. Geotech. Test. J. 2012, 35, 503–516. [Google Scholar] [CrossRef]
- Mao, H.Y.; Zhu, J.H.; Yu, X.; Bi, J.X.; Li, Z.J. Dynamic compaction study of eliminating the collapsibility of eolian deposit fine sand. J. Eng. Geol. 2019, 27, 745–752. [Google Scholar]
- Yuan, Y.Y.; Wang, X.C. Experimental research on compactness characteristics of aeolian sand. Chin. J. Geotech. Eng. 2007, 29, 360–365. [Google Scholar]
- Li, Z.Y.; Cao, Y.W.; Liang, N.X.; Mei, Y.J. Compactness mechanism of aeolian sand. China J. Highw. Transp. 2006, 19, 6–11. [Google Scholar]
- Yin, Y.Z.; Wang, Y.L. Study of key parameters in the process of aeolian sand compactibility. Appl. Mech. Mater. 2014, 580–583, 278–282. [Google Scholar] [CrossRef]
- Feng, Y. Compactness Technology Study of Tengger Desert Aeolian Sand Subgrade. Master’s Thesis, Chang’an University, Xi’an, China, 2017. [Google Scholar]
- Mao, X.S.; Hou, Z.J.; Kong, L.K. Experimental study on moisture migration of wind-blown sand. J. Hydraul. Eng. 2010, 41, 142–147. [Google Scholar]
- Deng, Y.H.; Li, X.A.; Wang, Z.J.; Song, Y.X.; Peng, J.B. Study on dynamic strength of the aeolian sand in mu us desert area. Eng. Mech. 2012, 29, 281–286. [Google Scholar]
- Song, Y.X. Test Study on the Mechanical Property of the Aeolian Sand and the Bearing Capacity of the Aeolian Sand Ground of Mu Us Desert. Ph.D. Thesis, Chang’an University, Xi’an, China, 2011. [Google Scholar]
- Zhang, D.Y. Study on the Engineering Characteristics of Eolian Sand in Mu Us Desert. Master’s Thesis, Chang’an University, Xi’an, China, 2009. [Google Scholar]
- Li, X.F.; Ma, Z.G.; Lu, W.N.; Wang, J.D. True-triaxial drained test of tengger desert sand. Adv. Civ. Eng. 2020, 2020, 8851165. [Google Scholar] [CrossRef]
- Li, X.F.; Lu, W.N.; Ma, Z.G.; Tuo, N. The undrained characteristics of tengger desert sand from true triaxial testing. Adv. Civ. Eng. 2021, 2021, 6320397. [Google Scholar] [CrossRef]
- Xia, H.; Zhang, J.; Cai, J.; Pan, H.; She, X. Study on the bearing capacity and engineering performance of aeolian sand. Adv. Mater. Sci. Eng. 2020, 2020, 3426280. [Google Scholar] [CrossRef]
- Zhang, L.; Zhang, Q.; Li, Z.; Wang, H. Test on compaction reinforcement effect of sand. Adv. Mater. Sci. Eng. 2020, 2020, 3685619. [Google Scholar] [CrossRef]
- Farhangi, V.; Moses, K.; Marten, G. Effect of micropiles on clean sand liquefaction risk based on CPT and SPT. Appl. Sci. 2020, 10, 3111. [Google Scholar] [CrossRef]
- Castro, G. Liquefaction of Sands. Ph.D. Thesis, Harvard University, Cambridge, MA, USA, 1969. [Google Scholar]
- Verdugo, R.; Ishihara, K. The steady state of sandy soils. Soils Found. 1996, 36, 81–91. [Google Scholar] [CrossRef] [Green Version]
- Yoshimine, M.; Ishihara, K. Flow potential of sand during liquefaction. Soils Found. 1998, 38, 189–198. [Google Scholar] [CrossRef] [Green Version]
- Cai, Z.Y.; Li, X.S. Deformation characteristics and critical state of sand. Chin. J. Geotech. Eng. 2004, 2004, 697–701. [Google Scholar]
- Cai, Z.Y.; Li, X.S. Effects of material state on the small strain behavior of dry sand. Rock Soil Mech. 2004, 2004, 10–14. [Google Scholar]
- Xu, R.Q.; Wang, X.C.; Zhu, J.F.; Zhang, J. Experiment of initial relative density effects on sand strength. J. Jiangsu Univ. (Nat. Sci. Ed.) 2012, 33, 345–349. [Google Scholar]
- Zhu, J.G.; Shi, J.W.; Luo, X.H.; Ren, J.; Chen, F. Experimental study on stress-strain-strength behavior of sand with different densities. Chin. J. Geotech. Eng. 2016, 38, 336–341. [Google Scholar]
- Leib, A.R.; Sharma, A.; Penumadu, D. Visualization of localized deformations of sand in drained triaxial compression using digital image correlation. Geotech. Test. J. 2020, 44, 782–798. [Google Scholar] [CrossRef]
- Sun, Y.; Gao, Y.; Shen, Y. Mathematical aspect of the state-dependent stress–dilatancy of granular soil under triaxial loading. Géotechnique 2019, 69, 158–165. [Google Scholar] [CrossRef]
- Sun, Y.; Wichtmann, T.; Sumelka, W.; Kan, M.E. Karlsruhe fine sand under monotonic and cyclic loads: Modelling and validation. Soil Dyn. Earthq. Eng. 2020, 133, 106119. [Google Scholar] [CrossRef]
- Sun, Y.; Sumelka, W.; Gao, Y.; Nimbakar, S. Phenomenological fractional stress–dilatancy model for granular soil and soil-structure interface under monotonic and cyclic loads. Acta Geotech. 2021, 16, 3115–3132. [Google Scholar] [CrossRef]
- Song, S.; Sun, Y. Flow liquefaction instability and the permissible range of fractional order of sand. Eur. J. Environ. Civ. Eng. 2019, 26, 1182–1197. [Google Scholar] [CrossRef]
- Guo, W.L.; Cai, Z.Y. Study on the critical state of a unique silty sand. Granul. Matter 2022, 24, 19. [Google Scholar]
- Jin, Y.F.; Wu, Z.X.; Yin, Z.Y.; Shen, J.S. Estimation of critical state-related formula in advanced constitutive modeling of granular material. Acta Geotech. 2017, 12, 1329–1351. [Google Scholar] [CrossRef]
- Li, X.S.; Dafalias, Y.F.; Wang, Z.L. State-dependent dilatancy in critical-state constitutive modeling of sand. Can. Geotech. J. 1999, 36, 599–611. [Google Scholar] [CrossRef]
- Carrera, A.; Coop, M.R.; Lancellotta, R. Influence of grading on the mechanical behaviour of Stava tailings. Géotechnique 2011, 61, 935–946. [Google Scholar] [CrossRef]
- Chiu, C.F.; Fu, X.J. Interpreting undrained instability of mixed soils by equivalent intergranular state parameter. Géotechnique 2008, 58, 751–755. [Google Scholar] [CrossRef]
- Murthy, T.G.; Loukidis, D.; Carraro, J.A.H.; Prezzi, M. Undrained monotonic response of clean and silty sands. Géotechnique 2007, 57, 273–288. [Google Scholar] [CrossRef]
- Yang, J.; Wei, L.M. Collapse of loose sand with the addition of fines: The role of particle shape. Géotechnique 2012, 62, 1111–1125. [Google Scholar] [CrossRef] [Green Version]
- Ahmed, S.S.; Martinez, A. Triaxial compression behavior of 3d printed and natural sands. Granul. Matter 2021, 23, 1–21. [Google Scholar] [CrossRef]
- ASTM International. Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System); ASTM International: West Conshohocken, PA, USA, 2017. [Google Scholar]
- ASTM International. Standard Test Methods for Maximum Index Density and Unit Weight of Soils Using a Vibratory Table; ASTM International: West Conshohocken, PA, USA, 2016. [Google Scholar]
- ASTM International. Standard Test Methods for Minimum Index Density and Unit Weight of Soils and Calculation of Relative Density; ASTM International: West Conshohocken, PA, USA, 2016. [Google Scholar]
- Hao, D.X.; Yue, C.; Chen, R.; Ren, J.; Chen, F. Shear characteristics and stress-dilation relation of medium sand under normal to high pressures. Chin. J. Geotech. Eng. 2020, 4, 765–772. [Google Scholar]
- Ladd, R.S. Preparing test specimens using under compaction. Geotech. Test. J. 1978, 1, 16–23. [Google Scholar]
Coefficient of Uniformity | Coefficient of Curvature | Specific Gravity | Void Ratio | |
---|---|---|---|---|
Cu | Cc | Gs | Max | Min |
2.1 | 1.0 | 2.67 | 0.907 | 0.589 |
CD/CU | Relative Density Dr (%) | Void Ratio e | Sand Mass (g) | Effective Confining Pressure σ3′ (kPa) |
---|---|---|---|---|
CD/CU | 10 | 0.875 | 533.8 | 100/300/600 |
30 | 0.812 | 552.5 | ||
50 | 0.748 | 572.7 | ||
70 | 0.684 | 594.5 | ||
90 | 0.621 | 617.6 | ||
CU | 50 | 0.748 | 572.7 | 50 |
50 | 0.748 | 572.7 | 800 | |
50 | 0.748 | 572.7 | 1200 |
