Article

The Effects of Display Parameters and Devices on Spatial Ability Test Times

1
Department of Information Technology and Its Applications, University of Pannonia, 8900 Zalaegerszeg, Hungary
2
Department of Mathematics, University of Pannonia, 8200 Veszprem, Hungary
3
Department of Electrical Engineering and Information Systems, University of Pannonia, 8200 Veszprem, Hungary
4
Department of Basic Technical Studies, University of Debrecen, 4028 Debrecen, Hungary
*
Author to whom correspondence should be addressed.
Appl. Sci. 2022, 12(3), 1312; https://doi.org/10.3390/app12031312
Submission received: 5 December 2021 / Revised: 22 January 2022 / Accepted: 24 January 2022 / Published: 26 January 2022
(This article belongs to the Special Issue Applications of Cognitive Infocommunications (CogInfoCom))

Abstract

:
The effects of display parameters and devices are examined on spatial ability test times in virtual environments. Before the investigation, completion times of 240 and 61 students were measured, using an LG desktop display and the Gear VR, respectively. The virtual environment also logged the following randomized display parameters: virtual camera type, field of view, rotation, contrast ratio, whether shadows are turned on, and the used display device. The completion times were analyzed using regression analysis methods. Except for the virtual camera type, every factor has a significant influence on the test completion times. After grouping the remaining factors into pairs, triplets, quartets, and quintets, the following can be concluded: the combination of 75° field of view, 45° camera rotation, and 3:1 contrast ratio has the largest increase in completion times with an estimate of 420.88 s—even when this combination is in-side a quartet or a quintet. Consequently, significant decreases in completion times exist up to variable quartets (the largest being −106.29 s on average), however, the significance disappears among variable quintets. The occurrences of factors were also investigated: an undefined field of view, a 0° camera rotation, the Gear VR, a 7:1 contrast ratio, and turned-on shadows are the factors that occur in most significant combinations. These are the factors that often and significantly influence completion times.

1. Introduction

Since well-developed spatial skills are necessary for several jobs, mainly for those that are related to engineering [1], they are considered to be essential in the present day. Fortunately, as they are cognitive skills, they can be improved through time [2]. It is imperative that training of spatial skills should be included in the studies of engineering students [3]. Through the years, several paper-based geometric problems that can improve spatial ability were created in the literature. In this paper, three such tests are focused on: the Mental Rotation Test (MRT) [4], Mental Cutting Test (MCT) [5], and the Purdue Spatial Visualization Test (PSVT) [6].
Although their numbers are still scarce, new versions of these spatial ability improving tests are recreated in virtual or augmented environments [7,8,9,10], and some even include gamification elements [11,12]. Building such virtual/augmented versions of these tests is quite complex: according to Burdea and Coiffet, a virtual system is created of five various parts: software/database(s), the VR engine behind it, tasks, I/O devices, and the users themselves [13]. Due to its complexity, the design of virtual environments can influence human-computer interaction because users can be immersed and human-computer interfaces can be redefined [14,15]. There is no perfect human-computer interaction for virtual reality applications because the interaction type varies from application to application [16].
As can be observed, design is quite important in virtual environments. According to Cutmore et al., users perform better in dynamic environments [17], while the study of Cidota et al. concludes that the blur, and fade effects as well as “standard environments” can positively influence users [18]. Using a head-mounted display can also enhance the performance of users in virtual reality [19], and user characteristics can also influence the results on tests [20], even their completion times as well [21]. However, distances from objects are typically underestimated in virtual environments [22], however binocular disparity and a carefully adjusted camera should be provided to increase the presence of the users [23]. This means that with a carefully designed virtual environment, spatial skills can be improved [24,25,26,27,28].
Among others, investigation of human-computer interaction in virtual worlds is part of the Cognitive InfoCommunications (CogInfoCom) environment [29,30,31,32,33,34] which was used for this and the authors’ previous studies: spatial skills are also investigated in it [11,12,35], and the optimal user-centric virtual environment—to enhance the spatial skills of users—was also found [36].
Based on the literature and previous research, the display parameters and devices are in interaction with the various users: every factor has some influence on the correct answers reached on the spatial ability tests. Even the characteristics of users affect current answers [9,19,37], and completion times [21]. However, what about the display parameters? Do they affect test completion times?
To find an answer to this question, a previously developed spatial ability measuring virtual environment was used [38]. While the application logs user results and information about the tests, display parameters—such as the virtual camera type, its field of view (FoV), rotation, contrast ratio, and the existence of shadows—can be controlled in the application. For the measurements, participants either used a desktop display or the Gear VR head-mounted display. 240 participants tested with the former, and 61 with the latter. Their completion times were evaluated using linear regression analysis. According to the results, a combination of 75° FoV, 45° camera rotation, and 3:1 contrast ratio has the largest increase in completion times—even when this combination is inside a quartet or a quintet. Consequently, significant decreases in completion times exist up to variable quartets and the significance disappears among variable quintets.
The structure of this study is the following: research questions (RQs) and hypotheses (Hs) are presented in Section 2; the materials and methods are detailed in Section 3; the results are shown in Section 4, while they are discussed in Section 5. Conclusions are made in Section 6.

2. Research Questions and Hypotheses

To investigate the interaction between human and machine, test times were in focus during this research. As the investigation focuses on the influence of display parameters and devices on test times, two RQs and Hs were formed. The RQs are the following:
  • RQ1: Are test times influenced by various display parameters and devices? Is there an interaction between them?
  • RQ2: Which combination of these factors results in either the smallest or the largest test times? The authors try to recognize the best and the worst combinations.
After the RQs were formed, the same number of Hs was also formed. To make complete testing hypotheses, first, the null hypotheses are phrased, then the alternative hypotheses are phrased. These are the following:
Hypothesis 1 (H1).
No significant influences on completion times exist due to various display parameters and devices, opposite to significant influences on completion times exist due to various display parameters and devices.
Hypothesis 2 (H2).
The smallest and the largest completion times are not significantly influenced by these factors, opposite to the smallest and the largest completion times are significantly influenced by these factors.

3. Materials and Methods

This section is split into three subsections: the development, data collection, and lastly, data analysis. These can be found in Section 3.1, Section 3.2 and Section 3.3, respectively.

3.1. Development

In 2019 a spatial ability measuring application was developed using the Unity game engine to answer the RQs and Hs. This application is compatible with newer Windows (7+) and Android (7.0+) versions. The latter version was required to create an immersive virtual reality experience: it can be used with the Samsung Gear VR SM-R322 head-mounted display [39], while a Samsung S6 Edge+ smartphone was placed into it [40].
Two differences exist among the two versions: interaction and level of immersion. Naturally, when the Gear VR is used, users feel that they are “inside” the virtual environment, thus the level of immersion is increased. It is not possible to move; only the rotation of their head is possible. Regarding interaction, users have to look at objects and tap the touchpad on the right side of the Gear VR to select objects, while when using the desktop display, objects can be selected by pressing the left mouse button or corresponding keys on the keyboard (1–4 or 1–5 depending on the test types).
At the moment, there are three types of tests in the application: the MRT, MCT, and PSVT test types, although the Heinrich Spatial Visualization Test [41] is in process of being implemented in it. The MRT, MCT, and PSVT test types are shown in Figure 1.

3.2. Data Collection

Both the University of Pannonia and University Debrecen were the sites of measurements. The spatial skills of 61 students were measured using the Gear VR version at the former university, and 240 students participated using the LG 20M37A (19.5″) desktop display at the latter university [42]. Information technology (IT) and non-IT students used the Gear VR version, while architectural/civil engineering and mechanical engineering students used the desktop display version.
The tests were constructed as the following: students had to solve 10 problems of each test type in sequential order. After they finished, they could rest, if they wanted. Then, they had to solve another 10 problems of each test type. Afterward, they could rest, and then, another 10 problems of each test type had to be solved. The reason why these tests had to be solved three times is that the display parameters were using a randomization technique: two or three display parameters were randomized before starting each test type. While this could result in smaller sample sizes, a large number of results could be achieved with it in the end. It should be noted that both the problems and their answers were also randomized, thus eliminating the possibility that the students remember them.
Since one Gear VR device was available at the University of Pannonia, students had to come sequentially for the measurements. As each person took around 30–50 min to complete all tests, 3 weeks were needed to measure the spatial skills of everyone. Testing was easier at the University of Debrecen: a computer laboratory with a capacity of 20 people was used. Therefore, the students were grouped into 20 groups. All students were informed of the tests, and every one of them gave oral consent before the measurements commenced, although their names were not recorded. It is impossible to identify them based on the logged data alone.
The application logs the following information about the students while respecting their anonymity: their age, gender, primary hand, what their major is, and their number of university years. These previous user characteristics are not focused on in this study. It also logs the test type, number of correct answers, and completion times. Naturally, the display parameters are also logged: the contrast ratio, whether there are shadows in the scene, virtual camera type, its rotation, and its field of view. It was not necessary to log the various display devices because each version logs the information into a different .csv file. Therefore, it is possible to identify them later.

3.3. Data Analysis

2709 lines of data were collected during the measurements. Each line contained the logged information presented in the previous subsection. The data was analyzed in the statistical program package R [43]. Since the goal was to clarify the factors’ influences on test completion times, regression methods were used [44]. During the investigation, the influences of the factors were examined one by one, in pairs, in triplets, in quartets, and a quintet. The results of the investigation are presented in the following section.

4. Results

The completion times are investigated in this section. The largest time is 1168.43 s, while the smallest is 7.9 s (although it is impossible to solve 10 spatial ability problems in this small time). The mean of all test times is 200.388 s, while the dispersion is 123.279 s. Before the analysis, the distribution of completion times is investigated. To do so, the Kolmogorov-Smirnov test was used, and its results prove that the data does not follow a Gauss-distribution (p-value < 2.2 × 10−16).
To analyze these test times, the effect of display parameters and devices are examined on them: the possible factors are investigated by one in the first subsection, while they are investigated in pairs, triplets, quartets, and a quintet in the second, third, fourth, and fifth in the following subsections.

4.1. The Effect of Each Factor

In this section, each factor (camera type, its FoV, rotation, contrast ratio, a display device, and whether shadows are turned on) was investigated with regression analysis. This means that each factor was compared to the basis of the variable, its coefficient is named Intercept in each case and the level itself Intercept Level. The results of every significant comparison are presented with 95% confidence intervals (CIs) in Figure 2. It should be noted that confidence intervals can be visualized well: it is possible to observe the effects of variables, but if the confidence interval belonging to a non-basis level variable reaches zero, then there is no significant effect of this level on the test completion related to the basis.
First, the effect of the camera type was analyzed. It has to be noted that a virtual camera has two types: orthogonal and perspective. The former uses orthographic projection, while the latter is similar to the human eye. 1291 tests were conducted with the former and 1418 with the latter. The former also was the Intercept variable with an estimate of 201.081 s. According to the results, the camera type does not significantly affect the completion times (p-value = 0.78). Therefore, the camera type was omitted from further analysis.
Next, the influence of camera FoVs was examined. This factor had 5 levels in this study: 45°, 60°, 75°, 90° and undefined. The latter also means that an orthogonal camera was used since the FoV is undefined in that case. 1049, 120, 134, 115, and 1291 tests were done with all these levels, respectively. Here, the Intercept level was 45° with an estimate of 205.586 s. As shown by the results of the regression analysis, only the 60° FoV has a significant effect (p-value = 0.00788): the times are decreased in this case, on average. Out of the remaining levels, 90° FoV was the closest to being significant (p-value = 0.10340). These insignificant factors also decreased the completion times, albeit slightly.
Afterward, the camera rotation was investigated. 7 levels existed in this case: −45°, −30°, −15°, 0°, 15°, 30°, and 45°. 294, 294, 106, 1251, 312, 313, and 139 tests were done with these levels, respectively. The Intercept level was −15° with an estimate of 236.1102 s. As can be seen, two variables have significant effects which decrease completion times: 0° (p-value < 2 × 10−16), and −45° (p-value = 0.044). This means that in most cases, significantly smaller test completion times can be reached without camera rotation.
The following variable to examine was the contrast ratio: there were 5 levels in this case: 1.5:1, 14:1, 21:1, 3:1, and 7:1. Respectively, the number of tests was 1066, 164, 191, 167, and 1121. 1.5:1 was the Intercept level with an estimate of 148.378 s. As can be seen, every level has a significant influence, and each increases the completion times. The significances are the following: 3:1 (p-value = 1.13 × 10−5), 7:1 (p-value < 2 × 10−16), 14:1 (p-value = 0.00391), and 21:1 (p-value = 4.45 × 10−7). The best case is contrast ratio 7:1. It means, that the contrast should be increased to a certain level, but if it is too strong, its effect decreases.
Next, the existence of shadows in the scene was assessed. Therefore, there were two levels: shadows are turned on (1414 tests), and shadows are turned off (1295 tests). The latter was the Intercept level with an estimate of 193.355 s. According to the results, when shadows are turned on, the completion times are significantly increased (p-value = 0.00447). It means, that the lack of shadow is better. Its existence could be confusing.
Lastly, the used display device was assessed. Similarly, there were two levels in this case: desktop display (2160 tests) and the Gear VR (549 tests). The former was the Intercept level with an estimate of 188.784 s. Due to the results of the regression analysis, it can be concluded that the use of the Gear VR significantly increased the completion times (p-value < 2 × 10−16). It means that people need more time in immersive circumstances, which can be explained by the unusual conditions.

4.2. The Effect of Factor Pairs

After the factors (variables) were analyzed one by one, the investigation continued with pairs. All possible combinations were made and were compared to each other. These combinations and their Intercept variables are the following as shown in Table 1:
As can be seen in Table 1, the pair of 45° FoV & −15° camera rotation has the largest estimate of seconds, while the pair of desktop display & 1.5:1 contrast ratio and the desktop display have the smallest. If the pairs are looked at, it can also be suspected that when the −15° camera rotations are paired with another factor, the estimates become quite large. These estimates are the largest ones. Similarly, when the 1.5:1 contrast ratio is paired with another factor, the estimates decrease. These estimates are the smallest ones.
The significant pairs resulting from the comparison can be seen in Figure 3 in the form of 95% CIs. From this point onward, the following new abbreviations are used: ROT for camera rotation, CR for contrast ratio, DD for desktop display, GVR for the Gear VR, SH ON for turned on shadows, and lastly, SH OFF for turned off shadows. As illustrated in Figure 3, there are 75 pairs with significant decreases and increases in completion times. 23 pairs decrease test completion times significantly, while 52 increase them. The largest significant decrease is in the case of 75° FoV and −45° camera rotation, while the largest significant increase is in the case of the Gear VR and 7:1 contrast ratio.
Next, the interactions between all pairs of factors were assessed. To conserve space, only the significant interactions are shown in Table 2. Inside the “Estimate” column, the estimates of the Intercept variables are presented between brackets, respectively.
The data presented in Table 2 shows that the pair of FoV and camera rotation has the largest number of significant interactions: there are seven of them. Contrarily, the pairs of FoV & Display device; Camera rotation & Display device; Camera rotation & Contrast ratio; and lastly, Contrast ratio & Display device have only one significant interaction in them. The largest increase can be found in the case of 75° FoV and 0° camera rotation, while the largest decrease exists in the case of 90° FoV & 7:1 Contrast ratio with an estimate of 149.376 s. It can also be observed in Table 2 that when the camera rotation is paired with an undefined FoV, the estimates of interactions significantly decrease. A similar phenomenon happens when it is paired with the Gear VR.
Also, pairs that do not have interactions exist in the model. These are the following: FoV & Shadows; Camera rotation & Shadows; Display device & Shadows; and lastly, Contrast ratio & Shadows. This means that every pair that has the factor of shadows in them, do not have significant interactions.

4.3. The Effect of Factor Triplets

The next step was to analyze the triplets of factors. Similar to before, all possible combinations of factors were created. These combinations and their Intercept levels are the following as shown in Table 3, while the significant pairs resulting from the comparison can be seen in Figure 4 in the form of 95% CIs.
As can be seen in Table 3, when the contrast ratio of 1.5:1 is present in the intercept levels, the estimates become smaller. Usually, when either the desktop display or the turned off shadows factor is in the intercept levels, the estimates also become smaller. However, when either the 45° FoV or the −15° camera rotation is beside them, the estimate increases. Therefore, it can be suspected from Table 3, that the 45° FoV and −15° camera rotation can increase completion times when they are in a triplet.

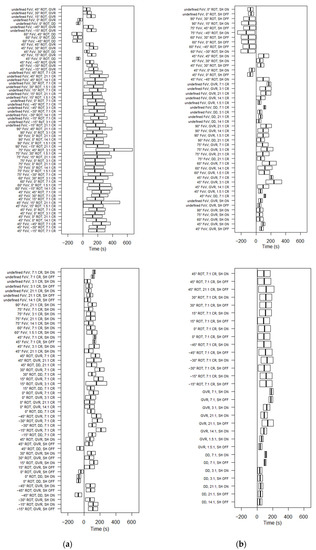

According to the results, there are 179 significant differences when triplets are involved. There are 23 significant decreases in completion times, while the remaining 156 differences are significant increases. The largest significant decrease with an estimate of −132.228 s is when 75° FoV and −45° camera rotation is used with turned on shadows (p-value = 0.029173), while the largest significant increase with an estimate of 420.88 s on average is when 75° FoV, 45° camera rotation and 3:1 contrast ratio are used (p-value = 0.000768).
Afterward, the interaction among triplets was examined. Before assessing each triplet, the ANOVA variance analysis was used to identify which model is optimal out of three: regression models with only additive properties (I), regression models in which the interaction of pairs is allowed (II), and regression models in which the interaction of triplets is allowed (III). The results of this analysis are presented in Table 4 and the optimal models are also shown in it.
As can be seen in Table 4, when comparing model I and model II, 8 significant differences exist among them. This means that model II proved to be superior in 8 cases. In the remaining ones, the optimal model is the additive model (I) as there was no significant interaction found among the factors. When comparing model I and model III, 7 significant differences were found, but when comparing model II and model III, the latter did not prove to be better than the former.
Ultimately, model III is not better than model II. Therefore, this means that in 8 cases, model II is the most appropriate of all three models. Model I should be used in the case of the remaining 2 cases. In the end, according to the optimal models, there are 45 significant interactions among pairs of factors.

4.4. The Effect of More than Three Factors

In this section, the effect of more than three factors is analyzed. It should be noted that due to a large number of quartets and quintets, many of them contain small (≤10) sample sizes due to the used randomization technique as was mentioned in Section 3. Therefore, the results presented in this subsection should be interpreted with caution.
As before, the models were compared to each other to find the optimal one. This means that during the investigation, every model (regression models with only additive properties (I), regression models in which the interaction of pairs is allowed (II), regression models in which the interaction of triplets is allowed (III), regression models in with the interaction of quartets are allowed (IV), and regression models in which the interaction of quintets are allowed (V)) was compared to each other with the ANOVA variance analysis.
Naturally, there were four models in the case of quartets and five in the case of quintets. In both cases, model II proved to be the best. Even if the interactions of at least variable triplets are permitted, no model is better than II.

4.4.1. The Effect of Factor Quartets

When investigating the effect of factor quartets all possible (864) combinations are made of them. Afterward, they were compared to each other. These combinations and their Intercept variables are the following as presented in Table 5.
According to the results, 230 significant quartets were found out of all possible 864 quartets. This means that 26.62% of the combinations are significant. However, only 6 combinations decrease the completion times significantly, while the remaining ones increase it. The greatest significant decrease is when 60° FoV, 45° camera rotation, a desktop display is used without shadows.

4.4.2. The Effect of Factor Quintets

Lastly, the effect of factor quintets was investigated. As there were five factors, in the end, only one quintet could be examined: Camera FoV & Camera rotation & Display device & Contrast ratio & Shadows. Similarly, regression analysis was used for the investigation. The Intercept variable was 45° FoV, −15° ROT, DD, 1.5:1 CR, and SH OFF with an estimate of 69.780 s on average and a standard error of 54.784.
According to the results, 110 significant differences exist among quintets. It can also be seen that there are no significant decreases in completion times. The largest significant increase is when the quintet is 75° FoV, 45° ROT, DD, 3:1 CR, and SH ON. In this case, the increase is 420.880 s on average, which is approximately 7 min. If the whole CI is looked at, the increase in completion times can reach approximately 10.5 min. Contrarily, the smallest significant increase is when the quintet is 45° FoV, 0° ROT, GVR, 1.5:1 CR, and SH ON. The increase is 112.517 s on average which is almost 2 min. While not significant, there are 11 quintets which could decrease the completion times. These can be seen in Figure 5.

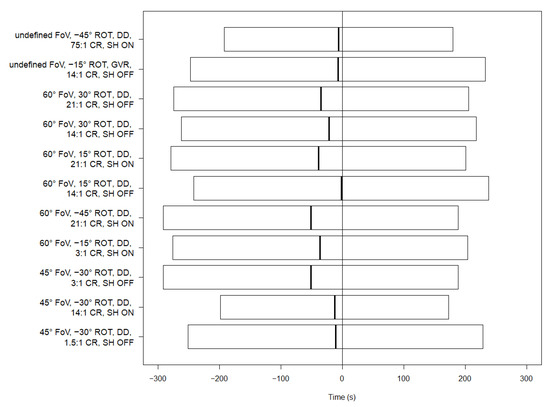

While the quintets in Figure 5 can decrease completion times, they can also slightly increase them. As can be seen, most of these completion times are received using a desktop display, while there is only one with the use of the Gear VR.
Regarding significant interactions, 14 exist of them. Significant ones only occur among the pairs of FoV & ROT; FoV & CR; and ROT & CR. The most significant interaction is in case of undefined FoV & 30° camera rotation (p-value = 6.01 × 10−5).

5. Discussion

The results show that the null hypotheses presented in Section 2 are rejected. This affirms the effect of the investigated factors, as was suspected. Therefore, this section is split into two subsections: the detected effects are presented in Section 5.1, while the importance of the results is detailed in Section 5.2.

5.1. Detected Effects

According to the results, every factor with the exception of the camera type has significant effects on completion times. Due to the results of the one-by-one analyses, the 60° FoV, and the camera rotations of 0° or 45° significantly decrease the completion times, while the contrast ratios of 3:1, 7:1, 14:1, 21:1, the existence of shadows and the use of the Gear VR significantly increase them.
Naturally, more factors can be found inside virtual environments. Therefore, the investigation continued in pairs: there are 75 pairs with significant decreases and increases in completion times. 23 pairs decrease test completion times significantly, while 52 increase them. The largest significant decrease is in the case of 75° FoV and −45° camera rotation (−99.00 s avg.), while the largest significant increase is in the case of the Gear VR and 7:1 contrast ratio (177.05 s avg.). The next two largest significant decreases are in the cases of 60° FoV and 45° camera rotation (−88.83 s avg.) as well as 90° FoV and 15° camera rotation (−86.56 s avg.), while the next two largest significant increases are in the cases of 45° FoV and 7:1 contrast ratio (125.95 s avg.) as well as shadows on and 7:1 contrast ratio (116.17 s avg.). As can be seen, if the pair consists of a 7:1 contrast ratio, the completion times are greatly increased.
The next step was to investigate triplets of factors. There are 23 significant decreases in completion times, while the remaining 156 differences are significant increases. The largest significant decrease is when 75° FoV and −45° camera rotation is used with turned on shadows (−132.22 s avg.), while the largest significant increase is when 75° FoV, 45° camera rotation, and 3:1 contrast ratio are used (420.88 s avg.). When triplets are analyzed, the model in which the interaction of pairs is allowed proved to be the best.
Similar phenomena occurred in the case of factor quartets and quintets: the model that allowed the interaction of pairs proved to be the best. When investigation quartets, only 6 combinations decrease the completion times significantly, while the remaining ones increase it. The greatest significant decrease is when 60° FoV, 45° camera rotation a desktop display is used without shadows. (−106.29 s avg.) The remaining ones are:
  • 45° FoV, 0° camera rotation, desktop display, shadows turned off (−70.60 s avg.)
  • undefined FoV, 0° camera rotation, desktop display, shadows turned on (−67.37 s avg.)
  • undefined FoV, 0° camera rotation, desktop display, shadows turned off (−52.38 s avg.)
  • 45° FoV, 0° camera rotation, desktop display, shadows turned on (−48.23 s avg.)
  • undefined FoV, 0° camera rotation, Gear VR, shadows turned off (−43.99 s avg.)
According to the factors inside the quartets, a larger possibility exists for a quartet to significantly decrease completion times when the camera is not rotated and when a desktop display is used. The three quartets with the largest significant increases are:
  • 75° FoV, 45° camera rotation, desktop display, and 3:1 contrast ratio (420.88 s avg.)
  • 75° FoV, 45° camera rotation, 3:1 contrast ratio, and shadows on (420.88 s avg.)
  • 75° FoV, 15° camera rotation, desktop display, and 21:1 contrast ratio (356.08 s avg.)
As can be seen, the first two produced the same completion times. The authors suspect that perhaps, they are part of the same quintet. Also, it can be seen that the largest significant increase in the case of triplets is equal to this time.
In the case of quintets, the previous suspicion of the authors proved to be true: the increase in time in case of the largest significant quintet (75° FoV, 45° camera rotation, desktop display, 3:1 contrast ratio, and shadows on) is 420.88 s on average as well. This is also equal to the largest increase among triplets. Therefore, based on these facts, the parameters of 75° FoV, 45° camera rotation, and a 3:1 contrast ratio are required for the largest increase in completion times.
After the largest significant increase, the next two quintets are the following: 60° FoV, −15° camera rotation, desktop display, 3:1 contrast ratio and no shadows (413.72 s avg.), as well as 45° FoV, 30° camera rotation, Gear VR, 7:1 contrast ratio and shadows on (406.28 s avg.). There are no significant decreases in the case of quintets.
To assess the significance of each factor in every significant combination, their occurrences are examined. This can be seen in Table 6.
According to the occurrences presented in Table 6, it can be stated undefined FoV, 0° camera rotation, Gear VR, 7:1 contrast ratio, and turned-on shadows are the factors that occur in the most significant combinations. Therefore, these are the factors that often and significantly influence completion times. Out of these most occurring factors, only the 0° camera rotation is the one that can significantly decrease completion times by itself, while the other significantly increase them by themselves.

5.2. The Importance of the Results

These spatial ability measuring tests are part of the curriculum of engineering studies, and some universities even have these tests as part of their entrance exams. Since these tests are quite important and the world is transitioning into a digital age, a virtual reality-based version was created as part of this study. Although our participants had “infinite” minutes to complete these spatial ability measuring tests, when paper-based tests are done, deadlines are included. Since virtual reality-based versions of these tests are appearing in the modern age, these tests may be taken in virtual environments. This would mean that deadlines should be included in this variant as well.
As virtual environments are made up of various components, the perceptions of users can be influenced. According to the results, the optimal test deadline can vary among various virtual environments, depending on their various factors: the FoV, camera rotation, contrast ratio, the existence of shadows, and even the display devices themselves can significantly affect completion times. Thus, when these tests are taken inside virtual environments, the optimal test completion deadline has to be carefully selected by the test organization committees.
Since no virtual environment is made up of one factor, six were investigated in this study. Out of six, five have significant effects on completion times. According to the results, while certain pairs of factors significantly interact with each other, the test completion times are significantly increased when factor quintets are investigated. In the end, it can be concluded that test completion times are significantly increased by these factors in virtual environments. Naturally, every increase depends on the parameters of virtual environments, but in the worst case, 7–10.5 min should be added to the test deadlines when these tests are taken inside virtual environments.

6. Conclusions

Virtual reality systems are made up of various components, such as the virtual reality engine, its software (and database), I/O devices, tasks, and humans. All are equally important in the system. As can be seen, the completion times are influenced by several of these components. Consequently, human-computer interaction is affected by these components as well.
While the virtual camera type does not significantly affect completion times, the combination of 75° FoV, 45° camera rotation, and 3:1 contrast ratio has the largest increase in completion times with an estimate of 420.88 s. This fact is also true when this combination is inside a quartet or a quintet of variables. Consequently, significant decreases in completion times exist up to variable quartets. In this case, the largest is −106.29 s on average. The significance in the case of decreasing completion times disappears when variable quintets are examined. Although 11 quintets can decrease completion times, they are not significant.
Besides these facts, it can also be concluded that an undefined FoV, a 0° camera rotation, the Gear VR, a 7:1 contrast ratio, and turned-on shadows are the factors that occur in most significant combinations. These are the factors that often and significantly influence completion times. Naturally, the findings could be used in other engineering applications as well. For example, when designing 3D objects in virtual environments, the workflow could also be made easier with these optimal parameters as the users could see spatial relations more clearly, and thus, faster.
However, it is important to note that since paper-based versions of these tests are part of the curriculum of engineering studies, deadlines have to be given to the students. Based on the results presented in this study, if/when these spatial ability tests are taken in virtual environments, the deadlines can be set more precisely by the test examination committee in the future. This fact is important because the required time for the tests can vary due to the influences of display devices as well as the parameters of virtual environments.

Author Contributions

Conceptualization, T.G.; methodology, T.G. and É.O.-M.; software, T.G.; validation, T.G. and É.O.-M.; formal analysis, T.G.; investigation, T.G.; resources, T.G. and E.P.; data curation, T.G., É.O.-M. and C.S.-L.; writing—original draft preparation, T.G.; writing—review and editing, T.G., É.O.-M., C.S.-L. and E.P.; visualization, T.G.; supervision, T.G.; project administration, T.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Ethical review and approval were waived for this study, due to the fact that informed oral consent was received from the participants, and they cannot be identified based on the information that was gathered.

Informed Consent Statement

Informed oral consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This research is supported by the ÚNKP-21-4 New National Excellence Program of the Ministry for Innovation and Technology from the source of the National Research, Development, and Innovation Fund. The authors would also like to thank Mónika Szeles for her help in developing the application as well as Lóránt Horváth for his help in the creation of objects for the MCT test type. Last, but not least, the authors would like to thank everyone who helped by testing the spatial ability application.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ghiselli, E.E. The validity of aptitude tests in personnel selection. Pers. Psychol. 1973, 26, 461–477. [Google Scholar] [CrossRef]
  2. Miller, C.L. Enhancing visual literacy of engineering students through the use of real and computer generated models. Eng. Des. Graph. J. 1992, 56, 27–38. [Google Scholar]
  3. Miller, C.L.; Bertoline, G.R. Spatial visualization research and theories: Their importance in the development of an engineering and technical design graphics curriculum model. Eng. Des. Graph. J. 1991, 55, 5–14. [Google Scholar]
  4. Vandenberg, S.G.; Kuse, A.R. Mental rotations, a group test of three-dimensional spatial visualization. Percept. Motor. Skill. 1978, 47, 599–604. [Google Scholar] [CrossRef]
  5. College Entrance Examination Board (CEEB): Special Aptitude Test in Spatial Relations, Developed by the College Entrance Examination Board; CEEB: New York, NY, USA, 1939.
  6. Guay, R.B. Purdue Spatial Visualization Test—Visualization of Rotations; Purdue Research Foundation: West Lafayette, IN, USA, 1977. [Google Scholar]
  7. Rizzo, A.A.; Buckwalter, J.G.; Neumann, U.; Kesselman, C.; Thiébaux, M.; Larson, P.; van Rooyen, A. The virtual reality mental rotation spatial skills project. Cyberpsychol. Behav. 1998, 1, 113–119. [Google Scholar] [CrossRef]
  8. Hercegfi, K.; Komlódi, A.; Szabó, B.; Köles, M.; Lógó, E.; Hámornik, B.P.; Rózsa, G. Experiences of virtual desktop collaboration experiments. In Proceedings of the 2015 6th IEEE International Conference on Cognitive Infocommunications (CogInfoCom), Gyor, Hungary, 19–21 October 2015; pp. 375–379. [Google Scholar] [CrossRef]
  9. Molina-Carmona, R.; Pertegal-Felices, M.L.; Jimeno-Morenilla, A.; Mora-Mora, H. Virtual Reality Learning Activities for Multimedia Students to Enhance Spatial Ability. Sustainability 2018, 10, 1074. [Google Scholar] [CrossRef] [Green Version]
  10. Gómez-Tone, H.C.; Martin-Gutierrez, J.; Valencia Anci, L.; Mora Luis, C.E. International Comparative Pilot Study of Spatial Skill Development in Engineering Students through Autonomous Augmented Reality-Based Training. Symmetry 2020, 12, 1401. [Google Scholar] [CrossRef]
  11. Tóth, R.; Zichar, M.; Hoffmann, M. Gamified Mental Cutting Test for enhancing spatial skills. In Proceedings of the 2020 11th IEEE International Conference on Cognitive Infocommunications (CogInfoCom), Mariehamn, Finland, 23–25 September 2020; pp. 299–304. [Google Scholar] [CrossRef]
  12. Tóth, R.; Zichar, M.; Hoffmann, M. Improving and Measuring Spatial Skills with Augmented Reality and Gamification. In Proceedings of the International Conference on Geometry and Graphics, Hong Kong, China, 6–8 December 2021; Springer: Cham, Swizterland, 2021; pp. 755–764. [Google Scholar] [CrossRef]
  13. Burdea, G.C.; Coiffet, P. Virtual Reality Technology; John Wiley: Hoboken, NJ, USA, 2003. [Google Scholar]
  14. Capanema, I.F.; Santos Garcia, F.L.; Tissiani, G. Implications of Virtual Reality in Education. Virtual Reality in Education: Online Survey. 2001. [Google Scholar]
  15. Zhou, X.; Jin, Y.; Jia, L.; Xue, C. Study on Hand–Eye Cordination Area with Bare-Hand Click Interaction in Virtual Reality. Appl. Sci. 2021, 11, 6146. [Google Scholar] [CrossRef]
  16. Sutcliffe, A.G.; Poullis, C.; Gregoriades, A.; Katsouri, I.; Tzanavari, A.; Herakleous, K. Reflecting on the Design Process for Virtual Reality Applications. Int. J. Hum. Comput. Interact. 2019, 35, 168–179. [Google Scholar] [CrossRef]
  17. Cutmore, T.R.; Hine, T.J.; Maberly, K.J.; Langford, N.M.; Hawgood, G. Cognitive and gender factors influencing navigation in a virtual environment. Int. J. Hum. Comput. Study 2000, 53, 223–249. [Google Scholar] [CrossRef]
  18. Cidota, M.A.; Clifford, R.M.S.; Lukosch, S.G.; Billinghurst, M. Using Visual Effects to Facilitate Depth Perception for Spatial Tasks in Virtual and Augmented Reality. In Proceedings of the 2016 IEEE International Symposium on Mixed and Augmented Reality (ISMAR-Adjunct), Merida, Mexico, 19–23 September 2016; pp. 172–177. [Google Scholar] [CrossRef]
  19. Gerig, N.; Mayo, J.; Baur, K.; Wittmann, F.; Riener, R.; Wolf, P. Missing depth cues in virtual reality limit performance and quality of three dimensional reaching movements. PLoS ONE 2018, 13, e0189275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Guzsvinecz, T.; Orbán-Mihálykó, É.; Perge, E.; Sik-Lányi, C. Analyzing the spatial skills of university students with a Virtual Reality application using a desktop display and the Gear VR. Acta Polytech. Hung. 2020, 17, 35–56. [Google Scholar] [CrossRef]
  21. Guzsvinecz, T.; Orbán-Mihálykó, É.; Sik-Lányi, C.; Perge, E. Investigation of spatial ability test completion times in virtual reality using a desktop display and the Gear VR. Virtual Real. 2021, 1–14. [Google Scholar] [CrossRef]
  22. Armbrüster, C.; Wolter, M.; Kuhlen, T.; Spijkers, W.; Fimm, B. Depth perception in virtual reality: Distance estimations in peri-and extrapersonal space. Cyberpsychol. Behav. 2008, 11, 9–15. [Google Scholar] [CrossRef]
  23. Renner, R.S.; Velichkovsky, B.M.; Helmert, J.R. The perception of egocentric distances in virtual environments-a review. ACM Comput. Surv. 2013, 46, 1–40. [Google Scholar] [CrossRef] [Green Version]
  24. Field, B.W. A course in spatial visualisation. J. Geom. Graph. 1999, 3, 201–209. [Google Scholar]
  25. Safadel, P.; White, D. Effectiveness of Computer-Generated Virtual Reality (VR) in Learning and Teaching Environments with Spatial Frameworks. Appl. Sci. 2020, 10, 5438. [Google Scholar] [CrossRef]
  26. Gómez-Tone, H.C.; Martin-Gutierrez, J.; Bustamante-Escapa, J.; Bustamante-Escapa, P. Spatial Skills and Perceptions of Space: Representing 2D Drawings as 3D Drawings inside Immersive Virtual Reality. Appl. Sci. 2021, 11, 1475. [Google Scholar] [CrossRef]
  27. Dünser, A.; Steinbügl, K.; Kaufmann, H.; Glück, J. Virtual and augmented reality as spatial ability training tools. In Proceedings of the 7th ACM SIGCHI New Zealand Chapter’s International Conference on Computer-Human Interaction: Design Centered HCI, New York, NY, USA, 6–7 July 2006; pp. 125–132. [Google Scholar] [CrossRef]
  28. Parsons, T.D.; Larson, P.; Kratz, K.; Thiebaux, M.; Bluestein, B.; Buckwalter, J.G.; Rizzo, A.A. Sex differences in mental rotation and spatial rotation in a virtual environment. Neuropsychologia 2004, 42, 555–562. [Google Scholar] [CrossRef]
  29. Katona, J. A Review of Human–Computer Interaction and Virtual Reality Research Fields in Cognitive InfoCommunications. Appl. Sci. 2021, 11, 2646. [Google Scholar] [CrossRef]
  30. Baranyi, P.; Csapo, A.; Sallai, G. Cognitive Infocommunications (CogInfoCom); Springer: Berlin/Heidelberg, Germany, 2015. [Google Scholar] [CrossRef]
  31. Kovari, A.; Katona, J.; Costescu, C. Quantitative Analysis of Relationship Between Visual Attention and Eye-Hand Coordination. Acta Polytech. Hung. 2020, 17, 77–95. [Google Scholar] [CrossRef]
  32. Katona, J. Clean and Dirty Code Comprehension by Eye-tracking Based Evaluation using GP3 Eye Tracker. Acta Polytech. Hung. 2021, 18, 79–99. [Google Scholar] [CrossRef]
  33. Katona, J. Analyse the Readability of LINQ Code using an Eye-Tracking-based Evaluation. Acta Polytech. Hung. 2021, 18, 193–215. [Google Scholar] [CrossRef]
  34. Katona, J.; Ujbanyi, T.; Sziladi, G.; Kovari, A. Examine the effect of different web-based media on human brain waves. In Proceedings of the 2017 8th IEEE International Conference on Cognitive Infocommunications (CogInfoCom), Debrecen, Hungary, 11–14 September 2017; pp. 407–412. [Google Scholar] [CrossRef]
  35. Macik, M. Cognitive aspects of spatial orientation. Acta Polytech. Hung. 2018, 15, 149–167. [Google Scholar] [CrossRef]
  36. Guzsvinecz, T.; Sik-Lanyi, C.; Orban-Mihalyko, E.; Perge, E. The Influence of Display Parameters and Display Devices over Spatial Ability Test Answers in Virtual Reality Environments. Appl. Sci. 2020, 10, 526. [Google Scholar] [CrossRef] [Green Version]
  37. Chang, J.S.K.; Yeboah, G.; Doucette, A.; Clifton, P.; Nitsche, M.; Welsh, T.; Mazalek, A. Evaluating the effect of tangible virtual reality on spatial perspective taking ability. In Proceedings of the 5th Symposium on Spatial User Interaction, Brighton, UK, 16–17 October 2017; pp. 68–77. [Google Scholar] [CrossRef]
  38. Guzsvinecz, T.; Szeles, M.; Perge, E.; Sik-Lanyi, C. Preparing spatial ability tests in a virtual reality application. In Proceedings of the 2019 10th IEEE International Conference on Cognitive Infocommunications (CogInfoCom), Naples, Italy, 23–25 October 2019; pp. 363–368. [Google Scholar] [CrossRef]
  39. Gear VR SM-R322 Support & Manual|Samsung Business. Available online: https://www.samsung.com/us/business/support/owners/product/gear-vr-sm-r322/ (accessed on 8 October 2021).
  40. Samsung Galaxy S6 Edge Plus—The Official Samsung Galaxy Site. Available online: https://www.samsung.com/global/galaxy/galaxy-s6-edge-plus/ (accessed on 8 October 2021).
  41. Heinrich, V. A Spatial Visualization Test for Selecting Engineering Students. Master’s Thesis, The Ohio State University, Columbus, OH, USA, 1988. [Google Scholar]
  42. LG LED Monitor 20M37A|19.5 LG LED Monitor—LG Electronics UK. Available online: https://www.lg.com/uk/monitors/lg-20M37A (accessed on 8 October 2021).
  43. R: The R Project for Statistical Computing. Available online: https://www.r-project.org/ (accessed on 8 October 2021).
  44. Walpole, R.E.; Myers, R.H.; Myers, S.L.; Ye, K. Probability & Statistics for Engineers & Scientists; Pearson Prentice Hall: Hoboken, NJ, USA, 2011. [Google Scholar]

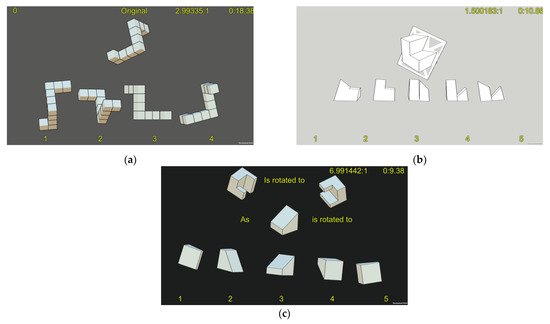

Figure 1. The various test types: (a) MRT test with an orthographic camera, 3:1 contrast ratio, no rotation, and shadows turned on; (b) MCT test with a perspective camera, 60° FoV, 1.5:1 contrast ratio, no rotation, and shadows turned off; (c) PSVT test with an orthographic camera, 7:1 contrast ratio, 15° camera rotation, and shadows turned on.
Figure 1. The various test types: (a) MRT test with an orthographic camera, 3:1 contrast ratio, no rotation, and shadows turned on; (b) MCT test with a perspective camera, 60° FoV, 1.5:1 contrast ratio, no rotation, and shadows turned off; (c) PSVT test with an orthographic camera, 7:1 contrast ratio, 15° camera rotation, and shadows turned on.
Applsci 12 01312 g001

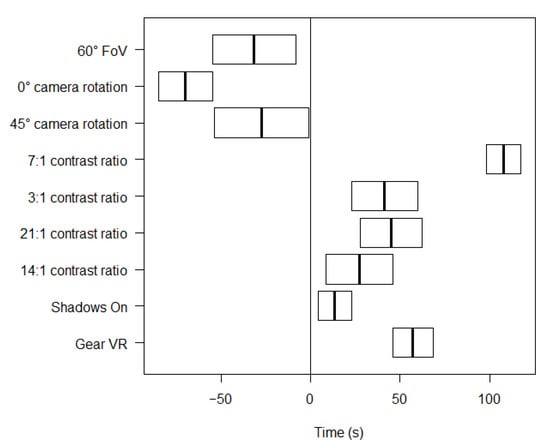

Figure 2. 95% CIs of each significant factor.
Figure 2. 95% CIs of each significant factor.
Applsci 12 01312 g002

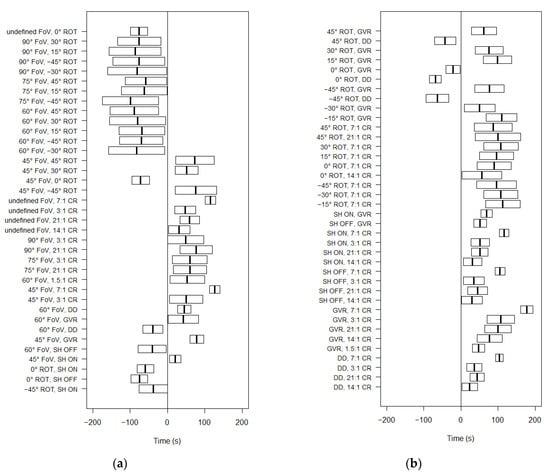

Figure 3. 95% CIs of each investigated significant pair of factors, graphically split into (a,b) for better readability.
Figure 3. 95% CIs of each investigated significant pair of factors, graphically split into (a,b) for better readability.
Applsci 12 01312 g003
Figure 4. 95% CIs of each investigated significant triplet of factors, graphically split into (a,b) for better readability.
Figure 4. 95% CIs of each investigated significant triplet of factors, graphically split into (a,b) for better readability.
Applsci 12 01312 g004
Figure 5. 95% CIs of each factor quintet that can decrease completion times.
Figure 5. 95% CIs of each factor quintet that can decrease completion times.
Applsci 12 01312 g005
Table 1. The investigated pairs, their intercept values, estimates, and standard errors.
Table 1. The investigated pairs, their intercept values, estimates, and standard errors.
PairsIntercept Levels of the PairsEstimateStandard Error
FoV & Camera rotation45° & −15°235.153 s10.828 s
FoV & Contrast ratio45° & 1.5:1142.204 s5.201 s
FoV & Display device45° & desktop display189.449 s4.183 s
FoV & Shadows45° & shadows on195.200 s5.424 s
Camera rotation & Shadows−15° & shadows on233.400 s10.438 s
Camera rotation & Display device−15° & desktop display223.473 s7.167 s
Camera rotation & Contrast ratio−15° & 1.5:1155.049 s22.122 s
Shadows & Display deviceshadows off & desktop display184.162 s3.711 s
Shadows & Contrast ratioshadows off & 1.5:1145.195 s4.793 s
Display device & Contrast ratiodesktop display & 1.5:1138.634 s3.802 s
Table 2. Significant interactions among variable pairs.
Table 2. Significant interactions among variable pairs.
PairInteractionEstimateStandard ErrorSignificance
FoV & ROTundefined & −45°(235.153 s) − 116.335 s34.498 s0.000756
60° & 0°(235.153 s) + 87.491 s37.625 s0.020127
75° & 0°(235.153 s) + 113.522 s42.469 s0.007563
90° & 0°(235.153 s) + 106.576 s38.876 s0.006158
undefined & 30°(235.153 s) − 83.108 s20.514 s5.24 × 10−5
60° & 45°(235.153 s) − 109.940 s50.618 s0.029947
undefined & 45°(235.153 s) − 100.112 s31.145 s0.001323
FoV & Display deviceundefined & GVR(189.449 s) − 38.779 s12.773 s0.002420
FoV & CR60° & 21:1(142.204 s) − 94.178 s39.031 s0.015900
60° & 7:1(142.204 s) − 139.055 s32.592 s2.05 × 10−5
75° & 7:1(142.204 s) − 122.968 s30.117 s4.58 × 10−5
90° & 7:1(142.204 s) − 149.376 s35.079 s2.13 × 10−5
ROT & Display device0° & GVR(223.473 s) − 61.777 s22.405 s0.005870
ROT & CR30° & 21:1(155.049 s) − 87.817 s43.652 s0.044300
CR & Display device7:1 & GVR(138.634 s) + 26.223 s11.871 s0.027255
Table 3. The investigated triplets, their intercept values, estimates, and standard errors.
Table 3. The investigated triplets, their intercept values, estimates, and standard errors.
TripletIntercept Levels of TripletsEstimateStandard Error
FoV & ROT & Display device45° & −15° & DD216.759 s11.367 s
FoV & ROT & CR45° & −15° & 1.5:169.78 s55.89 s
FoV & ROT & Shadows45° & −15° & SH OFF230.278 s16.645 s
FoV & Display device & CR45° & DD & 1.5:1131.359 s5.647 s
FoV & Display device đ Shadows45° & DD & SH OFF182.441 s5.864 s
FoV & CR & Shadows45° & 1.5:1 & SH OFF136.490 s7.134 s
ROT & Display device & CR−15° & DD & 1.5:1150.785 s22.378 s
ROT & Display device & Shadows−15° & DD & SH OFF218.658 s10.867 s
ROT & CR & Shadows−15° & 1.5:1 & SH OFF152.512 s37.612 s
Display device & CR & ShadowsDD & 1.5:1 & SH OFF137.152 s5.238 s
Table 4. Comparison of models (p-values).
Table 4. Comparison of models (p-values).
VariablesModel I, IIModel I, IIIModel II, IIIOptimal Model
FoV & ROT & Display device1.442 × 10−87.337 × 10−60.9697II
FoV & ROT & CR1.639 × 10−80.0003250.8916II
FoV & ROT & Shadows4.022 × 10−144.344 × 10−100.4625II
FoV & Display device & CR 4.528 × 10−60.00014020.6667II
FoV & Display device & Shadows0.0521200.526800.9770I
FoV & CR & Shadows1.095 × 10−62.962 × 10−50.2415II
ROT & Display device & CR1.503 × 10−50.00081410.8482II
ROT & Display device & Shadows4.469 × 10−50.0040810.7247II
ROT & CR & Shadows0.006820.083430.704II
Display device & CR & Shadows0.2610.57670.7253I
Table 5. The investigated quintets, their intercept values, estimates, and standard errors.
Table 5. The investigated quintets, their intercept values, estimates, and standard errors.
QuartetIntercept Levels of QuartetsEstimateStandard Error
FoV & ROT & Display device & CR45° FoV & −15° ROT & DD & 1.5:1 CR69.780 s54.740 s
FoV & ROT & Display device & S45° FoV & −15° ROT & DD & SH OFF213.313 s17.245 s
FoV & ROT & CR & S45° FoV & −15° ROT & 1.5:1 CR & SH OFF 69.780 s56.02 s
FoV & Display device & CR & S45° FoV & DD & 1.5:1 CR & SH OFF125.094 s7.686 s
ROT & Display device & CR & S−15° ROT & DD & 1.5:1 CR & SH OFF143.453 s38.817 s
Table 6. Number of occurrences of each factor in significant combinations. The largest occurrence per factor is denoted by *.
Table 6. Number of occurrences of each factor in significant combinations. The largest occurrence per factor is denoted by *.
FactorsPairsTripletsQuartetsQuintets
undefined FoV11 *34 *76 *44 *
45° FoV8275736
60° FoV9172211
75° FoV5192510
90° FoV6141810
−45° ROT4 *685
−30° ROT2496
−15° ROT05159
0° ROT319 *36 *24 *
15° ROT36159
30° ROT39137
45° ROT37127
DD8306652
GVR17 *69 *99 *59 *
1.5:1 CR2143014
3:1 CR8213212
7:1 CR13 *58 *93 *54 *
14:1 CR6162614
21:1 CR8293417
SH OFF2386865
SH ON8 *49 *97 *67 *
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Guzsvinecz, T.; Orbán-Mihálykó, É.; Sik-Lányi, C.; Perge, E. The Effects of Display Parameters and Devices on Spatial Ability Test Times. Appl. Sci. 2022, 12, 1312. https://doi.org/10.3390/app12031312

AMA Style

Guzsvinecz T, Orbán-Mihálykó É, Sik-Lányi C, Perge E. The Effects of Display Parameters and Devices on Spatial Ability Test Times. Applied Sciences. 2022; 12(3):1312. https://doi.org/10.3390/app12031312

Chicago/Turabian Style

Guzsvinecz, Tibor, Éva Orbán-Mihálykó, Cecília Sik-Lányi, and Erika Perge. 2022. "The Effects of Display Parameters and Devices on Spatial Ability Test Times" Applied Sciences 12, no. 3: 1312. https://doi.org/10.3390/app12031312

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
