Intact, Commercial Lithium-Polymer Batteries: Spatially Resolved Grating-Based Interferometry Imaging, Bragg Edge Imaging, and Neutron Diffraction

1
Department of Chemistry, Louisiana State University, Baton Rouge, LA 70803, USA
2
National Institute of Standards and Technology, 100 Bureau Dr., Mail Stop 8461, Gaithersburg, MD 20899-8461, USA
3
Center for Advanced Microstructures and Devices, Louisiana State University, Baton Rouge, LA 70806, USA
4
Helmholtz-Zentrum Berlin fur Materialien und Energie, 14109 Berlin, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Aliaksandr Shaula
Appl. Sci. 2022, 12(3), 1281; https://doi.org/10.3390/app12031281
Received: 16 December 2021 / Revised: 15 January 2022 / Accepted: 19 January 2022 / Published: 25 January 2022
(This article belongs to the Special Issue Neutron Dark-Field Imaging and Grating Interferometry)

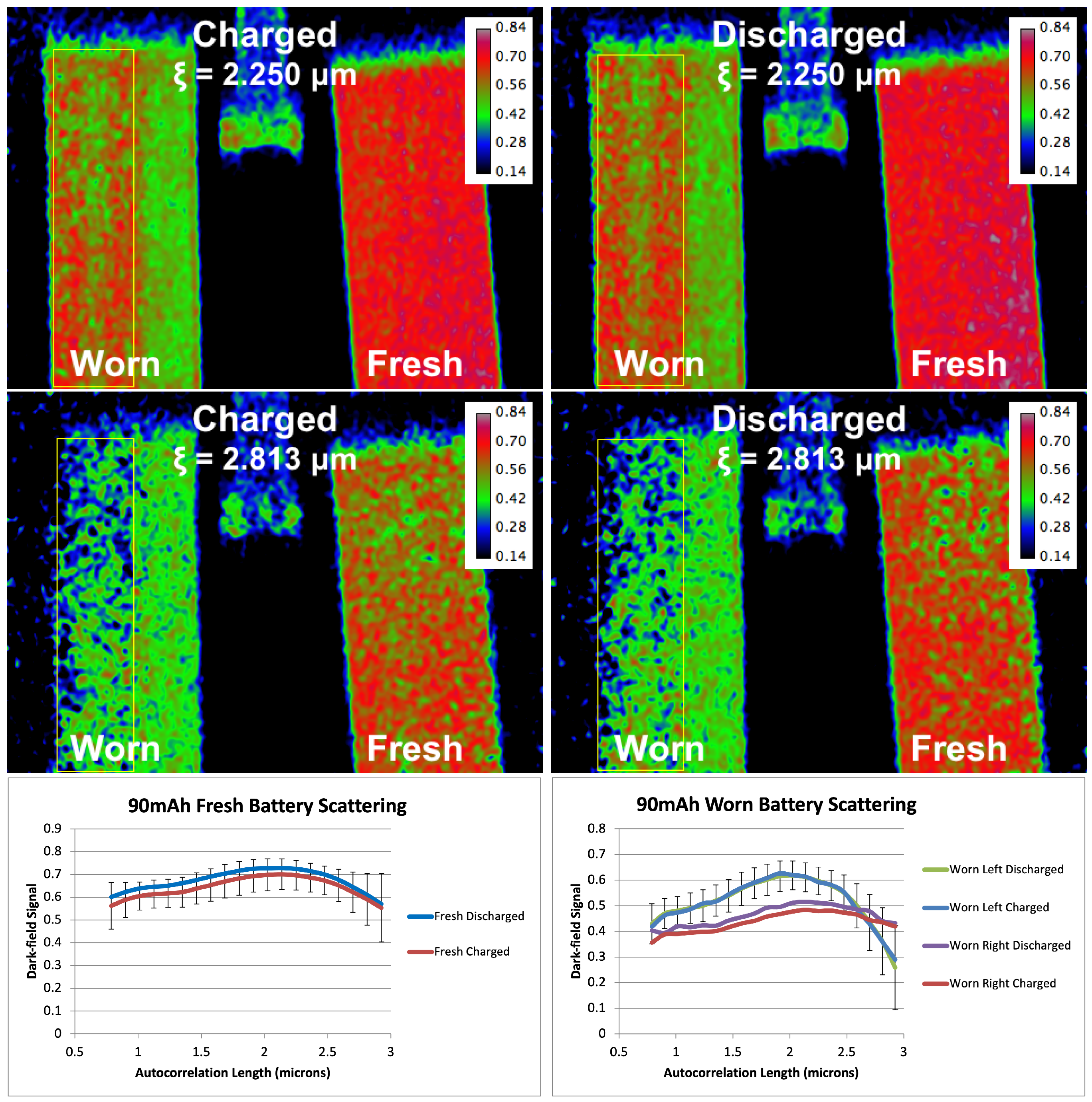

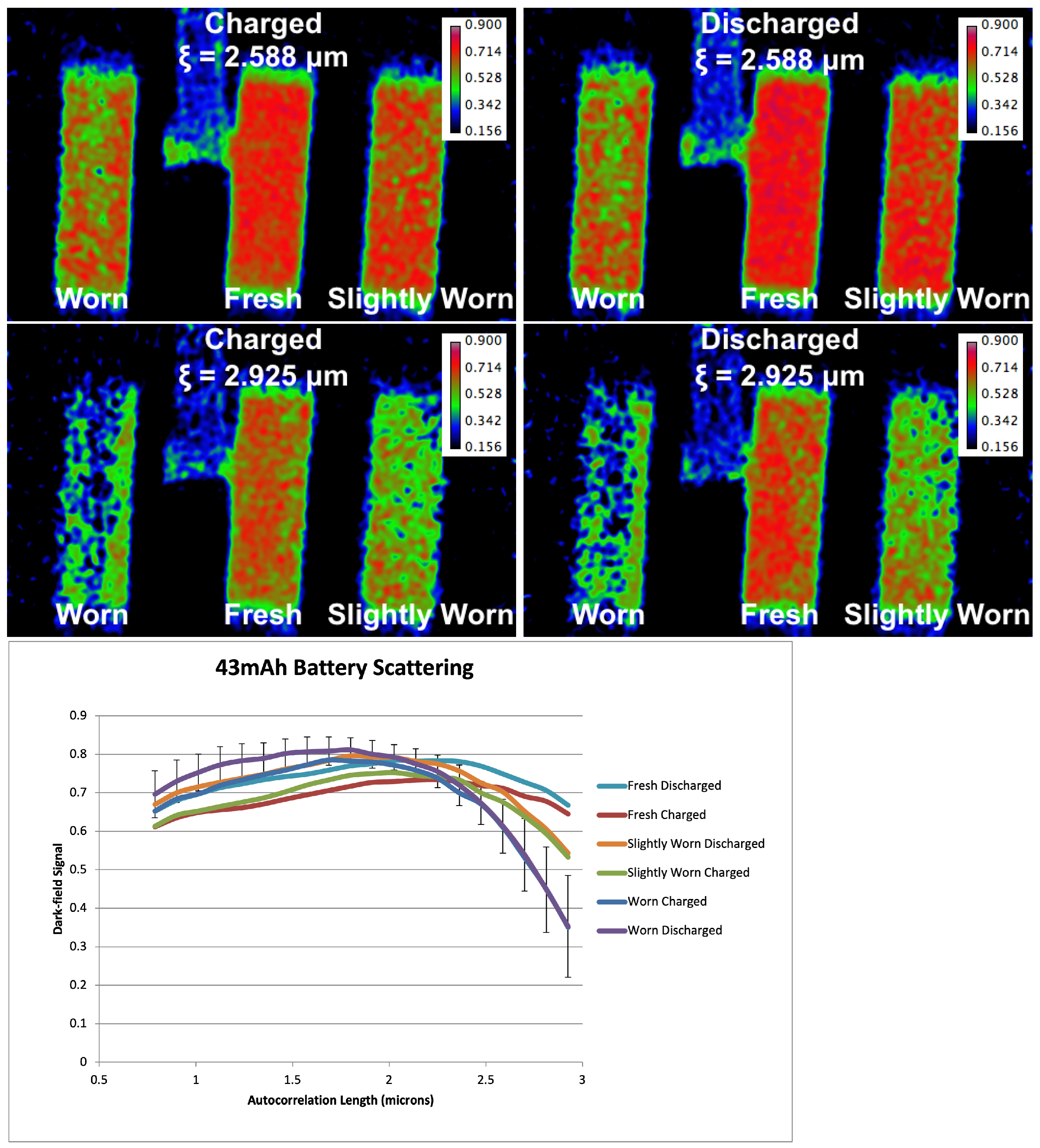

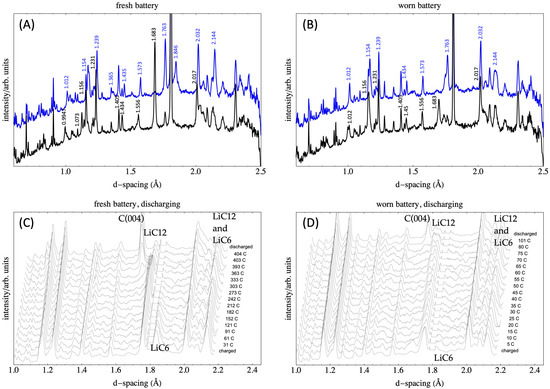

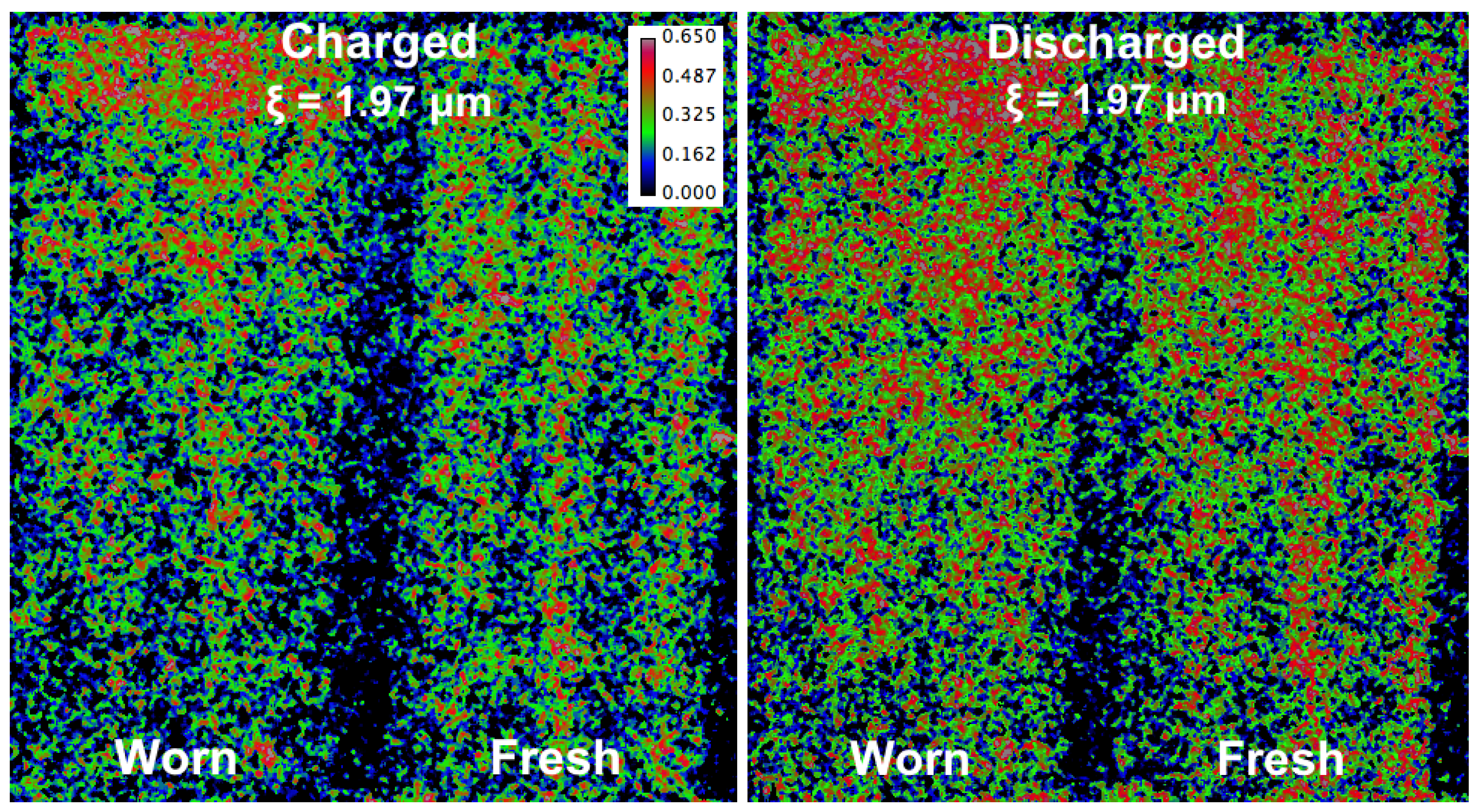

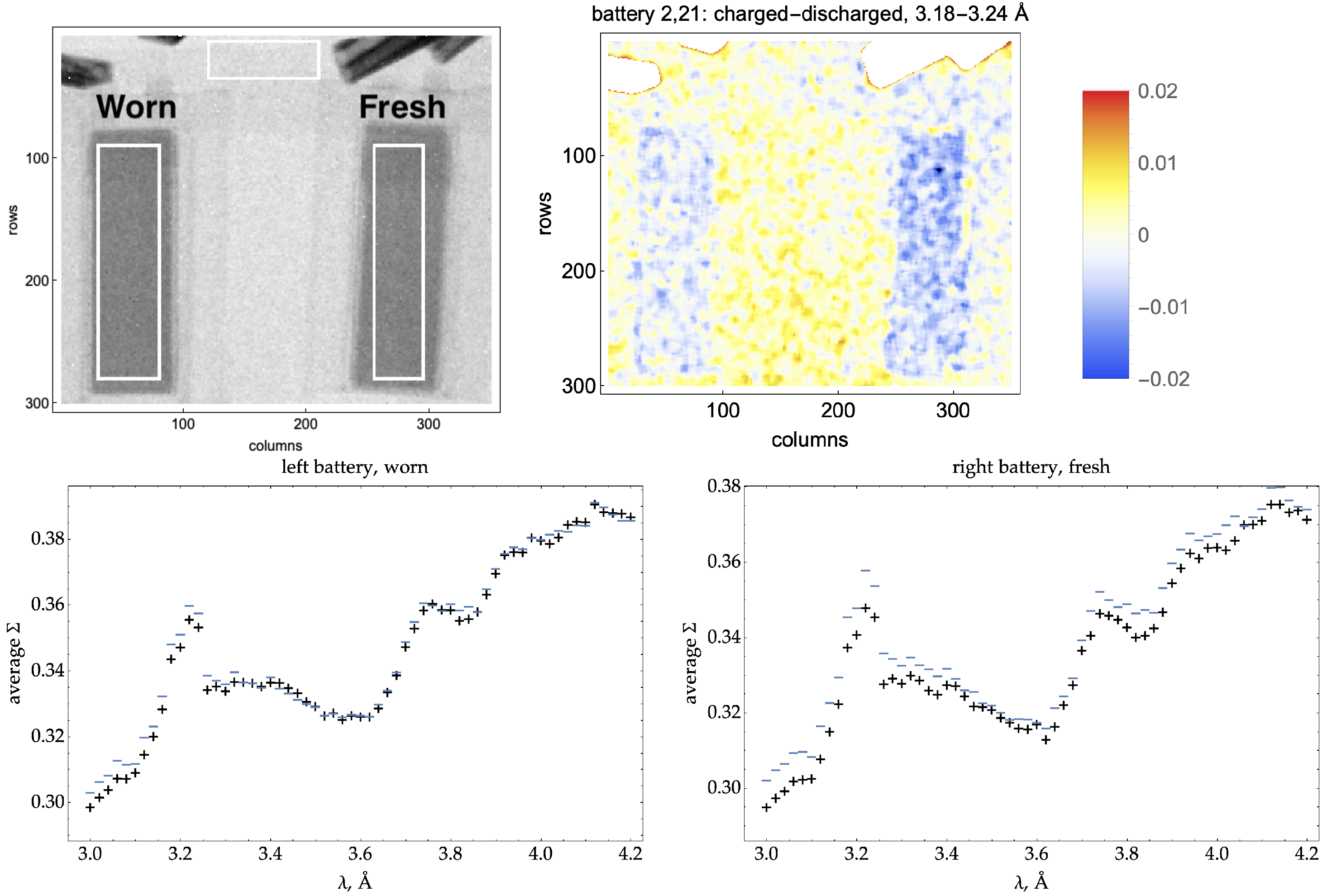

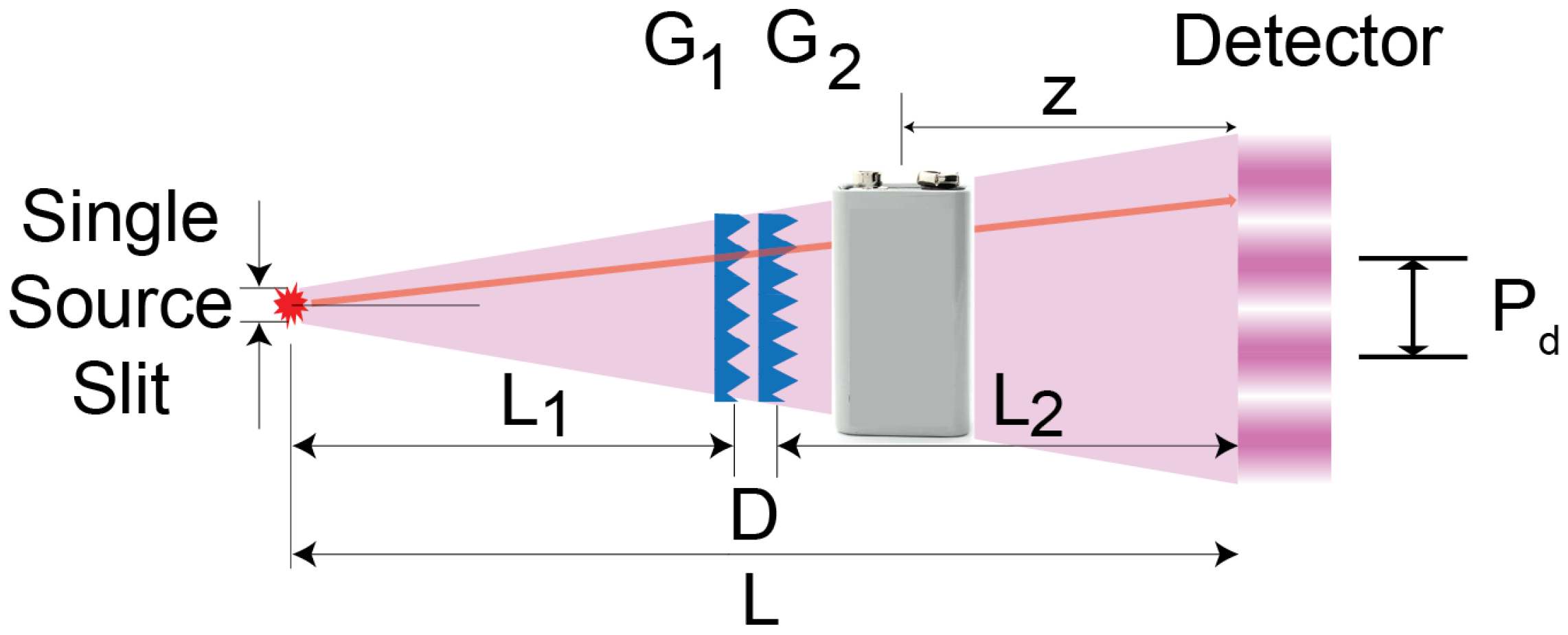

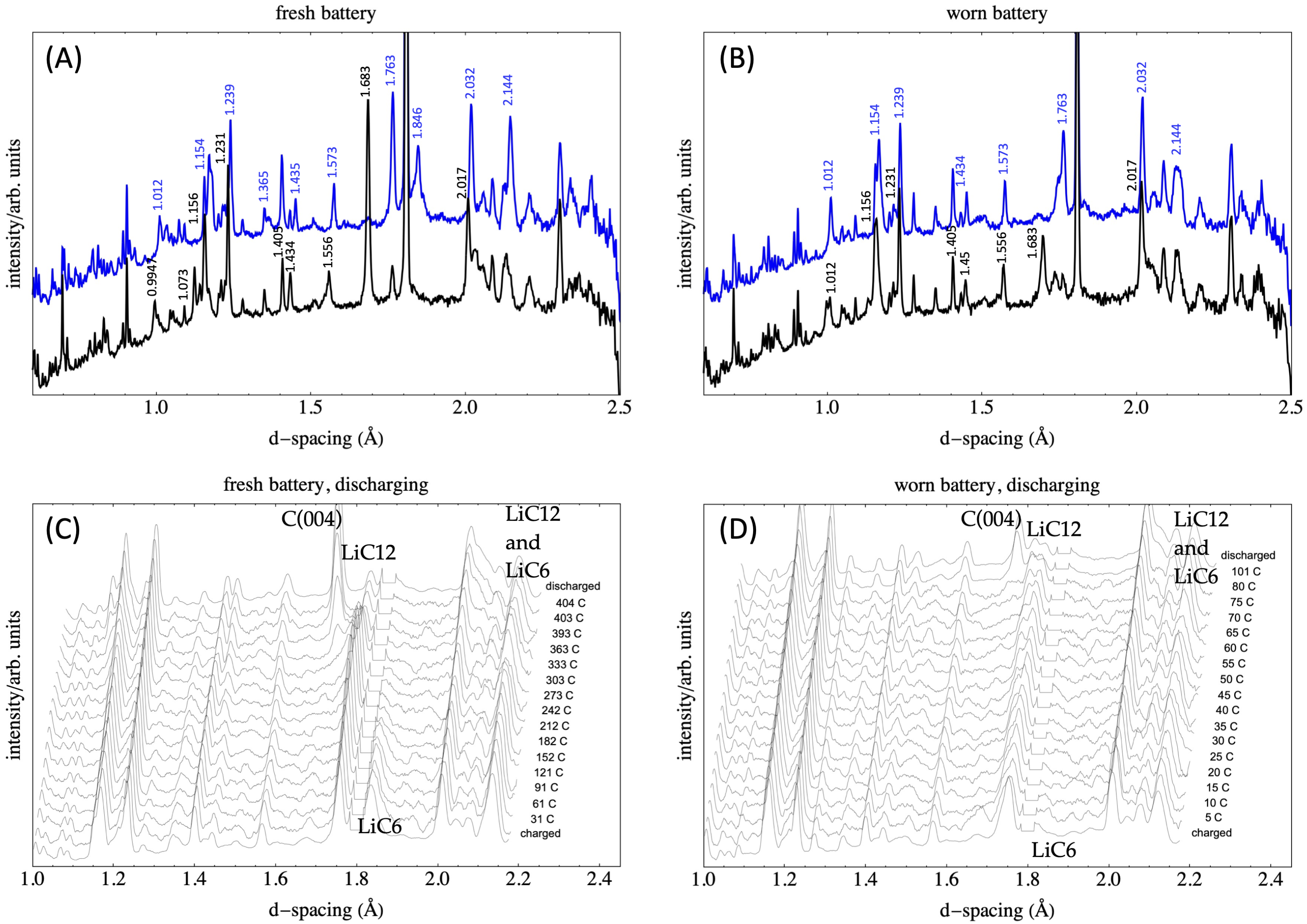

We survey several neutron imaging and diffraction methods for non-destructive testing and evaluation of intact, commercial lithium-ion batteries. Specifically, far-field interferometry was explored as an option to probe a wide range of autocorrelation lengths within the batteries via neutron imaging. The dark-field interferometry images change remarkably from fresh to worn batteries, and from charged to discharged batteries. When attempting to search for visual evidence of battery degradation, neutron Talbot-Lau grating interferometry exposed battery layering and particle scattering through dark-field imaging. Bragg edge imaging also reveals battery wear and state of charge. Neutron diffraction observed chemical changes between fresh and worn, charged and discharged batteries. However, the utility of these methods, for commercial batteries, is dependent upon battery size and shape, with 19 to 43 mAh prismatic batteries proving most convenient for these experimental methods. This study reports some of the first spatially resolved, small angle scattering (dark-field) images showing battery degradation. View Full-Text
Keywords: lithium-polymer batteries; neutron imaging; far-field interferometry; Talbot-Lau interferometry; neutron diffraction lithium-polymer batteries; neutron imaging; far-field interferometry; Talbot-Lau interferometry; neutron diffraction
Show Figures

Figure 1
