Test of Broken Suspender Specimen and Equivalent Static Calculation Method for Half-Through and Through Concrete-Filled Steel Tubular Arch Bridges
Abstract
:1. Introduction
2. The Broken Suspender Specimen Test of the Through CFST Arch Bridge

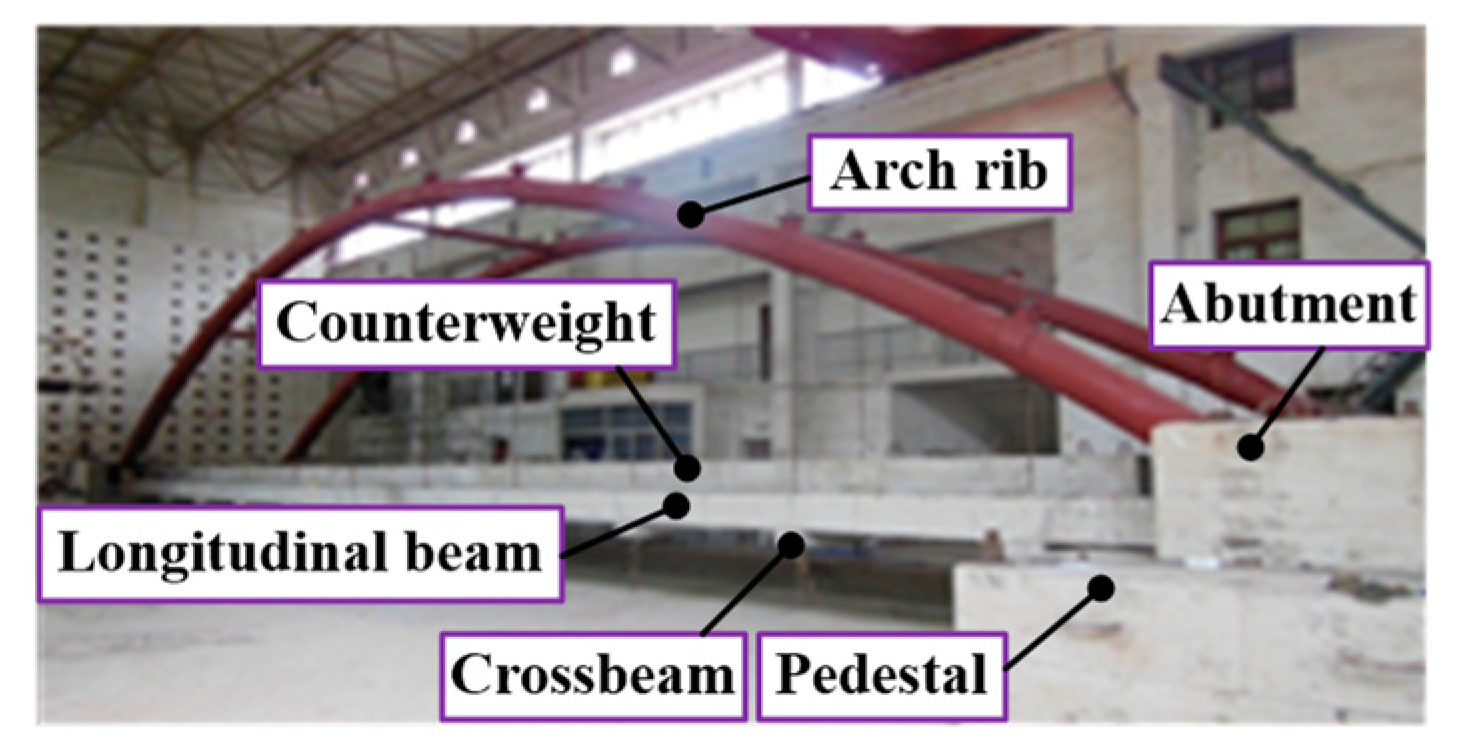

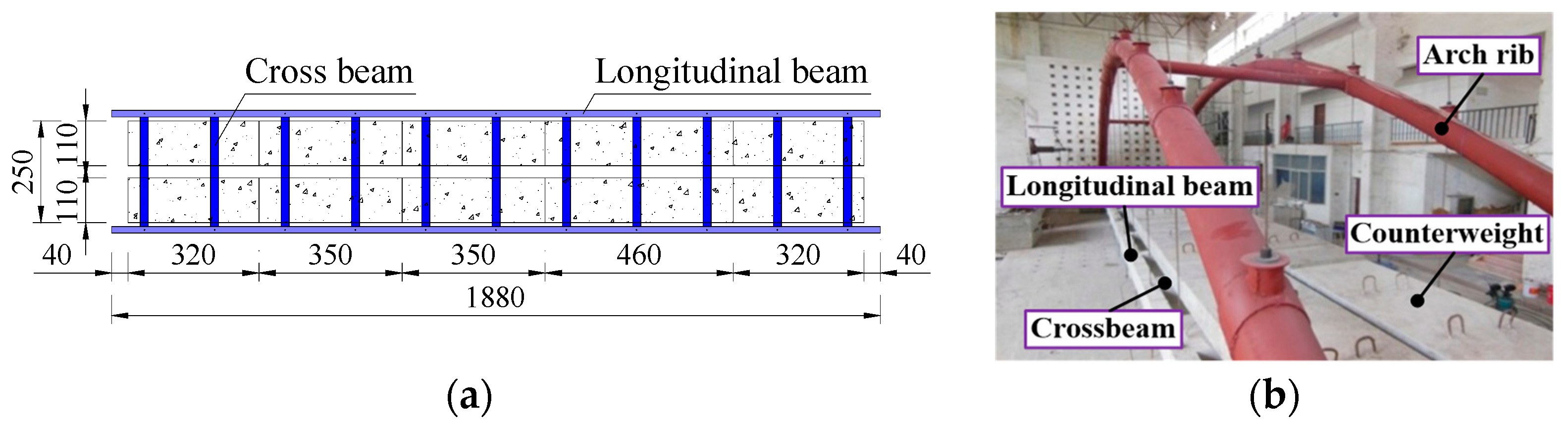

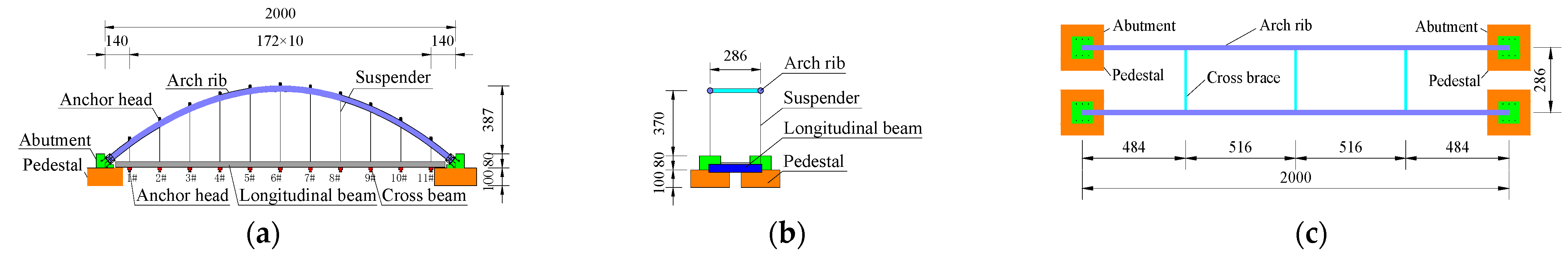

2.1. Specimen Design
2.2. Transient Fracture Simulation of the Suspender

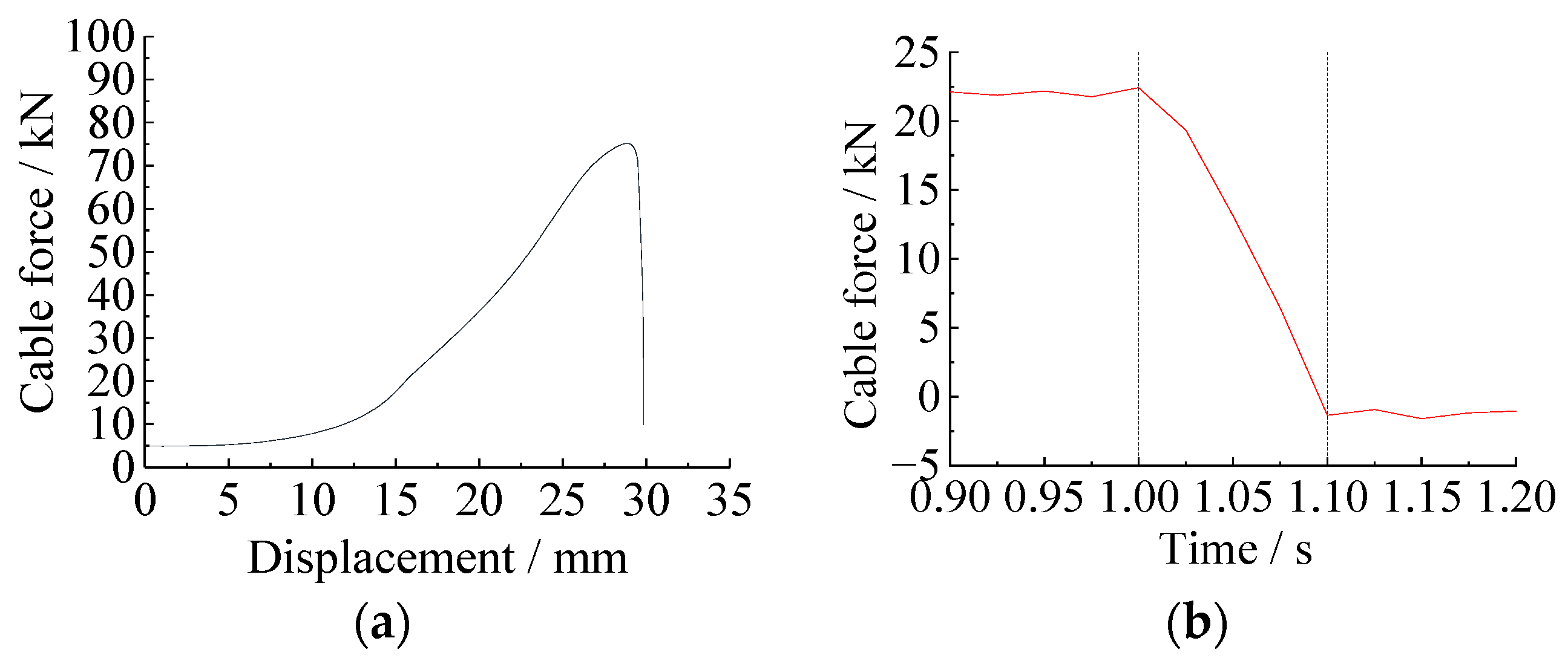

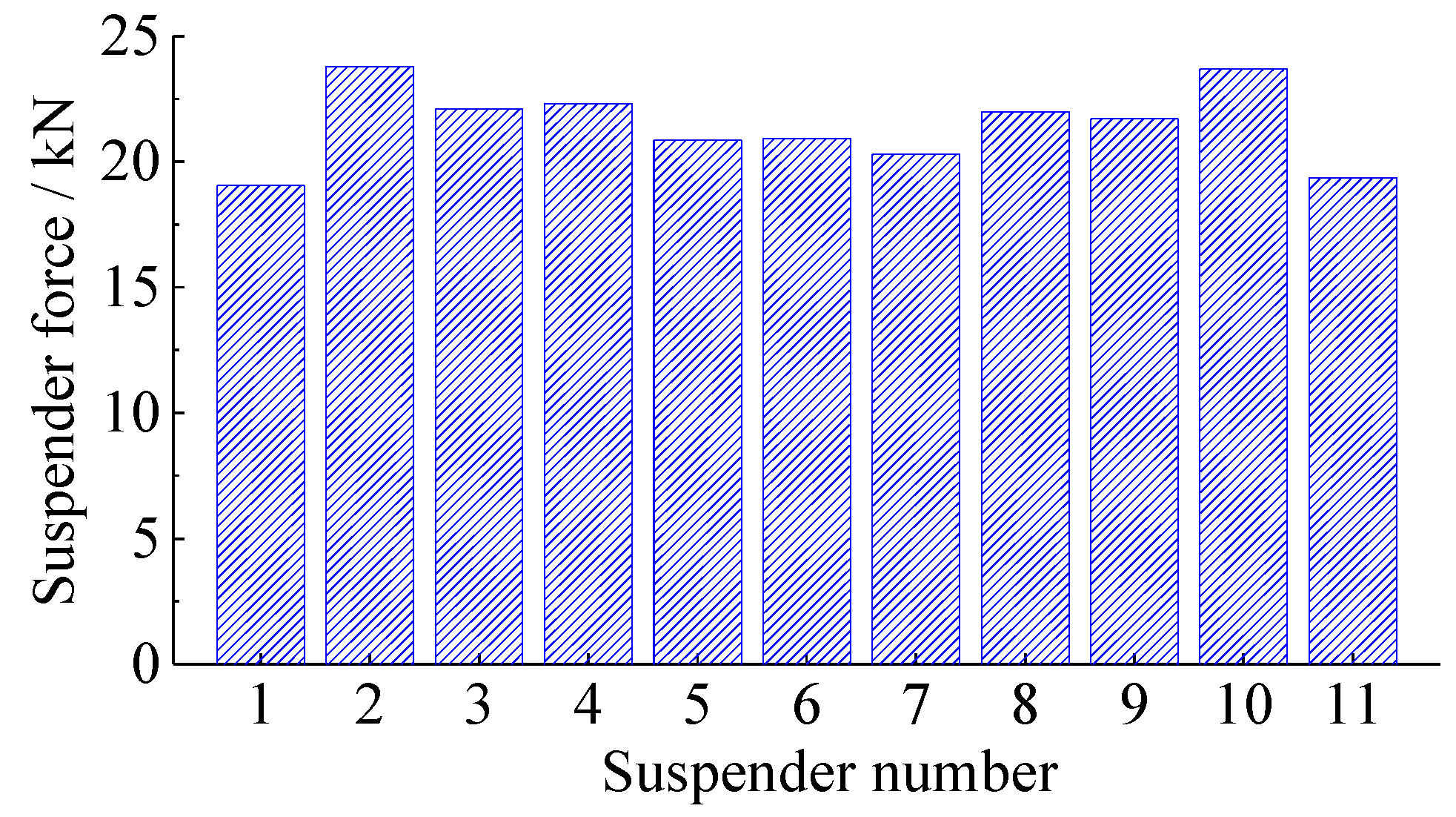

2.3. Suspender Fracture Condition

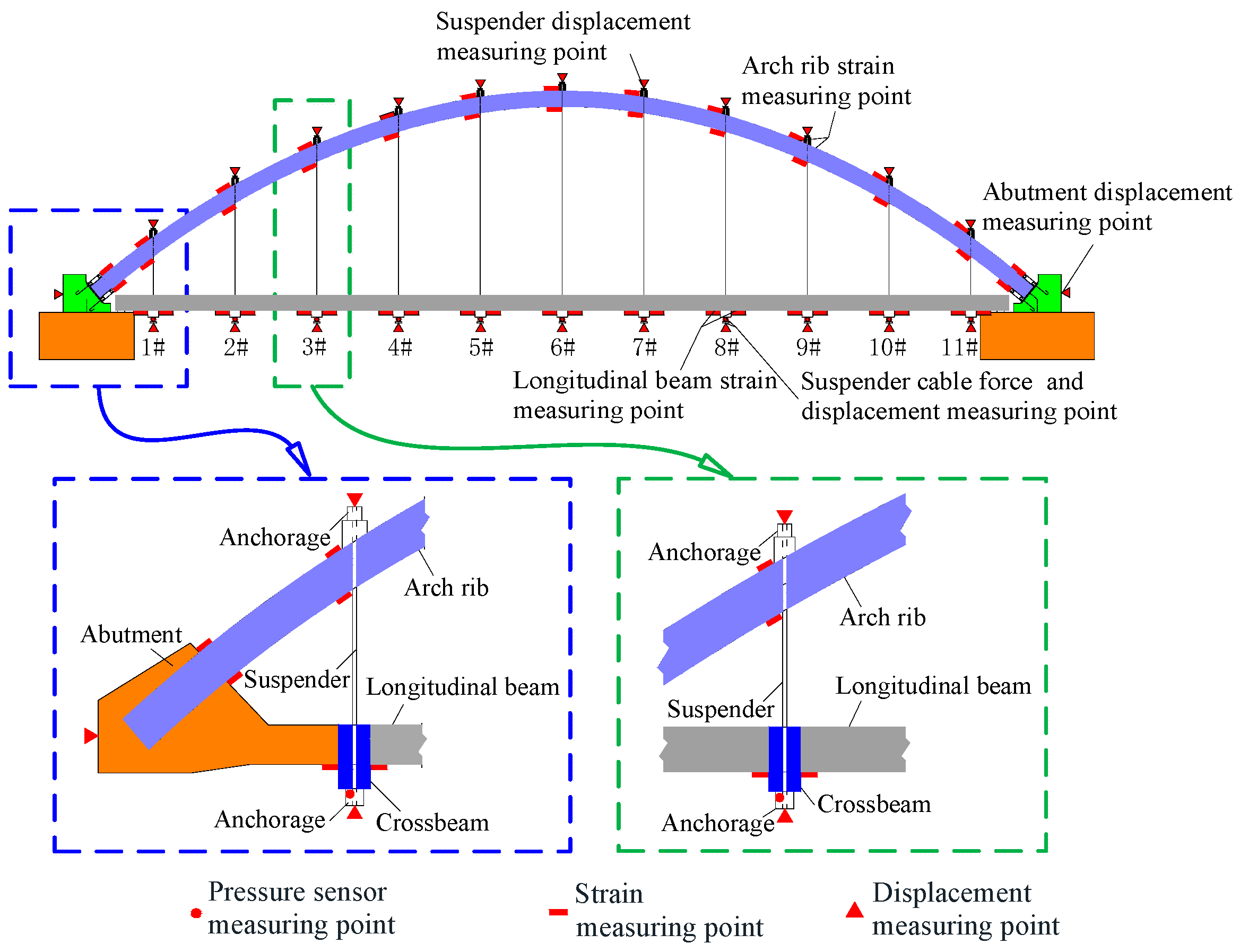

2.4. The Layouts of the Measuring Points
3. The FEM-Base Model Accounting for the Suspender Breaking Process

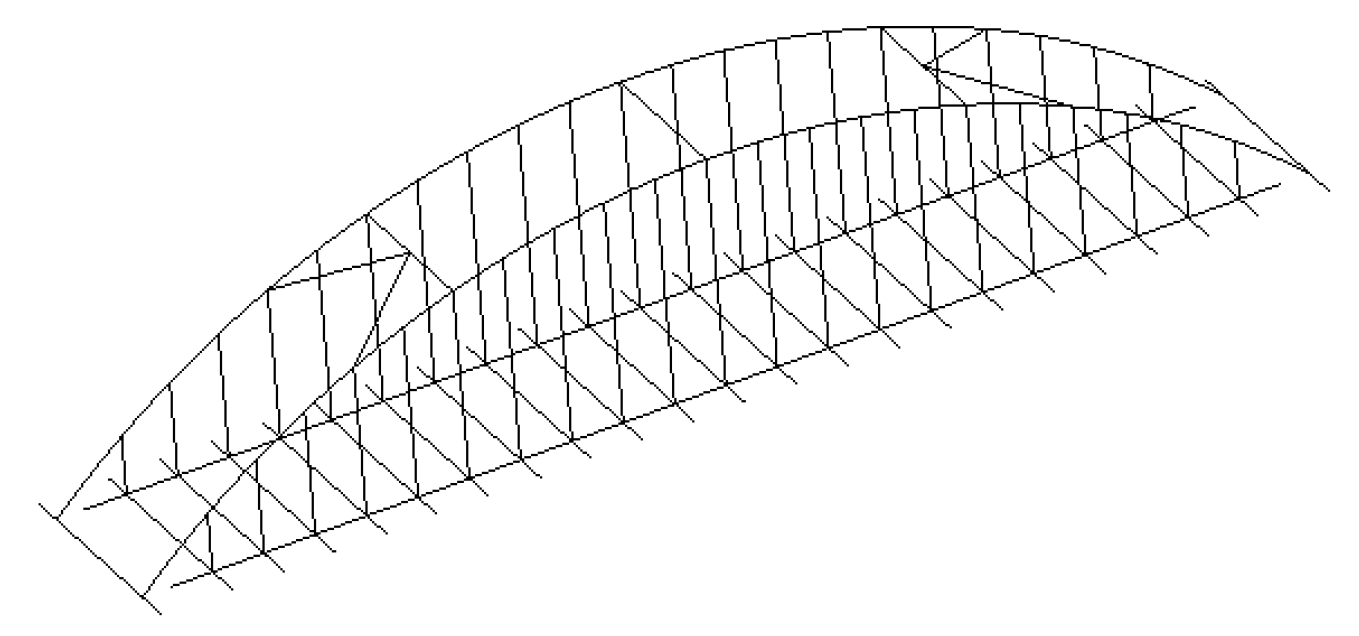

3.1. Establishment of the FE Model
3.2. Suspender Fracture Simulation
4. Test and FE Analysis
4.1. Displacement Dynamic Response Analysis

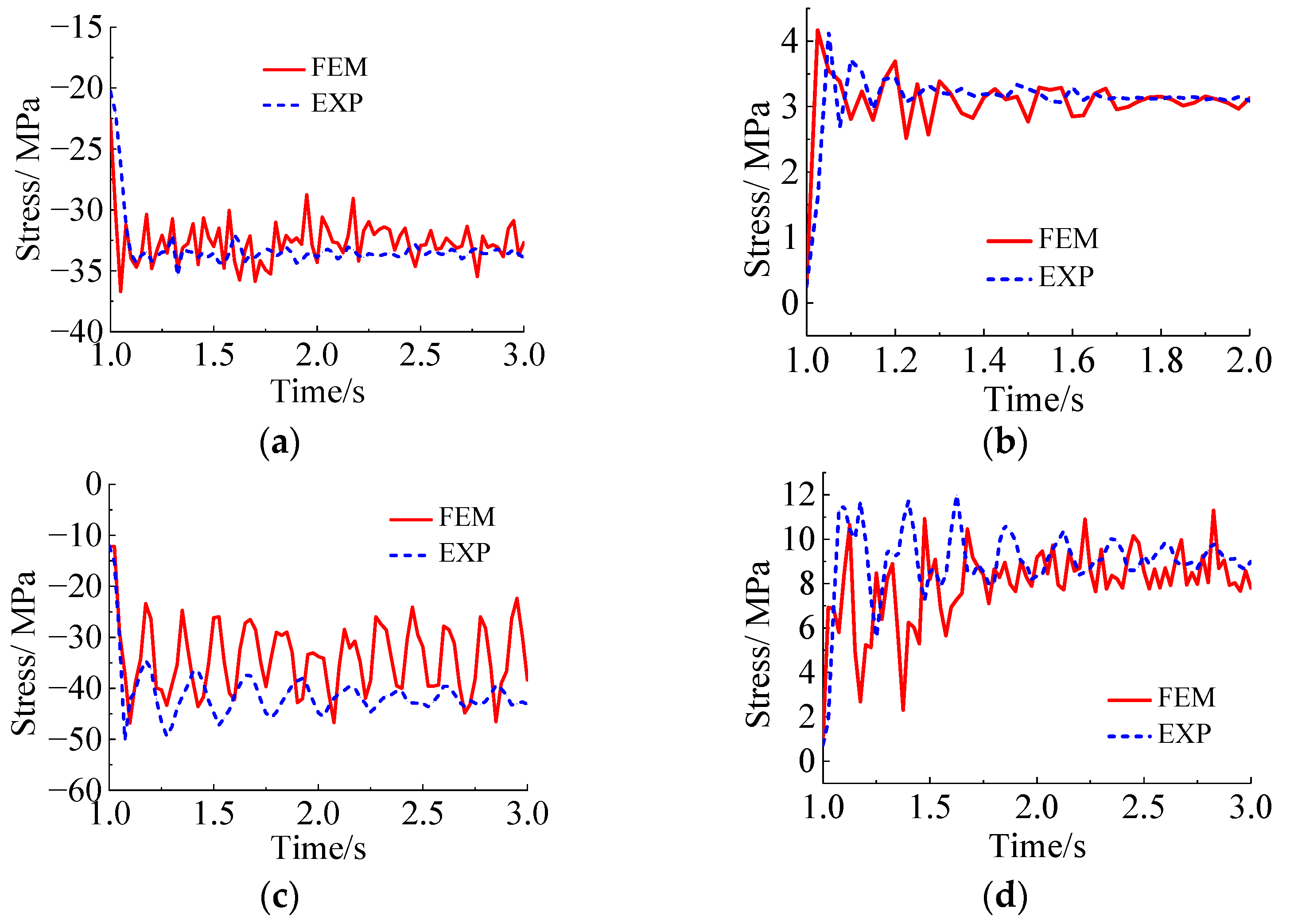

4.2. Stress Dynamic Response Analysis

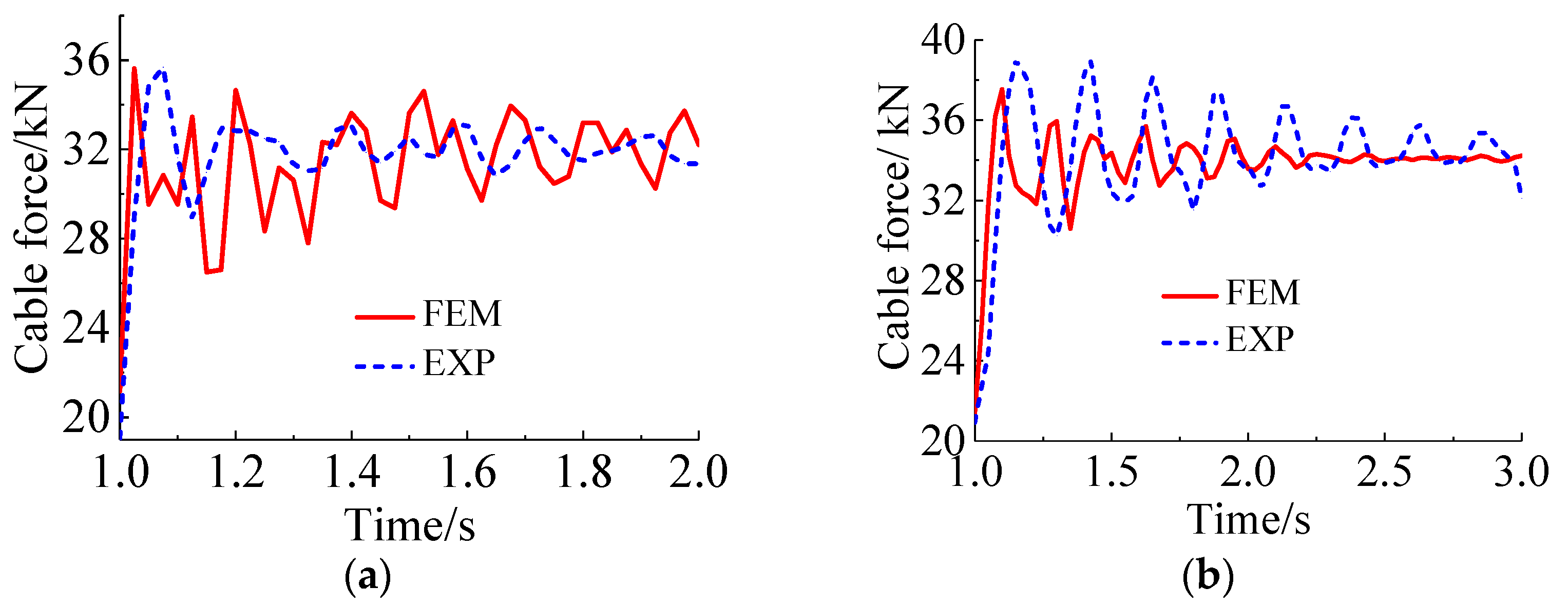

4.3. Suspender Force Dynamic Response
4.4. Accuracy Verification of Finite Element Model
5. Equivalent Static Method Considering the Suspender Fracture Process

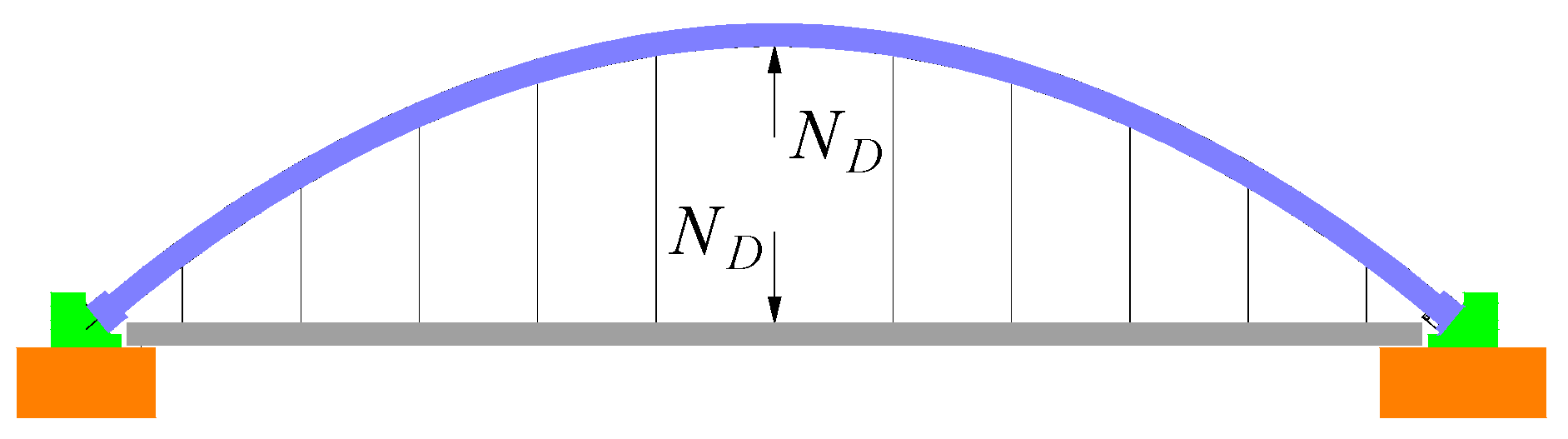

5.1. Development of an Equivalent Static Method Accounting for the Suspender Breakage

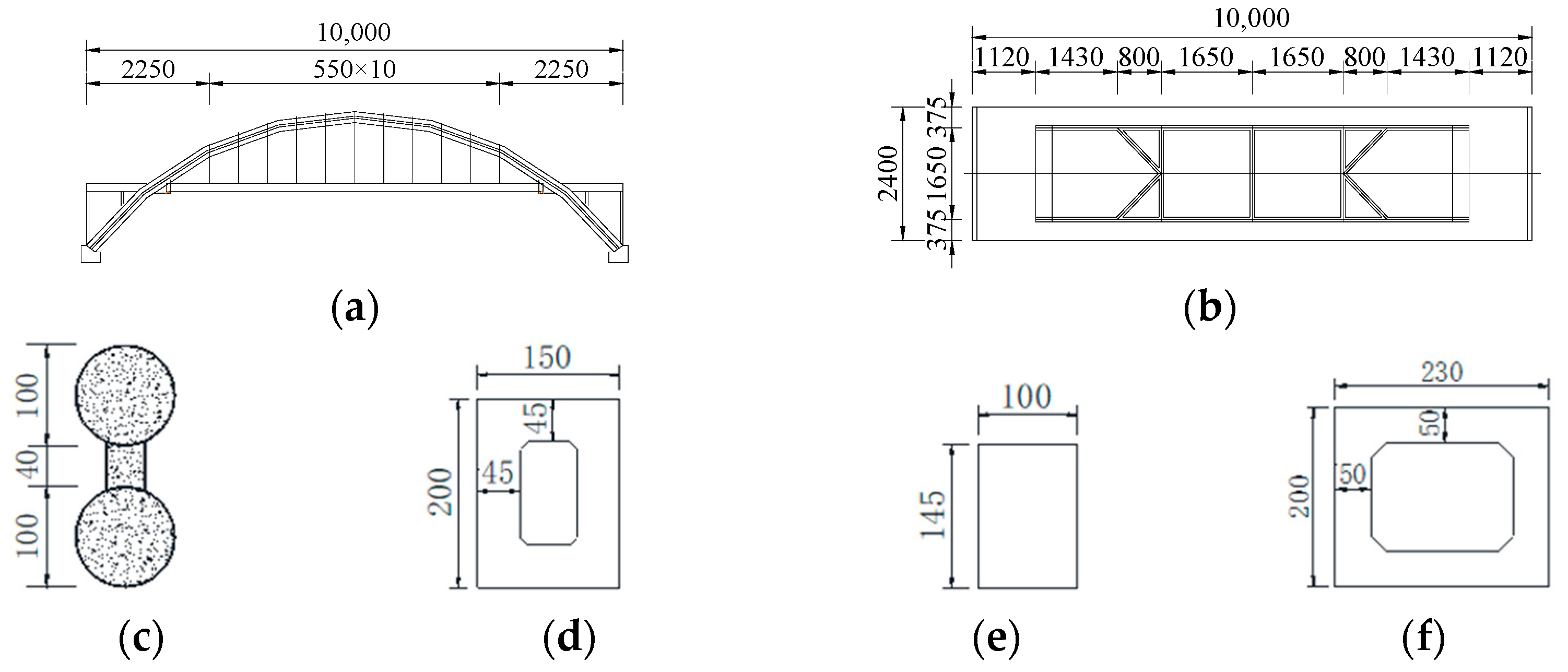

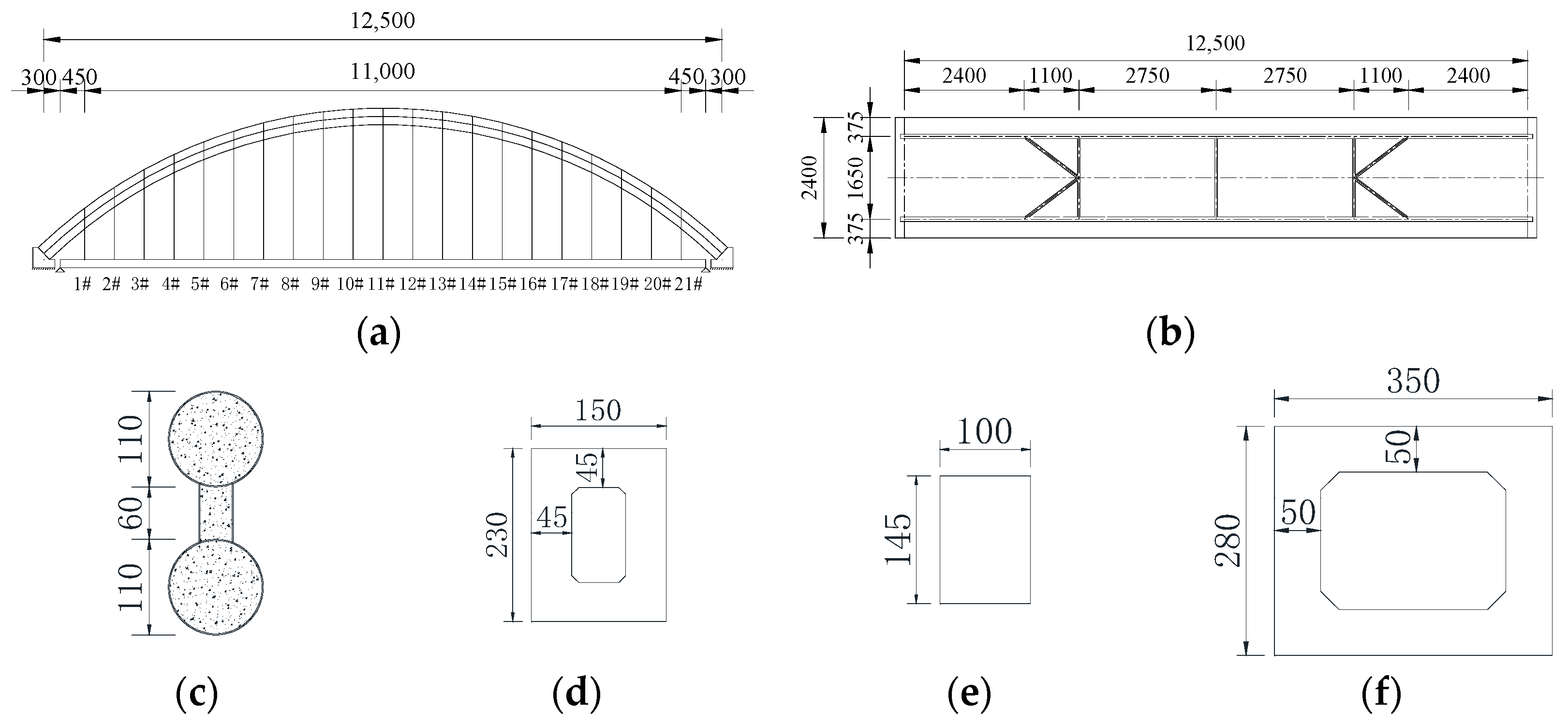

5.2. Construction of the Half-Through and Through CFST Standard Arch Bridges
5.3. The Value Analysis of the Dynamic Coefficient
5.3.1. The Influence of Suspender Breaking Duration on Dynamic Coefficient

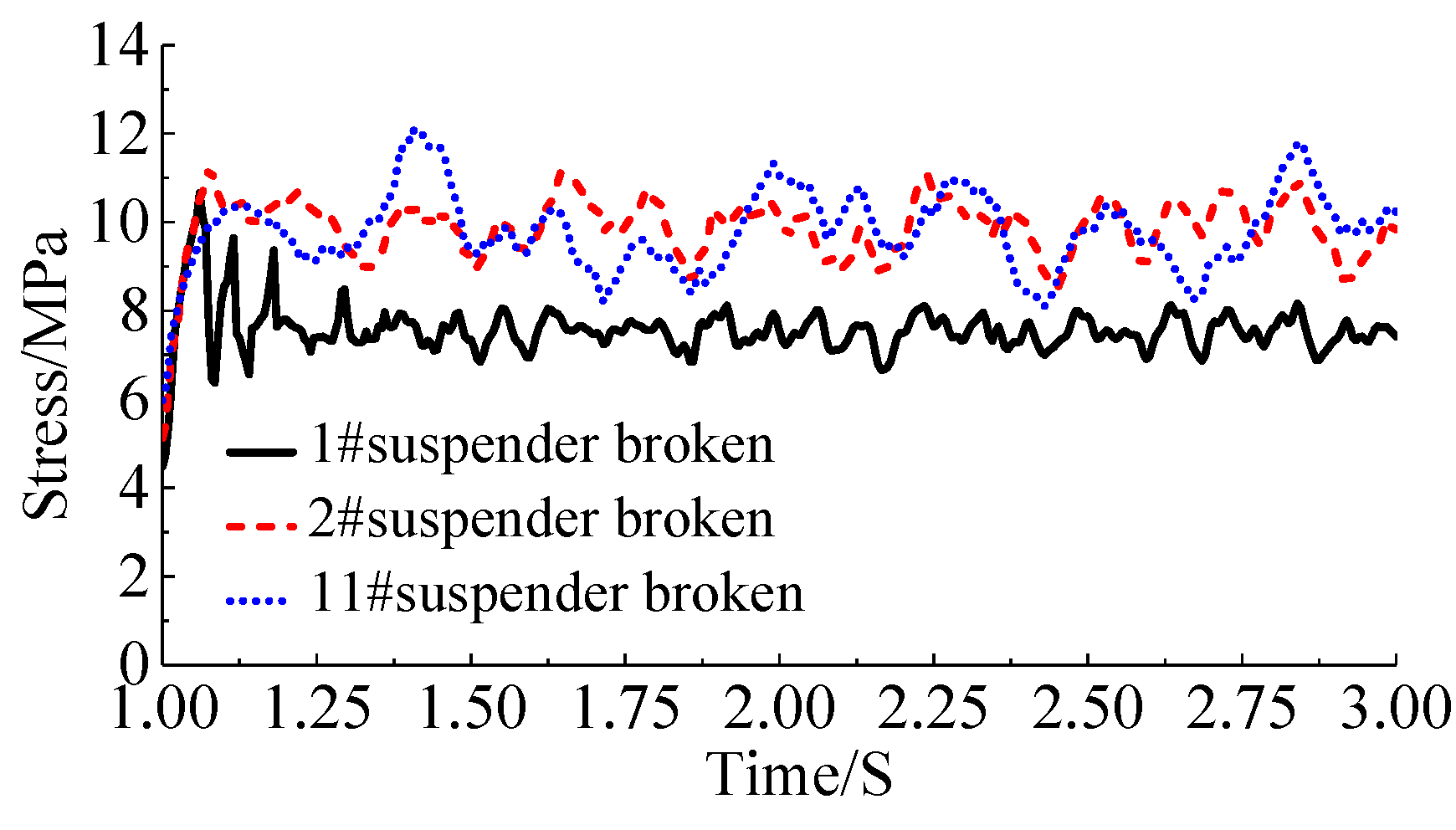

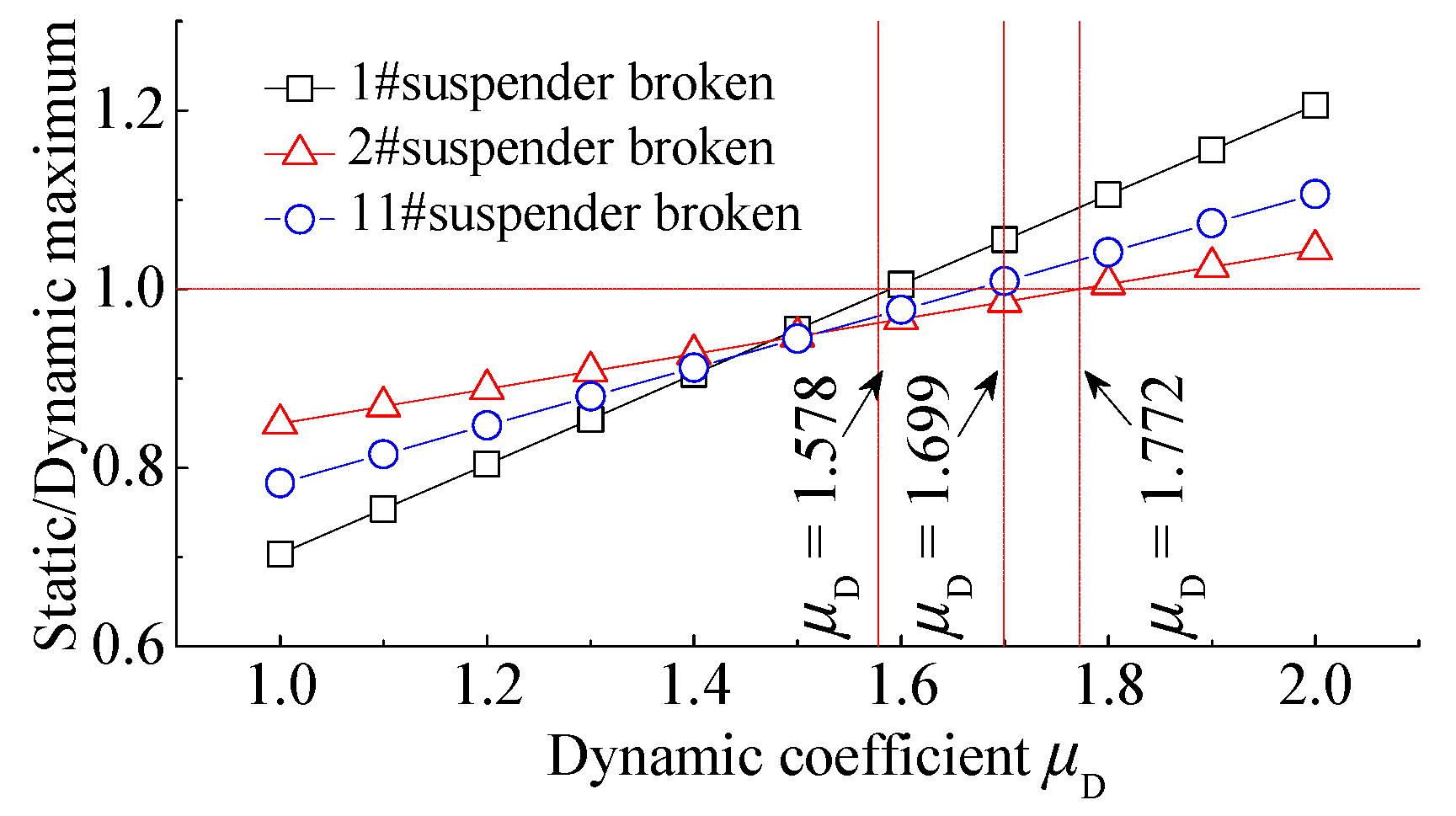

5.3.2. The Equivalent Dynamic Response of the Longitudinal Beam

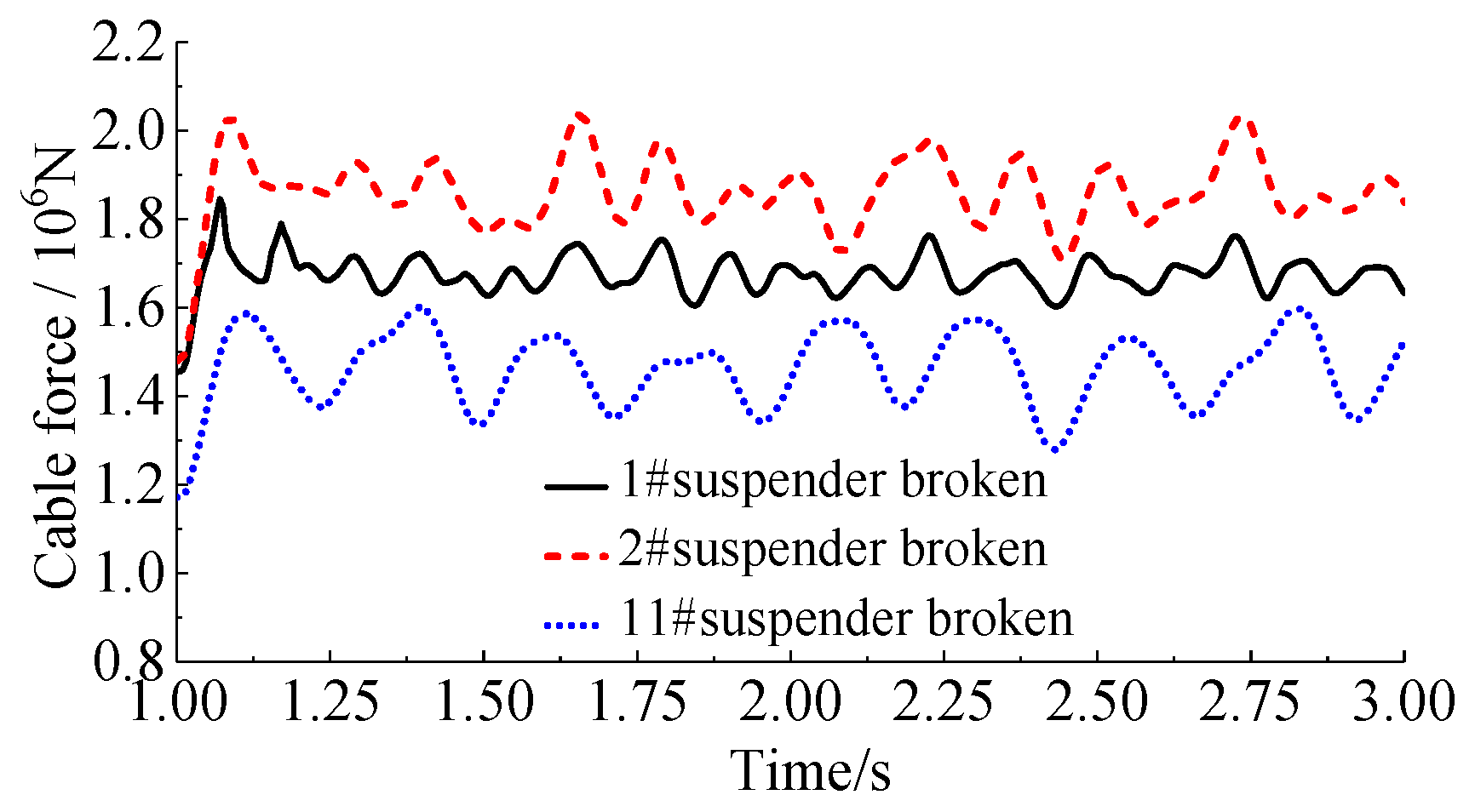

5.3.3. The Equivalent Dynamic Response of the Suspender
5.4. The Value Determination of the Dynamic Coefficient
6. Conclusions
- (1)

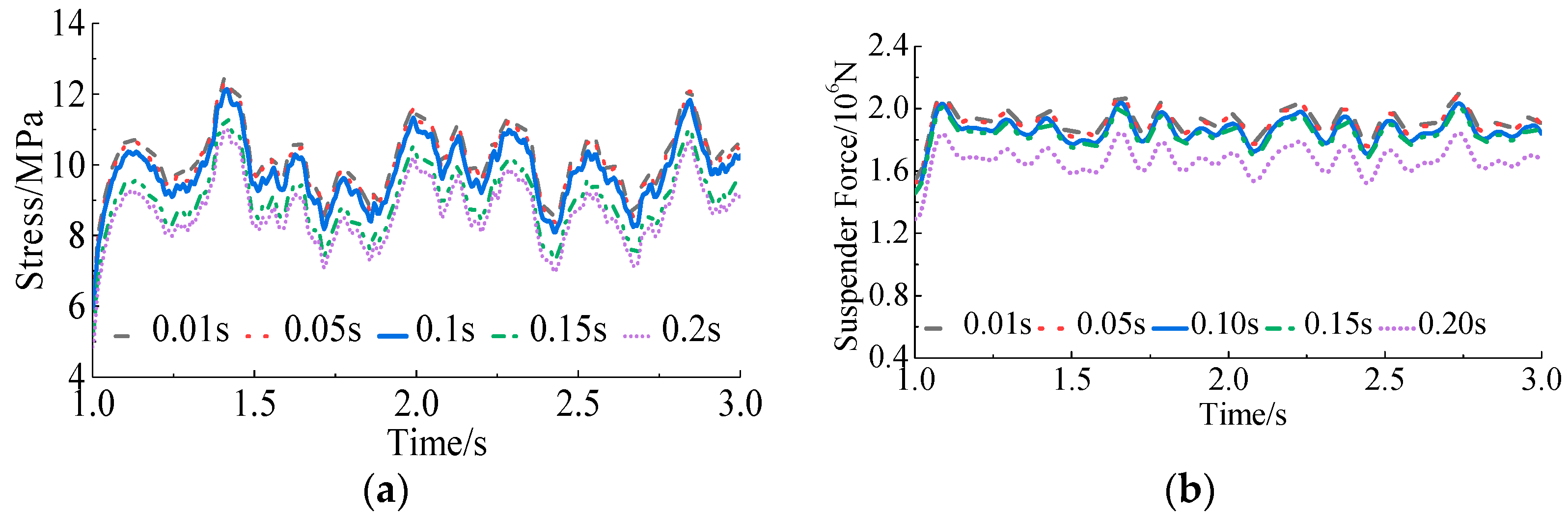

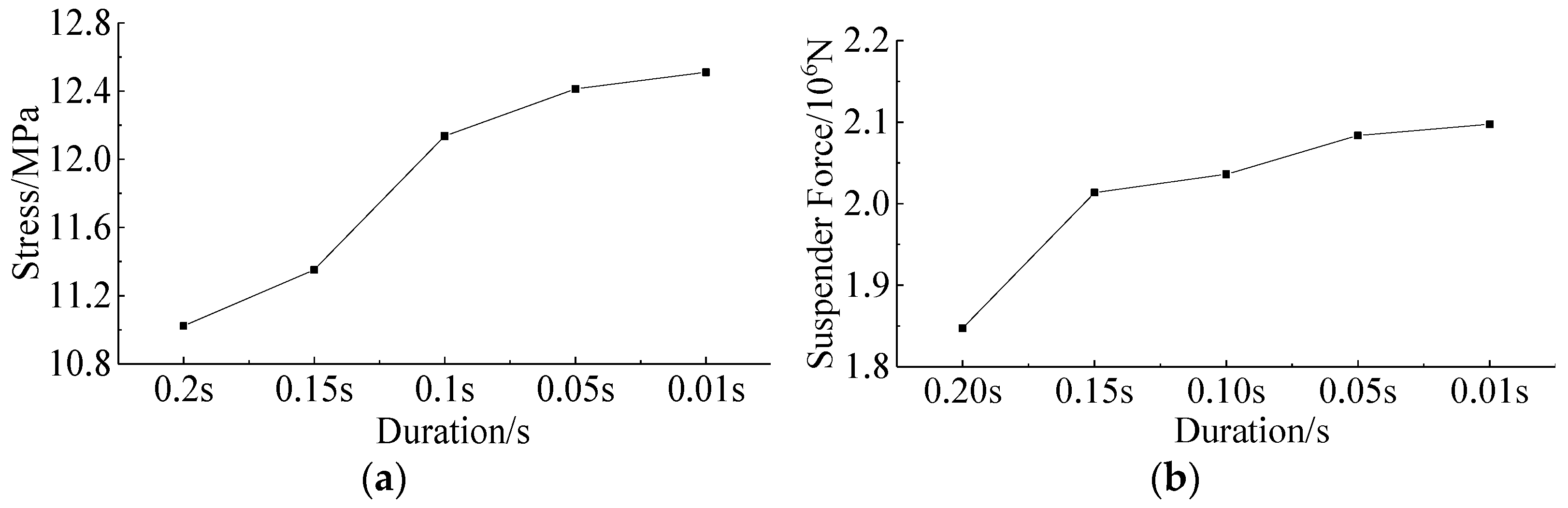

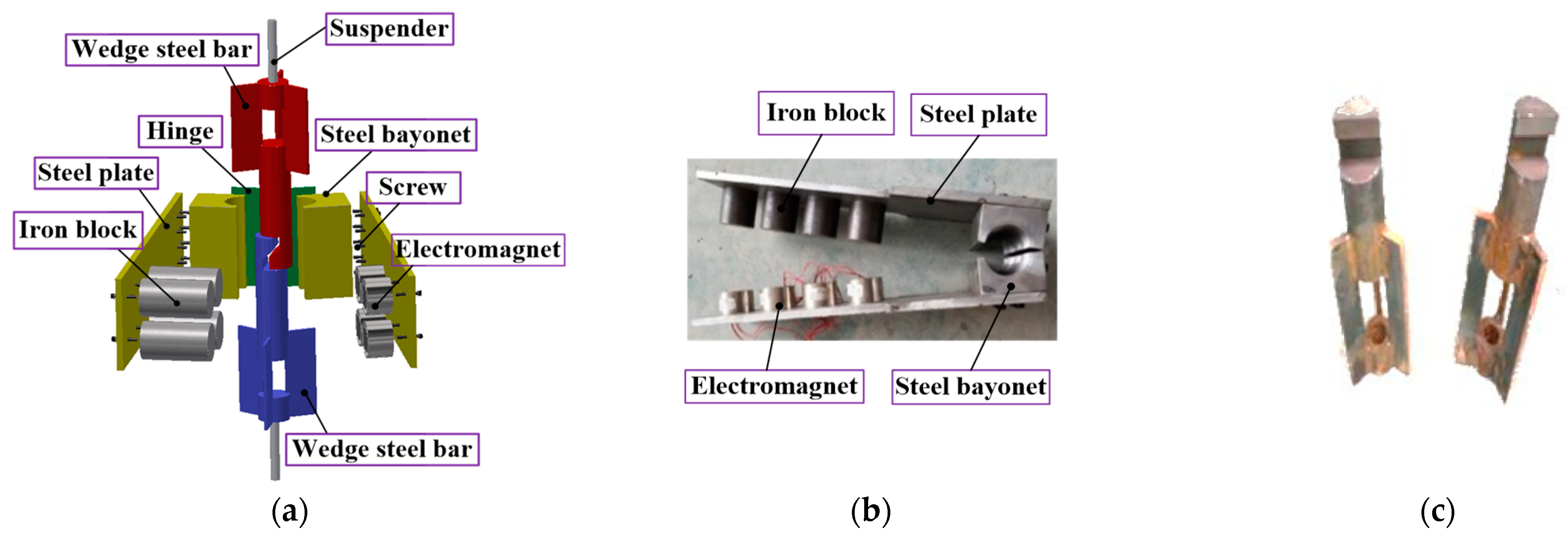

- A suspender-breaking trigger device composed of a wedge-shaped steel block and electromagnet clamp is proposed. The trigger device can break the suspender within 0.1 s and accurately simulate the suspender fracture process of the real bridge. Additionally, when the suspender break duration is less than or equal to 0.15 s, the influence of the suspender break duration on the value of the dynamic coefficient can be ignored.
- (2)

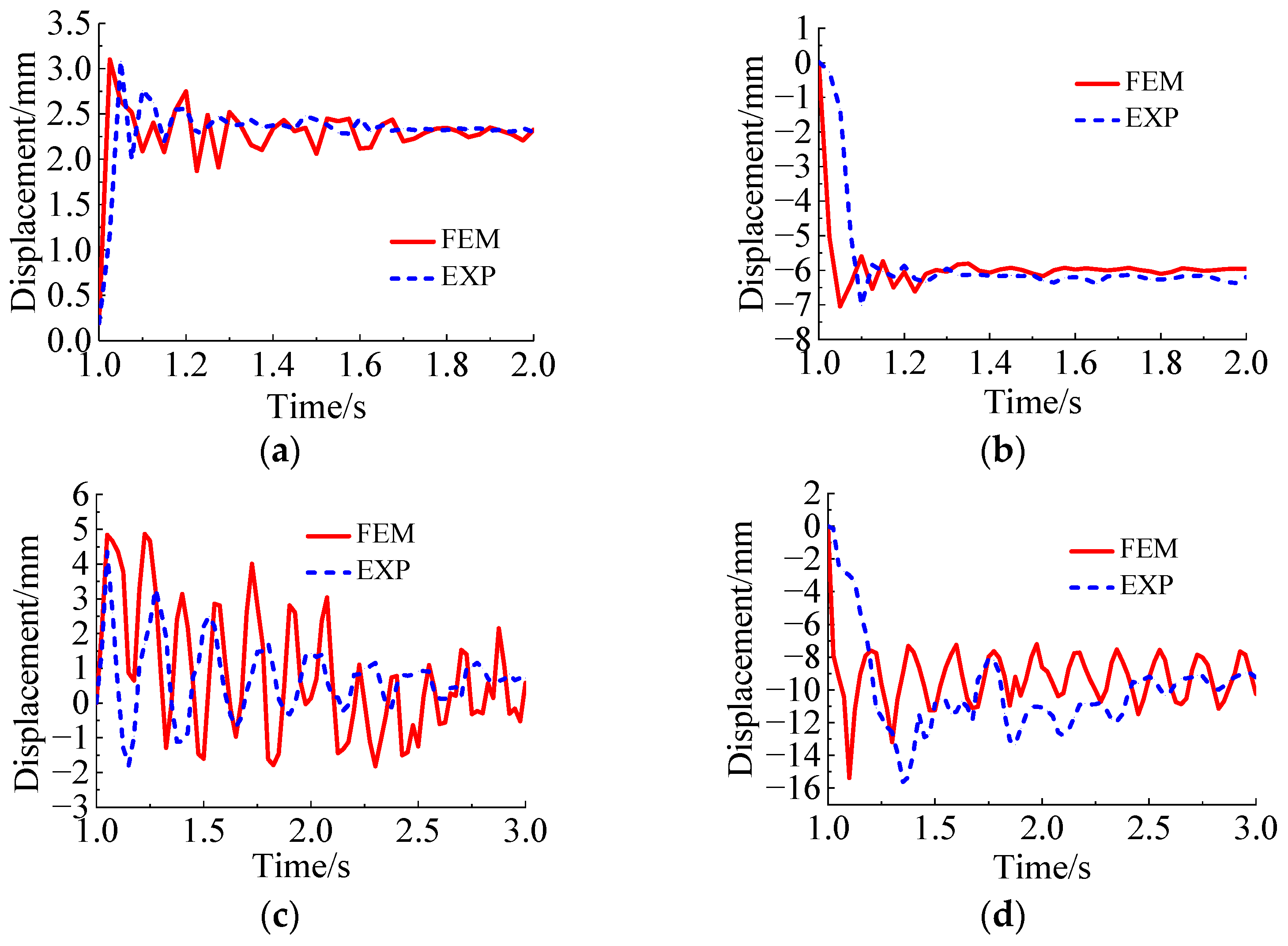

- The displacement and stress maximum variations of the deck system (arch rib) are 7.02 mm (3.05 mm) and 4.14 MPa (−35.41 MPa) when the 1# suspender is broken, respectively. The displacement and stress maximum variation of the deck system (arch rib) are 15.61 mm (4.35 mm) and 11.97 MPa (−50.16 MPa) when the 6# suspender is broken, respectively. This reveals that the influence of the suspender fracture on the displacement and stress of the longitudinal beam is much greater than that on the arch rib. The fracture of the long suspender has a great influence on the displacement and stress of the longitudinal beam and arch rib.
- (3)
- The error between the finite element analysis and the test results is within 11%. The proposed FE modeling method can accurately simulate the suspender fracture process and can be extended to the dynamic response analysis of suspension bridge deck systems of both half-through and through CFST arch bridges accounting for the suspender fracture process.
- (4)

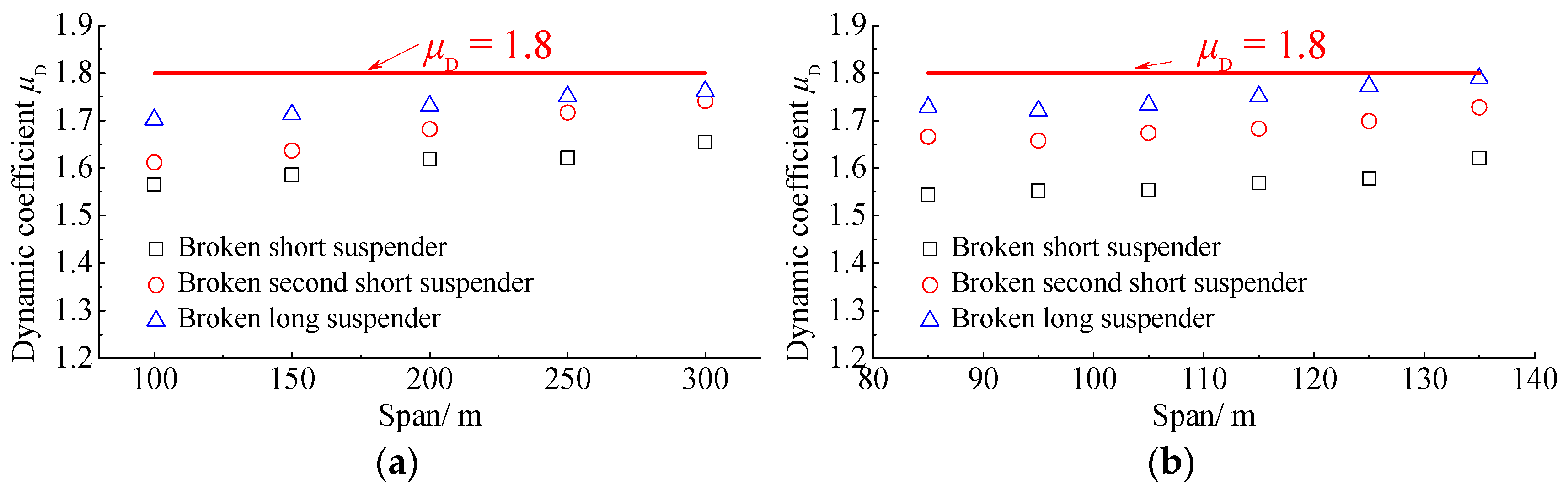

- The dynamic coefficient is introduced to consider the dynamic effect of the suspender-breaking process. Thereafter, the equivalent static method for both half-through and through CFST-based arch bridges accounting for the dynamic effect of the suspender breaking is established. Through the comparative analysis of the static and dynamic results of eleven different span half-through and through CFST standard arch bridges with various suspenders breaking, it is observed that when the ESCM is employed, the dynamic coefficients of the longitudinal beams (suspenders) can be conservatively taken as 1.8 (1.8) and 1.8 (1.7), respectively.
- (5)
- In this paper, an equivalent static calculation method for half-through and through concrete-filled steel tubular arch bridges considering the process of suspender fracture is established, and the conservative value of the dynamic coefficient is determined. Subsequently, the influence of important parameters such as the stiffness of the longitudinal girder and arch rib on the dynamic coefficient will be studied.
