Parametric Analysis of Cylinder Drying Process in Association with Various Materials
Abstract
:1. Introduction
2. Methodology

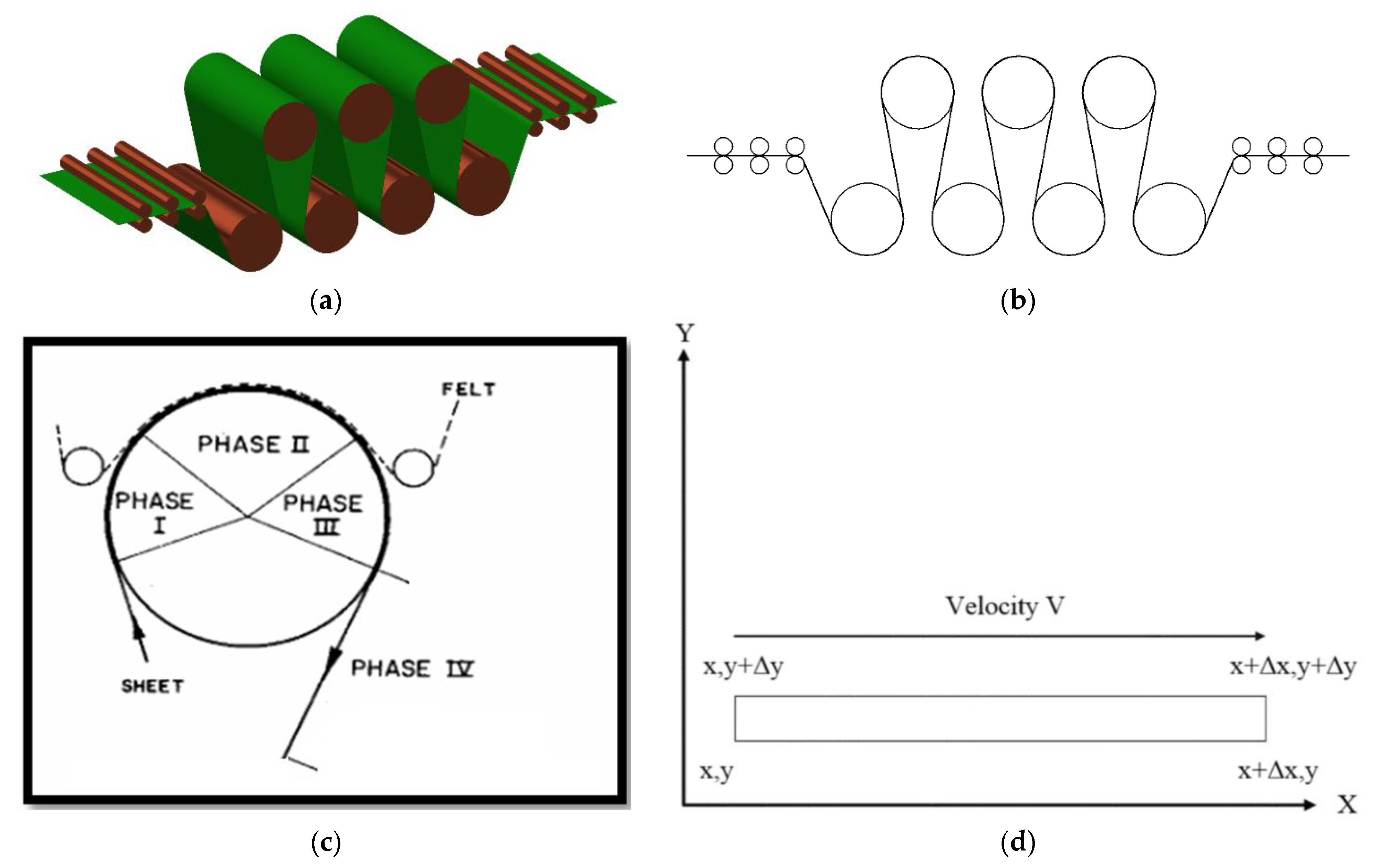

2.1. Work Description
2.2. Computational Model
2.3. Mathematical Model
- There is no heat loss between the cylinder and the ambient environment;
- The temperature of the heated moisture is equal to that of the drying material at the local points;
- The vapor, which is evaporated from the drying material in the drying process, is removed by the cold air of the ambient environment;
- The relative humidity of the ambient environment is constant;
- The temperature of the ambient environment is constant;
- The convection heat transfers between the drying material and the ambient environment in phases I, III, and IV are constant.
2.4. Computational Model Validation
3. Results and Discussion

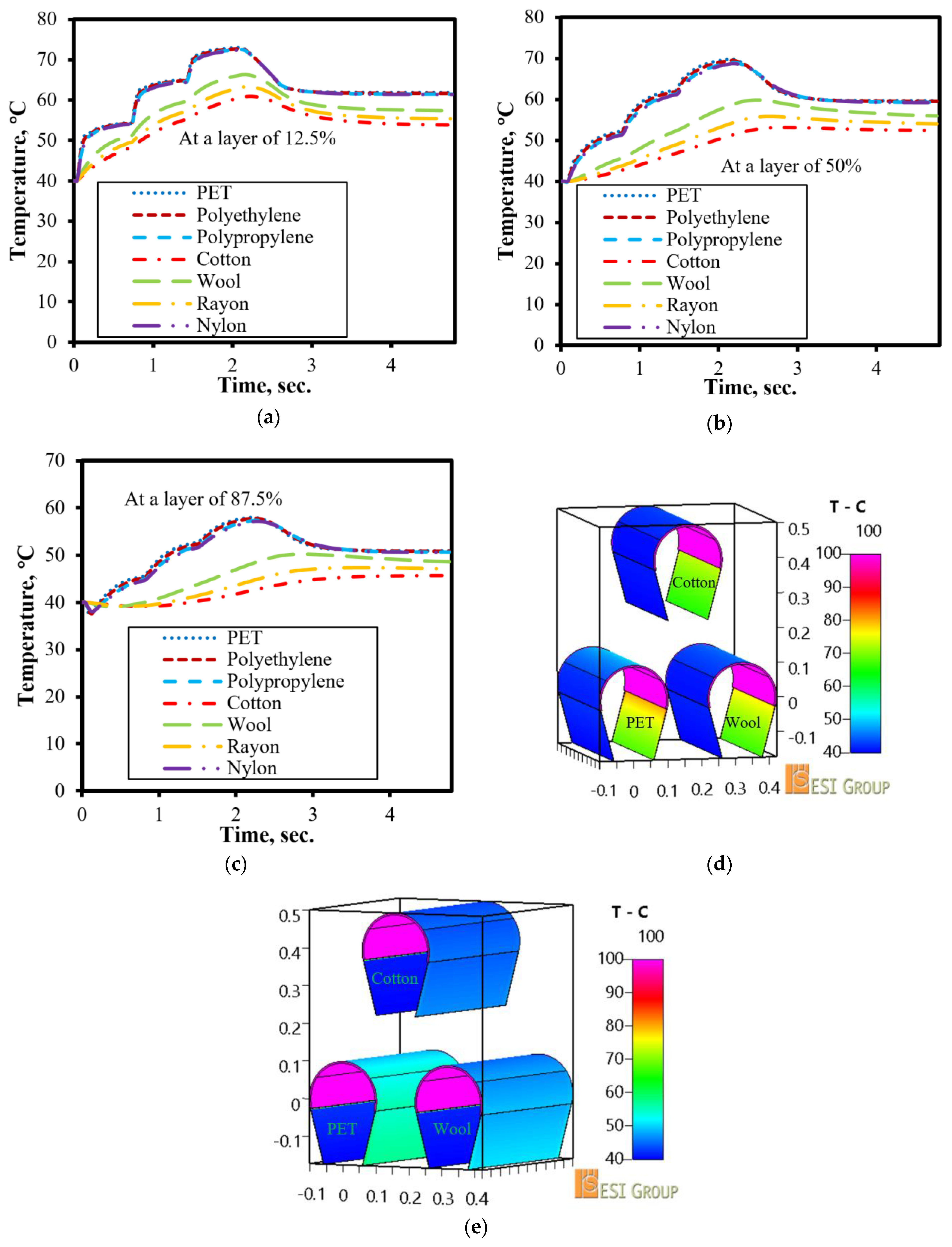

3.1. Effects of Transport Materials

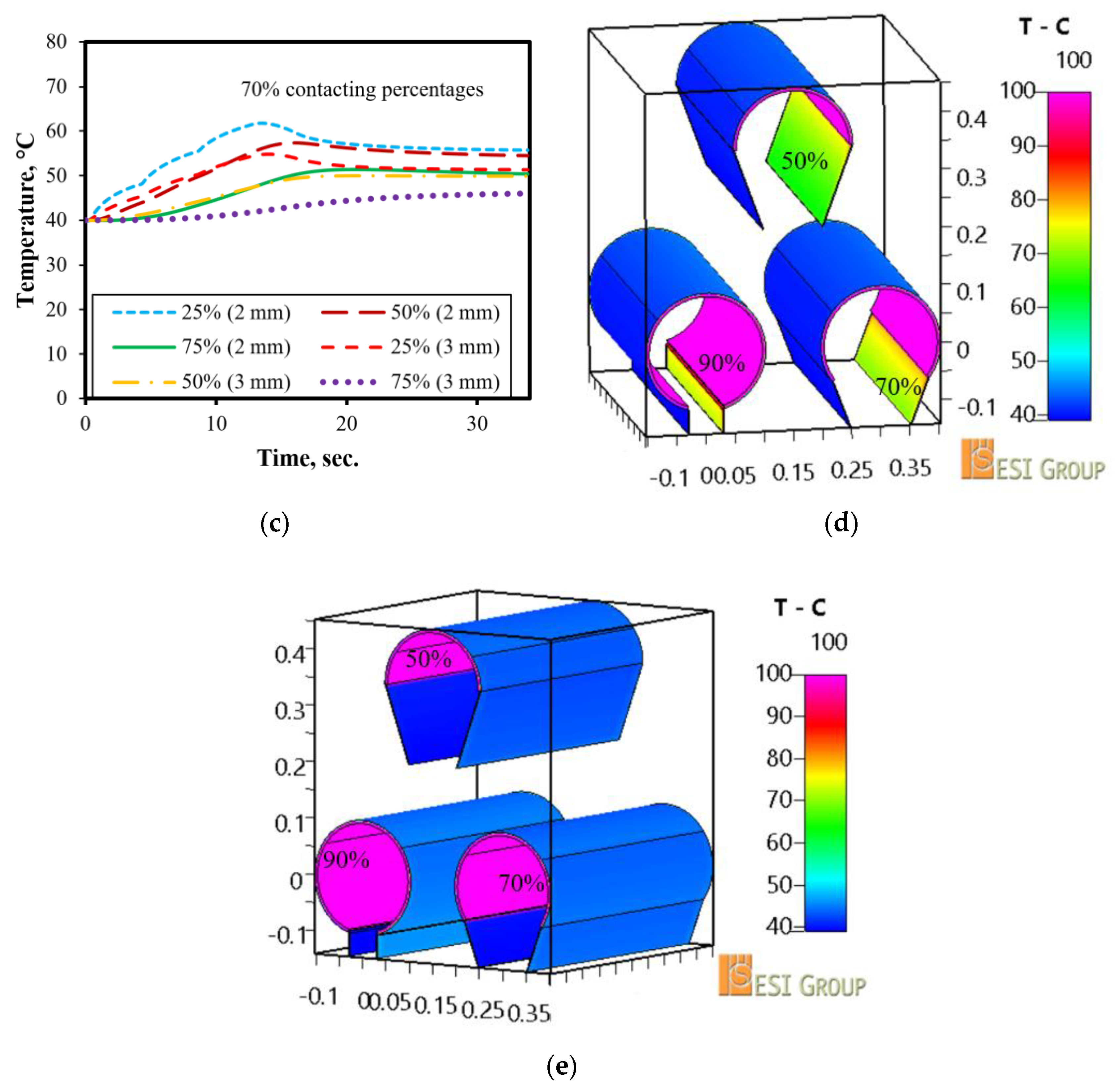

3.2. Effects of the Contacting Percentage

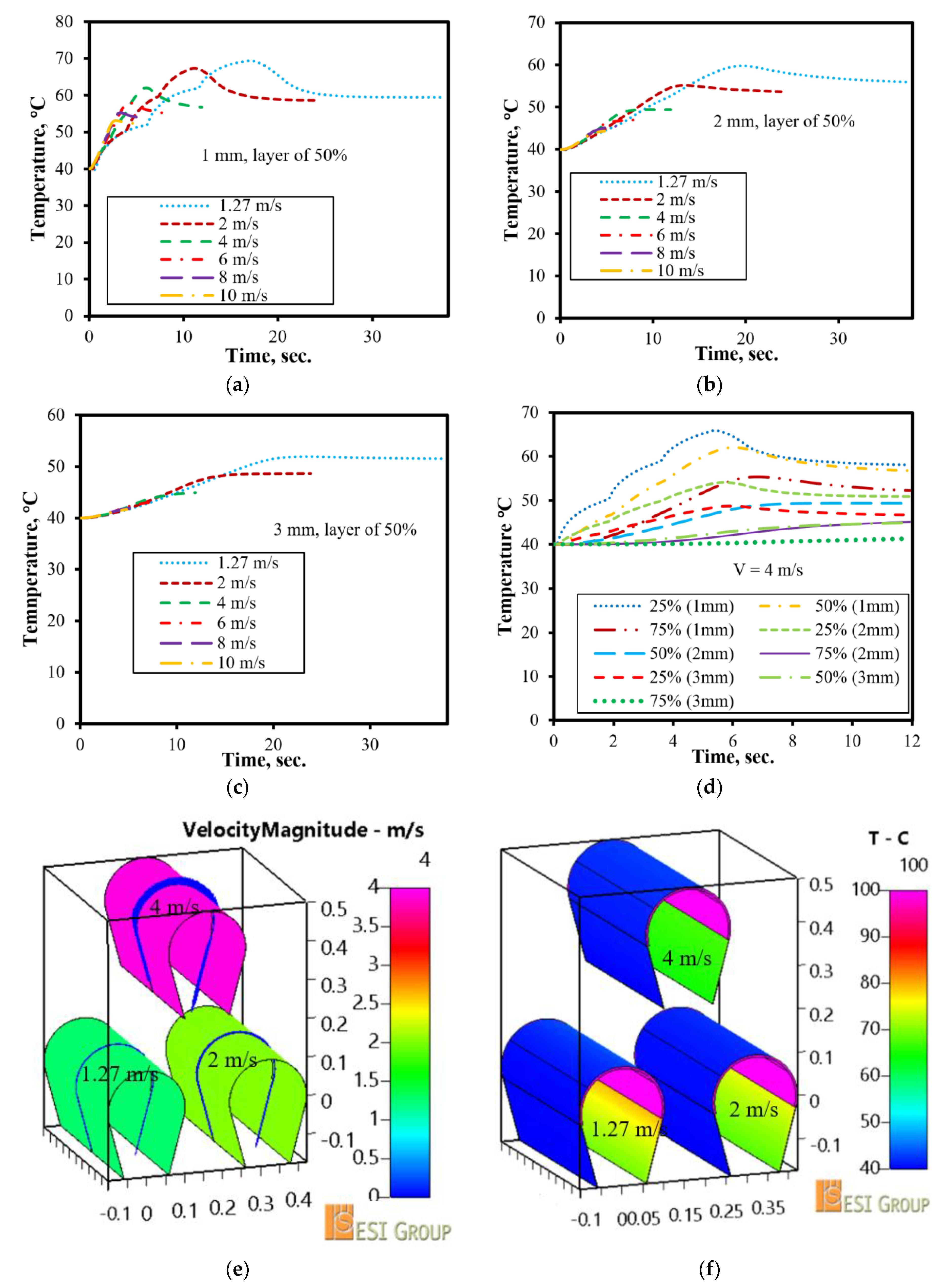

3.3. Effects of the Feeding Velocity

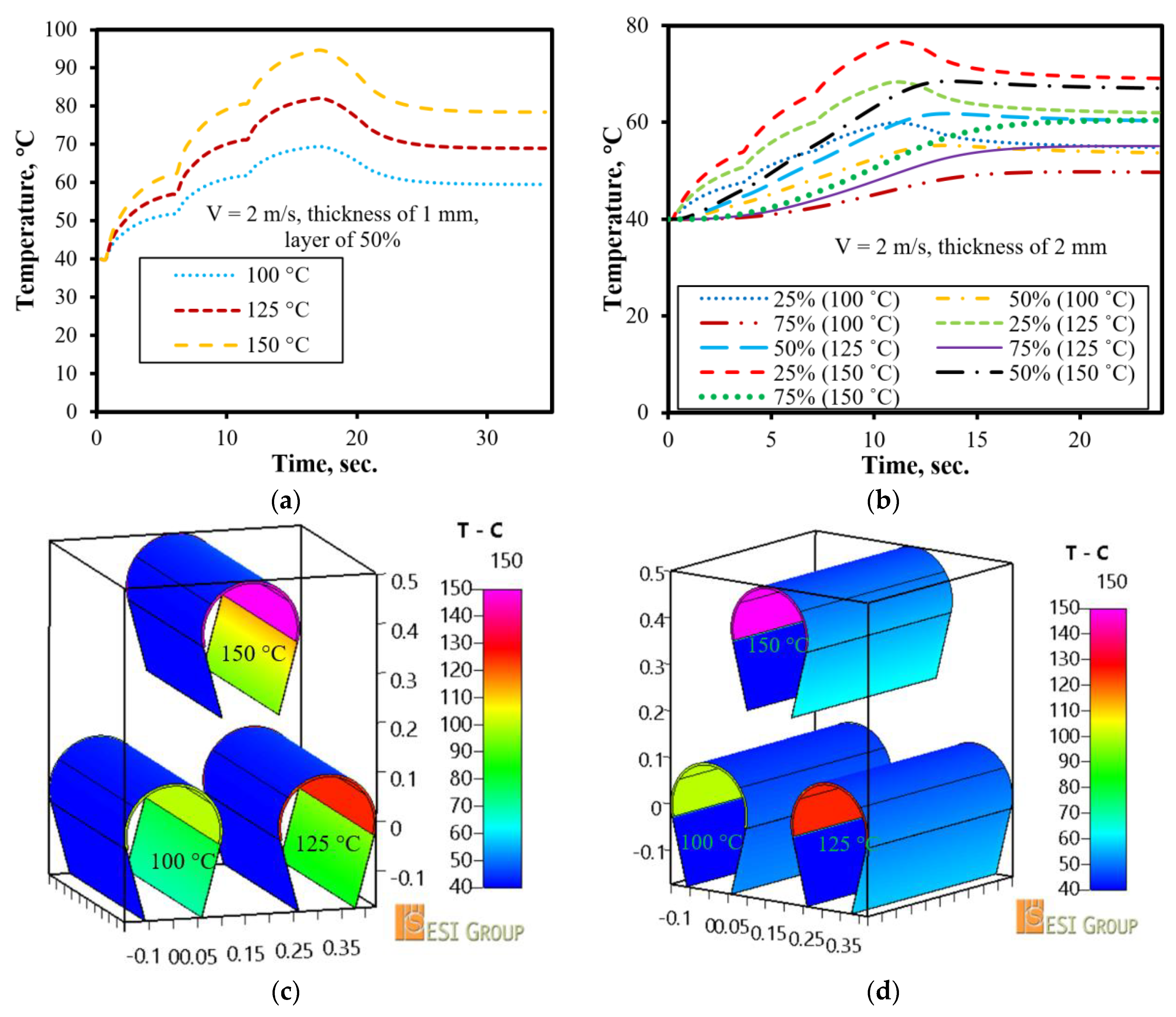

3.4. Effects of the Cylinder Temperature

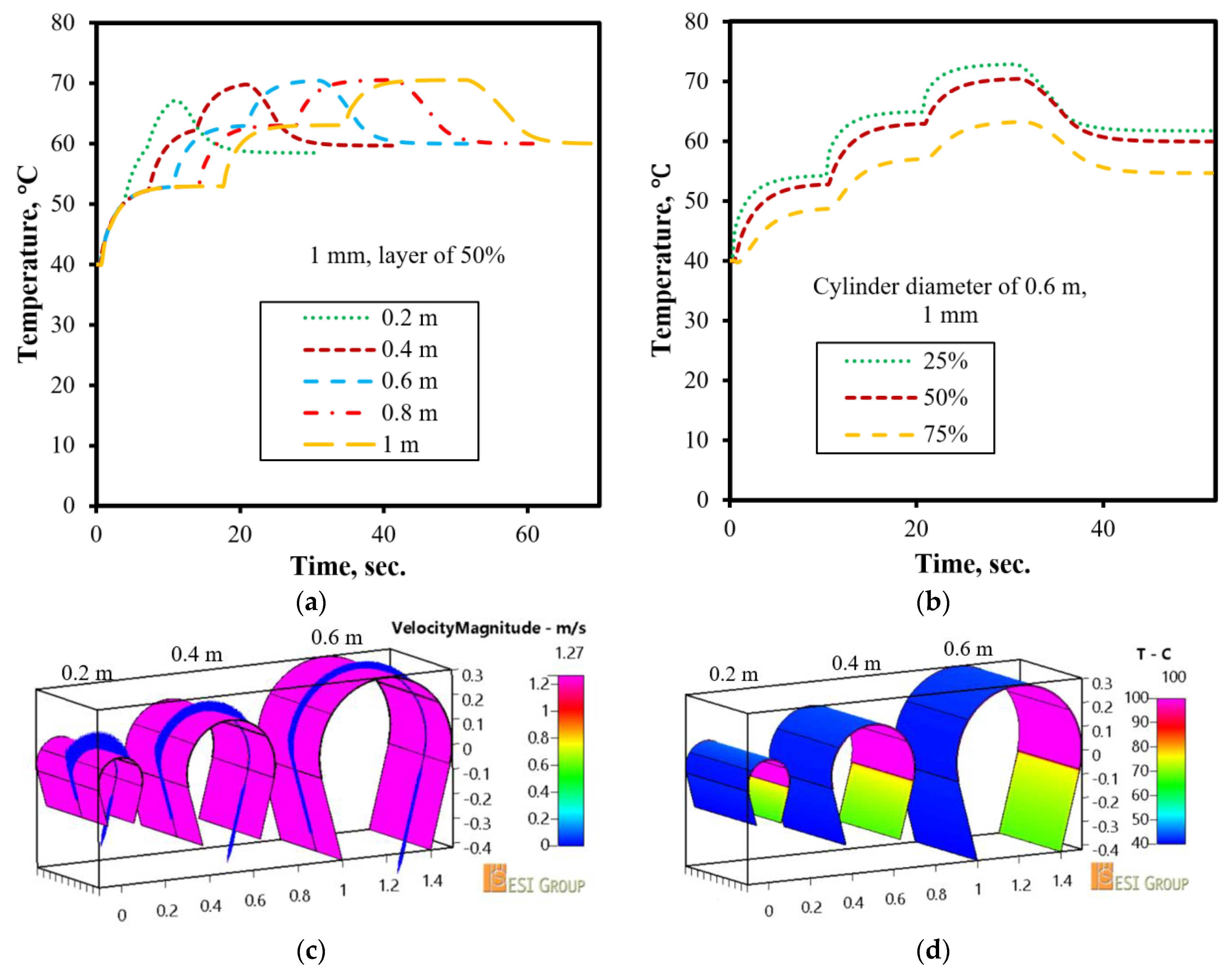

3.5. Effects of the Cylinder Diameter

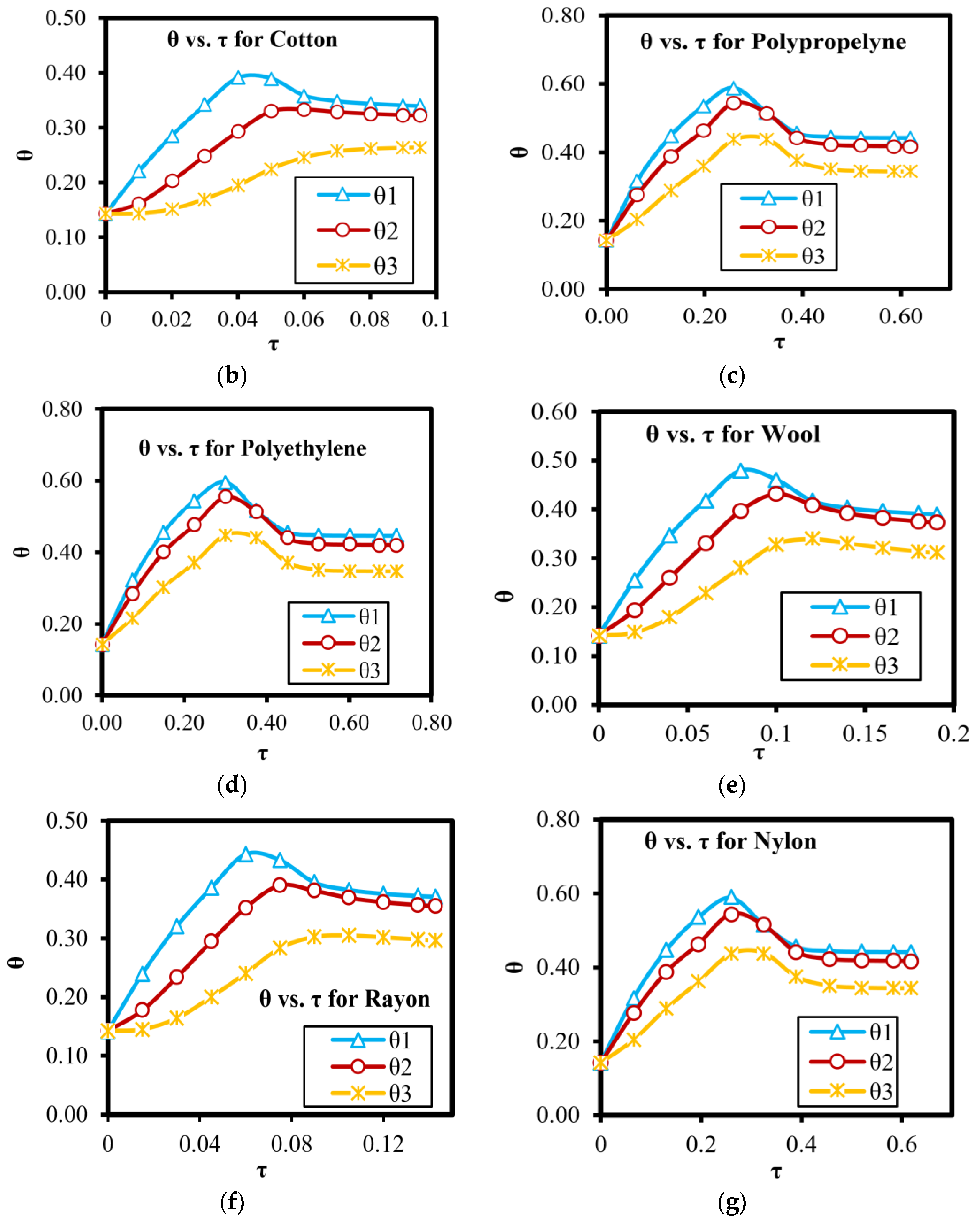

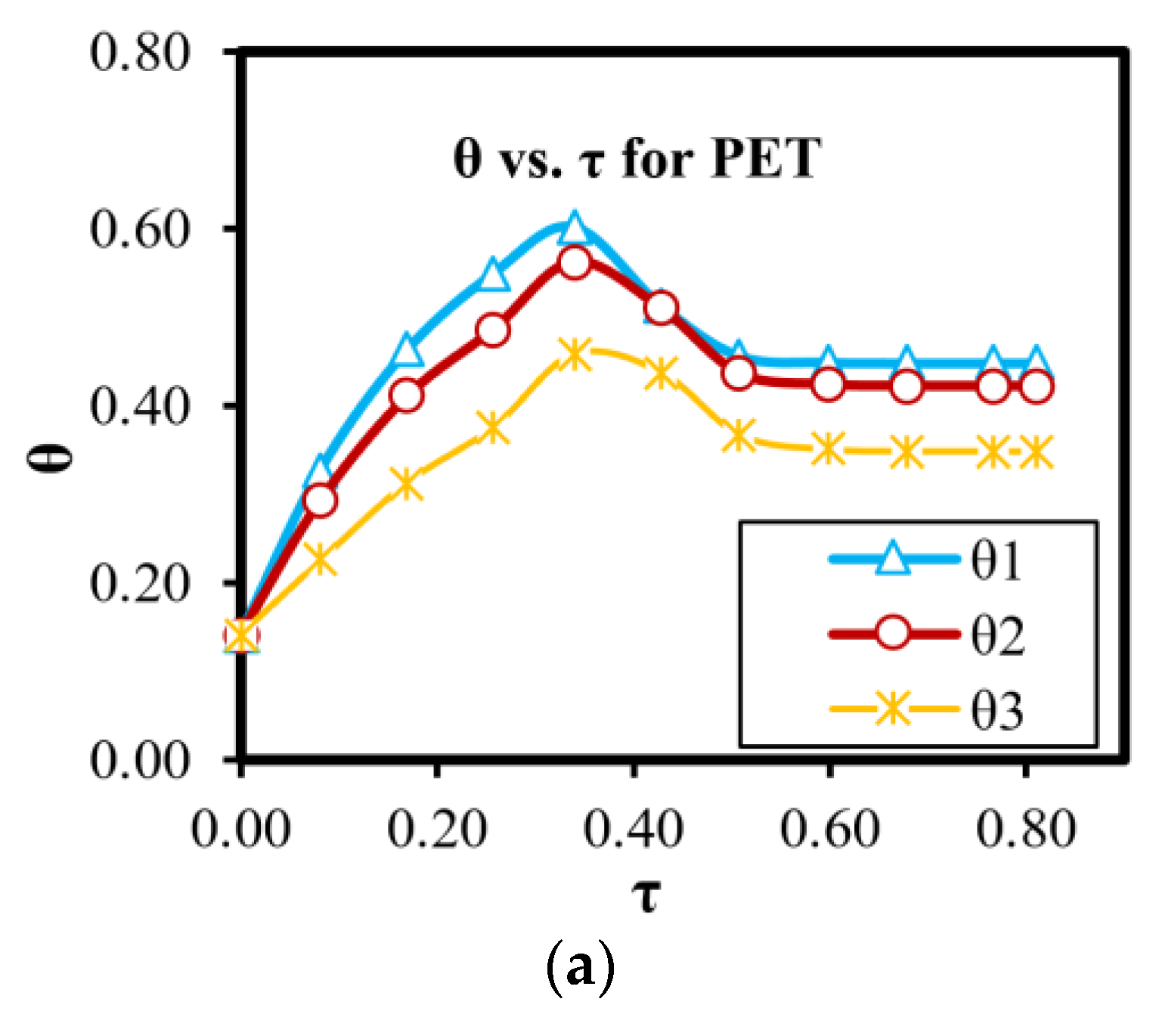

3.6. θ versus τ for Different Drying Materials
4. Conclusions
- The drying process of a drying material with higher thermal diffusivity is faster than that with lower thermal diffusivity.
- The peak temperature of the drying material in a cylinder dryer with a larger contact percentage is higher than that of a smaller one. At the same contacting percentage, the peak temperature of the drying material decreases with the rise in drying material thickness.
- At the same examining layer and the same drying material thickness, the temperature of the examining layer with higher feeding velocity is increased faster than those of the lower feeding velocities; however, the peak temperature of a transport material with lower velocity is higher than those of the higher velocities.
- The decrease in temperature of the drying material at the examining layer of 50% of phase IV seems to be independent of the cylinder temperature, and the heat transfer between the central layer of the drying material to the ambient environment is limited by the thermal diffusivity of the drying material.
- The peak temperature of the drying material increases with the increase in cylinder diameter; however, when the cylinder diameter reaches a certain value, the peak temperature of the drying material is constant. Specifically, the maximum temperature is almost unchanged with the increase in the diameter from 0.4 m to 1 m.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
