Developments on Perovskite Solar Cells (PSCs): A Critical Review

Lehlohonolo P. Lekesi
Lehlohonolo F. Koao
Setumo V. Motloung
Tshwafo E. Motaung
2,4 and
Thembinkosi Malevu
Westville Campus, School of Chemistry and Physics, University of KwaZulu-Natal, Private Bag X54001, Durban 4000, South Africa
Department of Chemistry/Physics, Sefako Makgatho Health Science University, P.O. Box 94, Medunsa 0204, South Africa
Department of Chemical and Physical Sciences, Walter Sisulu University, Private Bag X1, Mthatha 5148, South Africa
Department of Chemistry, School of Science, College of Science Engineering and Technology, University of South Africa, Preller Street, Muckleneuk Ridge, P.O. Box 392, Unisa 0003, South Africa
Authors to whom correspondence should be addressed.
Appl. Sci. 2022, 12(2), 672;
Submission received: 29 November 2021 / Revised: 19 December 2021 / Accepted: 21 December 2021 / Published: 11 January 2022


This review provides detailed information on perovskite solar cell device background and monitors stepwise scientific efforts applied to improve device performance with time. The work reviews previous studies and the latest developments in the perovskite crystal structure, electronic structure, device architecture, fabrication methods, and challenges. Advantages, such as easy bandgap tunability, low charge recombination rates, and low fabrication cost, are among the topics discussed. Some of the most important elements highlighted in this review are concerns regarding commercialization and prototyping. Perovskite solar cells are generally still lab-based devices suffering from drawbacks such as device intrinsic and extrinsic instabilities and rising environmental concerns due to the use of the toxic inorganic lead (Pb) element in the perovskite (ABX3) light-active material. Some interesting recommendations and possible future perspectives are well articulated.

1. Introduction

The world is in great demand for energy in the form of electricity, as electricity contributes to economic growth [1]. The world’s dependence on burning fossil fuel for this purpose is consequential, as fossil fuels are slowly becoming depleted and emit harmful toxins into the atmosphere [2,3]. Resorting to renewable energy, such as solar energy, offers the advantage to counteract both issues of energy sustainability and the negative impact on the environment. Therefore, resources that generate electrons for the above purpose are promising alternative sources of energy. The emerging perovskite solar cells (PSCs) are photovoltaic (PV) devices able to convert the abundant sunlight radiation into electricity. The cell operates similar to a traditional p-n junction solar cell, with the perovskite material producing electrons and holes for electricity generation. This type of PV solar cell is novel and has gained attention recently mainly due to its high efficiency, low production cost, and easy fabrication [4,5,6,7,8]. PSCs offer a shift from overusing Earth’s non-renewable resources to harvesting the infinite sunlight radiation.

Perovskite Solar Cells (PSCs)

PSCs belong to the 3rd generation of photovoltaic cells and their device structure is integrated from the second-generation dye-sensitized solar cells (DSSCs) configuration [9,10]. The low absorption coefficient of organic sensitizers in DSSCs limits the light-harvesting ability of the cell; hence, DSSCs are low-efficiency cells. Kojima (2009) studied the PV effect in a photoelectrochemical (PEC) dye-sensitized cell by replacing the dye organic molecules with organic–inorganic halide perovskite molecules such as CH3NH3PbBr3 (MAPbBr3) and CH3NH3PbI3 (MAPbI3) and registered power conversion efficiencies (PCE) of 3.1% and 3.8%, respectively [5]. Although perovskites show good PV properties, including optical, excitonic, and electrical conductivity, the above unfavorable low efficiencies were attributed to the dissolution of the perovskite material by the liquid electrolyte [11].
Attempts have been made to stabilize the crystalline perovskite material in DSSCs. Lee (2009) reported an increase in PCE of lead halide perovskites, while many researchers focused on quantum dot sensitized solar cells (QDSSCs) using inorganic metal chalcogenides sensitizers such as PbS, CdSe, and CdS as light-absorbing materials, exhibiting intense bandgap light absorption [12,13,14]. However, these quantum dot cells suffered from low efficiencies between 1.2 and 6.4% due to charge recombinations at the interface and chemical instability. To overcome these challenges, the MAPbI3 perovskite materials were explored as quantum dots in PECs and an increase to 6.5% in PCE in PSCs was achieved [15]. To further increase efficiencies, Fujishima (2005) proposed the use of hole-transporting materials (HTMs) in DSSCs to eliminate the drawbacks caused by liquid electrolytes in PECs. In a later study, Lee (2012) developed a 10% PCE solid-state PSC device using Spiro-MeOTAD HTM in a perovskite-sensitized solar cell device [16,17].
Device fabrication of a solid-state PSC consists of a perovskite precursor solution deposition between spaces of mesoporous titanium dioxide (TiO2), thin-film on a transparent conductive oxide (TCO) substrate, forming a ABX3 perovskite layer by an ordered ion agglomeration process, then followed by Spiro-MeOTAD (HTM) deposition, resulting in devices reaching efficiencies of up to 9.7% (see Figure 1a,b). The use of mixed-halide perovskite crystals such as MAPbI3-xClx helps avoid the dissolution of the perovskite material by the Spiro-MeOTAD-dissolving solvents during the deposition [18,19]. It is further found that the use of insulating mesoporous aluminium oxide (Al2O3) instead of mesoporous TiO2 results in better PCE. The Al2O3 appears to act as a structural scaffold in the perovskite material, demonstrating that the ABX3 perovskite crystal structure contributes to the electron transport, hence, demonstrating devices with high charge collection (see Figure 1c [17,20,21]. The reduction in device thickness is shown in Figure 1d–g, sensitized cell structure (d) → mesoporous structure (e) → meso-superstructure (f) and, lastly, → planar cell structure (g) has also contributed towards achieving highly efficient photon-to-electron thin PVs.
The developments in designing the ABX3 crystal structure and advances in device structure is of topical research, attracting the interest of many chemists and physicists across the world. This has attributed a rapid increase in PSC efficiencies to 25.5%, approaching the 27.6% efficiency for commercially available single crystalline silicon solar cells [22,23,24]. However, recording high efficiencies, PSCs are still lab-based devices and have not reached commercialization due to the device instabilities and the current use of the toxic inorganic lead (Pb) element. Factors affecting the PSC’s stability include environmental variations such as oxygen, moisture, temperature, and UV radiation [25,26,27]. Thus, the major challenge in manufacturing is achieving a device with high performance, is environmentally friendly, and has a life span of 25 years.
The perovskite active layer, together with the counter electron and hole transporting layer (ETL and HTL), are key components in the solar cell device [28]. Therefore, this work provides comprehensive literature on perovskite crystal structure modelling, perovskite (ABX3) compositional engineering, and maps out the road towards establishing the perfect required ETL/perovskite and perovskite/HTM intermediate contacts [29,30]. Interesting recommendations and possible future perspectives are also outlined.

2. Modelling the Perovskite Crystal Structure

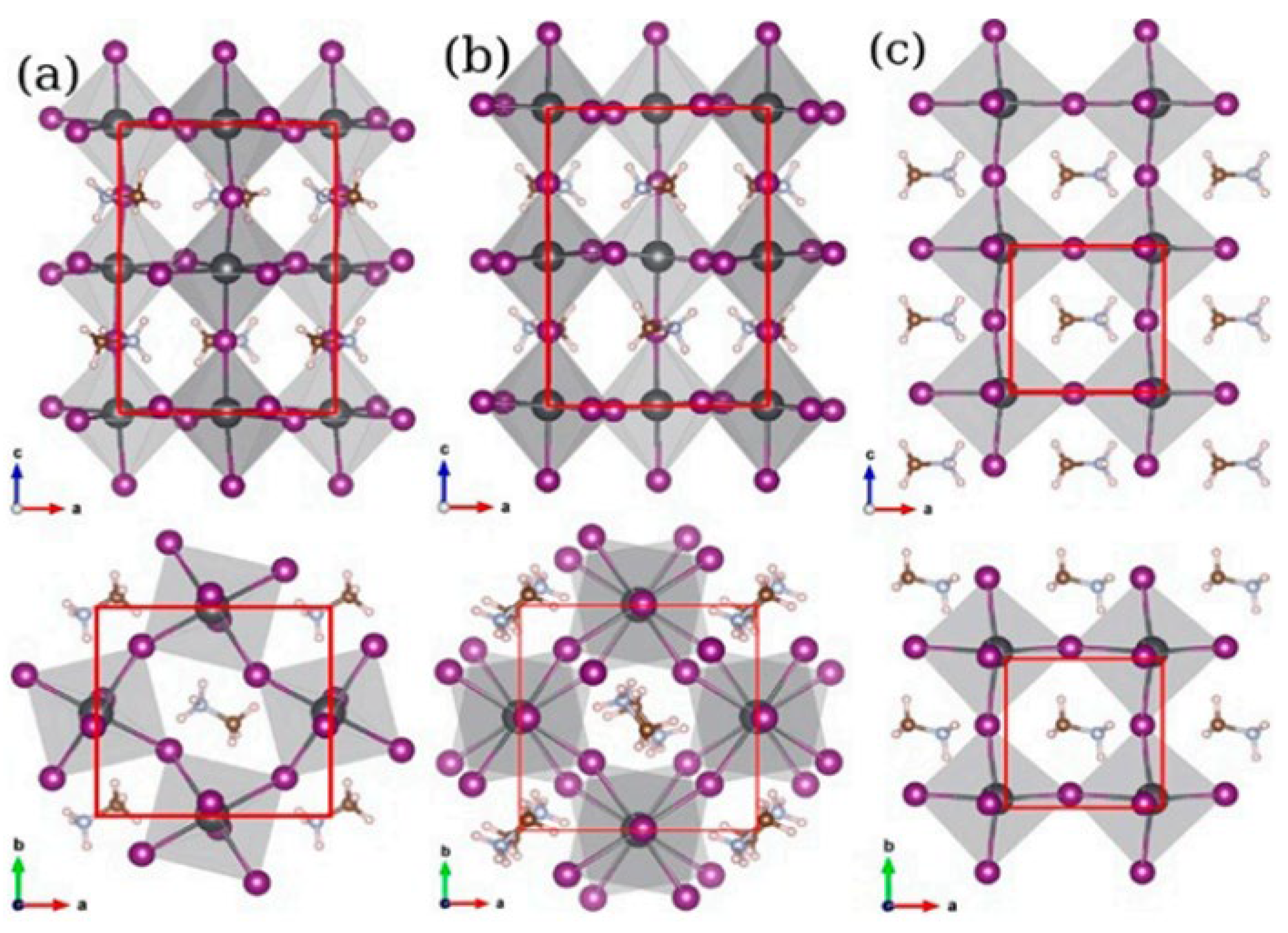

In perovskite solar cells MAPbI3, FAPbBr3, and CsPbCl3 are standard ABX3 light-absorbing materials [31]. The arrangement of ions in the perovskite crystal structure varies in space around a unit cell depending on temperature (T), pressure (P), and tolerance factor (t). The perovskite crystal structure ranges from orthorhombic, tetragonal, and cubic in order of increasing crystal perfection, respectively [32]. The tolerance factor (t) predicts stability in perovskite crystal systems. In a perfect perovskite cubic structure, the (t) factor equals 1.0, whereas in a non-ideal case, the cubic structure is within 0.8 to 1.0 (t) factor. Less ordered perovskite crystal structures, such as orthorhombic and tetragonal, are obtained at low (t) factor [19,26]. FA+ containing perovskite materials have a high (t) factor. Alloys of MA+ and Cs+ multi-cation perovskites result in materials with properties comparable to FA+ alone. This concludes that FA+ containing perovskites are more stable than the individual MA+ and Cs+ containing perovskite materials [33]. Figure 2 shows MAPbI3 phase transitions with an increase in temperature. The (t) factor equation is given as follows.
t = r A + r X 2 × ( r B r X )
where rA, rB, and rX represent the ionic radii for the organic cation A, inorganic cation B, and the halide anion X, respectively, from the ABX3 perovskite crystal structure [31].

3. Modelling the Perovskite Electronic Structure

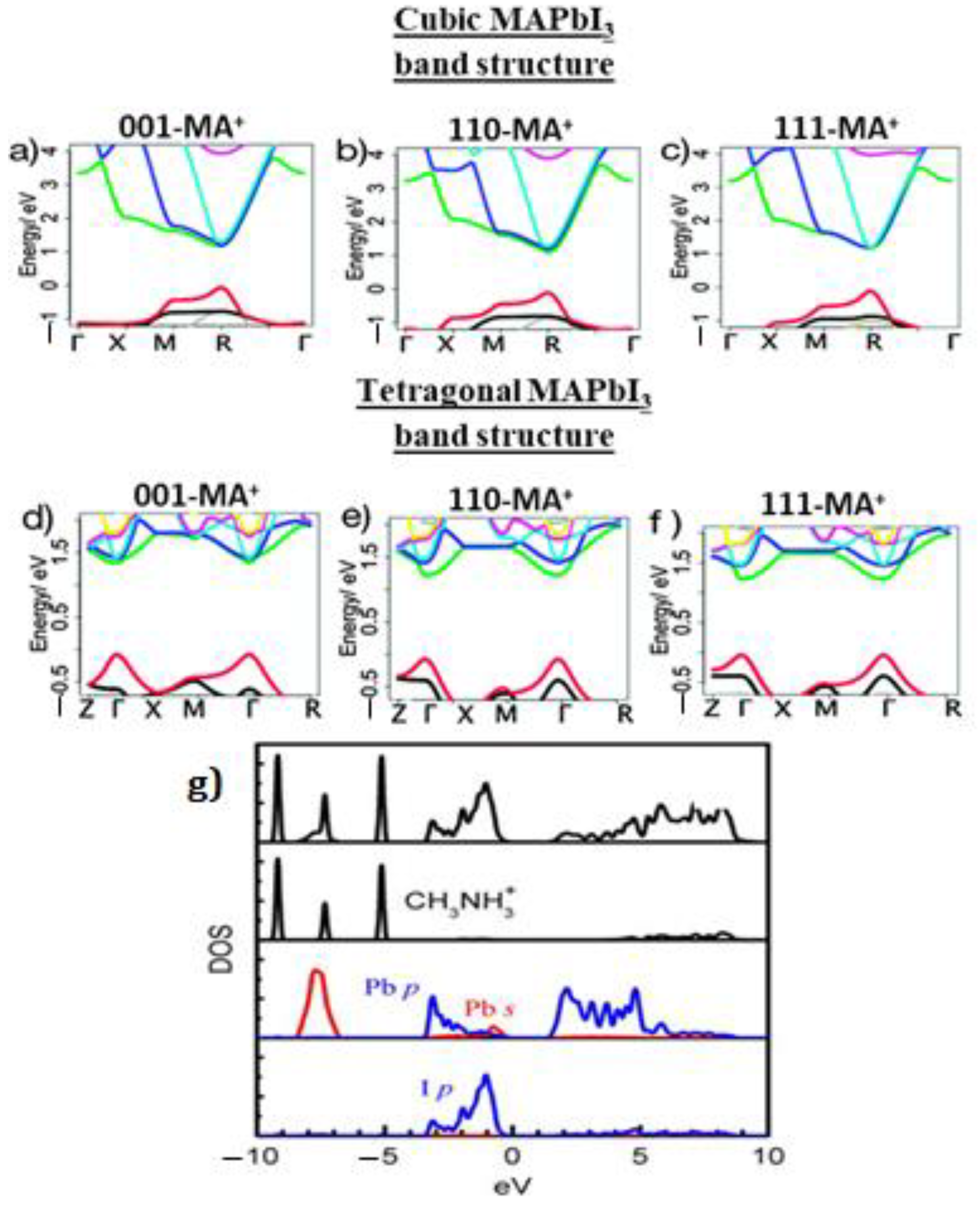

Methylammonium lead iodide (MAPbI3) is the simplest and well-studied perovskite absorber compound. Its crystal structure consists of an organic MA+ molecule surrounded by three-dimensional inorganic Pb-I molecules. Figure 3a–f demonstrate the effect of MA+ −001, −110, and −111 ionic orientations in the bandgap structure of cubic and tetragonal MAPbI3, determined from Perdew-Burker-Ernzerhof function for solids. It is observed that the conduction (CB) and valence (VB) band of the MAPbI3 electronic structure vary with MA+ orientation; however, the overall electronic bandgap remains the same throughout 001-, 110-, and 111-MA+ ionic orientations. This, therefore, suggests that the MAPbI3 bandgap depends on the three-dimensional Pb-I system surrounding the MA+ ion, and not on the MA+ ion [33,35,36,37]. In additional studies on the MAPbI3 electronic structure, Yin (2014) studies on the density of states (DOSs) emphasizes more on the above suggestion. Figure 3g illustrates MAPbI3 total and partial DOSs. It is observed from the DOS positions of lead (Pb) and iodide (I) p-orbitals in Figure 3g occupy the CB and VB, respectively, indicating that MAPbI3 optical transitions rely on Pb and I p-p transitions (see Figure 3g) [35,38].

4. Perovskite Solar Cell Device Architecture

PSCs were first reported by Kojima (2009), whereby the perovskite ABX3 organic–inorganic lead halide material was used as a light absorber in sensitized solar cells. In this study, the perovskite device structure preserved the same cell structure as DSSCs. Hence, it was assumed that PSCs operate similar to DSSCs. However, as knowledge developed in this field, it was found that the fundamental basis of operation in PSCs was distinctive from DSSCs [15,37]. In a PSC device, the perovskite material (ABX3) is deposited onto a conductive glass substrate bearing an n-type (compact or mesoporous) electron transport material (ETM), which is followed by the deposition of a p-type hole transport material (HTM). When light is absorbed by the perovskite material, electrons are excited to the LUMO, leaving behind holes in the perovskite HOMO, generating excitons that diffuse within the perovskite layer towards the opposite ETM and HTM contacts. At the interface with the perovskite material, the ETM and HTM selectively transport charge carriers. Electrons travel from the anode electrode to the external circuit, generating electricity across an electrical load. The perovskite absorber regenerates as electrons recombine with holes at the cathode electrode (e.g., Au, Ag, Pt, and Al), minimizing charge imbalance at opposite electrodes [39].

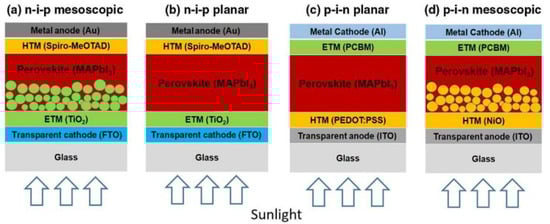

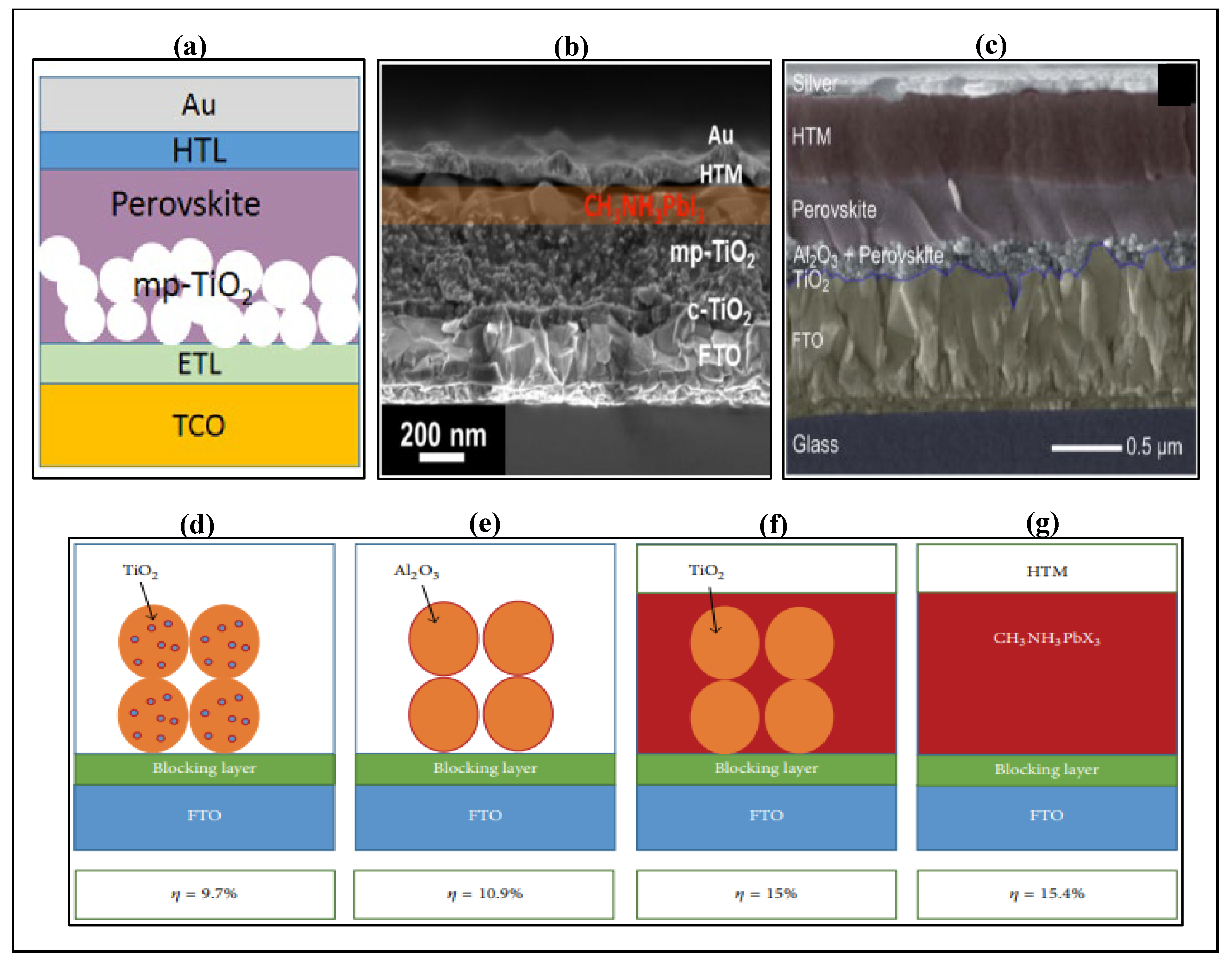

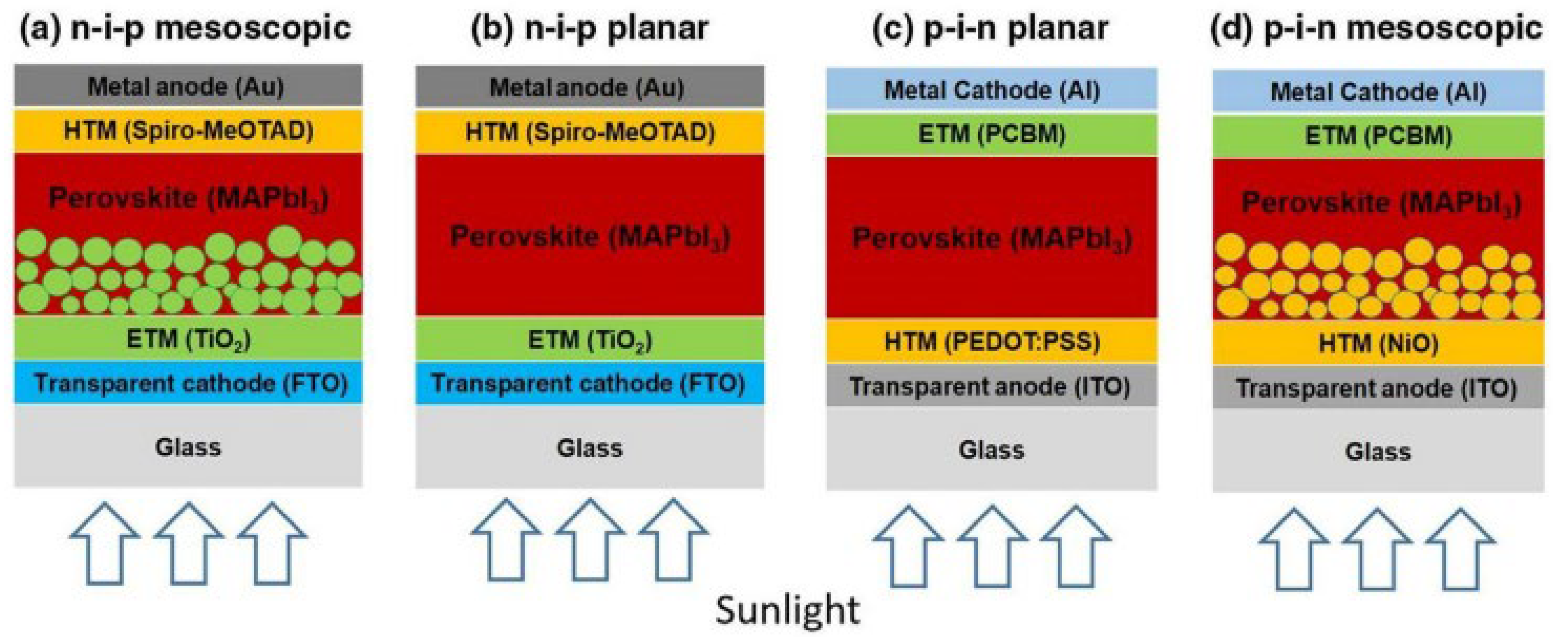

A conventional PSC has a device architecture similar to a p-n junction solar cell with the perovskite intrinsic (i) absorber sandwiched between n-type and p-type semiconducting materials, as illustrated in Figure 4a; this device architecture is referred to as the mesoscopic-(n-i-p) device architecture. The realization that the perovskite material can, on its own, facilitate charge transportation and further the rearrangement of the device architecture has contributed significantly towards improving the device performance and stability [40]. Figure 4b–d illustrates such devices improvements. The planar-(n-i-p) architecture in Figure 4b results from PSC devices without the mesoscopic metal oxide required in DSSCs as a structural scaffold. A planar architecture is a promising architecture for large surface area manufacturing on flexible substrates because this architecture is fabricated from low-temperature preparation methods [41]. The planar-(n-i-p) devices are reported to reach high efficiencies of up to 23.6%, slowly approaching the 25.5% of mesoscopic-(n-i-p) architecture. Although the (n-i-p)-device architecture demonstrates high efficiencies, their stability still suffers due to the negative impacts (e.g., degradation) imposed on the perovskite layer by the acidic and hydrophilic nature of the traditional Spiro-MeOTAD and PEDOT:PSS HTMs [26,42,43]. The planar-(p-i-n) in Figure 4c and mesoscopic-(p-i-n) in Figure 4d are inverted structures of the conventional-(n-i-p) architecture, whereby the sequence of deposition is reversed. The inverted architecture partially overcomes the instability issues by reducing the corrosive nature of the HTMs on the device light-active layer.
Optimizing the device thickness by removing the mesoporous ETM and the change in device architecture has shown to be efficient for high-performance PSCs. Another significant route for improving the device PCE and operational stability lies in designing the perovskite ABX3 composition from simple chemical approaches. Figure 5 shows the basis of ABX3 design. Figure 5a,b present the IPCE and I–V characteristic performance from MAPbI3 and MAPbBr3 single halide PSCs. The distinctive difference in the iodide and bromide performance presented sufficient motivation in achieving hybrid materials of organic–inorganic perovskite materials through ABX3 designing [5]. From the IPCE curve, MAPbBr3 (solid line) shows a photon to the current conversion ratio of 62–65% at wavelengths less than 550 nm. However, changes in behavior at higher wavelengths indicate that MAPbBr3 is most active at lower wavelengths, whereas MAPbI3 (dash line) shows a 45% conversion rate over a wide wavelength range of 450–750 nm. The good short circuit current of 10.8 mAcm−2 in MAPbI3 and the good open-circuit voltage of 0.94 V in MAPbBr3 from the corresponding I–V curves are attributed to the long IPCE ratio in MAPbI3 and good electron transfer from the active layer LUMO to the ETM conduction band in MAPbBr3, respectively. This study paved a path for a multitude of ideas in varying the perovskite ABX3 crystal structure, resulting in hybrid perovskite materials of mixed-halide, mixed-cation, all organic, all-inorganic, perovskite-light-active thin films.
Hybrids of mixed-halide PSCs result in synergistic properties not obtained in single halide PSCs. Docampo (2013) compared the optical and PV properties of planar MAPbI3 single halide and planar MAPbI3-xClx mixed-halide PSCs prepared via a dip-coating solution of PbI2 thin films into precursor solutions containing (single-halide) MAI plus (mixed-halide) MACl at a controlled concentration ratio (wt%), as shown in Figure 6a. It is observed that the PSC performance increases in mixed-halide perovskite systems (Table 1). In the time-resolved photoluminescence results reported in Figure 6b, the planar MAPbI3 device exhibits a short photoexcitation lifetime, minimizing the charge carrier diffusion length in the relatively thick MAPbI3 film. Remarkably, it is observed that the addition of Cl at small wt% into the MAPbI3 composition increases the charge carrier lifetime, resulting in diffusion lengths that are a few nanometers greater than the MAPbI3-xClx thickness. The corresponding I–V results are demonstrated in Figure 6c; the mixed-halide MAPbI3-xClx PSC device reaches high short circuit current (Jsc) and efficiency (η) values of 22.9 mAcm−2 and 15.41% in comparison to the low PV parameters in single-halide MAPbI3. This improved PSC performance is suggested to be attributed to the small average crystal size and minimum grain boundaries within the mixed halide promoting higher diffusion lengths. However, the study indicates that further addition of the second halide component (Cl) slightly decreases the device short circuit current and open-circuit voltage, therefore demonstrating that optimization in the preparation method is required for optimum device performance [20].
Further to the designing of ABX3, processing conditions such as thermal annealing, ageing, doping, moisture and solvent treatment strategies are used to optimize device performance during PSC fabrication. Adhyaksa (2016) studied the effect of ageing (a device placed in the dark at room temperature) on the diffusion length and bandgap energy of mixed MAPb(I1-xBrx)3 halide perovskite. Figure 7a shows a plot of the mixed perovskite diffusion length L (nm) against bandgap energy (eV) values; the insert images are the aged PSC thin films arranged according to their bandgap energies; the white and black dots present corresponding diffusion length and bandgap values for aged and non-aged PSCs films, respectively. It is noted in both cases that the bandgap structure is tuned by varying the bromine (Br) and iodide (I) weight fractions. Bandgap values in the thin films increase with increasing Br content. A distinctive phase change is observed by the color change towards high bandgap values from black to yellow, indicating that the devices can be optimized to absorb specific regions in the solar spectrum. The aged film at ~1.8 eV recorded the highest diffusion length, double of the non-aged films. This study, therefore, shows that the application of processing conditions on either single- or mixed-halide perovskite thin films offers the ability to fine-tune the resulting perovskite optical properties for better and desired performances [28,53].

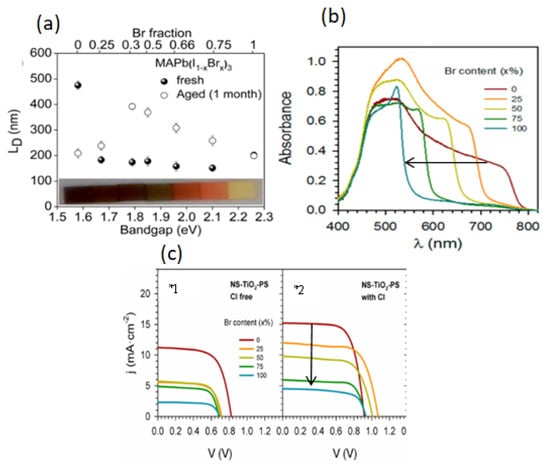

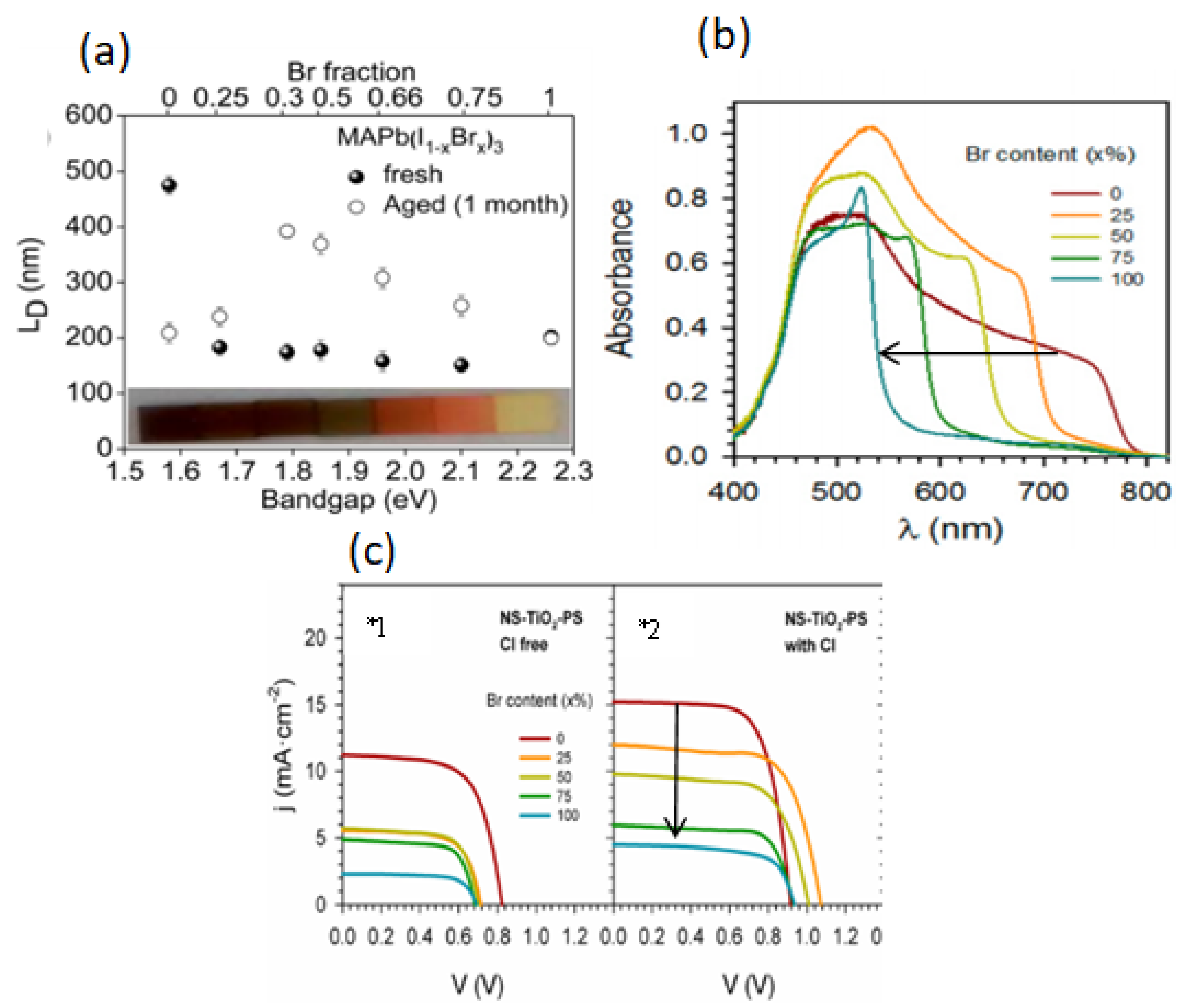

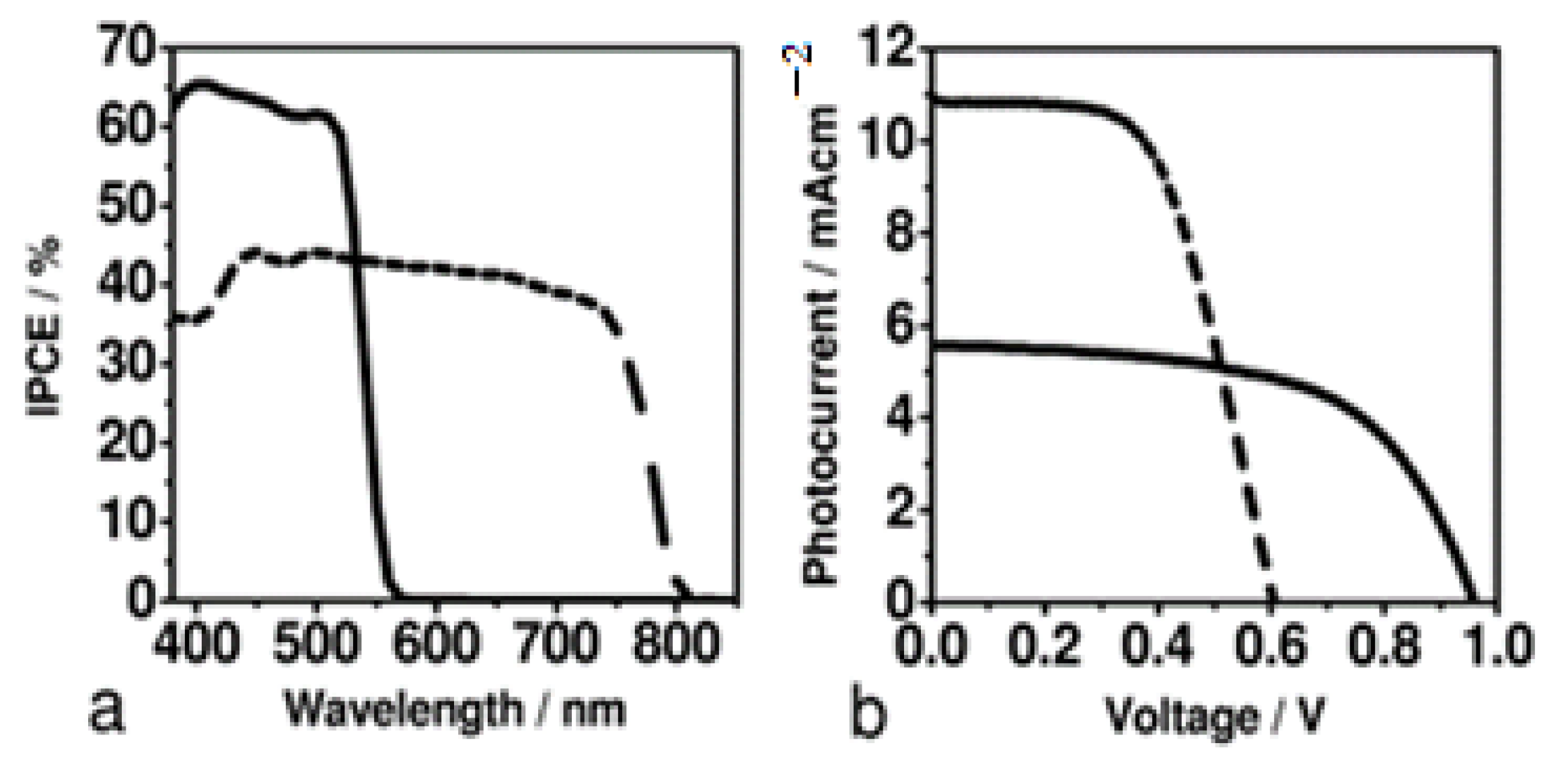

In a similar study, Suarez (2014) characterized the effect of halogen (x% = I, Br, and Cl) composition in mixed-halide PSCs’ optical and PV properties. In Figure 7b, a shift towards lower wavelengths is observed in the absorption spectra as indicated by the arrow. This absorption behavior further confirms the successful bandgap tunability in Figure 7a reported above [47]. In Figure 7c*1, a significant reduction in Jsc and Voc is observed. This low device performance is attributed to the shift towards lower wavelengths reported from the absorption spectra in Figure 7b. Figure 7c*2 shows an appreciable increase in Jsc and Voc with the introduction of a third halogen (Cl) component. However, the shift in absorption further persists to decrease the device performance in the triple halide PSCs.
The complex perovskite crystal structure ABX3 offers the advantage of modelling the resulting absorber layer from stochiometric solution preparation methods [54,55]. Singh (2017) studied cell properties of a mixed-cation (Cs/FA/MA) perovskite device and obtained characteristic results of a PSC with the device configuration of FTO/TiO2/Meso-TiO2/Cs/FA/MA/Spiro-MeOTAD/Au as shown by the cross-sectional image in Figure 8d [48]. In previous studies of MA/FA perovskite thin films, it is reported that the MA+ cation at small ratios acts as a FA+ nucleating site, increasing the degree of crystallinity in the FA photoactive film, thus also enhancing the light sensitivity of the +FA thin films. However, the MA/FA systems showed traces of small phase impurities that eventually affect overall morphology and stability. It is reported that the incorporation of cesium (Cs) inorganic cation improves MA/FA intrinsic properties [56,57].

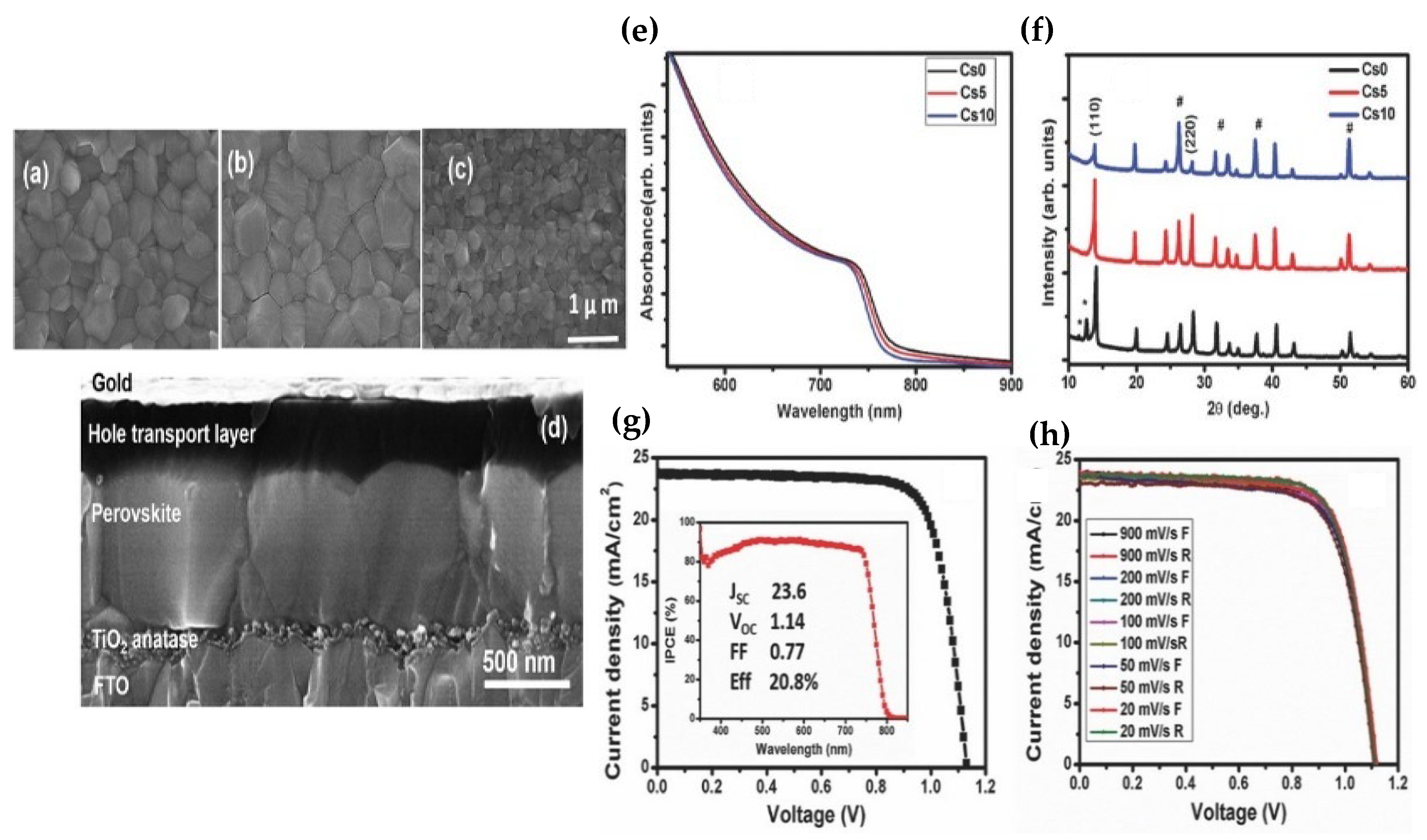

Figure 8a shows an SEM micrograph image of a neat MA/FA system with a bumpy distribution of grains and the presence of surface grooves, indicating a low level of adhesion between grain interfaces; in Figure 8b, at a 5 wt% addition of Cs, the crystal grains increase in size and the surface boundary between the grain becomes diluted, this might suggest an improved surface adhesion between grains and, hence, a high degree of crystallinity. However, at high additions of 10 wt% Cs, as indicated in Figure 8c, the surface adhesion disappears and grains are reduced to a small particle size, increasing the possibility of crystal defects. Figure 8e shows the characteristic absorption band of a perovskite absorber layer with absorption over the UV–vis spectrum. Figure 8f shows XRD patterns at 0, 5, and 10 wt% Cs addition, all showing a perovskite characteristic peak at a ~14° diffraction angle, corresponding to the (110) plane. Defect peaks at diffraction angles lower than 14° are seen for the neat MA/FA system; this might be assigned to the surface boundaries between grains. At 5 wt% Cs addition, the defect peaks disappear and a there is a significant increase in perovskite peak intensity at a 14° diffraction angle, suggesting an increase in crystallinity. This behavior is however not favored for higher concentrations of Cs addition. The inorganic Cs metal encourages crystallization and increases the device stability, illustrated by the occurrence of little to no J–V hysteresis between the forward and reverse bias measurements, as shown in Figure 8h.

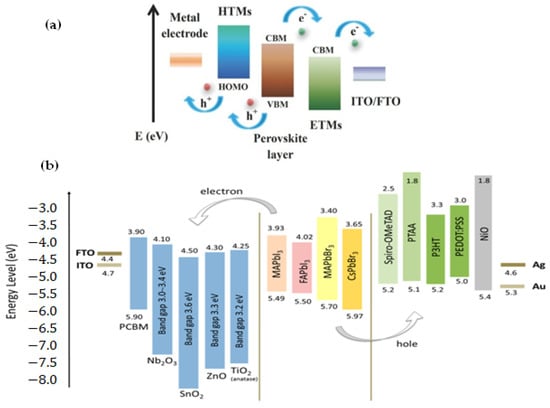

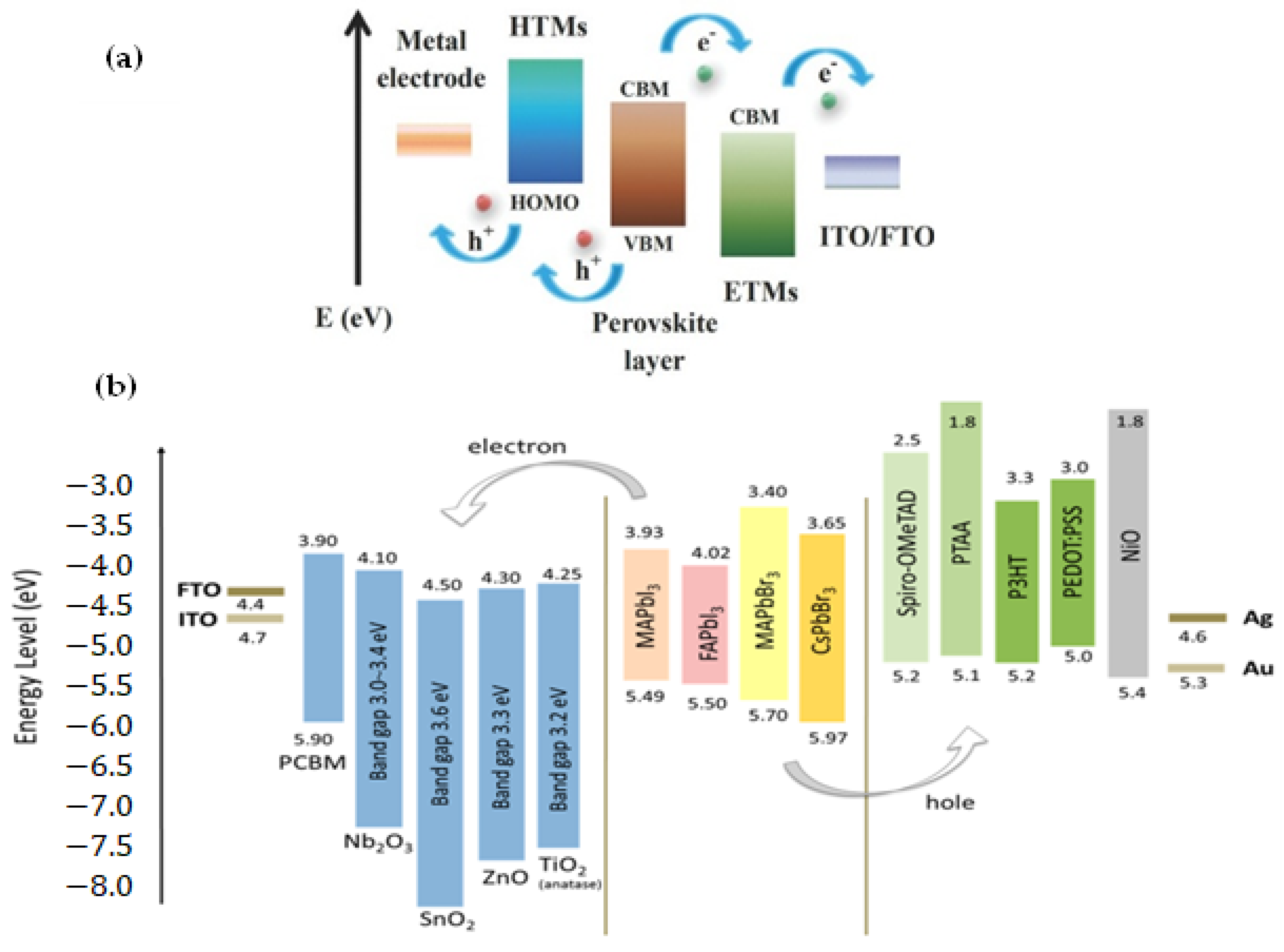

Electricity is generated by the direct absorption of sunlight in a PV solar cell. The absorbed light creates electron-hole pairs (excitons) in the absorber layer, electrons are then collected at the anode electrode to the external circuit and through an electrical load. Electrons are thereafter reinjected into the absorber layer by a cathode counter electrode where recombination with holes occurs. The energy difference of the electron at the anode and cathode is used to determine the open-circuit voltage (Voc) [58]. Figure 9a underlines the basic cell operation of a perovskite solar cell. Nagarjuna (2015) studied the effect of transporting materials in a PSC and reported that the correct choice of cell transporting material is, at most, necessary for better PCE, FF, and Voc [59]. A compatible transporting material should have high charge extraction, high mobility, and proper energy alignment with the absorber layer at their interface, as indicated in Figure 9b. The traditional materials used as ETM and HTM in PSCs include titanium dioxide (TiO2) and Spiro-MeOTAD, respectively. Other common alternatives such as aluminium oxide (Al2O3), zinc oxide (ZnO), and PCBM are used as ETMs, while copper iodide (CuI), nickel oxide (NiO), PEDOT: PSS, and poly(triarylamine) (PTAA) materials are common alternative HTMs.

5. Fabrication Methods

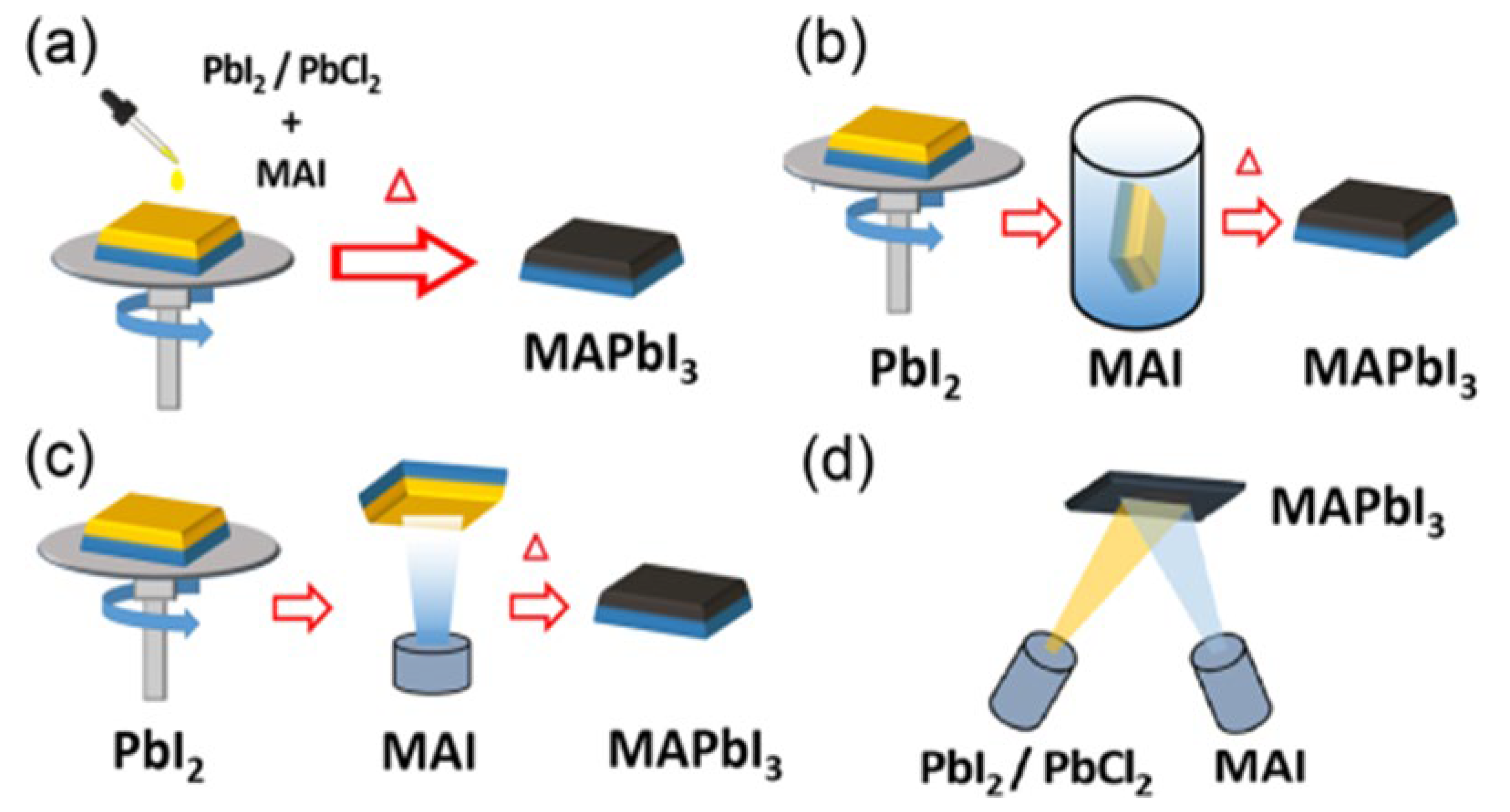

As already discussed, PSCs have taken many routes to achieve high performances, such as the device transition from sensitized solar cells to the recent planar thin-film solar cells, preparation of hybrid perovskite-light-active materials, the use of processing conditions, and lastly the use of different charge ETMs and HTMs. In addition, PSC fabrication methods play a role in high-quality perovskite films.

5.1. One-Step Method

The one-step deposition method involves spin coating a perovskite precursor solution onto a pre-treated transparent conductive oxide (TCO) substrate followed by annealing to form the perovskite active layer, as shown in Figure 10a. This is the widely used deposition method due to its simplicity and low production cost for small, lab-based PSCs, and is not suitable for large-surface-area device fabrications. To form a perovskite layer of crystal structure ABX3, organic (e.g., MAI/FAI) and inorganic (e.g., PbX2/SnX2) halides are dissolved into a common dipolar aprotic solvent, such as dimethyl sulfoxide (DMSO), dimethylformamide (DMF), or γ-butyrolactone (GBL), then spin coated onto an ETM-bearing conductive substrate. The early PSC fabrication that triggered research interest was achieved through one-step spin coating of organic salts (MABr and MAI) together with inorganic salts (PbBr2 and PbCl2), reaching efficiencies of 3.31% and 3.81% in the resulting MAPbBr3 and MAPbI3 PSCs, respectively [5]. In a later study, Miyasaka (2012) reported efficiencies of up to 10.9% by spin coating a solution of mixed-halide perovskite precursor over a mesoporous Al2O3 scaffold [7].
In the one-step deposition method, the solution’s ionic strength and post-annealing improve the perovskite crystal formation [61]. However, drawbacks such as lack of control over film uniformity and morphology are observed. Chen (2015) fabricated an inverted (p-i-n) perovskite device with a 210 nm-thick perovskite by one-step spin coating and acquired PCE = 11.99%, Voc = 0.81 V and Jsc = 21.9 mAcm−2. Figure 11a shows XRD peaks located at 28.39° and 31.86° diffraction angles, indicating perovskite crystal formation and suggesting that the deposition solvents did not destroy the perovskite crystal structure [62]. Despite showing good device efficiencies from 3.8 to 11.99%, the SEM surface image of the perovskite film shown in Figure 11b demonstrates the presence of pinholes caused by incomplete crystallization and distribution of non-uniform grains along the film morphology in the one-step method.
Zhang (2019) worked on improving the perovskite surface morphology by using binary solvent engineering systems during the perovskite one-step deposition. The technique offers control over the perovskite crystal formation, allowing complete and well-oriented homogeneous perovskite films [39]. This unique control over the perovskite morphology is achieved by a mixture of solvents such as the above mentioned DMF, DMSO, and GBL [39,63]. Figure 11c–e show AFM images at different DMF/DMSO solvent ratios of 1:0, 3:1, and 1:3, denoted as FO10, FO31, and FO13, respectively. With the presence of only DMF in Figure 11c, the AFM image reveals similar results reported in Figure 11b. The addition of a second solvent at a solvent ratio of 3:1 and 1:3 assists the film to eliminate the observed morphology cracks, pinholes, and incomplete crystallization defects. The volatile DMF solvent activates a homogeneous perovskite crystal nucleation and the presence of DMSO helps with crystal growth in an ordered orientation. Hence, the observed large, smooth, and closely packed perovskite grain morphologies in Figure 11e. In a similar study using a solvent mixture of GBL/DMSO at a solvent ratio of 7:3, Jeon (2014) acquired 16.2% efficiencies with no hysteresis in forward and reverse bias I–V measurements [63].

5.2. Two-Step Method

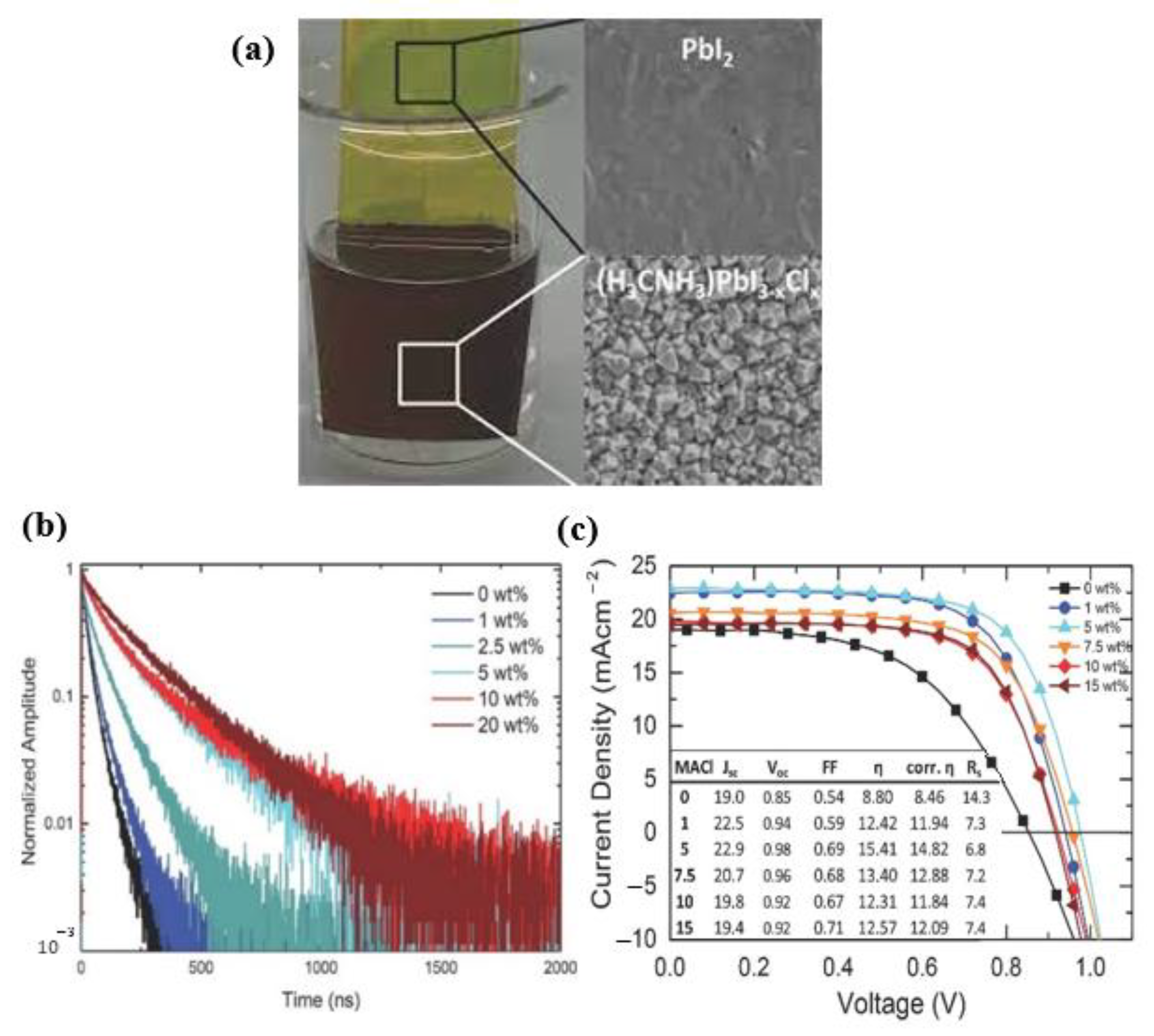

The two-step fabrication or sequential fabrication method involves the spin coating of individual organic (MAI/FAI) and inorganic (PbX2/SnX2) precursor solutions. This method offers the advantage of being able to control the surface morphology and film quality by optimizing precursor concentrations, dip-coating or spin-coating time, and spinning rates during the deposition of either organic or inorganic halide precursor. In the two-step method, the first step of deposition is spin coating the inorganic halide (PbX2) on a substrate; then, the second step of deposition follows by either (i) dipping the PbX2-coated substrate into the organic MAI solution or (ii) spin coating the organic MAI solution over the PbX2 (see Figure 10b) [64]. Burschka (2013) used the two-step method to fabricate a PSC with PCE = 15.0%. The study confirms a better control of device morphology from the XRD analysis and SEM cross-sectional micrographs of the device [65]. Firstly, the reported cross-sectional SEM images show the introduction of PbI2 into the nanoporous TiO2 film. This is confirmed by the formation of a single layer of TiO2/PbI2 with complete PbI2 crystal absorption, indicating successful PbI2 deposition onto TiO2 nanopores. The XRD pattern shows a characteristic perovskite peak at 14° diffraction angles, confirming the formation of the perovskite absorber layer upon the second step deposition of MAI by (i) dip coating TiO2/PbI2 bearing substrate.
The presence of PbI2 residuals reduces the solar cell light-harvesting ability and charge carrier transport; hence, it reduces the overall PSC performance [66,67]. Similar to the one-step deposition method above, solvent engineering and the use of additives may be applied to overcome this fabrication drawback in the two-step method. Li (2015) reported a solvent mixture based on DMF and DMSO in PbI2 powder dissolution. The DMSO in the solvent mixture prevents early PbI2 crystallization and further acts as an intermediate exchange agent with MAI during MAPbI3 film formation. Low temperature and low coating time of MAI during the second step of deposition results in perovskite crystal formation only at the PbI2 surface which blocks further MAI infiltration into the PbI2 lattice. Such mass infiltration forms a rough surface structure with the presence of voids and pinholes [68,69].

5.3. Vapor-Assisted Solution Method

The vapor-assisted solution deposition method is considered a modification of the two-step method which improves the infiltration of the precursor solutions. The only difference between vapor-assisted solution and two-step method is that, during the second step of deposition, a vapor phase of either MAI/FAI is reacted with the PbI2 film (see Figure 10c) [64,70]. Chen (2015) investigated the performance of PSCs prepared by the two-step and vapor-assisted solution method and reported that PSCs fabricated from different techniques result in different properties. Flat films fabricated via vapor-assisted deposition show high surface coverage and pore filling of the mesoporous TiO2. The device performance records a high Voc of 0.96 V and an IPCE value of 81% over a 400–740 nm wavelength range. Photoluminescence (PL) spectra showed an intense peak in the two-step fabricated film, confirming defect densities caused by poor surface coverage [71]. In this study, the vapor-assisted solution method is shown to have high device efficiencies in comparison to the two-step method. The disadvantage of the vapor-assisted method is that the deposition of MAI vapor is time consuming [72,73].

5.4. Thermal Vapour Deposition Method

The thermal vapor deposition method involves the simultaneous deposition of the organic (e.g., MAI or FAI) and inorganic (e.g., PbI2/PbCl2) halides in the vapor phase on a rotating substrate (see Figure 10d). This method offers a uniform surface morphology due to the ease of control over precursor depositing parameters and the speed of rotating substrate [29]. Liu (2013) reported a planar mixed-halide PSC recording efficiencies of up to 15.4%. The MAPbI3-xClx perovskite thin films were prepared from vapor deposition of MAI and PbCl2 precursor powder materials at a 4:1 deposition ratio [74]. In an attempt to produce a large-surface-area PSC device, Liang (2018) reported a large-scale PSC with a surface area of 100 cm2 (see Figure 12a) [75]. The device showed a PCE equal to 7.73%. This study serves as a benchmark for the fabrication of commercial PSC through thermal vapor deposition. The device maintained a uniform composition throughout the film with no presence of impurities and subsequently high solar cell performance. Figure 12c depicts consistent XRD patterns at different regions of the solar cell marked A, B, C, E, and D, as shown in Figure 12b.

6. Device Challenges

6.1. Perovskite Solar Cell Device Stability

The development of the PSCs in the past decade has shown a massive improvement in efficiency over a short period in comparison with other existing solar cells. PSCs have already surpassed the performance of commercially available silicon-based PVs, making them the future of solar energy. However, the device’s lifespan is below the required 25 years for a normal PV cell, ranging from days to months. The degradation of PSCs performance suggests that device instability stands in the way of commercialization [76]. Therefore, it is necessary to understand PSC degradation mechanics to improve the device’s flaws. In the characterization of perovskite cell stability, the device is subjected to harsh environments in order to obtain superior performance under normal conditions. The degradation response results from failure of device components caused by external factors (moisture, oxygen, temperature, and UV radiation), internal factors (crystal structure, ion migration, and interfacial contact), the constituting materials, device architecture, and fabrication process. Therefore, it is important to note that PSC stability is affected by a variety of factors, suggesting that it is necessary to further study PSCs thoroughly and develop standard procedures and protocols towards building a fully functional and stable device.

6.1.1. Stability in the Perovskite Crystal Structure (ABX3)

The stability of the perovskite crystal structure is determined using the Goldschmidt tolerance factor (t), shown by Equation (1). The cubic (α) phase is the most stable crystal structure, followed by the tetragonal (β) phase; the least stable crystal structure is the orthorhombic (γ) phase. In any crystal structure, the tolerance factor depends on the ABX3 constituting organic (e.g., MA+ = rA), inorganic (e.g., Pb2+ = rB) and halogen (e.g., I = r0) ionic radius [77]. Further research has revealed that the crystal structure stability is also affected by changes in temperature and pressure. In the study to investigate the effect of temperature on perovskite crystal structure, Cojocaru (2015) reported a MAPbI3 phase transition from tetragonal to cubic at temperatures greater than 55 °C. In Figure 13a, the XRD results confirm a tetragonal phase with perovskite characteristic diffraction angles at 14.1°, 28.5°, and 43.3° associated with the (110), (220), and (330) planes, respectively [78]. An increase in sample temperature affects the crystal shape, as illustrated in Figure 13b–d; the perovskite diffraction peaks shift to lower diffraction angles as the temperature is increased. The observed shift in the XRD peaks suggests the rearrangement of the crystal lattice. Figure 13b–d show the phase transition from a tetragonal phase to a lower diffraction angle cubic phase for samples heated in a temperature range of −95 to 100 °C. In another study, Gratzel (1998) reported the thermal stability of FAPbI3. The FAPbI3 has higher thermal stability than MAPbI3 due to its tetragonal–cubic phase transition occurring at a high temperature of 150 °C [79]. Therefore, in conclusion, a stable perovskite crystal structure is found at high temperatures and depends on the perovskite material in question.

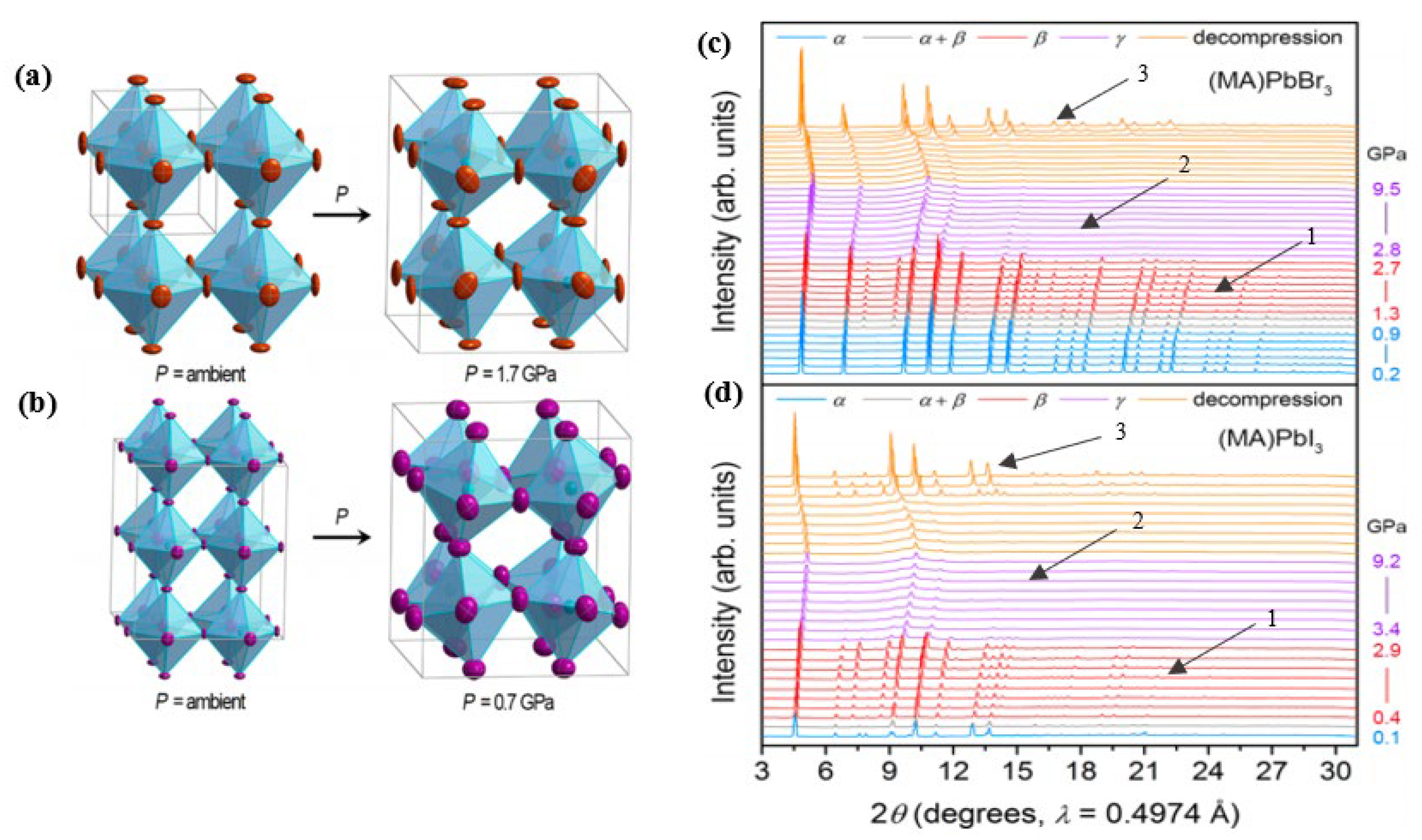

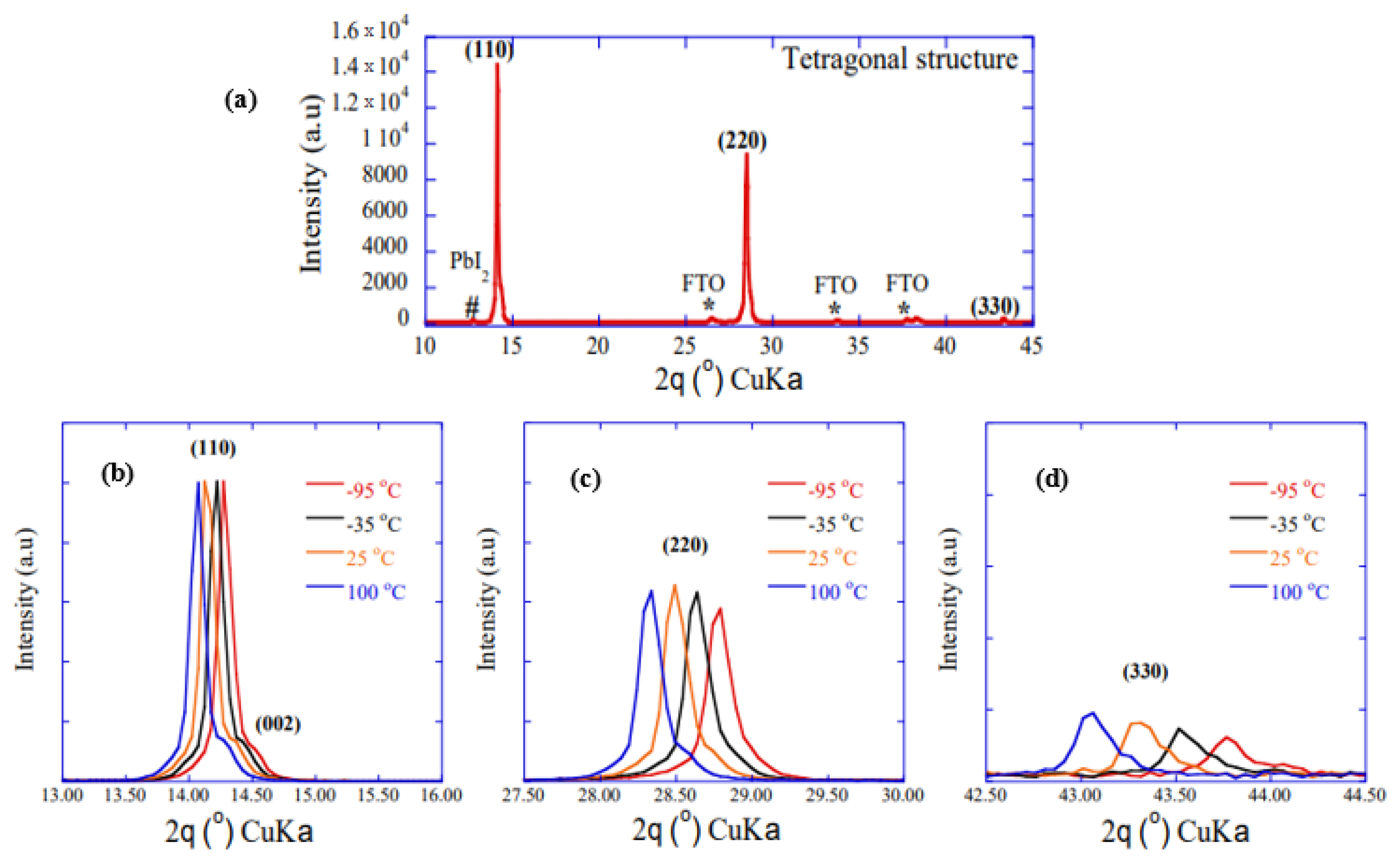

The perovskite crystal structure response mechanism to pressure remains a mystery, as there is an unusual sequence of phase transition with an increase in pressure. For example, phase transitions such as tetragonal–cubic–orthorhombic, orthorhombic–tetragonal–cubic, and vice versa, are observed [80,81]. Jaffe (2016) conducted a study to understand MAPbX3 (X = Br and I) perovskite crystal structure response to compression. Single crystal and powder X-ray diffraction (SCXRD and PXRD) techniques were used to characterize material crystal structure at ambient pressure and during high-pressure conditions [82]. The applied pressure had a significant effect on Pb-X (X = Br and I) bond lengths, volume and α-β phase transition. Figure 14a,b show MAPbX3 SCXRD crystal structure model at ambient and high pressure. Figure 14c,d show MAPbX3 PXRD diffraction patterns under a continuous increase in pressure (compression). At ambient pressure, Pb-X-Pb bond angles are at 180° as shown in Figure 14a,b, compression results in the Pb-X-Pb bond angle contraction to angles < 180°, reduces Pb-X bong length, and subsequently α-β phase transitions at pressures greater than 1.7 and 0.7 GPa for MAPbBr3 and MAPbI3 perovskite crystal structures, respectively. Further compression of the β phase results in further bond length and volume reductions. Strong intermolecular interactions develop due to the tight conformation in the ABX3 unit cell. The XRD patterns in Figure 14c,d show changes in the MAPbBr3 and MAPbI3 crystal structure as pressure is continuously increased up to a maximum pressure of 9 GPa. In both perovskite materials, MAPbX3 (X = Br and I) normal perovskite behavior is observed at low pressures, as indicated by arrow 1. An increase in pressure destroys the normal perovskite crystal structure behavior; hence, the disappearance of perovskite characteristic diffraction peaks indicated by arrow 2. Arrow 3 shows that the perovskite materials restores to the initial configuration or normal behavior upon decompression. Therefore, in conclusion, the perovskite crystal structure does respond to pressure. Subjecting the material to high pressures suppresses or reduces the perovskite structural features. Therefore, a stable perovskite crystal structure (α phase) is obtained at relatively low pressures.

6.1.2. Environmental Stability

The perovskite ABX3 materials are chemically active in environmental conditions. A series of chemical reactions occur which slowly break down the ABX3 material into its constituents and additional byproducts. The installation of PSCs exposes the device to environmental contaminants. Oxygen, moisture, and UV radiation constantly wear off the PV perovskite active layer. The chemical reactions below suggest possible perovskite degradation. Moisture breaks down the perovskite layer by dissolving the organic cation (MA+) to yield PbI2 and HI. This degradation mechanism is an irreversible process as the presence of oxygen and UV radiation further breaks down the hydroiodic acid (HI) producing water (H2O), hydrogen (H2) and iodine (I2) gases as byproducts (see chemical reactions (2)–(5)) [83]. The chemical reactions (2)–(5) and (6)–(9) are proposed degradation reactions initiated by the presence of UV radiation and moisture. In a study to investigate the degradation of MAPbI3 material exposed to a humid environment, Shirayama (2016) reported a rapid decomposition in the perovskite material at a low relative humidity of 40% caused by either or both of the following: the formation of PbI2 phase from the desorption of the volatile organic MAI cation, or the formation of a perovskite hydrate phase, resulting from the interaction of H2O molecules and the absorber N-H bond [84]. In a similar study, Yang (2015) suggested that proper selection of a hydrophobic HTM stabilizes the perovskite layer deterioration; however, the effort only shifts the perovskite lifespan to a few more hours before it begins degrading [85].
CH3NH3PbI3(s) ↔ PbI2(s) + CH3NH3I(aq)
CH3NH3I(aq) ↔ CH3NH2(aq) + HI(aq)
4HI(aq) + O2 ↔ 2I2 + 2H2O(l)
2HI(aq) ↔ H2(g) + I2(s)
CH3NH3PbI3(s) ↔ PbI2(s) + CH3NH2 ↑ + HI ↑
2I ↔ I2 + 2e
3CH3NH3+ ↔ 3CH3NH2 ↑ + 3H+

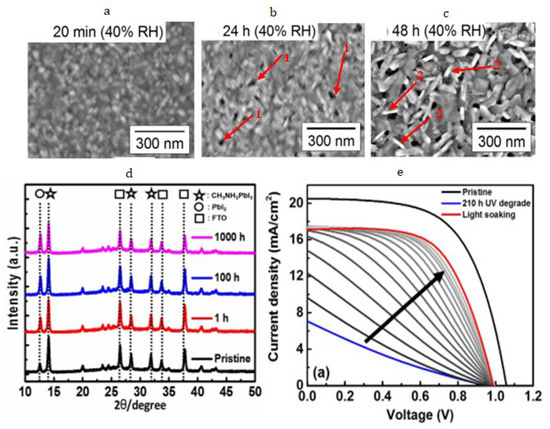

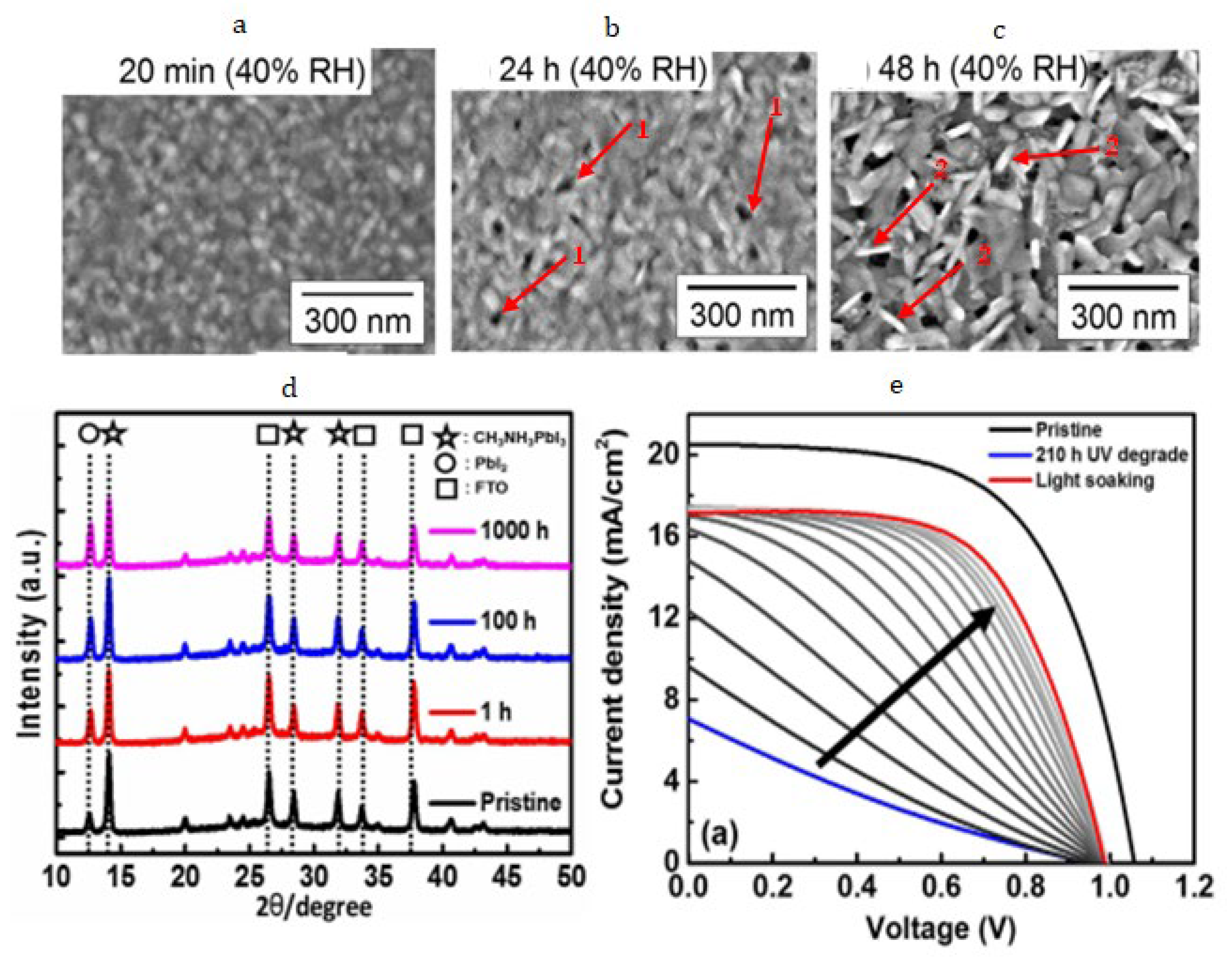

I + I2 + 3H+ + 2e ↔ 3HI ↑. In Figure 15a–c, SEM surface images reveal perovskite film morphology exposed to 40% relative humidity (RH) at various exposure times. Figure 15a reports a smooth surface at 20 min exposure with a high level of surface coverage; Figure 15b reports SEM surface morphology at 24 h of exposure, showing the formation of evenly distributed holes reducing surface homogeneity (as indicated by arrow 1). The generation of holes results from the coalescence of the inorganic PbI2 phase structure as the organic MAI cation dissolves in moisture; Figure 15c demonstrates the SEM image at 48 h of exposure, showing well-defined rod-like PbI2 structures (as indicated arrow 2) and the extent\of hole formation in the film morphology [85]. Many attempts focus on eliminating the effect of moisture on PSCs by designing new PSC architectures, encapsulating the device using polymers, proposing new ETM and HTM materials, among others, modifying the ABX3 materials.
In order to eliminate the effect of moisture and investigate the effect on UV radiation alone, Lee (2016) studied the degradation of PSCs in an inert atmosphere (glove box) by exposing the PSC devices to UV light. The effect of UV exposure on the device was characterized through XRD and I–V techniques, as shown in Figure 15d,e, respectively. From both characterizations, it is observed that UV degradation is slightly reversible via light soaking the devices (light soaking—exposing to natural sunlight). In Figure 15d, the XRD patterns show the development of PbI2 peak at 12.6° diffraction angle accompanied by a fading perovskite characteristic peak at 14.1° with an increase in UV exposure time. These results are comparable to that of perovskite moisture decomposition. In Figure 15e, the I–V curves show that the occurrence of UV degradation decreases the device performance after 210 h of exposure (blue curve). However, light soaking the device works against the degradation process, partially restoring the device’s performance.

7. PSC Encapsulation

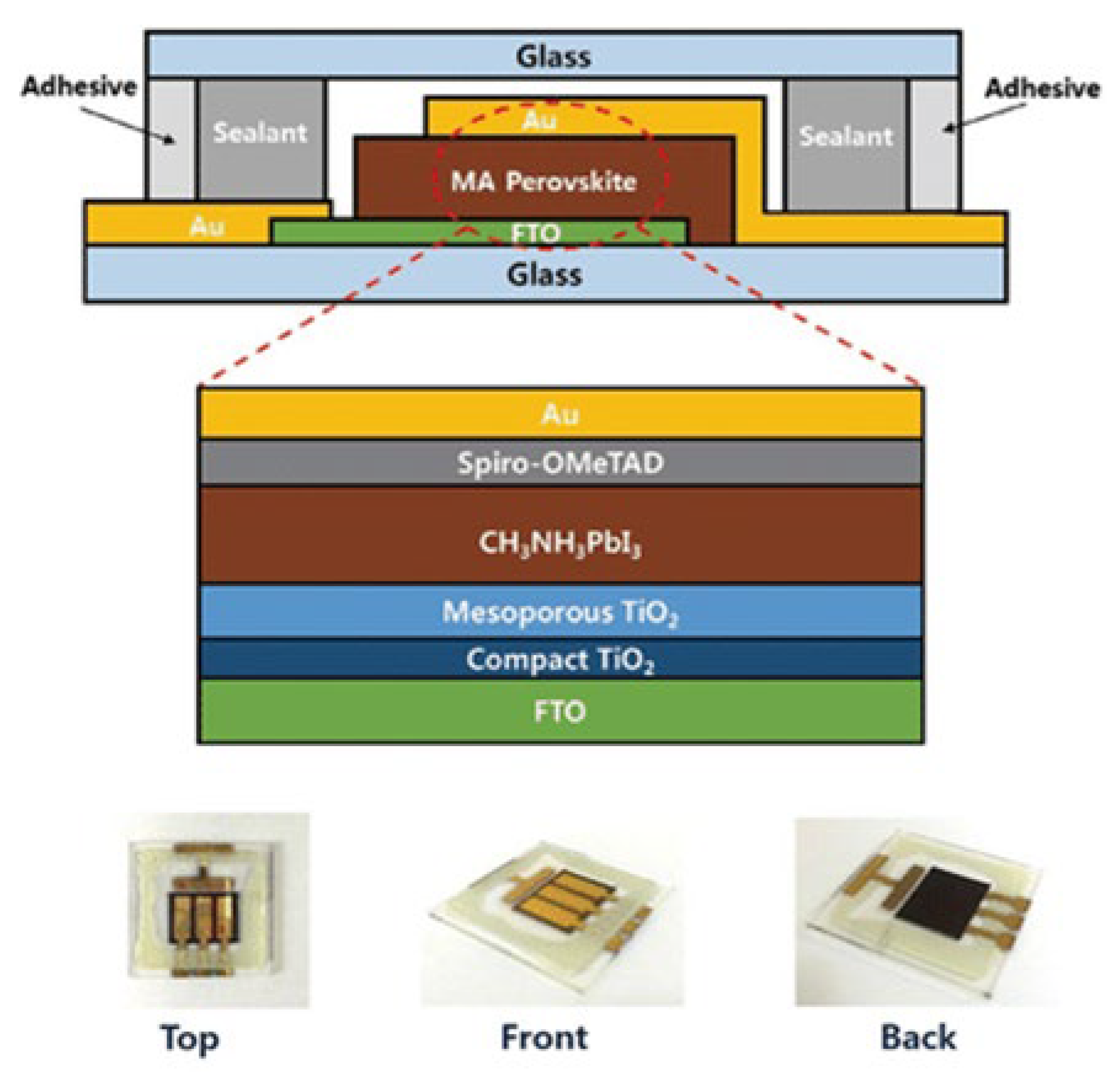

One of the recent effective methods/solutions towards PSC degradation lies in the tight encapsulation of the perovskite material. This method prevents outgassing of the volatile perovskite decomposition products, protecting against moisture and UV radiation. The technology behind encapsulation uses thin-film materials of epoxy, SnO2, butyl rubber, and dyads surrounding the PSC from the top, bottom, and edges [87,88,89,90]. In a recent study, Shi (2020) reported a breakthrough in PSC encapsulation surviving extreme standard test conditions specified for commercial modules for about 1800 h of thermal cycle and 75 humidity freeze test cycles [91]. The PSC devices were encapsulated between transparent conductive oxide substrates and the inexpensive polyisobutylene rubber; a similar approach has been demonstrated in an early study by Kim (2017), as shown in Figure 16 [92].

8. Other Challenges


The toxicity in perovskite devices results from the use of the toxic lead (Pd) element. This raises environmental concerns for the upcoming device scaleup for commercialization. The lack of device stability provides a possible way for toxic lead (Pb) leakage from the installed solar panels to the environment [29]. Due to the high demand for energy globally, a rising number of studies encourage the use of Pb-containing devices, as pollution from these devices will be insignificantly small in comparison with other lead-pollution sources around the world [93]. However, there are several promising alternatives for lead replacement with environmentally friendly elements. Noel (2015) worked on replacing the Pb component and devised a tin (Sn)-based perovskite device (MASnX3) with a promising PCE of 6%. Further studies reported that Sn-based perovskites suffer from instability due to the easy 2+ oxidation of the Sn element in moisture to 4+ states. Hoshi (2016) proposed the use of additives to improve Sn-based devices’ stability. This effort showed significant improvement; however, the efficiencies are very low in comparison to Pb-based devices [94,95]. To reinstate the purpose of PSCs, which is high efficiencies and stability, a hybrid Sn-Pb perovskite film was proposed and achieved efficiencies of up to 15.2% [96].

9. Summary

A comprehensive review of PSCs was conducted in this study. PSCs are the upcoming cost-effective PV technology, promising to supply sustainable, green, and affordable electricity in the next coming decades. The development in the PSC technology in both industry and academic research is constantly improving. New ideas and milestones are constantly being published. Therefore, this review serves as a guide to interested scientists and new researchers in the field by providing detailed information on PSC device background and stepwise scientific efforts applied to improving the device performance with time. This work reviews previous studies in modelling the perovskite crystal structure and electronic structure, including factors that affect and determine both perovskite intrinsic structures. This study further highlights major developments in perovskite device architecture and fabrication methods towards achieving flexible and high-performance PSC devices. In addition, efforts in the perovskite ABX3 designing and processing condition are elucidated; progress in the perovskite film fabrication is given; good correlation in perovskite film quality or morphology with each fabrication method is clearly explained. Additional efforts in this review have been made to outline recent challenges to PSC commercialization. This includes the use of the toxic lead (Pb) element in most ABX3 perovskite compounds and, more importantly, the perovskite material intrinsic and extrinsic instability issues. Among other solutions, the replacement of the toxic lead (Pb) element and encapsulation of the PSCs are highlighted.

10. Future Research

Future work will focus on revising and designing new methods to improve PSC performance. We will, in particular, investigate the effect of annealing and doping trivalent and pentavalent dopants on synthesized nanoparticle and nanotube metal oxides, such as titanium and zinc oxide (TiO2 and ZnO), for enhanced electron extraction in PSCs. For environmental concerns, further research will focus more on replacing the highly toxic lead (Pb) element with Tin (Sn) due to their similar chemical properties. The widely used hole-transporting material to date is the Spiro-MeOTAD. To fabricate cost-effective devices, cheaper p-type hole-transporting materials, such as Cu2O and NiO, will be explored. As a reference or benchmark in our research group, a well-considered fabrication method will be proposed, from which we can build towards the achievement of a fully functional, highly efficient, and stable perovskite device. Aspects to be evaluated in the fabrication method include the effect of precursor concentration, annealing temperatures, annealing time, synthesis period, annealing at various gaseous environments, and exploration of different device architectures.

Author Contributions

Conceptualization, L.P.L., L.F.K., S.V.M., T.E.M. and T.M.; data collection, L.P.L., L.F.K., S.V.M., T.E.M. and T.M.; writing and editing this review, L.P.L., L.F.K., S.V.M., T.E.M. and T.M. All authors have read and agreed to the published version of the manuscript.


National Research Foundation (NRF) Thuthuka program (Grant No: 121877).

Institutional Review Board Statement

This study does not require ethical clearence.

Informed Consent Statement

This study did not involve any animals or humans.

Data Availability Statement

No data included.


The financial assistance of the National Research Foundation (NRF) Thuthuka program (Grant No: 121877) towards this research is hereby acknowledged.

Conflicts of Interest

The authors declare that there is no conflict of interest.


  1. Pollet, B.G.; Staffell, I.; Adamson, K.-A. Current energy landscape in the Republic of South Africa. Int. J. Hydrog. Energy 2015, 40, 16685–16701. [Google Scholar] [CrossRef]
  2. Dincer, I. Environmental impacts of energy. Energy Policy 1999, 27, 845–854. [Google Scholar] [CrossRef]
  3. Turner, J.A. A Realizable Renewable Energy Future. Science 1999, 285, 687–689. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Lee, D.G.; Kim, M.-C.; Kim, B.J.; Kim, D.H.; Lee, S.M.; Choi, M.; Lee, S.; Jung, H.S. Effect of TiO2 particle size and layer thickness on mesoscopic perovskite solar cells. Appl. Surf. Sci. 2019, 477, 131–136. [Google Scholar] [CrossRef]
  5. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, H.-S.; Im, S.H.; Park, N.-G. Organolead Halide Perovskite: New Horizons in Solar Cell Research. J. Phys. Chem. C 2014, 118, 5615–5625. [Google Scholar] [CrossRef]
  7. Lee, M.M.; Teuscher, J.; Miyasaka, T.; Murakami, T.N.; Snaith, H.J. Efficient Hybrid Solar Cells Based on Meso-Superstructured Organometal Halide Perovskites. Science 2012, 338, 643–647. [Google Scholar] [CrossRef] [Green Version]
  8. Chart of Best Research-Cell Efficiencies Provided by NREL. Available online: (accessed on 23 December 2021).
  9. Meng, L.; You, J.; Guo, T.-F.; Yang, Y. Recent Advances in the Inverted Planar Structure of Perovskite Solar Cells. Acc. Chem. Res. 2015, 49, 155–165. [Google Scholar] [CrossRef]
  10. Abdi-Jalebi, M.; Dar, M.I.; Sadhanala, A.; Senanayak, S.P.; Grätzel, M.; Friend, R.H. Monovalent Cation Doping of CH3NH3PbI3 for Efficient Perovskite Solar Cells. J. Vis. Exp. 2017, 121, e55307. [Google Scholar] [CrossRef] [Green Version]
  11. Ng, C.; Lim, H.N.; Hayase, S.; Zainal, Z.; Huang, N. Photovoltaic performances of mono- and mixed-halide structures for perovskite solar cell: A review. Renew. Sustain. Energy Rev. 2018, 90, 248–274. [Google Scholar] [CrossRef]
  12. Liu, Y.; Wang, J. Co-sensitization of TiO2 by PbS quantum dots and dye N719 in dye-sensitized solar cells. Thin Solid Films 2010, 518, e54–e56. [Google Scholar] [CrossRef]
  13. Chen, J.; Zhao, D.; Song, J.-L.; Sun, X.; Deng, W.; Liu, X.; Lei, W. Directly assembled CdSe quantum dots on TiO2 in aqueous solution by adjusting pH value for quantum dot sensitized solar cells. Electrochem. Commun. 2009, 11, 2265–2267. [Google Scholar] [CrossRef]
  14. Zhang, Q.; Zhang, Y.; Huang, S.; Huang, X.; Luo, Y.; Meng, Q.; Li, D. Application of carbon counterelectrode on CdS quantum dot-sensitized solar cells (QDSSCs). Electrochem. Commun. 2010, 12, 327–330. [Google Scholar] [CrossRef]
  15. Im, J.-H.; Lee, C.-R.; Lee, J.-W.; Park, S.-W.; Park, N.-G. 6.5% efficient perovskite quantum-dot-sensitized solar cell. Nanoscale 2011, 3, 4088–4093. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Fujishima, A.; Zhang, X. Solid-State Dye-Sensitized Solar Cells. Nanostructured Mater. Sol. Energy Convers. 2006, 255–273. [Google Scholar] [CrossRef]
  17. Ball, J.M.; Lee, M.M.; Hey, A.; Snaith, H.J. Low-temperature processed meso-superstructured to thin-film perovskite solar cells. Energy Environ. Sci. 2013, 6, 1739–1743. [Google Scholar] [CrossRef]
  18. Zhang, H.; Lv, Y.; Wang, J.; Ma, H.; Sun, Z.; Huang, W. Influence of Cl Incorporation in Perovskite Precursor on the Crystal Growth and Storage Stability of Perovskite Solar Cells. ACS Appl. Mater. Interfaces 2019, 11, 6022–6030. [Google Scholar] [CrossRef] [PubMed]
  19. Jena, A.K.; Kulkarni, A.; Miyasaka, T. Halide Perovskite Photovoltaics: Background, Status, and Future Prospects. Chem. Rev. 2019, 119, 3036–3103. [Google Scholar] [CrossRef] [PubMed]
  20. Docampo, P.; Hanusch, F.C.; Stranks, S.D.; Döblinger, M.; Feckl, J.M.; Ehrensperger, M.; Minar, N.K.; Johnston, M.B.; Snaith, H.J.; Bein, T. Solution Deposition-Conversion for Planar Heterojunction Mixed Halide Perovskite Solar Cells. Adv. Energy Mater. 2014, 4, 1400355. [Google Scholar] [CrossRef] [Green Version]
  21. Ansari, M.I.H.; Qurashi, A.; Nazeeruddin, M.K. Frontiers, opportunities, and challenges in perovskite solar cells: A critical review. J. Photochem. Photobiol. C Photochem. Rev. 2018, 35, 1–24. [Google Scholar] [CrossRef]
  22. Grånäs, O.; Vinichenko, D.; Kaxiras, E. Establishing the limits of efficiency of perovskite solar cells from first principles modeling. Sci. Rep. 2016, 6, 36108. [Google Scholar] [CrossRef] [PubMed]
  23. Correa-Baena, J.-P.; Abate, A.; Saliba, M.; Tress, W.; Jacobsson, T.J.; Grätzel, M.; Hagfeldt, A. The rapid evolution of highly efficient perovskite solar cells. Energy Environ. Sci. 2017, 10, 710–727. [Google Scholar] [CrossRef]
  24. Kayes, B.M.; Nie, H.; Twist, R.; Spruytte, S.G.; Reinhardt, F.; Kizilyalli, I.C.; Higashi, G.S. 27.6% Conversion efficiency, a new record for single-junction solar cells under 1 sun illumination. In Proceedings of the Conference Record of the IEEE Photovoltaic Specialists Conference, Seattle, WA, USA, 19–24 June 2011. [Google Scholar] [CrossRef]
  25. Roghabadi, F.A.; Alidaei, M.; Mousavi, S.M.; Ashjari, T.; Tehrani, A.S.; Ahmadi, V.; Sadrameli, S.M. Stability progress of perovskite solar cells dependent on the crystalline structure: From 3D ABX3 to 2D Ruddlesden–Popper perovskite absorbers. J. Mater. Chem. A 2019, 7, 5898–5933. [Google Scholar] [CrossRef]
  26. Shi, Z.; Jayatissa, A.H. Perovskites-Based Solar Cells: A Review of Recent Progress, Materials and Processing Methods. Materials 2018, 11, 729. [Google Scholar] [CrossRef] [Green Version]
  27. Li, B.; Li, Y.; Zheng, C.; Gao, D.; Huang, W. Advancements in the stability of perovskite solar cells: Degradation mechanisms and improvement approaches. RSC Adv. 2016, 6, 38079–38091. [Google Scholar] [CrossRef]
  28. Adhyaksa, G.W.P.; Veldhuizen, L.W.; Kuang, Y.; Brittman, S.; Schropp, R.E.I.; Garnett, E.C. Carrier Diffusion Lengths in Hybrid Perovskites: Processing, Composition, Aging, and Surface Passivation Effects. Chem. Mater. 2016, 28, 5259–5263. [Google Scholar] [CrossRef]
  29. Chen, Y.; Zhang, L.; Zhang, Y.; Gao, H.; Yan, H. Large-area perovskite solar cells—A review of recent progress and issues. RSC Adv. 2018, 8, 10489–10508. [Google Scholar] [CrossRef] [Green Version]
  30. Hamed, M.S.G.; Mola, G.T. Mixed Halide Perovskite Solar Cells: Progress and Challenges. Crit. Rev. Solid State Mater. Sci. 2020, 45, 85–112. [Google Scholar] [CrossRef]
  31. Shen, K.; Hu, J.; Liang, Z.; Hu, J.; Sun, H.; Jiang, Z.; Song, F. Emerging Characterizing Techniques in the Fine Structure Observation of Metal Halide Perovskite Crystal. Crystals 2018, 8, 232. [Google Scholar] [CrossRef] [Green Version]
  32. Forrester, W.F.; Hinde, R.M. Crystal Structure of Barium Titanate. Nature 1945, 156, 177. [Google Scholar] [CrossRef]
  33. Chen, J.; Cai, X.; Yang, D.; Song, D.; Wang, J.; Jiang, J.; Ma, A.; Lv, S.; Hu, M.Z.; Ni, C. Recent progress in stabilizing hybrid perovskites for solar cell applications. J. Power Sources 2017, 355, 98–133. [Google Scholar] [CrossRef] [Green Version]
  34. Korshunova, K.; Winterfeld, L.; Beenken, W.J.D.; Runge, E. Thermodynamic stability of mixed Pb:Sn methyl-ammonium halide perovskites. Phys. Status Solidi B Basic Res. 2016, 253, 1907–1915. [Google Scholar] [CrossRef] [Green Version]
  35. Yin, W.-J.; Shi, T.; Yan, Y. Unusual defect physics in CH3NH3PbI3 perovskite solar cell absorber. Appl. Phys. Lett. 2014, 104, 063903. [Google Scholar] [CrossRef]
  36. Zhou, Y.; Huang, F.; Cheng, Y.-B.; Gray-Weale, A. Photovoltaic performance and the energy landscape of CH3NH3PbI3. Phys. Chem. Chem. Phys. 2015, 17, 22604–22615. [Google Scholar] [CrossRef]
  37. Kim, H.-S.; Lee, C.-R.; Im, J.-H.; Lee, K.-B.; Moehl, T.; Marchioro, A.; Moon, S.-J.; Humphry-Baker, R.; Yum, J.-H.; Moser, J.E.; et al. Lead Iodide Perovskite Sensitized All-Solid-State Submicron Thin Film Mesoscopic Solar Cell with Efficiency Exceeding 9%. Sci. Rep. 2012, 2, 591. [Google Scholar] [CrossRef] [Green Version]
  38. Chibueze, T.C. Comparative study of the structural and electronic properties of orthorhombic CH3NH3PbI3 hybrid perovskite for solar cell applications. Niger. J. Technol. 2021, 40, 616–622. [Google Scholar] [CrossRef]
  39. Zhang, J.; Zhang, L.; Li, X.; Zhu, X.; Yu, J.; Fan, K. Binary Solvent Engineering for High-Performance Two-Dimensional Perovskite Solar Cells. ACS Sustain. Chem. Eng. 2019, 7, 3487–3495. [Google Scholar] [CrossRef]
  40. Song, Z.; Watthage, S.C.; Phillips, A.B.; Heben, M.J. Pathways toward high-performance perovskite solar cells: Review of recent advances in organo-metal halide perovskites for photovoltaic applications. J. Photon. Energy 2016, 6, 22001. [Google Scholar] [CrossRef]
  41. Eperon, G.E.; Burlakov, V.M.; Docampo, P.; Goriely, A.; Snaith, H.J. Morphological Control for High Performance, Solution-Processed Planar Heterojunction Perovskite Solar Cells. Adv. Funct. Mater. 2014, 24, 151–157. [Google Scholar] [CrossRef]
  42. Yang, S.; Han, Q.; Wang, L.; Zhou, Y.; Yu, F.; Li, C.; Cai, X.; Gao, L.; Zhang, C.; Ma, T. Over 23% power conversion efficiency of planar perovskite solar cells via bulk heterojunction design. Chem. Eng. J. 2021, 426, 131838. [Google Scholar] [CrossRef]
  43. Heo, J.H.; Lee, M.H.; Jang, M.H.; Im, S.H. Highly efficient CH3NH3PbI3−xClx mixed halide perovskite solar cells prepared by re-dissolution and crystal grain growth via spray coating. J. Mater. Chem. A 2016, 4, 17636–17642. [Google Scholar] [CrossRef]
  44. Matsui, T.; Seo, J.-Y.; Saliba, M.; Zakeeruddin, S.M.; Grätzel, M. Room-Temperature Formation of Highly Crystalline Multication Perovskites for Efficient, Low-Cost Solar Cells. Adv. Mater. 2017, 29, 1606258. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, H.; Yu, Z.; Jiang, X.; Li, J.; Cai, B.; Yang, X.; Sun, L. Efficient and Stable Inverted Planar Perovskite Solar Cells Employing CuI as Hole-Transporting Layer Prepared by Solid-Gas Transformation. Energy Technol. 2017, 5, 1836–1843. [Google Scholar] [CrossRef] [Green Version]
  46. Ren, J.; Qu, J.; Chen, J.; Li, Z.; Cui, Y.; Wang, H.; Yu, Z.; Hao, Y. Fluorinated dopant-free hole-transporting material for efficient and stable perovskite solar cells with carbon cathode. J. Power Sources 2018, 401, 29–36. [Google Scholar] [CrossRef]
  47. Suarez, B.; Gonzalez-Pedro, V.; Ripolles, T.S.; Sanchez, R.S.; Otero, L.; Mora-Sero, I. Recombination Study of Combined Halides (Cl, Br, I) Perovskite Solar Cells. J. Phys. Chem. Lett. 2014, 5, 1628–1635. [Google Scholar] [CrossRef] [PubMed]
  48. Singh, T.; Miyasaka, T. Stabilizing the Efficiency Beyond 20% with a Mixed Cation Perovskite Solar Cell Fabricated in Ambient Air under Controlled Humidity. Adv. Energy Mater. 2018, 8, 1700677. [Google Scholar] [CrossRef]
  49. Saliba, M.; Matsui, T.; Domanski, K.; Seo, J.-Y.; Ummadisingu, A.; Zakeeruddin, S.M.; Correa-Baena, J.-P.; Tress, W.R.; Abate, A.; Hagfeldt, A.; et al. Incorporation of rubidium cations into perovskite solar cells improves photovoltaic performance. Science 2016, 354, 206–209. [Google Scholar] [CrossRef] [PubMed]
  50. Kim, B.J.; Kim, D.H.; Lee, Y.-Y.; Shin, H.-W.; Han, G.S.; Hong, J.S.; Mahmood, K.; Ahn, T.K.; Joo, Y.-C.; Hong, K.S.; et al. Highly efficient and bending durable perovskite solar cells: Toward a wearable power source. Energy Environ. Sci. 2015, 8, 916–921. [Google Scholar] [CrossRef]
  51. Tavakoli, M.M.; Lin, Q.; Leung, S.-F.; Lui, G.C.; Lu, H.; Li, L.; Xiang, B.; Fan, Z. Efficient, flexible and mechanically robust perovskite solar cells on inverted nanocone plastic substrates. Nanoscale 2016, 8, 4276–4283. [Google Scholar] [CrossRef] [Green Version]
  52. Yang, B.; Peng, S.; Choy, W.C.H. Inorganic top electron transport layer for high performance inverted perovskite solar cells. EcoMat 2021, 3, e12127. [Google Scholar] [CrossRef]
  53. Barrows, A.T.; Pearson, A.J.; Kwak, C.K.; Dunbar, A.D.F.; Buckley, A.R.; Lidzey, D.G. Efficient planar heterojunction mixed-halide perovskite solar cells deposited via spray-deposition. Energy Environ. Sci. 2014, 7, 2944–2950. [Google Scholar] [CrossRef]
  54. Saliba, M.; Correa-Baena, J.-P.; Wolff, C.M.; Stolterfoht, M.; Phung, N.; Albrecht, S.; Neher, D.; Abate, A. How to Make over 20% Efficient Perovskite Solar Cells in Regular (n–i–p) and Inverted (p–i–n) Architectures. Chem. Mater. 2018, 30, 4193–4201. [Google Scholar] [CrossRef]
  55. Dubey, A.; Adhikari, N.; Mabrouk, S.; Wu, F.; Chen, K.; Yang, S.; Qiao, Q. A strategic review on processing routes towards highly efficient perovskite solar cells. J. Mater. Chem. A 2018, 6, 2406–2431. [Google Scholar] [CrossRef]
  56. Xu, F.; Zhang, T.; Li, G.; Zhao, Y. Mixed cation hybrid lead halide perovskites with enhanced performance and stability. J. Mater. Chem. A 2017, 5, 11450–11461. [Google Scholar] [CrossRef]
  57. Saliba, M.; Matsui, T.; Seo, J.-Y.; Domanski, K.; Correa-Baena, J.-P.; Nazeeruddin, M.K.; Zakeeruddin, S.M.; Tress, W.; Abate, A.; Hagfeldt, A.; et al. Cesium-containing triple cation perovskite solar cells: Improved stability, reproducibility and high efficiency. Energy Environ. Sci. 2016, 9, 1989–1997. [Google Scholar] [CrossRef] [Green Version]
  58. Malevu, T.D.; Mwankemwa, B.S.; Tshabalala, K.G.; Diale, M.; Ocaya, R.O. Effect of 6R and 12R lead iodide polytypes on MAPbI3 perovskite device performance. J. Mater. Sci. Mater. Electron. 2018, 29, 13011–13018. [Google Scholar] [CrossRef]
  59. Nagarjuna, P.; Narayanaswamy, K.; Swetha, T.; Rao, G.H.; Singh, S.P.; Sharma, G. CH3NH3PbI3 Perovskite Sensitized Solar Cells Using a D-A Copolymer as Hole Transport Material. Electrochimica Acta 2015, 151, 21–26. [Google Scholar] [CrossRef]
  60. Tong, X.; Lin, F.; Wu, J.; Wang, Z.M. High Performance Perovskite Solar Cells. Adv. Sci. 2016, 3, 1500201. [Google Scholar] [CrossRef]
  61. Elumalai, N.K.; Mahmud, A.; Wang, D.; Uddin, A. Perovskite Solar Cells: Progress and Advancements. Energies 2016, 9, 861. [Google Scholar] [CrossRef] [Green Version]
  62. Chen, L.-C.; Chen, J.-C.; Chen, C.-C.; Wu, C.-G. Fabrication and Properties of High-Efficiency Perovskite/PCBM Organic Solar Cells. Nanoscale Res. Lett. 2015, 10, 312. [Google Scholar] [CrossRef] [Green Version]
  63. Filho, J.M.C.D.S.; Ermakov, V.A.; Marques, F.C. Perovskite Thin Film Synthesised from Sputtered Lead Sulphide. Sci. Rep. 2018, 8, 1563. [Google Scholar] [CrossRef]
  64. Torabi, N.; Behjat, A.; Zhou, Y.; Docampo, P.; Stoddard, R.J.; Hillhouse, H.W.; Ameri, T. Progress and challenges in perovskite photovoltaics from single- to multi-junction cells. Mater. Today Energy 2019, 12, 70–94. [Google Scholar] [CrossRef]
  65. Burschka, J.; Pellet, N.; Moon, S.-J.; Humphry-Baker, R.; Gao, P.; Nazeeruddin, M.K.; Grätzel, M. Sequential deposition as a route to high-performance perovskite-sensitized solar cells. Nature 2013, 499, 316–319. [Google Scholar] [CrossRef]
  66. Zhao, Q.; Wu, R.; Zhang, Z.; Xiong, J.; He, Z.; Fan, B.; Dai, Z.; Yang, B.; Xue, X.; Cai, P.; et al. Achieving efficient inverted planar perovskite solar cells with nondoped PTAA as a hole transport layer. Org. Electron. 2019, 71, 106–112. [Google Scholar] [CrossRef]
  67. Zhou, Y.; Yang, M.; Vasiliev, A.L.; Garces, H.F.; Zhao, Y.; Wang, D.; Pang, S.; Zhu, K.; Padture, N.P. Growth control of compact CH3NH3PbI3 thin films via enhanced solid-state precursor reaction for efficient planar perovskite solar cells. J. Mater. Chem. A 2015, 3, 9249–9256. [Google Scholar] [CrossRef]
  68. Li, W.; Fan, J.; Li, J.; Mai, Y.; Wang, L. Controllable Grain Morphology of Perovskite Absorber Film by Molecular Self-Assembly toward Efficient Solar Cell Exceeding 17%. J. Am. Chem. Soc. 2015, 137, 10399–10405. [Google Scholar] [CrossRef]
  69. Wang, Q.; Shao, Y.; Xie, H.; Lyu, L.; Liu, X.; Gao, Y.; Huang, J. Qualifying composition dependent p and n self-doping in CH3NH3PbI3. Appl. Phys. Lett. 2014, 105, 163508. [Google Scholar] [CrossRef] [Green Version]
  70. Tafazoli, S.; Timasi, N.; Nouri, E.; Mohammadi, M.R. The role of a vapor-assisted solution process on tailoring the chemical composition and morphology of mixed-halide perovskite solar cells. CrystEngComm 2018, 20, 4428–4435. [Google Scholar] [CrossRef]
  71. Zimmermann, I.; Al Atem, M.; Fournier, O.; Bernard, S.; Jutteau, S.; Lombez, L.; Rousset, J. Sequentially Slot-Die-Coated Perovskite for Efficient and Scalable Solar Cells. Adv. Mater. Interfaces 2021, 8, 2100743. [Google Scholar] [CrossRef]
  72. Khadka, D.B.; Shirai, Y.; Yanagida, M.; Masuda, T.; Miyano, K. Enhancement in efficiency and optoelectronic quality of perovskite thin films annealed in MACl vapor. Sustain. Energy Fuels 2017, 1, 755–766. [Google Scholar] [CrossRef]
  73. Chen, J.; Xu, J.; Xiao, L.; Zhang, B.; Dai, S.; Yao, J. Mixed-Organic-Cation (FA)x(MA)1–xPbI3 Planar Perovskite Solar Cells with 16.48% Efficiency via a Low-Pressure Vapor-Assisted Solution Process. ACS Appl. Mater. Interfaces 2017, 9, 2449–2458. [Google Scholar] [CrossRef] [PubMed]
  74. Liu, M.; Johnston, M.; Snaith, H. Efficient planar heterojunction perovskite solar cells by vapour deposition. Nature 2013, 501, 395–398. [Google Scholar] [CrossRef] [PubMed]
  75. Liang, G.; Lan, H.; Fan, P.; Lan, C.; Zheng, Z.; Peng, H.; Luo, J. Highly Uniform Large-Area (100 cm2) Perovskite CH3NH3PbI3 Thin-Films Prepared by Single-Source Thermal Evaporation. Coatings 2018, 8, 256. [Google Scholar] [CrossRef] [Green Version]
  76. Berhe, T.A.; Su, W.-N.; Chen, C.-H.; Pan, C.-J.; Cheng, J.-H.; Chen, H.-M.; Tsai, M.-C.; Chen, L.-Y.; Dubale, A.A.; Hwang, B.-J. Organometal halide perovskite solar cells: Degradation and stability. Energy Environ. Sci. 2016, 9, 323–356. [Google Scholar] [CrossRef]
  77. Han, G.; Hadi, H.D.; Bruno, A.; Kulkarni, S.A.; Koh, T.M.; Wong, L.H.; Soci, C.; Mathews, N.; Zhang, S.; Mhaisalkar, S.G. Additive Selection Strategy for High Performance Perovskite Photovoltaics. J. Phys. Chem. C 2018, 122, 13884–13893. [Google Scholar] [CrossRef]
  78. Cojocaru, L.; Uchida, S.; Sanehira, Y.; Gonzalez-Pedro, V.; Bisquert, J.; Nakazaki, J.; Kubo, T.; Segawa, H. Temperature Effects on the Photovoltaic Performance of Planar Structure Perovskite Solar Cells. Chem. Lett. 2015, 44, 1557–1559. [Google Scholar] [CrossRef] [Green Version]
  79. Bach, U.; Lupo, D.; Comte, P.; Moser, J.-E.; Weissörtel, F.; Salbeck, J.; Spreitzer, H.; Gratzel, M. Solid-state dye-sensitized mesoporous TiO2 solar cells with high photon-to-electron conversion efficiencies. Nature 1998, 395, 583–585. [Google Scholar] [CrossRef]
  80. Jiang, S.; Fang, Y.; Li, R.; Xiao, H.; Crowley, J.; Wang, C.; White, T.J.; Iii, W.A.G.; Wang, Z.; Baikie, T.; et al. Pressure-Dependent Polymorphism and Band-Gap Tuning of Methylammonium Lead Iodide Perovskite. Angew. Chem. Int. Ed. 2016, 55, 6540–6544. [Google Scholar] [CrossRef] [Green Version]
  81. Errandonea, D.; Santamaria-Perez, D.; Martinez-Garcia, D.; Gomis, O.; Shukla, R.; Achary, S.N.; Tyagi, A.K.; Popescu, C. Pressure Impact on the Stability and Distortion of the Crystal Structure of CeScO3. Inorg. Chem. 2017, 56, 8363–8371. [Google Scholar] [CrossRef] [Green Version]
  82. Jaffe, A.; Lin, Y.; Beavers, C.; Voss, J.; Mao, W.L.; Karunadasa, H.I. High-Pressure Single-Crystal Structures of 3D Lead-Halide Hybrid Perovskites and Pressure Effects on their Electronic and Optical Properties. ACS Central Sci. 2016, 2, 201–209. [Google Scholar] [CrossRef]
  83. Wu, T.; Qin, Z.; Wang, Y.; Wu, Y.; Chen, W.; Zhang, S.; Cai, M.; Dai, S.; Zhang, J.; Liu, J.; et al. The Main Progress of Perovskite Solar Cells in 2020–2021. Nano-Micro Lett. 2021, 13, 152. [Google Scholar] [CrossRef] [PubMed]
  84. Shirayama, M.; Kato, M.; Miyadera, T.; Sugita, T.; Fujiseki, T.; Hara, S.; Kadowaki, H.; Murata, D.; Chikamatsu, M.; Fujiwara, H. Degradation mechanism of CH3NH3PbI3 perovskite materials upon exposure to humid air. J. Appl. Phys. 2016, 119, 115501. [Google Scholar] [CrossRef] [Green Version]
  85. Yang, J.; Siempelkamp, B.D.; Liu, D.; Kelly, T.L. Investigation of CH3NH3PbI3 Degradation Rates and Mechanisms in Controlled Humidity Environments Using in Situ Techniques. ACS Nano 2015, 9, 1955–1963. [Google Scholar] [CrossRef] [PubMed]
  86. Lee, S.-W.; Kim, S.; Bae, S.; Cho, K.; Chung, T.; Mundt, L.E.; Lee, S.; Park, S.; Park, H.; Schubert, M.C.; et al. UV Degradation and Recovery of Perovskite Solar Cells. Sci. Rep. 2016, 6, 38150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  87. Ramasamy, E.; Karthikeyan, V.; Rameshkumar, K.; Veerappan, G. Glass-to-glass encapsulation with ultraviolet light curable epoxy edge sealing for stable perovskite solar cells. Mater. Lett. 2019, 250, 51–54. [Google Scholar] [CrossRef]
  88. Boyd, C.C.; Cheacharoen, R.; Bush, K.A.; Prasanna, R.; Leijtens, T.; McGehee, M.D. Barrier Design to Prevent Metal-Induced Degradation and Improve Thermal Stability in Perovskite Solar Cells. ACS Energy Lett. 2018, 3, 1772–1778. [Google Scholar] [CrossRef]
  89. Shi, L.; Young, T.L.; Kim, J.; Sheng, Y.; Wang, L.; Chen, Y.; Feng, Z.; Keevers, M.J.; Hao, X.; Verlinden, P.; et al. Accelerated Lifetime Testing of Organic–Inorganic Perovskite Solar Cells Encapsulated by Polyisobutylene. ACS Appl. Mater. Interfaces 2017, 9, 25073–25081. [Google Scholar] [CrossRef]
  90. Lee, Y.I.; Jeon, N.J.; Kim, B.J.; Shim, H.; Yang, T.-Y.; Seok, S.I.; Seo, J.; Im, S.G. A Low-Temperature Thin-Film Encapsulation for Enhanced Stability of a Highly Efficient Perovskite Solar Cell. Adv. Energy Mater. 2018, 8, 1701928. [Google Scholar] [CrossRef]
  91. Shi, L.; Bucknall, M.P.; Young, T.L.; Zhang, M.; Hu, L.; Bing, J.; Lee, D.S.; Kim, J.; Wu, T.; Takamure, N.; et al. Gas chromatography–mass spectrometry analyses of encapsulated stable perovskite solar cells. Science 2020, 368, eaba2412. [Google Scholar] [CrossRef]
  92. Kim, N.-K.; Min, Y.H.; Noh, S.; Cho, E.; Jeong, G.; Joo, M.; Ahn, S.-W.; Lee, J.S.; Kim, S.; Ihm, K.; et al. Investigation of Thermally Induced Degradation in CH3NH3PbI3 Perovskite Solar Cells using In-situ Synchrotron Radiation Analysis. Sci. Rep. 2017, 7, 4645. [Google Scholar] [CrossRef]
  93. Jiya, J.Y.; Enaburekhan, J.S.; Jimoh, M.T.; Egwim, E.C. A Fundamental Review of Trends in Perovskite Solar Cells Based on Introduction of Buffer Layers to Enhance Stability. ATBU J. Sci. Technol. Educ. 2020, 8, 275–283. [Google Scholar]
  94. Noel, N.K.; Stranks, S.D.; Abate, A.; Wehrenfennig, C.; Guarnera, S.; Haghighirad, A.-A.; Sadhanala, A.; Eperon, G.E.; Pathak, S.K.; Johnston, M.B.; et al. Lead-free organic–inorganic tin halide perovskites for photovoltaic applications. Energy Environ. Sci. 2014, 7, 3061–3068. [Google Scholar] [CrossRef]
  95. Hoshi, H.; Shigeeda, N.; Dai, T. Improved oxidation stability of tin iodide cubic perovskite treated by 5-ammonium valeric acid iodide. Mater. Lett. 2016, 183, 391–393. [Google Scholar] [CrossRef]
  96. Zhu, H.L.; Xiao, J.; Mao, J.; Zhang, H.; Zhao, Y.; Choy, W.C.H. Controllable Crystallization of CH3NH3Sn0.25Pb0.75I3Perovskites for Hysteresis-Free Solar Cells with Efficiency Reaching 15.2%. Adv. Funct. Mater. 2017, 27, 1605469. [Google Scholar] [CrossRef]
Figure 1. (a) Schematic representation of a solid-state perovskite sensitized device structure. SEM cross-sectional images of PSCs based on mesoporous (b) TiO2 and (c) Al2O3. Progress in PSC efficiency with the cell structure: (d) sensitized PSC η = 9.7%, (e) mesoporous PSC η = 10.9%, (f) meso-superstructure PSC η = 15%, and (g) planar heterojunction thin-film PSC η = 15.4% [9,10,17,21].
Figure 1. (a) Schematic representation of a solid-state perovskite sensitized device structure. SEM cross-sectional images of PSCs based on mesoporous (b) TiO2 and (c) Al2O3. Progress in PSC efficiency with the cell structure: (d) sensitized PSC η = 9.7%, (e) mesoporous PSC η = 10.9%, (f) meso-superstructure PSC η = 15%, and (g) planar heterojunction thin-film PSC η = 15.4% [9,10,17,21].
Applsci 12 00672 g001
Figure 2. MAPbI3 phase transitions arranged in order of increasing temperature (a) orthorhombic, (b) tetragonal, and (c) cubic perovskite phases [34].
Figure 2. MAPbI3 phase transitions arranged in order of increasing temperature (a) orthorhombic, (b) tetragonal, and (c) cubic perovskite phases [34].
Applsci 12 00672 g002
Figure 3. Band–gap structure of a cubic (ac) and tetragonal (df) MAPbI3 crystal structure. Total and partial density of states of MAPbI3 and ions (g) [35,36].
Figure 3. Band–gap structure of a cubic (ac) and tetragonal (df) MAPbI3 crystal structure. Total and partial density of states of MAPbI3 and ions (g) [35,36].
Applsci 12 00672 g003
Figure 4. (a,b) represent simplified images of a conventional n-i-p PSC device architecture. (c,d) represent the inverted p-i-n PSC device architecture [40].
Figure 4. (a,b) represent simplified images of a conventional n-i-p PSC device architecture. (c,d) represent the inverted p-i-n PSC device architecture [40].
Applsci 12 00672 g004
Figure 5. (a) IPCE and (b) I–V curve for MAPbBr3 (solid line) and MAPbI3 (solid line) [5].
Figure 5. (a) IPCE and (b) I–V curve for MAPbBr3 (solid line) and MAPbI3 (solid line) [5].
Applsci 12 00672 g005
Figure 6. (a) Dip–coating solution preparation method for the perovskite films and the corresponding surface morphologies in PbI2, MAPbI3-xClx, and/or MAPbI3 thin films. (b) Time-resolved photoluminescence spectrum and (c) photovoltaic performance in planar heterojunction solar cells of MAPbI3 and MAPbI3-xClx at various wt% addition of MACl [20].
Figure 6. (a) Dip–coating solution preparation method for the perovskite films and the corresponding surface morphologies in PbI2, MAPbI3-xClx, and/or MAPbI3 thin films. (b) Time-resolved photoluminescence spectrum and (c) photovoltaic performance in planar heterojunction solar cells of MAPbI3 and MAPbI3-xClx at various wt% addition of MACl [20].
Applsci 12 00672 g006
Figure 7. (a) A plot of diffusion length (L nm) against bandgap energies of aged and non-aged MAPb(I1-xBrx)3 perovskite thin films. (b) Absorption spectra of mixed-halide perovskite film. (c) I–V curve in a hybrid mixed-halide PSC [28,47].
Figure 7. (a) A plot of diffusion length (L nm) against bandgap energies of aged and non-aged MAPb(I1-xBrx)3 perovskite thin films. (b) Absorption spectra of mixed-halide perovskite film. (c) I–V curve in a hybrid mixed-halide PSC [28,47].
Applsci 12 00672 g007
Figure 8. Characterized performance of triple cation perovskite solar cell. (ad) SEM micrographs images; (a) Cs0/MA/FA, (b) Cs5/MA/FA; (c) Cs10/MA/FA; (d) cross sectional area at Cs5/MA/F; (e) absorption spectrum; (f) XRD pattern of Cs/MA/FA at 0, 5 to 10 wt% Cs addition; (g,h) I–V and IPCE curves [48].
Figure 8. Characterized performance of triple cation perovskite solar cell. (ad) SEM micrographs images; (a) Cs0/MA/FA, (b) Cs5/MA/FA; (c) Cs10/MA/FA; (d) cross sectional area at Cs5/MA/F; (e) absorption spectrum; (f) XRD pattern of Cs/MA/FA at 0, 5 to 10 wt% Cs addition; (g,h) I–V and IPCE curves [48].
Applsci 12 00672 g008
Figure 9. (a) Schematic diagram showing the basic device operation in a PSC. (b) Simplified energy alignment of possible ETM and HTM materials in PSC applications [19,60].
Figure 9. (a) Schematic diagram showing the basic device operation in a PSC. (b) Simplified energy alignment of possible ETM and HTM materials in PSC applications [19,60].
Applsci 12 00672 g009
Figure 10. Schematic representation of perovskite solar cell fabrication methods. (a) One-step method; (b) two-step method; (c) vapor-assisted solution method; (d) thermal vapor deposition method. Precursor concentrations, coating dipping time, spin coating time, and spinning rates are perovskite film quality or morphology controlling parameters during fabrication [40].
Figure 10. Schematic representation of perovskite solar cell fabrication methods. (a) One-step method; (b) two-step method; (c) vapor-assisted solution method; (d) thermal vapor deposition method. Precursor concentrations, coating dipping time, spin coating time, and spinning rates are perovskite film quality or morphology controlling parameters during fabrication [40].
Applsci 12 00672 g010

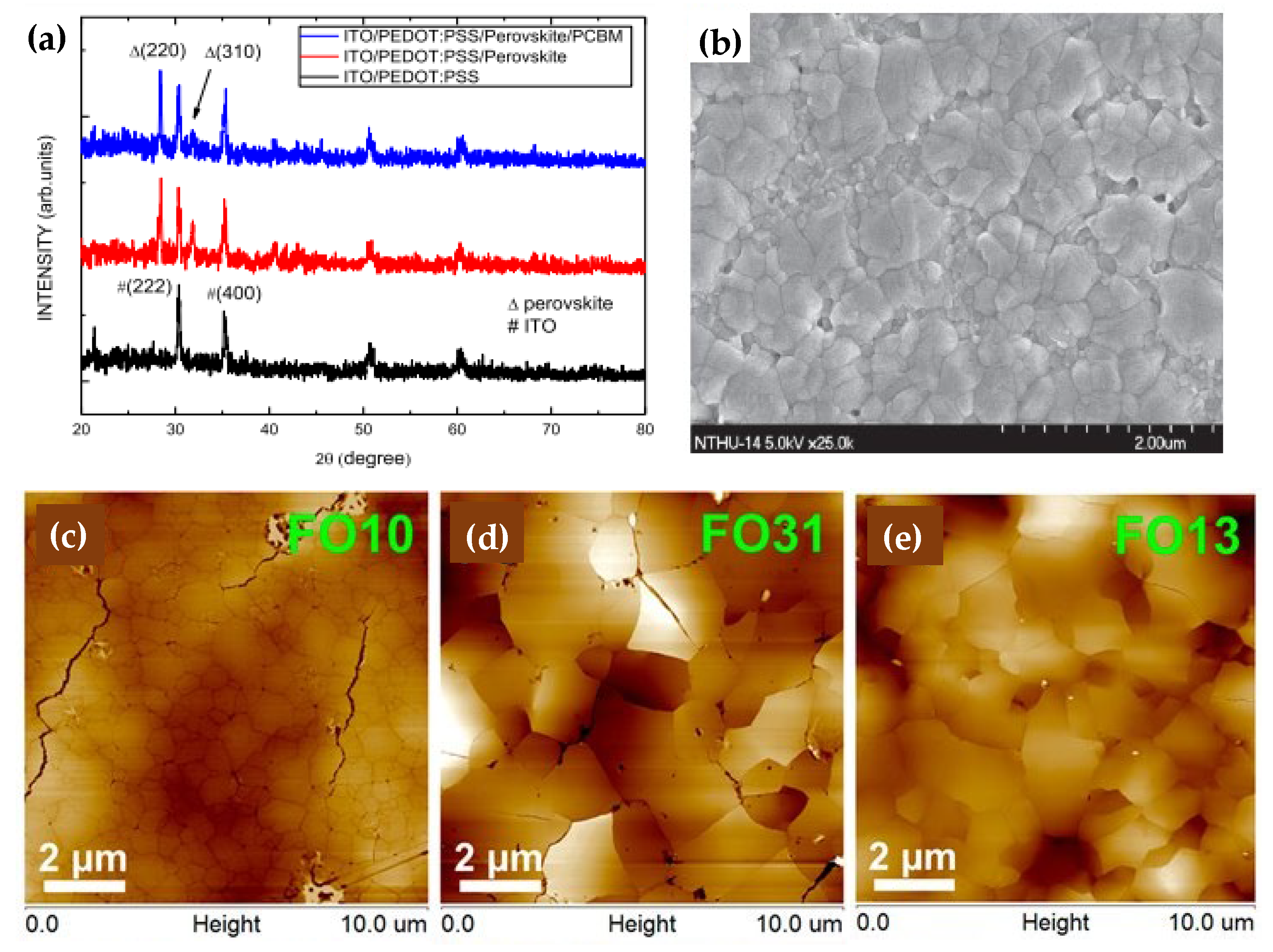

Figure 11. (a) X-ray diffraction patterns; (b) SEM micrograph; (ce) AFM images [39,62].
Figure 11. (a) X-ray diffraction patterns; (b) SEM micrograph; (ce) AFM images [39,62].
Applsci 12 00672 g011

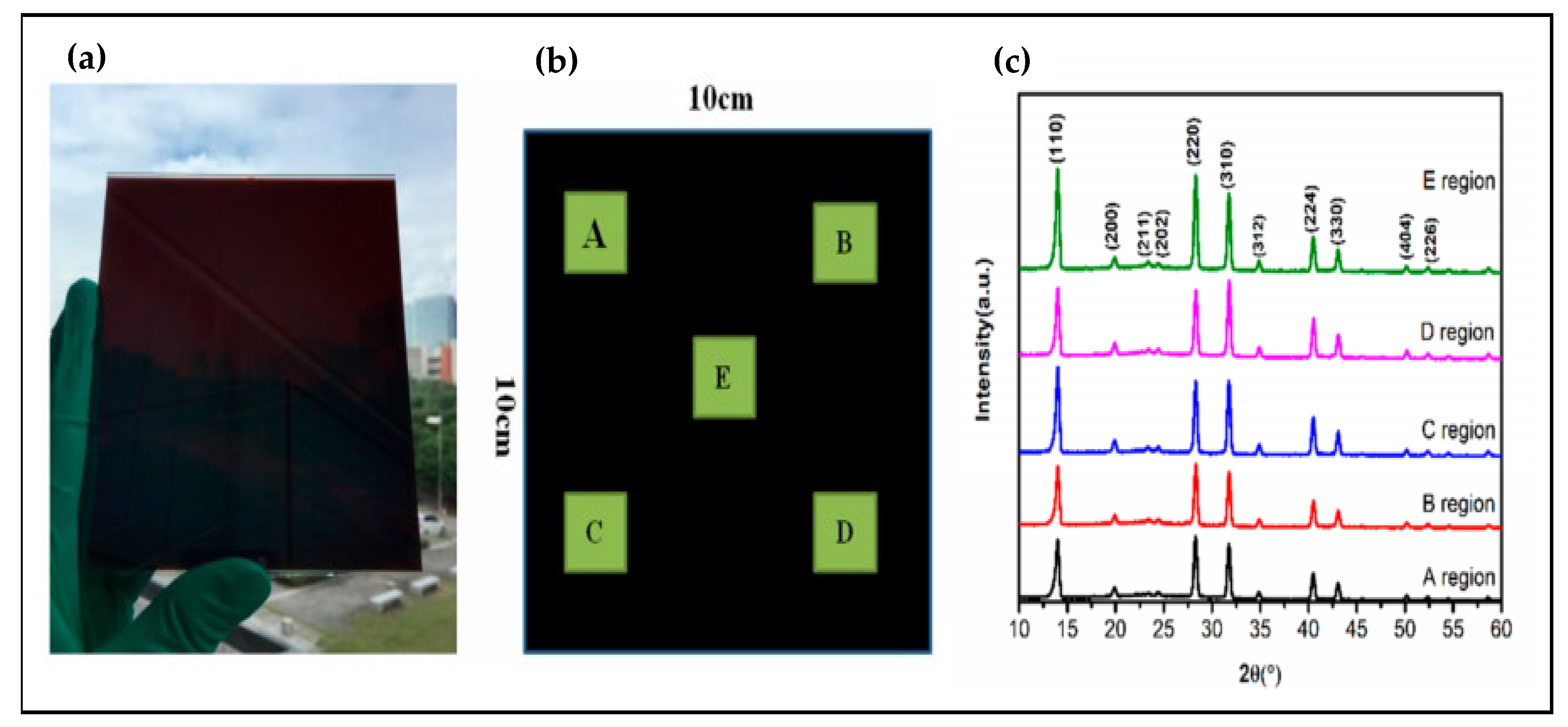

Figure 12. Low resolution images (a,b) of the 100 cm2 PSC prepared by the thermal-vapor-deposited method. (c) XRD patterns at the marked regions A, B, C, D, and E [75].
Figure 12. Low resolution images (a,b) of the 100 cm2 PSC prepared by the thermal-vapor-deposited method. (c) XRD patterns at the marked regions A, B, C, D, and E [75].
Applsci 12 00672 g012
Figure 13. X-ray diffraction pattern of a perovskite sample (a) heated at 25 °C, (bd) magnified perovskite CH3NH3PbI3 characteristic peaks heating at temperature range −95 °C to 100 °C [78].
Figure 13. X-ray diffraction pattern of a perovskite sample (a) heated at 25 °C, (bd) magnified perovskite CH3NH3PbI3 characteristic peaks heating at temperature range −95 °C to 100 °C [78].
Applsci 12 00672 g013
Figure 14. SCXRD schematic representation of crystal structure for (a) MAPbBr3 and (b) MAPbI3 at ambient and high pressures of 1.7 and 0.7 GPa, respectively. Changes in PXRD patterns for (c) MAPbIBr3 and (d) MAPbI3 in response to the applied pressure [82].
Figure 14. SCXRD schematic representation of crystal structure for (a) MAPbBr3 and (b) MAPbI3 at ambient and high pressures of 1.7 and 0.7 GPa, respectively. Changes in PXRD patterns for (c) MAPbIBr3 and (d) MAPbI3 in response to the applied pressure [82].
Applsci 12 00672 g014
Figure 15. Characterization of perovskite device degradation upon exposure to (a) 40% relative humidity (RH) and (bd) 365 nm UV light. (a) i–iii SEM micrograph images of device exposed for t = 20 min, 24 h and 48 h of the 40% humidity condition. (b) I–V curve, (c) XRD, and (d,e) PCE and FF perovskite response to UV light degradation [84,86].
Figure 15. Characterization of perovskite device degradation upon exposure to (a) 40% relative humidity (RH) and (bd) 365 nm UV light. (a) i–iii SEM micrograph images of device exposed for t = 20 min, 24 h and 48 h of the 40% humidity condition. (b) I–V curve, (c) XRD, and (d,e) PCE and FF perovskite response to UV light degradation [84,86].
Applsci 12 00672 g015
Figure 16. Simplified schematic images of PSC encapsulation, the PSC device architecture, and low-resolution images of the actual PSC device from the top, front, and back [92].
Figure 16. Simplified schematic images of PSC encapsulation, the PSC device architecture, and low-resolution images of the actual PSC device from the top, front, and back [92].
Applsci 12 00672 g016
Table 1. Types of PSCs with device architecture “TCO/ETM/Perovskite layer/HTM/metal contact” varied by the perovskite layer, ETM and HTM [5,20,30,43,44,45,46,47,48,49,50,51,52].
Table 1. Types of PSCs with device architecture “TCO/ETM/Perovskite layer/HTM/metal contact” varied by the perovskite layer, ETM and HTM [5,20,30,43,44,45,46,47,48,49,50,51,52].
Device VariationsTypeVocJscFFPCEYearRef.
Single-halide PSCFTO/m-TiO2/MAPbBr3/LiBr|Br2/Pt-FTO0.965.5759.03.132009[2]
Mixed-halide PSCITO/PCBM/MAPbI3-xClx/Spiro-MeOTAD/metal contact0.9717.970.012.22013[20]
ITO/ETM/MAPb(BrxI1-x)3-yCly/HTM/metal contact1.0510.0170.08.72014[41]
Mixed cationsFTO/co-TiO2/mp-TiO2/(FAPbI3)0.85(MAPbBr3)0.15/Spiro-MeOTAD/Au1.1522.776.020.22016[29]
Metal Oxide (ETM)ITO/TiO2/MAPbI3-xClx/Spiro-MeOTAD/Ag0.9521.460.012.22014[44]
FTO/NiO/MAPbI3-xClx/PCBM/Al (inverted)0.9715.89578.782014[46]
ITO/PEDOT:PSS/MAPbI3-xClx/PCBM/Ag (Inverted)1.1120.1180.616.52018[48]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lekesi, L.P.; Koao, L.F.; Motloung, S.V.; Motaung, T.E.; Malevu, T. Developments on Perovskite Solar Cells (PSCs): A Critical Review. Appl. Sci. 2022, 12, 672.

AMA Style

Lekesi LP, Koao LF, Motloung SV, Motaung TE, Malevu T. Developments on Perovskite Solar Cells (PSCs): A Critical Review. Applied Sciences. 2022; 12(2):672.

Chicago/Turabian Style

Lekesi, Lehlohonolo P., Lehlohonolo F. Koao, Setumo V. Motloung, Tshwafo E. Motaung, and Thembinkosi Malevu. 2022. "Developments on Perovskite Solar Cells (PSCs): A Critical Review" Applied Sciences 12, no. 2: 672.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
