Bulk and Rayleigh Waves Propagation in Three-Phase Soil with Flow-Independent Viscosity

Abstract

The flow-independent viscosity of the soil skeleton has significant influence on the elastic wave propagation in soils. This work studied the bulk and Rayleigh waves propagation in three-phase viscoelastic soil by considering the contribution of the flow-independent viscosity from the soil skeleton. Firstly, the viscoelastic dynamic equations of three-phase unsaturated soil are developed with theoretical derivation. Secondly, the explicit characteristic equations of bulk and Rayleigh waves in three-phase viscoelastic soil are yielded theoretically by implementing Helmholtz resolution for the displacement vectors. Finally, the variations of the motion behavior for bulk and Rayleigh waves with physical parameters such as relaxation time, saturation, frequency, and intrinsic permeability are discussed by utilizing calculation examples and parametric analysis. The results reveal that the influence of soil flow-independent viscosity on the wave speed and attenuation coefficient of bulk and Rayleigh waves is significantly related to physical parameters such as saturation, intrinsic permeability, and frequency.

1. Introduction

The wave motion behavior in natural earth foundation is a fundamental scientific problem for theoretical study (e.g., soil dynamics) and practical engineering (e.g., non-destructive examination of natural and artificial materials in foundation soil). Generally, bulk and surface waves are captured in the natural earth foundation. Bulk waves, including longitudinal and transverse waves, are the seismic waves generated by source vibrations and are propagated in the media. Surface waves, such as Rayleigh waves, are secondary waves derived from bulk waves on the surface or layered surface of media. On the other side, the natural earth foundation can be divided into entirely and partially saturated states. The wave propagation behavior in partially saturated soil is significantly more complex than that in completely saturated soil because the capillary pressure and coupling effect will affect the motion behaviors of elastic waves in unsaturated soil [1,2].

Undoubtedly, the emergence of Biot theory [3,4] and mixture theory [5] not only give the sound basis for the research of wave theory but accelerate the research process. For the bulk and Rayleigh waves propagation in saturated soil, researchers including Jones [6], Plona [7], Berryman [1], Berryman [8,9], Zhou and Ma [10], Straughan et al. [11], Rohan et al. [12], Tung [13], and Wang et al. [14] implemented several theoretical and experimental works. They drew that the longitudinal, transverse, and Rayleigh waves depend on not only the frequency but the soil parameters such as permeability and soil mass types. Additionally, the applied research on the dynamic response of natural foundation also aroused broad concern from researchers [15,16,17,18], which undoubtedly promotes the basic research on wave propagation in completely saturated soils. In recent years, with the improvement of mathematics solving ability and engineering precision requirements, several researchers, including Lo [19], Lo et al. [20], and Liu et al. [21,22,23], have implemented works on the bulk and Rayleigh waves propagation in three-phase partially saturated soil. These works concluded that a kind of longitudinal wave (typically named P₃ wave) exists in three-phase soil, and the liquid saturation has a significant effect on the bulk and Rayleigh waves.

Additionally, it is usually recognized that the deformation of the soil, even dry soil, is related to time. That is, the soil viscosity is dependent on the soil skeleton viscosity. Nonetheless, most of the existing works on wave propagation in unsaturated soils only take into account the fluid viscosity but seldom mention the effect of solid skeleton viscosity. Appreciatively, the relationship between soil-structure response and the soil skeleton viscosity has been proposed by researchers [24,25]. Moreover, recently, the dependence of soil skeleton viscosity on the motion behaviors of elastic waves in saturated soils has been studied with an analytical solution [26]. To overcome the lack of previous research on the relationship between the soil skeleton viscosity (flow-independent viscosity) and the elastic wave propagation in unsaturated soil, this work simplifies the unsaturated saturated soils to the multiphase mixture consisting of soil particles, water, and air. The viscoelastic wave equations are established with the Biot model, mixture theory, and the generalized Kelvin–Voigt model. Then, the characteristic formulas of longitudinal, transverse, and Rayleigh waves are yielded with theoretical derivation. Finally, the relationships between the motion behaviors (speed and attenuation) of each wave and the soil parameters are graphed and discussed by utilizing calculation examples and parametric analysis.

2. Viscoelastic Dynamic Model

Generally, the deformation of viscoelastic materials is strictly associated with the loading force and relaxation time of stress and strain. Usually, the damping of three-phase unsaturated soil to the elastic wave propagation mainly comes from two aspects: owne is the viscosity from the solid skeleton, called flow-independent viscosity, and the other is the viscosity from the liquid and gas in pores, called flow-dependent viscosity. To express the flow-independent viscosity in three-phase unsaturated soil, the generalized Kelvin–Voigt model [27,28] is introduced in this study, as illustrated in Figure 1. The dashpot depicted in Figure 1 is utilized to represent the negative effect of the solid skeleton on elastic wave propagation.

In Figure 1, the spring represents the linear-elastic response of the solid skeleton in unsaturated soil under load, while the dashpot represents the damping behaviors of the solid skeleton in unsaturated soil. The dashpot avoids the spring directly reaching the load. The correlation between elastic constants and viscous constants of viscoelastic soils can be expressed as [29]

$${\lambda }_v=t_s{\lambda }_e,{\mu }_v=t_s{\mu }_e$$

(1)

where the two sets of symbols λ_e, μ_e and λ_v, μ_v stand for the elastic and viscosity constants of soil, respectively. $t_s$ stands for the relaxation time, representing the normalized viscosity without loss of generality [24,30]. In this article, $t_s$ is utilized to evaluate the viscosity of the solid skeleton, that is, the magnitude of flow-independent viscosity.

In this work, the unsaturated soil is assumed to be homogeneous, isotropic, and viscoelastic material with multiple pores, composed of liquid and gas occupying pores as well as solid particles. The liquid (water) saturation and gas (air) saturation are represented by $S^r$ and $S^a$, respectively, and the constraint $S^r{+S}^a=1$ is satisfied in this work.

According to Biot porous medium theory, the motion equation of the partially saturated soil, when ignoring the body forces and dissipation, can be expressed as [31]

$${\sigma }_{ij,j}={\overline{\rho }}^s{\ddot{u}}_i^s+{\overline{\rho }}^l{\ddot{u}}_i^l+{\overline{\rho }}^a{\ddot{u}}_i^a$$

(2)

where ${\overline{\rho }}^s=(1-n^s){\rho }^s$, ${\overline{\rho }}^l=n^s{S}^r{\rho }^l$, and ${\overline{\rho }}^a=n^s{S}^a{\rho }^a$. The nomenclature of all the Roman and Greek symbols is stated in Nomenclature. To save space, the nomenclature (physical meaning) of the symbols in the formulas used below is listed in Nomenclature, and this point will not be repeated.

According to Bishop and Blight [32], the following formula is yielded

$${{\sigma }^{\prime }}_{ij}={\sigma }_{ij}+p{\delta }_{ij}$$

(3)

where ${p=S}^r{p}_l+(1-S^r{)p}_a$ represents the pore fluid pressure formed by liquid and gas in pores.

The stress–strain relationship of the solid skeleton is described as [33]

$${{\sigma }^{\prime }}_{ij}=c_{ij}^s{\epsilon }_{ij}-c_{ij}^e{\epsilon }_{ij}^p$$

(4)

The strain tensors under the general state and the pore pressure are written, respectively, as [33]

$${\epsilon }_{ij}=\frac{1}{2}\left(u_{i.j}^s+u_{j.i}^s\right)$$

(5)

$${\epsilon }_{11}^p={\epsilon }_{22}^p={\epsilon }_{33}^p=-\frac{1}{3K_s}p.$$

(6)

The effective stress tensor of unsaturated soil is yielded through combining Equations (4)–(6), as

$${{\sigma }^{\prime }}_{ij}=\left({\lambda }_e{\epsilon }_v+{\lambda }_v\frac{\partial {\epsilon }_v}{\partial t}\right){\delta }_{ij}+2\left({\mu }_e{\epsilon }_{ij}+{\mu }_v\frac{\partial {\epsilon }_{ij}}{\partial t}\right)+\frac{K_b}{K_s}p{\delta }_{ij}$$

(7)

where ${\epsilon }_v=u_{i,i}^s$, and $K_b{=\lambda }_e{+2\mu }_e/3$.

The total stress of unsaturated soil is yielded by substituting Equation (7) into Equation (3), as

$${\sigma }_{ij}=\left({\lambda }_e{\epsilon }_v+{\lambda }_v\frac{\partial {\epsilon }_v}{\partial t}\right){\delta }_{ij}+2\left({\mu }_e{\epsilon }_{ij}+{\mu }_v\frac{\partial {\epsilon }_{ij}}{\partial t}\right)-{\alpha }_{e}p{\delta }_{ij}$$

(8)

where ${\alpha }_e=1-K_b{/K}_s$.

The stress component acting on the soil skeleton, denoted by ${\sigma }_{ij}^s$, can be assumed to

$${\sigma }_{ij}^s=\frac{1}{1-n^s}\left[{\sigma }_{ij}+n^s{S}^r{p}_l{\delta }_{ij}+n^s\left(1-S^r\right)p_a{\delta }_{ij}\right]$$

(9)

Substituting Equation (8) into Equation (9) and making algebraic operations, Equation (9) can be re-expressed as

$${\sigma }_{ij}^s=\frac{1}{1-n^s}\left[\left({\lambda }_e{\epsilon }_v+{\lambda }_v\frac{\partial {\epsilon }_v}{\partial t}\right){\delta }_{ij}+2\left({\mu }_e+{\mu }_v\frac{\partial }{\partial t}\right){\epsilon }_{ij}+\left(n^s-{\alpha }_e\right)\left[S^r{p}_l+\left(1-S^r\right)p_a\right]{\delta }_{ij}\right]$$

(10)

The mass balance equation of each phase is constructed after ignoring phase transitions between components, as

$$\partial {\overline{\rho }}^b/\partial t+{\left({\overline{\rho }}^b{\dot{u}}_i^b\right)}_{,i}=0\hspace{1em}\hspace{1em}b=s,l,a$$

(11)

Further expansion of Equation (11) yields the following formulas as

$$-{\dot{n}}^s+\left(1-n^s\right)\frac{{\dot{\rho }}^s}{{\rho }^s}+\left(1-n^s\right){\dot{u}}_{i,i}^s=0$$

(12)

$$n^s{\dot{S}}^r+{\dot{n}}^s{S}^r+n^s{S}^r\frac{{\dot{\rho }}^l}{{\rho }^l}+n^s{S}^r{\dot{u}}_{i,i}^l=0$$

(13)

$$-n^s{\dot{S}}^r+{\dot{n}}^s\left(1-S^r\right)+n^s\left(1-S^r\right)\frac{{\dot{\rho }}^a}{{\rho }^a}+n^s\left(1-S^r\right){\dot{u}}_{i,i}^a=0$$

(14)

Following Zhang et al. [33], the derivative of each phase density with time is written as

$$\frac{\partial {\rho }^s}{\partial t}=-\frac{{\rho }^s{\dot{\sigma }}_{ii}^s}{3K_s},\frac{\partial {\rho }^l}{\partial t}=\frac{{\rho }^l{\dot{p}}_l}{K_l},\frac{\partial {\rho }^a}{\partial t}=\frac{{\rho }^a{\dot{p}}_a}{K_a}$$

(15)

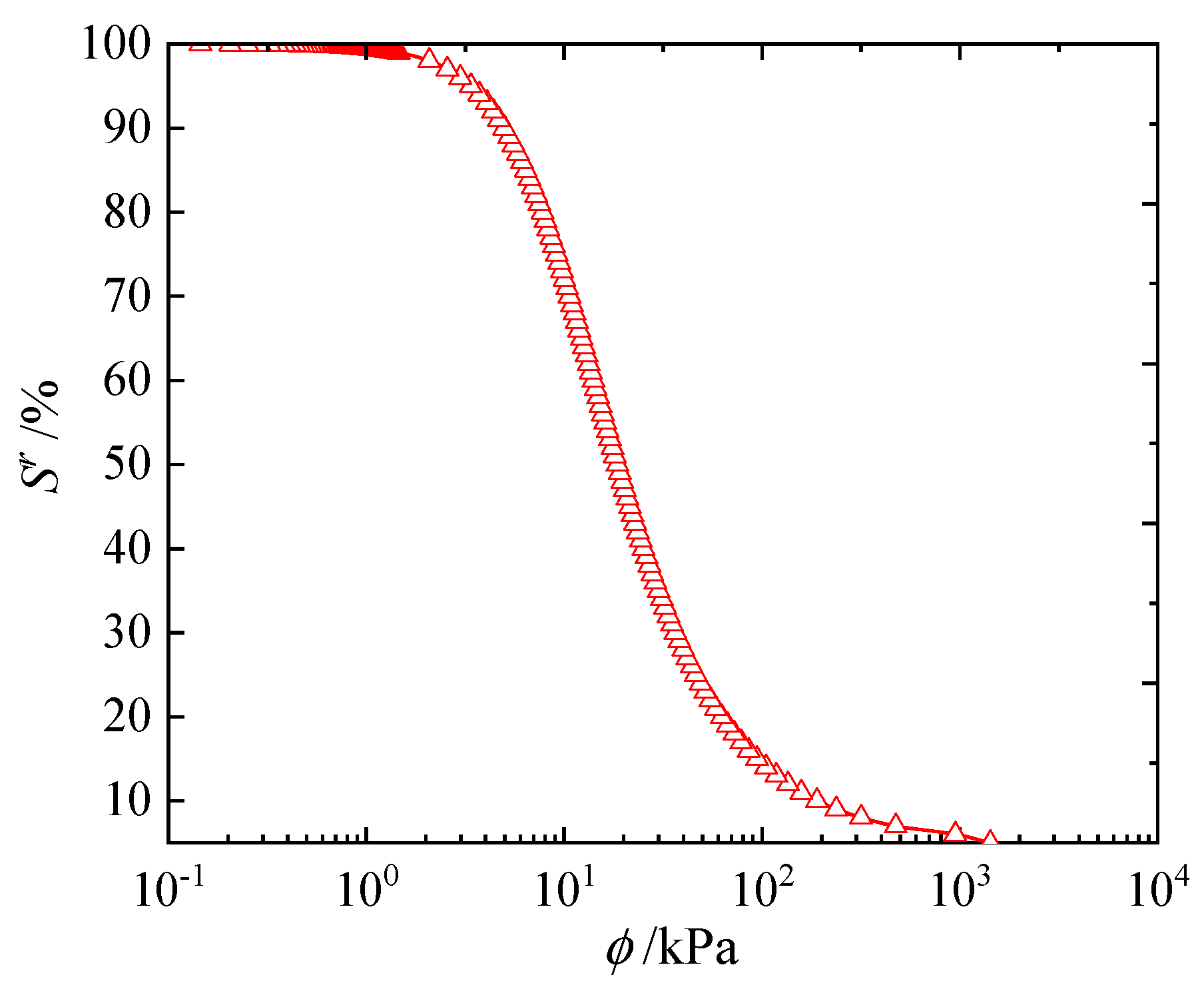

According to the relationship between matric suction and saturation of unsaturated soil, established by Van Genuchten [34], the following formula is yielded

$${\dot{S}}^r=\chi md\left(1-S_{res}\right)S_e{}^{\frac{m+1}{m}}{\left(S_e{}^{-\frac{1}{m}}-1\right)}^{\frac{d-1}{d}}\left({\dot{p}}_l-{\dot{p}}_a\right)$$

(16)

where $S_e{=(S}^r-S_{res})/(1-S_{res})$.

Substituting the first formula in Equation (15) into Equation (12) yields the derivative of porosity over time as

$${\dot{n}}^s=\left({\alpha }_e-n^s\right){\dot{u}}_{i,i}^s-{\alpha }_v{\ddot{u}}_{i,i}^s+\frac{{\alpha }_e-n^s}{K_s}{S}^r{\dot{p}}_l+\frac{{\alpha }_e-n^s}{K_s}\left(1-S^r\right){\dot{p}}_a$$

(17)

where ${\alpha }_v{=(3\lambda }_v{+2\mu }_v{)/3K}_s$.

Substituting Equations (15)–(17) into Equations (13) and (14), the following formulas are yielded

$$T_{11}{p}_l+T_{12}{p}_a+T_{13}{u}_{i,i}^s+T_{14}{u}_{i,i}^l+T_{15}{u}_{i,i}^a+T_{16}{\dot{u}}_{i,i}^s=0$$

(18)

$$T_{21}{p}_l+T_{22}{p}_a+T_{23}{u}_{i,i}^s+T_{24}{u}_{i,i}^l+T_{25}{u}_{i,i}^a+T_{26}{\dot{u}}_{i,i}^s=0$$

(19)

in which

$$\begin{gathered} T_{11}=n^s{A}_s+{\left(S^r\right)}^2\left({\alpha }_e-n^s\right)/K_s+S^r{n}^s/K_l,T_{12}=S^r\left(1-S^r\right)\left({\alpha }_e-n^s\right)/K_s-n^s{A}_s, \\ {T}_{13}=S^r\left({\alpha }_e-n^s\right),T_{14}=S^r{n}^s,T_{15}=0,T_{16}=-{\alpha }_v{S}^r,T_{21}=T_{12}, \\ {T}_{22}=n^s{A}_s+\left({\alpha }_e-n^s\right)S^a{S}^a/K_s+n^s{S}^a/K_a,T_{23}=S^a\left({\alpha }_e-n^s\right),T_{24}=0,T_{25}=n^s{S}^a, \\ {T}_{26}=-{\alpha }_v{S}^a,A_s=\chi md\left(1-S_{res}\right){\left(S_e{}^{-1/m}-1\right)}^{\left(d-1\right)/d}{S}_e{}^{\left(m+1\right)/m}. \end{gathered}$$

Making some algebraic operations for Equations (18) and (19), the pore-fluid pressures are yielded as

$$-p_l=t_{11}{u}_{i,i}^s+t_{12}{u}_{i,i}^l+t_{13}{u}_{i,i}^a+t_{14}{\dot{u}}_{i,i}^s$$

(20)

$$-p_a=t_{21}{u}_{i,i}^s+t_{22}{u}_{i,i}^l+t_{23}{u}_{i,i}^a+t_{24}{\dot{u}}_{i,i}^s$$

(21)

in which

$$\begin{gathered} t_{11}=\frac{T_{13}{T}_{22}-T_{23}{T}_{12}}{T_{11}{T}_{22}-T_{21}{T}_{12}},t_{12}=\frac{T_{14}{T}_{22}}{T_{11}{T}_{22}-T_{21}{T}_{12}},t_{13}=\frac{-T_{25}{T}_{12}}{T_{11}{T}_{22}-T_{21}{T}_{12}},t_{14}=\frac{T_{16}{T}_{22}-T_{26}{T}_{12}}{T_{11}{T}_{22}-T_{21}{T}_{12}} \\ {t}_{21}=\frac{T_{13}{T}_{21}-T_{23}{T}_{11}}{T_{12}{T}_{21}-T_{22}{T}_{11}},t_{22}=\frac{T_{14}{T}_{21}}{T_{12}{T}_{21}-T_{22}{T}_{11}},t_{23}=\frac{-T_{25}{T}_{11}}{T_{12}{T}_{21}-T_{22}{T}_{11}},t_{24}=\frac{T_{16}{T}_{21}-T_{26}{T}_{11}}{T_{12}{T}_{21}-T_{22}{T}_{11}}. \end{gathered}$$

The motion formulas of fluid phases accounting for the effect of pore tortuosity are formulated as [33,35]

$$-p_{l,i}=\frac{{\mu }_l}{k_r^{l}k}{n}^s{S}^r\left({\dot{u}}_i^l-{\dot{u}}_i^s\right)+{\rho }^l{\ddot{u}}_i^l+\left({\tau }_l-1\right){\rho }^l\left({\ddot{u}}_i^l-{\ddot{u}}_i^s\right)$$

(22)

$$-p_{a,i}=\frac{{\mu }_a}{k_r^{a}k}{n}^s{S}^a\left({\dot{u}}_i^a-{\dot{u}}_i^s\right)+{\rho }^a{\ddot{u}}_i^a+\left({\tau }_a-1\right){\rho }^a\left({\ddot{u}}_i^a-{\ddot{u}}_i^s\right)$$

(23)

According to the model established by Mualem [36], the relative permeabilities $k_r^l$ and $k_r^g$ are written as

$$k_r^l={\left(S_e\right)}^{0.5}{\left[1-{\left(1-{\left(S_e\right)}^{1/m}\right)}^m\right]}^2,k_r^a={\left(1-S_e\right)}^{0.5}{\left[{\left(1-{\left(S_e\right)}^{1/m}\right)}^m\right]}^2$$

(24)

Combination of Equations (20)–(23) and introduction of the relative displacement of liquid ($u_i^w{=n}^s{S}^r{(u}_i^l–u_i^s)$) and gas ($u_i^g{=n}^s{S}^a{(u}_i^a–u_i^s)$) phases yield the following formulas

$${\mu }_e{u}_{i,jj}^s+\left(C_{11}+{\mu }_e\right)u_{j,ji}^s+C_{12}{u}_{j,ji}^w+C_{13}{u}_{j,ji}^g+{\mu }_v{\dot{u}}_{i,jj}^s+\left(C_{14}+{\mu }_v\right){\dot{u}}_{j,ji}^s=\rho {\ddot{u}}_i^s+{\rho }^l{\ddot{u}}_i^w+{\rho }^a{\ddot{u}}_i^g$$

(25)

$$C_{21}{u}_{j,ji}^s+C_{22}{u}_{j,ji}^w+C_{23}{u}_{j,ji}^g+C_{24}{\dot{u}}_{j,ji}^s={\rho }^l{\ddot{u}}_i^s+{\nu }_w{\ddot{u}}_i^w+b_w{\dot{u}}_i^w$$

(26)

$$C_{31}{u}_{j,ji}^s+C_{32}{u}_{j,ji}^w+C_{33}{u}_{j,ji}^g+C_{34}{\dot{u}}_{j,ji}^s={\rho }^a{\ddot{u}}_i^s+{\nu }_g{\ddot{u}}_i^g+b_g{\dot{u}}_i^g$$

(27)

with

$$\begin{gathered} D_1=t_{11}+t_{12}+t_{13},D_2=t_{21}+t_{22}+t_{23},\rho =\left(1-n^s\right){\rho }^s+n^s{S}^r{\rho }^l+n^s{S}^a{\rho }^a, \\ {C}_{11}={\lambda }_e+S^r{\alpha }_e{D}_1+\left(1-S^r\right)D_2{\alpha }_e,C_{12}=\left[S^r{t}_{12}+\left(1-S^r\right)t_{22}\right]{\alpha }_e/\left(n^s{S}^r\right), \\ {C}_{13}={\alpha }_e\left(S^r{t}_{13}+S^a{t}_{23}\right)/\left(n^s{S}^a\right),C_{14}={\lambda }_v+{\alpha }_e\left(S^r{t}_{14}+S^a{t}_{24}\right),C_{21}=D_1,C_{22}=t_{12}/\left(n^s{S}^r\right), \\ {C}_{23}=t_{13}/\left(n^s{S}^a\right),C_{24}=t_{14},C_{31}=D_2,C_{32}=t_{22}/\left(n^s{S}^r\right),C_{33}=t_{23}/\left(n^s{S}^a\right), \\ {C}_{34}=t_{24},{\nu }_w={\tau }_l{\rho }^l/\left(n^s{S}^r\right),{\nu }_g={\tau }_a{\rho }^a/\left(n^s{S}^a\right),b_w={\mu }_l/\left(k_r^{l}k\right),b_g={\mu }_a/\left(k_r^{a}k\right). \end{gathered}$$

Equations (25)–(27) represent the viscoelastic wave equations of triphase partially saturated soil. The advantages of the proposed viscoelastic dynamic model can describe the effect of both the flow-independent and flow-dependent viscosities on the soil dynamic behavior. The flow-independent viscosity is represented by the shear and dilatant constants λ_v and μ_v in Equations (25)–(27). According to Equation (1), the soil skeleton viscosity can be represented by the relaxation time $t_s$. Correspondingly, the fluid viscosity is characterized by the coefficients $b_w$ and $b_g$ in Equations (26) and (27). Apparently, the flow-dependent viscosity can finally be characterized by the intrinsic permeability $k$.

3. Wavefield Solution for Bulk and Rayleigh Waves

Considering the decomposition law of potential function, the displacement vector of each phase is written as

$${\mathit{u}}^{ph}=\nabla {\mathbf{\phi }}^{ph}+\nabla \times {\psi }^{ph},ph=s,w,g$$

(28)

Substituting Equation (28) into Equations (25)–(27), the following equations are yielded as

$$\begin{array}{c}\left(C_{11}+2{\mu }_e\right){\nabla }^2{\phi }^s+C_{12}{\nabla }^2{\phi }^w+C_{13}{\nabla }^2{\phi }^g+\left(C_{14}+2{\mu }_v\right){\nabla }^2{\dot{\phi }}^s=\rho {\ddot{\phi }}^s+{\rho }^l{\ddot{\phi }}^w+{\rho }^a{\ddot{\phi }}^g\\ C_{21}{\nabla }^2{\phi }^s+C_{22}{\nabla }^2{\phi }^w+C_{23}{\nabla }^2{\phi }^g+C_{24}{\nabla }^2{\dot{\phi }}^s={\rho }^l{\ddot{\phi }}^s+v_w{\ddot{\phi }}^w+b_w{\dot{\phi }}^w\\ C_{31}{\nabla }^2{\phi }^s+C_{32}{\nabla }^2{\phi }^w+C_{33}{\nabla }^2{\phi }^g+C_{34}{\nabla }^2{\dot{\phi }}^s={\rho }^a{\ddot{\phi }}^s+v_g{\ddot{\phi }}^g+b_g{\dot{\phi }}^g\end{array}\}$$

(29)

$$\begin{array}{c}\rho {\ddot{\psi }}^s+{\rho }^l{\ddot{\psi }}^w+{\rho }^a{\ddot{\psi }}^g={\mu }_e{\nabla }^2{\psi }^s+{\mu }_v{\nabla }^2{\dot{\psi }}^s\\ {\rho }^l{\ddot{\psi }}^s+v_w{\ddot{\psi }}^w+b_w{\dot{\psi }}^w=0\\ {\rho }^a{\ddot{\psi }}^s+v_g{\ddot{\psi }}^g+b_g{\dot{\psi }}^g=0\end{array}\}$$

(30)

3.1. Bulk Waves

For the bulk wave propagation in the triphase unsaturated soil, the displacement potentials of solid, liquid, and air phases in Equations (29) and (30) can be expressed as

$${\phi }^{ph}=A^{ph}\exp \left[i\left(\omega t-k_p\mathit{r}\right)\right]$$

(31)

$${\mathbf{\psi }}^{ph}={\mathit{B}}^{ph}\exp \left[i\left(\omega t-k_s\mathit{r}\right)\right]$$

(32)

where $\omega =2\pi f$, and $i=\sqrt{-1}$.

The following formulas are obtained by combining Equations (29)–(32), as

$$\left(\begin{array}{ccc}\rho {\omega }^2-\left[\left(C_{11}+2{\mu }_e\right)+i\omega \left(C_{14}+2{\mu }_v\right)\right]k_p^2& {\rho }^l{\omega }^2-C_{12}{k}_p^2& {\rho }^a{\omega }^2-C_{13}{k}_p^2\\ {\rho }^l{\omega }^2-\left(C_{21}+C_{24}i\omega \right)k_p^2& v_w{\omega }^2-b_{w}i\omega -C_{22}{k}_p^2& -C_{23}{k}_p^2\\ {\rho }^a{\omega }^2-\left(C_{31}+C_{34}i\omega \right)k_p^2& -C_{32}{k}_p^2& v_g{\omega }^2-b_{g}i\omega -C_{33}{k}_p^2\end{array}\right)\left(\begin{array}{c}{A}^s\\ A^w\\ A^g\end{array}\right)=\left(\begin{array}{c}0\\ 0\\ 0\end{array}\right)$$

(33)

$$\left(\begin{array}{ccc}\rho {\omega }^2-\left({\mu }_e+{\mu }_{v}i\omega \right)k_s^2& {\rho }^l{\omega }^2& {\rho }^a{\omega }^2\\ {\rho }^l{\omega }^2& v_w{\omega }^2-b_{w}i\omega & 0\\ {\rho }^a{\omega }^2& 0& v_g{\omega }^2-b_{g}i\omega \end{array}\right)\left(\begin{array}{c}{\mathit{B}}^s\\ {\mathit{B}}^w\\ {\mathit{B}}^g\end{array}\right)=\left(\begin{array}{c}0\\ 0\\ 0\end{array}\right)$$

(34)

Finally, the characteristic equations for bulk waves in triphase unsaturated viscoelastic soil are derived from Equations (33) and (34) as

$$\left|\begin{array}{ccc}{L}_{11}& L_{12}& L_{13}\\ L_{21}& L_{22}& L_{23}\\ L_{31}& L_{32}& L_{33}\end{array}\right|=0$$

(35)

$$\left|\begin{array}{ccc}{J}_{11}& J_{12}& J_{13}\\ J_{21}& J_{22}& J_{23}\\ J_{31}& J_{32}& J_{33}\end{array}\right|=0$$

(36)

with

$$\begin{gathered} L_{11}=\rho {\omega }^2-\left[\left(C_{11}+2{\mu }_e\right)+i\omega \left(C_{14}+2{\mu }_v\right)\right]k_p^2,L_{12}={\rho }^l{\omega }^2-C_{12}{k}_p^2,L_{13}={\rho }^a{\omega }^2-C_{13}{k}_p^2, \\ {L}_{21}={\rho }^l{\omega }^2-\left(C_{21}+C_{24}i\omega \right)k_p^2,L_{22}=v_w{\omega }^2-b_{w}i\omega -C_{22}{k}_p^2,L_{23}=-C_{23}{k}_p^2, \\ {L}_{31}={\rho }^a{\omega }^2-\left(C_{31}+C_{34}i\omega \right)k_p^2,L_{32}=-C_{32}{k}_p^2,L_{33}=v_g{\omega }^2-b_{g}i\omega -C_{33}{k}_p^2, \\ {J}_{11}=\rho {\omega }^2-\left({\mu }_e+{\mu }_{v}i\omega \right)k_s^2,J_{12}={\rho }^l{\omega }^2,J_{13}={\rho }^a{\omega }^2,J_{21}={\rho }^l{\omega }^2, \\ {J}_{22}=v_w{\omega }^2-b_{w}i\omega ,J_{23}=J_{32}=0,J_{31}={\rho }^a{\omega }^2,J_{33}=v_g{\omega }^2-b_{g}i\omega . \end{gathered}$$

For the complex wavenumber of the longitudinal wave, Equation (35) can be solved into three meaningful solutions. This means that three kinds of longitudinal waves exist in unsaturated soil. The three longitudinal waves are usually signed as P₁, P₂, and P₃ waves, and the speed of the P₁ wave is the fastest, the P₂ wave is in the middle, whereas the P₃ wave is the slowest. Similarly, Equation (36) can be solved to one meaningful solution for the complex wavenumber of the transverse wave. That is, only one kind of transverse wave exists in unsaturated soil, usually labeled as S wave. Additionally, the following formulas can be yielded from Equations (33)–(36) as

$$p^{ws}=\frac{A^w}{A^s}=\frac{L_{11}{L}_{23}-L_{21}{L}_{13}}{L_{22}{L}_{13}-L_{12}{L}_{23}},p^{gs}=\frac{A^g}{A^s}=\frac{L_{11}{L}_{22}-L_{21}{L}_{12}}{L_{23}{L}_{12}-L_{13}{L}_{22}}$$

(37)

$$s^{ws}=\frac{{\mathit{B}}^w}{{\mathit{B}}^s}=-\frac{J_{21}}{J_{22}},s^{gs}=\frac{{\mathit{B}}^g}{{\mathit{B}}^s}=-\frac{J_{31}}{J_{33}}$$

(38)

Generally, the wave speed and attenuation coefficient of bulk waves are defined as

$$v_{p1}=\frac{\omega }{\mathrm{Re}\left(k_{p1}\right)},v_{p2}=\frac{\omega }{\mathrm{Re}\left(k_{p2}\right)},v_{p3}=\frac{\omega }{\mathrm{Re}\left(k_{p3}\right)},v_s=\frac{\omega }{\mathrm{Re}\left(k_s\right)}$$

(39)

$${\delta }_{p1}=\mathrm{Im}\left(k_{p1}\right),{\delta }_{p2}=\mathrm{Im}\left(k_{p2}\right),{\delta }_{p3}=\mathrm{Im}\left(k_{p3}\right),{\delta }_s=\mathrm{Im}\left(k_s\right)$$

(40)

3.2. Rayleigh Wave

As portrayed in Figure 2, the Rayleigh wave is generated by superimposing the longitudinal and transverse waves at the soil boundary $z=0$. Accordingly, the displacement potential in Equations (29) and (30) for the Rayleigh wave can be further rewritten as

$$\begin{array}{c}{\phi }^s=\left[A_{{}^{\left(1\right)}}^s{e}^{-i{\gamma }_{1}z}+A_{{}^{\left(2\right)}}^s{e}^{-i{\gamma }_{2}z}+A_{{}^{\left(3\right)}}^s{e}^{-i{\gamma }_{3}z}\right]e^{i\left(\omega t-k_{R}x\right)}\\ {\phi }^w=\left[p_{\left(1\right)}^{ws}{A}_{{}^{\left(1\right)}}^s{e}^{-i{\gamma }_{1}z}+p_{\left(2\right)}^{ws}{A}_{{}^{\left(2\right)}}^s{e}^{-i{\gamma }_{2}z}+p_{\left(3\right)}^{ws}{A}_{{}^{\left(3\right)}}^s{e}^{-i{\gamma }_{3}z}\right]e^{i\left(\omega t-k_{R}x\right)}\\ {\phi }^g=\left[p_{\left(1\right)}^{gs}{A}_{{}^{\left(1\right)}}^s{e}^{-i{\gamma }_{1}z}+p_{\left(2\right)}^{gs}{A}_{{}^{\left(2\right)}}^s{e}^{-i{\gamma }_{2}z}+p_{\left(3\right)}^{gs}{A}_{{}^{\left(3\right)}}^s{e}^{-i{\gamma }_{3}z}\right]e^{i\left(\omega t-k_{R}x\right)}\end{array}\}$$

(41)

$$\begin{array}{c}{\psi }^s={\mathit{B}}^s{e}^{-i{\gamma }_{4}z}{e}^{i\left(\omega t-k_{R}x\right)}\\ {\psi }^w=s^{ws}{\mathit{B}}^s{e}^{-i{\gamma }_{4}z}{e}^{i\left(\omega t-k_{R}x\right)}\\ {\psi }^g=s^{gs}{\mathit{B}}^s{e}^{-i{\gamma }_{4}z}{e}^{i\left(\omega t-k_{R}x\right)}\end{array}\}$$

(42)

where

$${\gamma }_1=\sqrt{k_{p1}^2-k_R^2},{\gamma }_2=\sqrt{k_{p2}^2-k_R^2},{\gamma }_3=\sqrt{k_{p3}^2-k_R^2},{\gamma }_4=\sqrt{k_s^2-k_R^2}$$

(43)

As discussed earlier, the Rayleigh wave in unsaturated soil is a kind of superimposed wave at the soil boundary. In this work, considering the stress-free boundary, the stresses (${\sigma }_{zz}$ and ${\sigma }_{xz}$) and fluid pressures ($p_l$ and $p_a$) disappear at the soil boundary. Accordingly, the following formulas can be obtained as

$${\sigma }_{zz}=\left(C_{11}+C_{14}\frac{\partial }{\partial t}\right)\left(\frac{\partial u_x^s}{\partial x}+\frac{\partial u_z^s}{\partial z}\right)+2\left({\mu }_e+{\mu }_v\frac{\partial }{\partial t}\right)\frac{\partial u_z^s}{\partial z}+C_{12}\left(\frac{\partial u_x^w}{\partial x}+\frac{\partial u_z^w}{\partial z}\right)+C_{13}\left(\frac{\partial u_x^g}{\partial x}+\frac{\partial u_z^g}{\partial z}\right)=0$$

(44)

$${\sigma }_{xz}=\left({\mu }_e+{\mu }_v\frac{\partial }{\partial t}\right)\left(\frac{\partial u_x^s}{\partial z}+\frac{\partial u_z^s}{\partial x}\right)=0$$

(45)

$$p_l=-\left(C_{21}+C_{24}\frac{\partial }{\partial t}\right)\left(\frac{\partial u_x^s}{\partial x}+\frac{\partial u_z^s}{\partial z}\right)-C_{22}\left(\frac{\partial u_x^w}{\partial x}+\frac{\partial u_z^w}{\partial z}\right)-C_{23}\left(\frac{\partial u_x^g}{\partial x}+\frac{\partial u_z^g}{\partial z}\right)=0$$

(46)

$$p_a=-\left(C_{31}+C_{34}\frac{\partial }{\partial t}\right)\left(\frac{\partial u_x^s}{\partial x}+\frac{\partial u_z^s}{\partial z}\right)-C_{32}\left(\frac{\partial u_x^w}{\partial x}+\frac{\partial u_z^w}{\partial z}\right)-C_{33}\left(\frac{\partial u_x^g}{\partial x}+\frac{\partial u_z^g}{\partial z}\right)=0$$

(47)

Substituting Equations (41) and (42) into Equations (44)–(47) and making algebraic operations, the following formula can be derived as

$$\left(\begin{array}{cccc}{\Re }_{11}& {\Re }_{12}& {\Re }_{13}& {\Re }_{14}\\ {\Re }_{21}& {\Re }_{22}& {\Re }_{23}& {\Re }_{24}\\ {\Re }_{31}& {\Re }_{32}& {\Re }_{33}& {\Re }_{34}\\ {\Re }_{41}& {\Re }_{42}& {\Re }_{43}& {\Re }_{44}\end{array}\right)\left(\begin{array}{c}{A}_{\left(1\right)}^s\\ A_{\left(2\right)}^s\\ A_{\left(3\right)}^s\\ {\mathit{B}}^s\end{array}\right)=\left(\begin{array}{c}0\\ 0\\ 0\\ 0\end{array}\right)$$

(48)

with

$$\begin{gathered} {\Re }_{11}=2\left({\mu }_e+{\mu }_{v}i\omega \right){\gamma }_1^2+\left[C_{11}+C_{14}i\omega +C_{12}{p}_{\left(1\right)}^{ws}+C_{13}{p}_{\left(1\right)}^{gs}\right]k_{p1}^2, \\ {\Re }_{12}=2\left({\mu }_e+{\mu }_{v}i\omega \right){\gamma }_2^2+\left[C_{11}+C_{14}i\omega +C_{12}{p}_{\left(2\right)}^{ws}+C_{13}{p}_{\left(2\right)}^{gs}\right]k_{p2}^2, \\ {\Re }_{13}=2\left({\mu }_e+{\mu }_{v}i\omega \right){\gamma }_3^2+\left[C_{11}+C_{14}i\omega +C_{12}{p}_{\left(3\right)}^{ws}+C_{13}{p}_{\left(3\right)}^{gs}\right]k_{p3}^2,{\Re }_{14}=2\left({\mu }_e+{\mu }_{v}i\omega \right)k_R{\gamma }_4, \\ {\Re }_{21}=2\left({\mu }_e+{\mu }_{v}i\omega \right){\gamma }_1{k}_R,{\Re }_{22}=2\left({\mu }_e+{\mu }_{v}i\omega \right){\gamma }_2{k}_R,{\Re }_{23}=2\left({\mu }_e+{\mu }_{v}i\omega \right){\gamma }_3{k}_R, \\ {\Re }_{24}=\left({\mu }_e+{\mu }_{v}i\omega \right)\left(k_R^2-{\gamma }_4^2\right),{\Re }_{31}=\left[C_{21}+C_{24}i\omega +C_{22}{p}_{\left(1\right)}^{ws}+C_{23}{p}_{\left(1\right)}^{gs}\right]k_{p1}^2, \\ {\Re }_{32}=\left[C_{21}+C_{24}i\omega +C_{22}{p}_{\left(2\right)}^{ws}+C_{23}{p}_{\left(2\right)}^{gs}\right]k_{p2}^2,{\Re }_{33}=\left[C_{21}+C_{24}i\omega +C_{22}{p}_{\left(3\right)}^{ws}+C_{23}{p}_{\left(3\right)}^{gs}\right]k_{p3}^2, \\ {\Re }_{41}=\left[C_{31}+C_{34}i\omega +C_{32}{p}_{\left(1\right)}^{ws}+C_{33}{p}_{\left(1\right)}^{gs}\right]k_{p1}^2,{\Re }_{42}=\left[C_{31}+C_{34}i\omega +C_{32}{p}_{\left(2\right)}^{ws}+C_{33}{p}_{\left(2\right)}^{gs}\right]k_{p2}^2, \\ {\Re }_{43}=\left[C_{31}+C_{34}i\omega +C_{32}{p}_{\left(3\right)}^{ws}+C_{33}{p}_{\left(3\right)}^{gs}\right]k_{p3}^2,{\Re }_{34}={\Re }_{44}=0 \end{gathered}$$

Finally, the characteristic equation of the Rayleigh wave is derived from Equation (48) as

$$\left|\begin{array}{cccc}{\Re }_{11}& {\Re }_{12}& {\Re }_{13}& {\Re }_{14}\\ {\Re }_{21}& {\Re }_{22}& {\Re }_{23}& {\Re }_{24}\\ {\Re }_{31}& {\Re }_{32}& {\Re }_{33}& {\Re }_{34}\\ {\Re }_{41}& {\Re }_{42}& {\Re }_{43}& {\Re }_{44}\end{array}\right|=0$$

(49)

By solving Equation (49), the wave speed ($v_R$) and attenuation coefficient (${\delta }_R$) of Rayleigh are solved as

$$v_R=\omega /\mathrm{Re}\left(k_R\right),{\delta }_R=\mathrm{Im}\left(k_R\right)$$

(50)

4. Numerical Examples and Parametric Analysis

This section will utilize numerical calculation and parametric analysis to analyze the dependence of physical parameters for the soil on the motion behaviors (mainly for the speed and attenuation) of bulk and Rayleigh waves. The value of the soil parameter in the following calculation examples refers to

Table 1. Physical parameters of unsaturated soil.

Parameter	Value	Parameter	Value	Parameter	Value
ns	0.4	Ks	36 GPa	λe	120 MPa
Sr	0.6	Kl	2.2 GPa	μe	120 MPa
Sres	0.05	Ka	0.1 MPa	μl	0.001 Pa·s
ρs	2650 kg·m−3	χ	0.0001	μa	1.8 × 10−5 Pa·s
ρl	1000 kg·m−3	m	0.5	τl	1.0
ρa	1.3 kg·m−3	d	2.0	τa	1.0
k	1.0 × 10−11 m2	f	100 Hz

[2] unless otherwise specified.

When $t_s$ is set to zero, the unsaturated porous viscoelastic model developed in this work can be reduced to the traditional, unsaturated poroelastic model. Thus, the results obtained in this work can be validated through comparing them with the results developed in previous work. The comparison results for the wave velocities of P₁, S, and Rayleigh waves between this work and the work developed by Yang [2] are presented in Figure 3a, which shows that the analytical solutions obtained by this work and Yang [2] have a good agreement. Additionally, Murphy [37] carried out acoustic measurements of partial gas saturation in tight sandstones employing a pulse transmission technique, obtaining the wave speeds of P₁ and S waves. Accordingly, this work introduces the physical parameters of tight sandstones [37] and calculates the corresponding wave speeds of P₁ and S waves. The calculated results from this work are compared with the experimental measurement results observed by Murphy [37], as portrayed in Figure 3b. The comparison results in Figure 3 have good consistency both quantitatively and qualitatively.

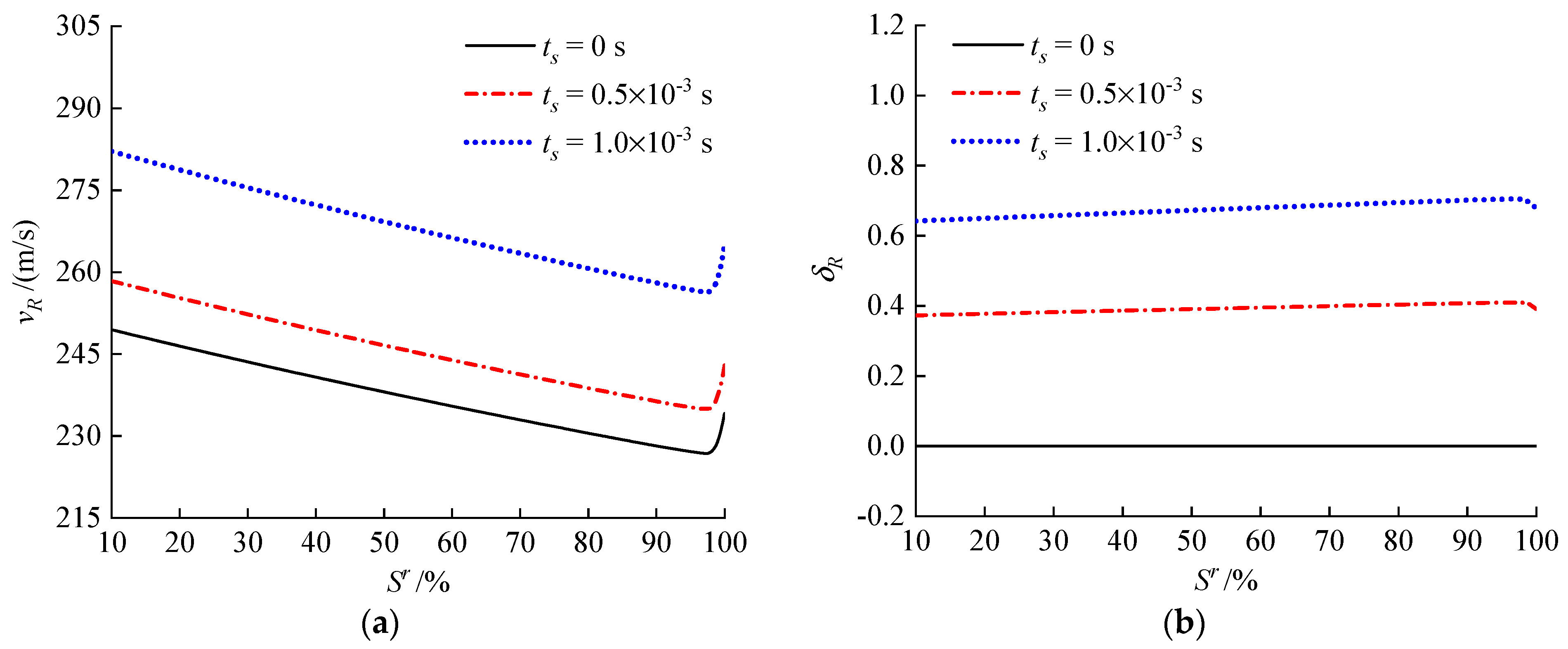

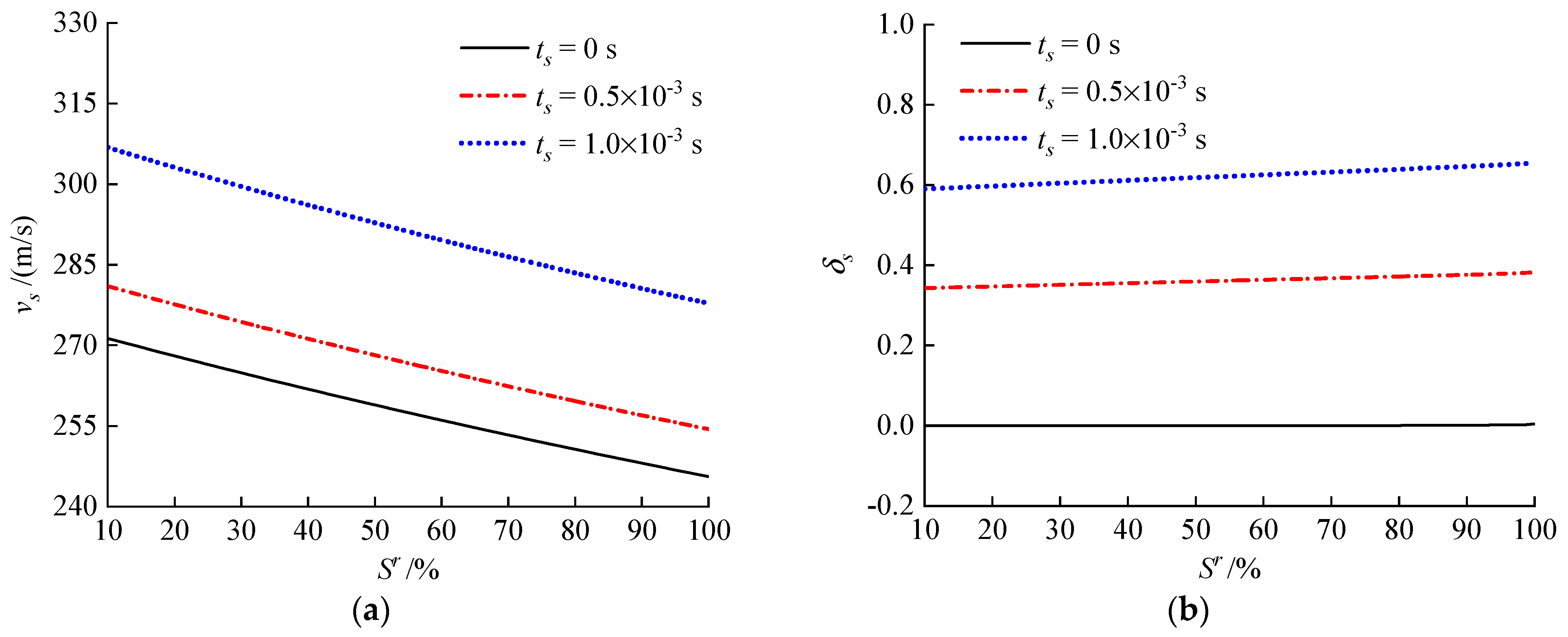

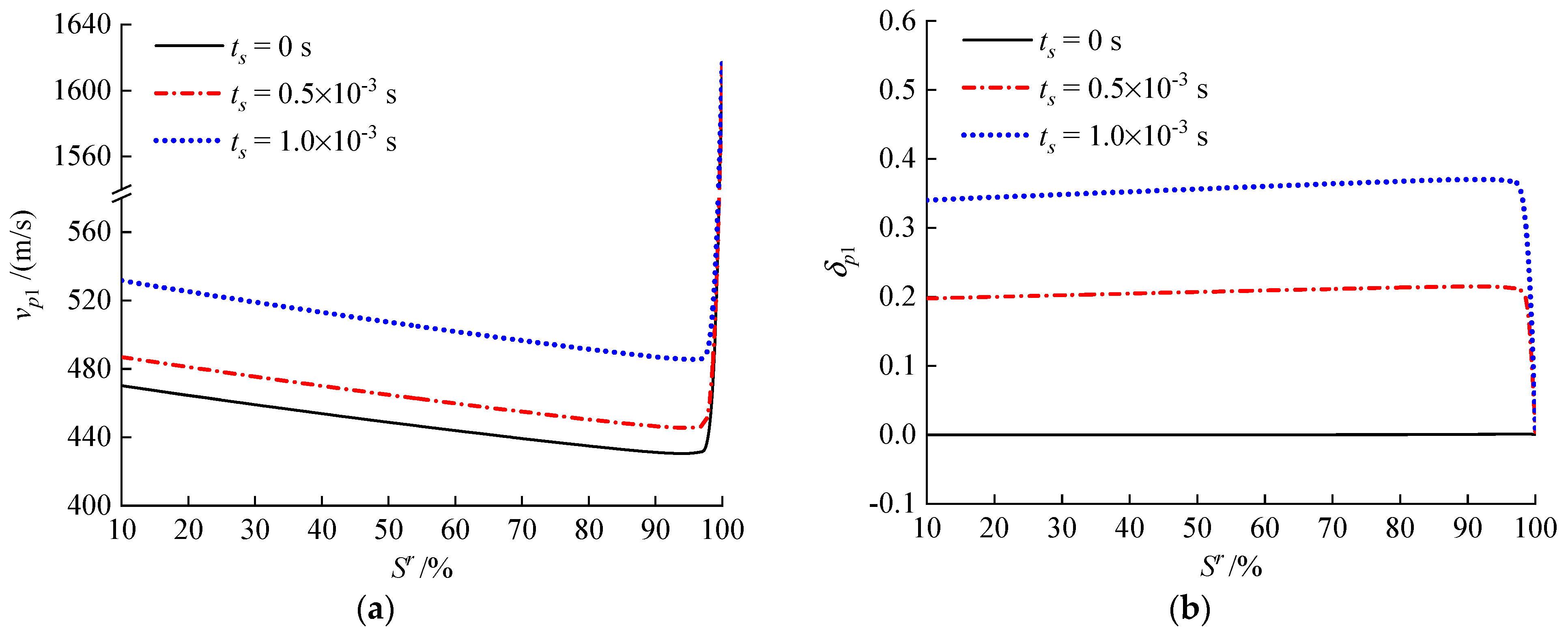

Figure 4, Figure 5 and Figure 6 depict the variations for $v_{p1}$,$v_s$, $v_R$, ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$ under various values of $S^r$ and $t_s$, where $S^r$ ranges from 10% to 100% and $t_s$ is taken to be 0 s, 0.5 × 10⁻³ s, and 1.0 × 10⁻³ s, respectively. As depicted in Figure 4, Figure 5 and Figure 6, $v_{p1}$ is the largest, followed by $v_s$, and then $v_R$. In contrast, the order of attenuation coefficients runs entirely counter to the order of wave speed. As shown in Figure 4a, Figure 5a and Figure 6a, $v_{p1}$,$v_s$, and $v_R$ decrease obviously with the increase of $S^r$ when the foundation soil is partially saturated. Although, there is a sudden sharp increase in $v_{p1}$ and $v_R$ but not in $v_s$ when the foundation soil reaches complete saturation state. At the same time, as clarified in Figure 4b, Figure 5b and Figure 6b, the variations of ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$ with $S^r$ run diametrically counter to that of $v_{p1}$,$v_s$, and $v_R$ with $S^r$. On the other side, the effects of $t_s$ on $v_{p1}$,$v_s$, $v_R$, ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$ are conspicuous from the variations in Figure 4, Figure 5 and Figure 6. For P₁, S, and Rayleigh waves, the curves reveal that $v_{p1}$,$v_s$, $v_R$, ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$ enlarge with the increase of $t_s$ value. In practical engineering, P₁, S, and Rayleigh waves are the main application object, whereas P₂ and P₃ waves (not shown graphically in this work) are challenging to observe in engineering practice due to their slow speed and fast attenuation. Therefore, for the works of wave propagation in unsaturated or saturated foundation soil, it is essential to account for the effect of flow-independent viscosity from the solid skeleton. Additionally, the soil–water characteristic curve (SWCC) is depicted in Figure 7 (ϕ represents the matric suction), illustrating that the increase of $S^r$ will reduce the matric suction ϕ of soil. When soil is completely saturated (S^r = 100%), ϕ will decrease to 0. Undoubtedly, the effect of ϕ and $S^r$ on the motion behaviors (speed and attenuation) of bulk and Rayleigh waves is opposite.

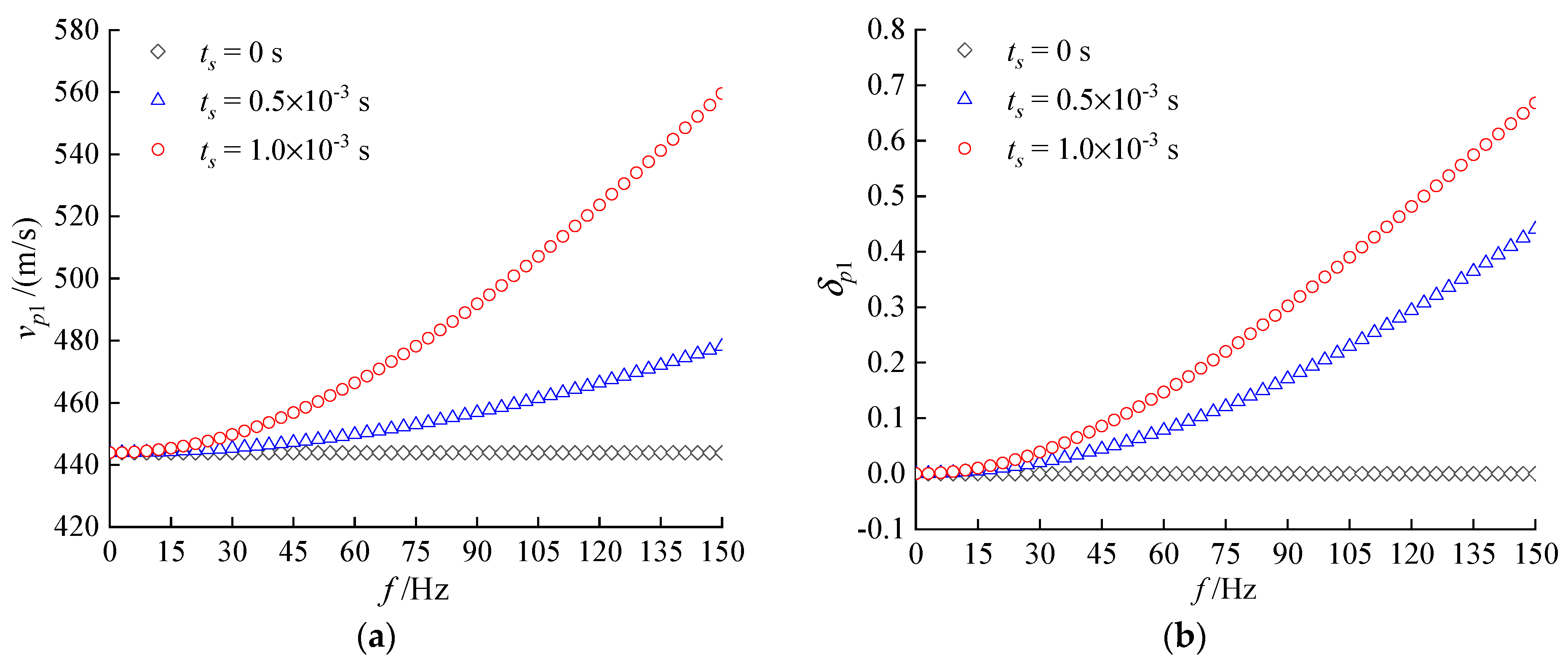

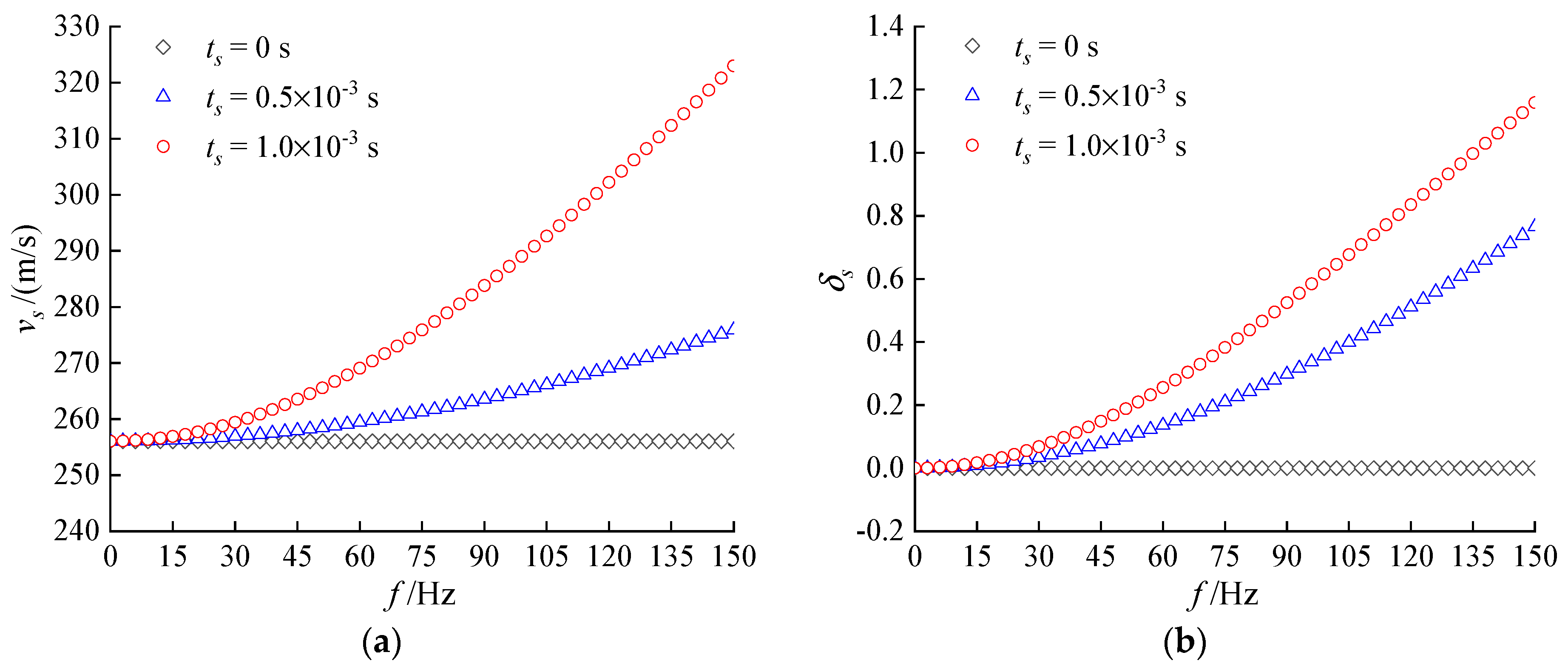

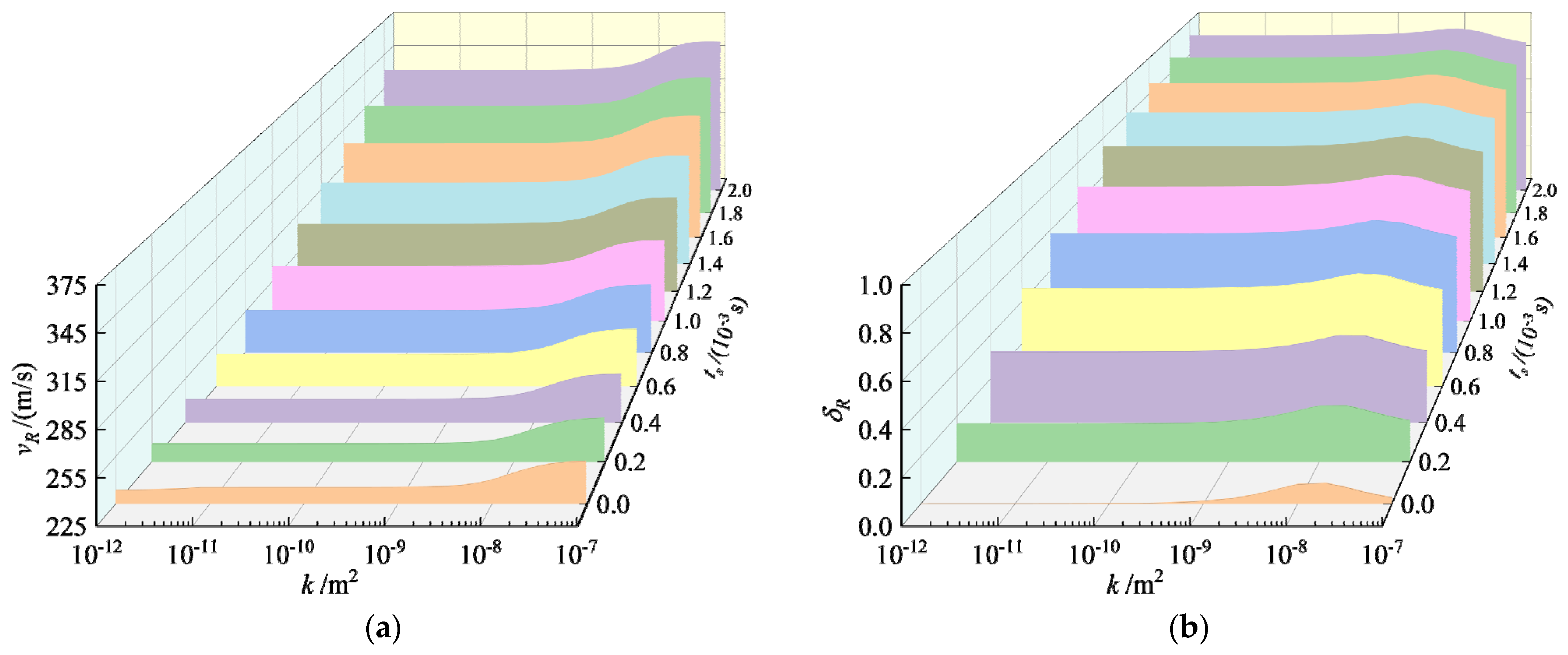

The dependency of $v_{p1}$,$v_s$, $v_R$, ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$ on $t_s$ and $f$ are depicted in Figure 8, Figure 9 and Figure 10, therein $f$ ranges from 0.01 Hz to 150 Hz, $t_s$ is taken to be 0 s, 0.5 × 10⁻³ s, and 1.0 × 10⁻³ s, respectively, and the value of other physical parameters refers to Table 1. It can be captured from Figure 8, Figure 9 and Figure 10 that each wave presents positive relativity between both the wave speeds and attenuation coefficients and the frequency. In contrast, this positive relativity will be hidden when the soil skeleton viscosity is not considered. This is a vital issue worthy of attention in practical engineering applications. Meanwhile, Figure 8, Figure 9 and Figure 10 show that the increase of $v_{p1}$,$v_s$, $v_R$, ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$ will accompany the enlargement of $t_s$.

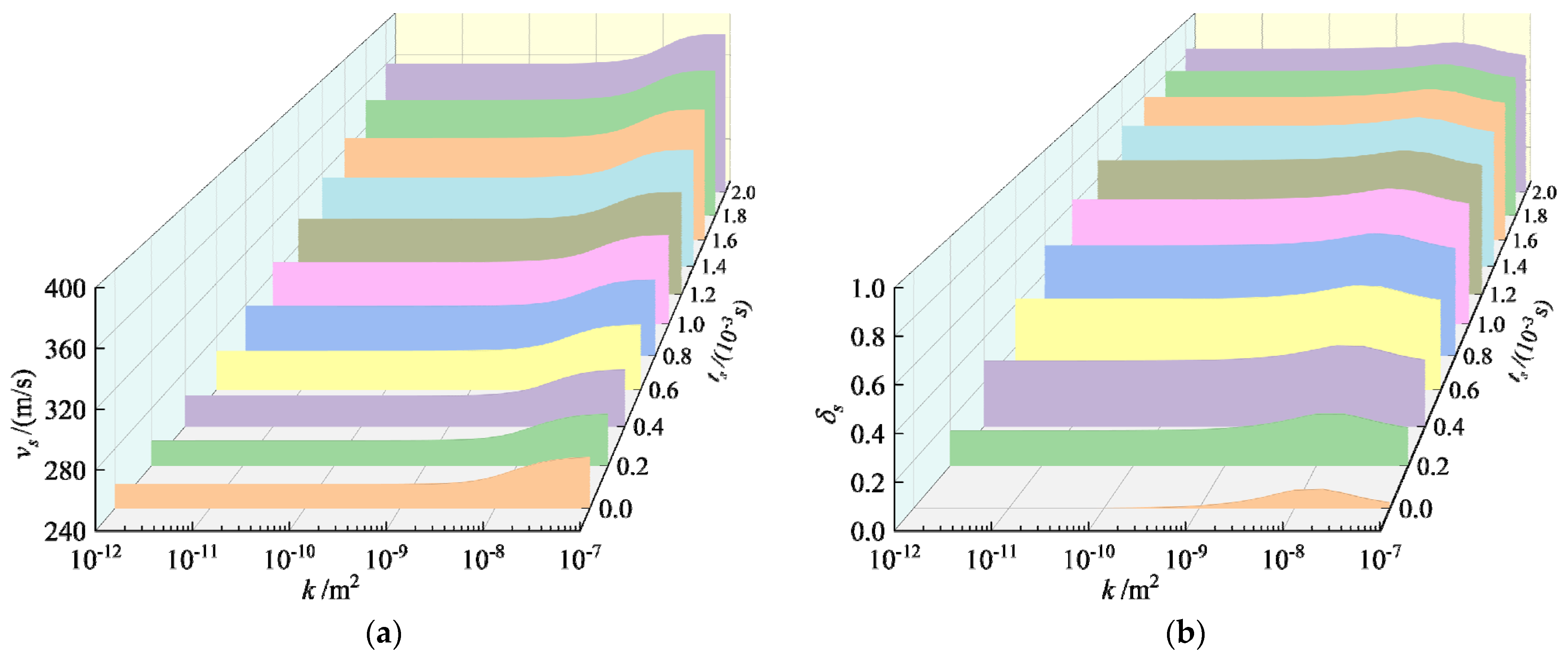

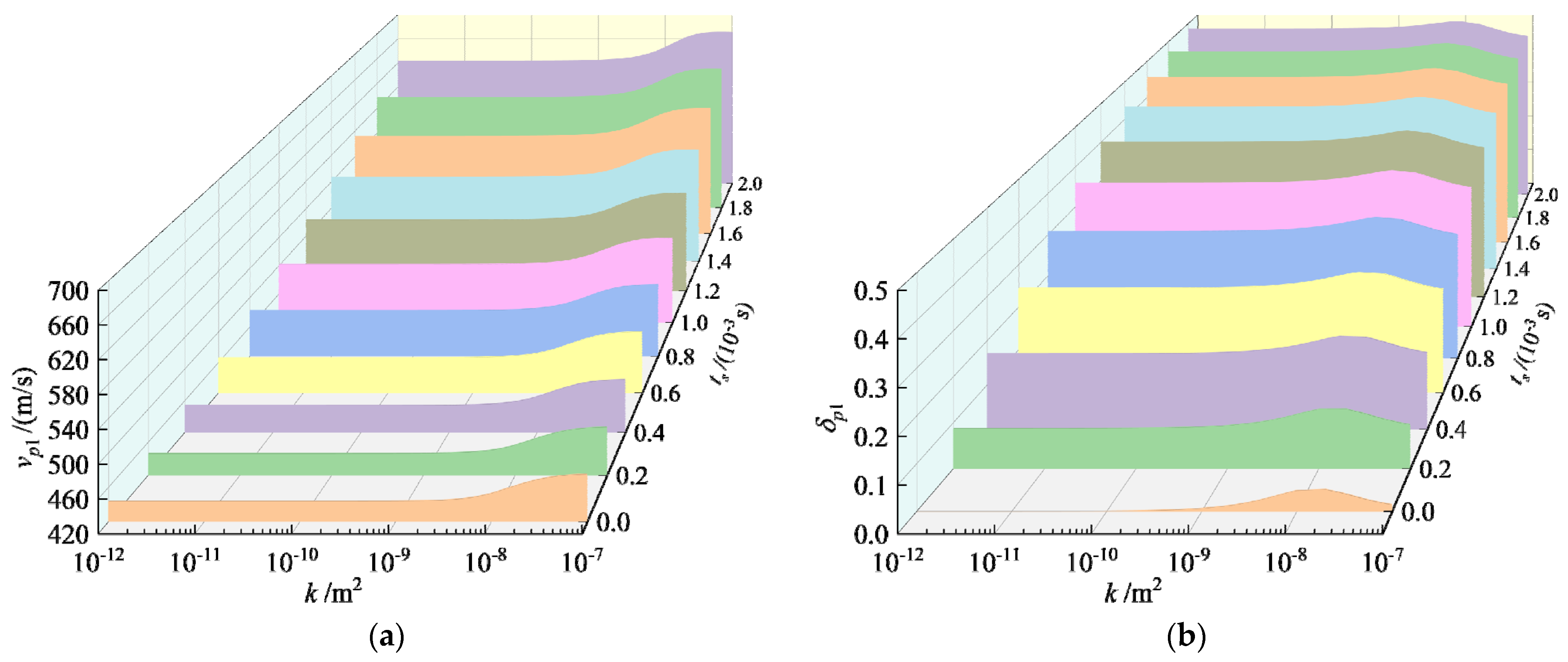

As mentioned in Equations (25)–(27), the flow-dependent viscosities from pore-liquid and pore-air are characterized by the parameters $b_w$ and $b_g$ in Equations (26) and (27) and finally represented by the intrinsic permeability $k$. For comparison, Figure 11, Figure 12 and Figure 13 demonstrate the effects of $k$ and $t_s$ on $v_{p1}$,$v_s$, $v_R$, ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$. In this example, the value range of $k$ is 10⁻¹²~10⁻⁷ m², while $t_s$ ranges from 0 × 10⁻³ s to 2.0 × 10⁻³ s. It can be seen from Figure 11a, Figure 12a and Figure 13a that $v_{p1}$,$v_s$, and $v_R$ remain unchanged when $k$ is in the range of 10⁻¹²~10⁻⁹ m² but increase gradually with the enlargement of $k$ in the high permeability zone (i.e., k = 10⁻⁹ m²~10⁻⁷ m²). For ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$, the variation trends in Figure 11b, Figure 12b and Figure 13b display an approximately normal distribution in the entire permeability range. Furthermore, as above-mentioned discussion, the increase of $t_s$ will make the dependences of $v_{p1}$,$v_s$, $v_R$, ${\delta }_{p1}$, ${\delta }_s$, and ${\delta }_R$ on $k$ move upward along the positive direction of the vertical axis. Apparently, through comparison, it can be seen that compared to the fluid viscosity, the soil skeleton viscosity has a more prominent contribution to the motion behaviors (speed and attenuation) of elastic waves and is more significant for practical engineering applications.

The increase in the relaxation time will influence the interaction between the microscopic particles of the material, and thus will change the wave speed and attenuation coefficient of the bulk and Rayleigh waves. The effect of saturation on the propagation behavior of bulk and Rayleigh waves can be attributed to the increase of saturation. The volume of liquid in soil pores increases, and thus the flow-dependent viscosity increases. It leads to the reduction of the wave velocity of elastic waves and the acceleration of attenuation. However, when the soil tends to be fully saturated, the mutual coupling of the liquid and gas phase disappears, resulting in the disappearance of the capillary effect and matric suction of the soil, so that the wave speeds of P₁ and Rayleigh waves suddenly increase and the attenuation coefficients suddenly decrease. The soil intrinsic permeability represents a quantitative property of porous material, depending solely on the pore structure of porous material. The larger the intrinsic permeability, the smaller the effect of flow viscosity on the propagation of bulk and Rayleigh waves, which will have a greater effect on its wave speed and attenuation coefficient.

5. Conclusions

In this article, considering the influence of both the flow-independent and flow-dependent viscosities for soils on the elastic wave propagation, a modified viscoelastic dynamic model of the three-phase partially saturated soil is established to investigate the motion behaviors of bulk and Rayleigh waves. The characteristics equations of bulk and Rayleigh waves have been yielded analytical in explicit form. The dependences of the motion behaviors (speed and attenuation) for various waves on the physical parameters are graphed through employing several numerical examples. The main conclusions are summarized as follows: (i) Both the wave speed and attenuation coefficient of P₁, S, and Rayleigh waves increase obviously with the flow-independent viscosity at both the partially and completely saturated states; (ii) In the high permeability zone, both the flow-independent and flow-dependent viscosities have an apparent influence on the propagation for P₁, S, and Rayleigh waves; (iii) In the low and middle permeability zone, only the flow-independent viscosity affects the propagation behavior for P₁, S, and Rayleigh waves.
